    FA11825_TINA3-WW

    Print

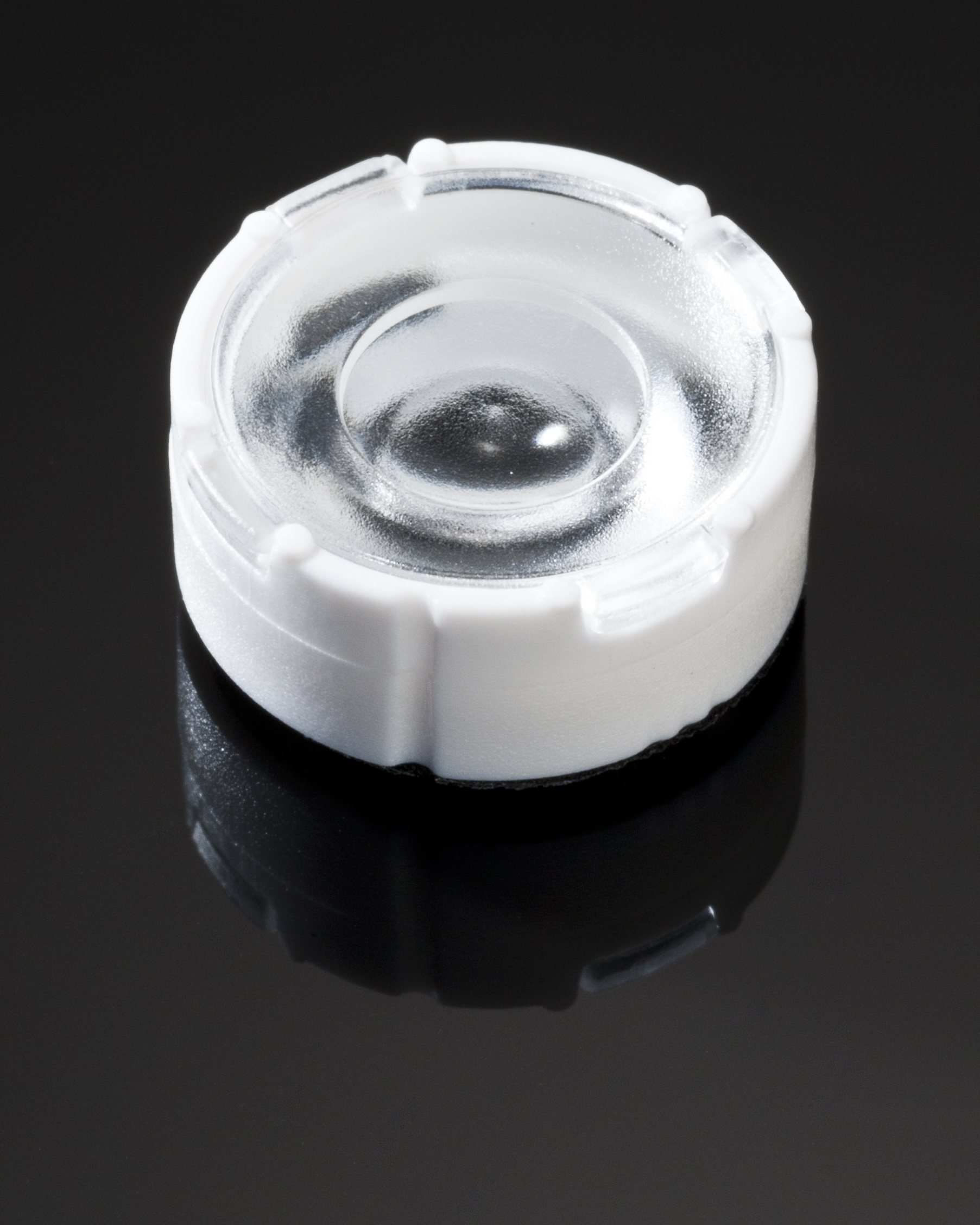

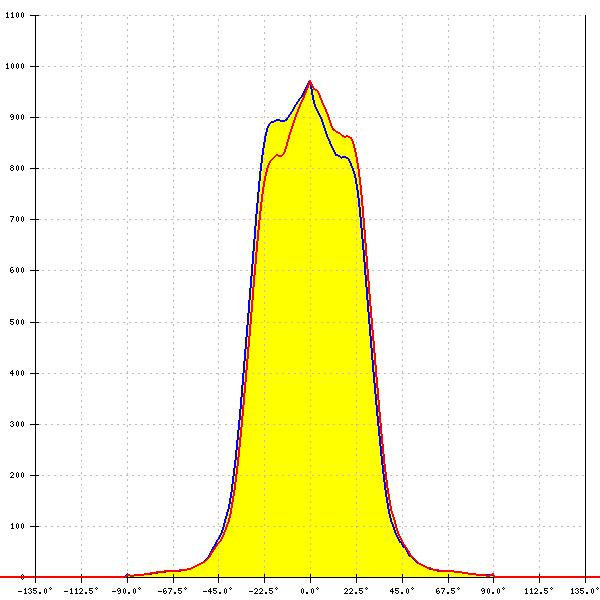

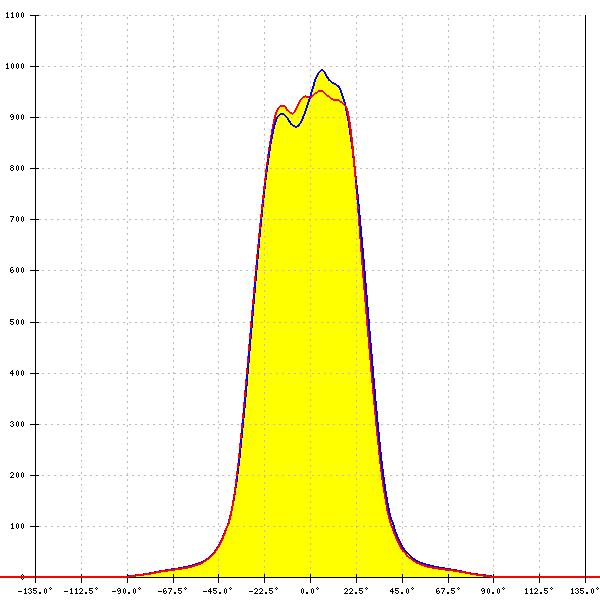

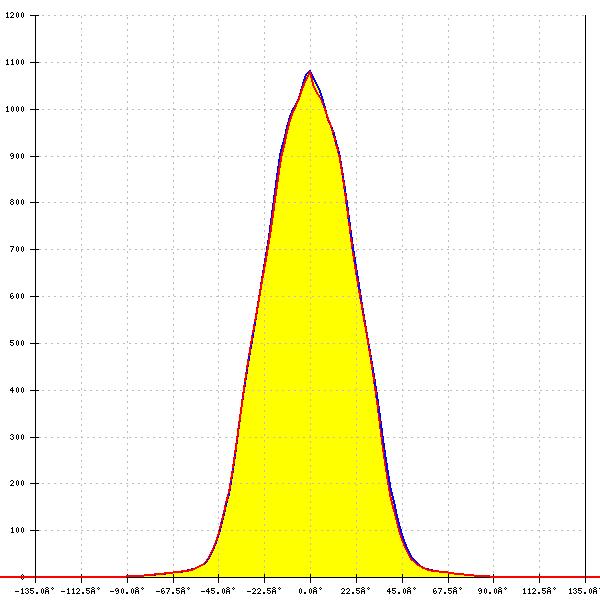

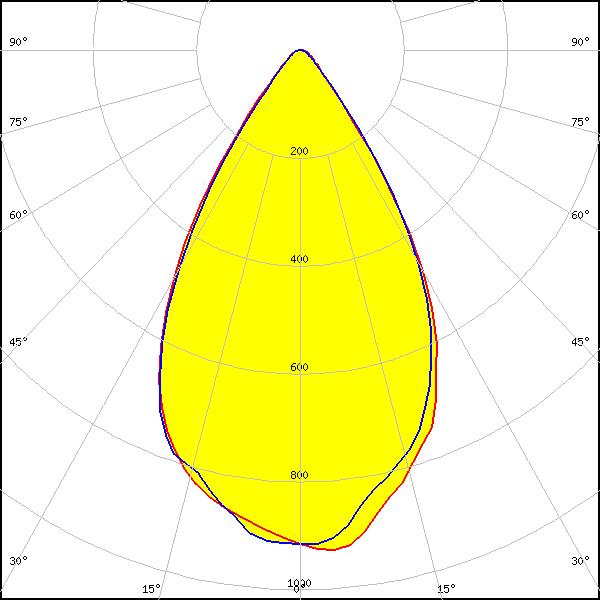

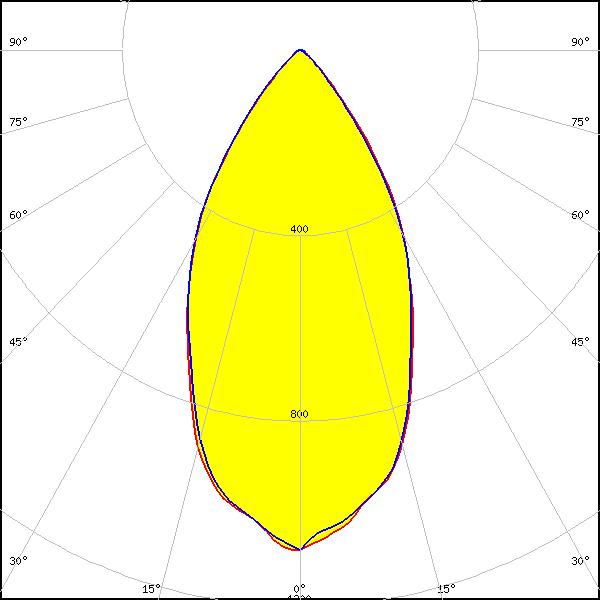

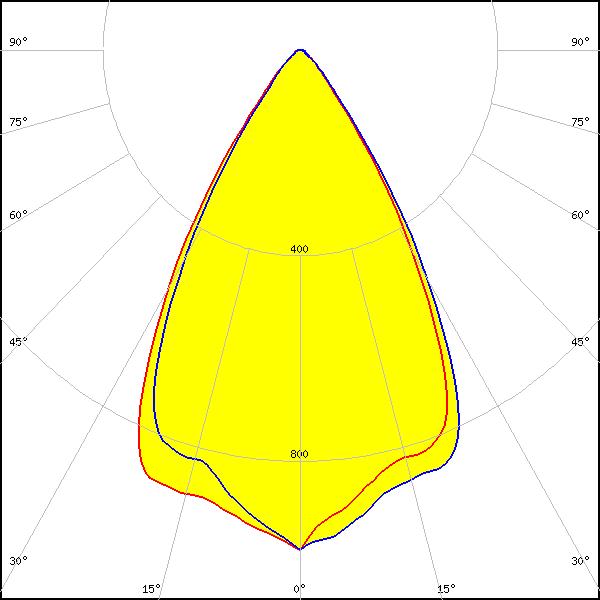

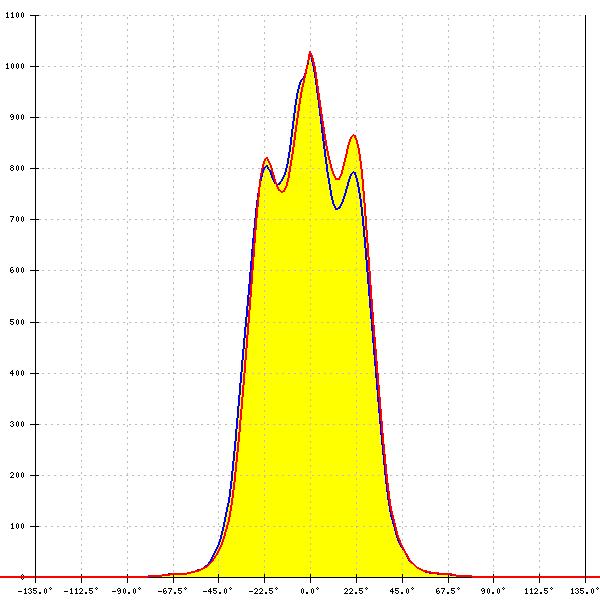

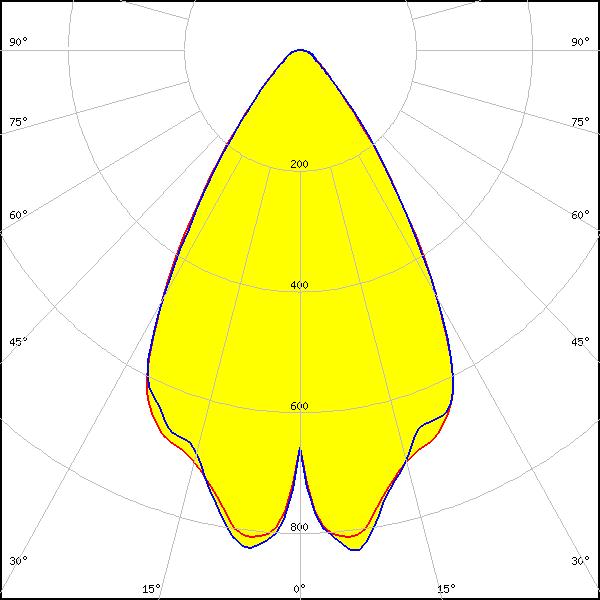

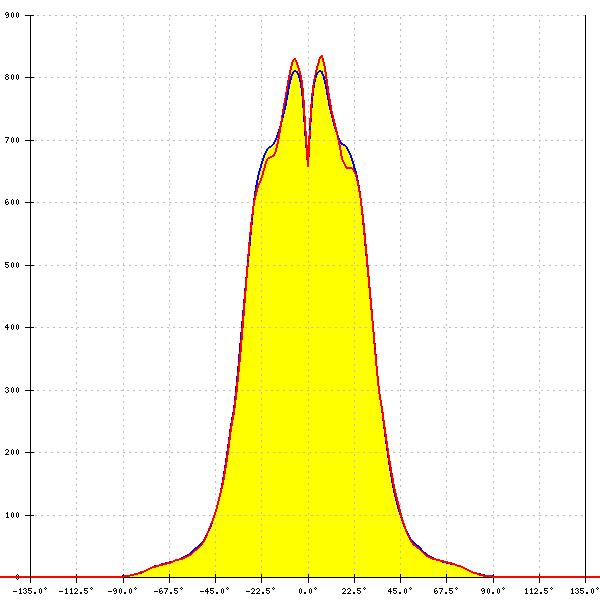

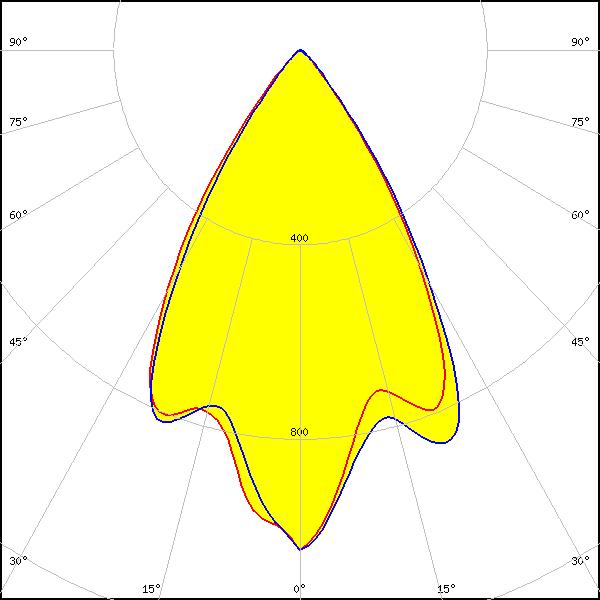

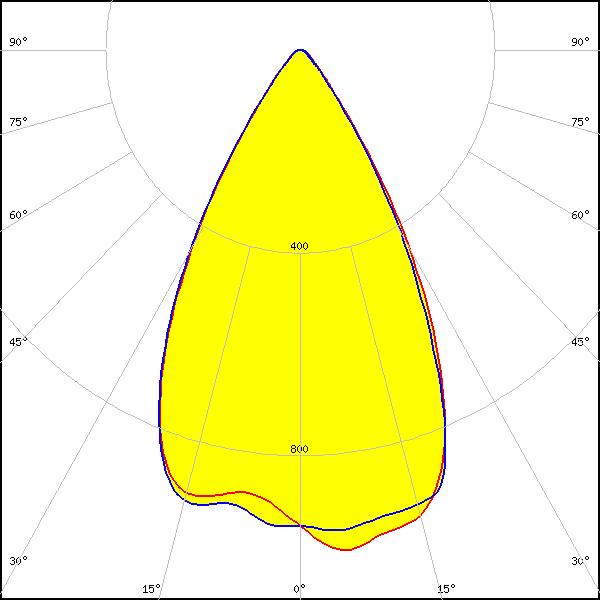

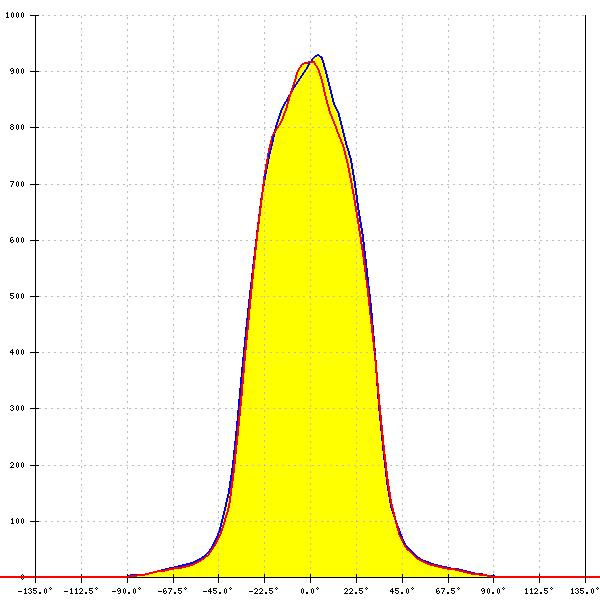

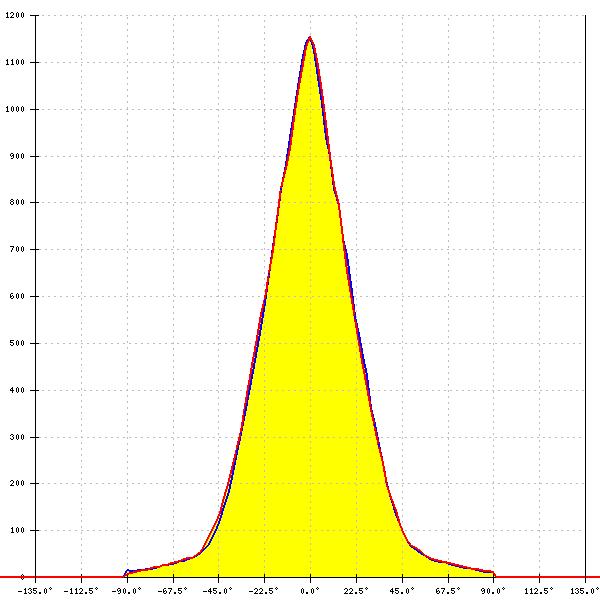

    ~55° wide beam optimized for CREE XP-E. Assembly with holder, installation tape and location pins.

    Specification
    • Dimensions:
      16 mm
    • Height:
      6.90 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2016 pcs
    • Box weight:
      3.2 kg
    • MPQ:
      288 pcs
    • MOQ:
      288 pcs
    • MOQ size:
      470 x 250 x 50 mm
    • MOQ weight:
      0.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
