FA15229_ROSE-MRK-S

Print

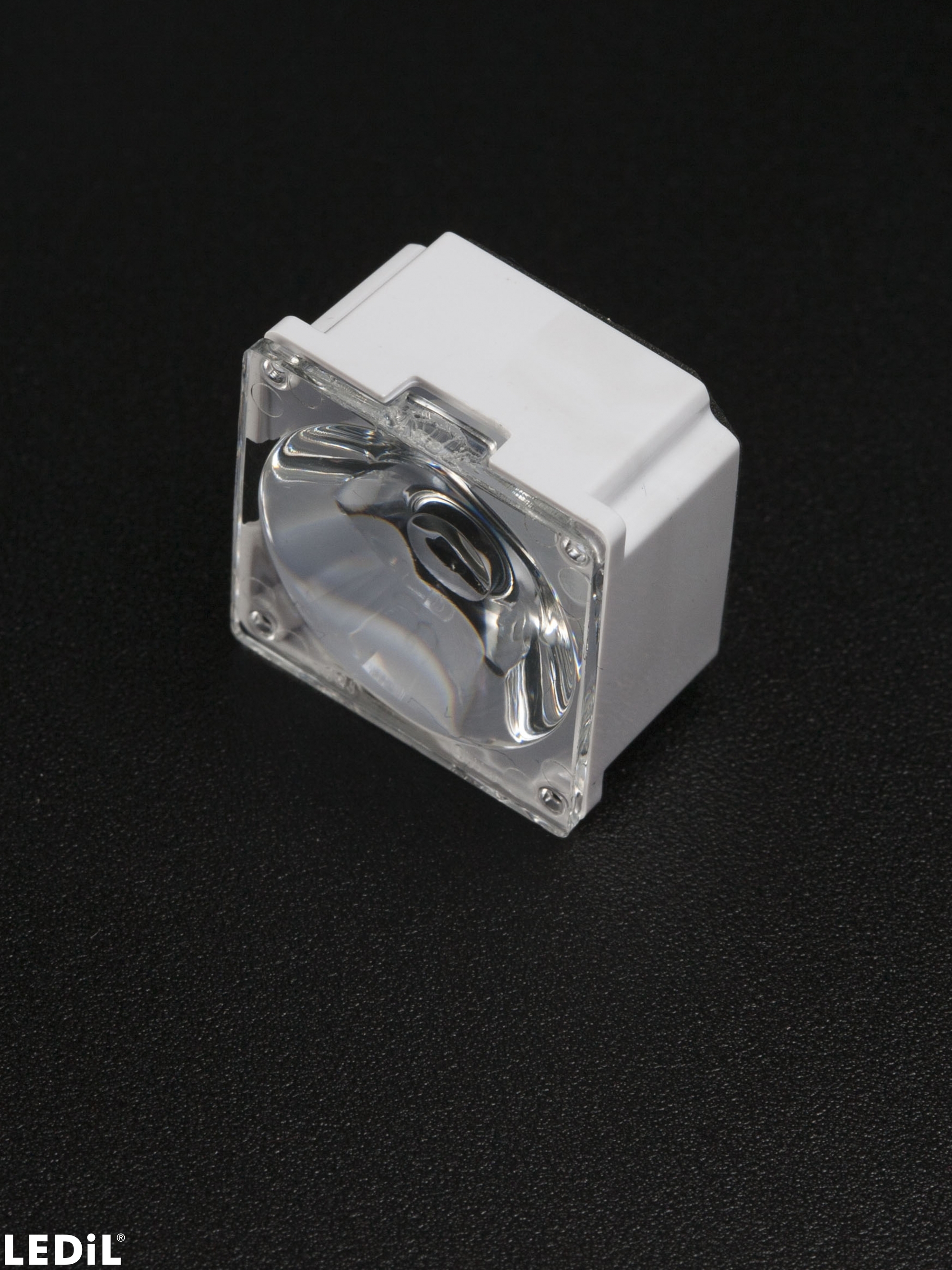

~30° spot beam. Assembly with white holder.

Specification
  • Dimensions:
    22 x  22 mm
  • Height:
    12.95 mm
  • Fastening:
    tape, pin
  • Colour:
    white
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    2304 pcs
  • Box size:
    457 x 260 x 260 mm
  • Box weight:
    9.5 kg
  • MPQ:
    144 pcs
  • MOQ:
    288 pcs
  • MOQ size:
    470 x 240 x 50 mm
  • MOQ weight:
    1.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FA15229_ROSE-MRK-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

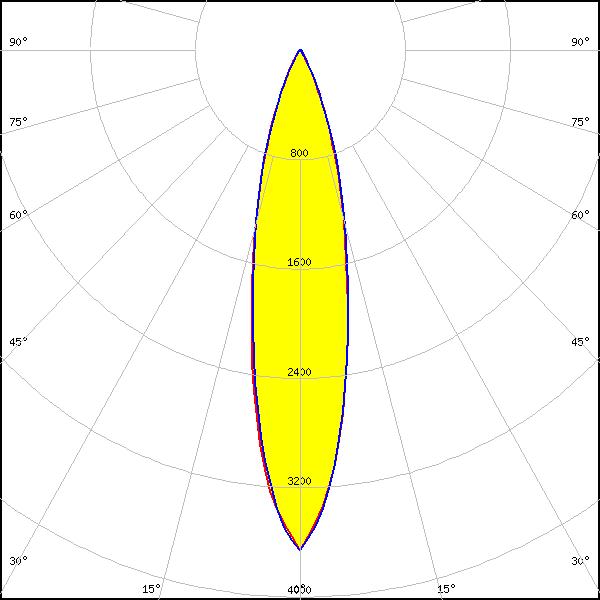

Optical results

LED: XHP50
FWHM: 27°
FWTM: 50°
Peak intensity: 2.909 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

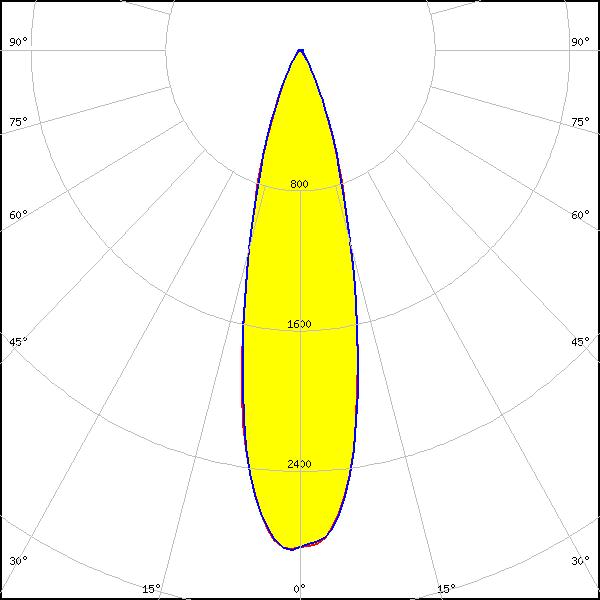

LED: XHP50.2
FWHM: 26°
FWTM: 52°
Peak intensity: 2.860 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

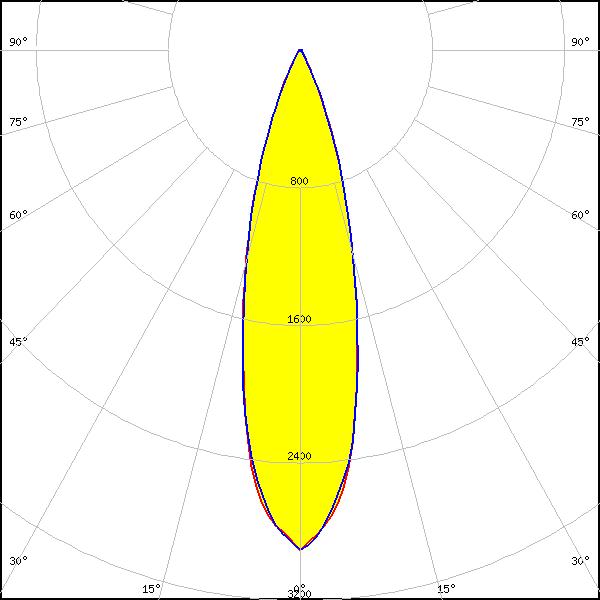

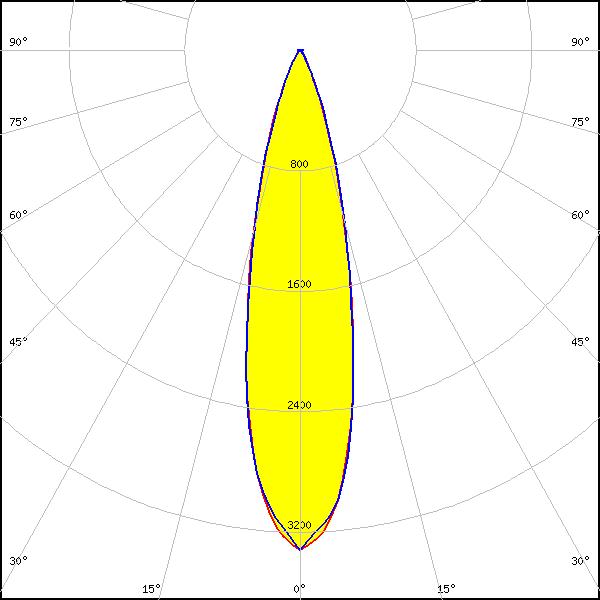

LED: XHP50.3 HD
FWHM: 24°
FWTM: 48°
Peak intensity: 3.321 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

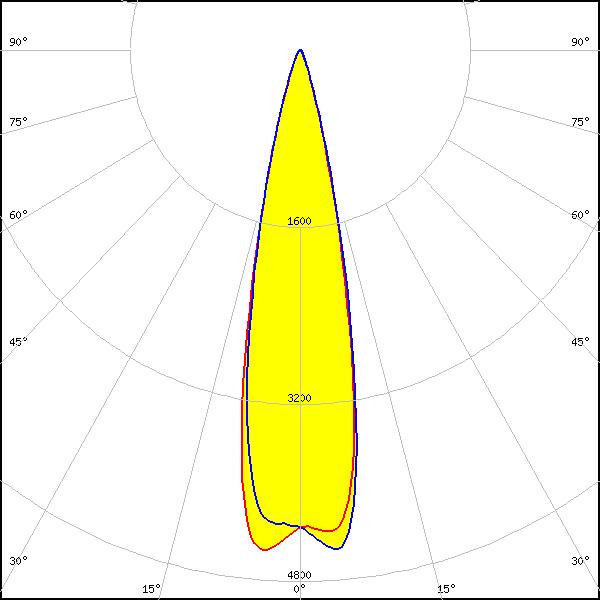

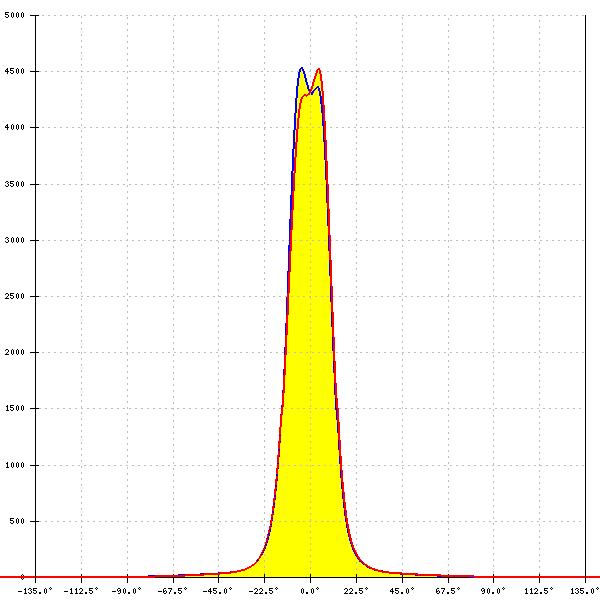

LED: XP-E2
FWHM: 23°
FWTM: 38°
Peak intensity: 4.646 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

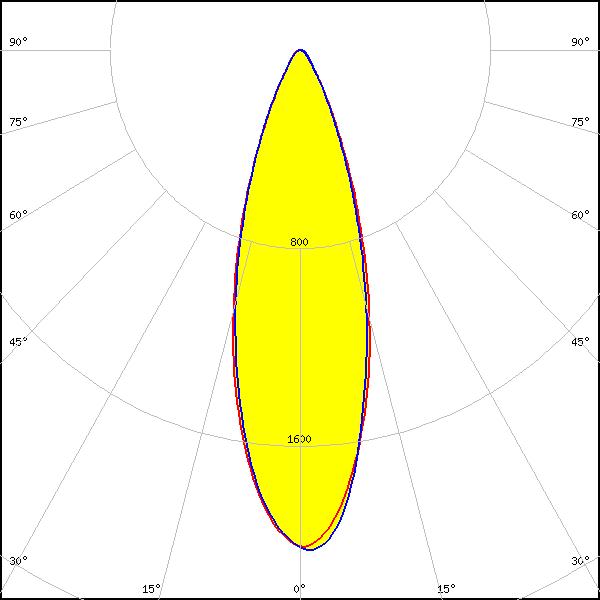

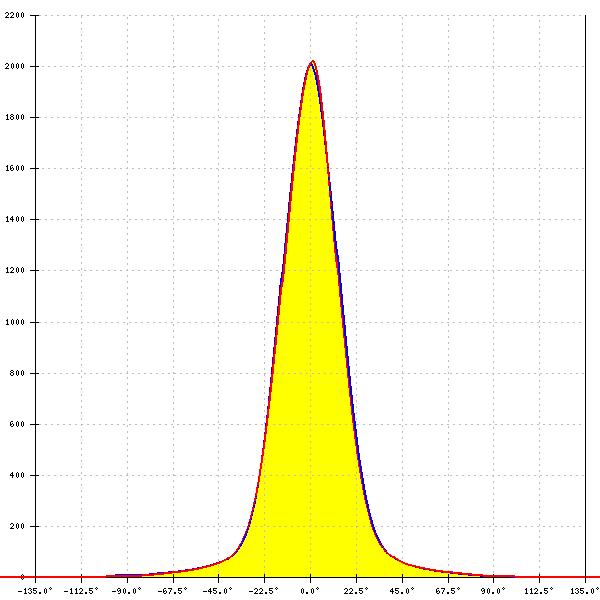

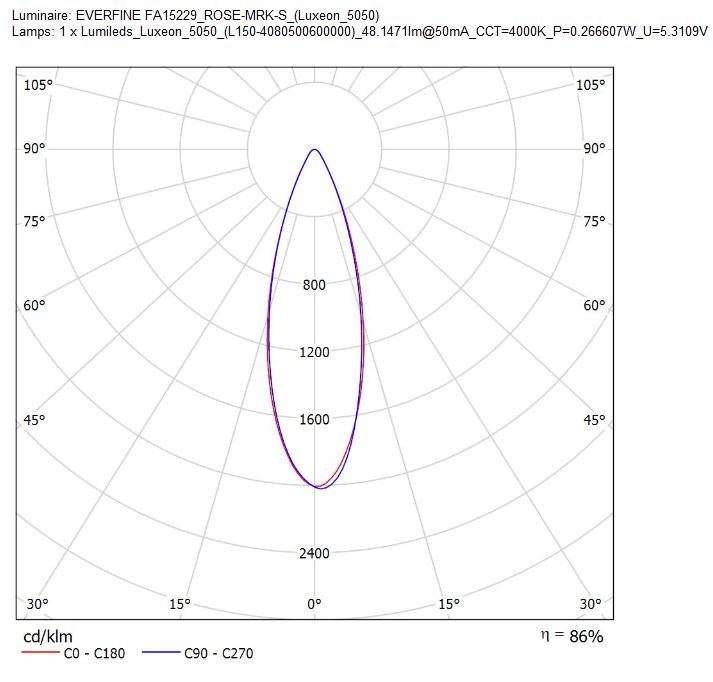

LED: LUXEON 5050 Round LES
FWHM: 33°
FWTM: 61°
Peak intensity: 2.000 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

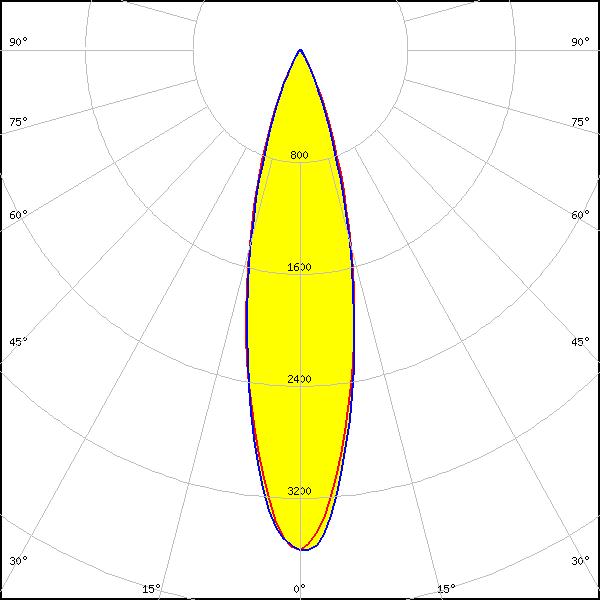

LED: LUXEON 5050 Square LES
FWHM: 26°
FWTM: 50°
Peak intensity: 3.592 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

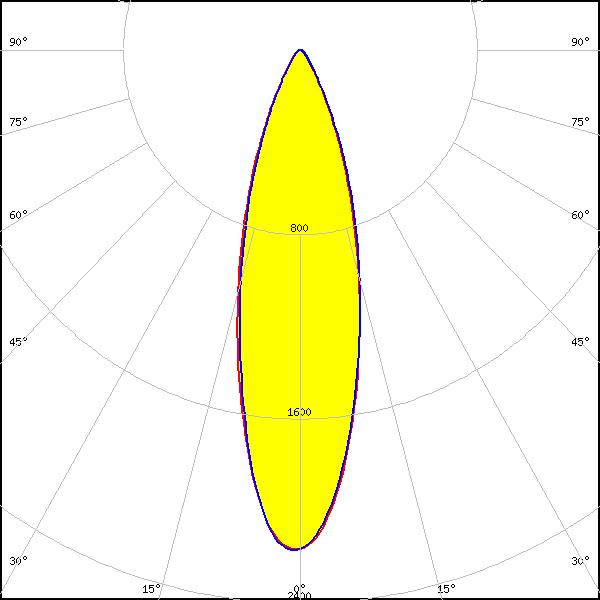

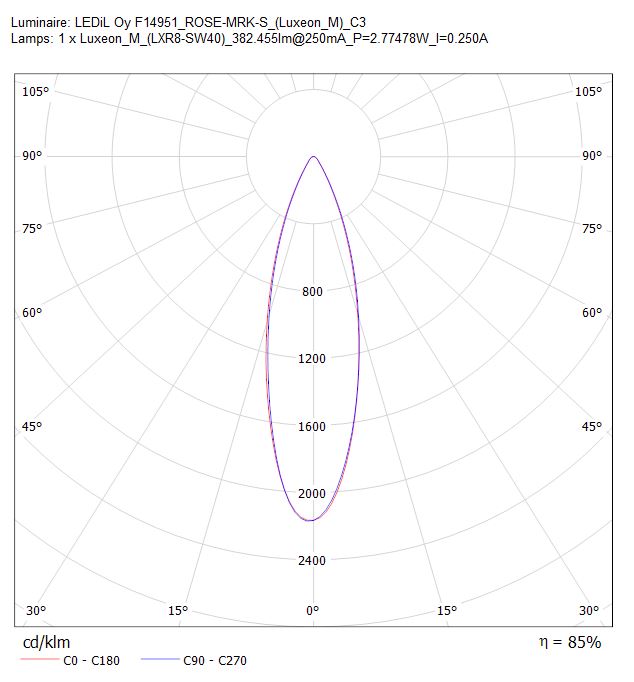

LED: LUXEON M/MX
FWHM: 29°
FWTM: 61°
Peak intensity: 2.170 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

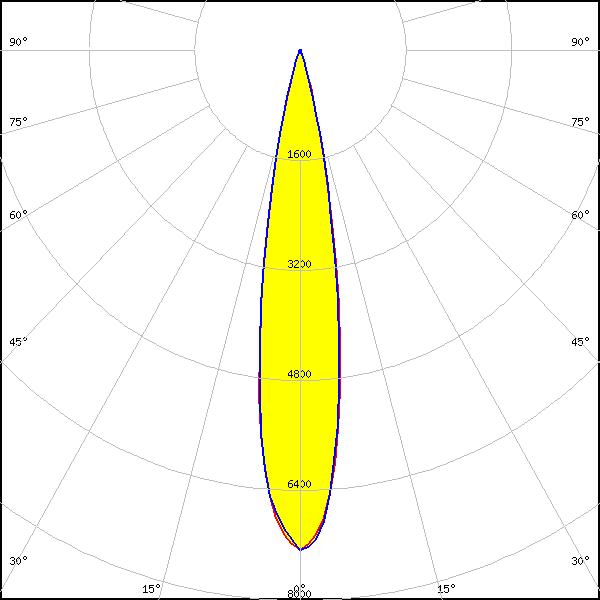

LED: SST-20
FWHM: 18°
FWTM: 32°
Peak intensity: 7.272 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: NFMW48xA
FWHM: 23°
FWTM: 49°
Peak intensity: 3.658 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

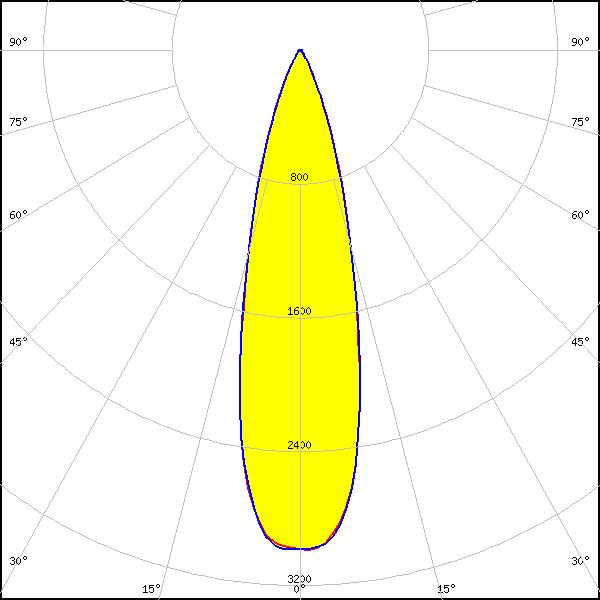

LED: NV4x144A
FWHM: 26°
FWTM: 50°
Peak intensity: 3.010 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

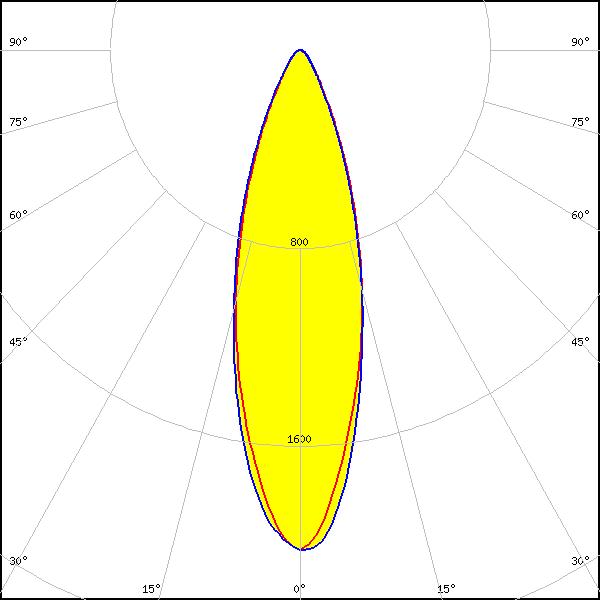

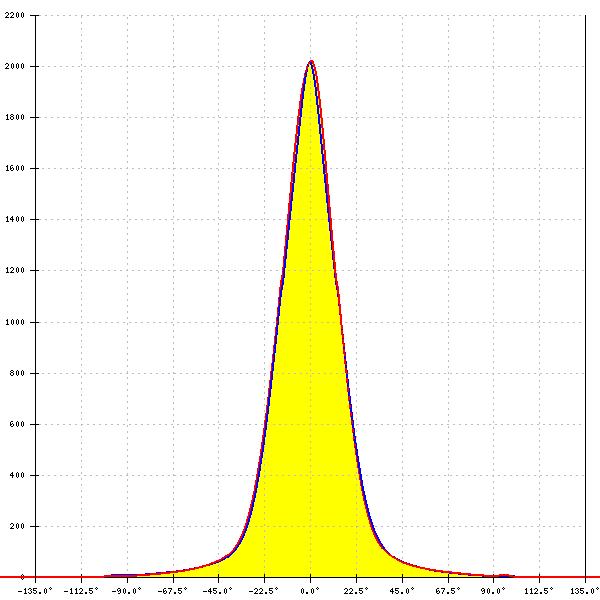

LED: Duris S8
FWHM: 31°
FWTM: 62°
Peak intensity: 2.022 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

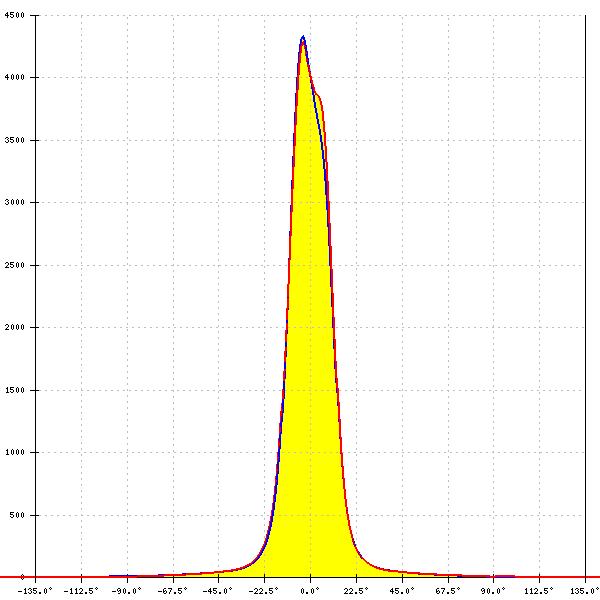

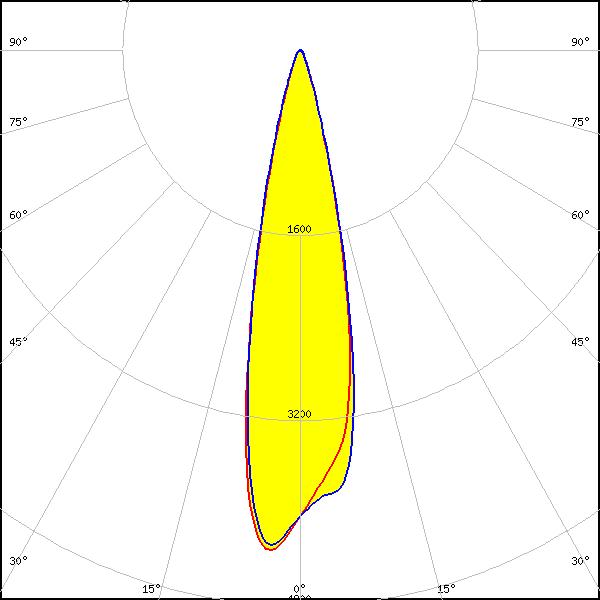

LED: OSLON SSL 150
FWHM: 23°
FWTM: 39°
Peak intensity: 4.395 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
