RONDA-WAS

Print

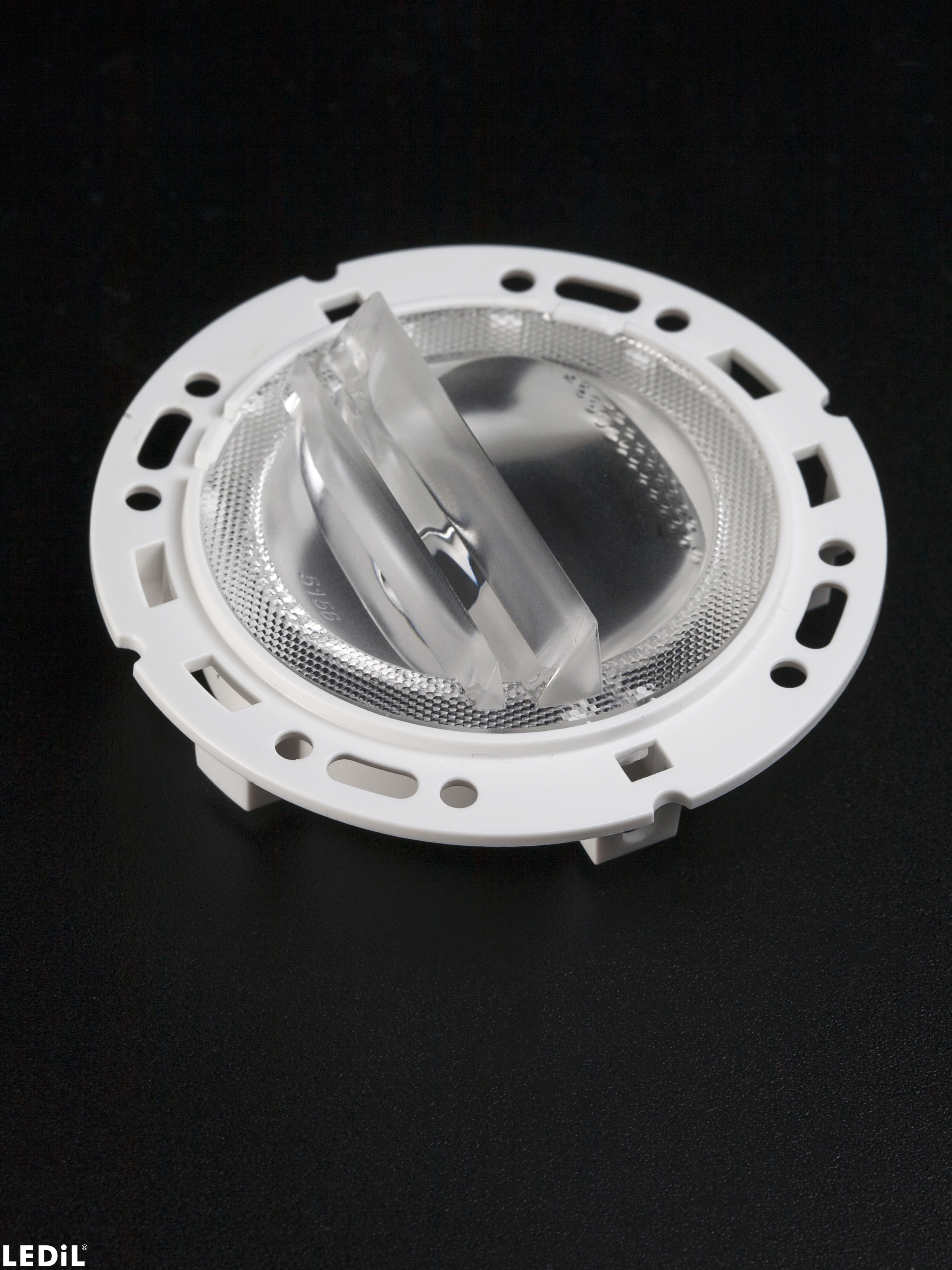

Asymmetric beam for wall washing with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    70 mm
  • Height:
    21.80 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15156_RONDA-WAS
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.30 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    2.20 kg
  • Holder
  • F15155_RONDA-HLD-A
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.40 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.30 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15156_RONDA-WAS
    F15155_RONDA-HLD-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

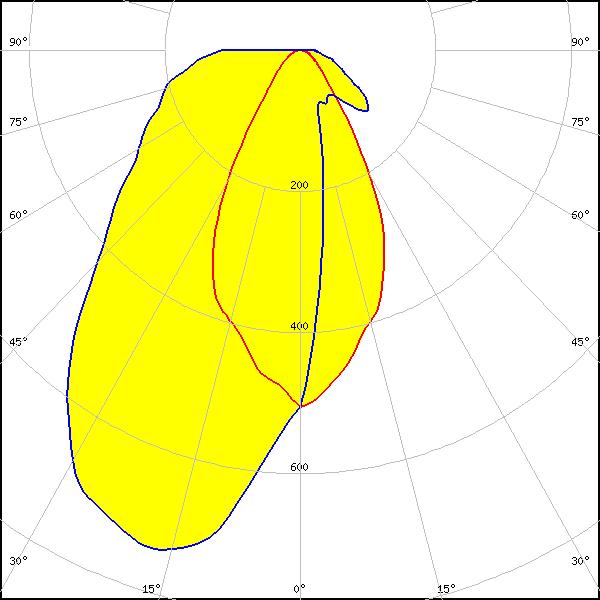

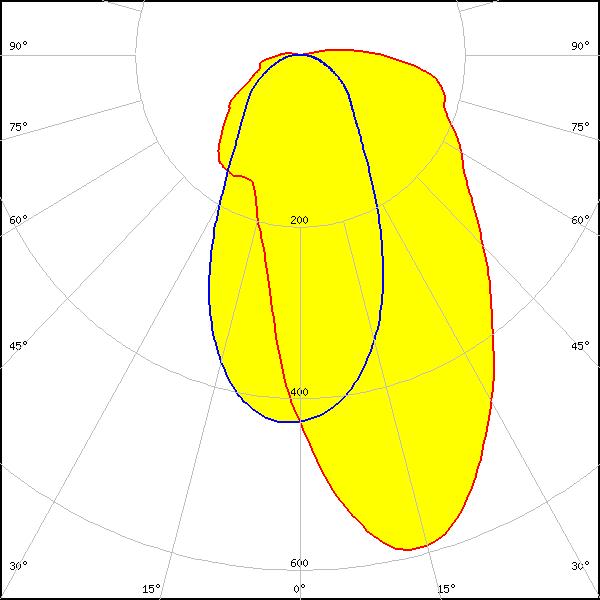

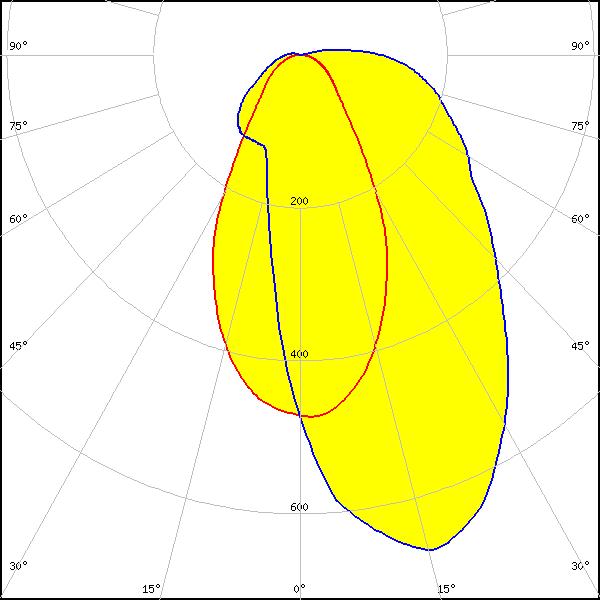

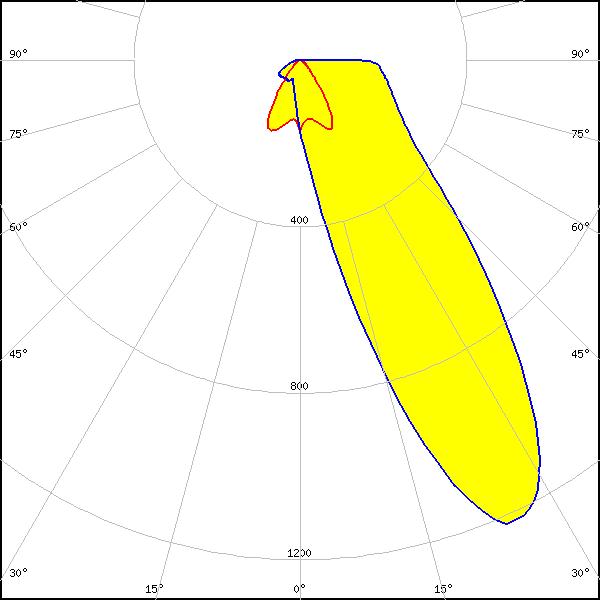

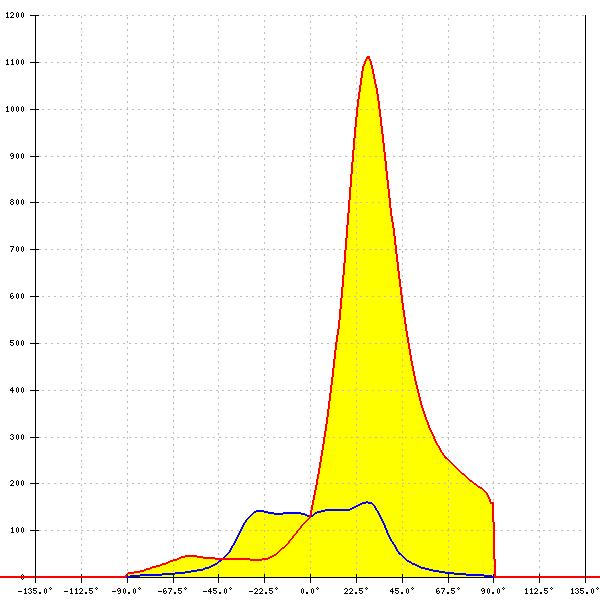

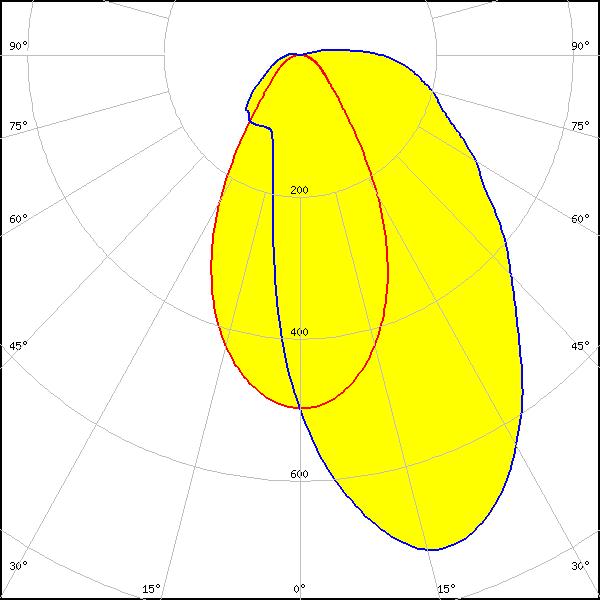

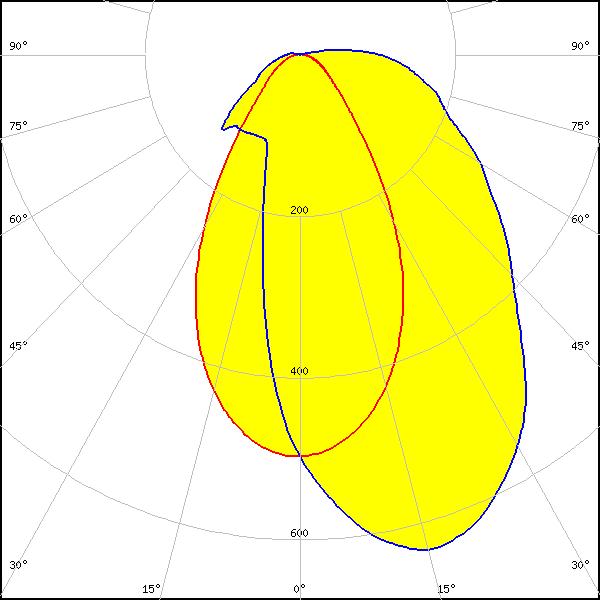

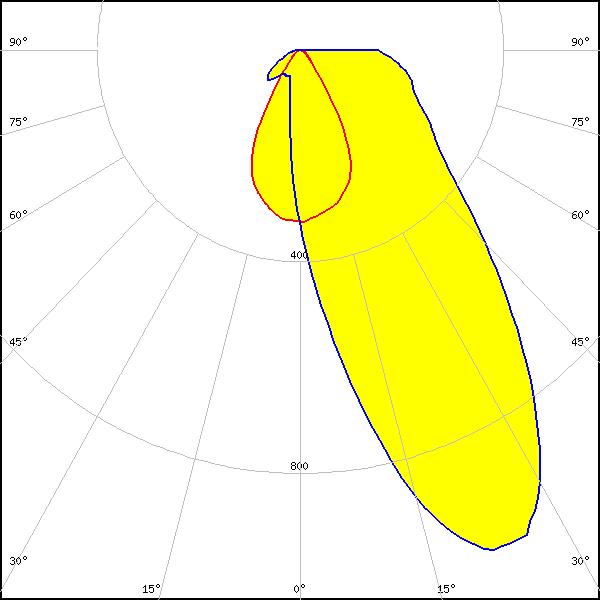

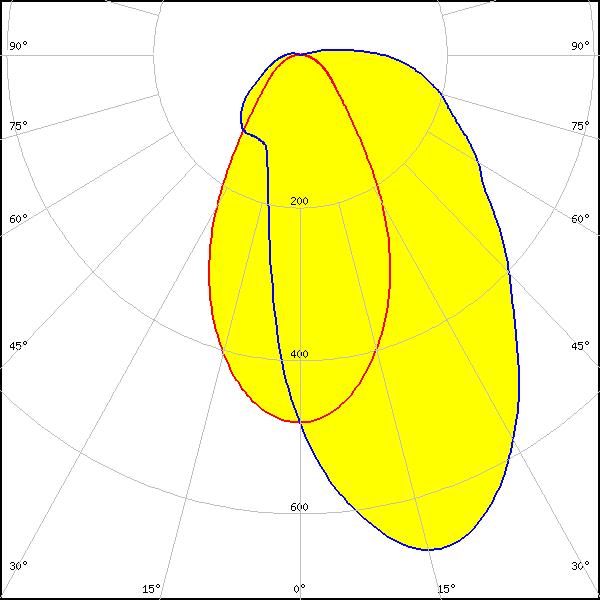

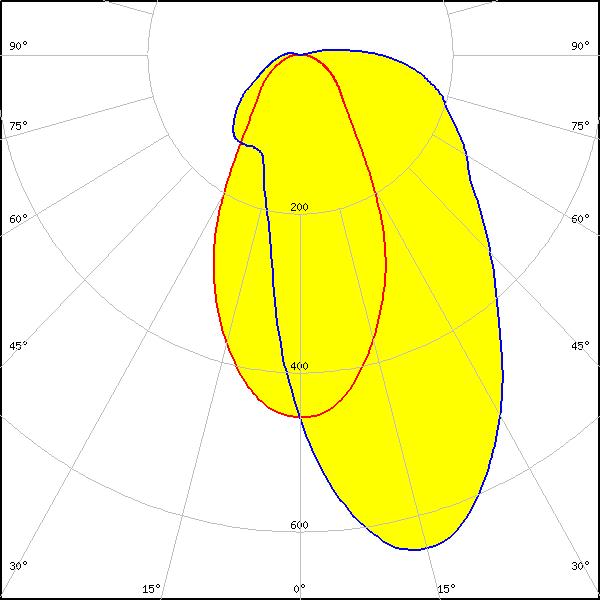

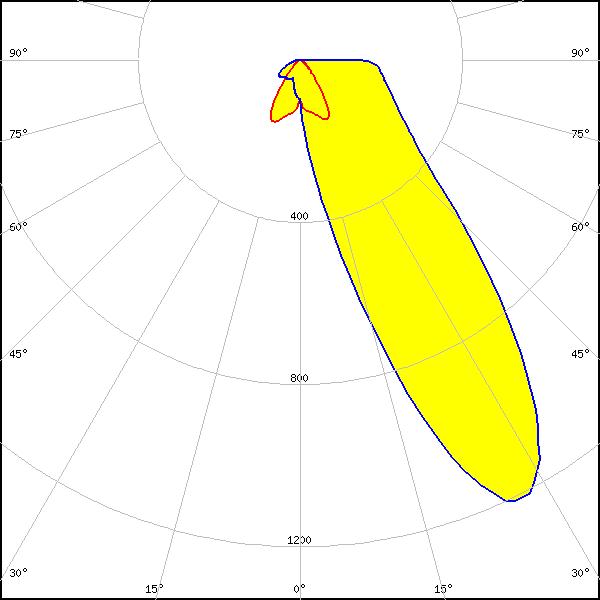

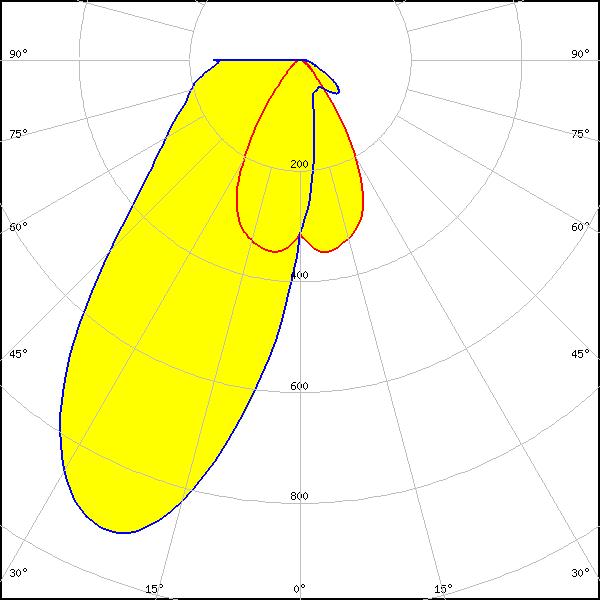

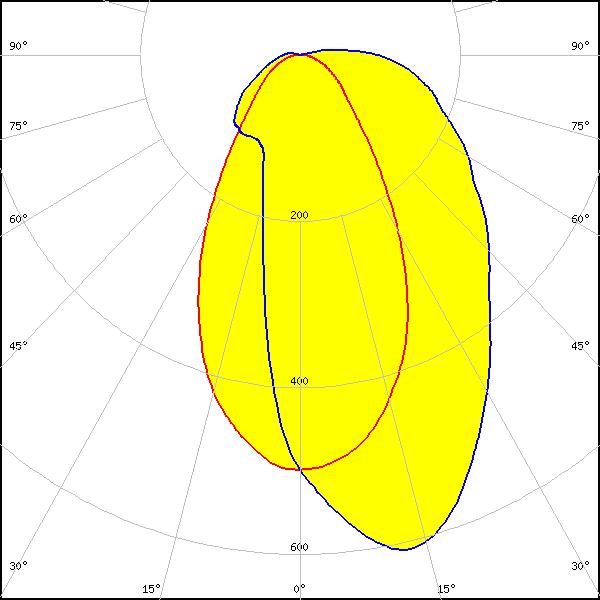

Optical results

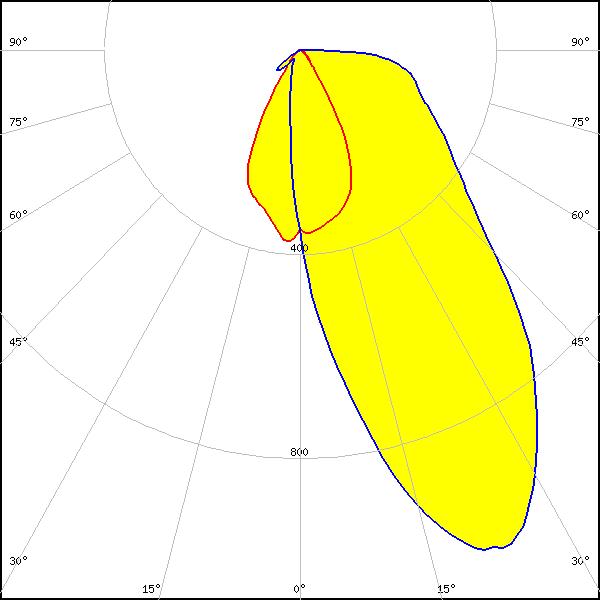

LED: V10 Gen6
LES size: 9.9 mm
Required components:
FWHM: asymmetric
Peak intensity: 1.050 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

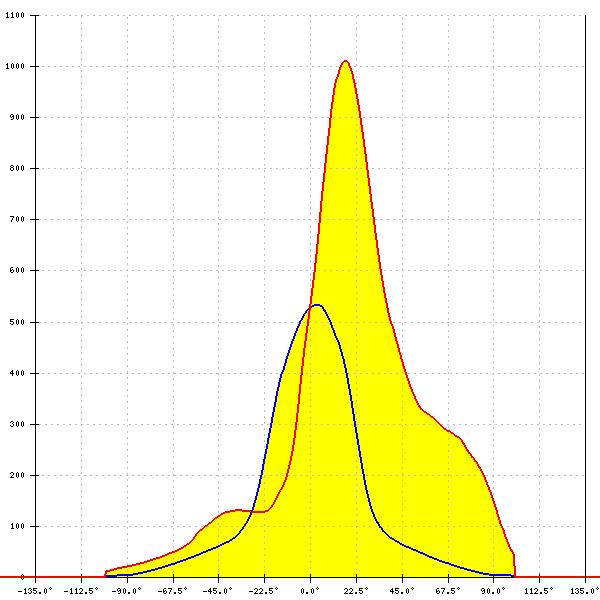

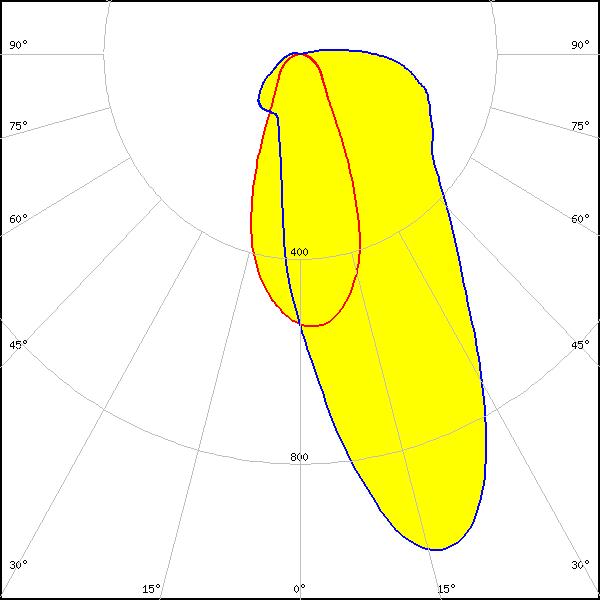

LED: V10 Gen7
LES size: 10.2 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 486 Typ L1
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

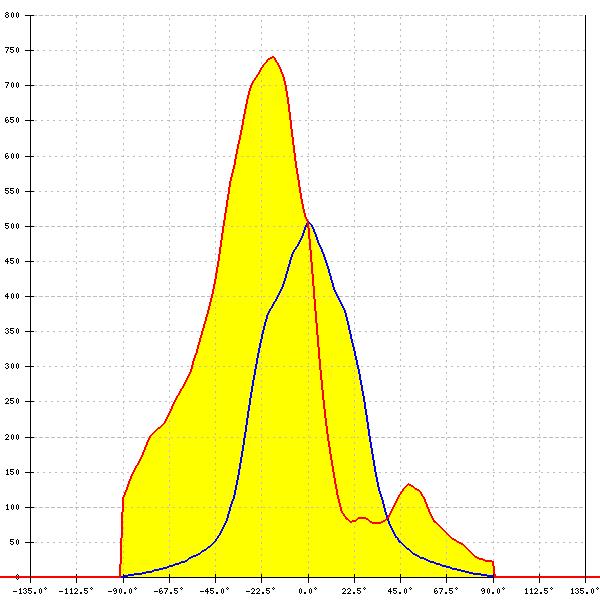

LED: V13 Gen7
LES size: 14.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

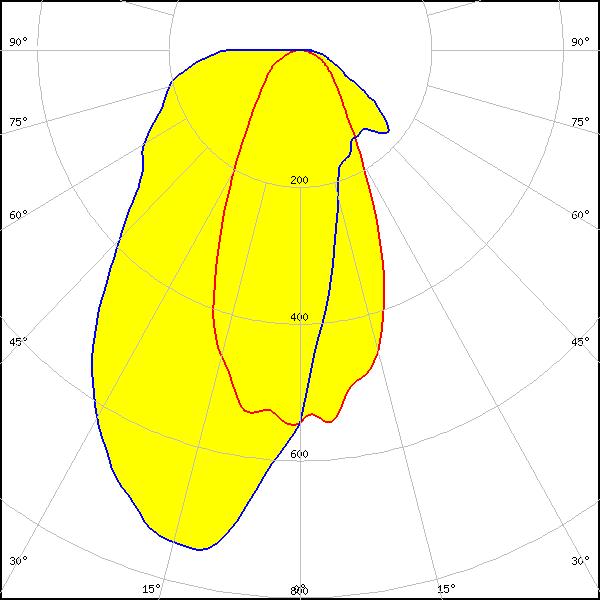

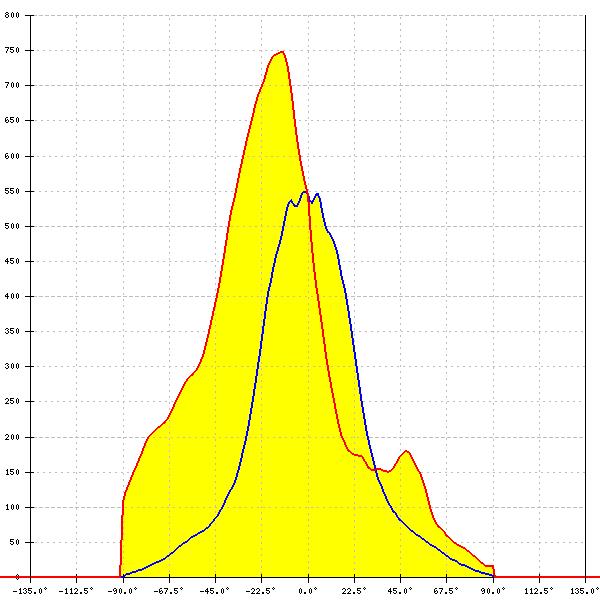

LED: V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.750 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

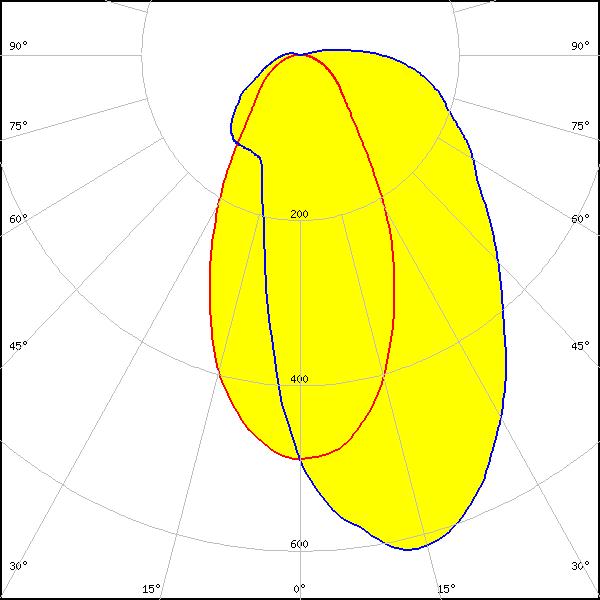

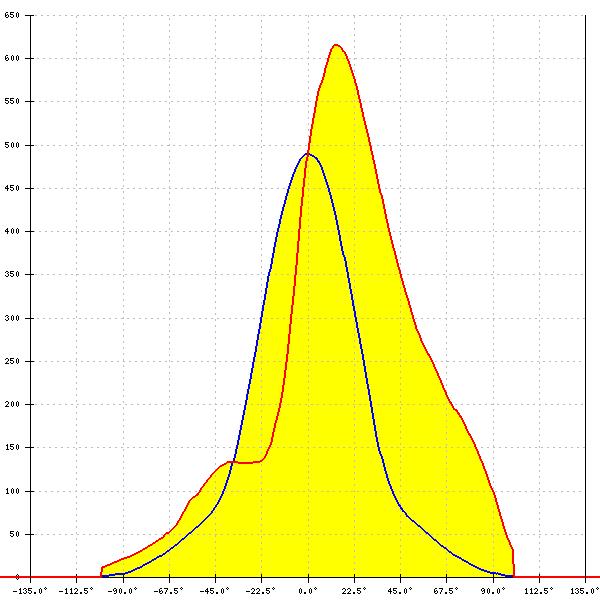

LED: V13 Gen7
LES size: 14.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

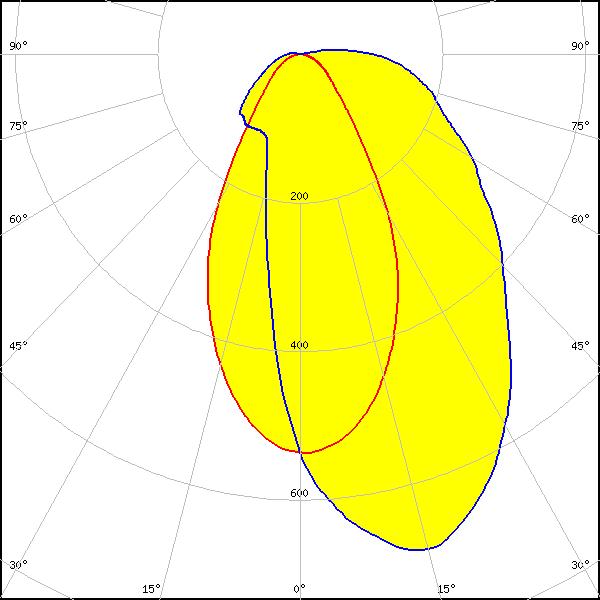

LED: Vero SE 13
LES size: 13.4 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

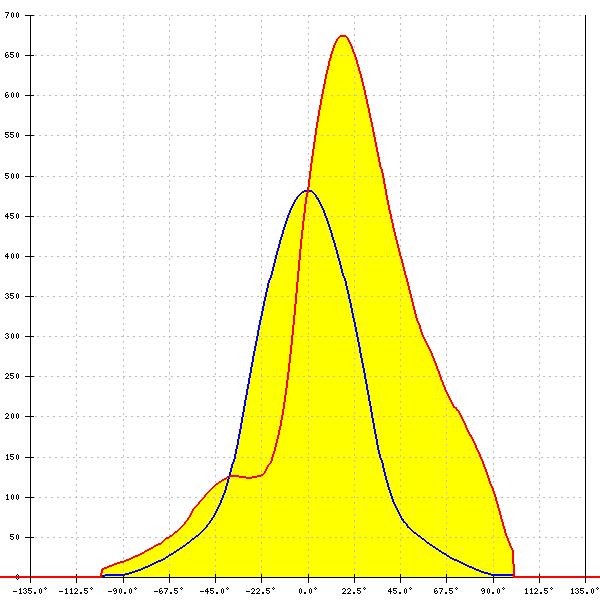

LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

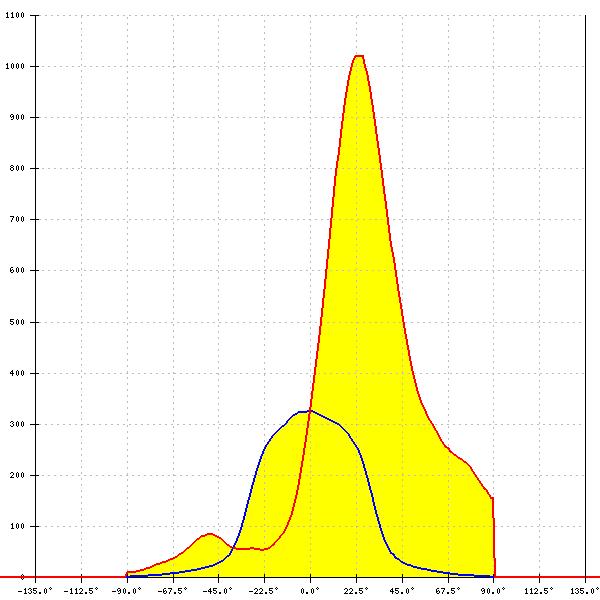

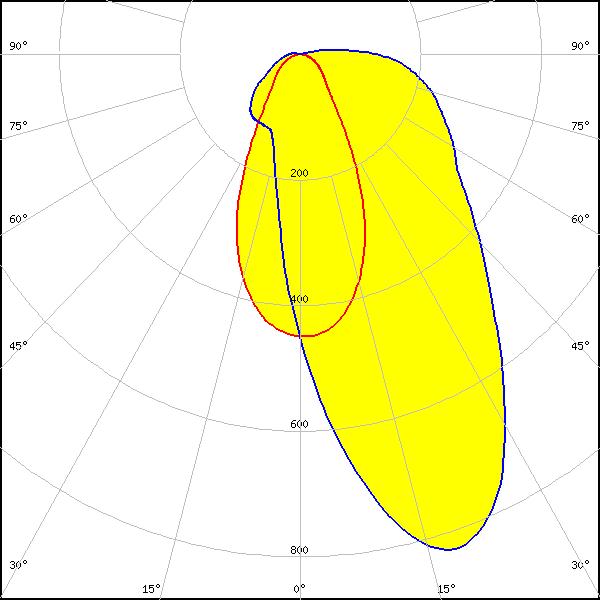

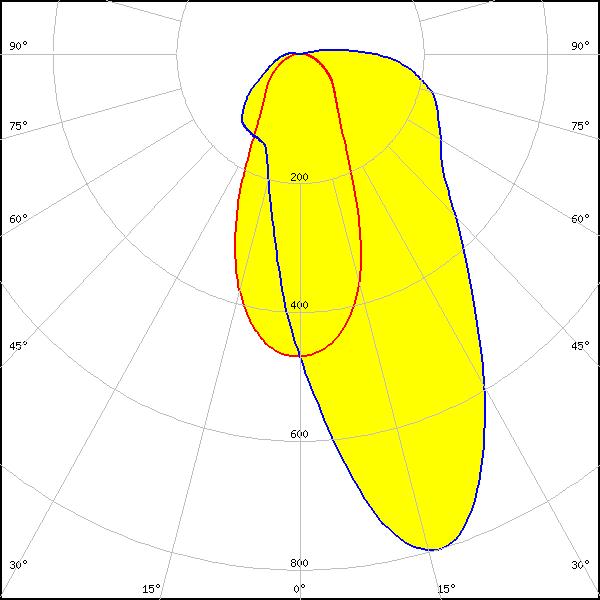

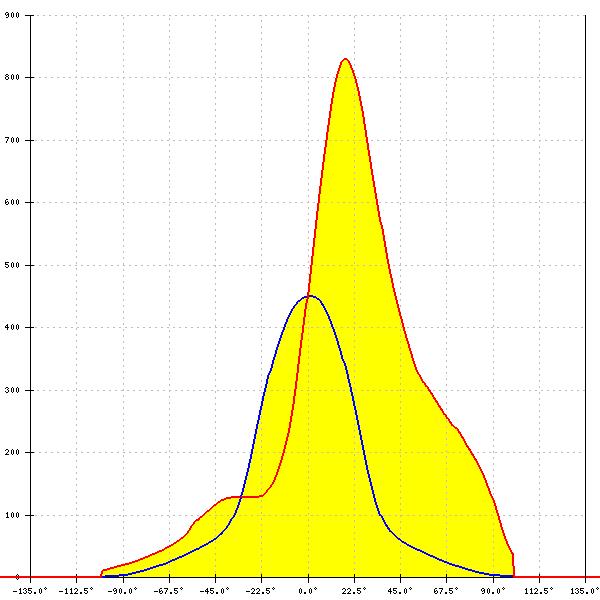

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: asymmetric
Peak intensity: 1.030 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

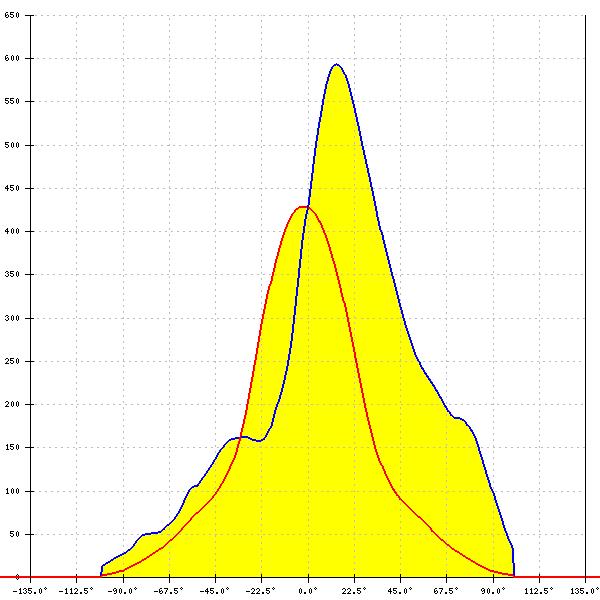

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

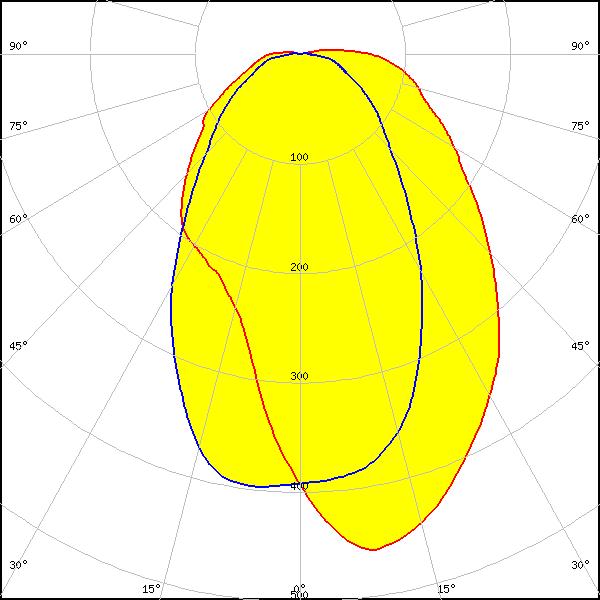

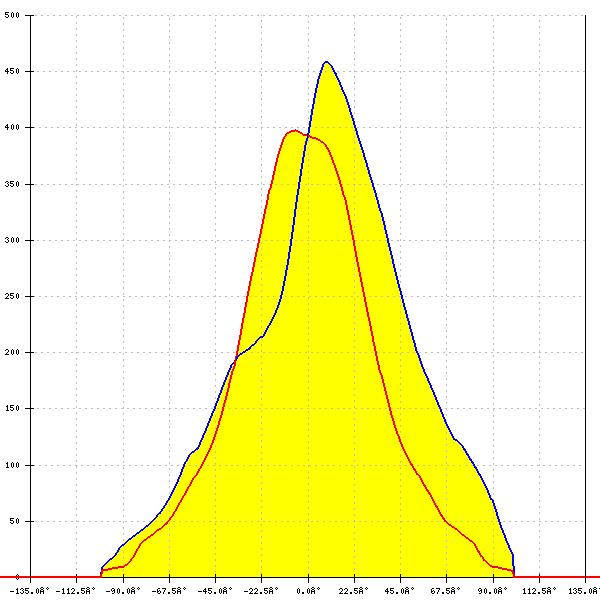

LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

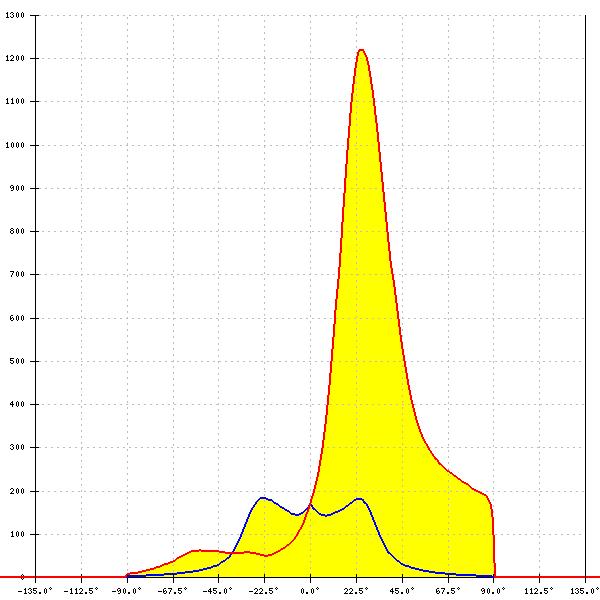

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: asymmetric
Peak intensity: 1.220 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU710/711
LES size: 8.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 470 Typ L1
FWHM: asymmetric
Peak intensity: 1.070 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

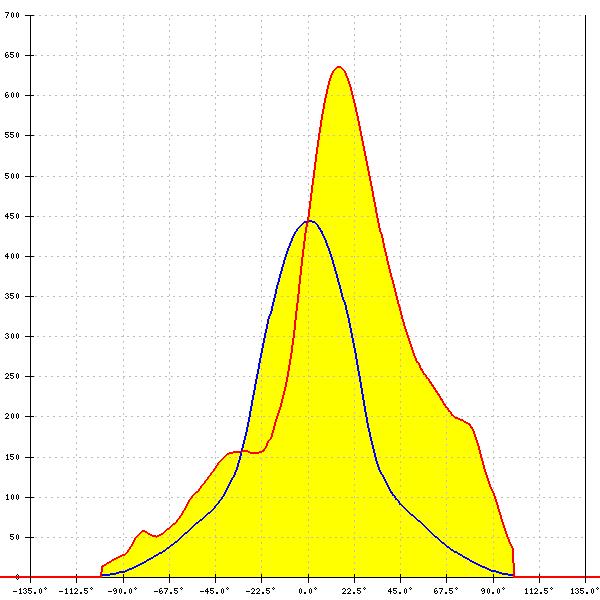

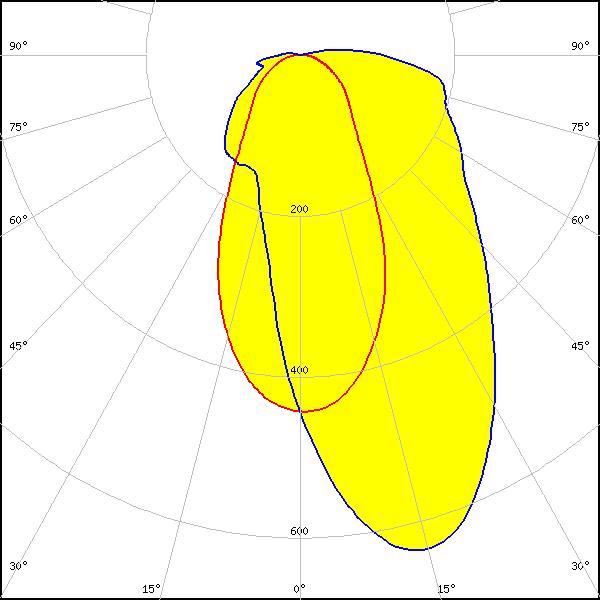

LED: CLU730/731/733
LES size: 13.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1840
LES size: 14.0 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 448 Typ L1
FWHM: asymmetric
Peak intensity: 1.210 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

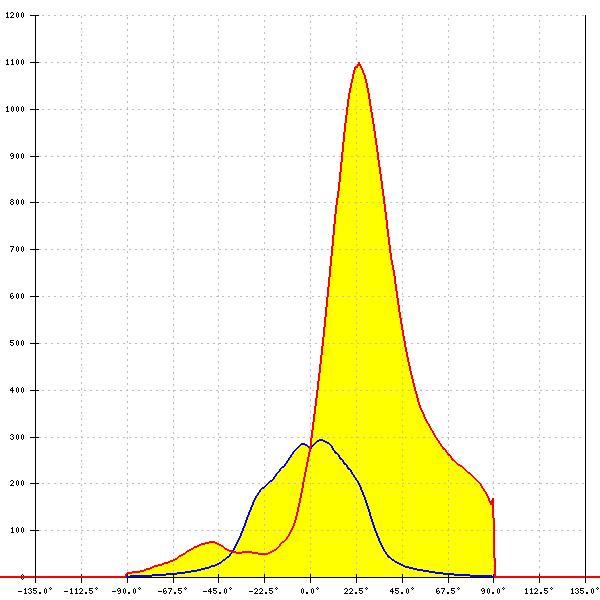

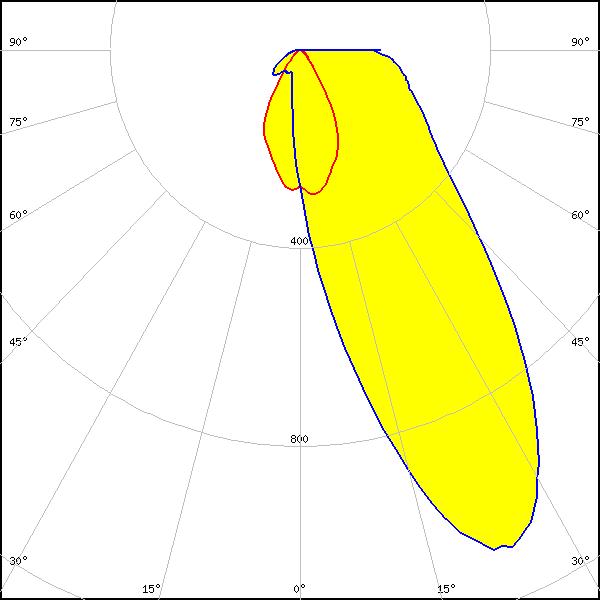

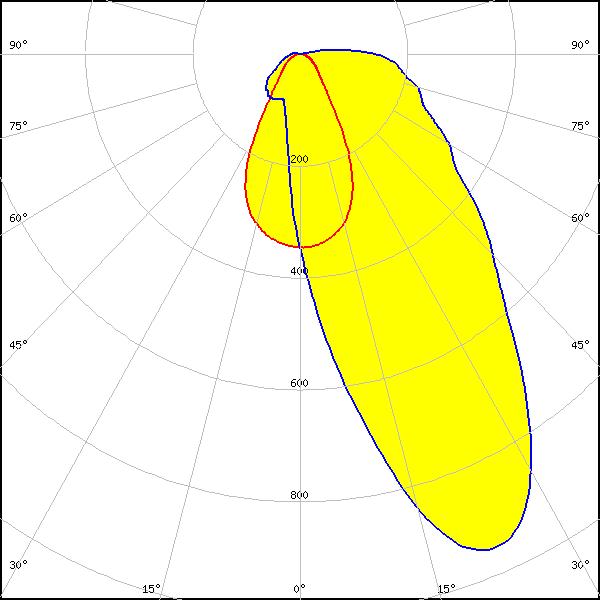

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 441 Typ L1
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

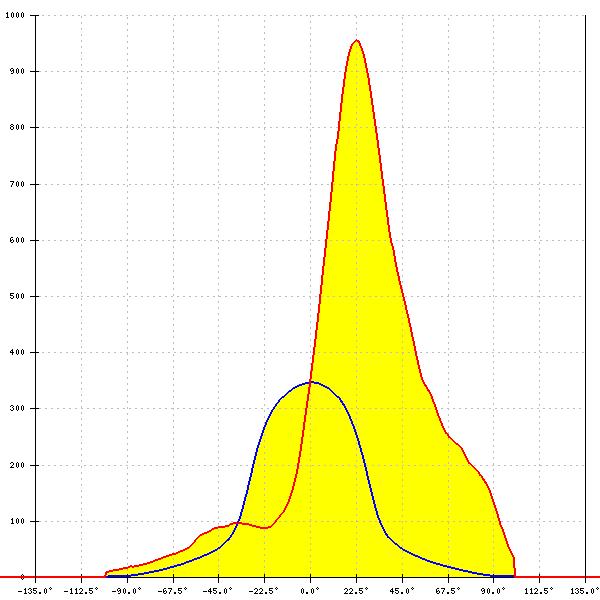

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.950 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: asymmetric
Peak intensity: 0.960 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.730 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

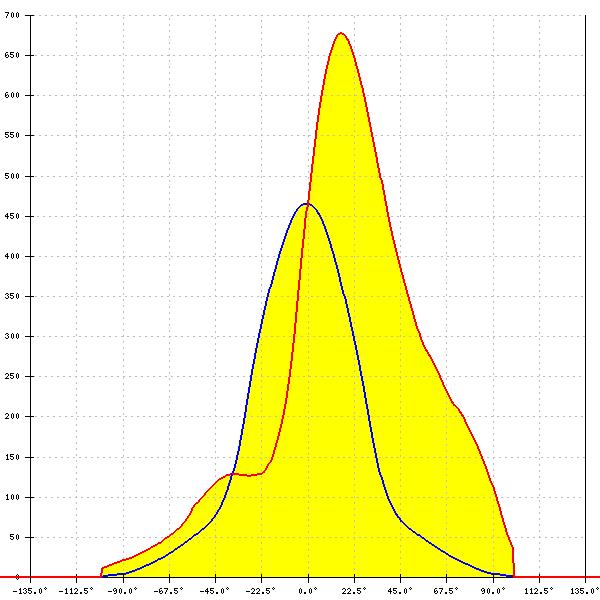

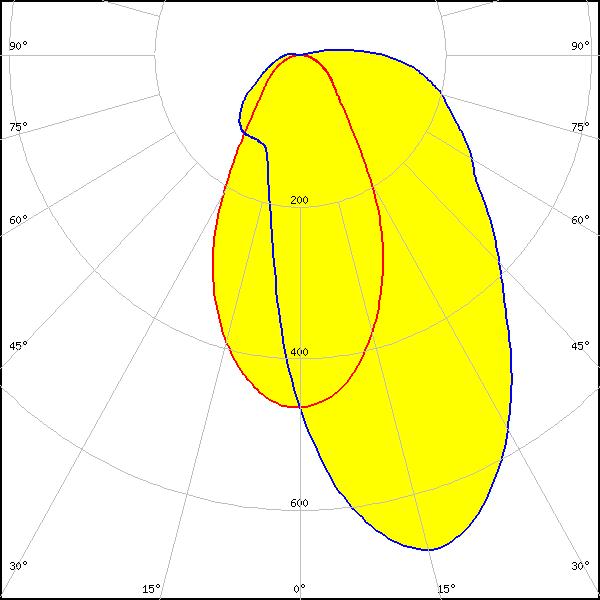

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

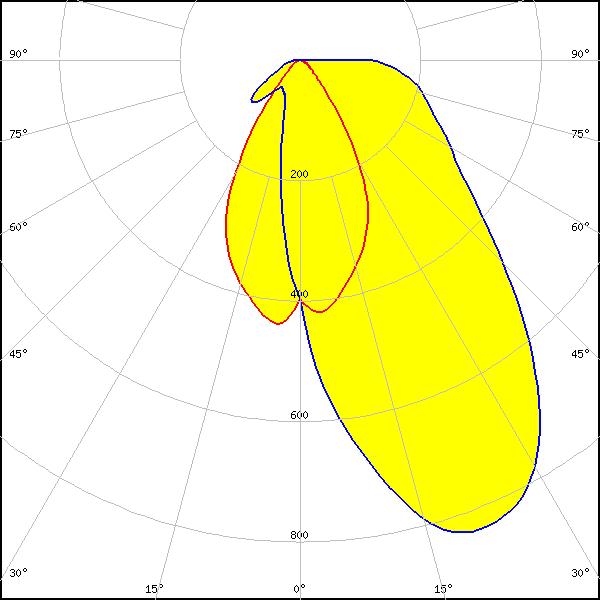

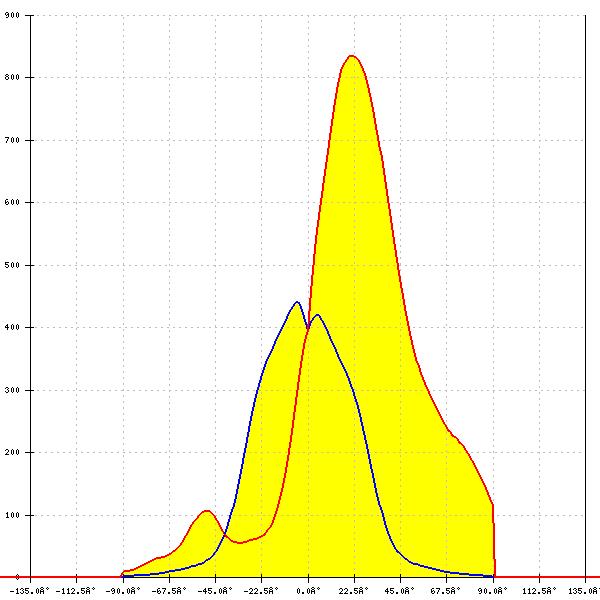

LED: CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

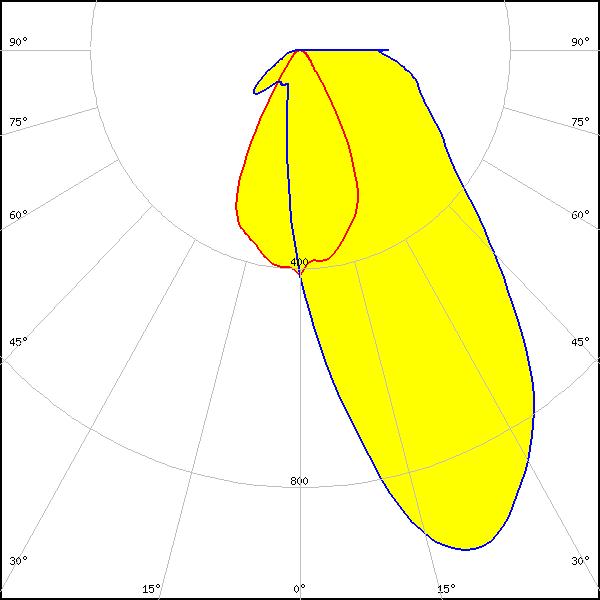

LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.970 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

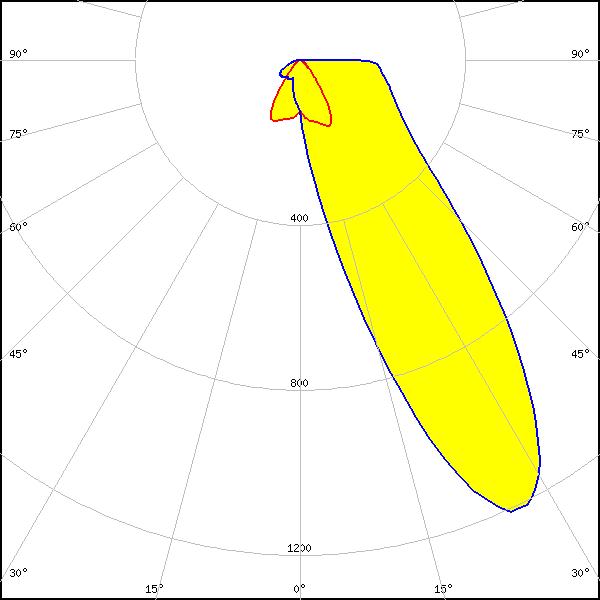

LED: LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 452 Typ L1
FWHM: asymmetric
Peak intensity: 1.200 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

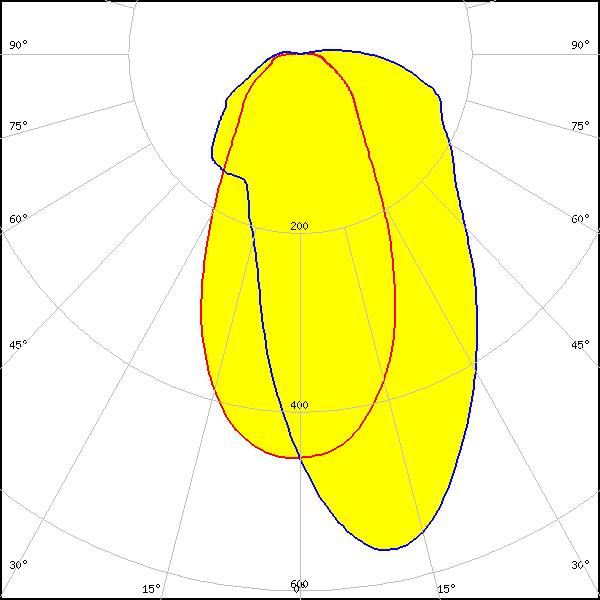

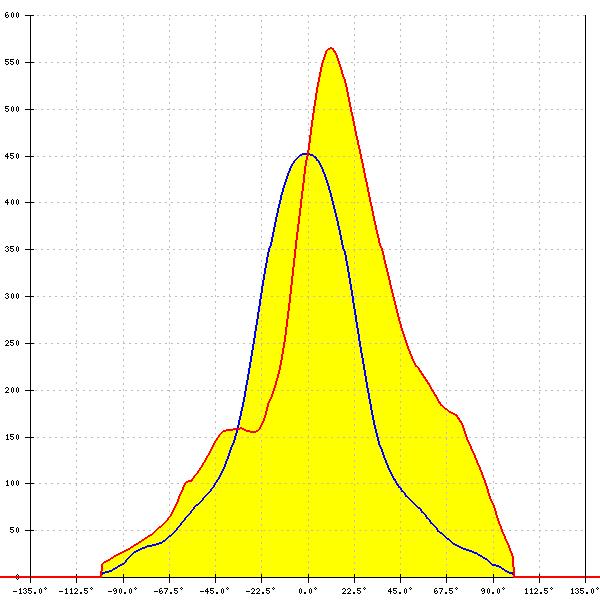

LED: COB J-Type
LES size: 14.6 mm
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.570 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

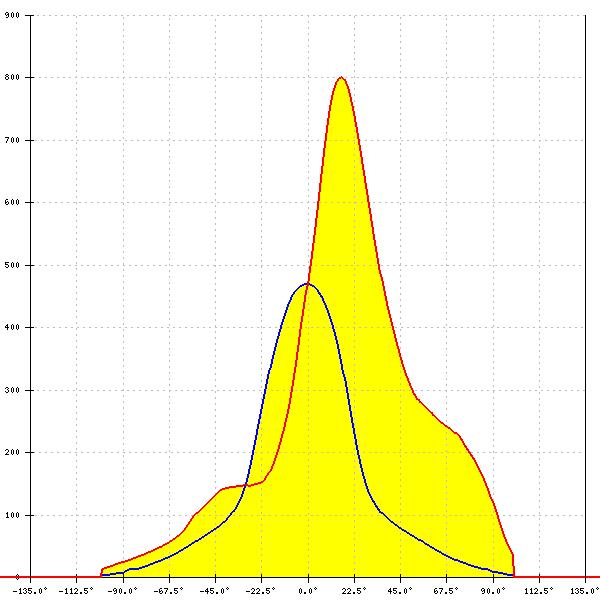

LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.830 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

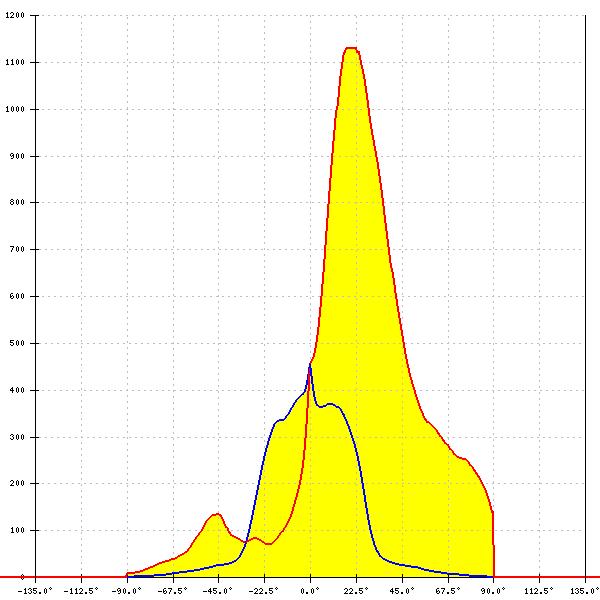

LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 1.130 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

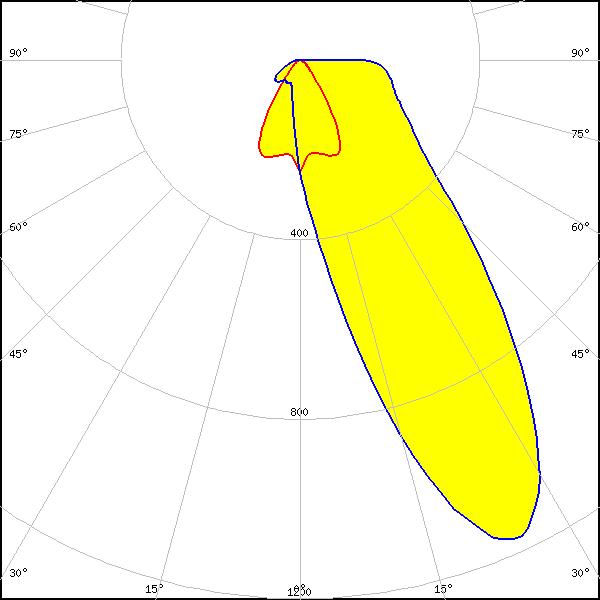

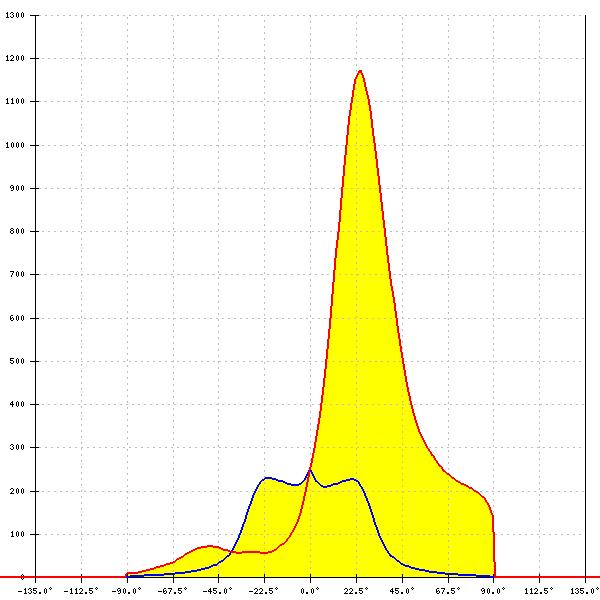

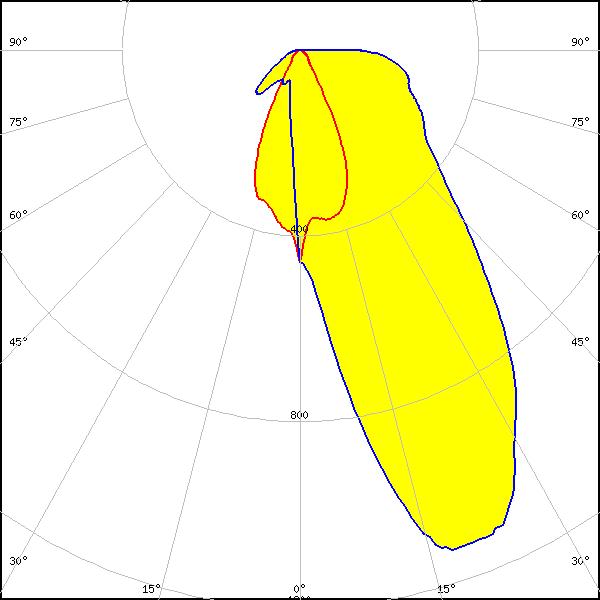

LED: NSCxL036A
LES size: 7.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 1.170 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.550 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

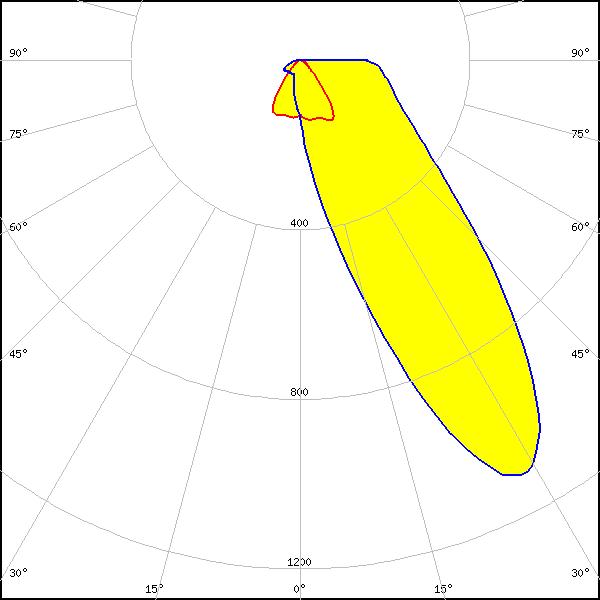

LED: Duris S10
LES size: 0.0 mm
Required components:
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

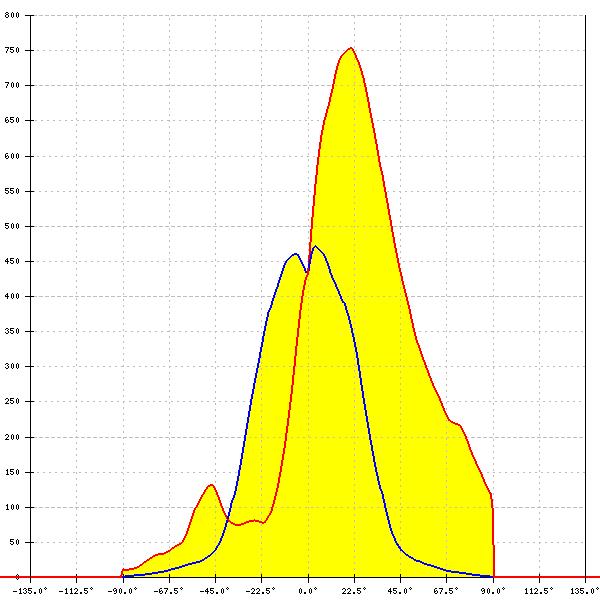

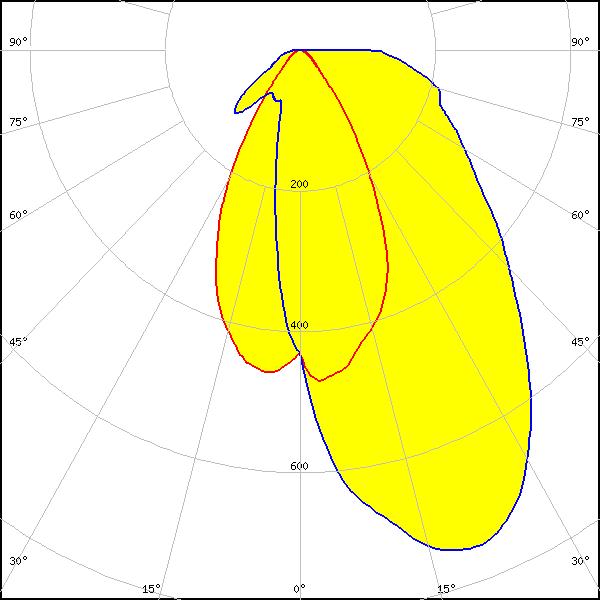

LED: Soleriq S13
LES size: 13.2 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.750 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

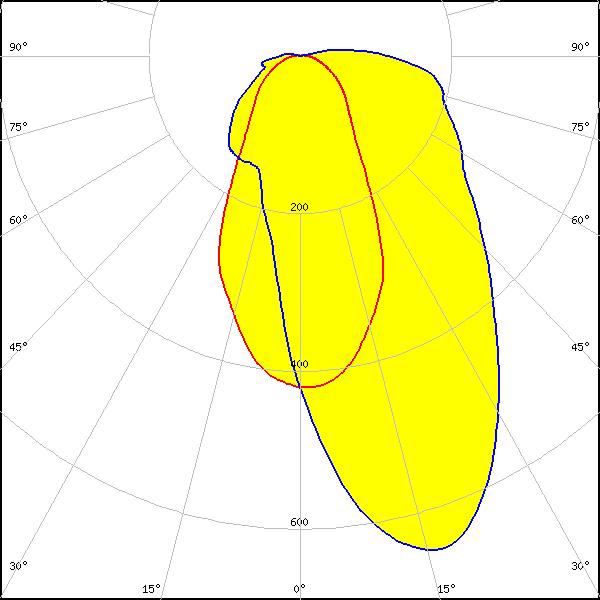

LED: Soleriq S13 19x19
LES size: 13.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.660 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S13 19x19
LES size: 13.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

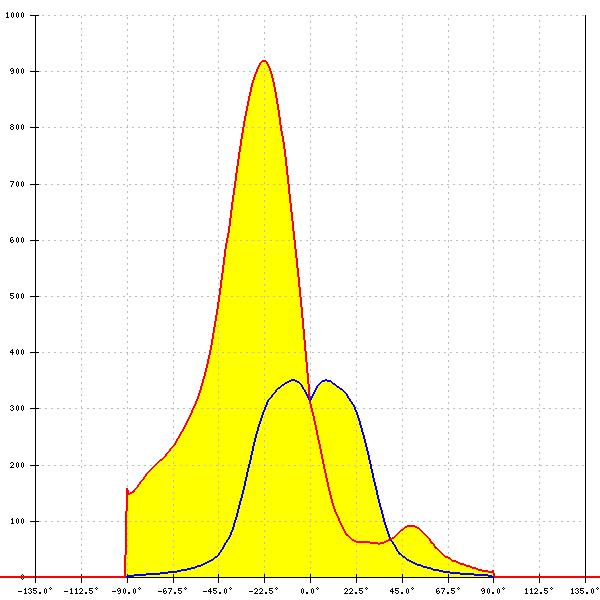

LED: Soleriq S9
LES size: 9.8 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: asymmetric
Peak intensity: 0.910 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L13 + SLM holder
LES size: 13.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

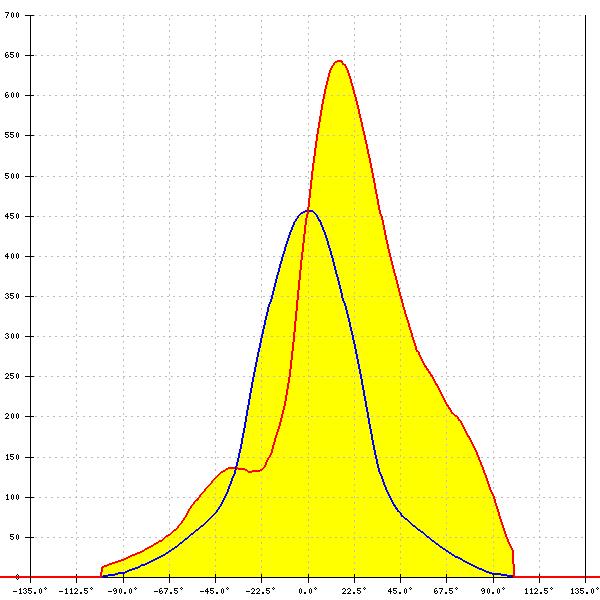

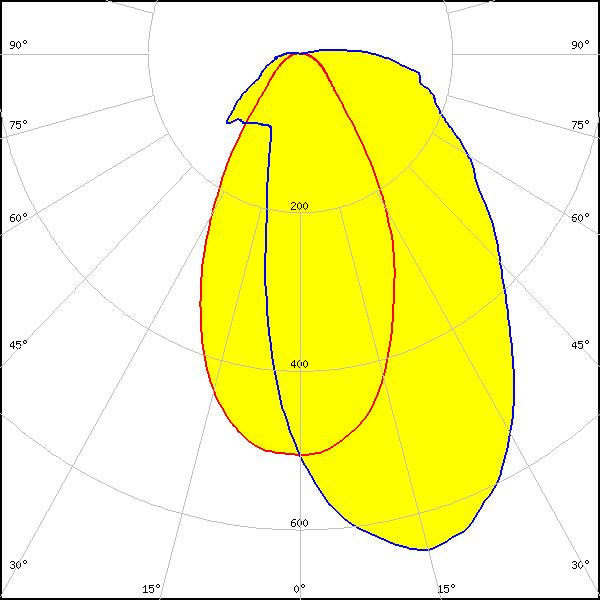

LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

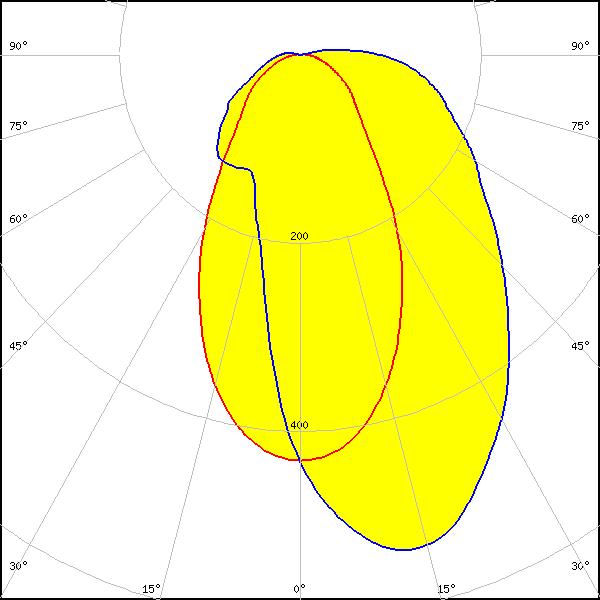

LED: Fortimo SLM L15 + SLM holder
LES size: 15.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.540 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

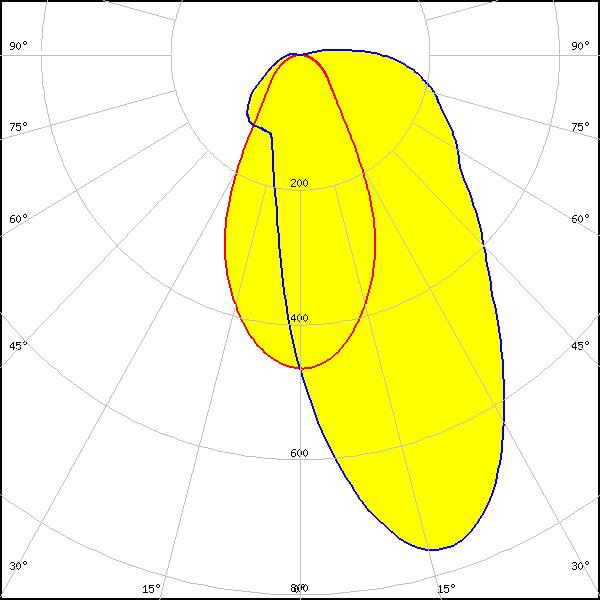

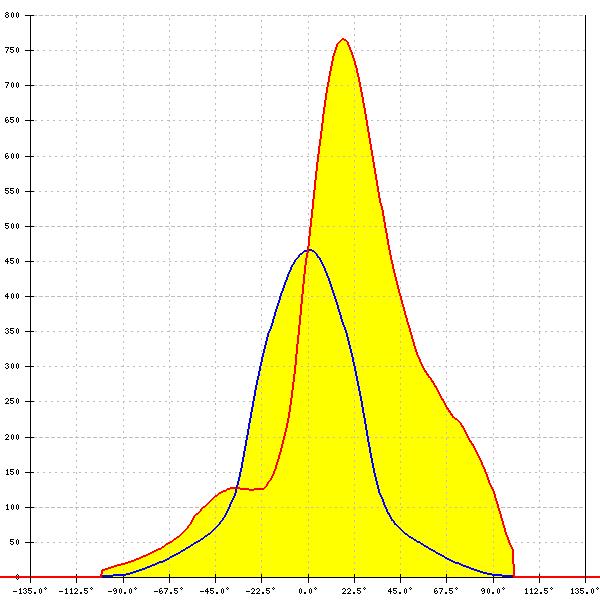

LED: LC040C
LES size: 11.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.770 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

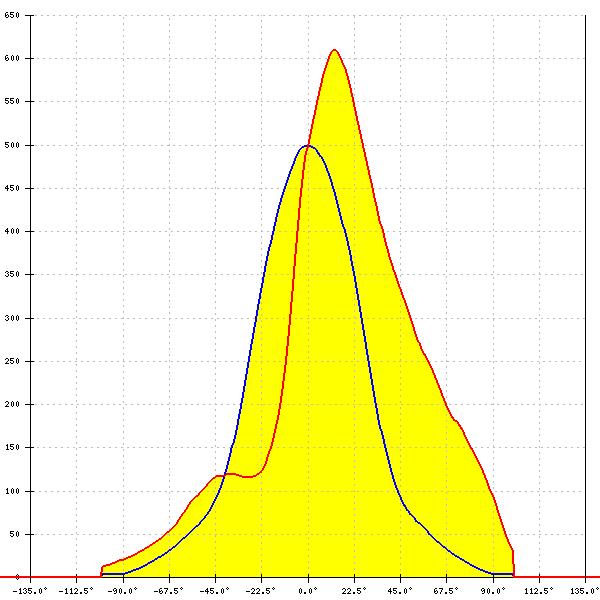

LED: AC Zhaga COB
LES size: 14.5 mm
Required components:
Optosource: SEHSMJD-A
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

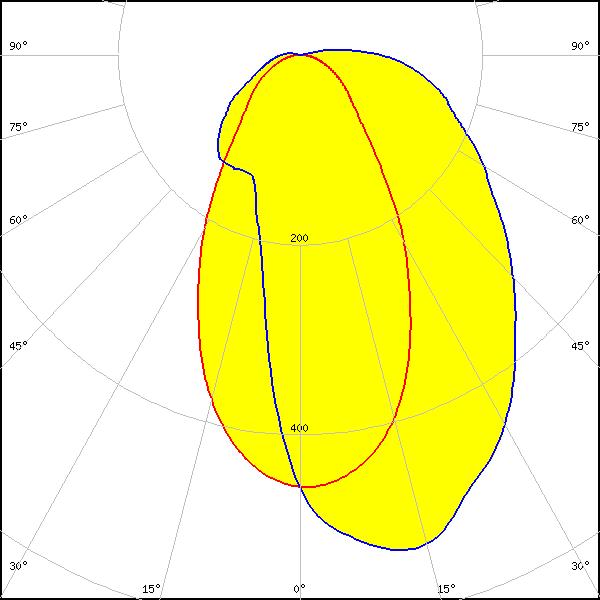

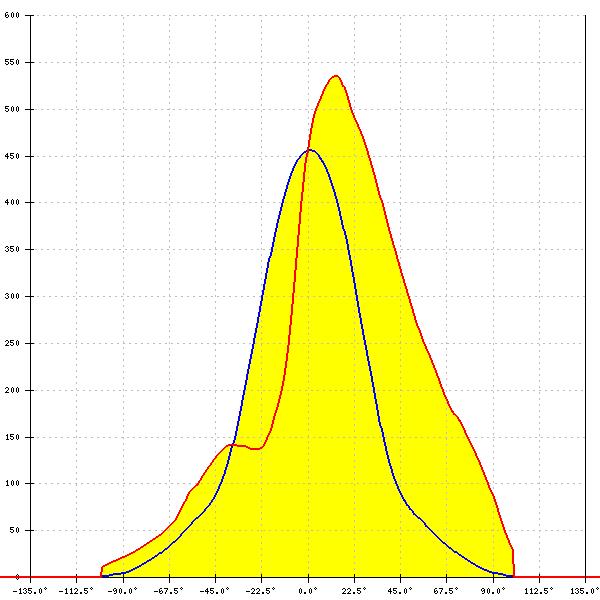

LED: MJT COB LES 14.5
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

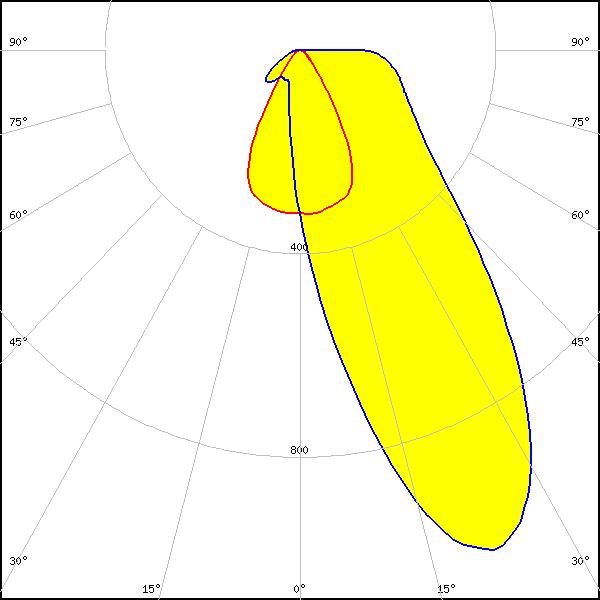

LED: Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 452 Typ L1
FWHM: asymmetric
Peak intensity: 1.060 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

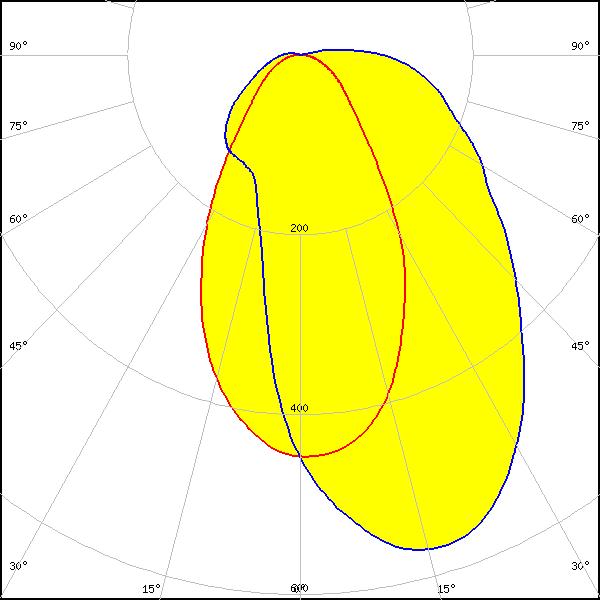

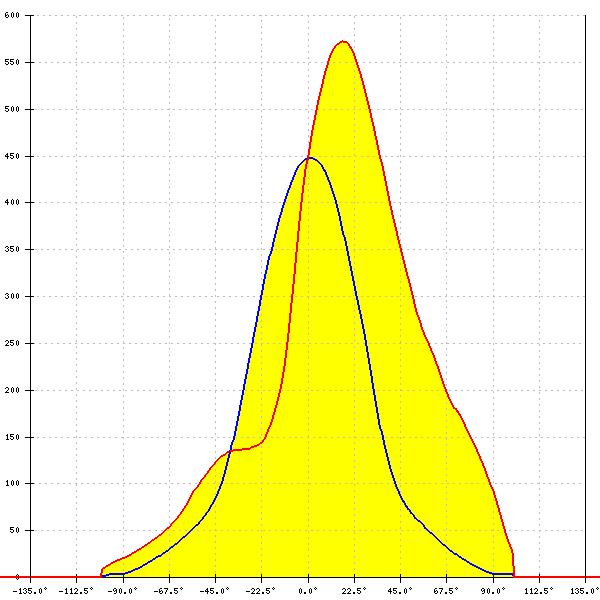

LED: WU-M-484
LES size: 14.9 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.570 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
