    RONDA-WWW

    Print

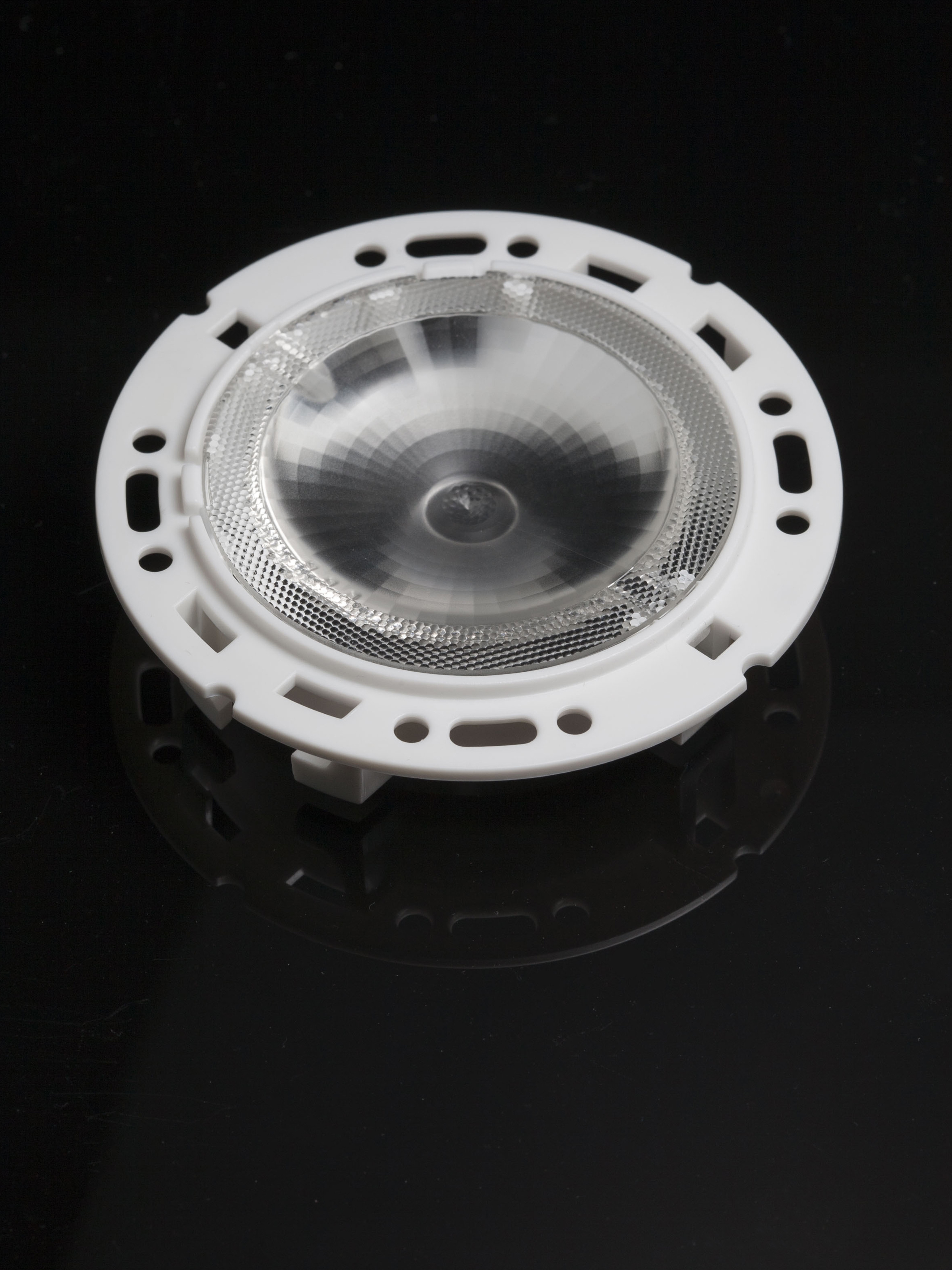

    ~90° very wide beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      70 mm
    • Height:
      14.60 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Single lens
      1 pcs
    • Holder
      1 pcs
    • Single lens
    • F15157_RONDA-WWW
      clear
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.30 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 100 mm
    • MOQ Weight:
      1.80 kg
    • Holder
    • F15155_RONDA-HLD-A
      white
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.40 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 120 mm
    • MOQ Weight:
      1.30 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15157_RONDA-WWW
      F15155_RONDA-HLD-A
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR182 - Change of ordering method and quantities

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Compatibility guide

    LEDiL C interface HEKLA compatibility guide

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    Effective fashion retail lighting

    News

    PRODUCT NEWS - RONDA

    News

    PRODUCT NEWS - RONDA

    News

    HEKLA - Innovative family of sockets and solderless connectors

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    AVAILABLE LEDiL ACCESSORIES

    CLAMP-VERO13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux VERO13 and VERO18.

    CLAMP-CXA15-18

    Basepart for reflectors and lenses with A-type interface. Compatible with CREE CXA/B 15xx and CXA/B 18xx.

    CLAMP-VEROSE-13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux Vero 13 SE and Vero 18 SE COBs.

    XTM-ADAPTER-50-A

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with LEDiL A-type interface.

    CLAMP-PRV-A

    Adapter for ANGELA, ANGELINA, ANGELETTE, MOLLY and RONDA-A. Compatible with Osram PrevaLED Core connector.

    CLAMP-Z45-A

    Adapter for ANGELA, ANGELINA, ANGELETTE, MOLLY and RONDA-A. Compatible with TE Z45 connector.

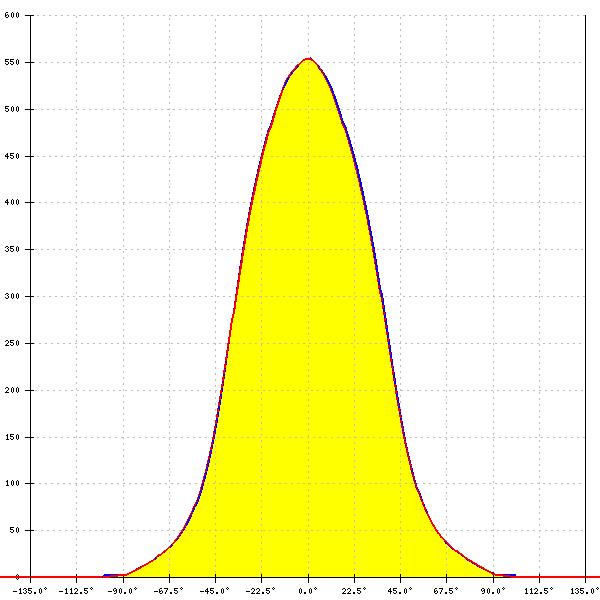

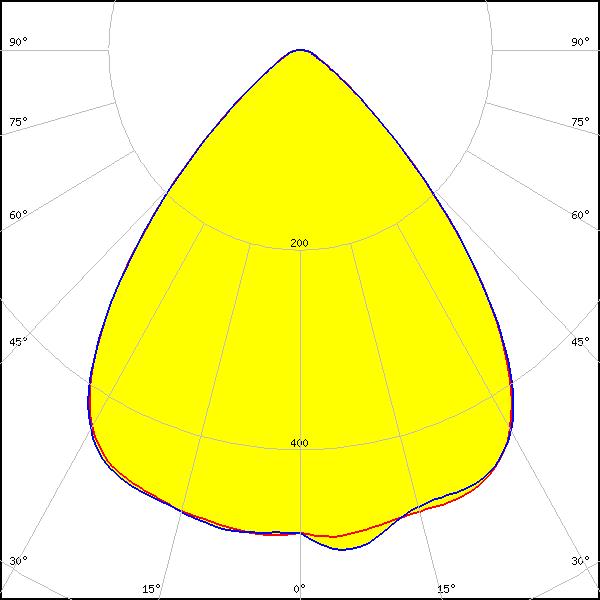

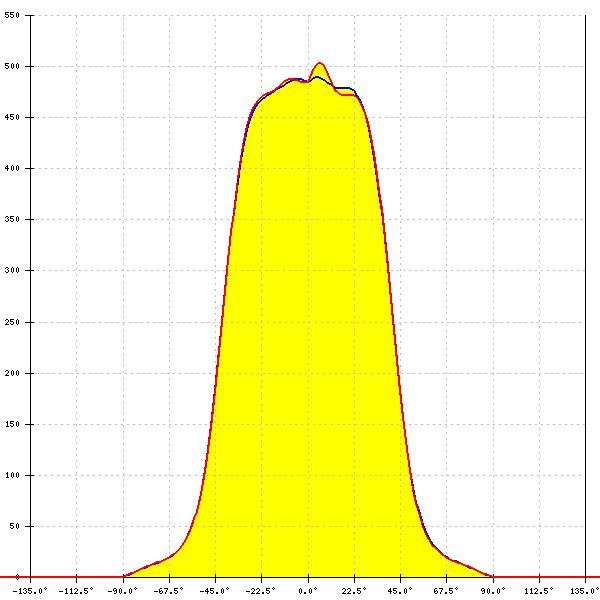

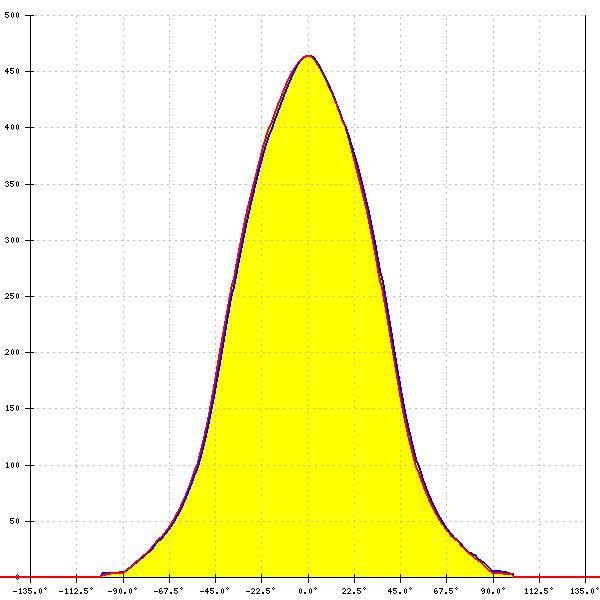

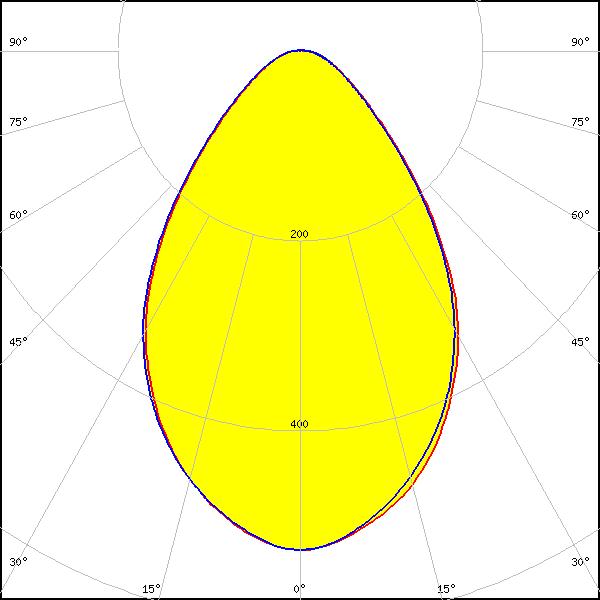

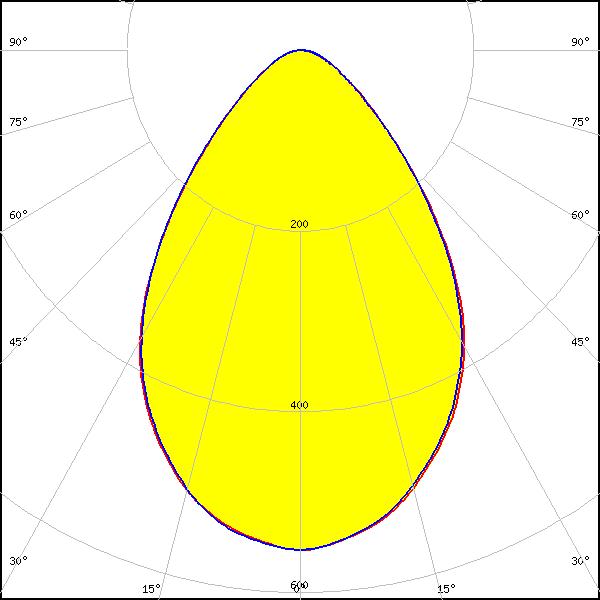

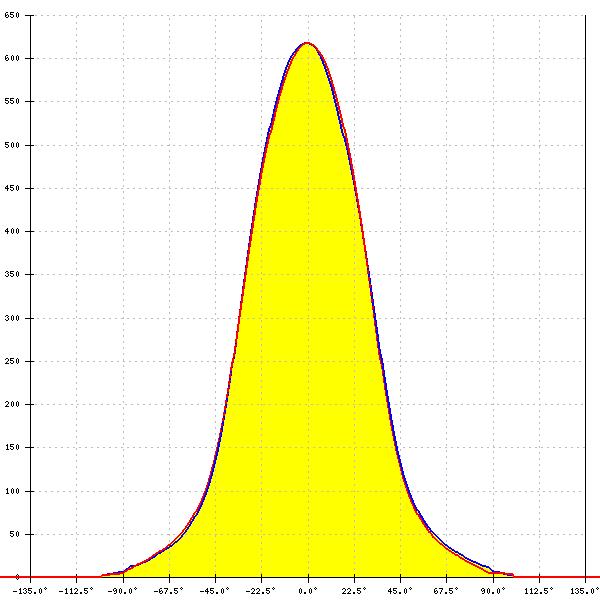

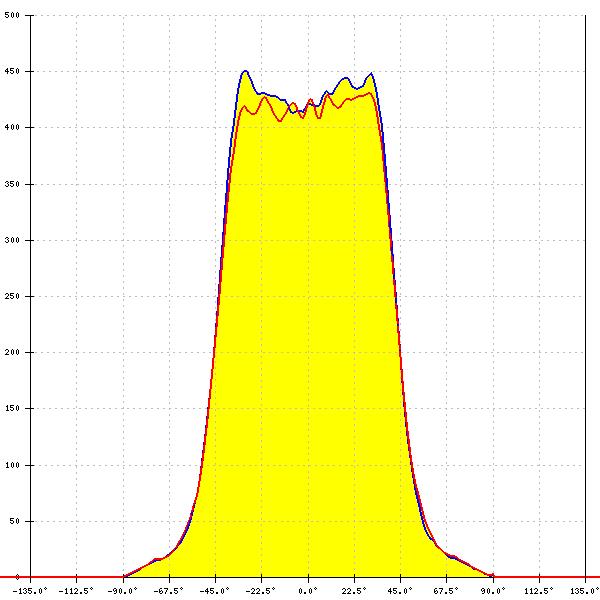

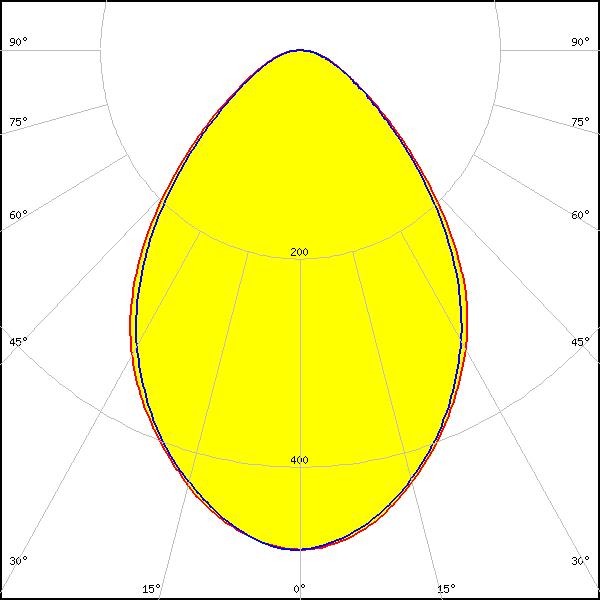

    Optical results

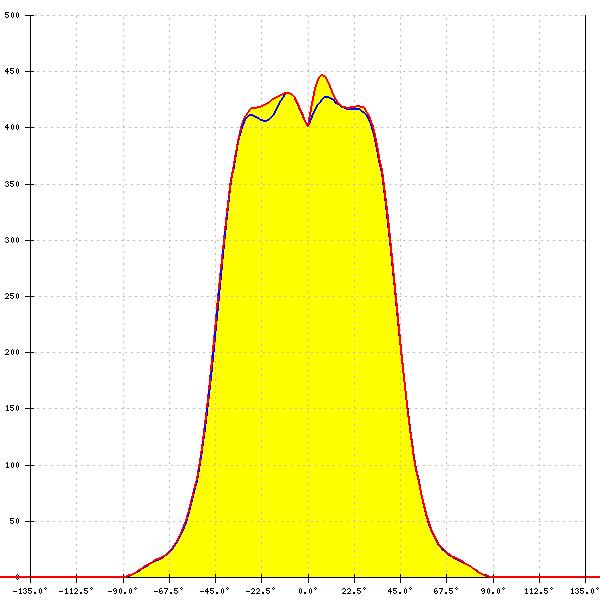

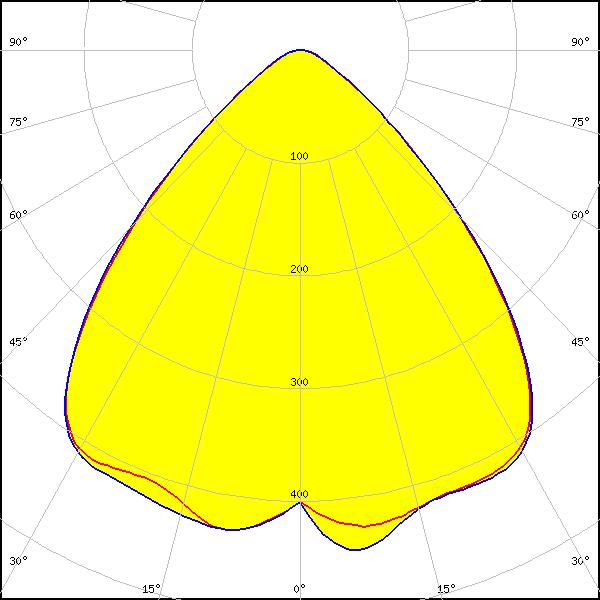

    LED: V10 Gen6
    LES size: 9.9 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 89°
    FWTM: 120°
    Peak intensity: 0.450 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

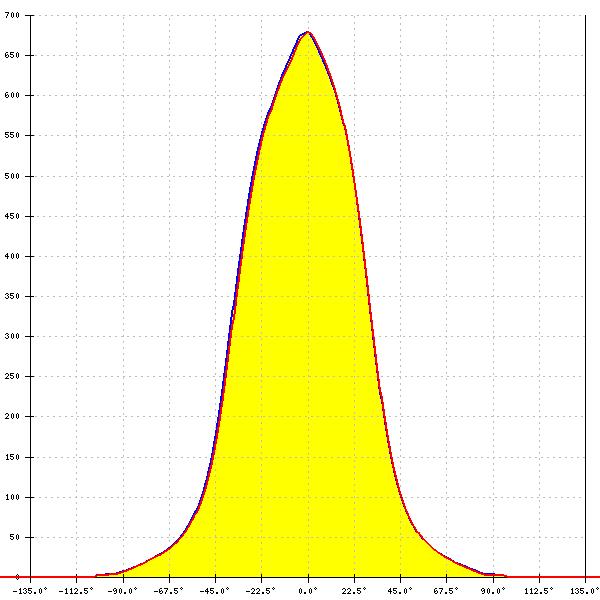

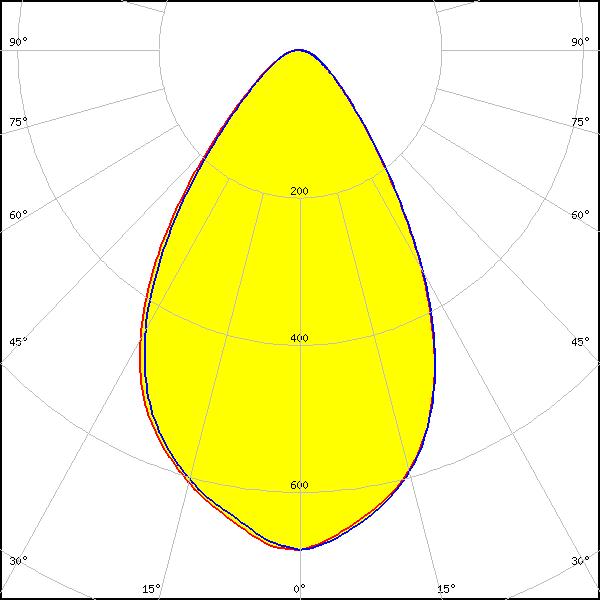

    LED: V10 Gen7
    LES size: 10.2 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 486 Typ L1
    FWHM: 66°
    FWTM: 108°
    Peak intensity: 0.680 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

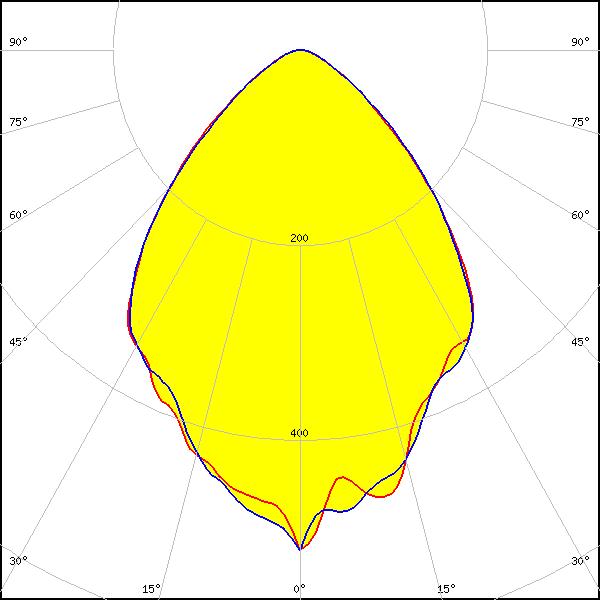

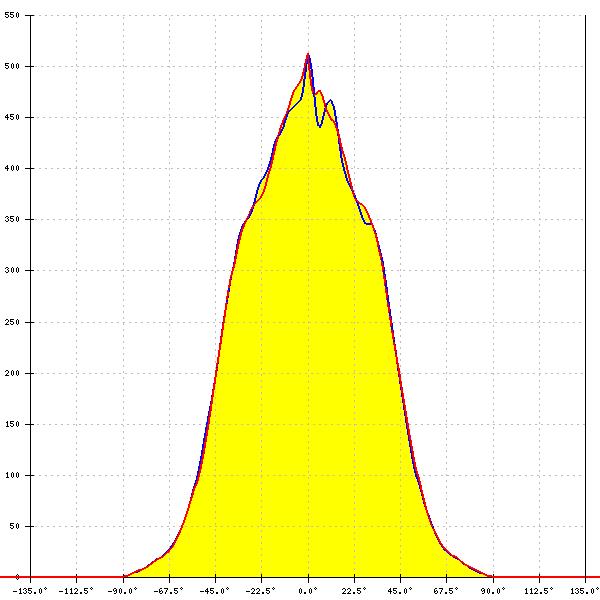

    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 477 Typ L1
    FWHM: 80°
    FWTM: 121°
    Peak intensity: 0.510 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

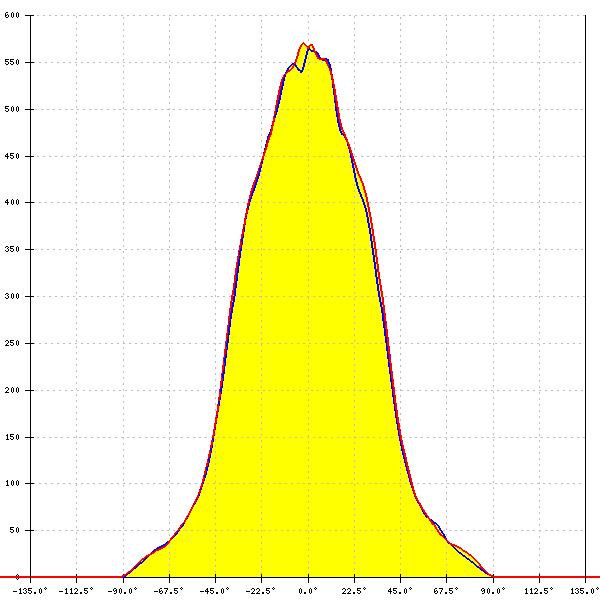

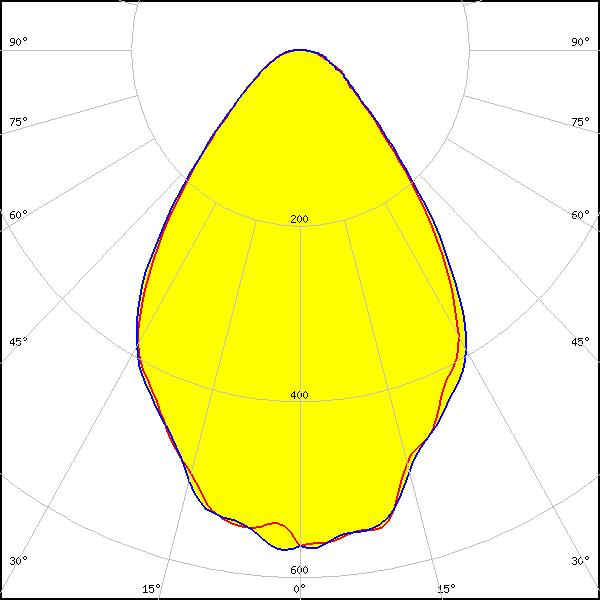

    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    IDEAL: 50-2103CT
    IDEAL: 50-2100AN
    FWHM: 72°
    FWTM: 120°
    Peak intensity: 0.580 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

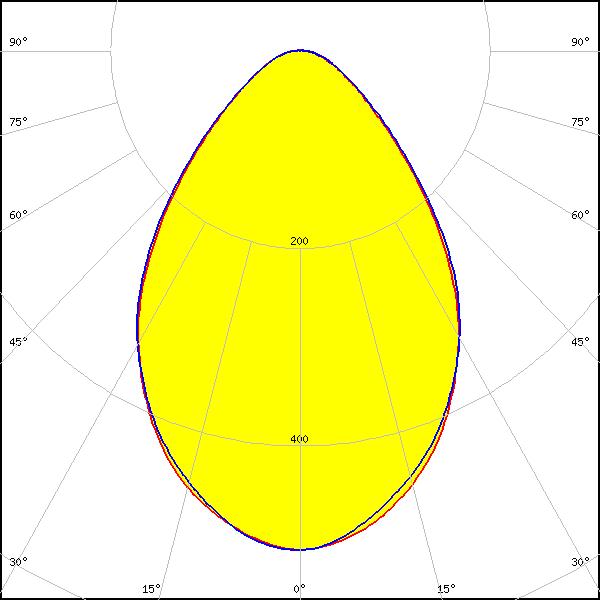

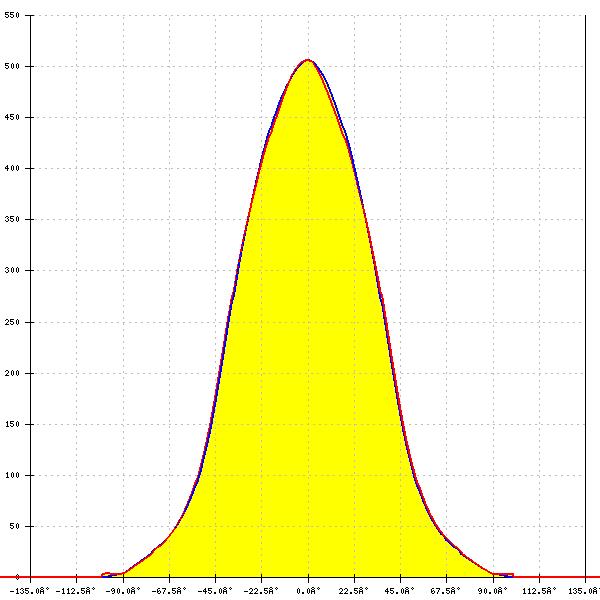

    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 76°
    FWTM: 126°
    Peak intensity: 0.510 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

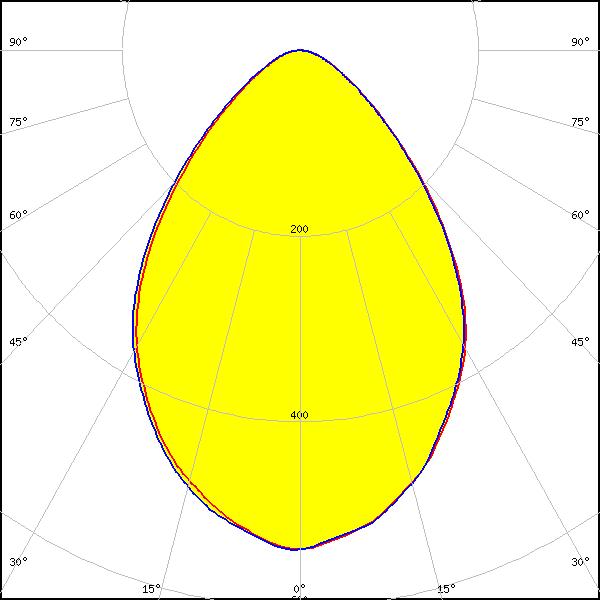

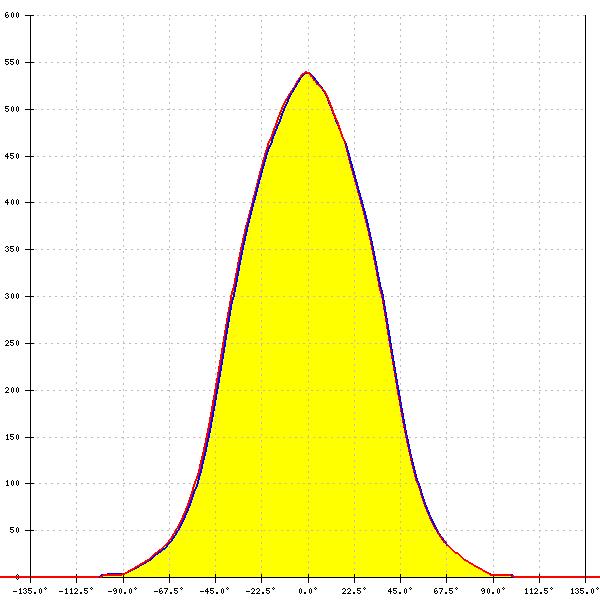

    LED: Vero SE 13
    LES size: 13.4 mm
    Required components:
    C16402_CLAMP-VEROSE-13-18
    FWHM: 78°
    FWTM: 124°
    Peak intensity: 0.540 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

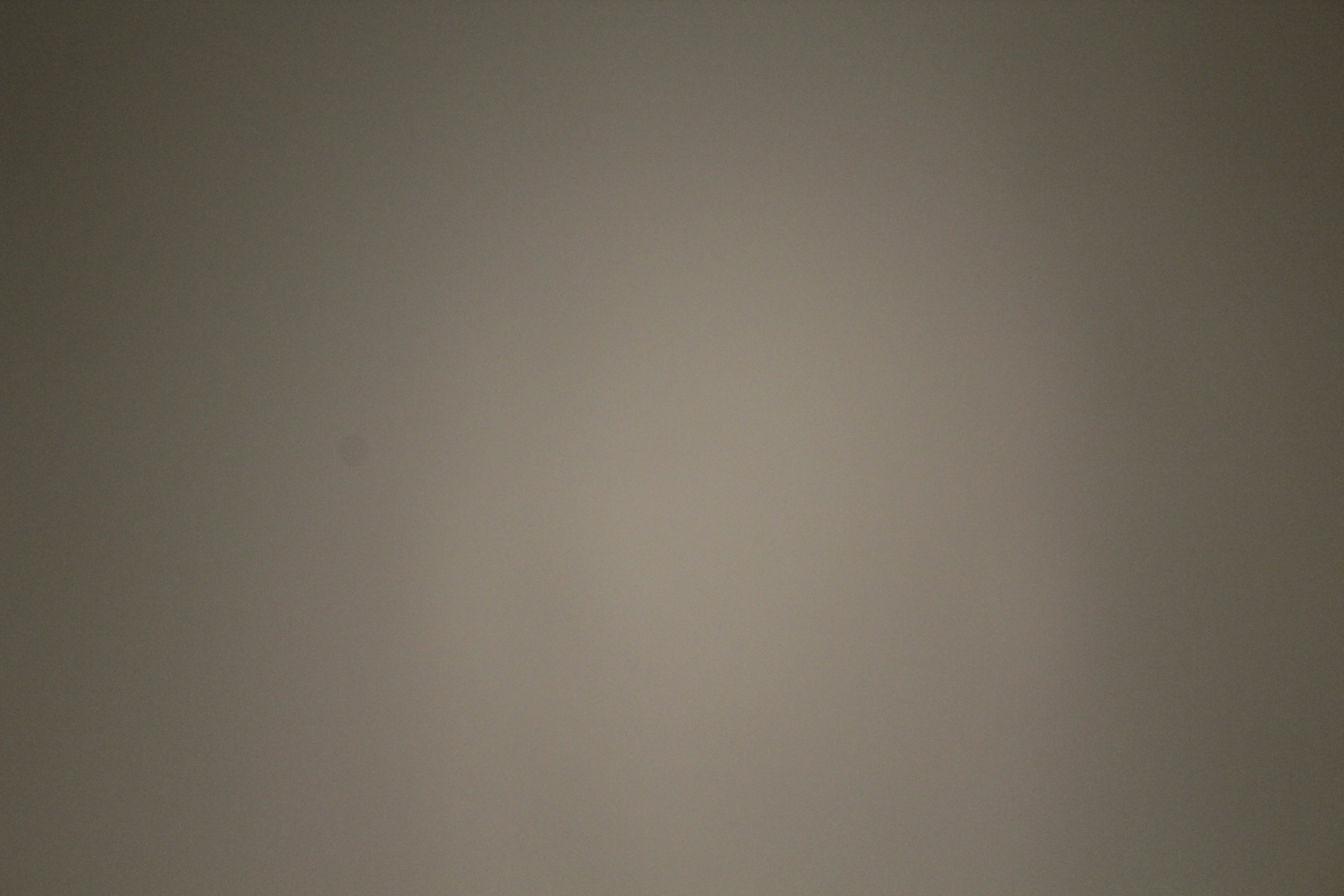

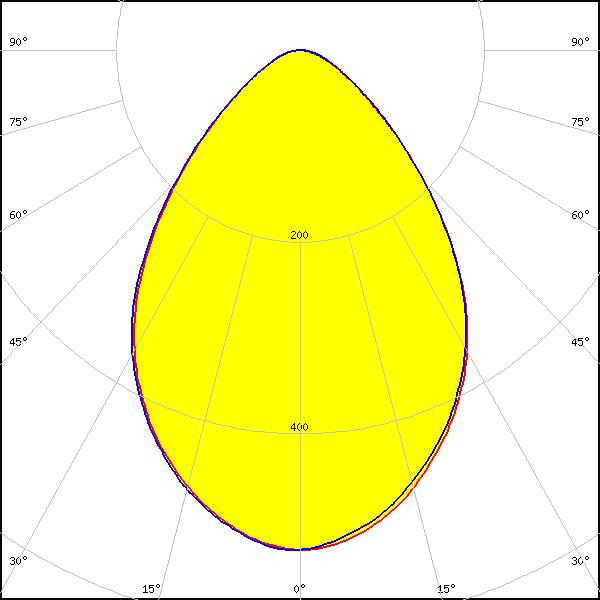

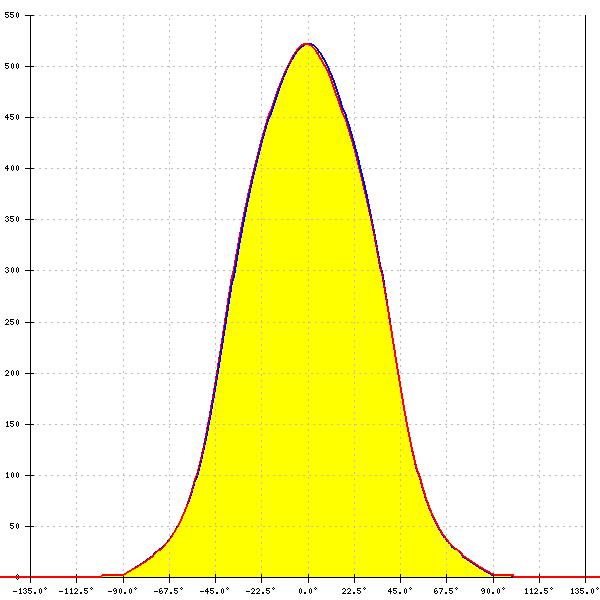

    LED: VERO13
    LES size: 13.4 mm
    Required components:
    C13658_CLAMP-VERO13-18
    FWHM: 78°
    FWTM: 125°
    Peak intensity: 0.520 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 90°
    FWTM: 120°
    Peak intensity: 0.430 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

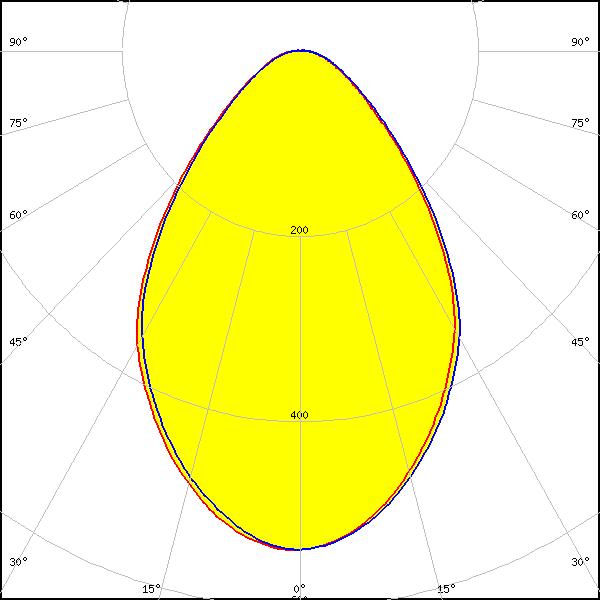

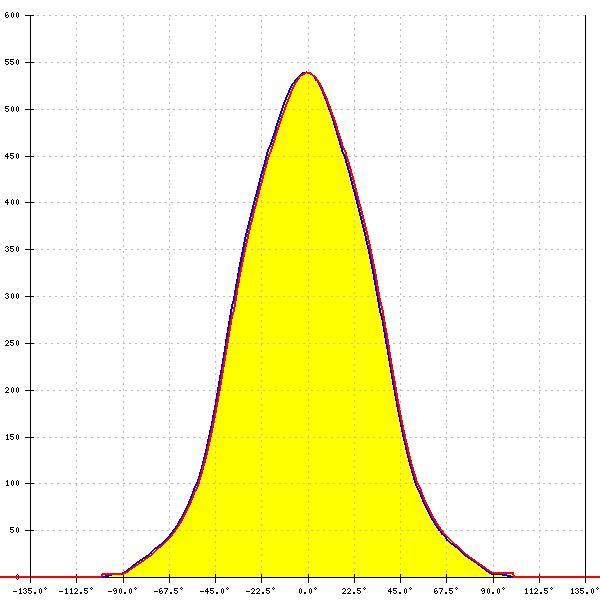

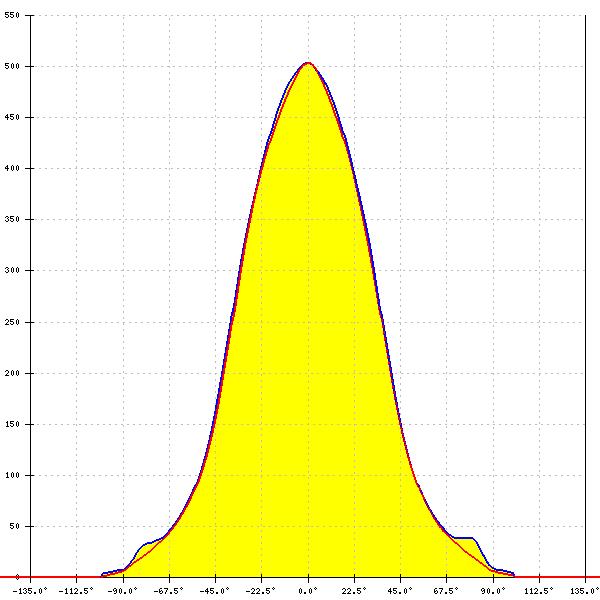

    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    C16791_CLAMP-Z45-A
    TE Connectivity: 2325807-3
    FWHM: 75°
    FWTM: 127°
    Peak intensity: 0.540 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

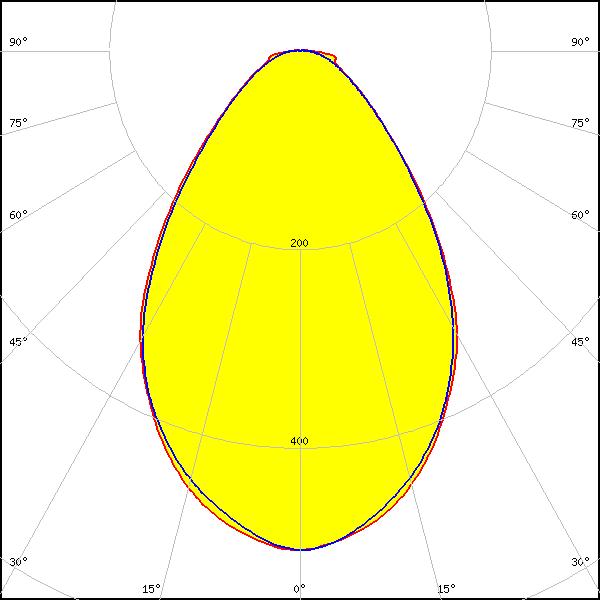

    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    IDEAL: 50-2103CT
    IDEAL: 50-2100AN
    FWHM: 73°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

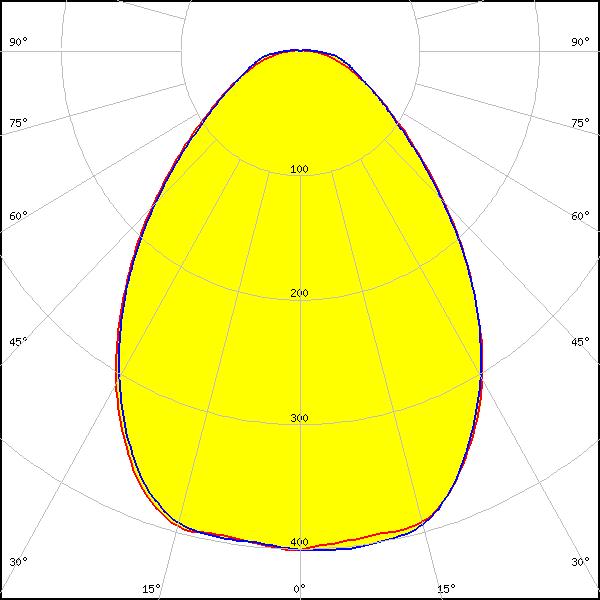

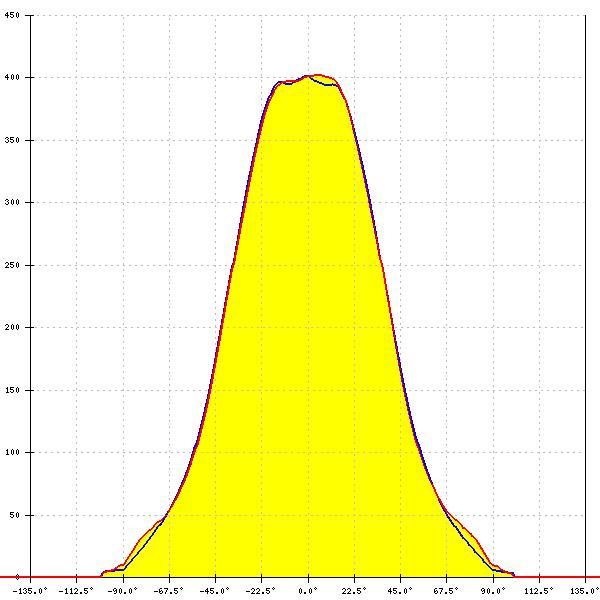

    LED: CLU04x
    LES size: 22.0 mm
    Required components:
    IDEAL: 50-2204-CT
    IDEAL: 50-2100AN
    FWHM: 83°
    FWTM: 147°
    Peak intensity: 0.400 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

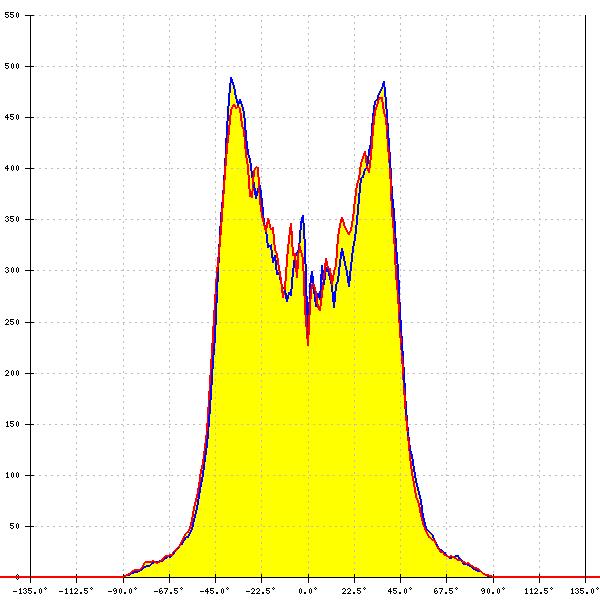

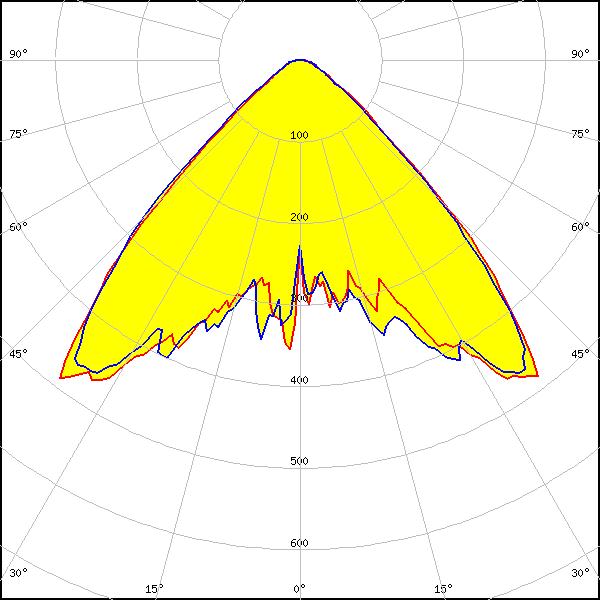

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 90°
    FWTM: 97°
    Peak intensity: 0.490 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

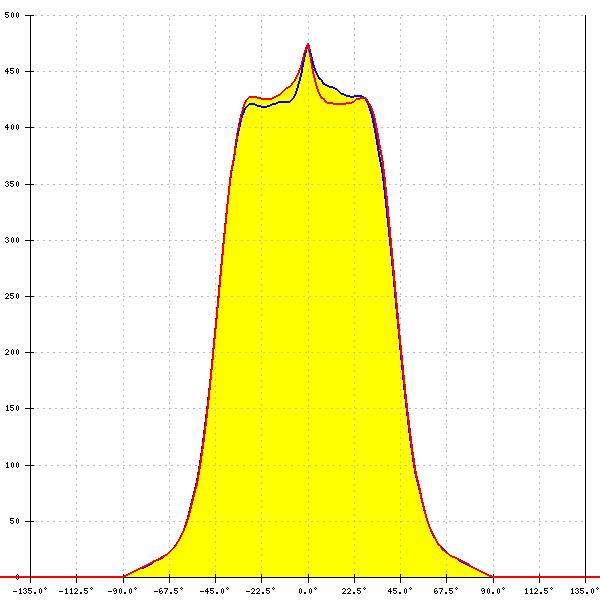

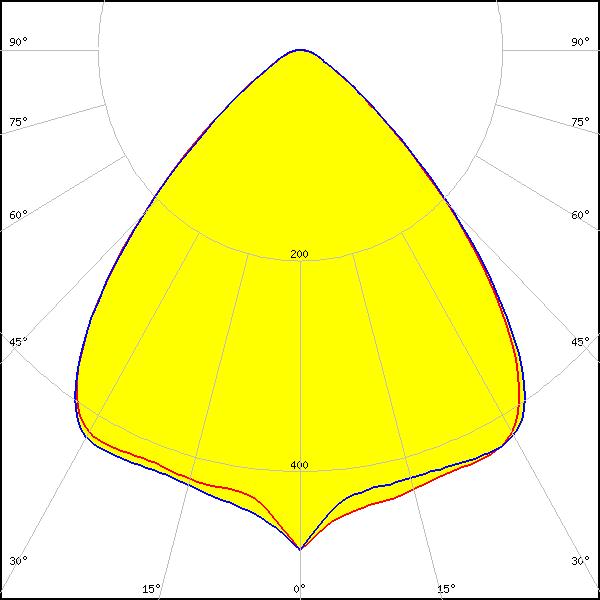

    LED: CLU710/711
    LES size: 8.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 470 Typ L1
    FWHM: 88°
    FWTM: 118°
    Peak intensity: 0.470 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

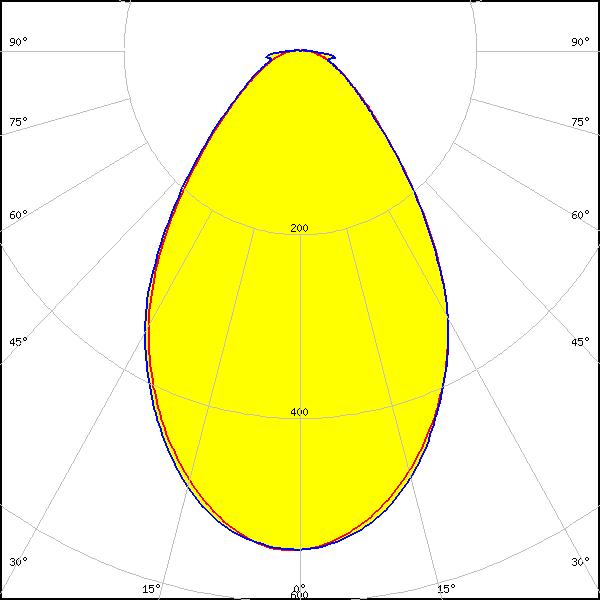

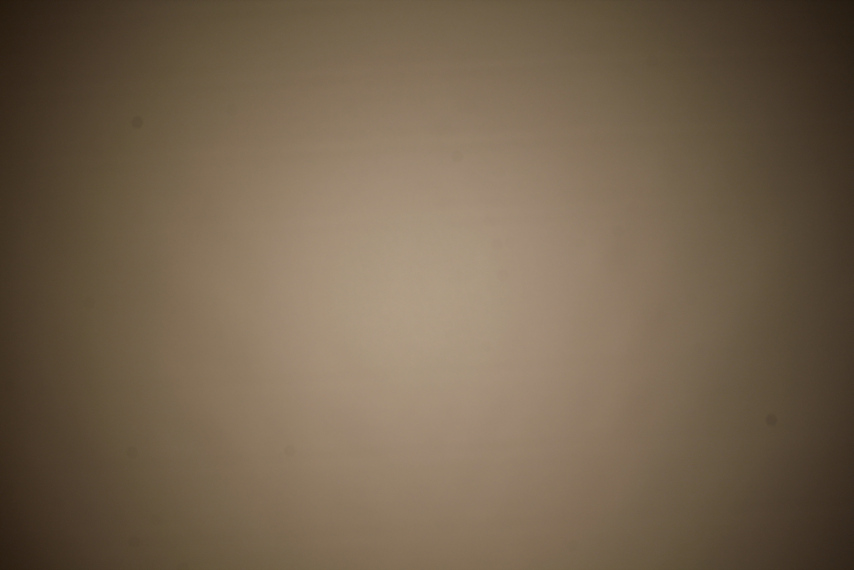

    LED: CLU730/731/733
    LES size: 13.0 mm
    Required components:
    IDEAL: 50-2204-CT
    IDEAL: 50-2100AN
    FWHM: 71°
    FWTM: 125°
    Peak intensity: 0.540 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

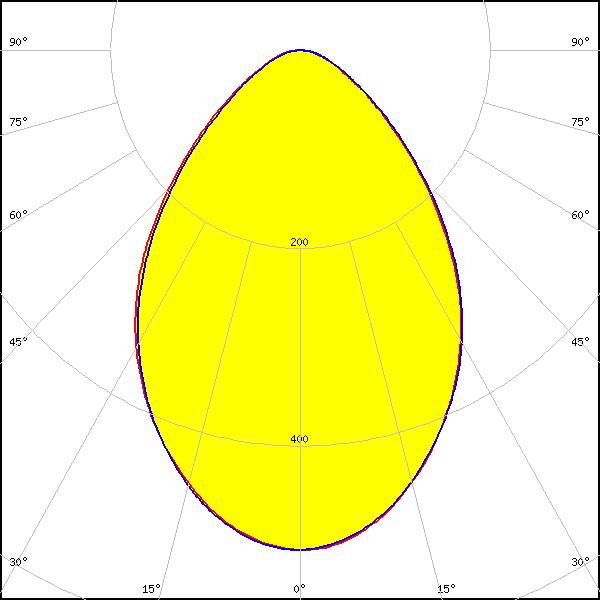

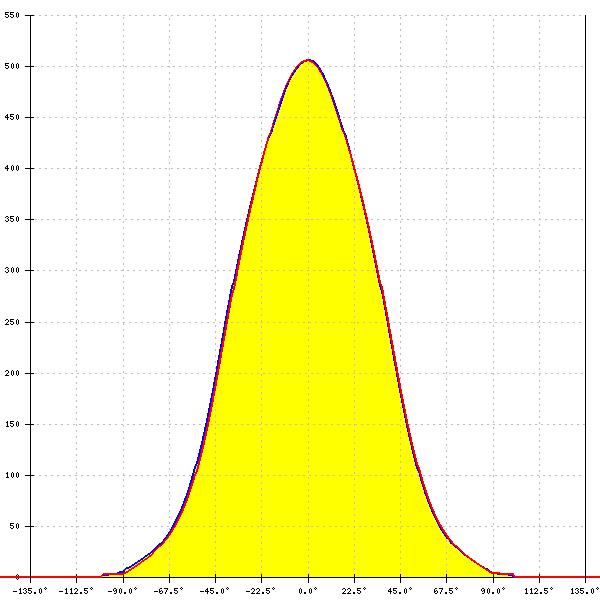

    LED: CMA1840
    LES size: 14.0 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 78°
    FWTM: 129°
    Peak intensity: 0.510 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

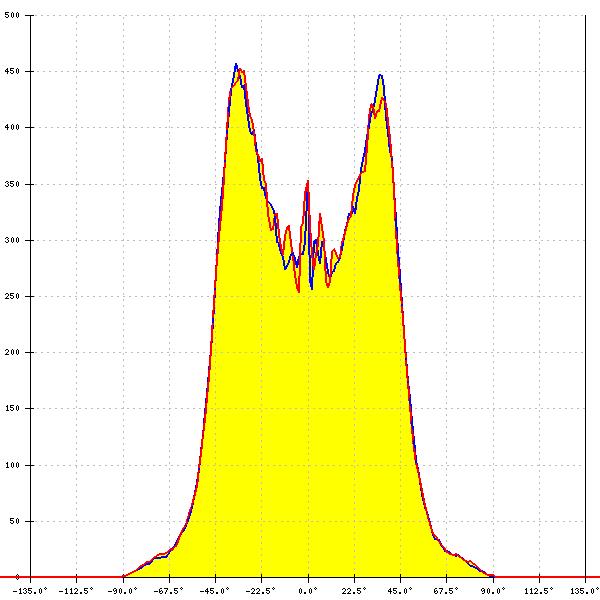

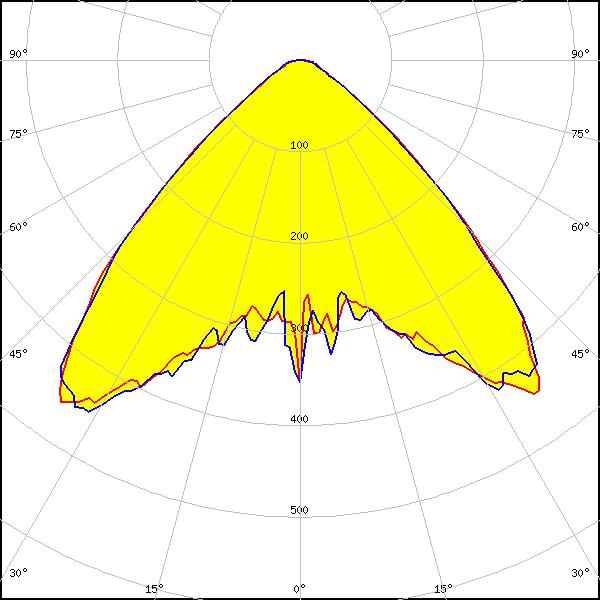

    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 448 Typ L1
    FWHM: 90°
    FWTM: 103°
    Peak intensity: 0.460 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

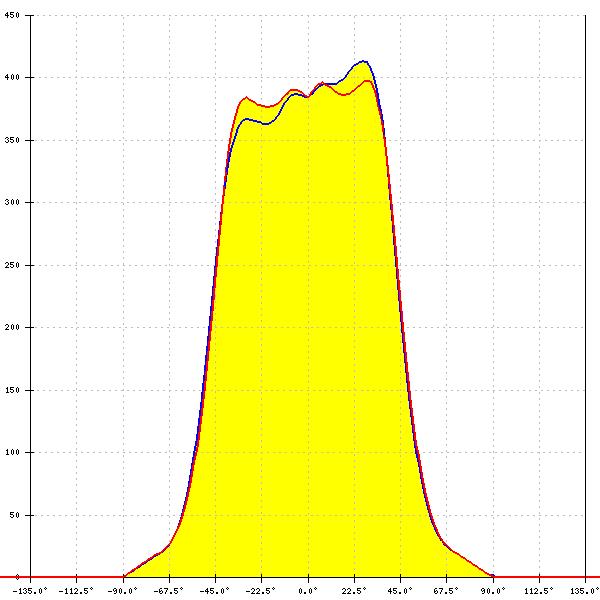

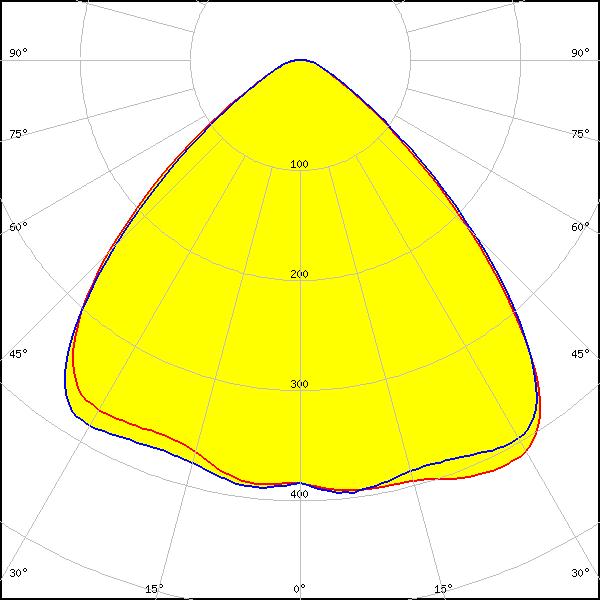

    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 90°
    FWTM: 116°
    Peak intensity: 0.410 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 441 Typ L1
    FWHM: 90°
    FWTM: 116°
    Peak intensity: 0.410 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 437 Typ L1
    FWHM: 90°
    FWTM: 124°
    Peak intensity: 0.430 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

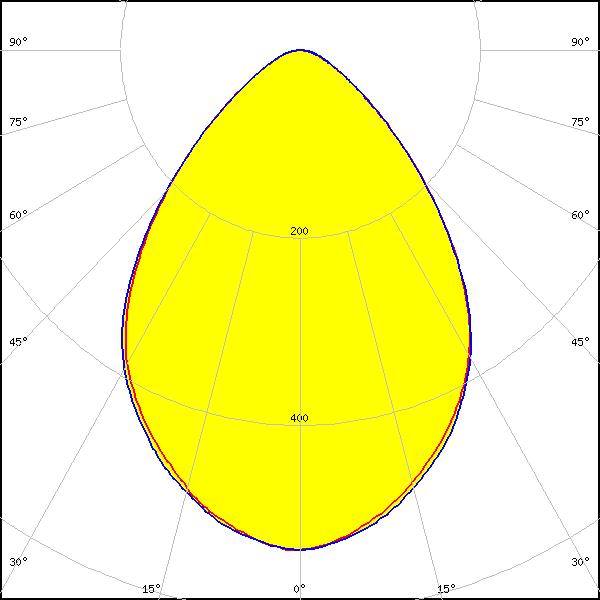

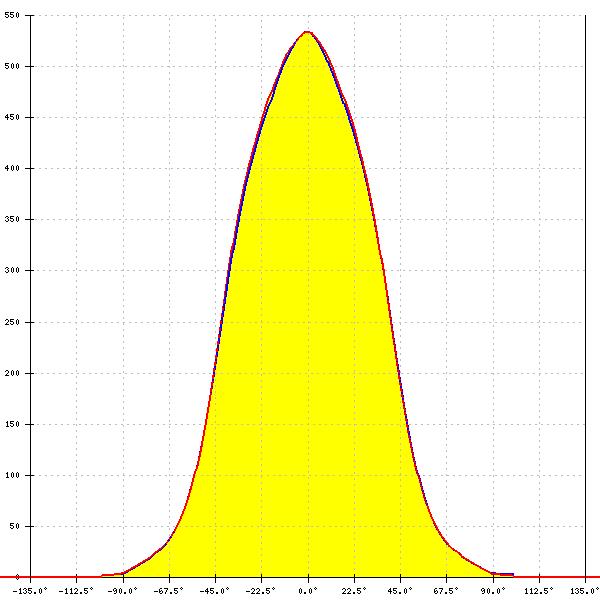

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 80°
    FWTM: 124°
    Peak intensity: 0.500 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

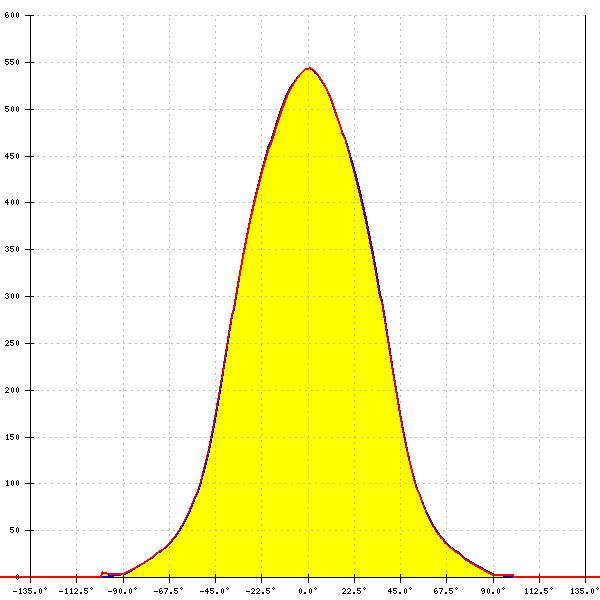

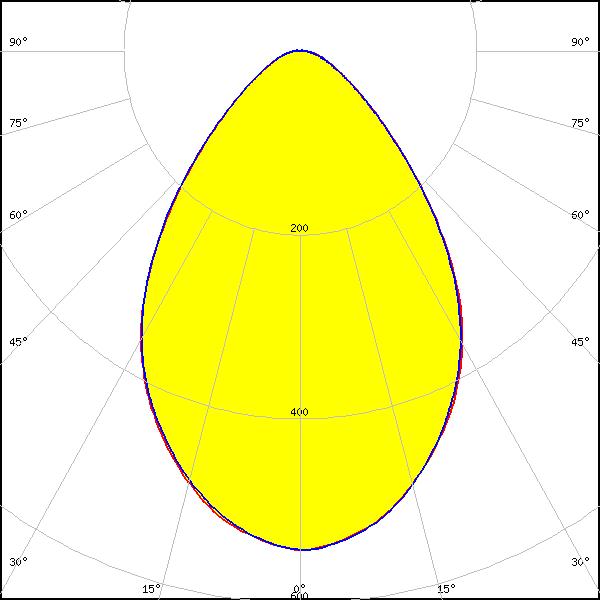

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    TE Connectivity: 2213401-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 75°
    FWTM: 122°
    Peak intensity: 0.540 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1830
    LES size: 14.0 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 84°
    FWTM: -
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Core G7 L15 H1
    LES size: 15.0 mm
    Required components:
    C16685_CLAMP-PRV-A
    FWHM: 73°
    FWTM: 128°
    Peak intensity: 0.500 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

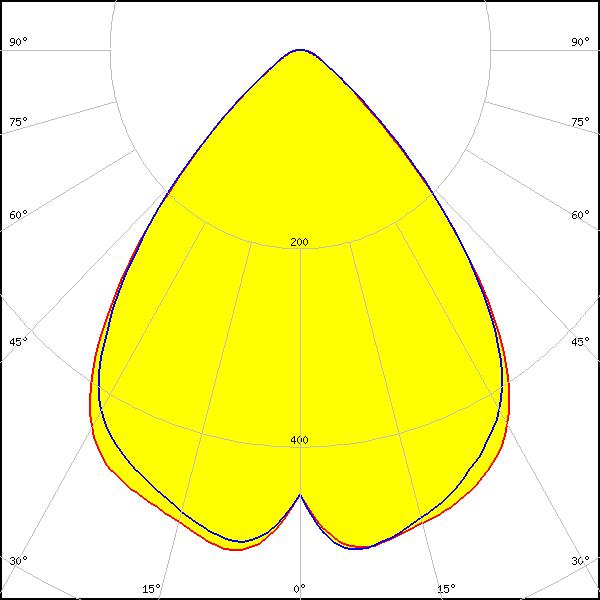

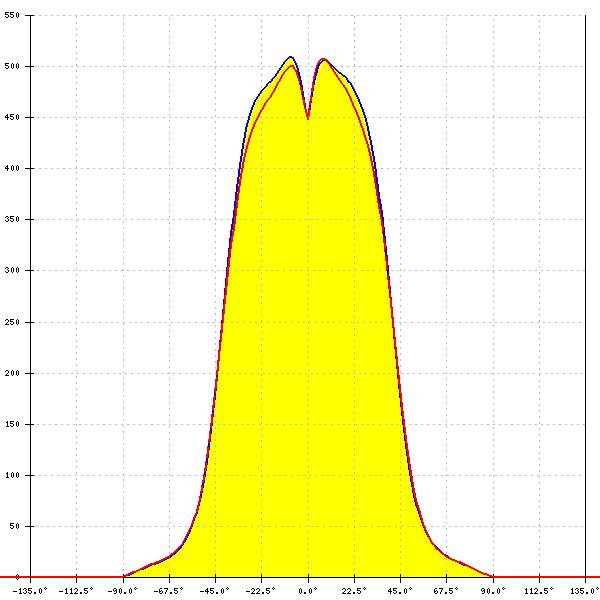

    LED: LUXEON CoB 1202/1203
    LES size: 9.0 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 82°
    FWTM: 112°
    Peak intensity: 0.510 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

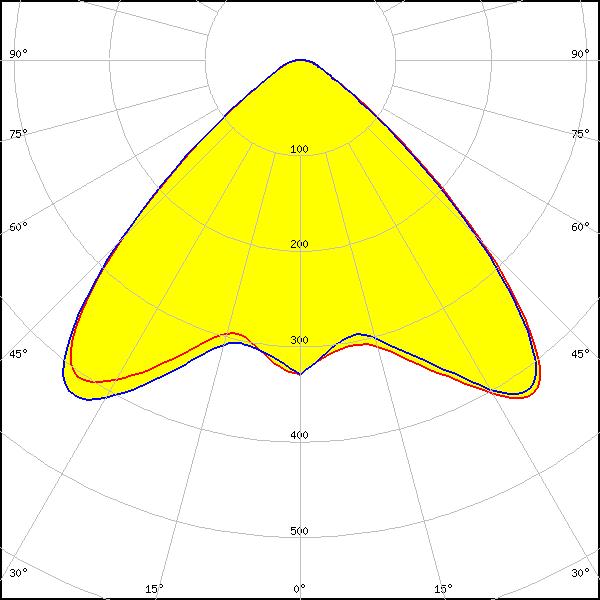

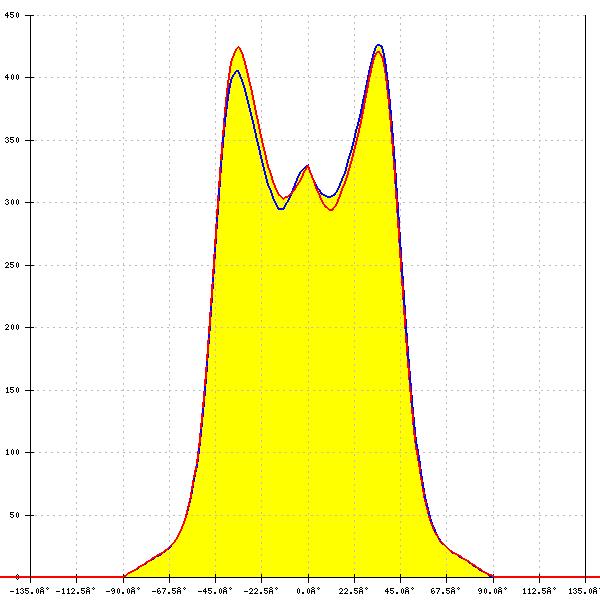

    LED: LUXEON CoB 1202s
    LES size: 6.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 452 Typ L1
    FWHM: 90°
    FWTM: 110°
    Peak intensity: 0.420 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

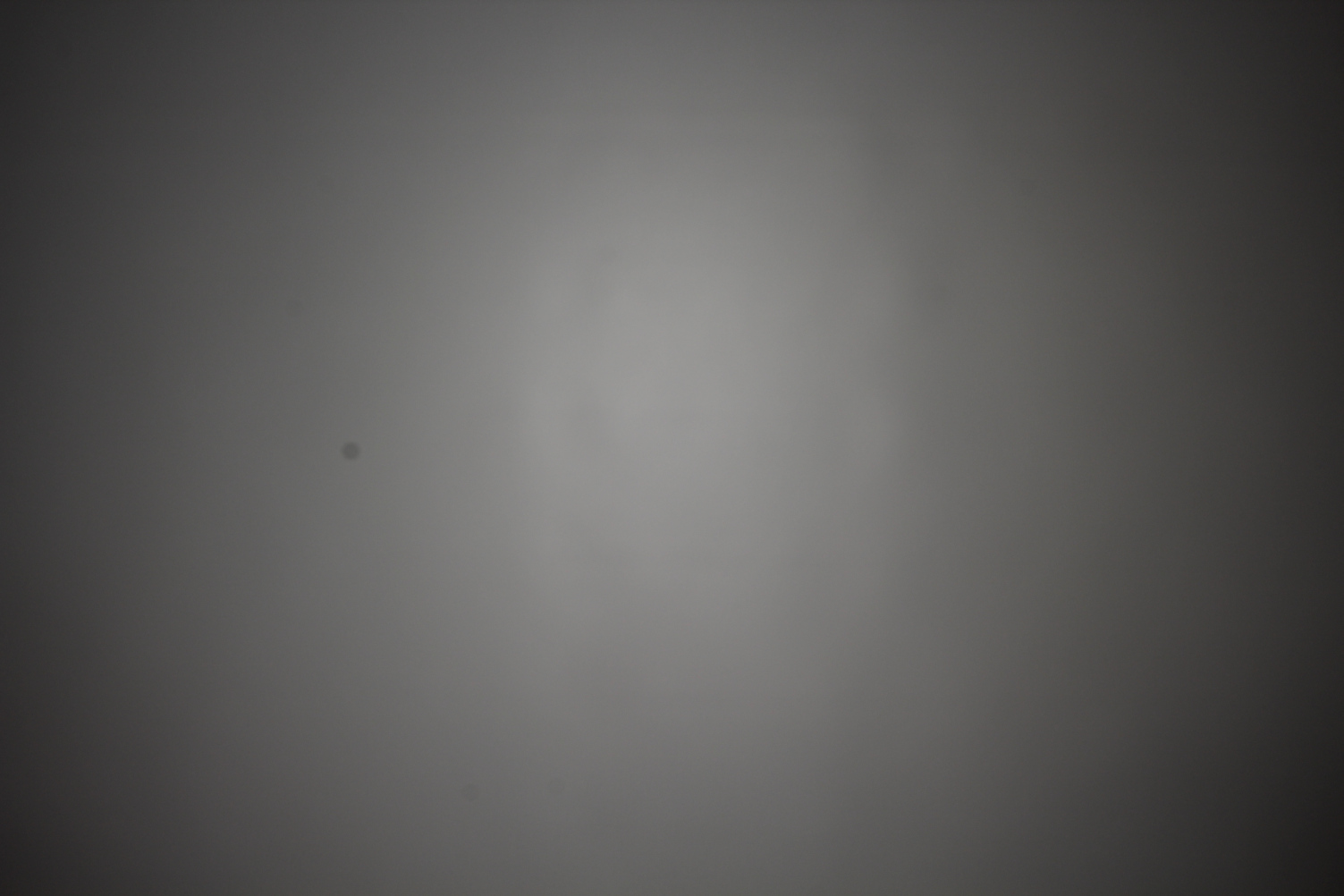

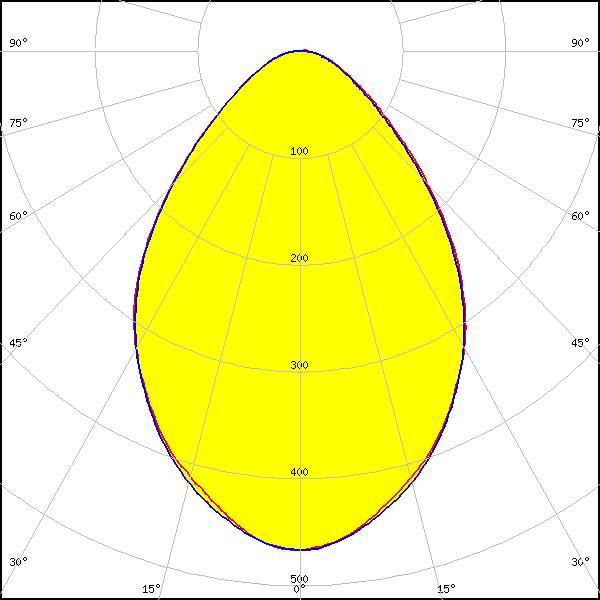

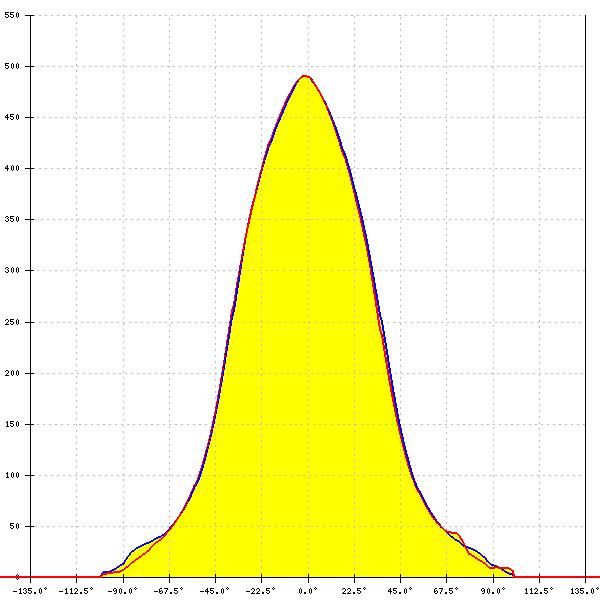

    LED: COB J-Type
    LES size: 14.6 mm
    Required components:
    IDEAL: 50-2103NC
    IDEAL: 50-2100AN
    FWHM: 74°
    FWTM: 132°
    Peak intensity: 0.490 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

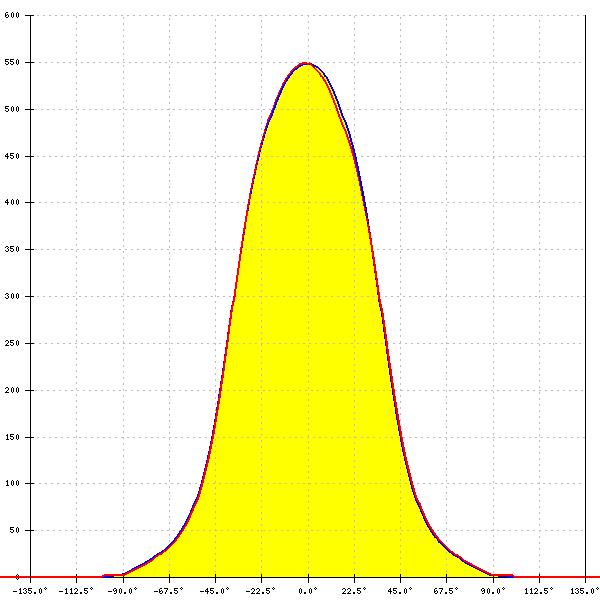

    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    IDEAL: 50-2100NC
    IDEAL: 50-2100AN
    FWHM: 65°
    FWTM: 114°
    Peak intensity: 0.620 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 74°
    FWTM: 119°
    Peak intensity: 0.550 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 9)
    LES size: 8.7 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 83°
    FWTM: 112°
    Peak intensity: 0.500 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NSCxL036A
    LES size: 7.0 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 85°
    FWTM: 109°
    Peak intensity: 0.490 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

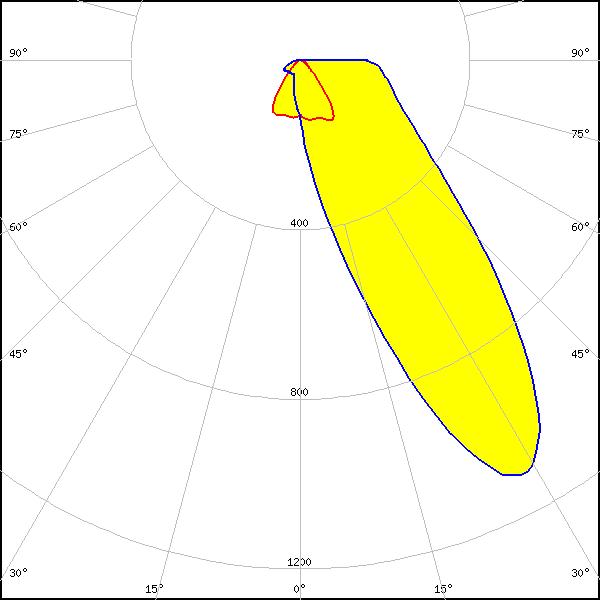

    LED: Duris S10
    LES size: 0.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    FWHM: 99°
    FWTM: 128°
    Peak intensity: 0.360 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

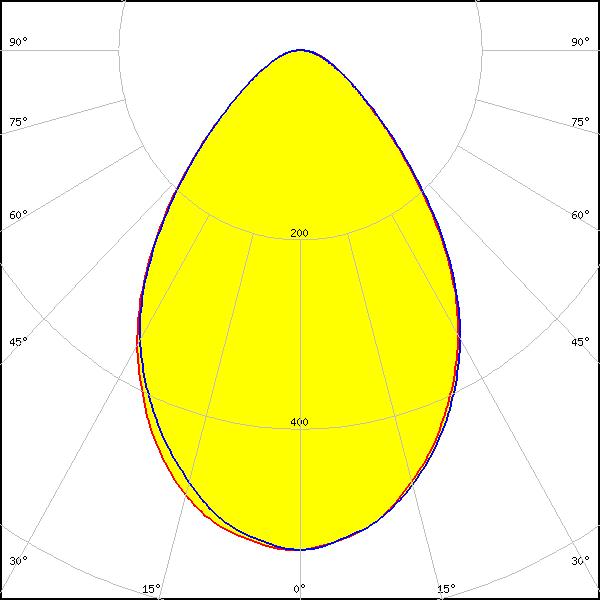

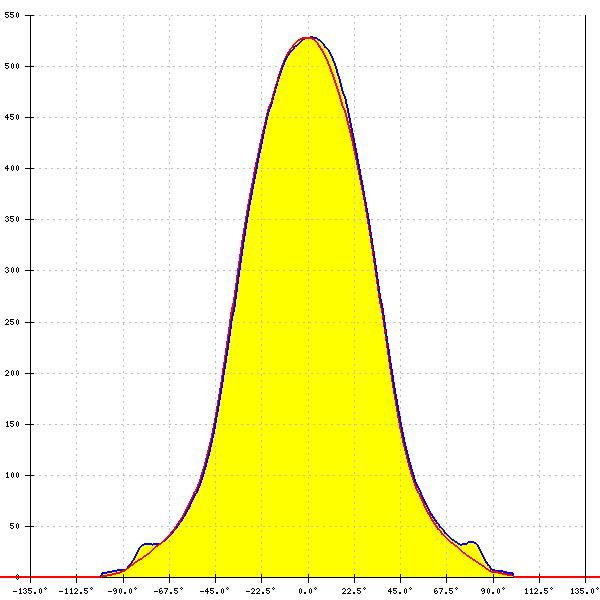

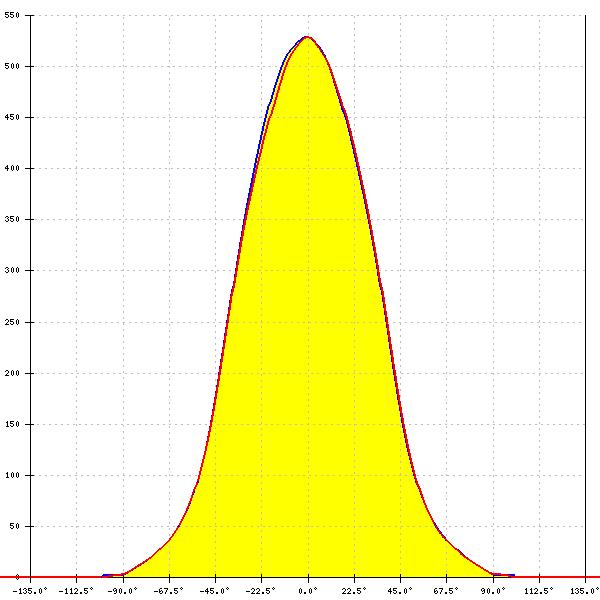

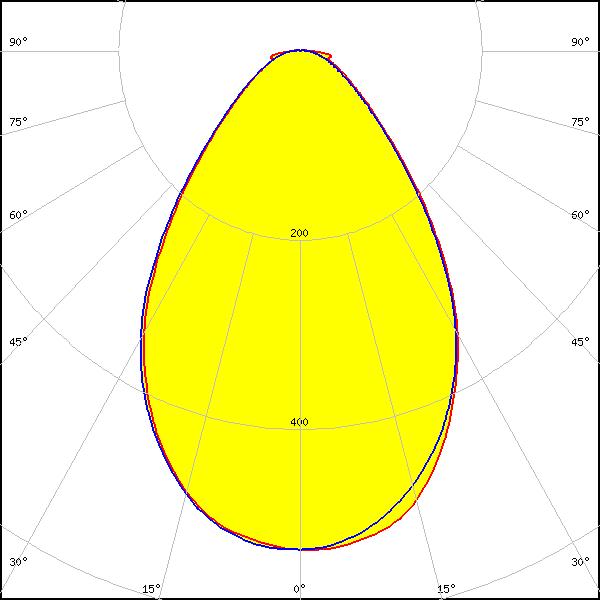

    LED: Soleriq S13 19x19
    LES size: 13.0 mm
    Required components:
    IDEAL: 50-2103CT
    IDEAL: 50-2100AN
    FWHM: 72°
    FWTM: 125°
    Peak intensity: 0.530 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S13 19x19
    LES size: 13.0 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 75°
    FWTM: 123°
    Peak intensity: 0.530 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 + SLM holder
    LES size: 13.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 73°
    FWTM: 124°
    Peak intensity: 0.530 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

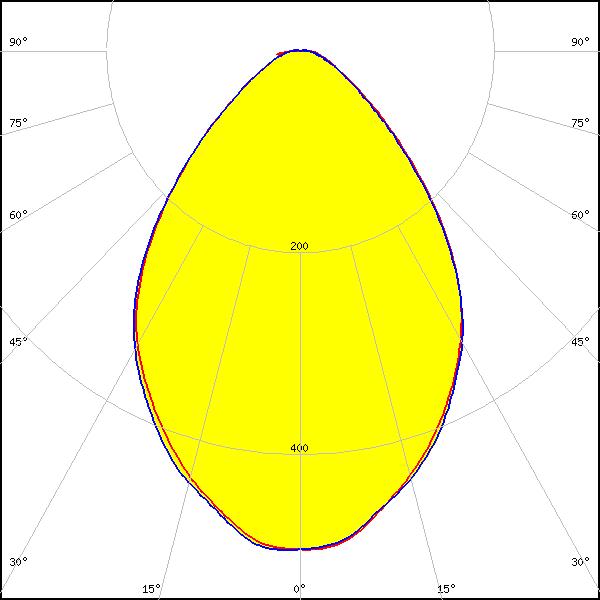

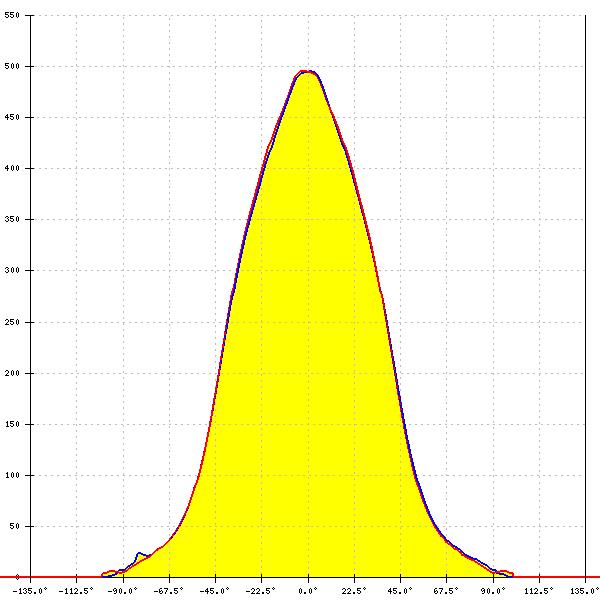

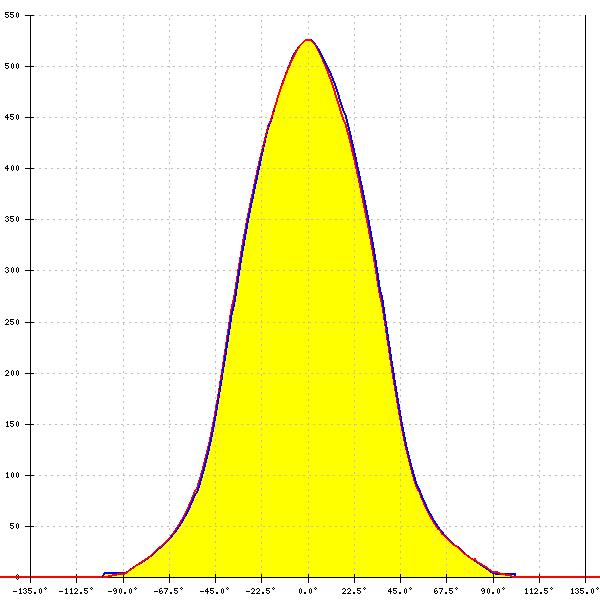

    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 78°
    FWTM: 125°
    Peak intensity: 0.500 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

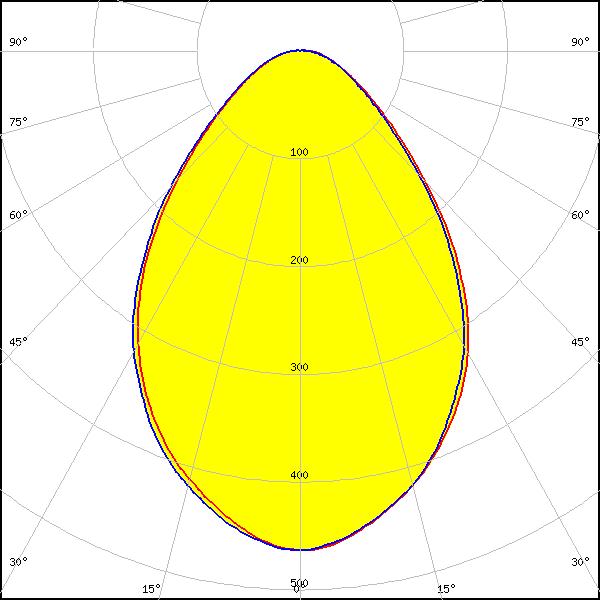

    LED: Fortimo SLM L15 + SLM holder
    LES size: 15.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 78°
    FWTM: 133°
    Peak intensity: 0.460 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040C
    LES size: 11.0 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 74°
    FWTM: 120°
    Peak intensity: 0.550 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

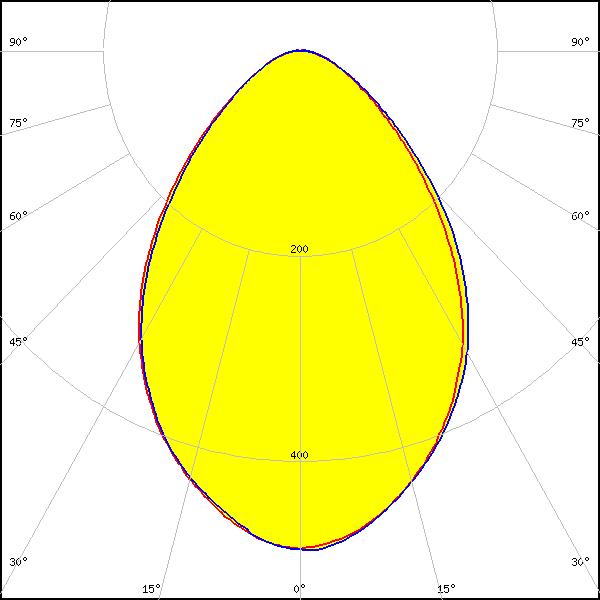

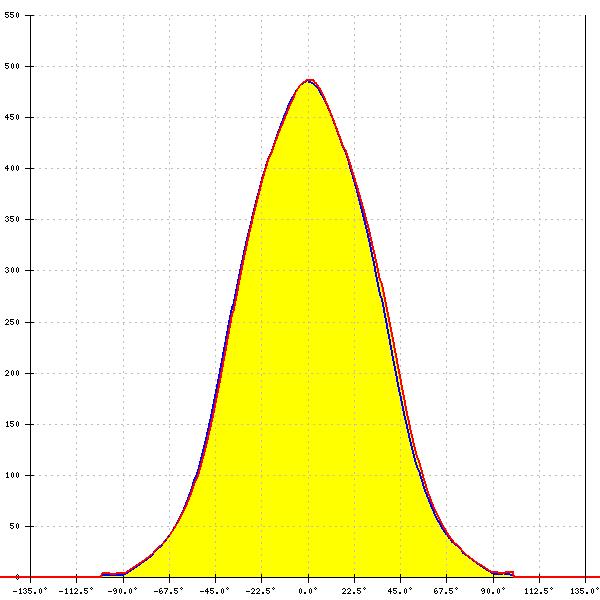

    LED: AC Zhaga COB
    LES size: 14.5 mm
    Required components:
    Optosource: SEHSMJD-A
    FWHM: 78°
    FWTM: 130°
    Peak intensity: 0.490 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

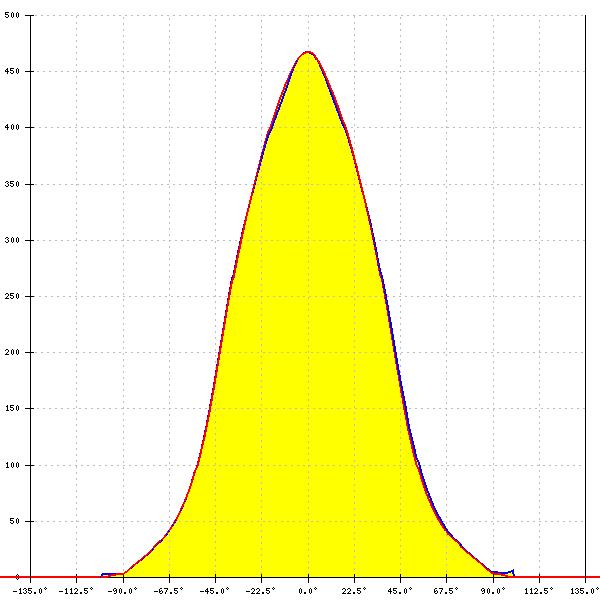

    LED: MJT COB LES 14.5
    LES size: 14.5 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 79°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

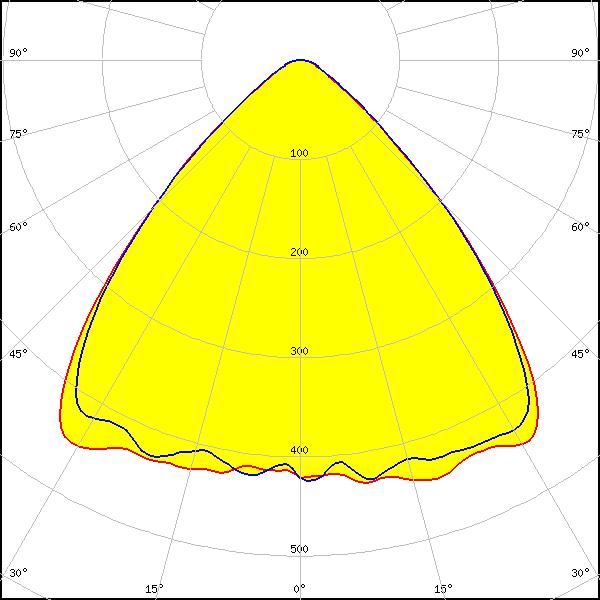

    LED: Mini Zenigata (GW6BM)
    LES size: 8.6 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 452 Typ L1
    FWHM: 88°
    FWTM: 116°
    Peak intensity: 0.470 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

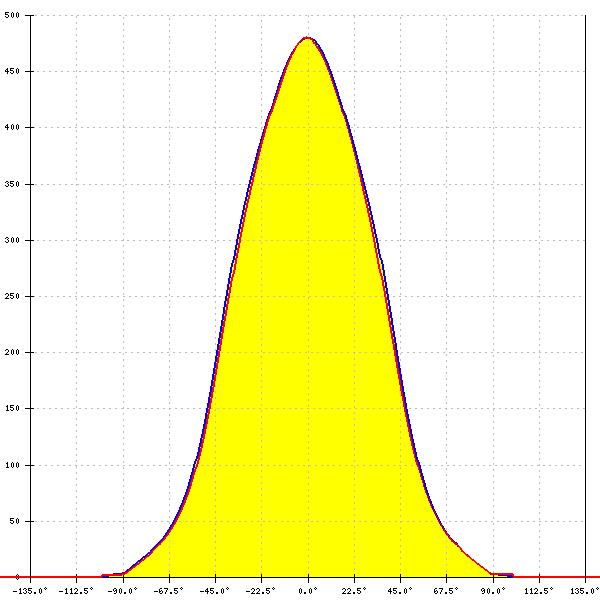

    LED: WU-M-484
    LES size: 14.9 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 79°
    FWTM: 130°
    Peak intensity: 0.480 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
