RONDA-W

Print

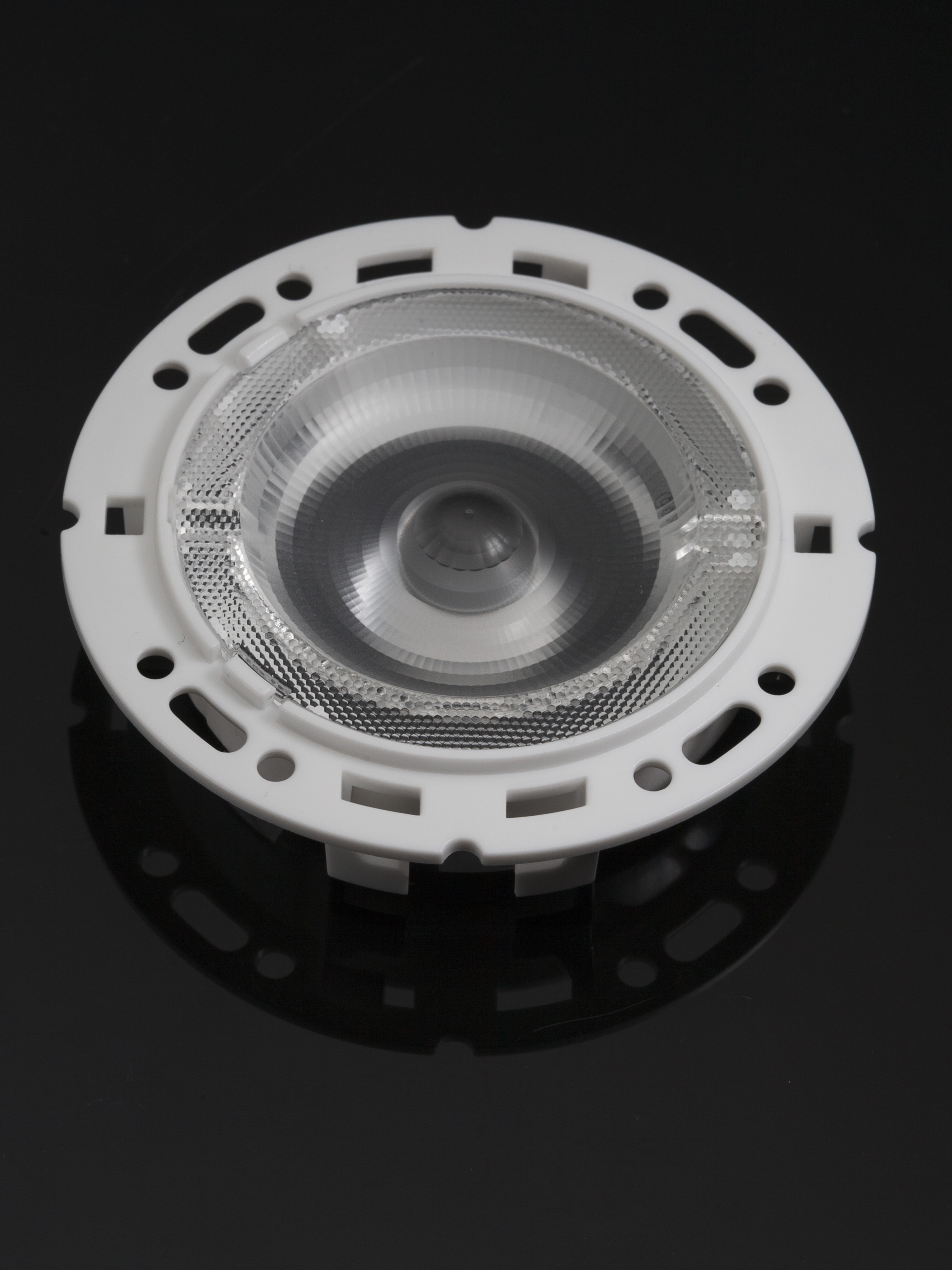

~45° wide beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    70 mm
  • Height:
    14.00 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15443_RONDA-W
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.50 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    1.60 kg
  • Holder
  • F15155_RONDA-HLD-A
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.40 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.30 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15443_RONDA-W
    F15155_RONDA-HLD-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

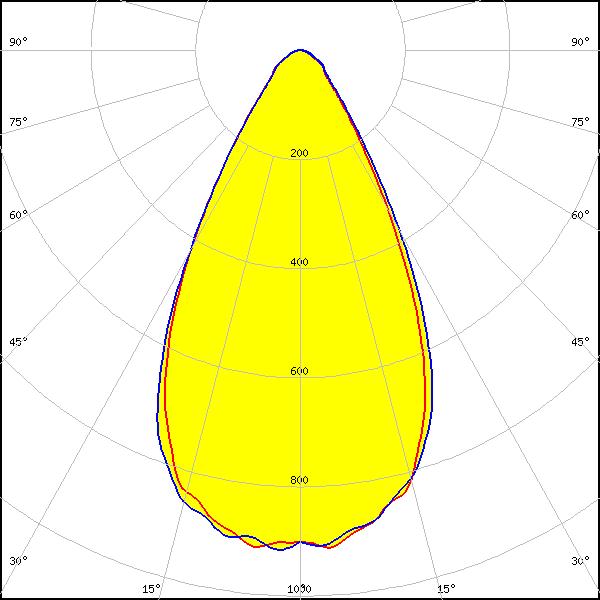

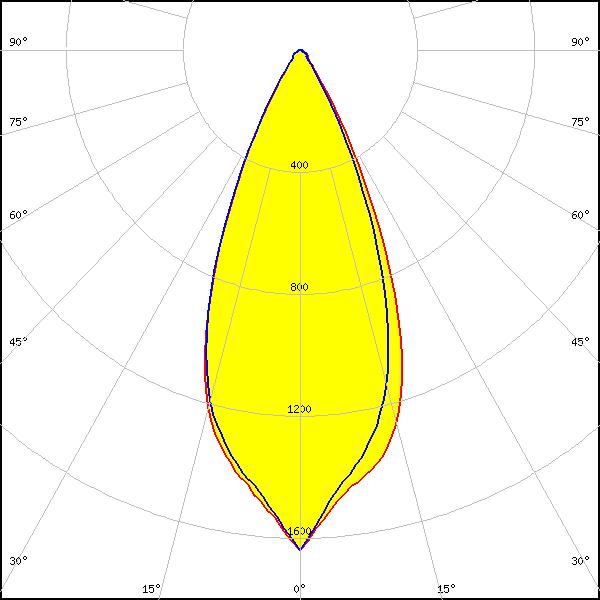

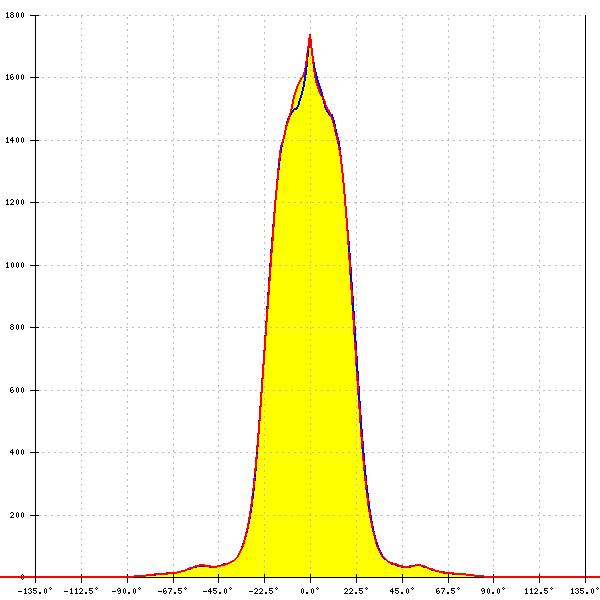

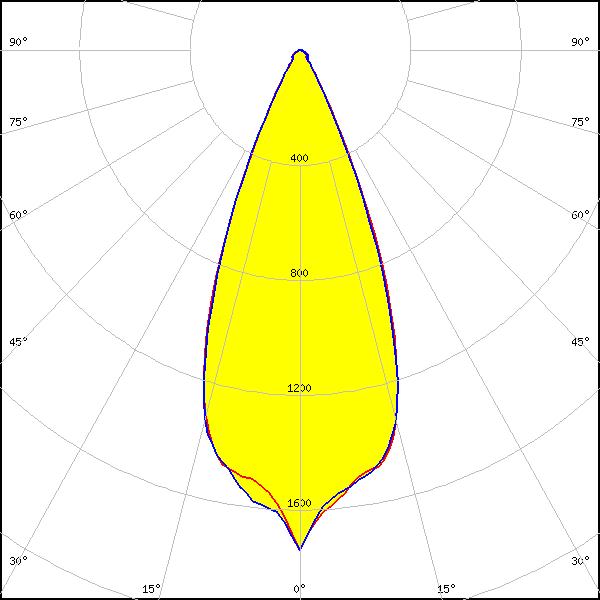

Optical results

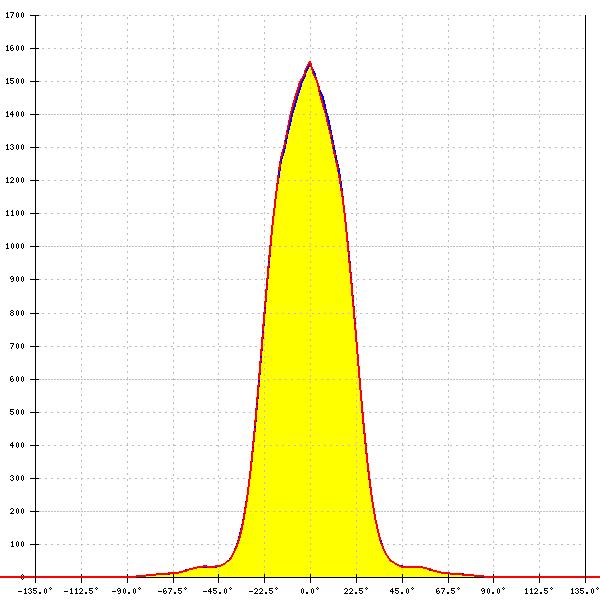

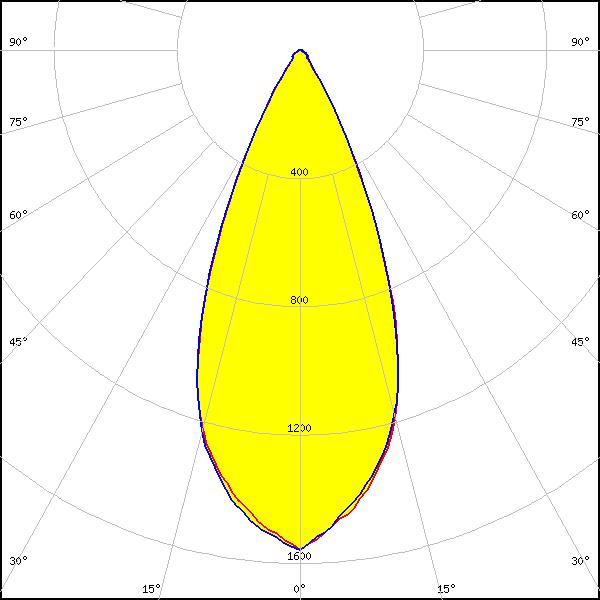

LED: V10 Gen6
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 455 Typ L1
FWHM: 44°
FWTM: 66°
Peak intensity: 1.560 cd/lm
LEDs/each optic: 1
Light colour: White

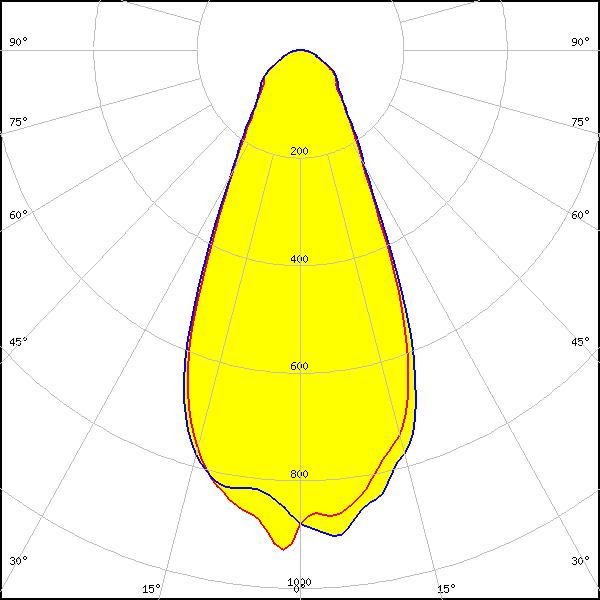

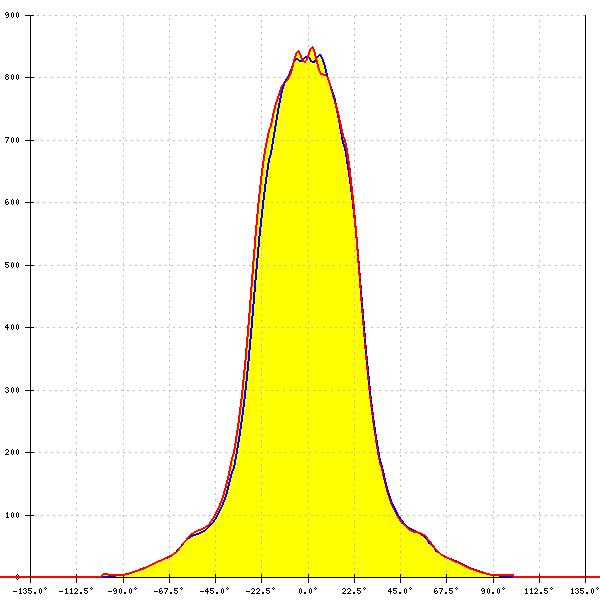

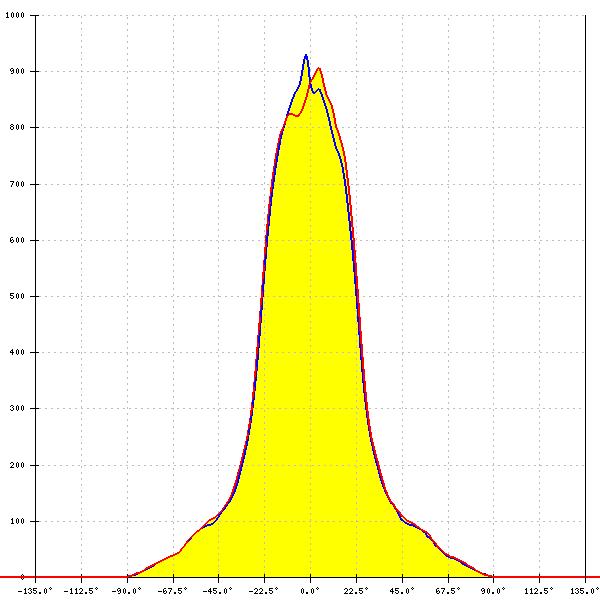

LED: V13 Gen7
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 46°
FWTM: 102°
Peak intensity: 0.950 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

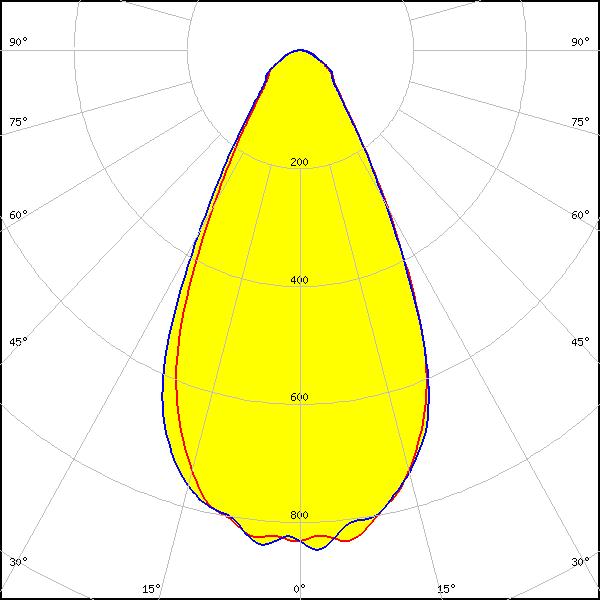

LED: V13 Gen7
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 54°
FWTM: 95°
Peak intensity: 0.850 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

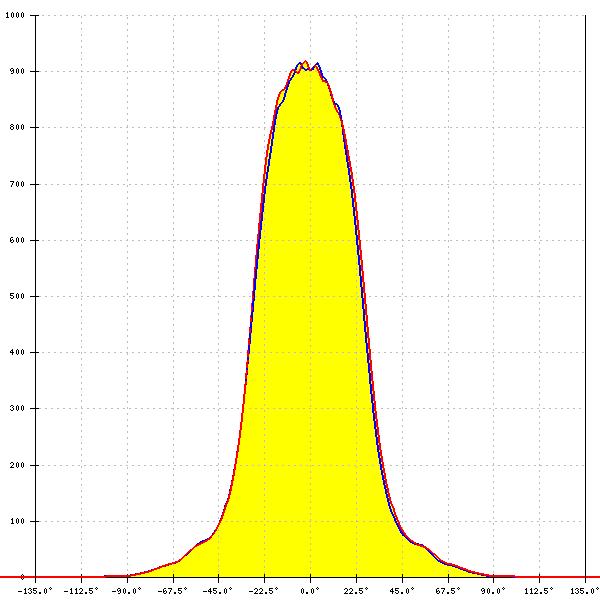

LED: Vero SE 13
Required components:
FWHM: 56°
FWTM: 88°
Peak intensity: 0.920 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

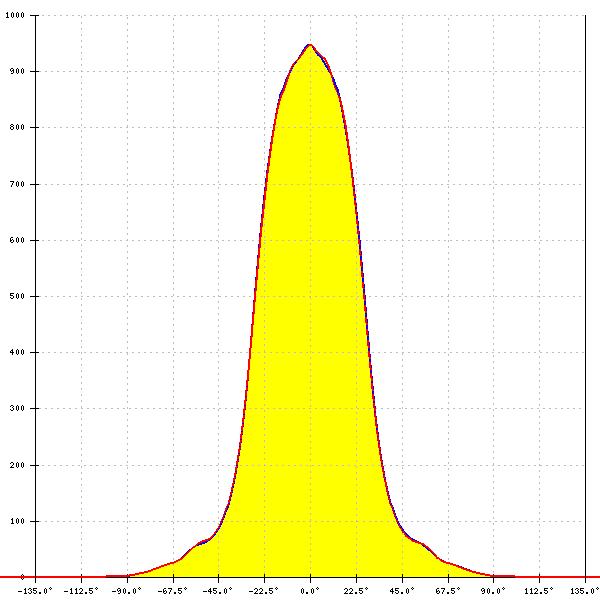

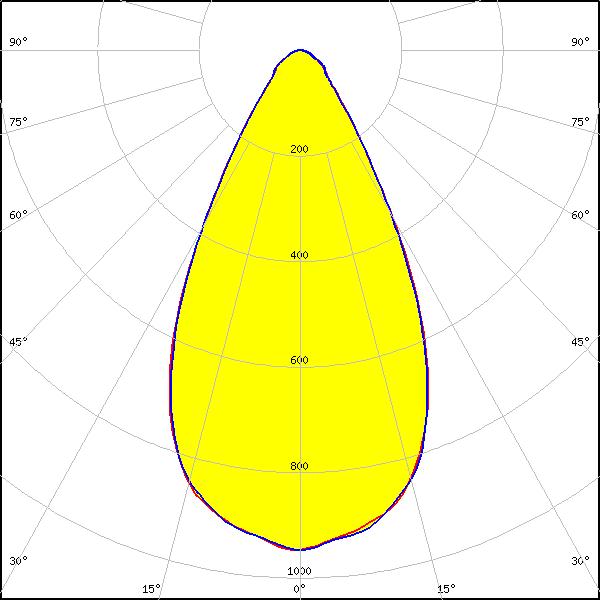

LED: VERO13
Required components:
FWHM: 55°
FWTM: 87°
Peak intensity: 0.950 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

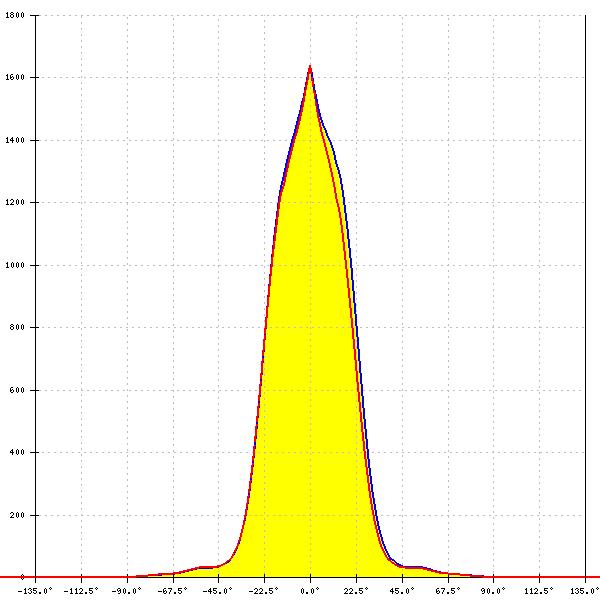

LED: CLL02x/CLU02x (LES10)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 42°
FWTM: 65°
Peak intensity: 1.640 cd/lm
LEDs/each optic: 1
Light colour: White

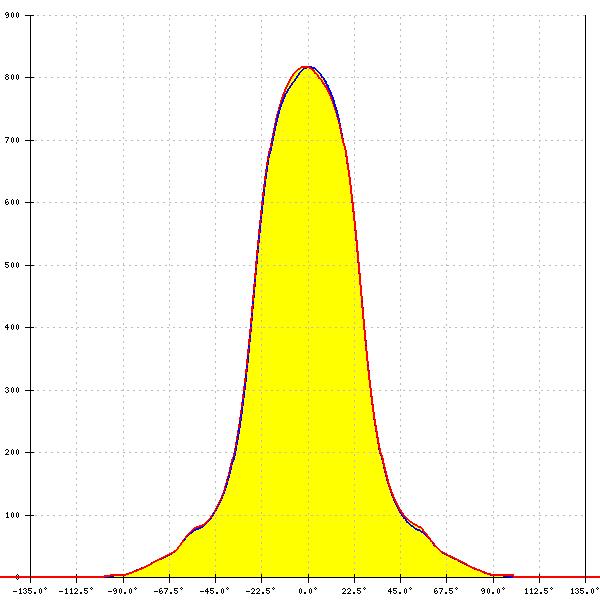

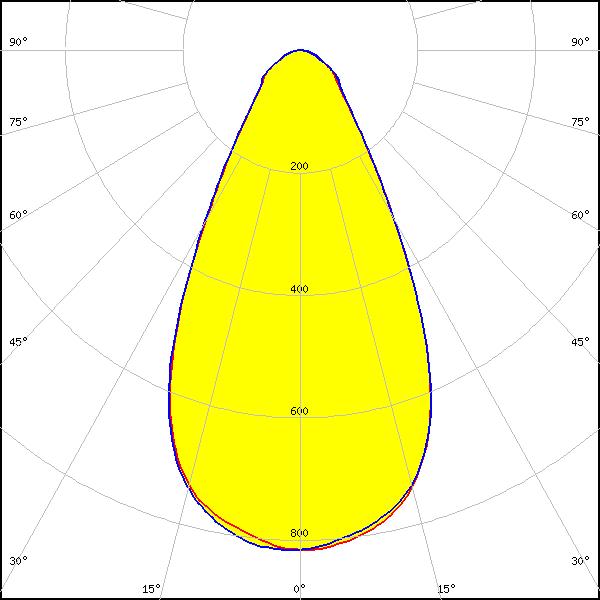

LED: CLL03x/CLU03x
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
FWHM: 55°
FWTM: 104°
Peak intensity: 0.820 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

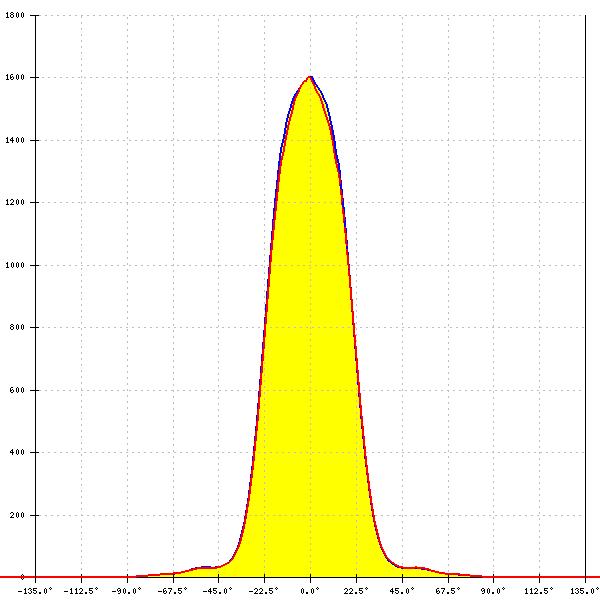

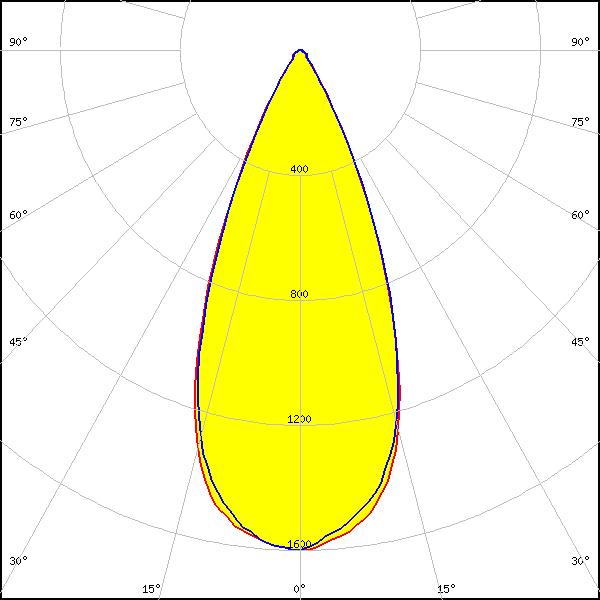

LED: CLU710/711
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 470 Typ L1
FWHM: 44°
FWTM: 65°
Peak intensity: 1.600 cd/lm
LEDs/each optic: 1
Light colour: White

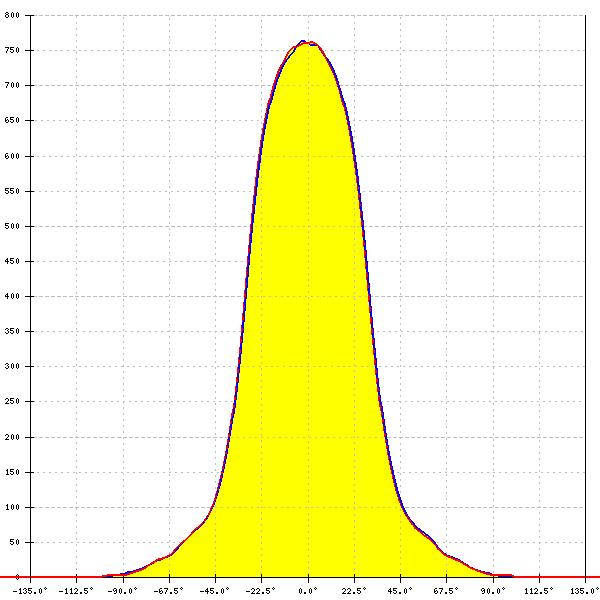

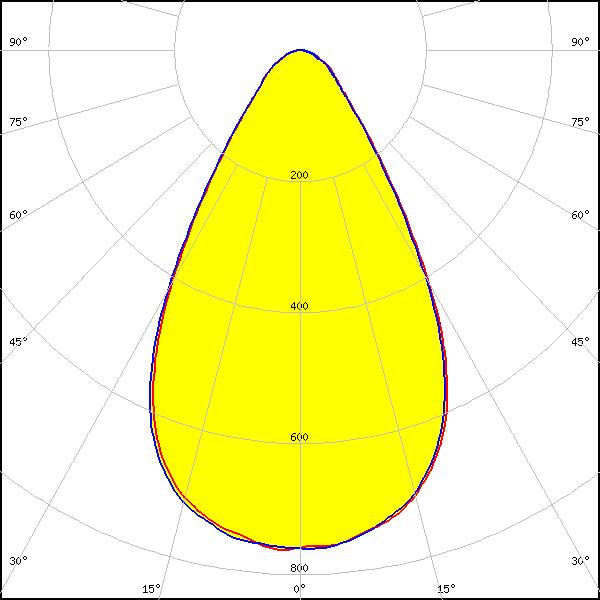

LED: CMA1840
Required components:
FWHM: 62°
FWTM: 103°
Peak intensity: 0.760 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

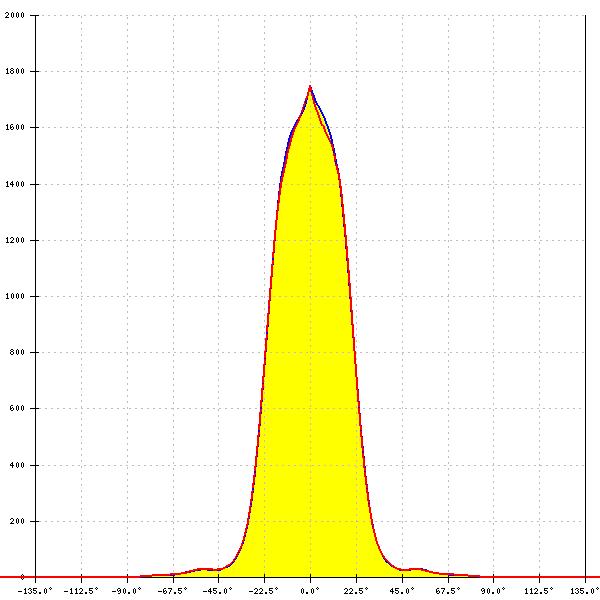

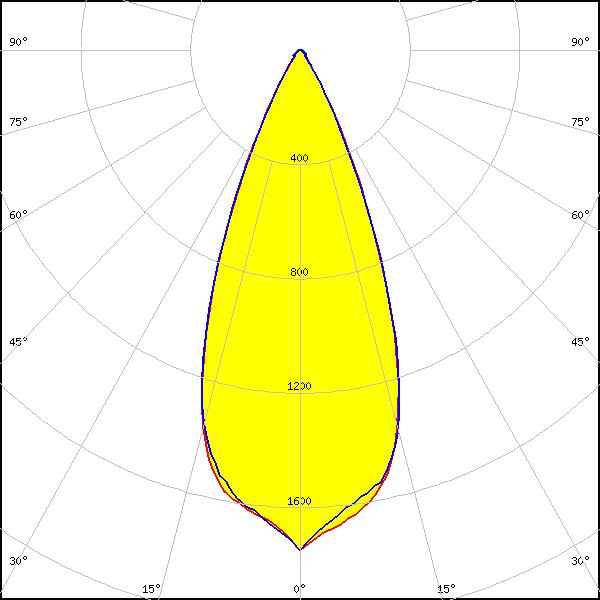

LED: CXA/B 15xx
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 441 Typ L1
FWHM: 42°
FWTM: 62°
Peak intensity: 1.750 cd/lm
LEDs/each optic: 1
Light colour: White

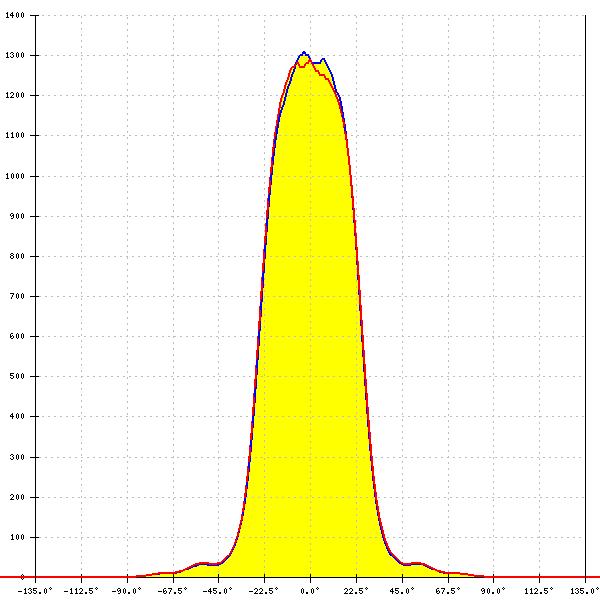

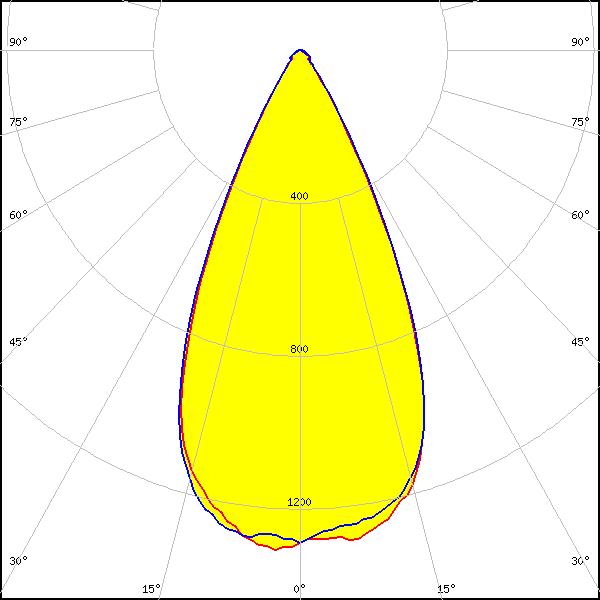

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 48°
FWTM: 68°
Peak intensity: 1.320 cd/lm
LEDs/each optic: 1
Light colour: White

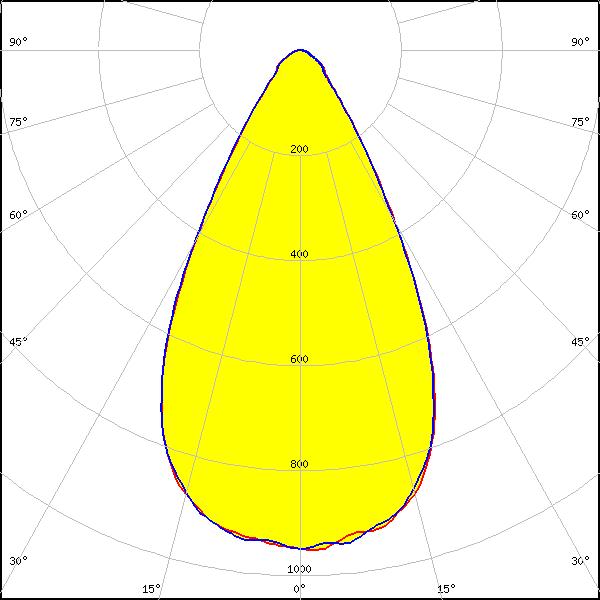

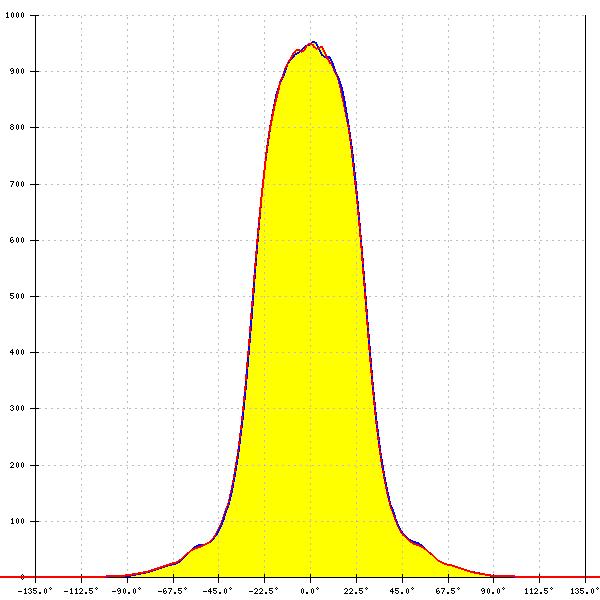

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 56°
FWTM: 86°
Peak intensity: 1.000 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

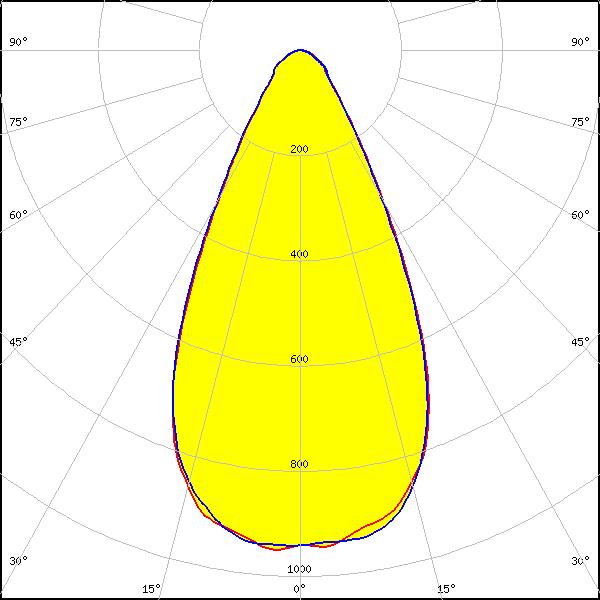

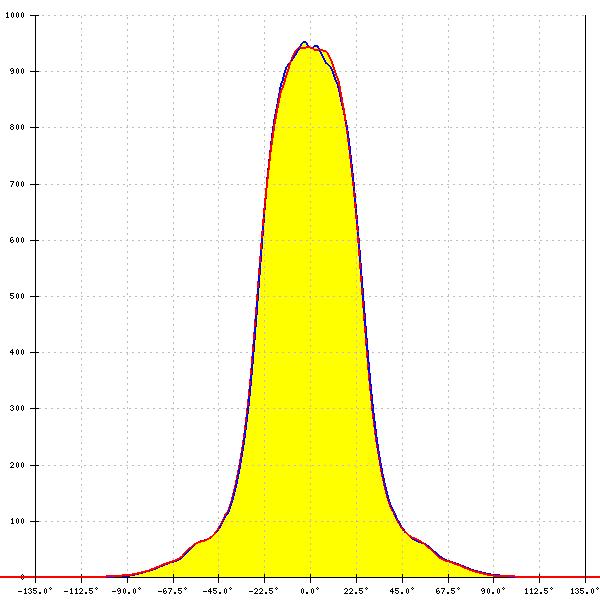

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 62°
FWTM: 97°
Peak intensity: 0.790 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

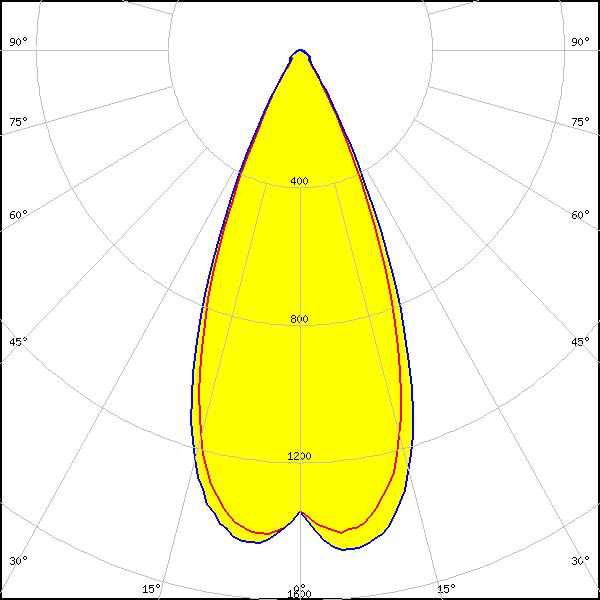

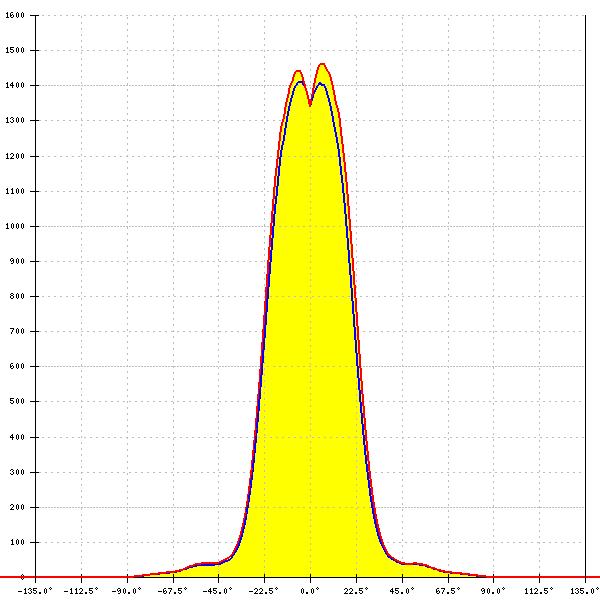

LED: LUXEON CoB 1202/1203
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 43°
FWTM: 66°
Peak intensity: 1.460 cd/lm
LEDs/each optic: 1
Light colour: White
LED: COB L-Type (LES 9)
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 42°
FWTM: 60°
Peak intensity: 1.740 cd/lm
LEDs/each optic: 1
Light colour: White
LED: NSCxL036A
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 36°
FWTM: 54°
Peak intensity: 2.370 cd/lm
LEDs/each optic: 1
Light colour: White
LED: PrevaLED Core G7 L15 H1
Required components:
FWHM: 57°
FWTM: 116°
Peak intensity: 0.720 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

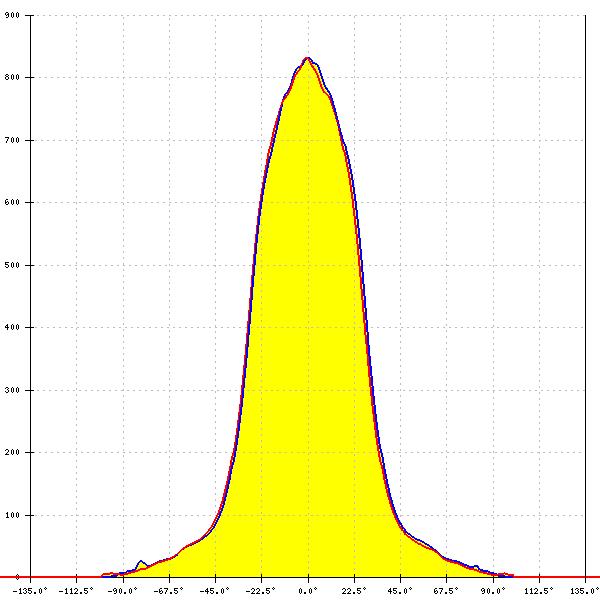

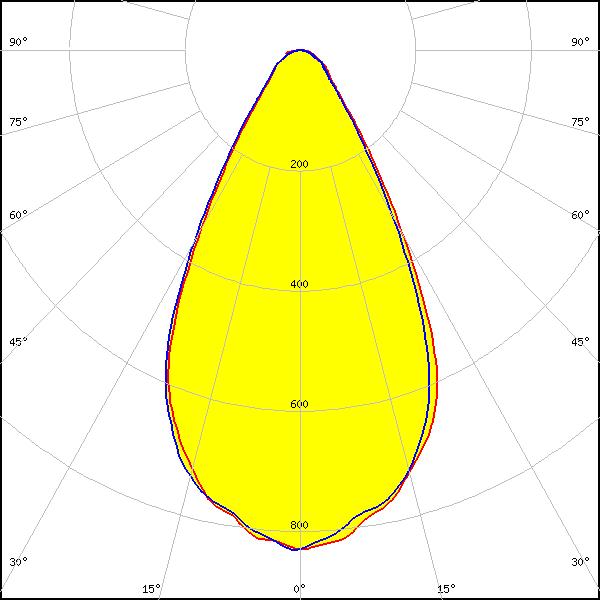

LED: Fortimo SLM L13 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 56°
FWTM: 91°
Peak intensity: 0.800 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

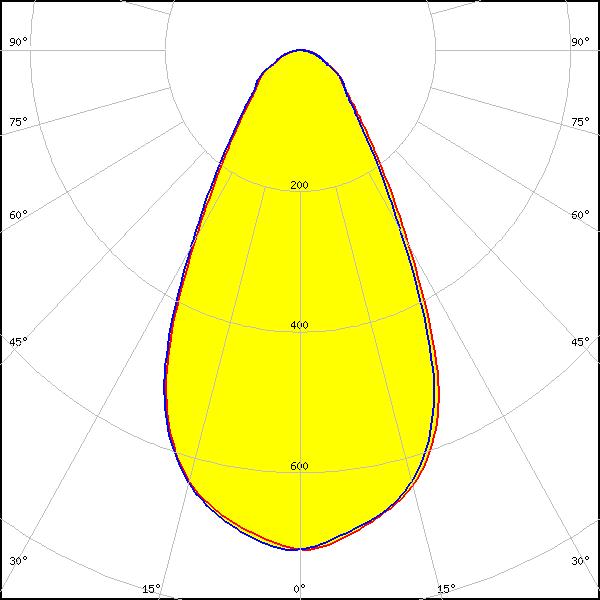

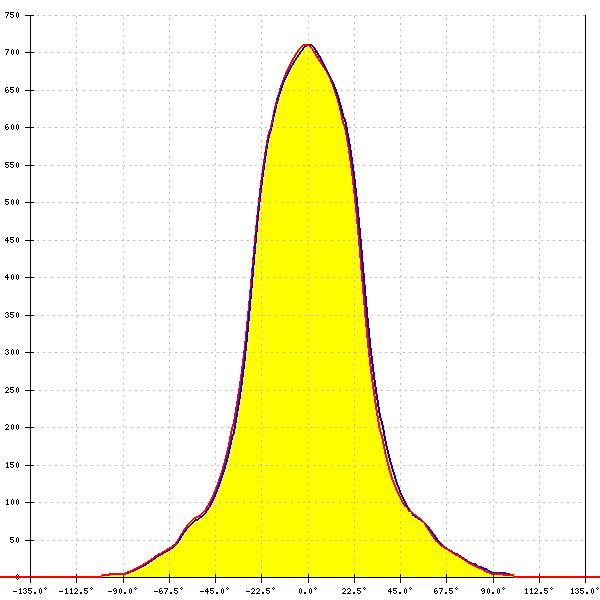

LED: Fortimo SLM L15 + SLM holder
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 57°
FWTM: 114°
Peak intensity: 0.710 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

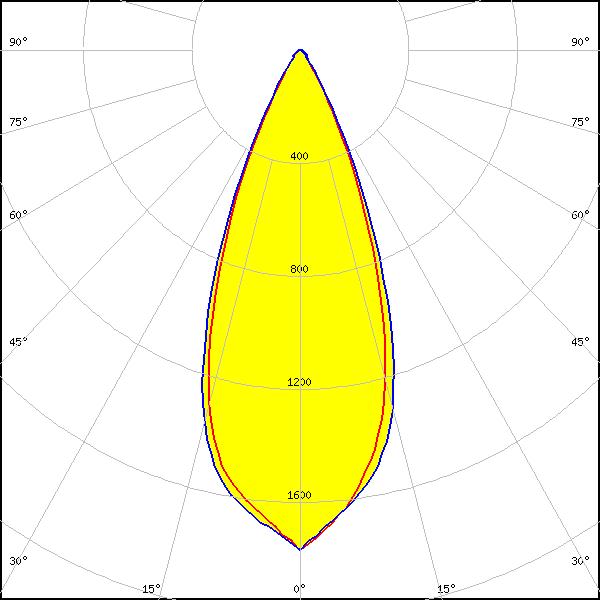

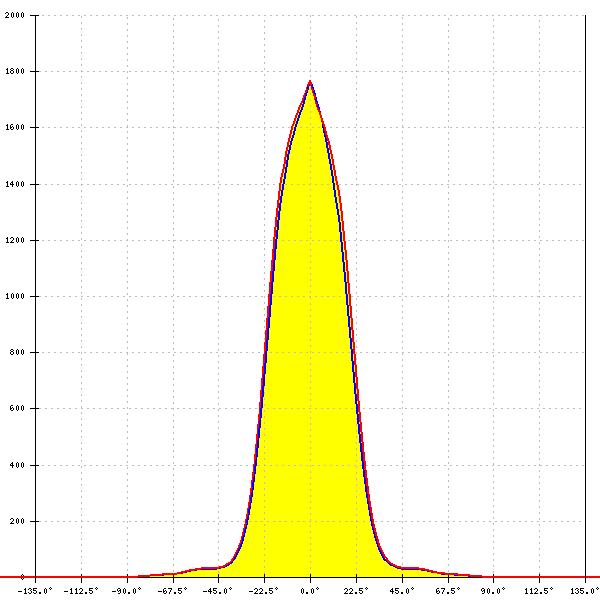

LED: Mini Zenigata (GW6BM)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 452 Typ L1
FWHM: 40°
FWTM: 64°
Peak intensity: 1.770 cd/lm
LEDs/each optic: 1
Light colour: White
