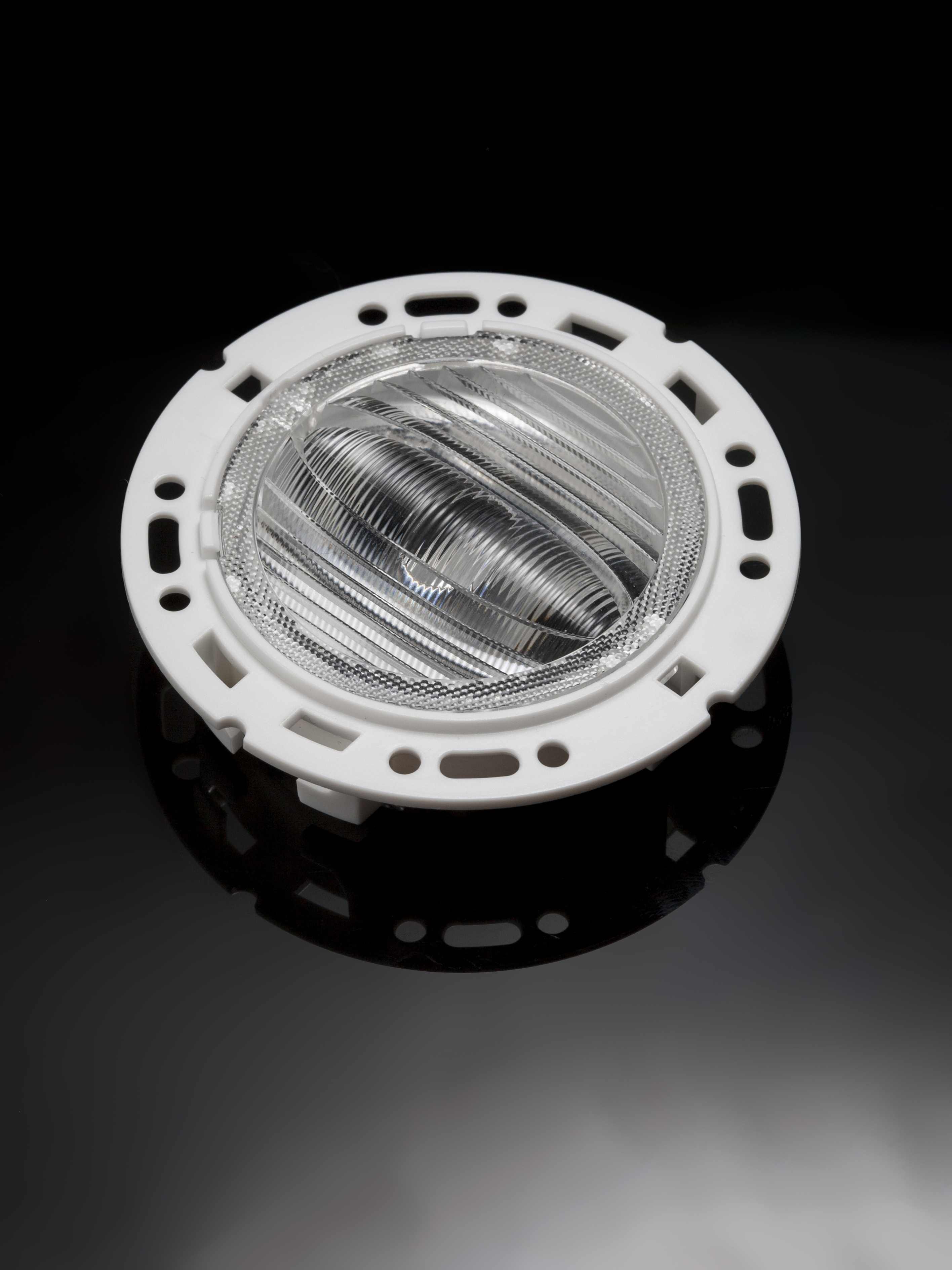

RONDA-O

Print

~50° + 30° oval beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL.

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    70 mm
  • Height:
    17.28 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15990_RONDA-O
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.50 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    1.90 kg
  • Holder
  • F15155_RONDA-HLD-A
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.40 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.30 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15990_RONDA-O
    F15155_RONDA-HLD-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

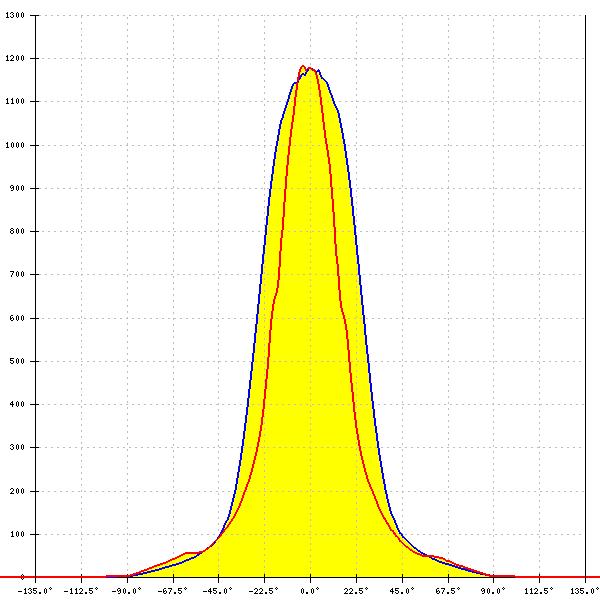

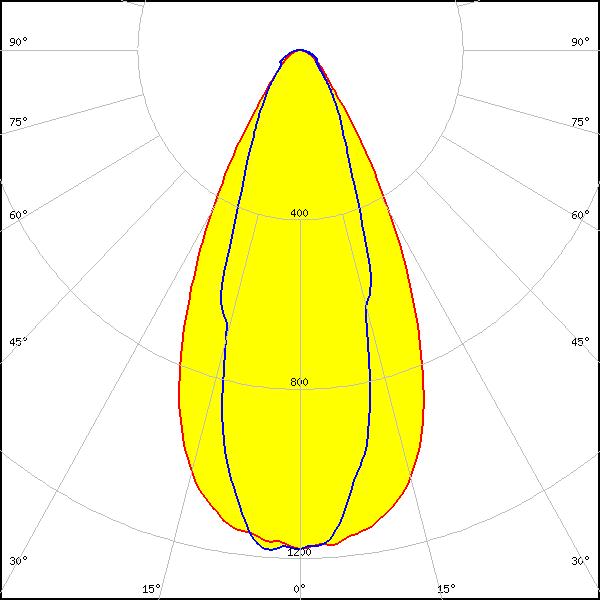

LED: Vero SE 13
LES size: 13.4 mm
Required components:
FWHM: 53° + 36°
FWTM: 84° + 79°
Peak intensity: 1.200 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

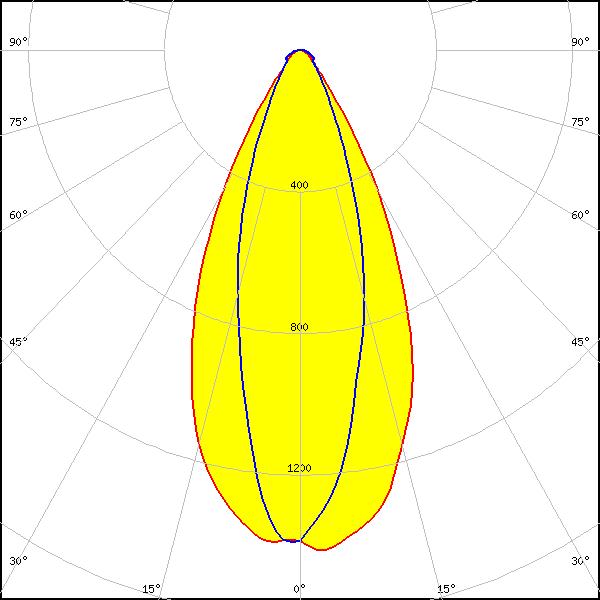

LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 49° + 30°
FWTM: 78° + 49°
Peak intensity: 1.450 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

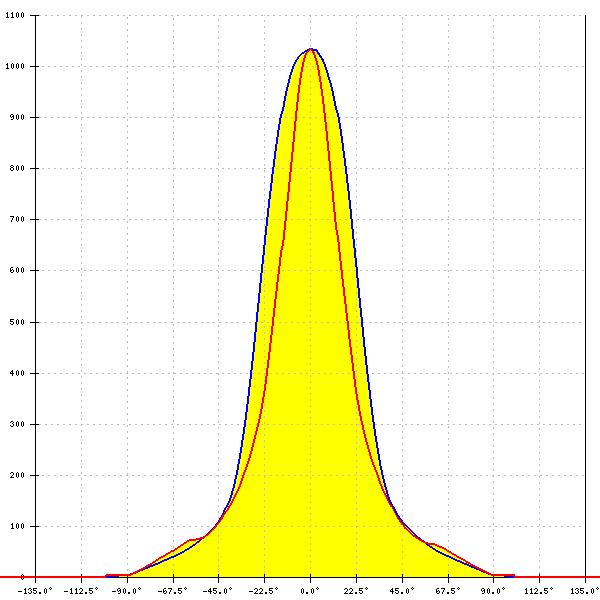

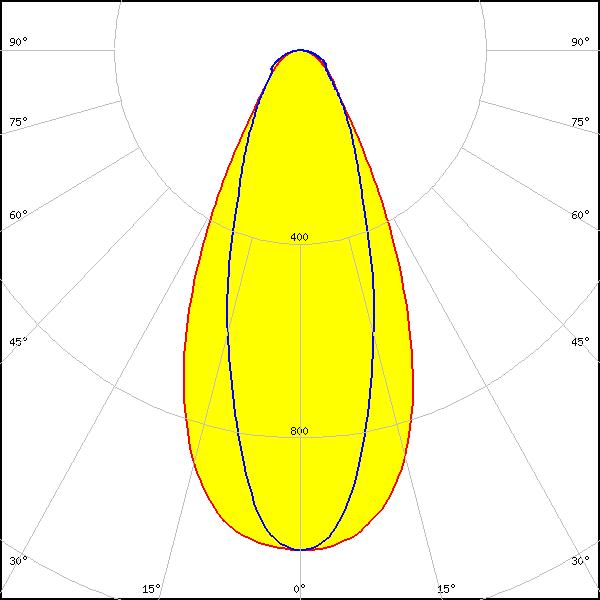

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
FWHM: 51° + 35°
FWTM: 92° + 91°
Peak intensity: 1.000 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

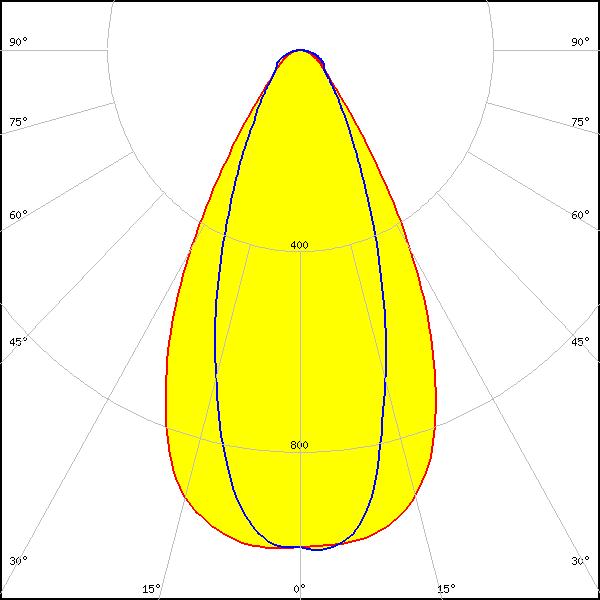

LED: CMA1840
LES size: 14.0 mm
Required components:
FWHM: 58° + 40°
FWTM: 90° + 86°
Peak intensity: 1.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

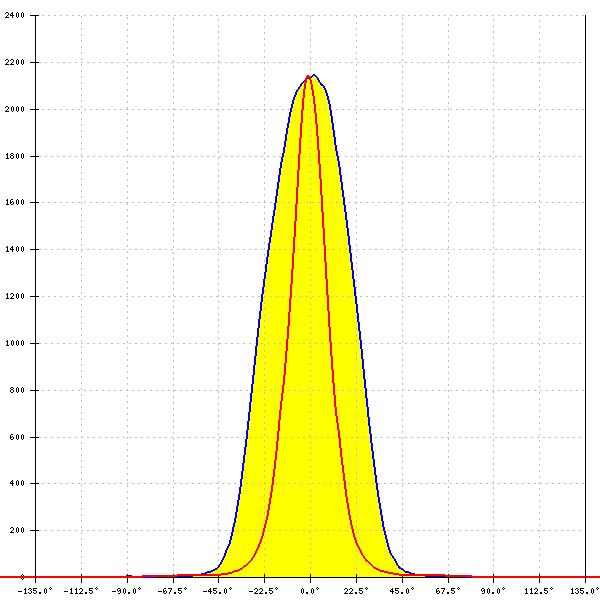

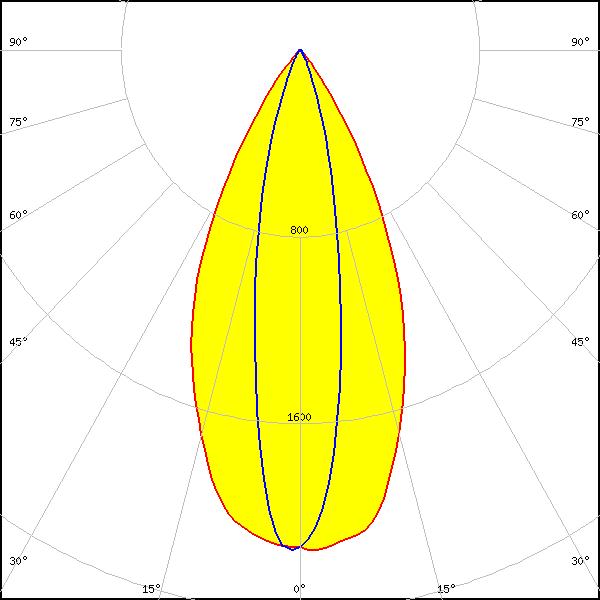

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 49° + 21°
FWTM: 74° + 43°
Peak intensity: 2.140 cd/lm
LEDs/each optic: 1
Light colour/type: White

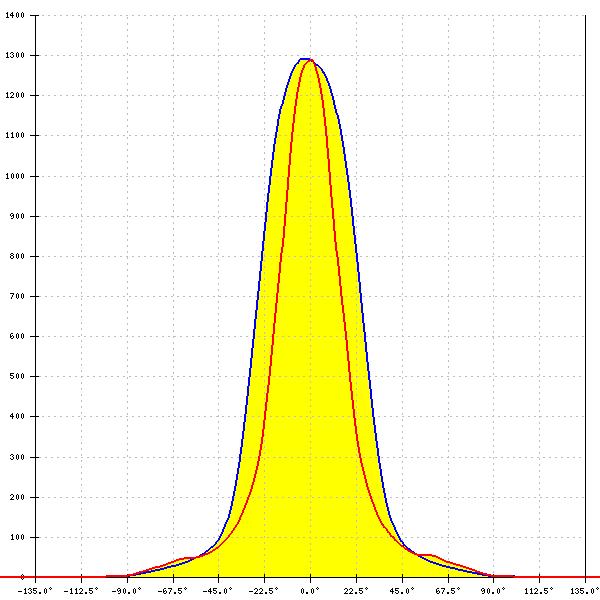

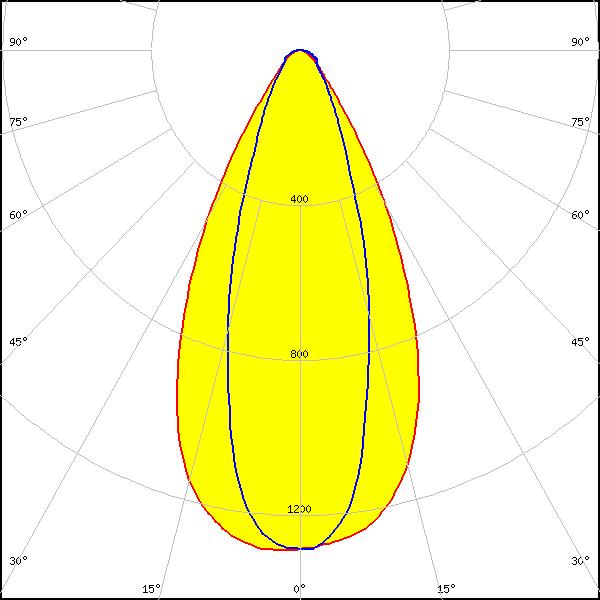

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
FWHM: 53° + 34°
FWTM: 83° + 72°
Peak intensity: 1.300 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

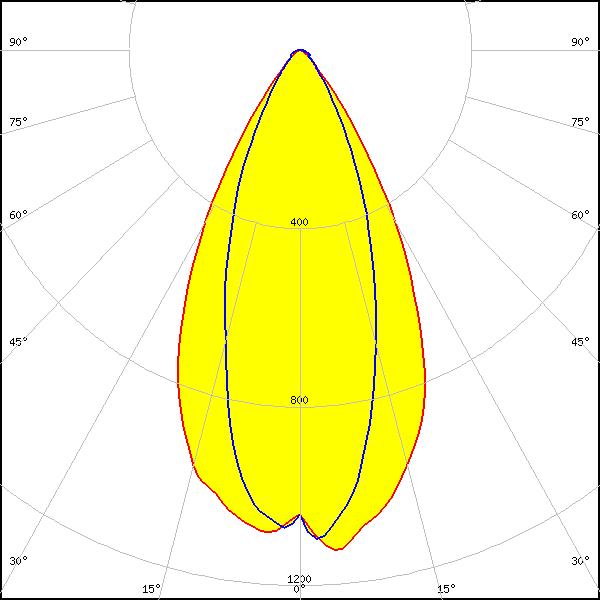

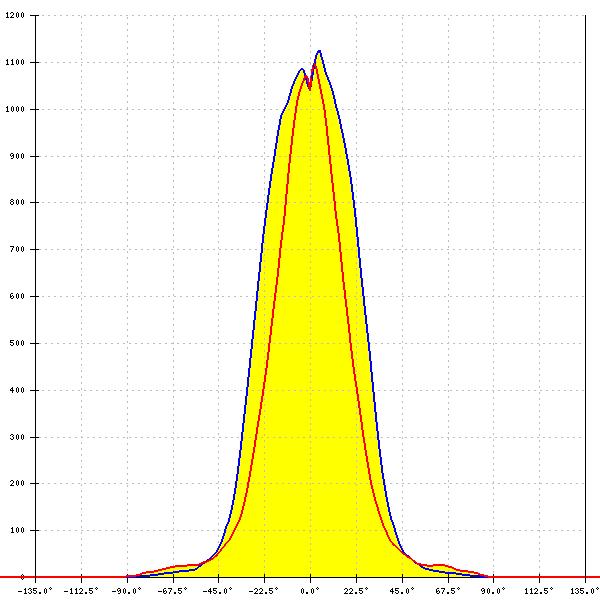

LED: CXA/B 1830
LES size: 14.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 457 Typ L1
FWHM: 54° + 37°
FWTM: 82° + 72°
Peak intensity: 1.124 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
FWHM: 83°
FWTM: -
Peak intensity: 0.000 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

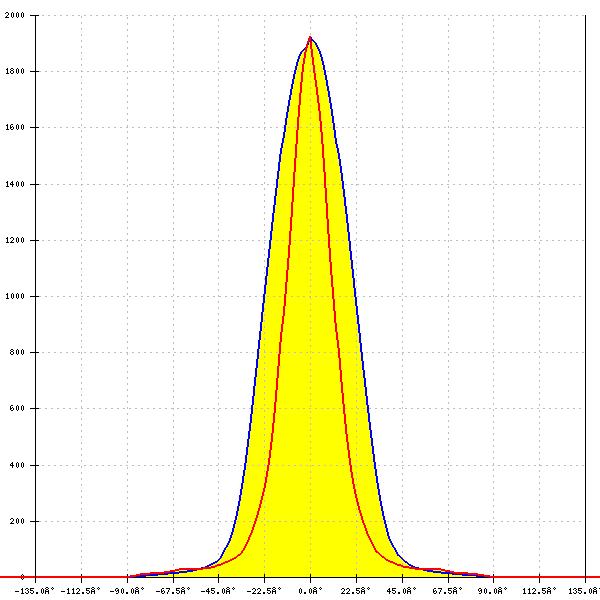

LED: PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM: 42°
FWTM: 99°
Peak intensity: 0.880 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 54° + 37°
FWTM: 85° + 81°
Peak intensity: 1.100 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
