RONDA-O-B

Print

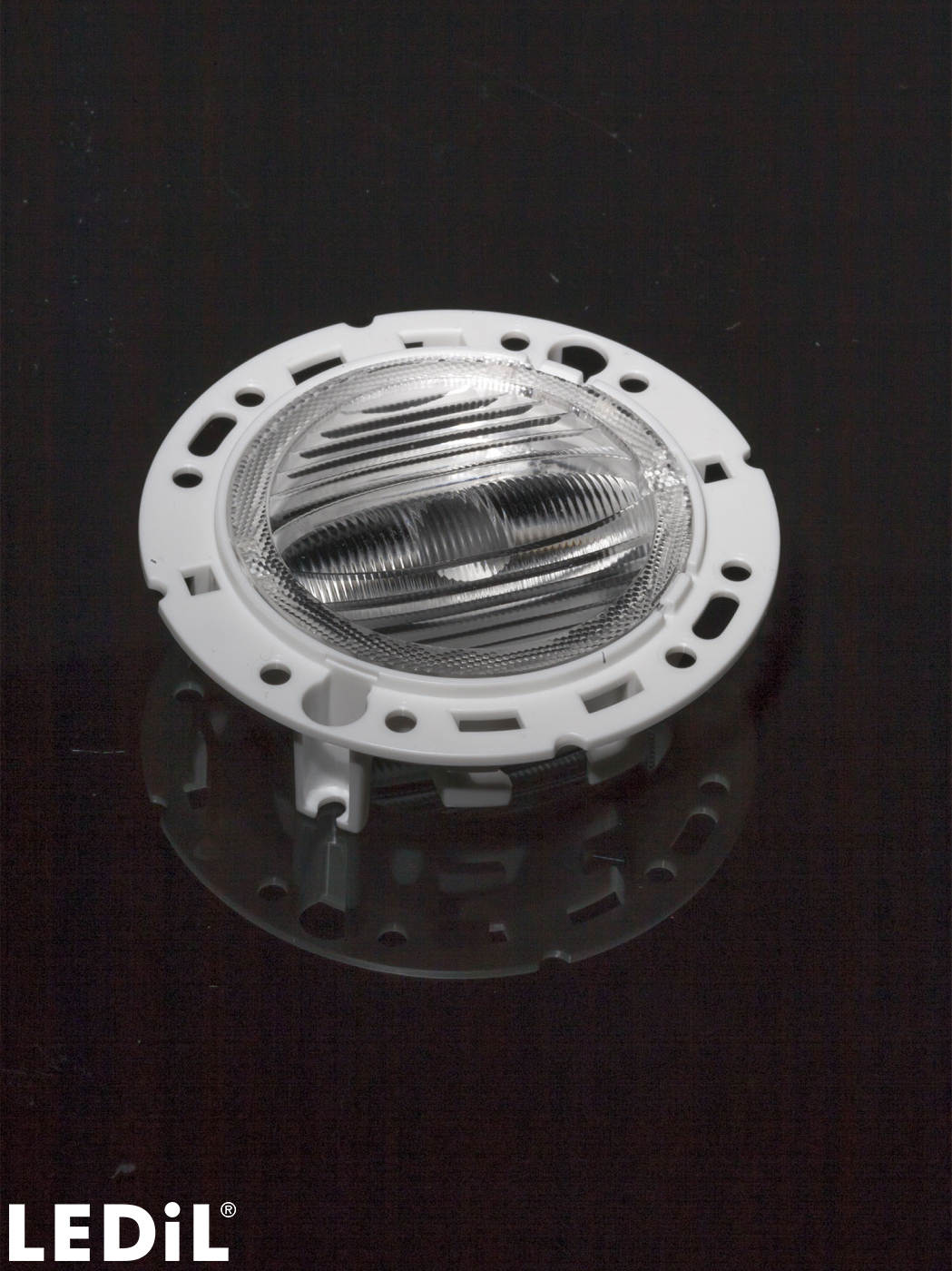

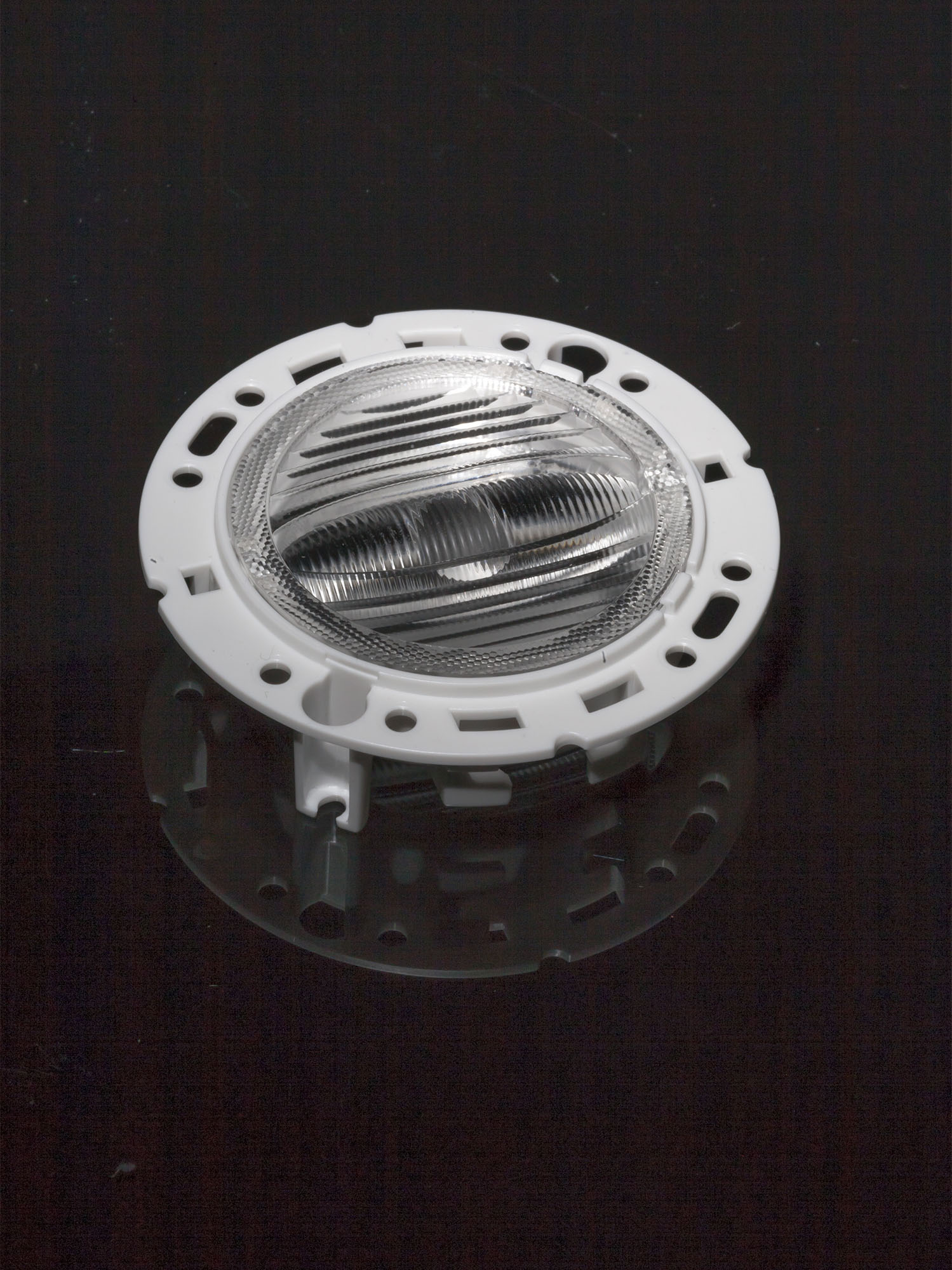

~50° + 30° oval beam with holder B compatible with 3rd party connectors from BJB, IDEAL and Stucchi.

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    70 mm
  • Height:
    14.50 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15990_RONDA-O
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.50 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    1.90 kg
  • Holder
  • F15586_RONDA-HLD-B
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.40 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.40 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15990_RONDA-O
    F15586_RONDA-HLD-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

BJB 47.319.2xxx 50mm / Stucchi 8xxx/G2 50mm / Ideal chip lok jr compatible

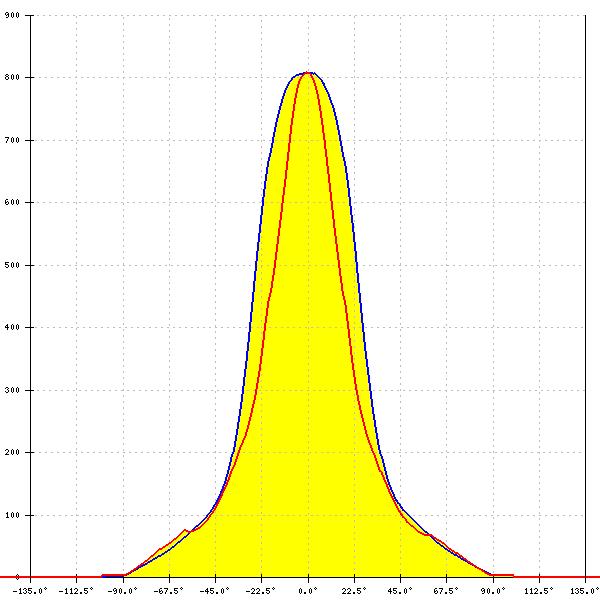

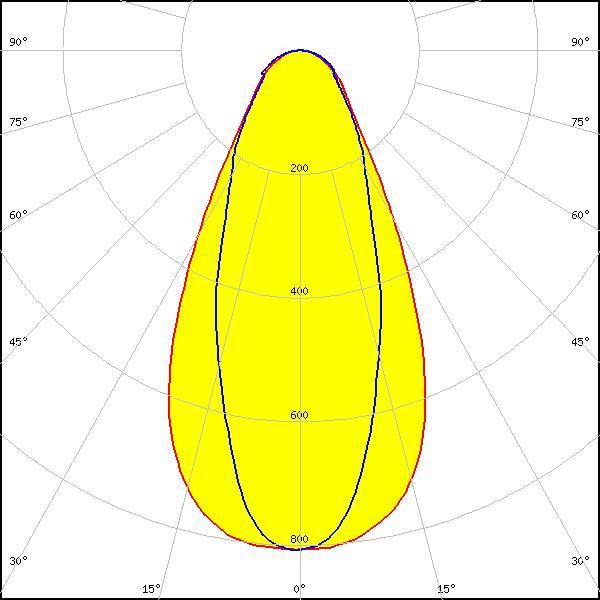

Optical results

LED: CXA/B 15xx
FWHM: asymmetric
Peak intensity: 0.000 cd/lm
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L19 + SLM holder
FWHM: 55° + 40°
FWTM: 109° + 104°
Peak intensity: 0.809 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
