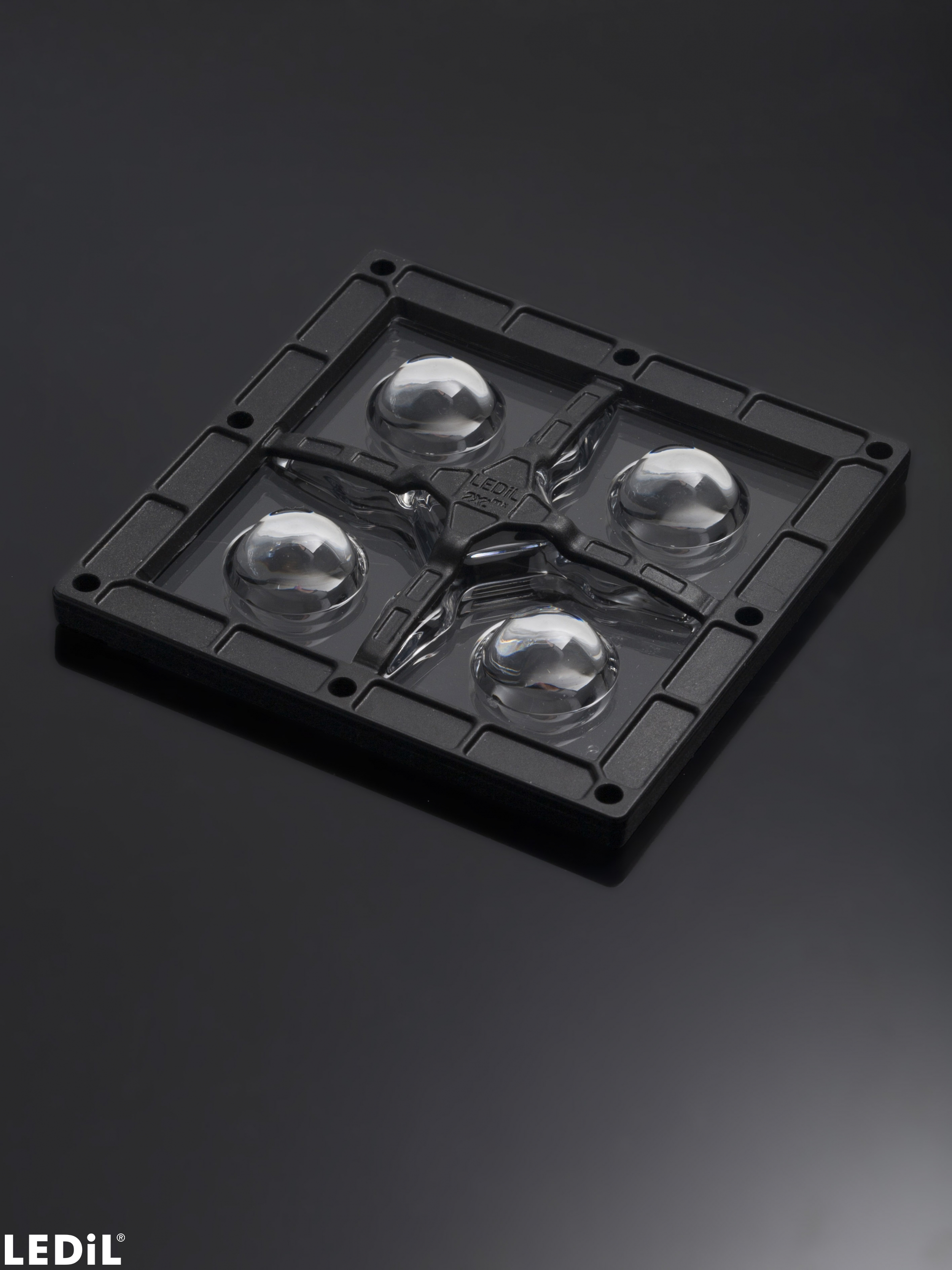

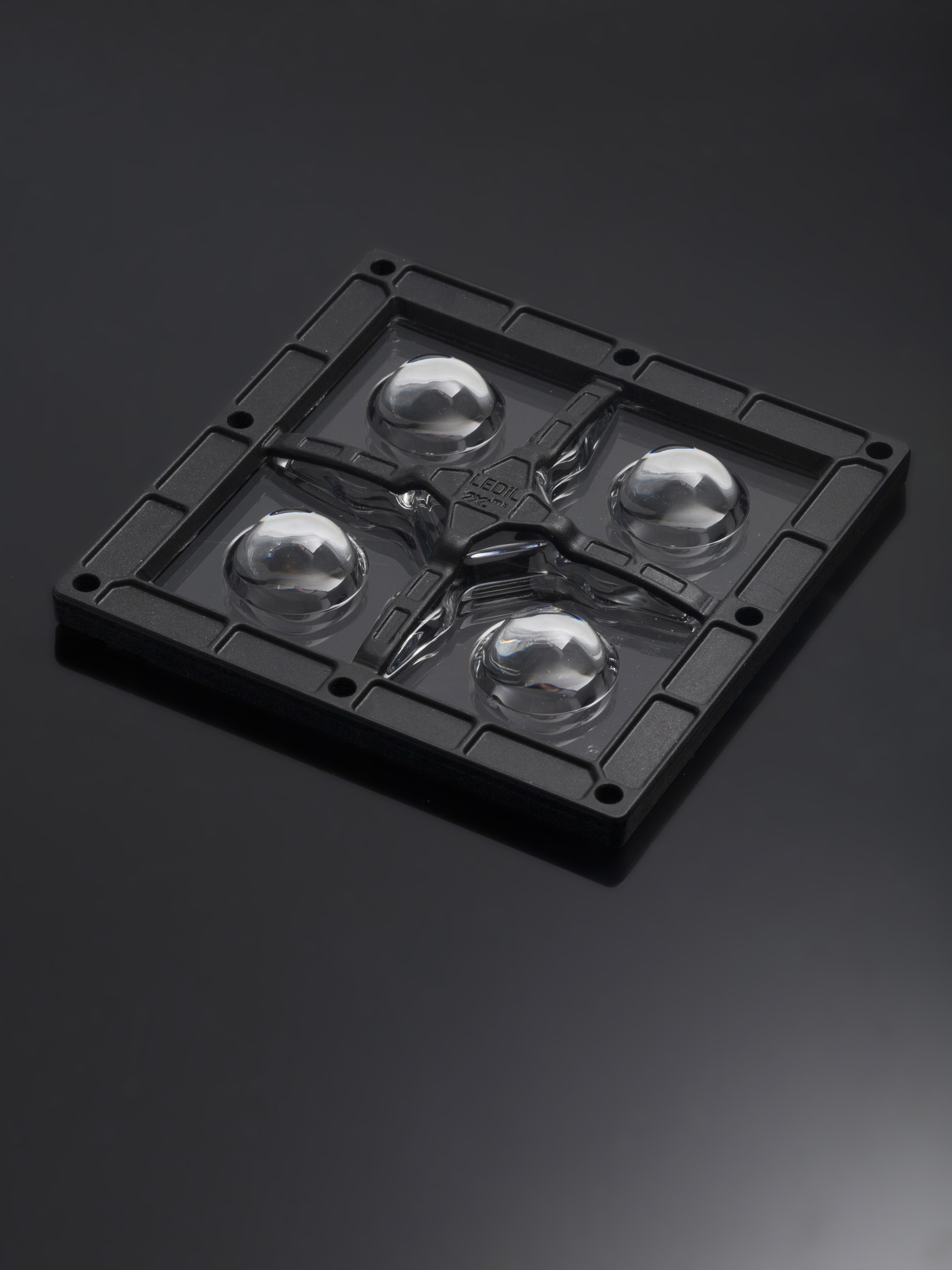

FP15897_HB-2X2MXS-WWW

Print

~85° wide beam

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    11.50 mm
  • Fastening:
    screw
  • Colour:
    black
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    240 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    12.5 kg
  • MPQ:
    12 pcs
  • MOQ:
    24 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FP15897_HB-2X2MXS-WWW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

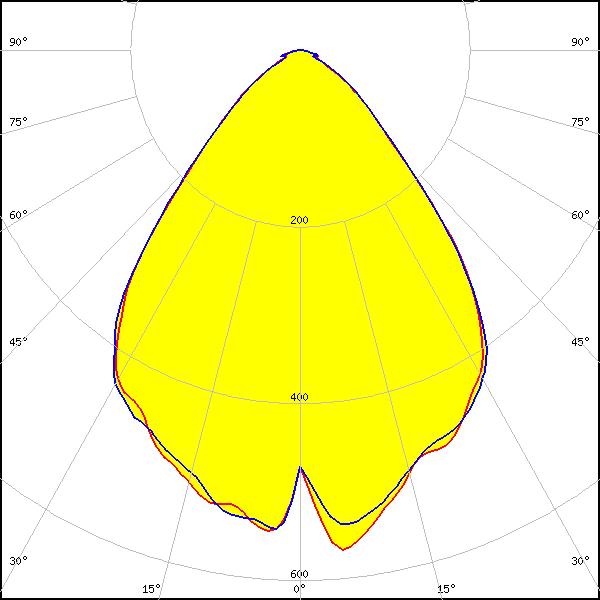

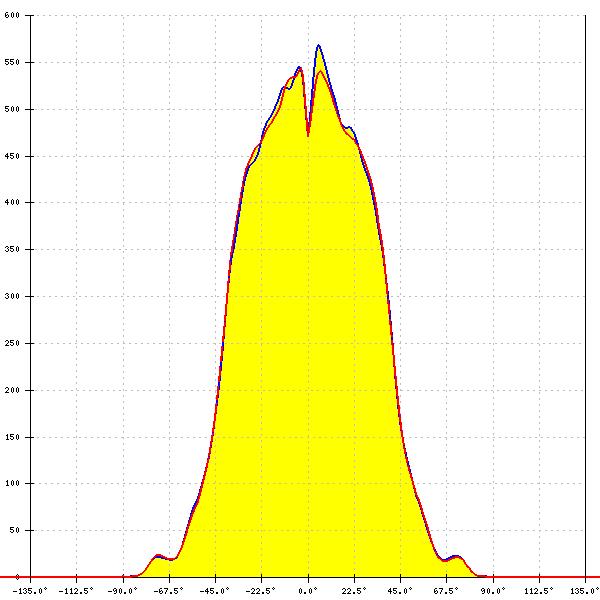

LED: Bridgelux SMD 5050
FWHM: 79°
FWTM: 115°
Peak intensity: 0.570 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

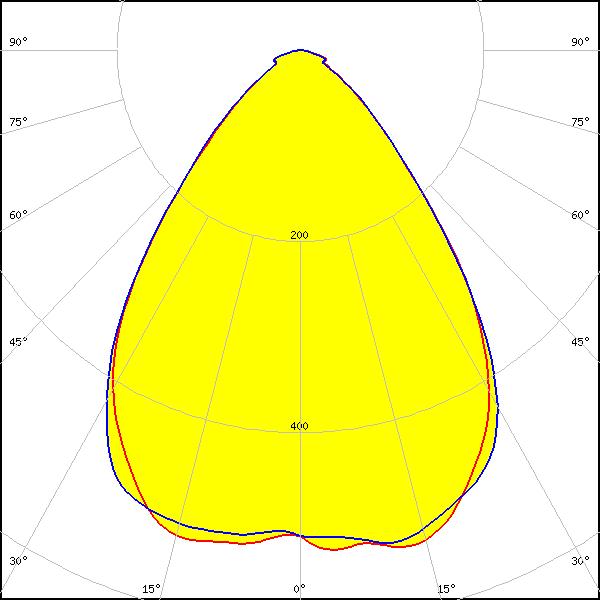

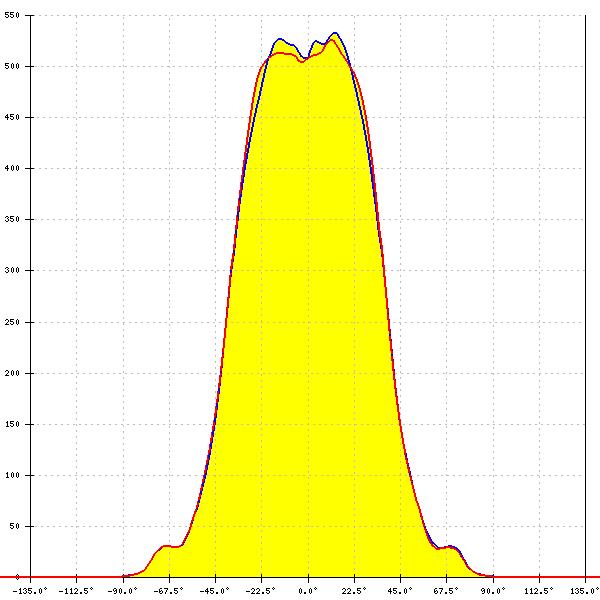

LED: CLU700/701/702
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: 77°
FWTM: 112°
Peak intensity: 0.540 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

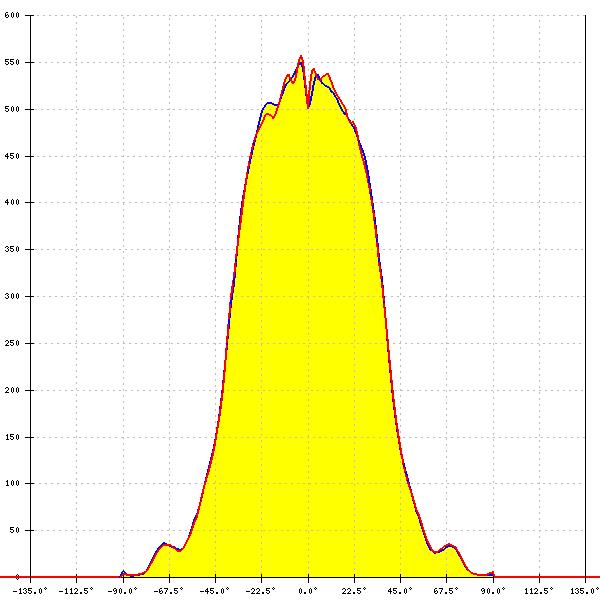

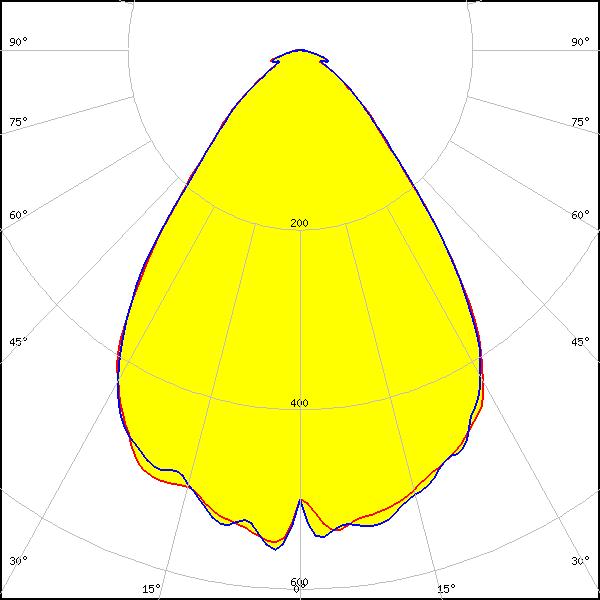

LED: MHB-A/B
FWHM: 75°
FWTM: 111°
Peak intensity: 0.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

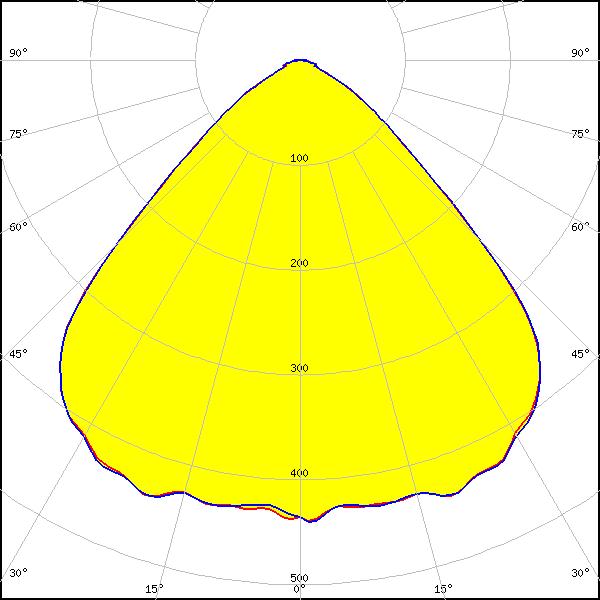

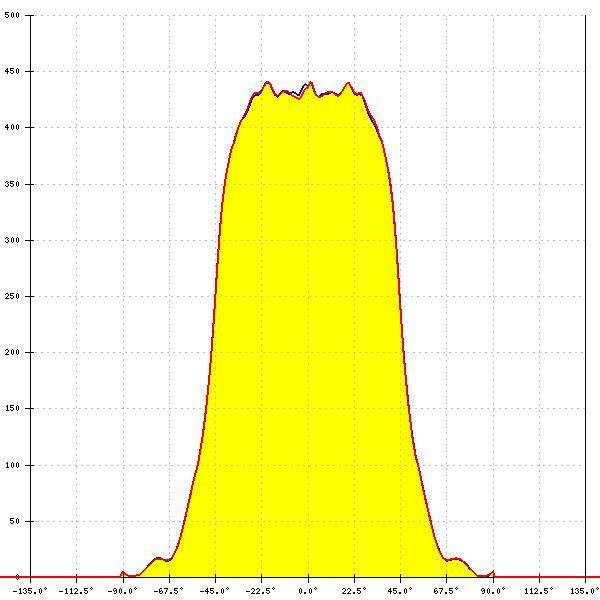

LED: XHP70
FWHM: 92°
FWTM: 122°
Peak intensity: 0.447 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

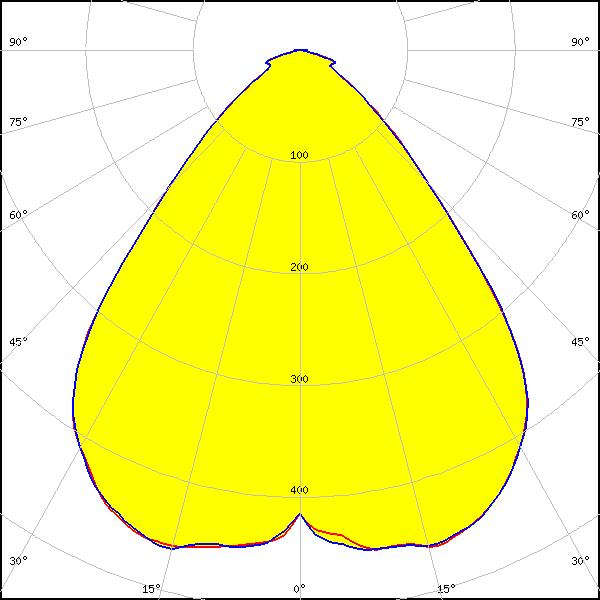

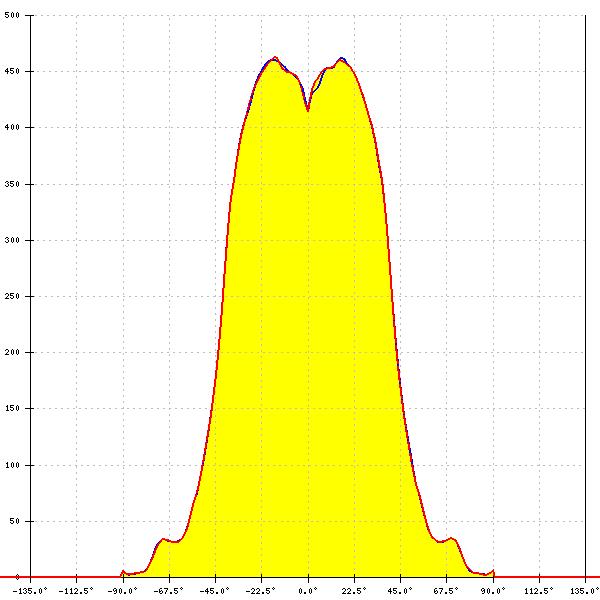

LED: XHP70.3 HD
FWHM: 84°
FWTM: 116°
Peak intensity: 0.474 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

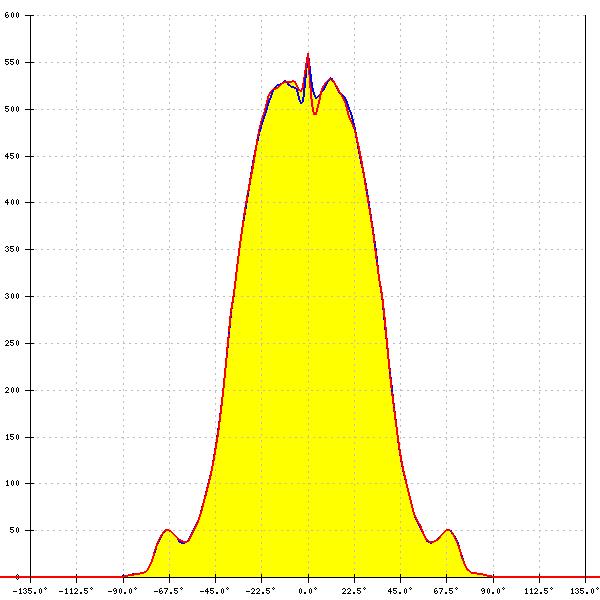

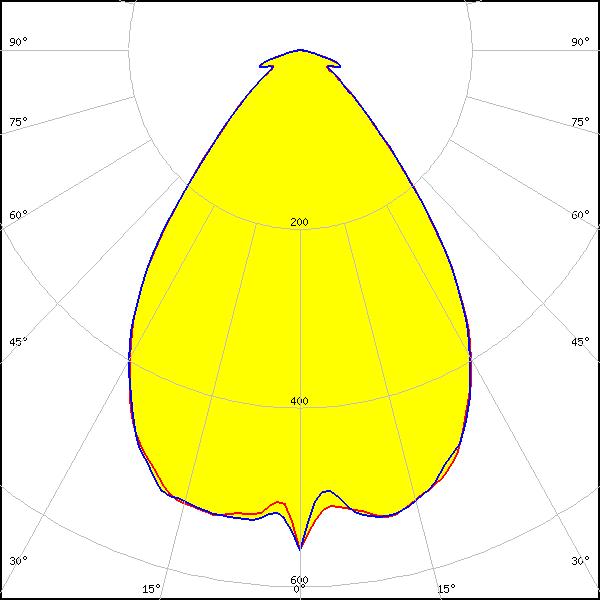

LED: LUXEON 7070
FWHM: 74°
FWTM: 108°
Peak intensity: 0.559 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

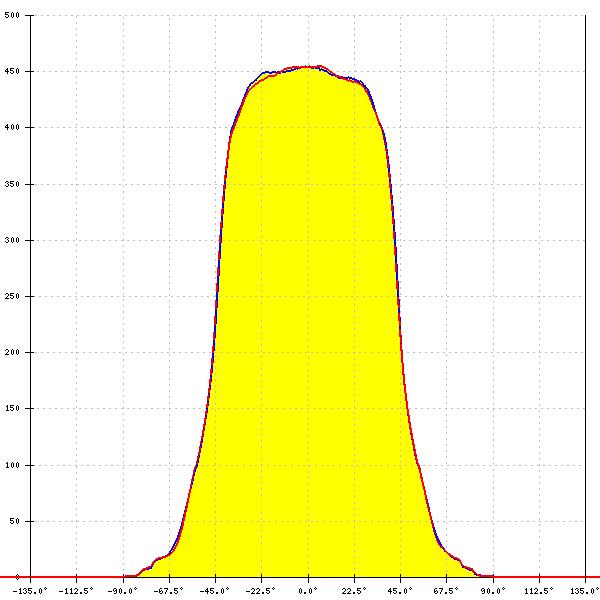

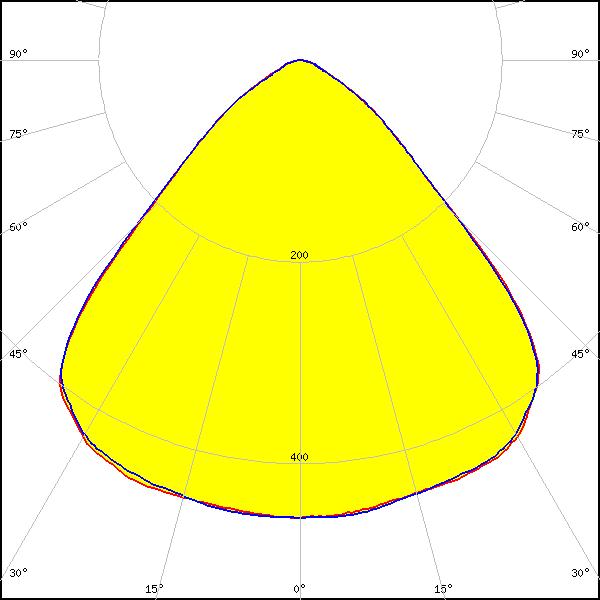

LED: LUXEON M/MX
FWHM: 90°
FWTM: 122°
Peak intensity: 0.480 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

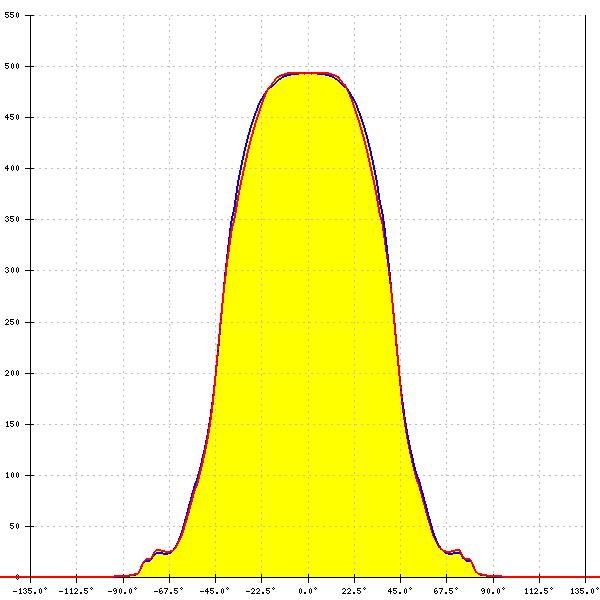

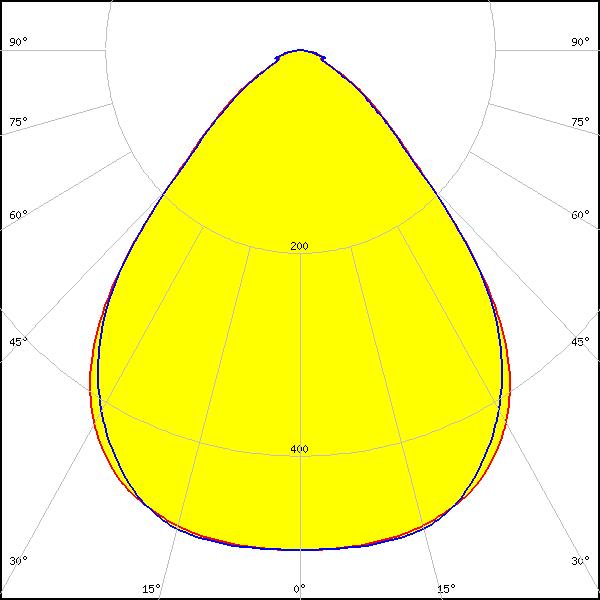

LED: LUXEON XR-7070
FWHM: 85°
FWTM: 120°
Peak intensity: 0.494 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

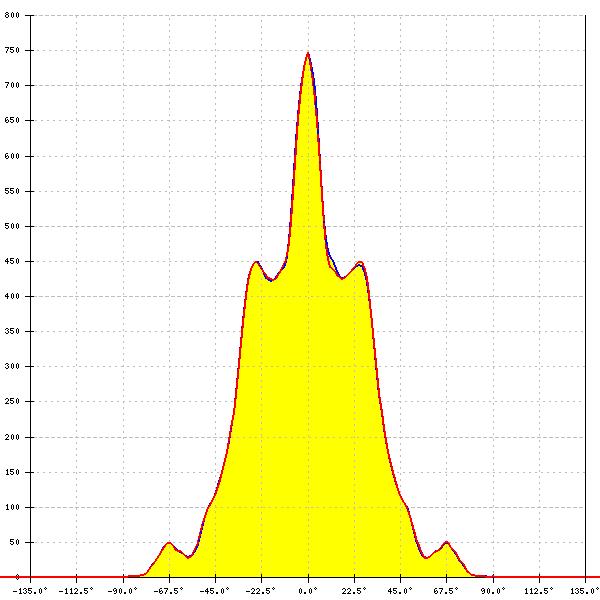

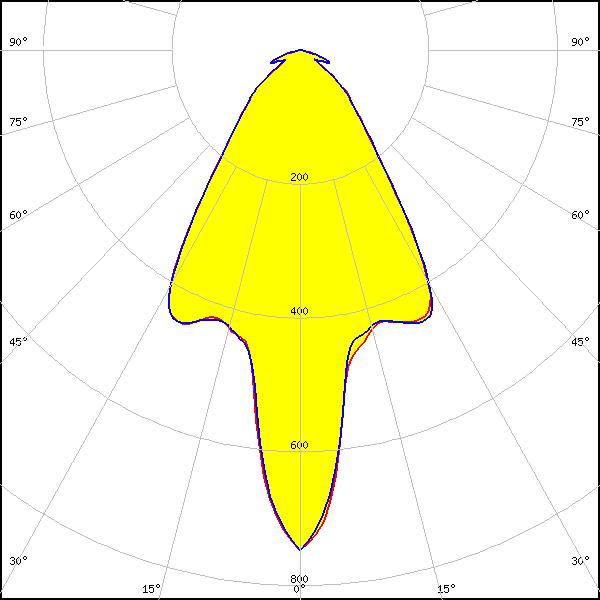

LED: SFT-40-WCS
FWHM: 62°
FWTM: 102°
Peak intensity: 0.747 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

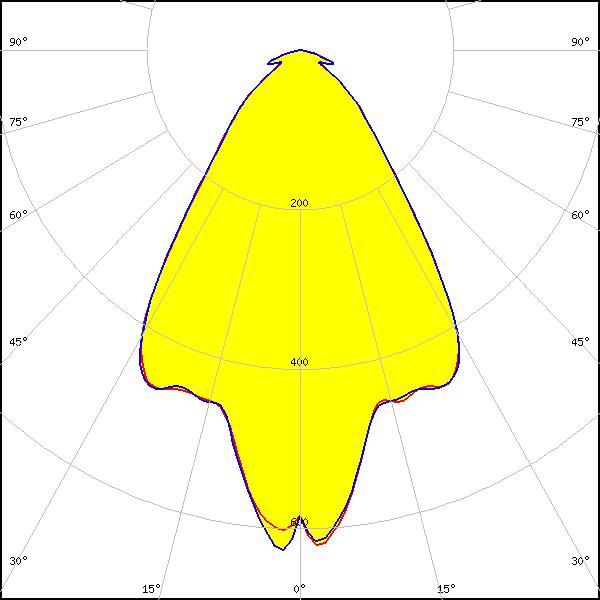

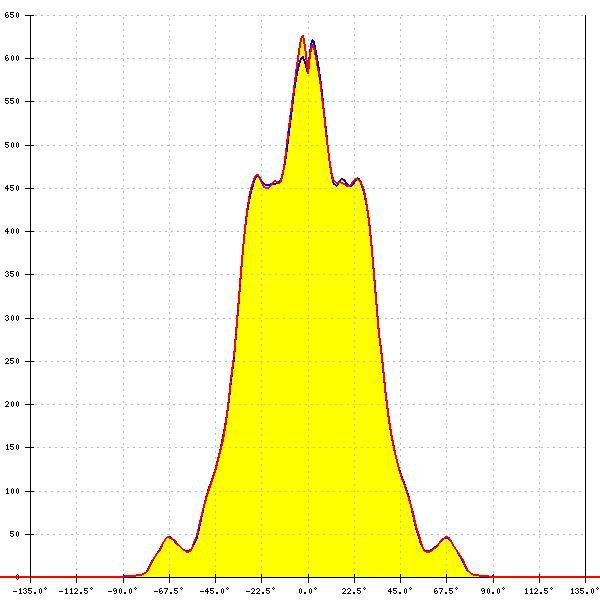

LED: SFT-70X-WCS
FWHM: 68°
FWTM: 105°
Peak intensity: 0.644 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

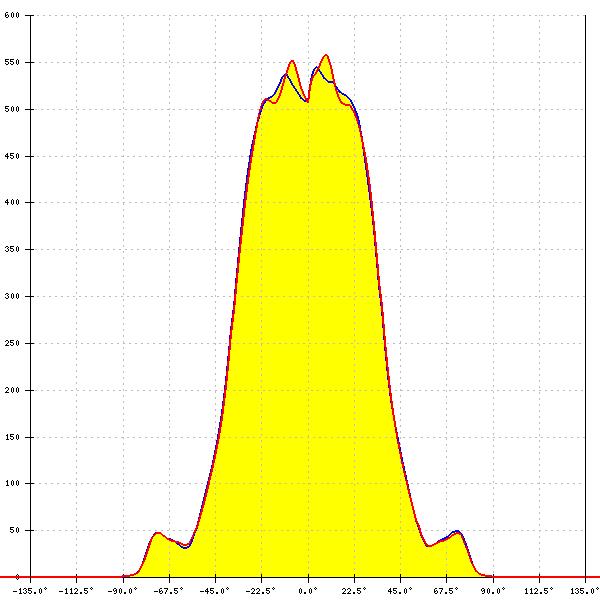

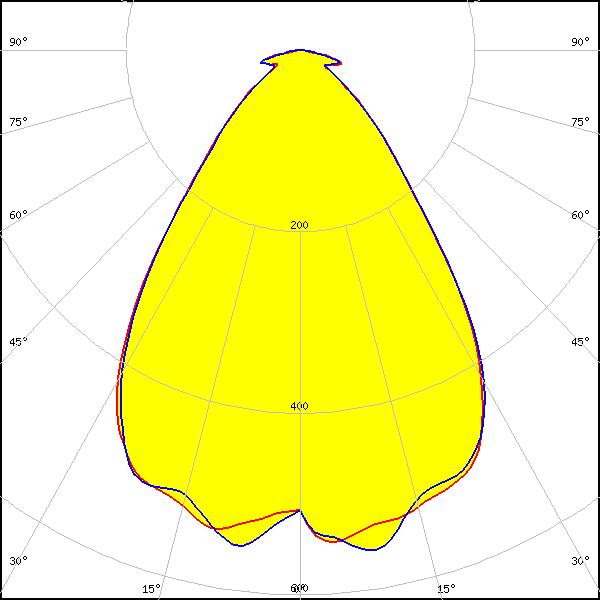

LED: NFMW48xA
FWHM: 73°
FWTM: 107°
Peak intensity: 0.560 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

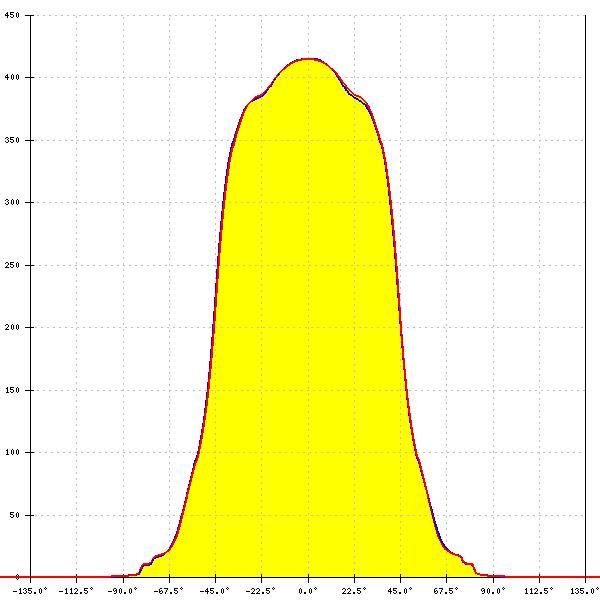

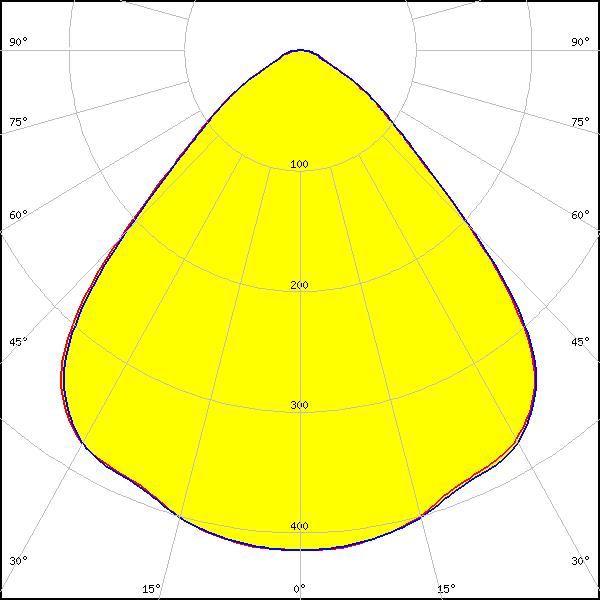

LED: NV4x144A
FWHM: 90°
FWTM: 125°
Peak intensity: 0.420 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

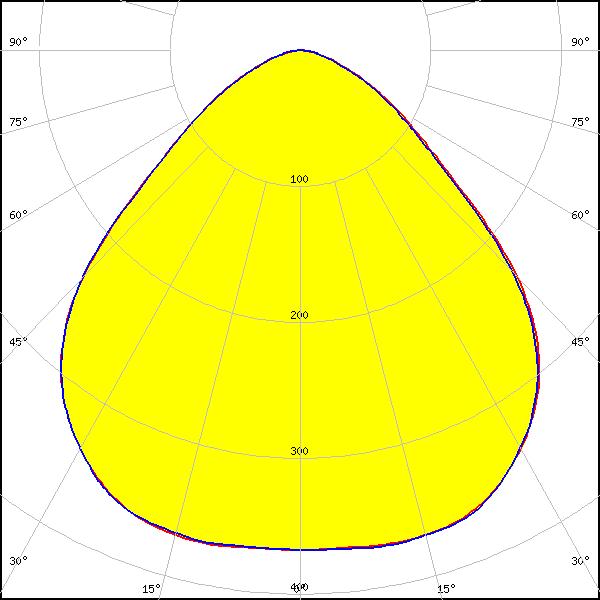

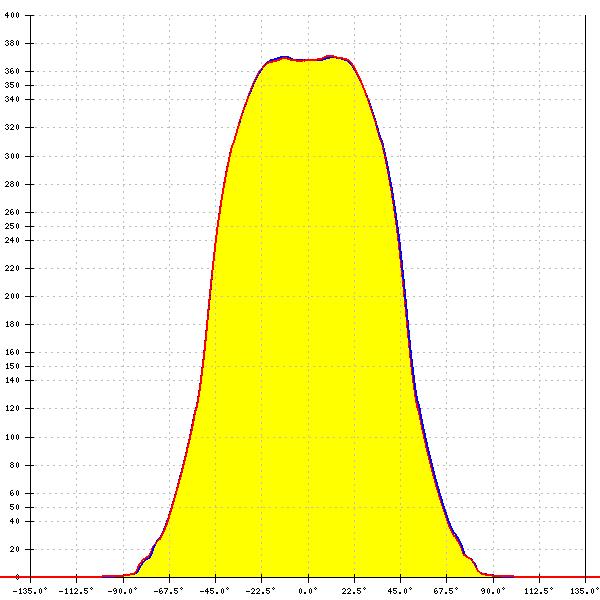

LED: NV9W149AM
FWHM: 100°
FWTM: 140°
Peak intensity: 0.370 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

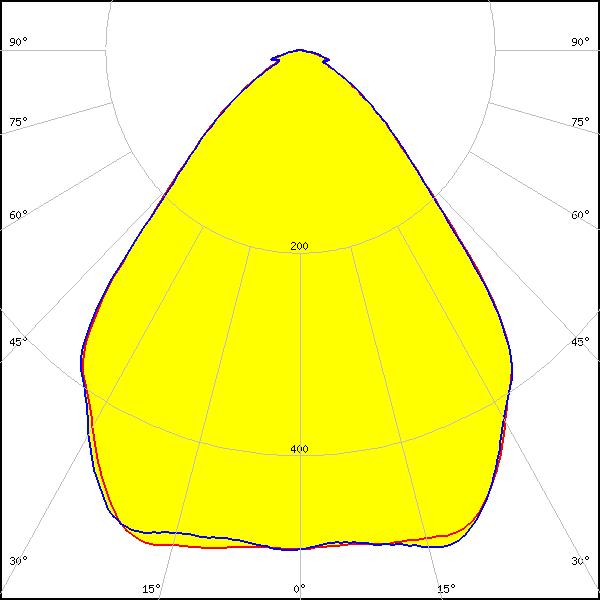

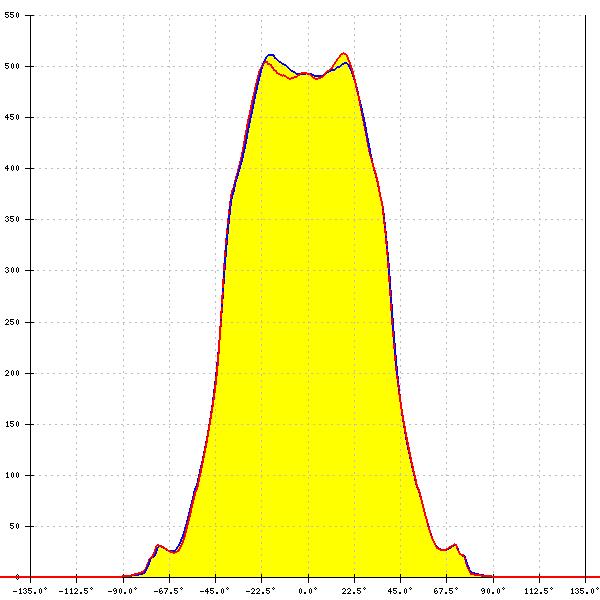

LED: HiLOM SC16 (LH181B)
FWHM: 84°
FWTM: 118°
Peak intensity: 0.510 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

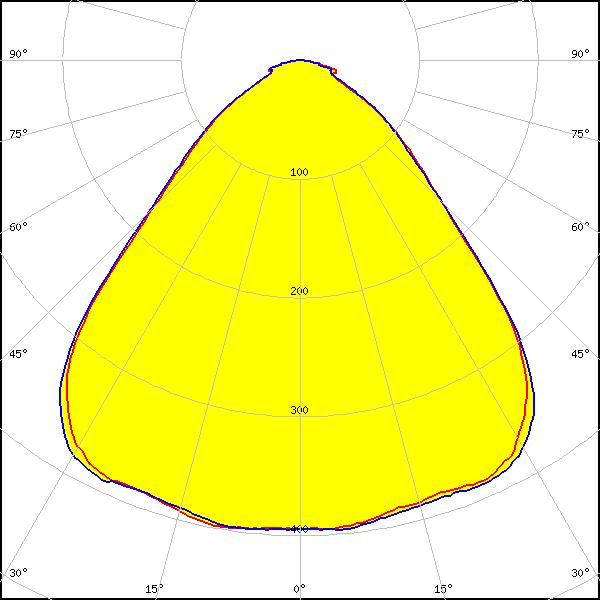

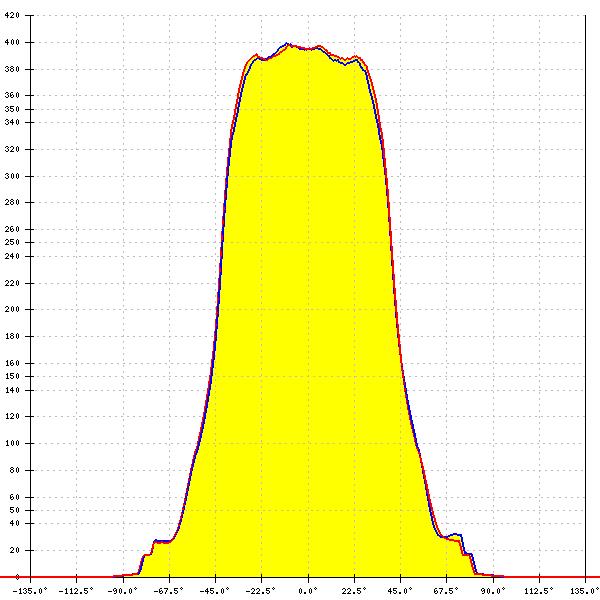

LED: XLE-S22C4XD16 (XD16)
FWHM: 87°
FWTM: 124°
Peak intensity: 0.434 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White
