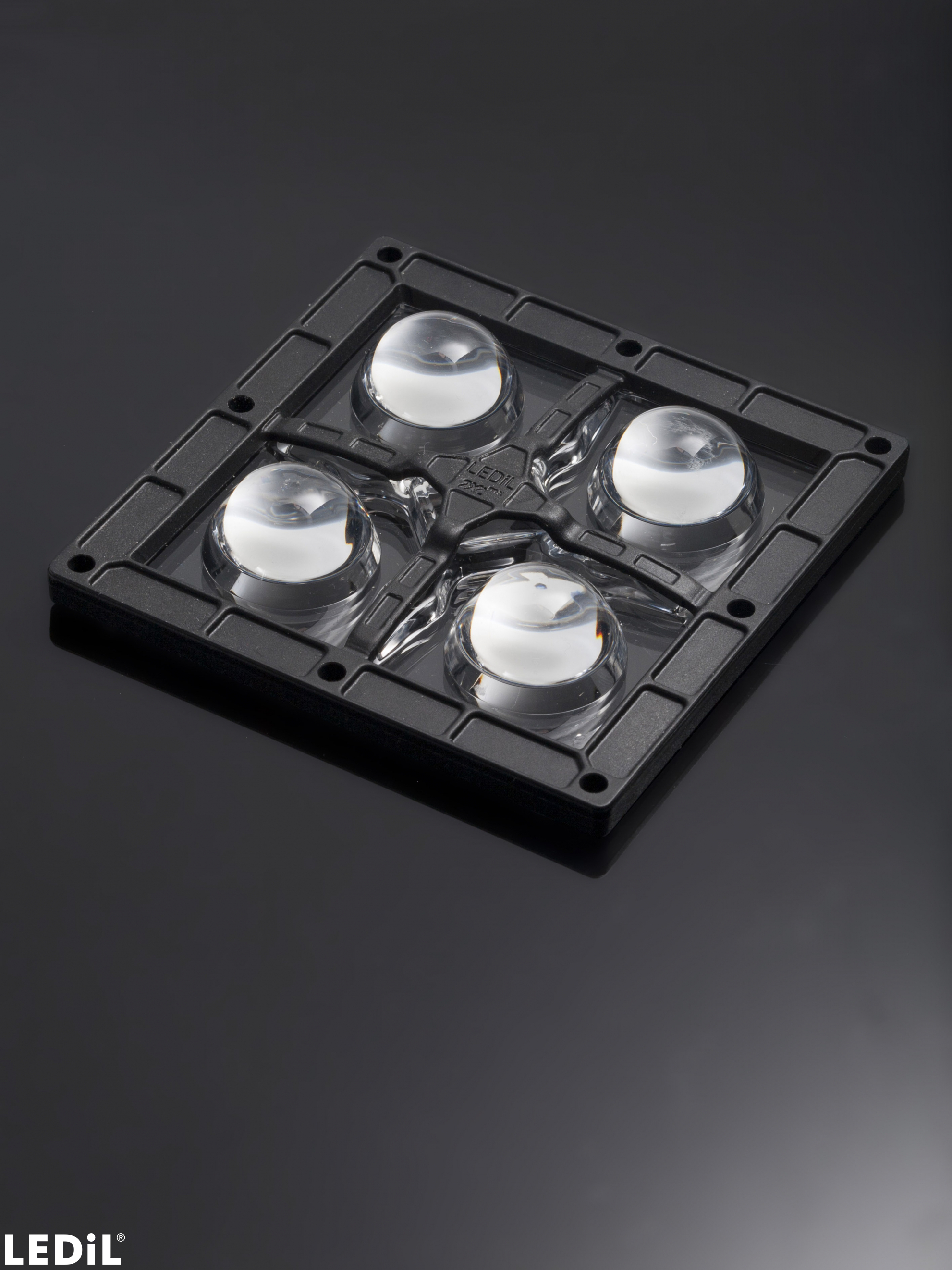

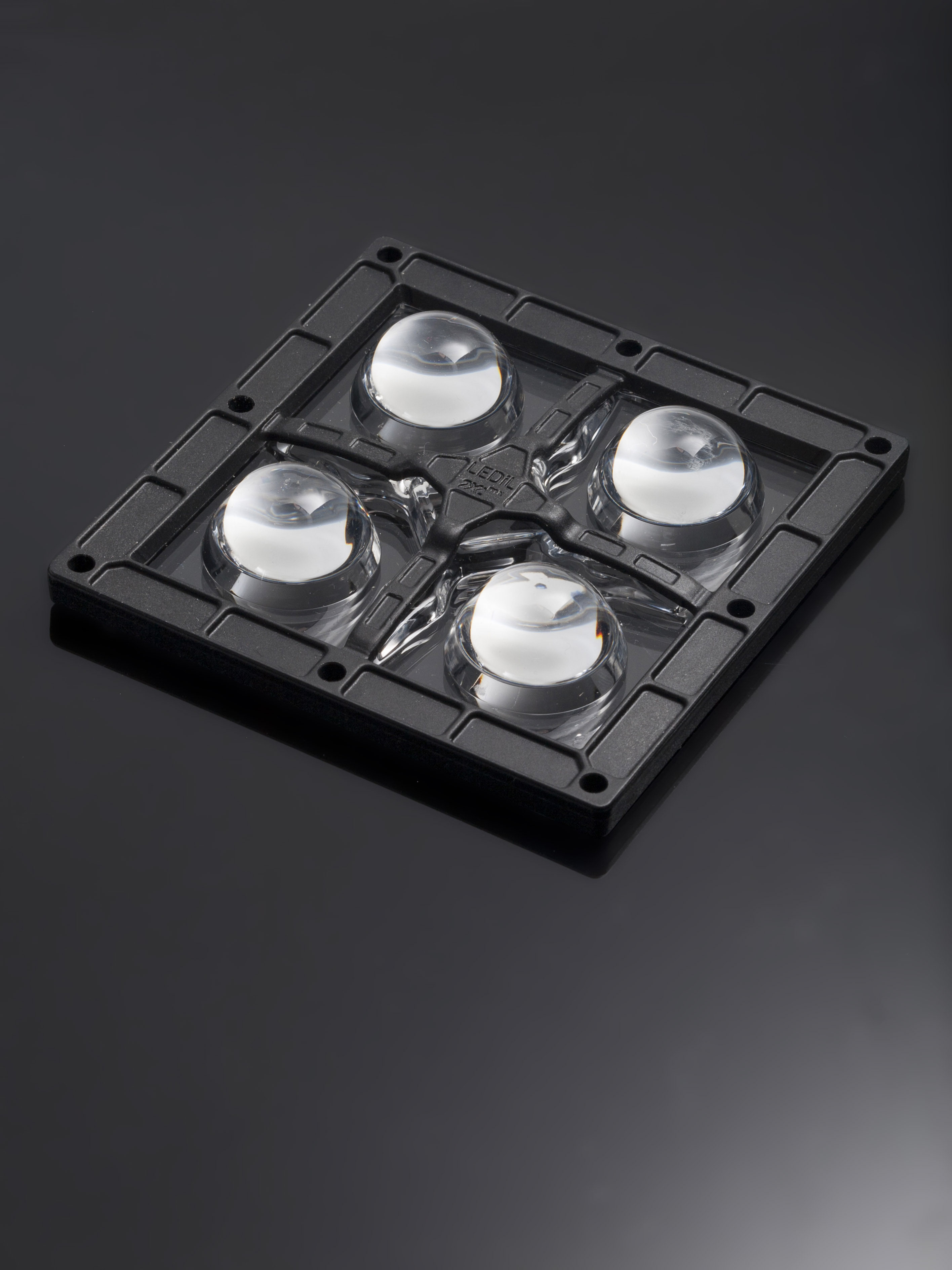

    FP15898_HB-2X2MXS-WW

    Print

    ~55° wide beam

    Specification
    • Dimensions:
      90 x  90 mm
    • Height:
      16.50 mm
    • Fastening:
      screw
    • Colour:
      black
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      168 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      8.6 kg
    • MPQ:
      12 pcs
    • MOQ:
      24 pcs
    • MOQ size:
      480 x 280 x 50 mm
    • MOQ weight:
      1.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FP15898_HB-2X2MXS-WW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Optical results

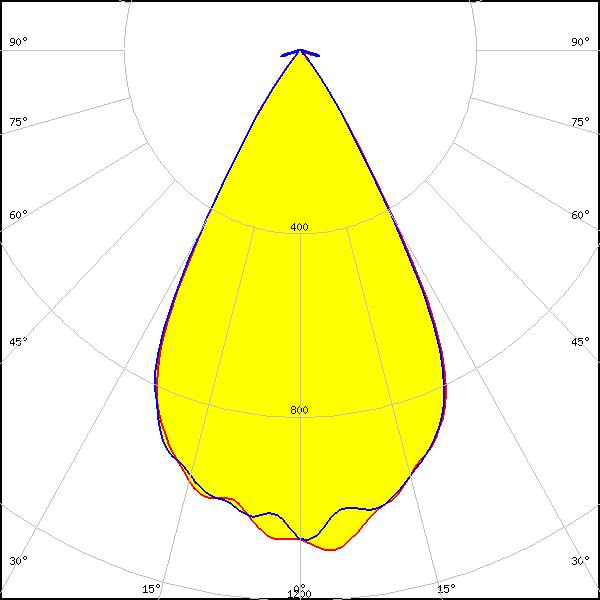

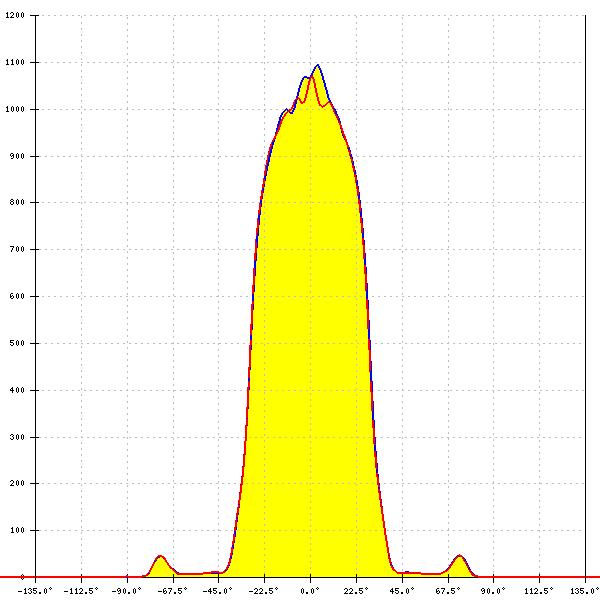

    LED: Bridgelux SMD 5050
    FWHM: 57°
    FWTM: 73°
    Peak intensity: 1.110 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

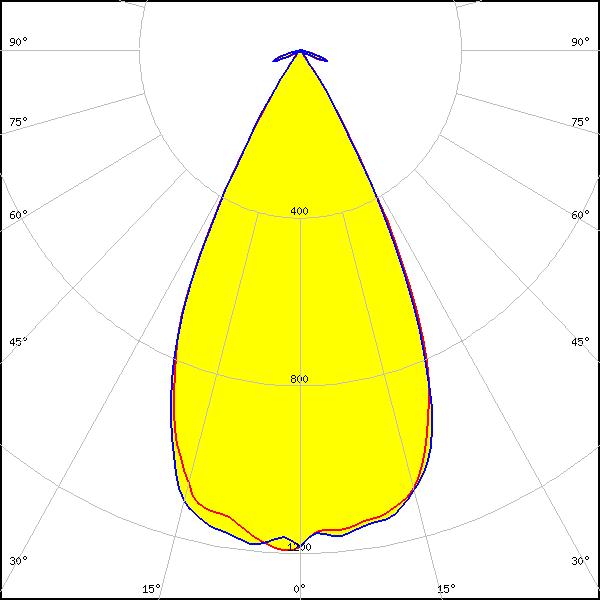

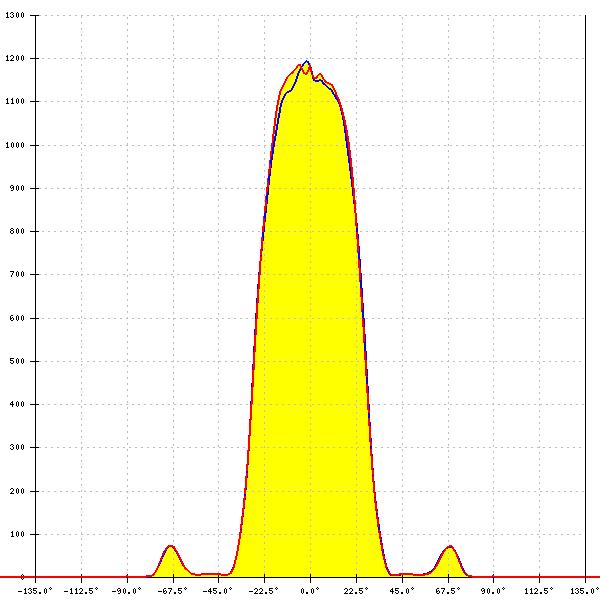

    LED: CLU700/701/702/703
    Required components:
    Bender Wirth: 434 Typ 2x2MX HV
    FWHM: 52°
    FWTM: 68°
    Peak intensity: 1.240 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

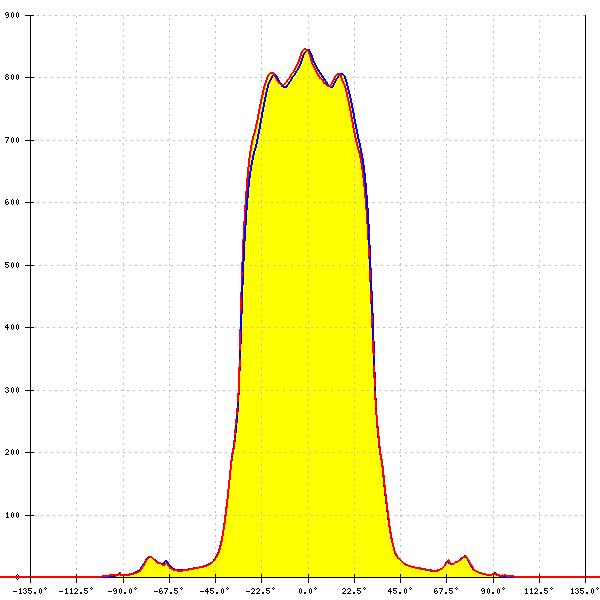

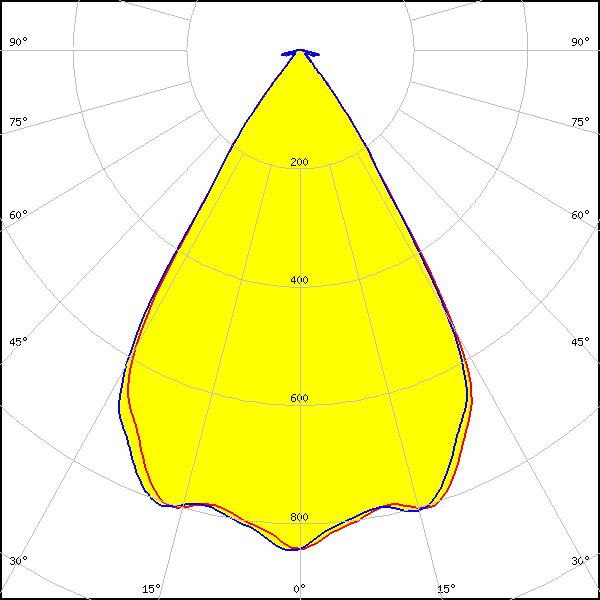

    LED: XHP70
    FWHM: 64°
    FWTM: 80°
    Peak intensity: 0.850 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

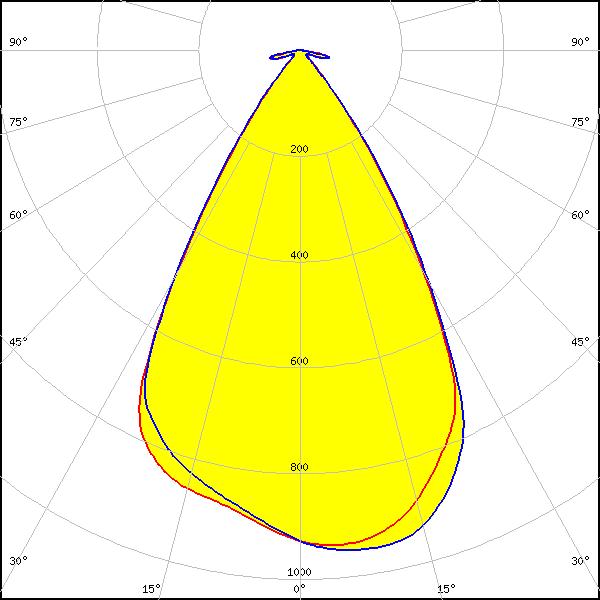

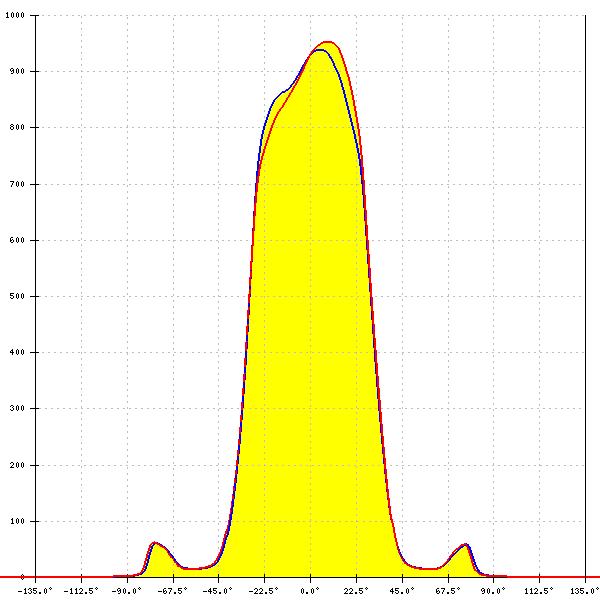

    LED: XHP70.2
    FWHM: 61°
    FWTM: 80°
    Peak intensity: 0.960 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

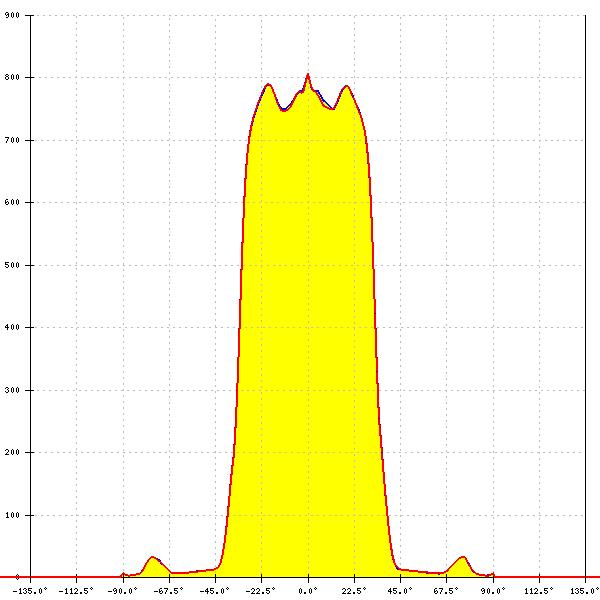

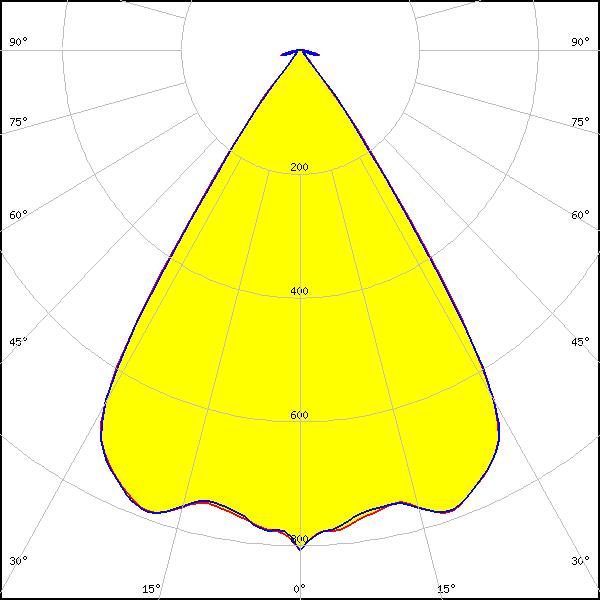

    LED: XHP70.3 HD
    FWHM: 66°
    FWTM: 78°
    Peak intensity: 0.808 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

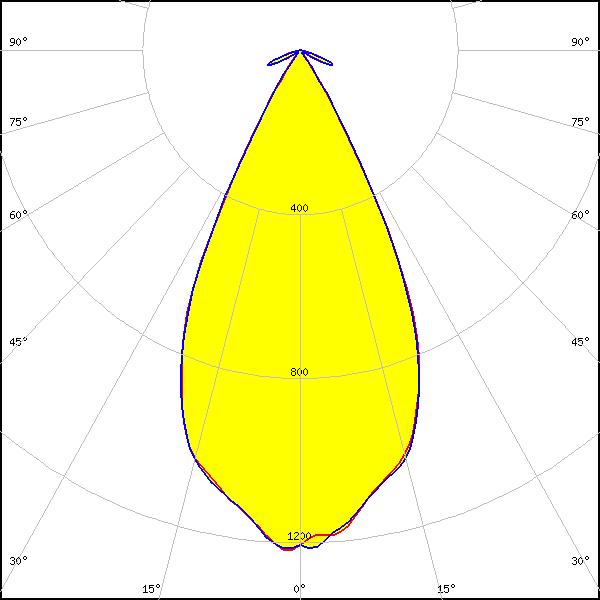

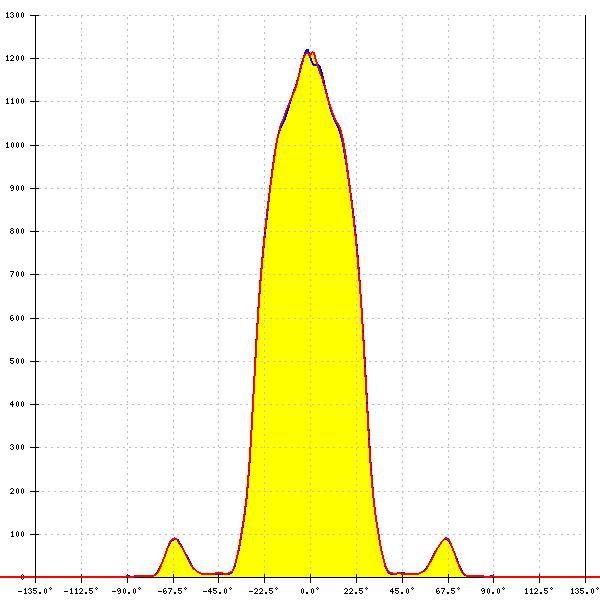

    LED: LUXEON 7070
    FWHM: 50°
    FWTM: 66°
    Peak intensity: 1.250 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

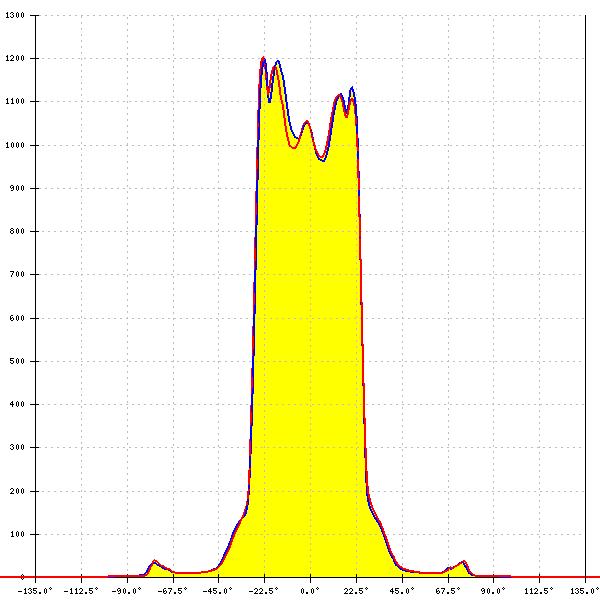

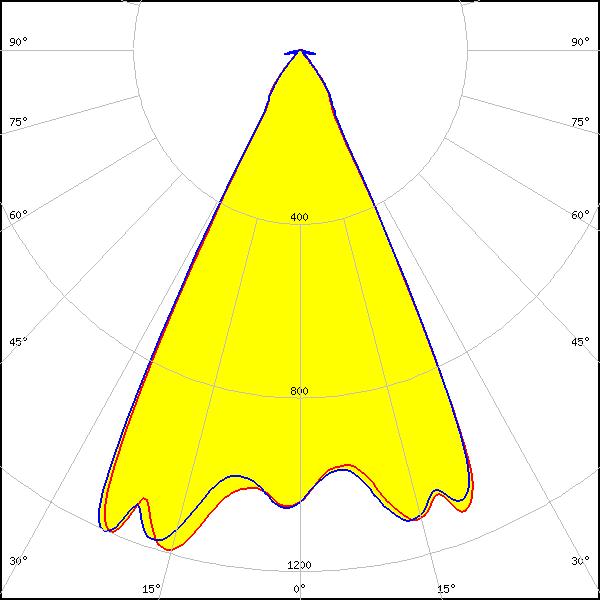

    LED: LUXEON M/MX
    FWHM: 54°
    FWTM: 73°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

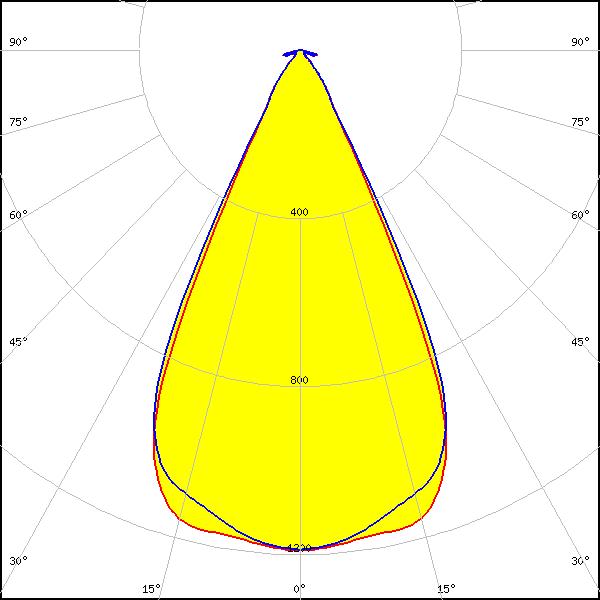

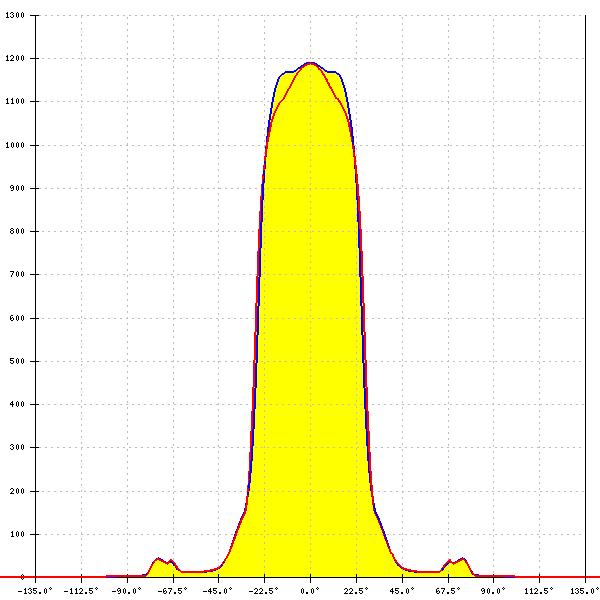

    LED: LUXEON XR-7070 (L224-xxxx004MLU010)
    FWHM: 52°
    FWTM: 70°
    Peak intensity: 1.214 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

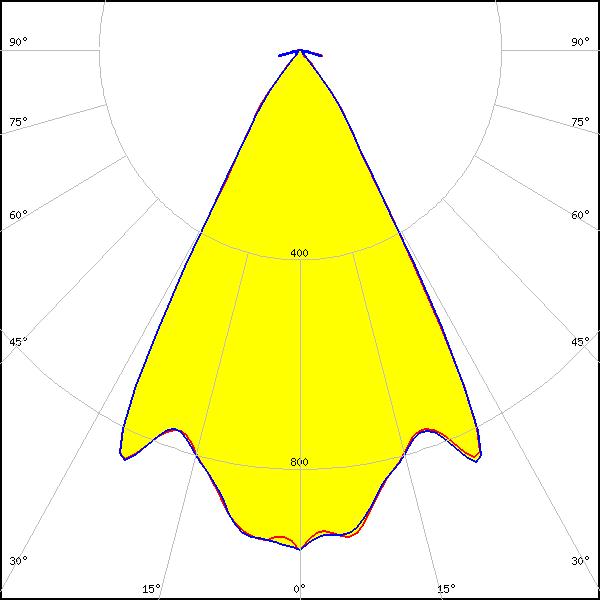

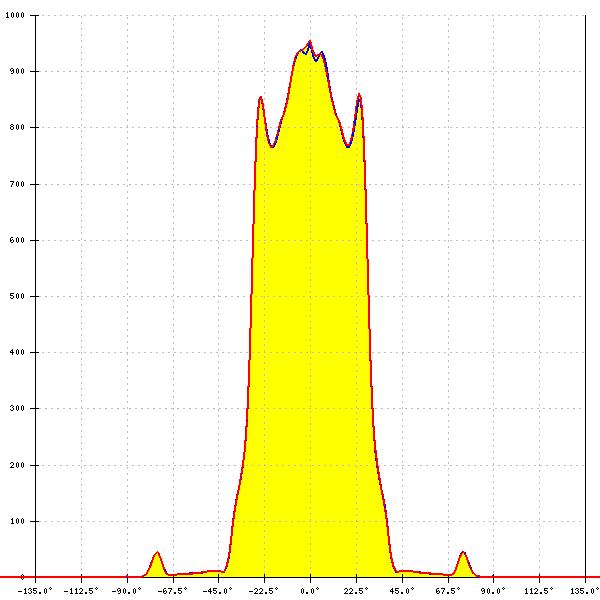

    LED: SFT-40-WCS
    FWHM: 58°
    FWTM: 76°
    Peak intensity: 1.083 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

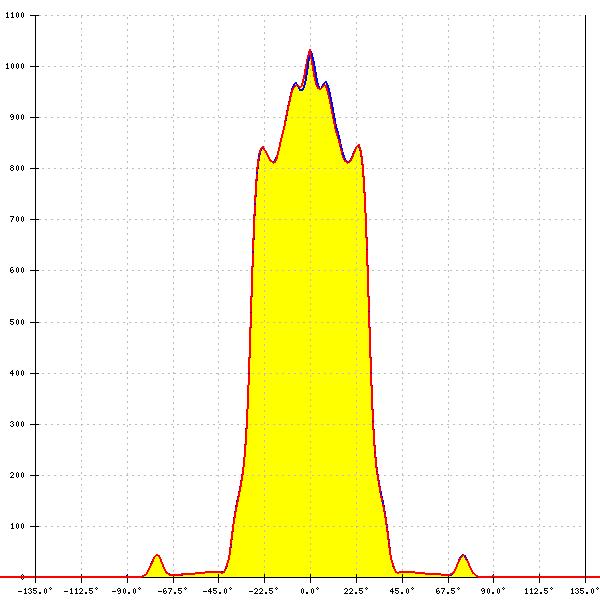

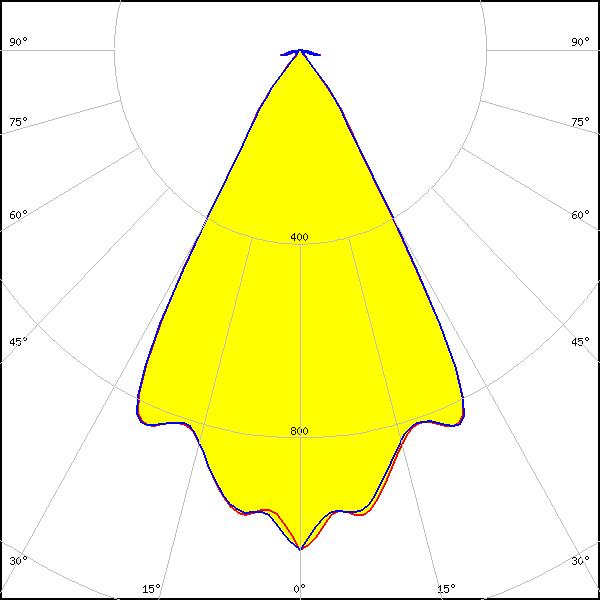

    LED: SFT-70X-WCS
    FWHM: 58°
    FWTM: 76°
    Peak intensity: 1.043 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

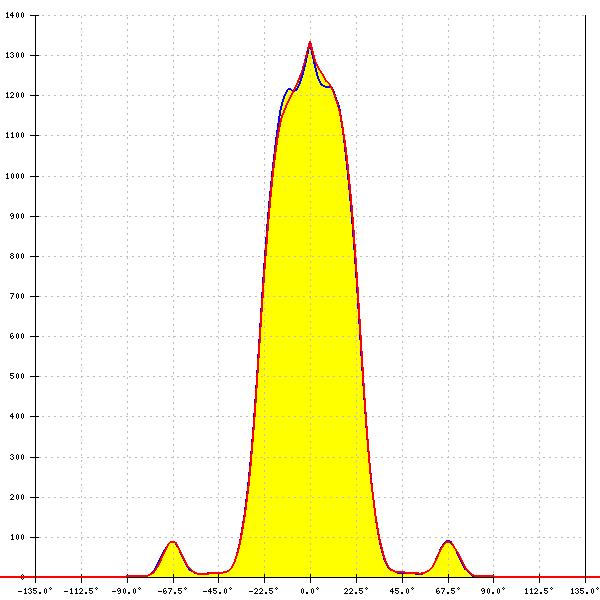

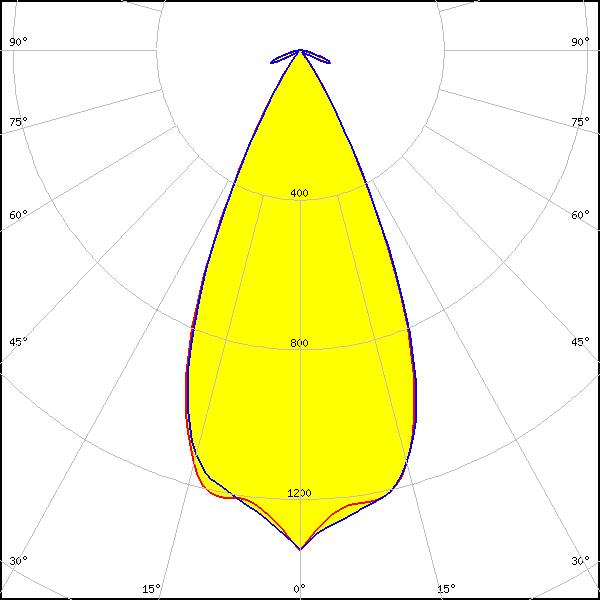

    LED: NFMW48xA
    FWHM: 48°
    FWTM: 66°
    Peak intensity: 1.340 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

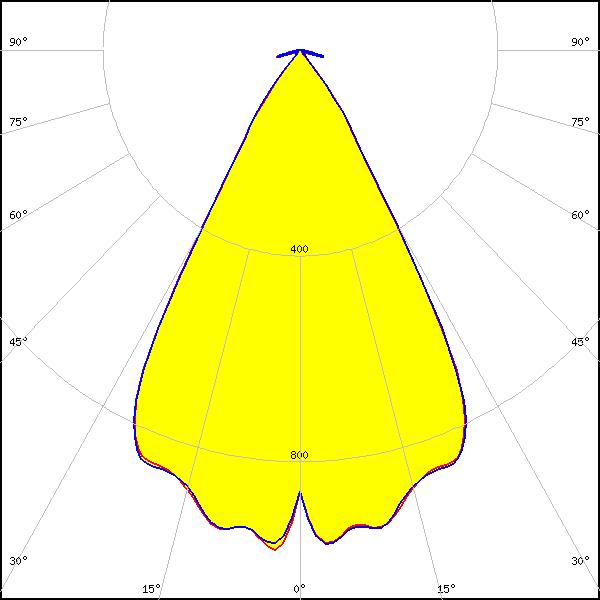

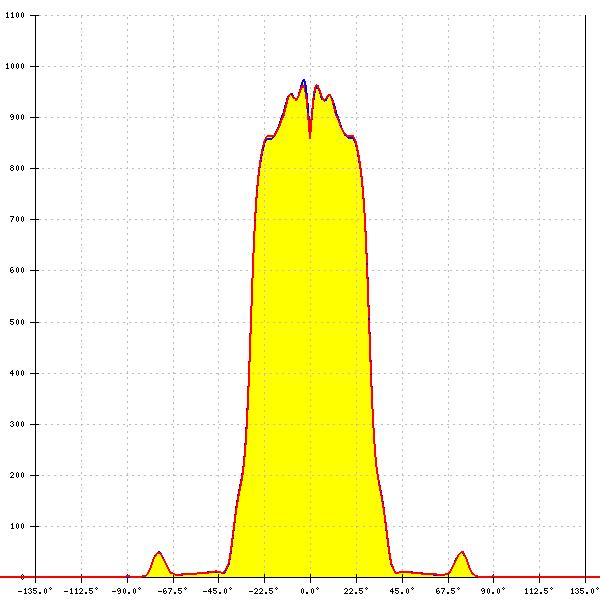

    LED: NV4WB35AM
    FWHM: 58°
    FWTM: 76°
    Peak intensity: 0.994 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

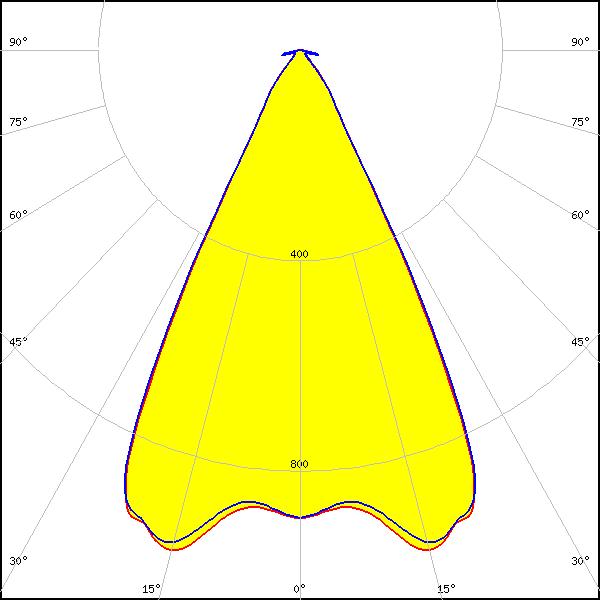

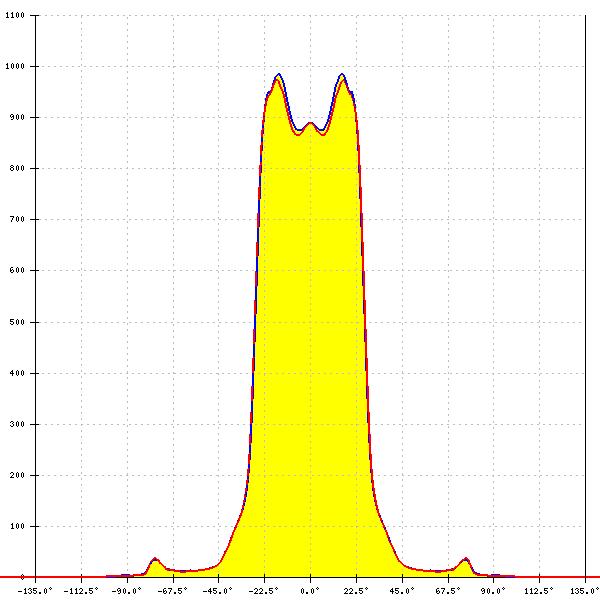

    LED: NV4x144A
    FWHM: 54°
    FWTM: 73°
    Peak intensity: 1.059 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 2424 Gen1
    FWHM: 58°
    FWTM: 72°
    Peak intensity: 1.255 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

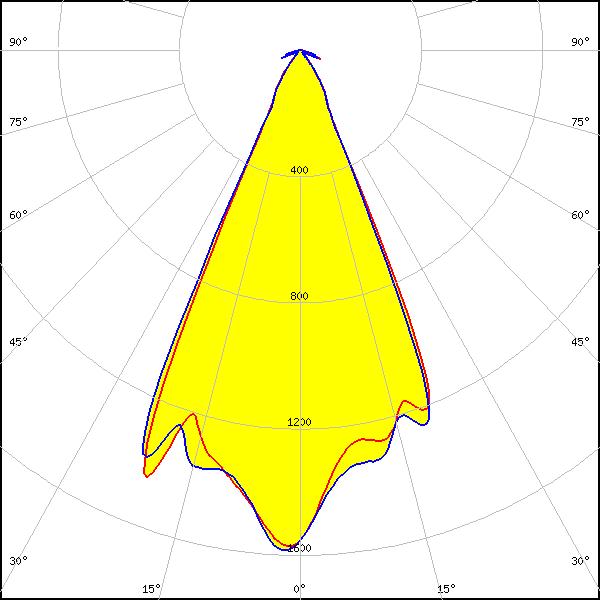

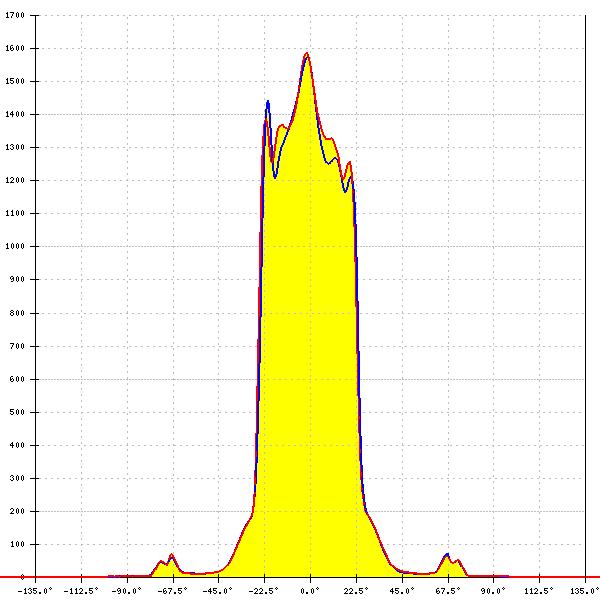

    LED: HiLOM SC16 (LH181B)
    FWHM: 48°
    FWTM: 62°
    Peak intensity: 1.600 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

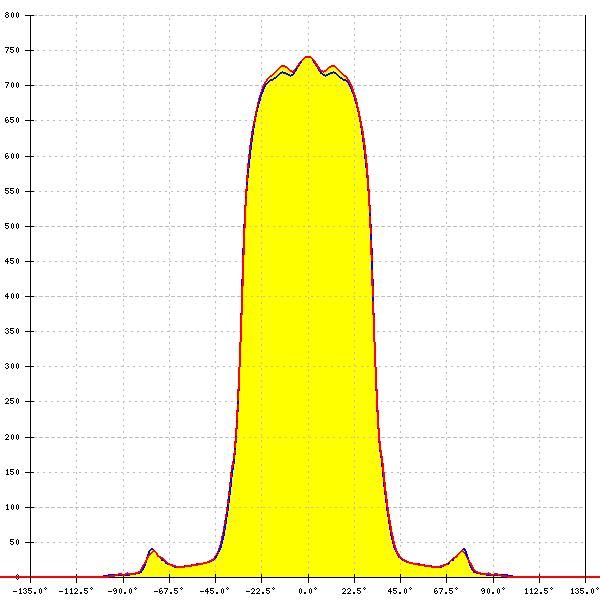

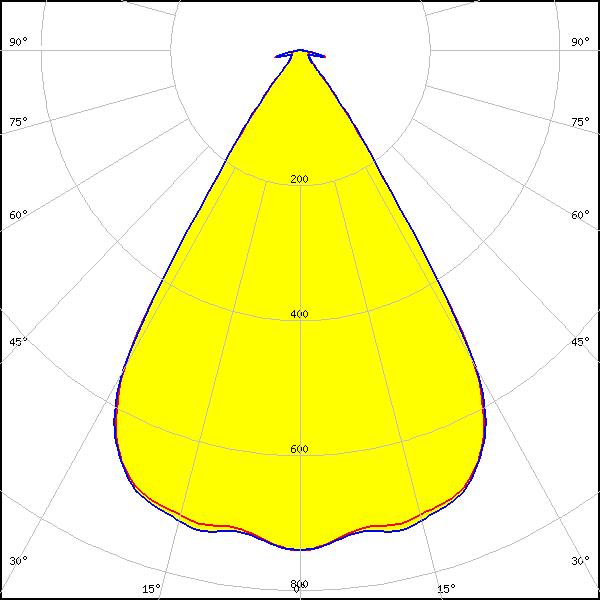

    LED: WICOP 5050
    FWHM: 65°
    FWTM: 80°
    Peak intensity: 0.786 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
