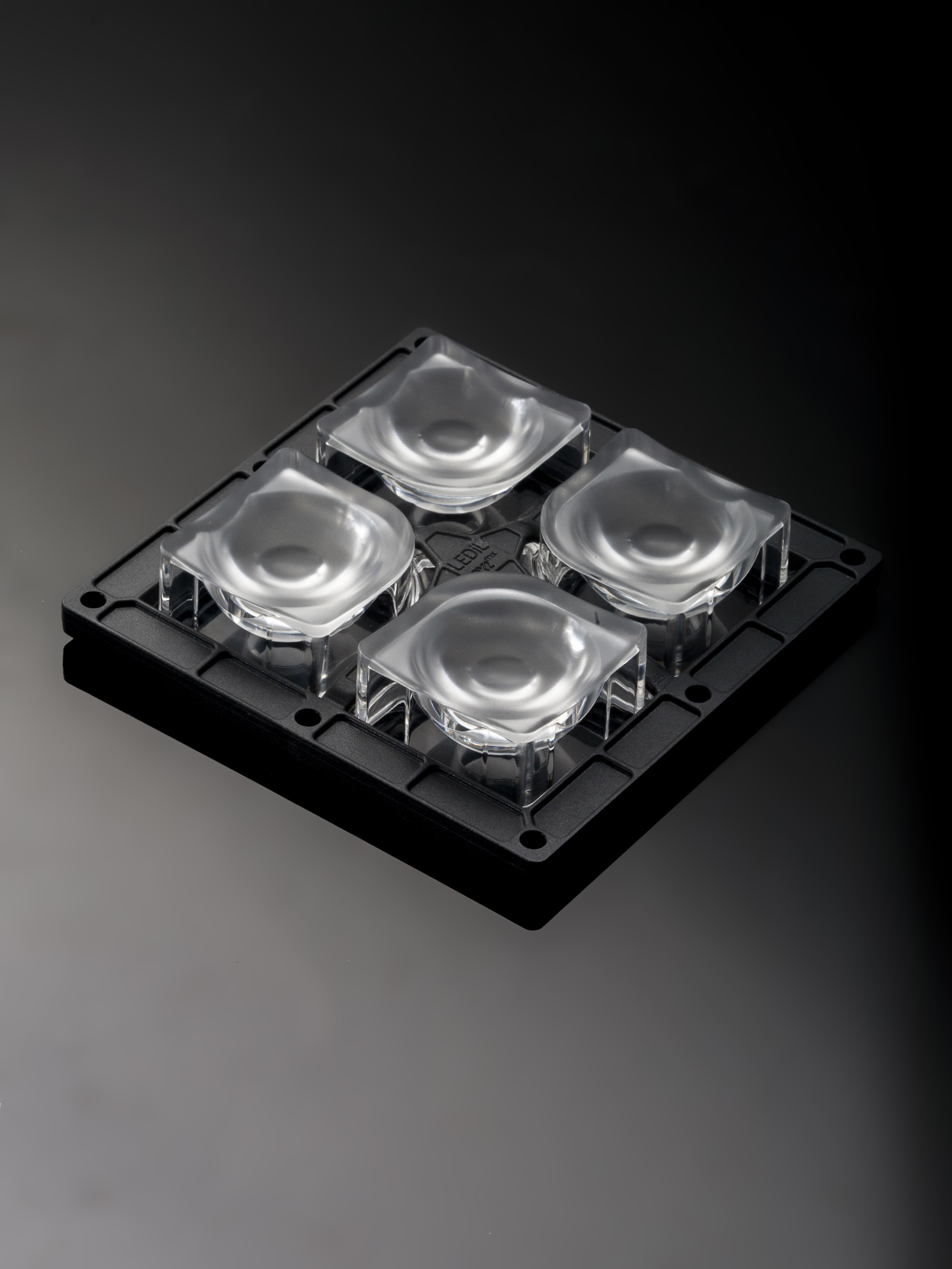

FP16310_HB-2X2MXS-M

Print

~30° wide beam

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    18.00 mm
  • Fastening:
    screw
  • Colour:
    black
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    10.5 kg
  • MPQ:
    12 pcs
  • MOQ:
    24 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    2.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FP16310_HB-2X2MXS-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

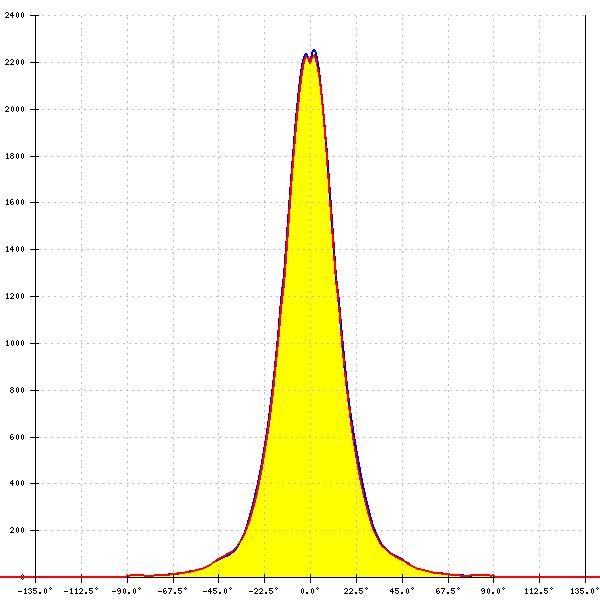

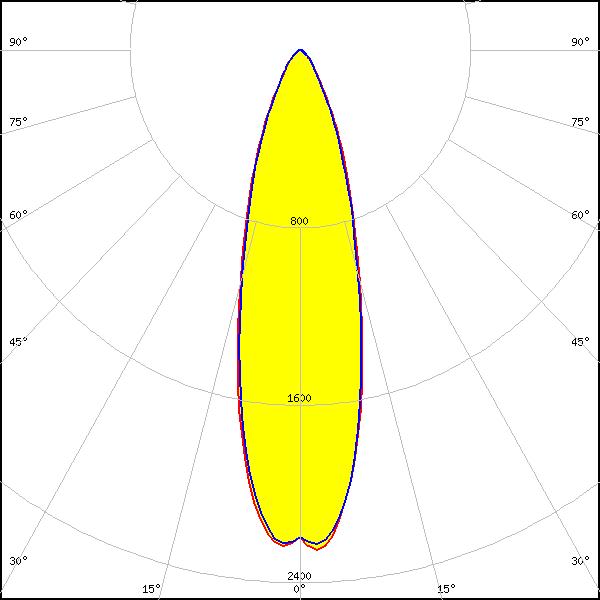

LED: CLU700/701/702
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: 29°
FWTM: 61°
Peak intensity: 2.207 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

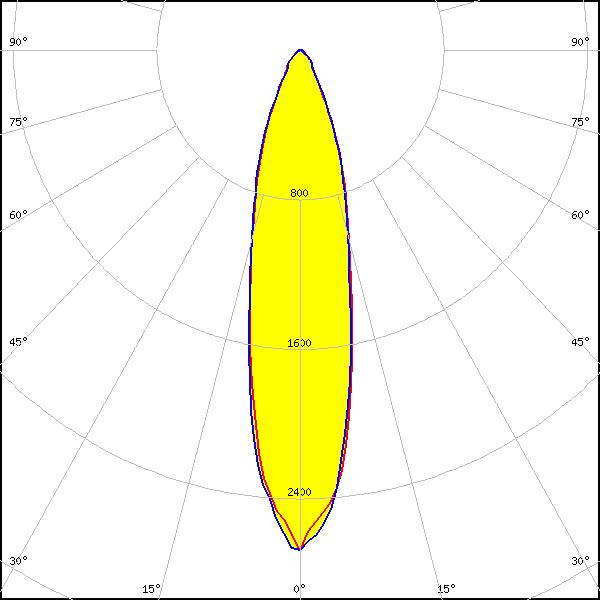

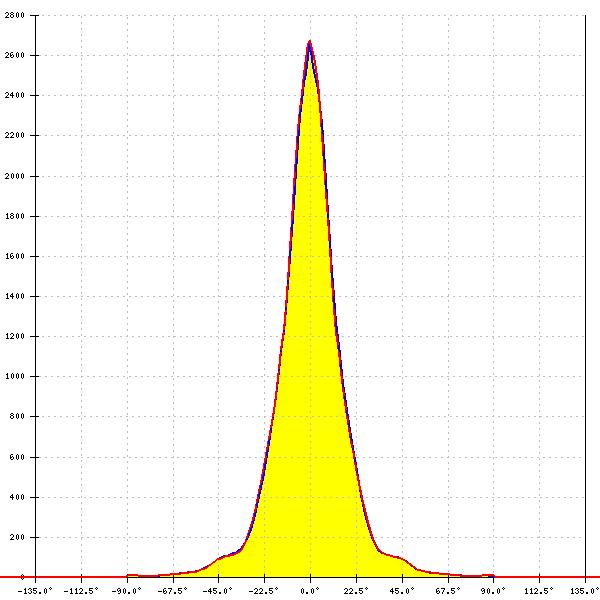

LED: MHB-A/B
FWHM: 24°
FWTM: 57°
Peak intensity: 2.700 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

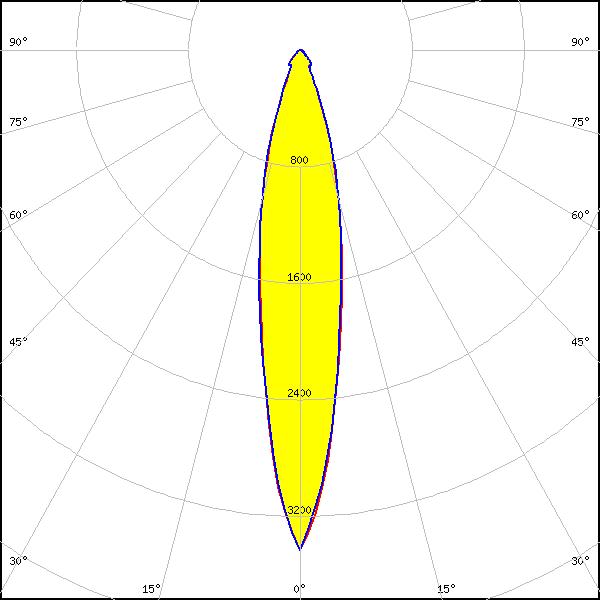

LED: XHP35 HI
FWHM: 20°
FWTM: 46°
Peak intensity: 3.430 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

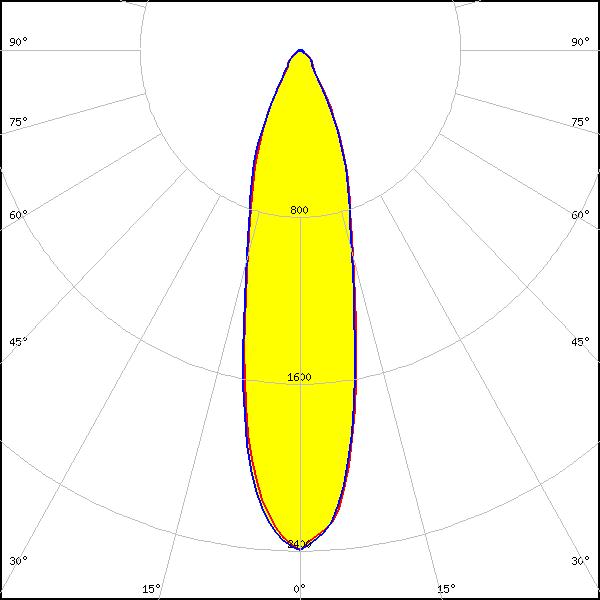

LED: XHP50
FWHM: 26°
FWTM: 62°
Peak intensity: 2.400 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

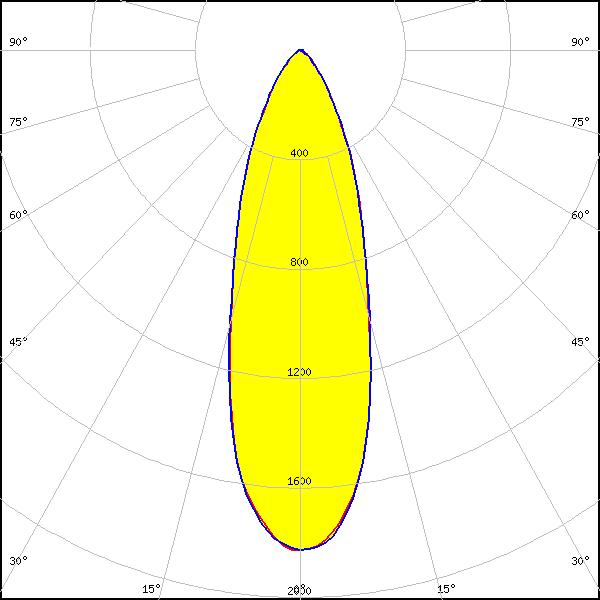

LED: XHP70.3 HD
FWHM: 32°
FWTM: 72°
Peak intensity: 1.842 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

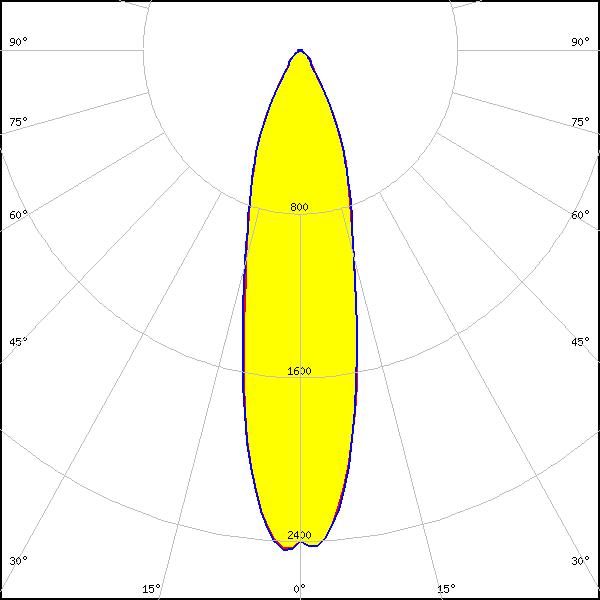

LED: XHP70.3 HI
FWHM: 27°
FWTM: 62°
Peak intensity: 2.460 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

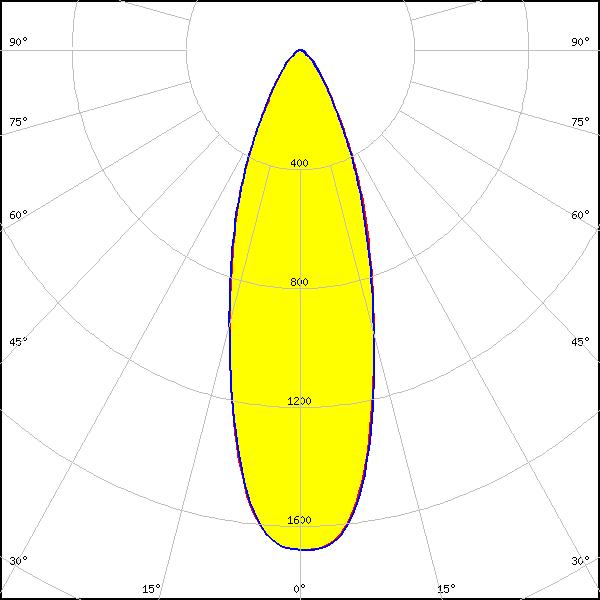

LED: LUXEON M/MX
FWHM: 34°
FWTM: 72°
Peak intensity: 1.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

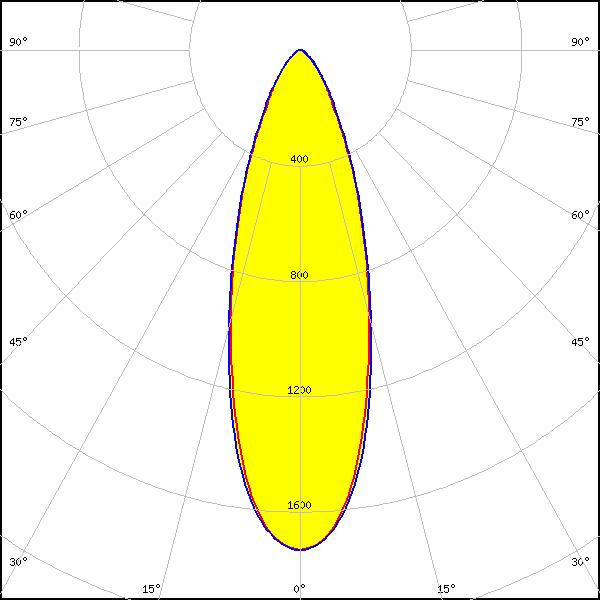

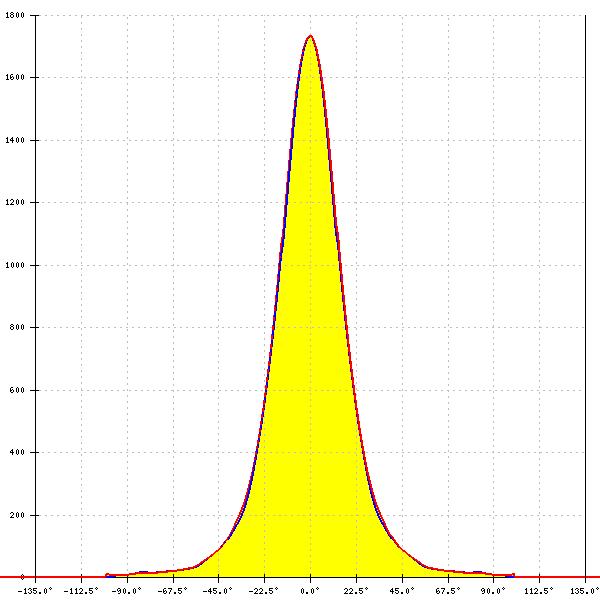

LED: LUXEON XR-7070
FWHM: 33°
FWTM: 72°
Peak intensity: 1.734 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

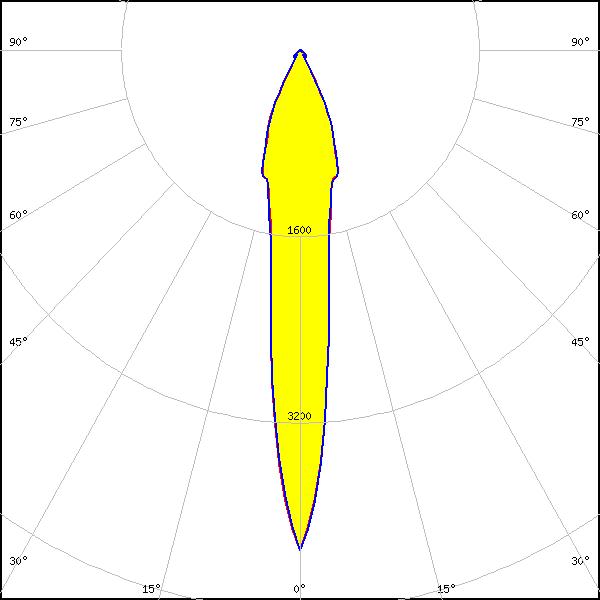

LED: SFT-40-WCS
FWHM: 14°
FWTM: 54°
Peak intensity: 4.294 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

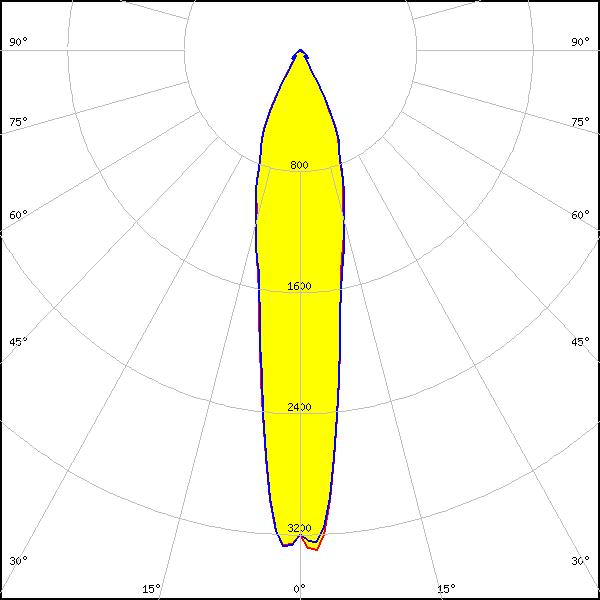

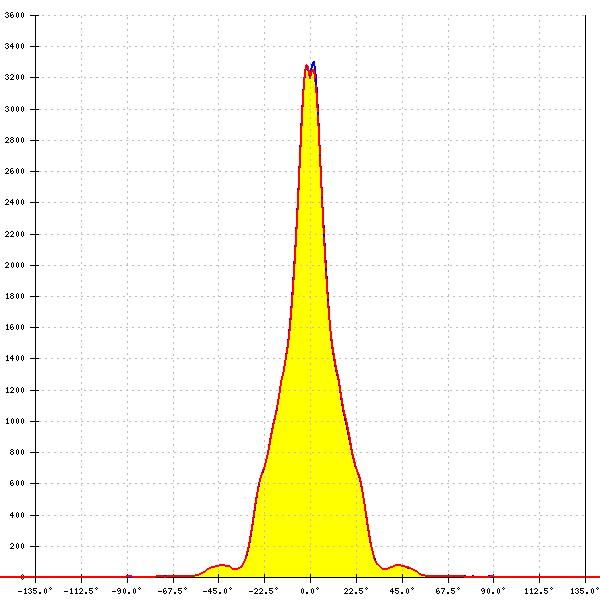

LED: SFT-70X-WCS
FWHM: 20°
FWTM: 56°
Peak intensity: 3.333 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

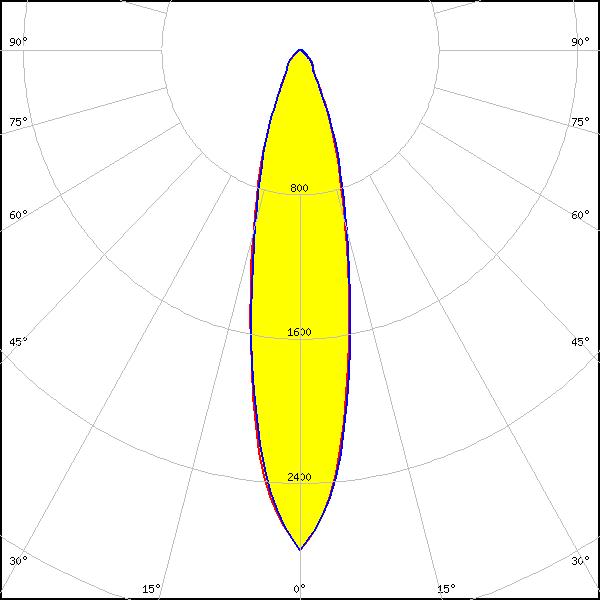

LED: NFMW48xA
FWHM: 24°
FWTM: 54°
Peak intensity: 2.770 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

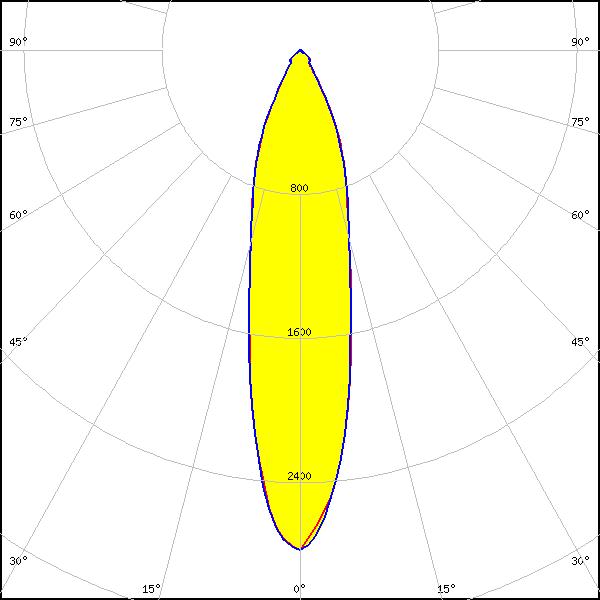

LED: NV4WB35AM
FWHM: 24°
FWTM: 60°
Peak intensity: 2.777 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

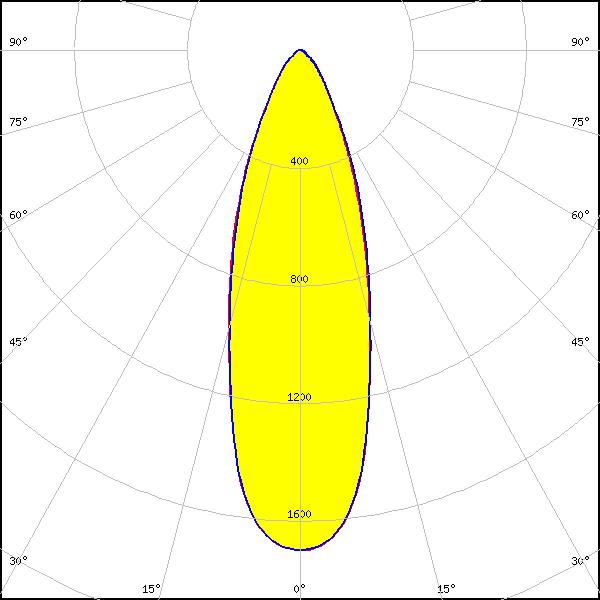

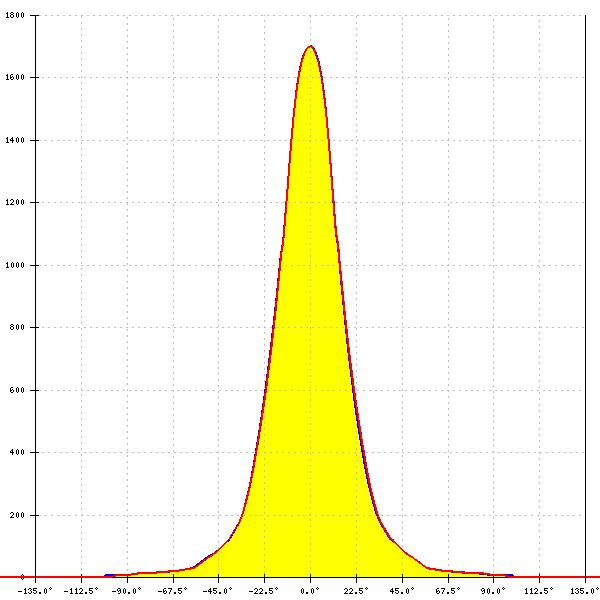

LED: NV4x144A
FWHM: 34°
FWTM: 71°
Peak intensity: 1.699 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

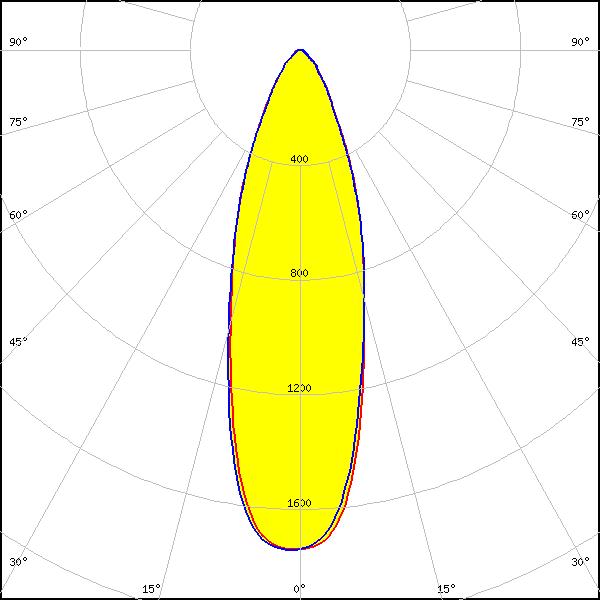

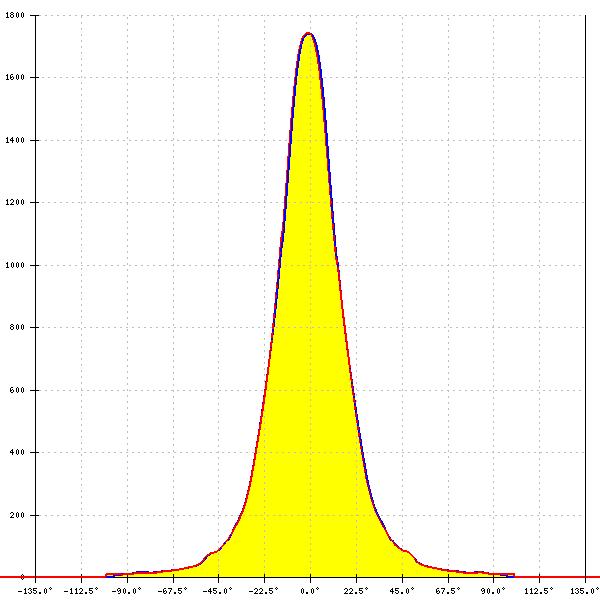

LED: HiLOM SC16 (LH181B)
FWHM: 32°
FWTM: 72°
Peak intensity: 1.700 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
