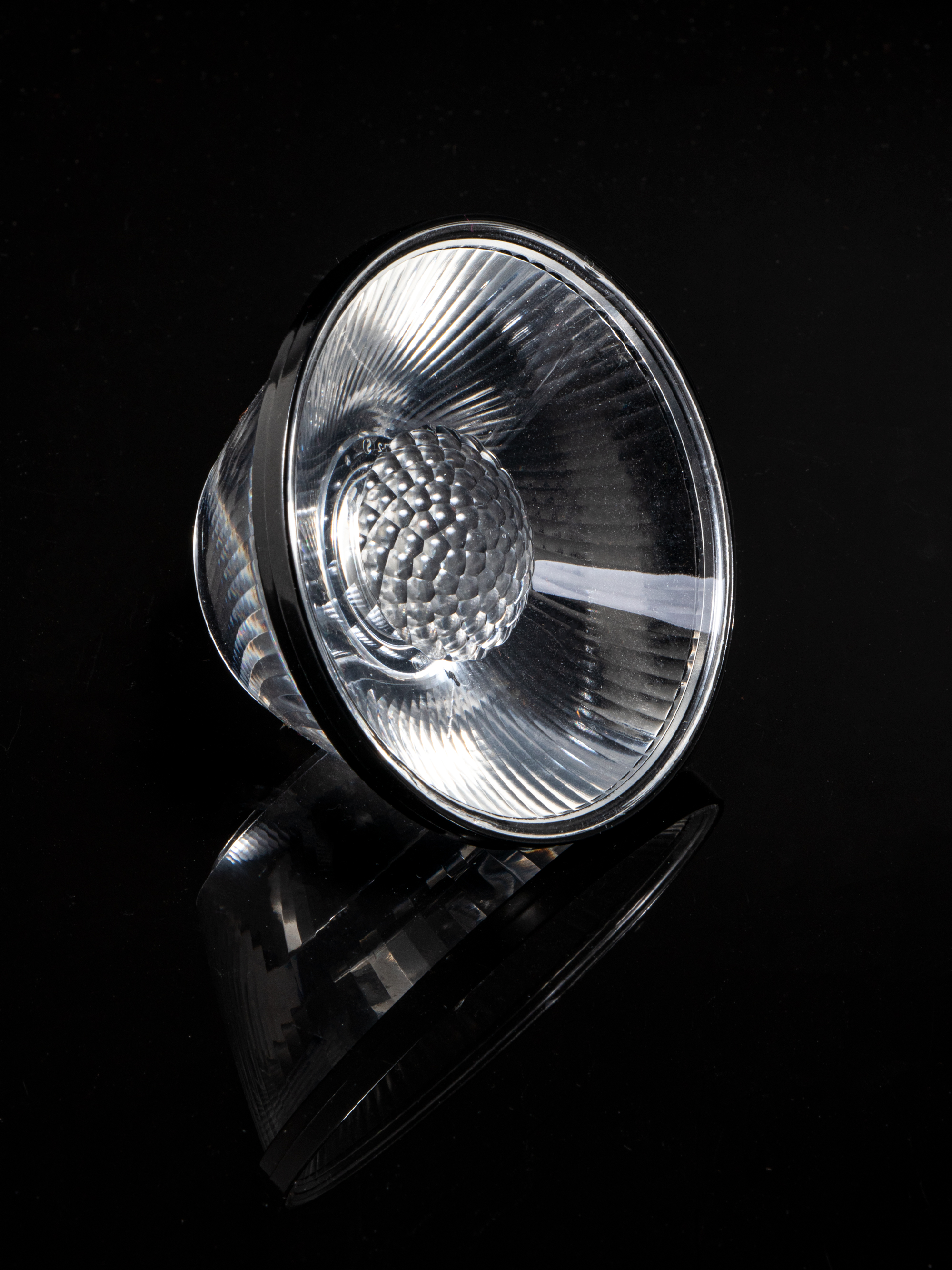

FP17001_SAKURA-70-S

Print

~15° spot beam. Assembly with installation adapter.

Specification
  • Dimensions:
    69 mm
  • Height:
    33.3 mm
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • SAKURA-70-S, Single lens, Silicone
  • SAKURA-ADAPTER-1, Accessory, PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    144 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.6 kg
  • MPQ:
    18 pcs
  • MOQ:
    54 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FP17001_SAKURA-70-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Typical Applications

Optical results

LED: Vero SE 18
LEDs/each optic: 1
Light colour: White
LED: CLL03x/CLU03x
LEDs/each optic: 1
Light colour: White
LED: CLL04x/CLU04x
LEDs/each optic: 1
Light colour: White
LED: CXA/B 15xx
Required components:
FWHM: 14°
Peak intensity: 12.4 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 1830
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1208
LEDs/each optic: 1
Light colour: White
LED: CxM-14 (19x19)
LEDs/each optic: 1
Light colour: White
LED: CxM-18 (21.5x21.5)
LEDs/each optic: 1
Light colour: White
LED: CxM-22 (28x28)
LEDs/each optic: 1
Light colour: White
LED: COB J-Type
LEDs/each optic: 1
Light colour: White
