L20260_GABRIELLA-45-G2-RS-PIN
Print~6° spot beam. Lens with pins.
Specification
-
Dimensions:45 mm
-
Height:27.20 mm
-
Fastening:pin
-
Colour:clear
-
RoHS and REACH compliant:Yes
Component Materials
Ordering information
-
Quantity in box:405 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:11.0 kg
-
MPQ:45 pcs
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content

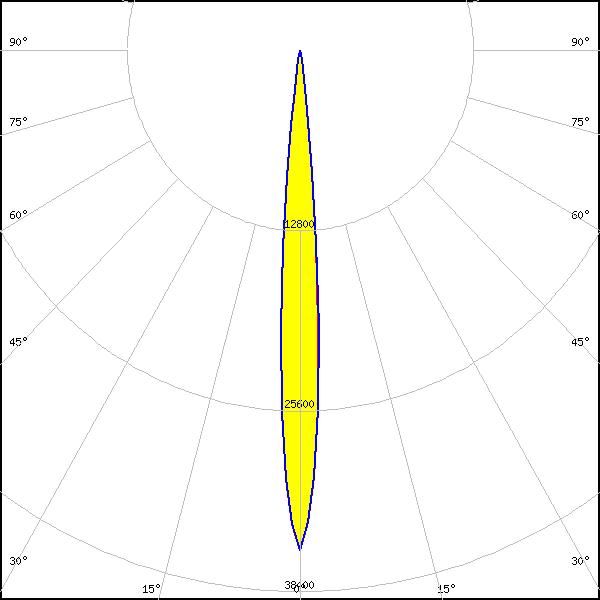

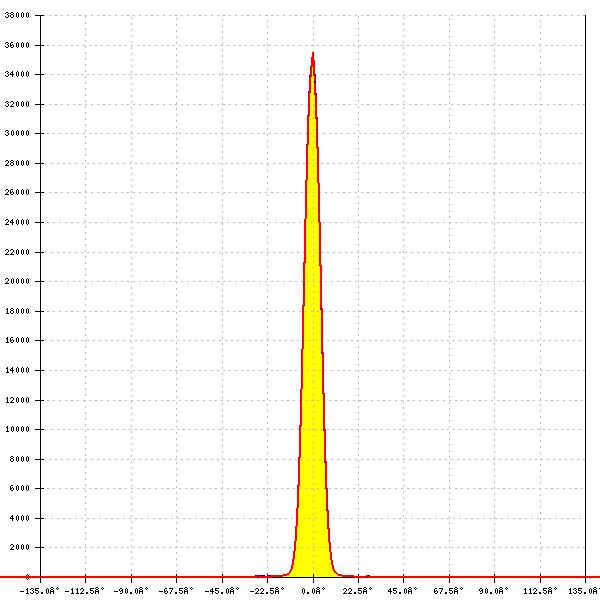

Optical results
LED:
XHP35.2 HI
FWHM:
8°
FWTM:
16°
Peak intensity:
35.482 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WN)
FWHM:
6° + 7°
FWTM:
12° + 12°
Peak intensity:
57.774 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
RGBW
