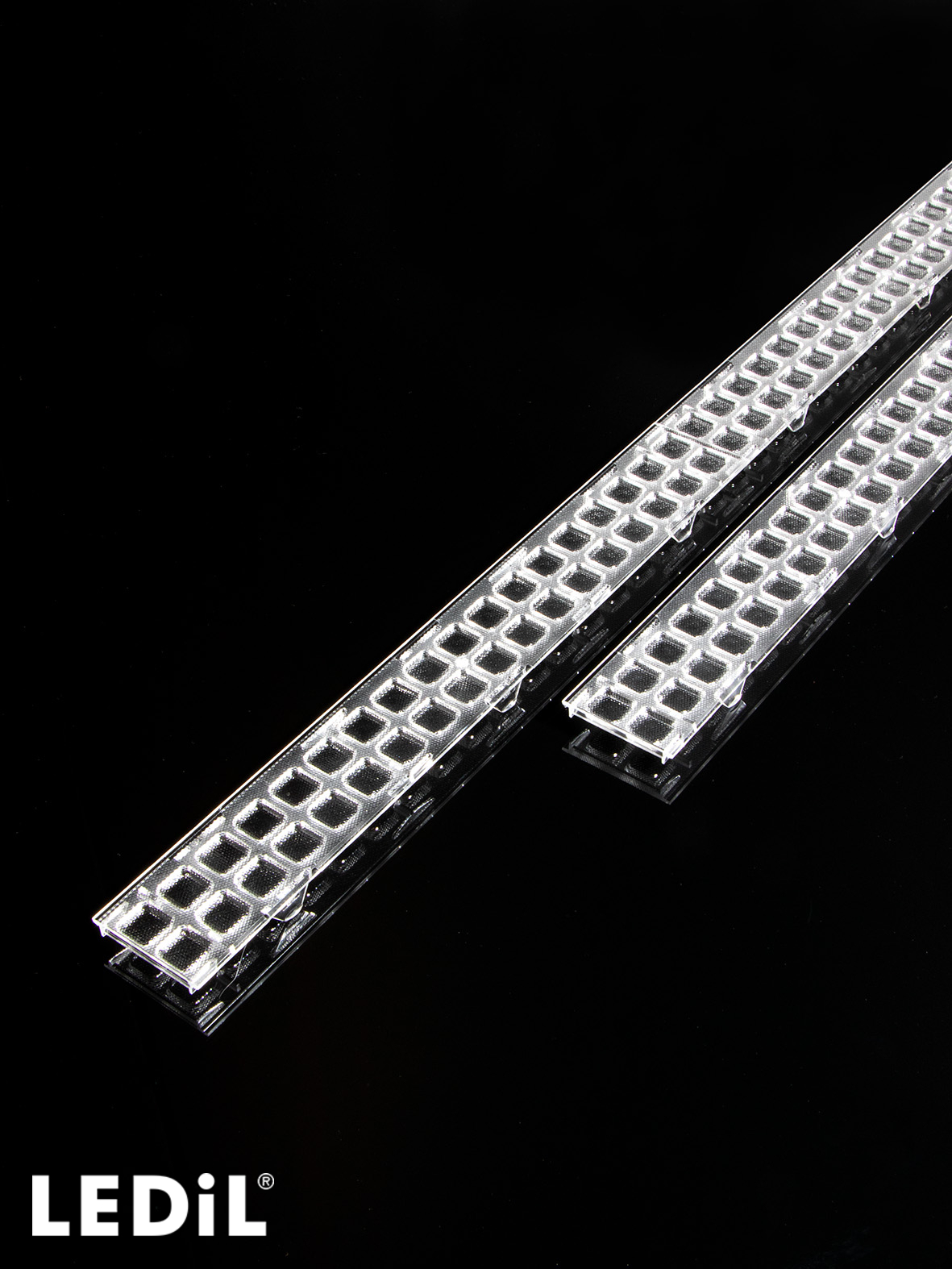

LIANNA-2R-110
Print~110° wide beam
Multiple lengths available.
This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.
Specification
-
Dimensions:40 x 281 mm
40 x 561 mm
40 x 1121 mm
40 x 1400 mm
40 x 1680 mm
-
Height:10.70 mm
-
RoHS and REACH compliant:Yes
Component Materials
- LIANNA-2R-110-L2Linear lensPMMA
- LIANNA-2R-110-L4Linear lensPMMA
- LIANNA-2R-110-L5Linear lensPMMA
- LIANNA-2R-110-L6Linear lensPMMA
- LIANNA-2R-110-L1Linear lensPMMA
- Request material files from Tech Support
Ordering information
- Linear lens
- C19459_LIANNA-2R-110-L1clear, 281mm
- C19460_LIANNA-2R-110-L2clear, 561mm
- C19462_LIANNA-2R-110-L4clear, 1121mm
- C19463_LIANNA-2R-110-L5clear, 1400mm
- C19464_LIANNA-2R-110-L6clear, 1680mm
- Packaging information in the product datasheet
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
- PCB drawing
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

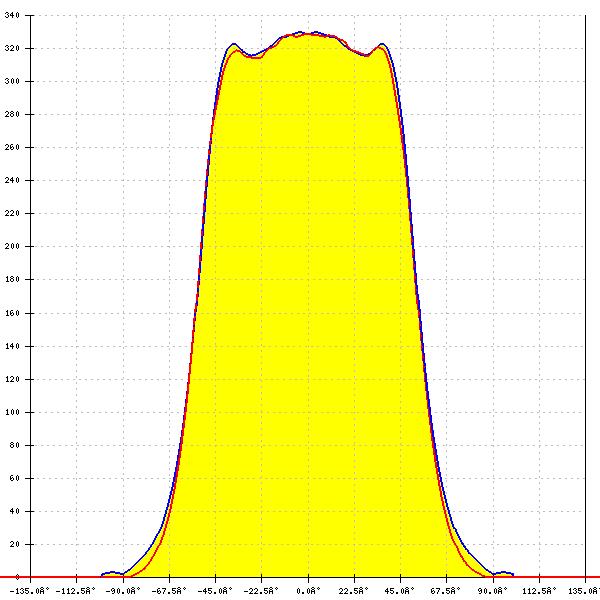

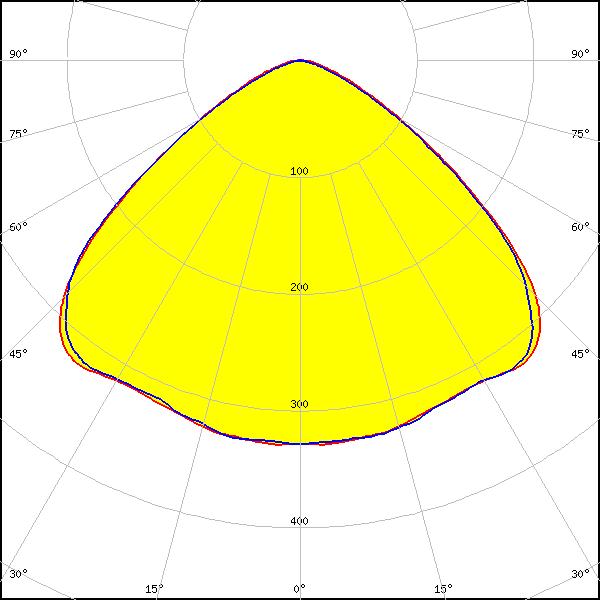

LED:
AM-L277W30-C9s4pBY-XXX (LIANNA)
Ordering code: C19459_LIANNA-2R-110-L1
FWHM:
108°
FWTM:
139°
Peak intensity:
0.331 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

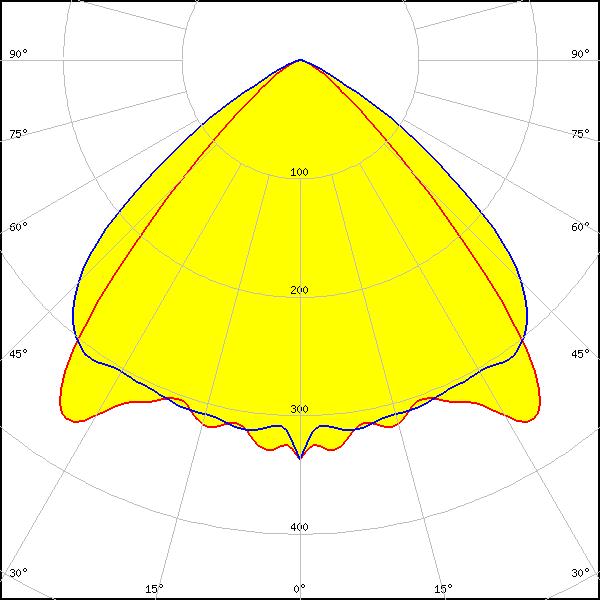

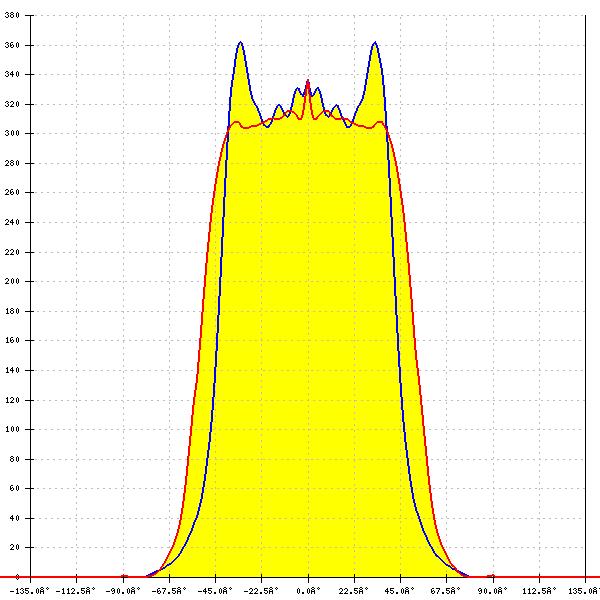

LED:
JB3030 HE B Class
Ordering code: C19463_LIANNA-2R-110-L5
Required components:
L20362_LIANNA-2R-SHD-L1
FWHM:
86° + 104°
FWTM:
110° + 126°
Peak intensity:
0.362 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

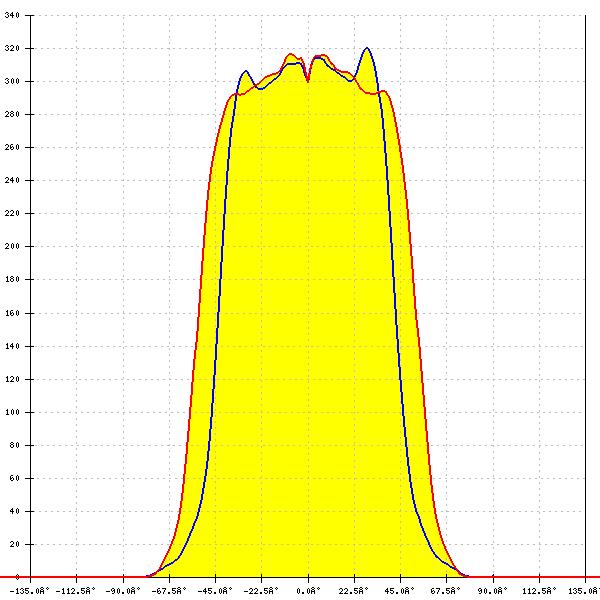

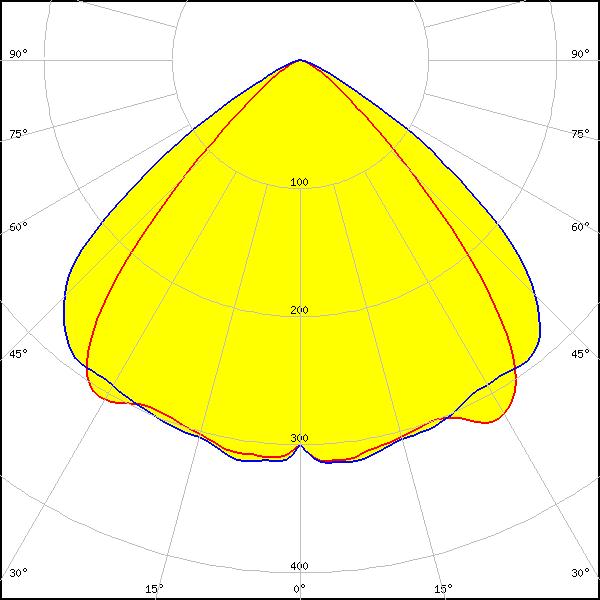

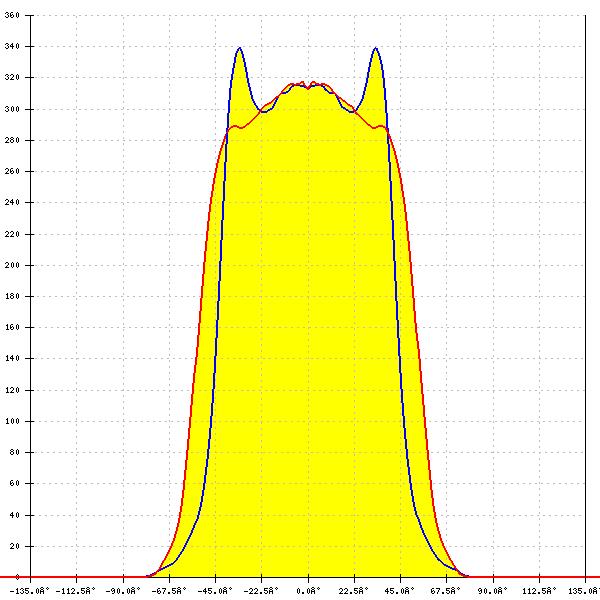

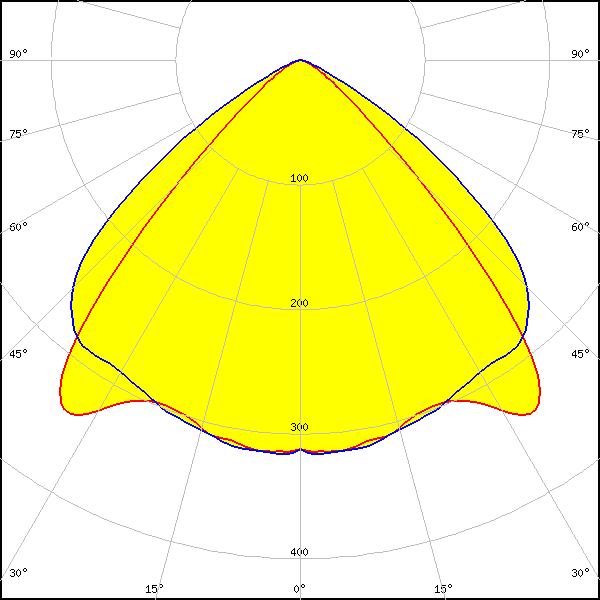

LED:
LUXEON 2835 S (A)
Ordering code: C19462_LIANNA-2R-110-L4
Required components:
L20362_LIANNA-2R-SHD-L1
FWHM:
88° + 106°
FWTM:
110° + 126°
Peak intensity:
0.339 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

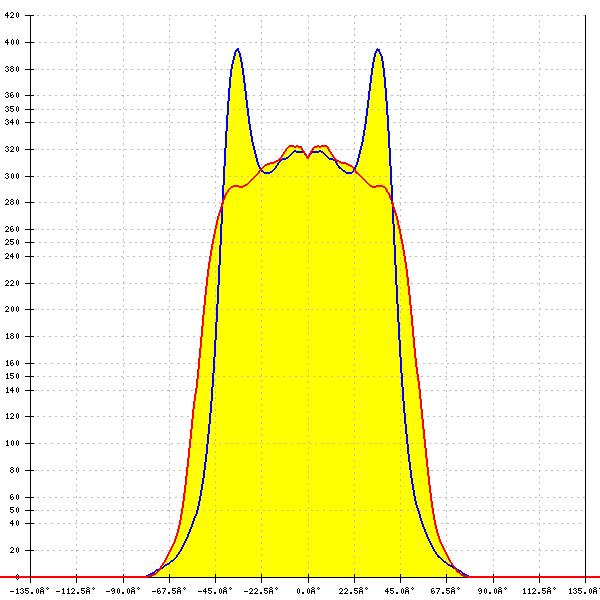

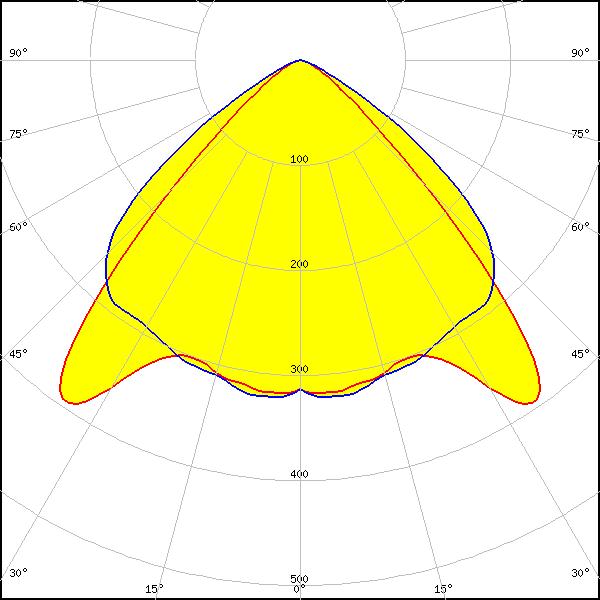

LED:
LUXEON 2835 S (A)
Ordering code: C19462_LIANNA-2R-110-L4
Required components:
L20363_LIANNA-2R-SHD-MET-L1
FWHM:
88° + 106°
FWTM:
112° + 126°
Peak intensity:
0.394 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

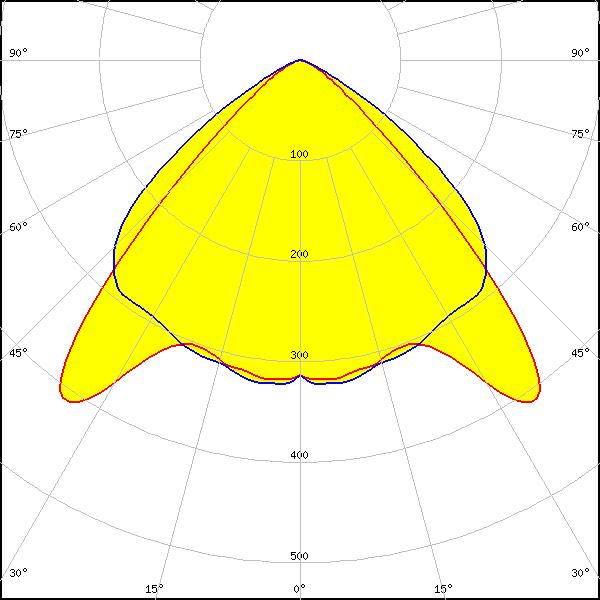

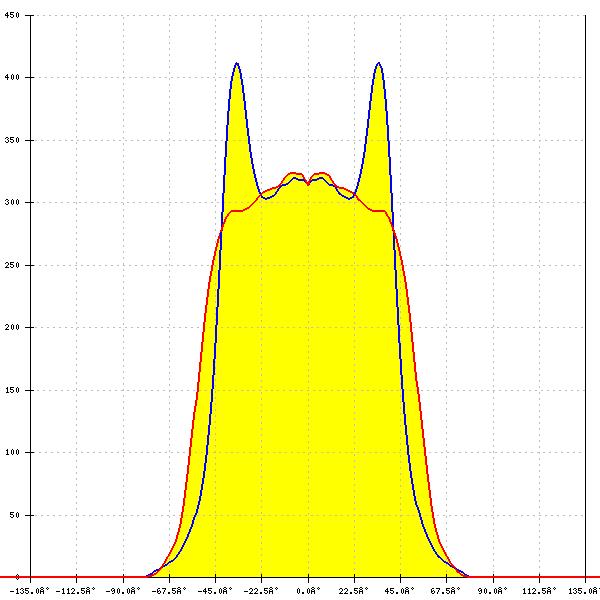

LED:
LUXEON 2835 S (A)
Ordering code: C19462_LIANNA-2R-110-L4
Required components:
L20366_LIANNA-2R-SHD-WHT-L1
FWHM:
88° + 106°
FWTM:
112° + 126°
Peak intensity:
0.411 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

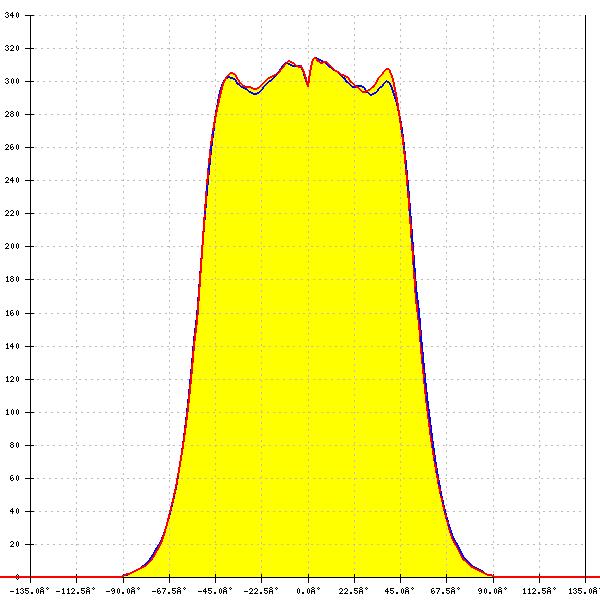

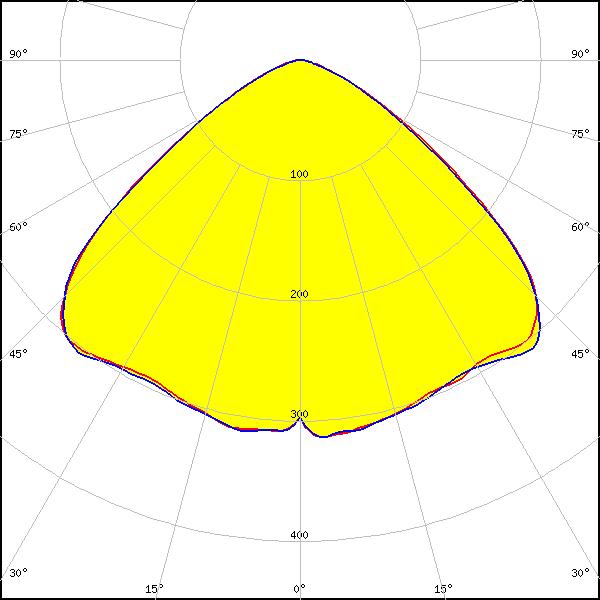

LED:
LUXEON 2835 S (E)
FWHM:
108°
FWTM:
138°
Peak intensity:
0.316 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 2835 S (E)
Required components:
L20362_LIANNA-2R-SHD-L1
FWHM:
86° + 106°
FWTM:
110° + 126°
Peak intensity:
0.321 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

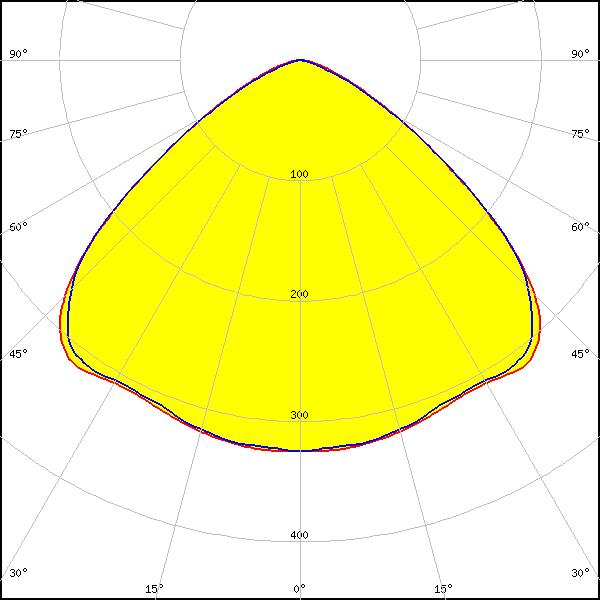

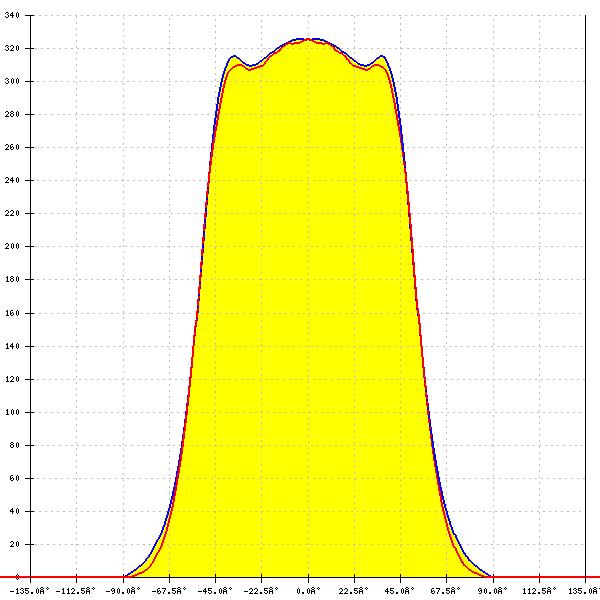

LED:
LM281B Plus
Ordering code: C19459_LIANNA-2R-110-L1
FWHM:
107°
FWTM:
137°
Peak intensity:
0.329 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM281B Plus
Ordering code: C19459_LIANNA-2R-110-L1
Required components:
L20366_LIANNA-2R-SHD-WHT-L1
FWHM:
84° + 107°
FWTM:
145° + 130°
Peak intensity:
0.342 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
