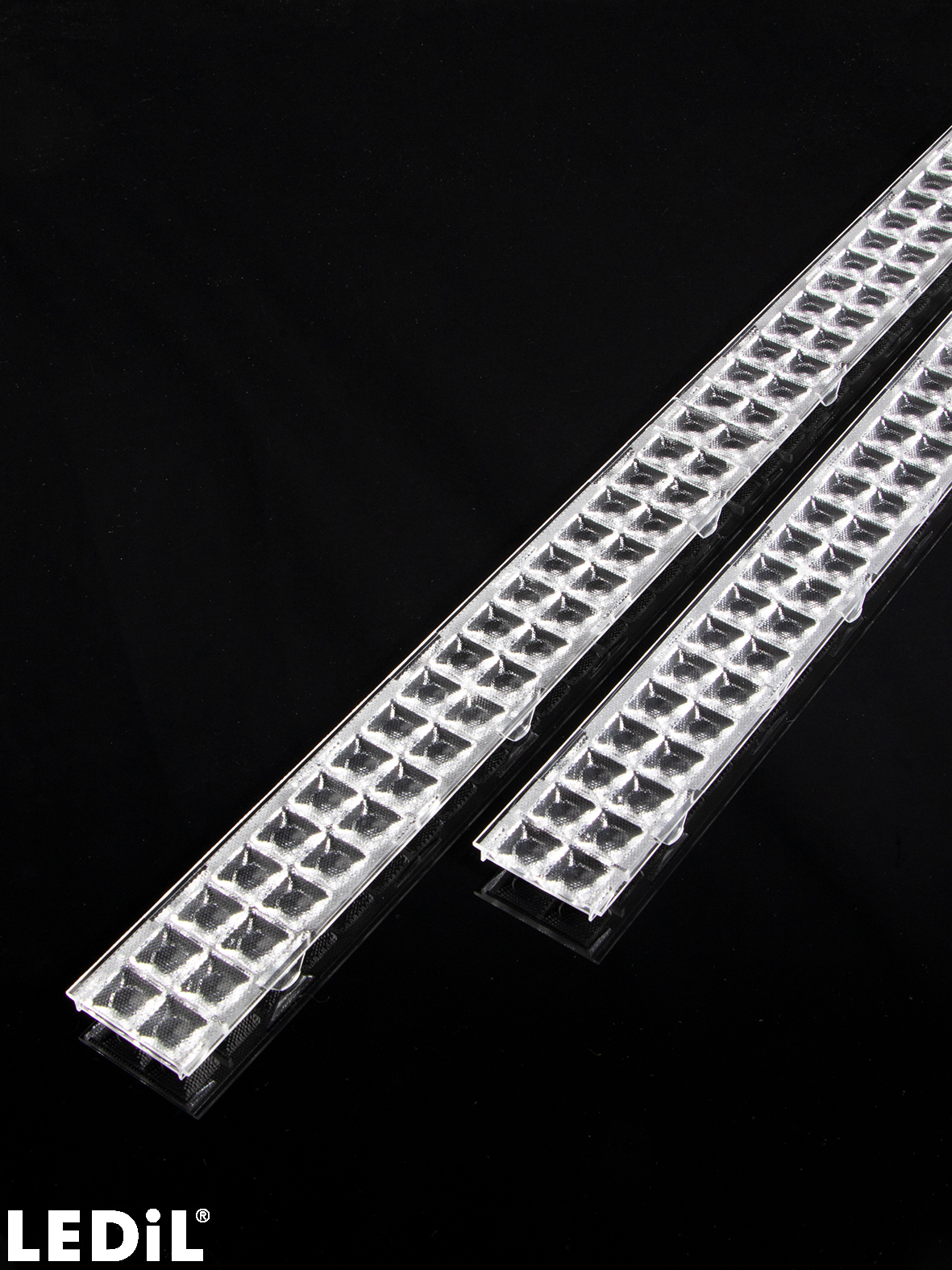

LIANNA-2R-90

Print

~90° wide beam

This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

Custom lengths available.

Specification
  • Dimensions:
    40 x 1120 mm
    40 x 1400 mm
    40 x 1680 mm
  • Height:
    10.70 mm
  • RoHS and REACH compliant:
    Yes
Materials
  • C19468_LIANNA-2R-90-L4
    PMMA
  • C19710_LIANNA-2R-90-L5
    PMMA
  • C19469_LIANNA-2R-90-L6
    PMMA
Ordering information
  • Linear lens
  • C19468_LIANNA-2R-90-L4
    clear, 1120mm
  • C19710_LIANNA-2R-90-L5
    clear, 1400mm
  • C19469_LIANNA-2R-90-L6
    clear, 1680mm
  • Quantity in box:
    50 pcs
  • Box size:
    1190 x 260 x 210 mm
  • Box weight:
    10.90 kg
  • MPQ:
    50 pcs
  • MOQ:
    50 pcs
  • MOQ Size:
    1190 x 260 x 210 mm
  • MOQ Weight:
    10.90 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C19468_LIANNA-2R-90-L4
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

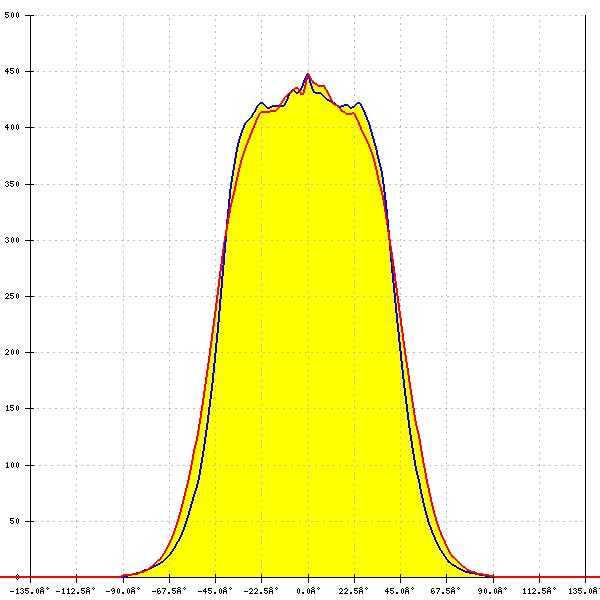

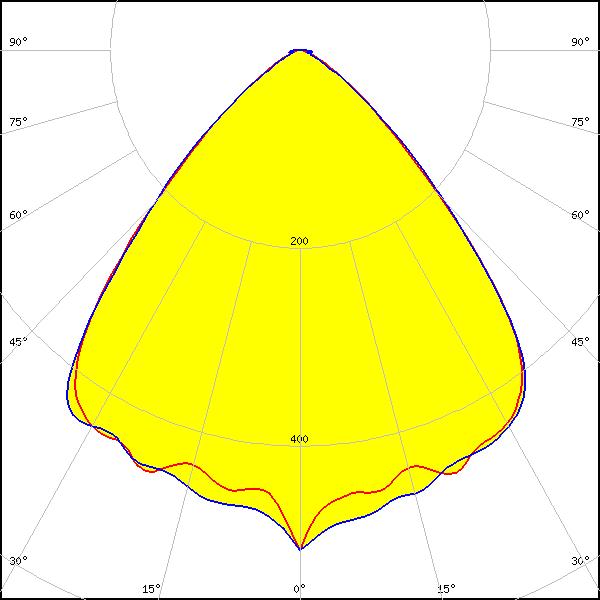

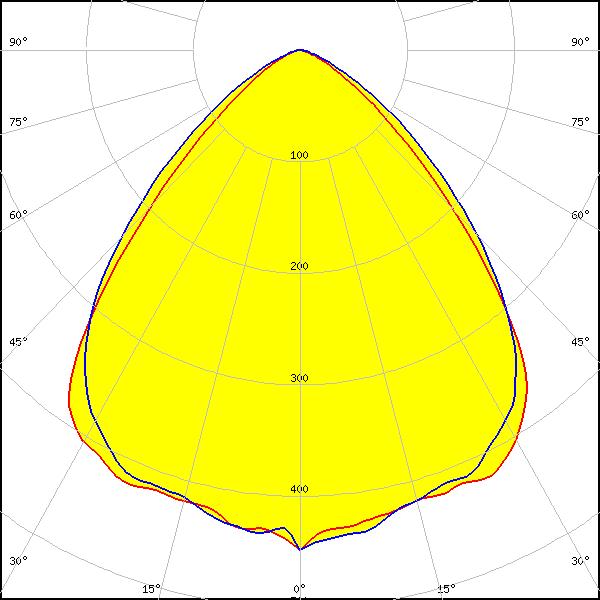

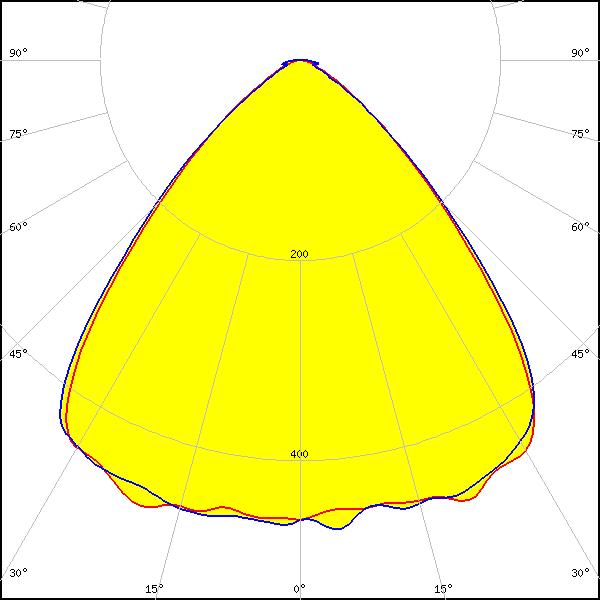

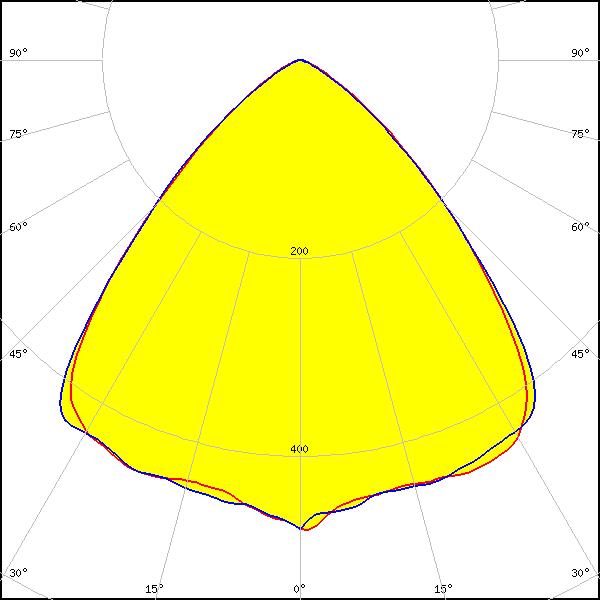

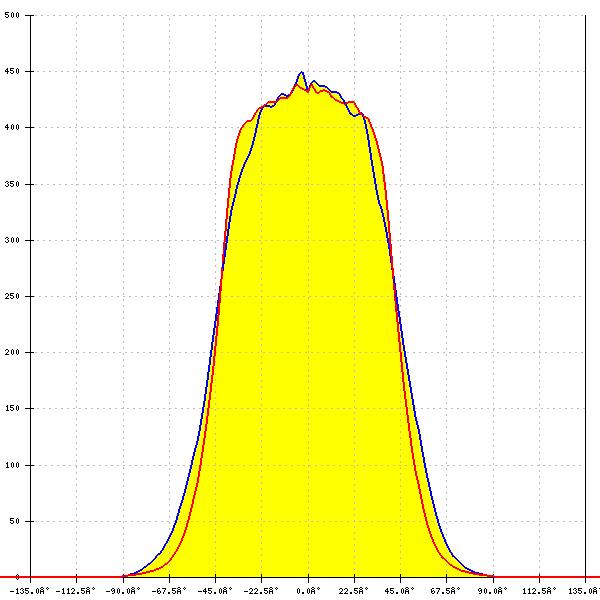

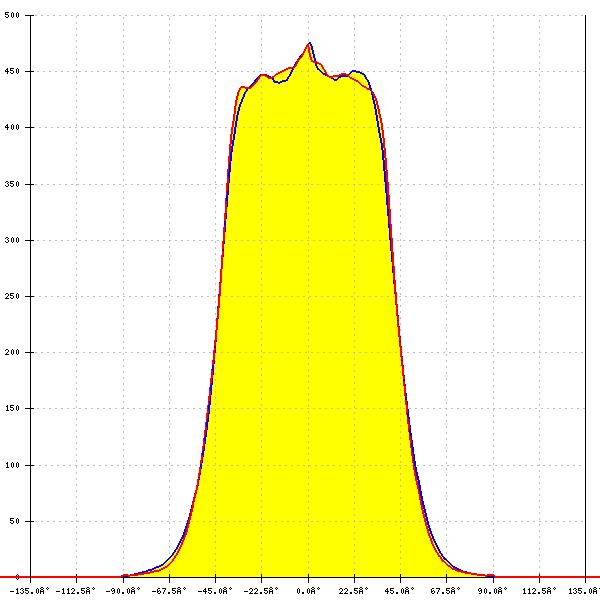

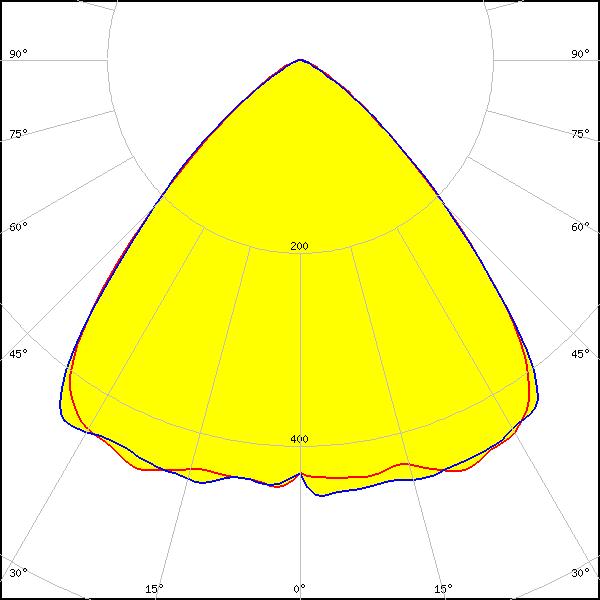

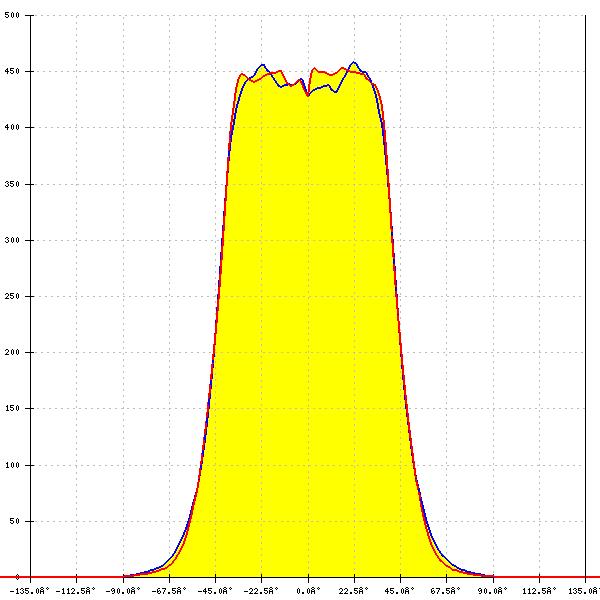

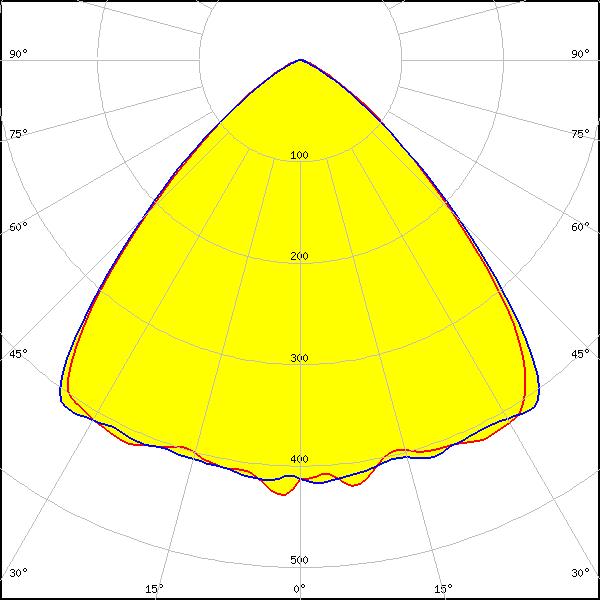

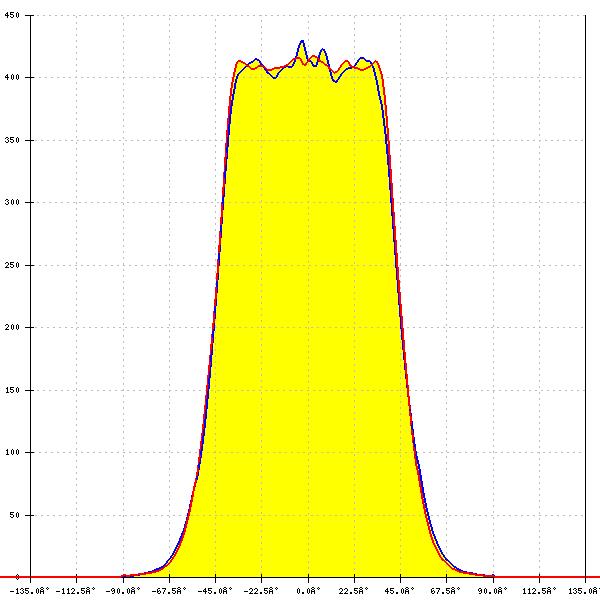

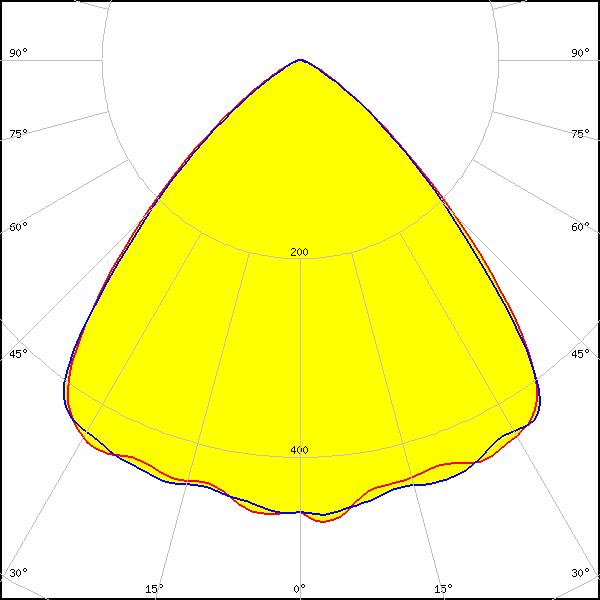

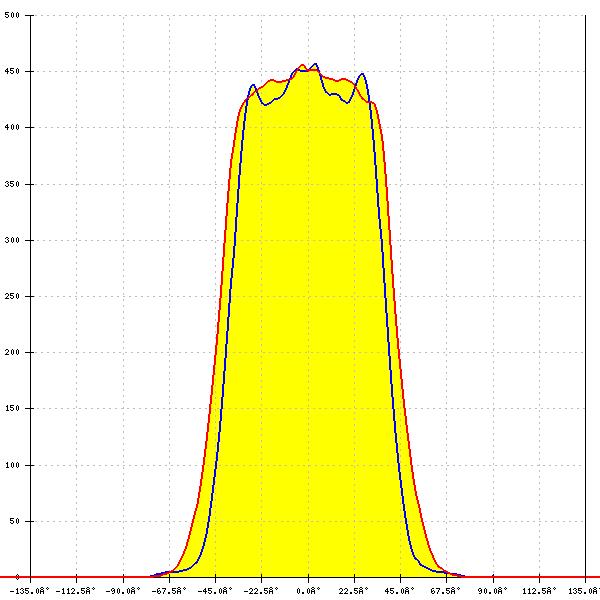

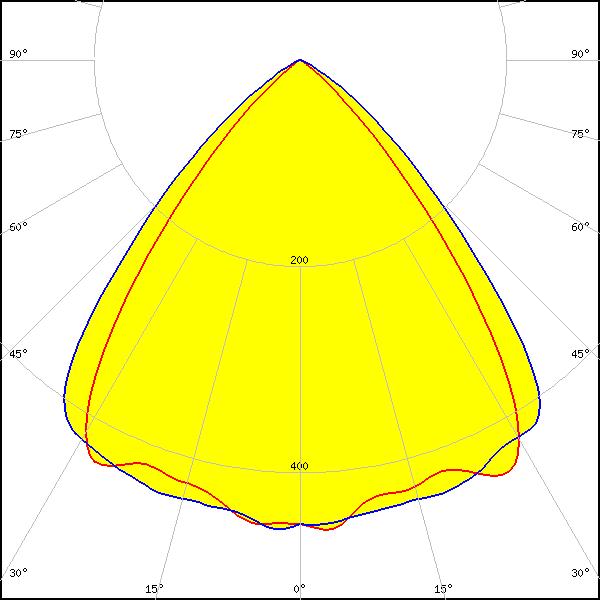

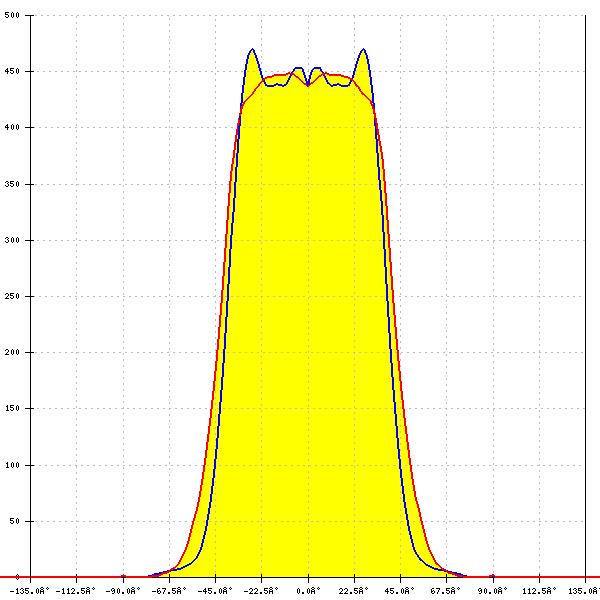

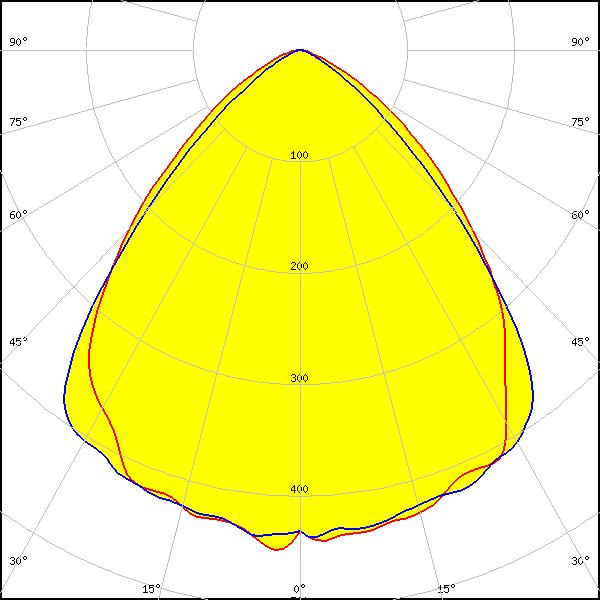

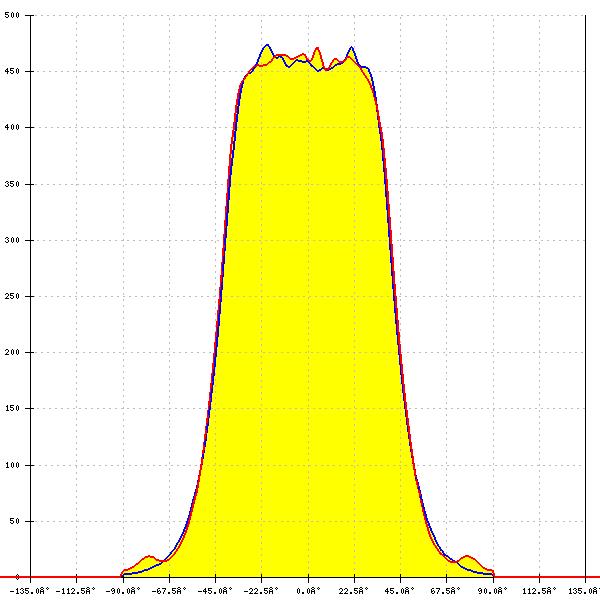

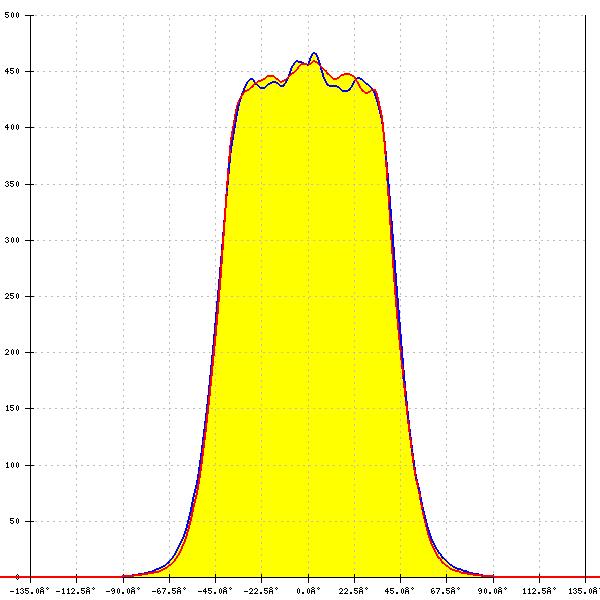

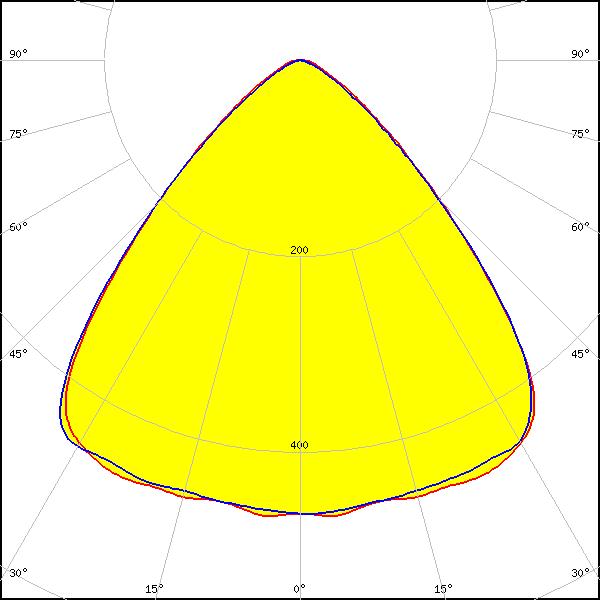

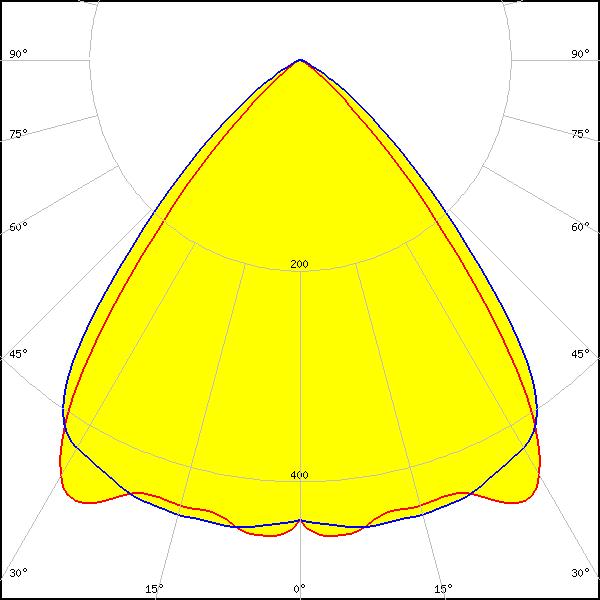

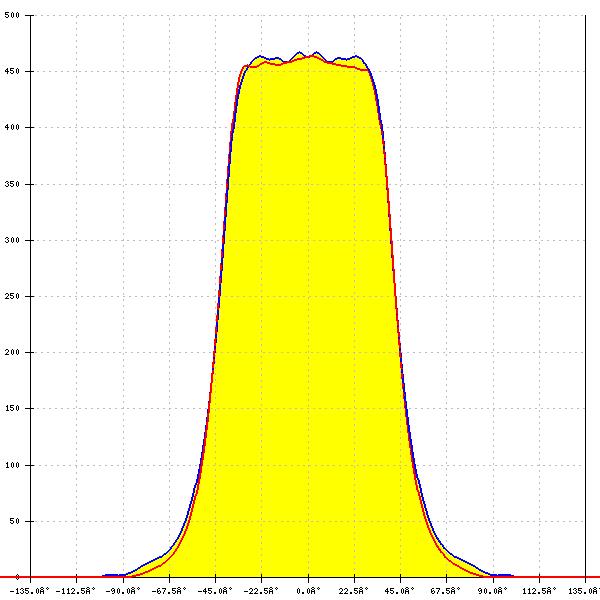

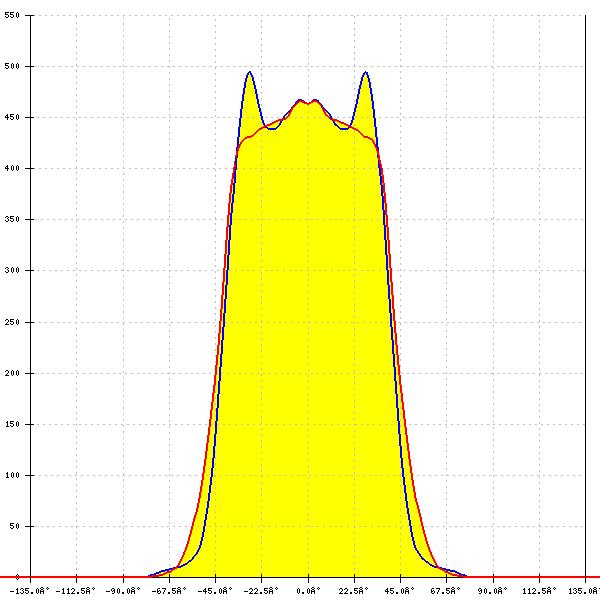

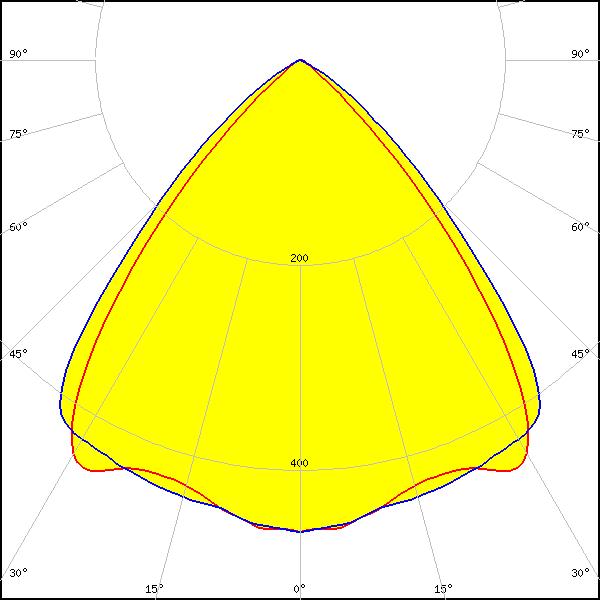

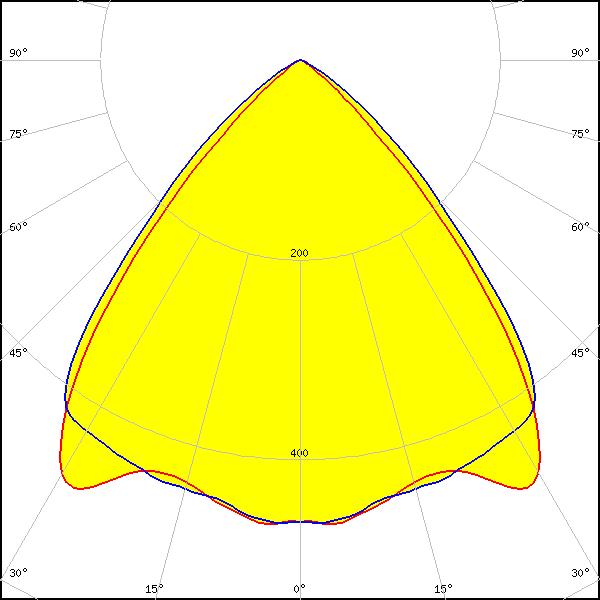

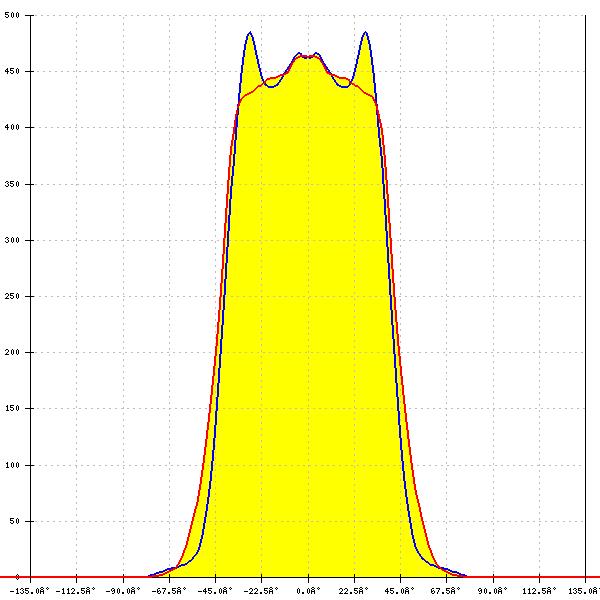

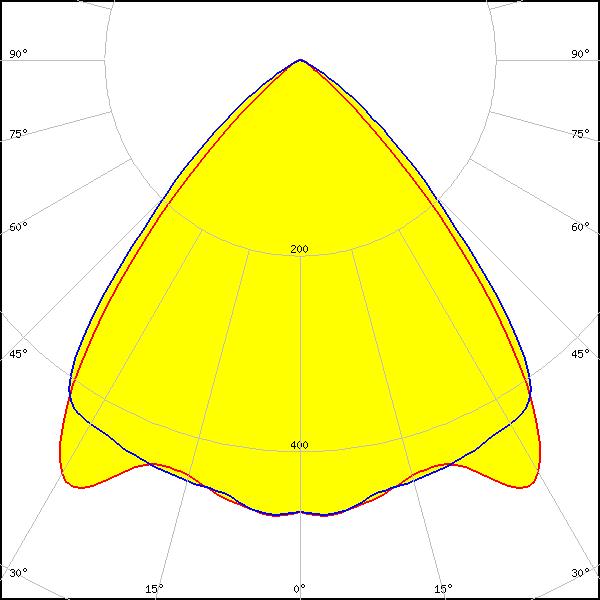

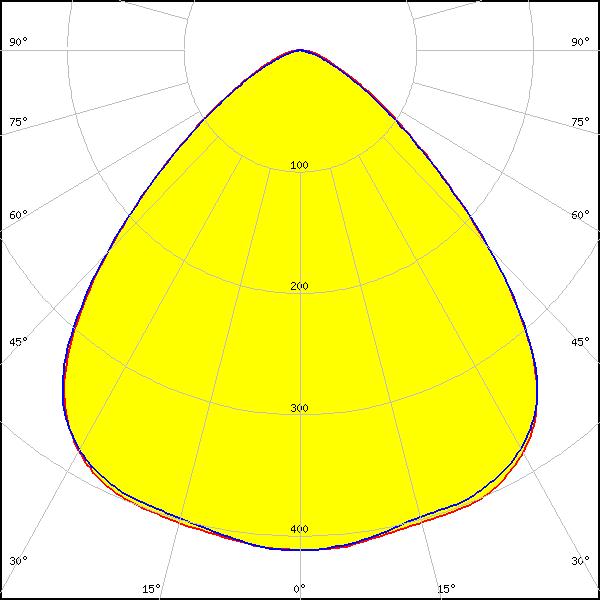

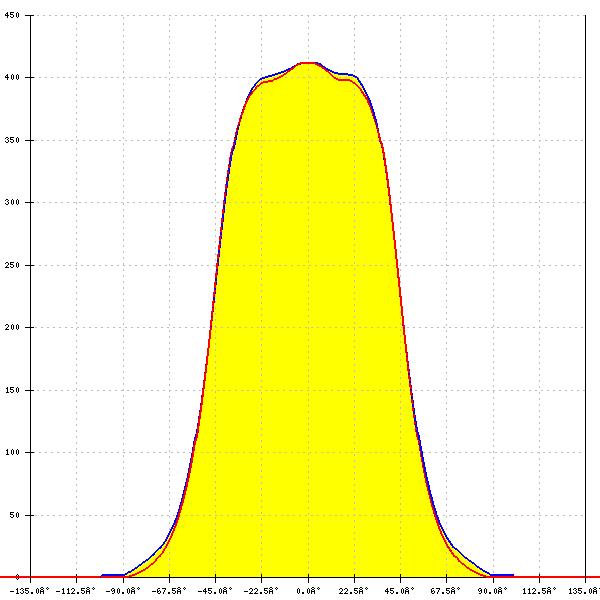

Optical results

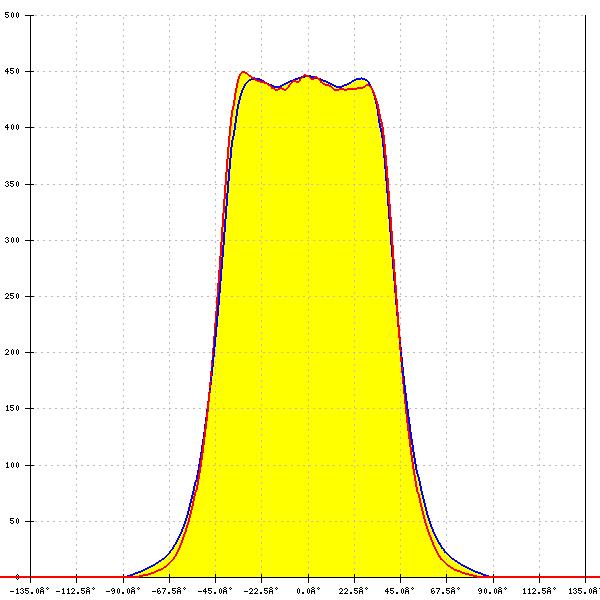

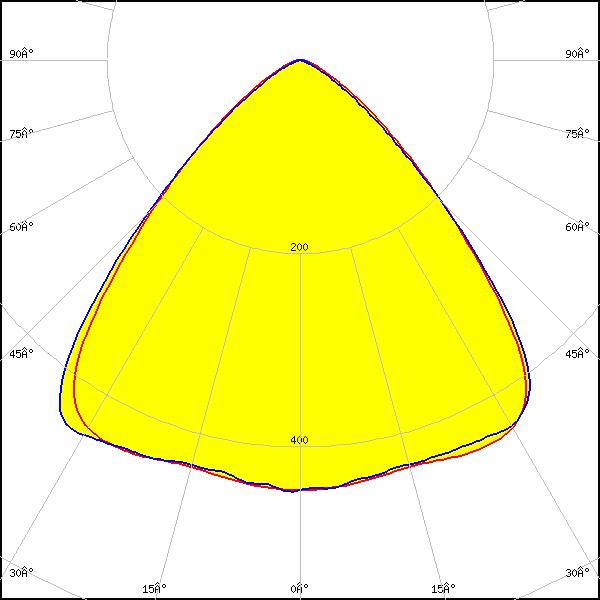

LED: LinLED 277x26mm 1100lm 8x0 2C 27V LIANNA-2R G1
Ordering code: C19465_LIANNA-2R-90-L1
FWHM: 89°
FWTM: 118°
Peak intensity: 0.450 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

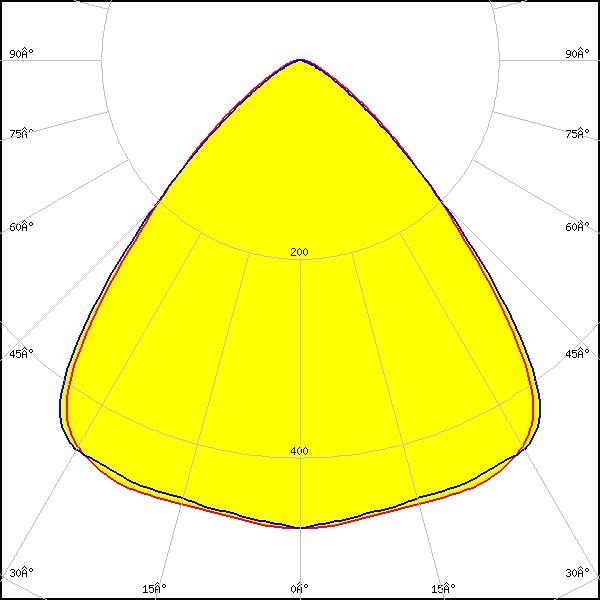

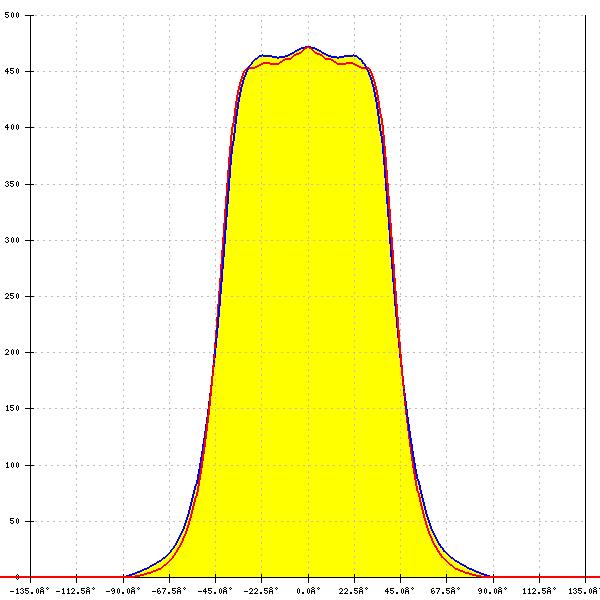

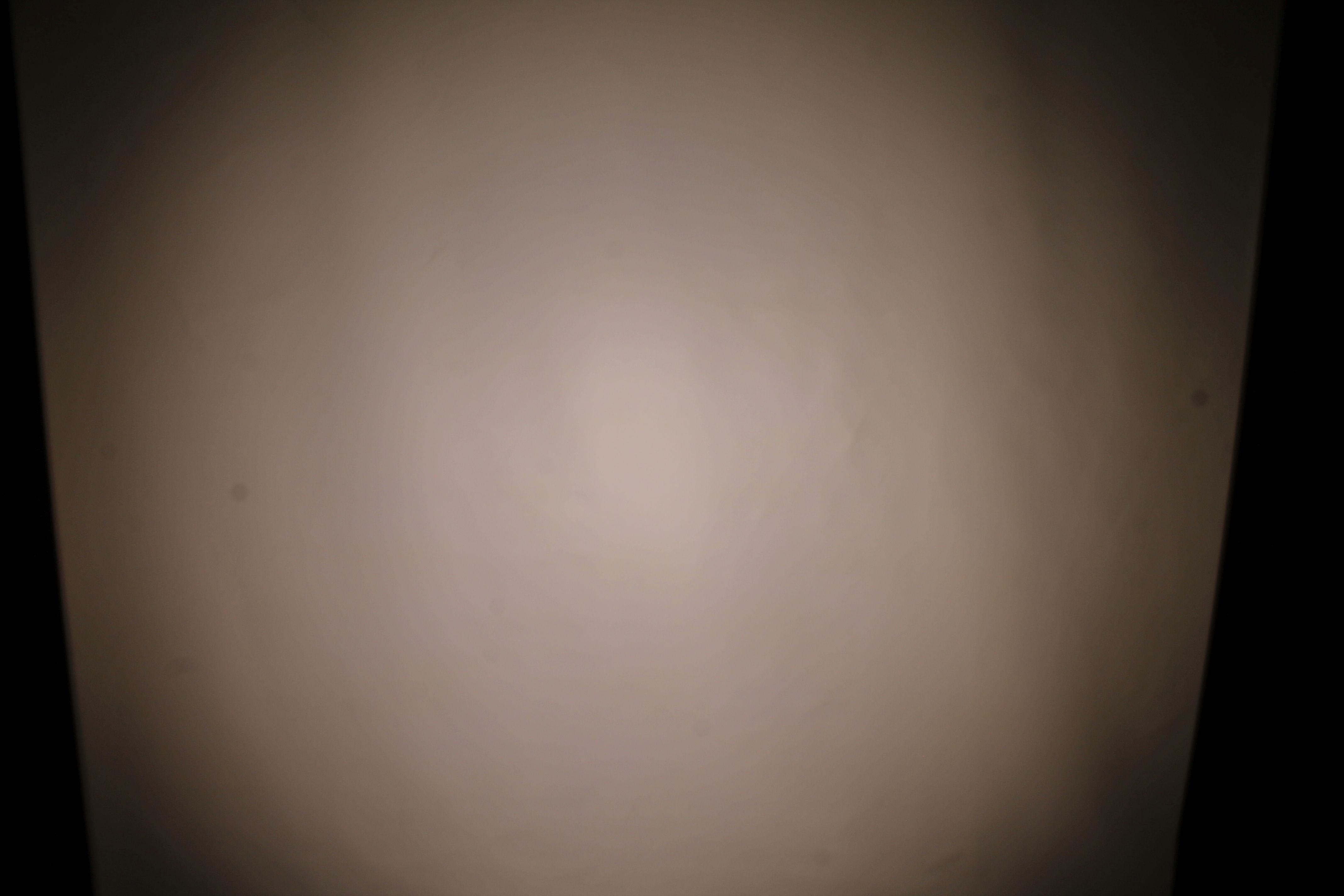

LED: LM28xB Series
FWHM: 87°
FWTM: 117°
Peak intensity: 0.472 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
