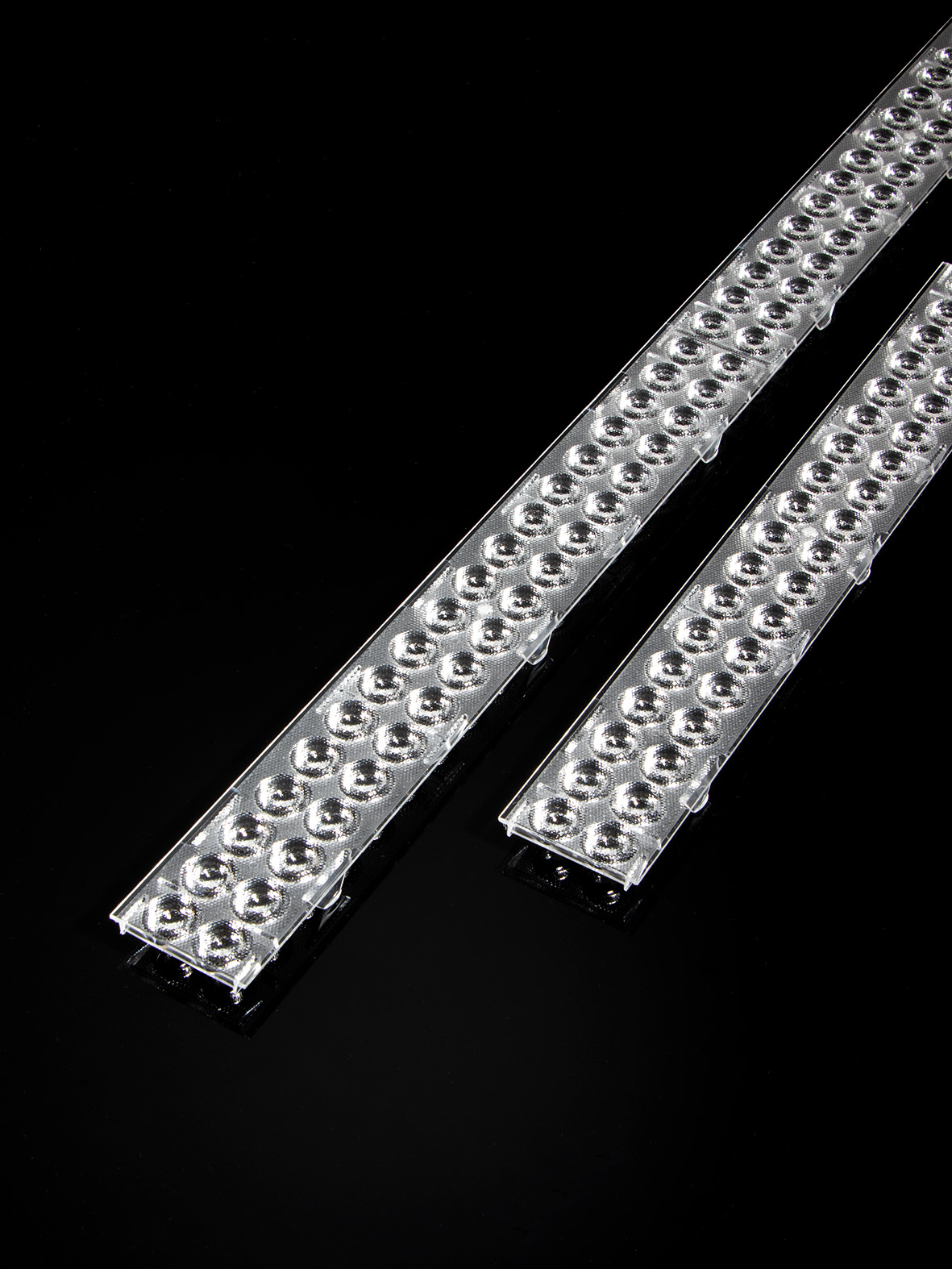

LIANNA-2R-30
Print~30° wide beam
Multiple lengths available.
This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.
Specification
-
Dimensions:40 x 280 mm
40 x 560 mm
40 x 1120 mm
40 x 1400 mm
40 x 1680 mm
-
Height:10.70 mm
-
RoHS and REACH compliant:Yes
Component Materials
- LIANNA-2R-30-L4Linear lensPMMA
- LIANNA-2R-30-L5Linear lensPMMA
- LIANNA-2R-30-L6Linear lensPMMA
- LIANNA-2R-30-L1Linear lensPMMA
- LIANNA-2R-30-L2Linear lensPMMA
- Request material files from Tech Support
Ordering information
- Linear lens
- C19477_LIANNA-2R-30-L1clear, 280mm
- C19478_LIANNA-2R-30-L2clear, 560mm
- C19480_LIANNA-2R-30-L4clear, 1120mm
- C19481_LIANNA-2R-30-L5clear, 1400mm
- C19482_LIANNA-2R-30-L6clear, 1680mm
- Packaging information in the product datasheet
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
- PCB drawing
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

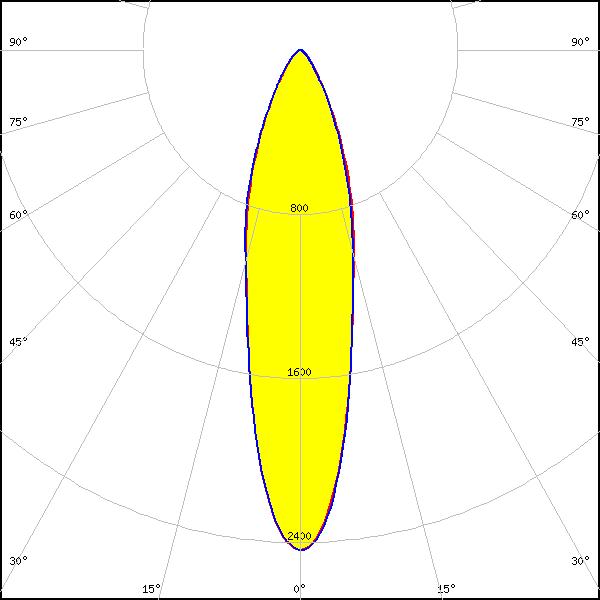

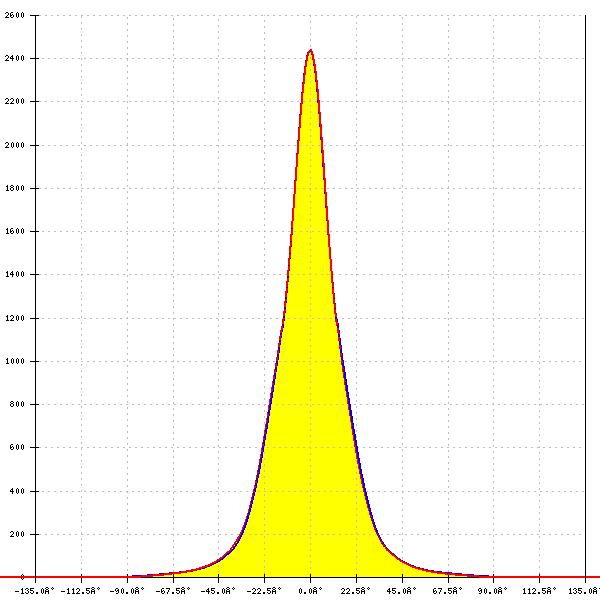

LED:
AM-L277W30-C9s4pBY-XXX (LIANNA)
Ordering code: C19477_LIANNA-2R-30-L1
FWHM:
26°
FWTM:
63°
Peak intensity:
2.442 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

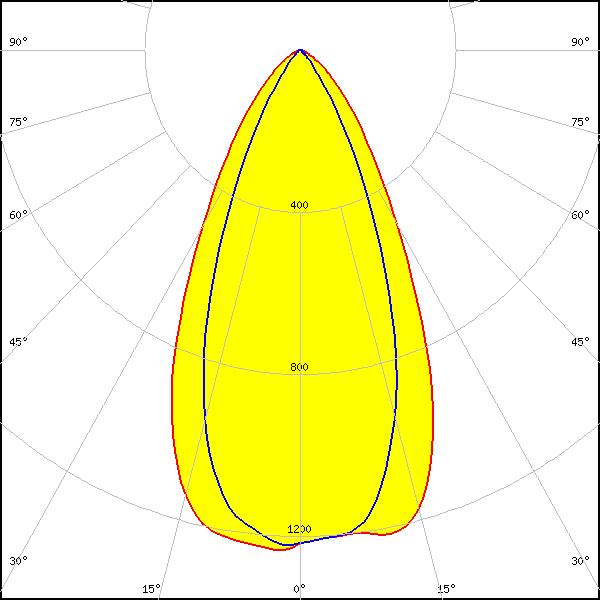

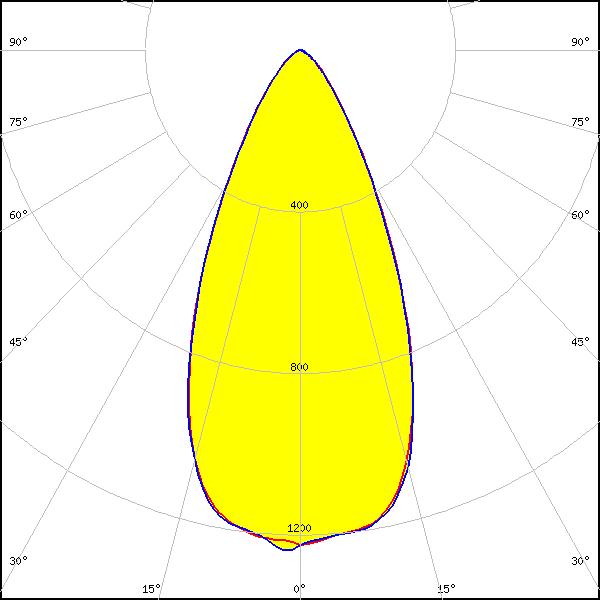

LED:
J Series 2835
Ordering code: C19480_LIANNA-2R-30-L4
FWHM:
54° + 44°
FWTM:
97° + 69°
Peak intensity:
1.240 cd/lm
Efficiency:
93 %
LEDs/each optic:
2
Light colour/type:
White

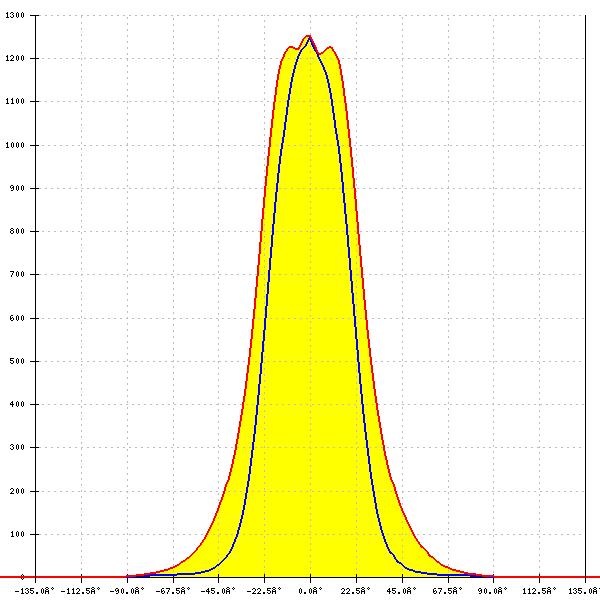

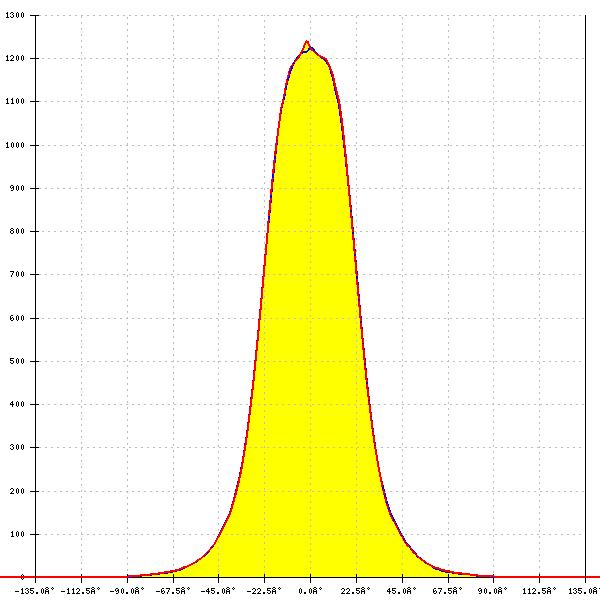

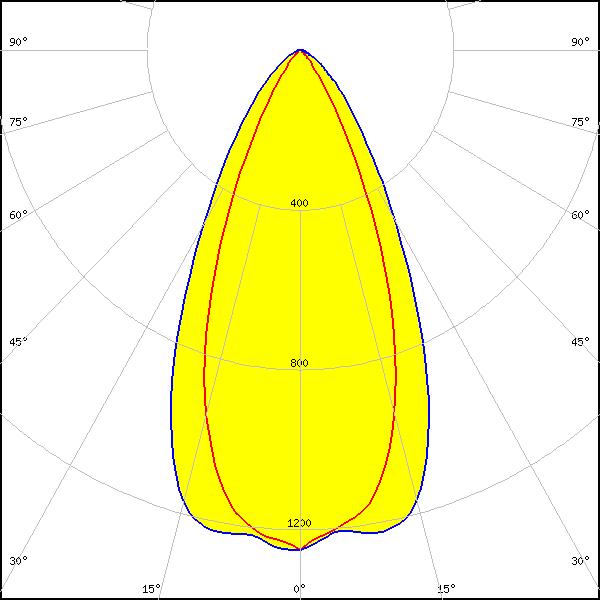

LED:
J Series 2835
Ordering code: C19480_LIANNA-2R-30-L4
FWHM:
42° + 54°
FWTM:
68° + 96°
Peak intensity:
1.252 cd/lm
Efficiency:
93 %
LEDs/each optic:
2
Light colour/type:
White
LED:
J Series 2835
Ordering code: C19480_LIANNA-2R-30-L4
FWHM:
49°
FWTM:
84°
Peak intensity:
1.250 cd/lm
Efficiency:
93 %
LEDs/each optic:
2
Light colour/type:
White

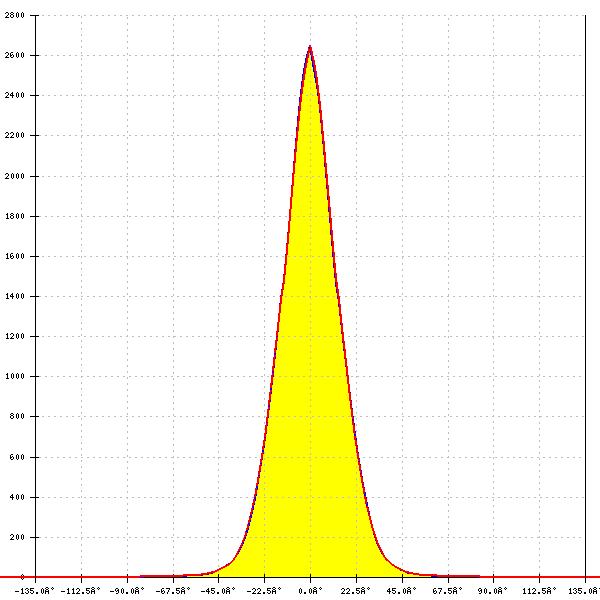

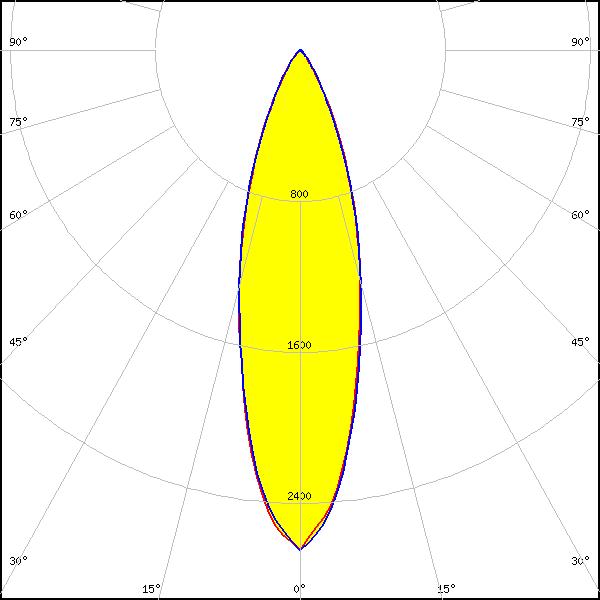

LED:
J Series 2835
Ordering code: C19480_LIANNA-2R-30-L4
FWHM:
30°
FWTM:
60°
Peak intensity:
2.649 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

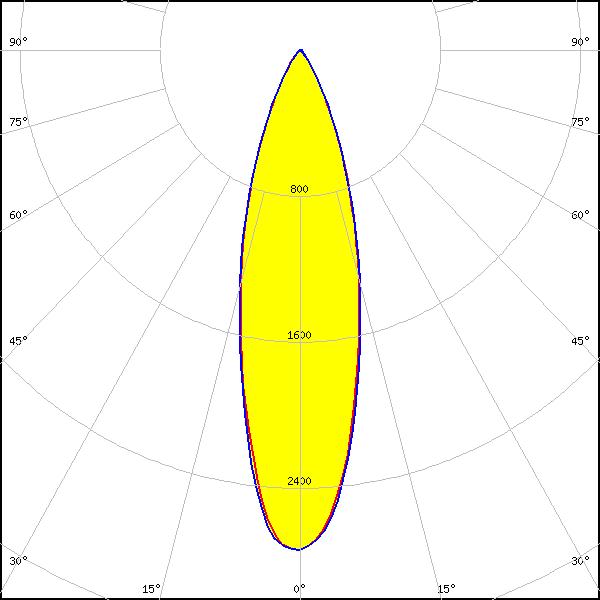

LED:
JB3030 HE B Class
Ordering code: C19481_LIANNA-2R-30-L5
FWHM:
29°
FWTM:
58°
Peak intensity:
2.764 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

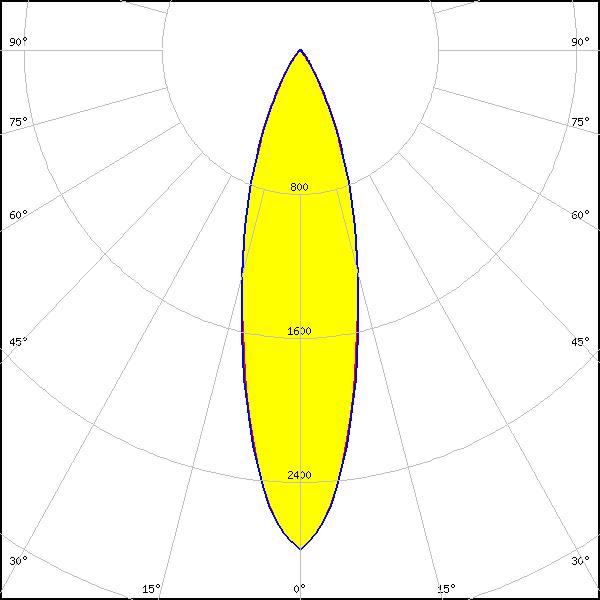

LED:
LUXEON 2835 S (A)
Ordering code: C19480_LIANNA-2R-30-L4
Required components:
L20362_LIANNA-2R-SHD-L1
FWHM:
28°
FWTM:
60°
Peak intensity:
2.779 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 2835 S (A)
Ordering code: C19480_LIANNA-2R-30-L4
Required components:
L20363_LIANNA-2R-SHD-MET-L1
FWHM:
28°
FWTM:
60°
Peak intensity:
2.779 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

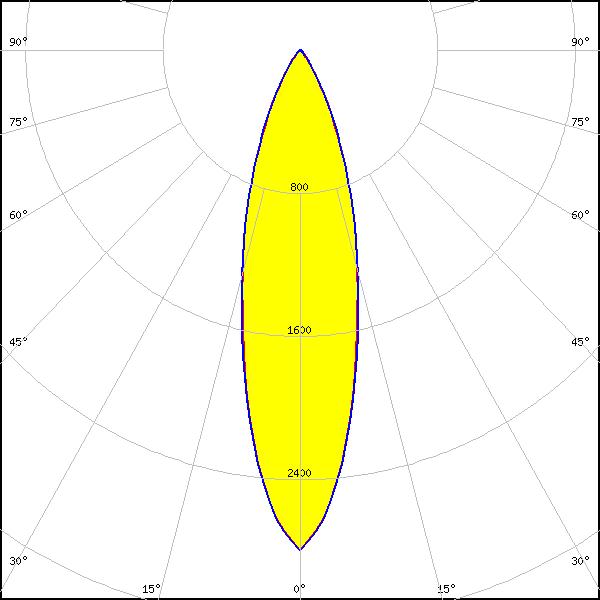

LED:
LUXEON 2835 S (A)
Ordering code: C19480_LIANNA-2R-30-L4
Required components:
L20366_LIANNA-2R-SHD-WHT-L1
FWHM:
28°
FWTM:
60°
Peak intensity:
2.796 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

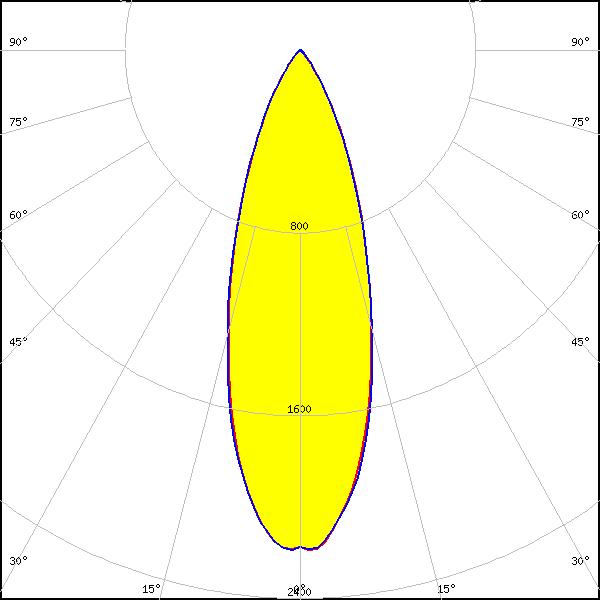

LED:
LUXEON 3030 2D Plus Square
Ordering code: C19480_LIANNA-2R-30-L4
FWHM:
34°
FWTM:
64°
Peak intensity:
2.204 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LinLED 277x26mm 1100lm 8x0 2C 27V LIANNA-2R G1
FWHM:
28°
FWTM:
59°
Peak intensity:
2.676 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

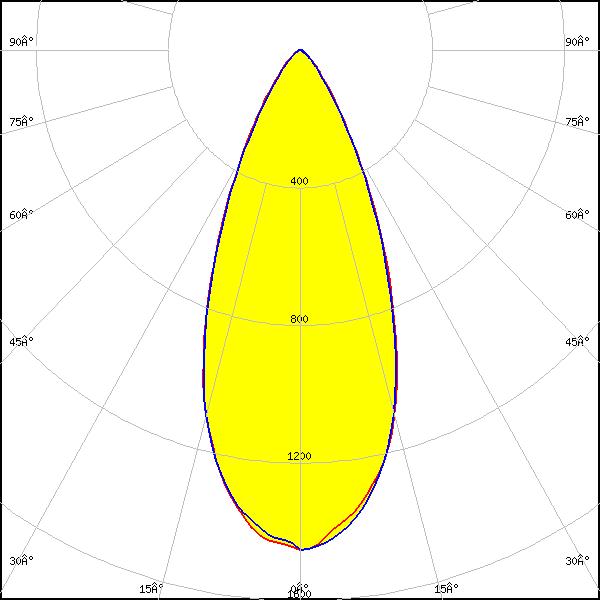

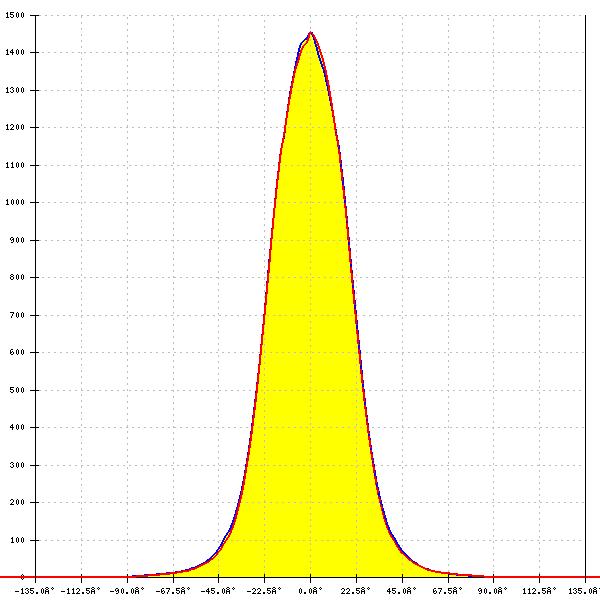

LED:
LH502D
Ordering code: C19477_LIANNA-2R-30-L1
FWHM:
44°
FWTM:
75°
Peak intensity:
1.454 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

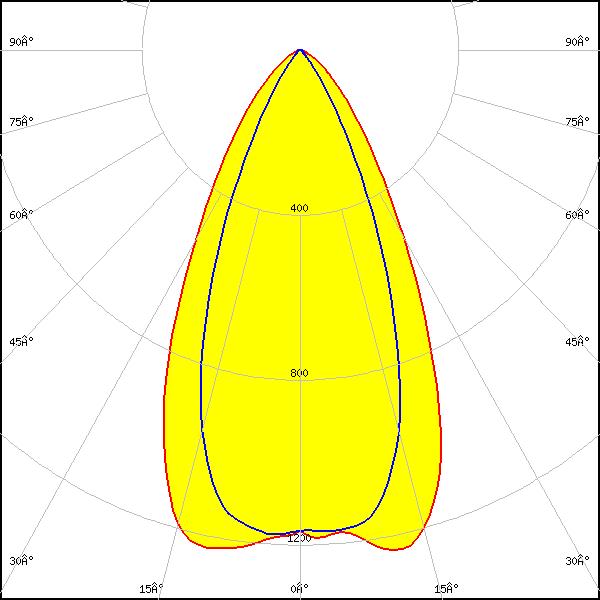

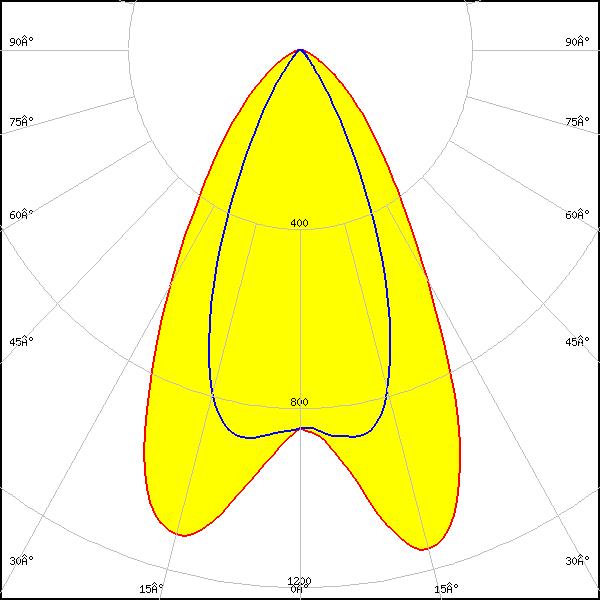

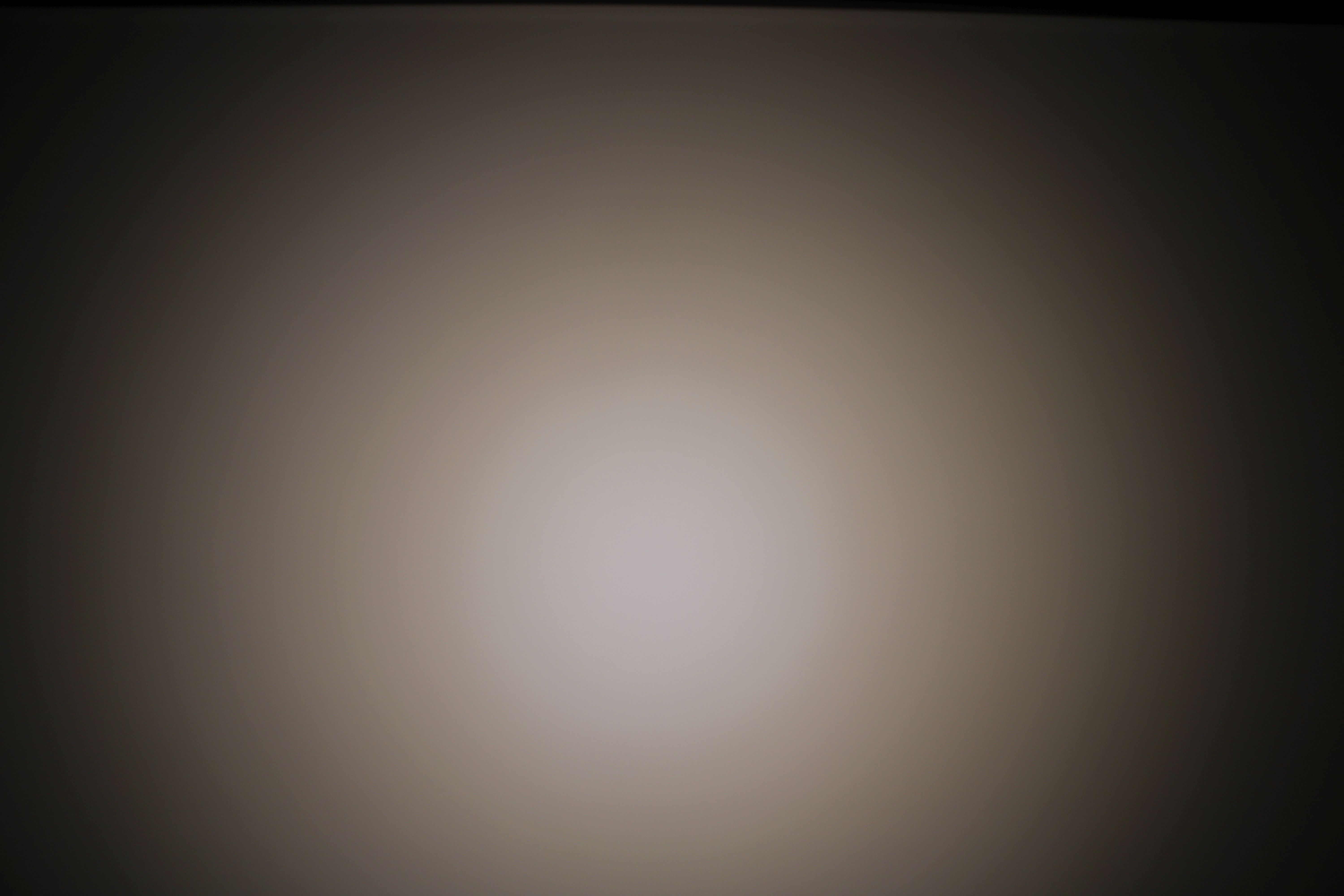

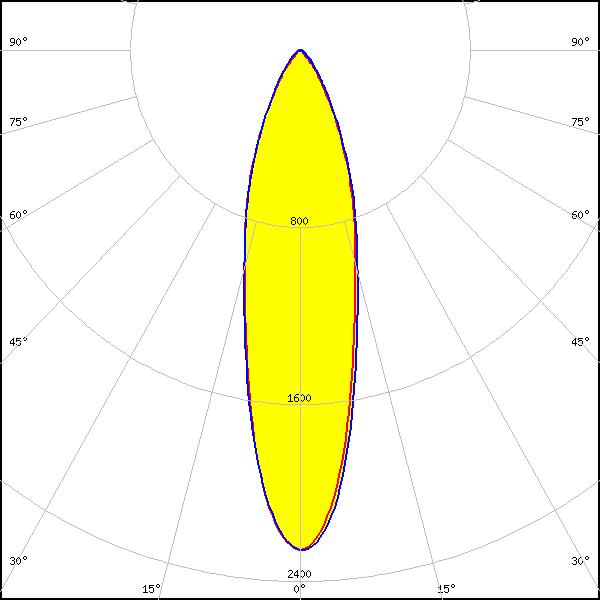

LED:
LM281B Plus
Ordering code: C19477_LIANNA-2R-30-L1
Required components:
L20366_LIANNA-2R-SHD-WHT-L1
FWHM:
27°
FWTM:
65°
Peak intensity:
2.265 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

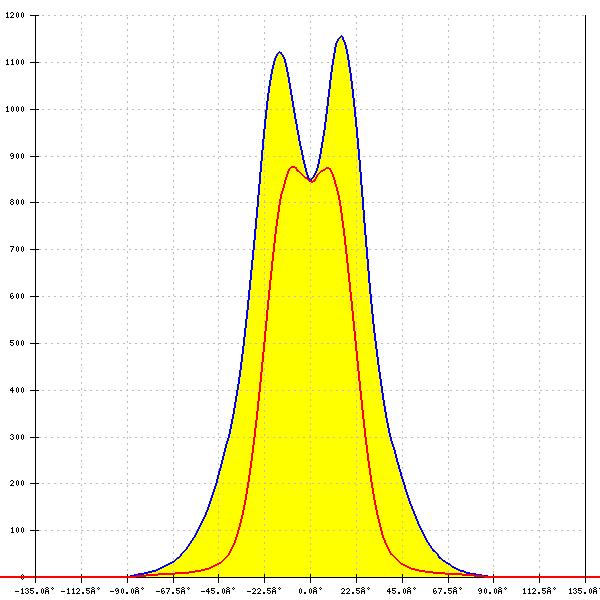

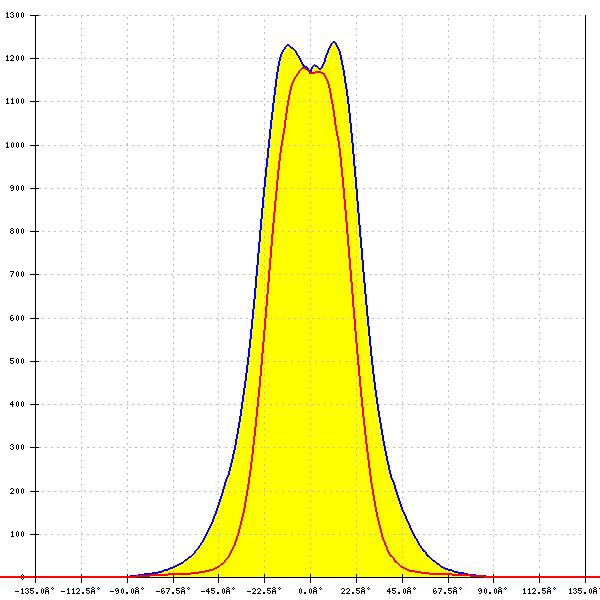

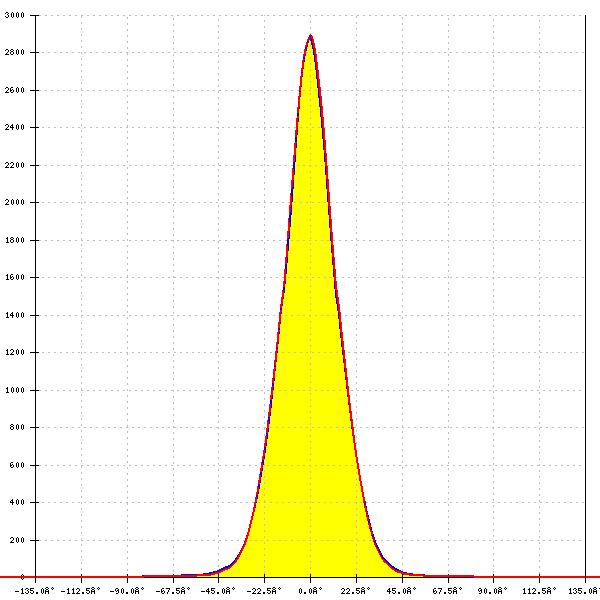

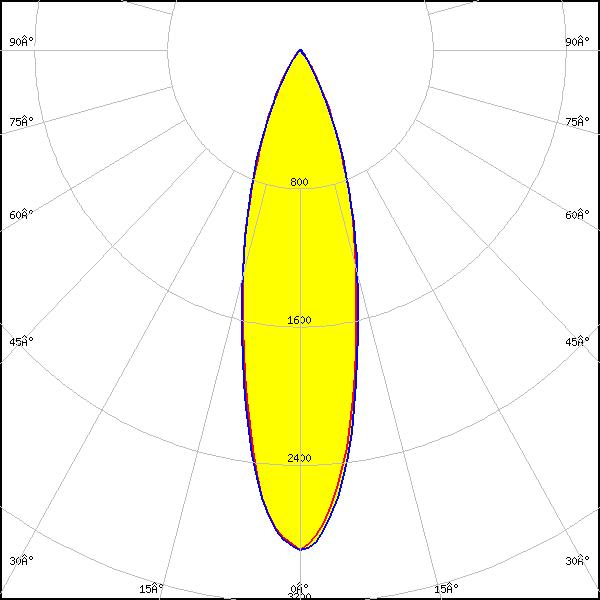

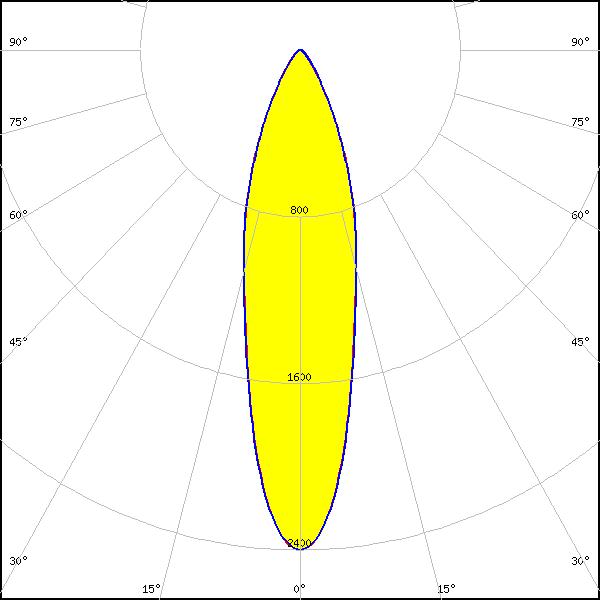

LED:
LM281B Plus
Ordering code: C19477_LIANNA-2R-30-L1
FWHM:
27°
FWTM:
63°
Peak intensity:
2.407 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM28xB Series
Ordering code: C19477_LIANNA-2R-30-L1
FWHM:
28°
FWTM:
58°
Peak intensity:
2.893 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM28xB Series
Ordering code: C19477_LIANNA-2R-30-L1
FWHM:
61° + 48°
FWTM:
106° + 72°
Peak intensity:
1.155 cd/lm
Efficiency:
92 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LM28xB Series
Ordering code: C19477_LIANNA-2R-30-L1
FWHM:
56° + 44°
FWTM:
96° + 68°
Peak intensity:
1.238 cd/lm
Efficiency:
93 %
LEDs/each optic:
2
Light colour/type:
White

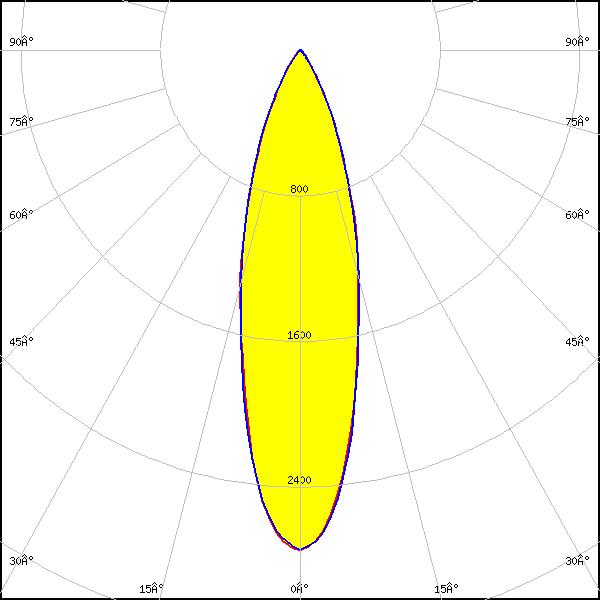

LED:
LM301B EVO
Ordering code: C19477_LIANNA-2R-30-L1
FWHM:
28°
FWTM:
60°
Peak intensity:
2.748 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

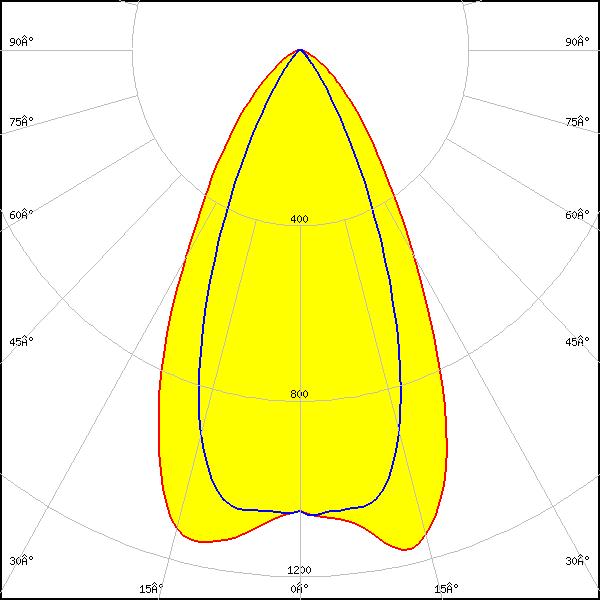

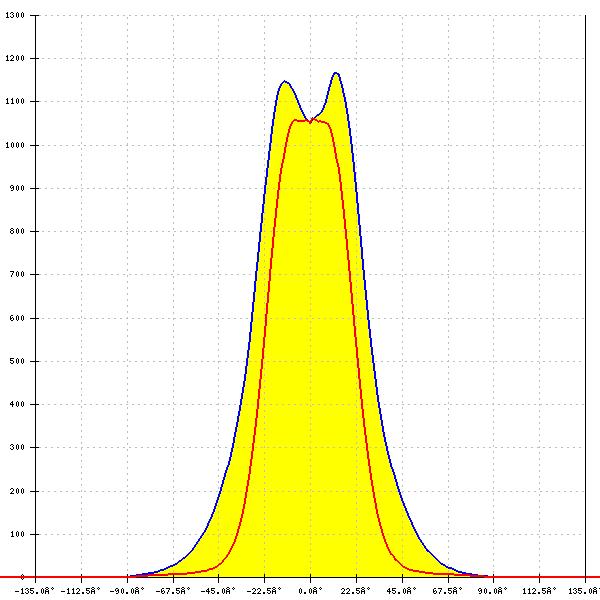

LED:
LM301B EVO
Ordering code: C19477_LIANNA-2R-30-L1
FWHM:
58° + 46°
FWTM:
102° + 72°
Peak intensity:
1.167 cd/lm
Efficiency:
93 %
LEDs/each optic:
2
Light colour/type:
White
