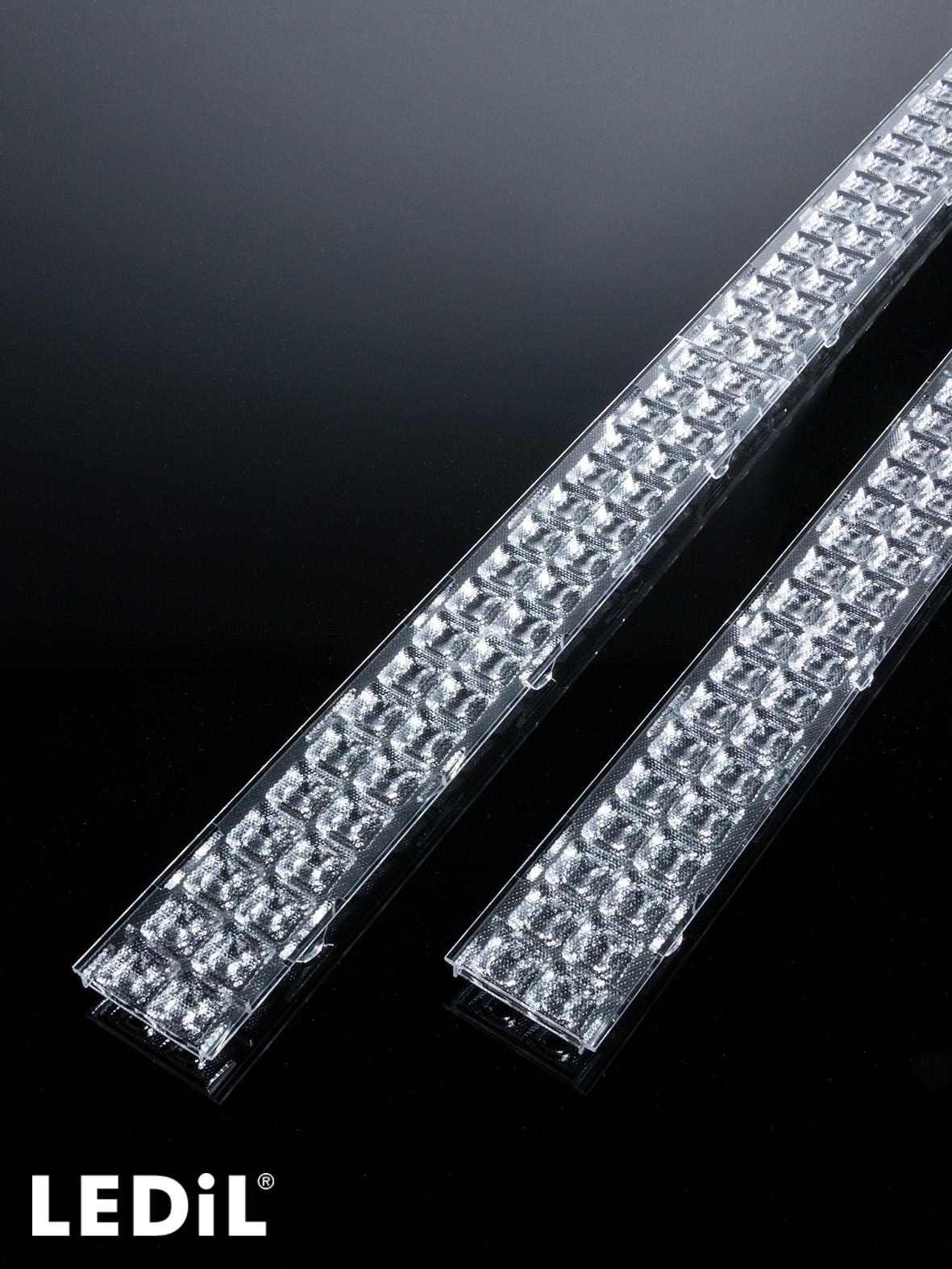

LIANNA-2R-O
Print
~60° + 25° oval beam
Multiple lengths available.
This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

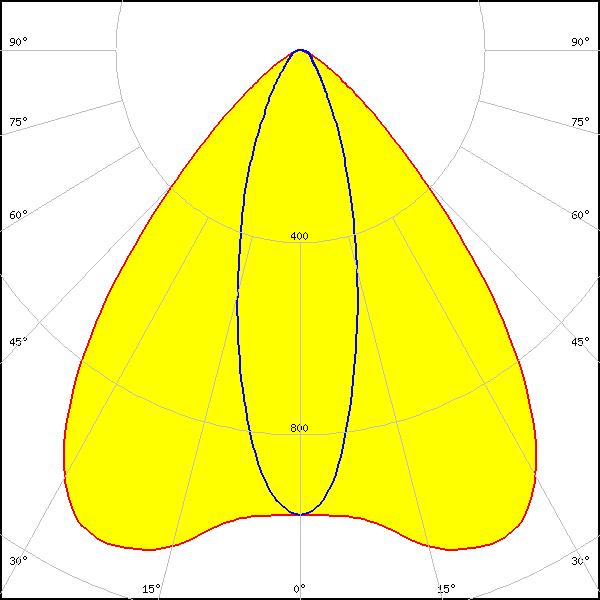

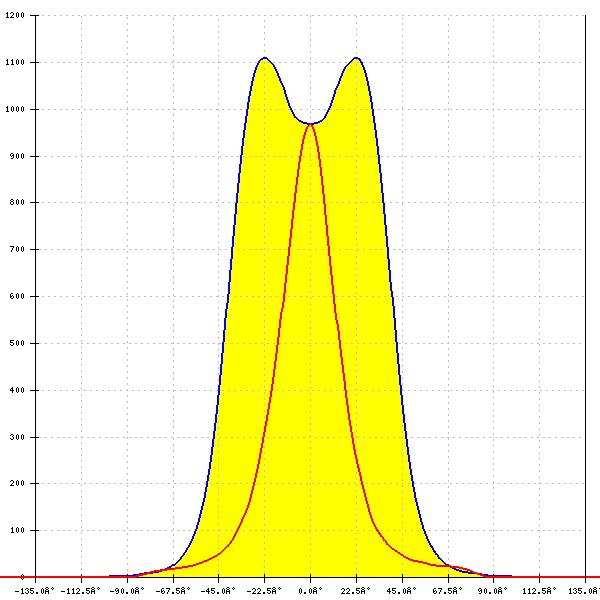

LED:
AM-L277W30-C9s4pBY-XXX (LIANNA)
Ordering code: C19495_LIANNA-2R-O-L1
FWHM:
82° + 31°
FWTM:
110° + 69°
Peak intensity:
1.117 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

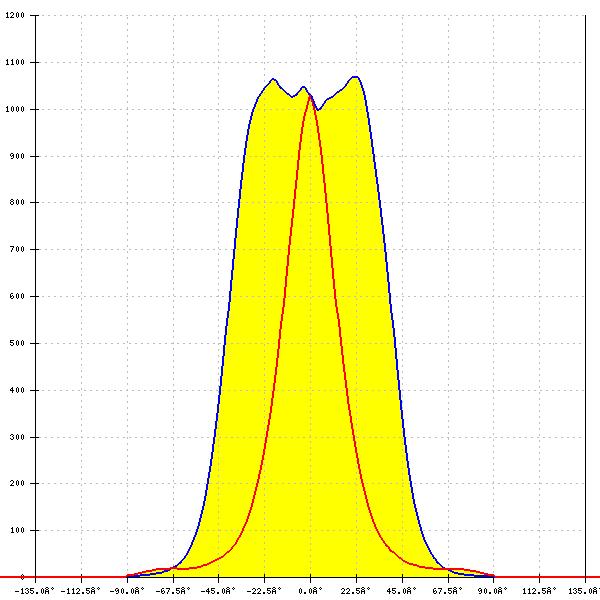

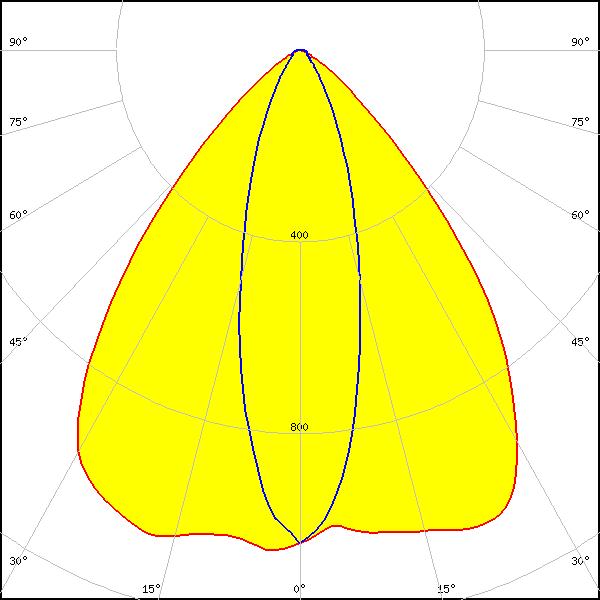

LED:
J Series 2835
FWHM:
82° + 30°
FWTM:
109° + 66°
Peak intensity:
1.068 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

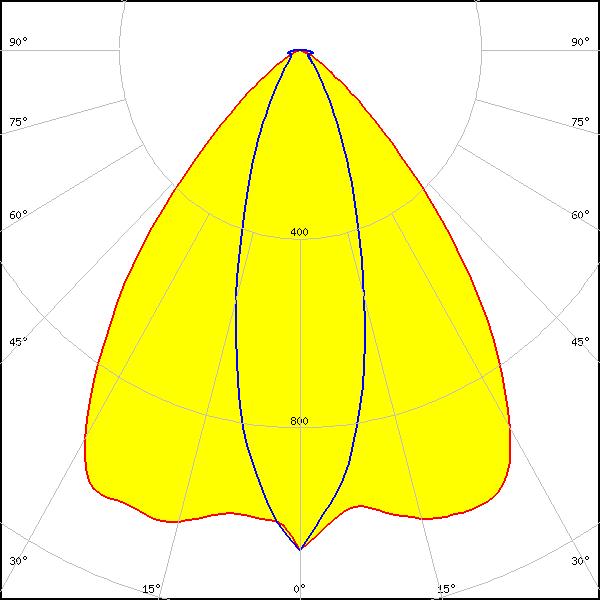

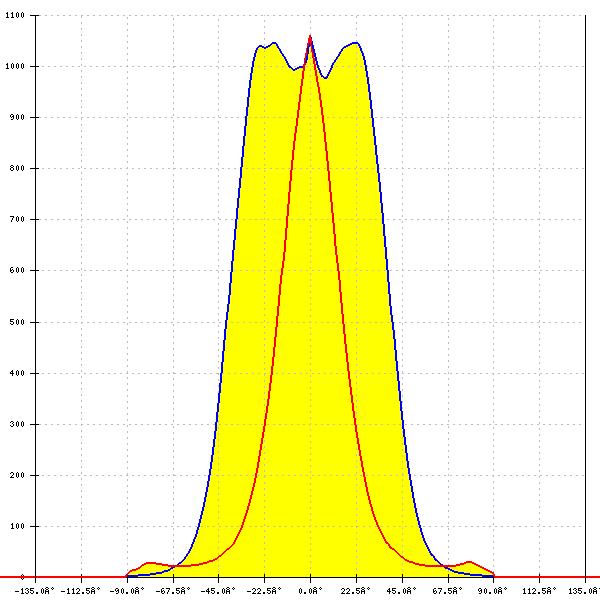

LED:
JB3030 HE B Class
Ordering code: C19499_LIANNA-2R-O-L5
FWHM:
80° + 30°
FWTM:
108° + 66°
Peak intensity:
1.060 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

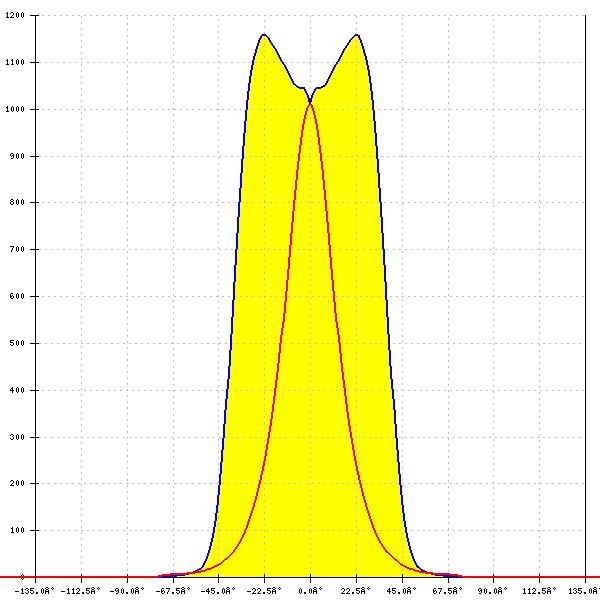

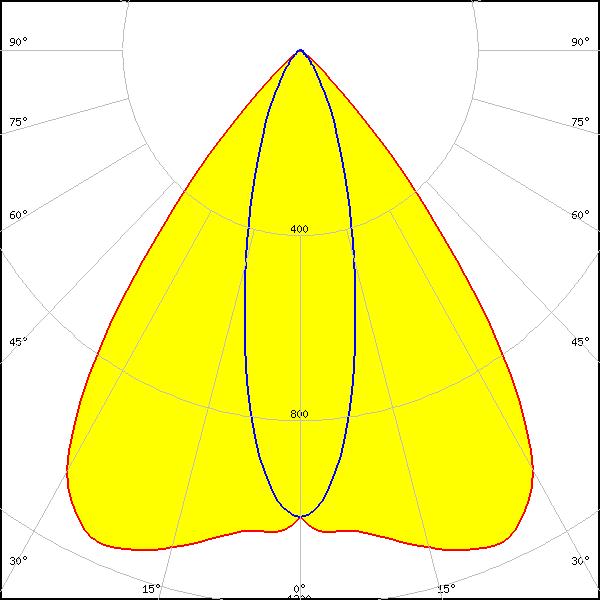

LED:
LUXEON 2835 S (A)
Ordering code: C19498_LIANNA-2R-O-L4
Required components:
L20362_LIANNA-2R-SHD-L1
FWHM:
76° + 28°
FWTM:
92° + 64°
Peak intensity:
1.158 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

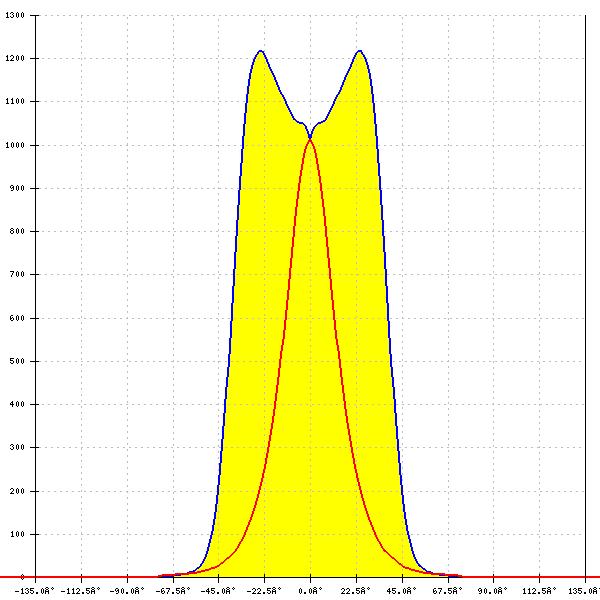

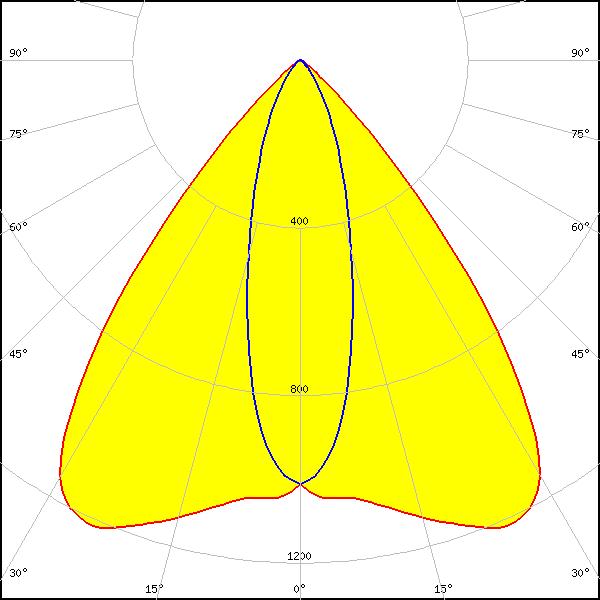

LED:
LUXEON 2835 S (A)
Ordering code: C19498_LIANNA-2R-O-L4
Required components:
L20363_LIANNA-2R-SHD-MET-L1
FWHM:
78° + 28°
FWTM:
94° + 64°
Peak intensity:
1.218 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

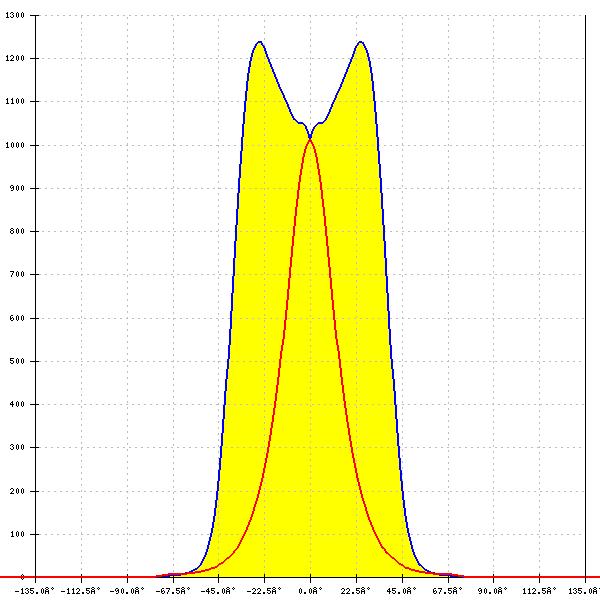

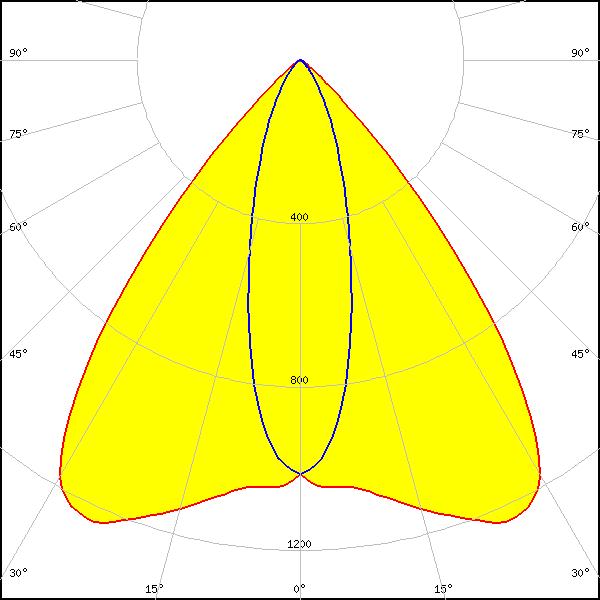

LED:
LUXEON 2835 S (A)
Ordering code: C19498_LIANNA-2R-O-L4
Required components:
L20366_LIANNA-2R-SHD-WHT-L1
FWHM:
78° + 28°
FWTM:
94° + 64°
Peak intensity:
1.238 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

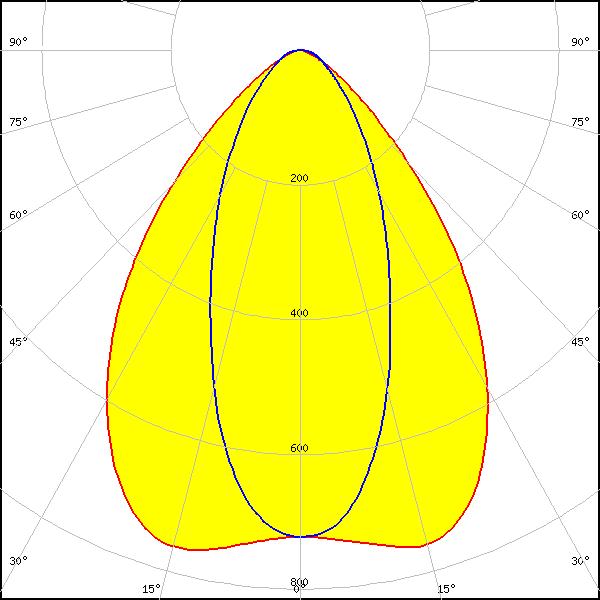

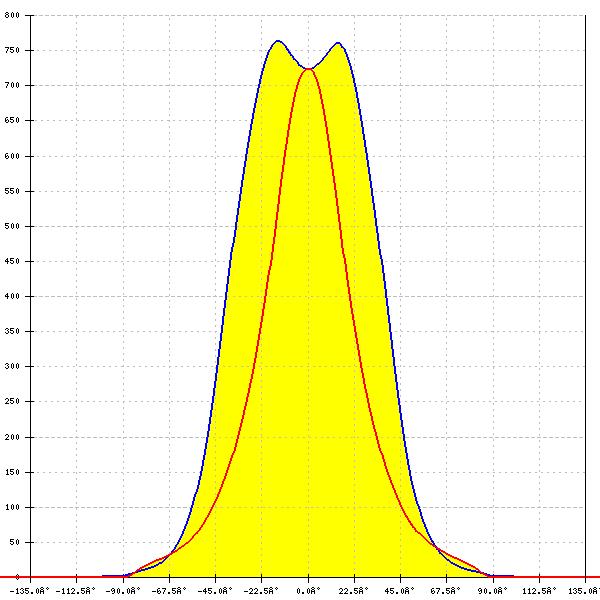

LED:
OSCONIQ S 5050 (Q9LR33)
Ordering code: C19495_LIANNA-2R-O-L1
FWHM:
80° + 45°
FWTM:
115° + 103°
Peak intensity:
0.763 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

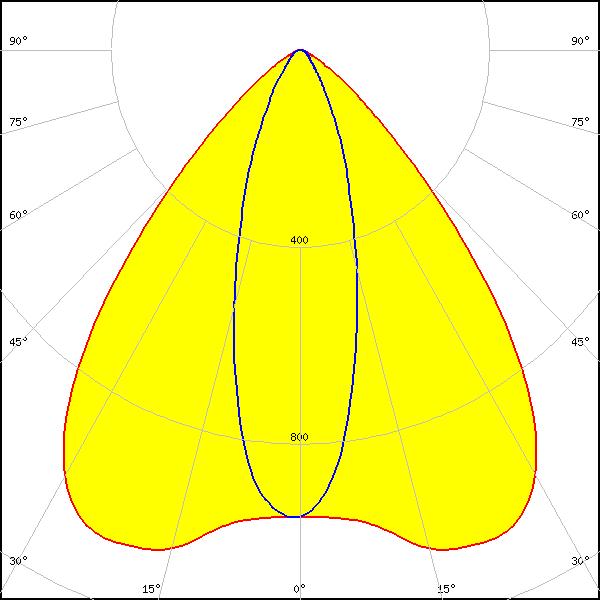

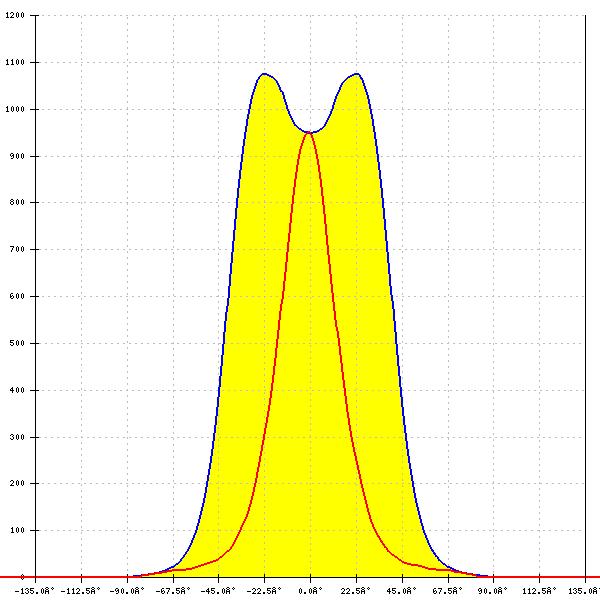

LED:
LM281B Plus
Ordering code: C19495_LIANNA-2R-O-L1
FWHM:
83° + 32°
FWTM:
110° + 68°
Peak intensity:
1.078 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

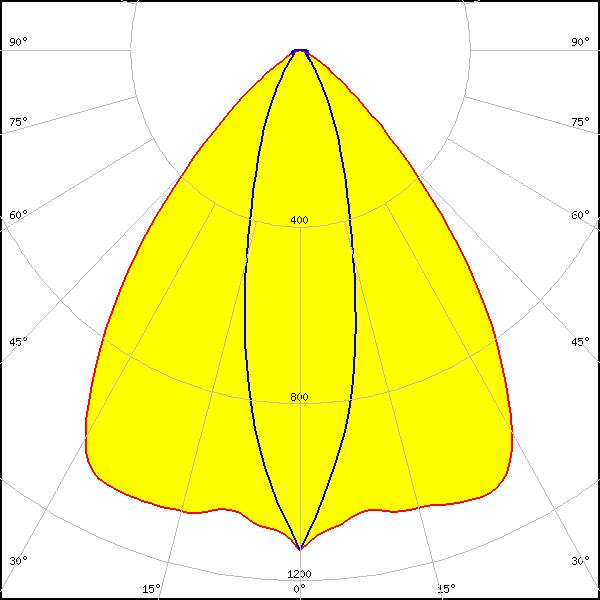

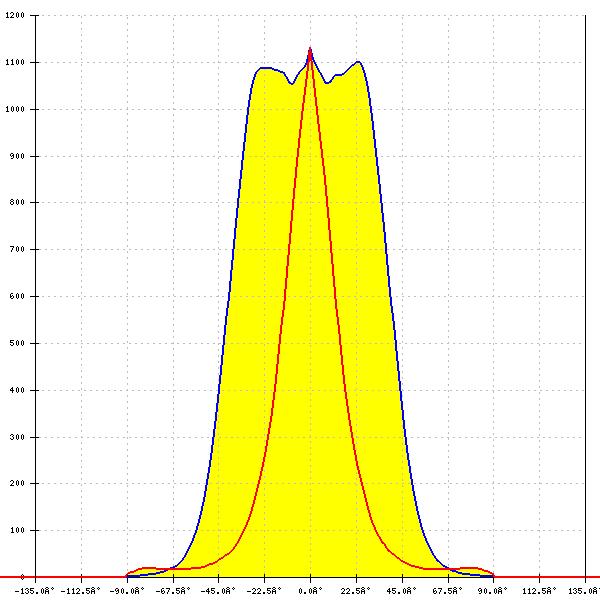

LED:
LM301B EVO
Ordering code: C19499_LIANNA-2R-O-L5
FWHM:
81° + 26°
FWTM:
109° + 62°
Peak intensity:
1.132 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
