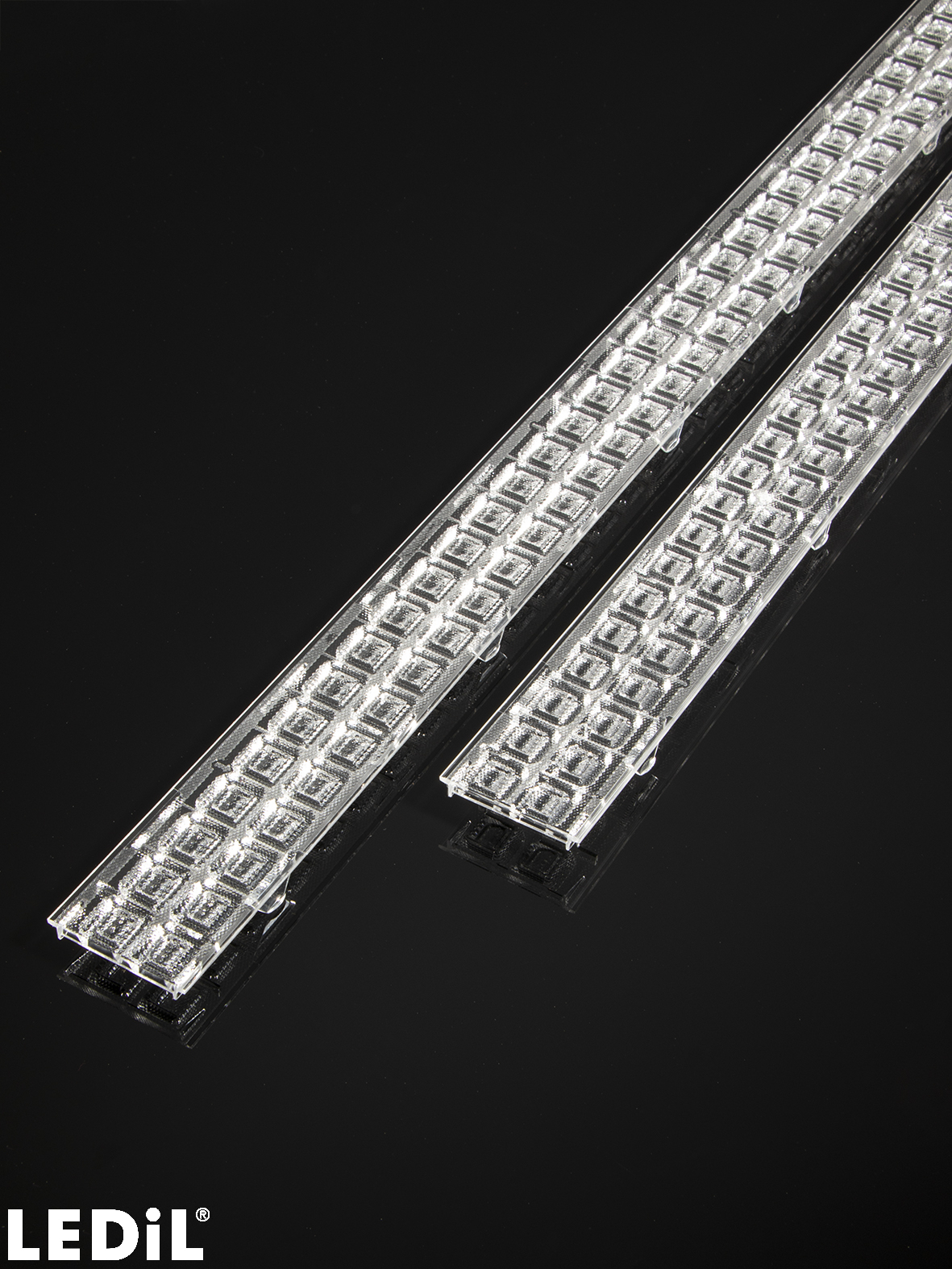

    LIANNA-2R-ZT25

    Print

    Asymmetric beam for wall-washing

    Multiple lengths available.

    This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.

    Specification
    • Dimensions:
      40 x 280 mm
      40 x 560 mm
      40 x 1120 mm
      40 x 1400 mm
      40 x 1680 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Linear lens
    • C19483_LIANNA-2R-ZT25-L1
      clear, 280mm
    • C19484_LIANNA-2R-ZT25-L2
      , 560mm
    • C19486_LIANNA-2R-ZT25-L4
      clear, 1120mm
    • C19802_LIANNA-2R-ZT25-L5
      clear, 1400mm
    • C19487_LIANNA-2R-ZT25-L6
      clear, 1680mm
    • Packaging information in the product datasheet
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19486_LIANNA-2R-ZT25-L4
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL_LIANNA-How-to-create-IP-solution_related_youtube_thumbnail_square

    Application guide

    Guide for Office Lighting Optics

    Catalogue

    LEDiL Latest products catalogue 2026

    News

    Don’t lose projects to compromised solutions – streamline your portfolio with LIANNA

    News

    New beams and products - September 2024

    AVAILABLE LEDiL ACCESSORIES

    LIANNA-2R-SHD-L1

    280 mm black gloss shade for LIANNA

    LIANNA-2R-SHD-MET-L1

    280 mm metal gloss shade for LIANNA

    LIANNA-2R-SHD-WHT-L1

    280 mm white gloss shade for LIANNA

    LIANNA-2R-END-A

    Sheet metal end cap for IP20

    Optical results

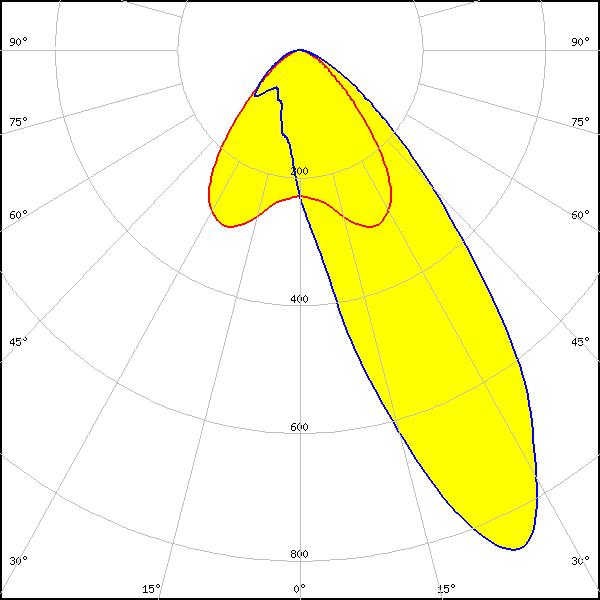

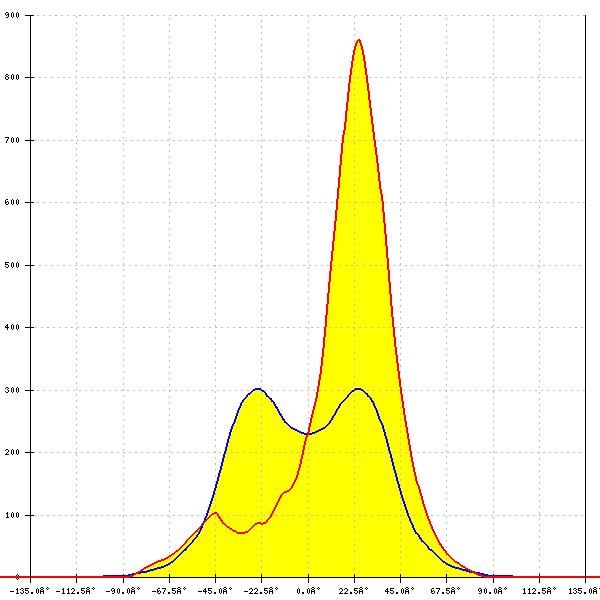

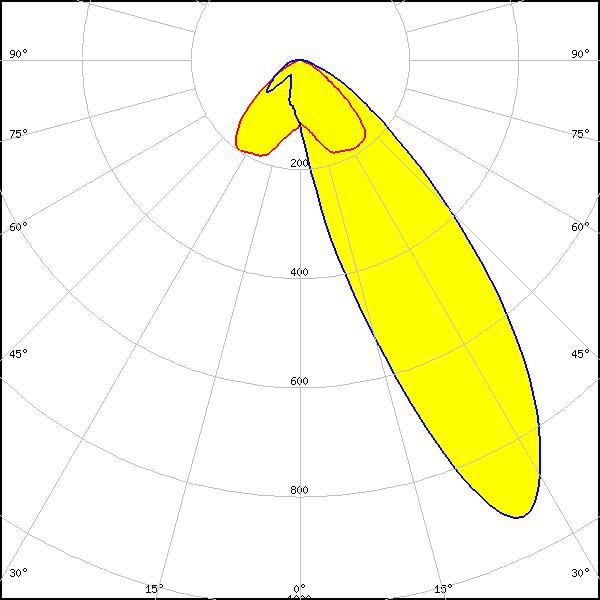

    LED: AM-L277W30-C9s4pBY-XXX (LIANNA)
    Ordering code: C19483_LIANNA-2R-ZT25-L1
    FWHM: asymmetric
    Peak intensity: 0.912 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

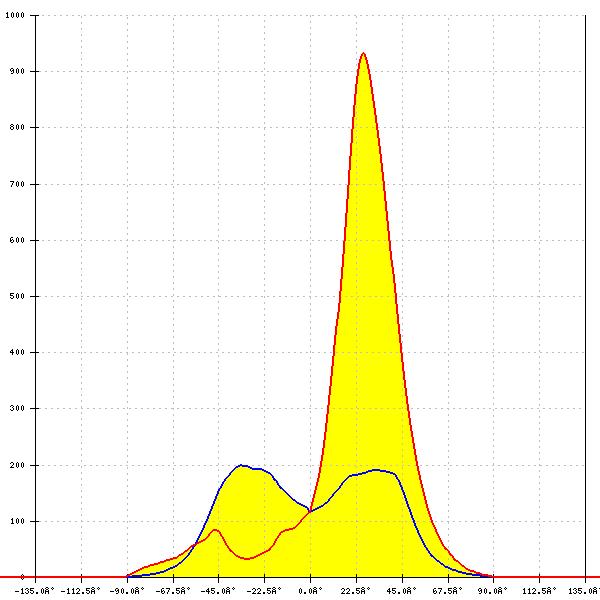

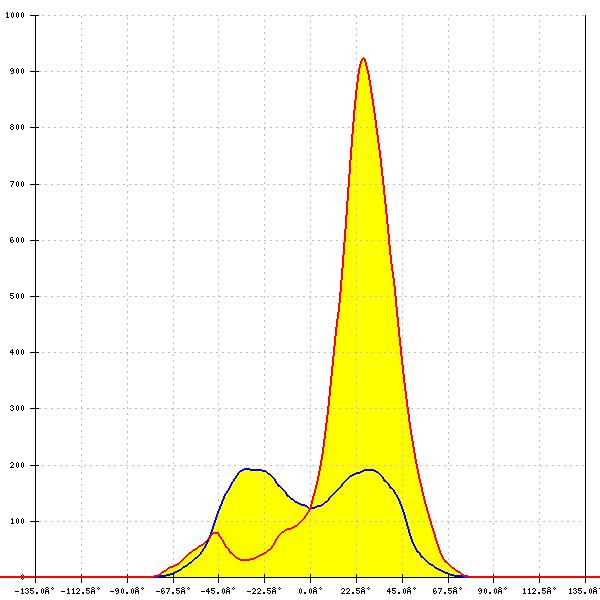

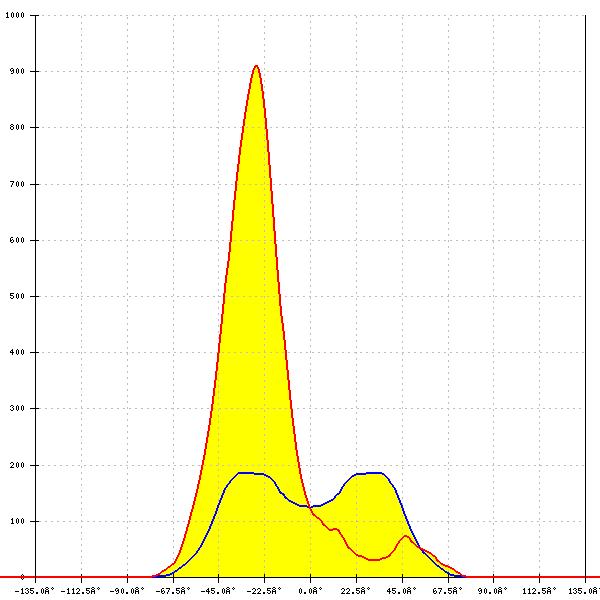

    LED: LUXEON 2835 S (A)
    Ordering code: C19486_LIANNA-2R-ZT25-L4
    Required components:
    L20362_LIANNA-2R-SHD-L1
    FWHM: asymmetric
    Peak intensity: 0.927 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

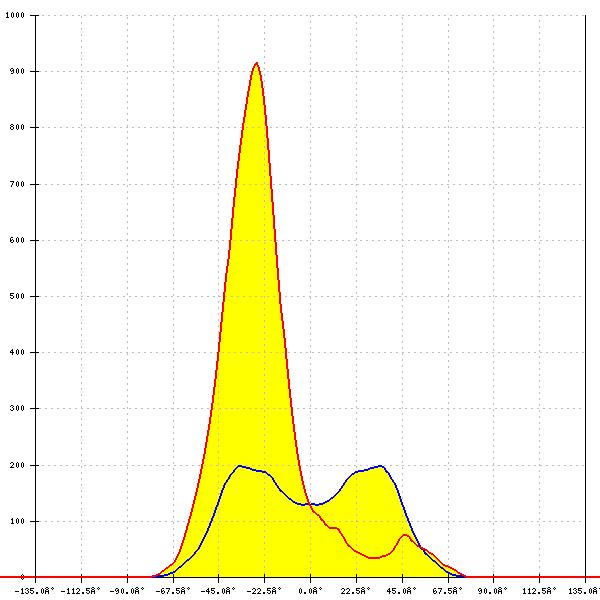

    LED: LUXEON 2835 S (A)
    Ordering code: C19486_LIANNA-2R-ZT25-L4
    Required components:
    L20363_LIANNA-2R-SHD-MET-L1
    FWHM: asymmetric
    Peak intensity: 0.936 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

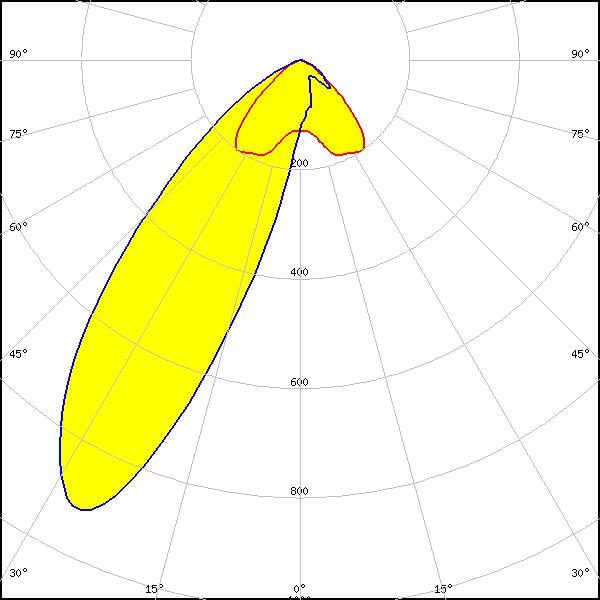

    LED: LUXEON 2835 S (A)
    Ordering code: C19486_LIANNA-2R-ZT25-L4
    Required components:
    L20366_LIANNA-2R-SHD-WHT-L1
    FWHM: asymmetric
    Peak intensity: 0.940 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 2835 S (E)
    FWHM: asymmetric
    Peak intensity: 0.946 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 2835 S (E)
    Required components:
    L20362_LIANNA-2R-SHD-L1
    FWHM: asymmetric
    Peak intensity: 0.944 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LinLED 277x26mm 1100lm 8x0 2C 27V LIANNA-2R G1
    FWHM: asymmetric
    Peak intensity: 0.915 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR33)
    Ordering code: C19483_LIANNA-2R-ZT25-L1
    FWHM: asymmetric
    Peak intensity: 0.567 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

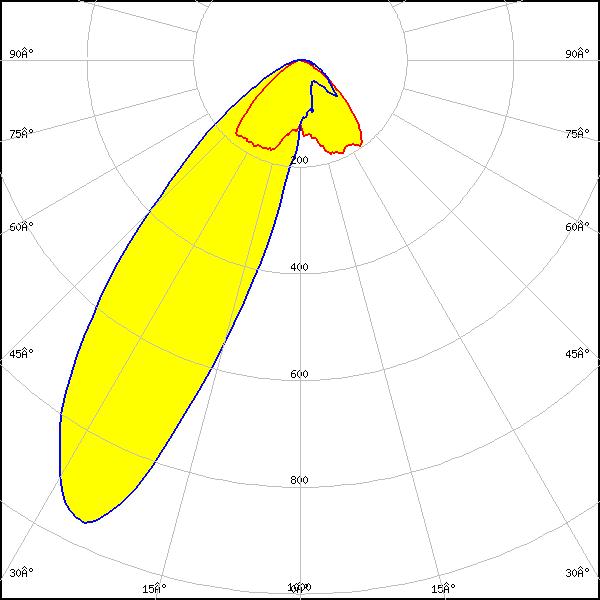

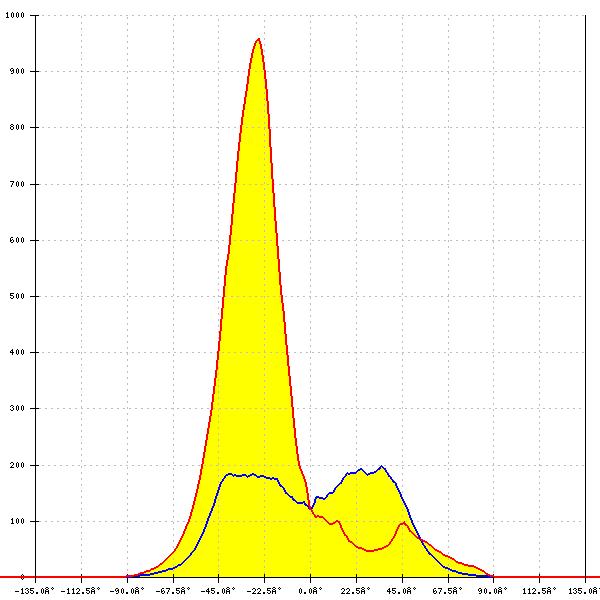

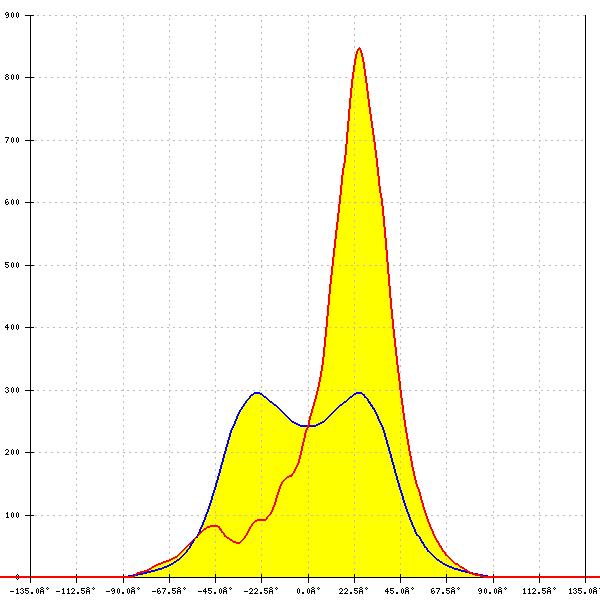

    LED: LM281B Plus
    Ordering code: C19483_LIANNA-2R-ZT25-L1
    FWHM: asymmetric
    Peak intensity: 0.894 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM281B Plus
    Ordering code: C19483_LIANNA-2R-ZT25-L1
    Required components:
    L20366_LIANNA-2R-SHD-WHT-L1
    FWHM: asymmetric
    Peak intensity: 0.904 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.984 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
