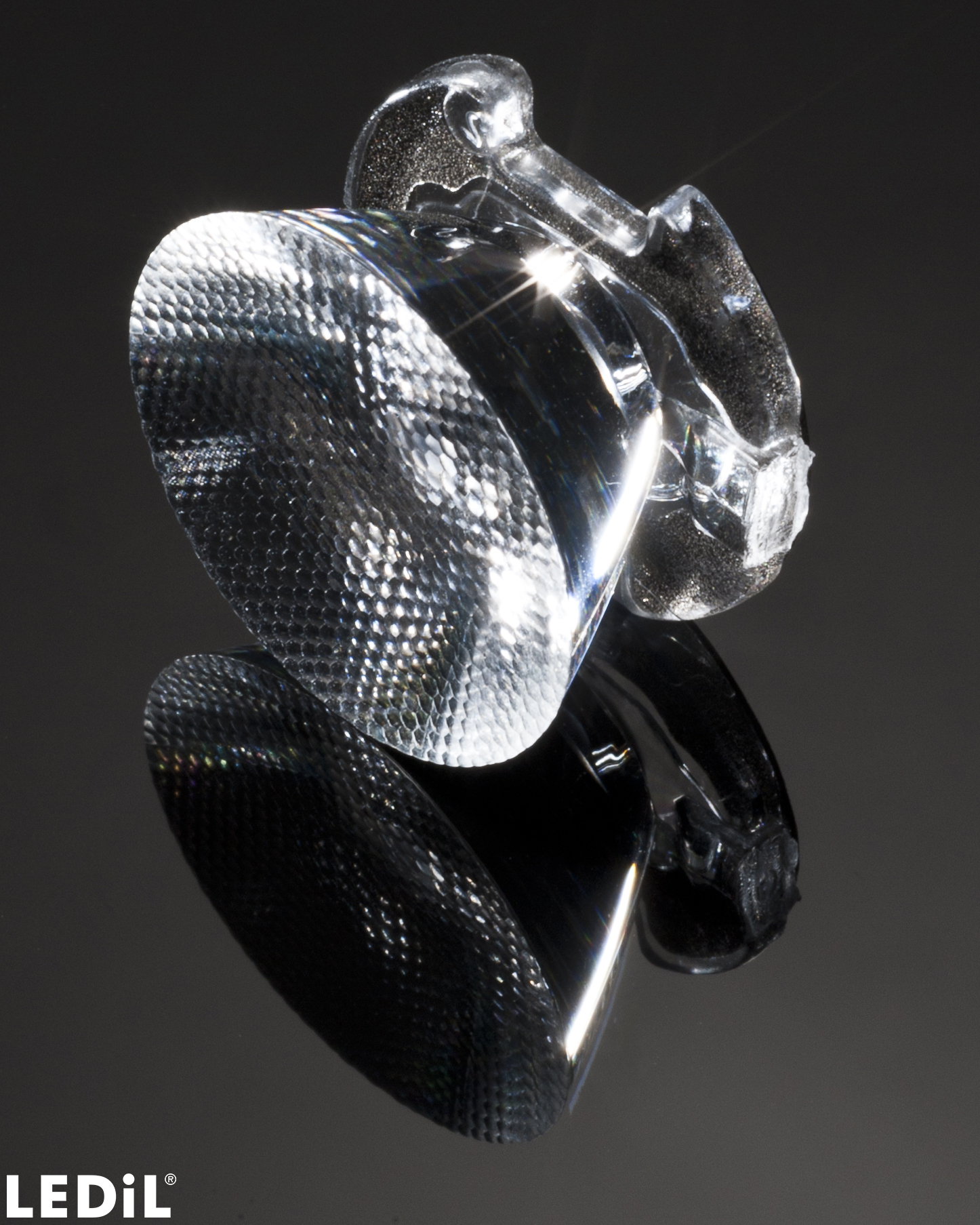

CA11387_EMILY-SS
Print
~11° smooth spot beam. 14.82 mm high lens.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

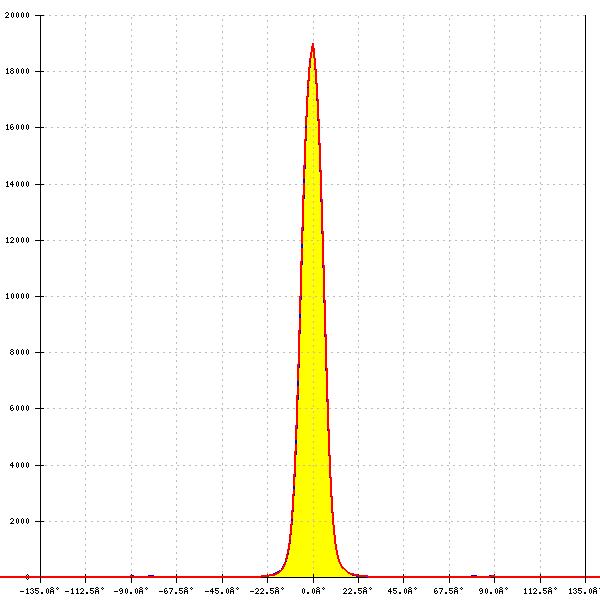

LED:

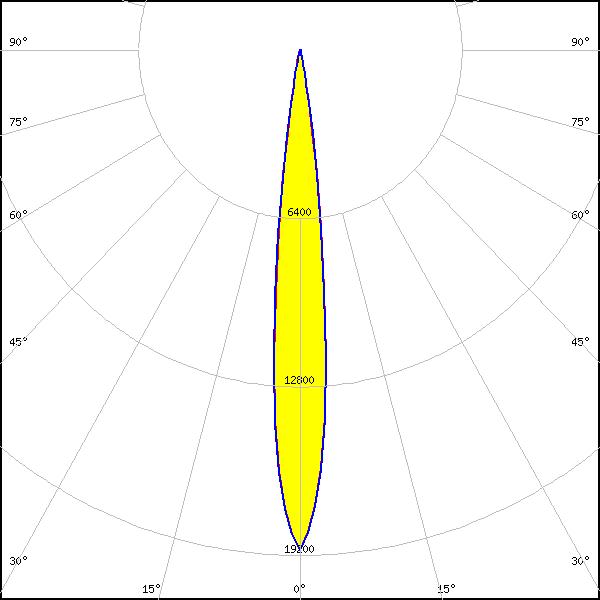

XE-G
FWHM:
12°
FWTM:
20°
Peak intensity:
19.009 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM:
10°
FWTM:
18°
Peak intensity:
17.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

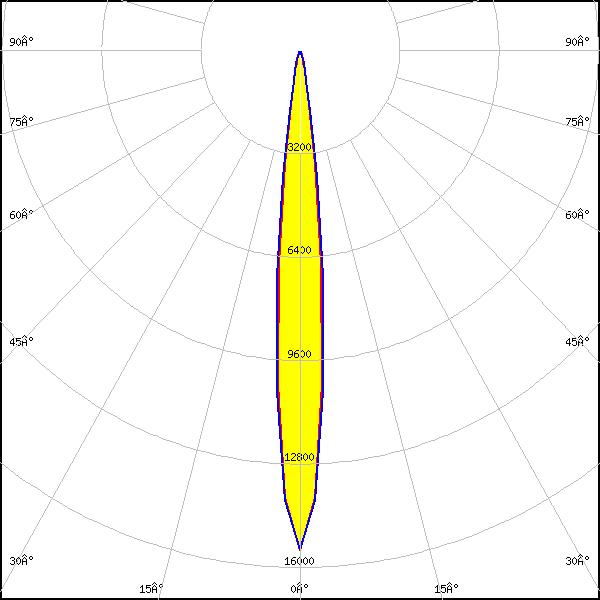

LED:

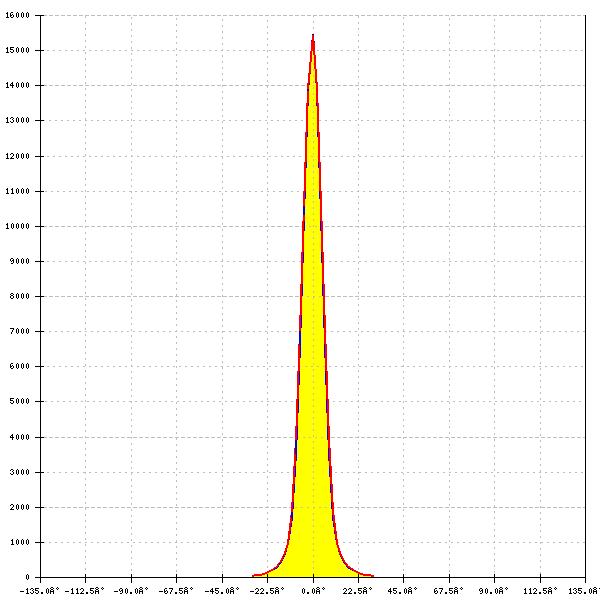

XP-G
FWHM:
11°
FWTM:
21°
Peak intensity:
15.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

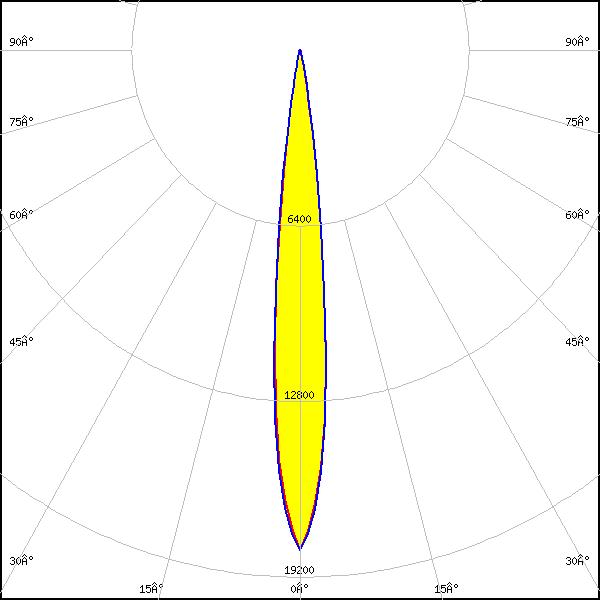

LUXEON C
FWHM:
12°
FWTM:
20°
Peak intensity:
18.226 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

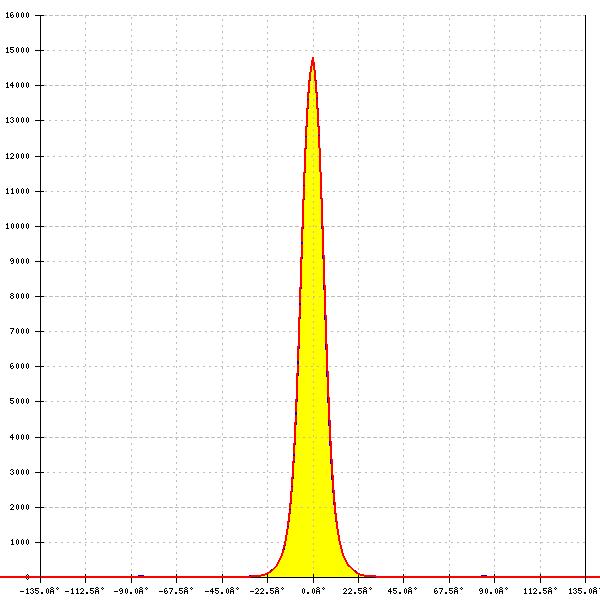

LED:

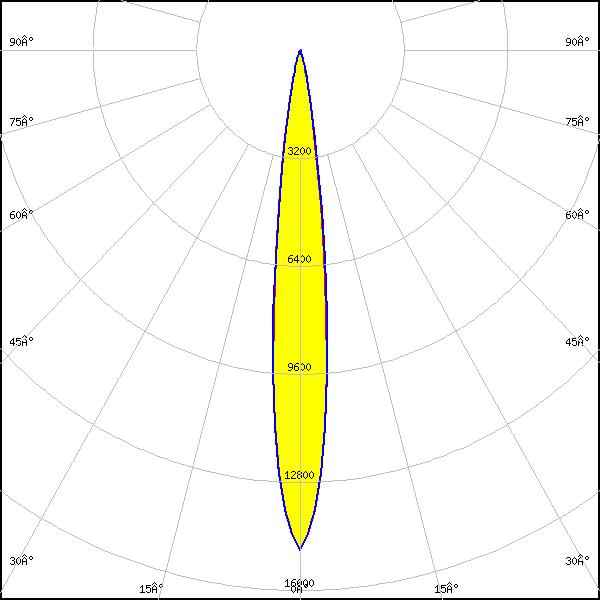

LUXEON HL2Z
FWHM:
12°
FWTM:
24°
Peak intensity:
14.818 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel
FWHM:
10°
FWTM:
20°
Peak intensity:
15.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

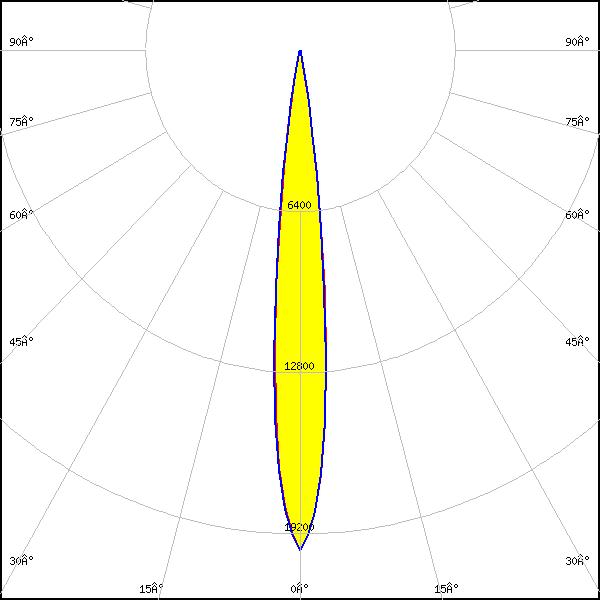

LED:
LUXEON SunPlus 20 Line (120 deg)
FWHM:
12°
FWTM:
20°
Peak intensity:
19.856 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

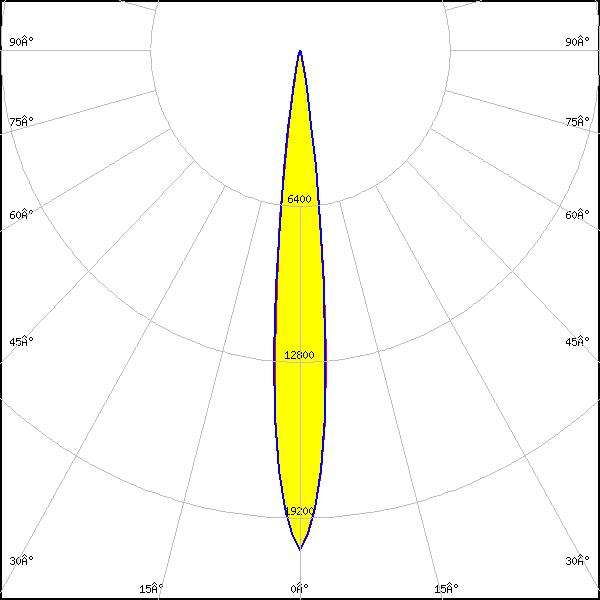

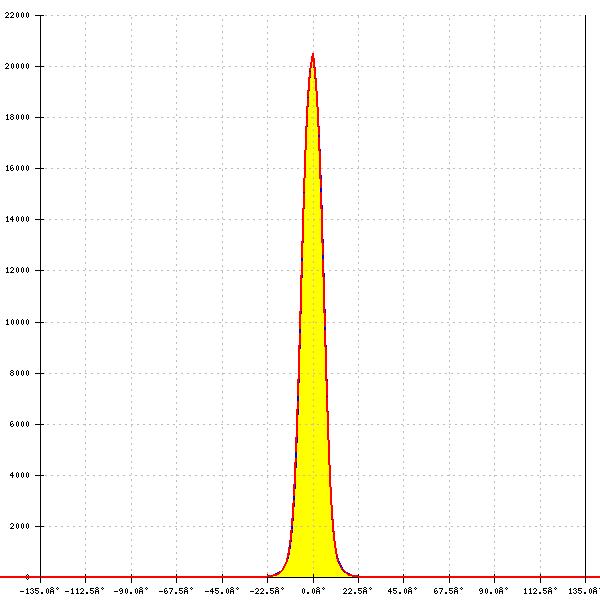

LED:
LUXEON Z ES
FWHM:
12°
FWTM:
20°
Peak intensity:
20.522 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

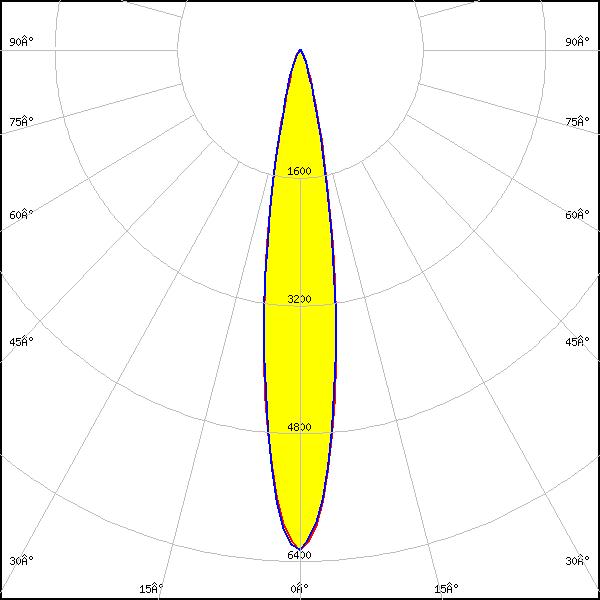

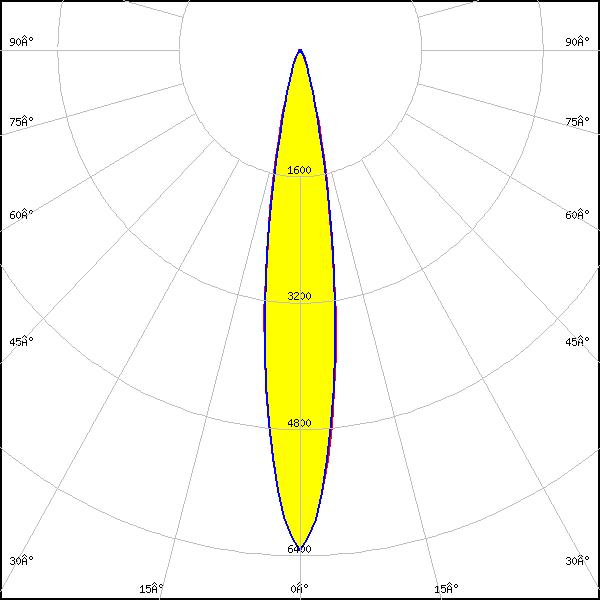

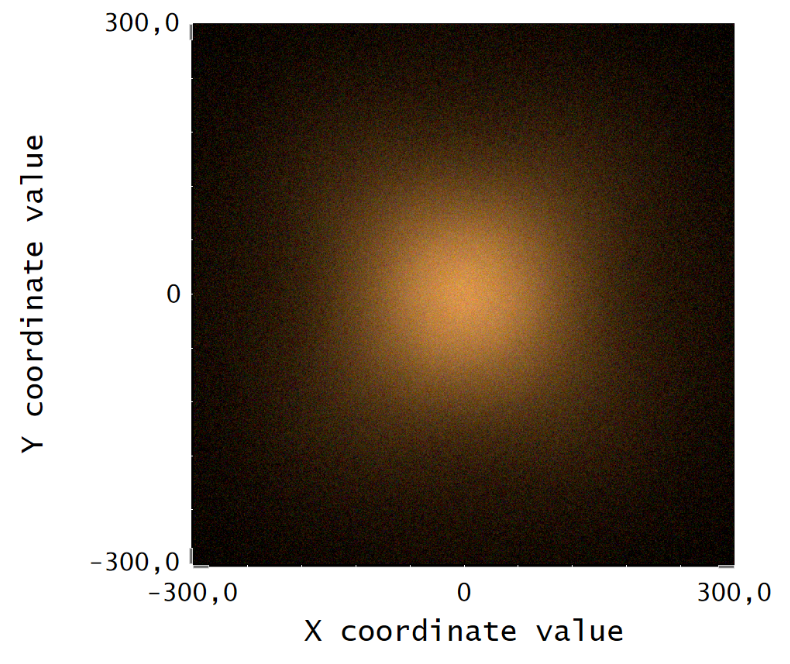

LED:
NCSxE17A
FWHM:
16°
FWTM:
34°
Peak intensity:
6.331 cd/lm
Efficiency:
91 %
LEDs/each optic:
4
Light colour/type:
White
LED:
NCSxE17A
FWHM:
12°
FWTM:
22°
Peak intensity:
16.484 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxx19A
FWHM:
11°
FWTM:
-
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

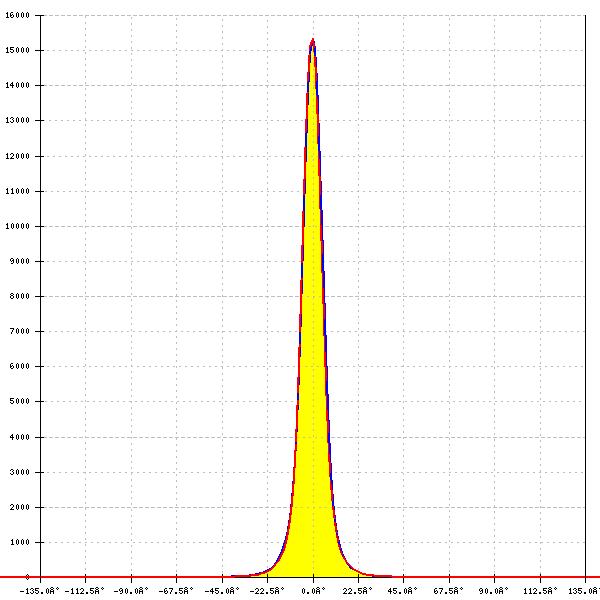

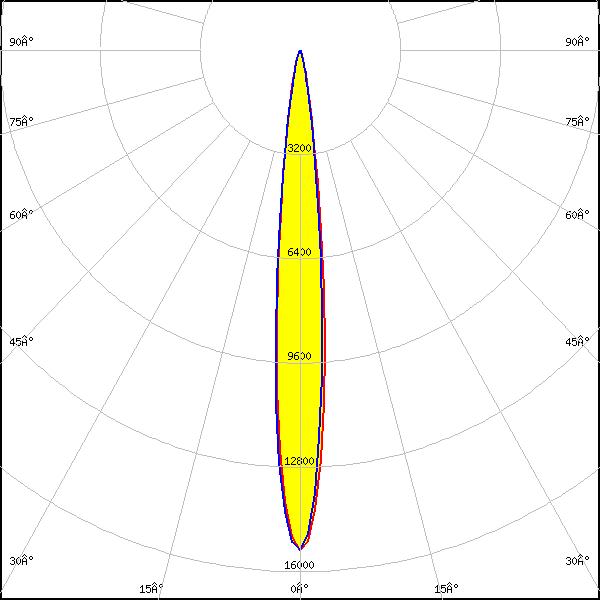

LED:
NCSxx19B
FWHM:
12°
FWTM:
23°
Peak intensity:
15.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

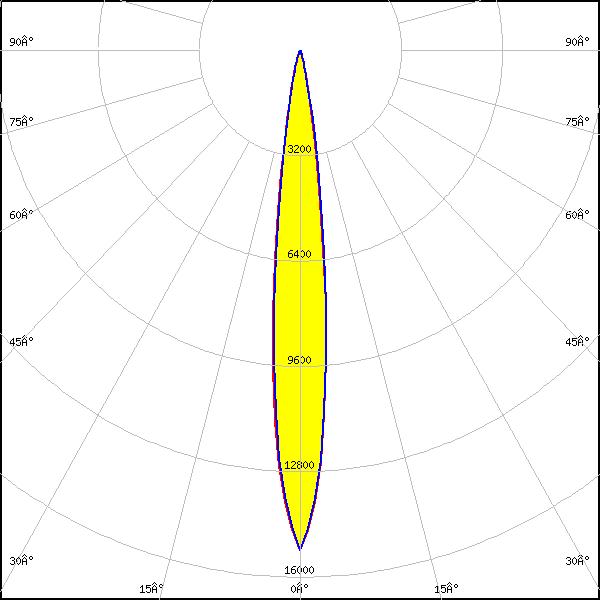

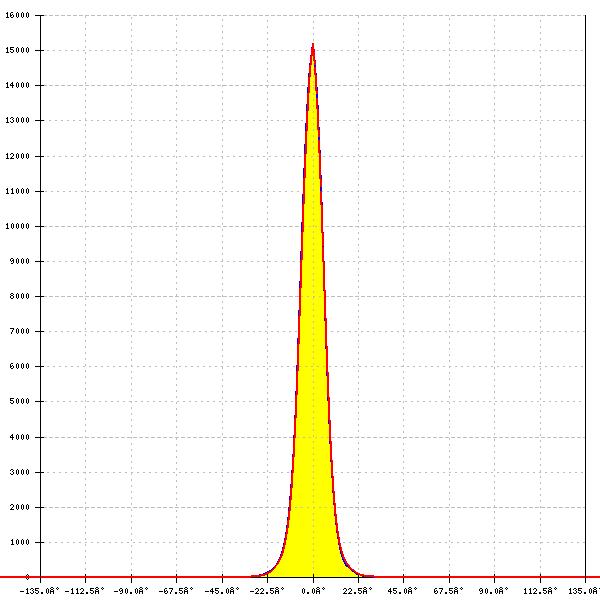

LED:
NF2x757G
FWHM:
12°
FWTM:
24°
Peak intensity:
15.190 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

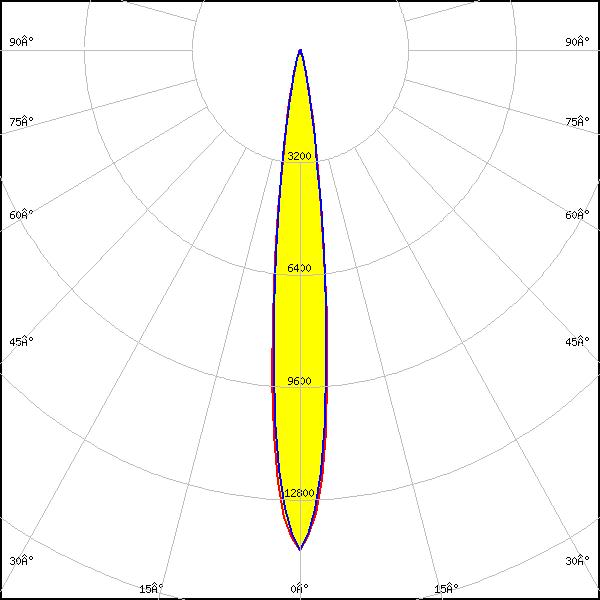

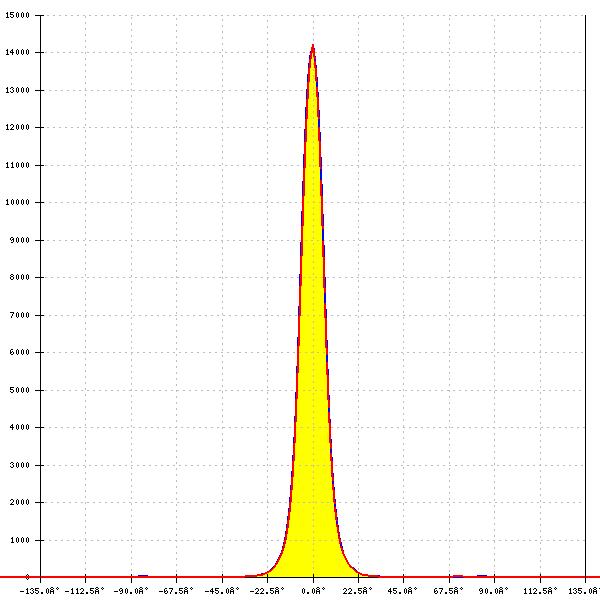

LED:
NVSxE21A
FWHM:
12°
FWTM:
24°
Peak intensity:
14.232 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
22°
FWTM:
40°
Peak intensity:
4.640 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White
LED:
NVSxx19A
FWHM:
13°
FWTM:
25°
Peak intensity:
11.450 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

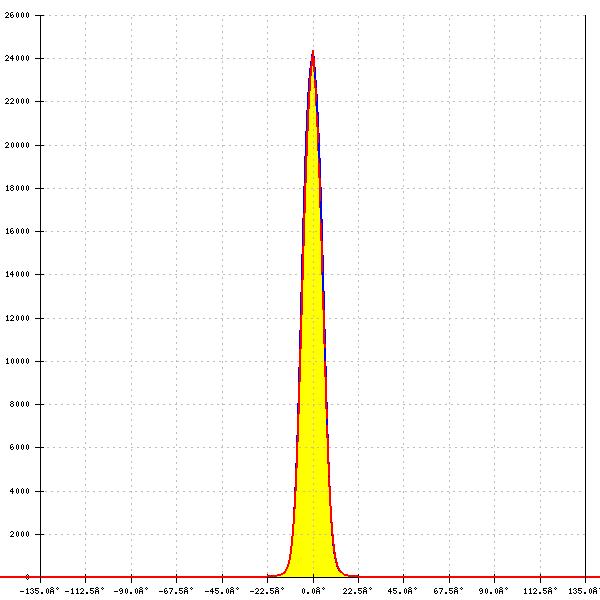

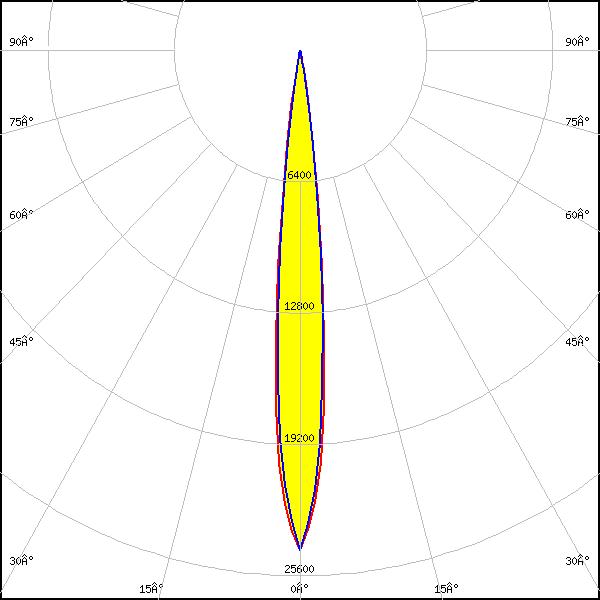

OSLON Pure 1414
FWHM:
12° + 10°
FWTM:
18° + 18°
Peak intensity:
24.361 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
12°
FWTM:
-
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
11°
FWTM:
28°
Peak intensity:
6.670 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

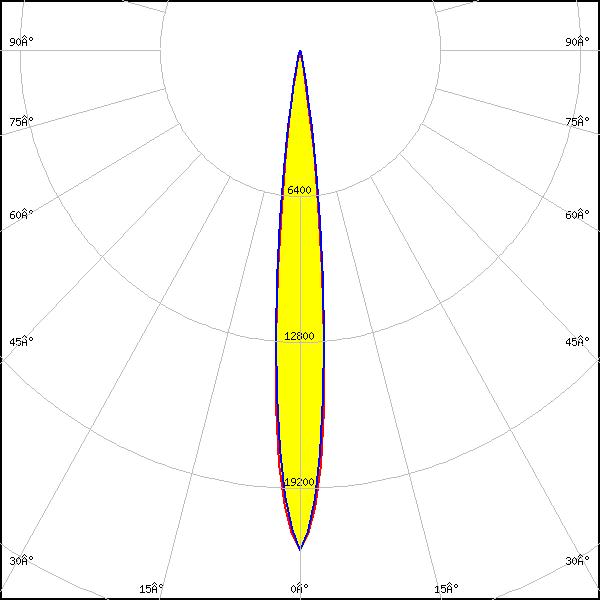

LED:

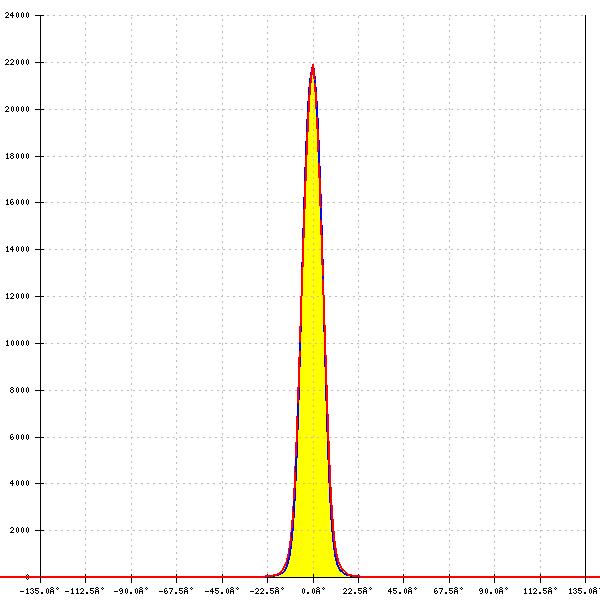

OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM:
12°
FWTM:
20°
Peak intensity:
21.918 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

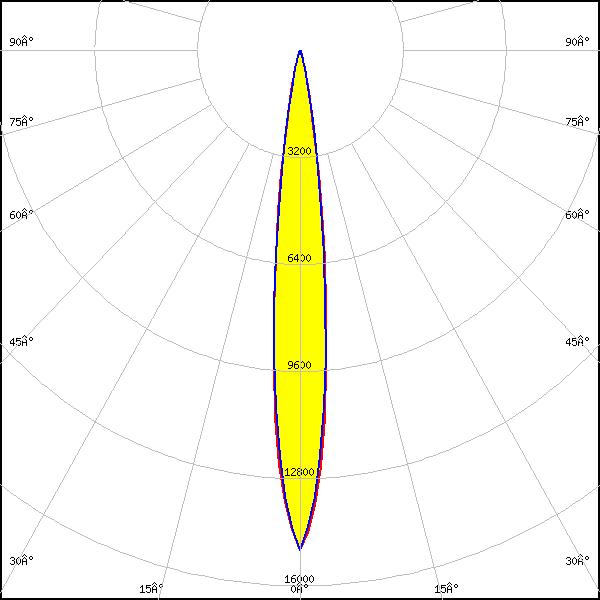

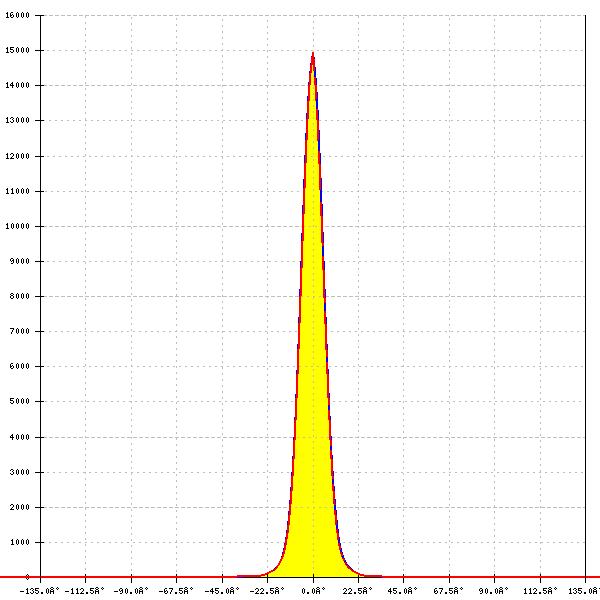

LED:
LH351B
FWHM:
12°
FWTM:
24°
Peak intensity:
14.945 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5
FWHM:
10°
FWTM:
-
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
FWHM:
10°
FWTM:
-
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
