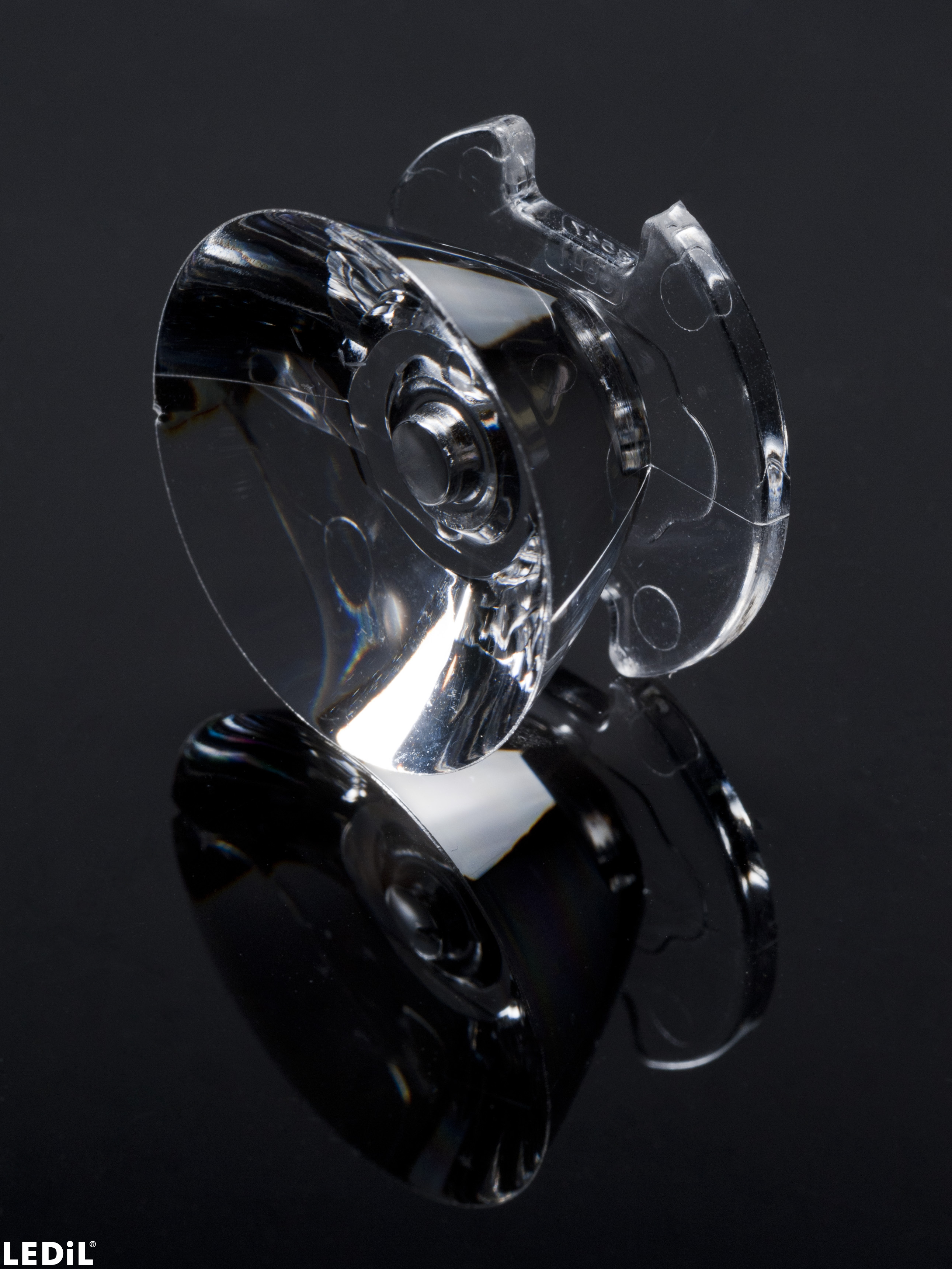

    ~8° spot beam. 14.74 mm high lens.

    Specification
    • Dimensions:
      26 mm
    • Height:
      14.74 mm
    • Fastening:
      tape
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      1690 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.3 kg
    • MPQ:
      130 pcs
    • MOQ:
      260 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13546_EMILY-RS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR121.b - Packing method and quantity changes 070616

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    World's brightest LED luminaire

    Case story

    Machang bridge

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

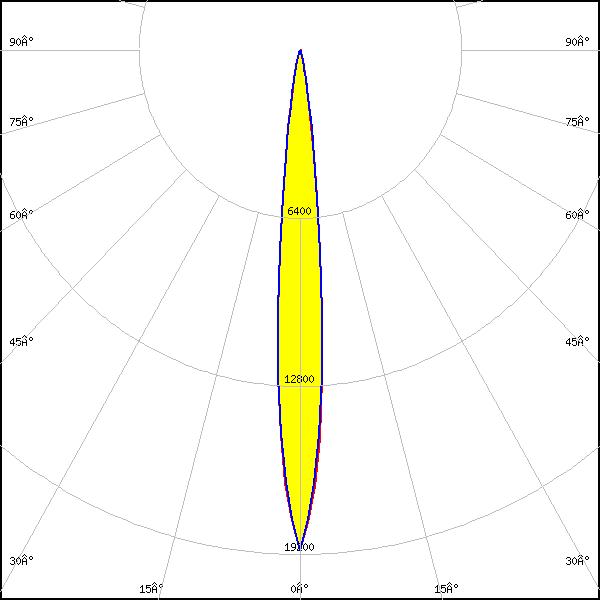

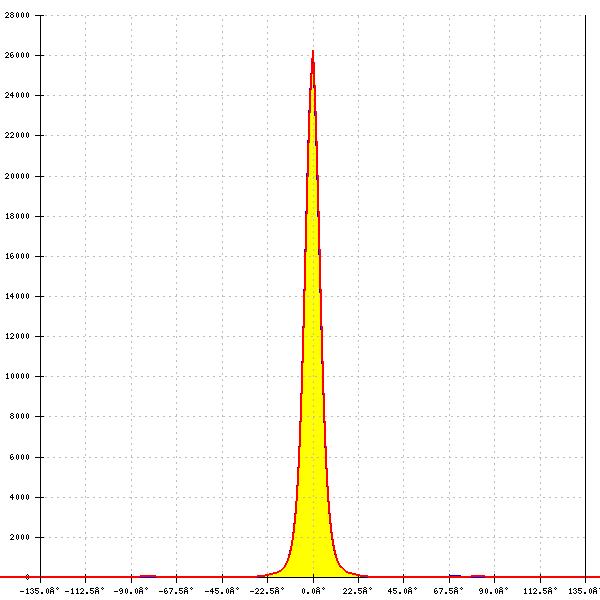

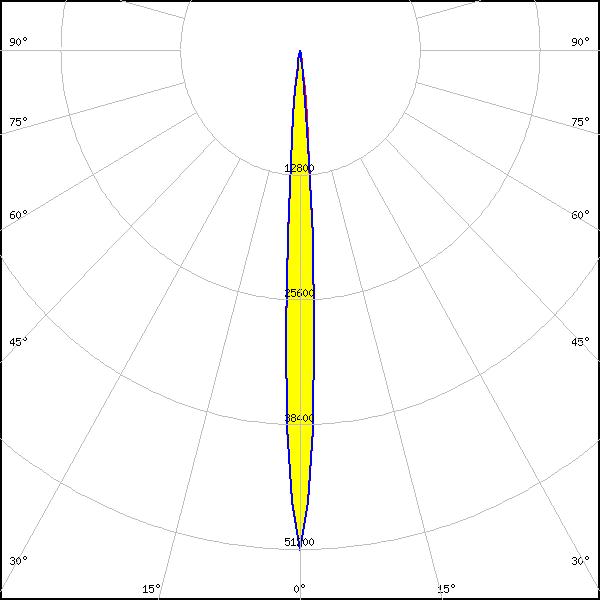

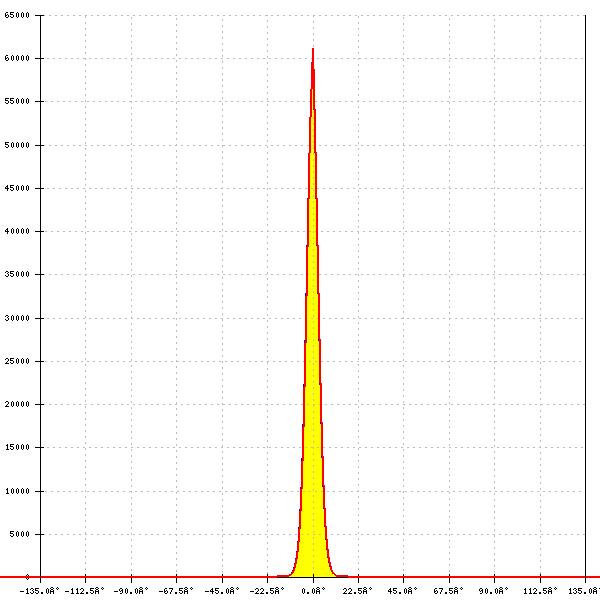

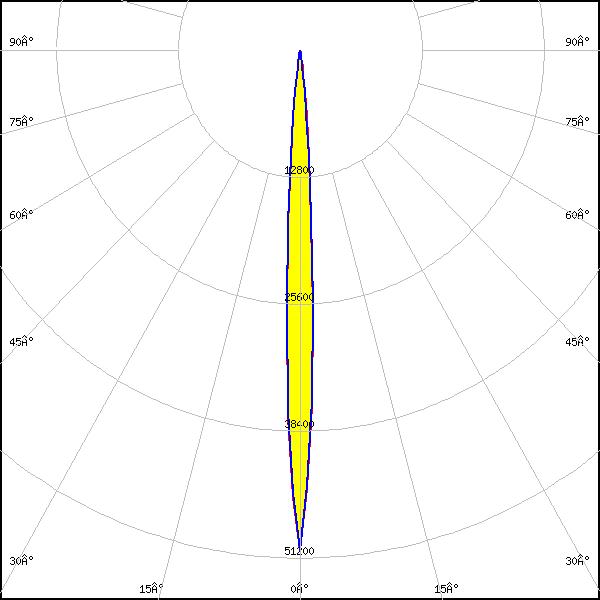

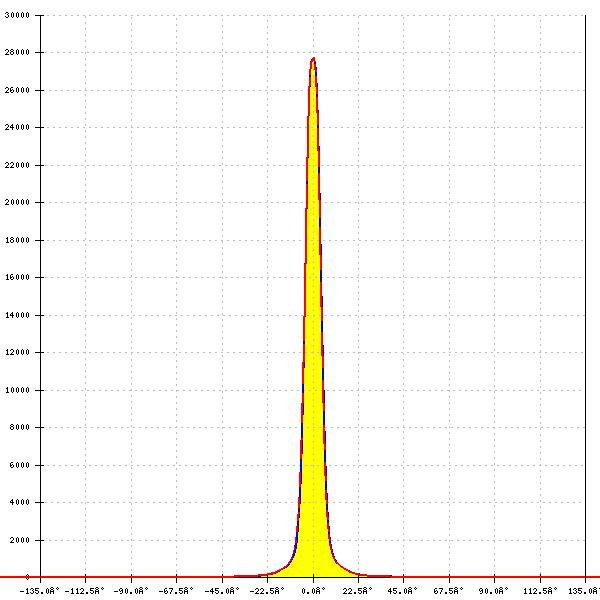

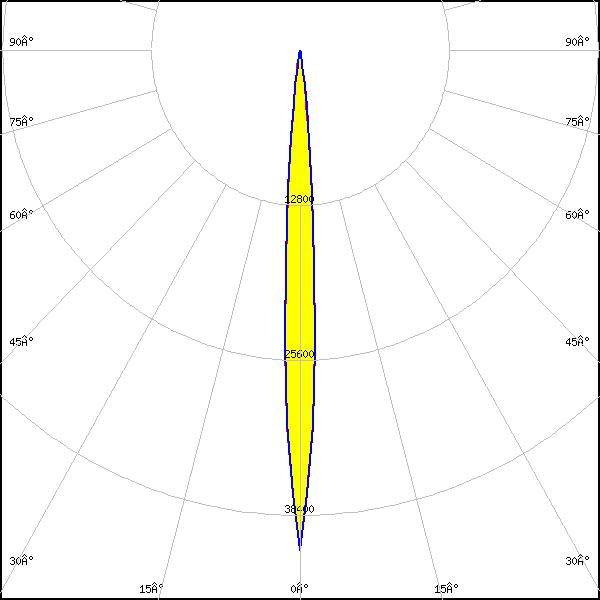

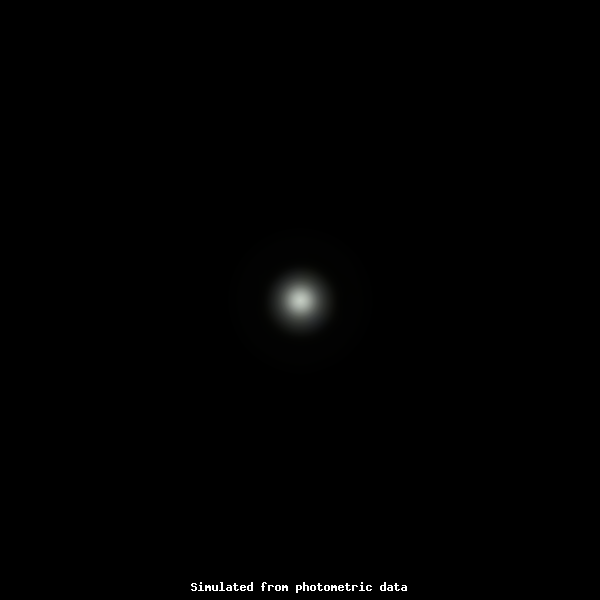

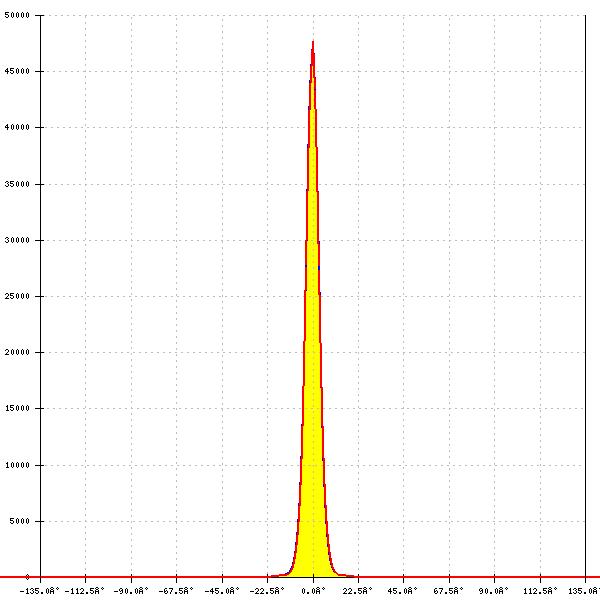

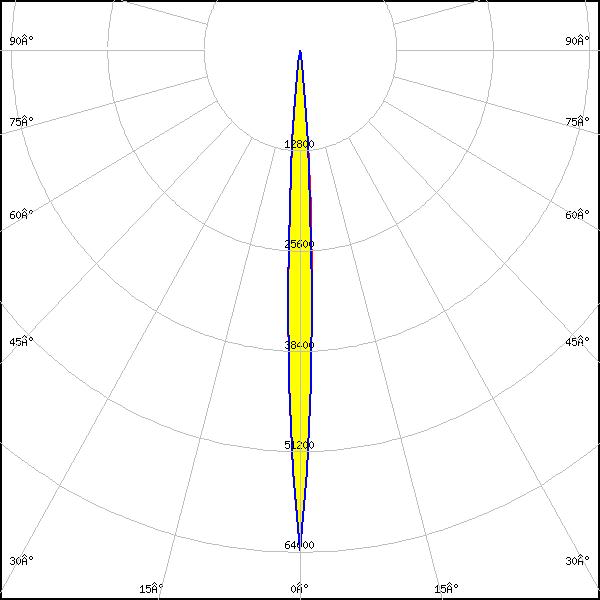

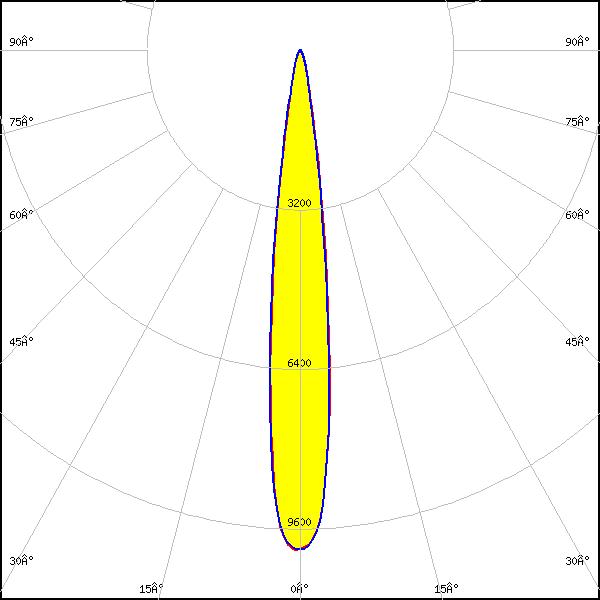

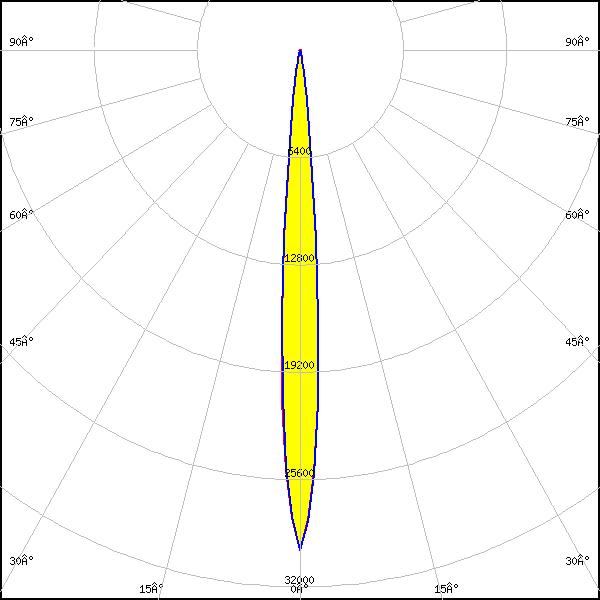

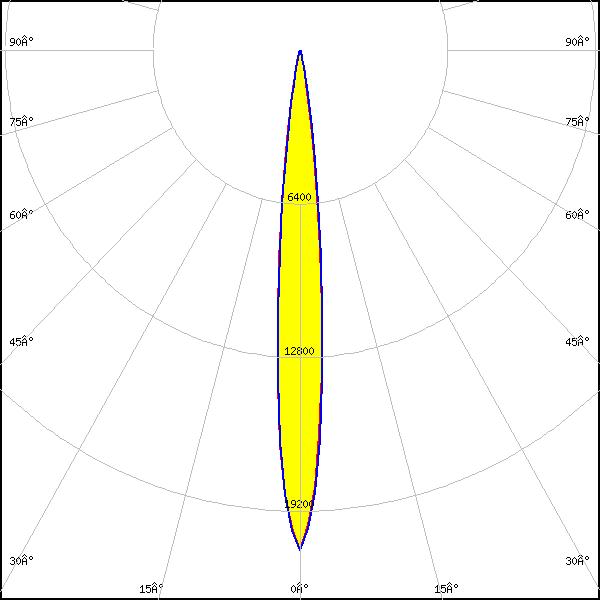

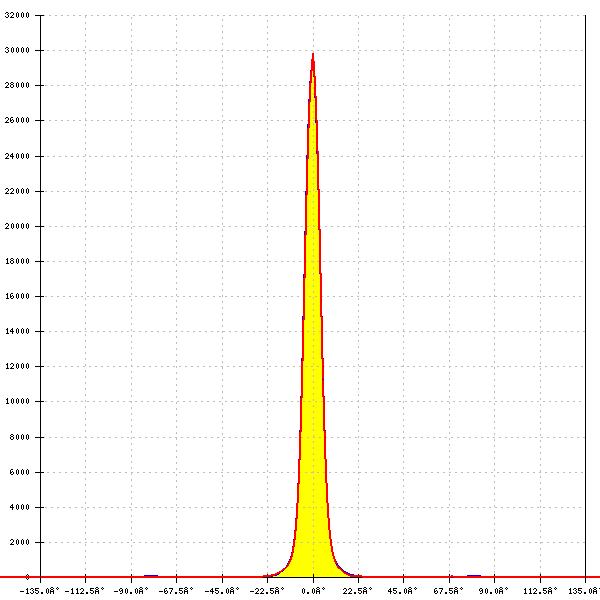

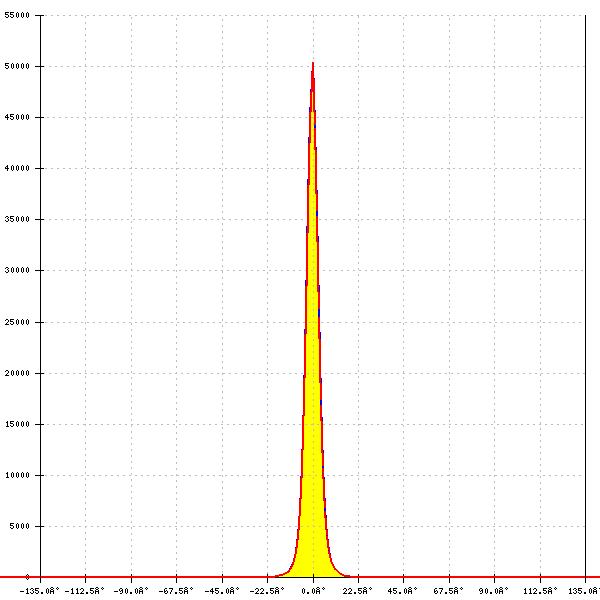

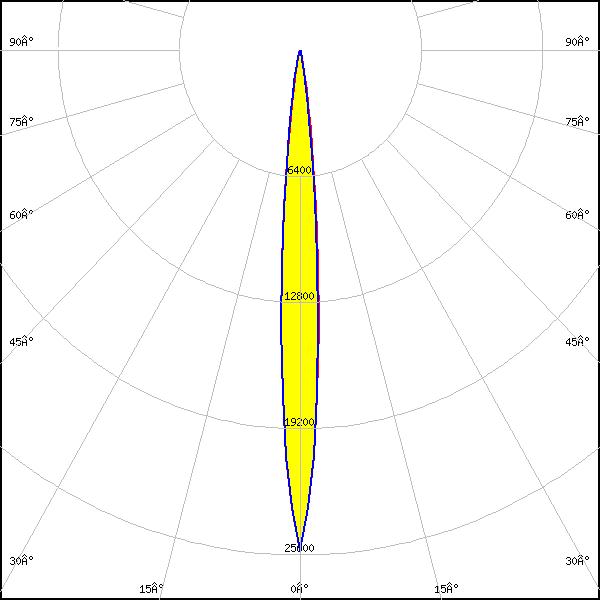

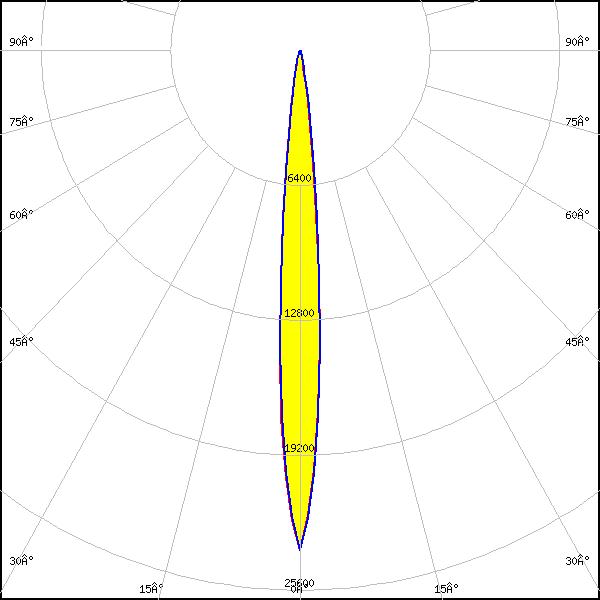

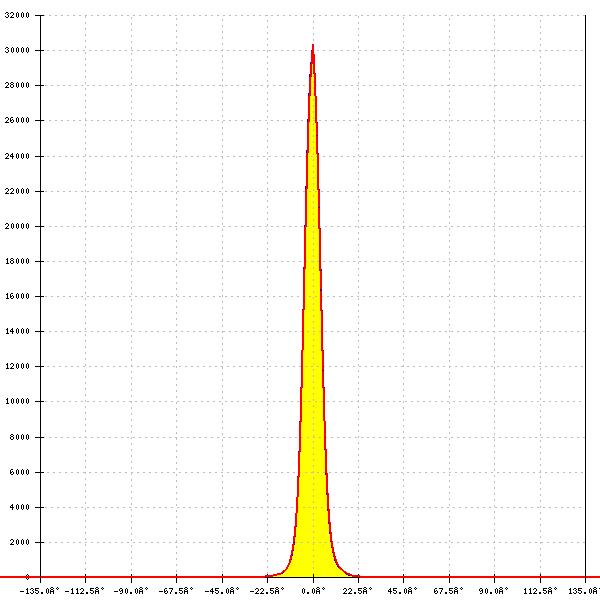

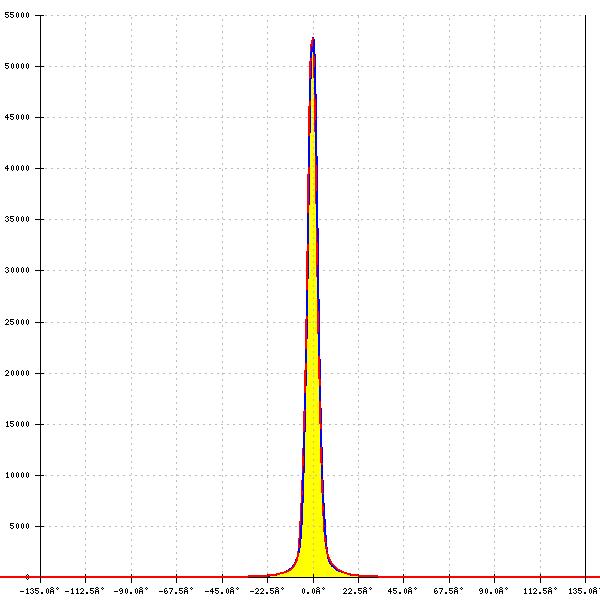

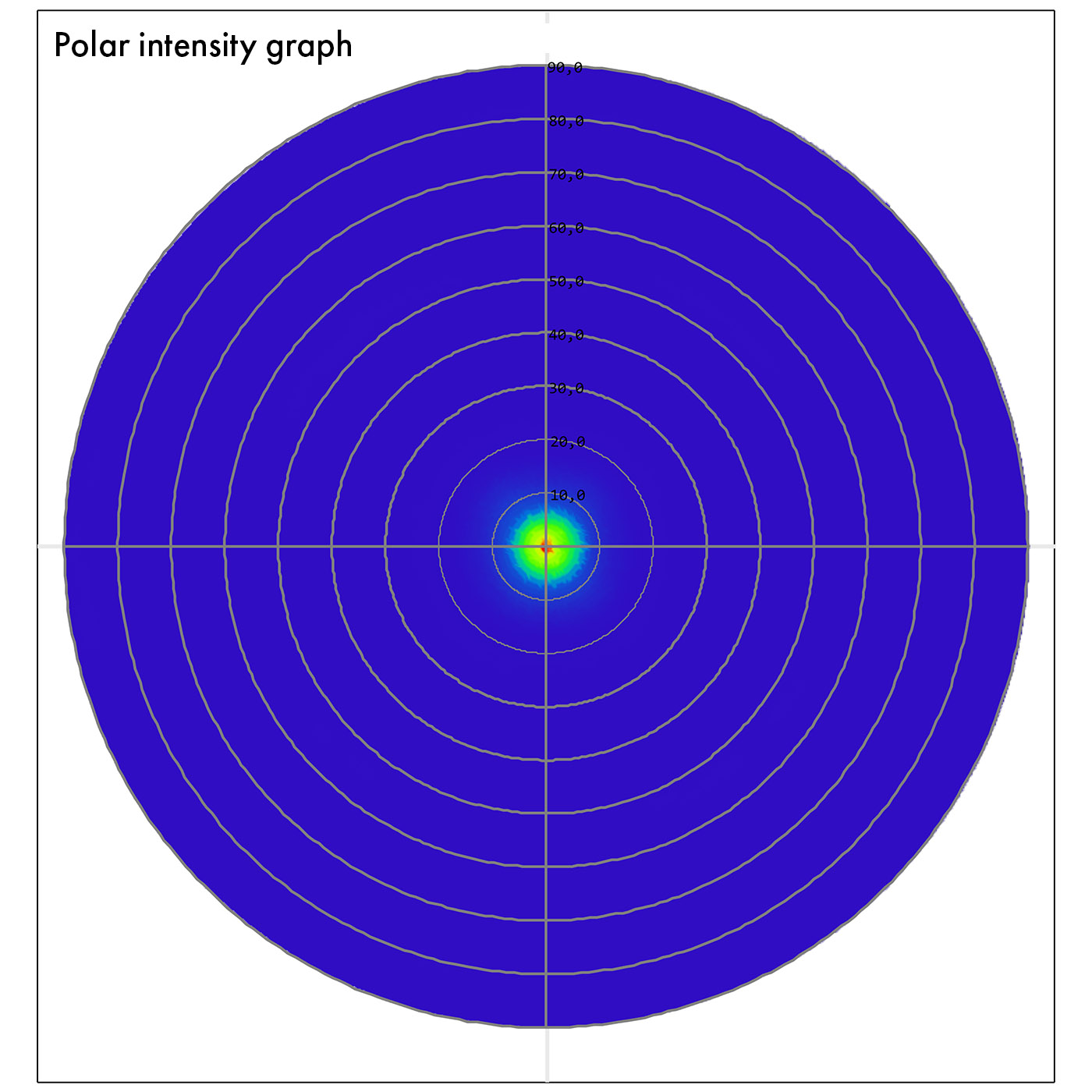

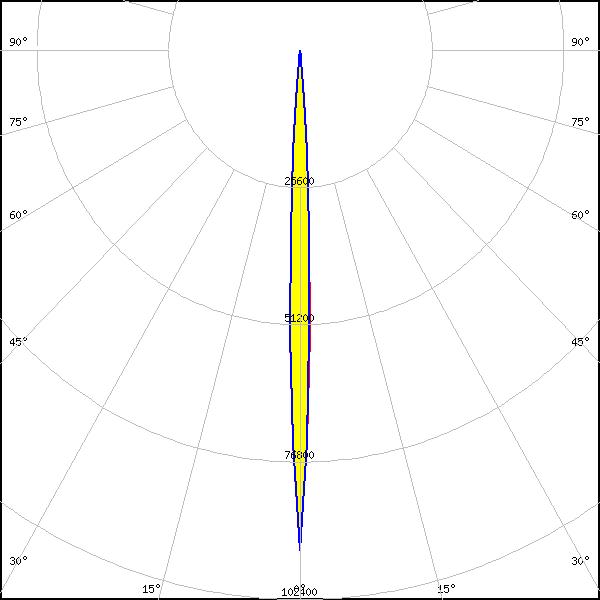

    Optical results

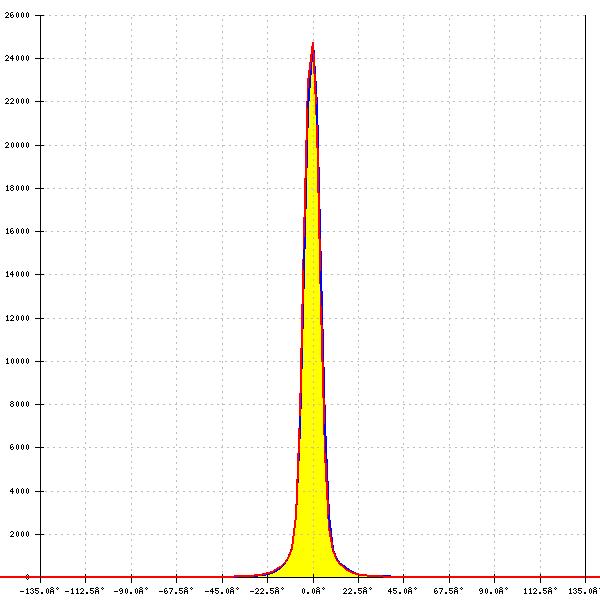

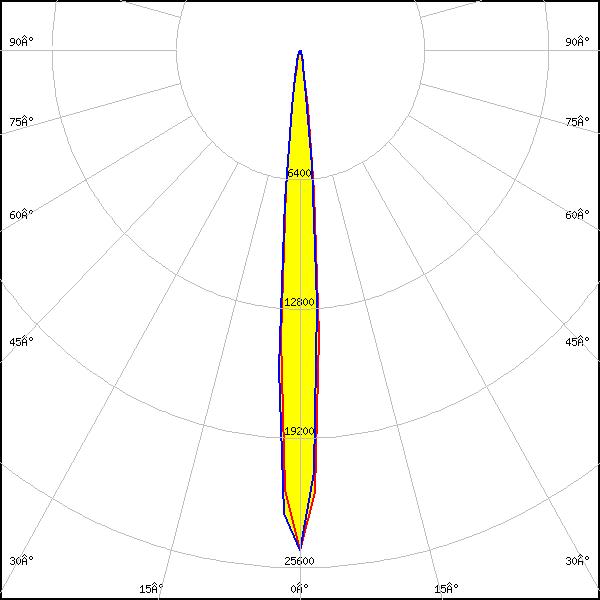

    LED: XB-H
    FWHM: 9°
    FWTM: 17°
    Peak intensity: 24.700 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

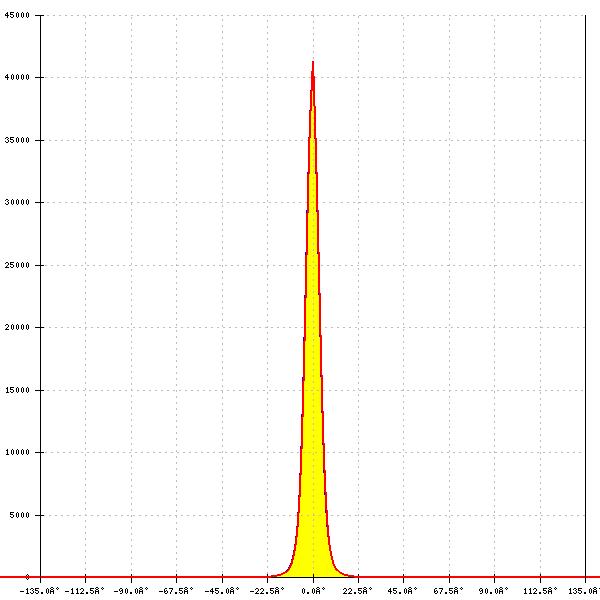

    LED: XE-G
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 41.287 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Red

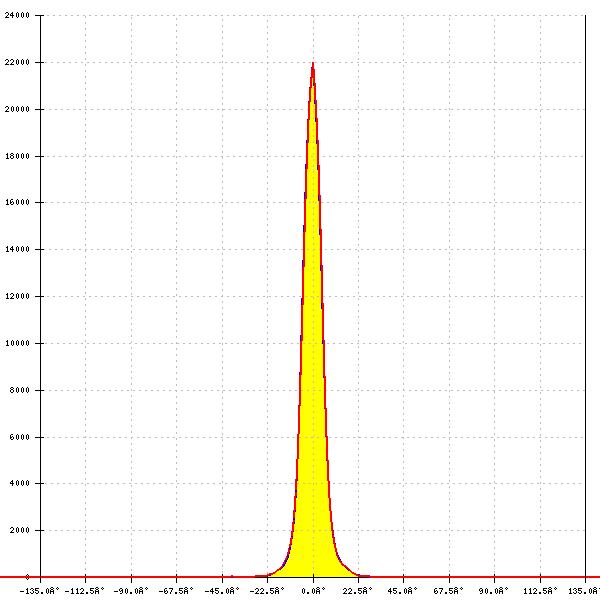

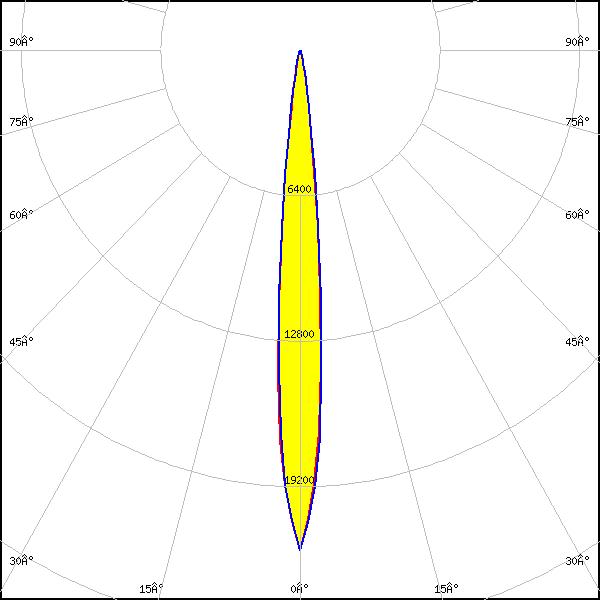

    LED: XHP35 HI
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 22.010 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

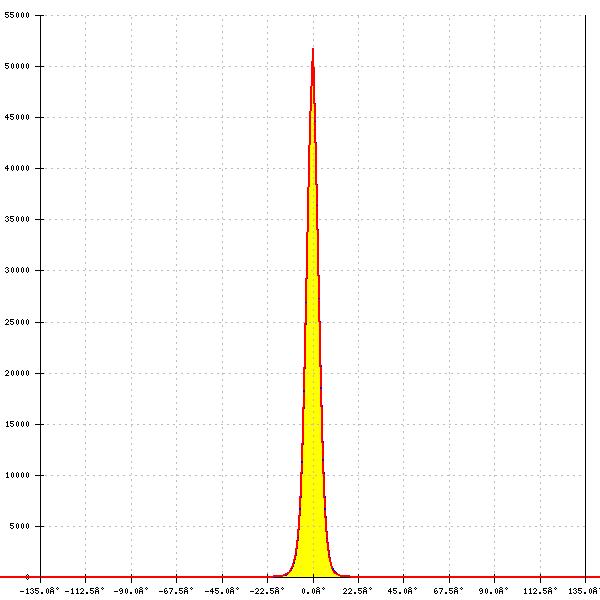

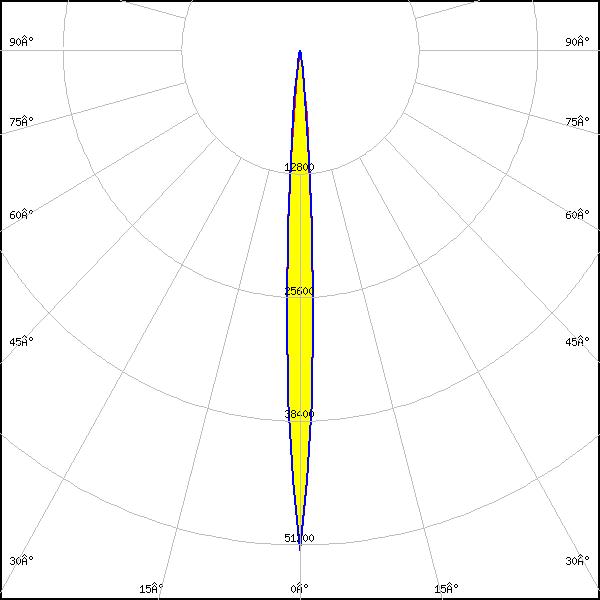

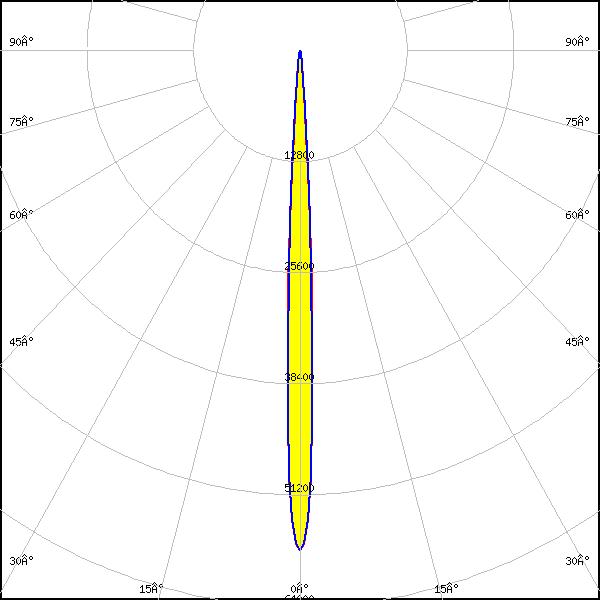

    LED: XP-E2
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 51.778 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: 6°
    FWTM: 11°
    Peak intensity: 57.583 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

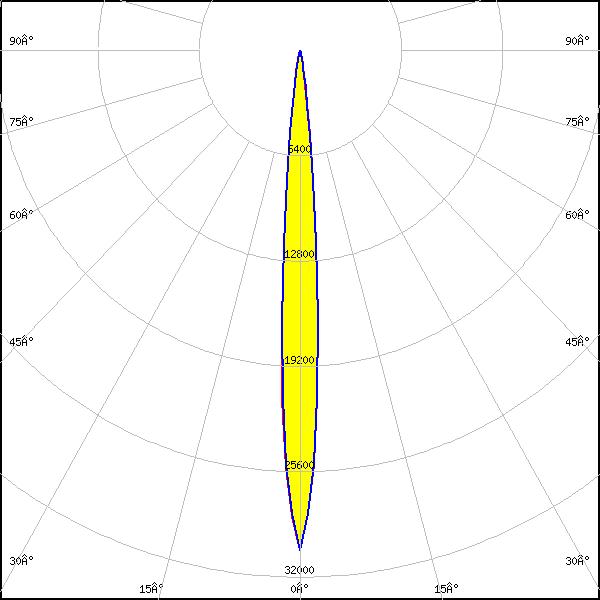

    LED: XP-G2
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 30.375 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

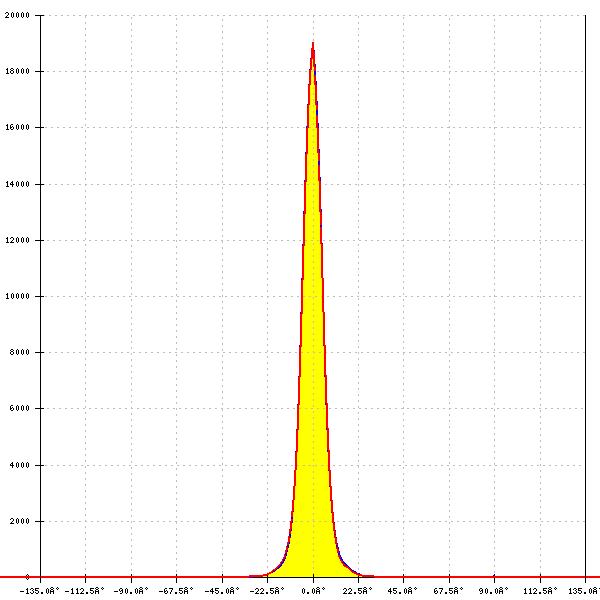

    LED: XP-G2 HE
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 19.050 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

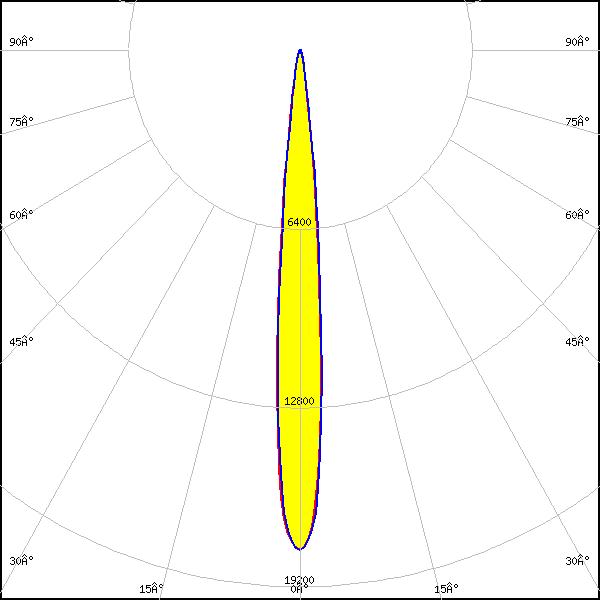

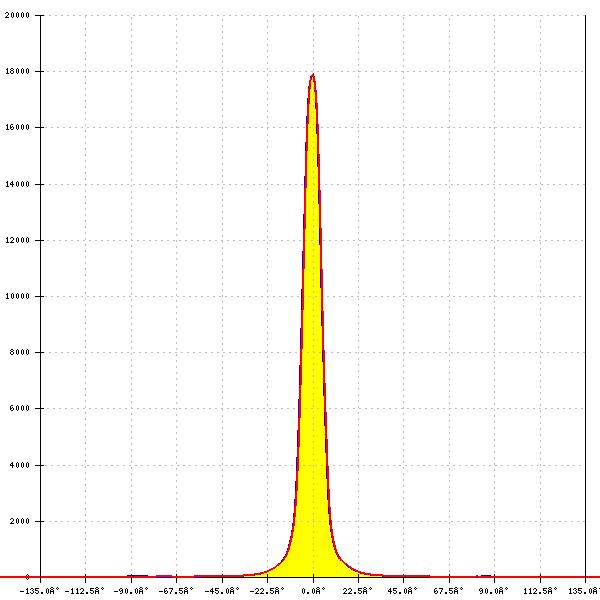

    LED: XP-G3
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

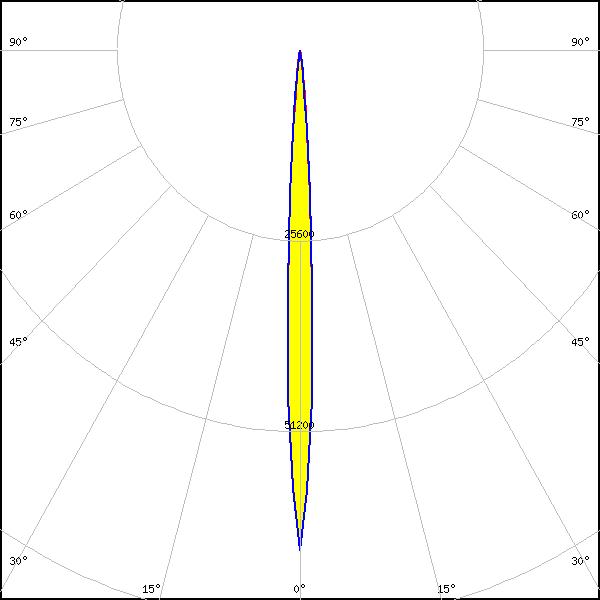

    LED: XP-GR
    FWHM: 6°
    FWTM: 12°

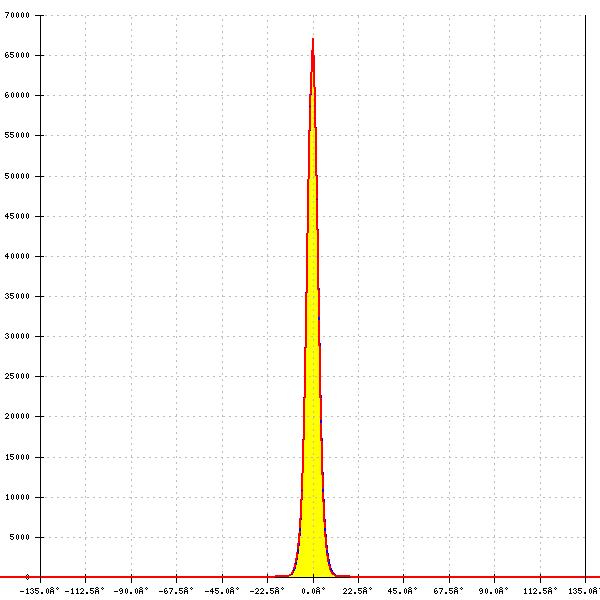

    Peak intensity: 67.116 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

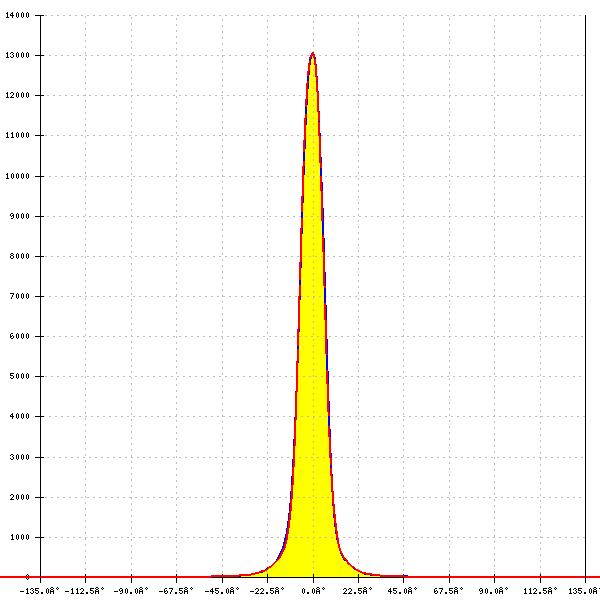

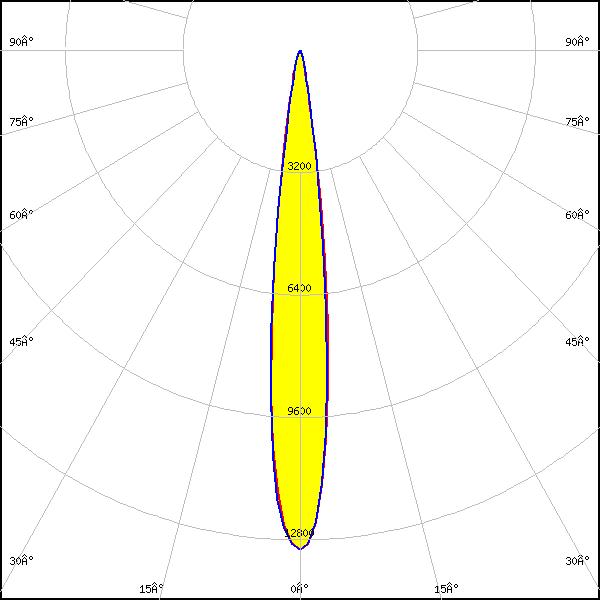

    LED: XP-L HD
    FWHM: 13°
    FWTM: 23°
    Peak intensity: 13.100 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

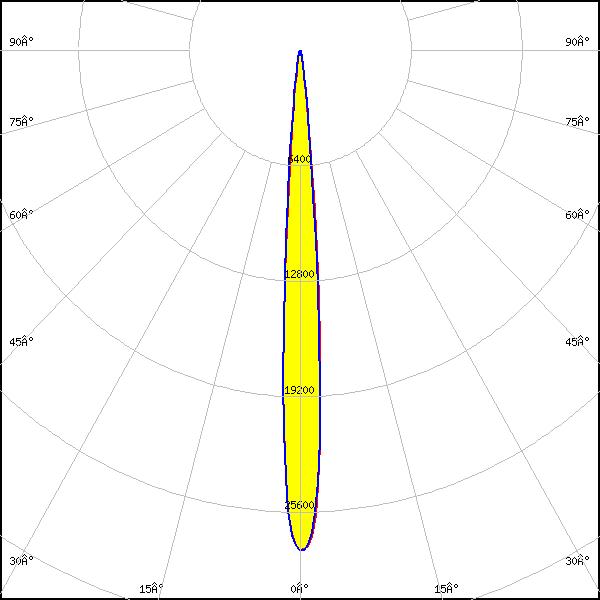

    LED: XP-L HI
    FWHM: 8°
    FWTM: 15°
    Peak intensity: 28.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

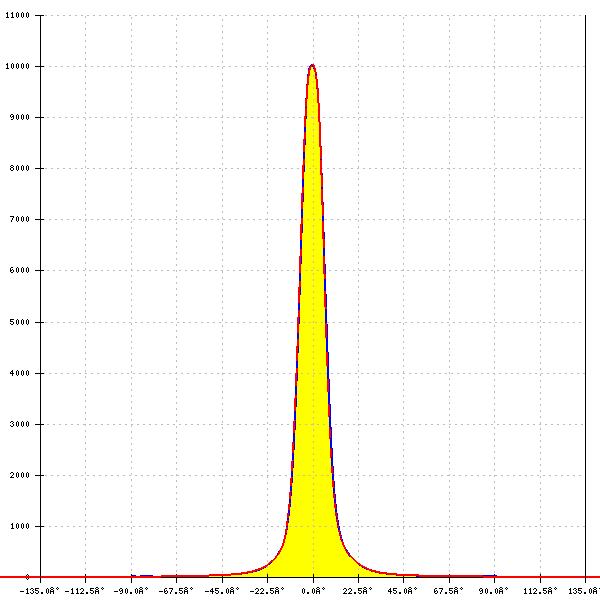

    LED: XP-L2
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 10.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

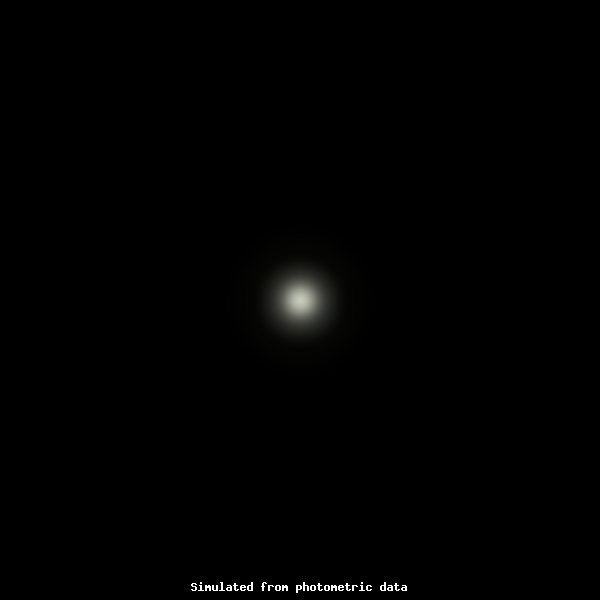

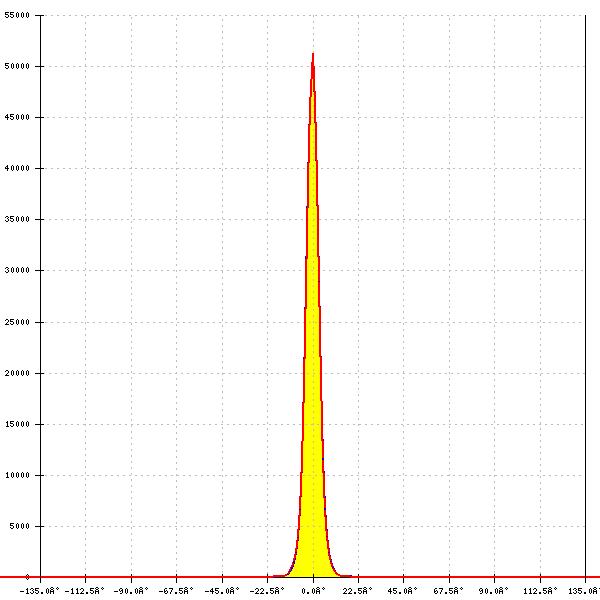

    LED: XP-LR
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 51.304 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-P
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 63.780 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

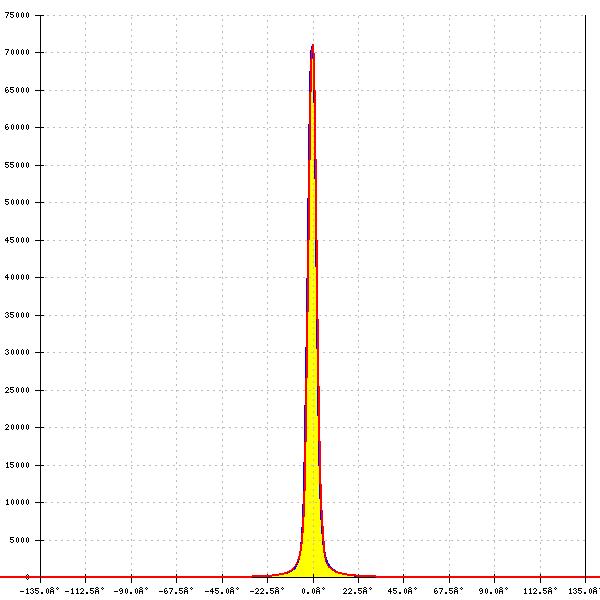

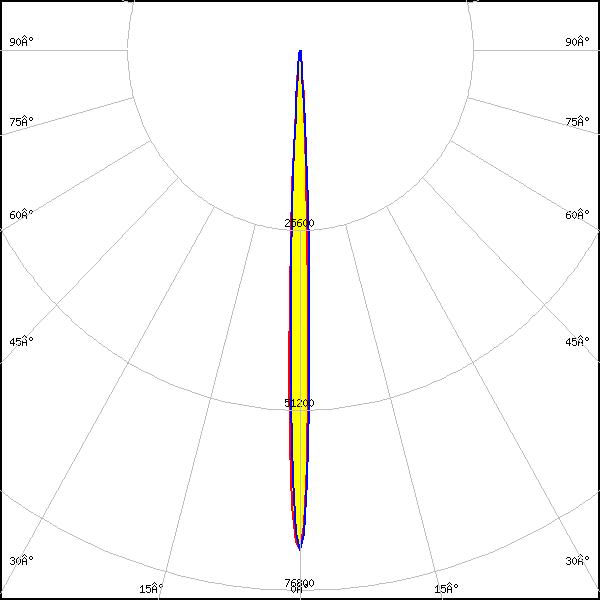

    LED: XQ-E HI
    FWHM: 4°
    FWTM: 9°
    Peak intensity: 71.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

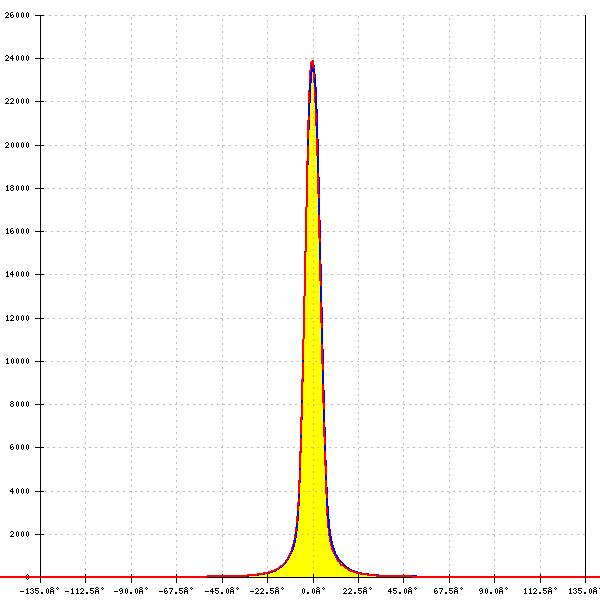

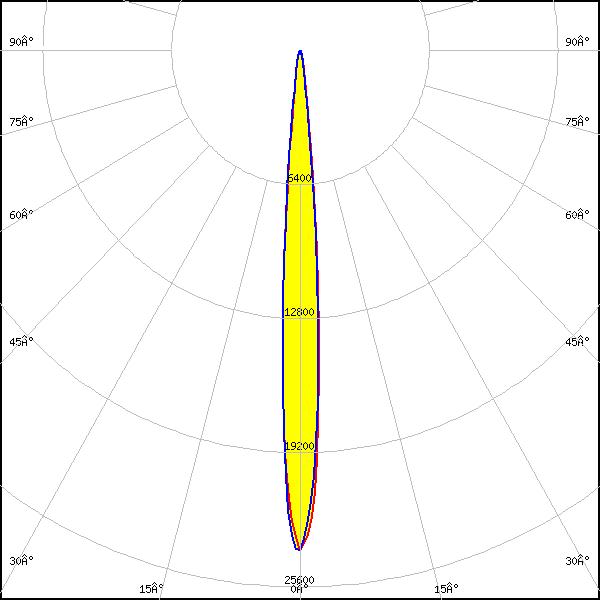

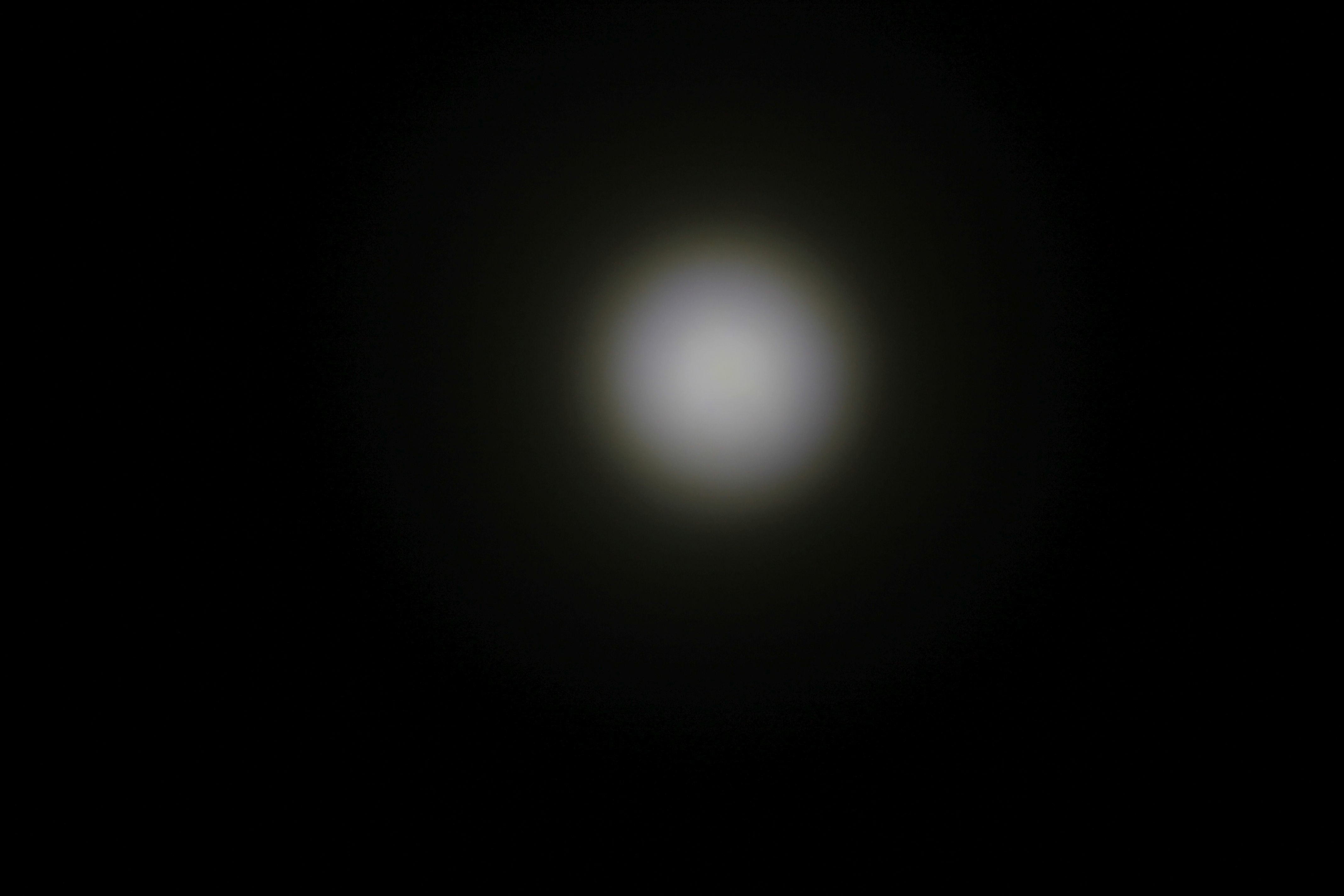

    LED: XT-E
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 23.900 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

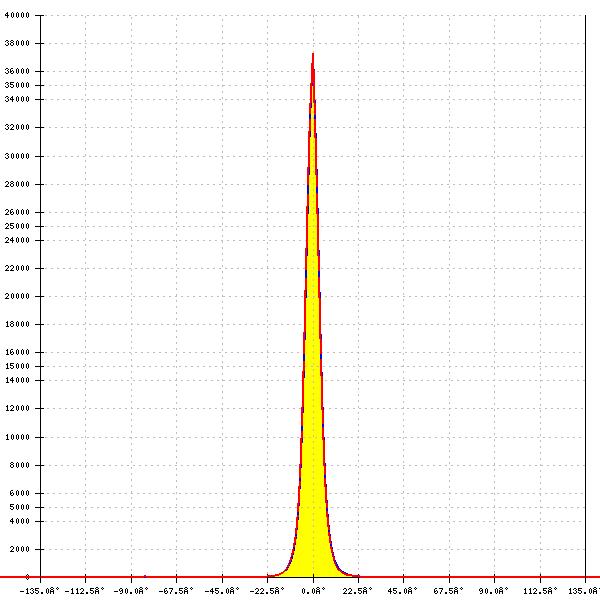

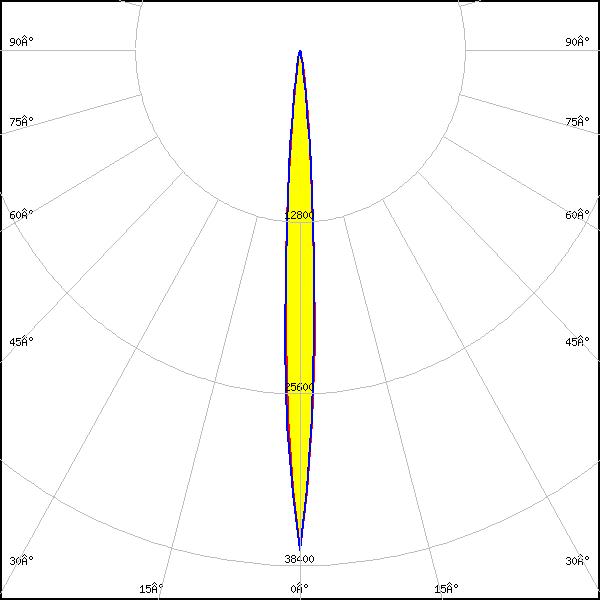

    LED: LUXEON C
    FWHM: 7°
    FWTM: 16°
    Peak intensity: 37.266 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Royal Blue

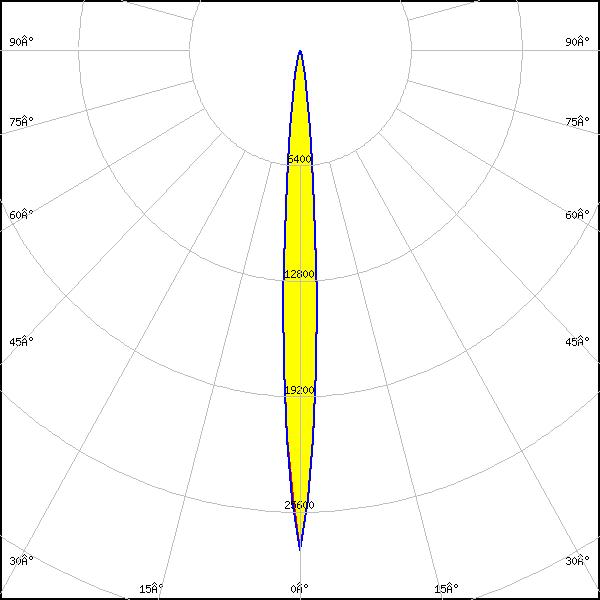

    LED: LUXEON HL2Z
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 27.717 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

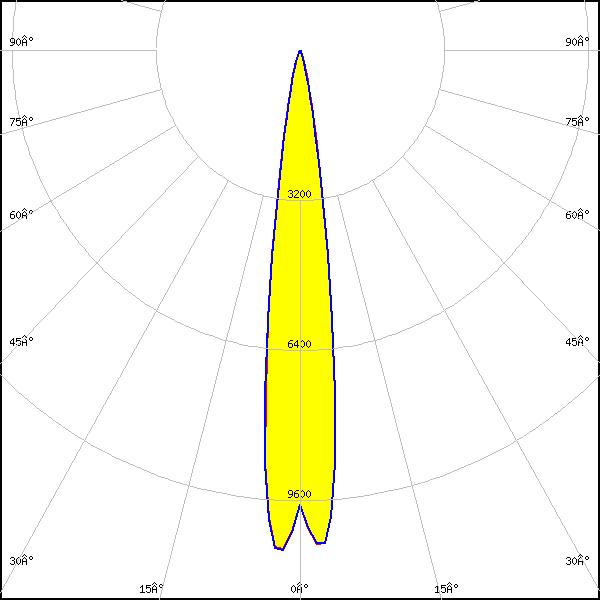

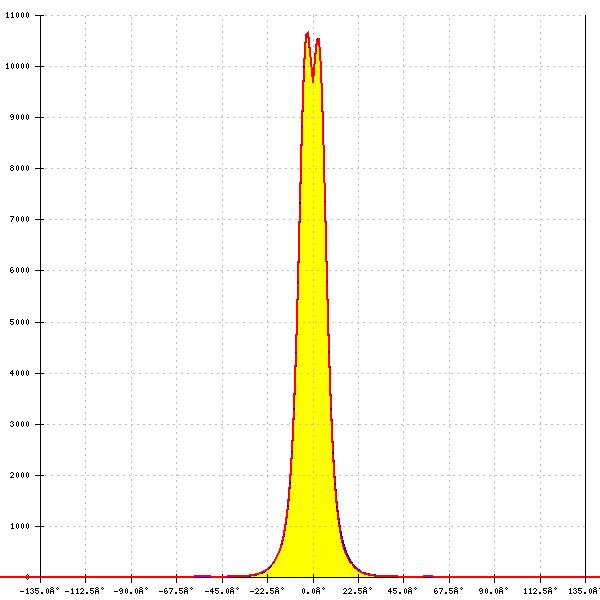

    LED: LUXEON MZ
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 10.715 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

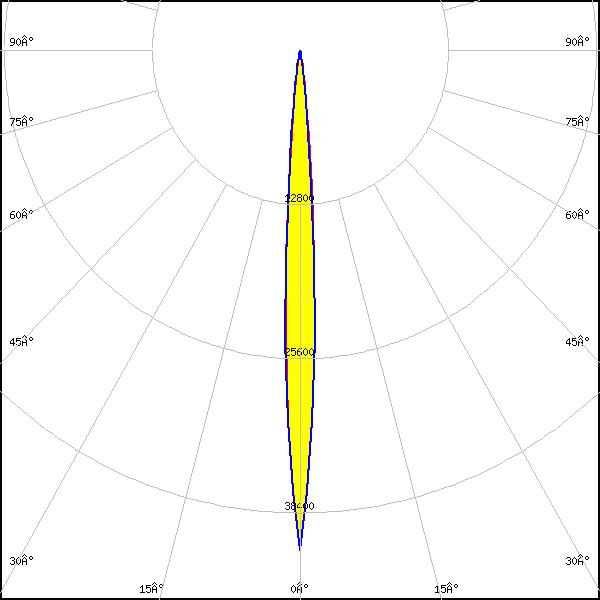

    LED: LUXEON Rebel
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 41.509 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

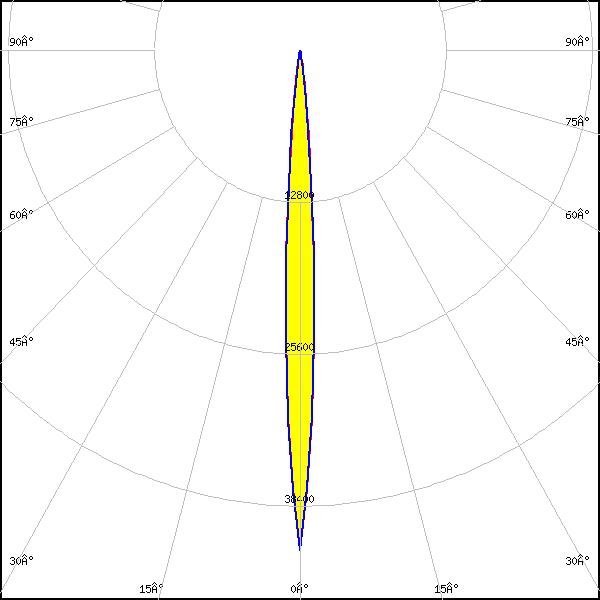

    LED: LUXEON Rebel Plus
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 42.128 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

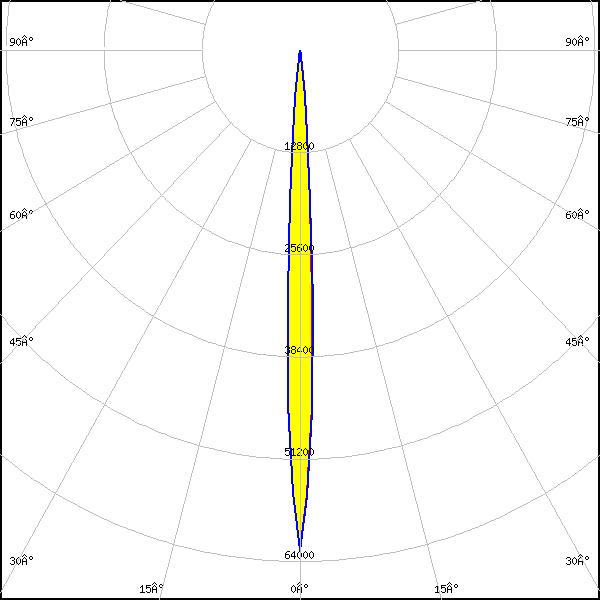

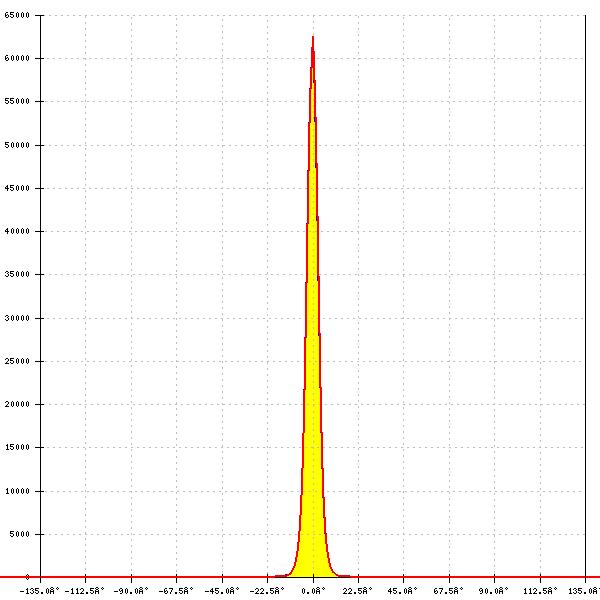

    LED: LUXEON Rubix
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 62.614 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

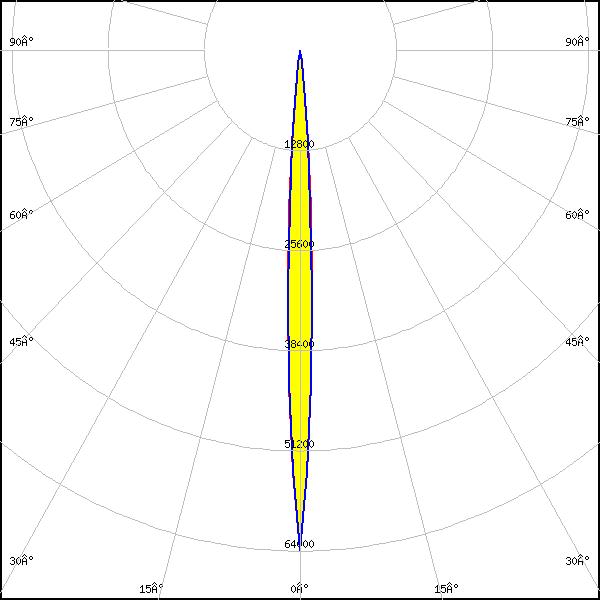

    LED: LUXEON Rubix
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 63.916 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Blue

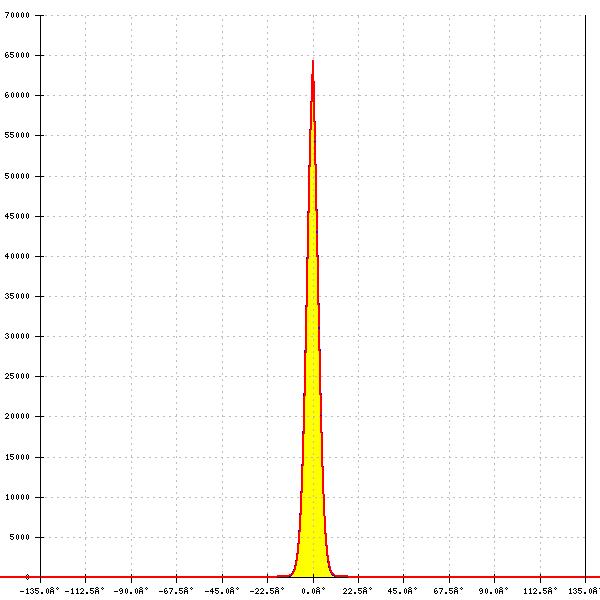

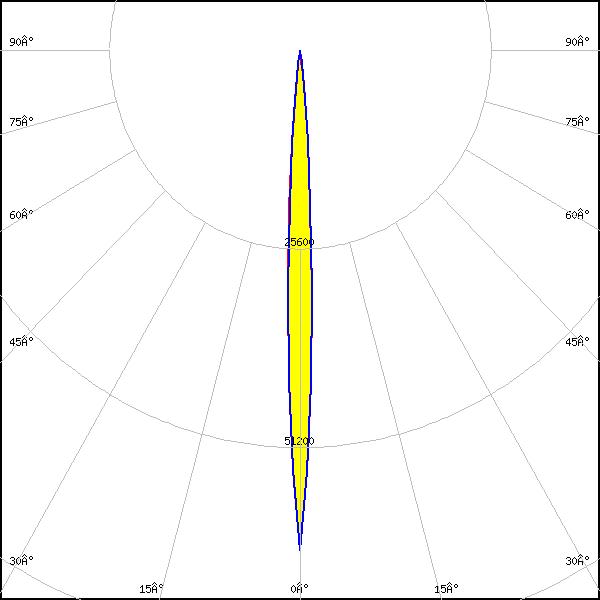

    LED: LUXEON Rubix
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 64.451 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Green

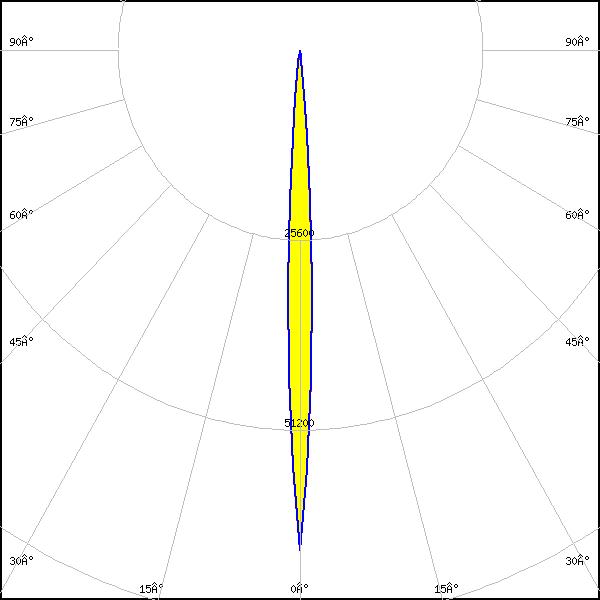

    LED: LUXEON Rubix
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 67.405 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Red

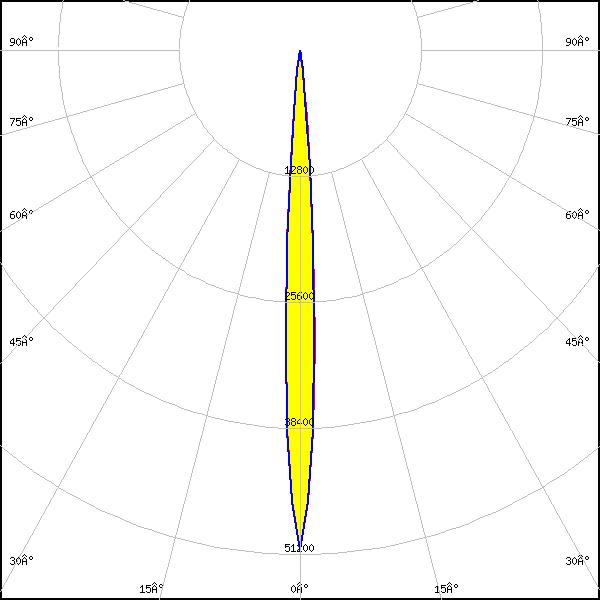

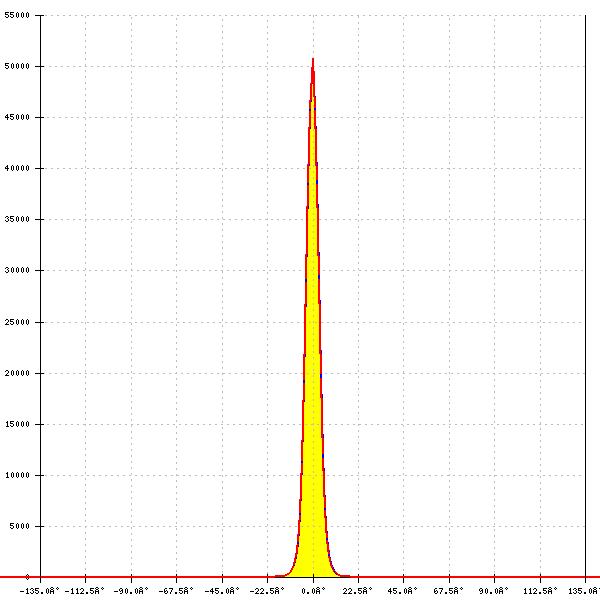

    LED: LUXEON SunPlus 20 Line (120 deg)
    FWHM: 6°
    FWTM: 13°
    Peak intensity: 50.776 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

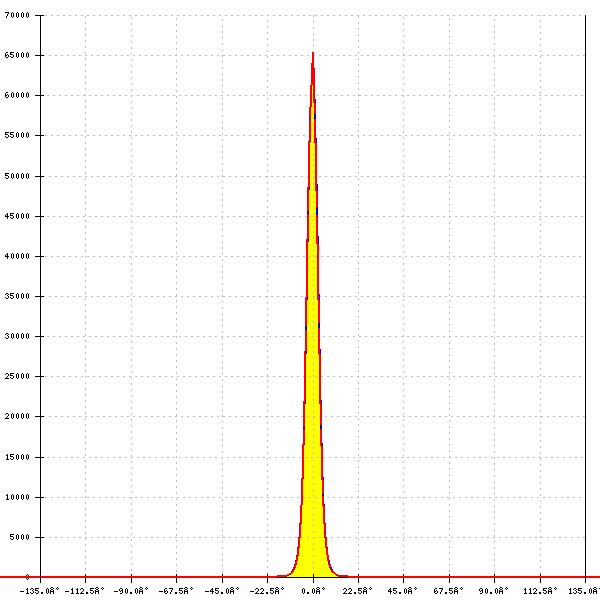

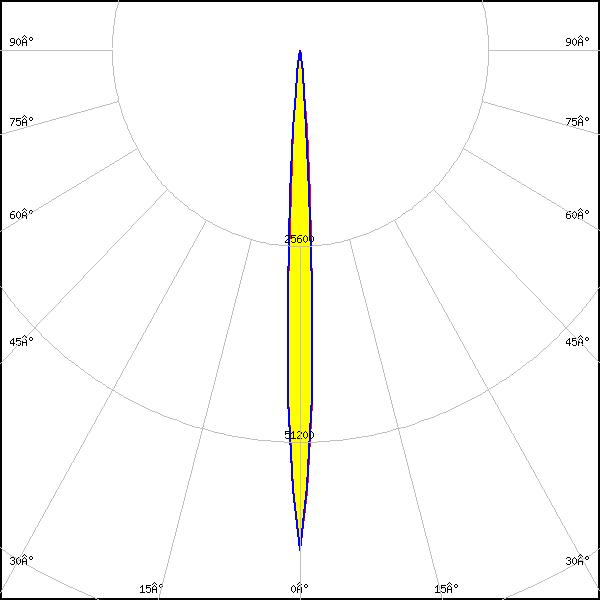

    LED: LUXEON Z
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 65.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

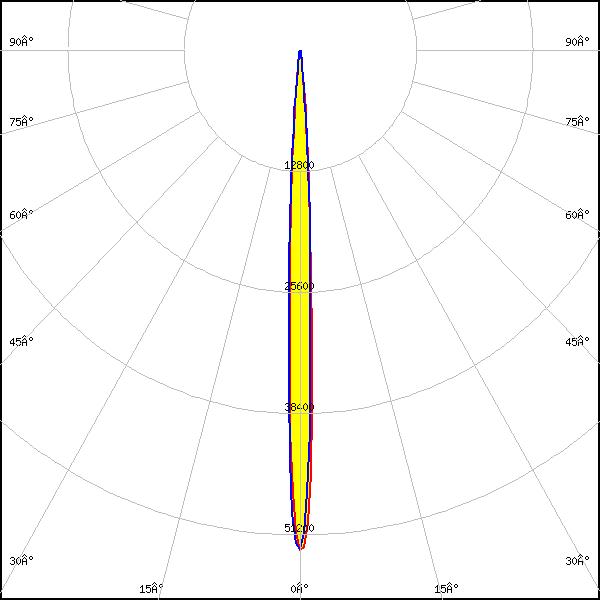

    LED: LUXEON Z ES
    FWHM: 5°
    FWTM: 11°
    Peak intensity: 52.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

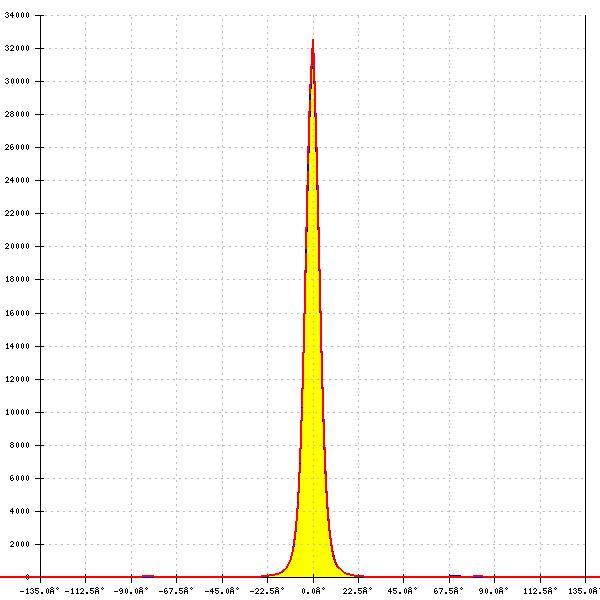

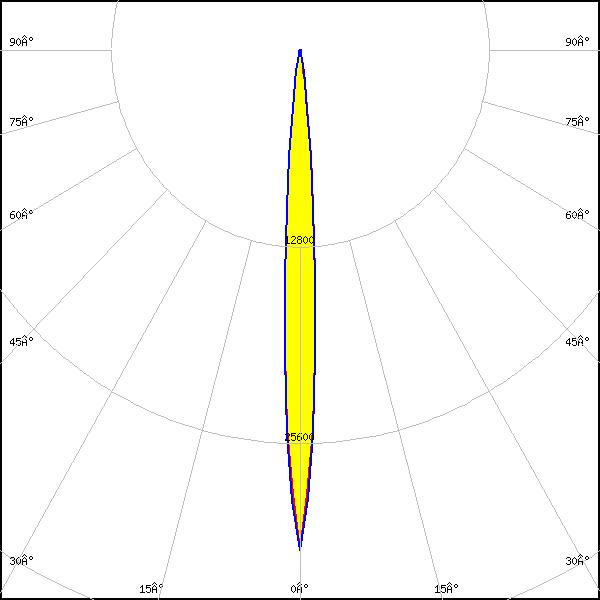

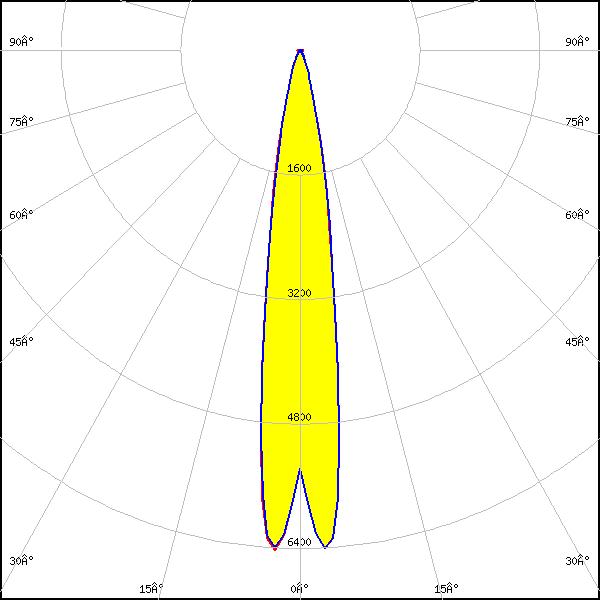

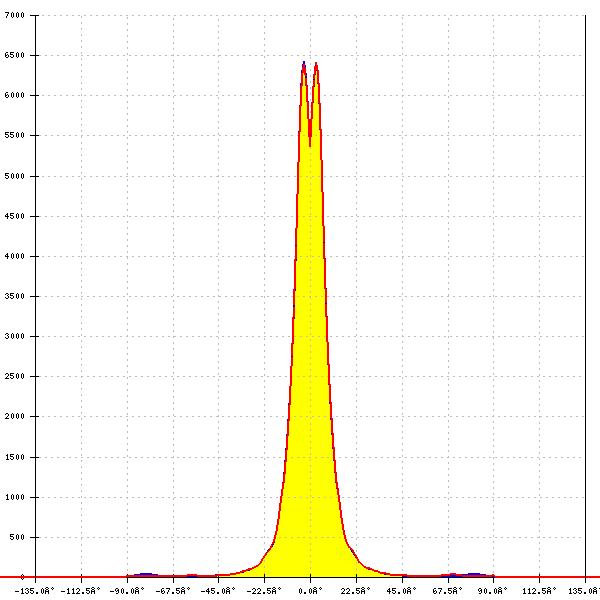

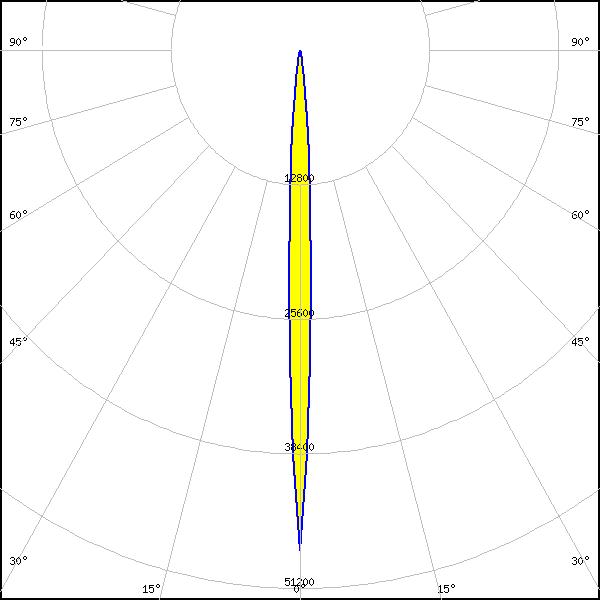

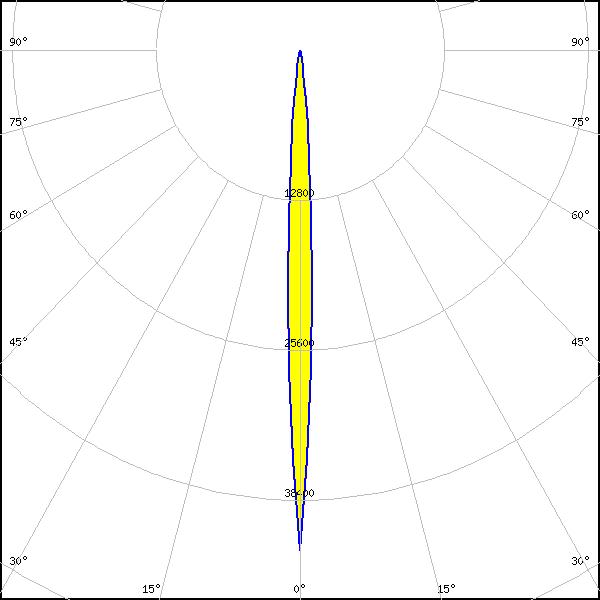

    LED: NCSxE17A
    FWHM: 6°
    FWTM: 16°
    Peak intensity: 35.531 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxE17A
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 32.543 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

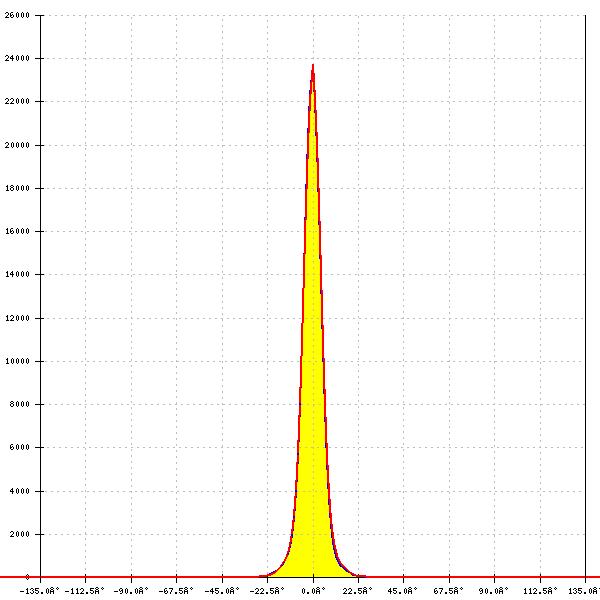

    LED: NF2x757G
    FWHM: 10°
    FWTM: 19°
    Peak intensity: 23.717 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

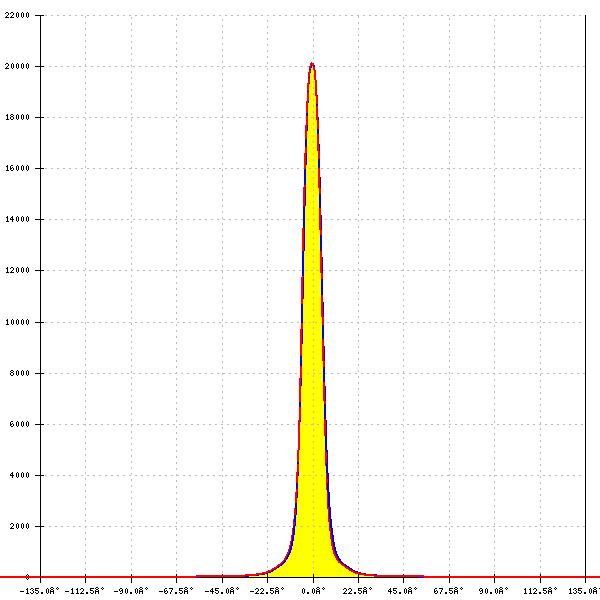

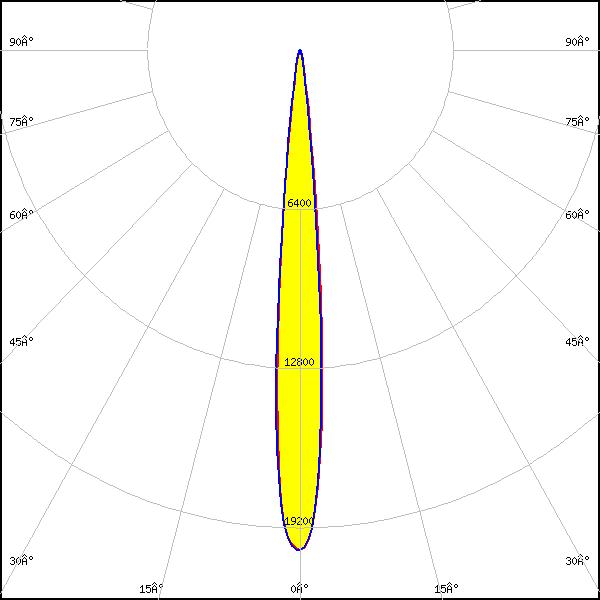

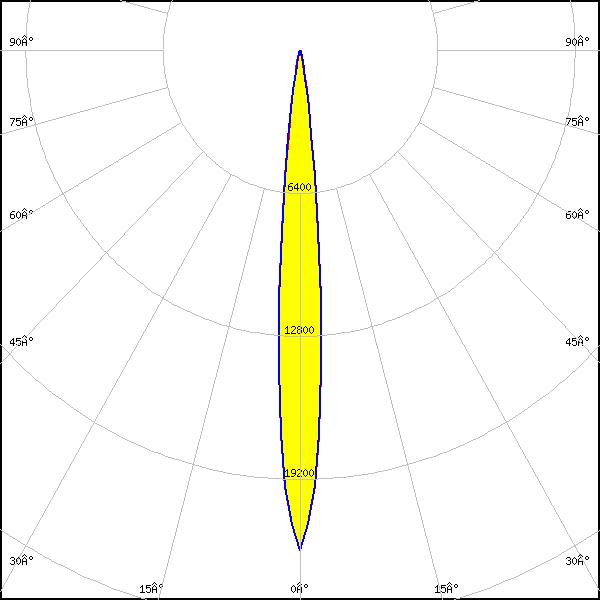

    LED: NVSW219D
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 20.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

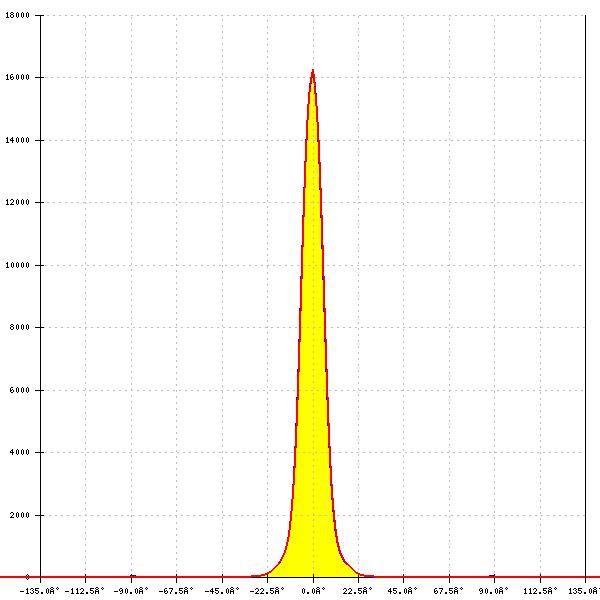

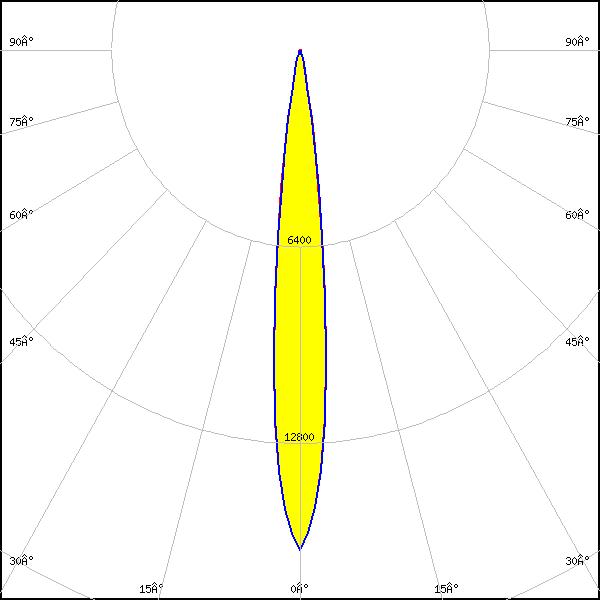

    LED: NVSW3x9A
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 16.284 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

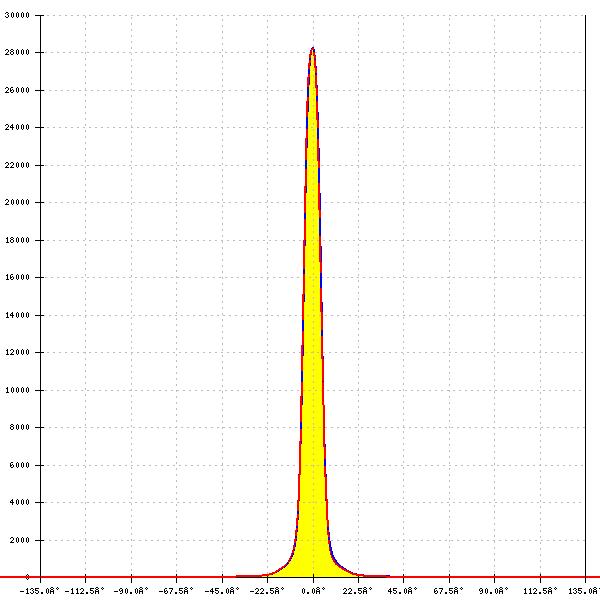

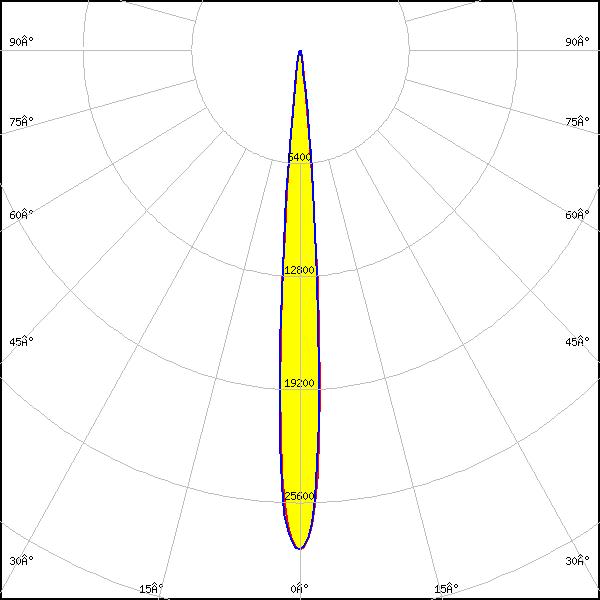

    LED: NVSW719AC
    FWHM: 9°
    FWTM: 15°
    Peak intensity: 28.403 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

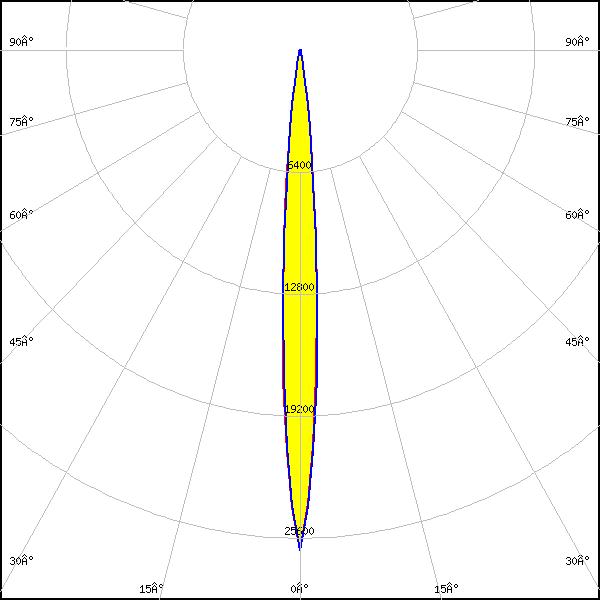

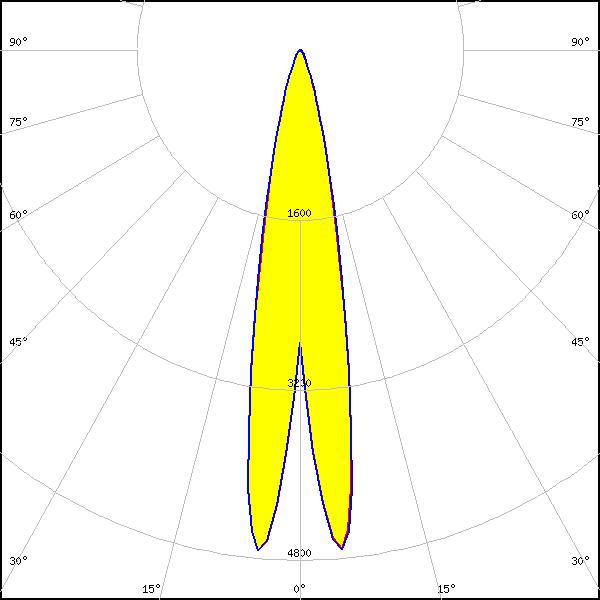

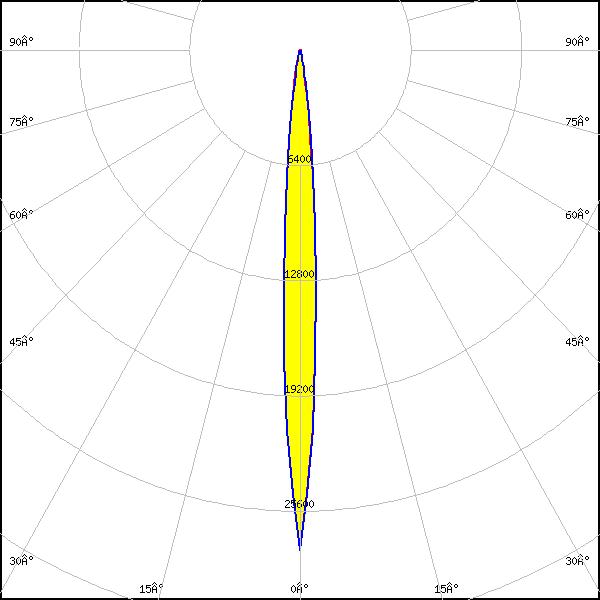

    LED: NVSxE21A
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 27.769 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 26.245 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

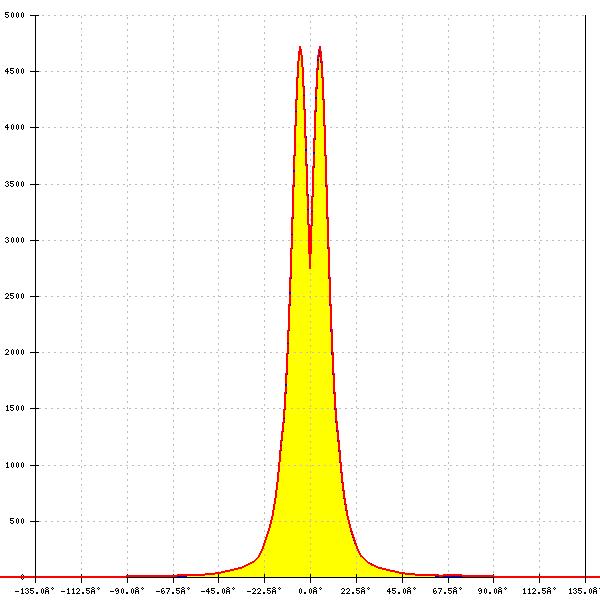

    LED: NVSxE21A
    FWHM: 20°
    FWTM: 38°
    Peak intensity: 4.770 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 4
    Light colour/type: White

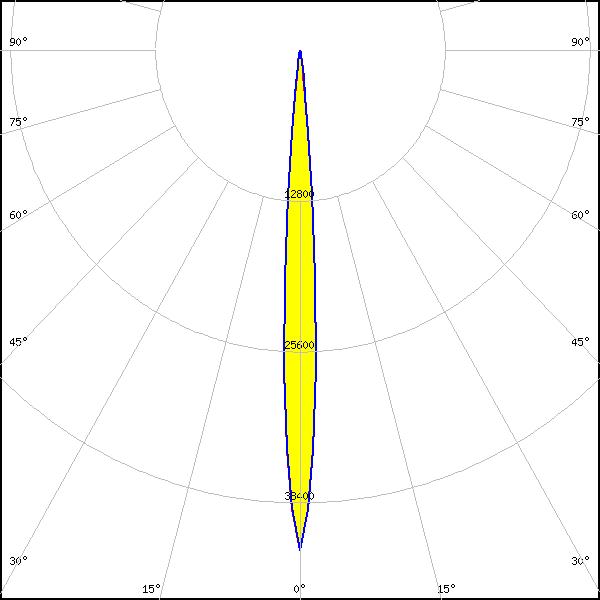

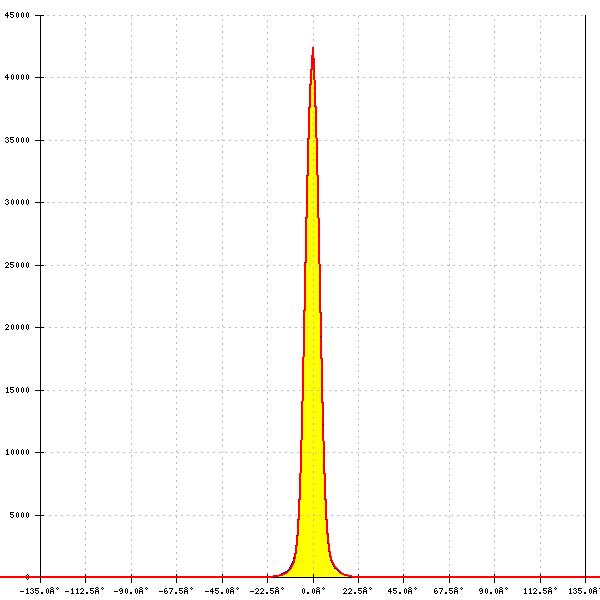

    LED: NVSxx19B/NVSxx19C
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 22.376 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: DURIS S5 (Single chip)
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 25.374 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

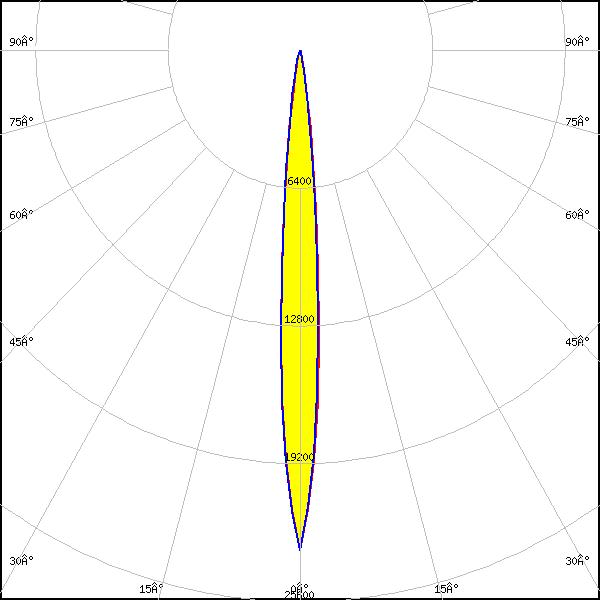

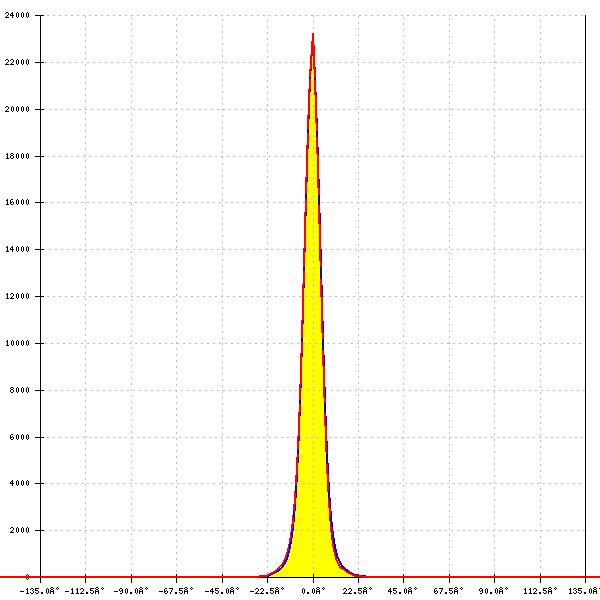

    LED: DURIS S5 (Single chip)
    FWHM: 9°
    FWTM: 18°
    Peak intensity: 23.221 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Purple

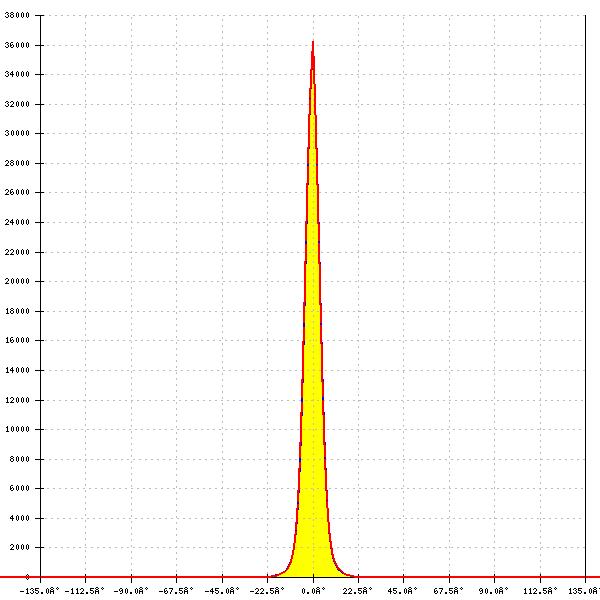

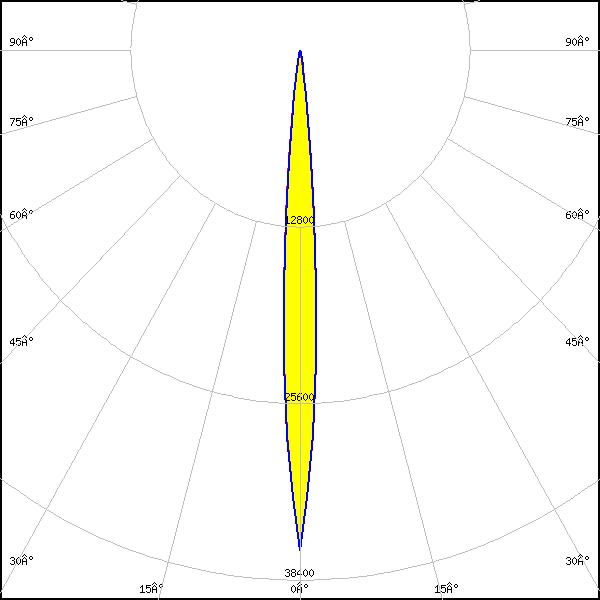

    LED: OSCONIQ C 2424 Gen1
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 36.242 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

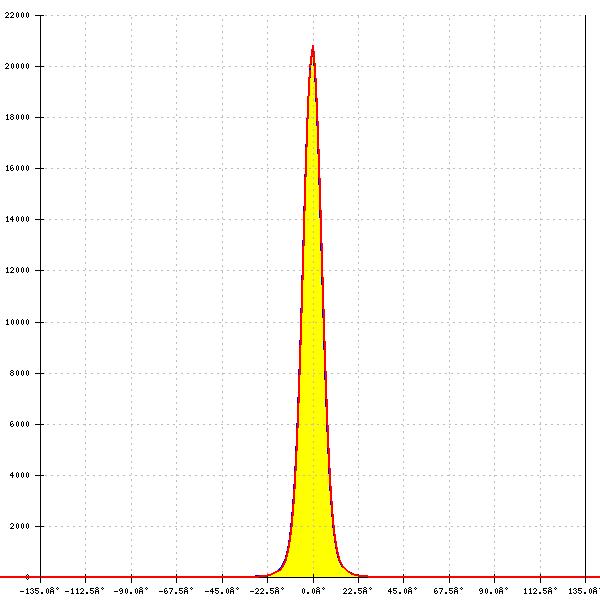

    LED: OSCONIQ P 3030
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 20.829 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

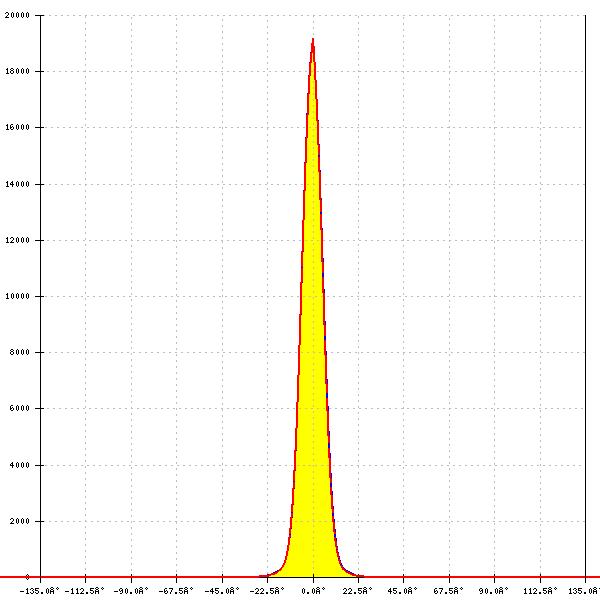

    LED: OSLON Black
    FWHM: 11°
    FWTM: 20°
    Peak intensity: 19.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Black Flat (LUW HWQP)
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 50.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON PURE 1010
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 29.821 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

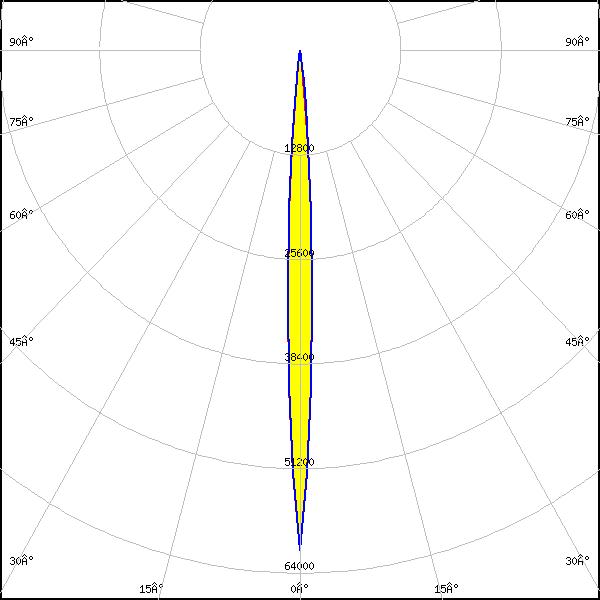

    LED: OSLON Pure 1414
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 61.215 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

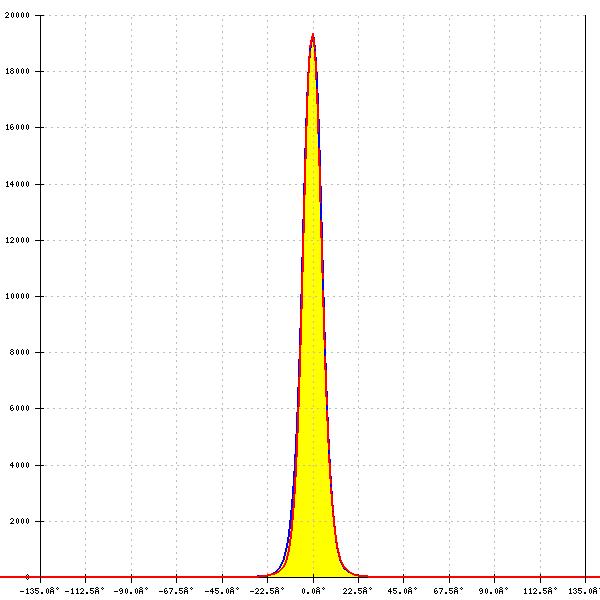

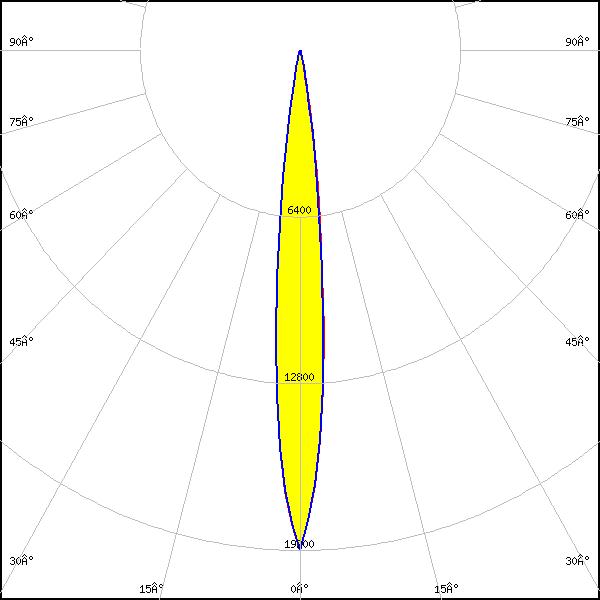

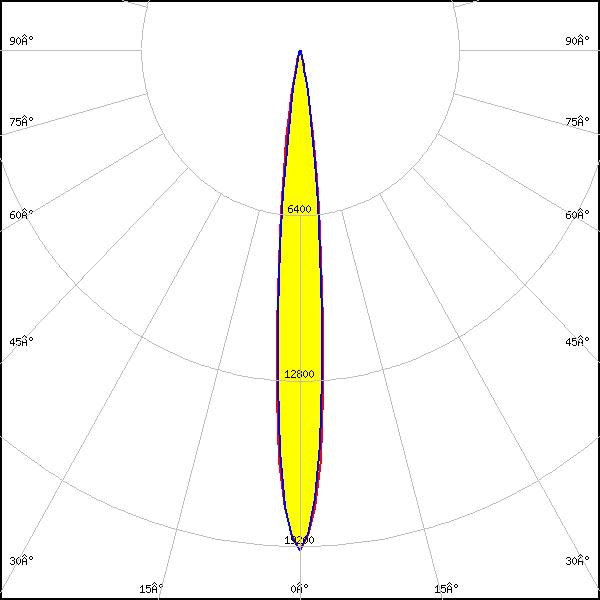

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 11°
    FWTM: 21°
    Peak intensity: 19.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    FWHM: 8°
    FWTM: 15°
    Peak intensity: 29.100 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

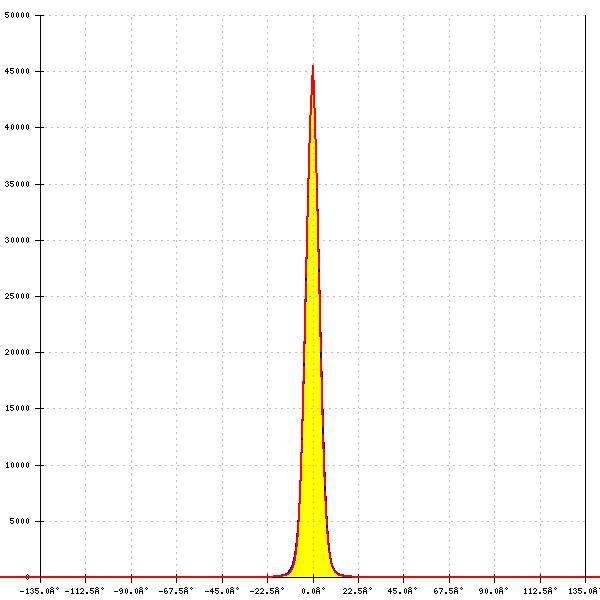

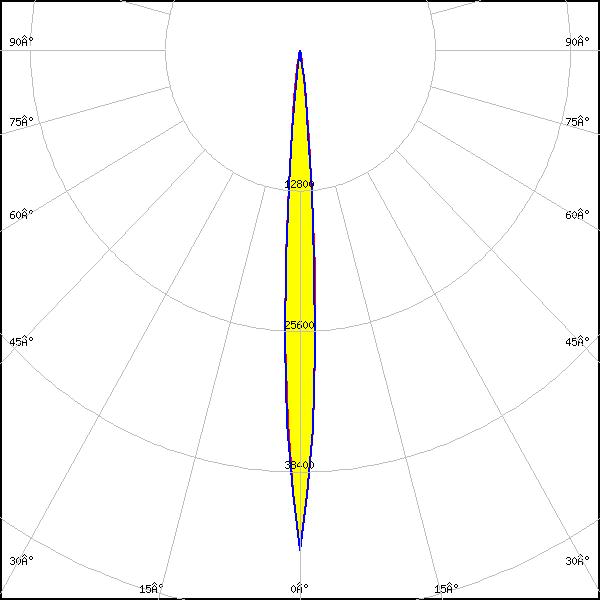

    LED: OSLON SSL 120
    FWHM: 7°
    FWTM: 14°
    Peak intensity: 45.531 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Amber

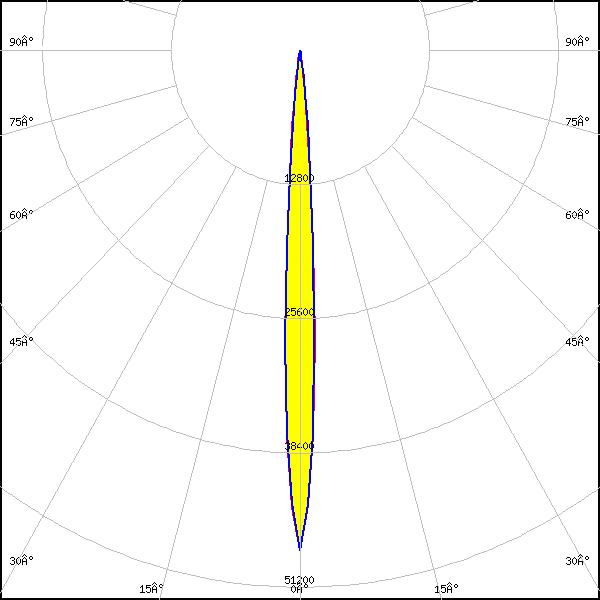

    LED: OSLON SSL 150
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 47.691 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

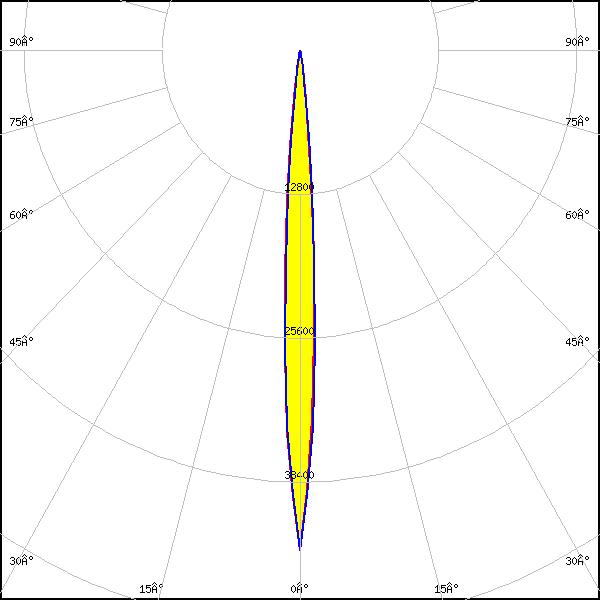

    LED: OSLON SSL 150
    FWHM: 7°
    FWTM: 14°
    Peak intensity: 44.486 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Amber

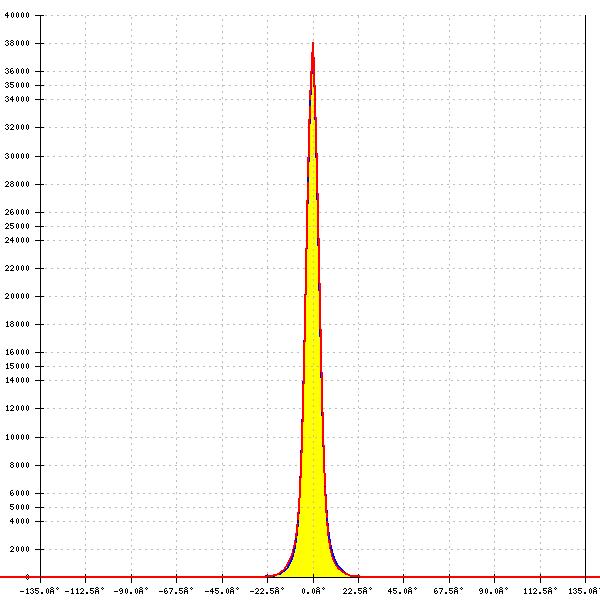

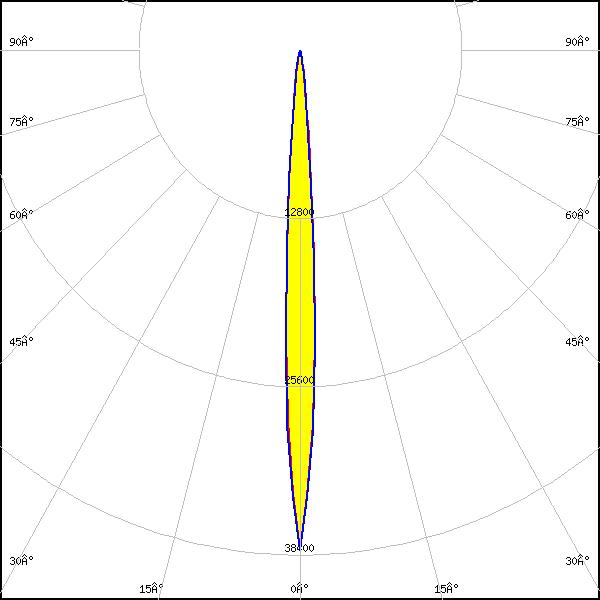

    LED: OSLON SSL 80
    FWHM: 7°
    FWTM: 14°
    Peak intensity: 38.044 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PLPVEC2 850A
    FWHM: 4°
    FWTM: 11°
    LEDs/each optic: 1
    Light colour/type: IR

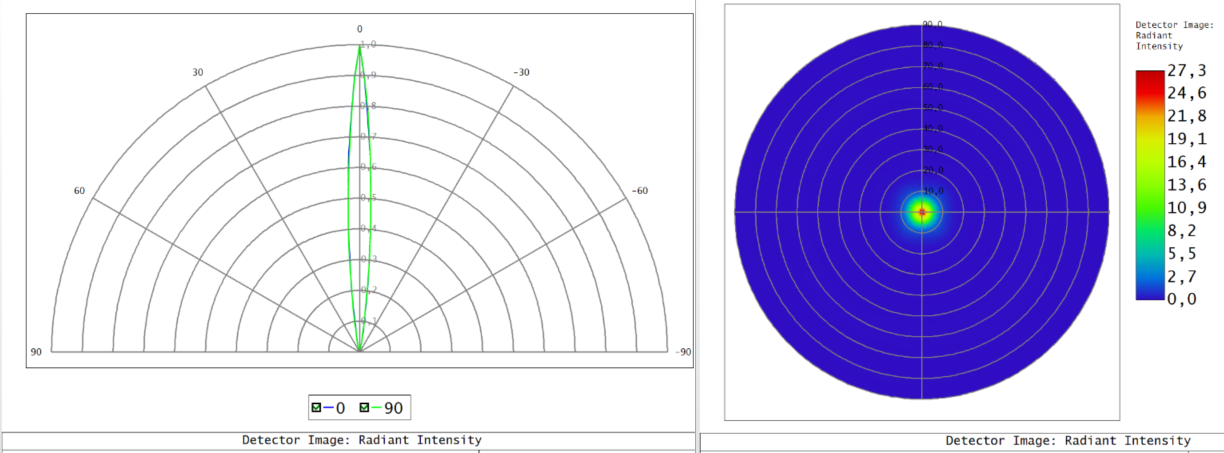

    LED: SFH 4170S
    FWHM: 6°
    FWTM: 11°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: IR

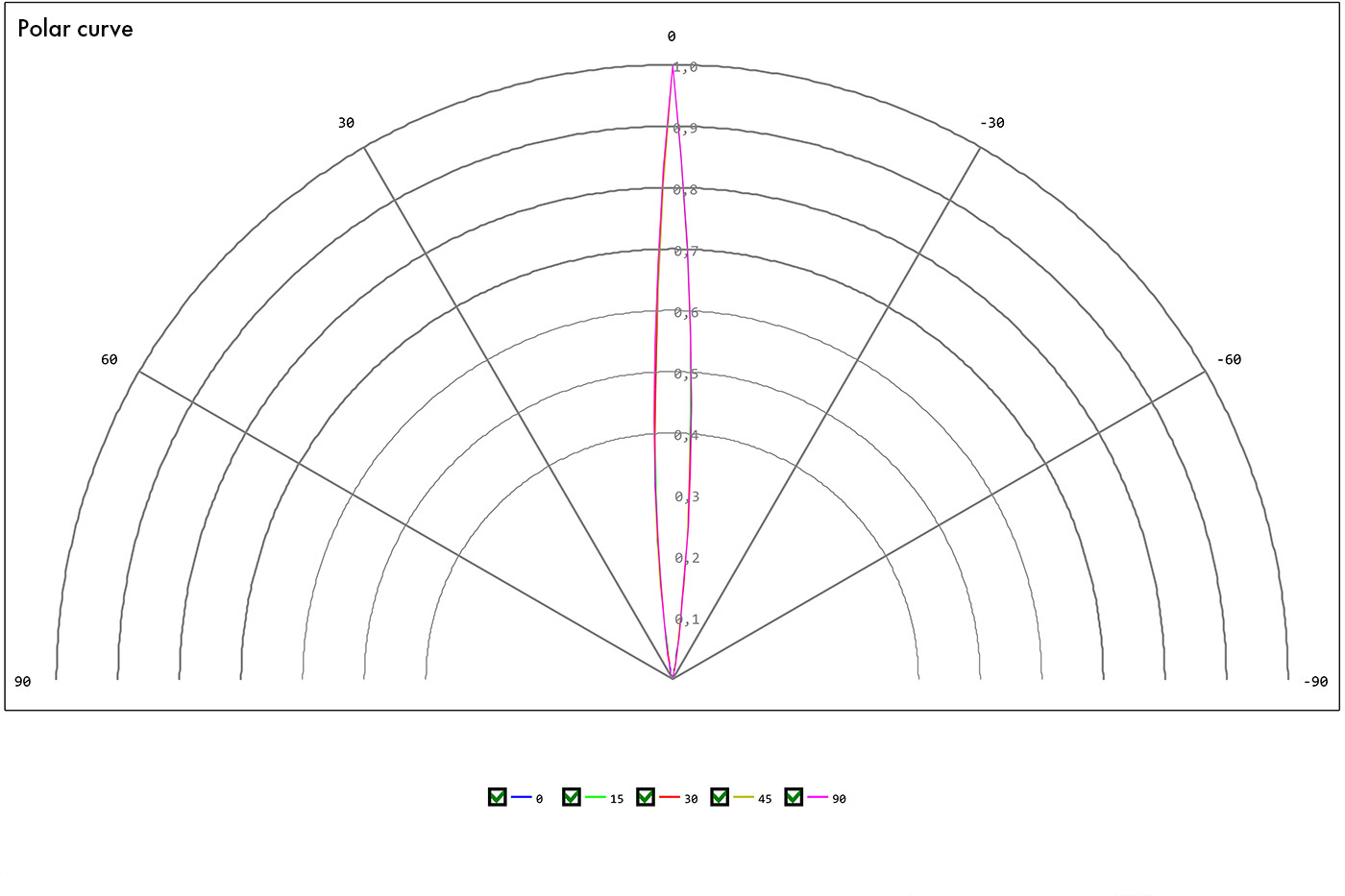

    LED: SFH 4715AS
    FWHM: 6°
    FWTM: 16°
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4716AS
    FWHM: 8°
    FWTM: 14°
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4725AS
    FWHM: 8°
    FWTM: 18°
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: IR

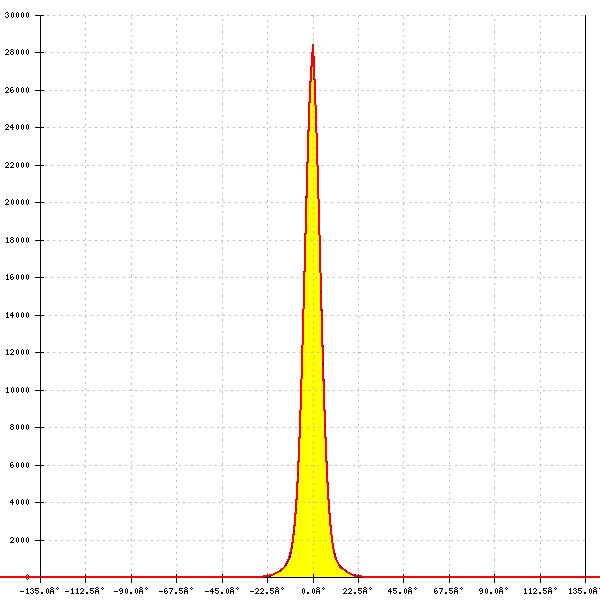

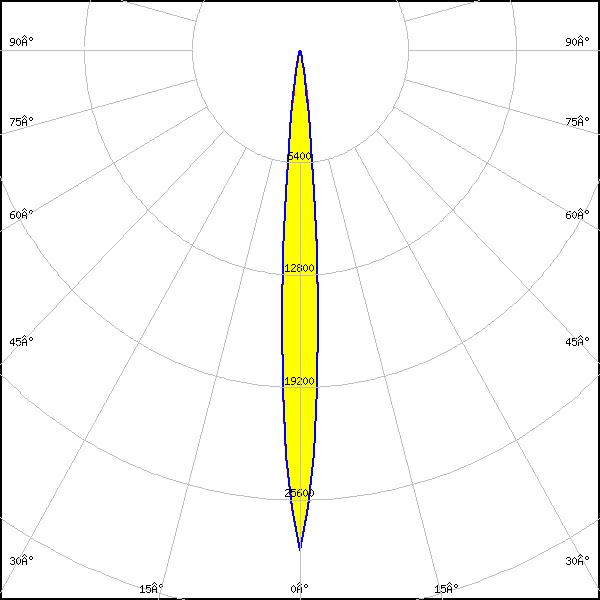

    LED: LM301B
    FWHM: 9°
    FWTM: 18°
    Peak intensity: 28.460 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

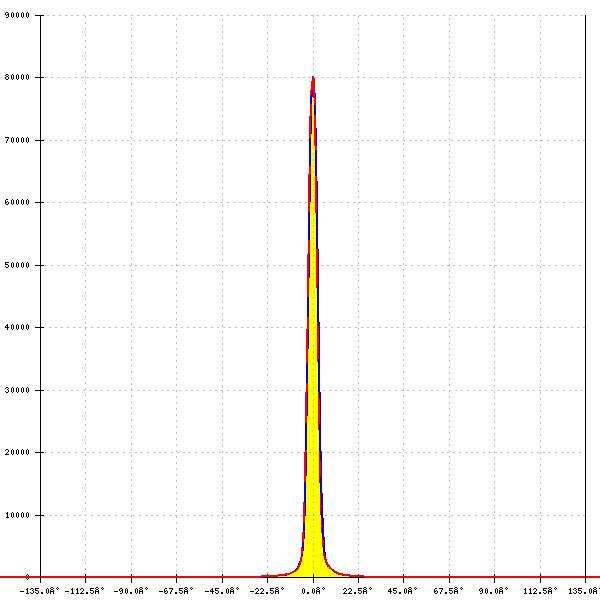

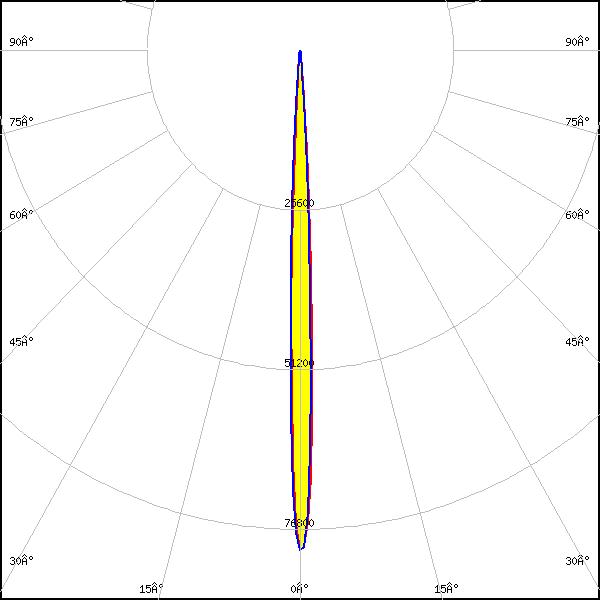

    LED: nPola
    FWHM: 5°
    FWTM: -
    Peak intensity: 81.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

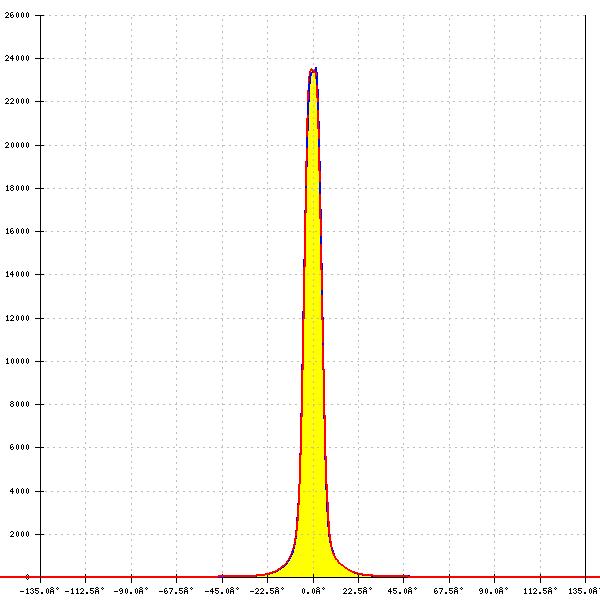

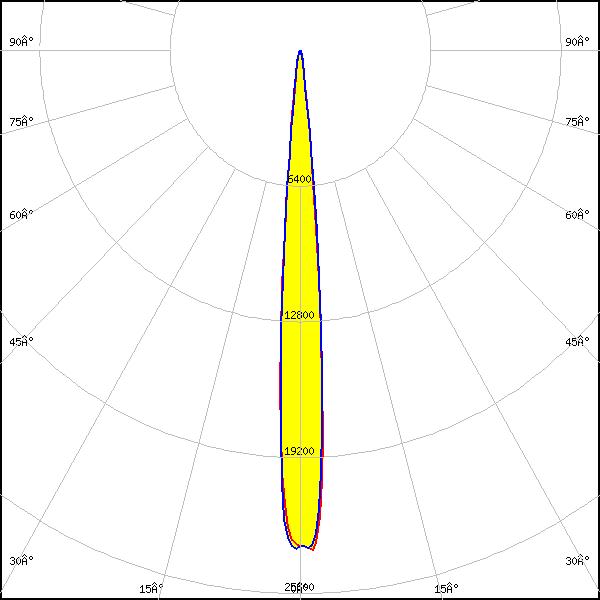

    LED: Z5M1/Z5M2
    FWHM: 9°
    FWTM: 15°
    Peak intensity: 23.700 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
