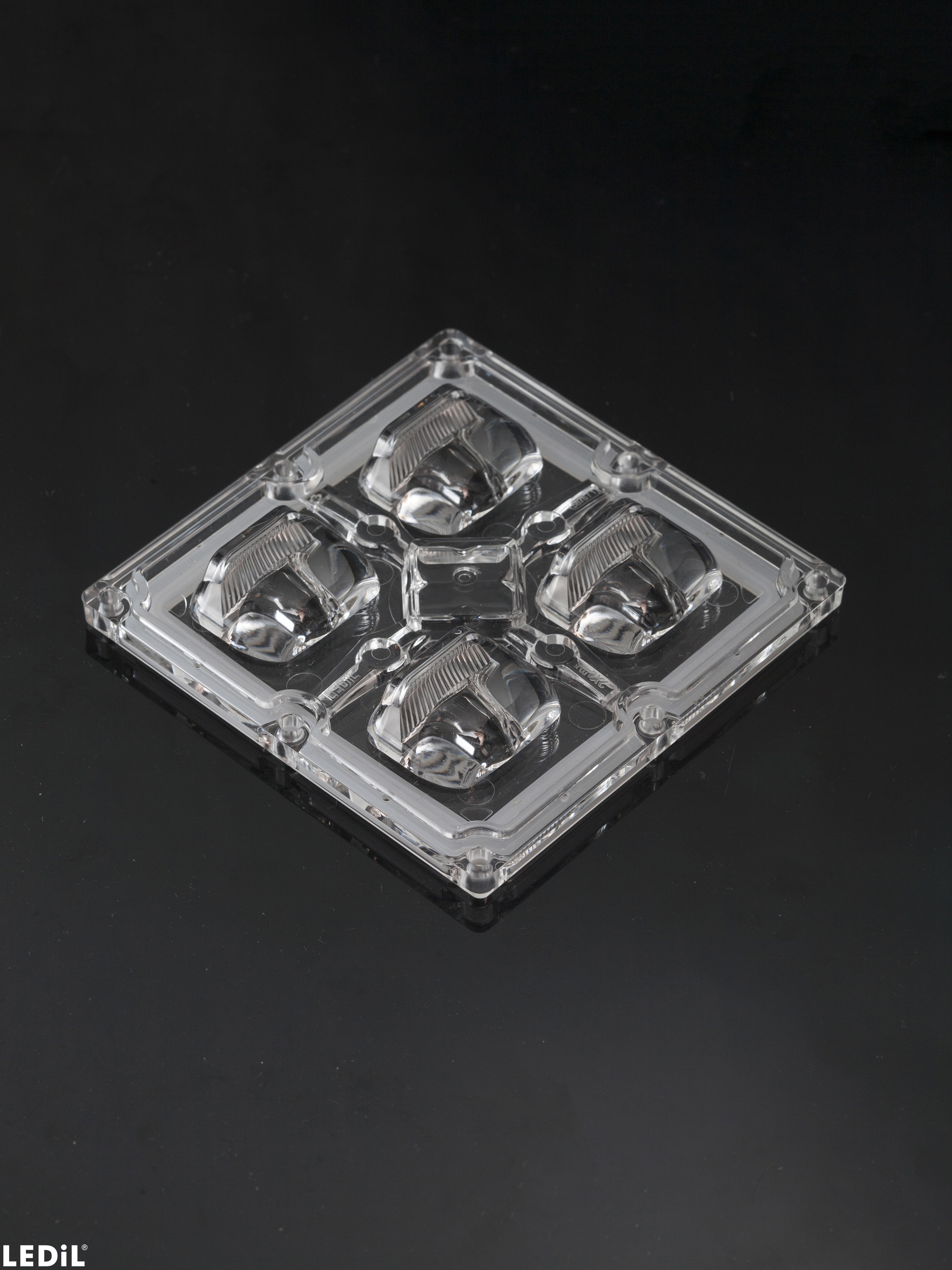

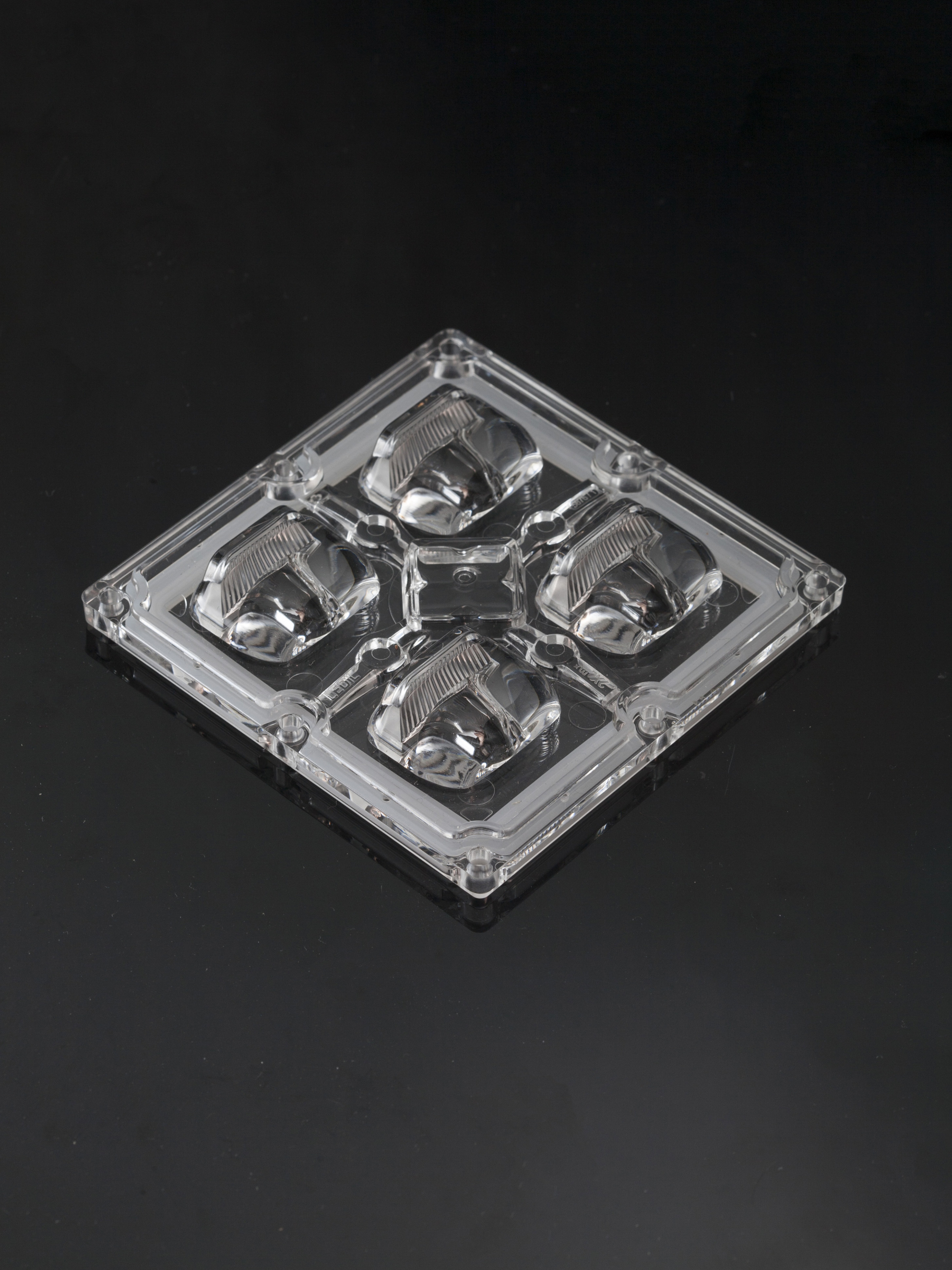

CS15751_STRADA-2X2MX-8-DWC
PrintUniversal road lighting (typically IESNA Type lll medium) beam with excellent mixed illuminance and luminance uniformity
Specification
-
Dimensions:90 x 90 mm
-
Height:13.60 mm
-
Fastening:screw
-
Colour:clear
-
Ingress protection classes:IP67
-
RoHS and REACH compliant:Yes
Component Materials
- STRADA-2X2MX-8-DWCMulti-lensPMMA
- STRADA-2X2MX-8-SEALSealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:156 pcs
-
Box size:476 x 273 x 292 mm
-
Box weight:7.5 kg
-
MPQ:52 pcs
-
MOQ:52 pcs
-
MOQ size:480 x 280 x 110 mm
-
MOQ weight:2.7 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content
Optical results
LED:

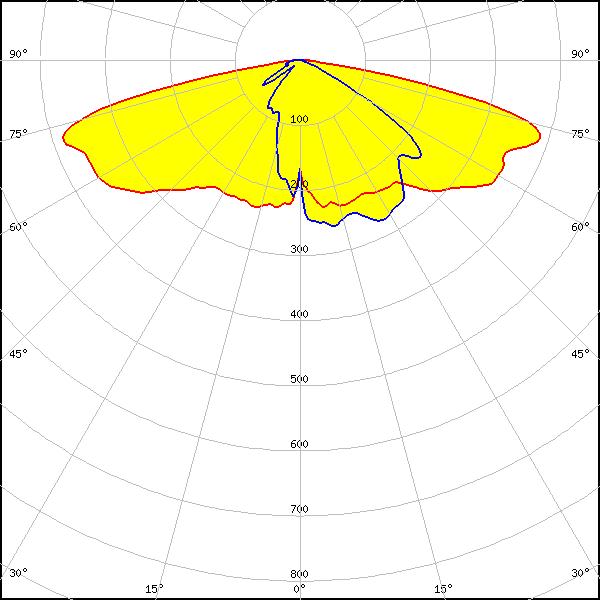

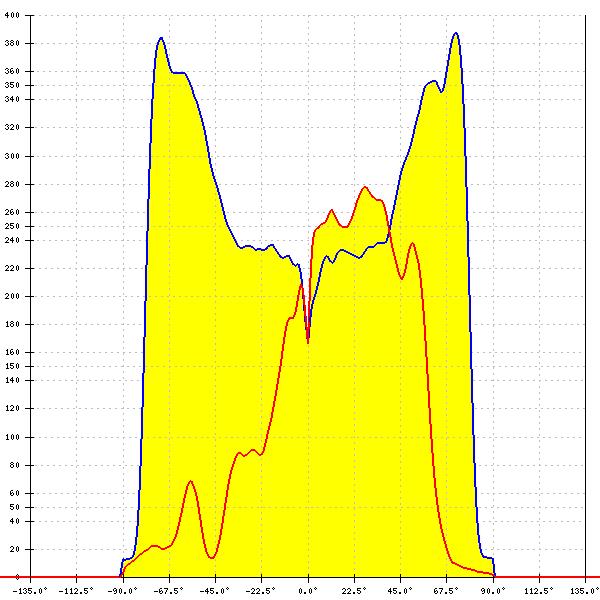

Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

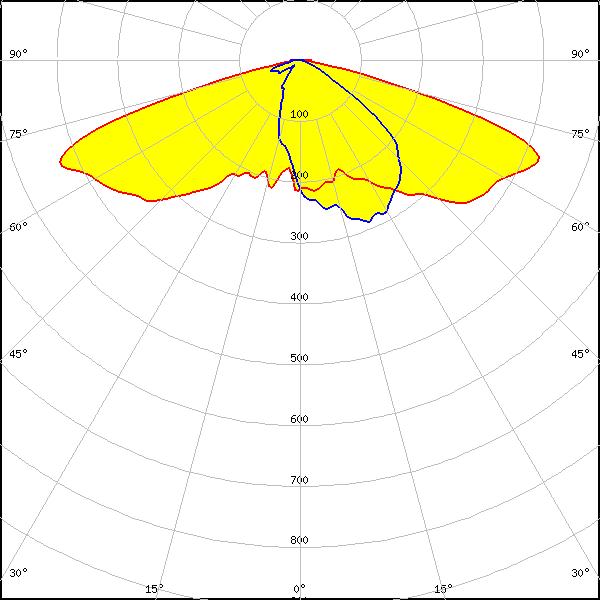

LED:

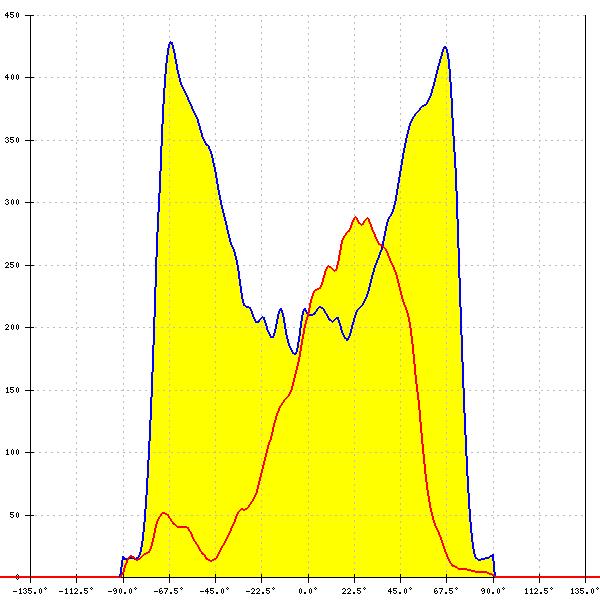

CLU700/701/702/703
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity:
0.570 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

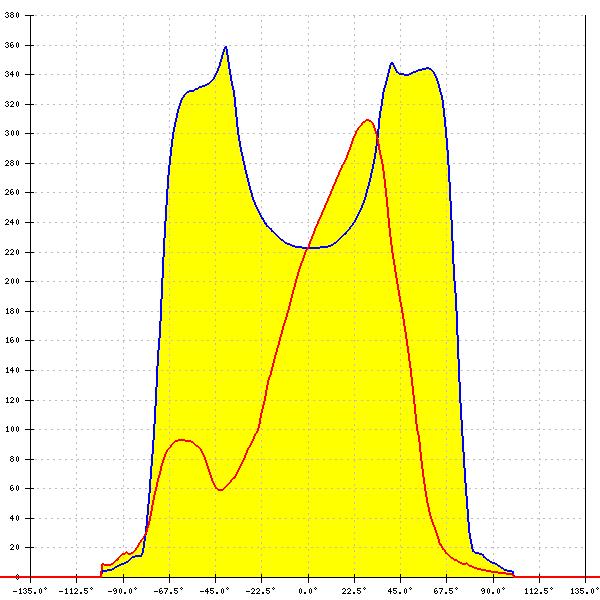

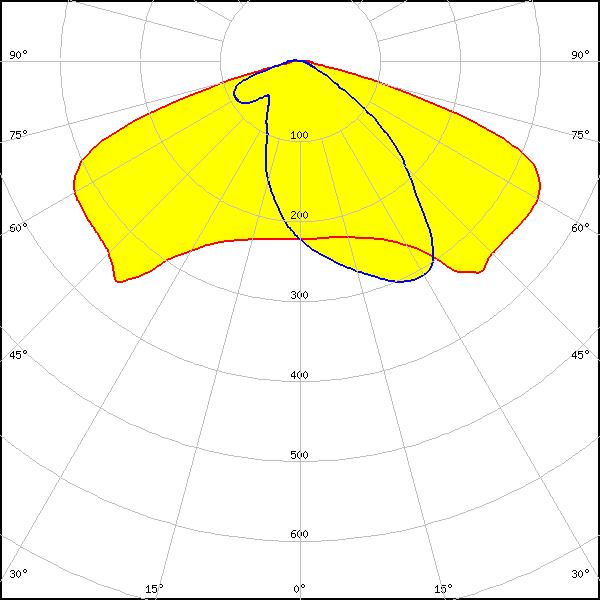

LED:
CXA/B 15xx
Required components:
Bender Wirth: 441 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

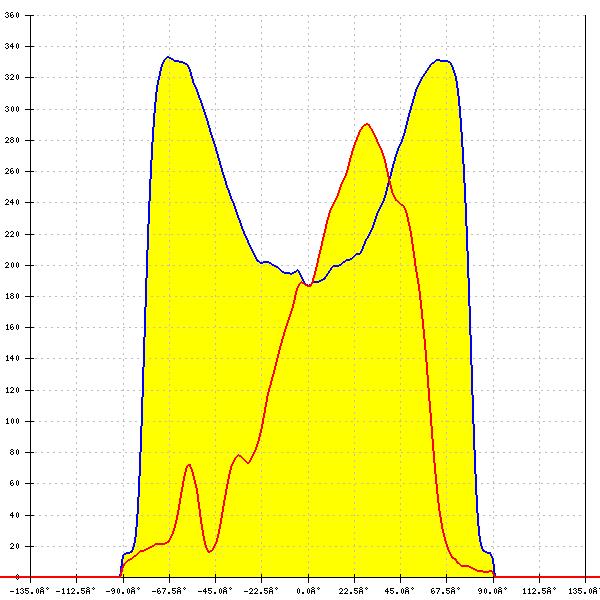

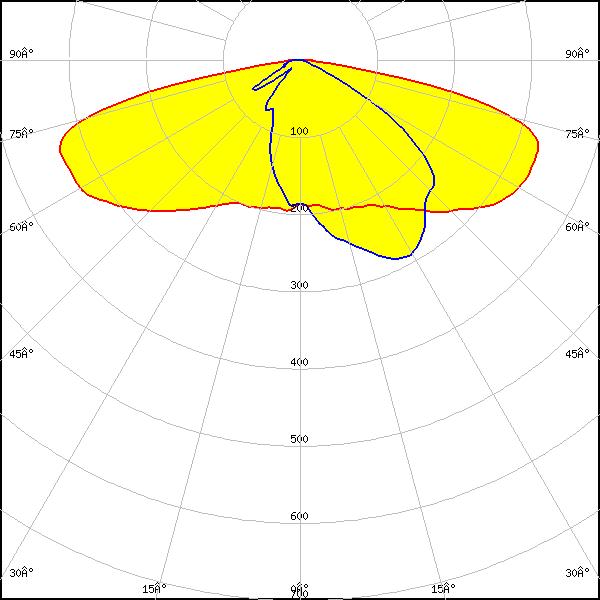

J Series 7070B K Class
FWHM: asymmetric
Peak intensity:
0.461 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

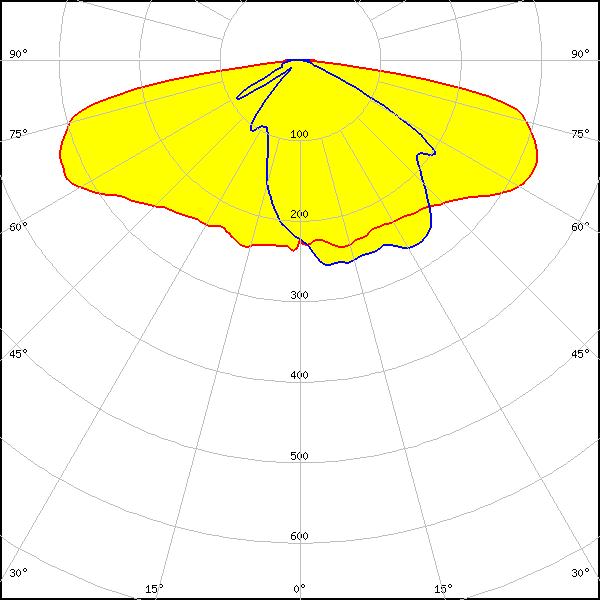

LED:

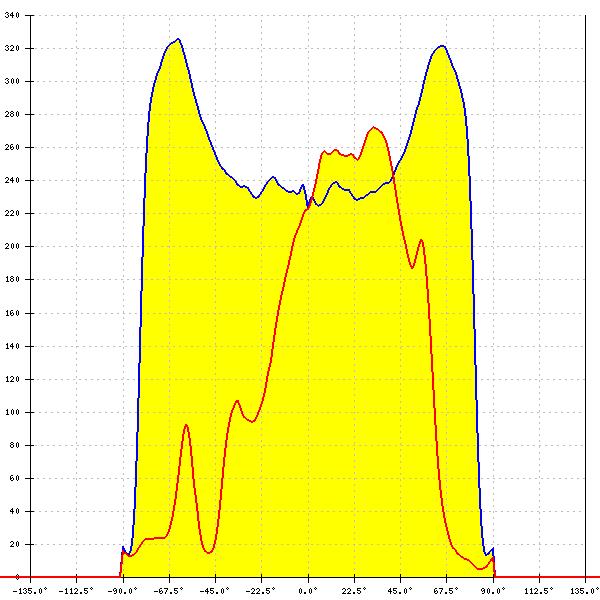

MHB-A/B
FWHM: asymmetric
Peak intensity:
0.411 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

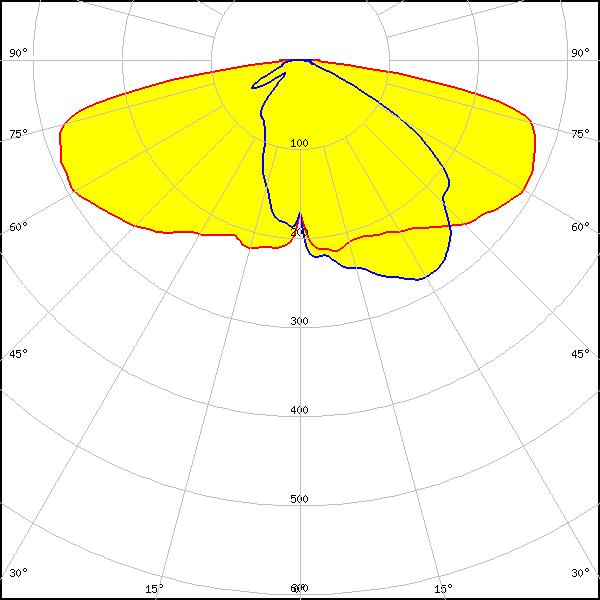

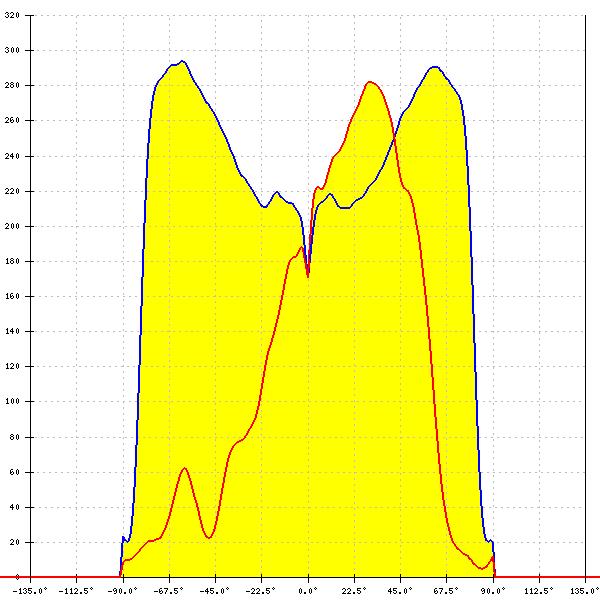

MHD-E/G
FWHM: asymmetric
Peak intensity:
0.390 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

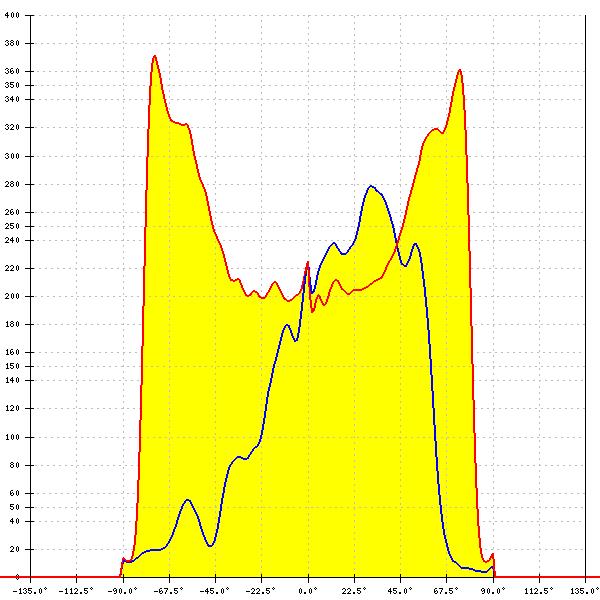

LED:

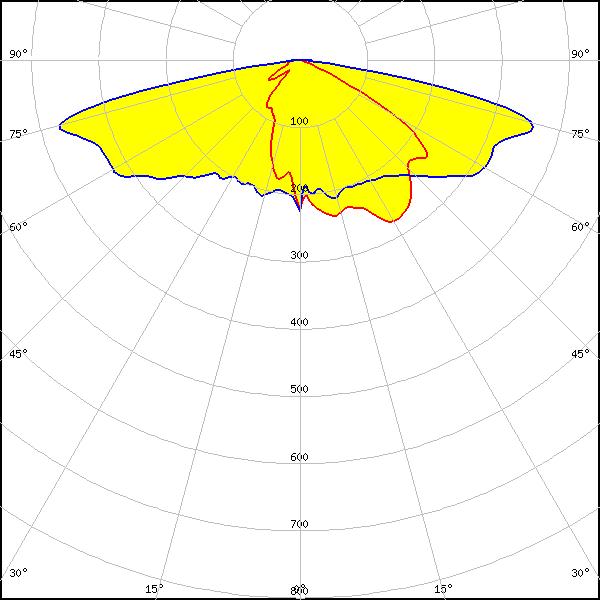

XHP50
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

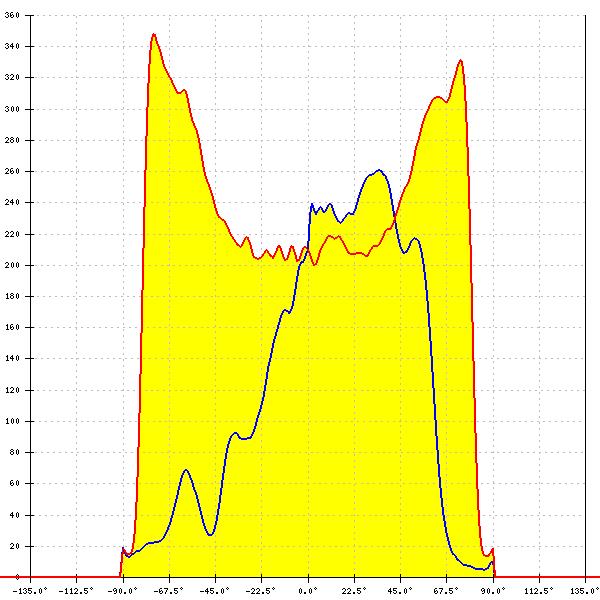

LED:

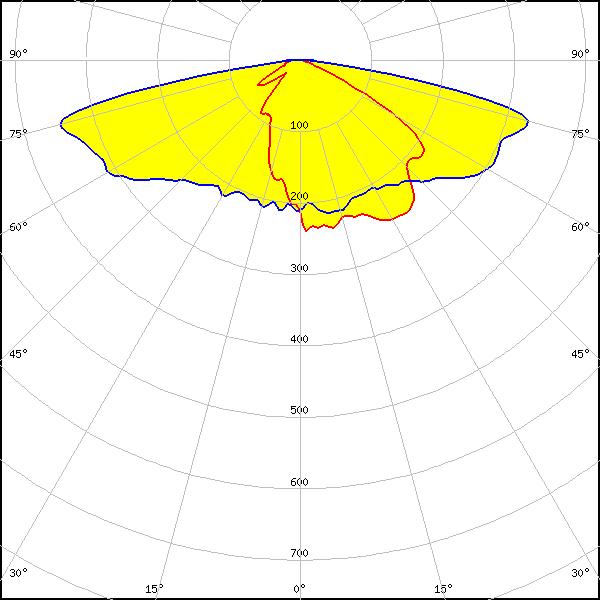

XHP50.2
FWHM: asymmetric
Peak intensity:
0.490 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

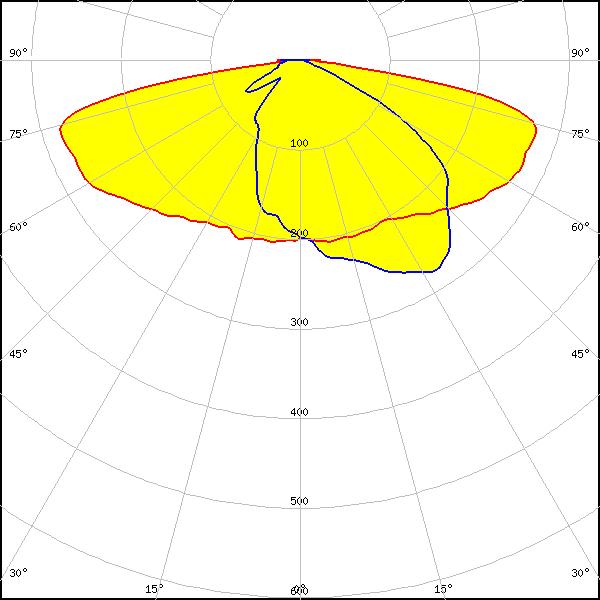

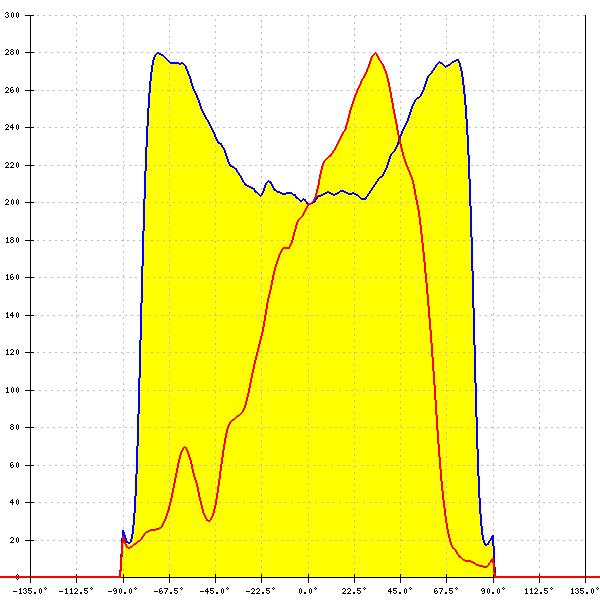

XHP70.2
FWHM: asymmetric
Peak intensity:
0.394 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

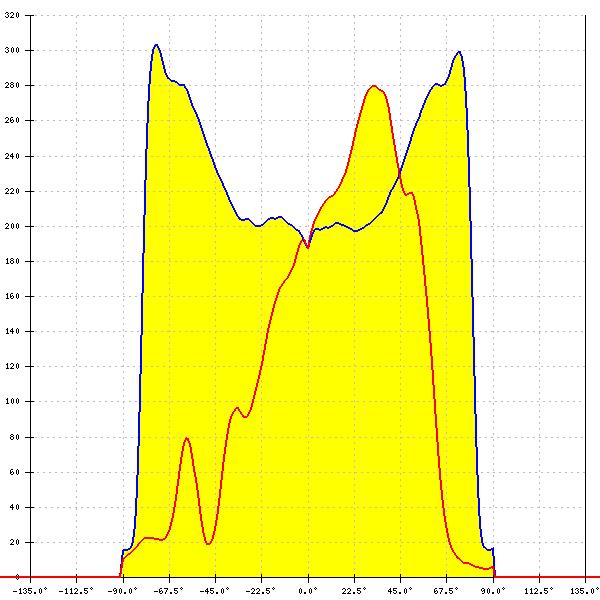

LED:

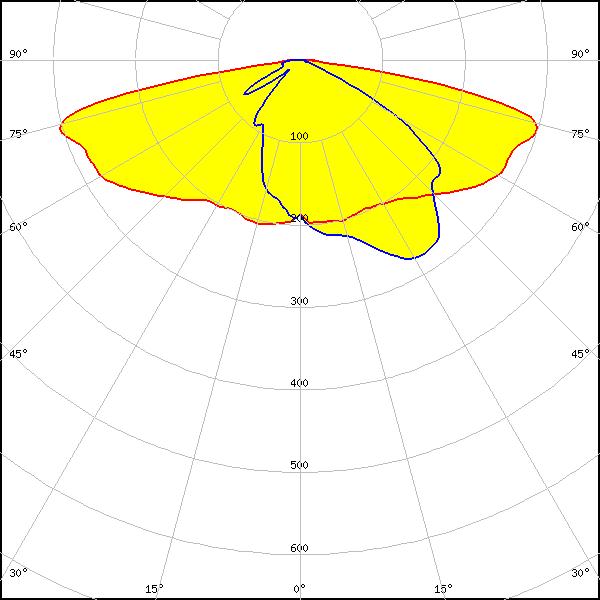

XHP70.3 HD
FWHM: asymmetric
Peak intensity:
0.429 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

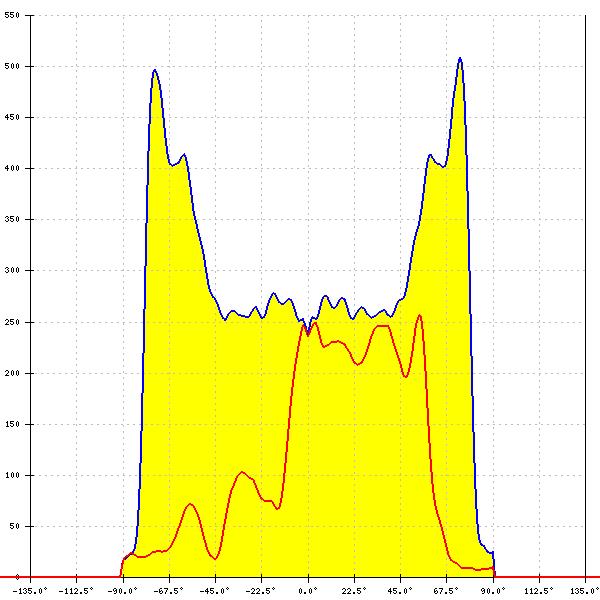

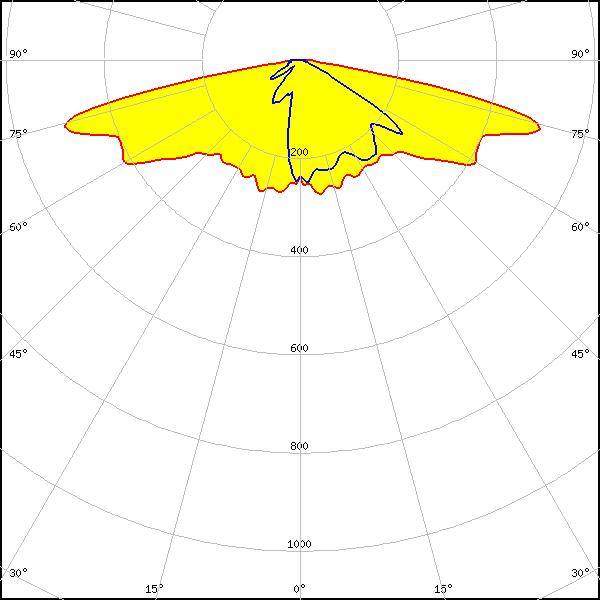

XT-E
FWHM: asymmetric
Peak intensity:
0.559 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

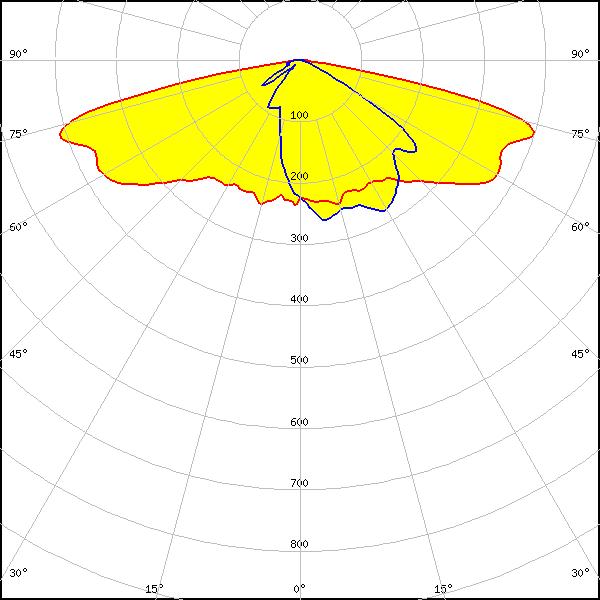

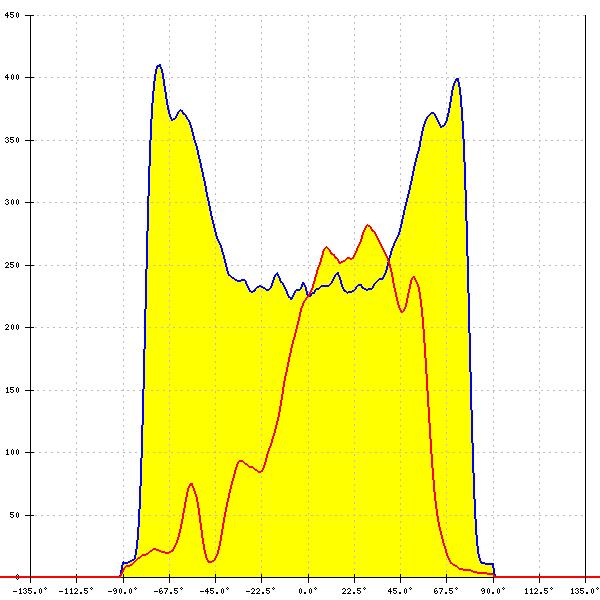

LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.570 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

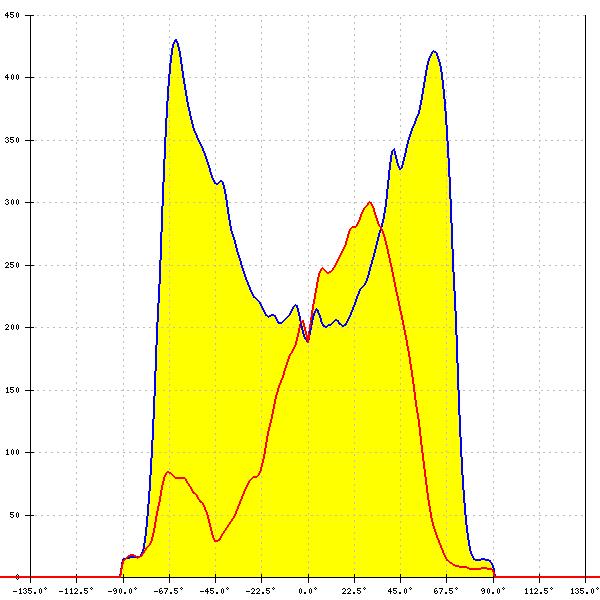

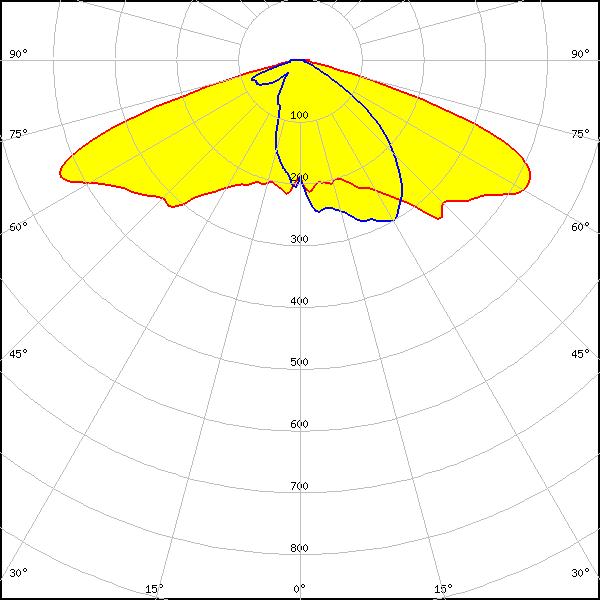

LUXEON 7070
FWHM: asymmetric
Peak intensity:
0.595 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

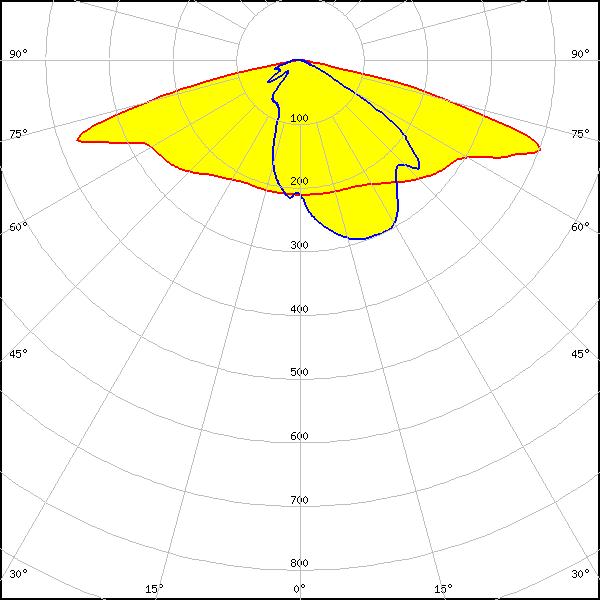

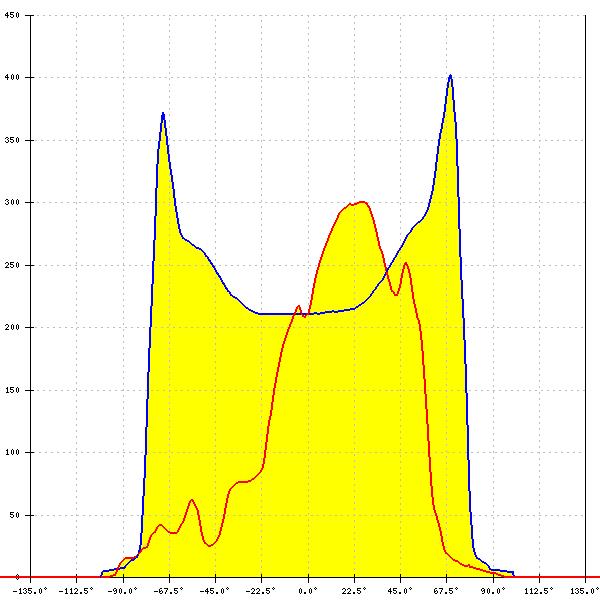

LUXEON M/MX
FWHM: asymmetric
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

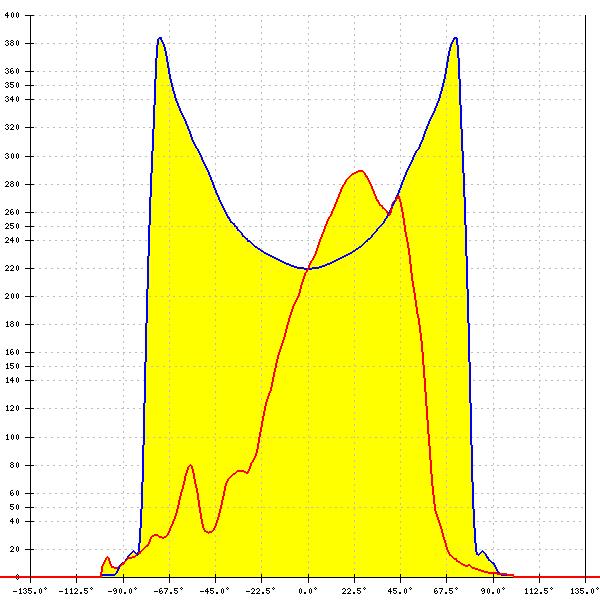

LED:

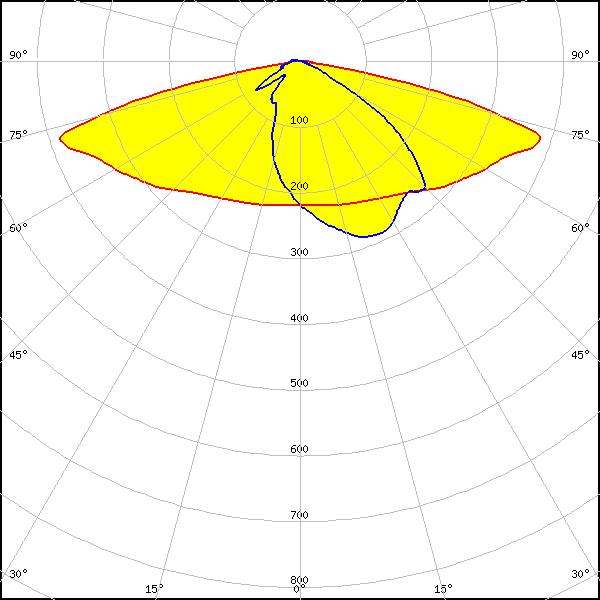

LUXEON XR-7070 (L224-xxxx004MLU010)
FWHM: asymmetric
Peak intensity:
0.552 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

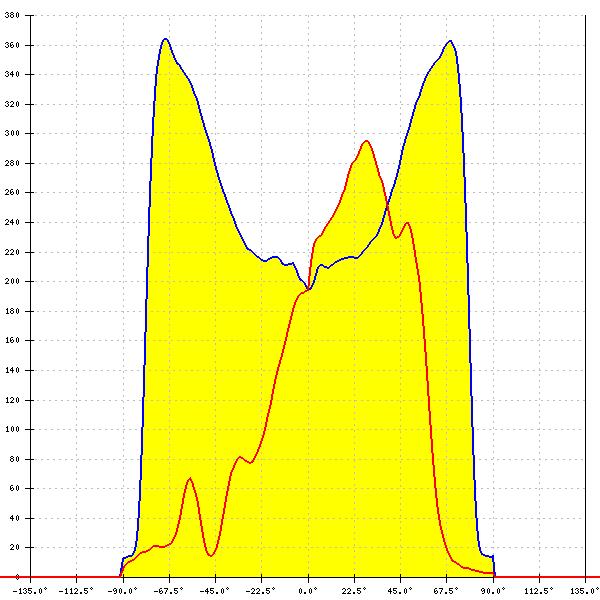

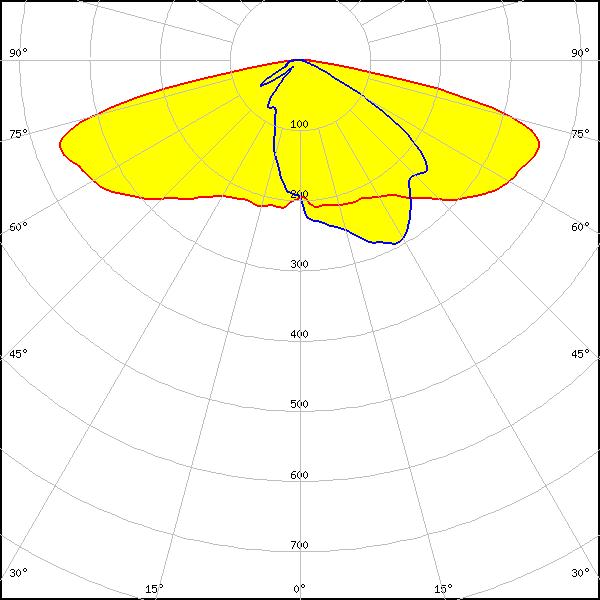

MP 7070
FWHM: asymmetric
Peak intensity:
0.497 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

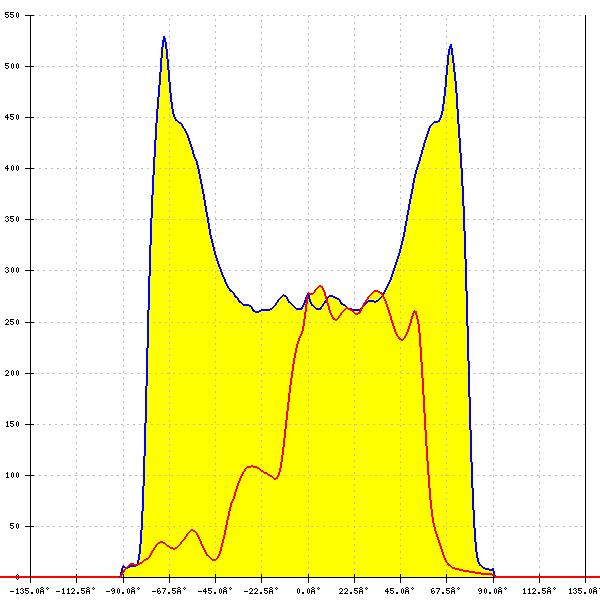

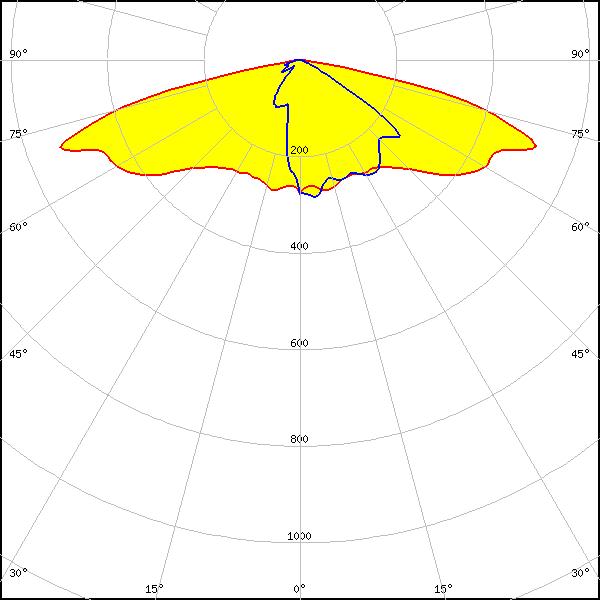

SFT-70X-WCS
FWHM: asymmetric
Peak intensity:
0.626 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

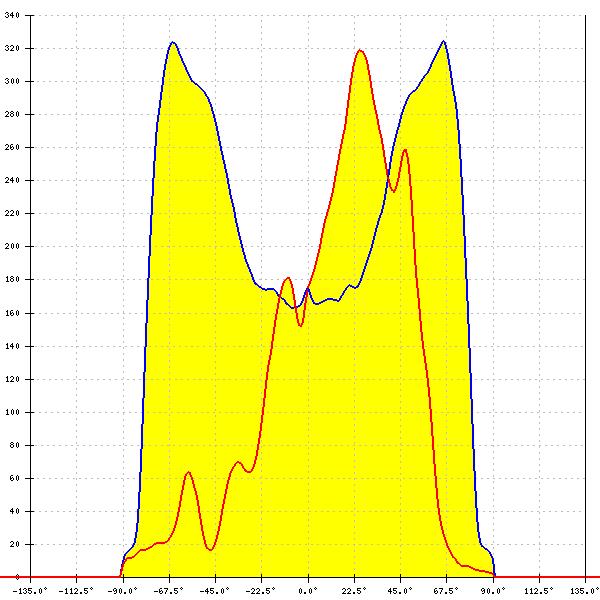

LED:

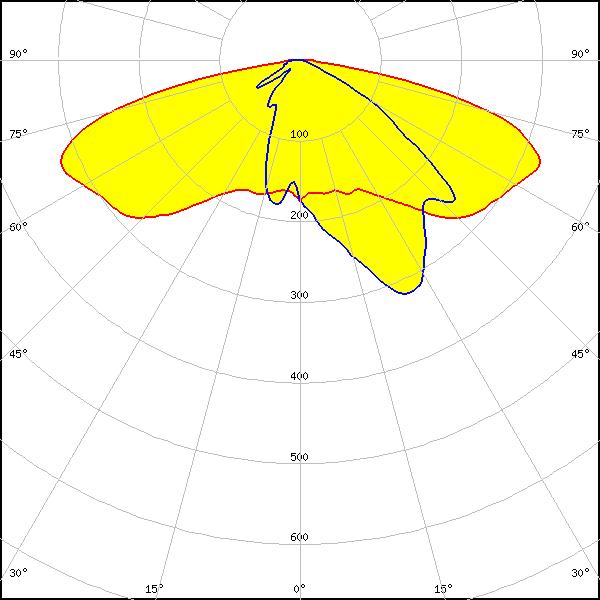

NF2x757G
FWHM: asymmetric
Peak intensity:
0.493 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White
LED:

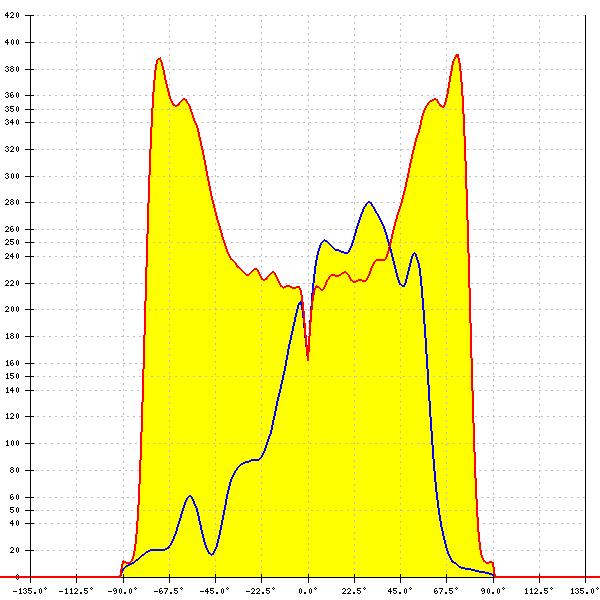

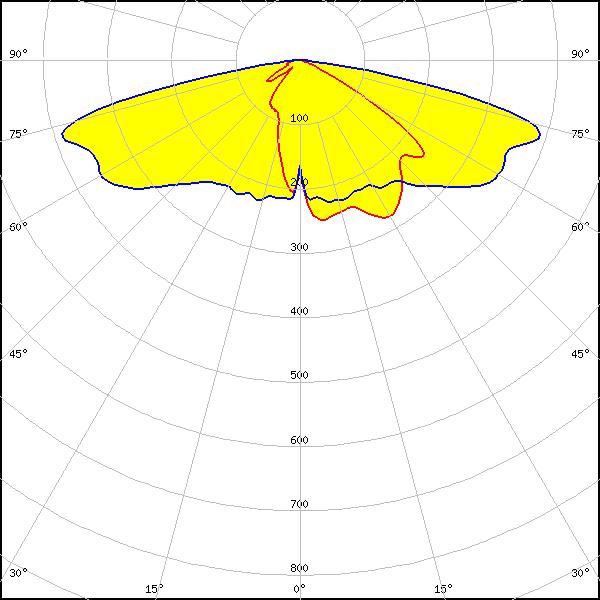

NFMW48xA
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

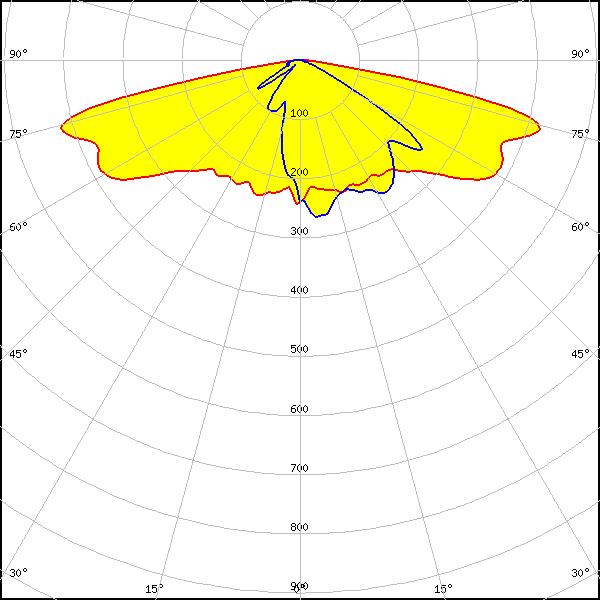

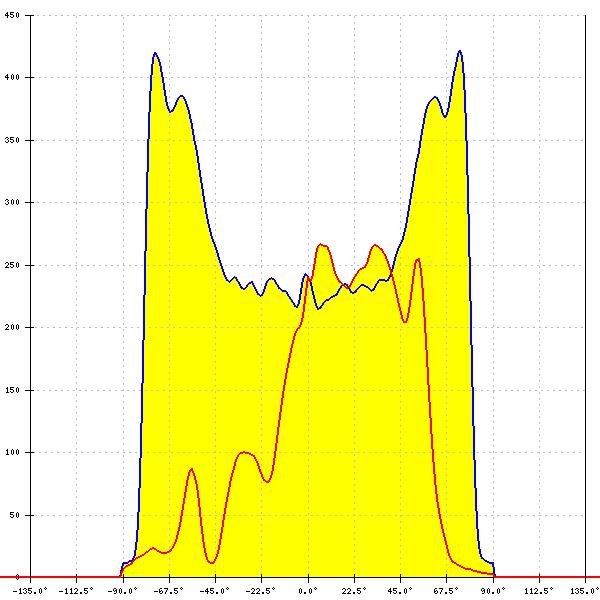

LED:
NV4WB35AM
FWHM: asymmetric
Peak intensity:
0.564 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

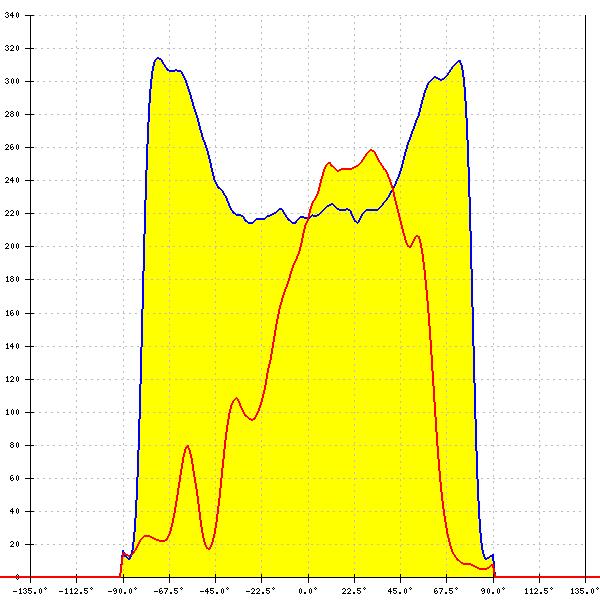

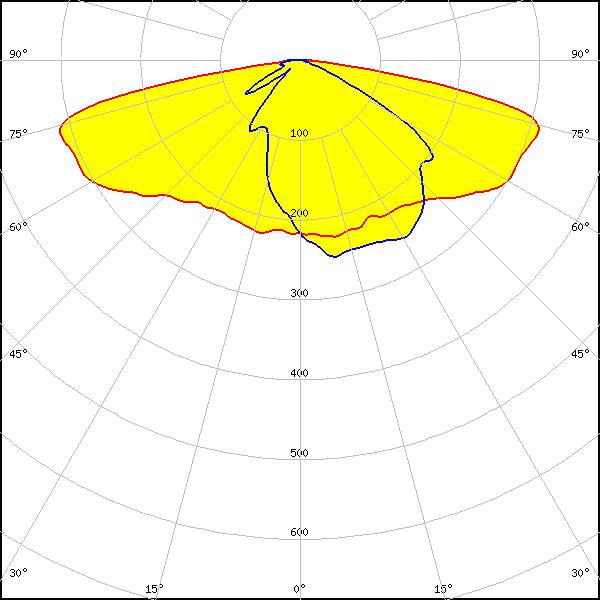

NV4x144A
FWHM: asymmetric
Peak intensity:
0.440 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

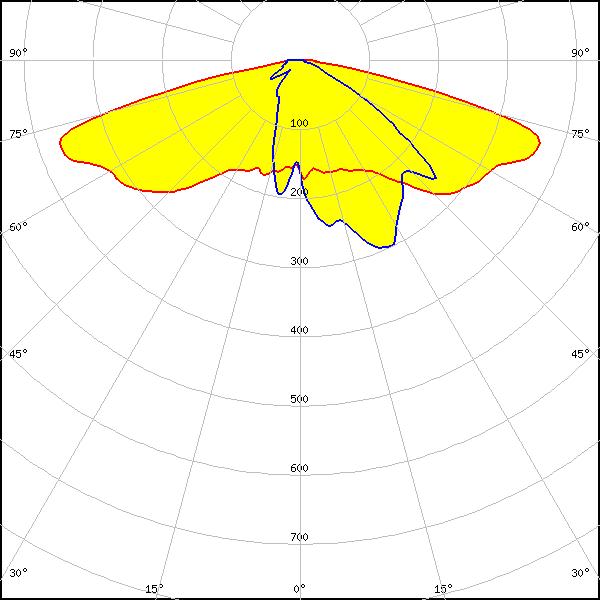

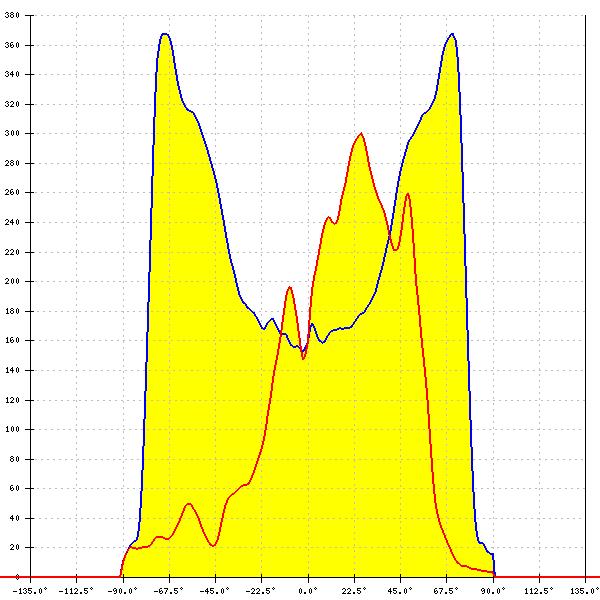

LED:

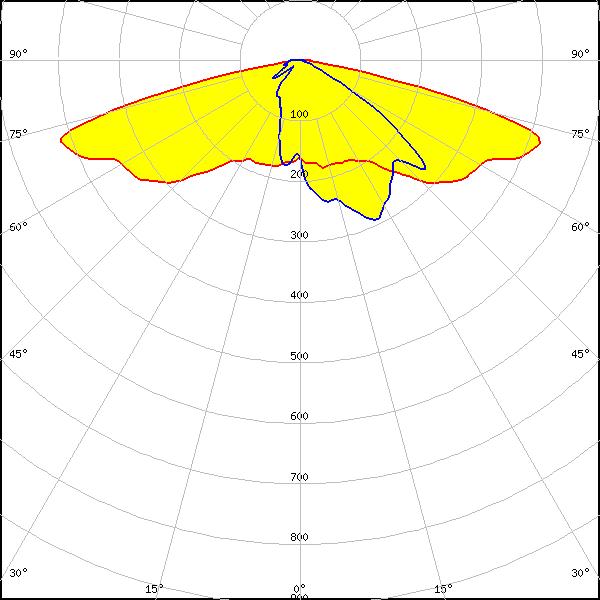

NVSxE21A
FWHM: asymmetric
Peak intensity:
0.608 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White
LED:

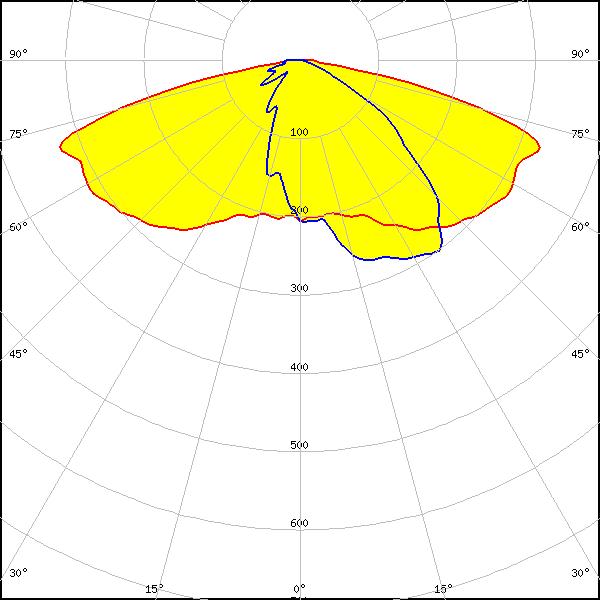

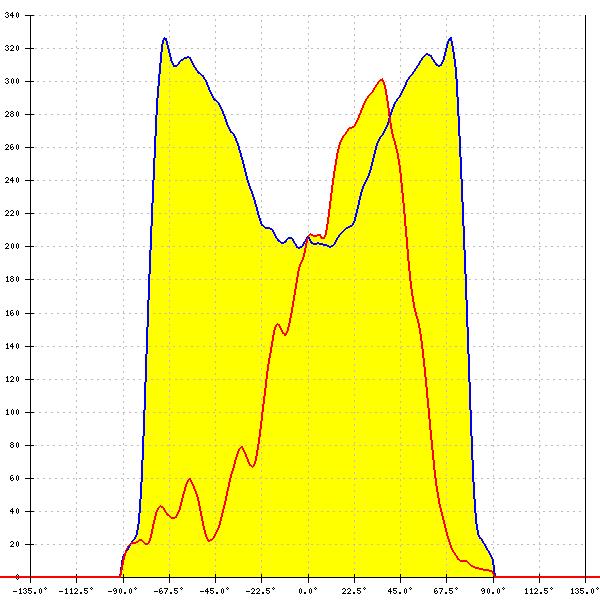

NVSxE21A
FWHM: asymmetric
Peak intensity:
0.476 cd/lm
Efficiency:
95 %
LEDs/each optic:
9
Light colour/type:
White
LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.560 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:

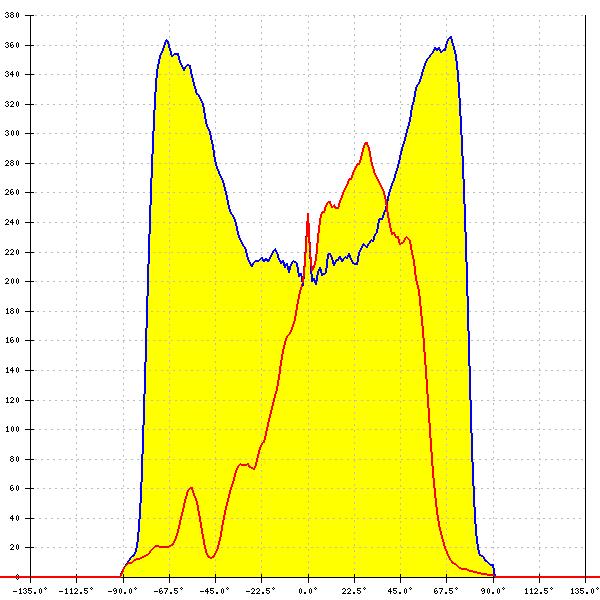

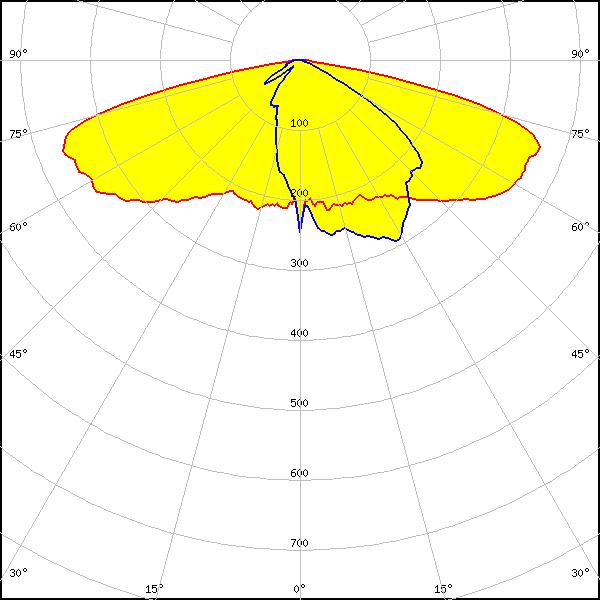

Duris S10
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

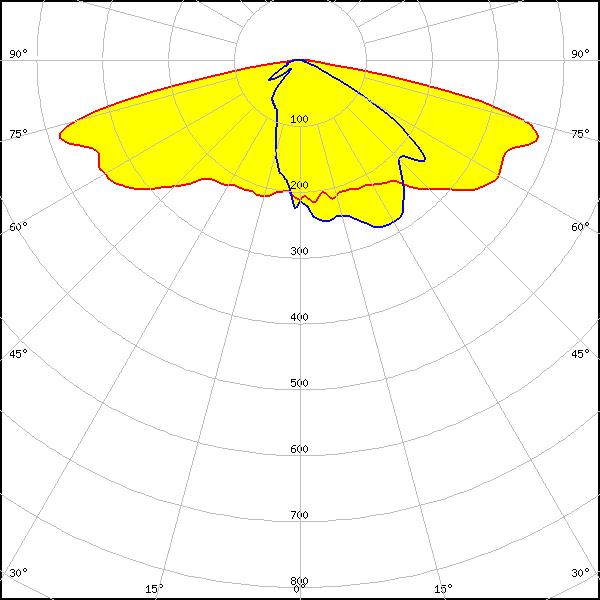

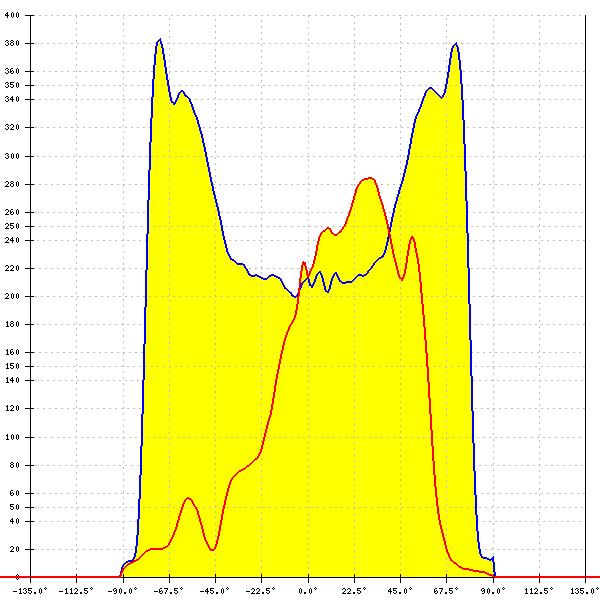

Duris S8
FWHM: asymmetric
Peak intensity:
0.545 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424 Gen1
FWHM: asymmetric
Peak intensity:
0.561 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White
LED:

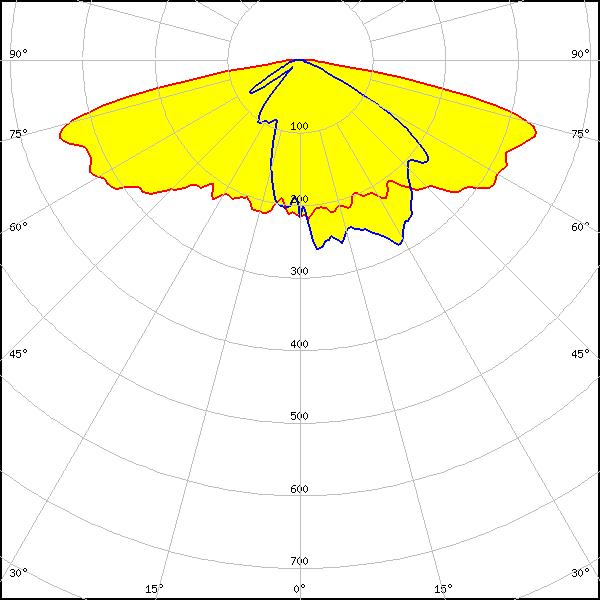

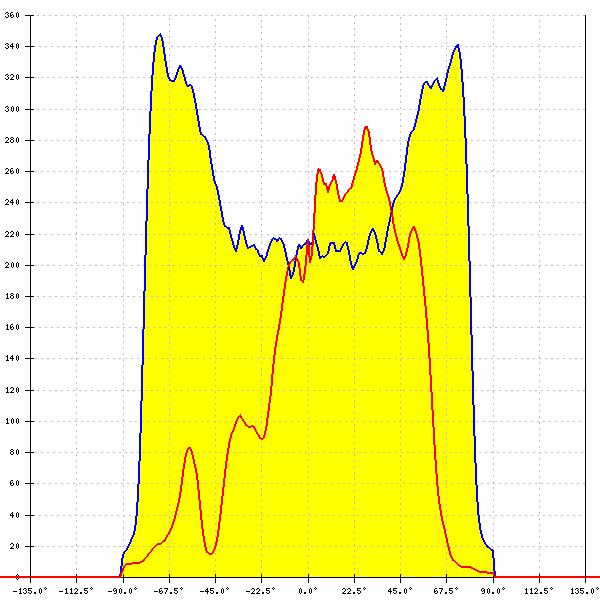

OSCONIQ P 7070
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

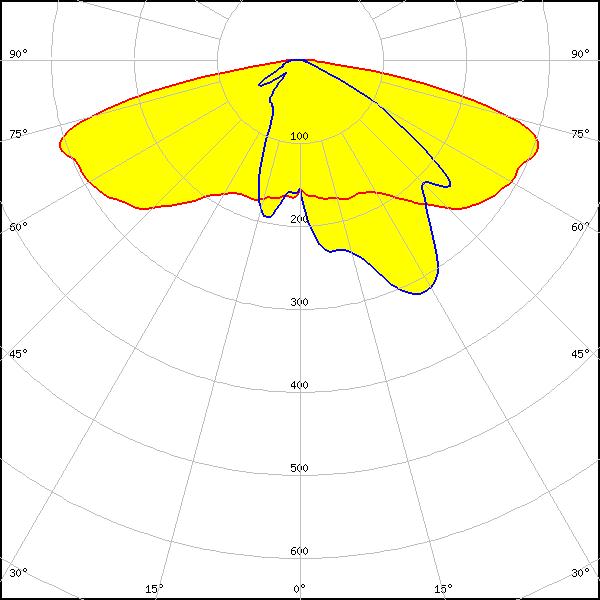

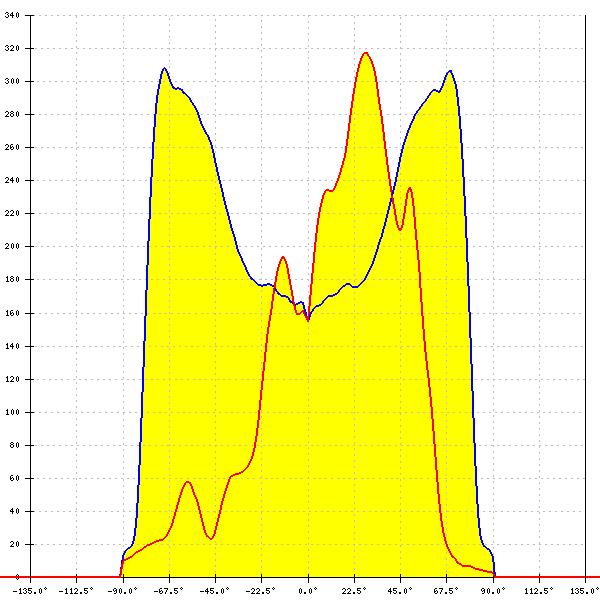

OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.479 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White
LED:

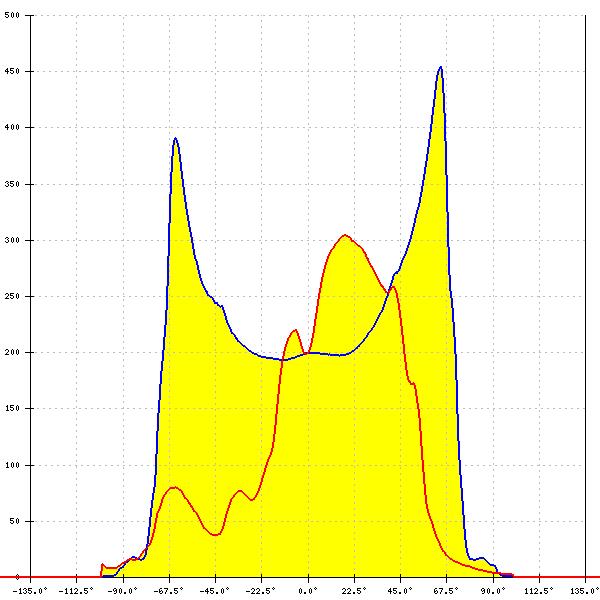

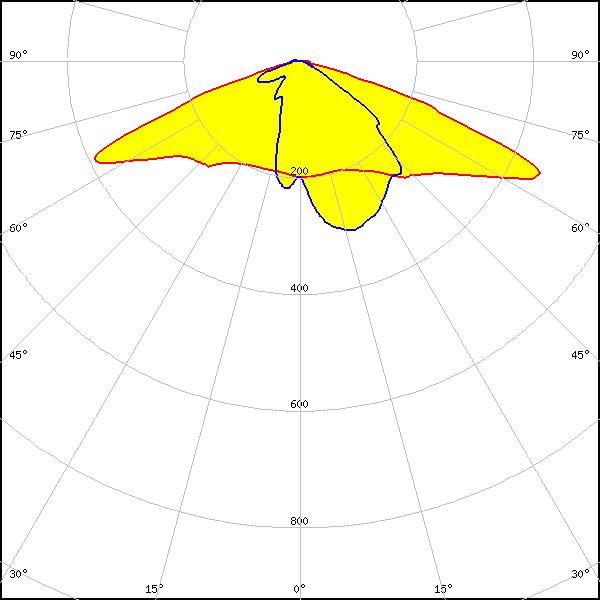

HiLOM SC16 (LH181B)
FWHM: asymmetric
Peak intensity:
0.780 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

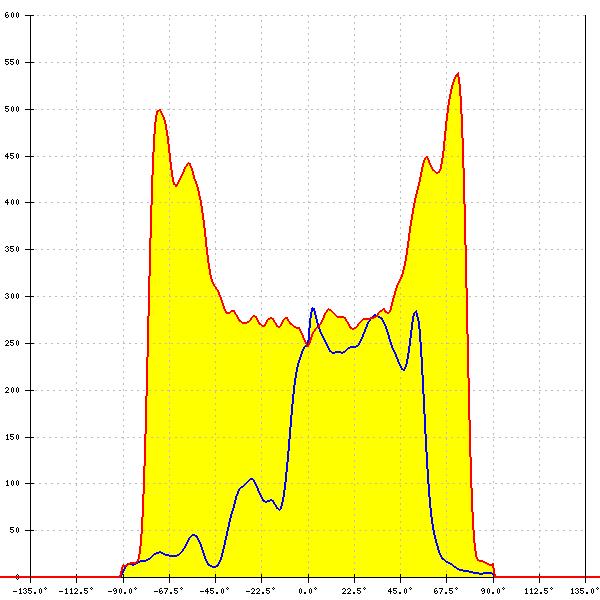

LED:

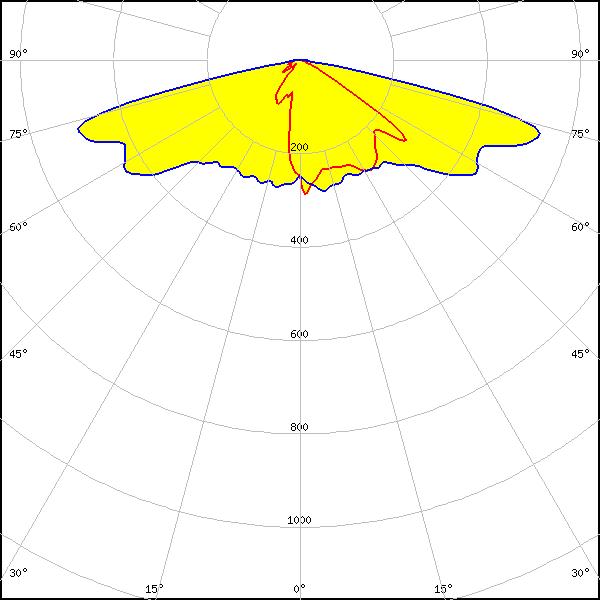

LH181B
FWHM: asymmetric
Peak intensity:
0.615 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

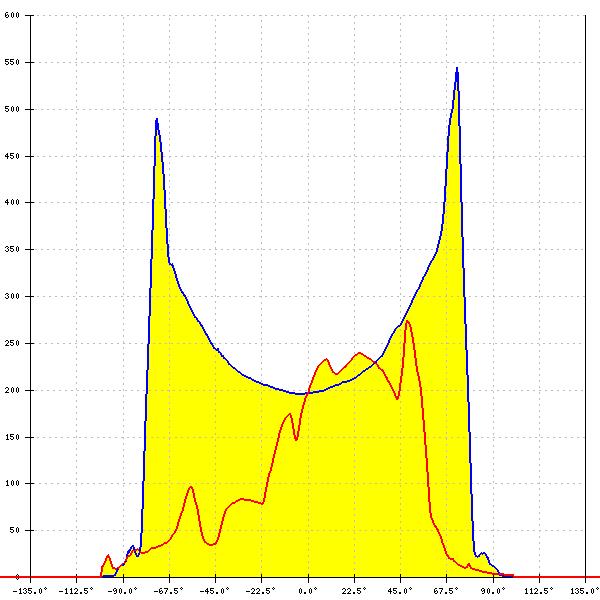

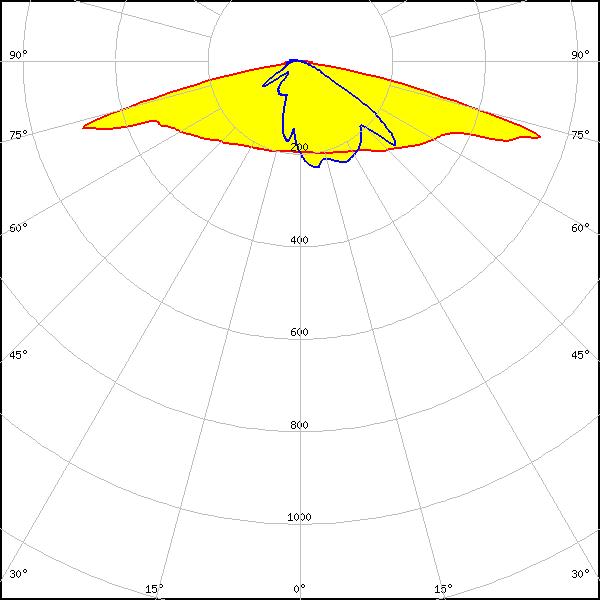

XLE-S22C4XD16 (XD16)
FWHM: asymmetric
Peak intensity:
0.721 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:

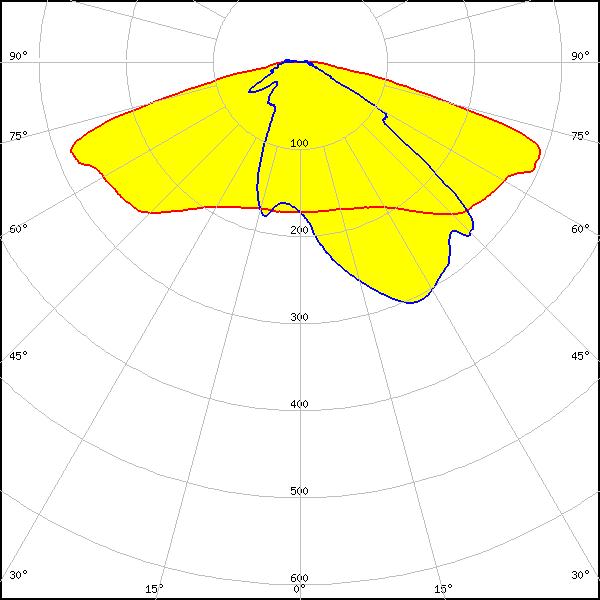

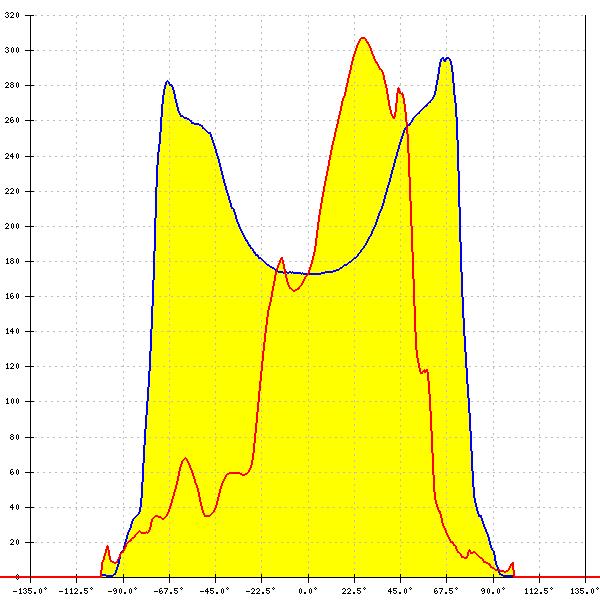

XLE-S22C4XTEHE (XT-E HE)
FWHM: asymmetric
Peak intensity:
0.525 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

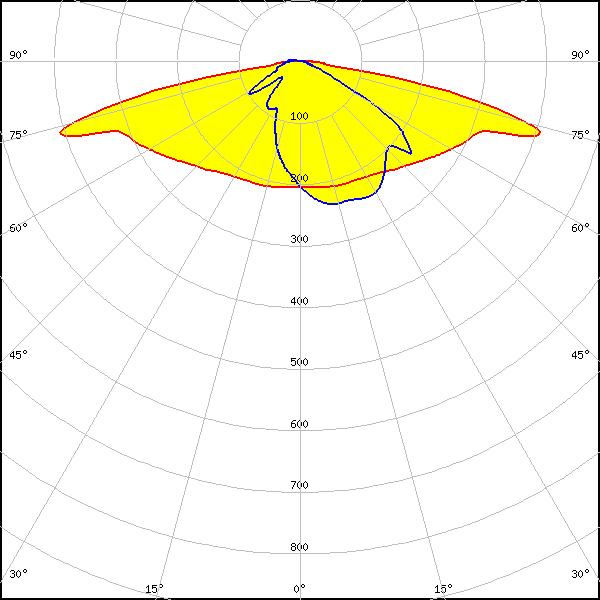

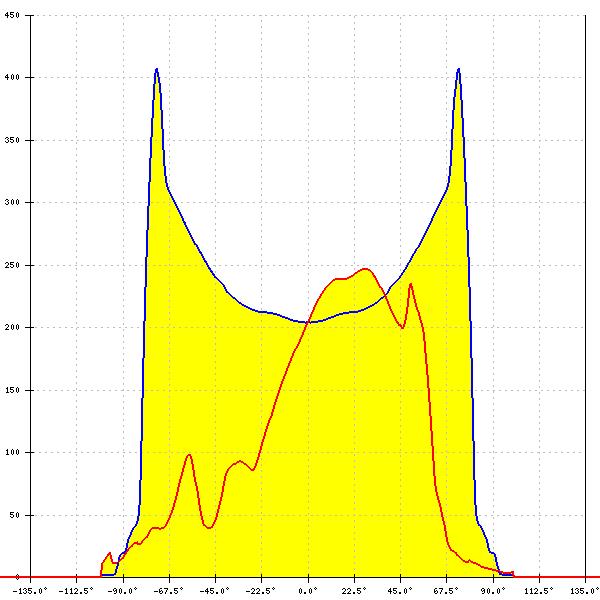

WICOP 5050
FWHM: asymmetric
Peak intensity:
0.606 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

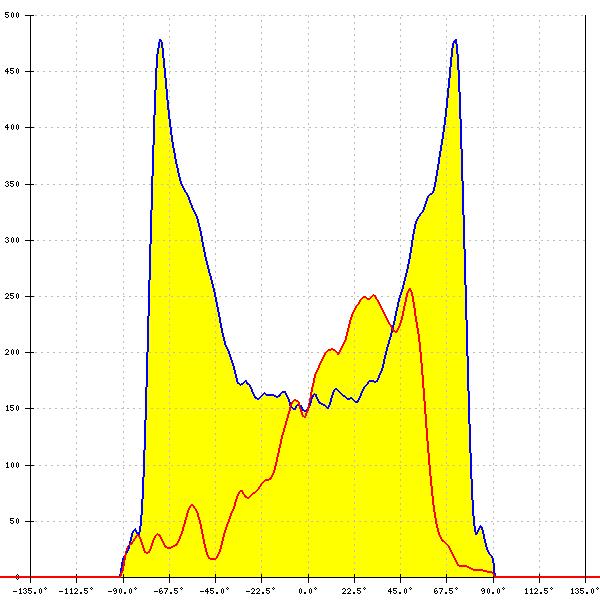

LED:

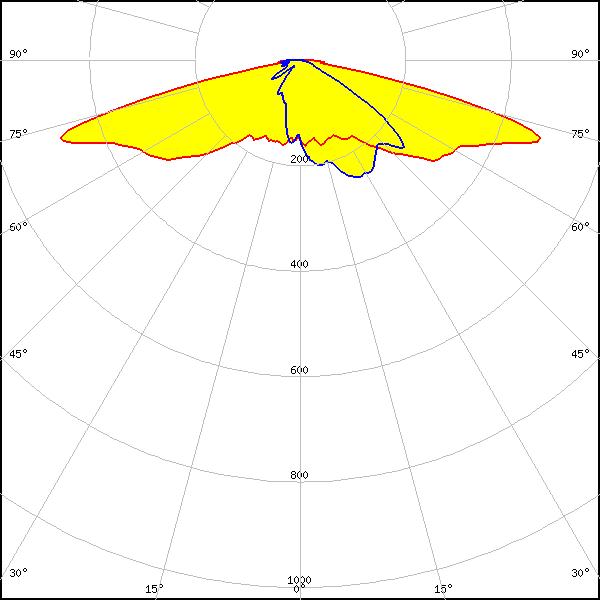

Z8Y19
FWHM: asymmetric
Peak intensity:
0.720 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:

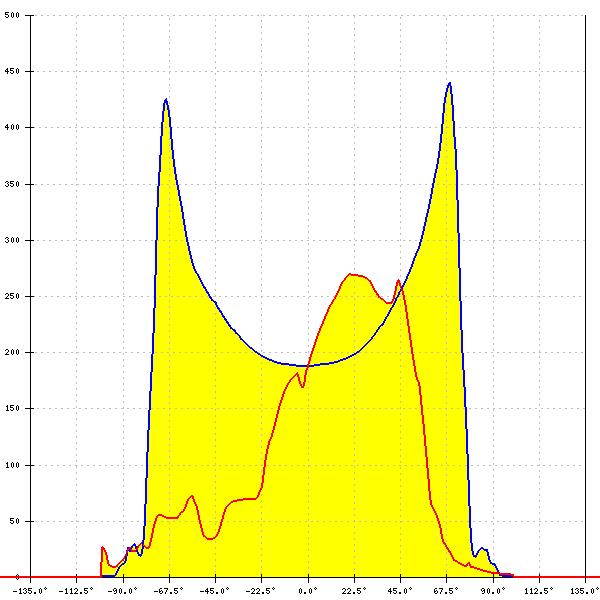

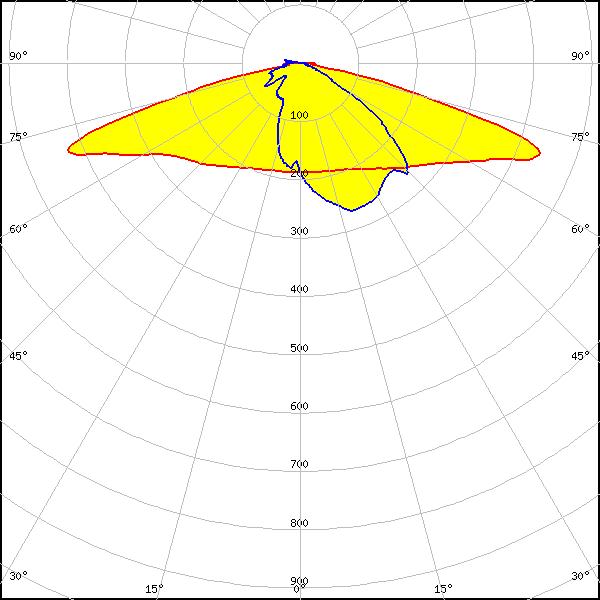

Z8Y22
FWHM: asymmetric
Peak intensity:
0.735 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

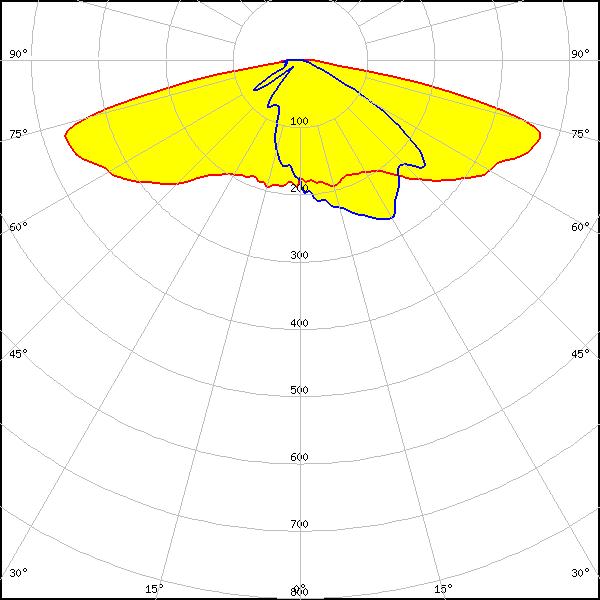

LED:

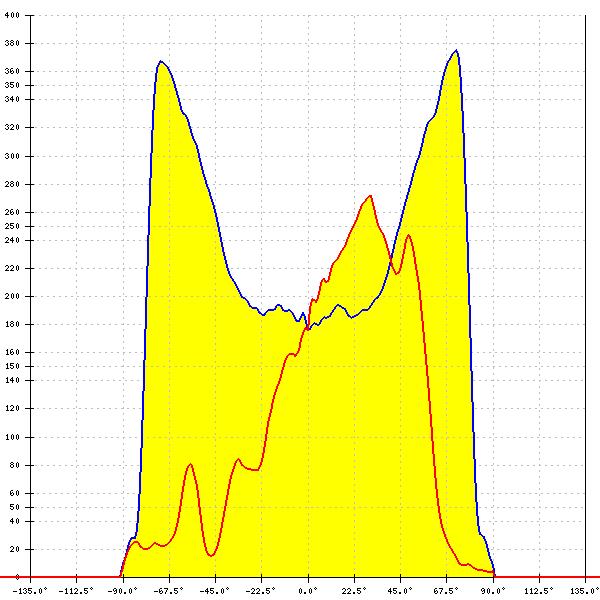

Z8Y50P
FWHM: asymmetric
Peak intensity:
0.560 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
