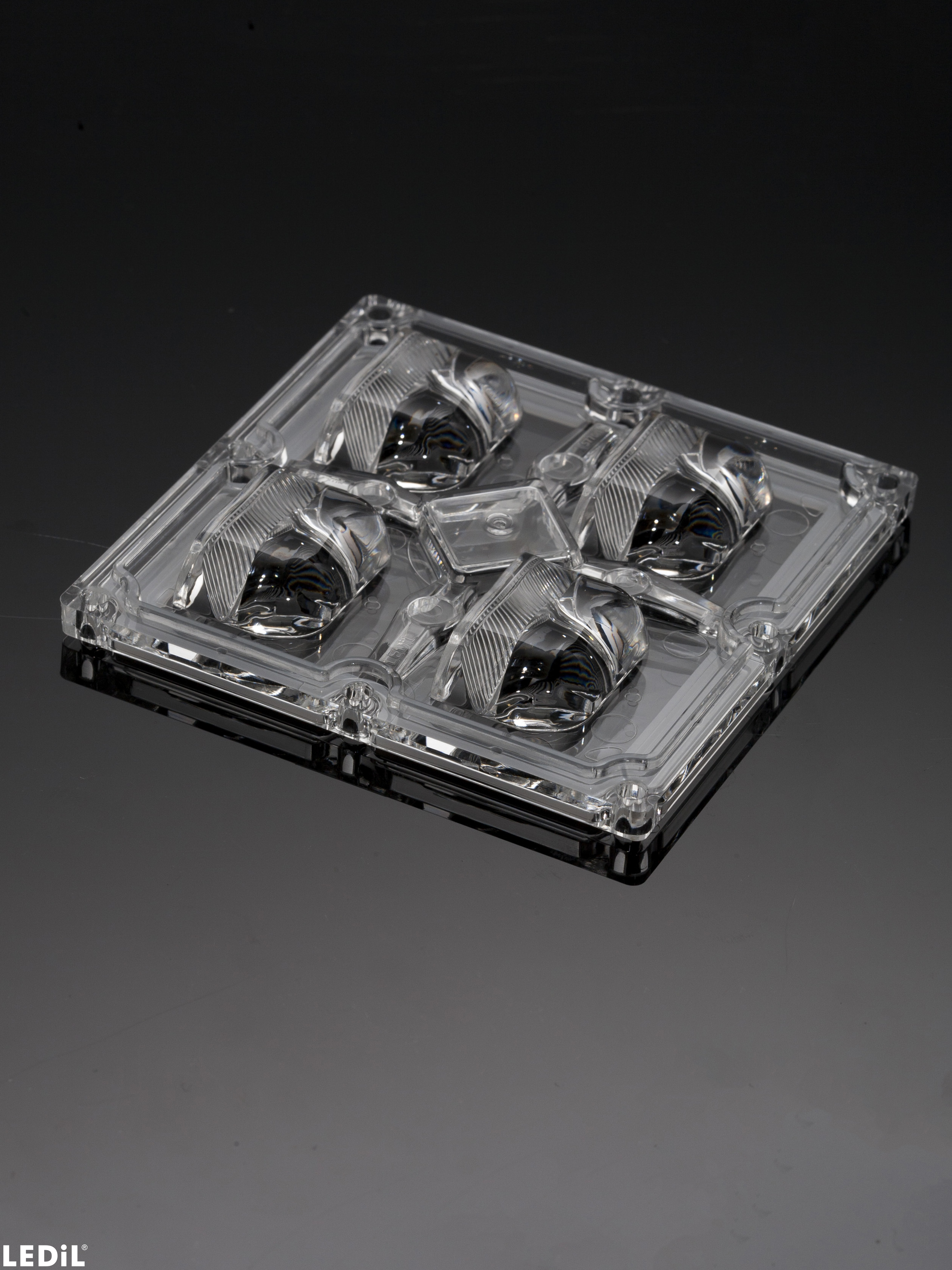

    CS15771_STRADA-2X2MX-8-T2

    Print

    IESNA Type II (medium) beam applicable for European P-class standard pedestrian lighting and M-class roads. New revision.

    Specification
    • Dimensions:
      90 x  90 mm
    • Height:
      12.57 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      156 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      7.5 kg
    • MPQ:
      52 pcs
    • MOQ:
      52 pcs
    • MOQ size:
      480 x 280 x 110 mm
    • MOQ weight:
      2.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CS15771_STRADA-2X2MX-8-T2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    Application guide

    Guide for Street lighting optics

    News

    MX series the ultimate in street area car park and industrial lighting optics

    News

    PRODUCT NEWS - 2X2MX

    News

    PRODUCT NEWS - 2X2MX MODULES

    PCN

    Product change notification NR134.b - Change of packaging methods 200417

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

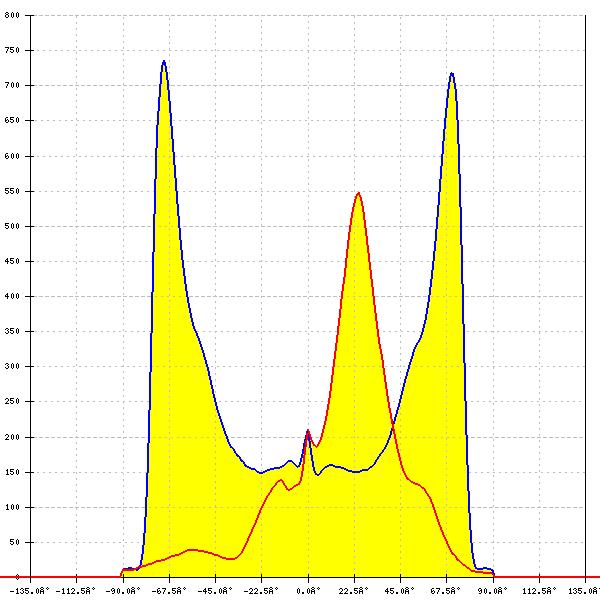

    LED: Bridgelux SMD 5050
    FWHM: asymmetric
    Peak intensity: 1.010 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

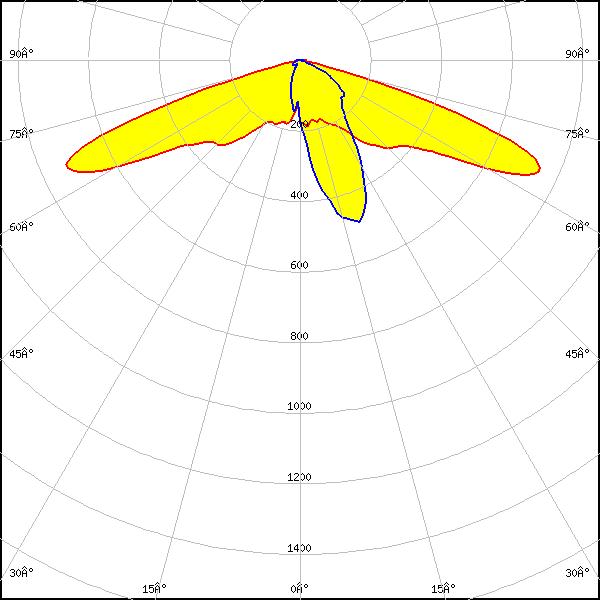

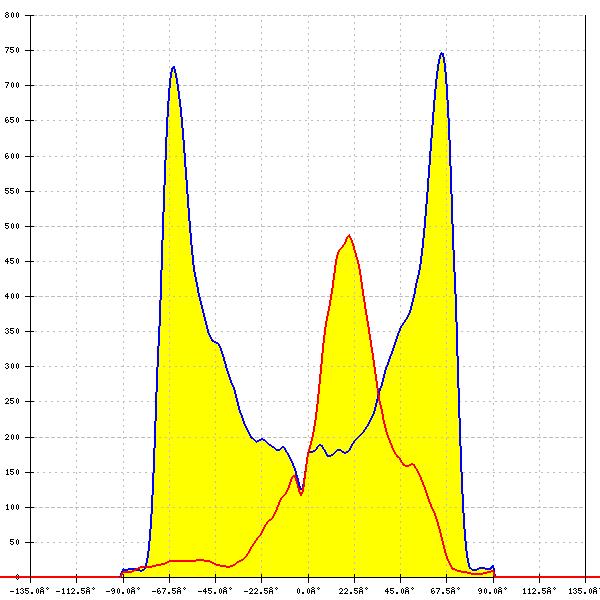

    LED: CLU700/701/702/703
    Required components:
    Bender Wirth: 434 Typ 2x2MX HV
    FWHM: asymmetric
    Peak intensity: 0.940 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

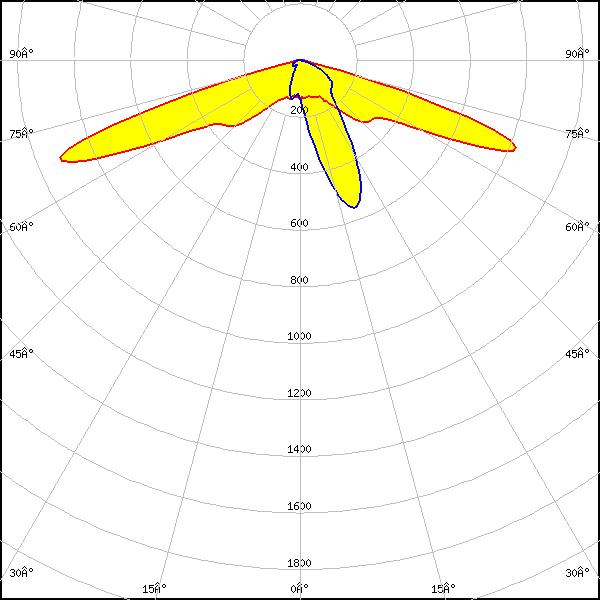

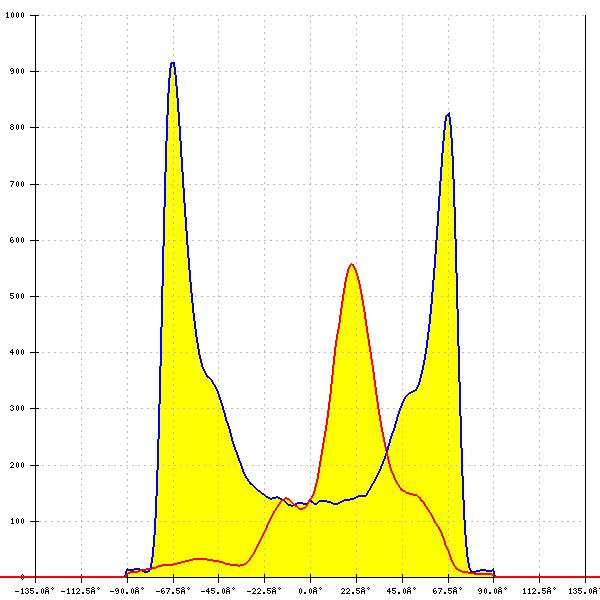

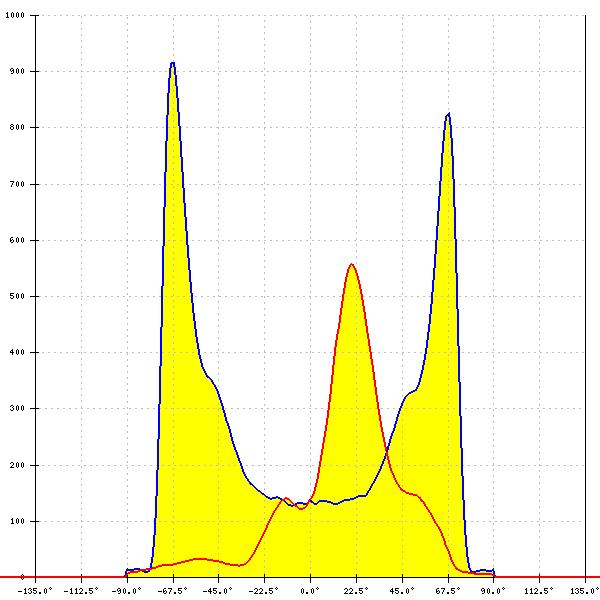

    LED: CMA1303
    Required components:
    Bender Wirth: 448 Typ 2x2MX HV
    FWHM: asymmetric
    Peak intensity: 1.229 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

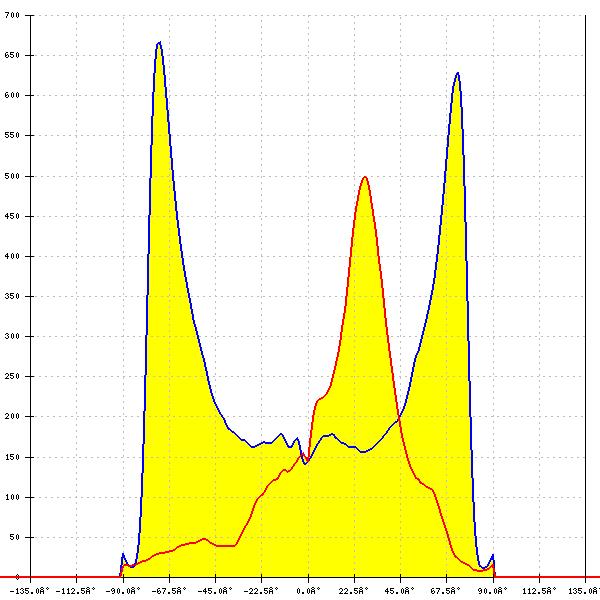

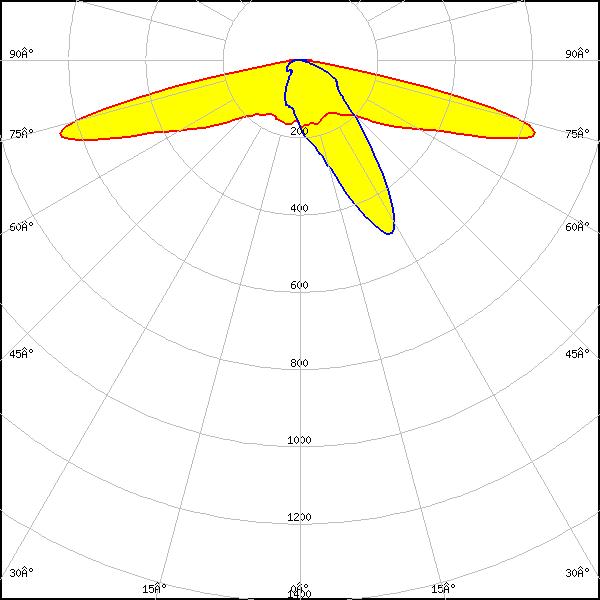

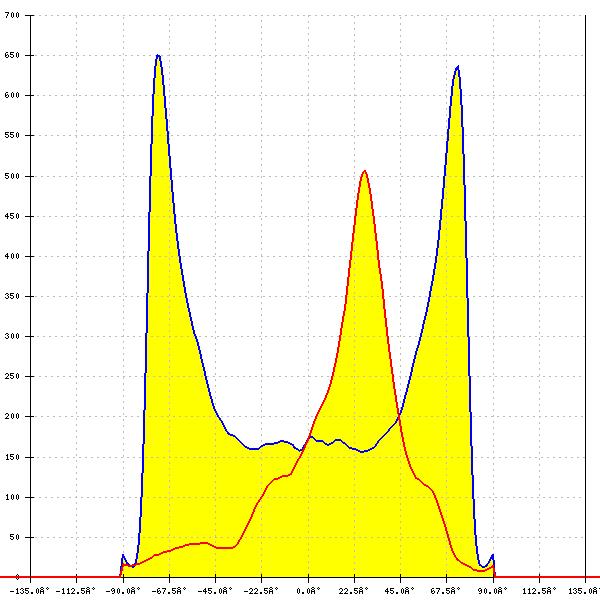

    LED: MHB-A/B
    FWHM: asymmetric
    Peak intensity: 0.899 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MHB-A/B
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

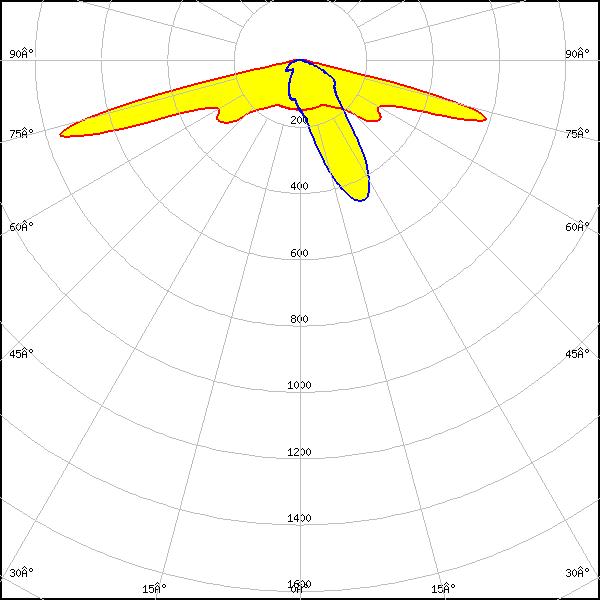

    LED: XHP50.2
    FWHM: asymmetric
    Peak intensity: 1.115 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

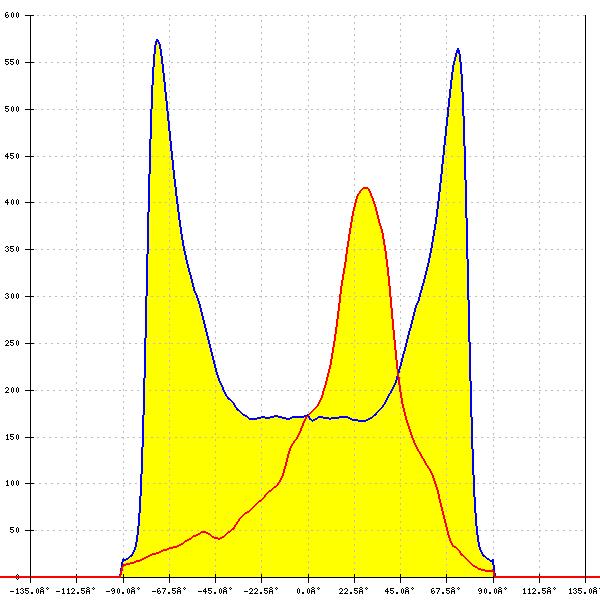

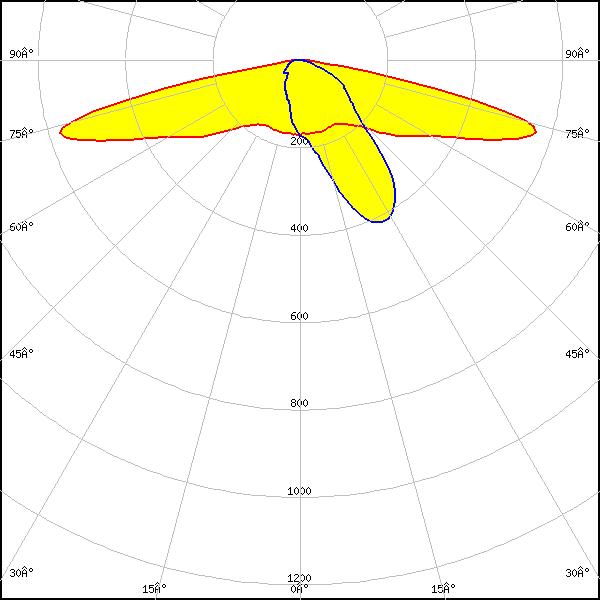

    LED: XHP70.3 HD
    FWHM: asymmetric
    Peak intensity: 0.702 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

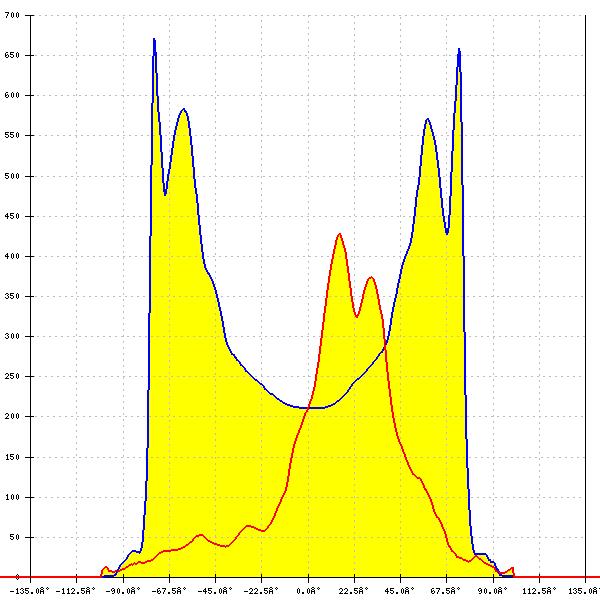

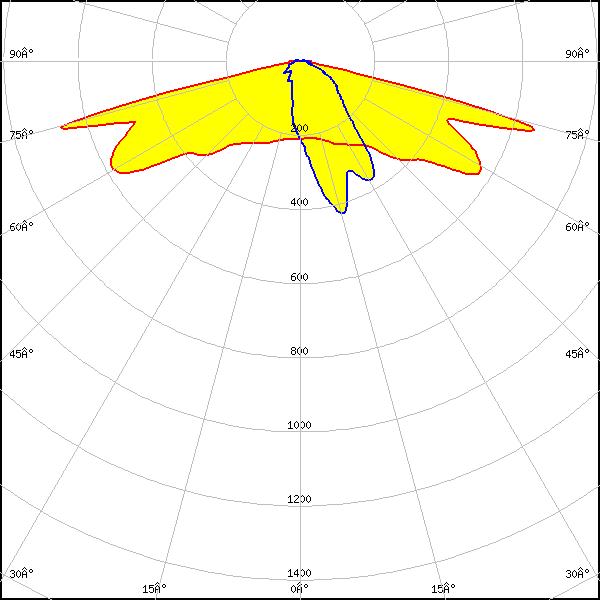

    LED: XT-E HE
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

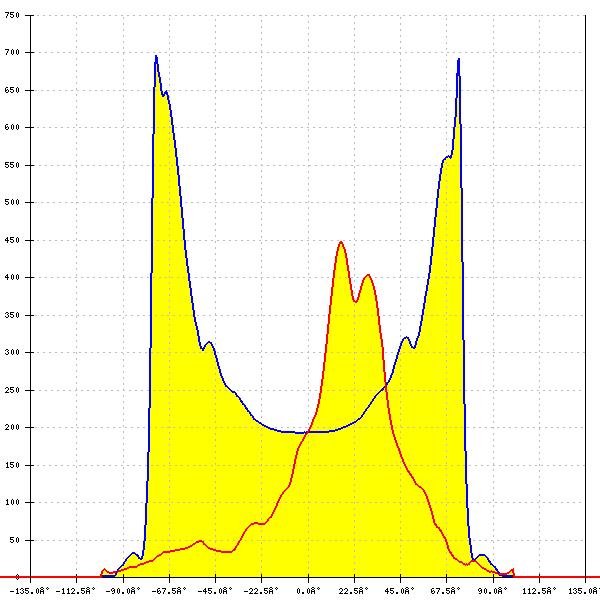

    LED: PrevaLED Brick HP 2x2MX
    FWHM: asymmetric
    Peak intensity: 0.922 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

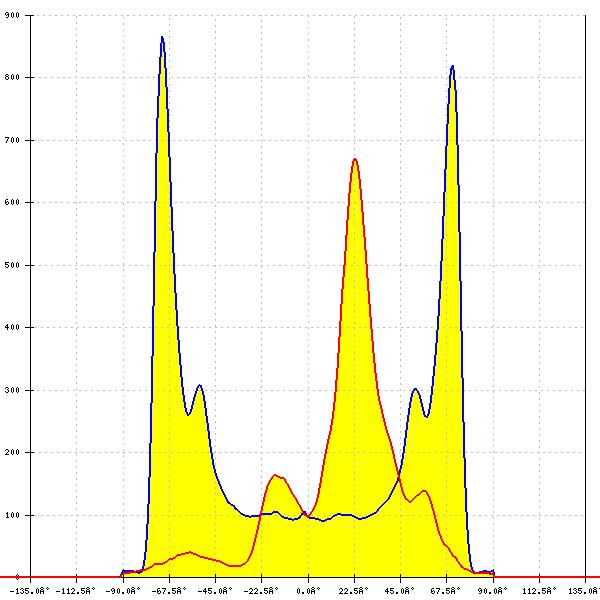

    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 1.800 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

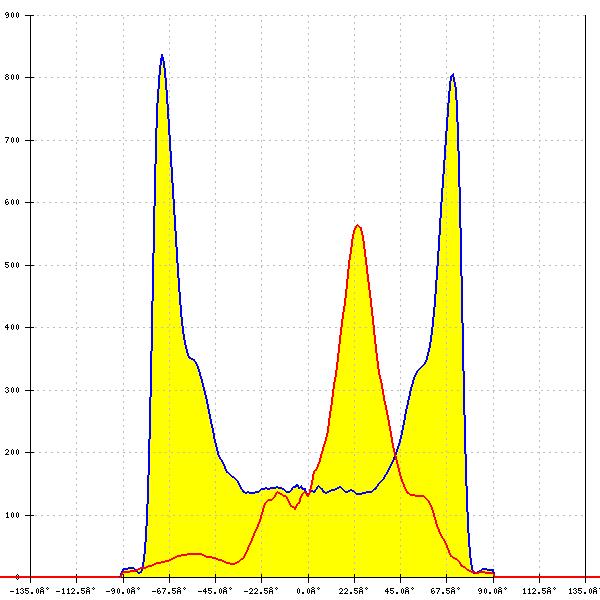

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 1.400 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

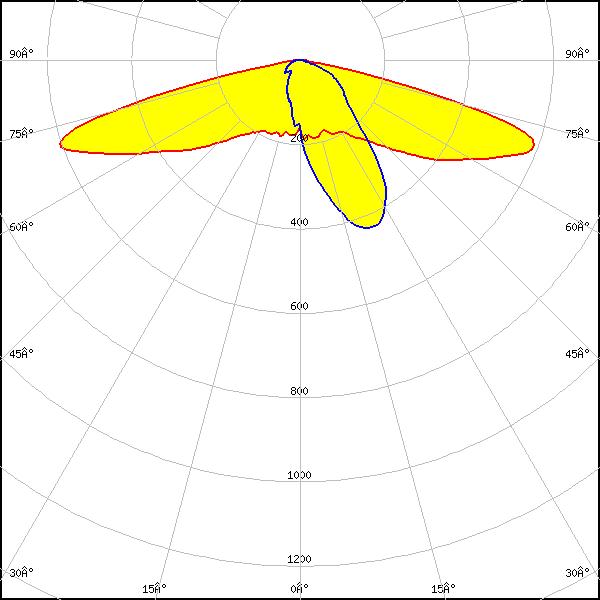

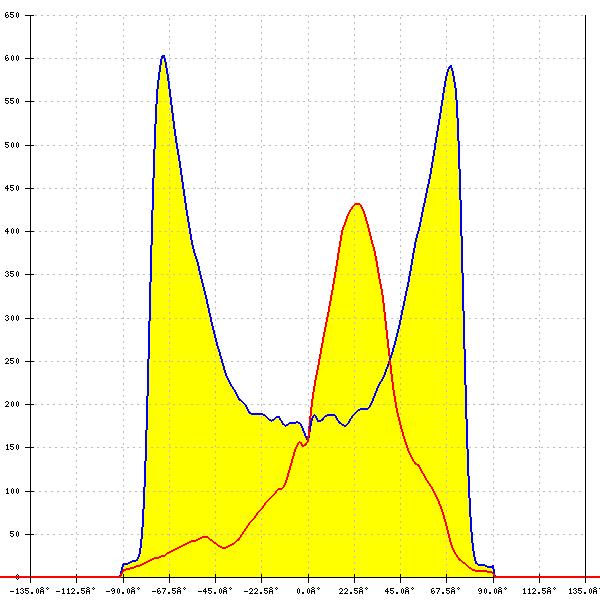

    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.741 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

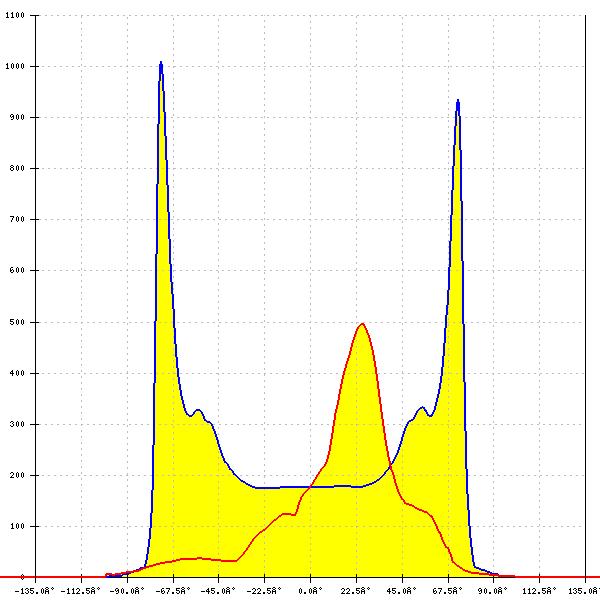

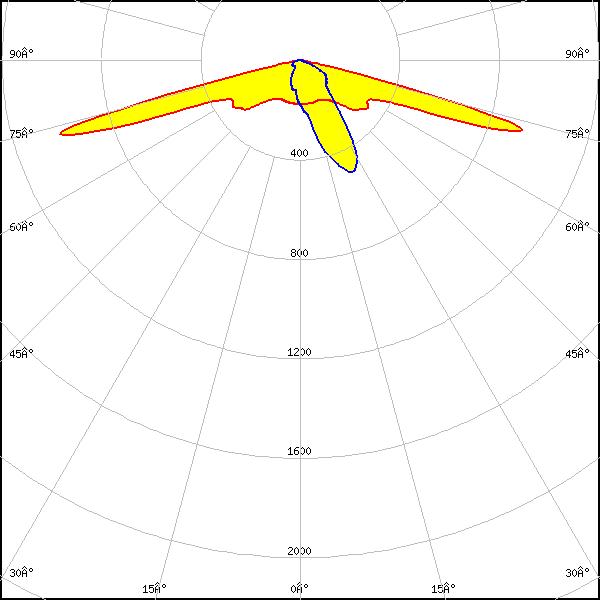

    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

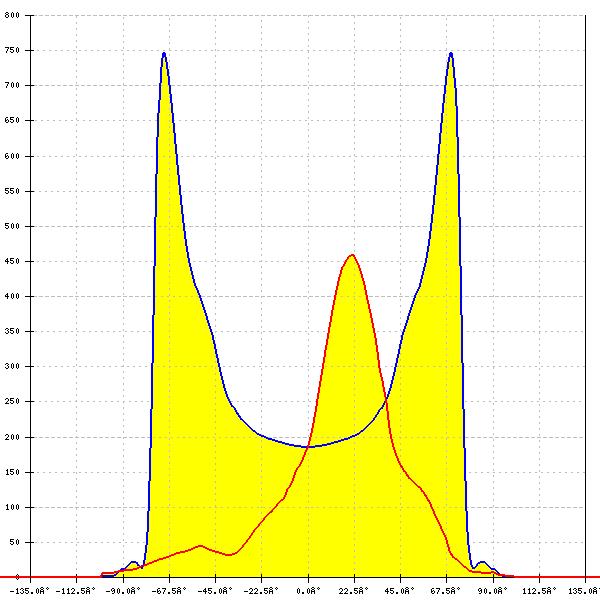

    LED: LUXEON XR-7070 (L224-xxxx004MLU010)
    FWHM: asymmetric
    Peak intensity: 0.892 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

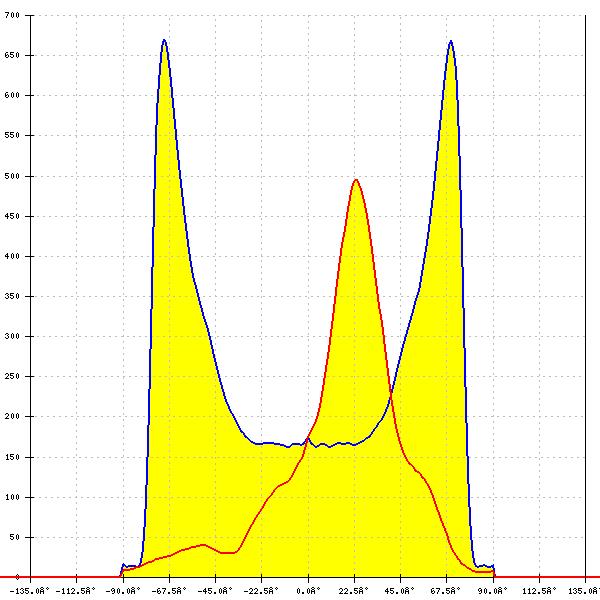

    LED: MP 7070
    FWHM: asymmetric
    Peak intensity: 0.874 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

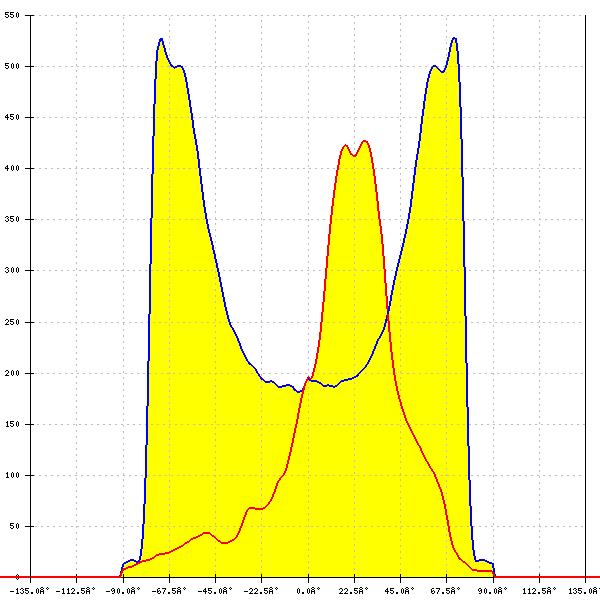

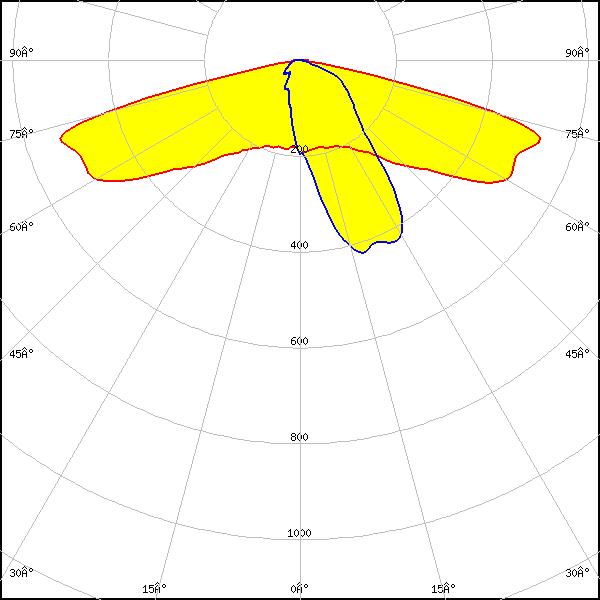

    LED: NF2x757G
    FWHM: asymmetric
    Peak intensity: 0.654 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

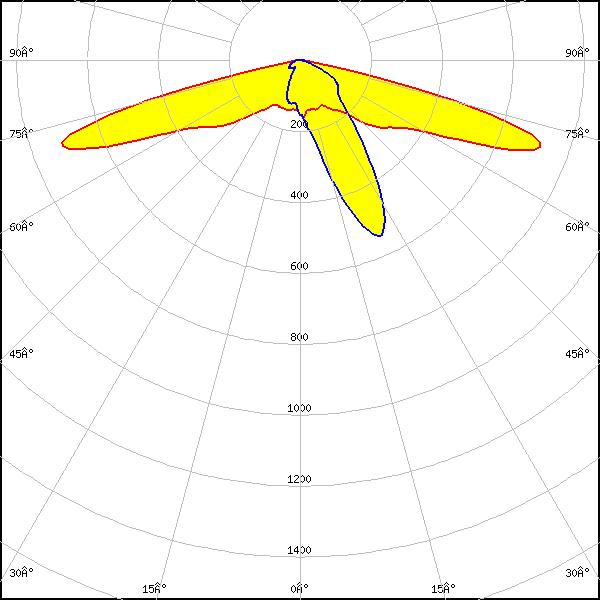

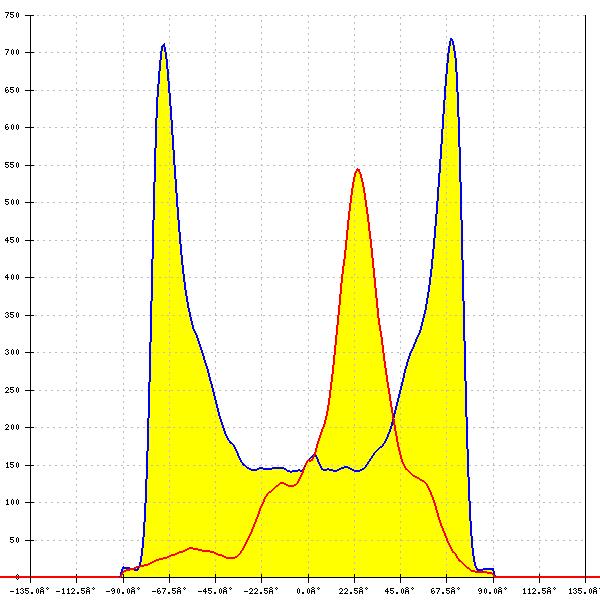

    LED: NFMW48xA
    FWHM: asymmetric
    Peak intensity: 0.980 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

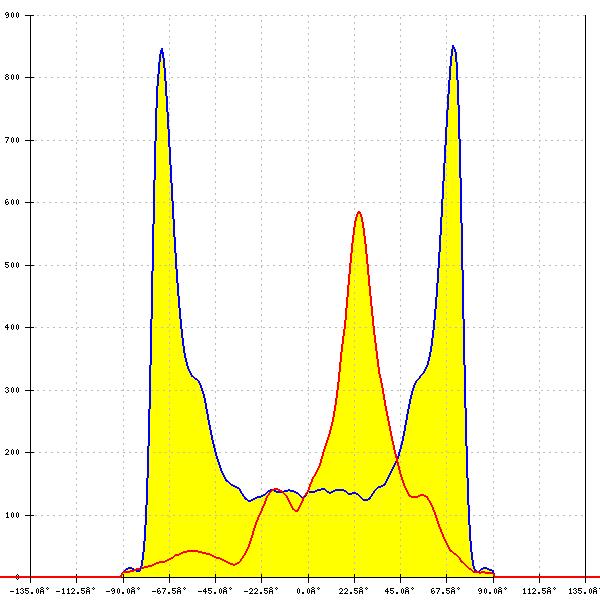

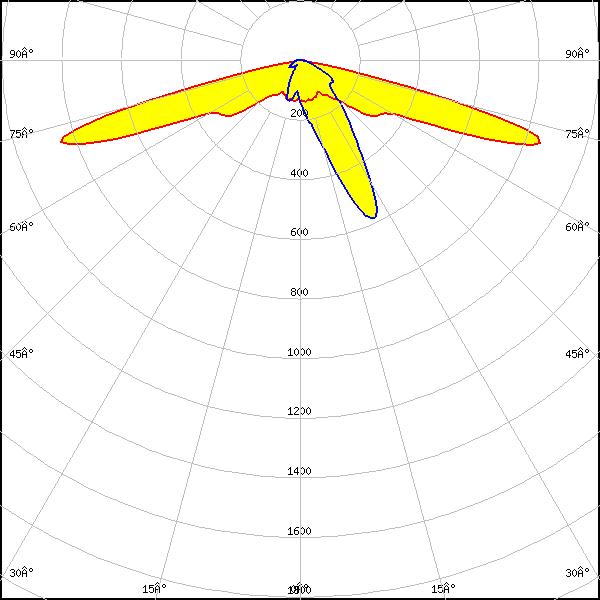

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.298 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

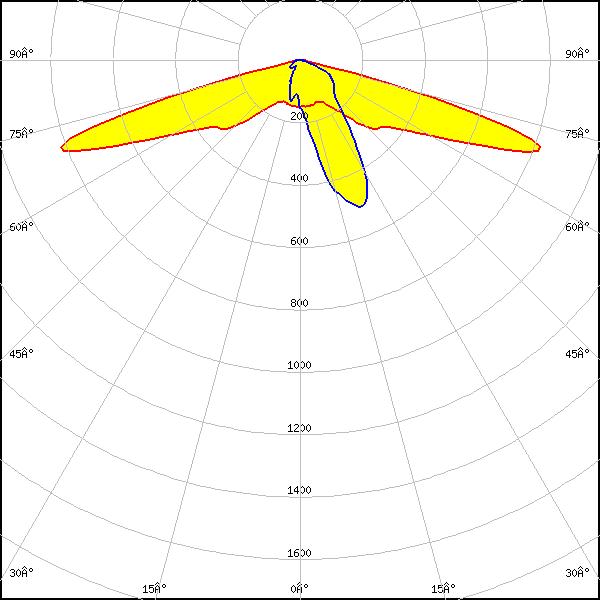

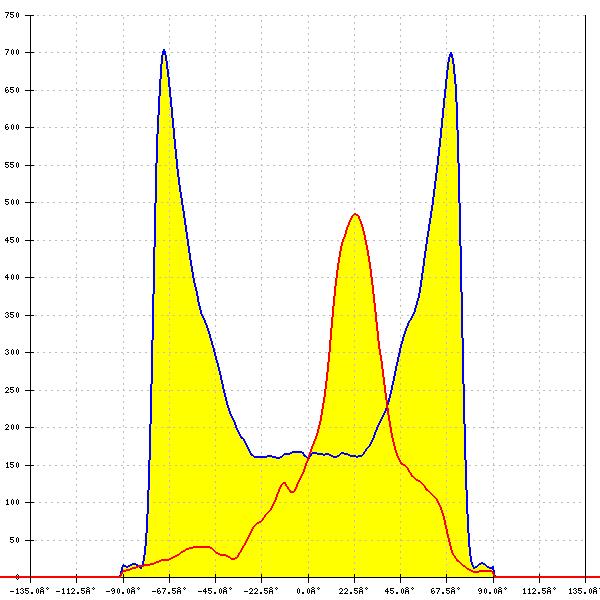

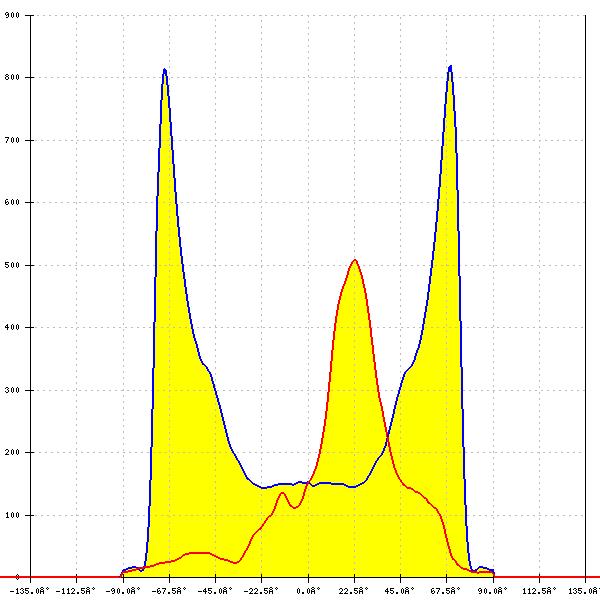

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 1.114 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

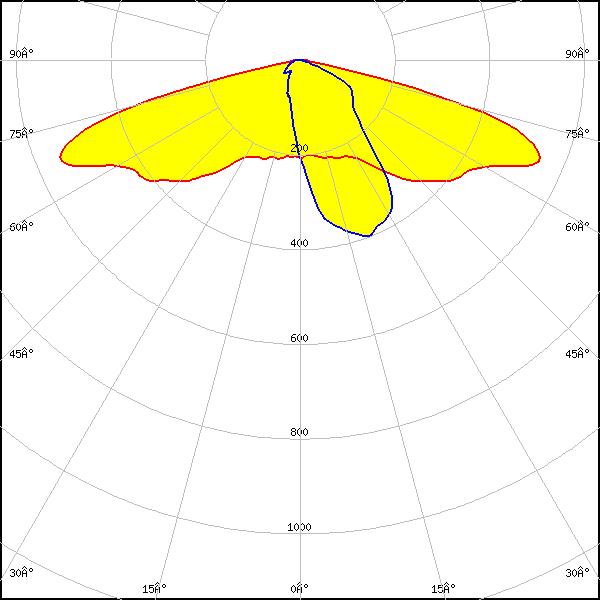

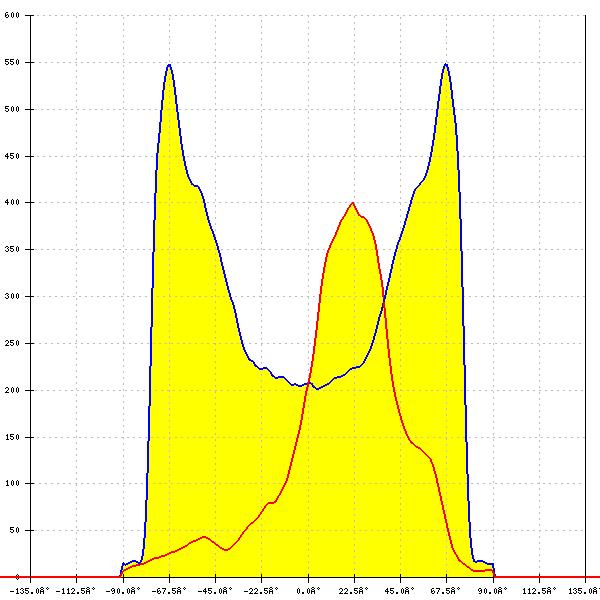

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.649 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 9
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.935 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White

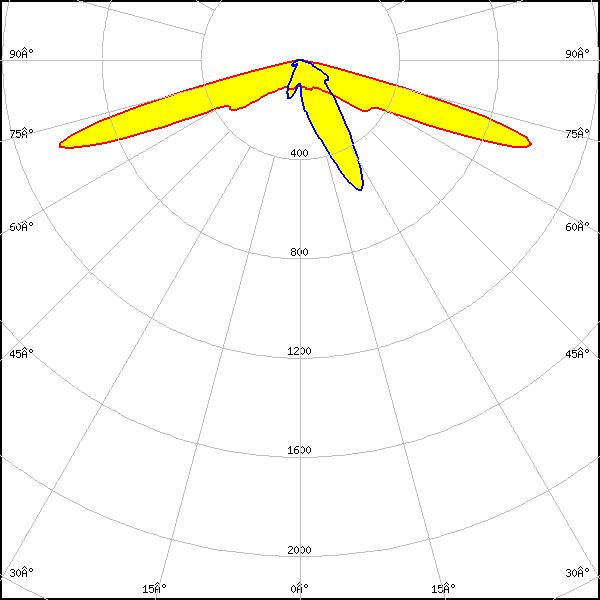

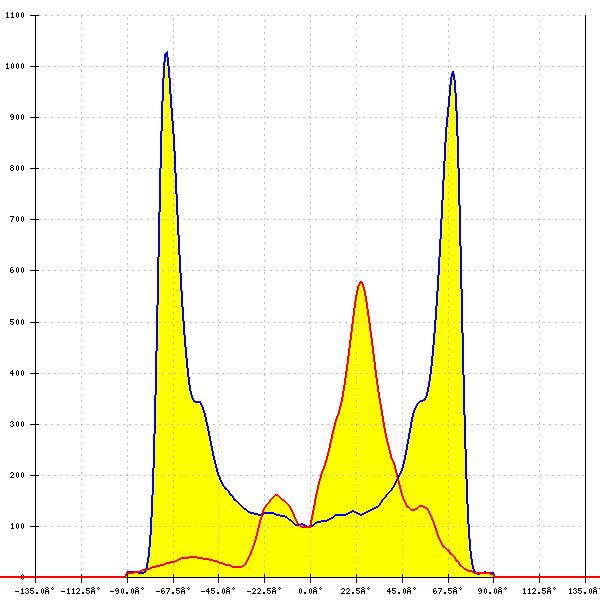

    LED: DURIS S5 (2 chip)
    FWHM: asymmetric
    Peak intensity: 1.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

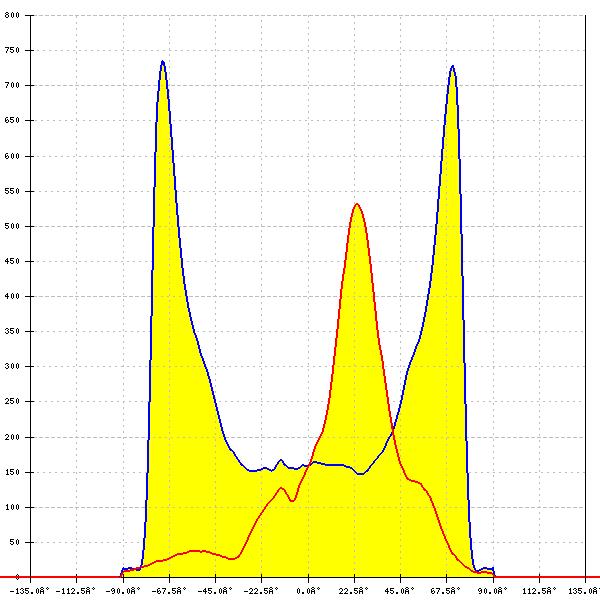

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 1.029 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 2424 Gen1
    FWHM: asymmetric
    Peak intensity: 0.896 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: OSCONIQ P 7070
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

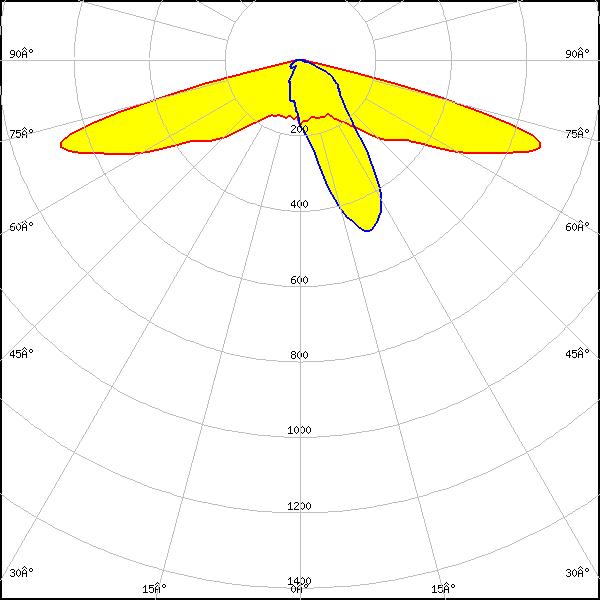

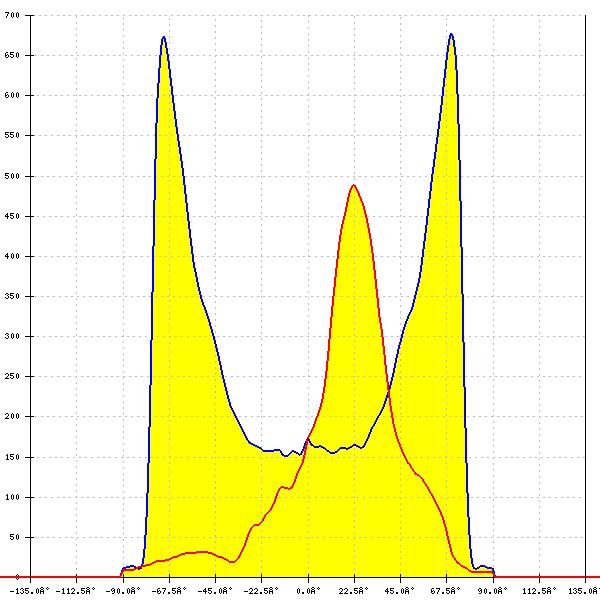

    LED: HiLOM SC16 (LH181B)
    FWHM: asymmetric
    Peak intensity: 0.894 cd/lm
    Efficiency: -92 %
    LEDs/each optic: 4
    Light colour/type: White

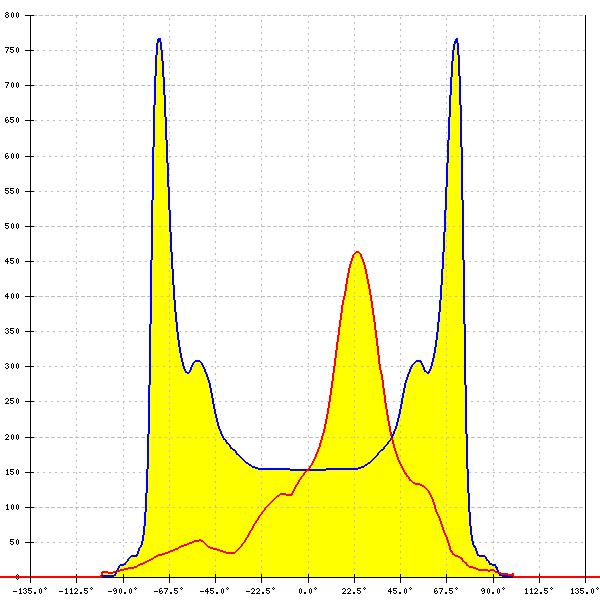

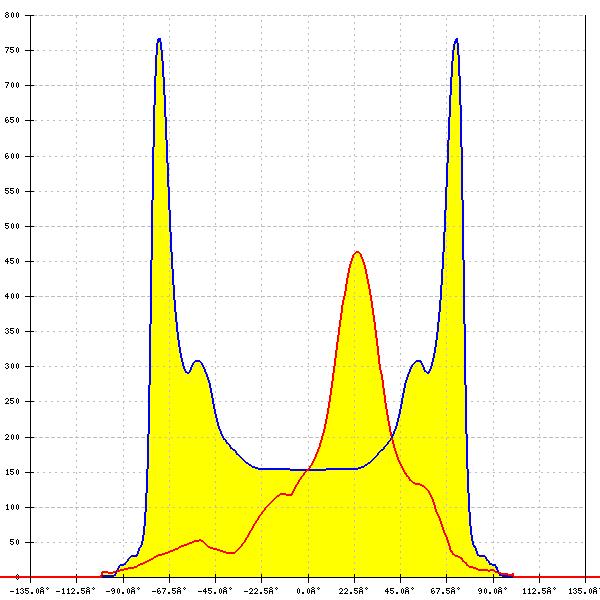

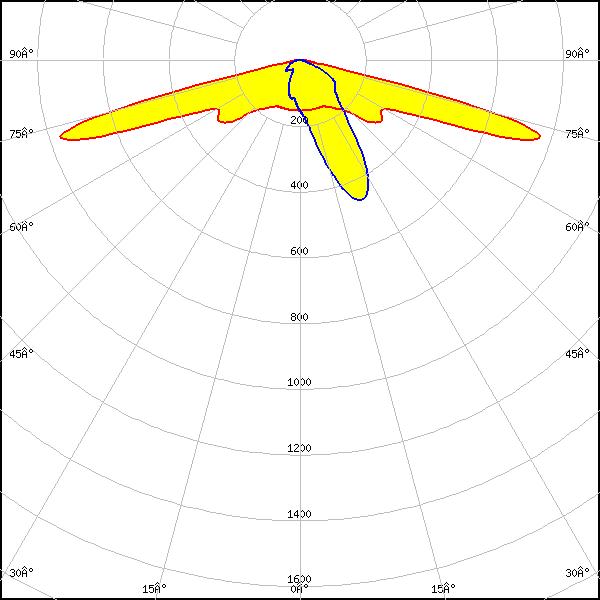

    LED: PAL-LK-4950-740-48
    FWHM: asymmetric
    Peak intensity: 1.115 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

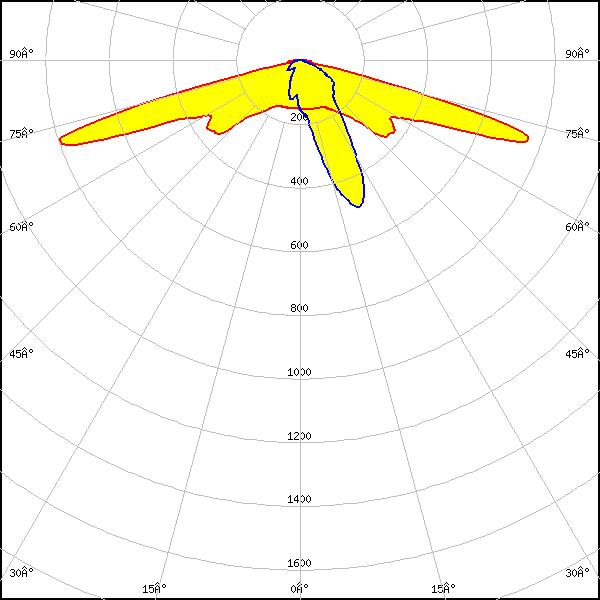

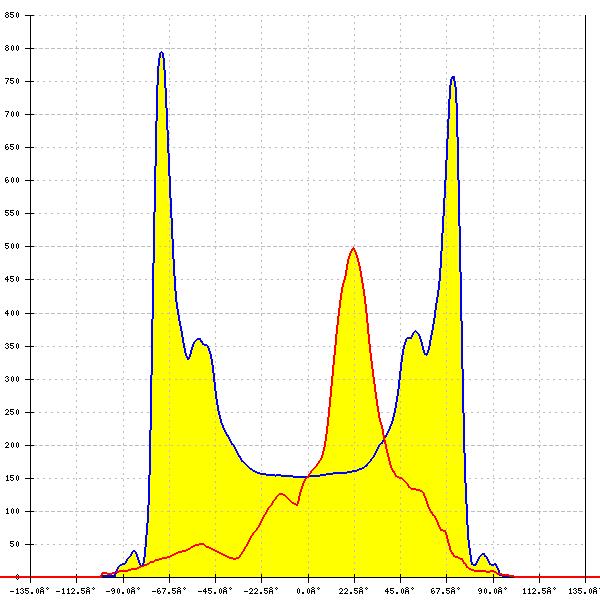

    LED: XLE-S22C4XD16 (XD16)
    FWHM: asymmetric
    Peak intensity: 1.352 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

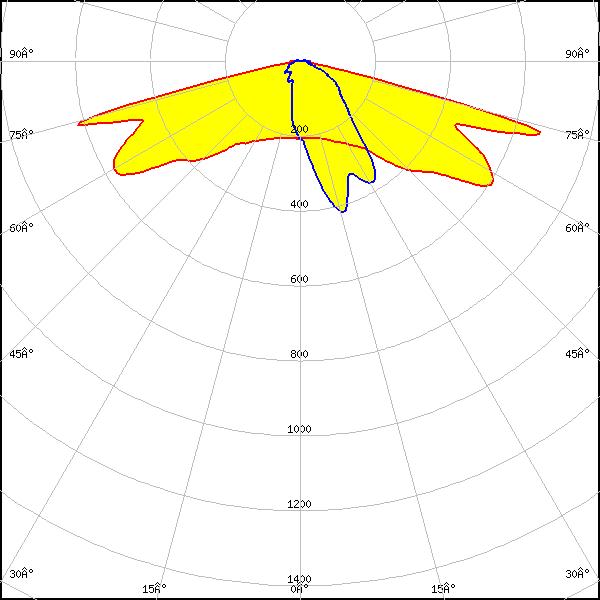

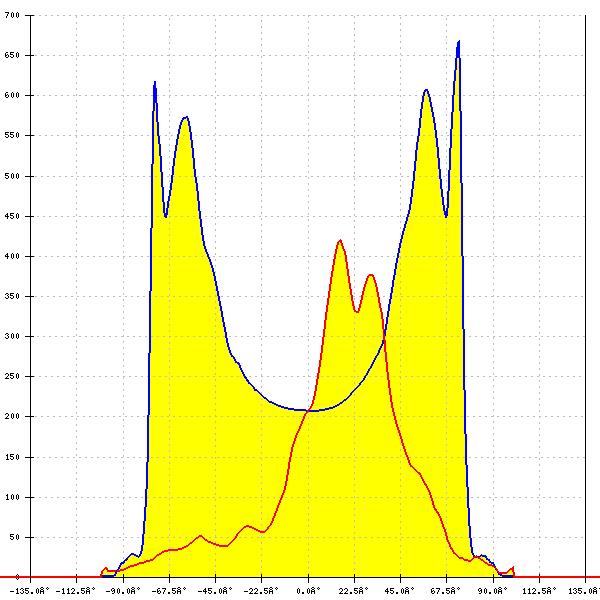

    LED: XLE-S22C4XTEHE (XT-E HE)
    FWHM: asymmetric
    Peak intensity: 0.797 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

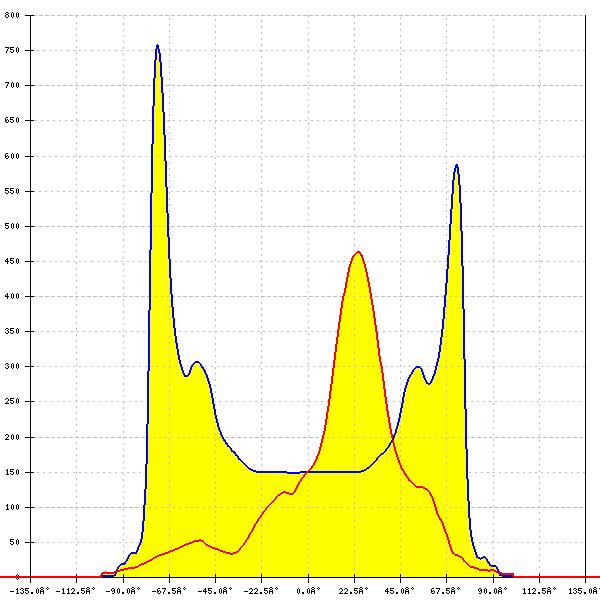

    LED: XLE-S22XHP50B (XHP50.2)
    FWHM: asymmetric
    Peak intensity: 1.115 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

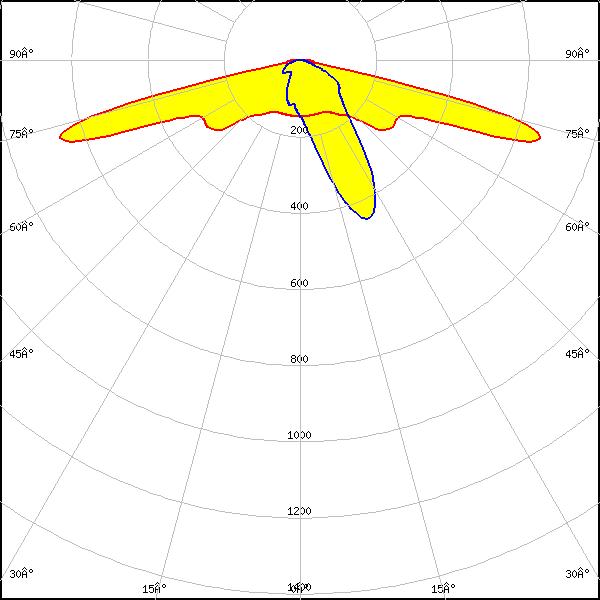

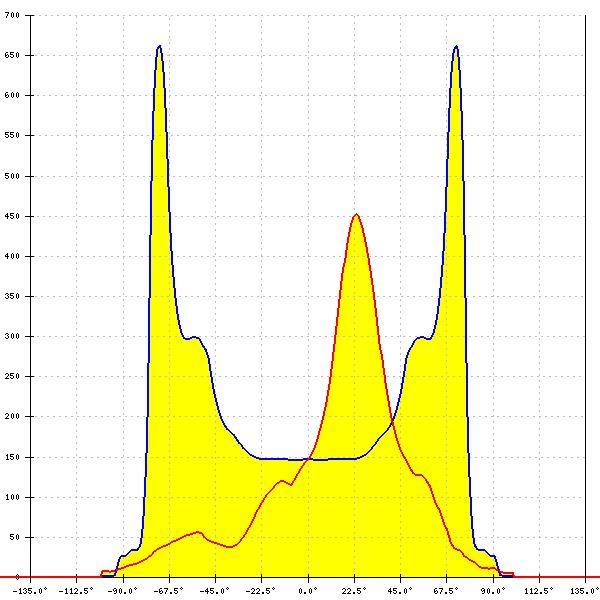

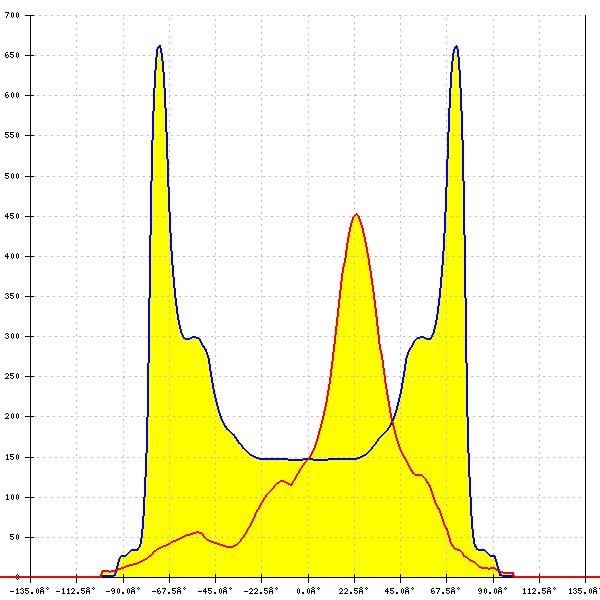

    LED: WICOP 5050
    FWHM: asymmetric
    Peak intensity: 1.149 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

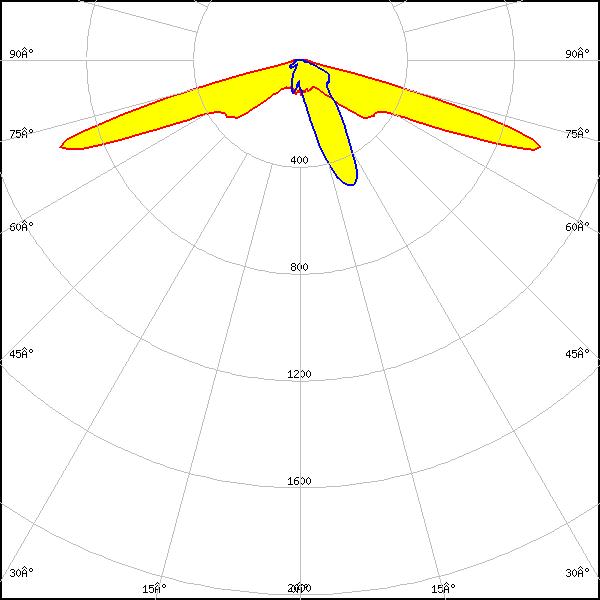

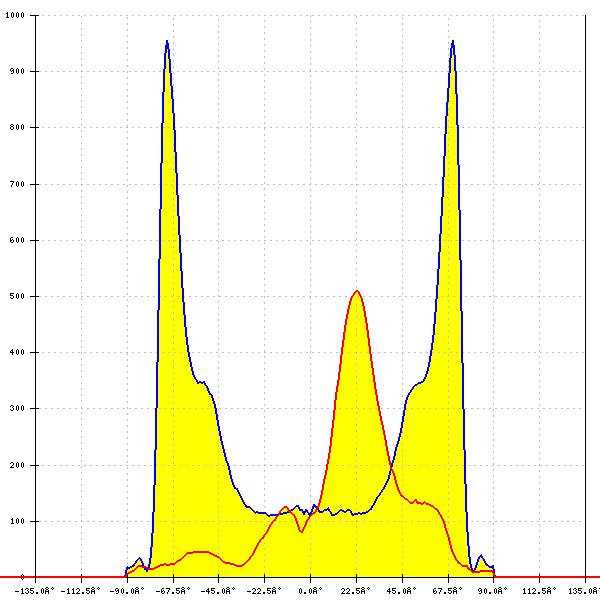

    LED: Z8Y19
    FWHM: asymmetric
    Peak intensity: 1.483 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White

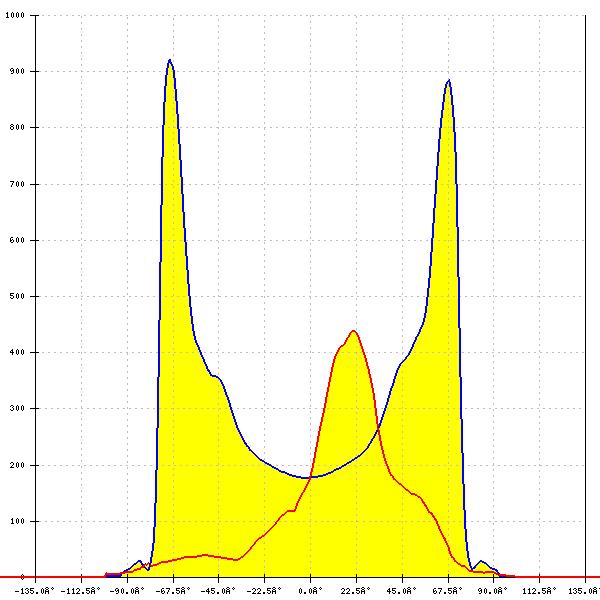

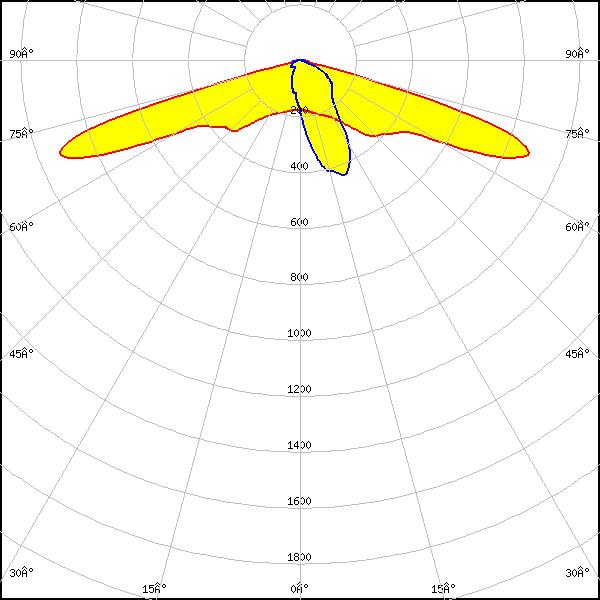

    LED: Z8Y22
    FWHM: asymmetric
    Peak intensity: 1.059 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
