APPLICATION EXAMPLE
C3 and P4 Street lighting with STRADA-2X2R-T3
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Setup:

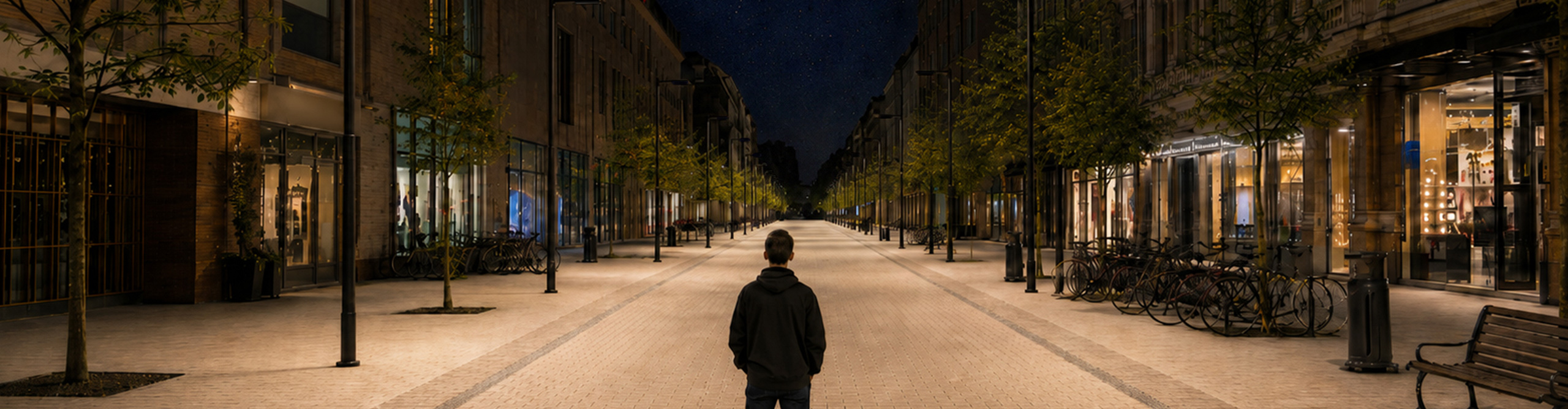

| Application: | Street lighting |
| Roadway class: | C3 |
| Sidewalk class: | P4 |
| Road width: | 10 m |
| Sidewalk width: | 5 m + 5 m |

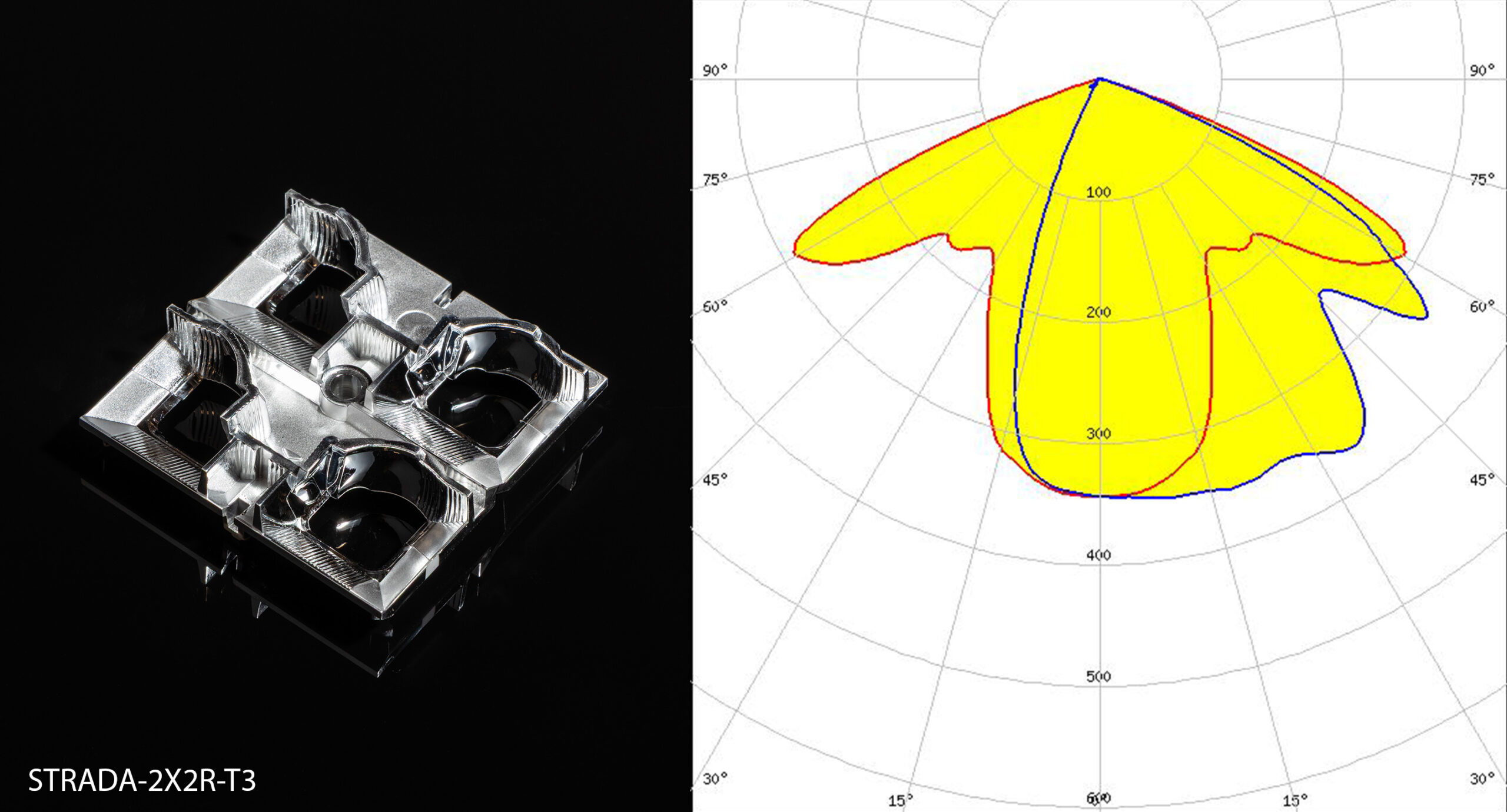

| Optics: | STRADA-2X2R-T3 |
| LED: | 5050 |
| Total lumen output/luminaire: | 4000 lm |
| Pole distance: | 50 m |
| Mounting height: | 6 m |
| Arrangement: | Staggered poles |
Results:
| Luminous intensity class: | G6 |
| Roadway | C3 requirements passed |
| TI: | 2 |
| Em: | 18.71 |
| Uo: | 0.60 |
| Sidewalks | P4 requirements passed |
| Em: | 6.63 |
| Uo: | 1.00 |
C3 and P4 Street lighting with STRADA-2X2R-T3
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
