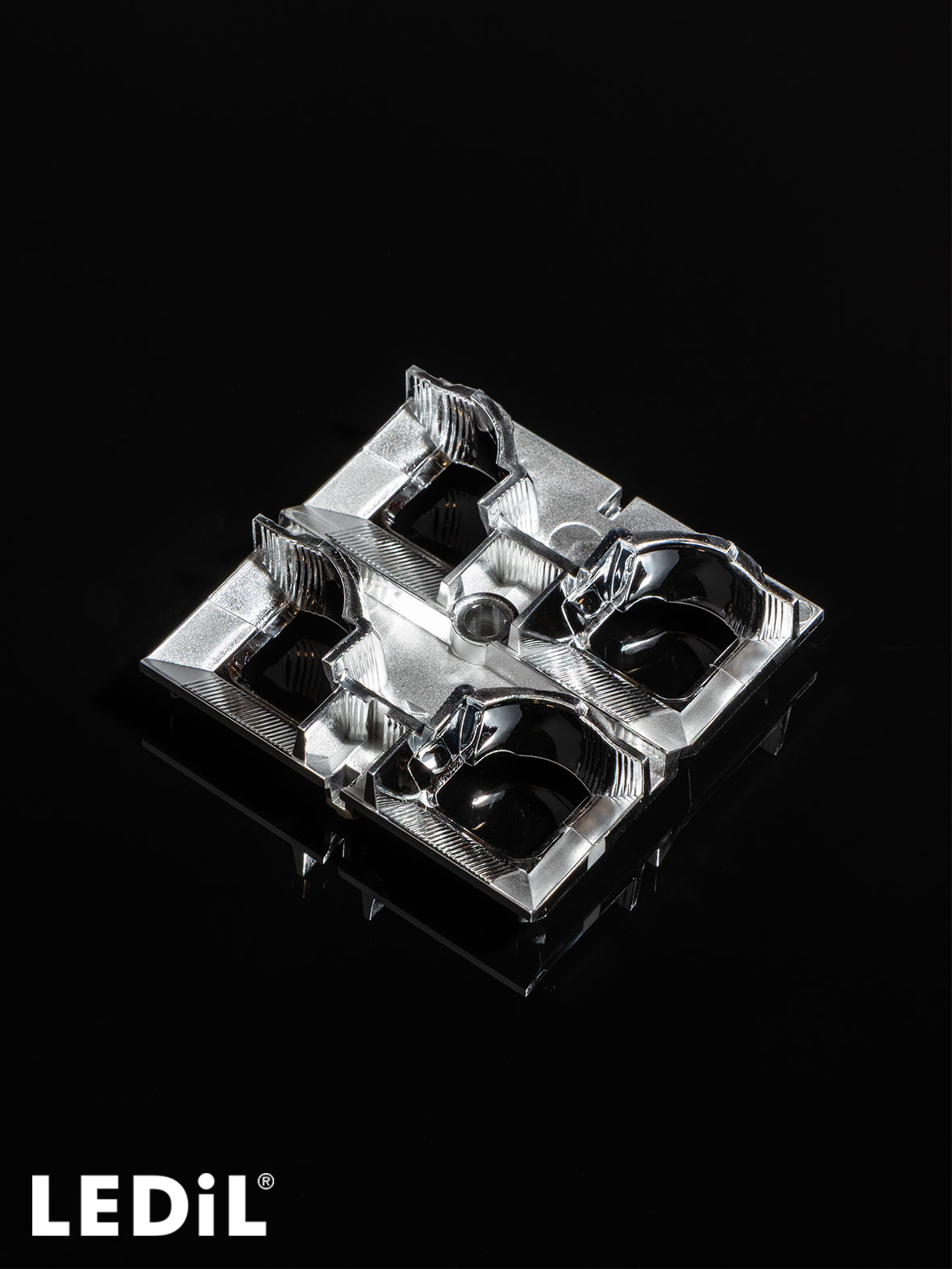

L20259_STRADA-2X2R-T3
PrintIESNA Type III (medium) beam for roads that are equal to or wider than mounting height.
Specification
-
Dimensions:50 x 50 mm
-
Height:13.45 mm
-
Fastening:pin, screw
-
Colour:metal
-
RoHS and REACH compliant:Yes
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:504 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:5.6 kg
-
MPQ:28 pcs
-
MOQ:504 pcs
-
MOQ size:480 x 280 x 300 mm
-
MOQ weight:5.6 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
- PCB drawing
Related Content
Optical results

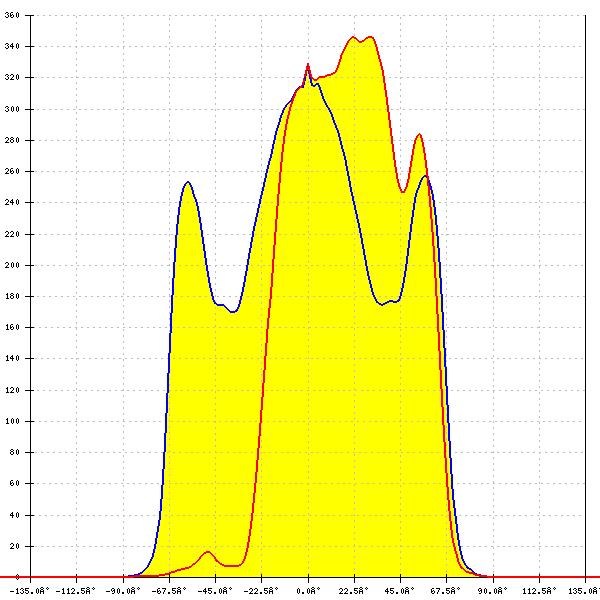

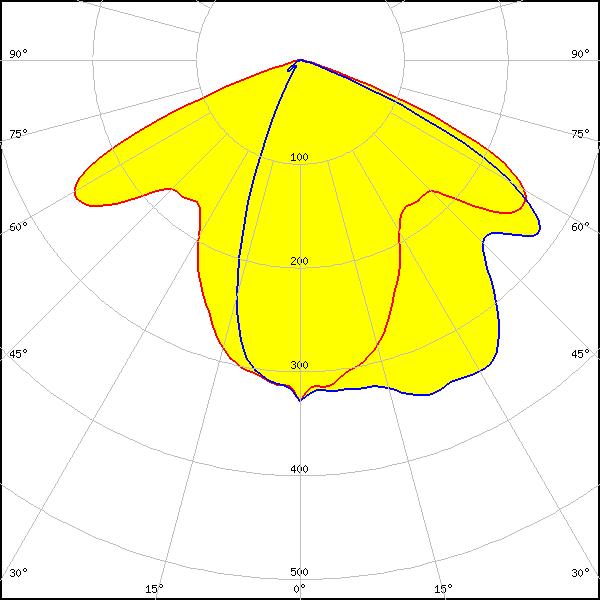

LED:
LUXEON 5050 HE Plus
FWHM: asymmetric
Peak intensity:
0.569 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

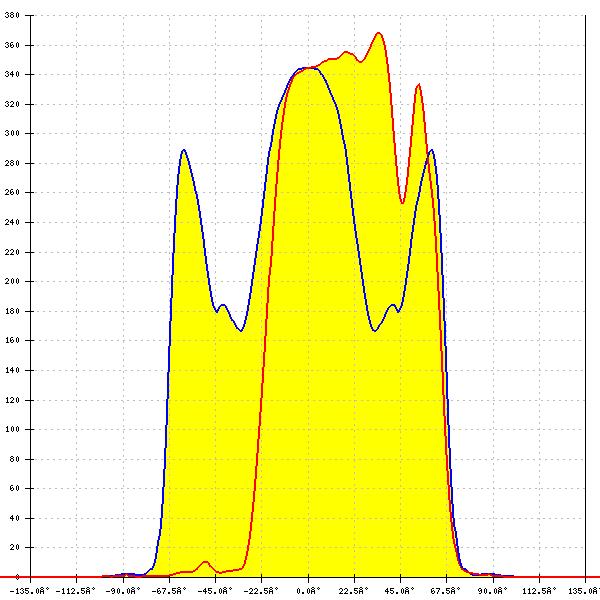

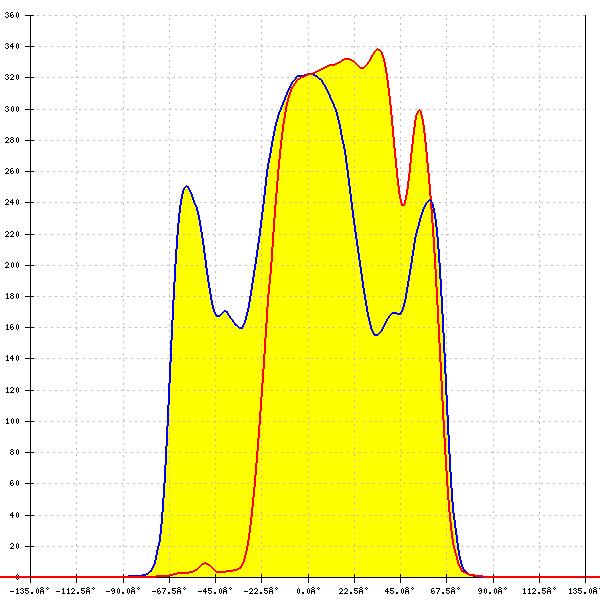

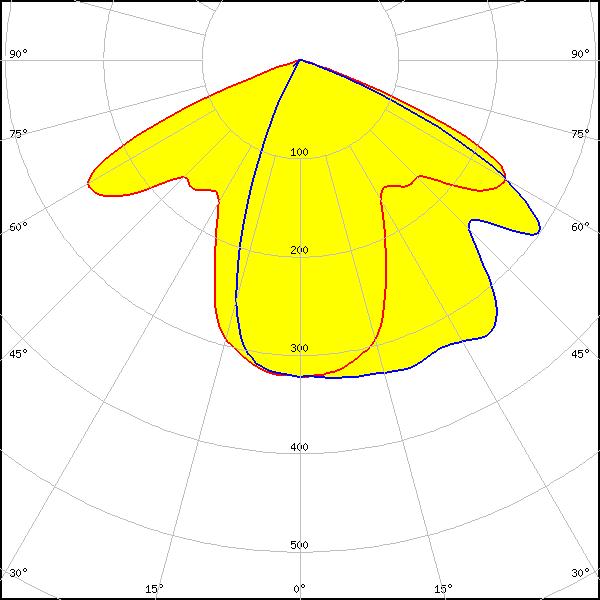

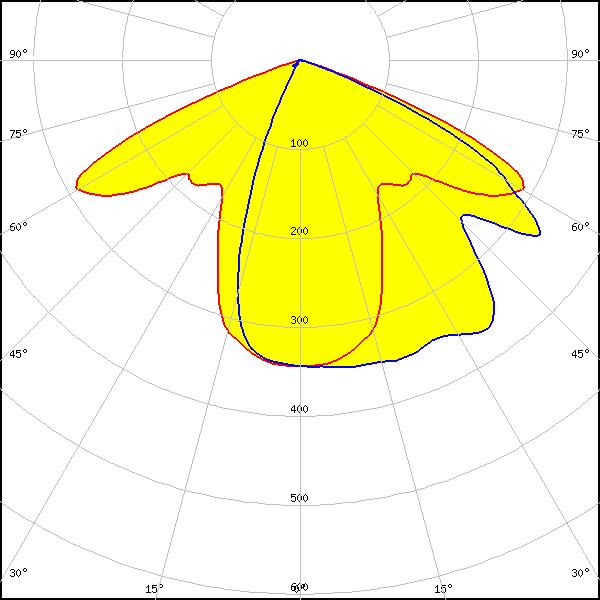

LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.548 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.672 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

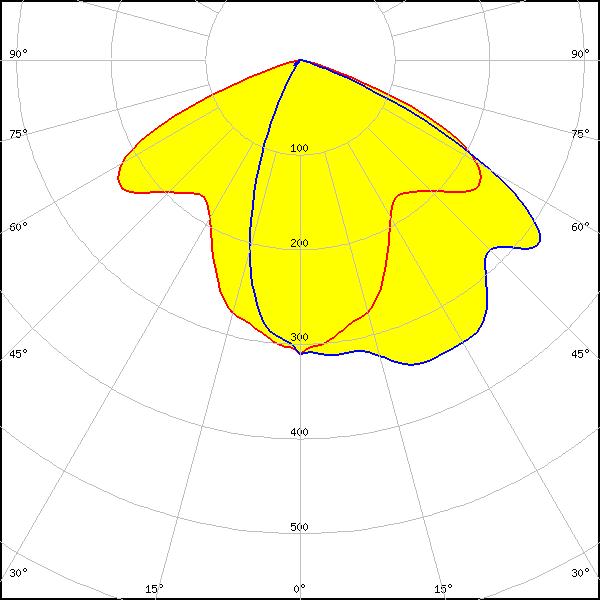

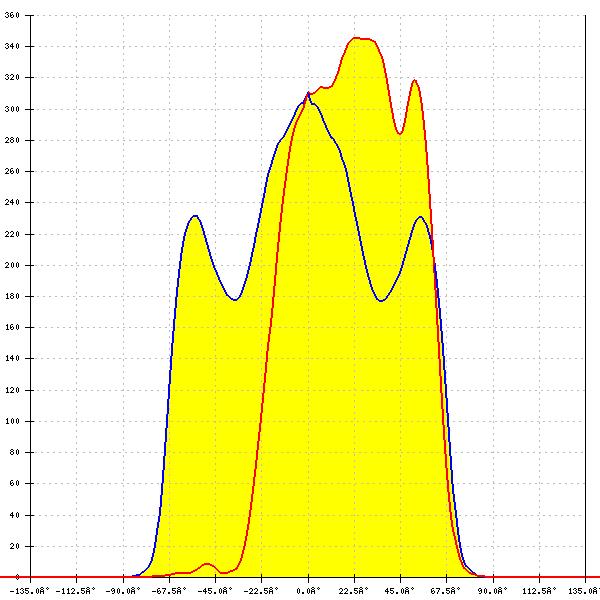

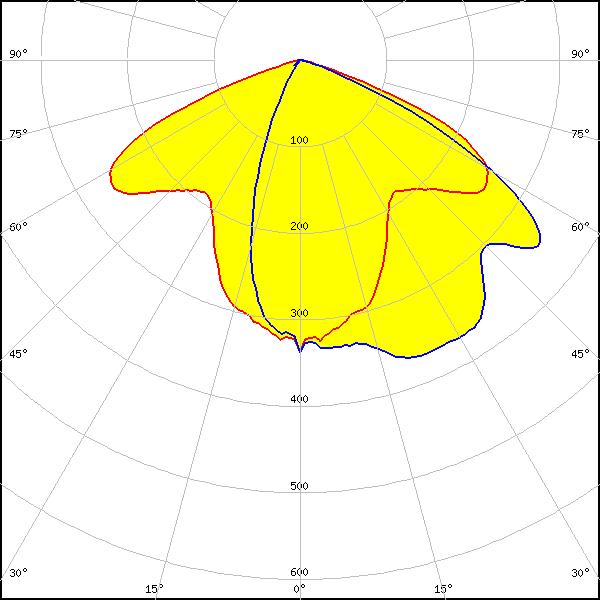

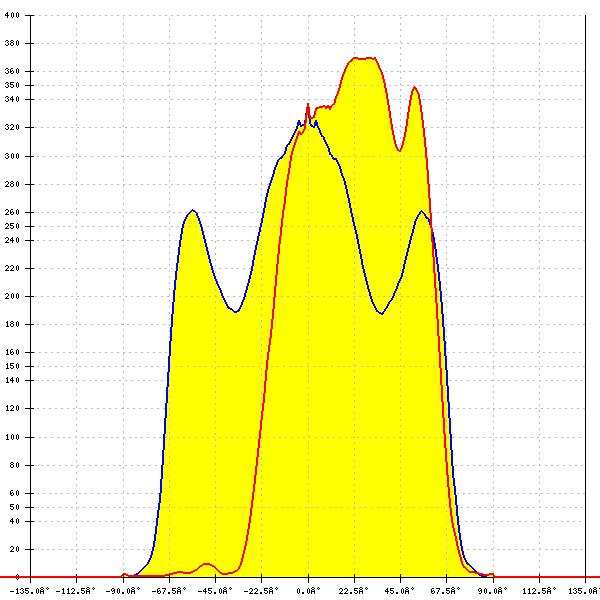

LED:
LUXEON 7070
FWHM: asymmetric
Peak intensity:
0.583 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 7070
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
FWHM: asymmetric
Peak intensity:
0.655 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
FWHM: asymmetric
Peak intensity:
0.551 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

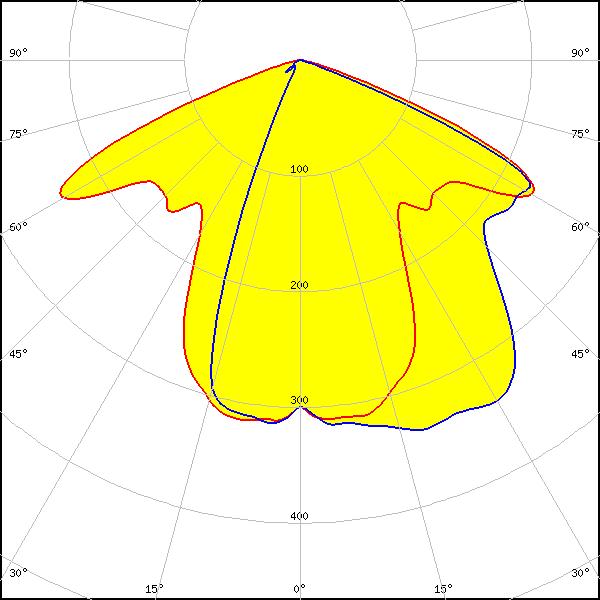

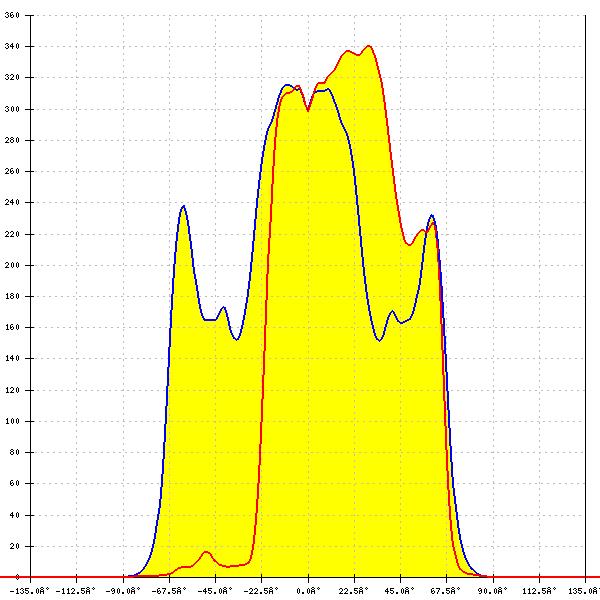

LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.737 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.735 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
