APPLICATION EXAMPLE

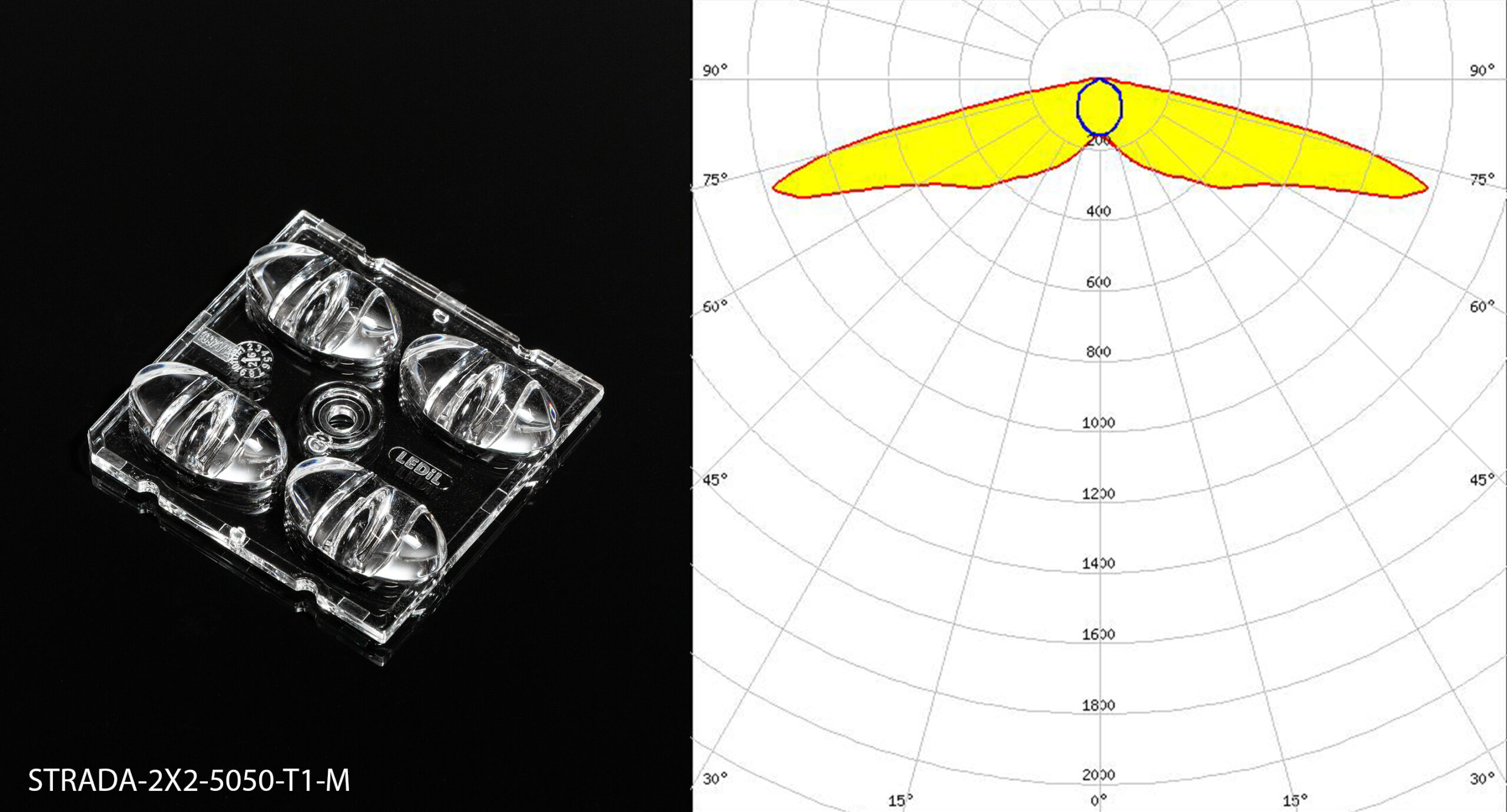

P4 Street lighting with STRADA-2X2-5050-T1-M
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

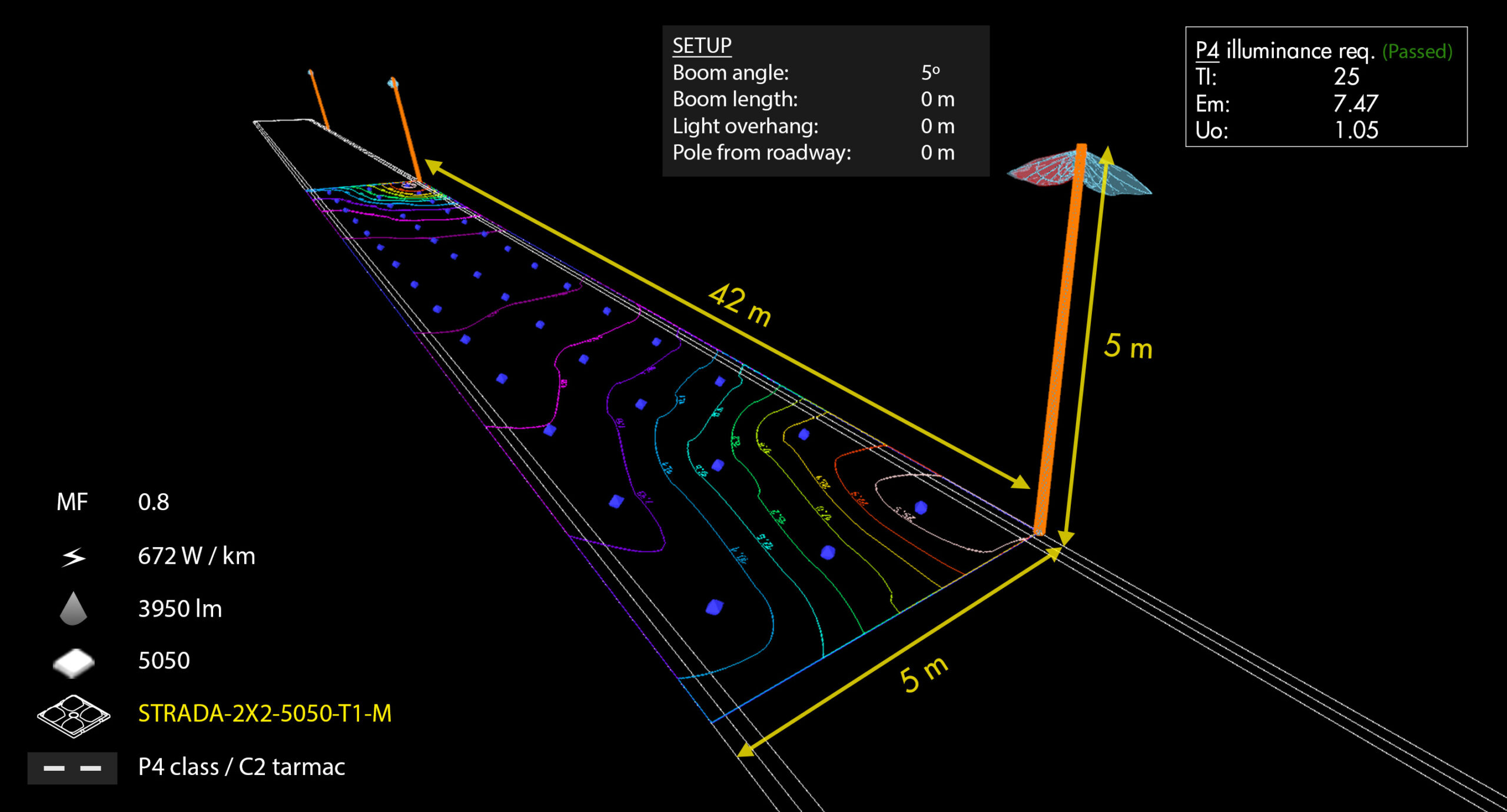

SETUP:
| Application: | Street lighting |
| Roadway class: | P4 |
| Tarmac: | C2 |
| Optics: | STRADA-2X2-T1-M |
| LED: | 5050 |
| Road width: | 5 m |
| Number of lanes: | 2 |
| Arrangement: | single side, bottom |
| Pole distance: | 42 m |
| Mounting height: | 5 m |
| Overhang: | 0 m |
| Boom angle: | 5° |
| Boom lenght: | 0 m |
| Pole distance from roadway: | 0 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 3950 lm |
| Power consumption/km: | 672 W |
| Energy consumption/year: | 112 kWh |

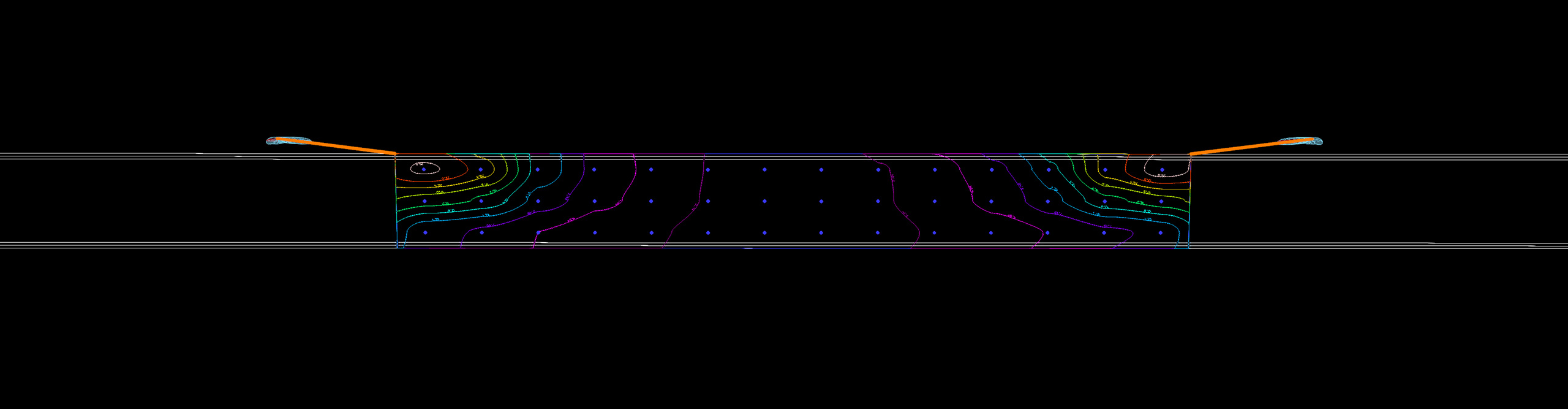

Results:
| P4 illuminance requirements | Passed |
| TI: | 25 |
| Em: | 7.47 |
| Emin: | 1.05 |
P4 Street lighting with STRADA-2X2-5050-T1-M
