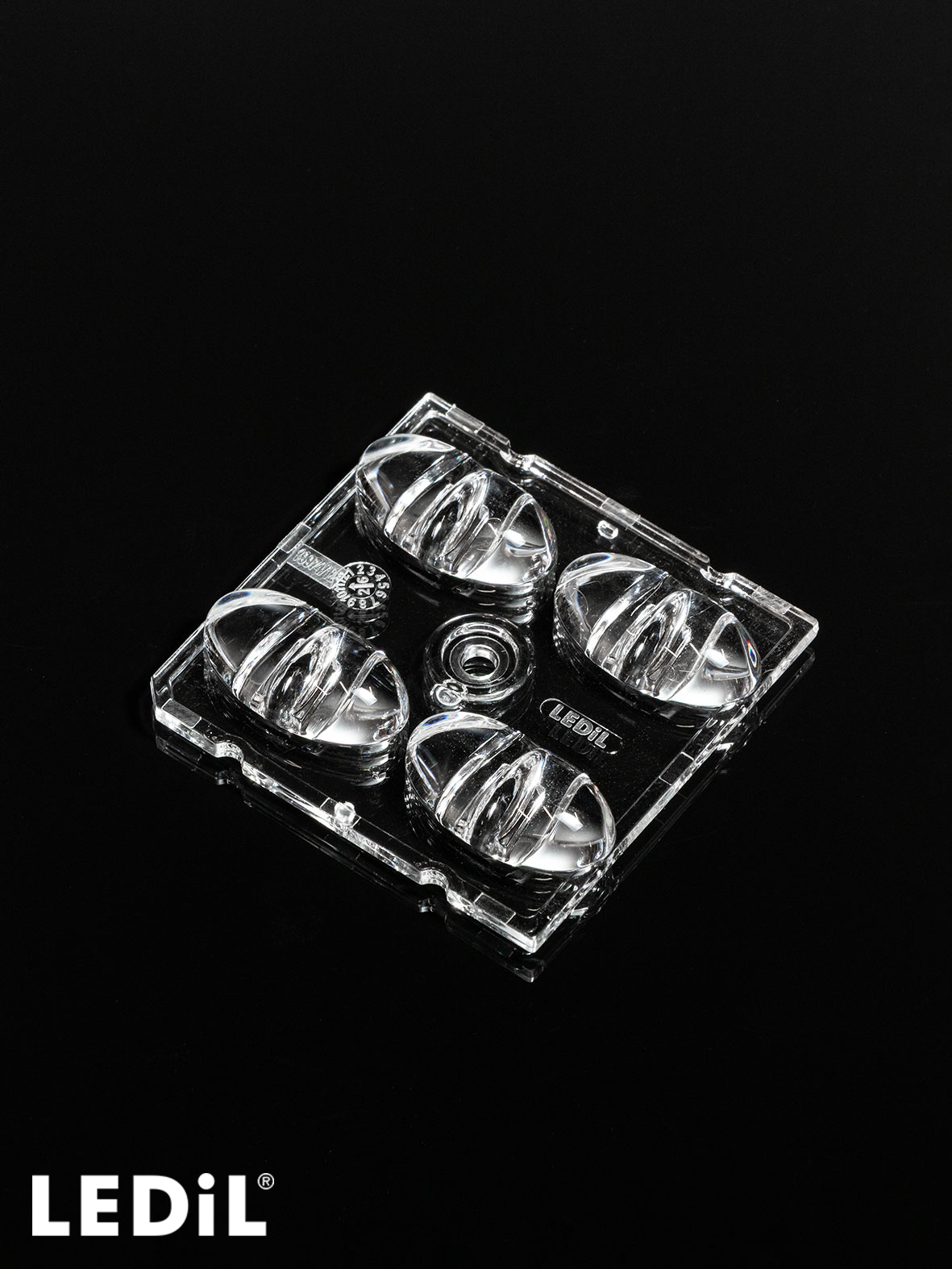

    C19974_STRADA-2X2-5050-T1-M

    Print

    IESNA Type I (medium) beam applicable for European P-class standard for pedestrian lighting and bicycle paths.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      8.05 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.9 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19974_STRADA-2X2-5050-T1-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    P4 Street lighting with STRADA-2X2-5050-T1-M

    News

    New beams and products – June 2026

    Application area

    Urban lighting with LEDiL optics

    Application guide

    Guide for Urban lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

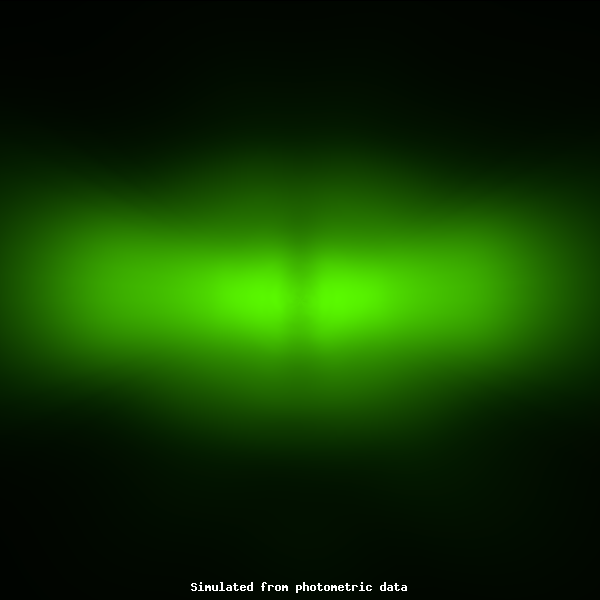

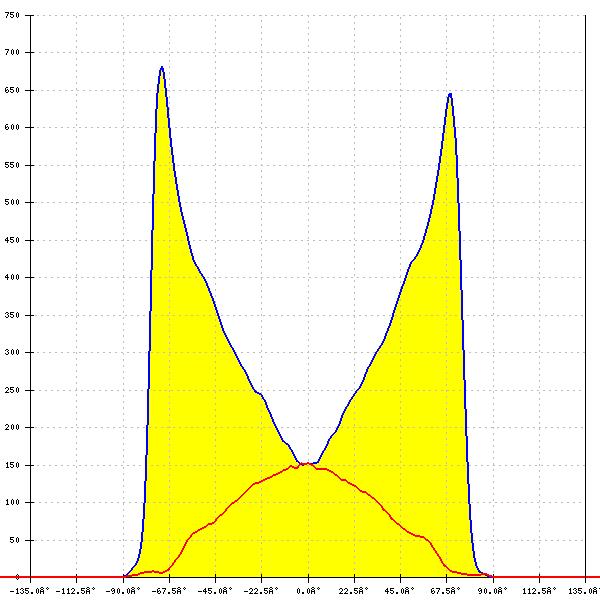

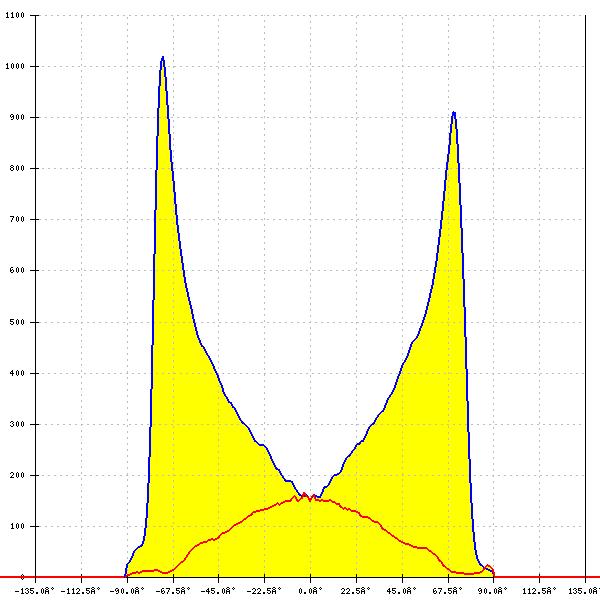

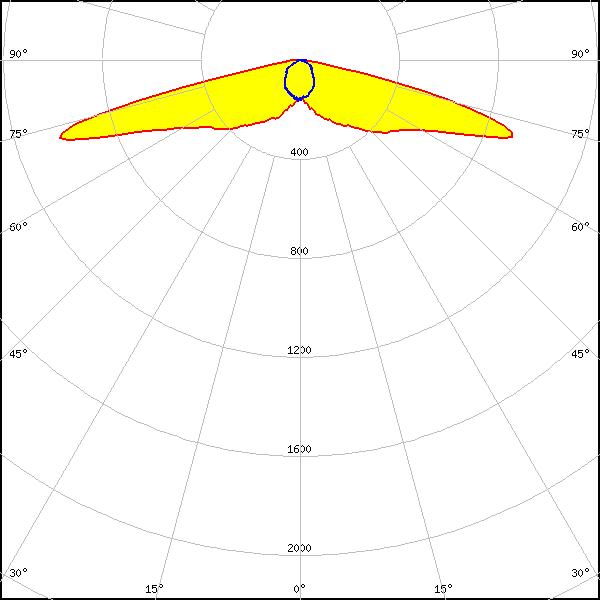

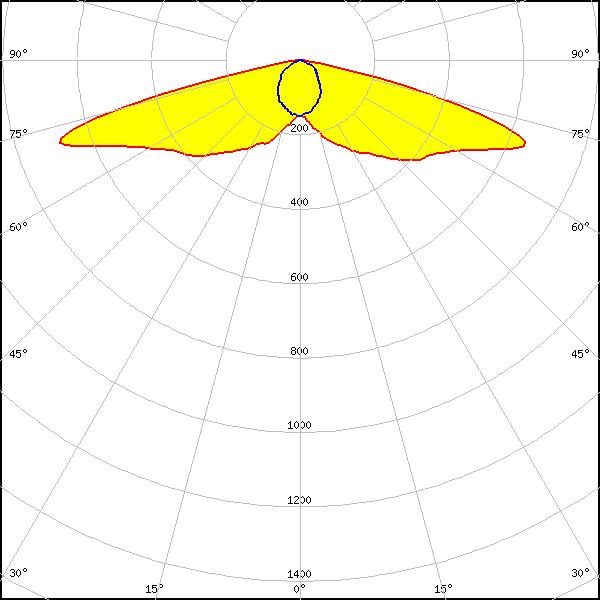

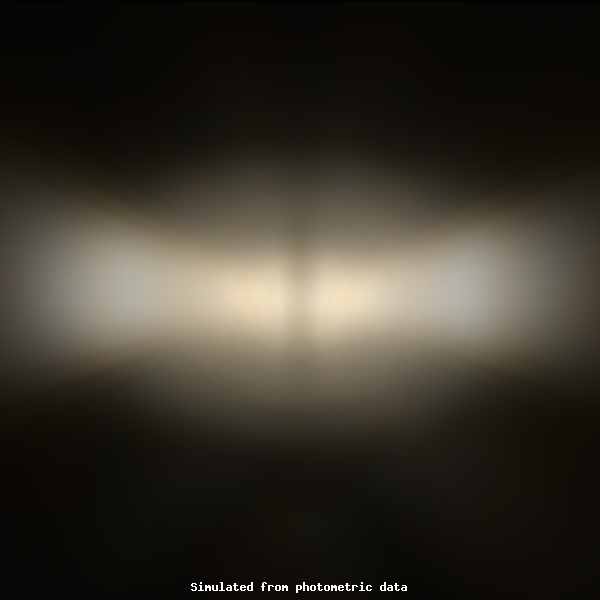

    LED: Bridgelux SMD 5050 (322-06DEF)
    FWHM: asymmetric
    Peak intensity: 1.043 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Bridgelux SMD 5050 (322-06DEF)
    FWHM: asymmetric
    Peak intensity: 0.708 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

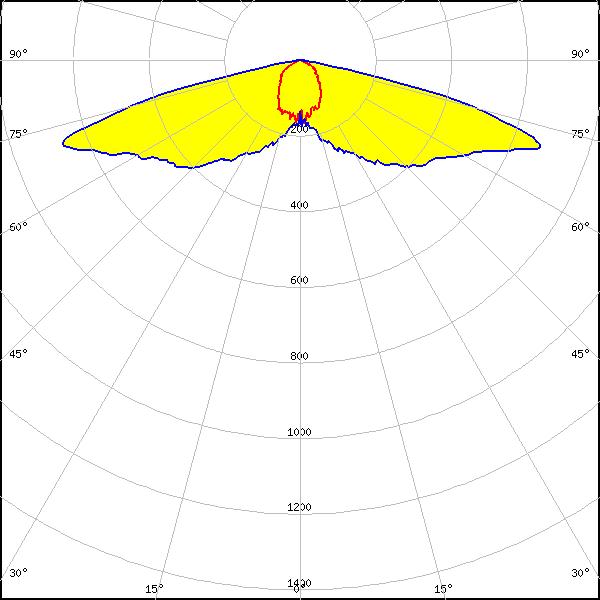

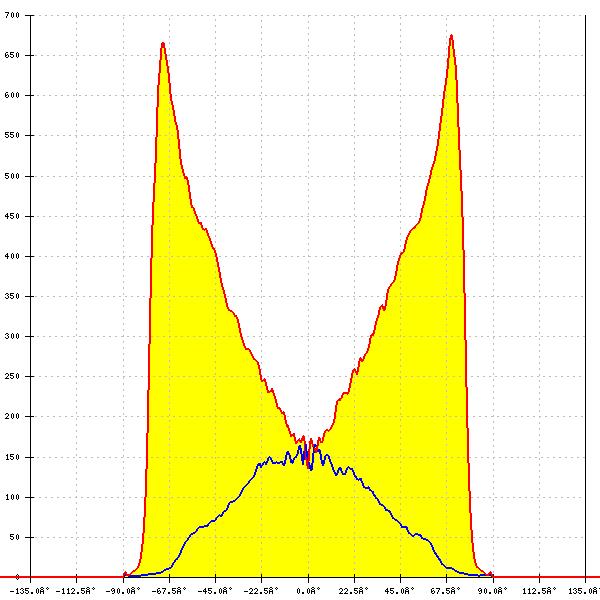

    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 0.680 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

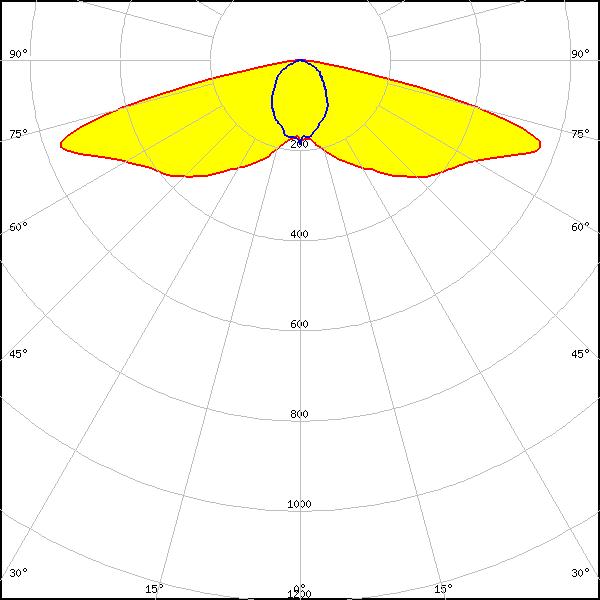

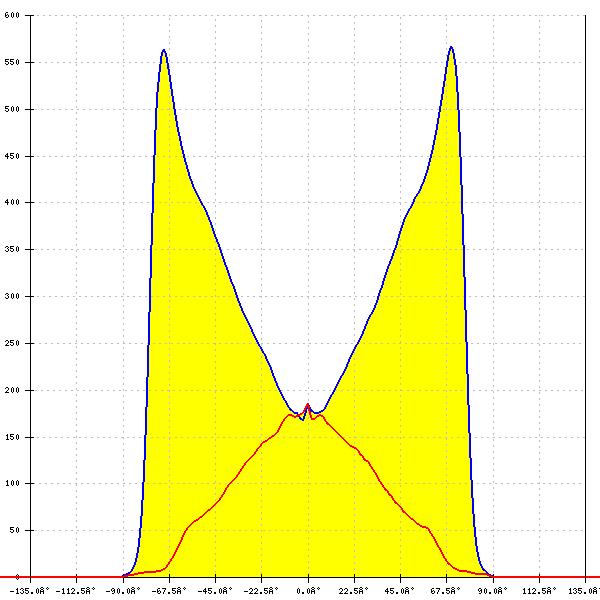

    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.579 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

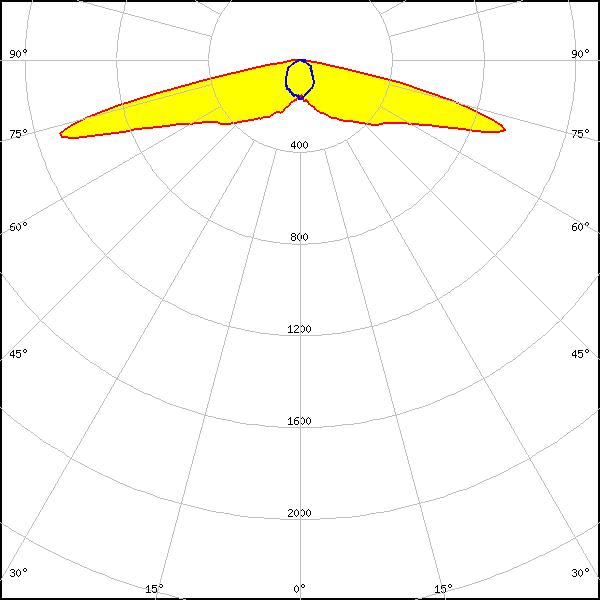

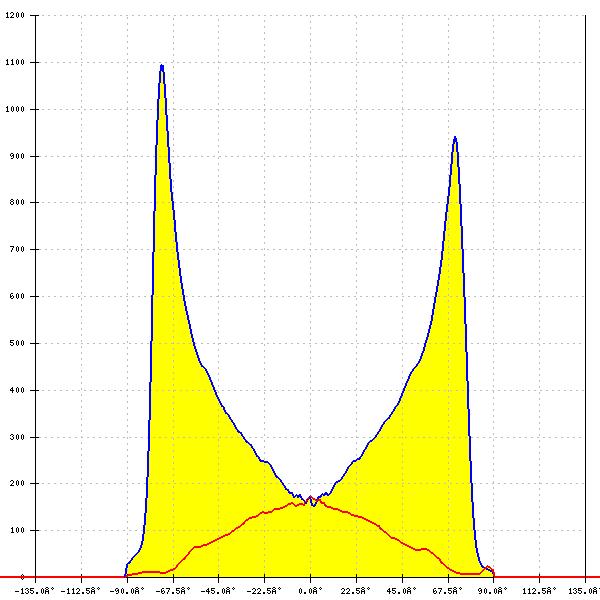

    LED: LUXEON 5050 HE Plus FC
    FWHM: asymmetric
    Peak intensity: 1.166 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE Plus FC
    FWHM: asymmetric
    Peak intensity: 0.748 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

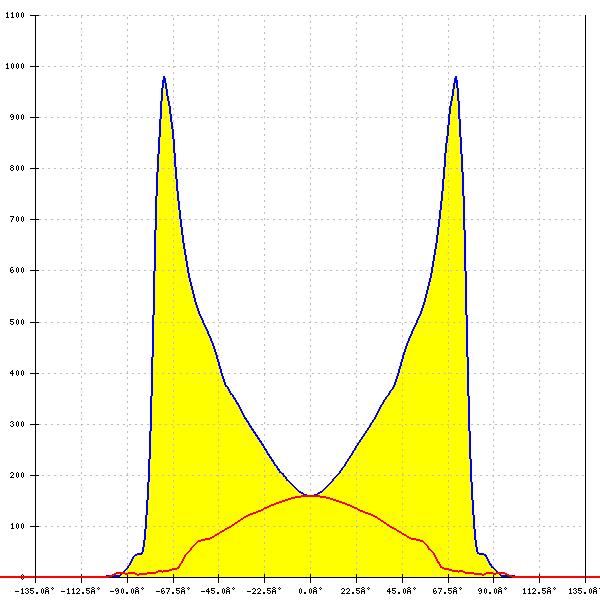

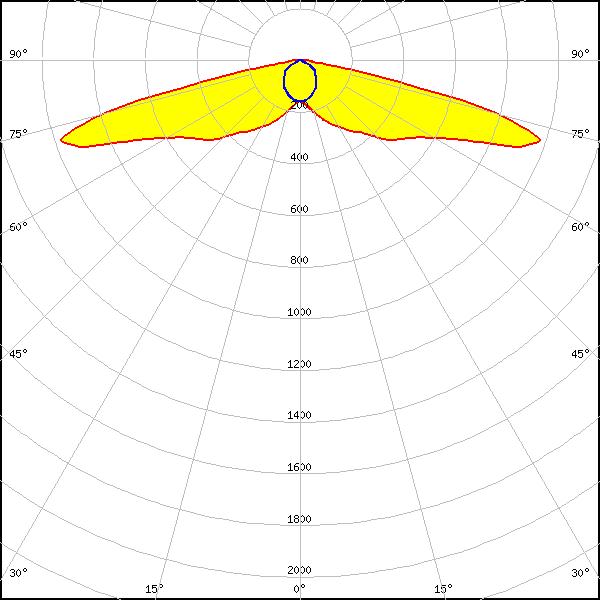

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.981 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

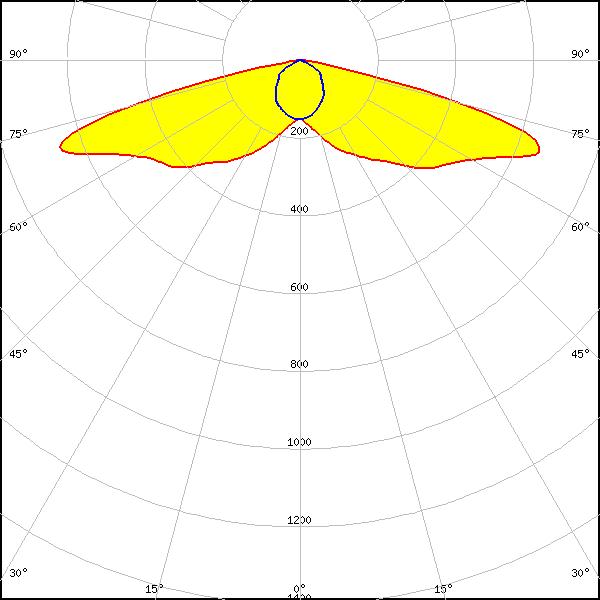

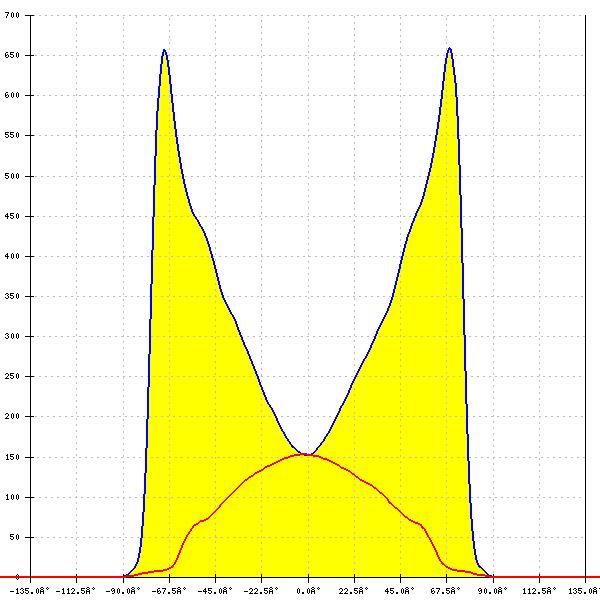

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.666 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR37)
    FWHM: asymmetric
    Peak intensity: 1.060 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR37)
    FWHM: asymmetric
    Peak intensity: 0.699 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
