Application example
Tunnel lighting with SPORT-SQ-SC2-FT6.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Setup for a 2-lane roadway.
See results for a 3-lane roadway setup here.
Setup:
| Application: | Tunnel lighting |
| Number of lanes: | 2 |
| Road surface: | R3 |
| Walls: | 2 m high / 30 % diffusion |
| Installation height: | 5 m |
| Luminaire spacing: | 6 m |
| LEDs: | 7070 |
| Optics: | SPORT-SQ-SC2-FT6 |
| Number of optics in a luminaire: | 3 pcs |
| Luminaire LED lumens: | 4500 lm |
| Luminaire LED power: | 26.5 W |
| Maintenance factor: | 0.8 |

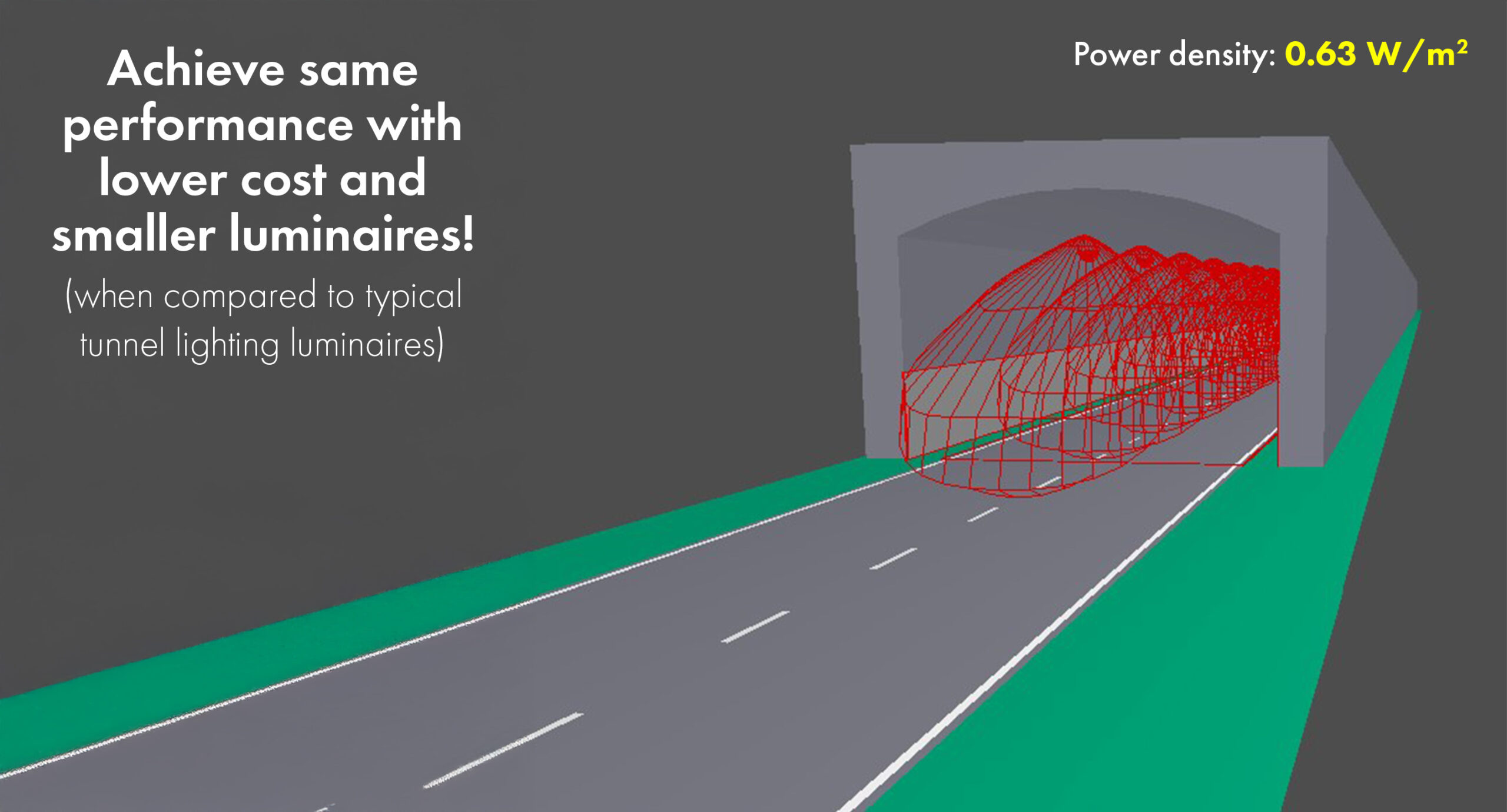

Power density: 0.63 W/m2
137 lm/W (including everything, driver efficiency = 85 %)

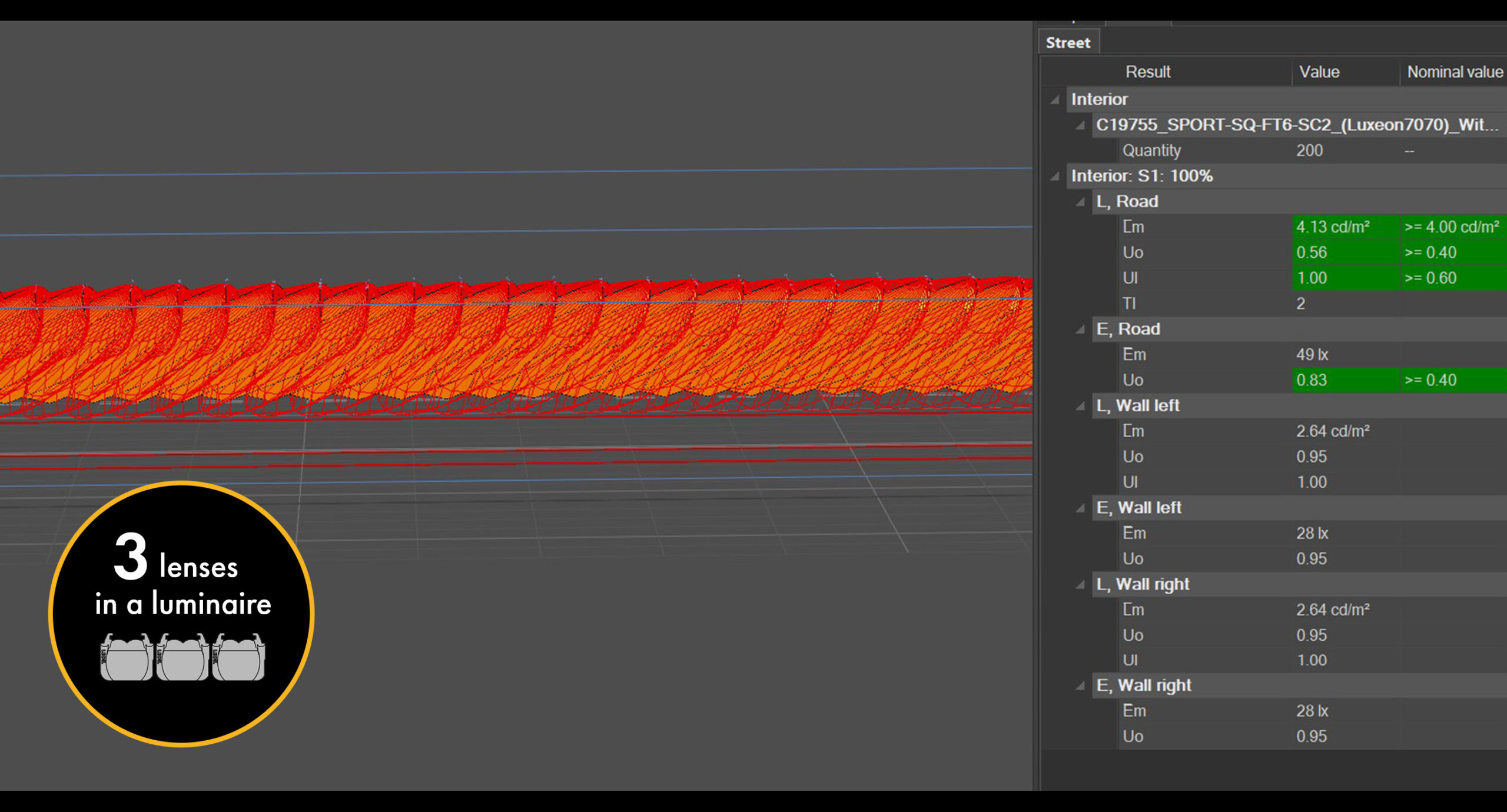

| Luminance results | Illuminance results | ||
| Lm: | 4.02 cd/m2 | Em: | 48 lx |
| Uo: | 0.53 | Uo: | 0.80 |
| Ul: | 0.89 | ||
| TI: | 3 | ||
| Walls | Walls | ||
| Lm: | 2.59 cd/m2 | Em: | 27 lx |
| Uo: | 0.86 | Uo: | 0.86 |
Tunnel lighting with SPORT-SQ-SC2-FT6.
