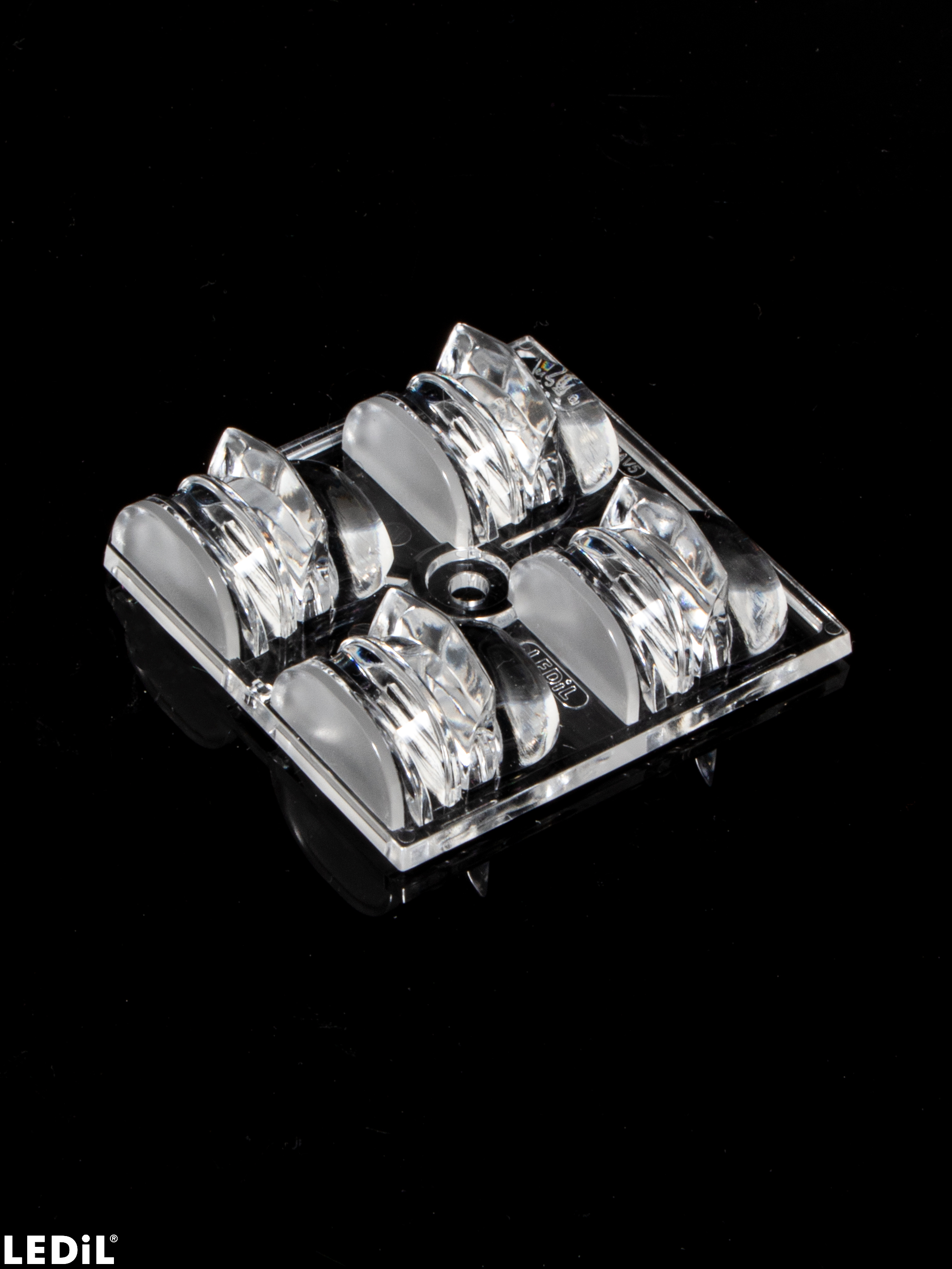

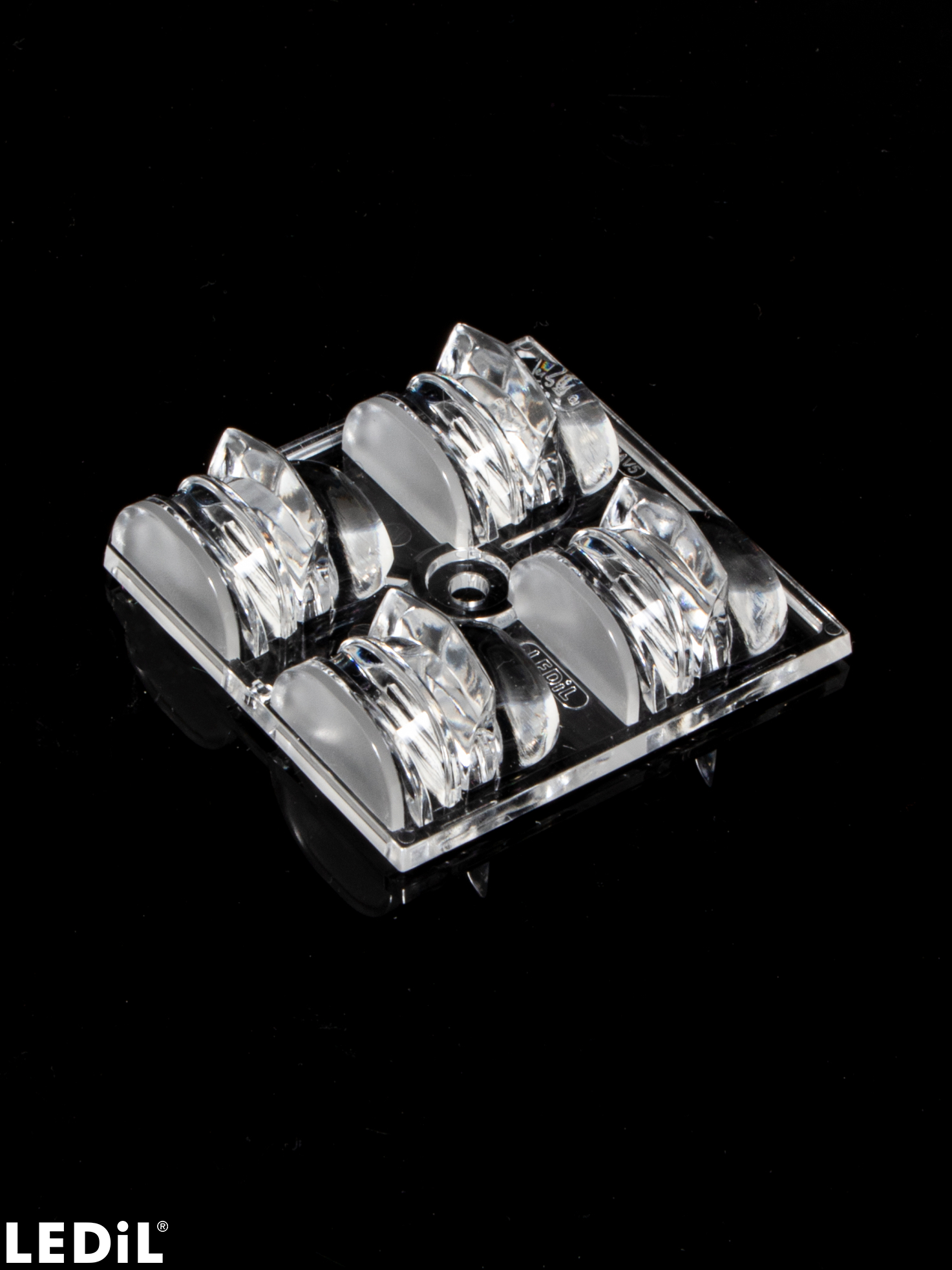

C17360_SPORT-2X2-FT60

Print

Narrow forward throw beam for high masts

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    15.50 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    640 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.5 kg
  • MPQ:
    128 pcs
  • MOQ:
    128 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    2.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17360_SPORT-2X2-FT60

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

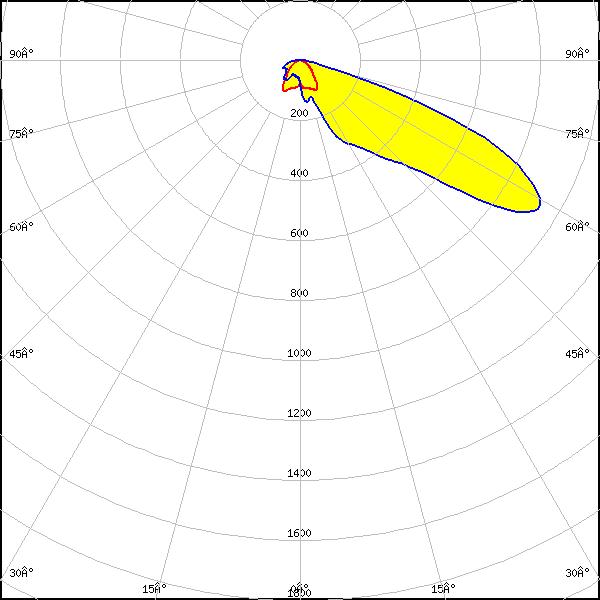

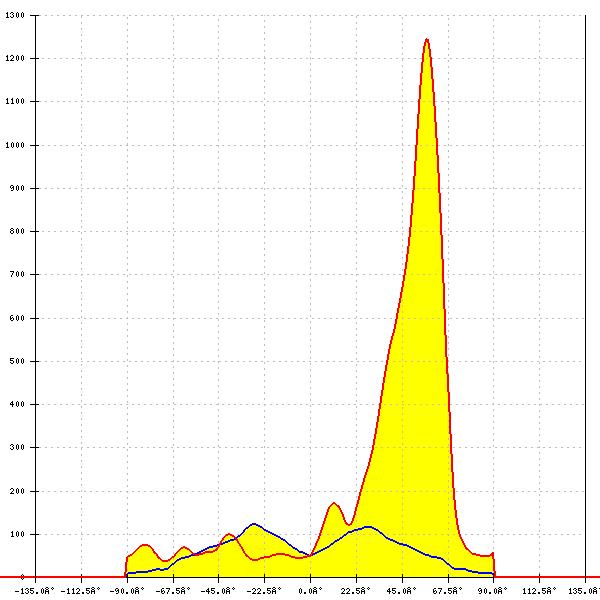

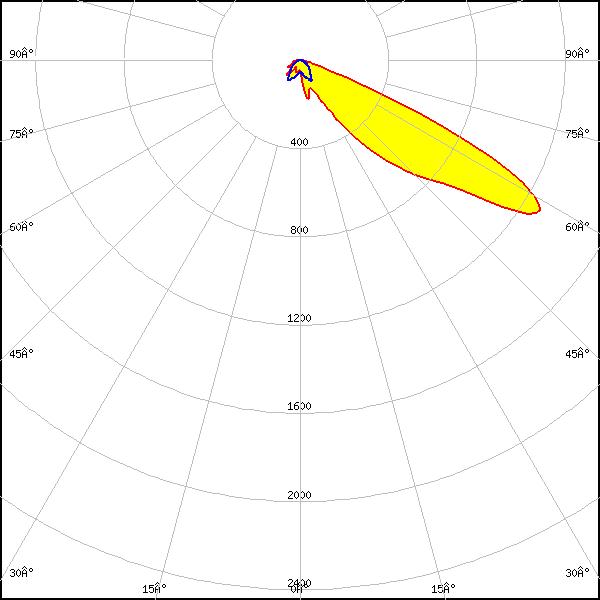

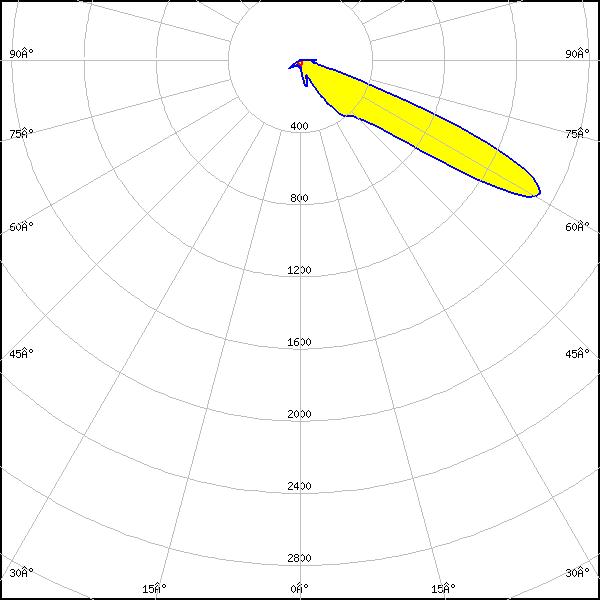

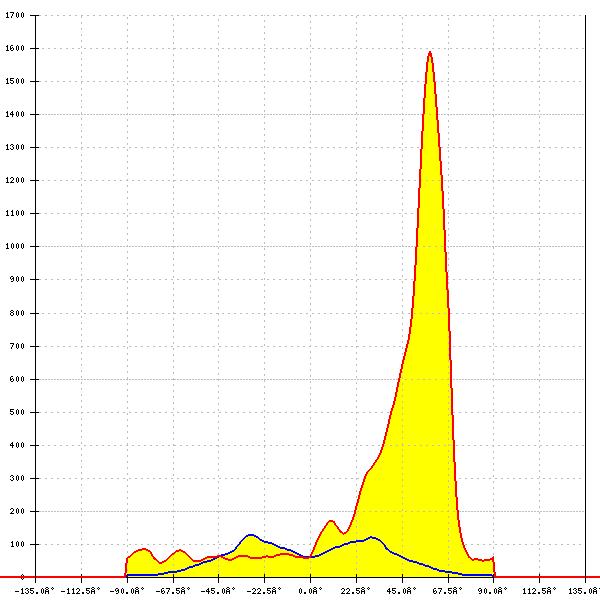

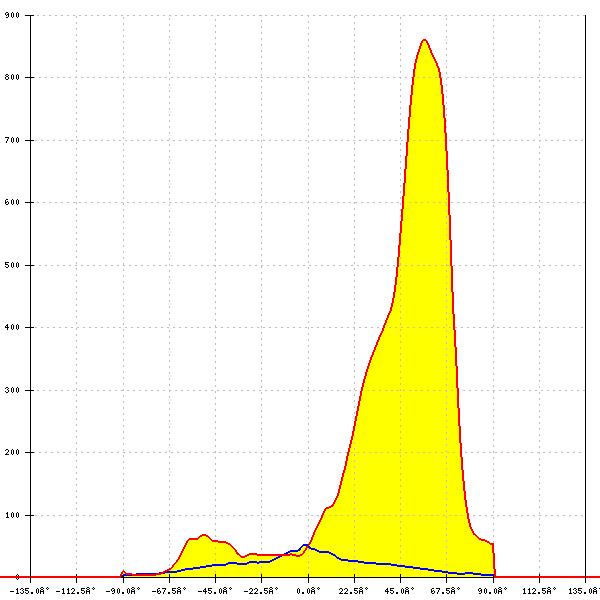

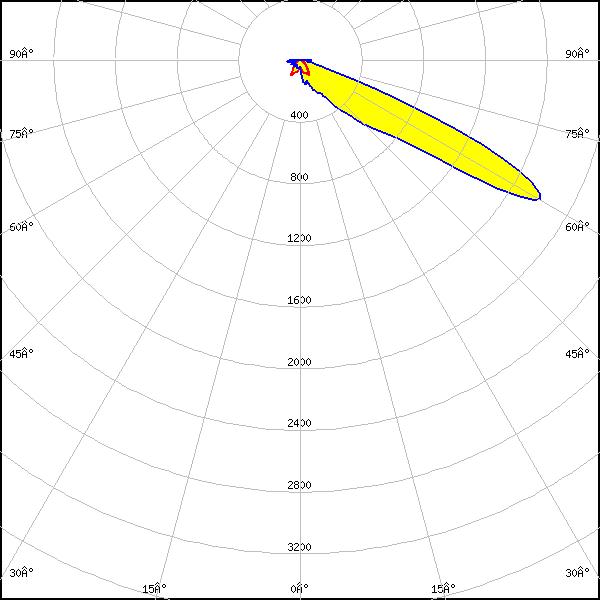

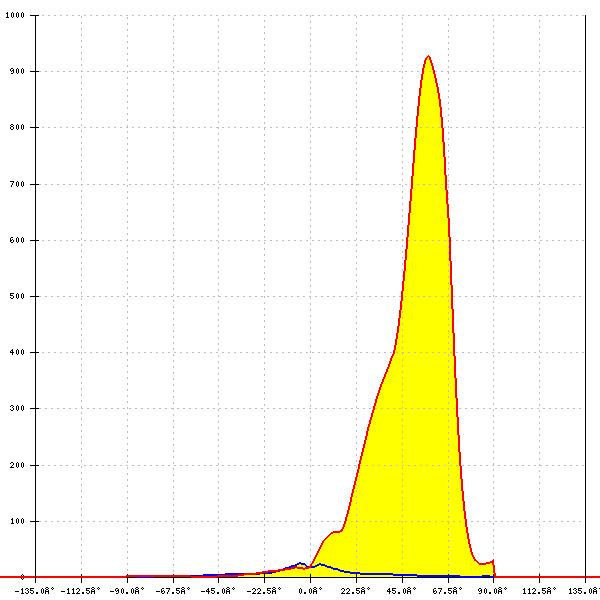

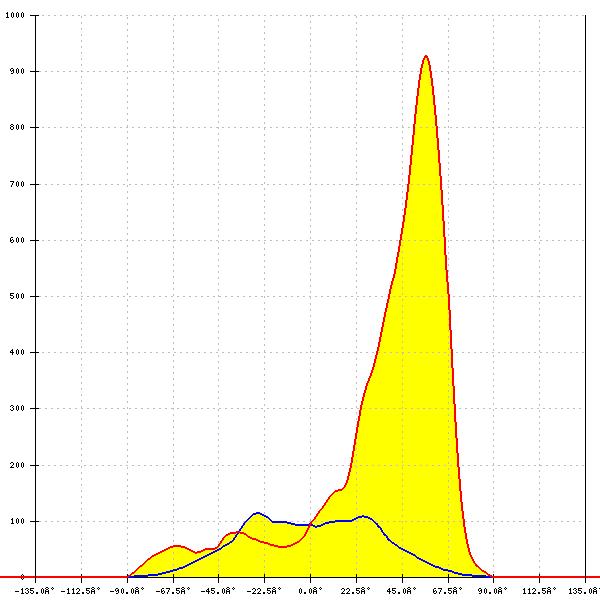

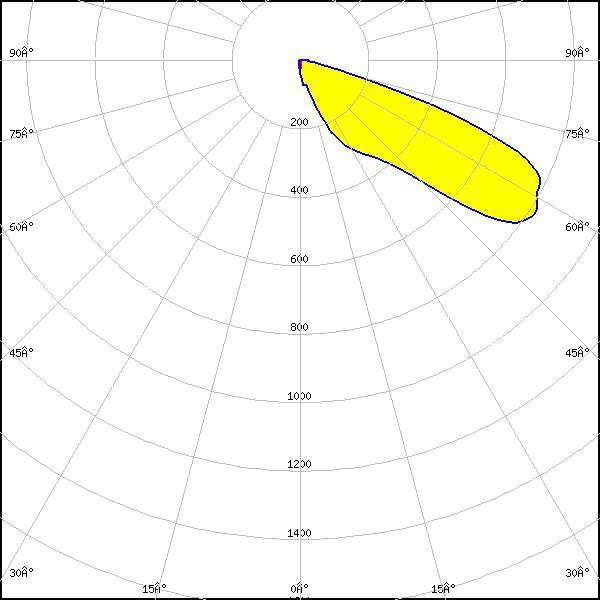

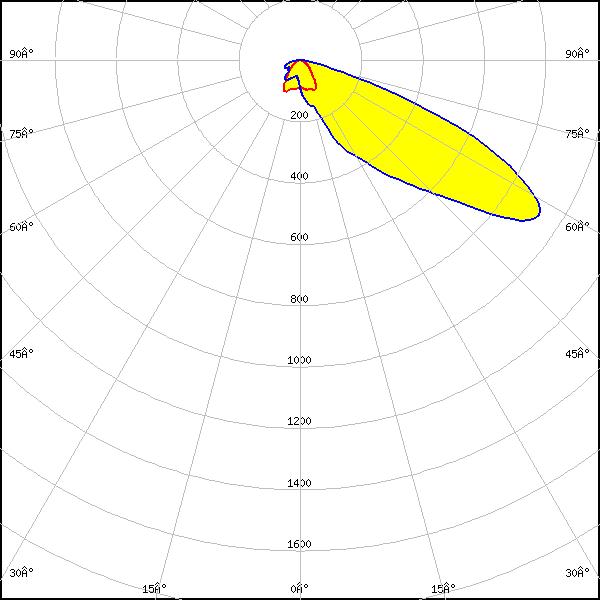

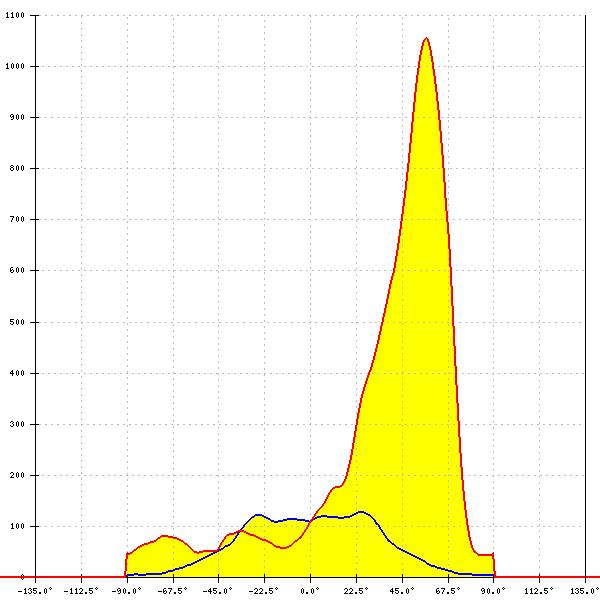

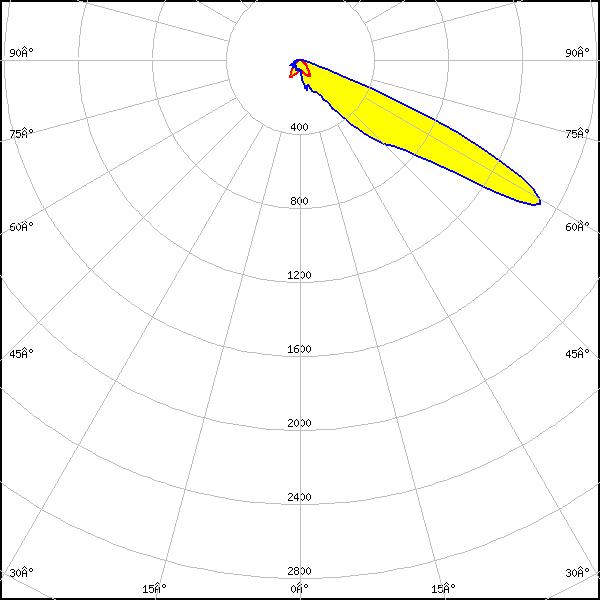

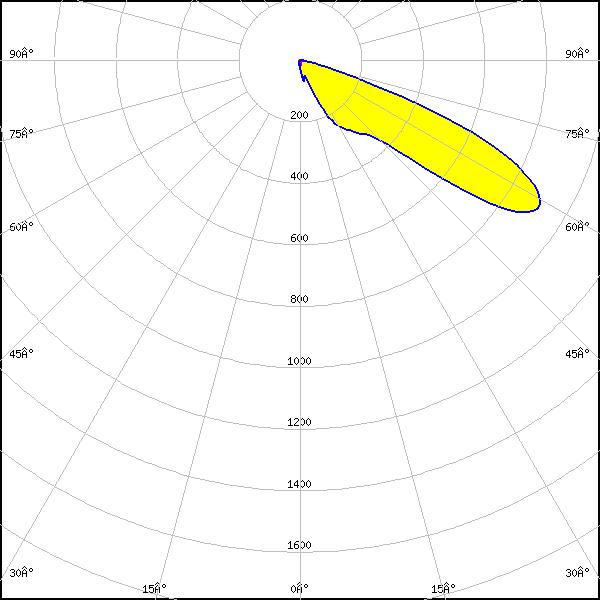

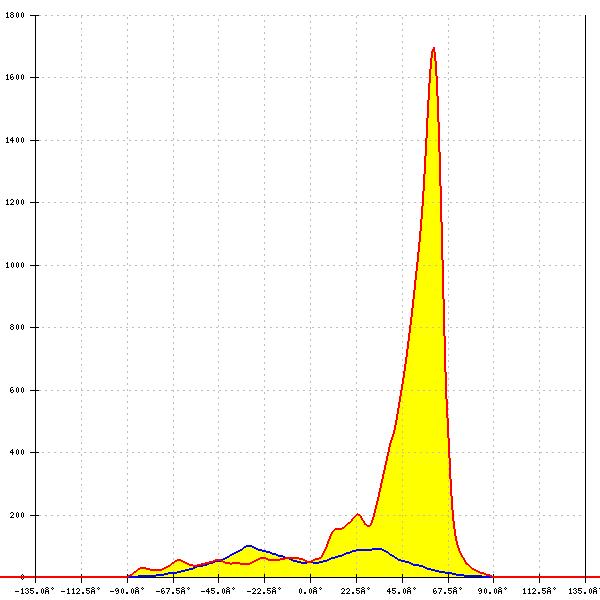

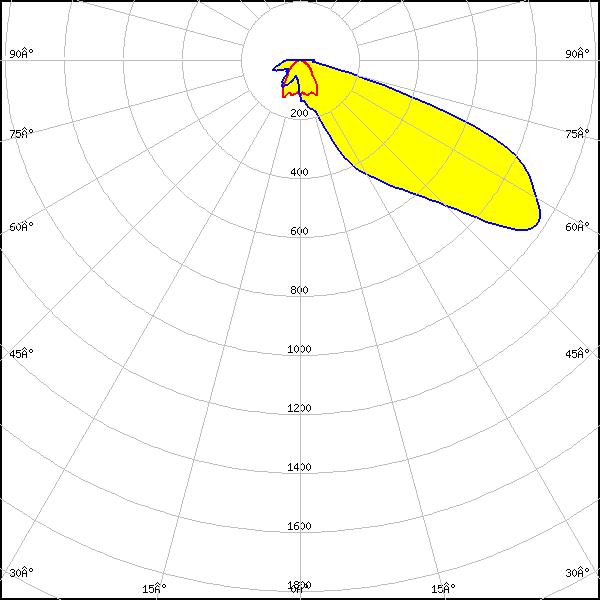

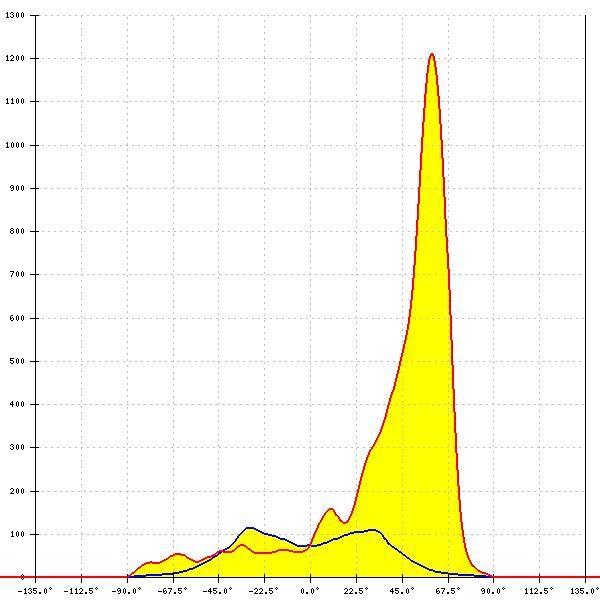

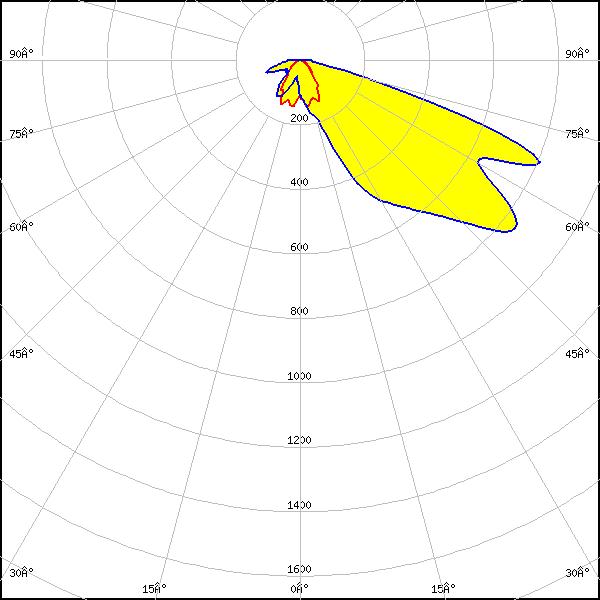

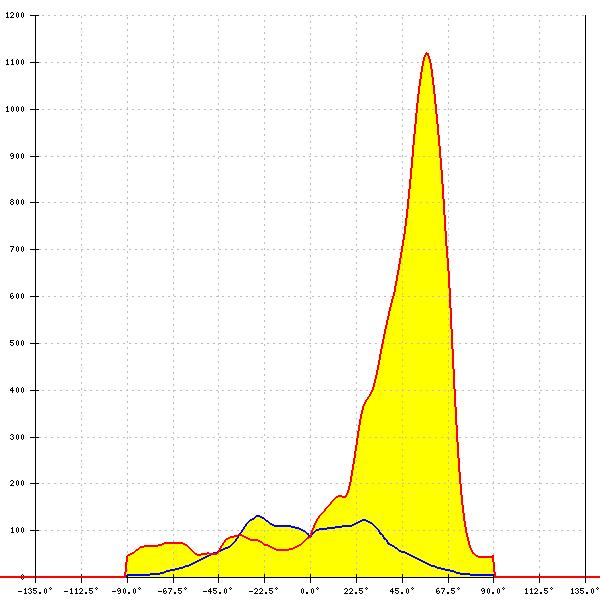

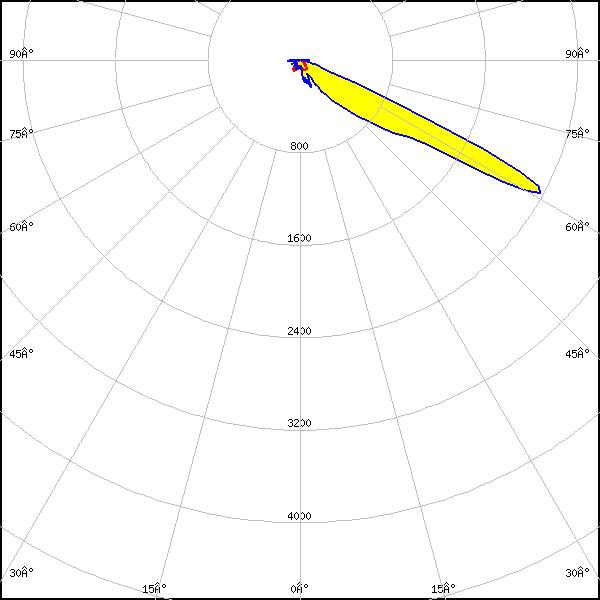

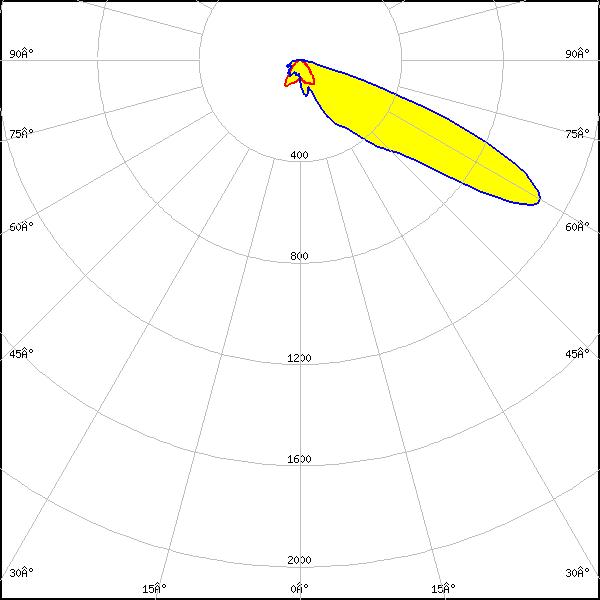

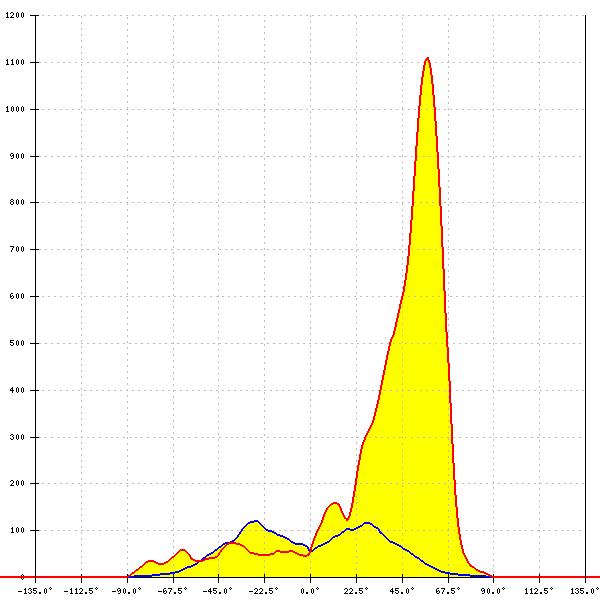

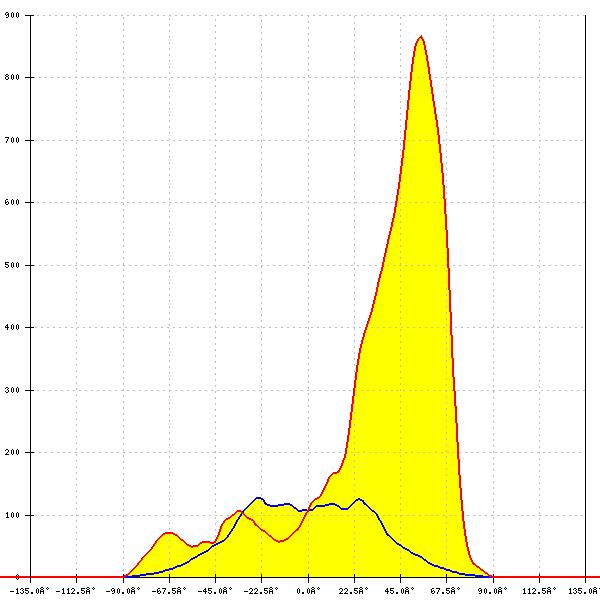

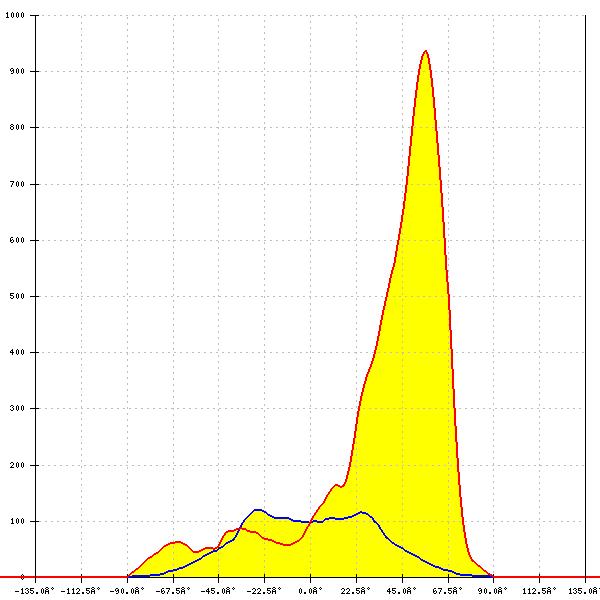

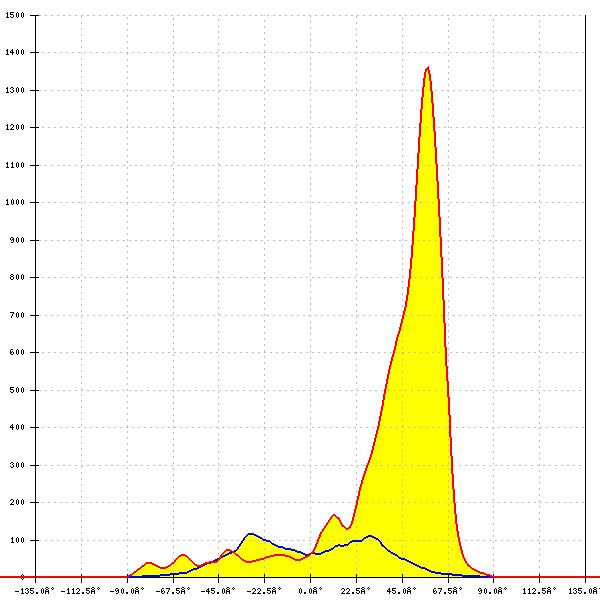

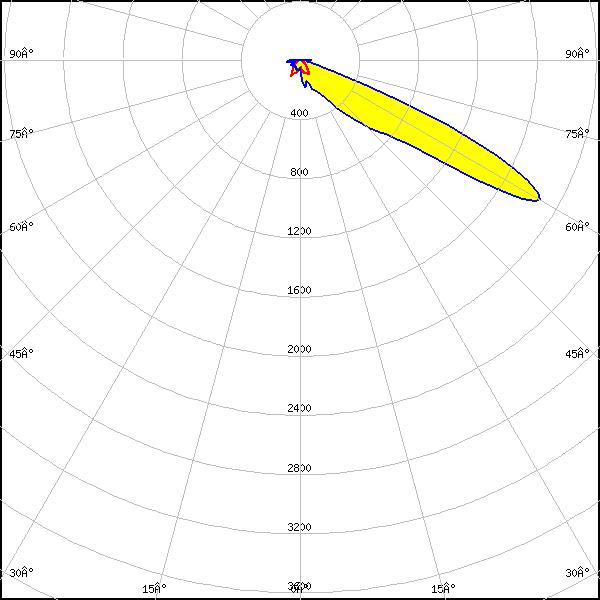

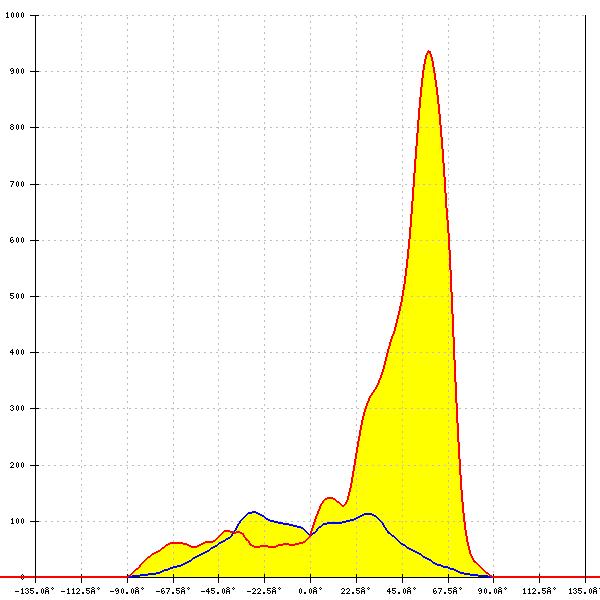

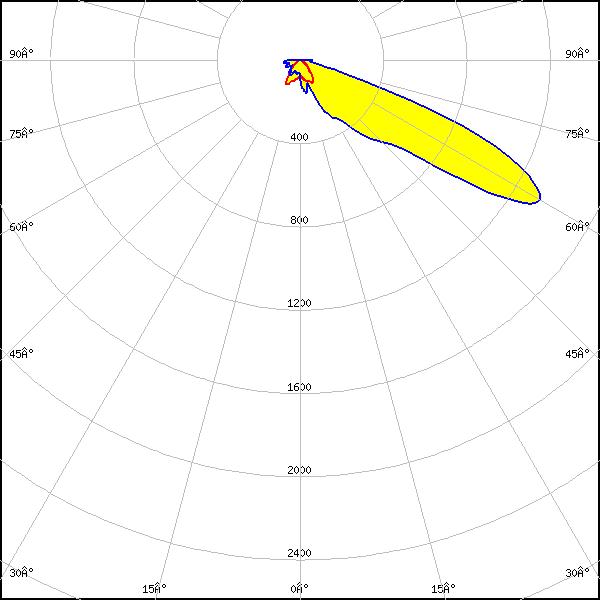

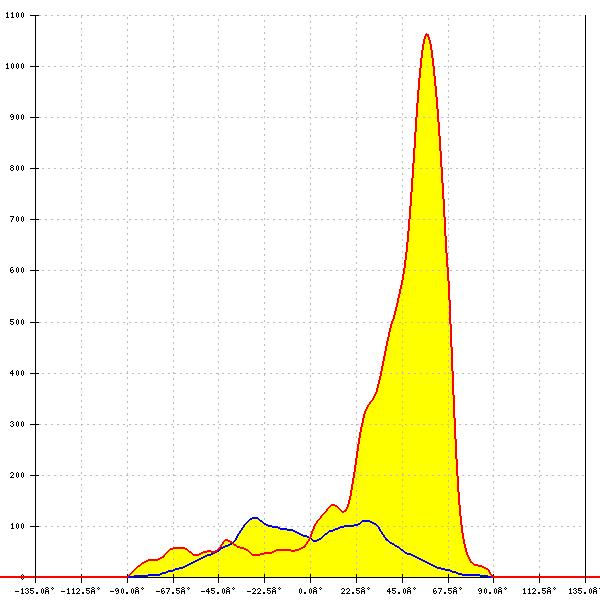

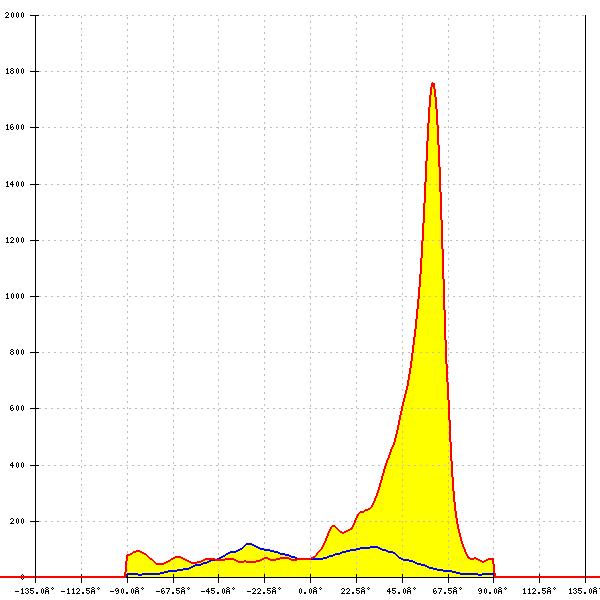

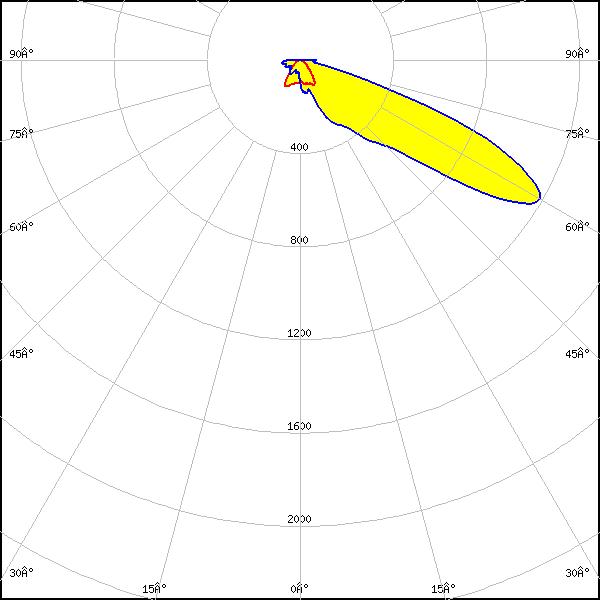

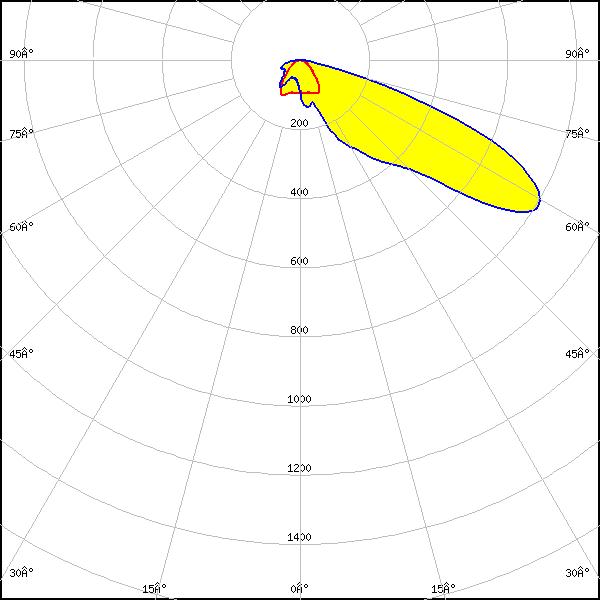

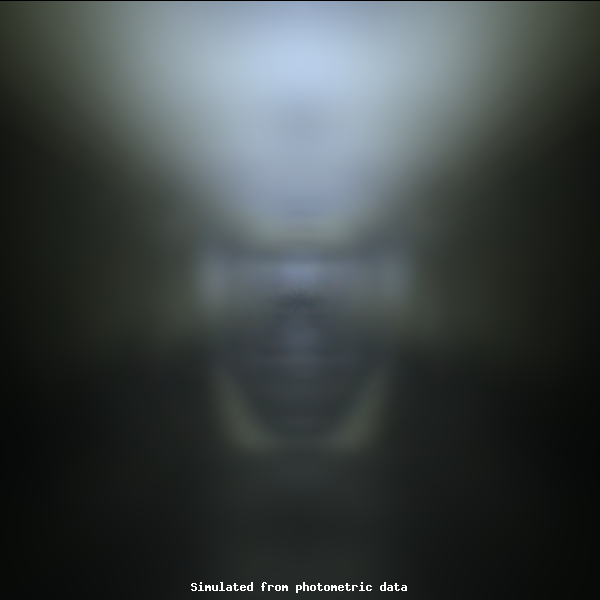

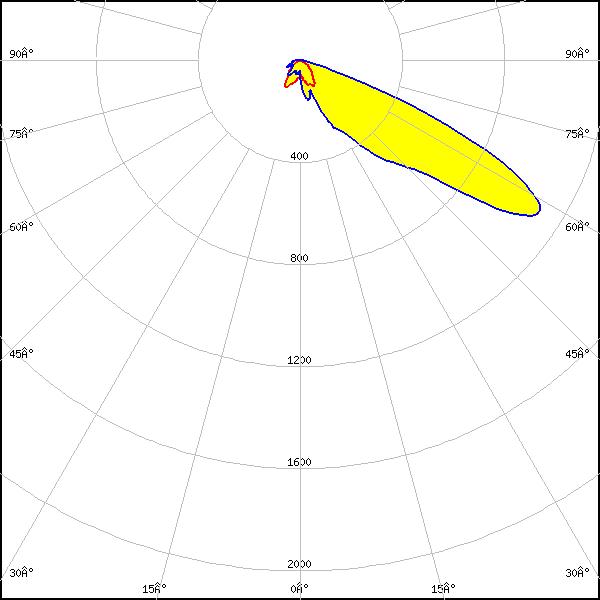

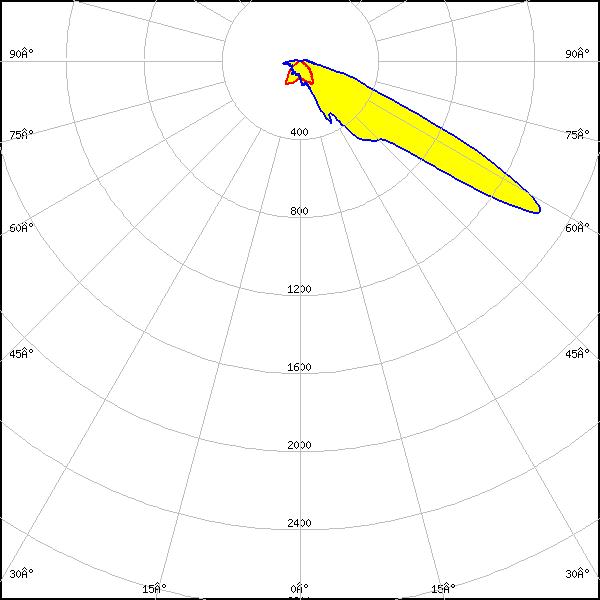

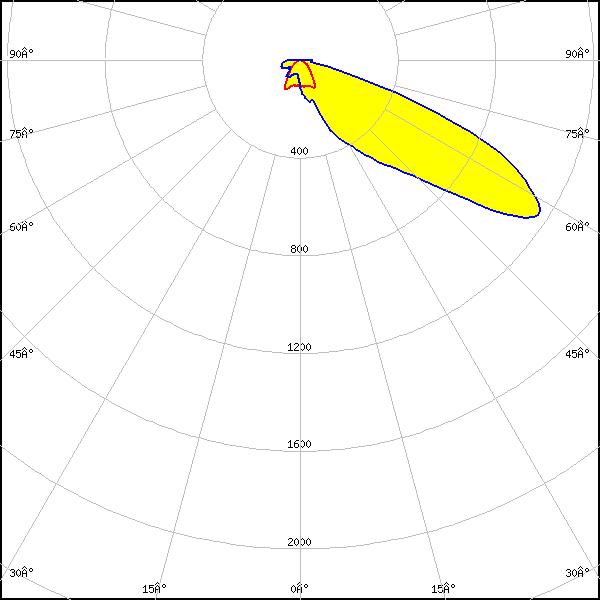

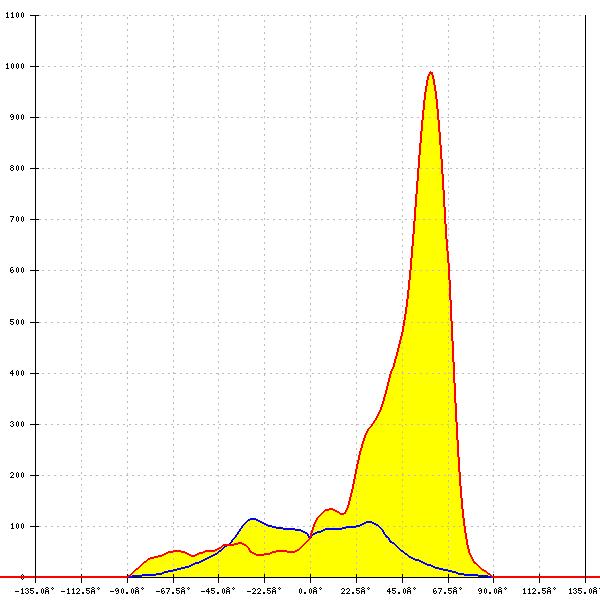

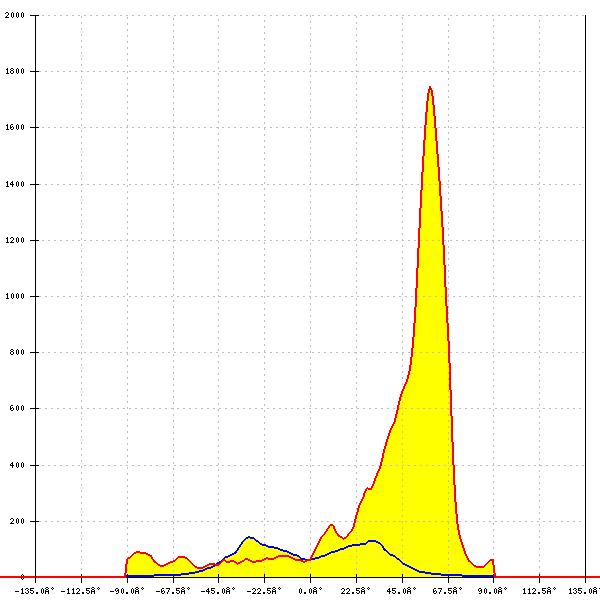

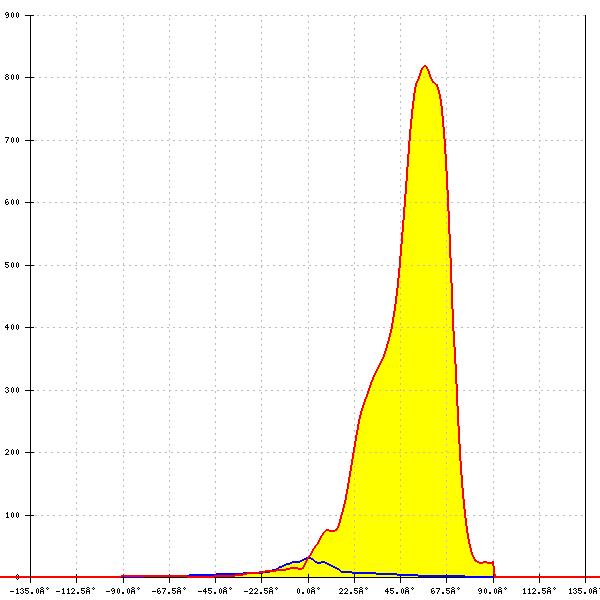

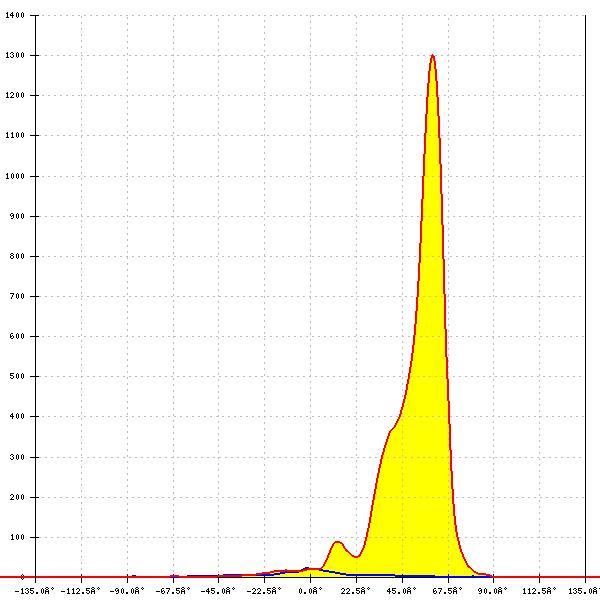

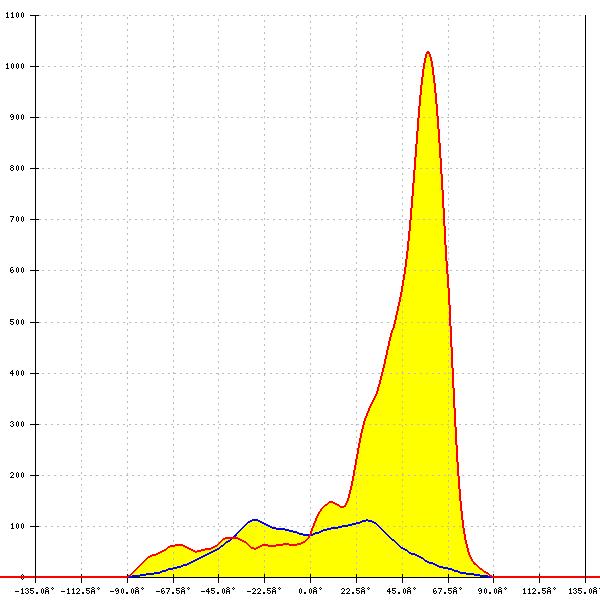

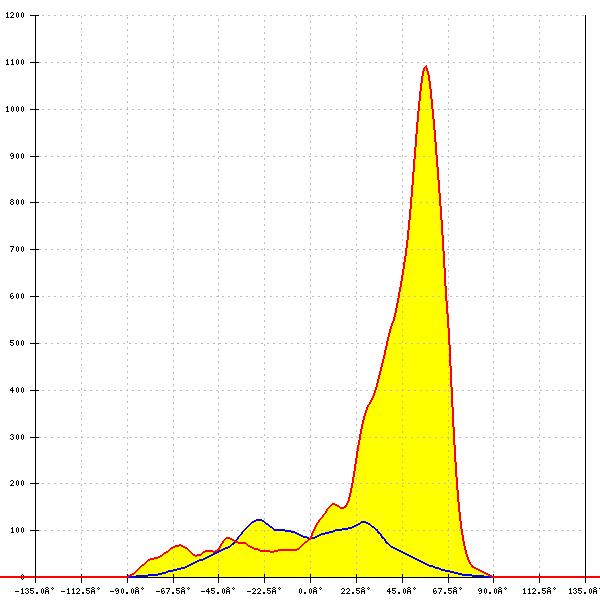

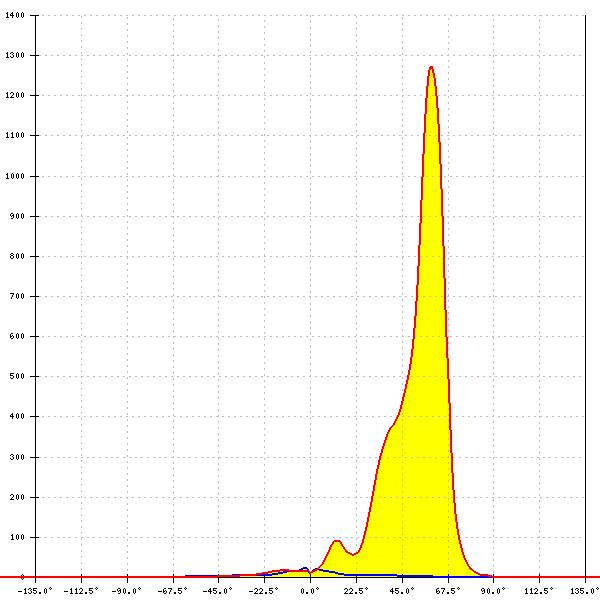

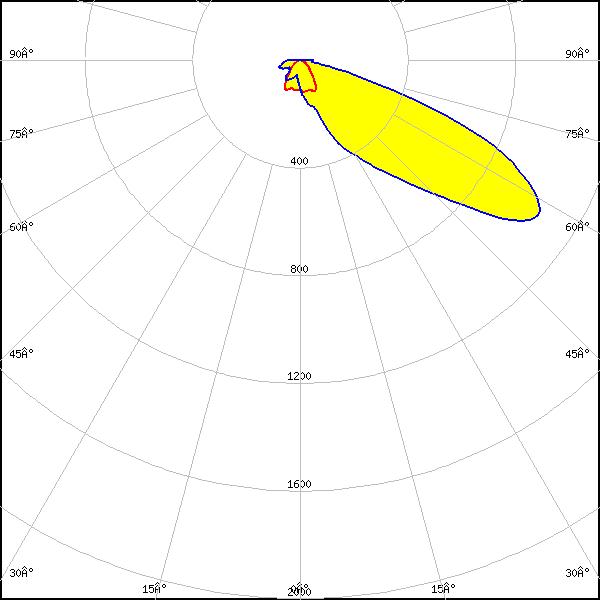

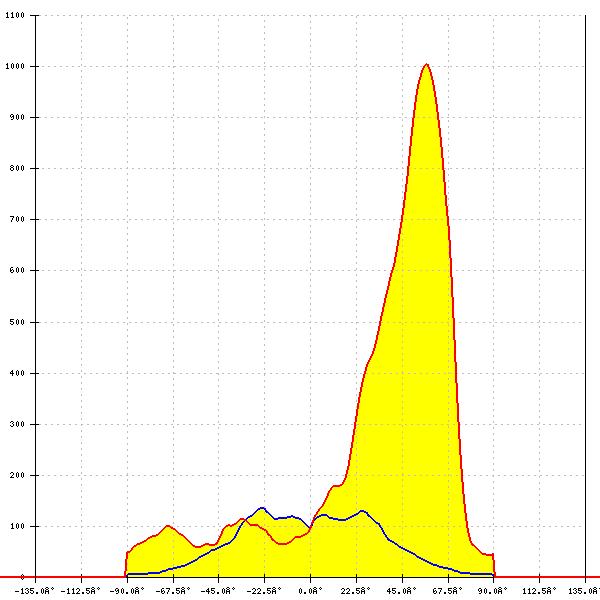

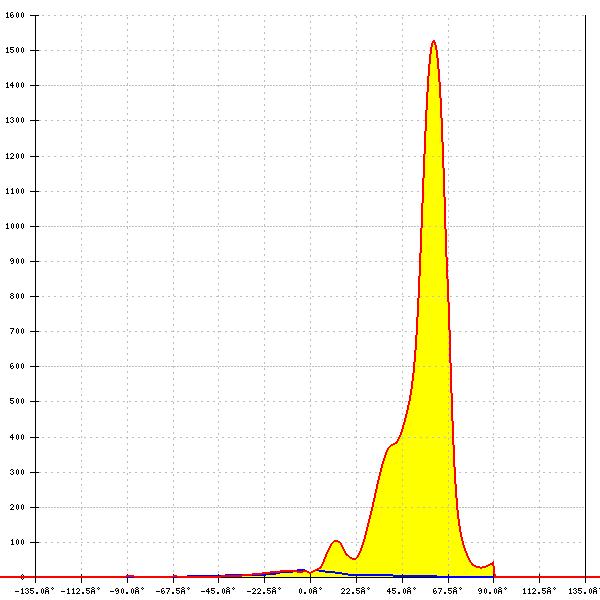

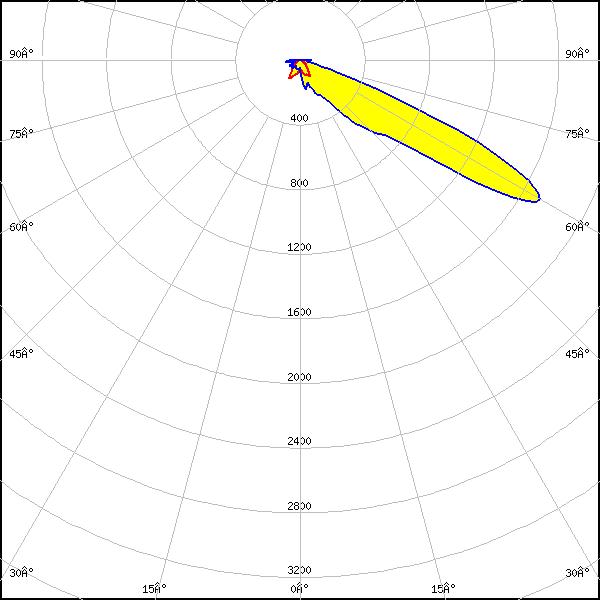

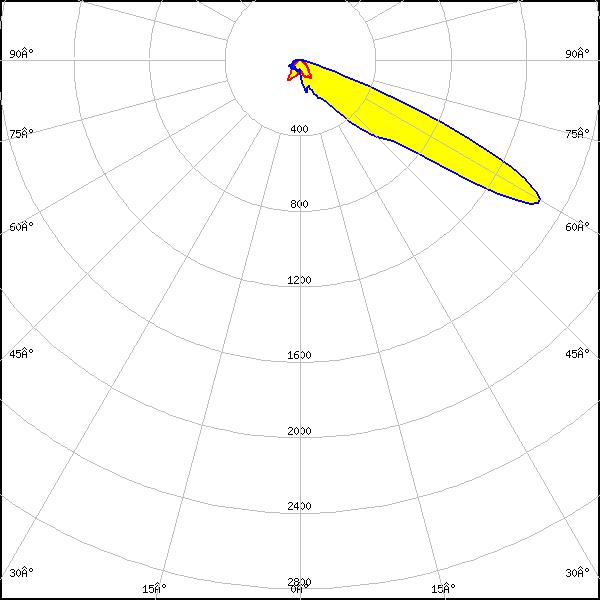

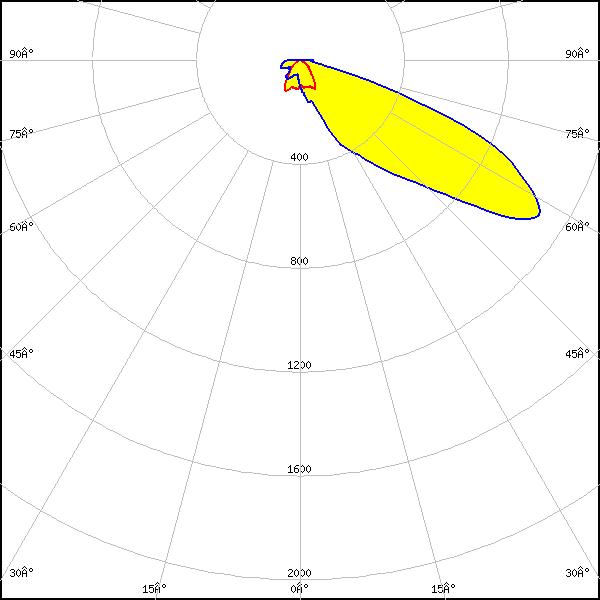

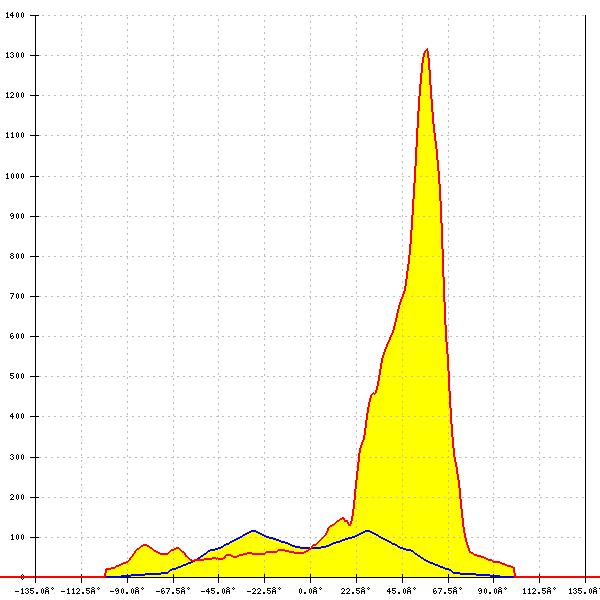

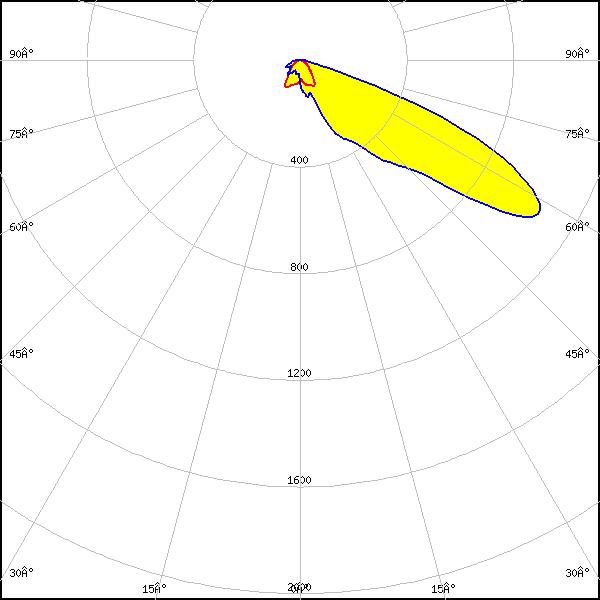

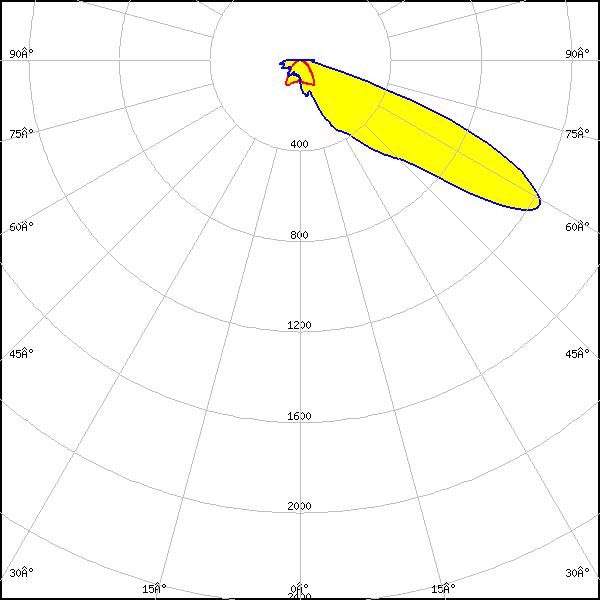

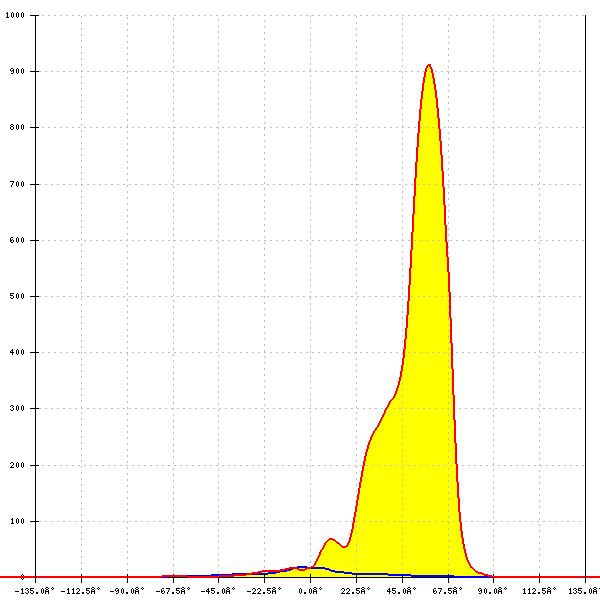

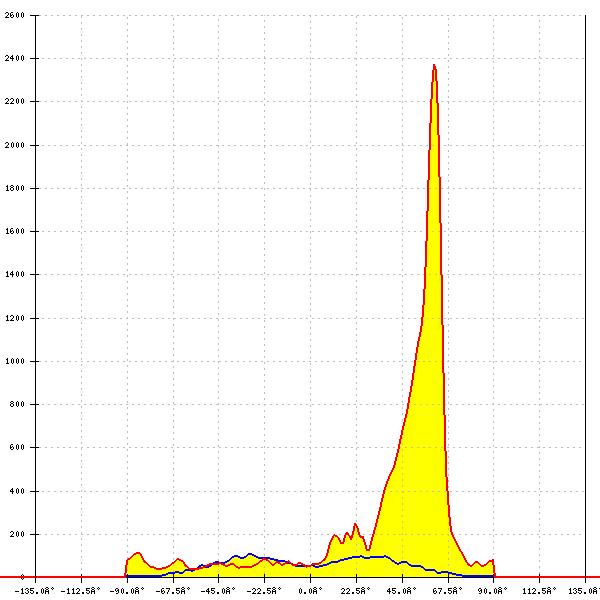

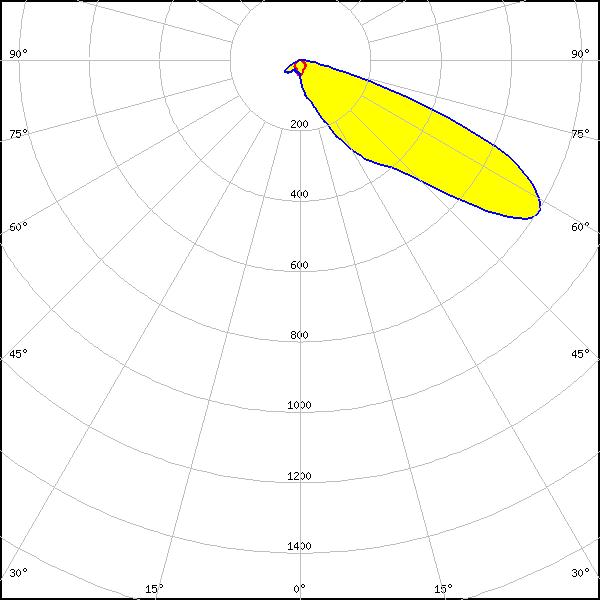

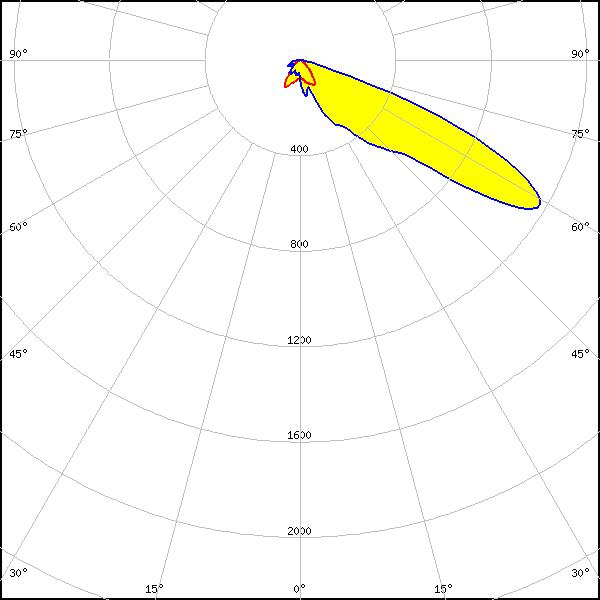

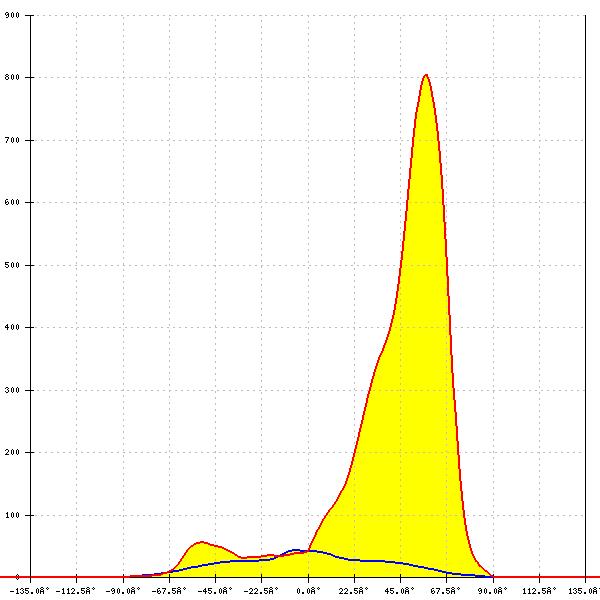

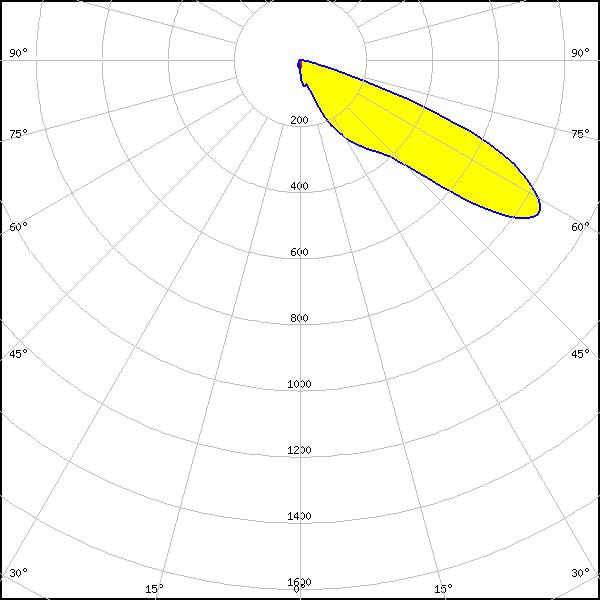

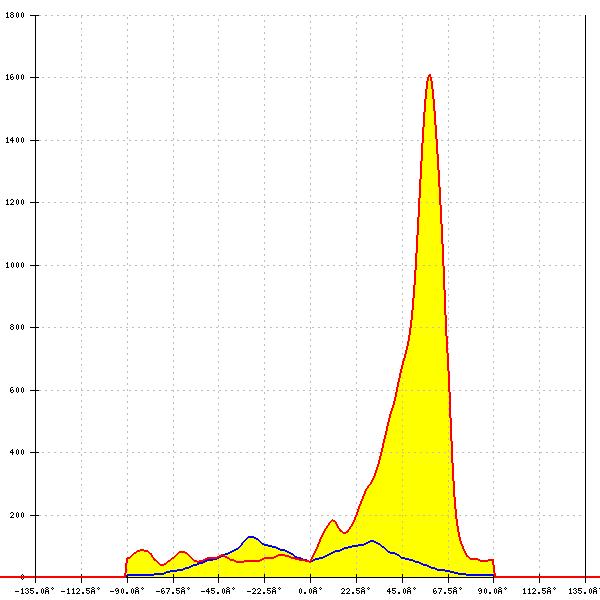

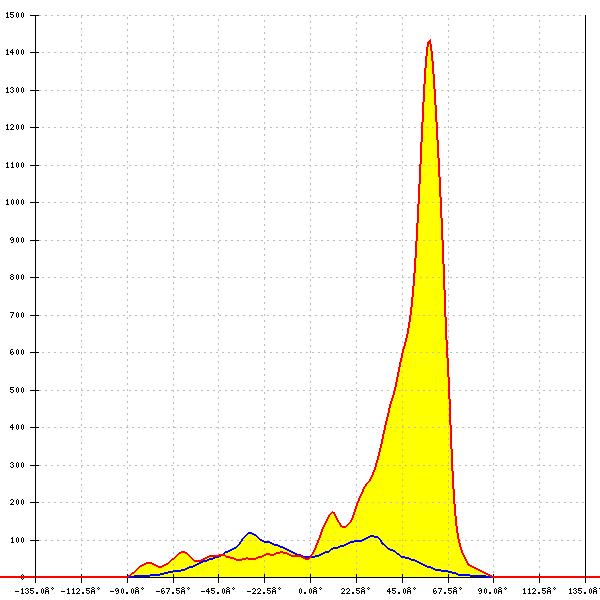

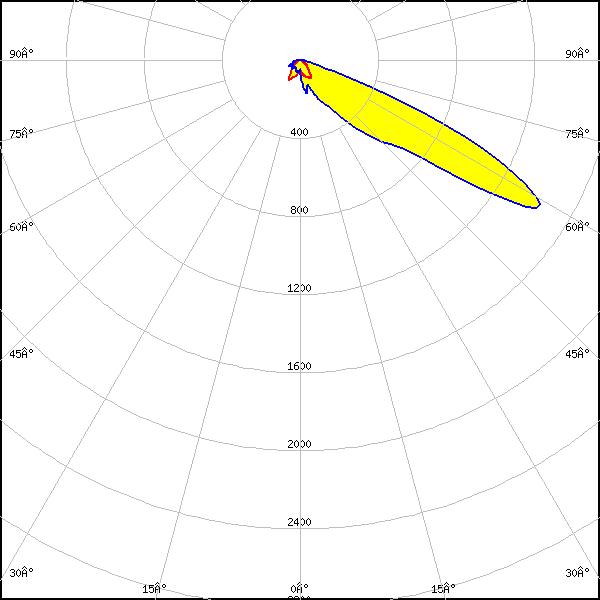

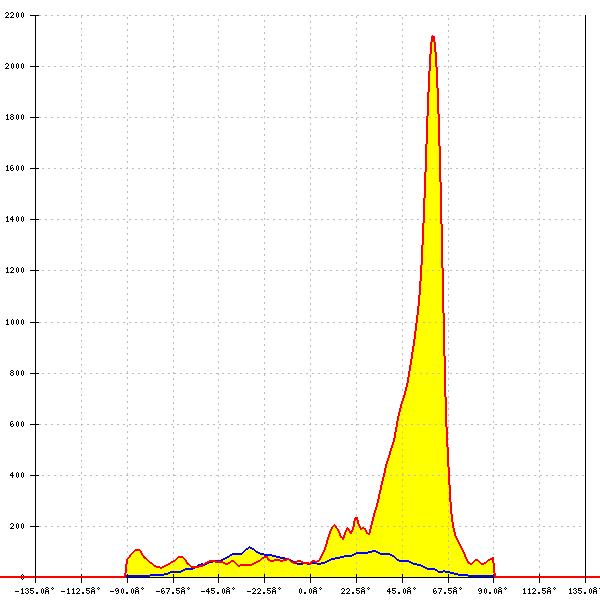

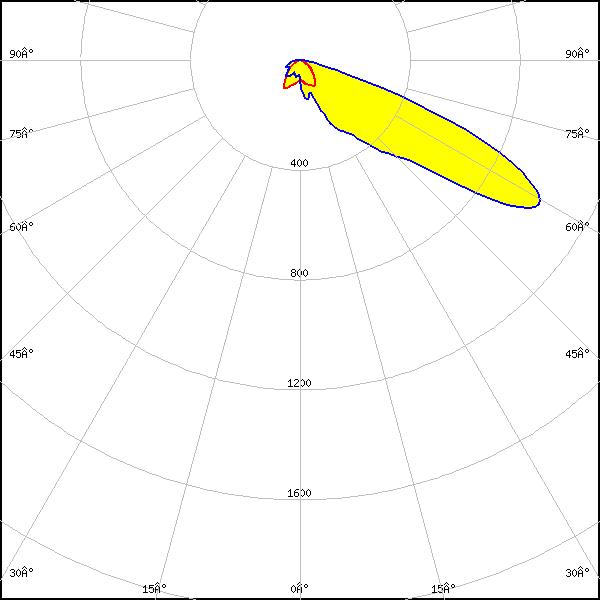

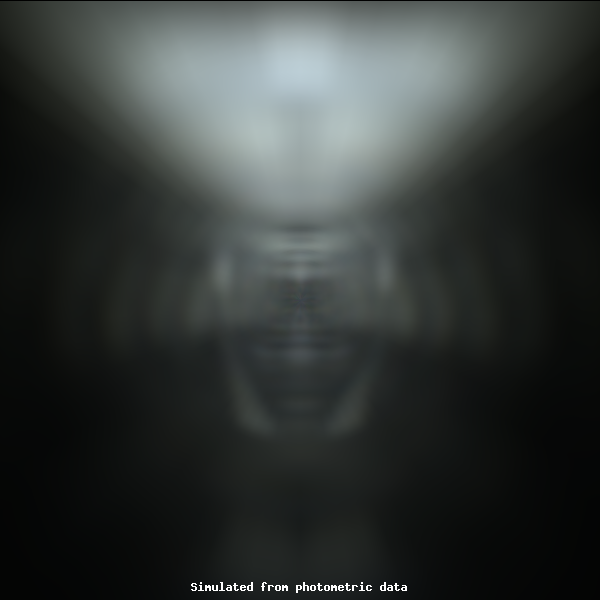

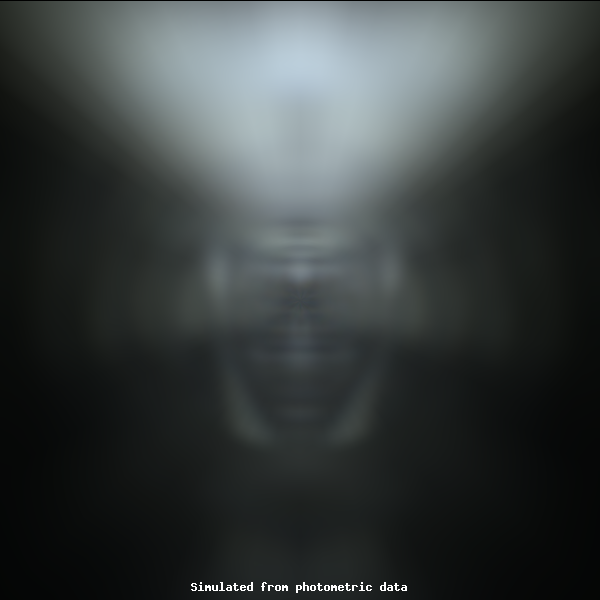

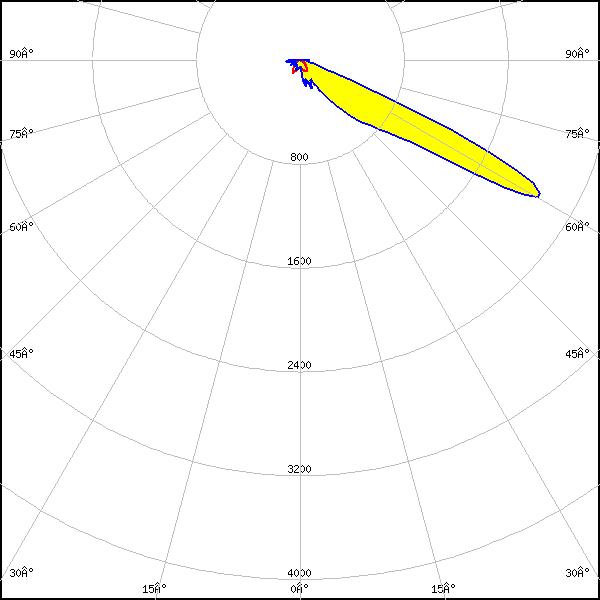

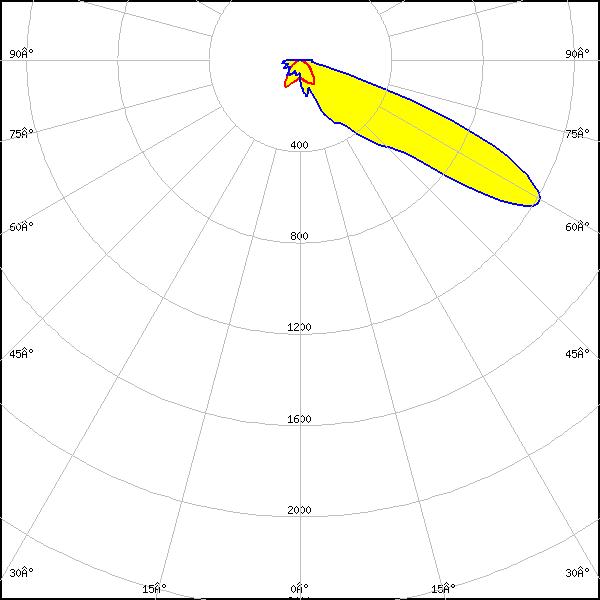

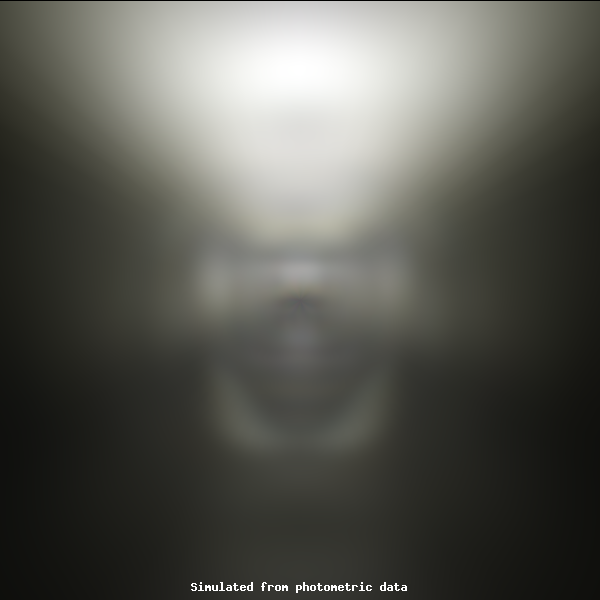

Optical results

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 1.163 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

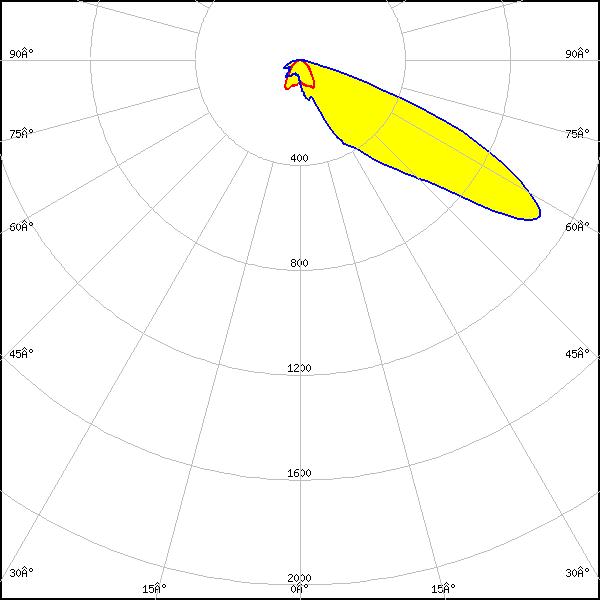

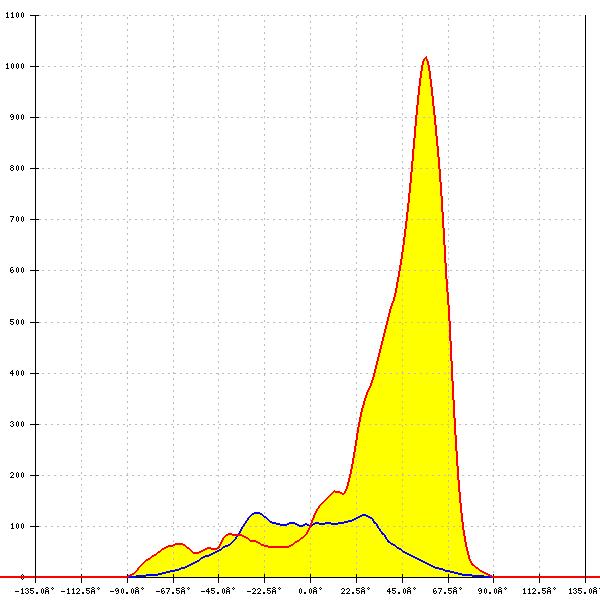

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 1.019 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 1.056 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 1.119 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

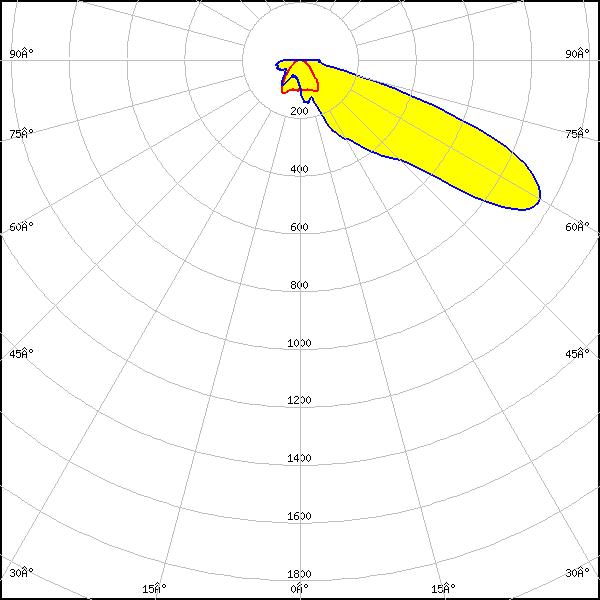

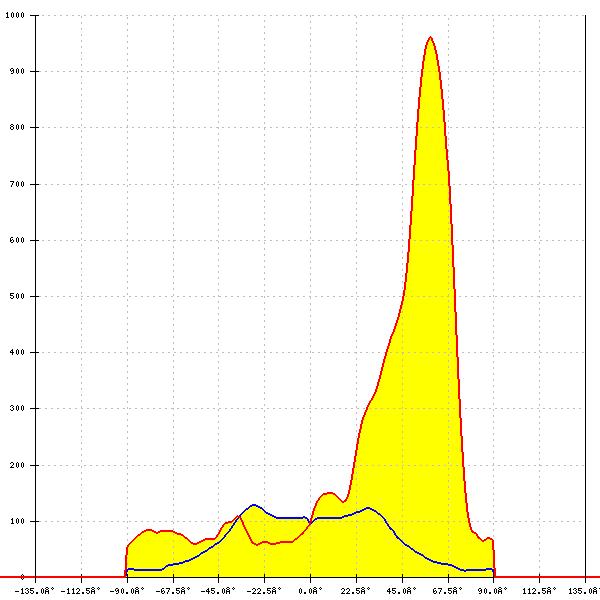

LED: XHP35.2 HD
FWHM: asymmetric
Peak intensity: 0.960 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

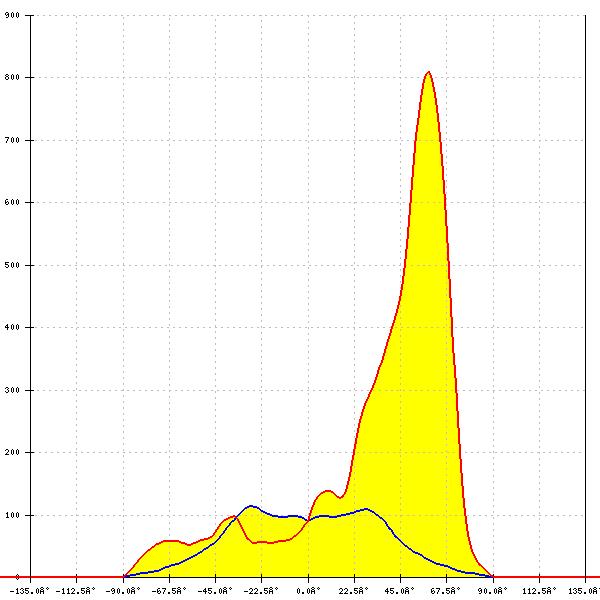

LED: XHP35.2 HD
FWHM: asymmetric
Peak intensity: 0.808 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

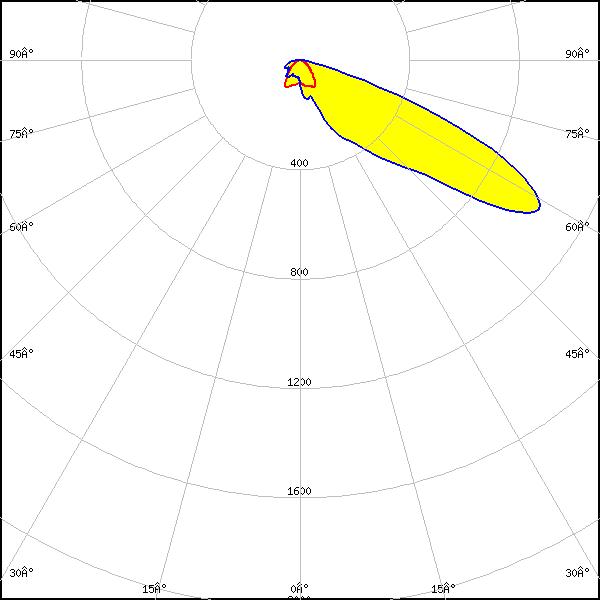

LED: XHP35.2 HI
FWHM: asymmetric
Peak intensity: 1.237 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35.2 HI
FWHM: asymmetric
Peak intensity: 1.029 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP50.3 HI
FWHM: asymmetric
Peak intensity: 1.185 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

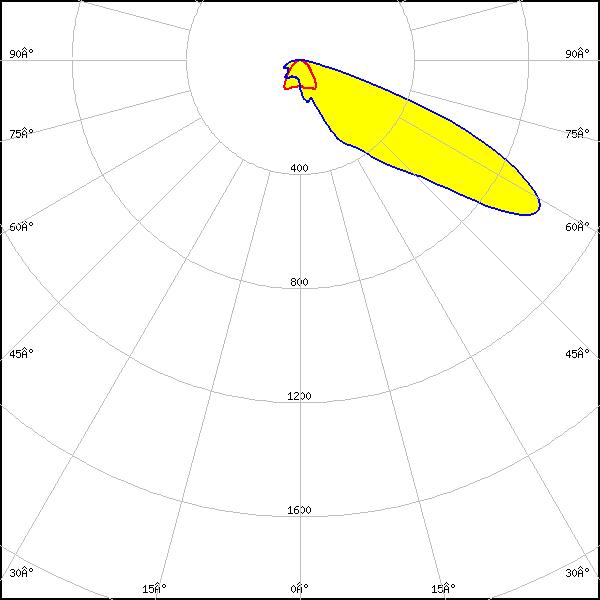

LED: XHP50.3 HI
FWHM: asymmetric
Peak intensity: 0.988 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: XM-L3
FWHM: asymmetric
Peak intensity: 1.288 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

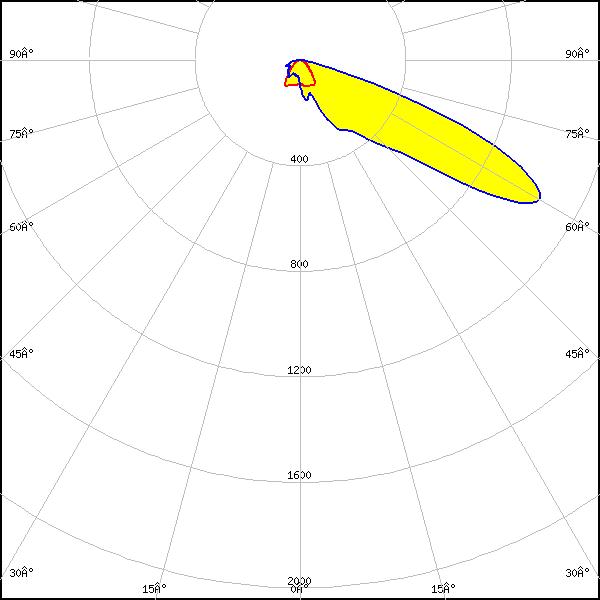

LED: XM-L3
FWHM: asymmetric
Peak intensity: 1.050 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

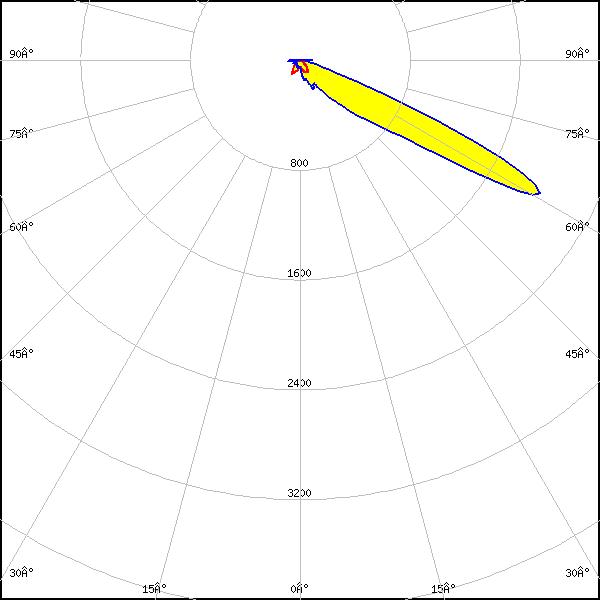

LED: XP-E2
FWHM: asymmetric
Peak intensity: 2.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: Green
LED: XP-G2
FWHM: asymmetric
Peak intensity: 1.792 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2
FWHM: asymmetric
Peak intensity: 1.535 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 1.798 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

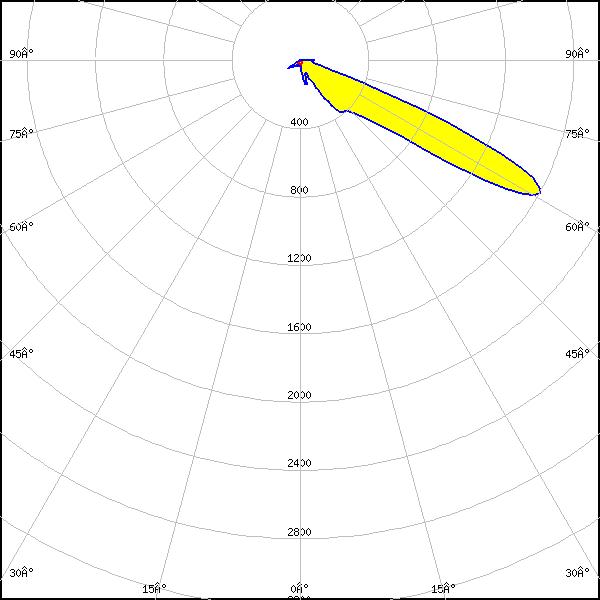

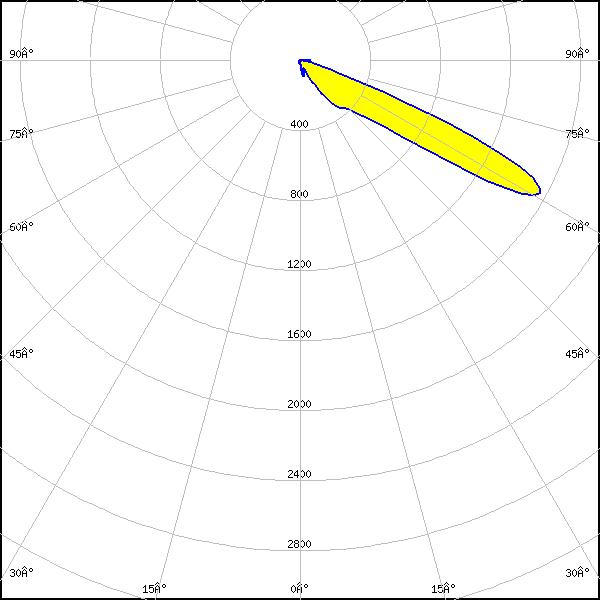

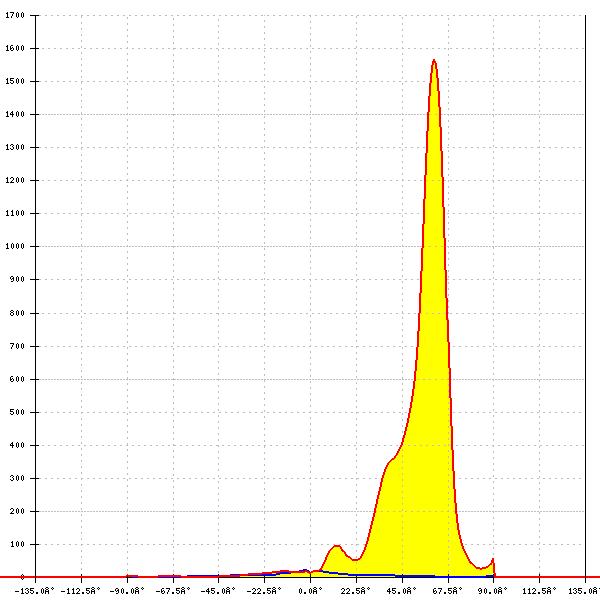

LED: XP-G2 HE
Required components:
FWHM: asymmetric
Peak intensity: 1.567 cd/lm
Efficiency: 61 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2 HE
Required components:
FWHM: asymmetric
Peak intensity: 1.606 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 1.230 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

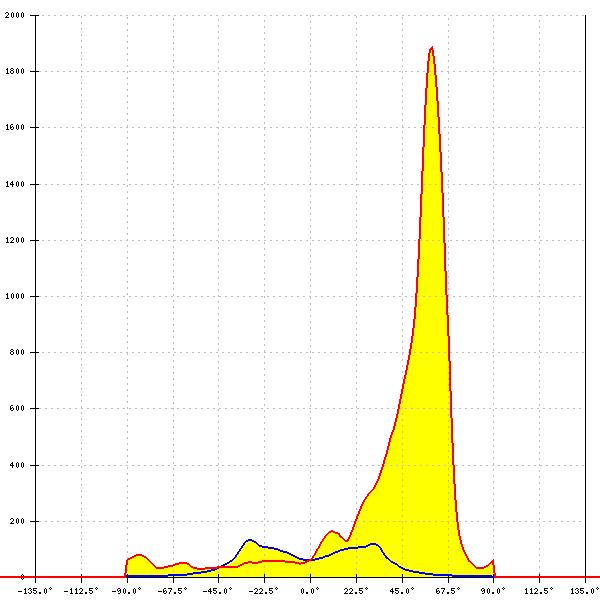

LED: XP-G4
FWHM: asymmetric
Peak intensity: 1.887 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

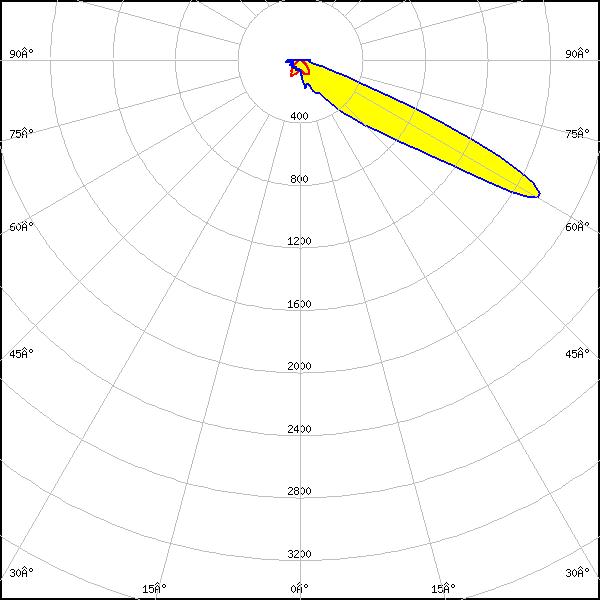

LED: XP-G4 HI
FWHM: asymmetric
Peak intensity: 1.758 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G4 HI
FWHM: asymmetric
Peak intensity: 1.400 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HD
FWHM: asymmetric
Peak intensity: 1.094 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HD
FWHM: asymmetric
Peak intensity: 1.331 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HI
FWHM: asymmetric
Peak intensity: 1.385 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HI
FWHM: asymmetric
Peak intensity: 1.732 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 1.189 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.989 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

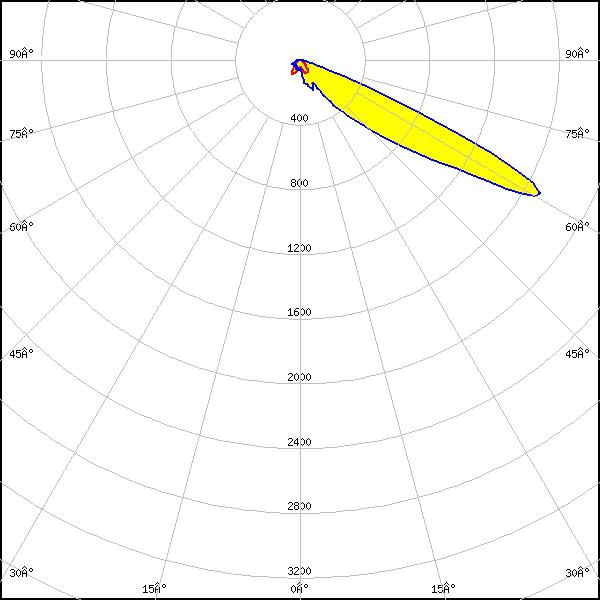

LED: XP-P
FWHM: asymmetric
Peak intensity: 2.239 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-P
FWHM: asymmetric
Peak intensity: 1.697 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 1.410 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 1.095 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.928 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 1.091 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

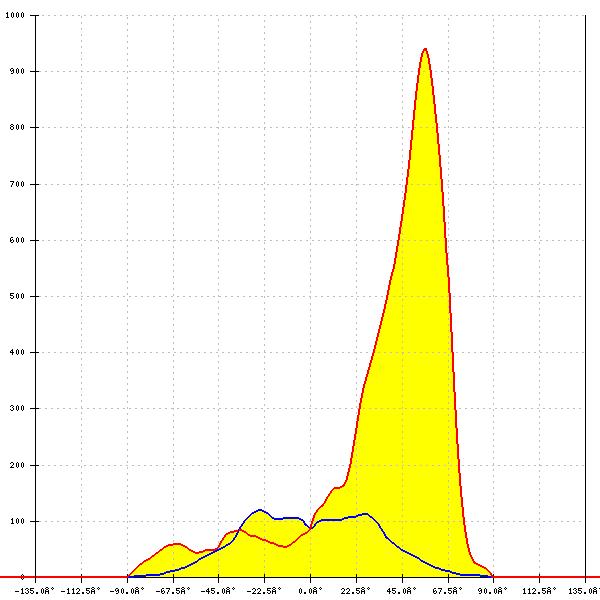

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.940 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

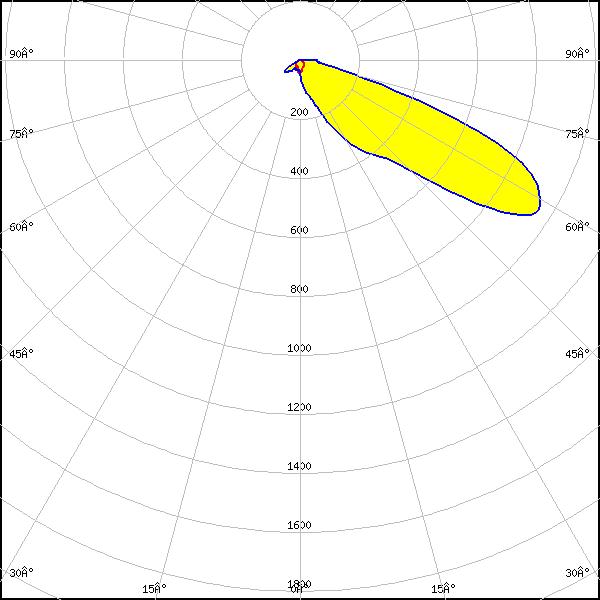

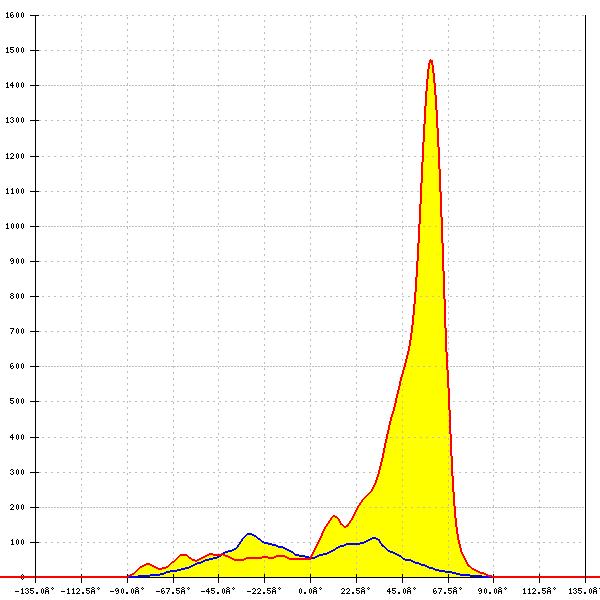

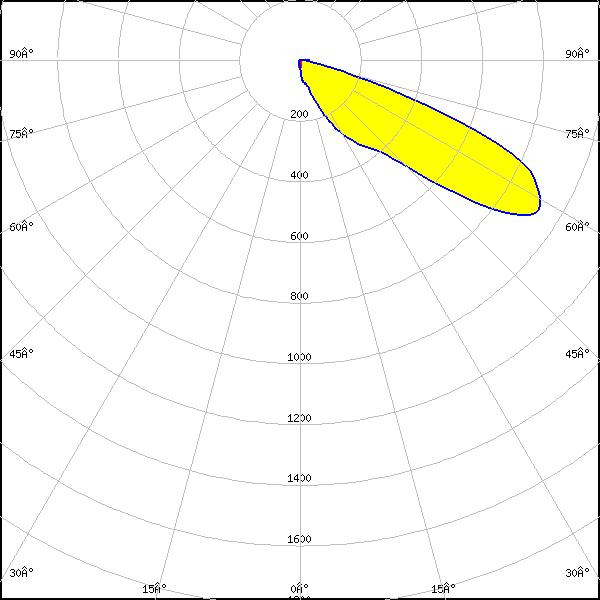

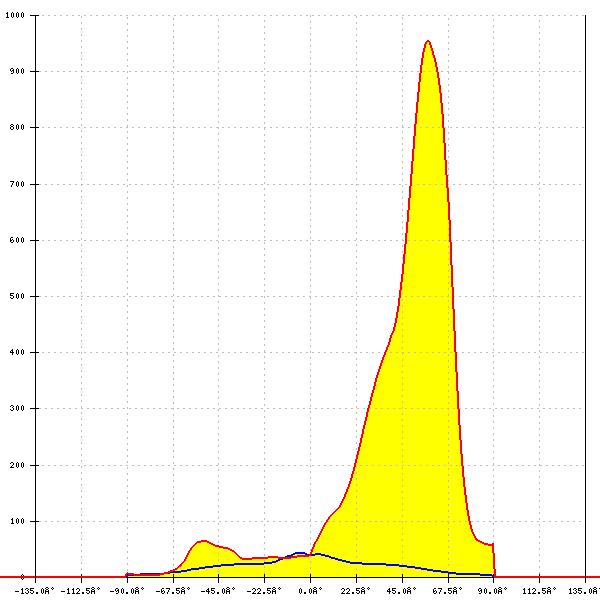

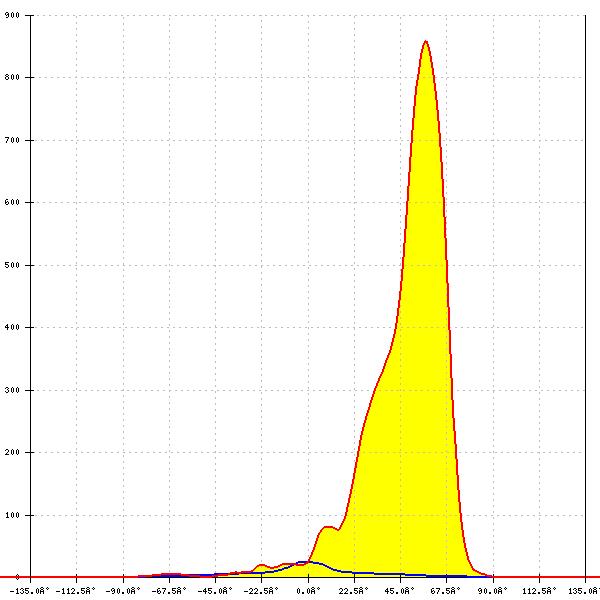

LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.928 cd/lm
Efficiency: 58 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 1.095 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.954 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: White

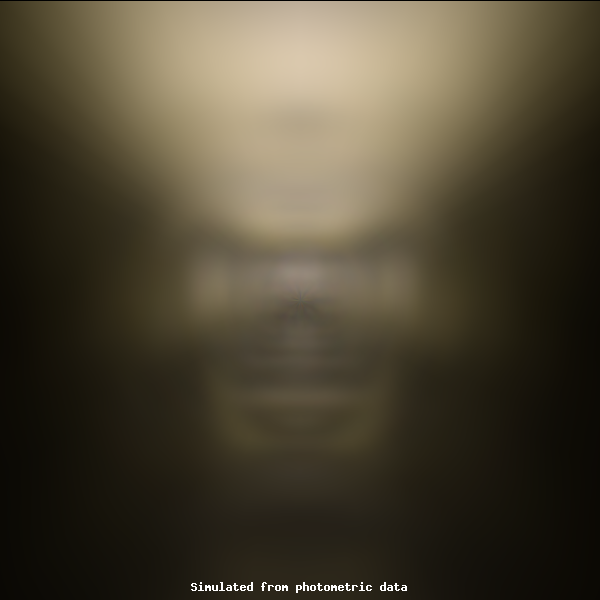

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 1.650 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

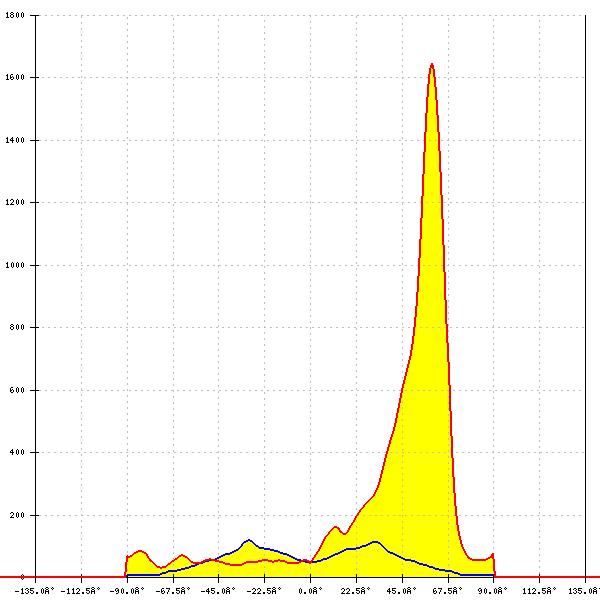

LED: LUXEON TX
FWHM: asymmetric
Peak intensity: 1.646 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: asymmetric
Peak intensity: 1.491 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: asymmetric
Peak intensity: 1.213 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

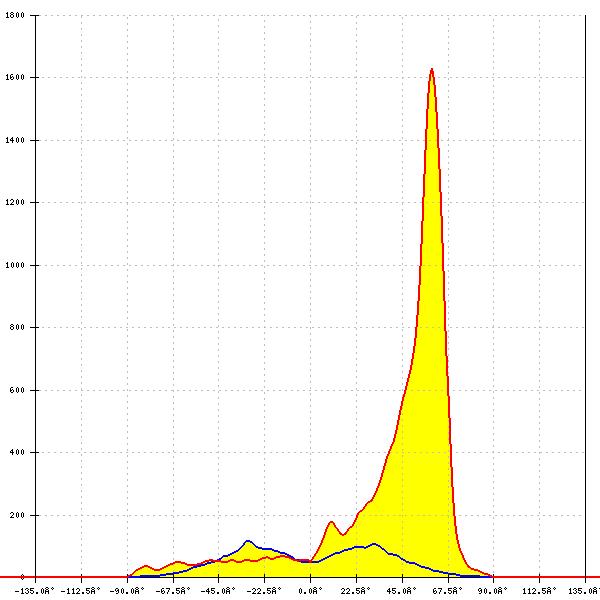

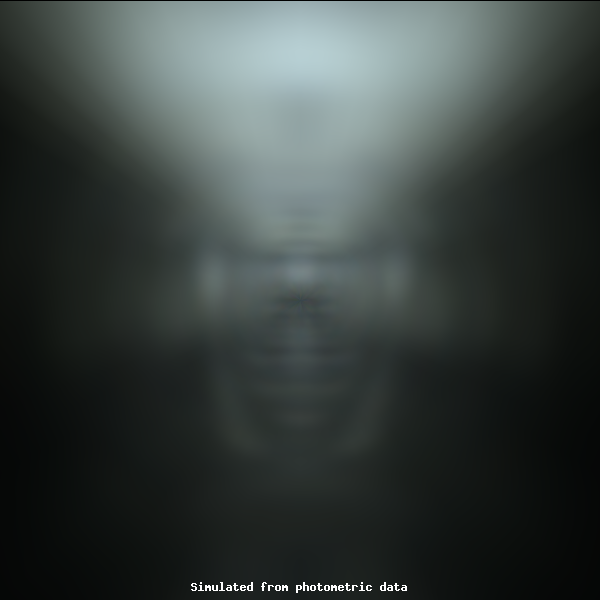

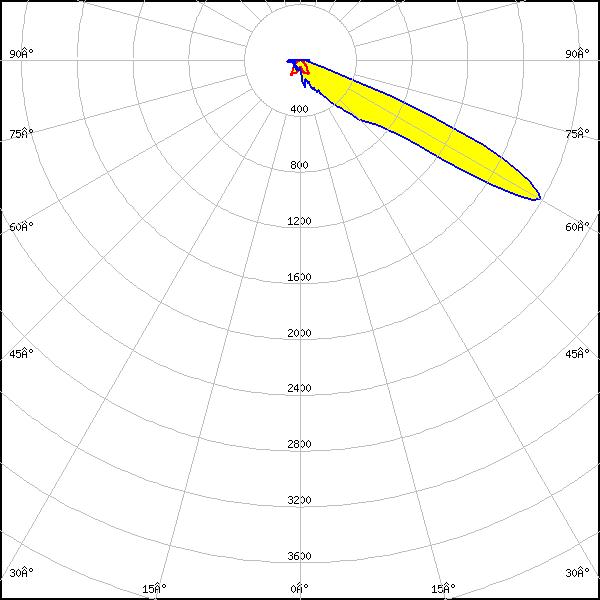

LED: SFT-40-WCS
FWHM: asymmetric
Peak intensity: 1.874 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: SFT-70X-WCS
FWHM: asymmetric
Peak intensity: 1.592 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

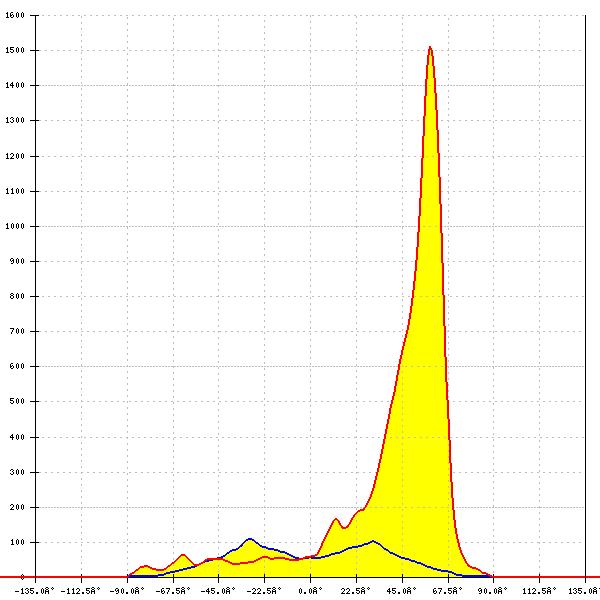

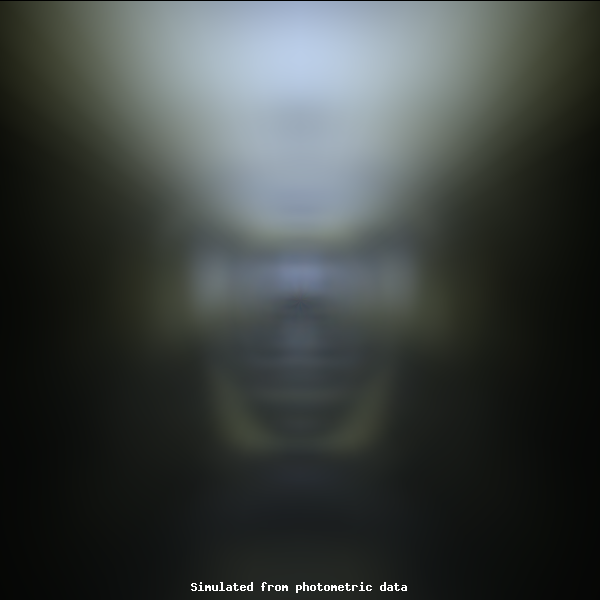

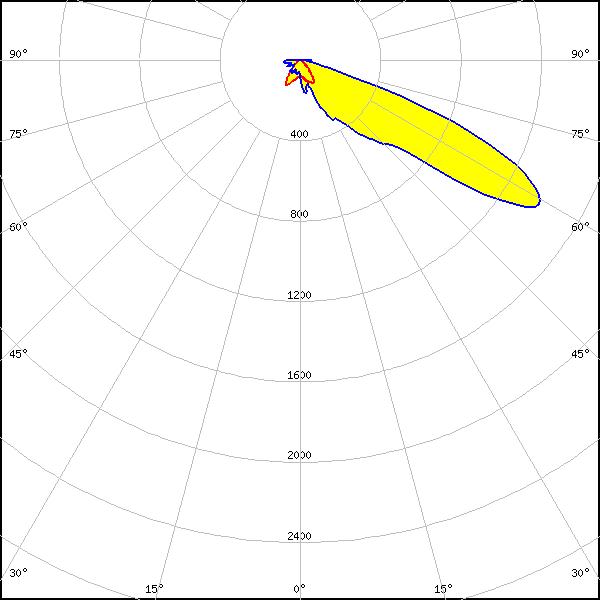

LED: SST-20
FWHM: asymmetric
Peak intensity: 1.511 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: SST-20
Required components:
FWHM: asymmetric
Peak intensity: 1.301 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour/type: White

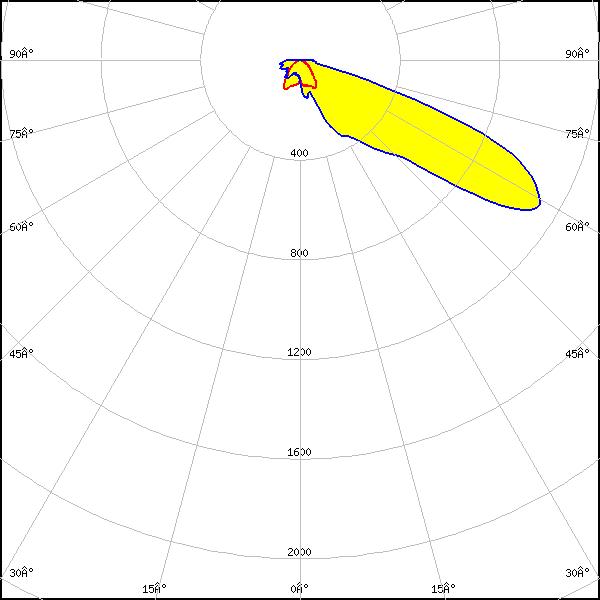

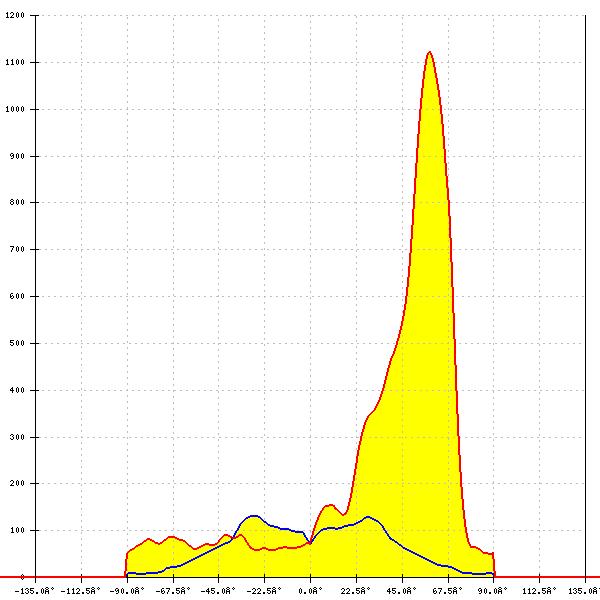

LED: SST-70X-WCS
FWHM: asymmetric
Peak intensity: 1.122 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: SST-70X-WCS
FWHM: asymmetric
Peak intensity: 0.935 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: NFSx757G
FWHM: asymmetric
Peak intensity: 1.373 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 1.063 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

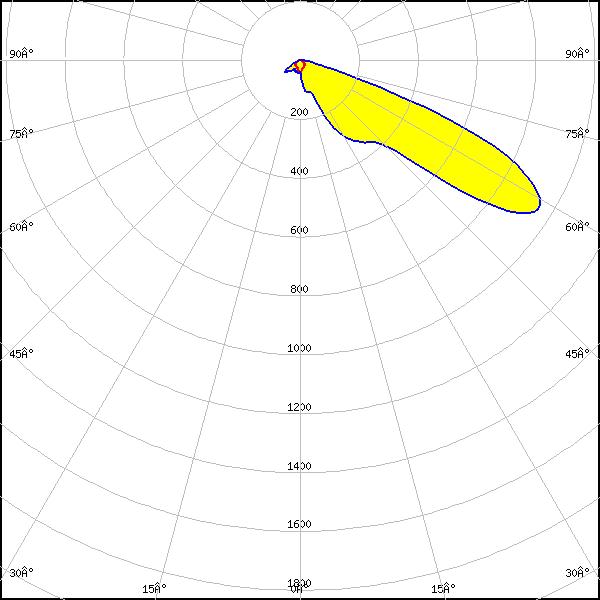

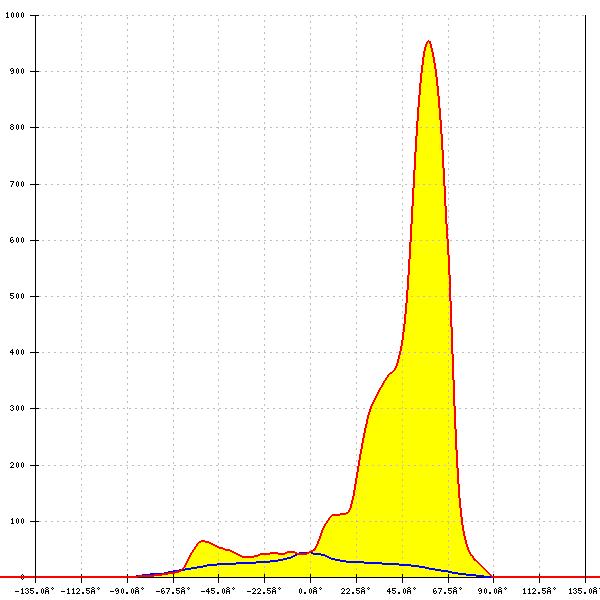

LED: NV4WB35AM
Required components:
FWHM: asymmetric
Peak intensity: 0.955 cd/lm
Efficiency: 61 %
LEDs/each optic: 1
Light colour/type: White
LED: NV4WB35AM
Required components:
FWHM: asymmetric
Peak intensity: 0.911 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour/type: White

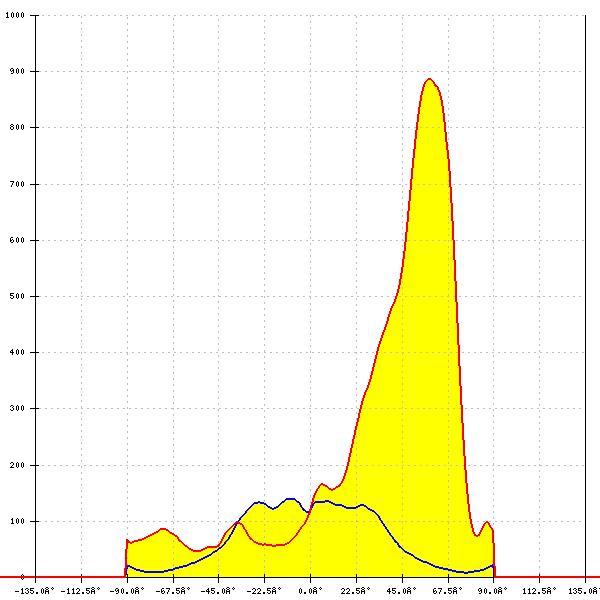

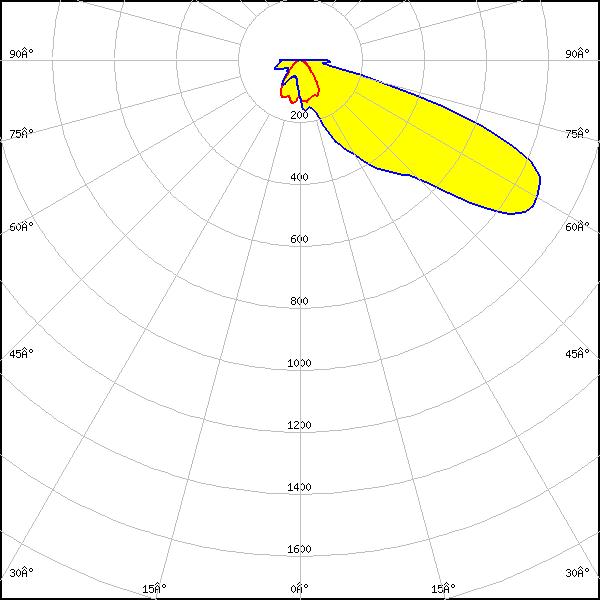

LED: NV4x144A
FWHM: asymmetric
Peak intensity: 0.887 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219D
FWHM: asymmetric
Peak intensity: 1.505 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 1.341 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW3x9A
FWHM: asymmetric
Peak intensity: 1.195 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

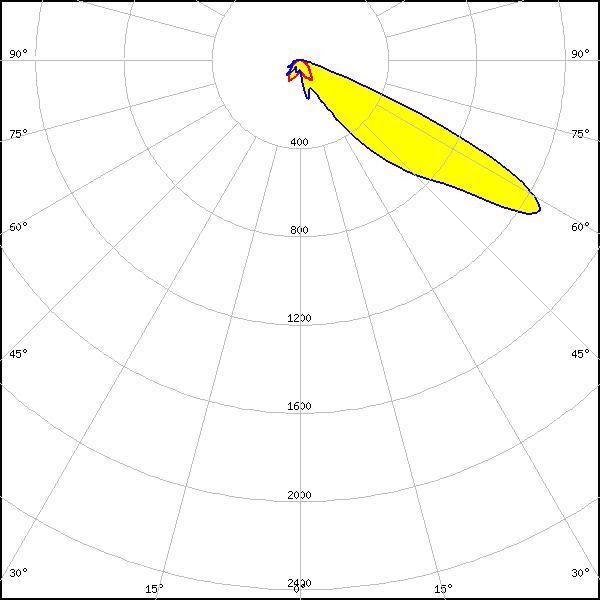

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 1.283 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

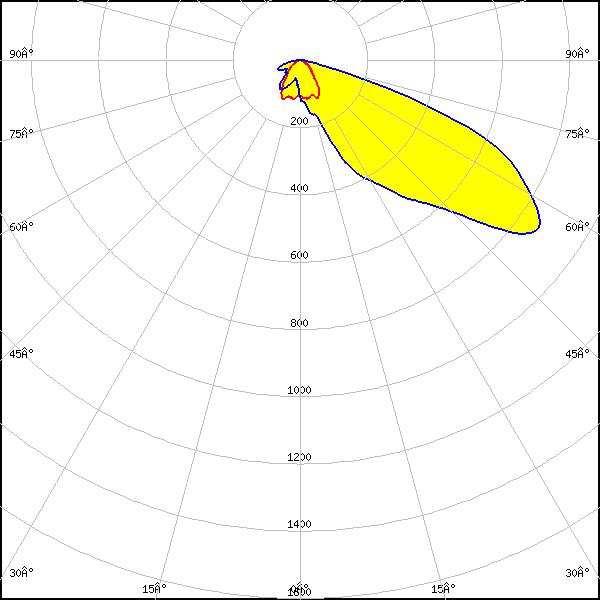

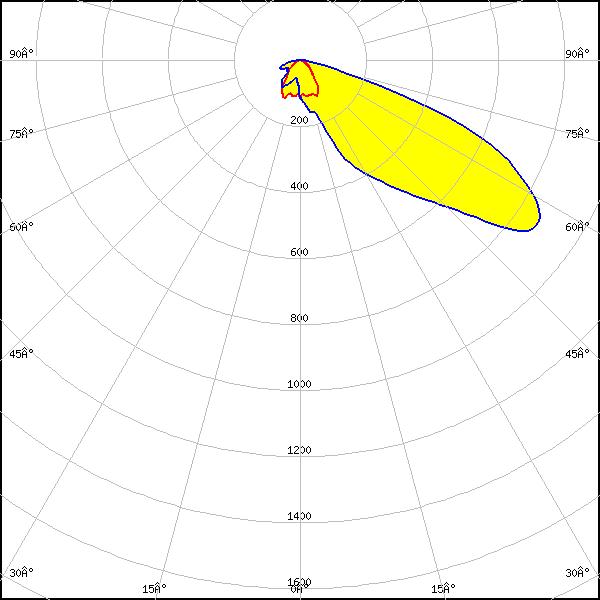

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.866 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.978 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

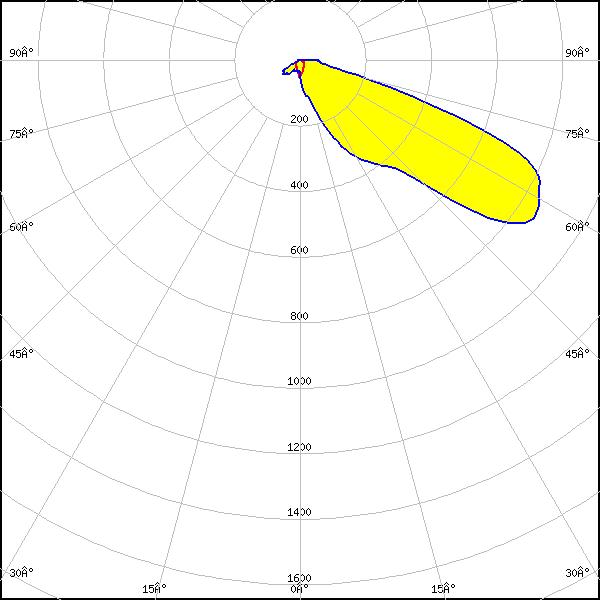

LED: Duris S8
Required components:
FWHM: asymmetric
Peak intensity: 0.819 cd/lm
Efficiency: 57 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S8
Required components:
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: White

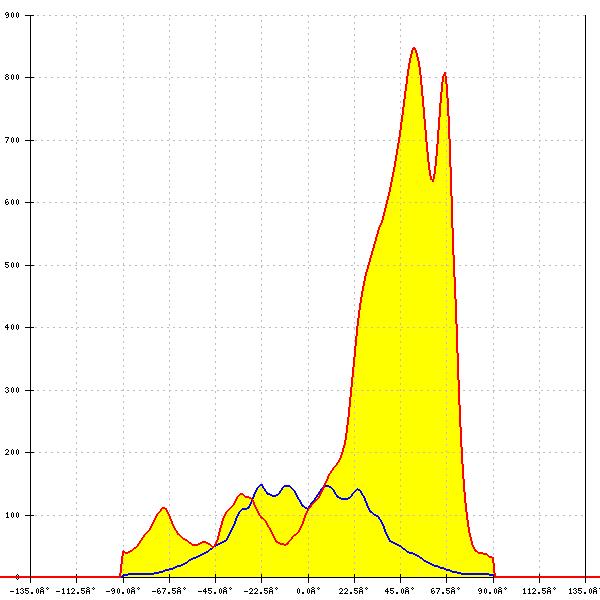

LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 0.848 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White

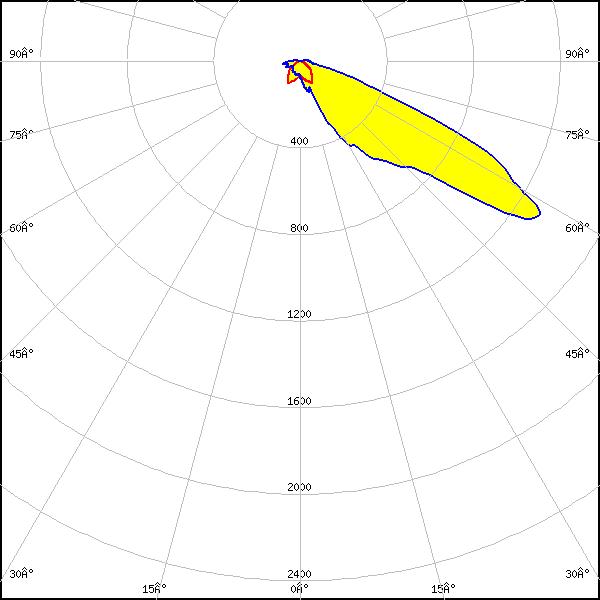

LED: OSCONIQ C 3030
FWHM: asymmetric
Peak intensity: 1.329 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 3030
FWHM: asymmetric
Peak intensity: 1.390 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity: 1.481 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (2W version)
Required components:
FWHM: asymmetric
Peak intensity: 1.271 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour/type: White

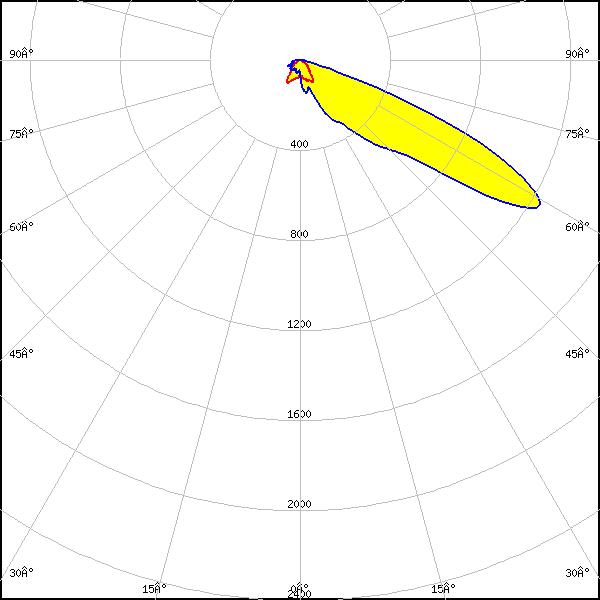

LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 1.244 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 Flat
FWHM: asymmetric
Peak intensity: 1.466 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

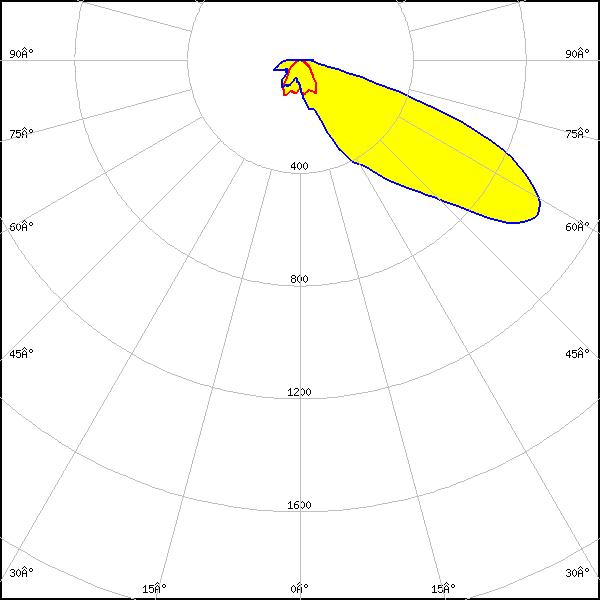

LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 1.004 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

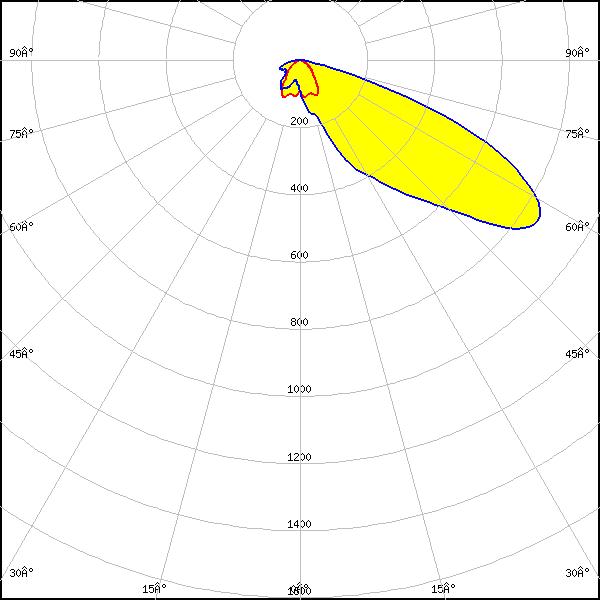

LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.853 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

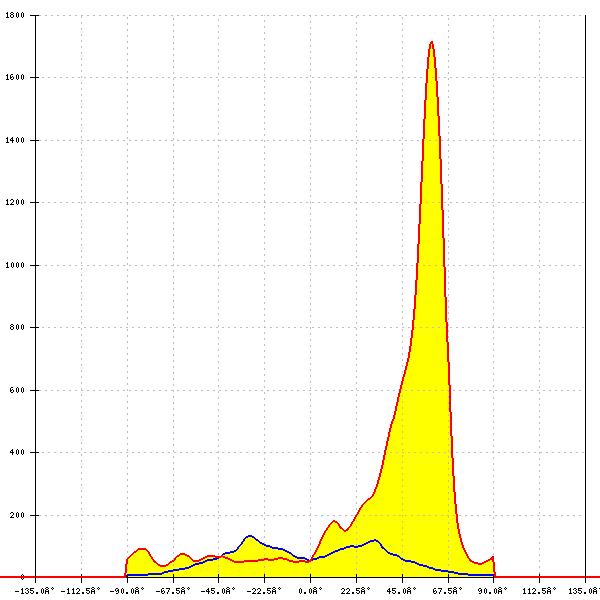

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 1.716 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 1.472 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

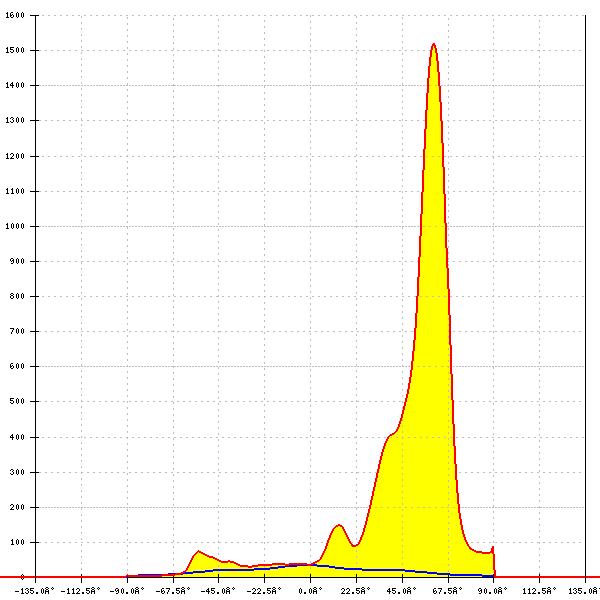

LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 1.528 cd/lm
Efficiency: 62 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 1.305 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 1.522 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 1.298 cd/lm
Efficiency: 63 %
LEDs/each optic: 1
Light colour/type: White

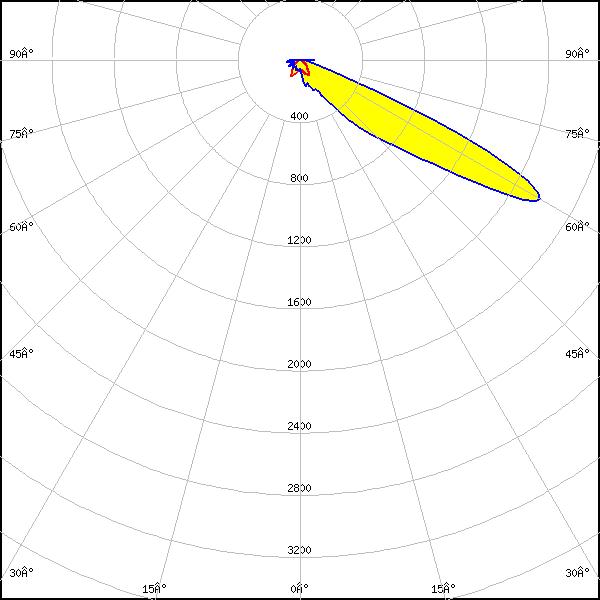

LED: OSLON Square Flat
FWHM: asymmetric
Peak intensity: 1.785 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM: asymmetric
Peak intensity: 1.812 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
FWHM: asymmetric
Peak intensity: 1.416 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 1.583 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 1.354 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

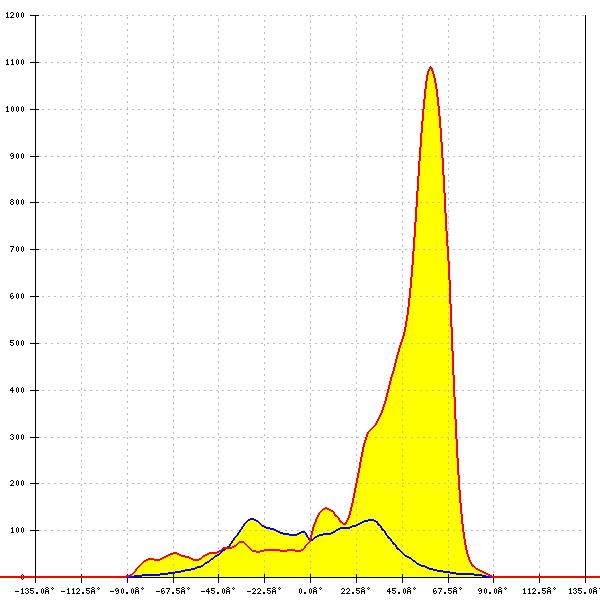

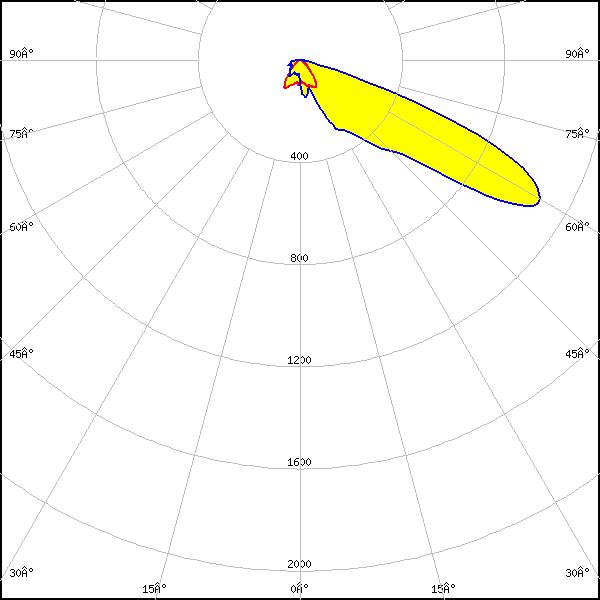

LED: LH351D
FWHM: asymmetric
Peak intensity: 1.088 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351D
FWHM: asymmetric
Peak intensity: 1.269 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

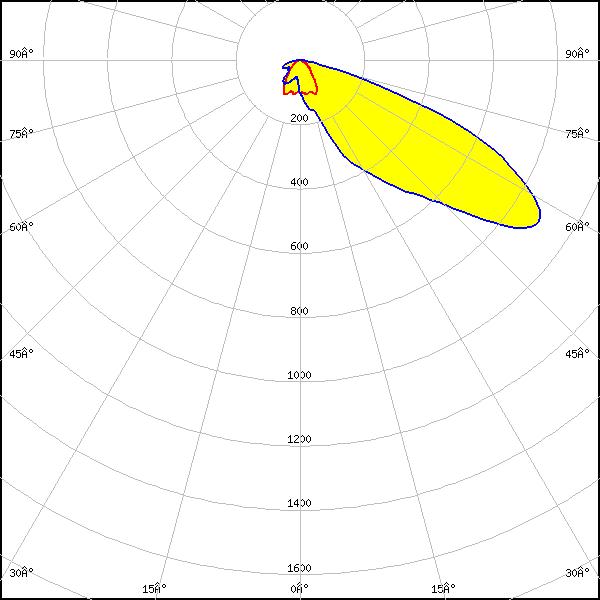

LED: LH502C
FWHM: asymmetric
Peak intensity: 1.037 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502C
FWHM: asymmetric
Peak intensity: 0.896 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.917 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 1.025 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

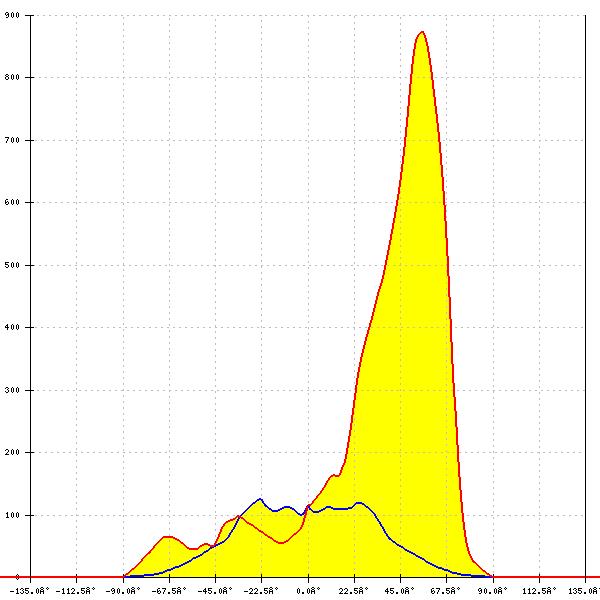

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.873 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

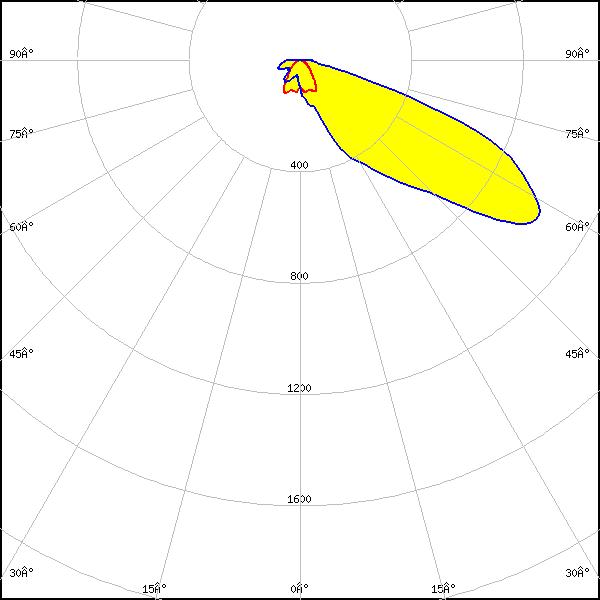

LED: Z5M3
FWHM: asymmetric
Peak intensity: 1.235 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

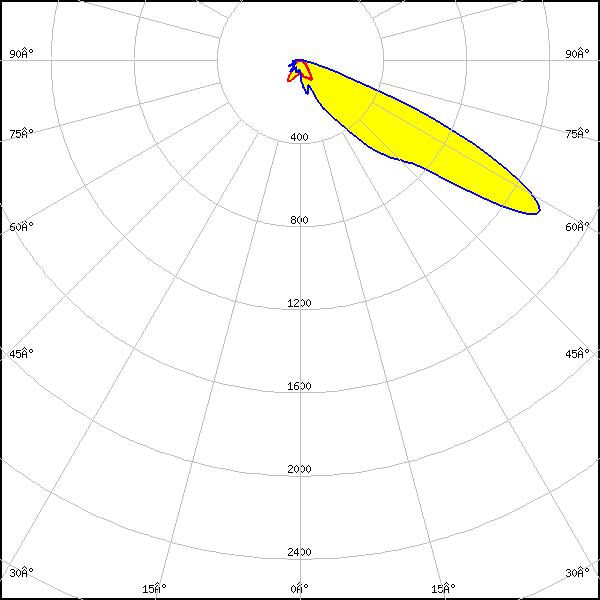

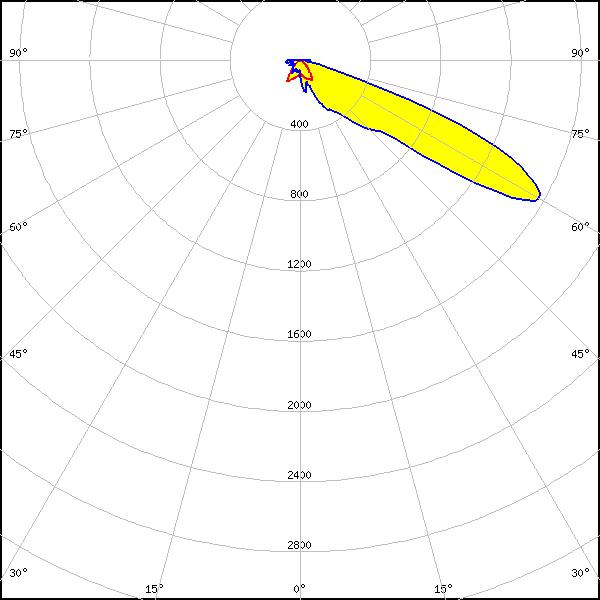

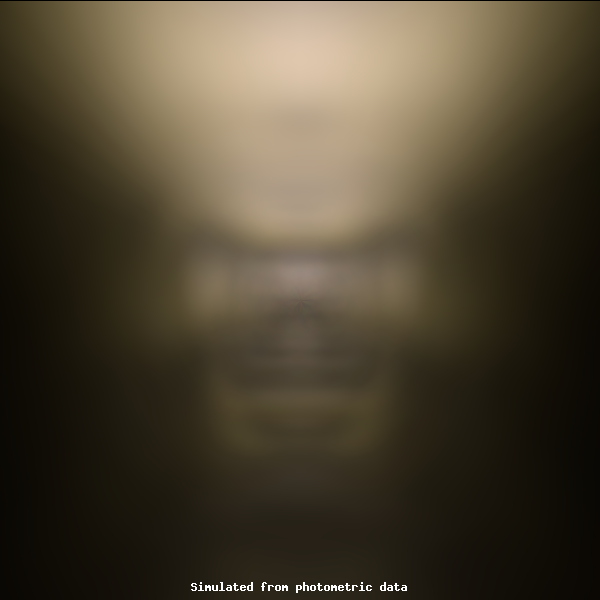

LED: Z5M4
FWHM: asymmetric
Peak intensity: 1.362 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

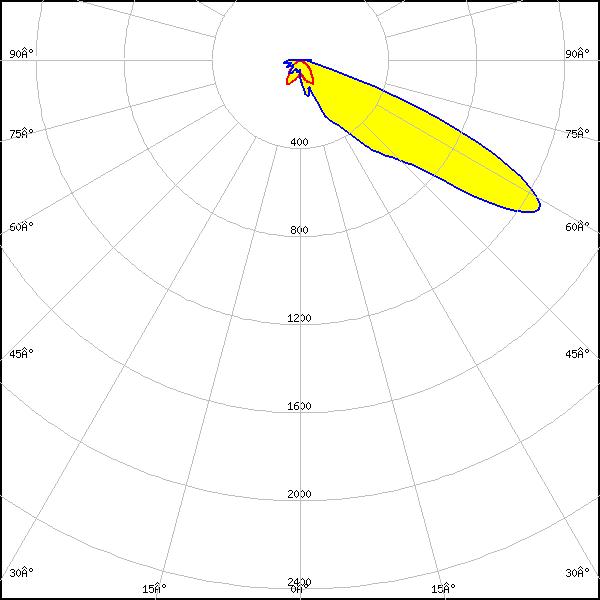

LED: Z5M5
FWHM: asymmetric
Peak intensity: 1.278 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M5
FWHM: asymmetric
Peak intensity: 1.109 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y22
FWHM: asymmetric
Peak intensity: 1.245 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

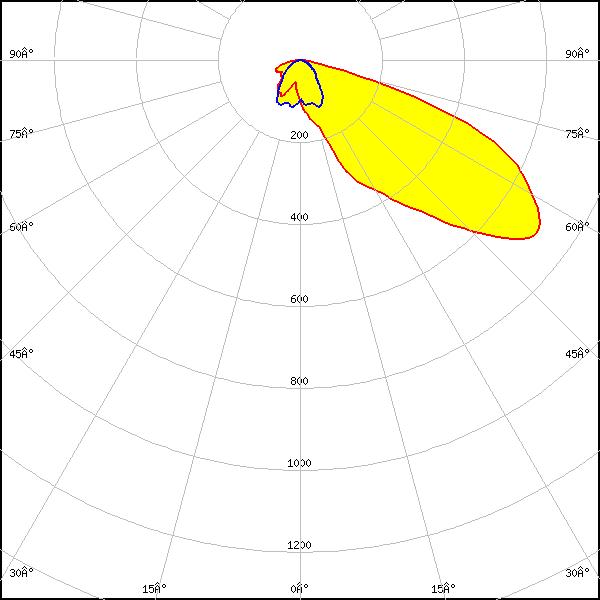

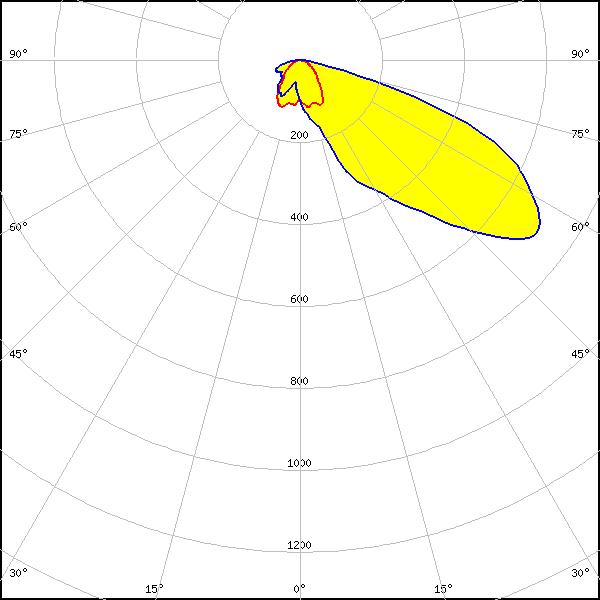

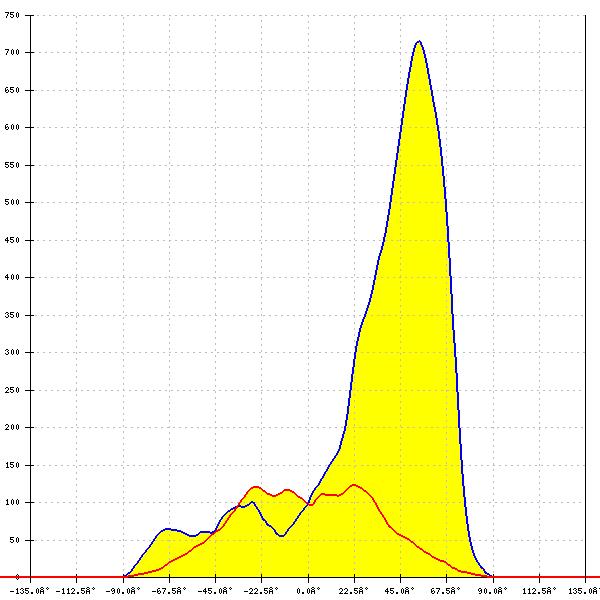

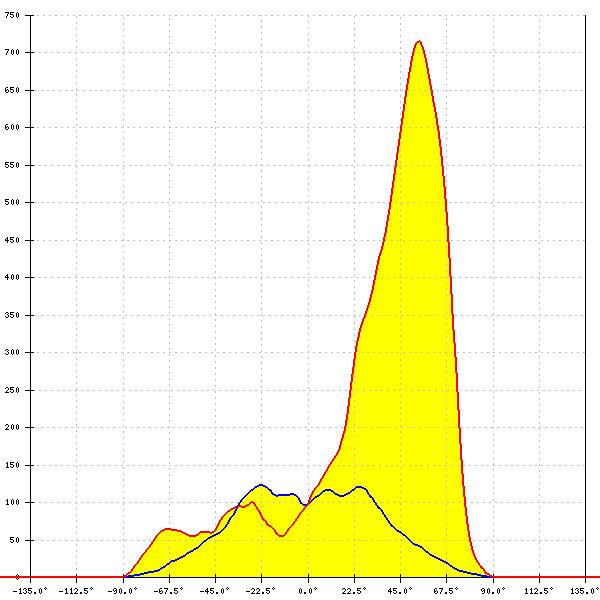

LED: Z8Y50P
FWHM: asymmetric
Peak intensity: 0.716 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: PassivePAQ-R-222x50.OS1.9.7K-750-5 V1.0
FWHM: asymmetric
Peak intensity: 1.478 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

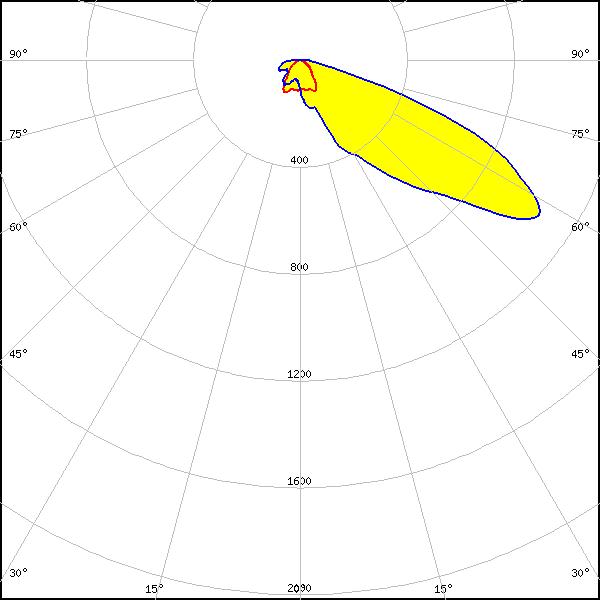

LED: RLE 2x8 6000lm HP HE EXC3 OTD
FWHM: asymmetric
Peak intensity: 0.937 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x8 6000lm HP HE EXC3 OTD
Required components:
FWHM: asymmetric
Peak intensity: 0.782 cd/lm
Efficiency: 48 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
