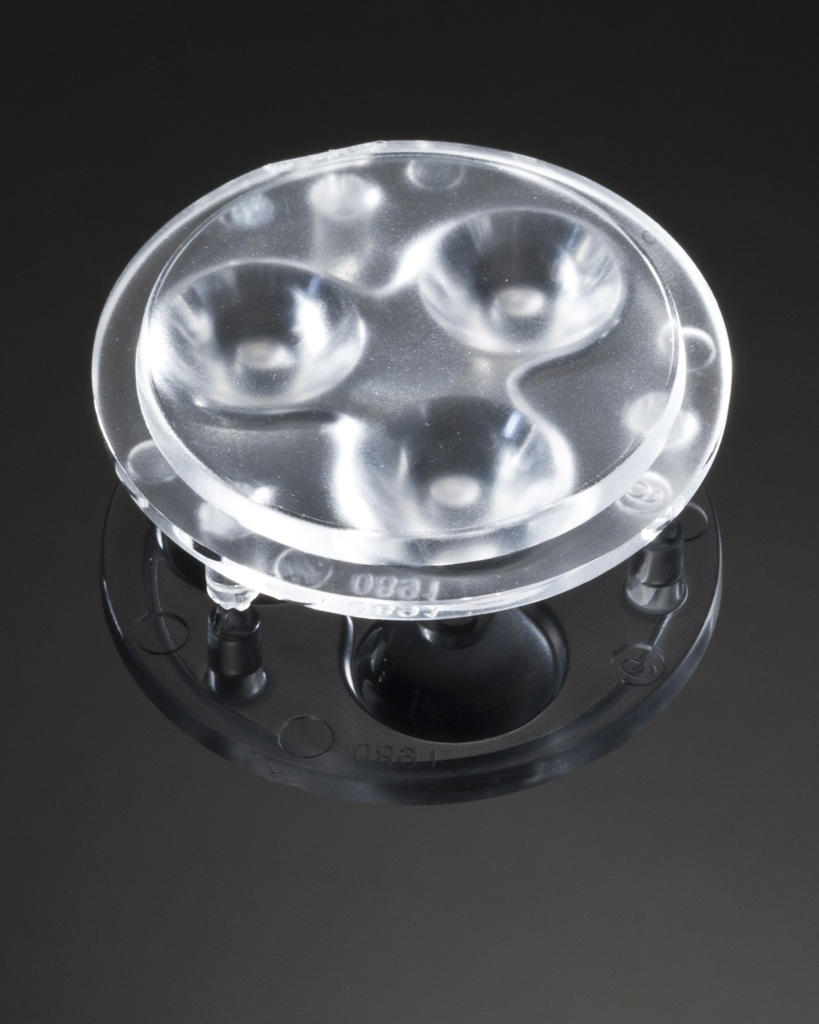

C10891_GT3-S

~18° spot beam

Specification

Dimensions:

35 mm
Height:

9.00 mm
Fastening:

glue, pin
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

864 pcs
Box size:

300 x 250 x 250 mm
Box weight:

4.5 kg
MPQ:

144 pcs
MOQ:

144 pcs
MOQ size:

280 x 180 x 90 mm
MOQ weight:

1.1 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: C10891_GT3-S

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C10891_GT3-S

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Case story

Historic church in Moscow

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application area

Indoor Architectural Lighting

Optical results

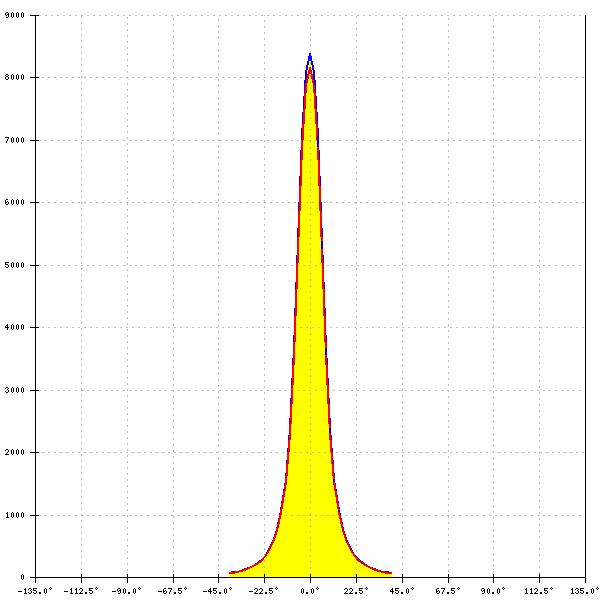

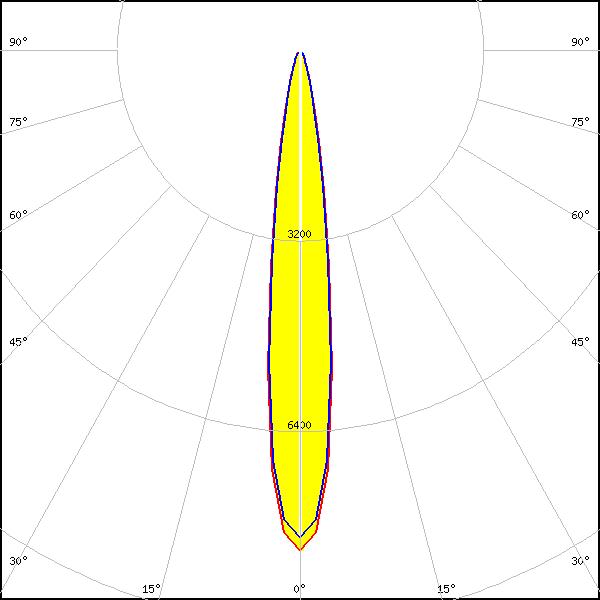

LED: XP-E

FWHM: 14°

FWTM: 31°

Peak intensity: 8.400 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

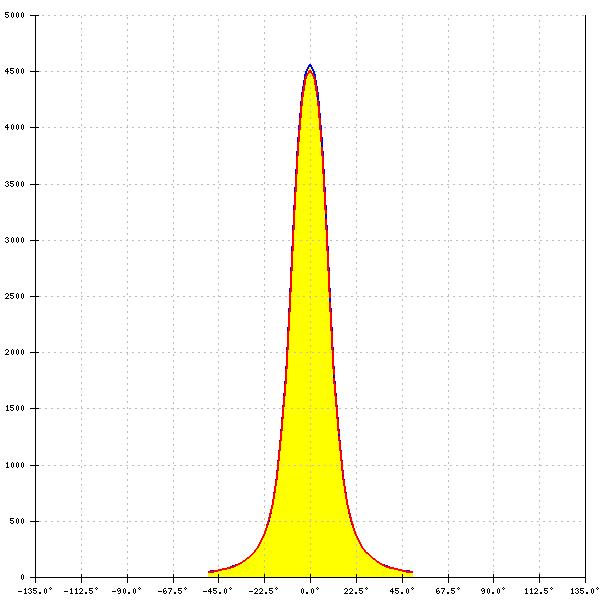

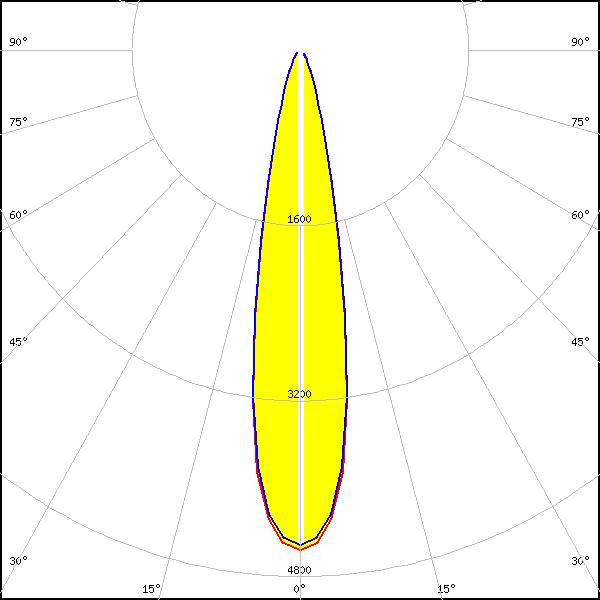

LED: XP-G

FWHM: 21°

FWTM: 42°

Peak intensity: 4.560 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON A

FWHM: 21°

FWTM: 50°

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON Rebel

FWHM: 16°

FWTM: 50°

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON Rebel ES

FWHM: 21°

FWTM: 50°

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

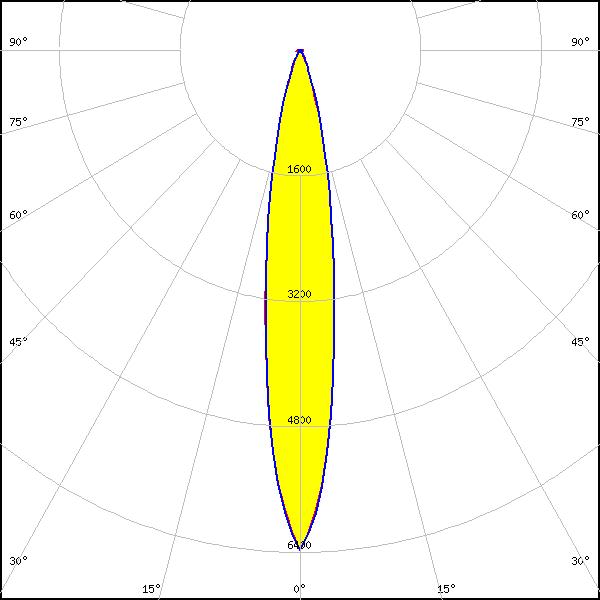

LED: NCSxE17A

FWHM: 16°

FWTM: 38°

Peak intensity: 6.375 cd/lm

Efficiency: 96 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NCSxx19A

FWHM: 14°

FWTM: 50°

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSxx19A

FWHM: 17°

FWTM: 50°

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSLON Square EC

FWHM: 26°

FWTM: 60°

Peak intensity: 2.150 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

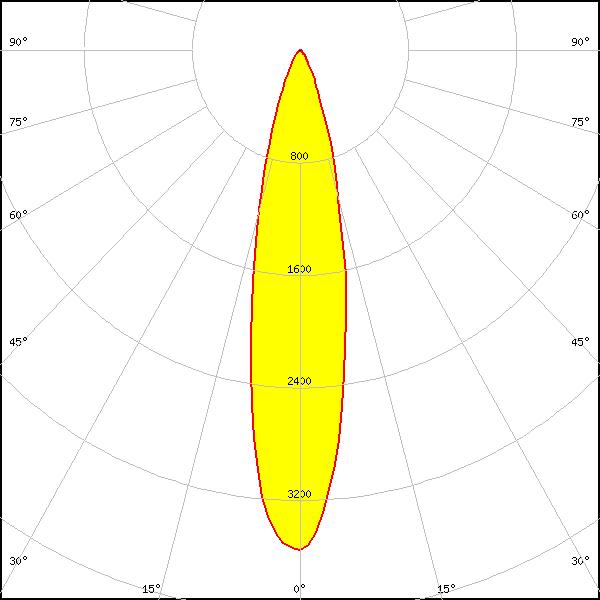

LED: OSLON SSL 150

FWHM: 22°

FWTM: 46°

Peak intensity: 3.560 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSLON SSL 80

FWHM: 17°

FWTM: -

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Z5

FWHM: 14°

FWTM: -

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Double Dome (GM2BB)

FWHM: 18°

FWTM: -

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
