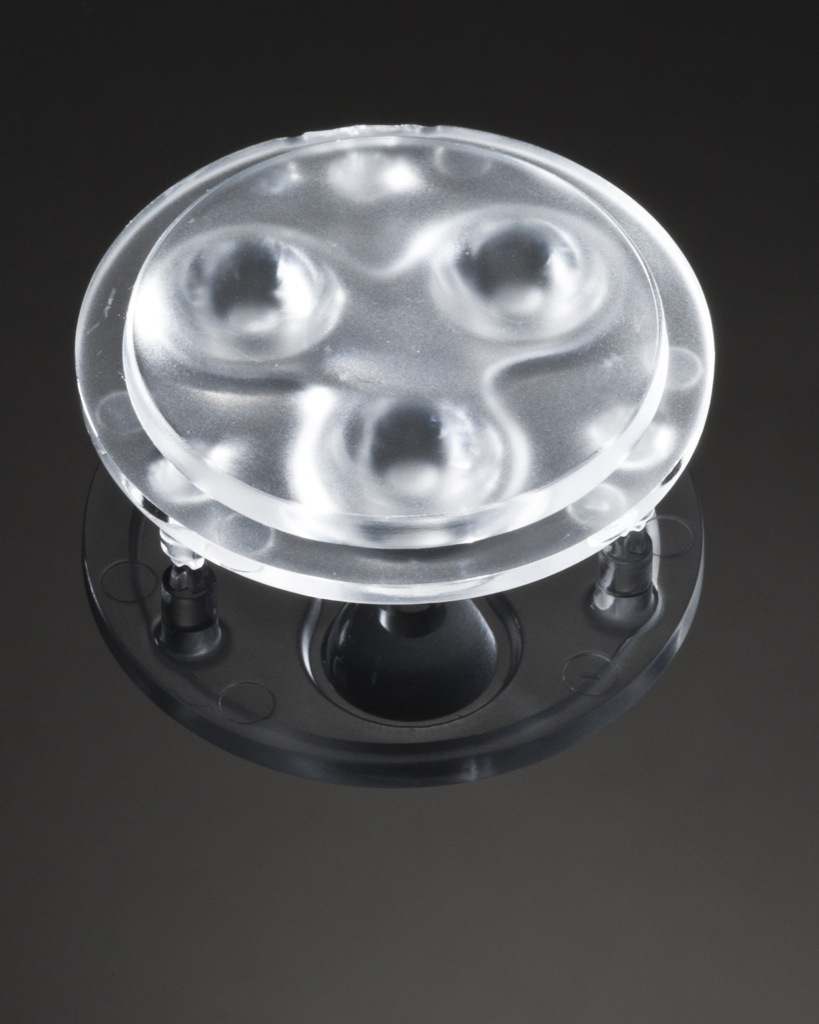

C10892_GT3-M

Print

~30° medium beam

Specification
  • Dimensions:
    35 mm
  • Height:
    9.00 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    864 pcs
  • Box size:
    300 x 250 x 250 mm
  • Box weight:
    4.4 kg
  • MPQ:
    144 pcs
  • MOQ:
    144 pcs
  • MOQ size:
    280 x 180 x 90 mm
  • MOQ weight:
    1.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C10892_GT3-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: XB-D
FWHM: 25°
FWTM: 58°
Peak intensity: 2.000 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

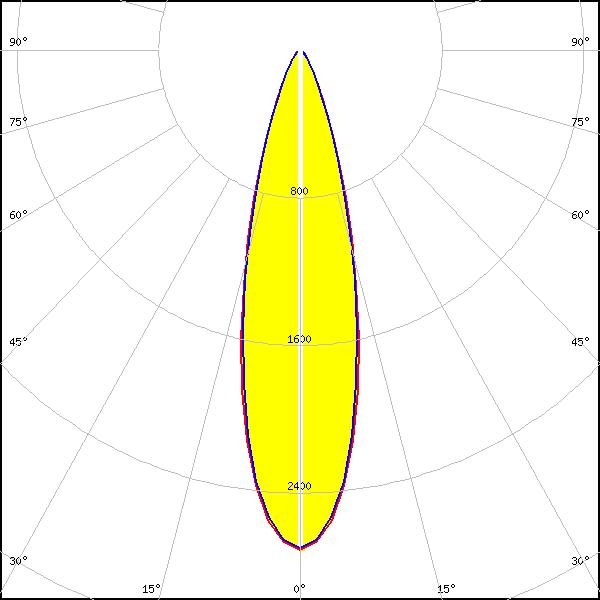

LED: XP-E
FWHM: 27°
FWTM: 54°
Peak intensity: 2.710 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

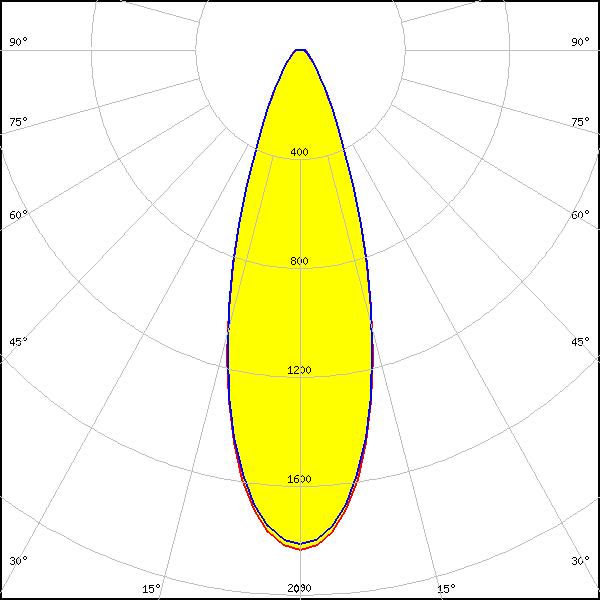

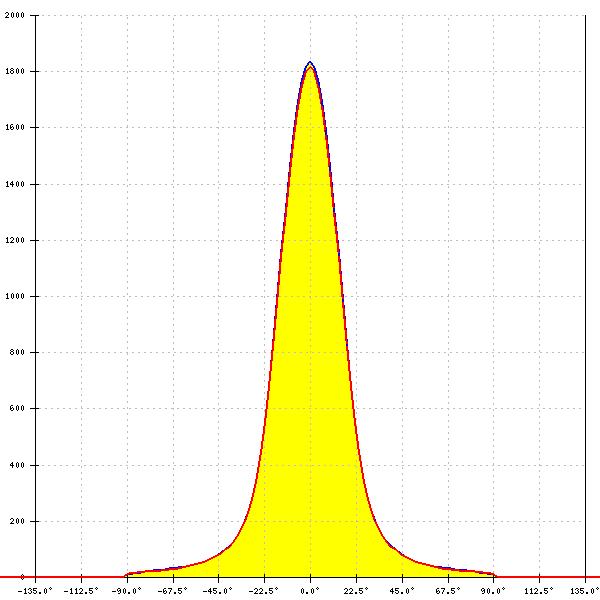

LED: XP-G
FWHM: 34°
FWTM: 66°
Peak intensity: 1.840 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON A
FWHM: 32°
FWTM: -
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Rebel
FWHM: 28°
FWTM: -
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Rebel ES
FWHM: 32°
FWTM: -
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

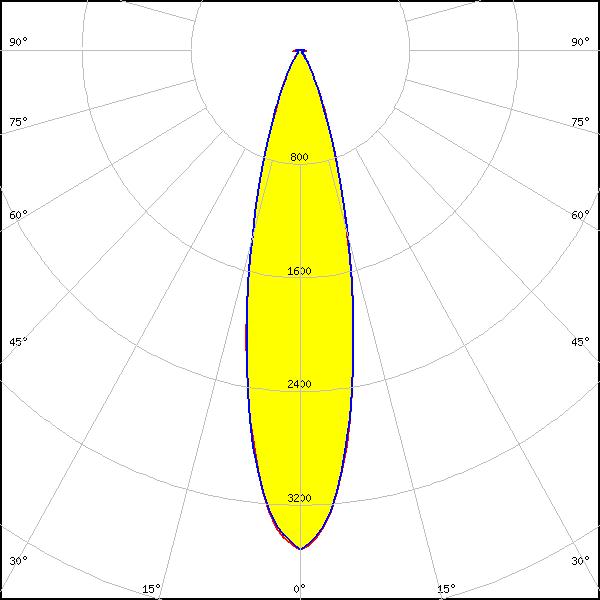

LED: NCSxE17A
FWHM: 26°
FWTM: 50°
Peak intensity: 3.519 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: NCSxx19A
FWHM: 28°
FWTM: -
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19A
FWHM: 34°
FWTM: -
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square EC
FWHM: 32°
FWTM: 60°
Peak intensity: 2.020 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

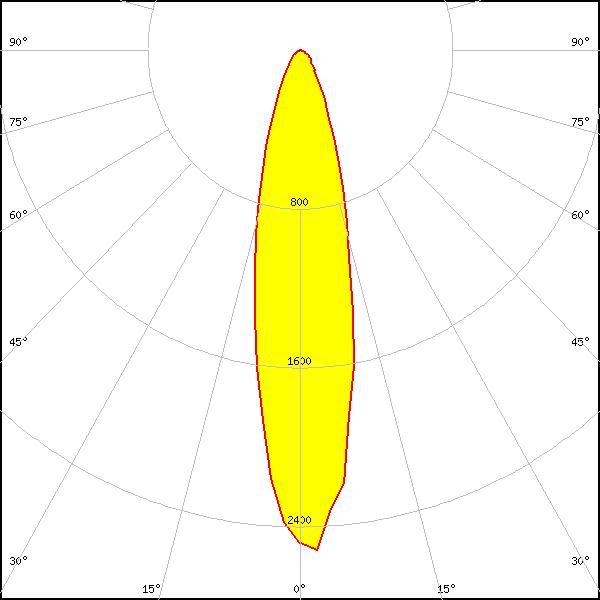

LED: OSLON SSL 150
FWHM: 26°
FWTM: 57°
Peak intensity: 2.480 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON SSL 80
FWHM: 28°
FWTM: -
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5
FWHM: 28°
FWTM: -
LEDs/each optic: 1
Light colour/type: White
LED: Double Dome (GM2BB)
FWHM: 30°
FWTM: -
LEDs/each optic: 1
Light colour/type: White
