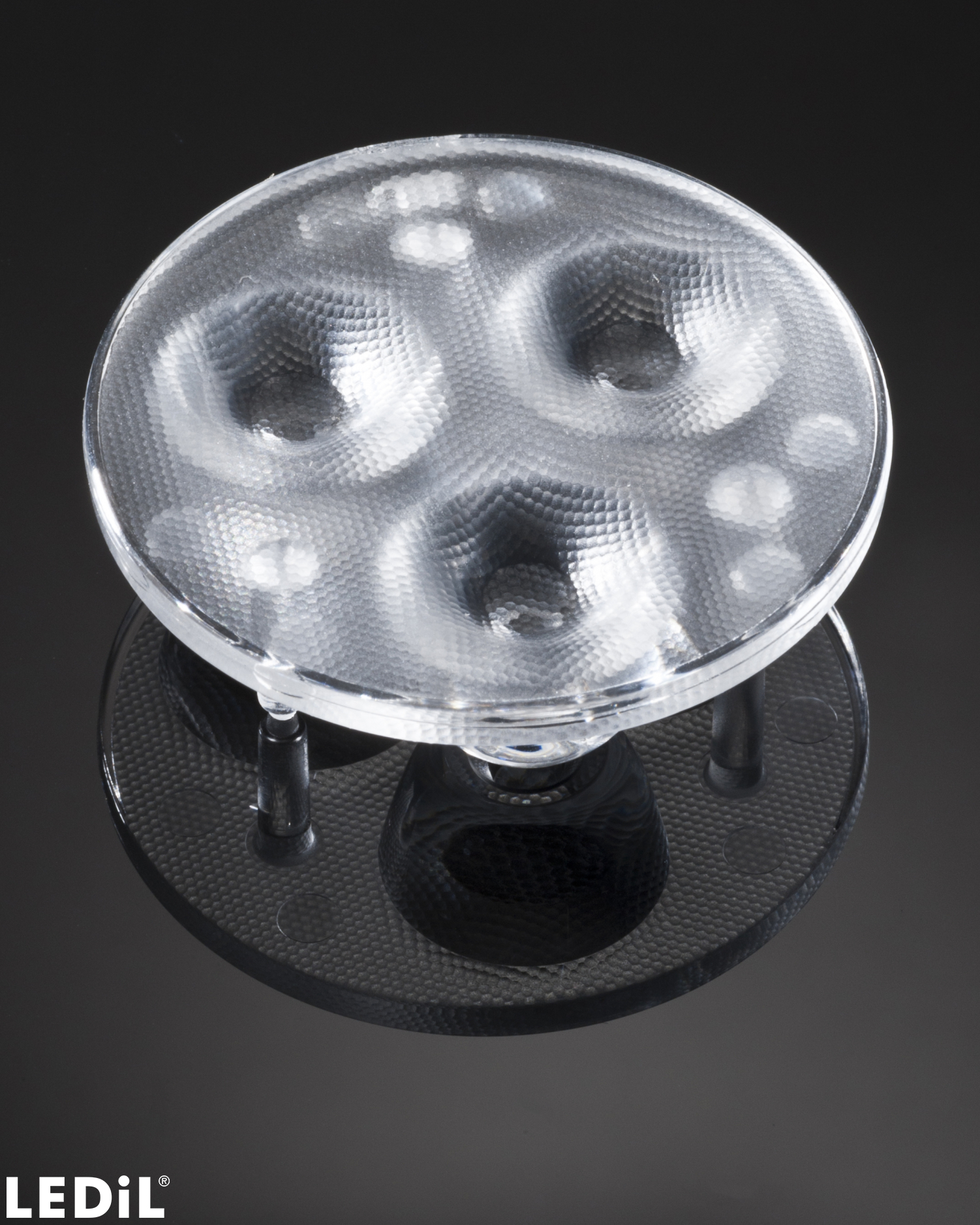

C11191_TUIJA-3-W
Print
~55° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

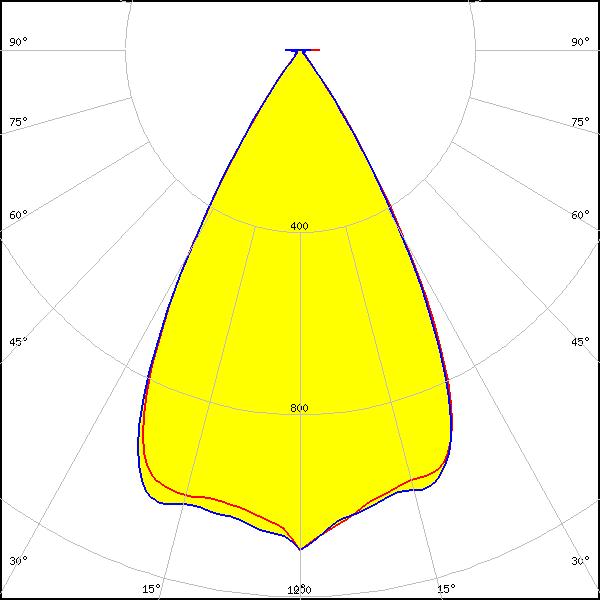

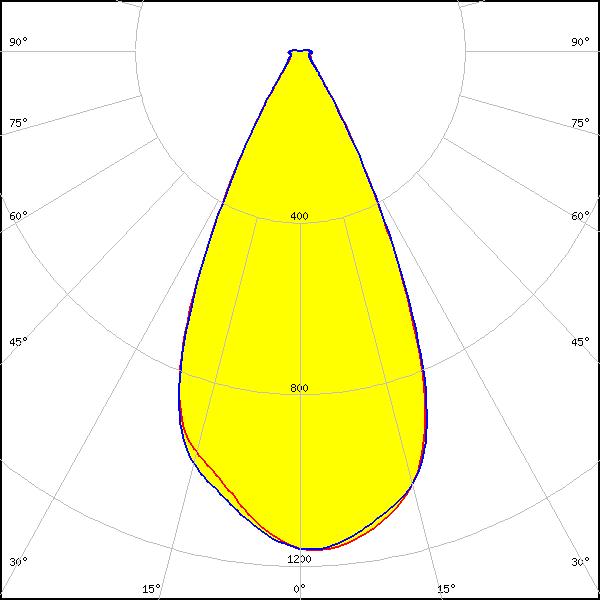

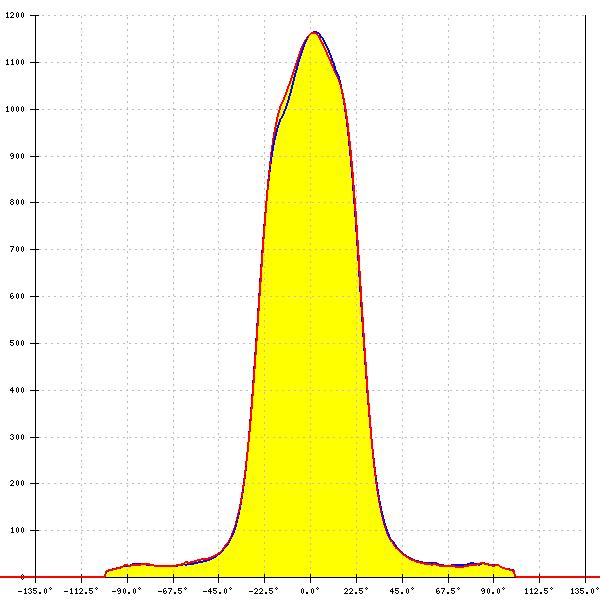

XB-D
FWHM:
50°
FWTM:
73°
Peak intensity:
1.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

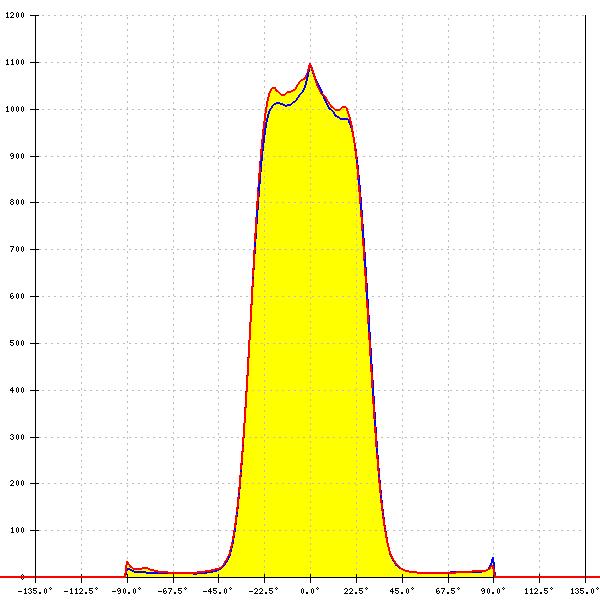

XB-D
FWHM:
49°
FWTM:
-
Peak intensity:
1.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM:
58°
FWTM:
74°
Peak intensity:
0.920 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

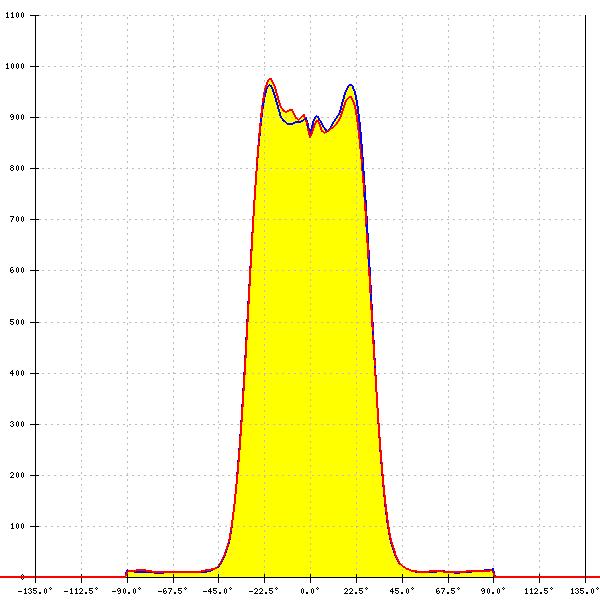

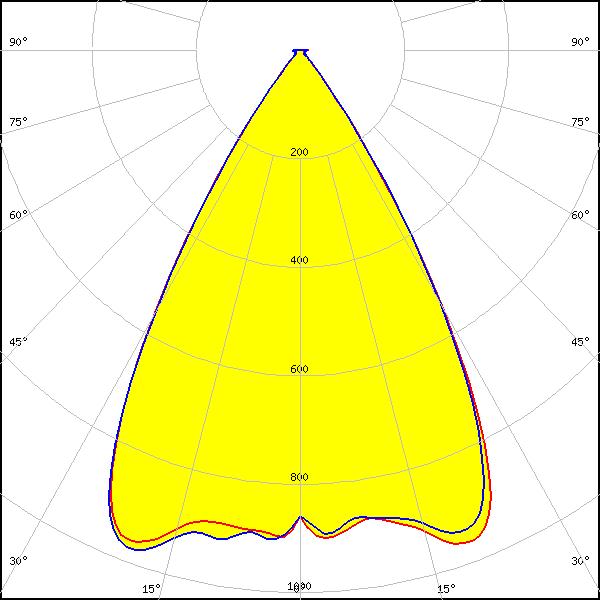

XP-G
FWHM:
59°
FWTM:
76°
Peak intensity:
0.750 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

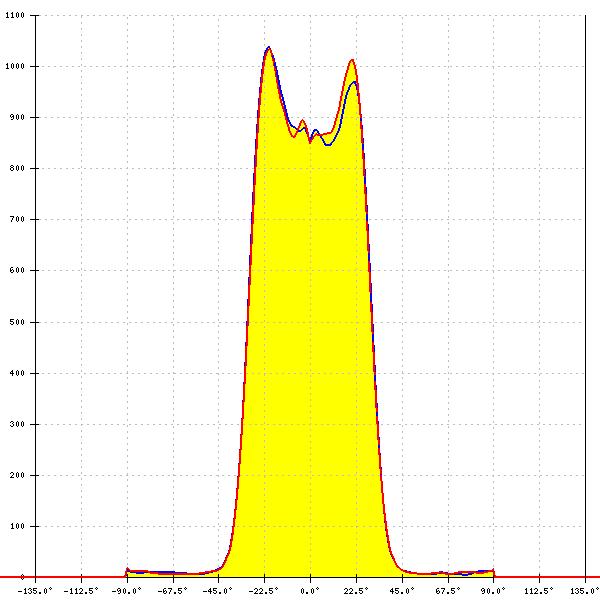

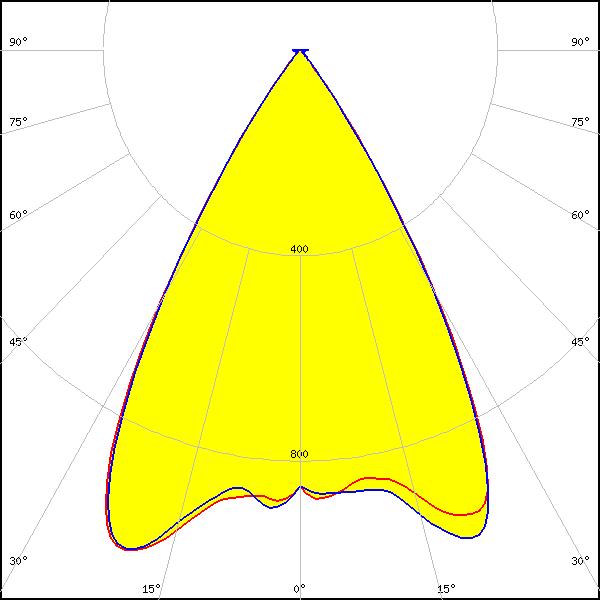

XP-G2
FWHM:
61°
FWTM:
75°
Peak intensity:
1.059 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

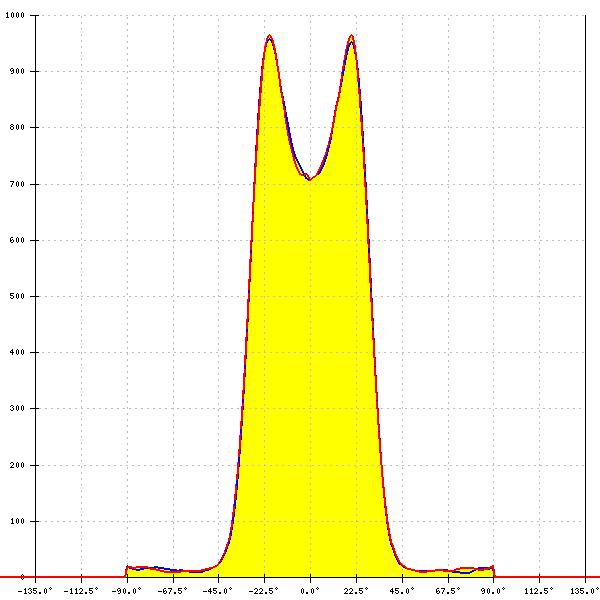

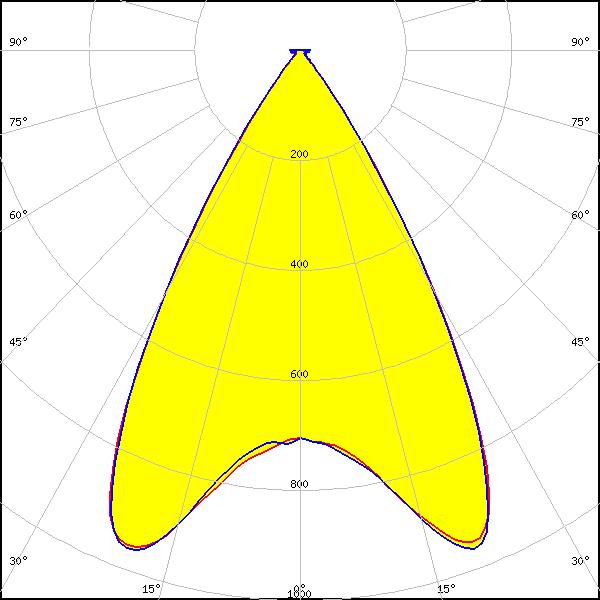

XP-G3
FWHM:
60°
FWTM:
76°
Peak intensity:
0.988 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

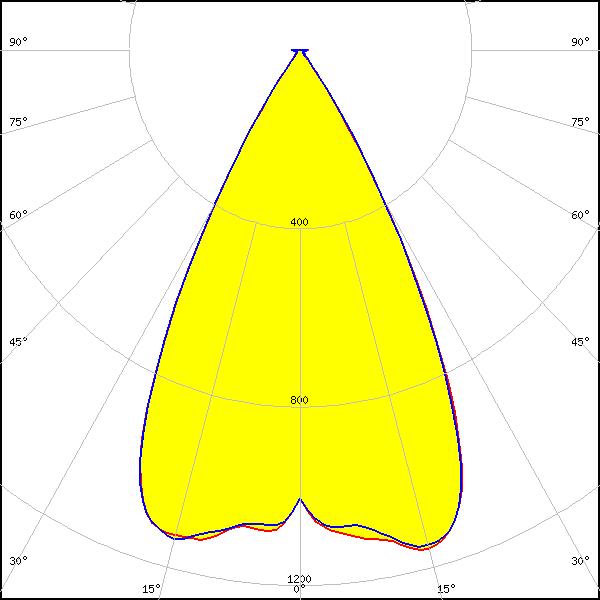

XT-E
FWHM:
56°
FWTM:
71°
Peak intensity:
1.173 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
FWHM:
56°
FWTM:
-
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel
FWHM:
48°
FWTM:
72°
Peak intensity:
1.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
56°
FWTM:
78°
Peak intensity:
0.870 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxx19A
FWHM:
54°
FWTM:
-
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
54°
FWTM:
-
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
58°
FWTM:
-
Peak intensity:
1.100 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
46°
FWTM:
64°
Peak intensity:
0.440 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4715AS
FWHM:
48°
FWTM:
74°
Peak intensity:
1.440 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4716AS
FWHM:
56°
FWTM:
81°
Peak intensity:
1.120 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4725S
FWHM:
51°
FWTM:
74°
Peak intensity:
1.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
IR
LED:

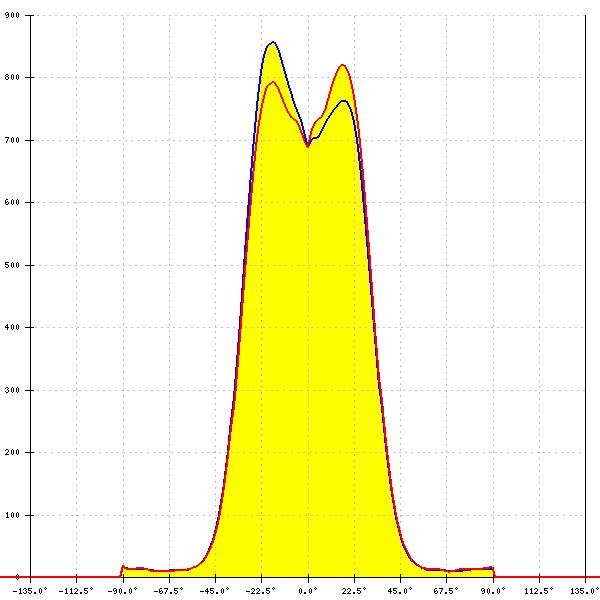

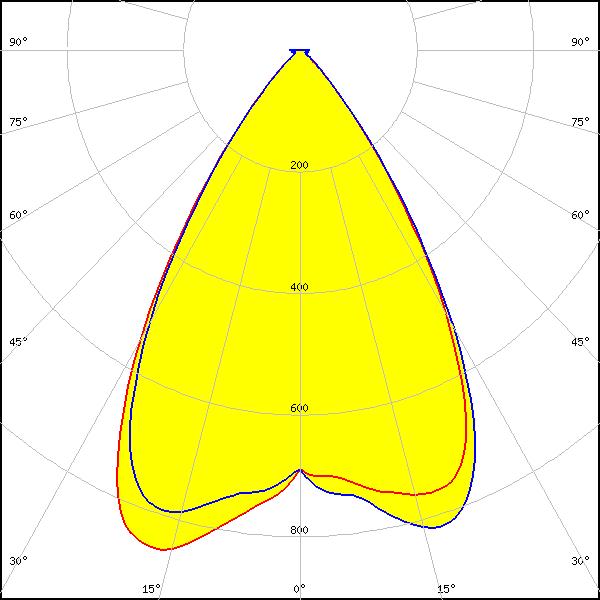

LH351C
FWHM:
65°
FWTM:
88°
Peak intensity:
0.859 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

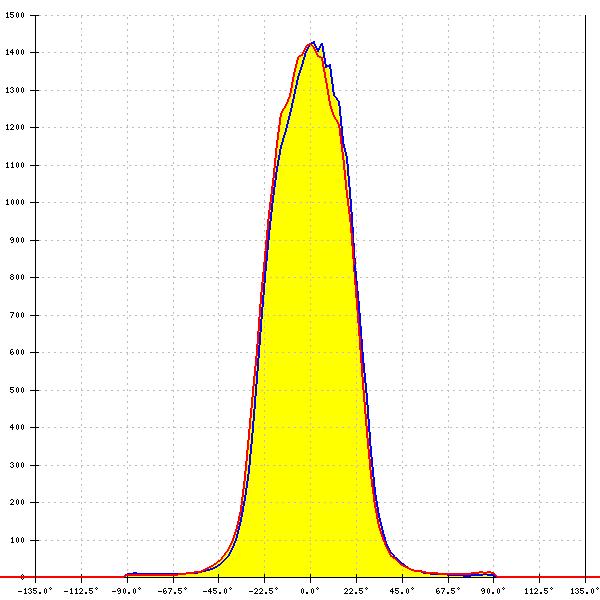

LED:

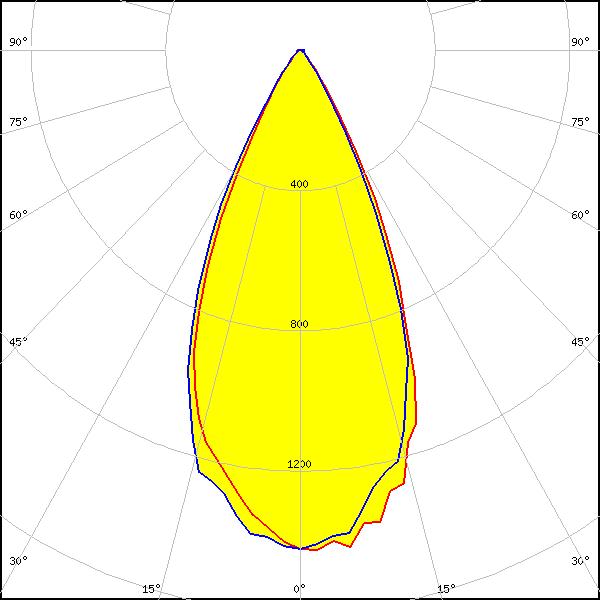

Z5
FWHM:
48°
FWTM:
70°
Peak intensity:
1.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
FWHM:
58°
FWTM:
-
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
