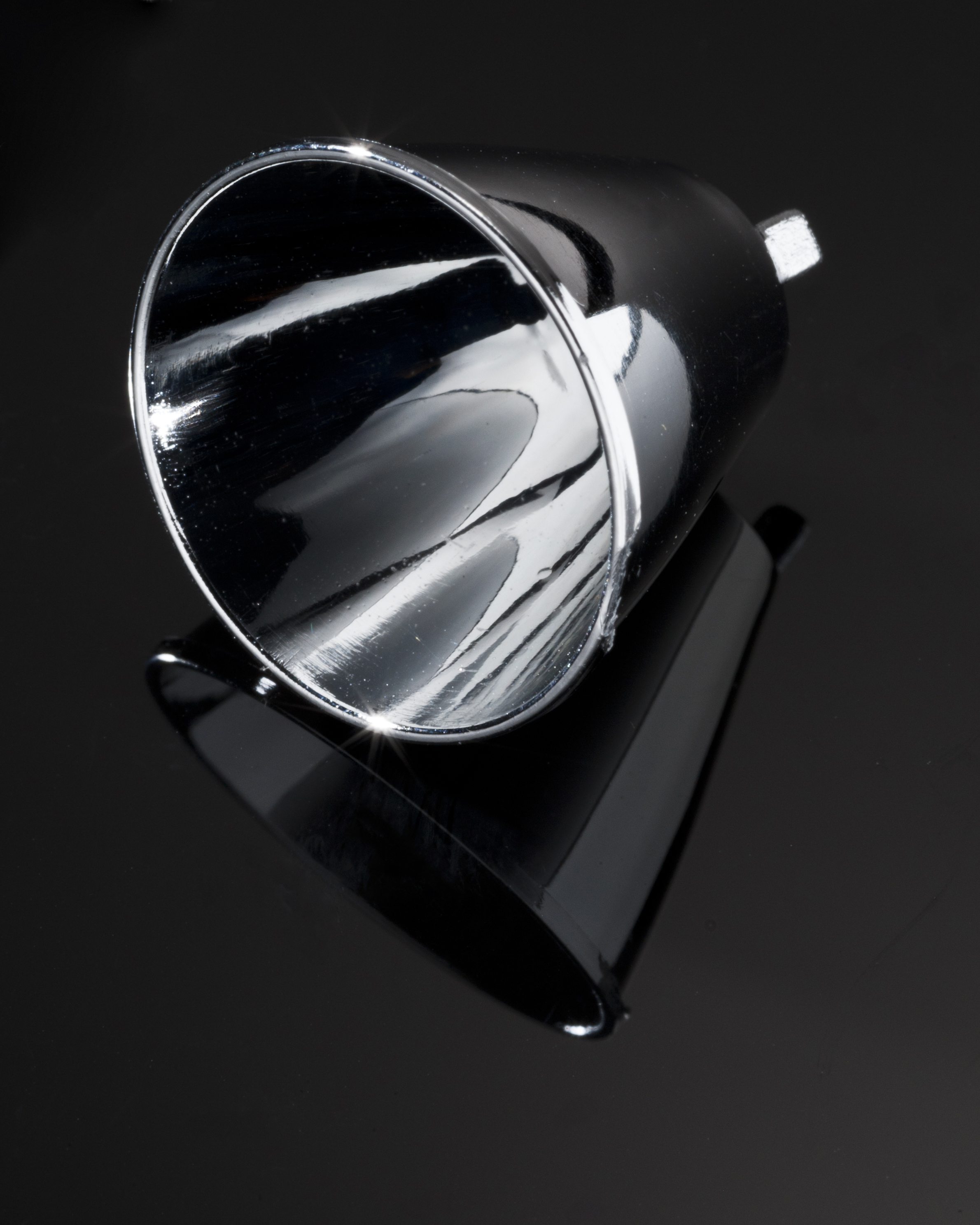

    C11347_REGINA

    Print

    ~9° spot beam

    Specification
    • Dimensions:
      19 mm
    • Height:
      15.30 mm
    • Fastening:
      glue, pin
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1680 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      3.2 kg
    • MPQ:
      112 pcs
    • MOQ:
      336 pcs
    • MOQ size:
      480 x 280 x 70 mm
    • MOQ weight:
      1.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C11347_REGINA
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application area

    Indoor Architectural Lighting

    Optical results

    LED: XP-E
    FWHM: 8°
    FWTM: -
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

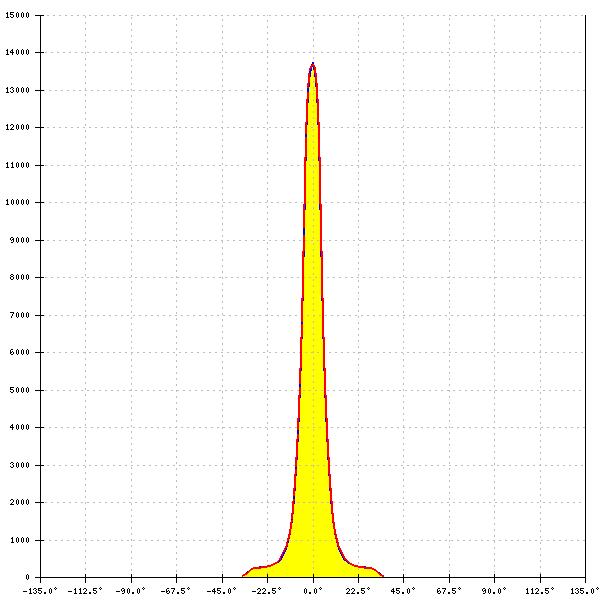

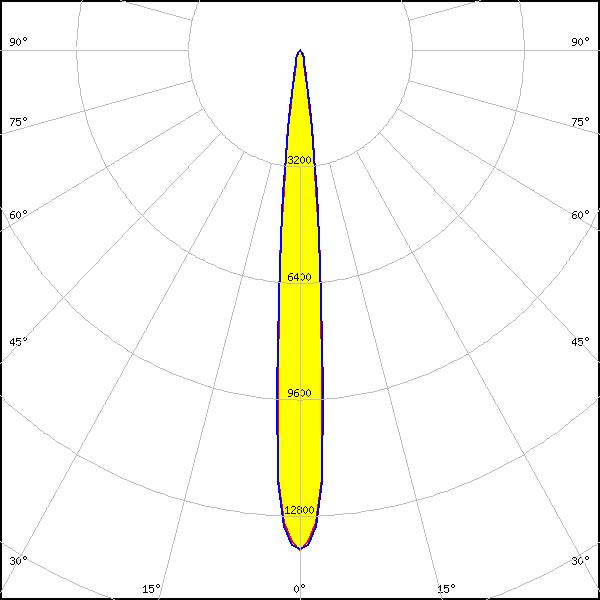

    LED: XP-G
    FWHM: 10°
    FWTM: -
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

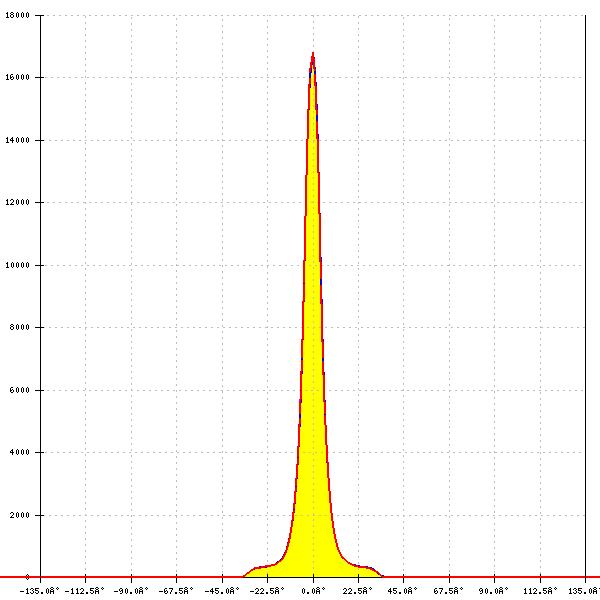

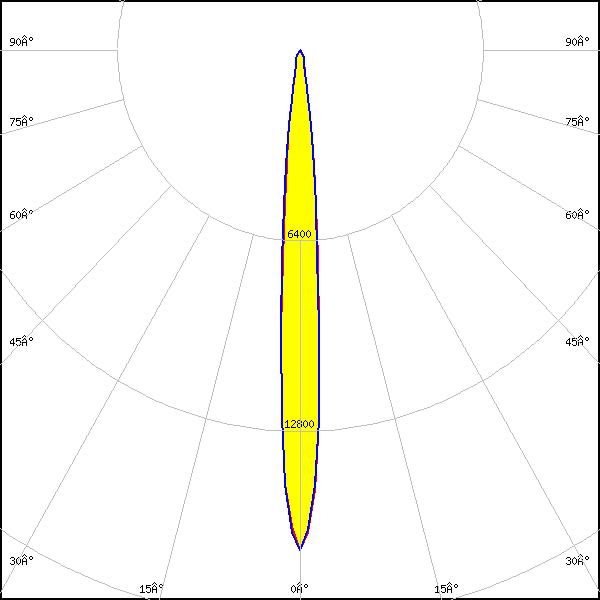

    LED: XP-L HI
    FWHM: 8°
    FWTM: 22°
    Peak intensity: 16.900 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel
    FWHM: 7°
    FWTM: -
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

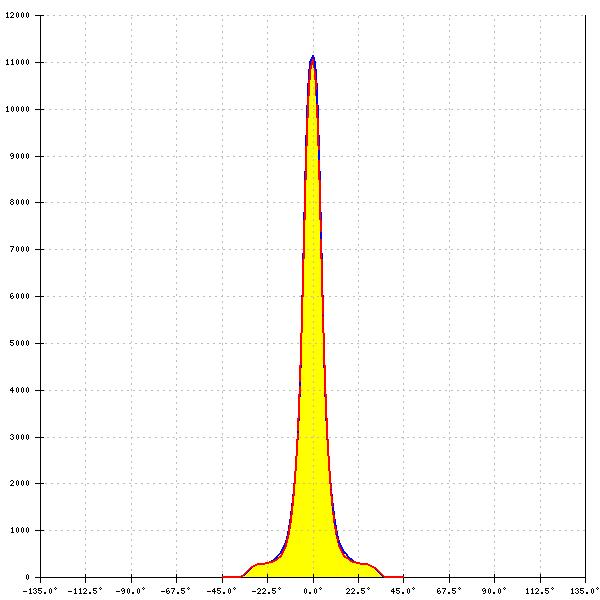

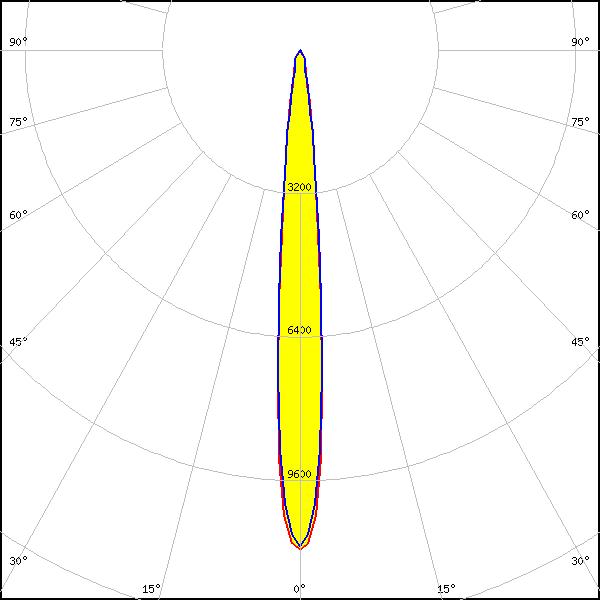

    LED: LUXEON Rebel ES
    FWHM: 10°
    FWTM: 22°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxx19A
    FWHM: 10°
    FWTM: -
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSU119C
    FWHM: 11°
    FWTM: 26°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: UV-A
    LED: NVSxx19A
    FWHM: 10°
    FWTM: -
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

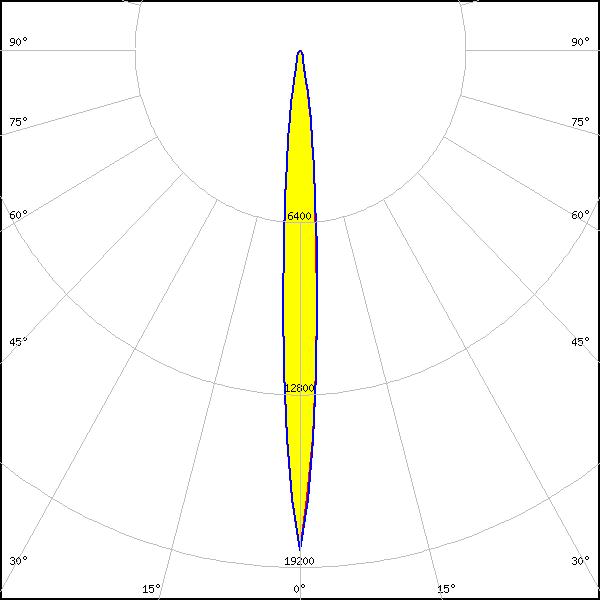

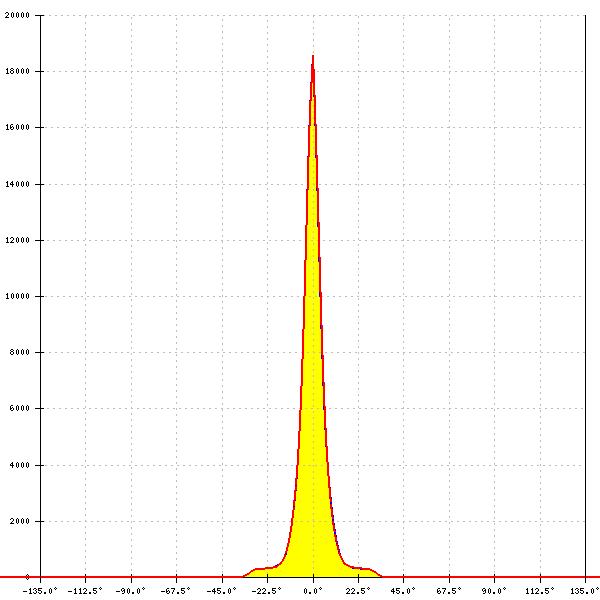

    LED: OSCONIQ C 2424 Gen1
    FWHM: 8°
    FWTM: 20°
    Peak intensity: 18.568 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

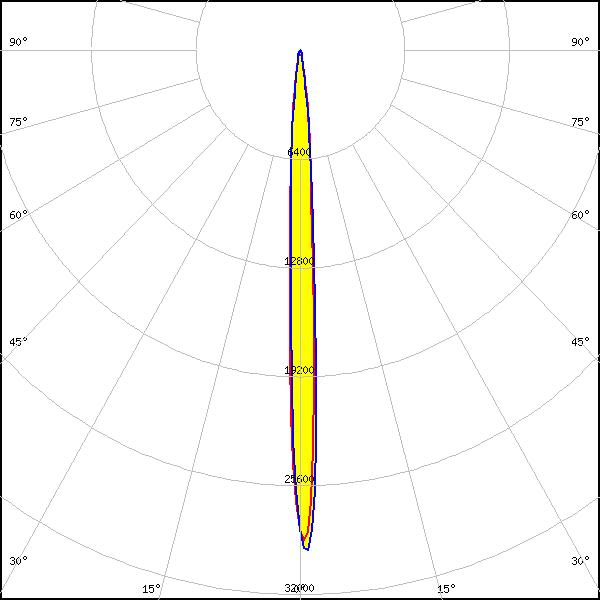

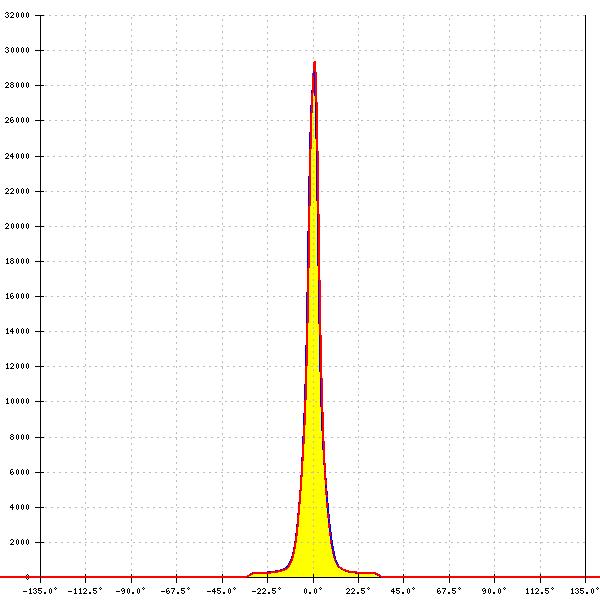

    LED: OSLON SSL 150
    FWHM: 6°
    FWTM: 16°
    Peak intensity: 24.000 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

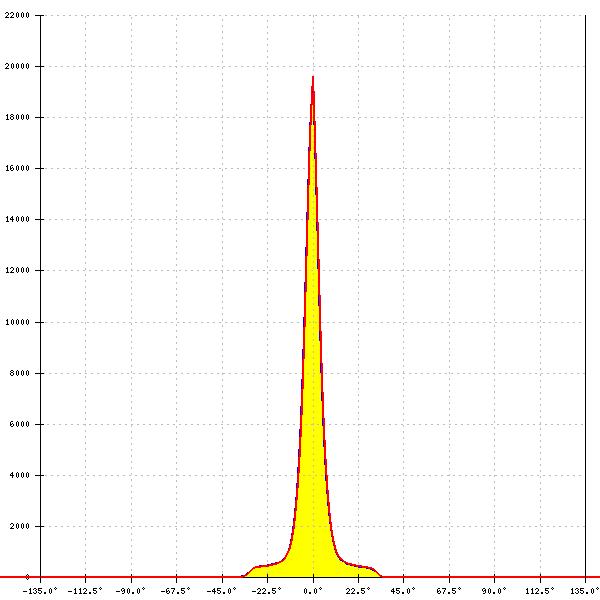

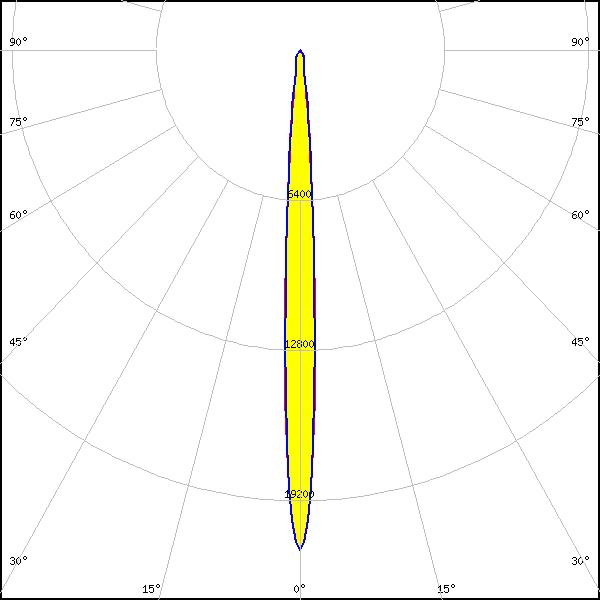

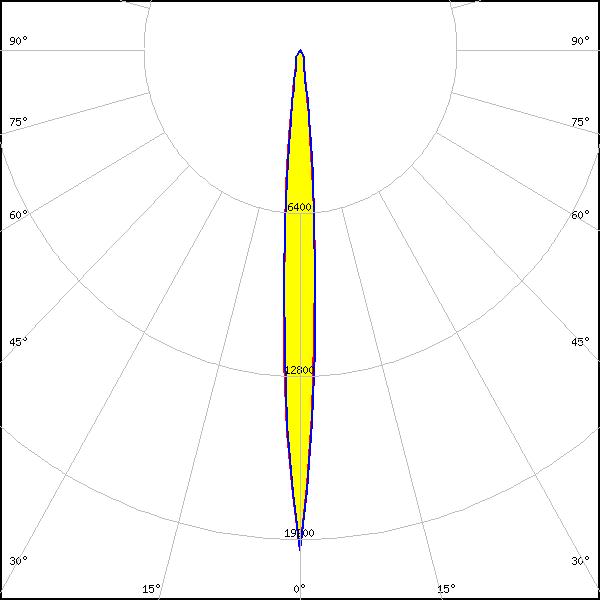

    LED: OSLON SSL 80
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 19.631 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

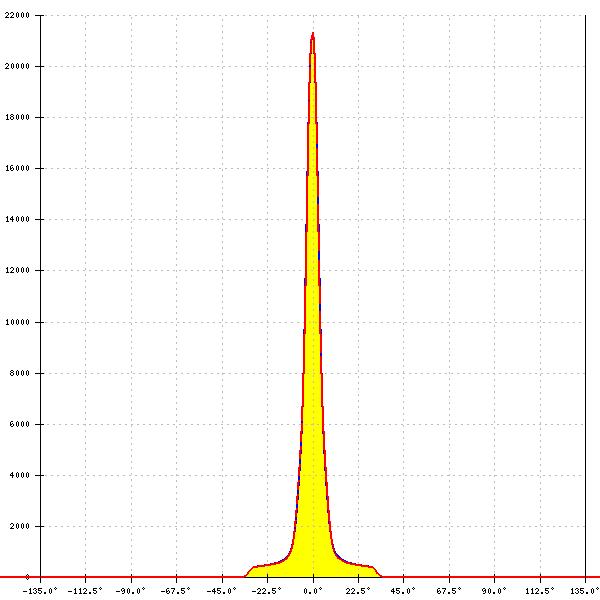

    LED: OSLON SSL 80
    FWHM: 7°
    FWTM: 17°
    Peak intensity: 21.322 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5
    FWHM: 11°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
