    C11889_STRADA-SQ-T-DN

    Print

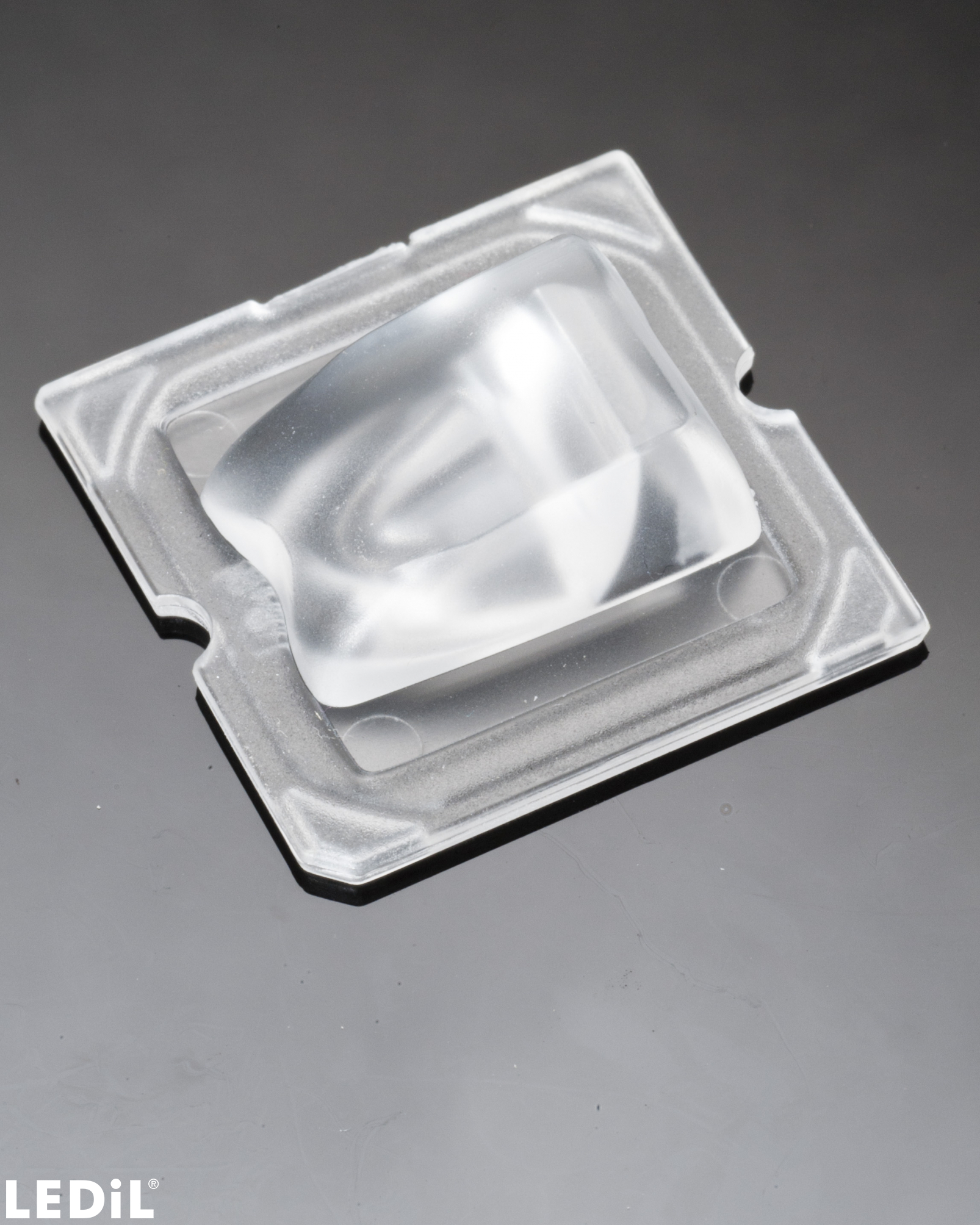

    Beam for area lighting with shorter illumination distances. Version with location pins. Optimized for CREE XP-E.

    Specification
    • Dimensions:
      25 x  25 mm
    • Height:
      7.90 mm
    • Fastening:
      glue, pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      2058 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.7 kg
    • MPQ:
      98 pcs
    • MOQ:
      294 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      1.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C11889_STRADA-SQ-T-DN
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Street lighting optics

    News

    PRODUCT NEWS - STRADA-SQ

    Application area

    Industrial Lighting

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

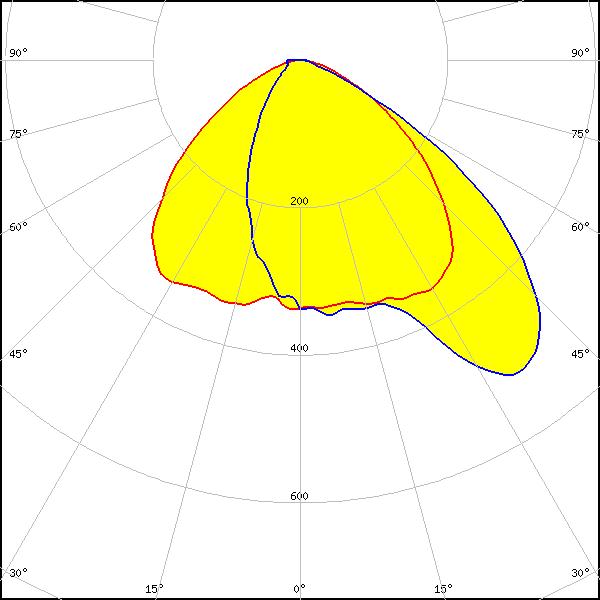

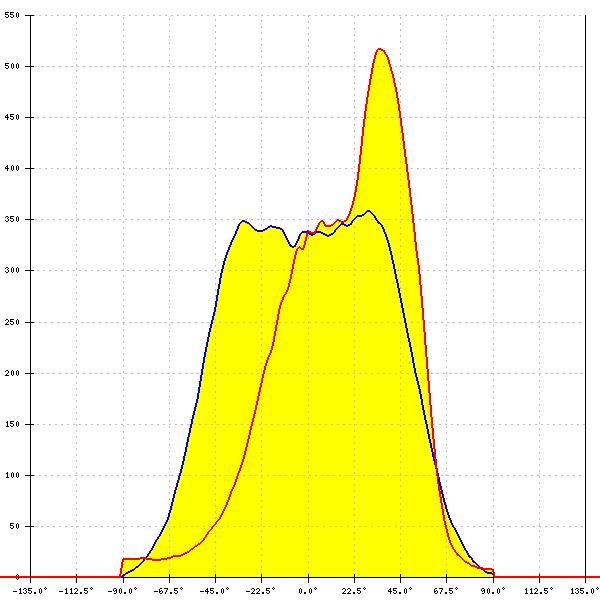

    LED: XHP35 HD
    FWHM: asymmetric
    Peak intensity: 0.560 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

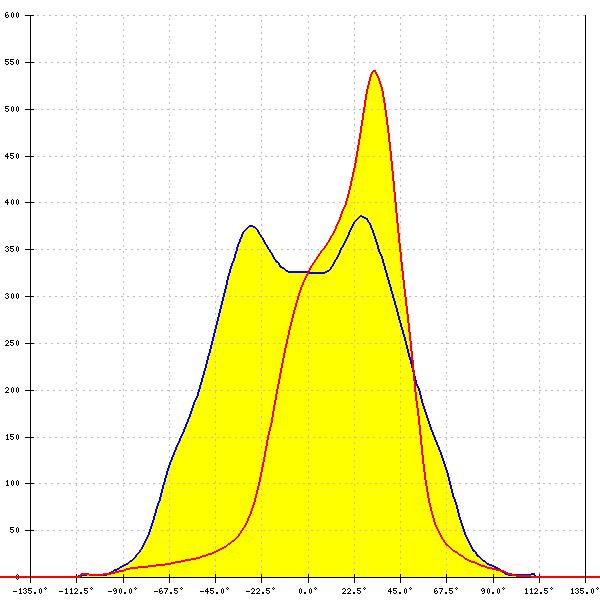

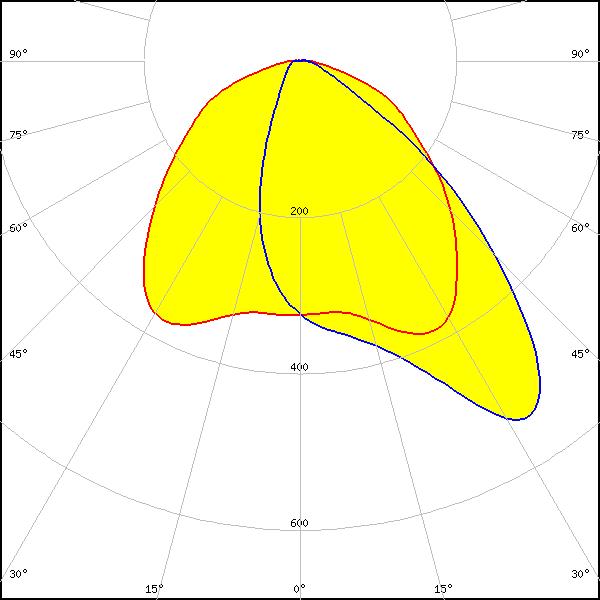

    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

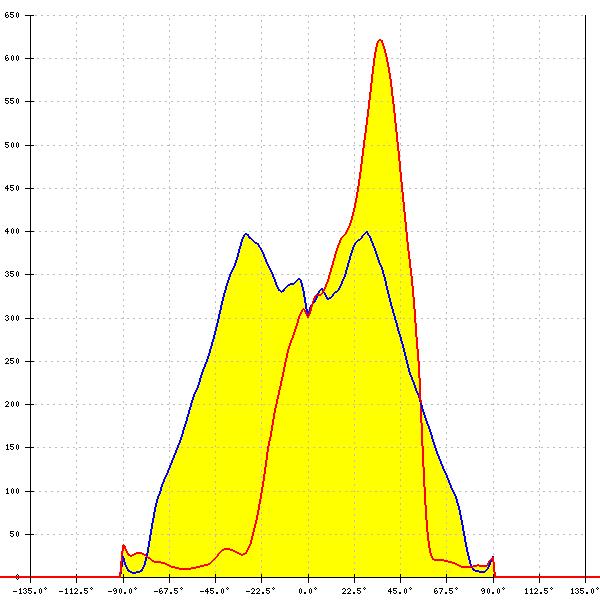

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

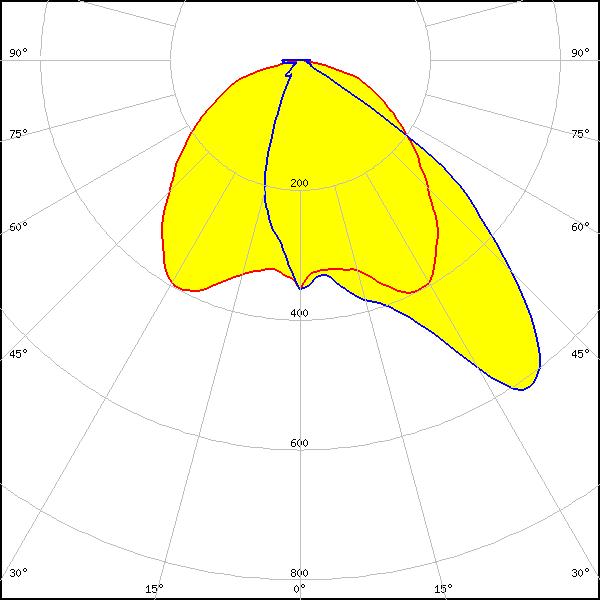

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.714 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Red

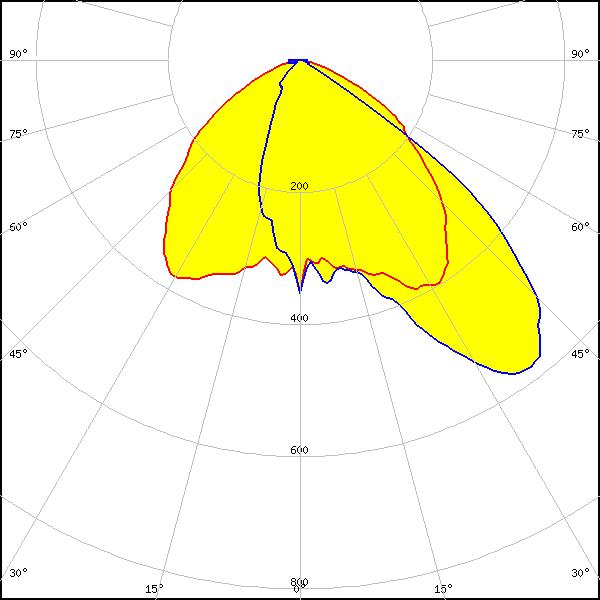

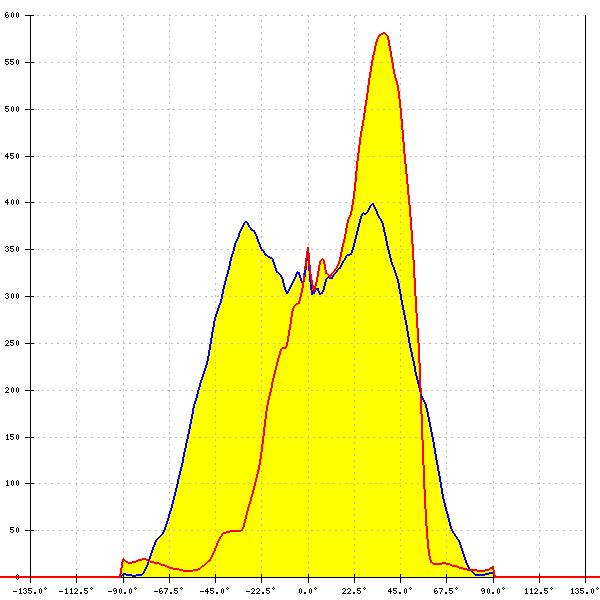

    LED: XP-L HD
    FWHM: asymmetric
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

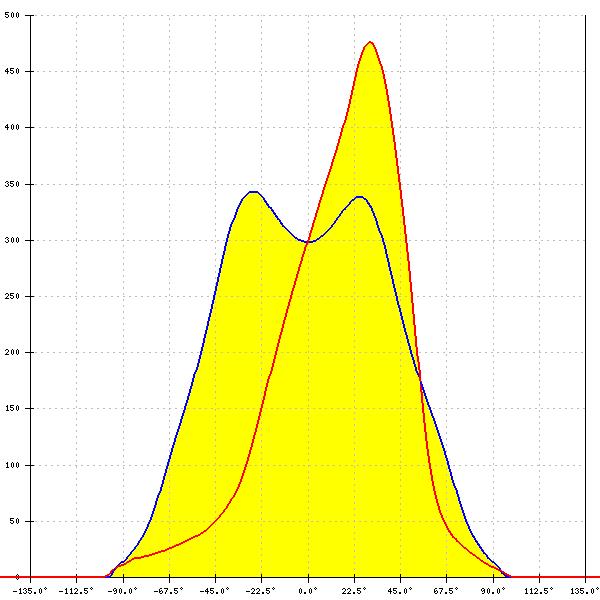

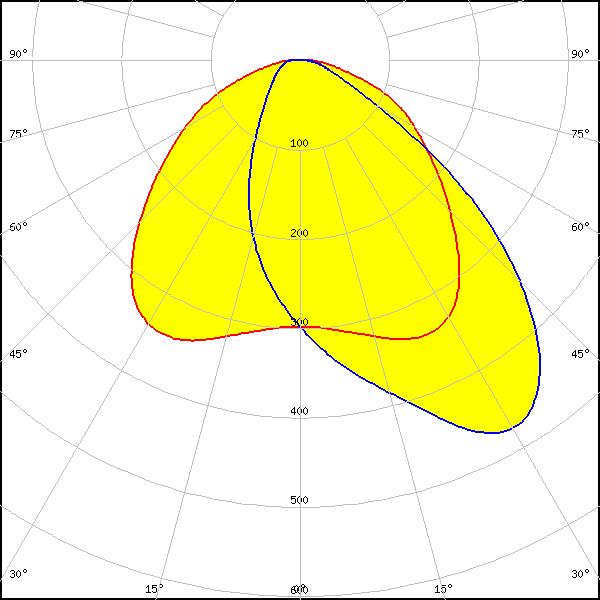

    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON A
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel ES
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

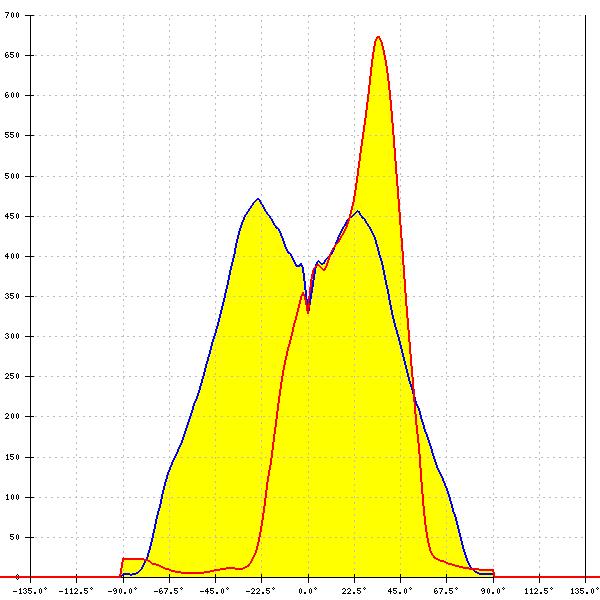

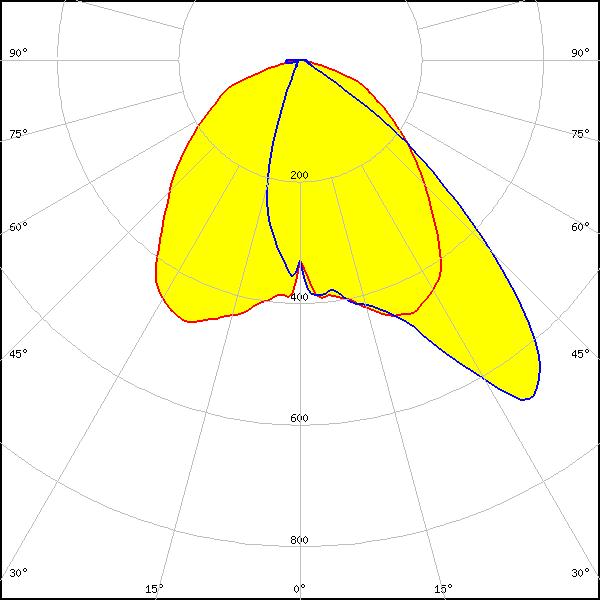

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.766 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

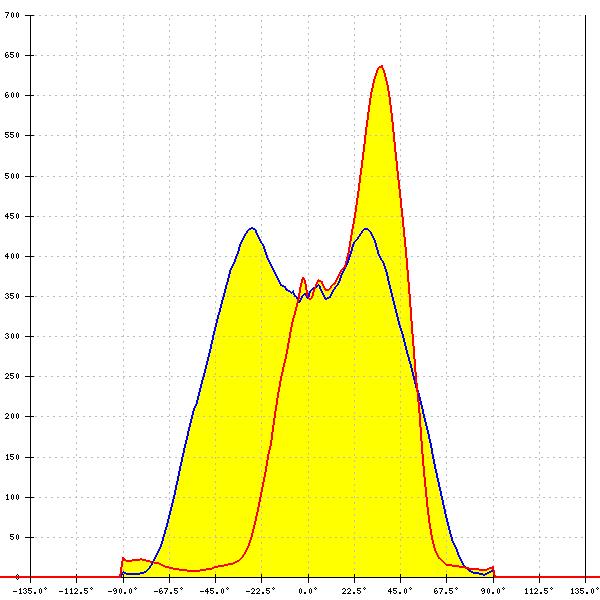

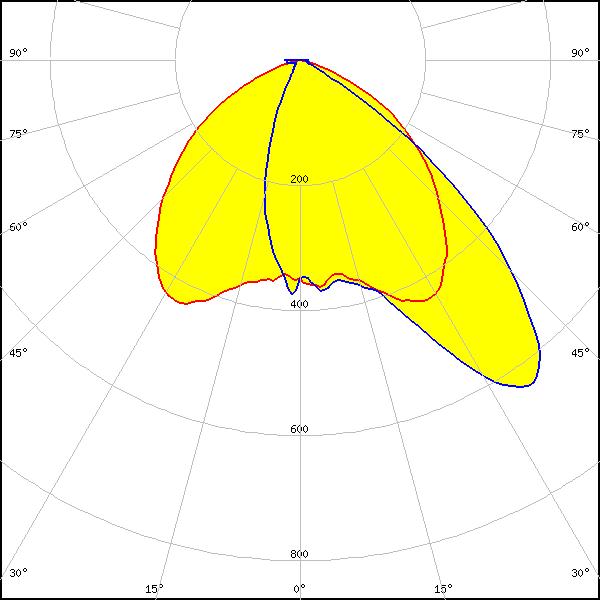

    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.711 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

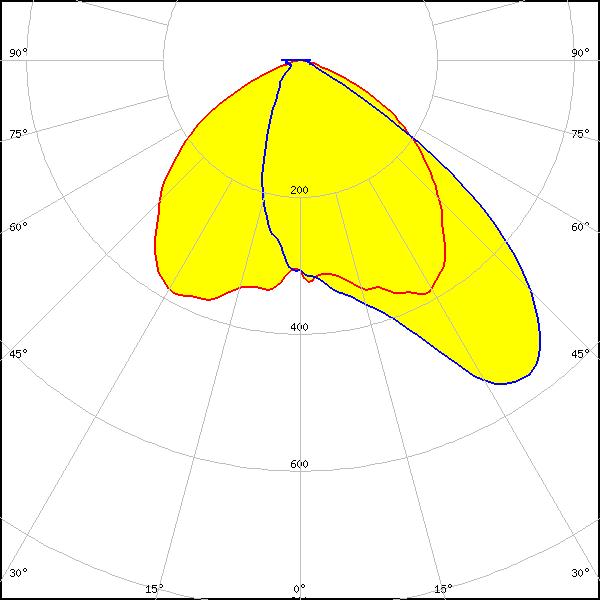

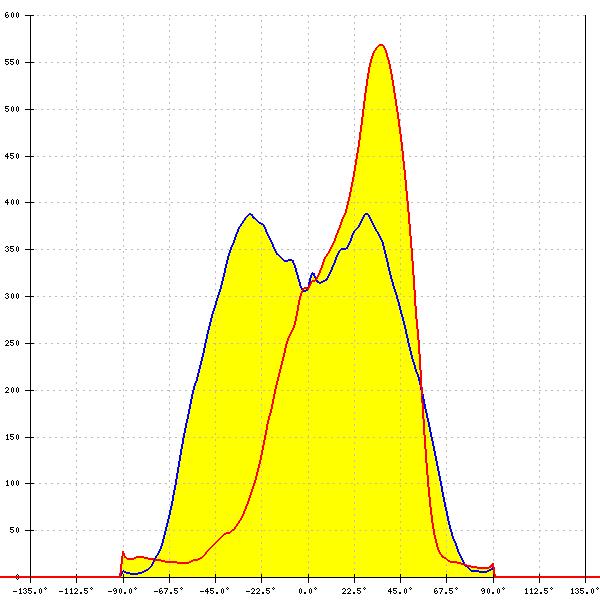

    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 0.640 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
