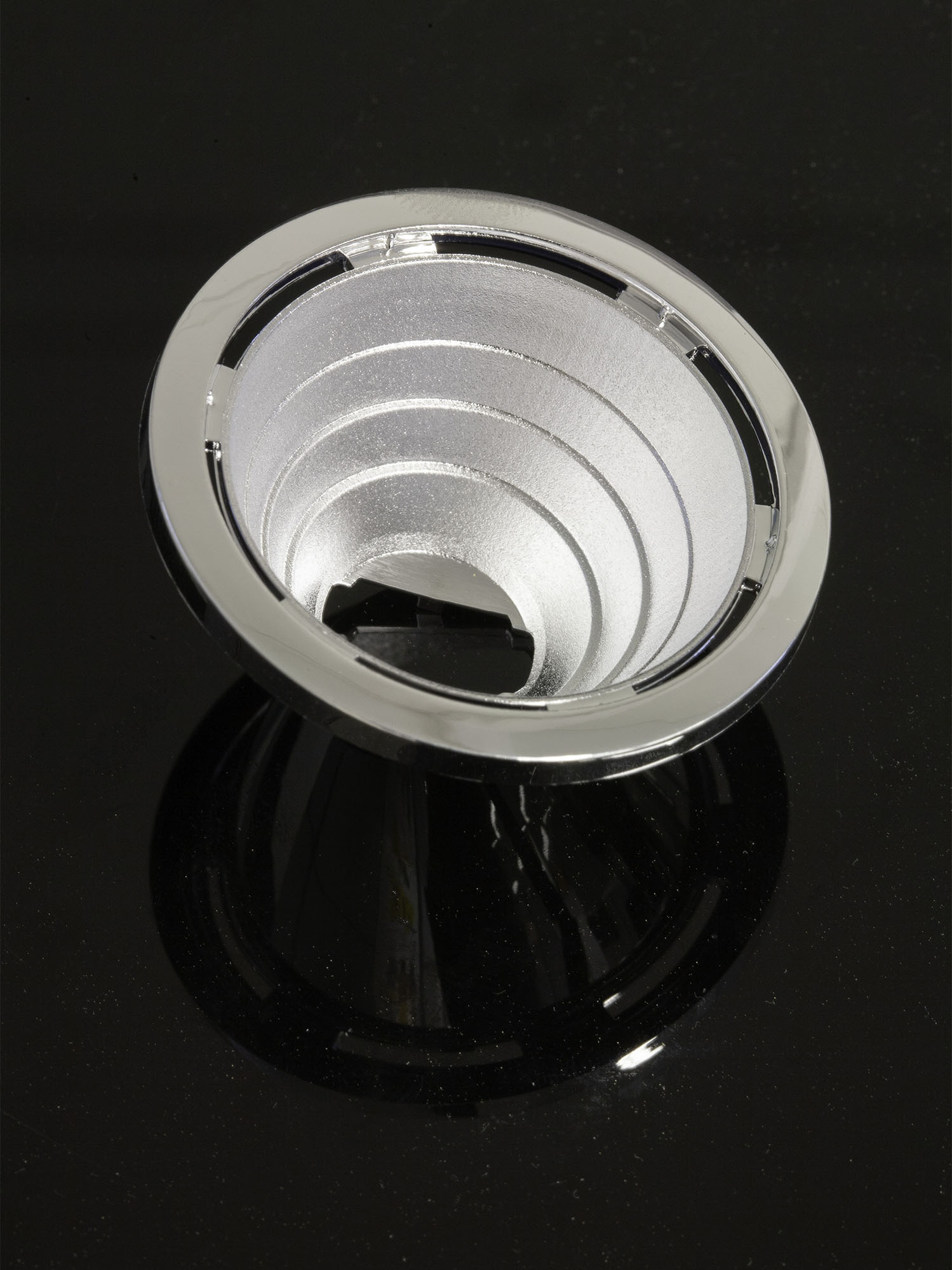

C12481_MIRELLA-50-M-PIN
Print~30° medium beam
Specification
-
Dimensions:50 mm
-
Height:23.90 mm
-
Fastening:pin
-
Colour:metal
-
RoHS and REACH compliant:Yes
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:336 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:3.1 kg
-
MPQ:28 pcs
-
MOQ:112 pcs
-
MOQ size:480 x 280 x 120 mm
-
MOQ weight:1.1 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Please note that the position pin holes come very close to the LED.
Related Content
AVAILABLE LEDiL ACCESSORIES

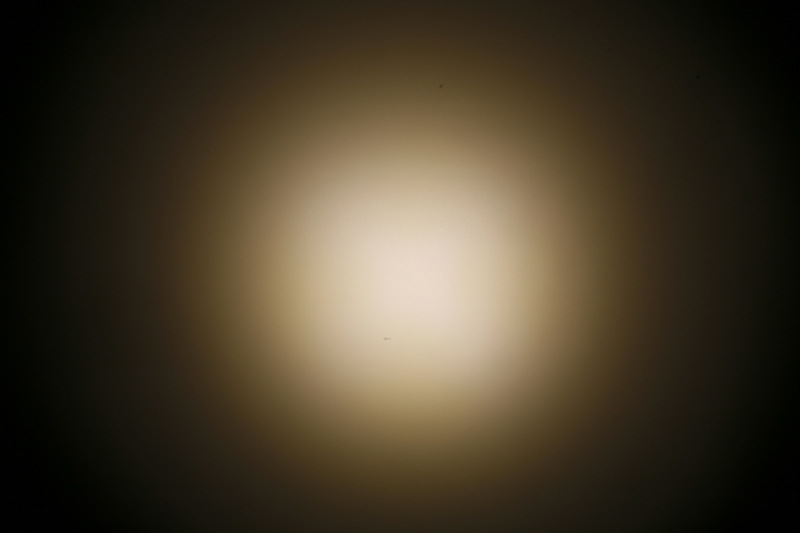

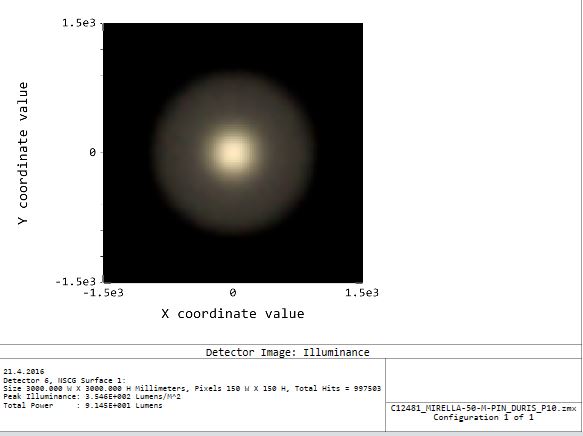

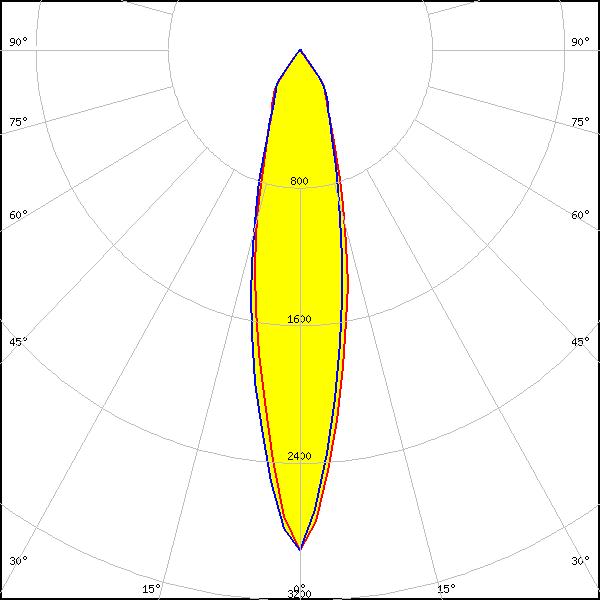

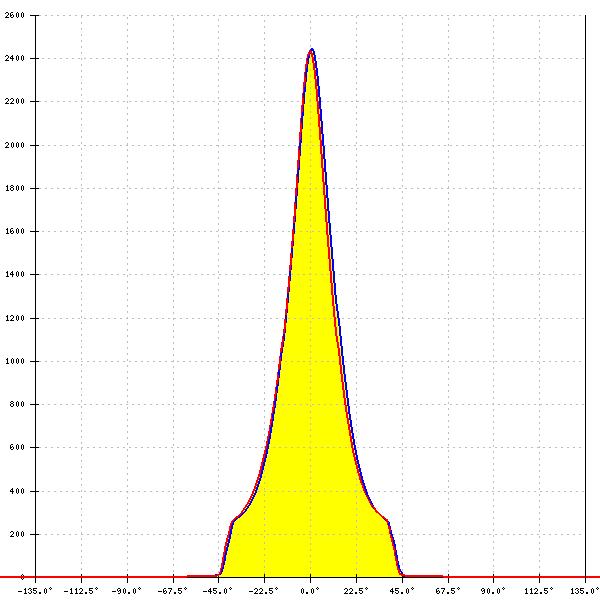

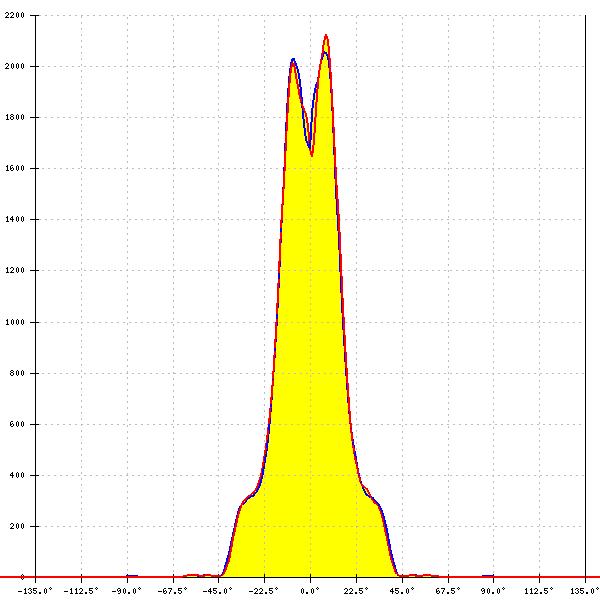

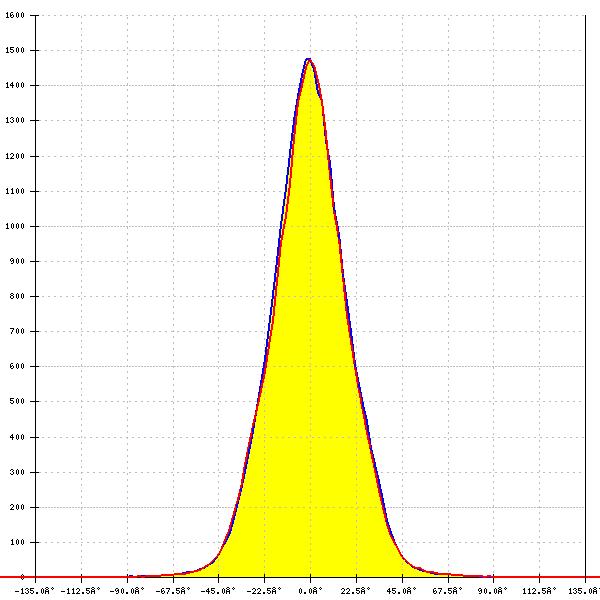

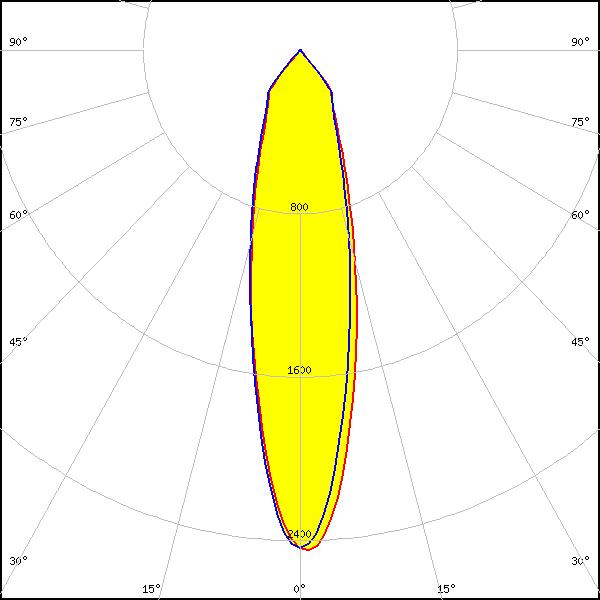

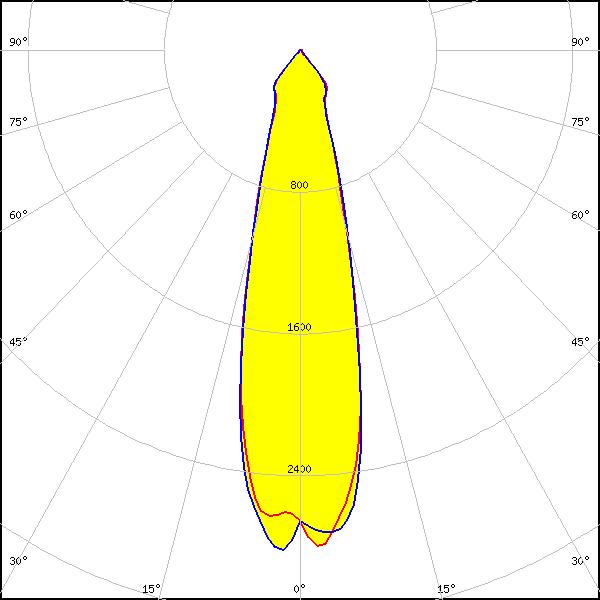

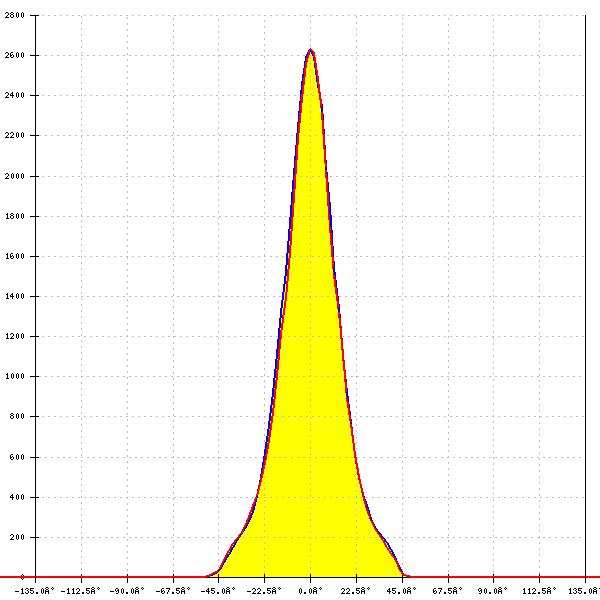

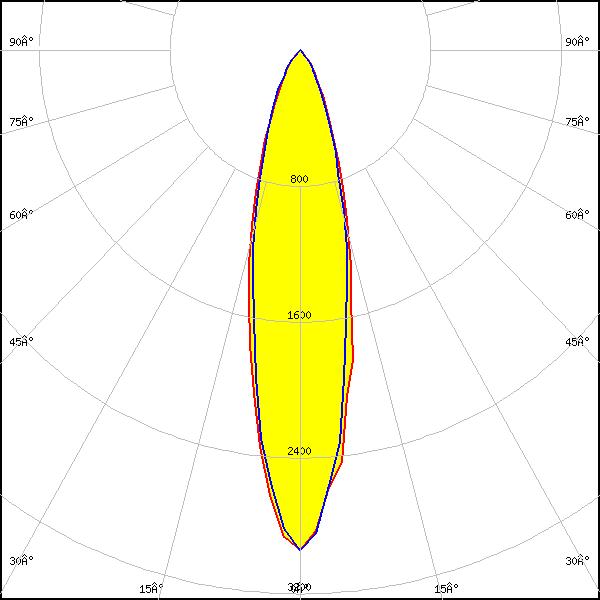

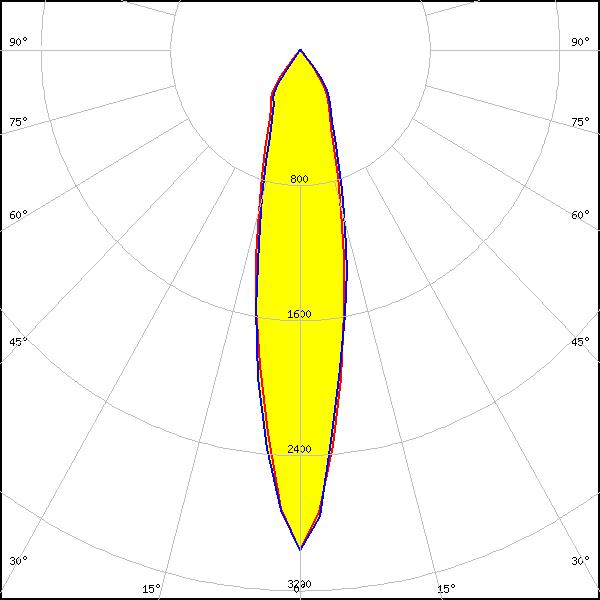

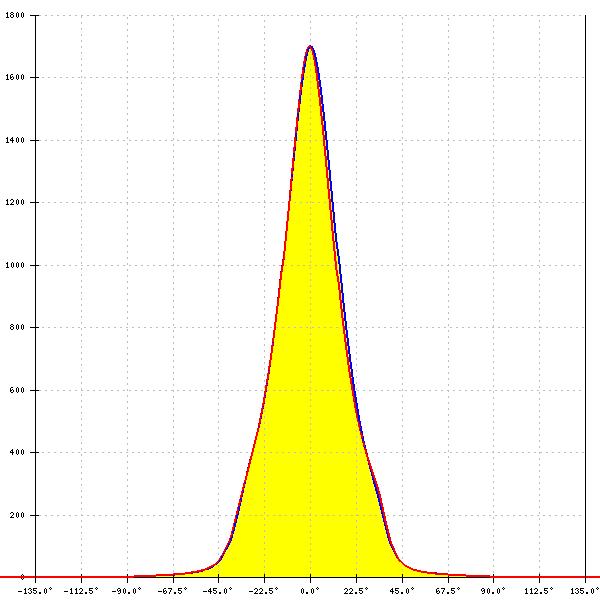

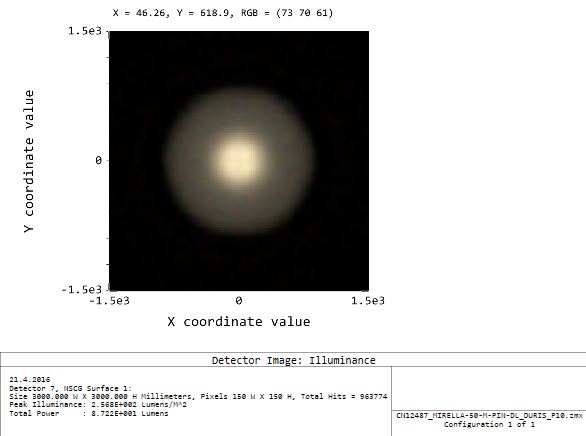

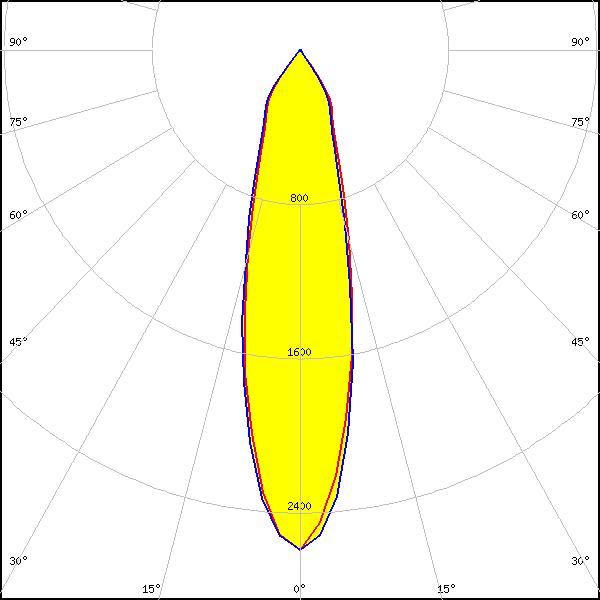

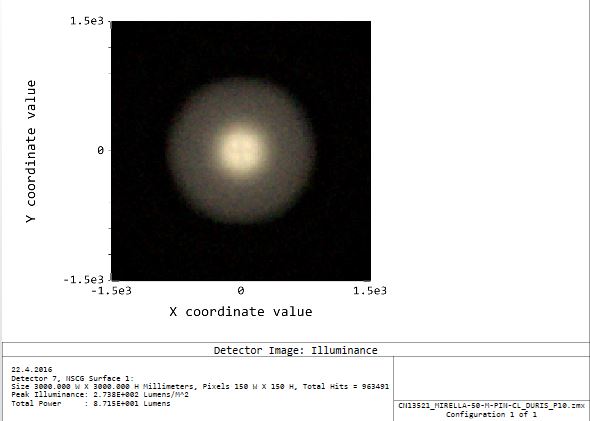

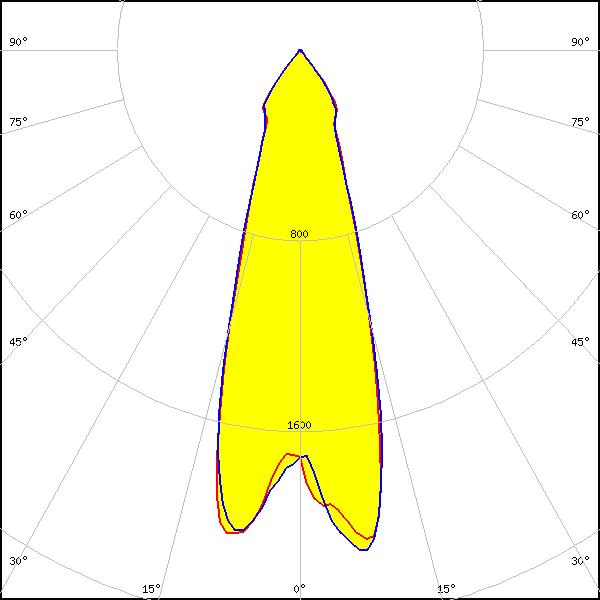

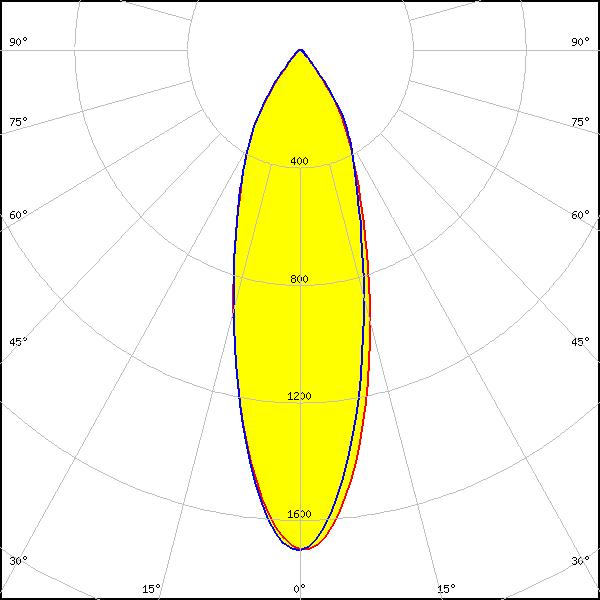

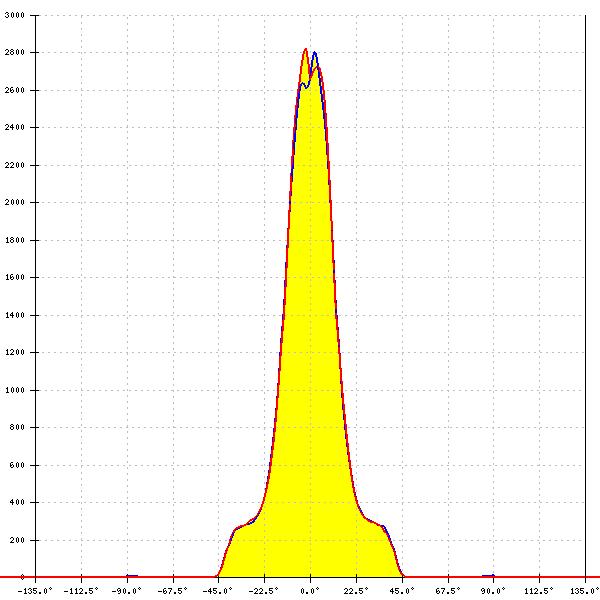

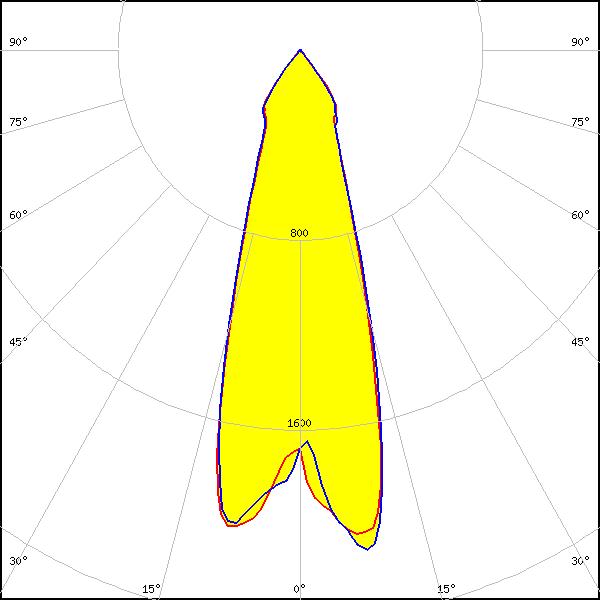

Optical results

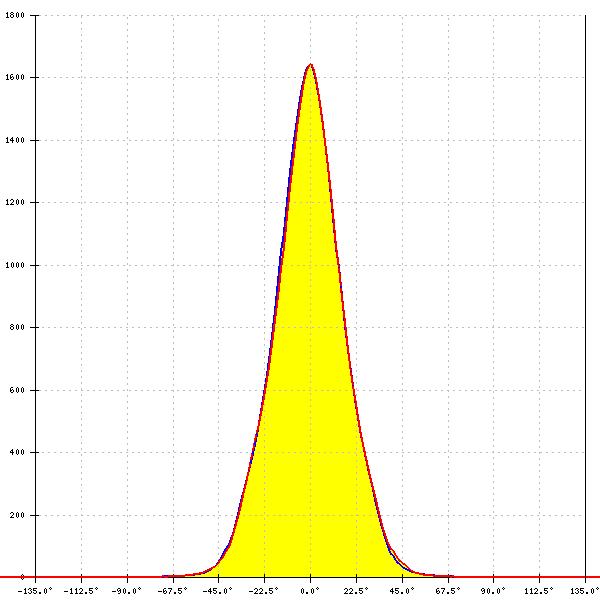

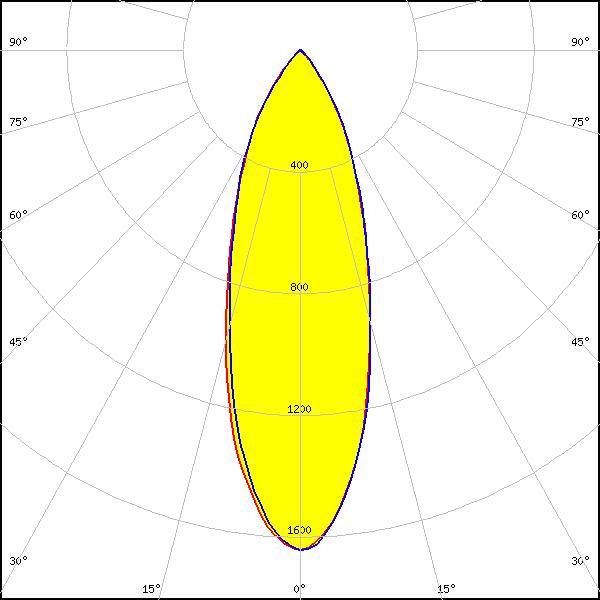

LED:

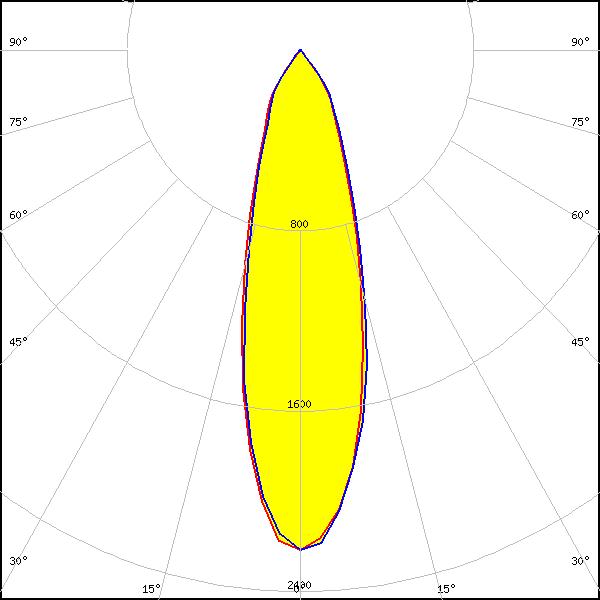

SM4
Required components:
FWHM:
35°
FWTM:
73°
Peak intensity:
1.650 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SM4
Required components:
FWHM:
29°
FWTM:
68°
Peak intensity:
2.200 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 7070B K Class
FWHM:
28°
FWTM:
68°
Peak intensity:
2.741 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

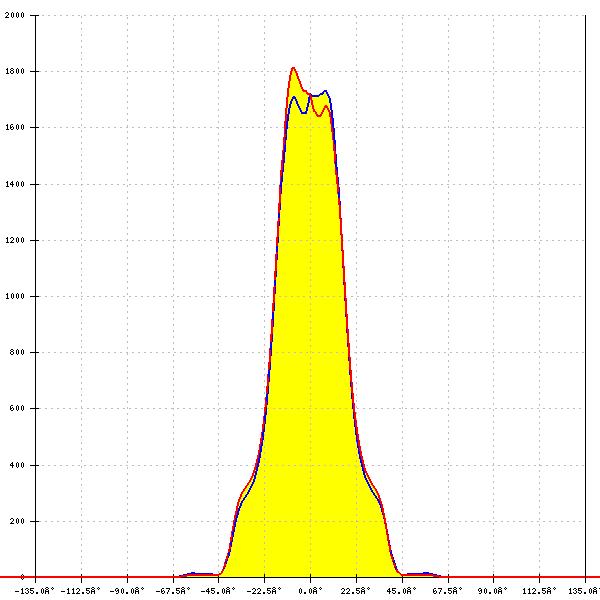

LED:

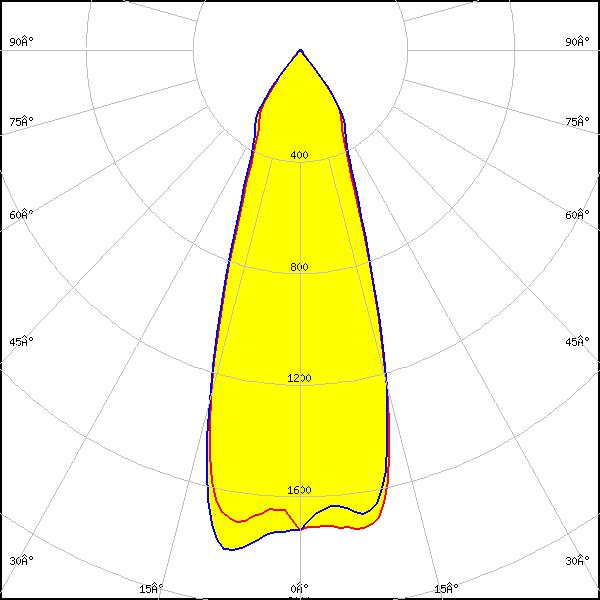

MHB-A/B
FWHM:
28°
FWTM:
80°
Peak intensity:
2.530 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHB-A/B
Required components:
FWHM:
35°
FWTM:
76°
Peak intensity:
1.820 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHB-A/B
Required components:
FWHM:
34°
FWTM:
78°
Peak intensity:
1.970 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

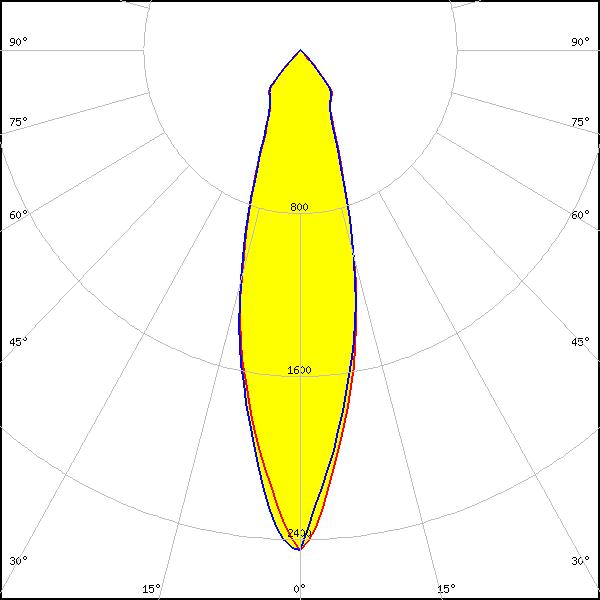

LED:

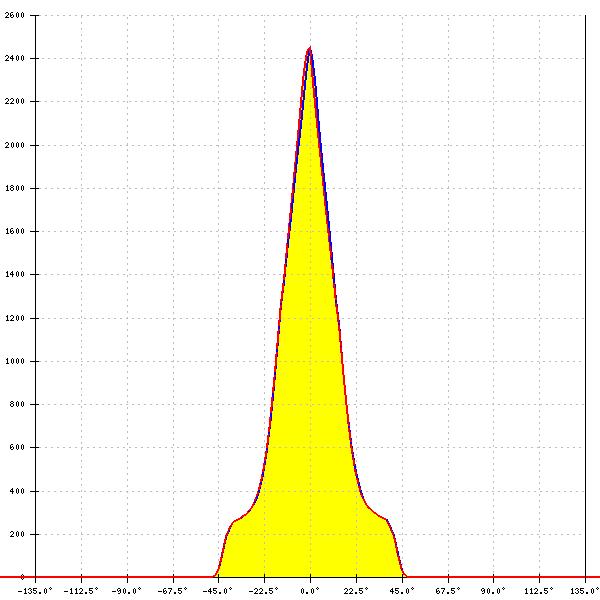

XHP35 HD
FWHM:
28°
FWTM:
77°
Peak intensity:
2.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

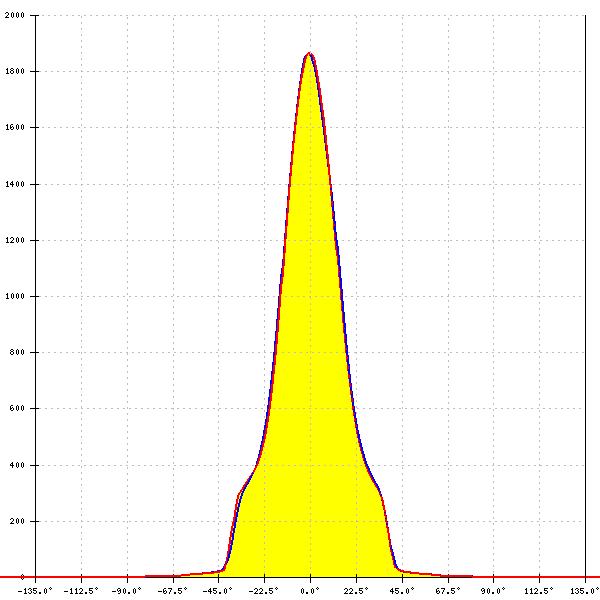

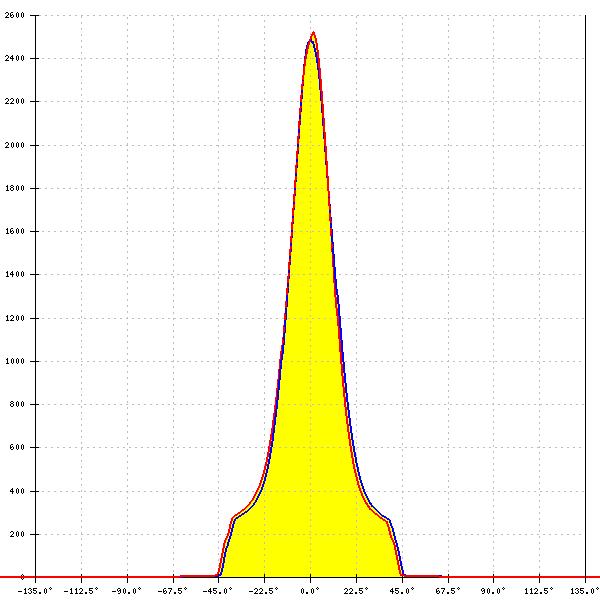

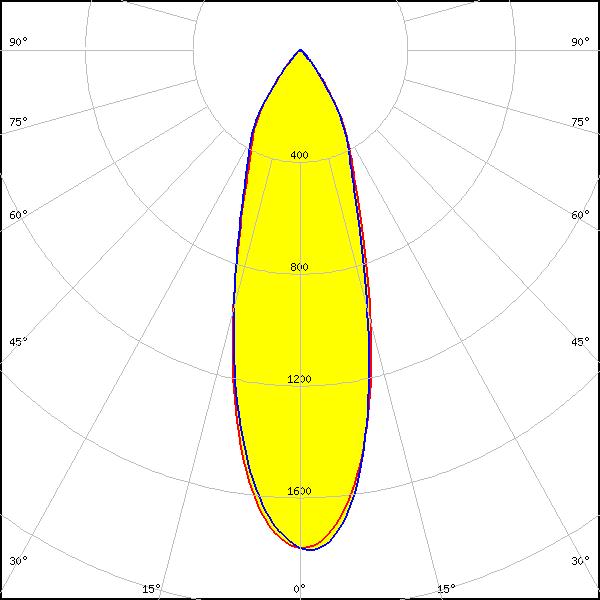

LED:

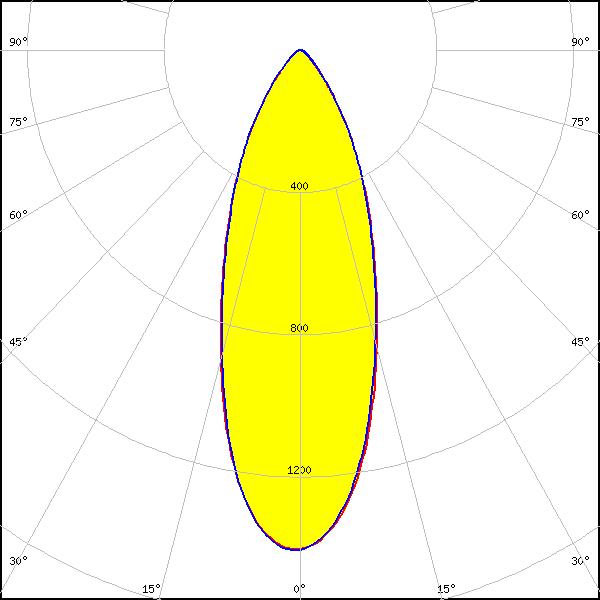

XHP50
FWHM:
25°
FWTM:
77°
Peak intensity:
2.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

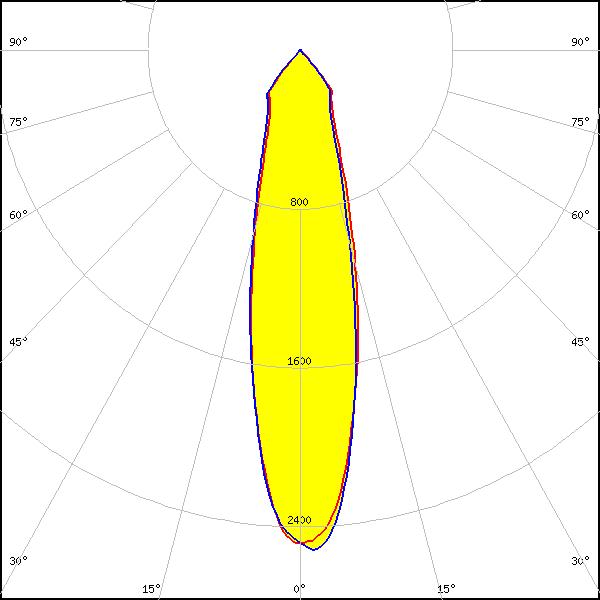

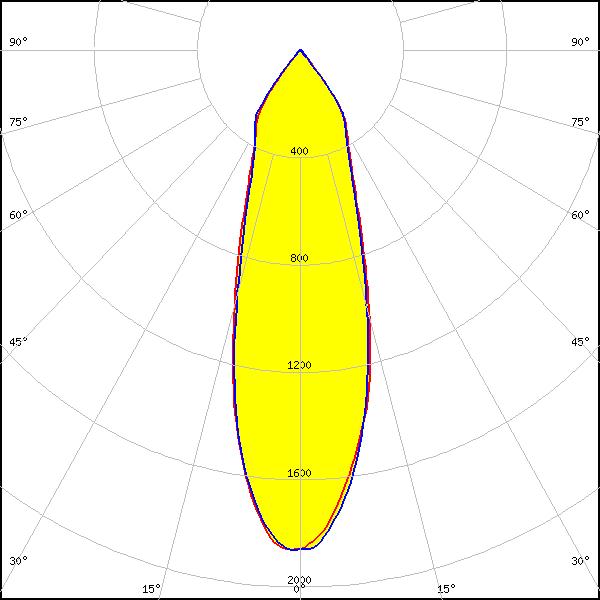

LED:

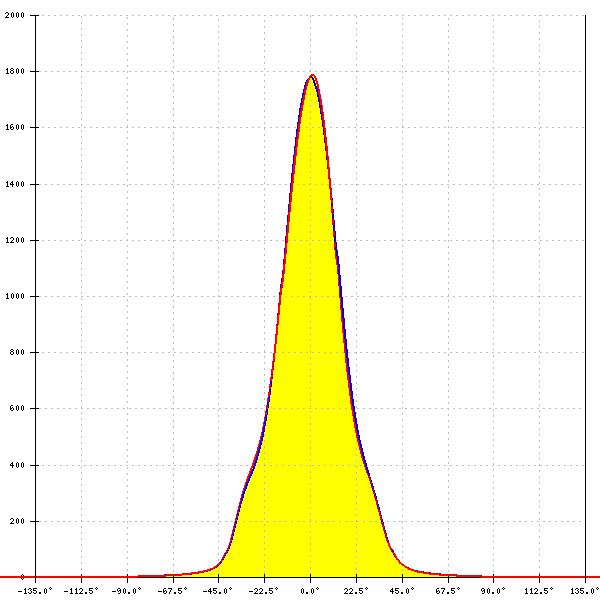

XHP50
Required components:
FWHM:
32°
FWTM:
74°
Peak intensity:
1.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
Required components:
FWHM:
32°
FWTM:
76°
Peak intensity:
1.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

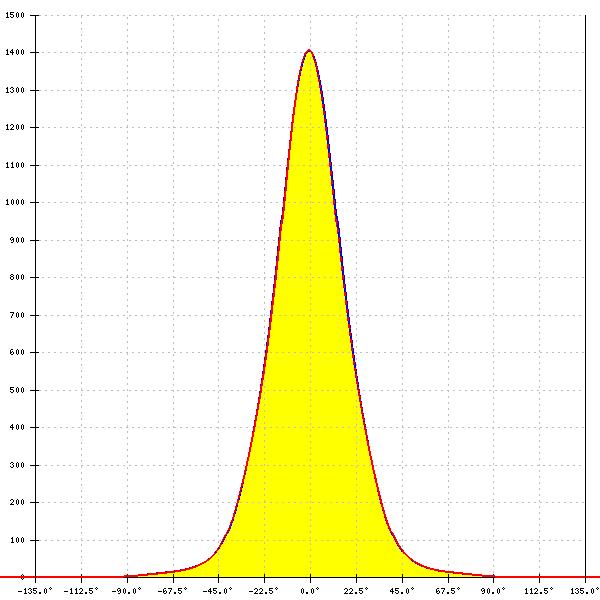

LED:
XHP50
Required components:
FWHM:
37°
FWTM:
78°
Peak intensity:
1.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

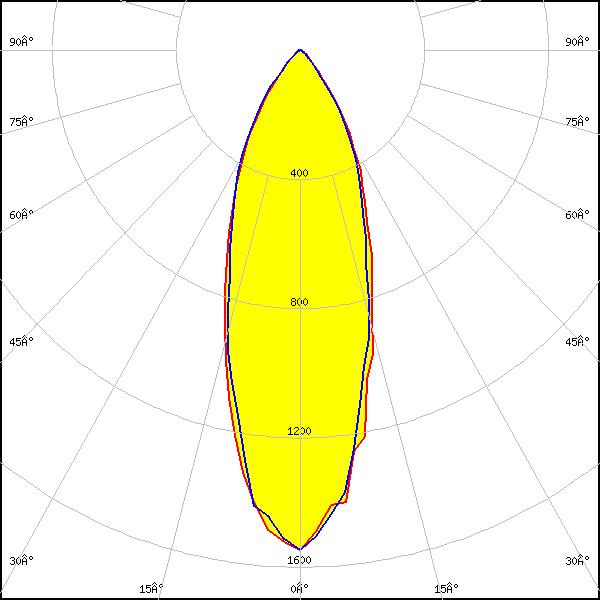

LED:
XM-L
FWHM:
24°
FWTM:
56°
Peak intensity:
2.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

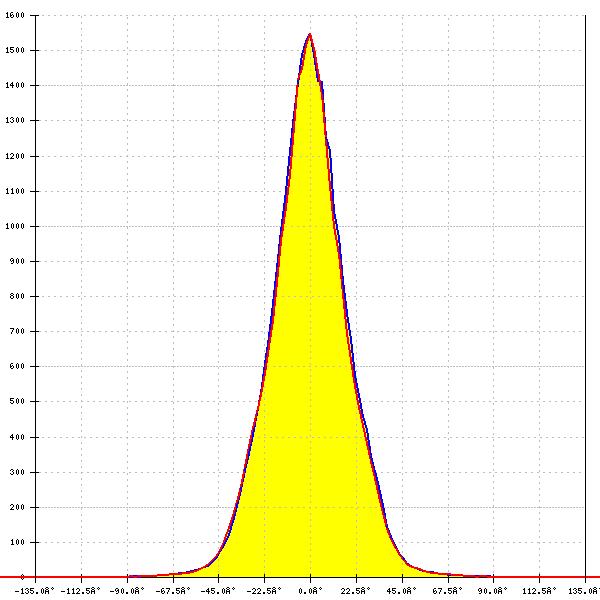

XM-L
Required components:
FWHM:
35°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

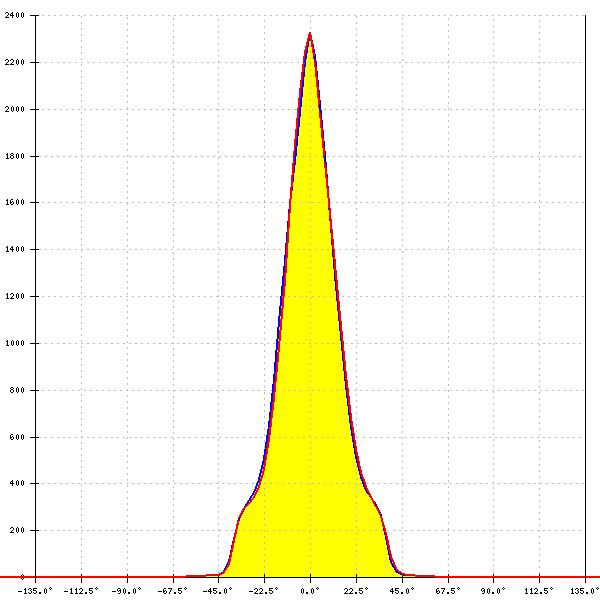

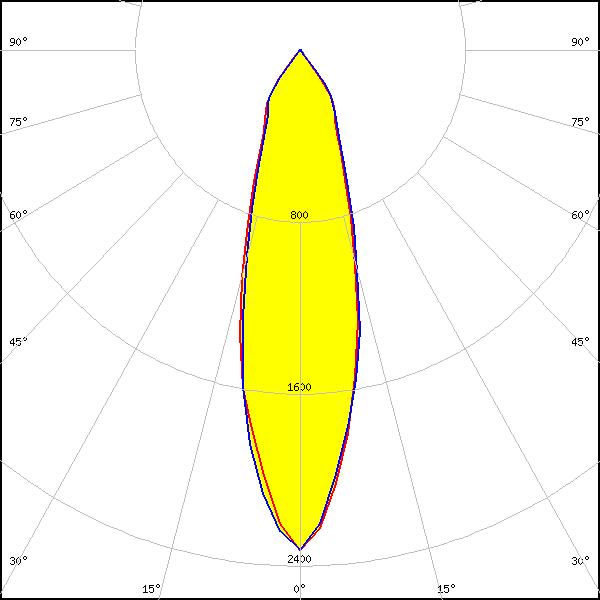

LED:
XM-L
Required components:
FWHM:
28°
FWTM:
72°
Peak intensity:
2.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

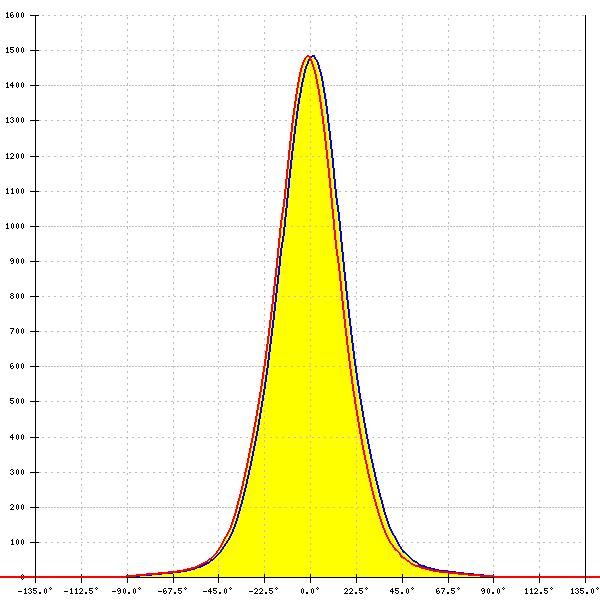

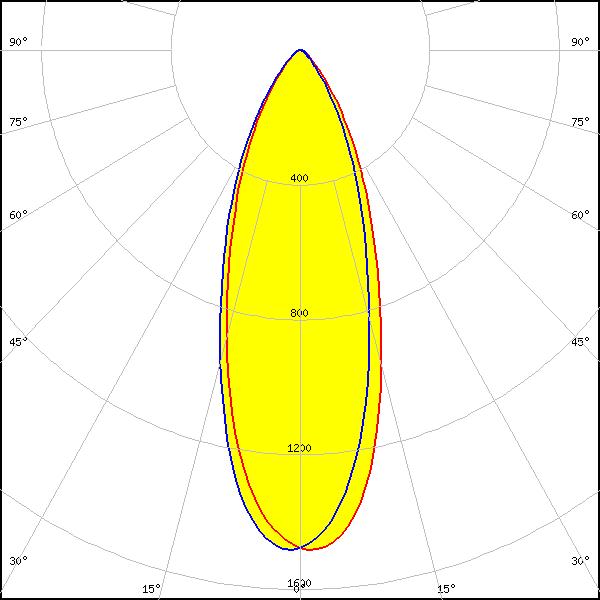

LED:
XM-L RGBW (XMLCTW)
Required components:
FWHM:
37°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

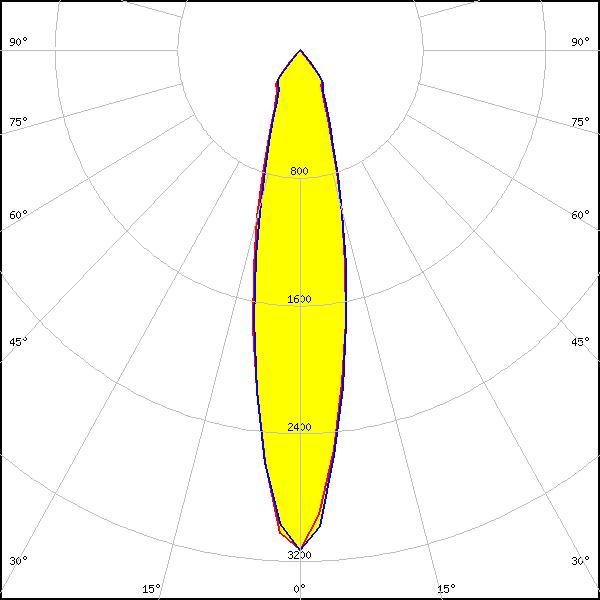

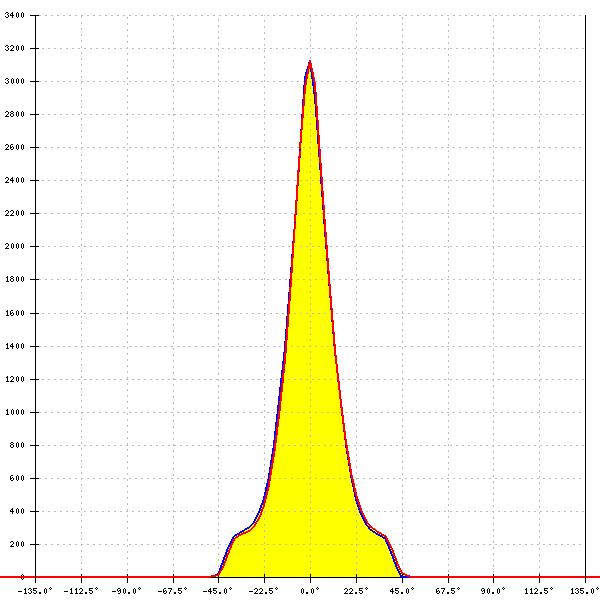

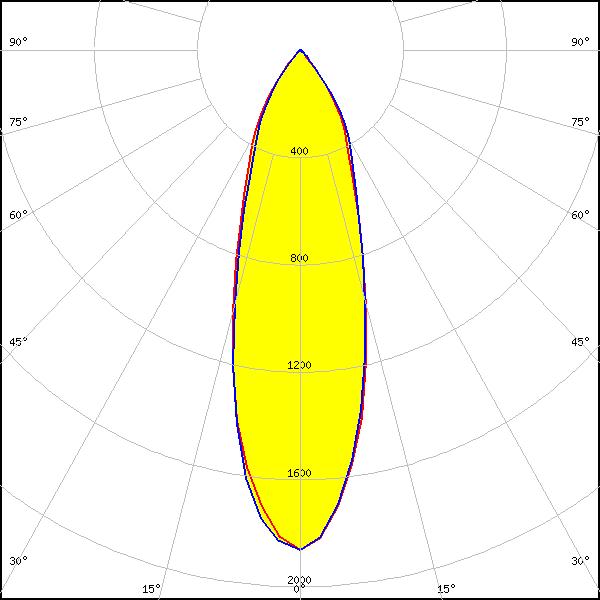

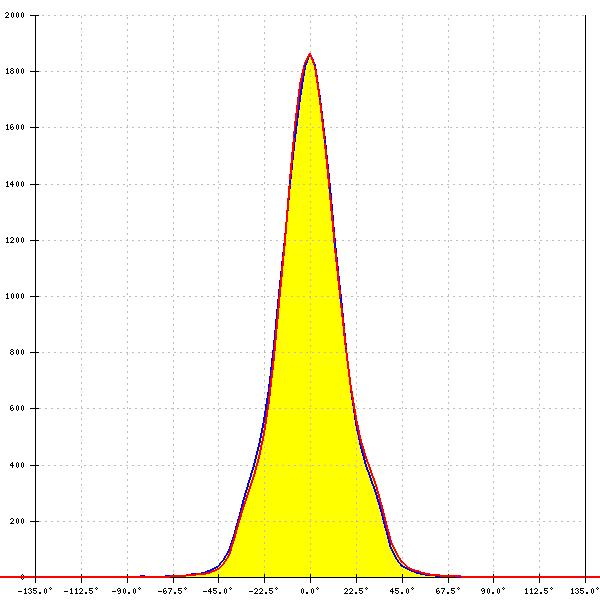

LED:
XM-L2
FWHM:
22°
FWTM:
58°
Peak intensity:
3.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L2
Required components:
FWHM:
33°
FWTM:
74°
Peak intensity:
1.900 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

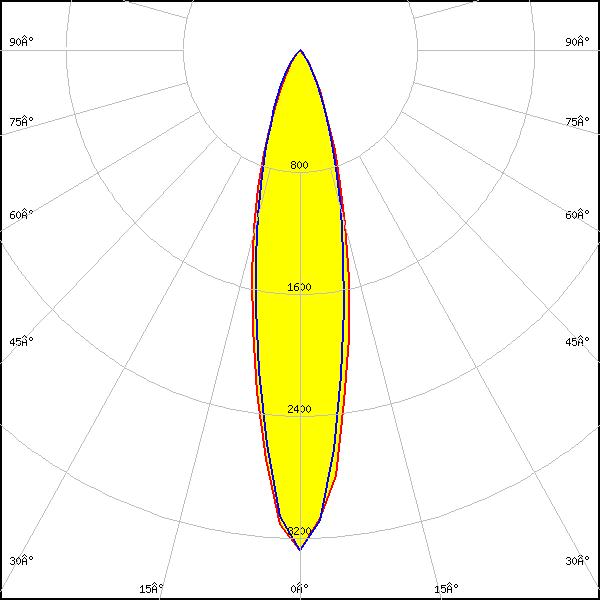

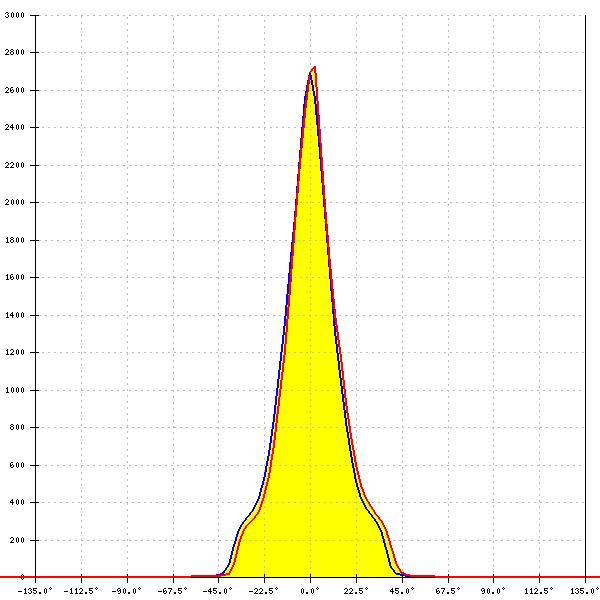

LED:

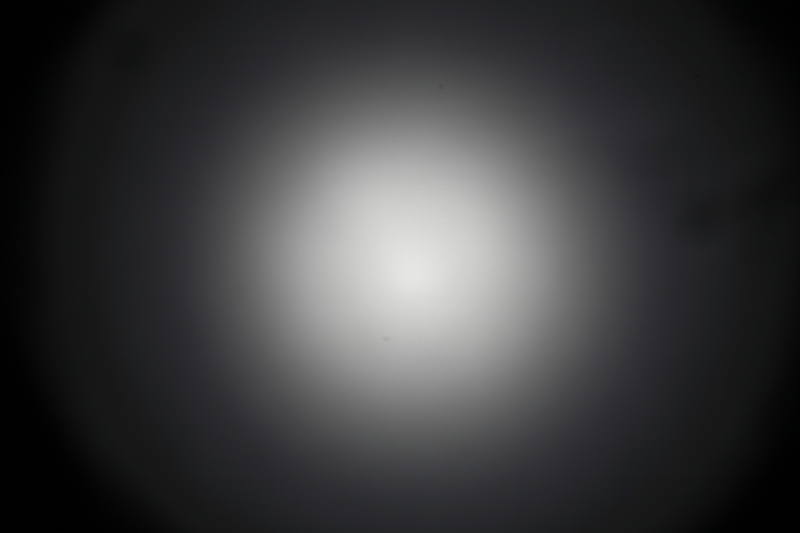

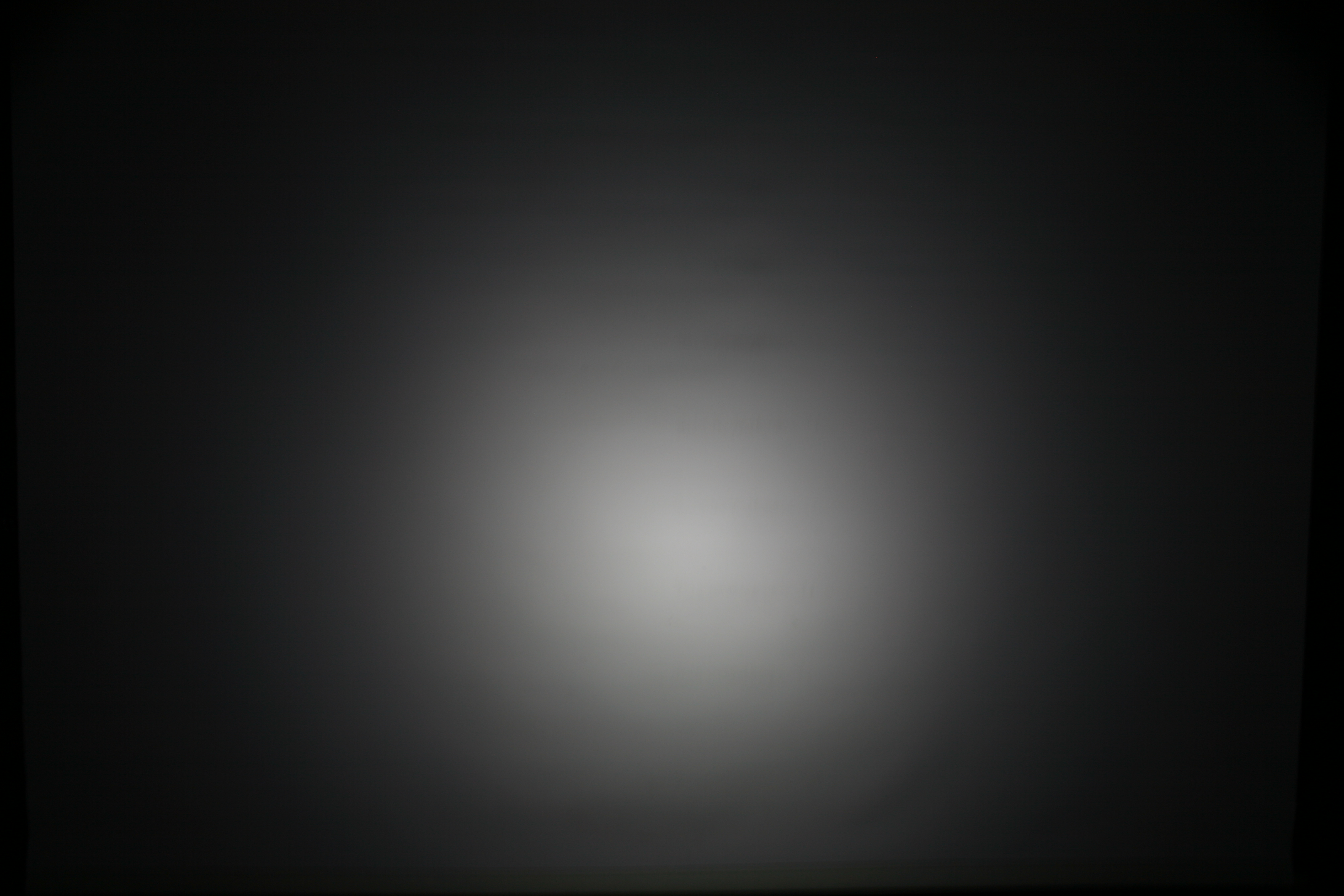

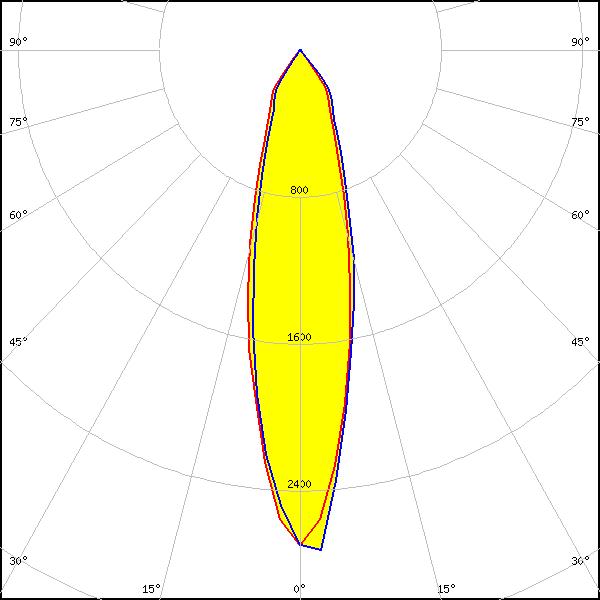

XP-G
FWHM:
24°
FWTM:
53°
Peak intensity:
3.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

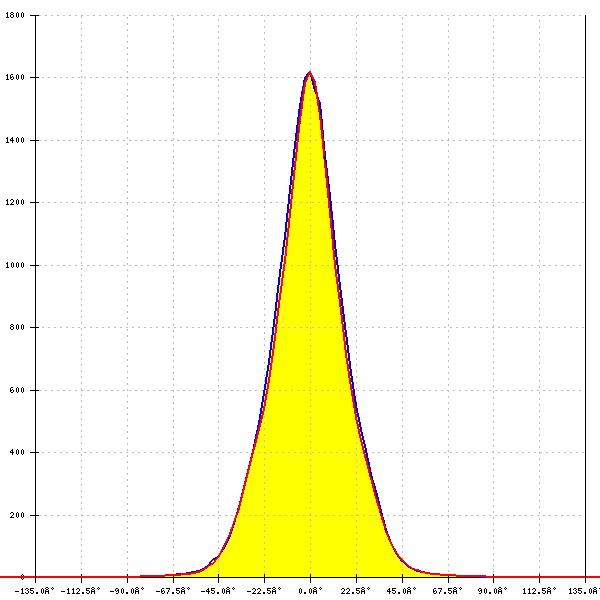

LED:

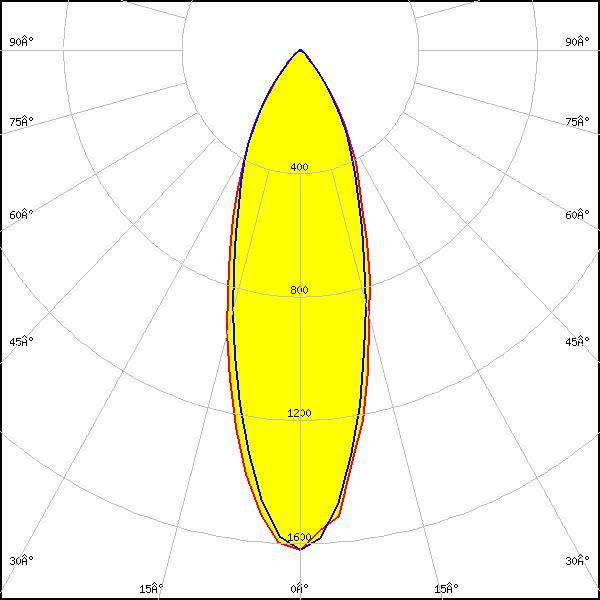

XP-G
Required components:
FWHM:
34°
FWTM:
74°
Peak intensity:
1.620 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
Required components:
FWHM:
24°
FWTM:
68°
Peak intensity:
2.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
22°
FWTM:
76°
Peak intensity:
2.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
Required components:
FWHM:
30°
FWTM:
74°
Peak intensity:
2.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

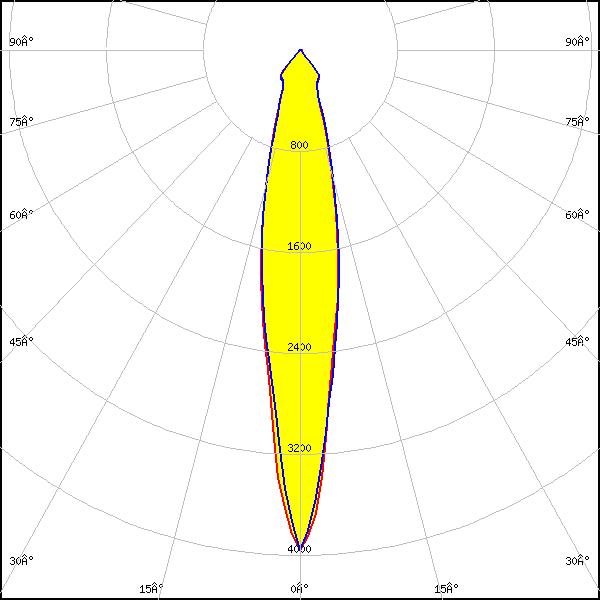

LED:
XP-L HI
FWHM:
17°
FWTM:
48°
Peak intensity:
4.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

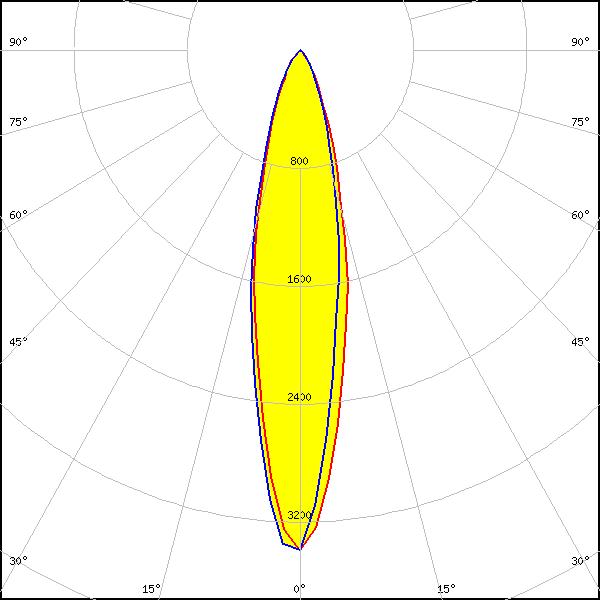

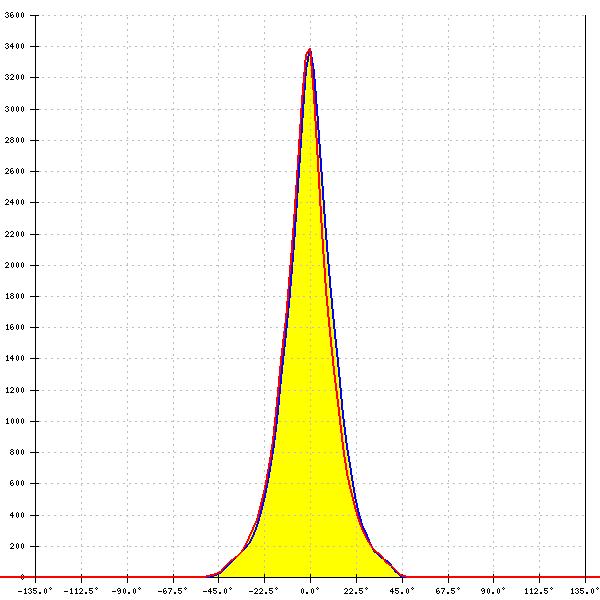

LED:
XT-E
FWHM:
23°
FWTM:
51°
Peak intensity:
3.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

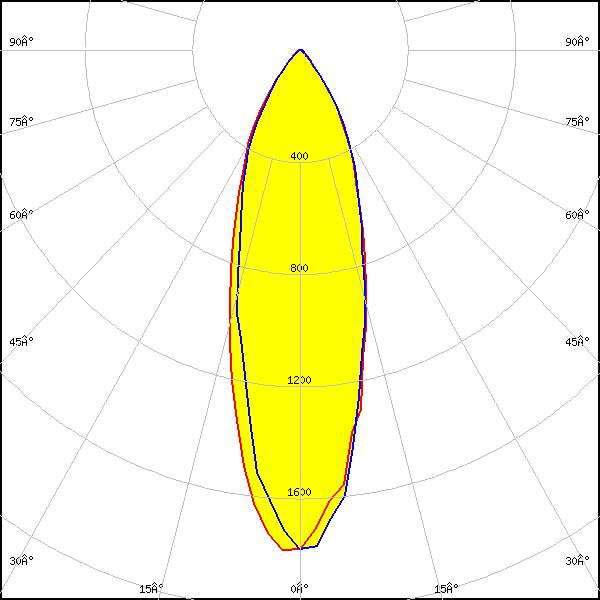

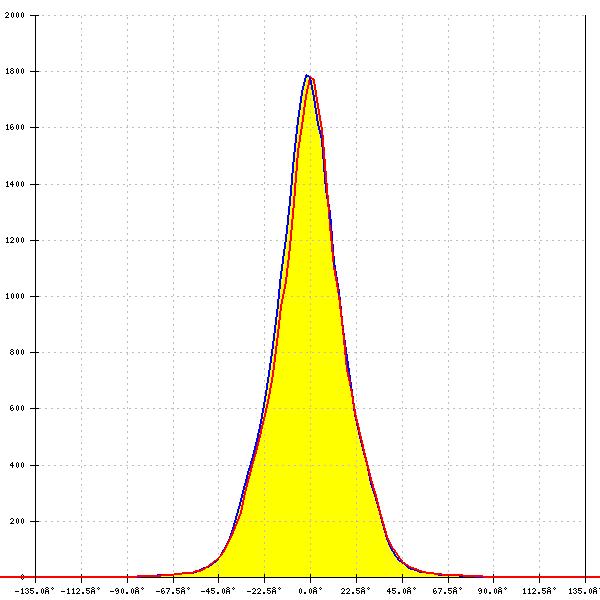

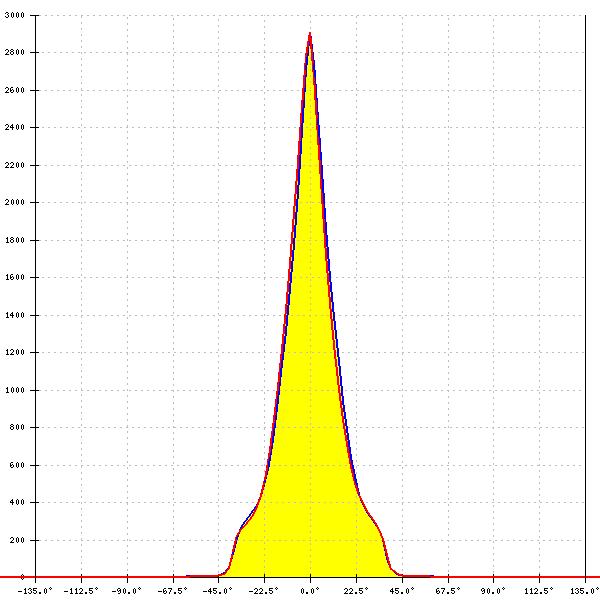

LED:
XT-E
Required components:
FWHM:
32°
FWTM:
73°
Peak intensity:
1.780 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
Required components:
FWHM:
22°
FWTM:
64°
Peak intensity:
2.900 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

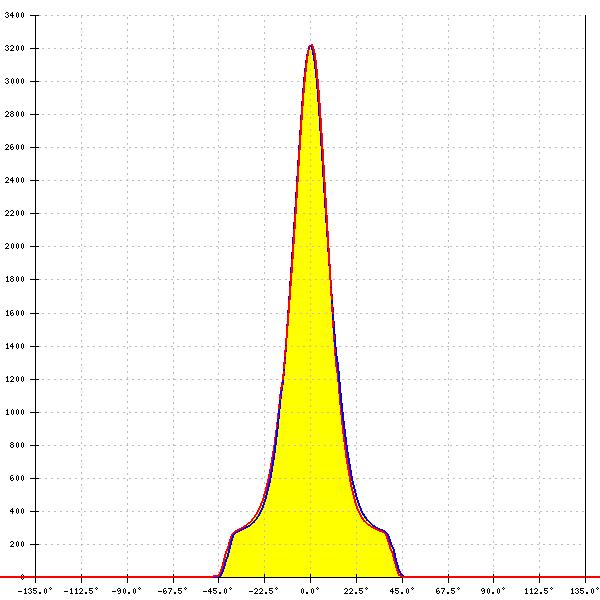

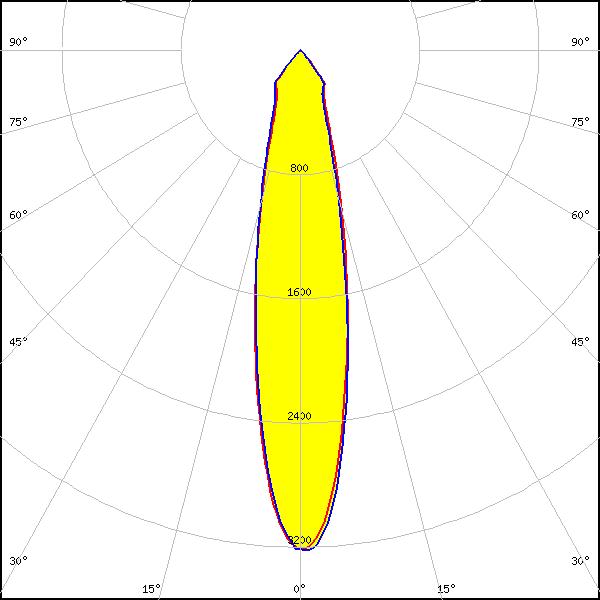

LED:

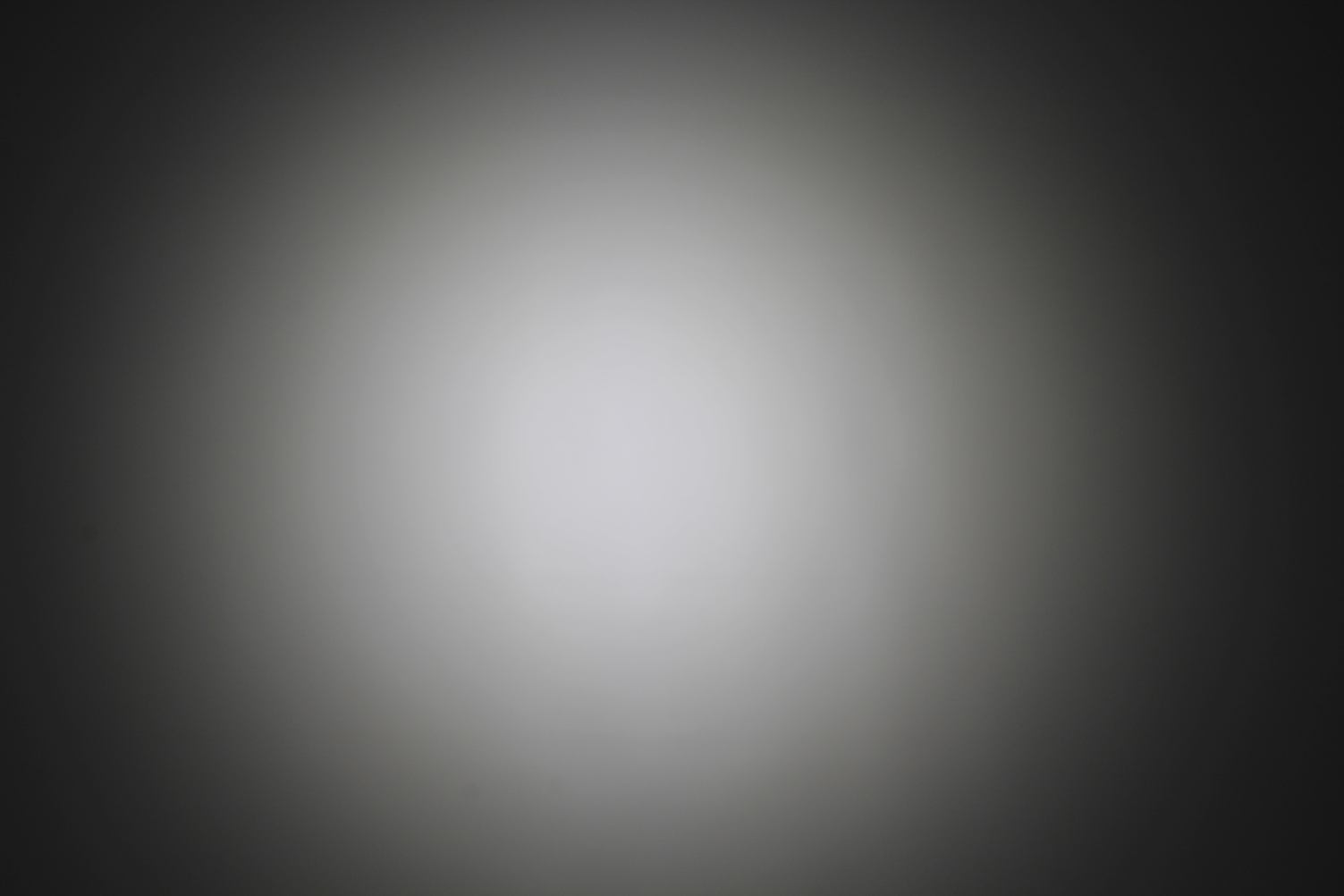

LUXEON 5050 Round LES
FWHM:
22°
FWTM:
59°
Peak intensity:
3.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

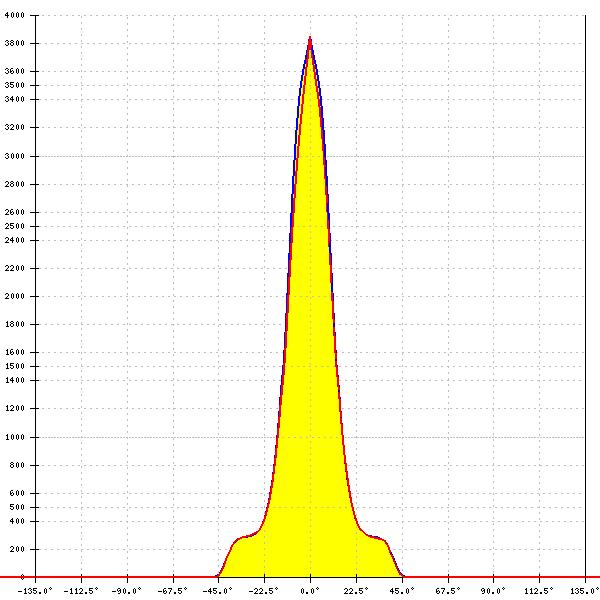

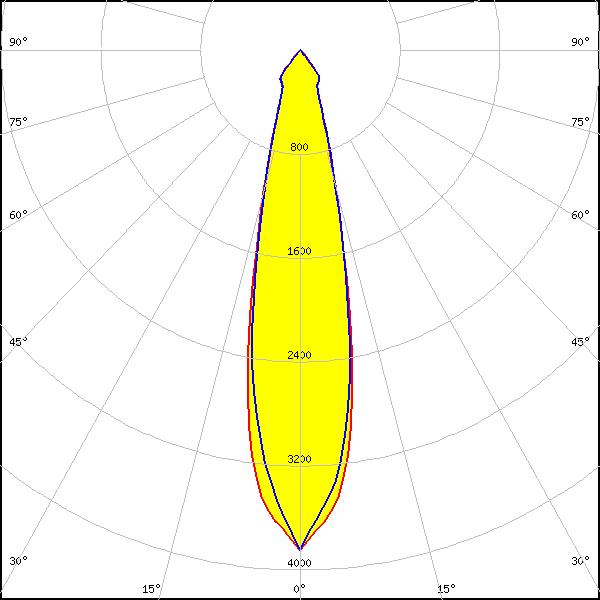

LED:
LUXEON 5258
FWHM:
23°
FWTM:
45°
Peak intensity:
3.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

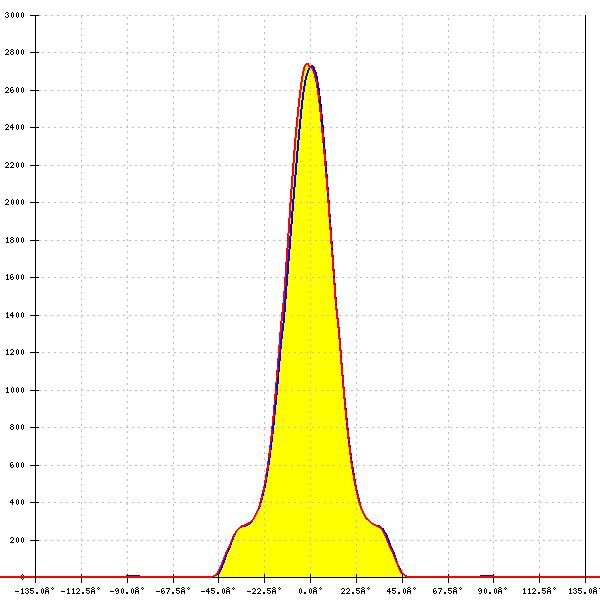

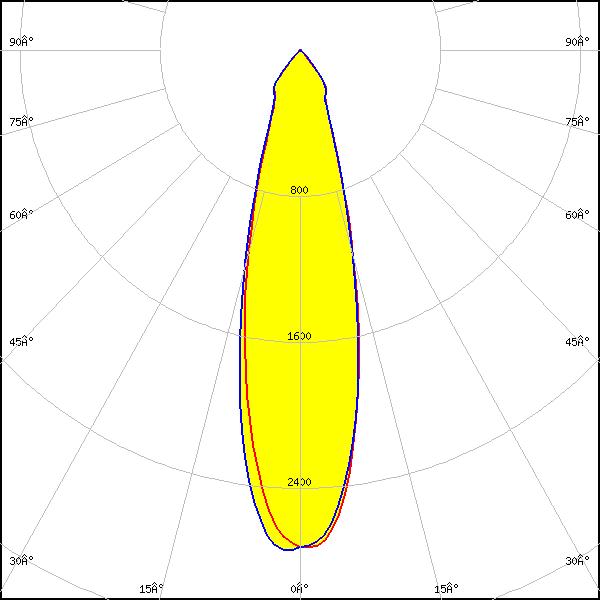

LED:
LUXEON 7070
FWHM:
28°
FWTM:
66°
Peak intensity:
2.745 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

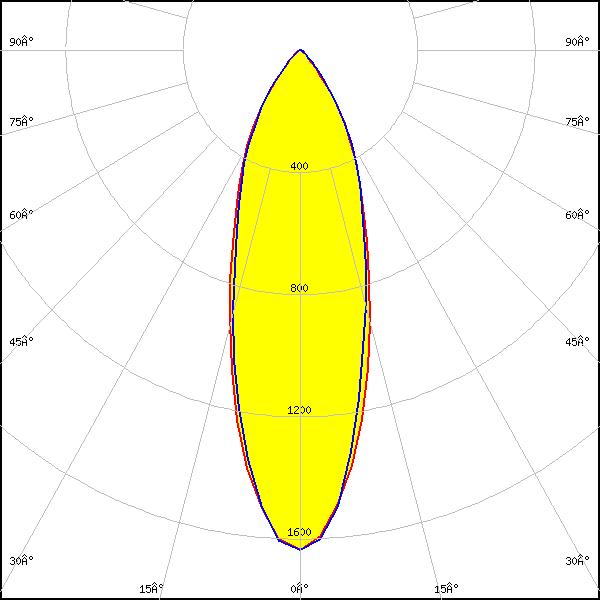

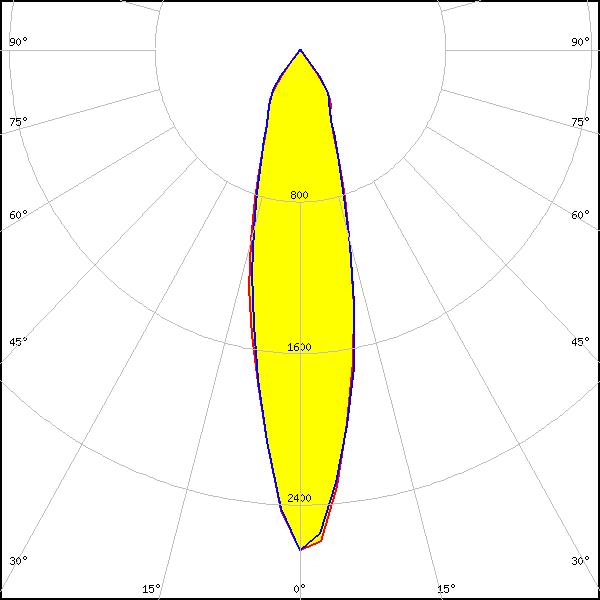

LED:

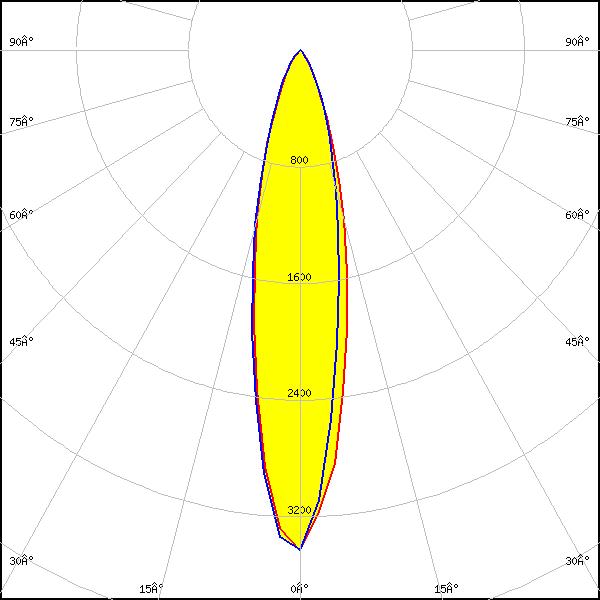

LUXEON A
FWHM:
22°
FWTM:
52°
Peak intensity:
3.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

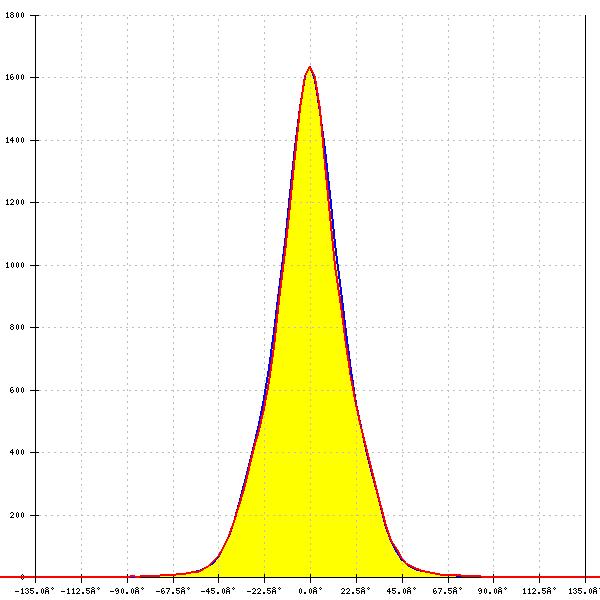

LED:
LUXEON A
Required components:
FWHM:
34°
FWTM:
75°
Peak intensity:
1.640 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

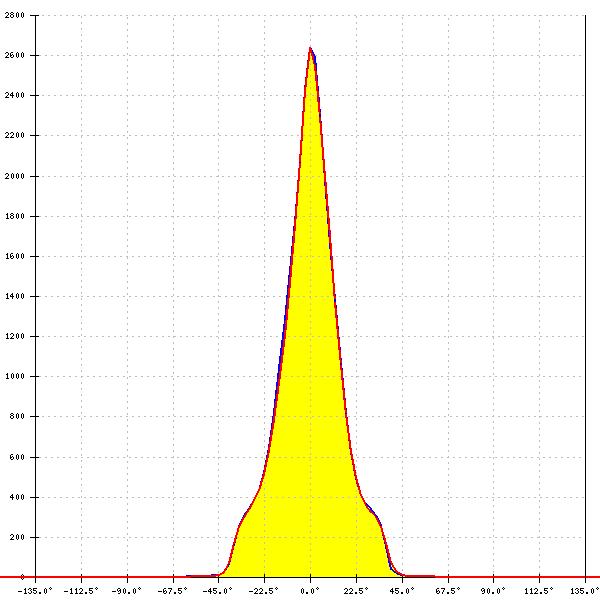

LUXEON A
Required components:
FWHM:
24°
FWTM:
69°
Peak intensity:
2.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

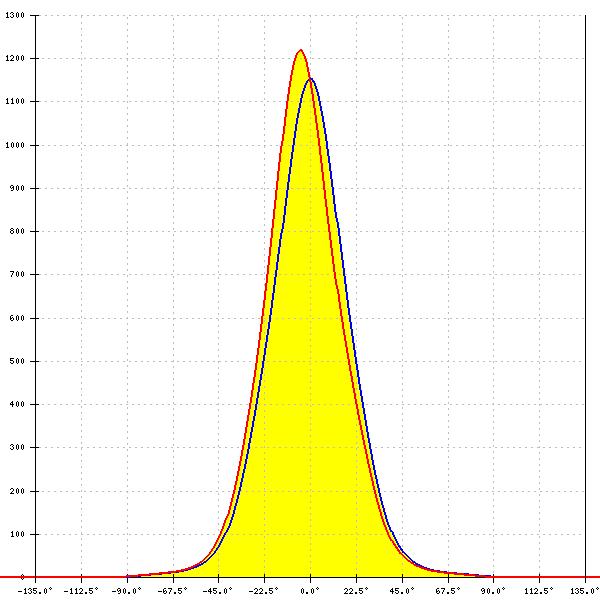

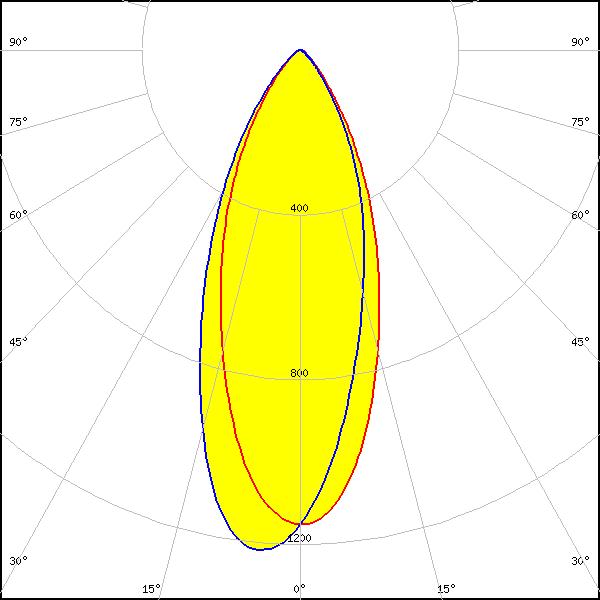

LED:
LUXEON C
Required components:
FWHM:
39°
FWTM:
79°
Peak intensity:
1.220 cd/lm
Efficiency:
74 %
LEDs/each optic:
4
Light colour/type:
RGBW

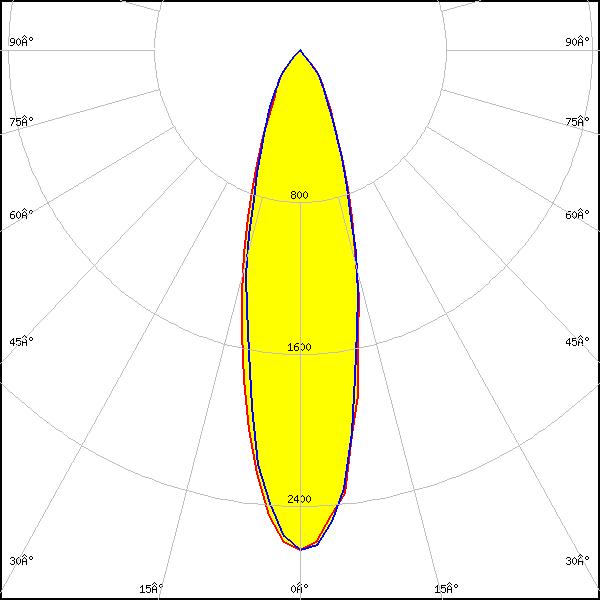

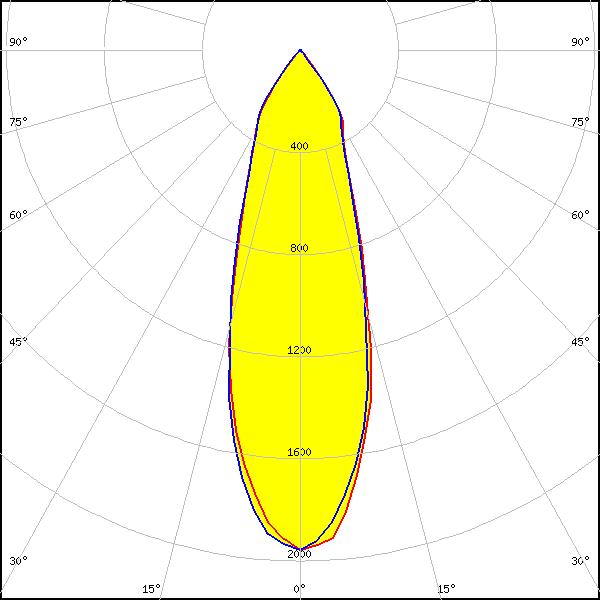

LED:
LUXEON M/MX
FWHM:
24°
FWTM:
63°
Peak intensity:
2.630 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

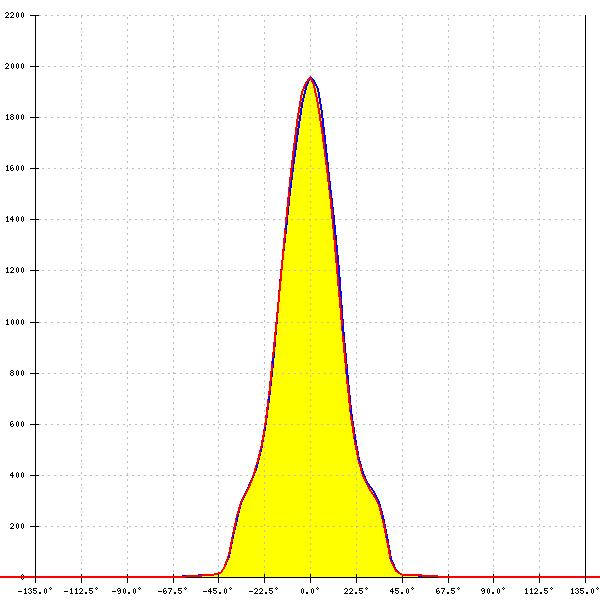

LED:
LUXEON M/MX
Required components:
FWHM:
38°
FWTM:
78°
Peak intensity:
1.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
Required components:
FWHM:
33°
FWTM:
74°
Peak intensity:
2.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

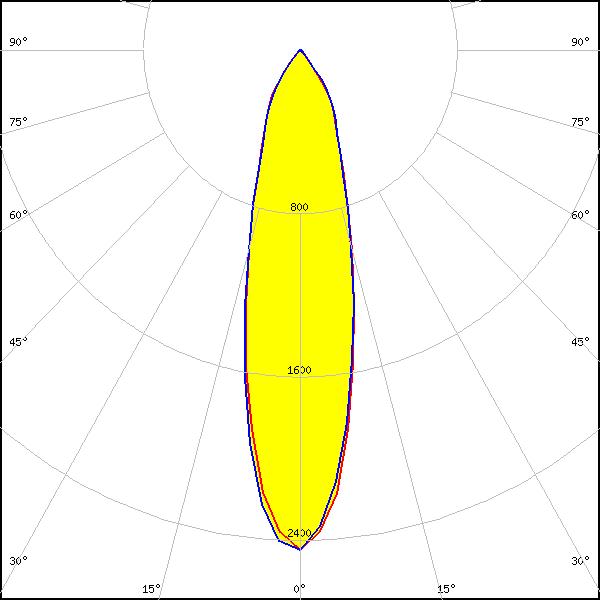

LED:
LUXEON MZ
Required components:
FWHM:
27°
FWTM:
69°
Peak intensity:
2.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

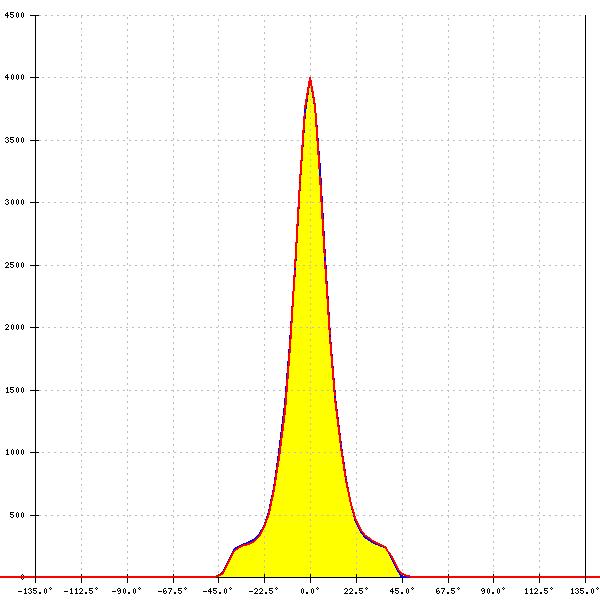

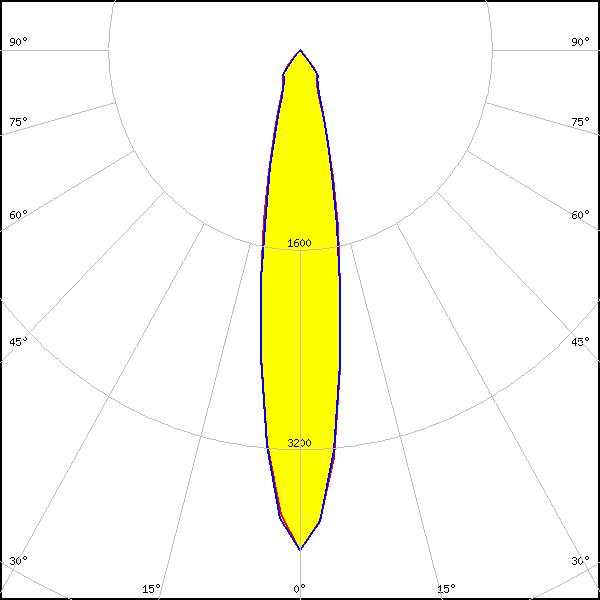

LED:
LUXEON MZ
FWHM:
20°
FWTM:
47°
Peak intensity:
4.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

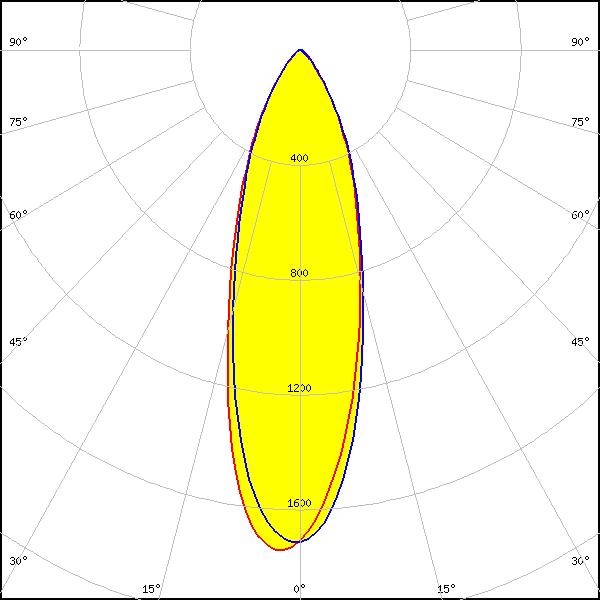

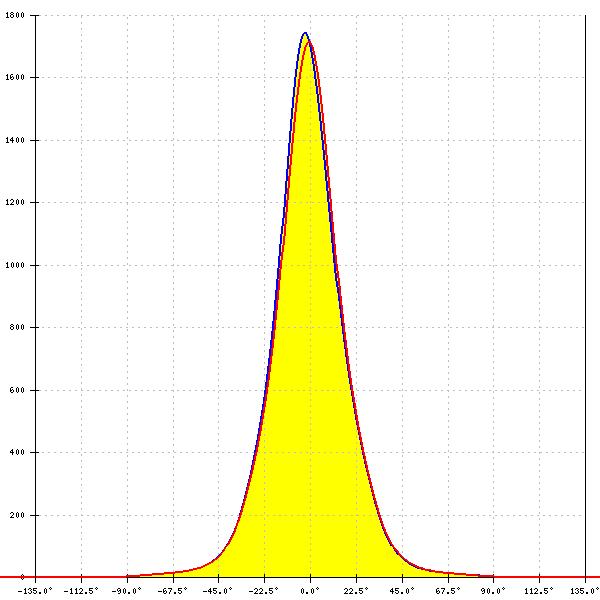

LED:
LUXEON Z
Required components:
FWHM:
31°
FWTM:
71°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
NS9x383
Required components:
FWHM:
32°
FWTM:
74°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NS9x383
FWHM:
24°
FWTM:
78°
Peak intensity:
2.450 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

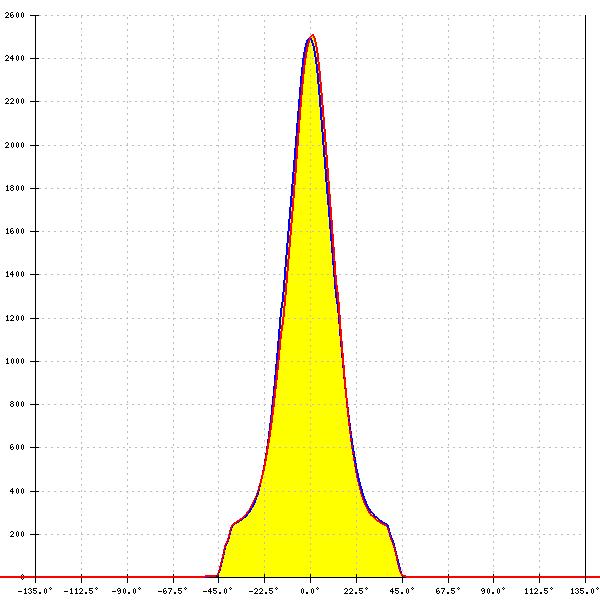

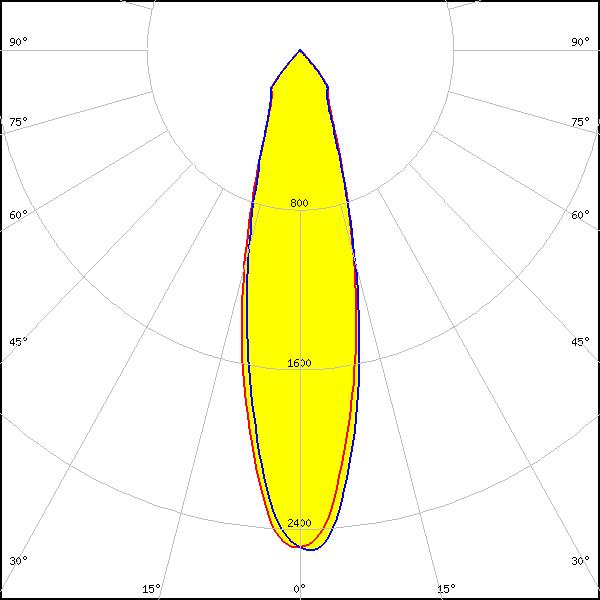

LED:
NV4x144A
FWHM:
27°
FWTM:
73°
Peak intensity:
2.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

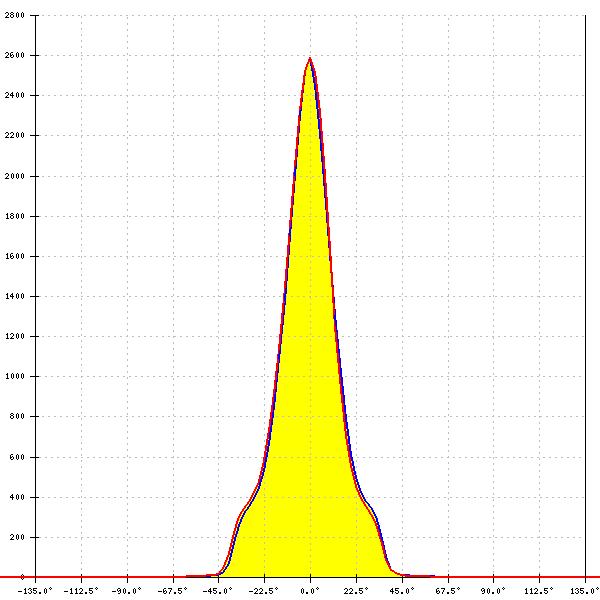

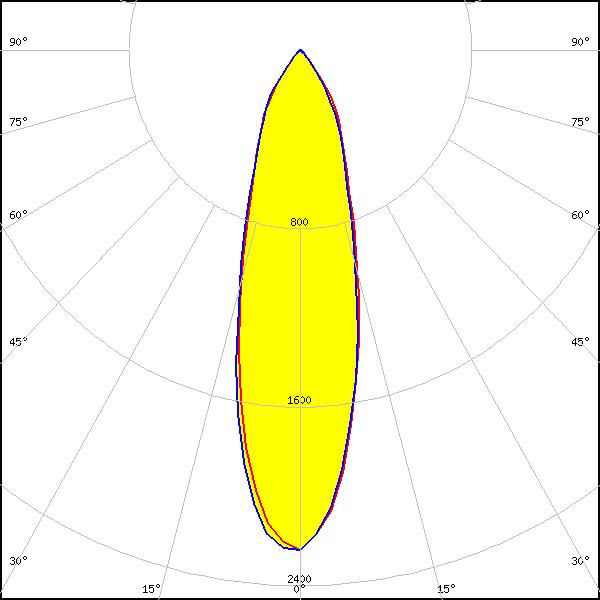

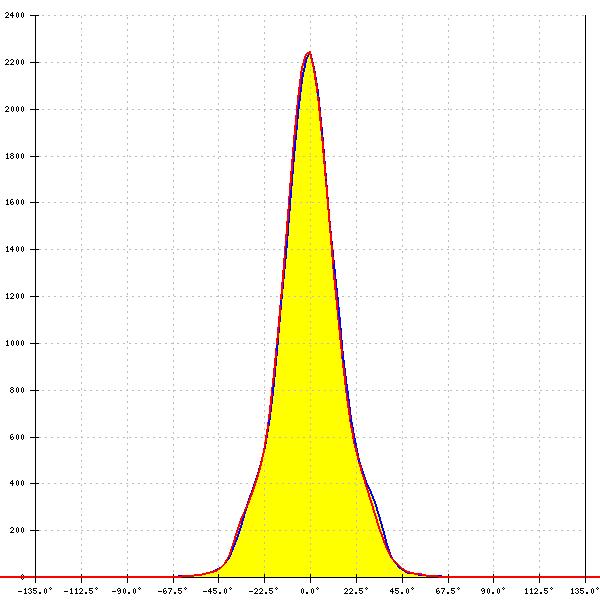

LED:

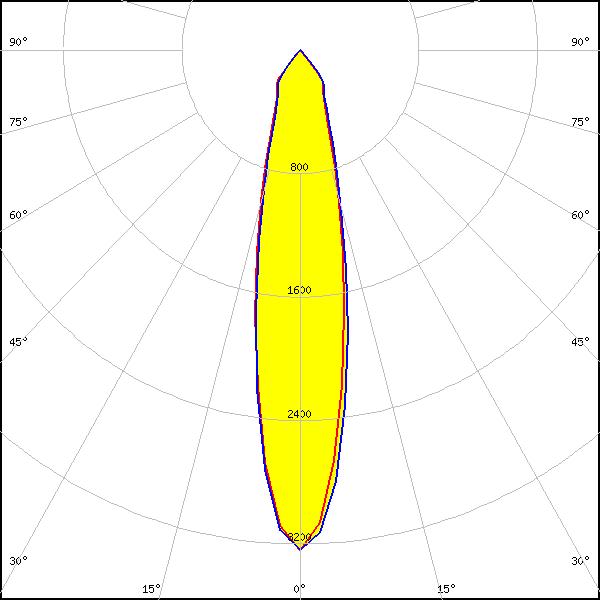

Duris S8
Required components:
FWHM:
28°
FWTM:
69°
Peak intensity:
2.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
Required components:
FWHM:
26°
FWTM:
70°
Peak intensity:
2.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM:
22°
FWTM:
58°
Peak intensity:
3.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
26°
FWTM:
63°
Peak intensity:
2.890 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
Required components:
FWHM:
31°
FWTM:
72°
Peak intensity:
2.360 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
Required components:
FWHM:
29°
FWTM:
70°
Peak intensity:
2.310 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

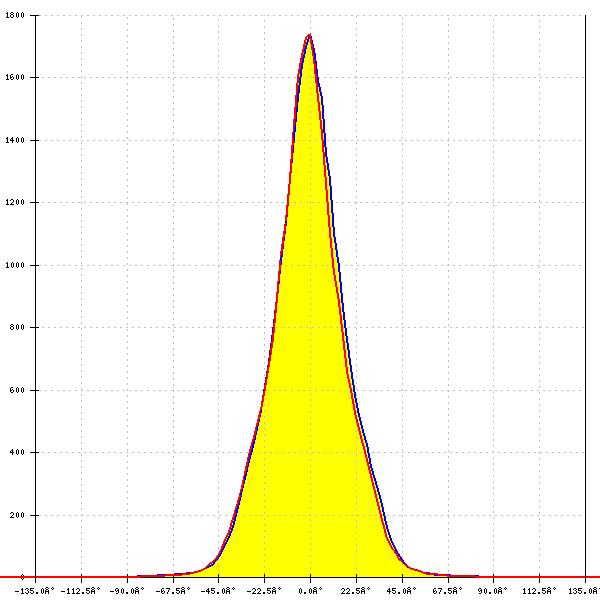

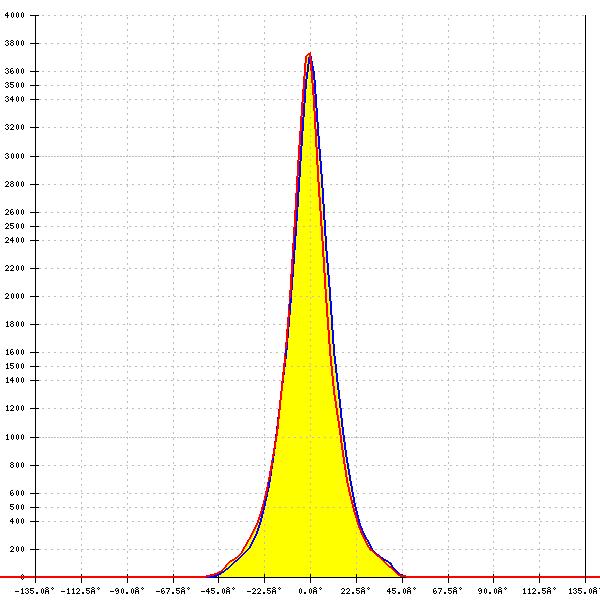

LED:

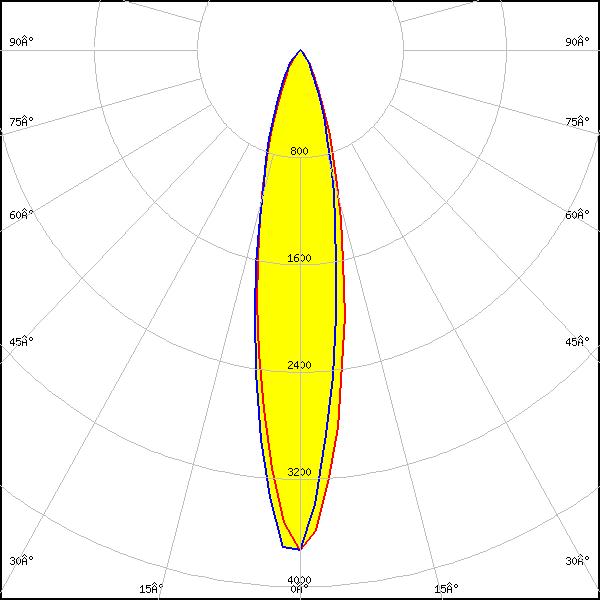

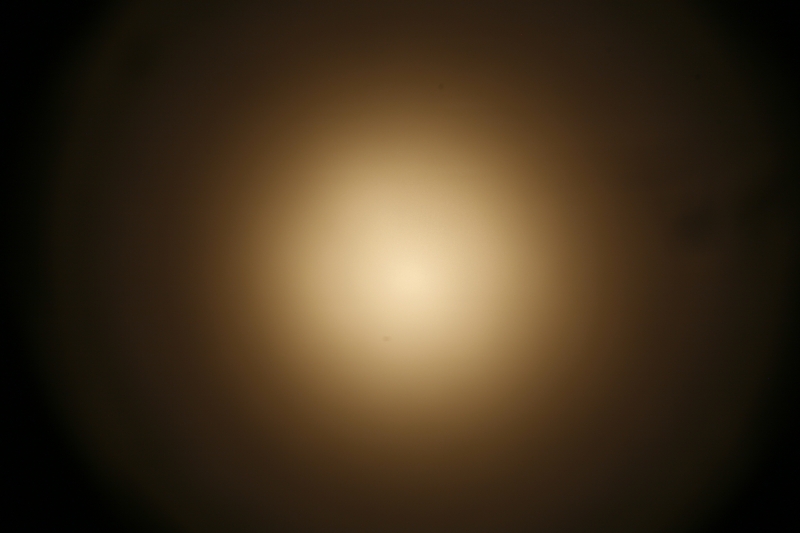

OSLON Square EC
FWHM:
22°
FWTM:
49°
Peak intensity:
3.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

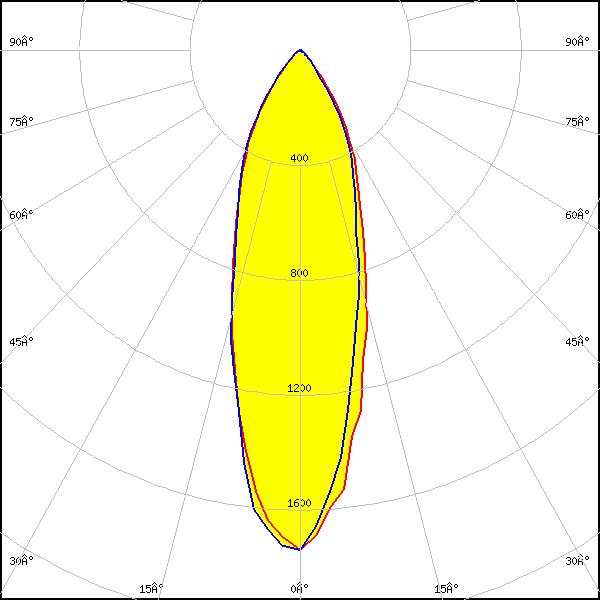

OSLON Square EC
Required components:
FWHM:
32°
FWTM:
75°
Peak intensity:
1.700 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
Required components:
FWHM:
22°
FWTM:
67°
Peak intensity:
3.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

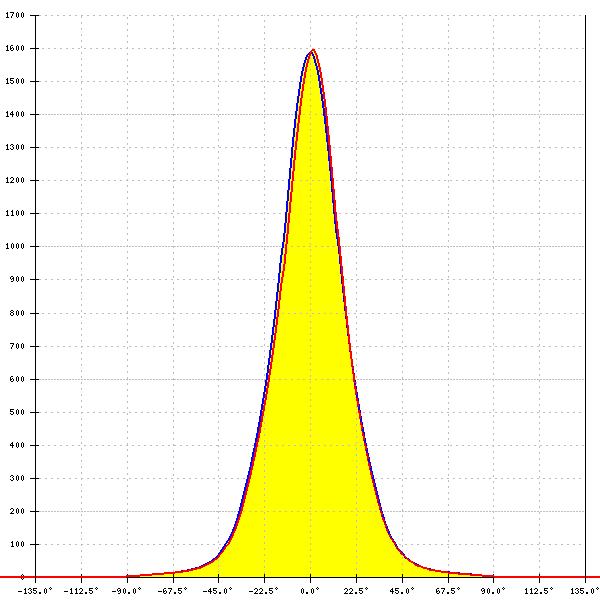

LED:

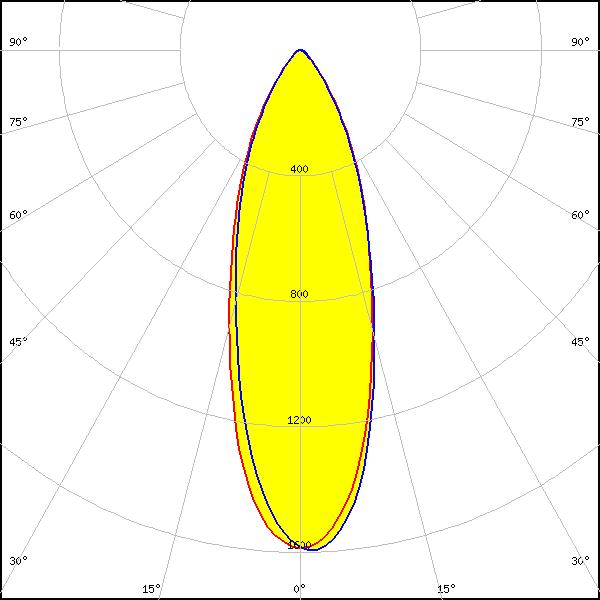

Ostar-SMT RGB
Required components:
FWHM:
34°
FWTM:
74°
Peak intensity:
1.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

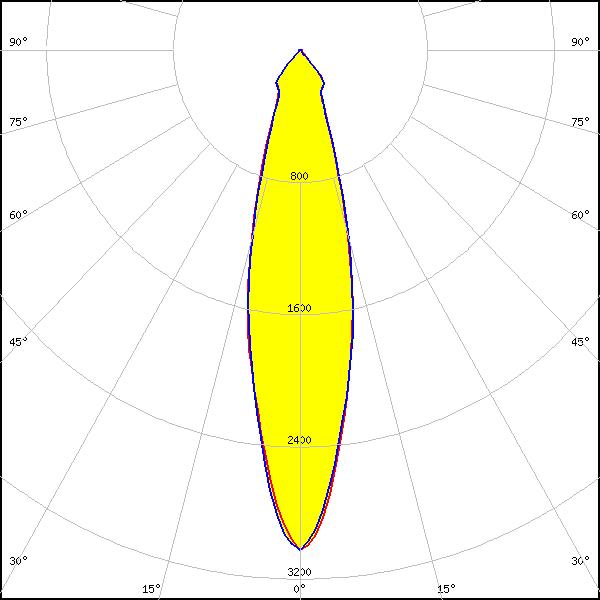

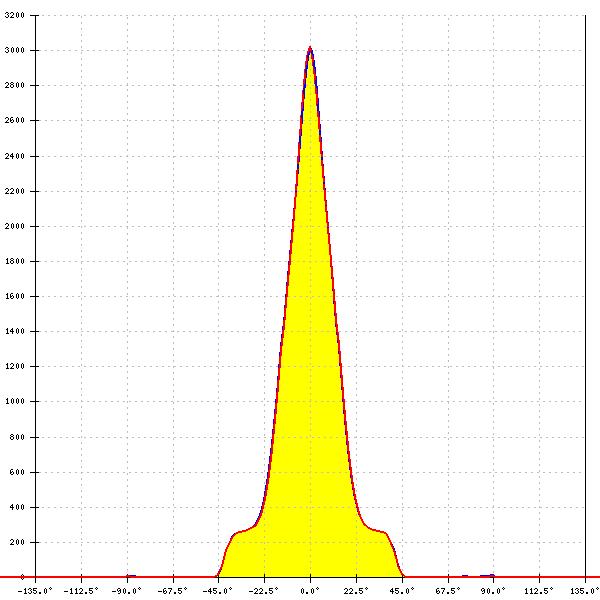

LED:
LH351D
FWHM:
26°
FWTM:
54°
Peak intensity:
3.026 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

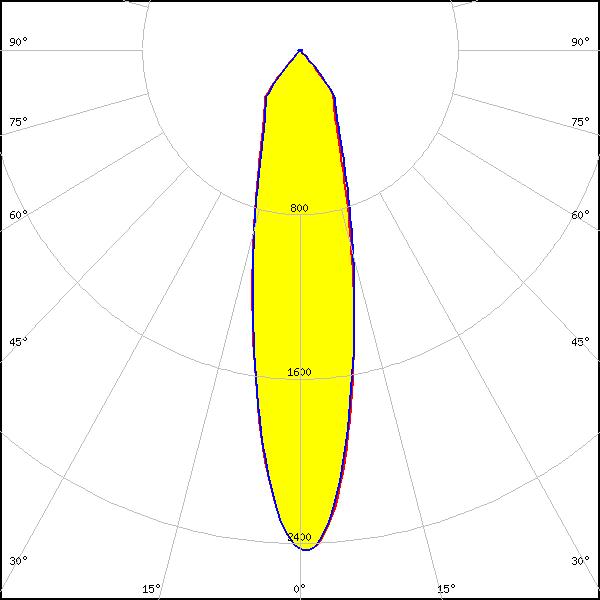

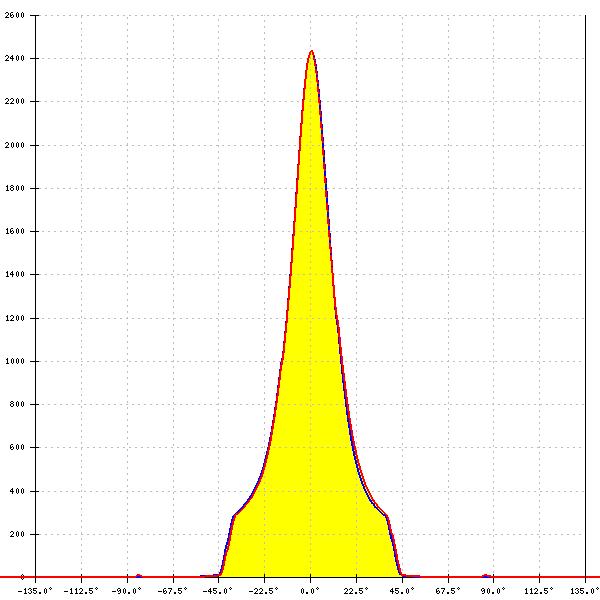

LED:
LH508A
FWHM:
24°
FWTM:
78°
Peak intensity:
2.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
F50360 (RGB)
Required components:
FWHM:
33°
FWTM:
76°
Peak intensity:
1.810 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

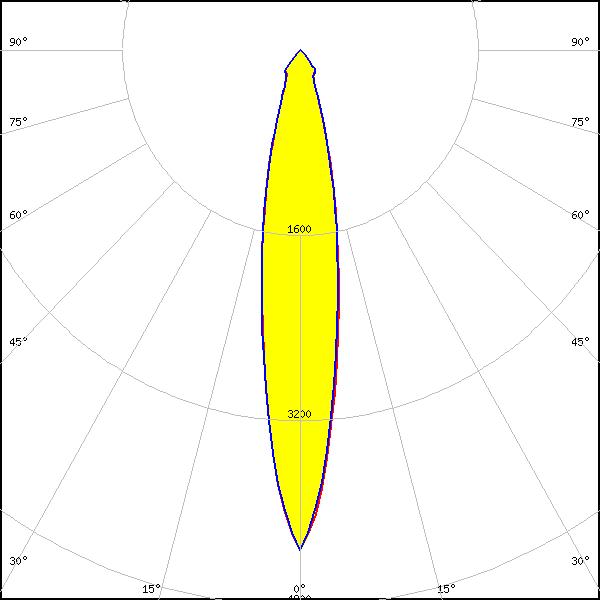

LED:
Z8Y22P
FWHM:
19°
FWTM:
44°
Peak intensity:
4.320 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
Manage Consent
We use necessary cookies to operate and secure our website, and optional technologies for analytics and marketing. You can accept all optional technologies, deny them, or choose your preferences by category.
If you decline optional cookies, limited cookieless measurement signals may still be sent to service providers such as Google for aggregated measurement and modelling. See our Privacy Policy for more information.
Functional Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes.
Used to understand how visitors use our website, measure website performance and improve our services. If you consent, analytics technologies may use cookies or similar identifiers. If you decline, analytics cookies are not enabled, but limited cookieless measurement signals may still be used for aggregated measurement and modelling.
Marketing
Used to measure marketing effectiveness and support relevant advertising and marketing activities. If you consent, marketing technologies may use cookies or similar identifiers. If you decline, marketing cookies, personalised advertising and remarketing are not enabled. Limited cookieless measurement signals may still be used for aggregated measurement and modelling.
