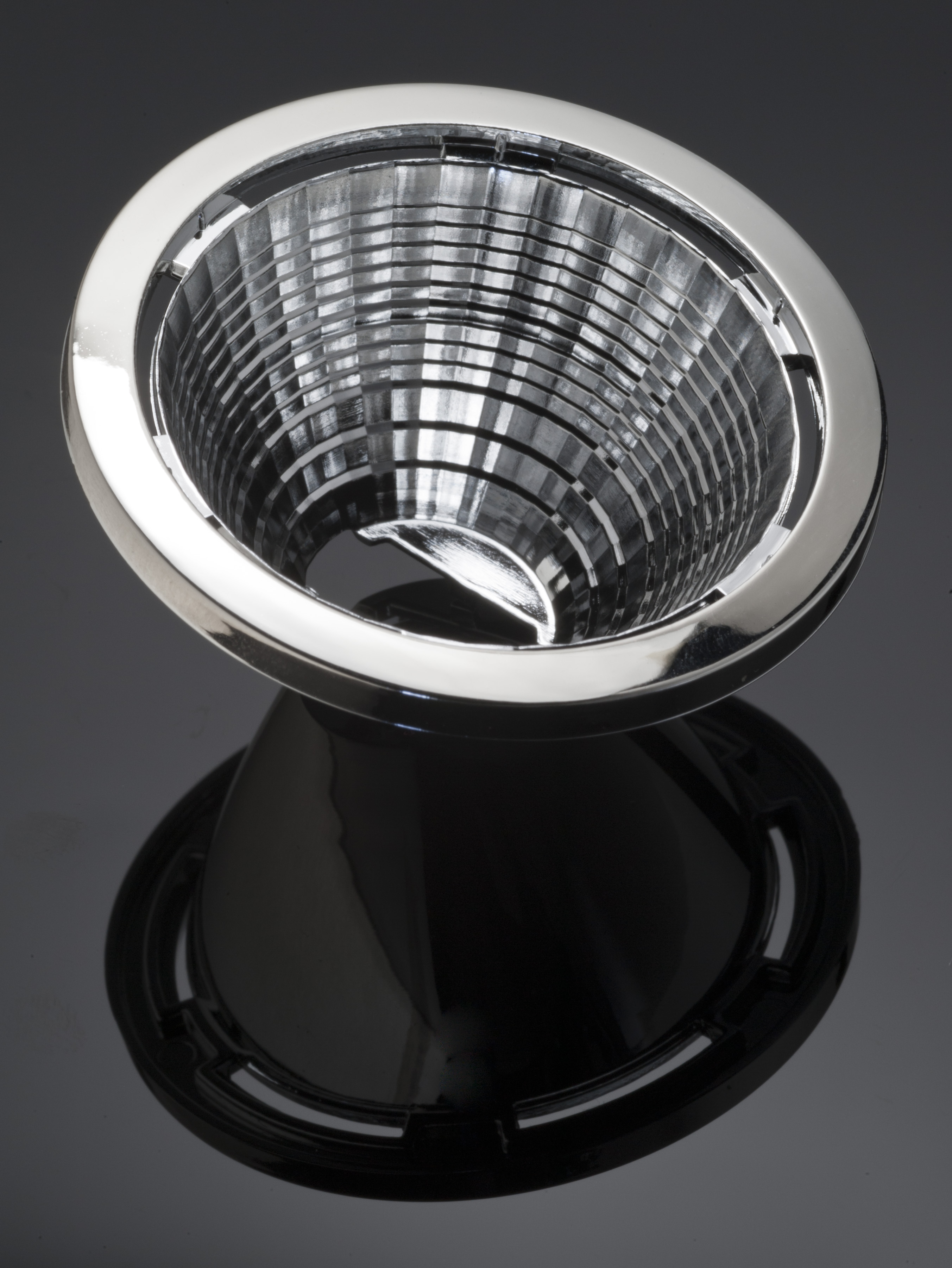

C12482_MIRELLA-50-W-PIN
Print~40° wide beam
Specification
-
Dimensions:50 mm
-
Height:23.90 mm
-
Fastening:pin
-
Colour:metal
-
RoHS and REACH compliant:Yes
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:336 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:2.7 kg
-
MPQ:28 pcs
-
MOQ:112 pcs
-
MOQ size:480 x 280 x 80 mm
-
MOQ weight:1.2 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Please note that the position pin holes come very close to the LED.
Related Content
AVAILABLE LEDiL ACCESSORIES

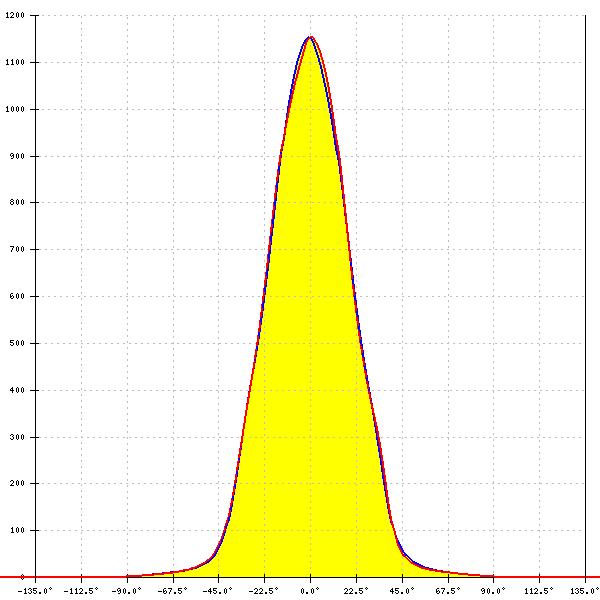

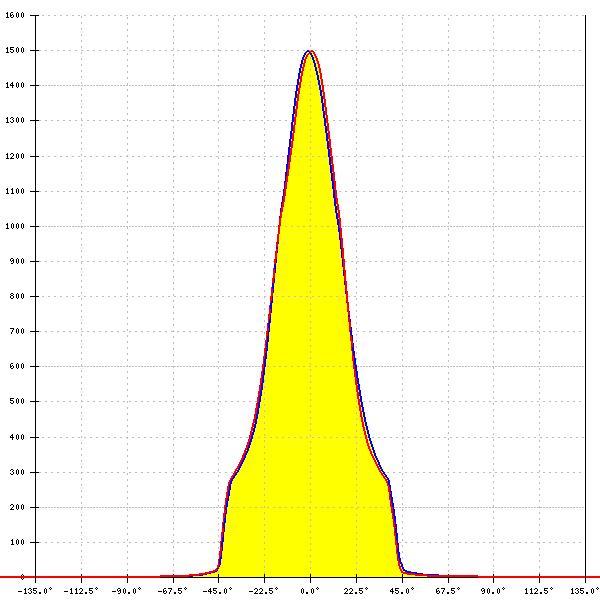

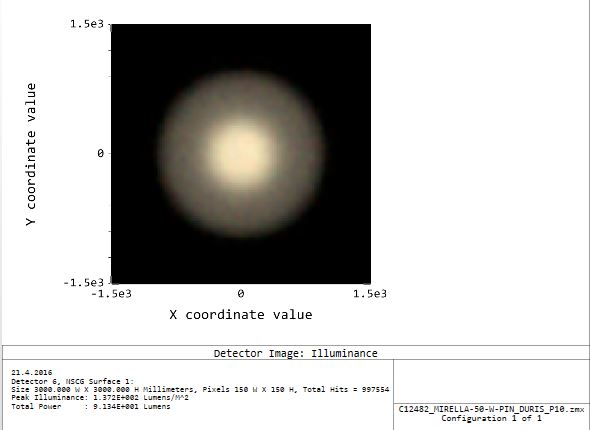

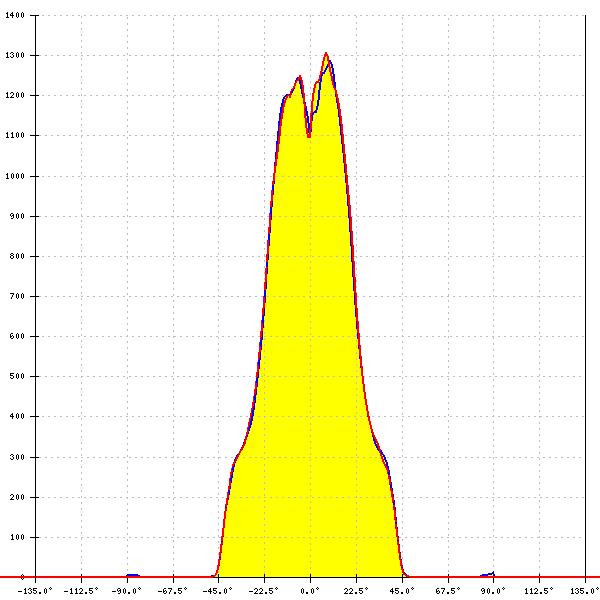

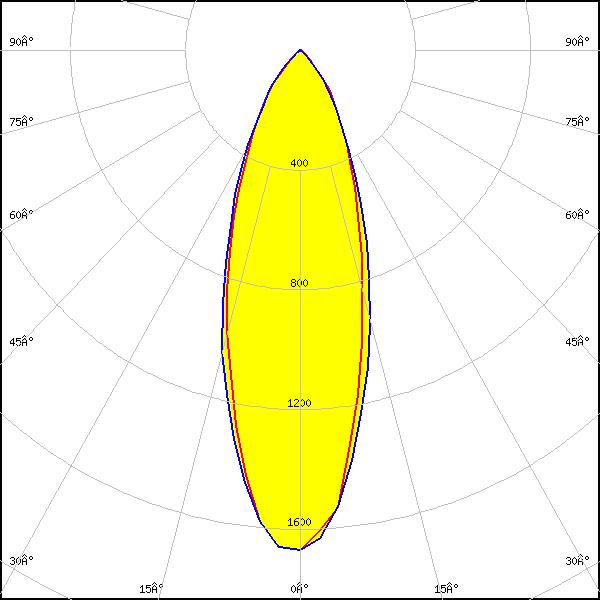

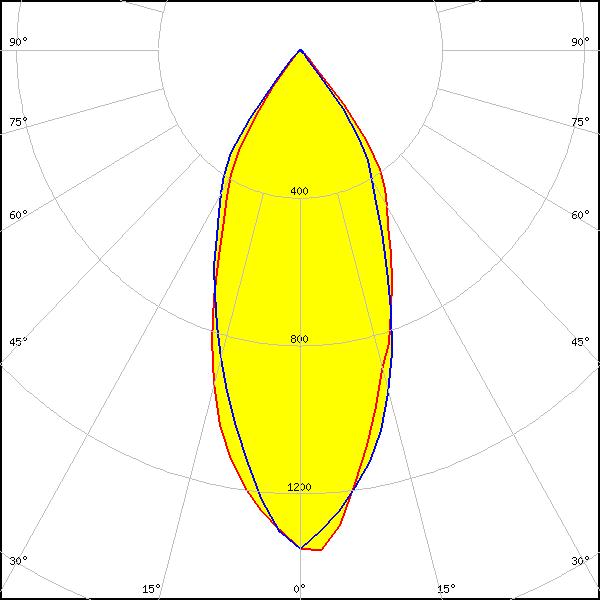

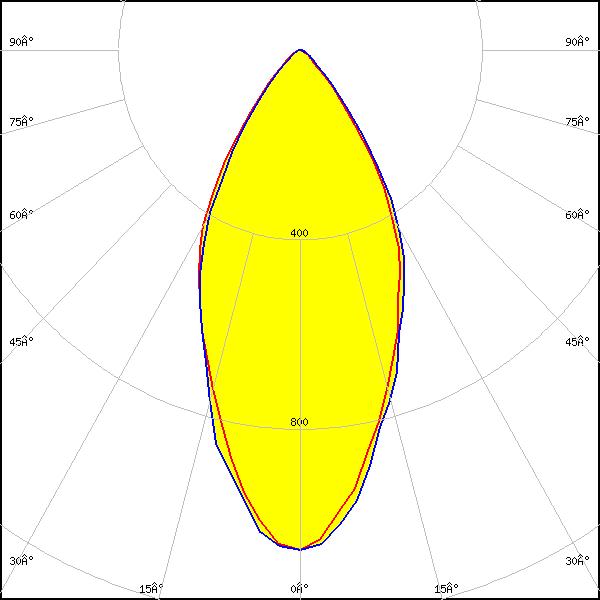

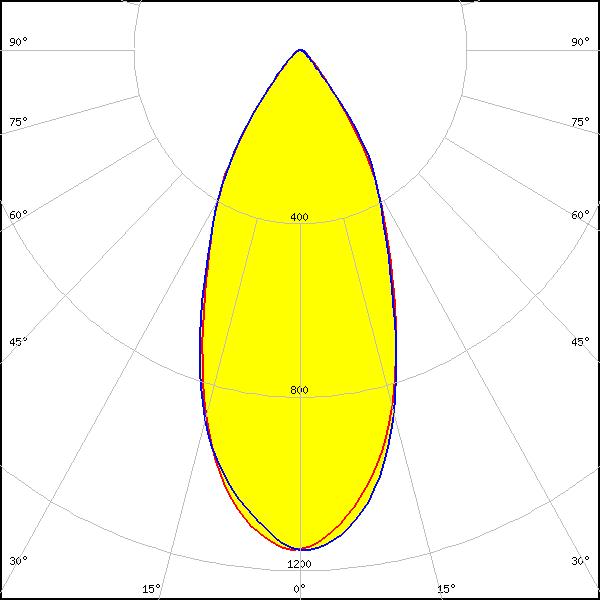

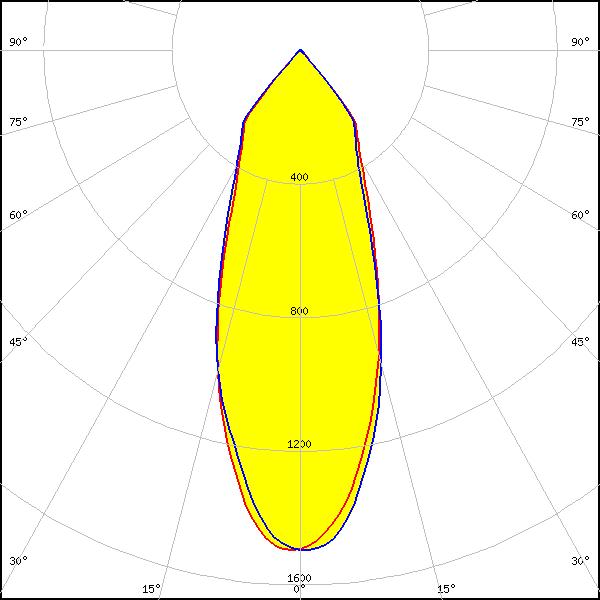

Optical results

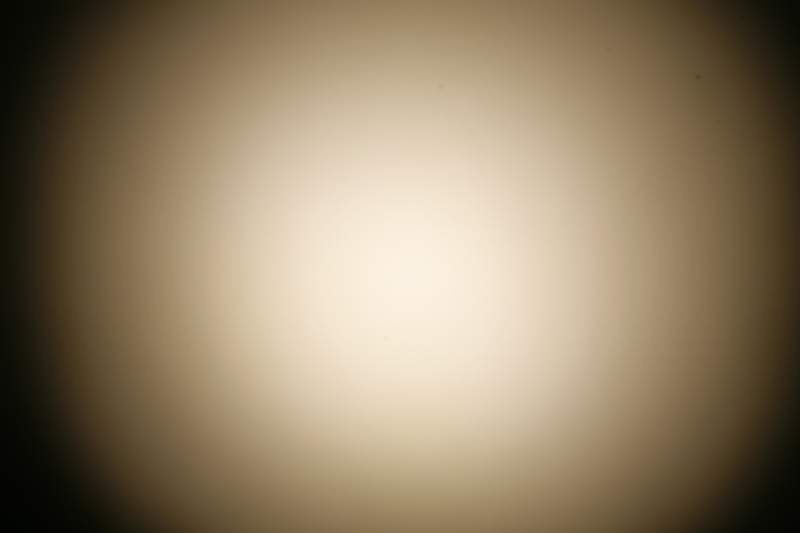

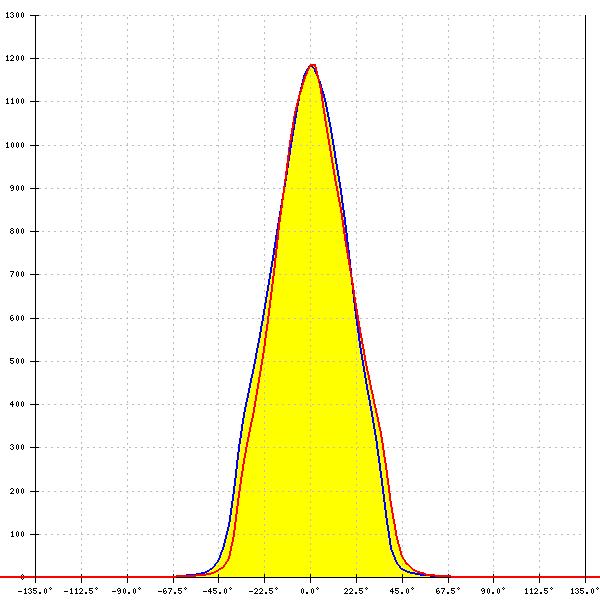

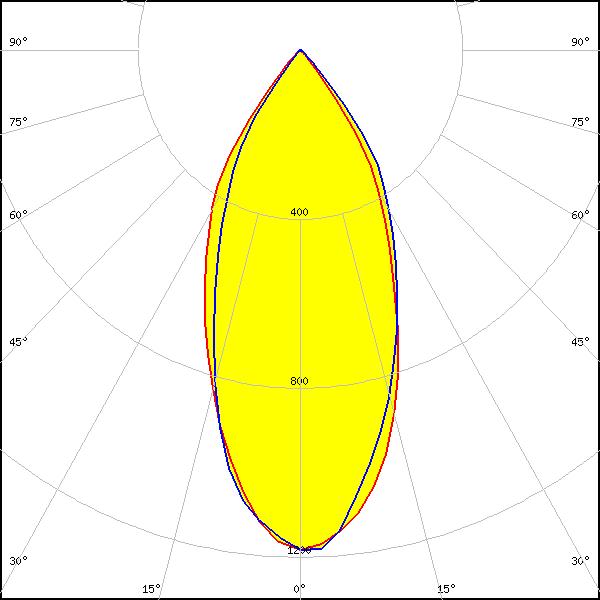

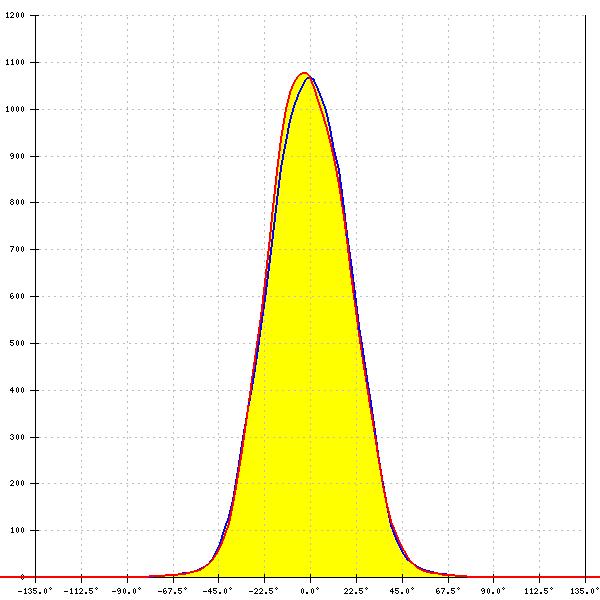

LED:
SM4
Required components:
FWHM:
49°
FWTM:
82°
Peak intensity:
1.080 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

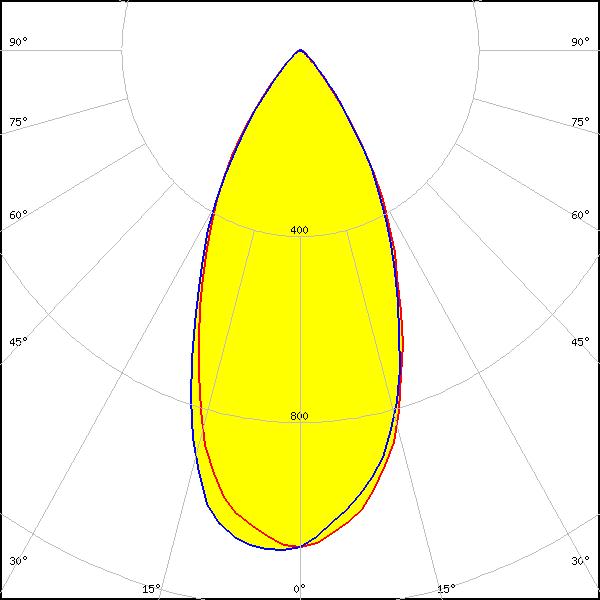

LED:
SM4
Required components:
FWHM:
44°
FWTM:
78°
Peak intensity:
1.200 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

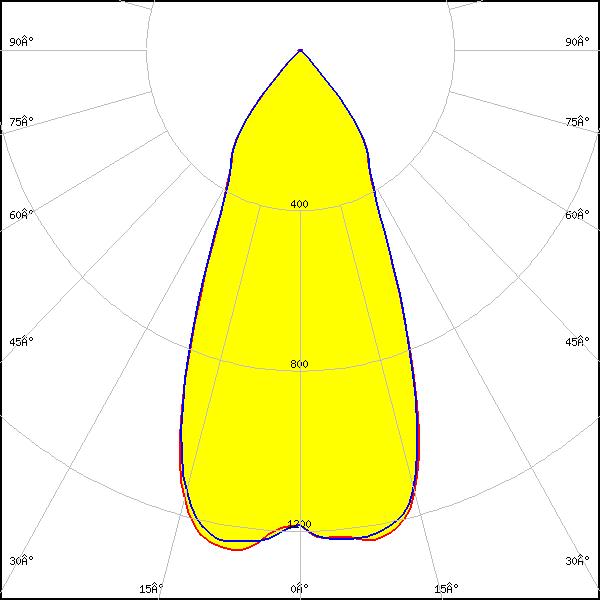

LED:

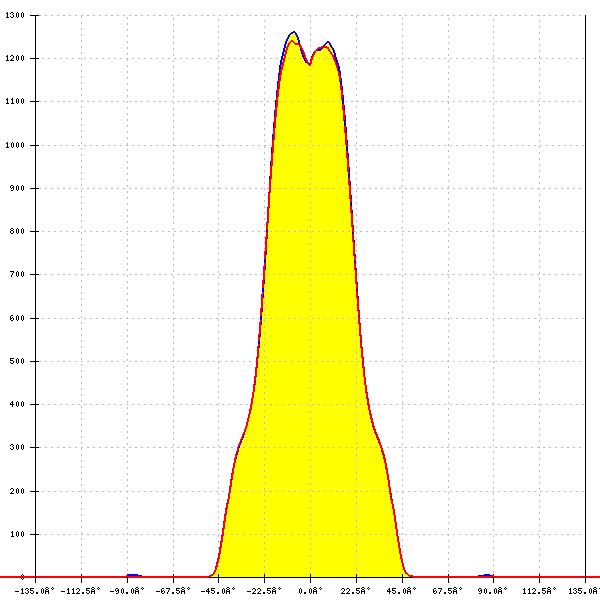

J Series 7070B K Class
FWHM:
48°
FWTM:
84°
Peak intensity:
1.267 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHB-A/B
FWHM:
45°
FWTM:
88°
Peak intensity:
1.370 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHB-A/B
Required components:
FWHM:
51°
FWTM:
84°
Peak intensity:
1.170 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHB-A/B
Required components:
FWHM:
49°
FWTM:
82°
Peak intensity:
1.240 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

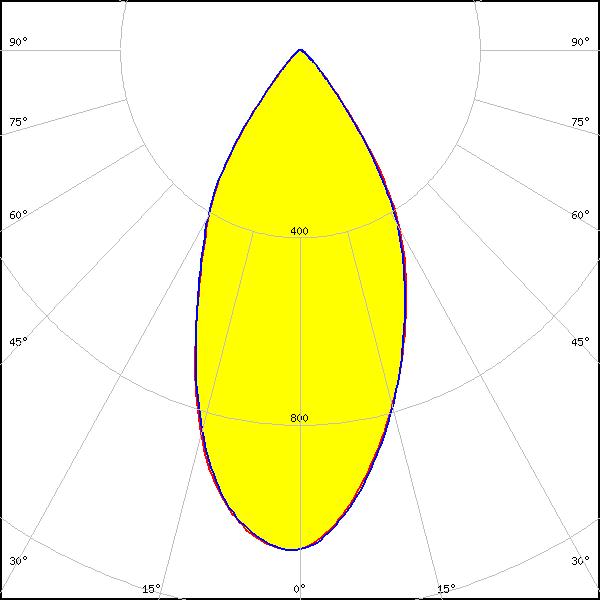

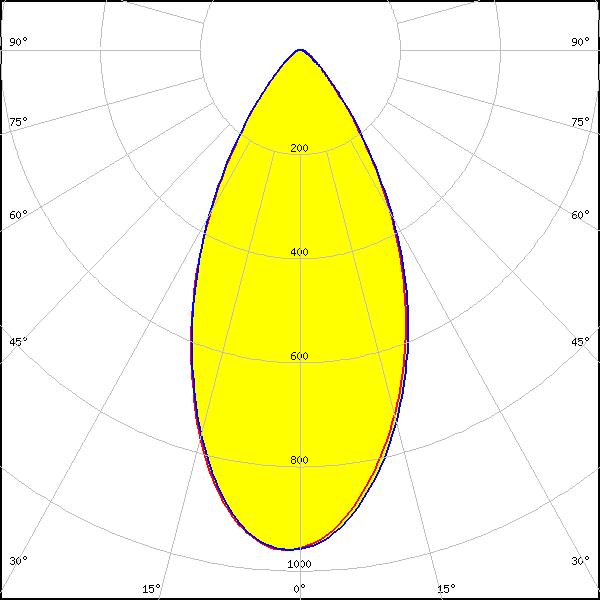

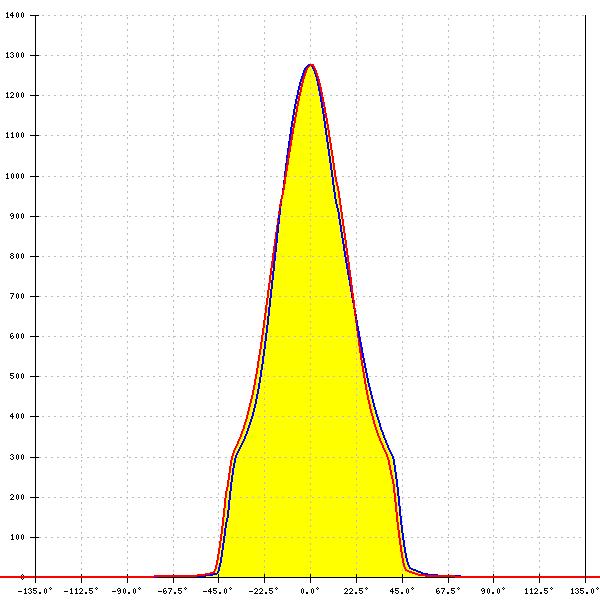

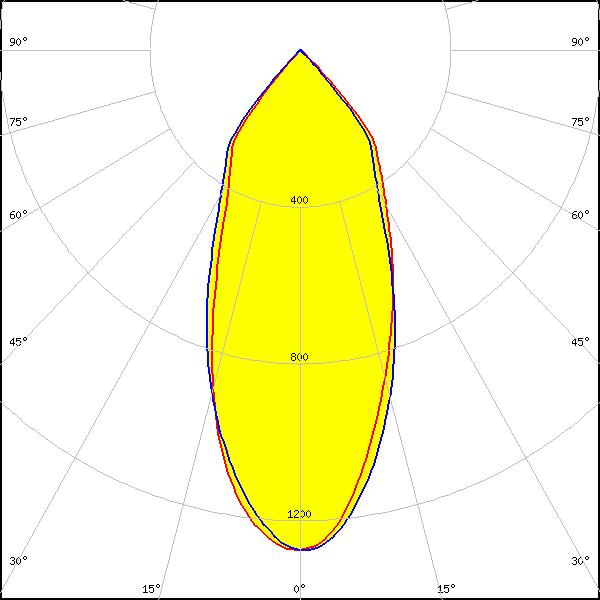

LED:

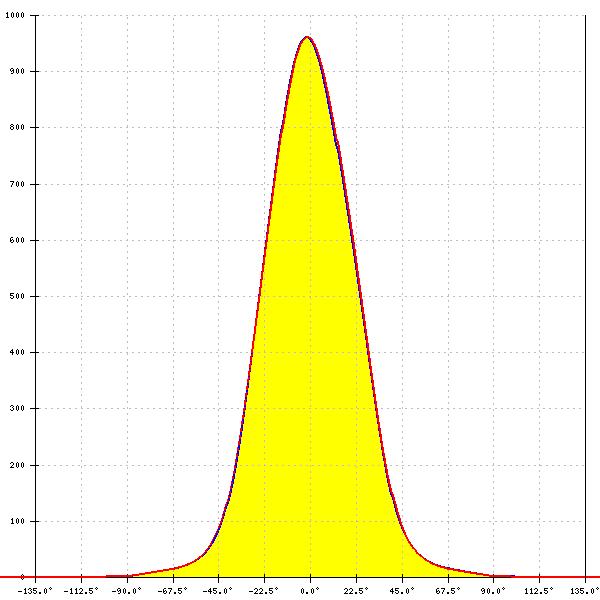

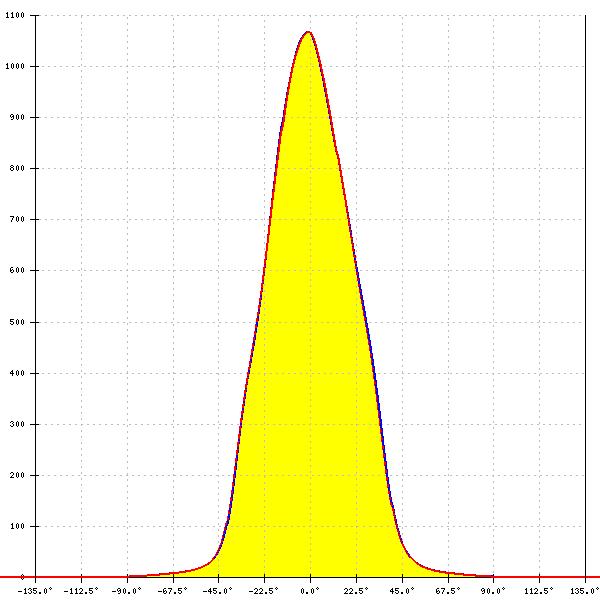

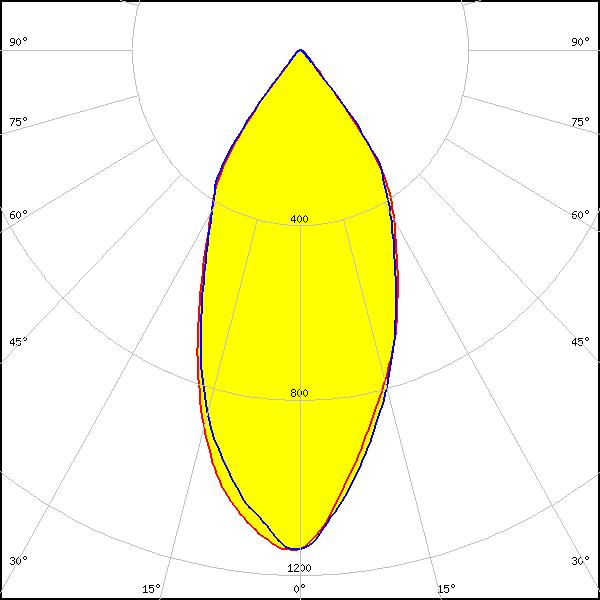

XHP50
FWHM:
44°
FWTM:
86°
Peak intensity:
1.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

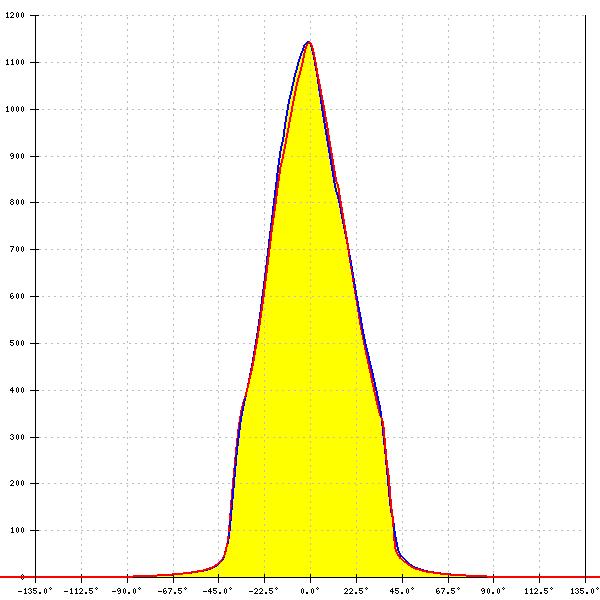

LED:
XHP50
Required components:
FWHM:
51°
FWTM:
83°
Peak intensity:
1.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
Required components:
FWHM:
48°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
Required components:
FWHM:
51°
FWTM:
88°
Peak intensity:
0.960 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

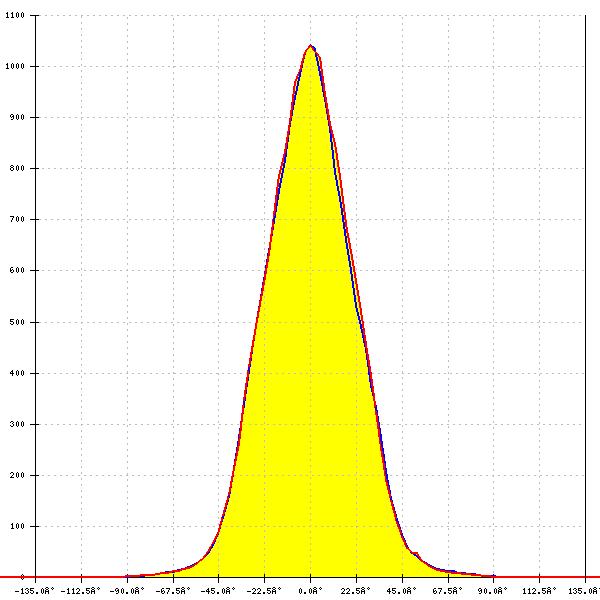

LED:

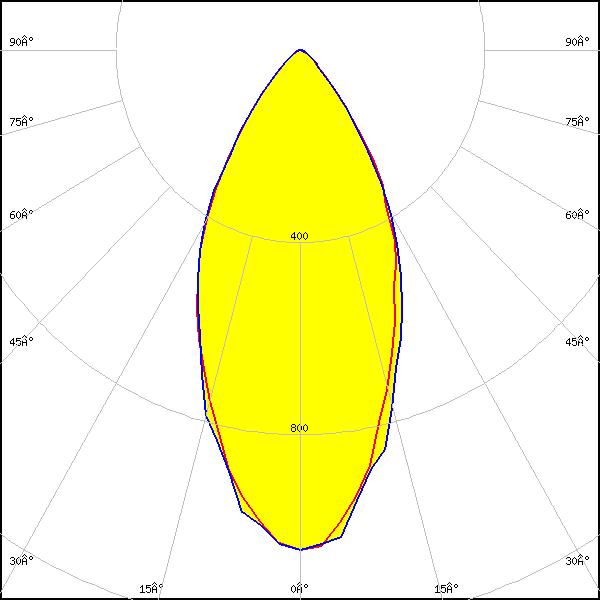

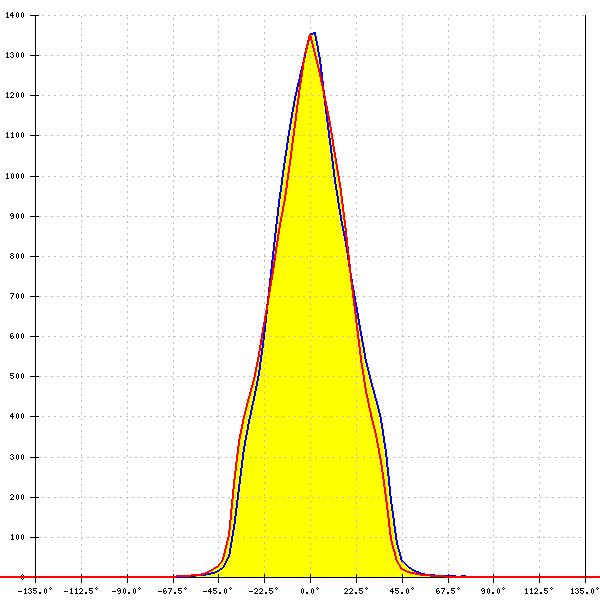

XM-L
Required components:
LEDs/each optic:
1
Light colour/type:
White

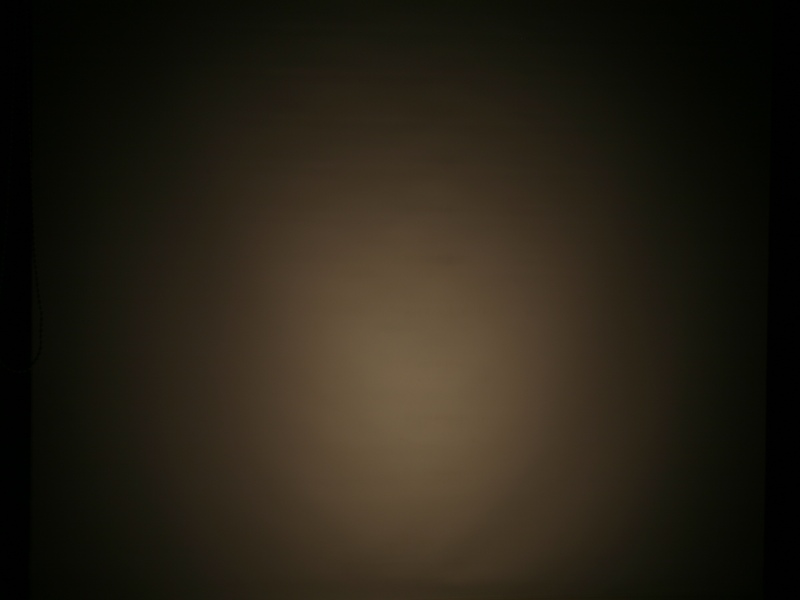

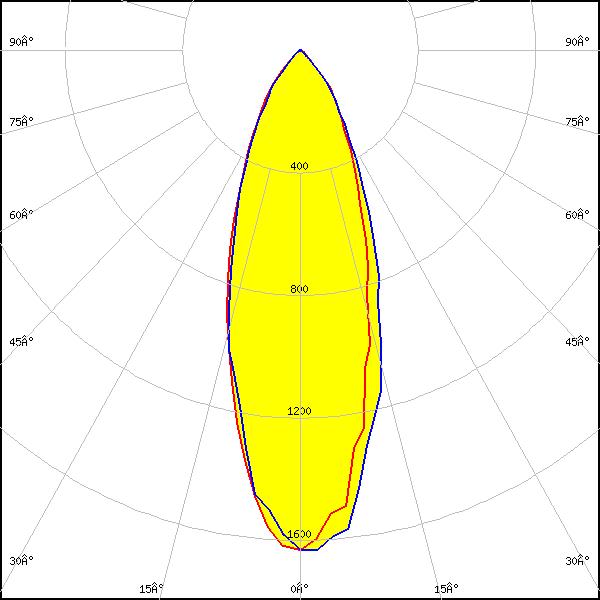

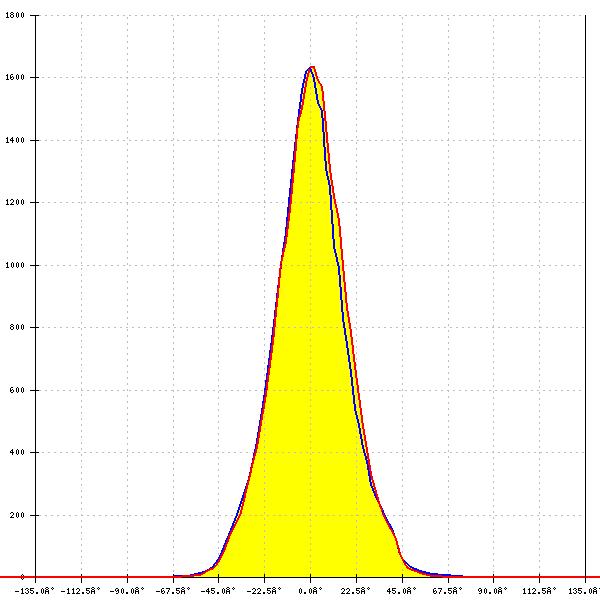

LED:
XM-L
FWHM:
32°
FWTM:
80°
Peak intensity:
1.630 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L
Required components:
FWHM:
46°
FWTM:
86°
Peak intensity:
1.000 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L
Required components:
FWHM:
45°
FWTM:
79°
Peak intensity:
1.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

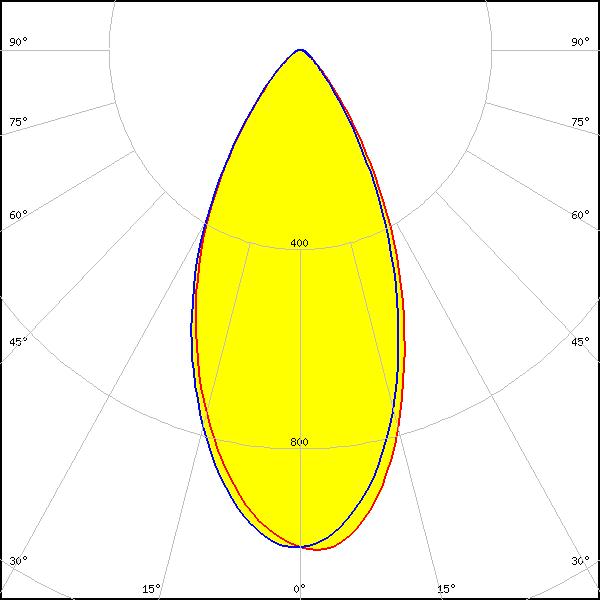

LED:

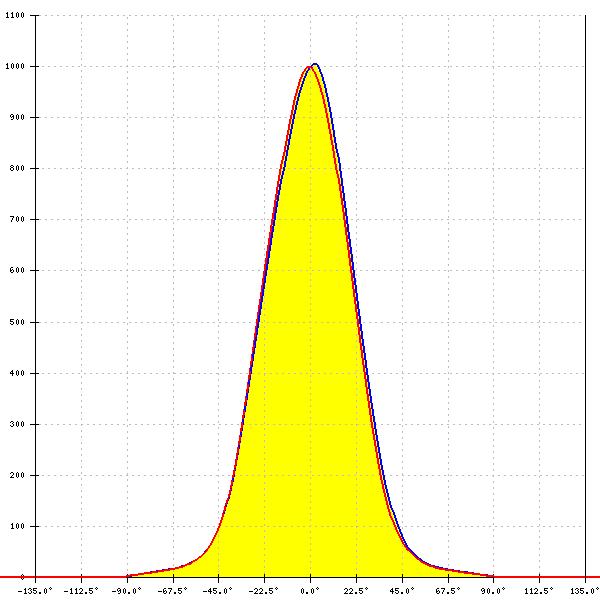

XM-L RGBW (XMLCTW)
Required components:
FWHM:
50°
FWTM:
87°
Peak intensity:
1.000 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

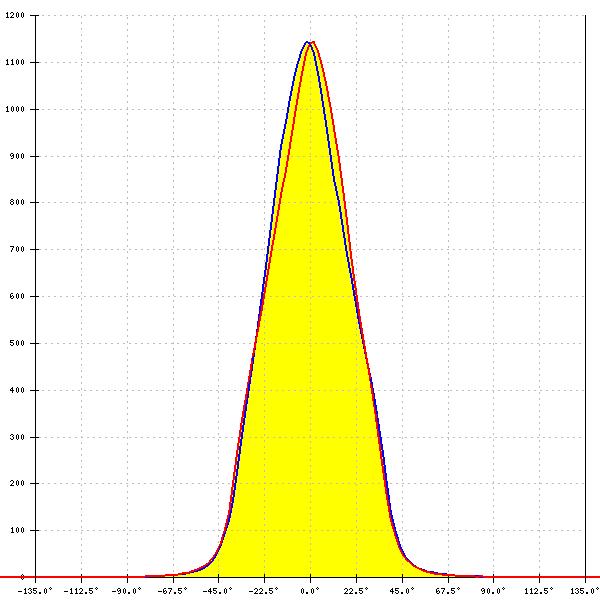

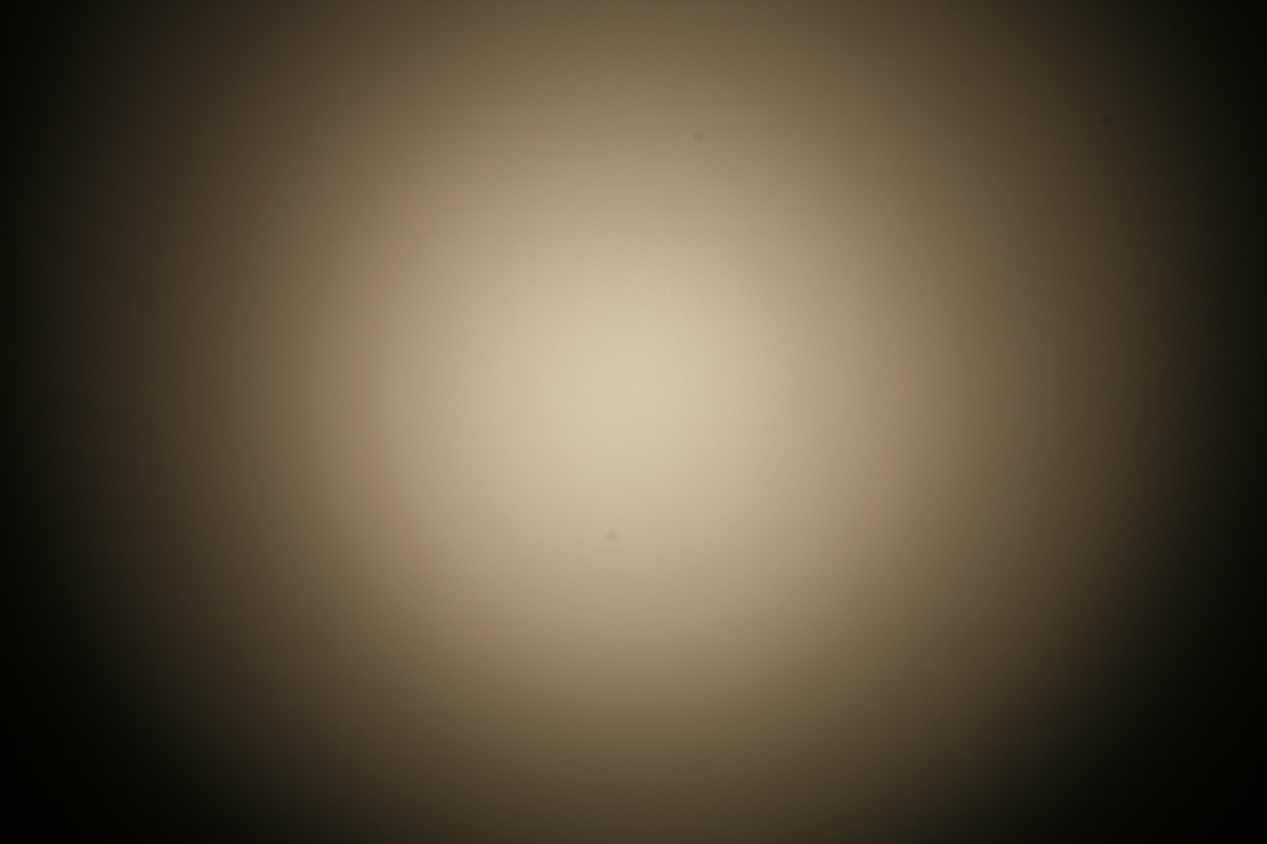

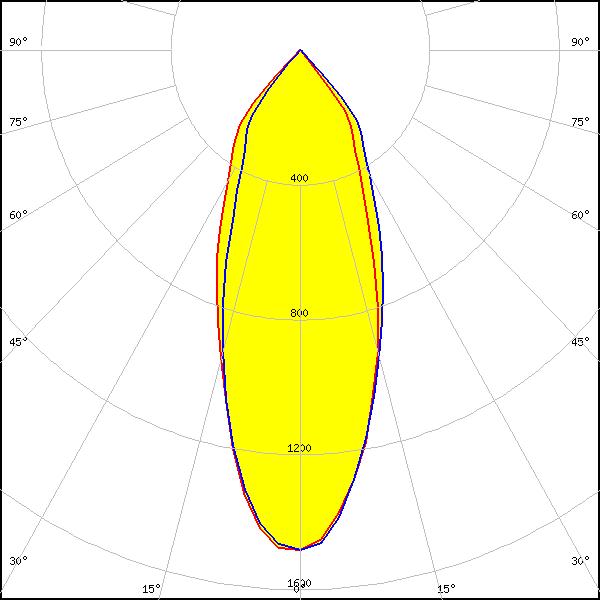

LED:

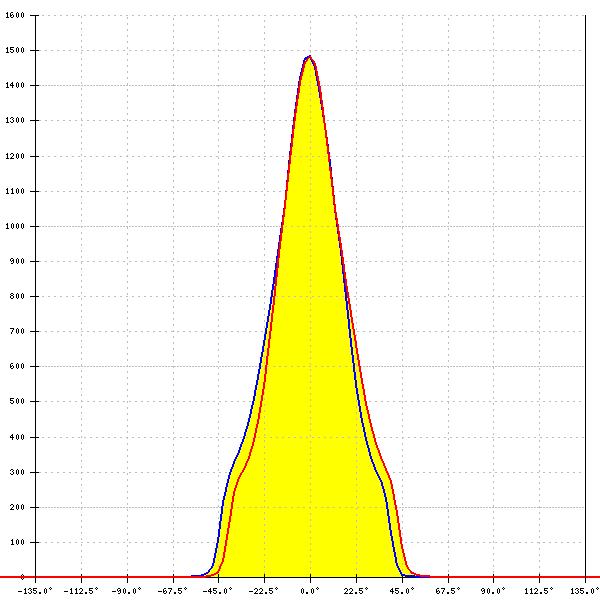

XM-L2
FWHM:
39°
FWTM:
83°
Peak intensity:
1.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

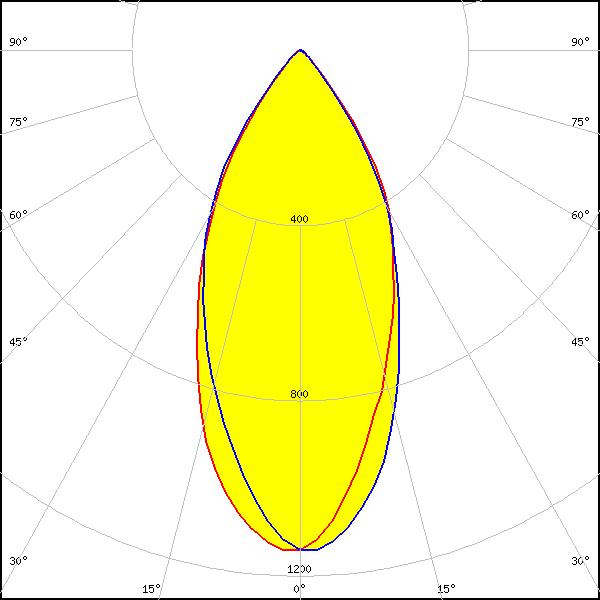

LED:
XM-L2
Required components:
FWHM:
49°
FWTM:
83°
Peak intensity:
1.100 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

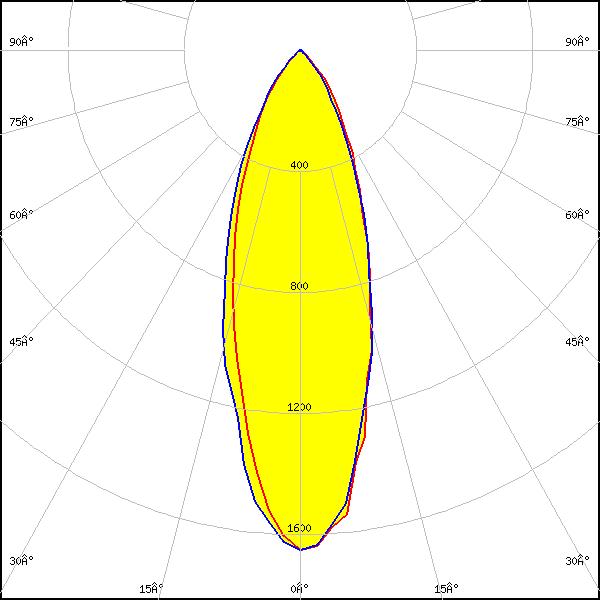

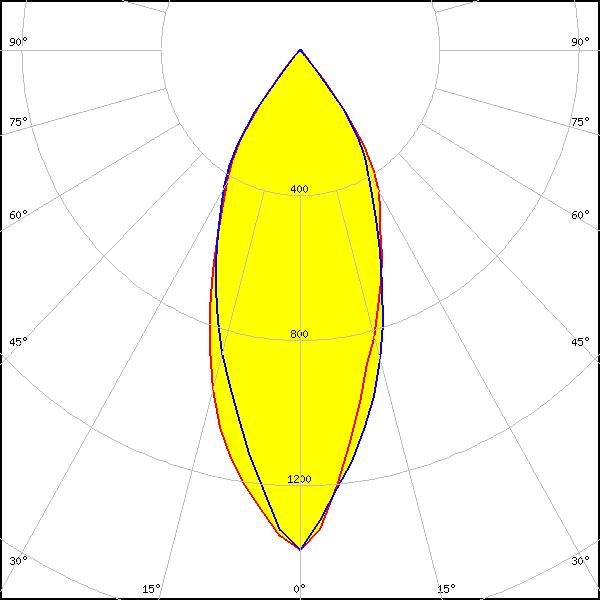

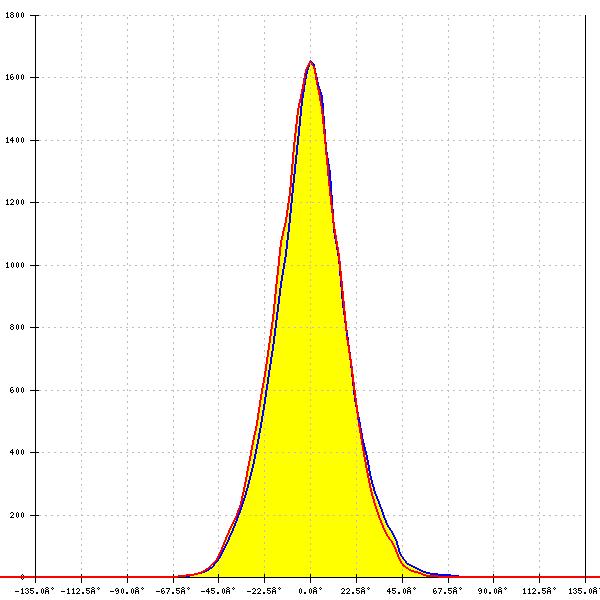

LED:

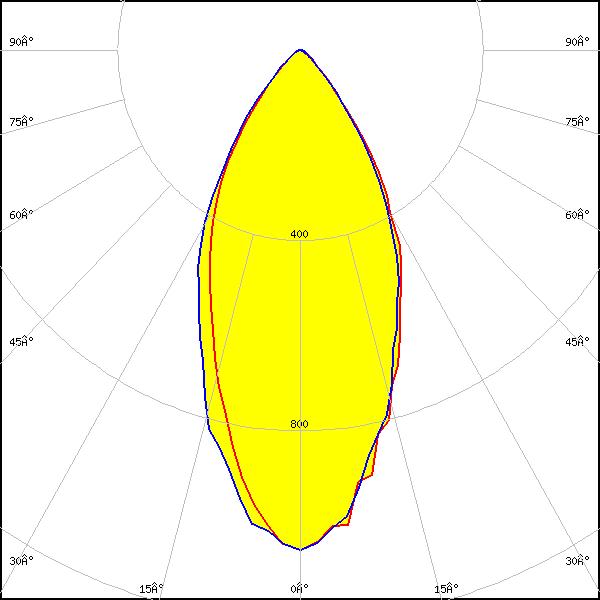

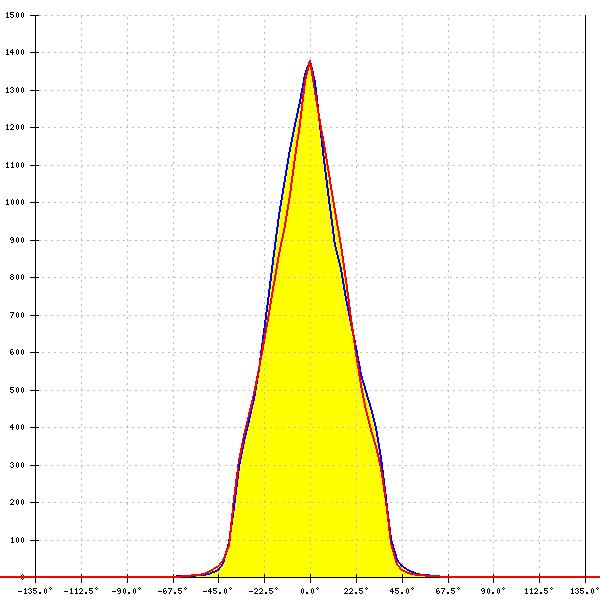

XP-G
FWHM:
34°
FWTM:
78°
Peak intensity:
1.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

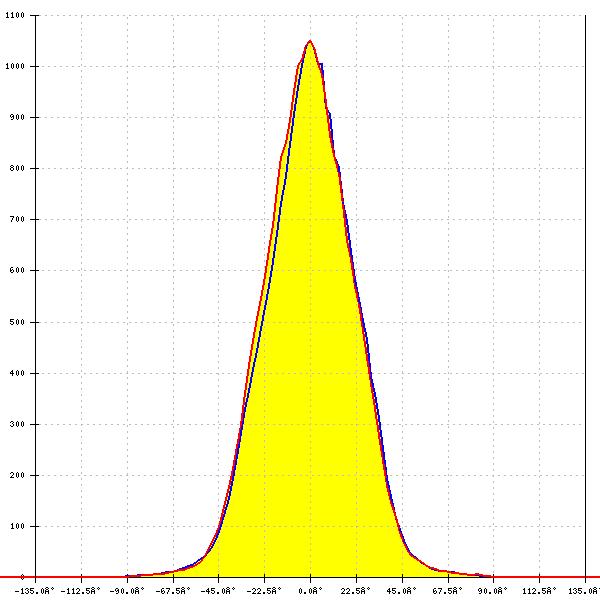

LED:
XP-G
Required components:
FWHM:
50°
FWTM:
86°
Peak intensity:
1.050 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
Required components:
FWHM:
41°
FWTM:
79°
Peak intensity:
1.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

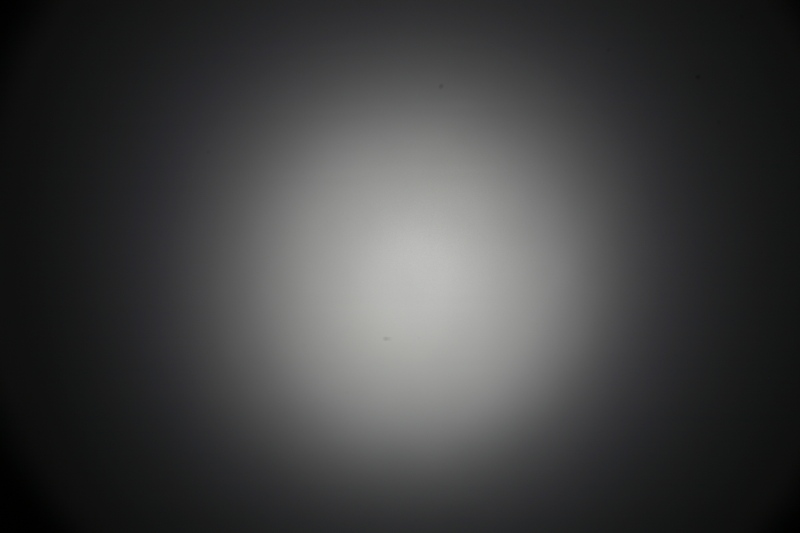

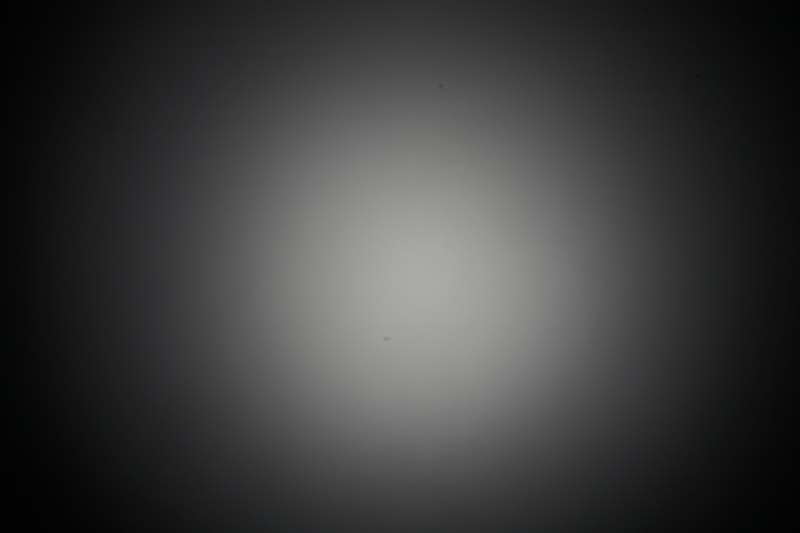

LED:
XP-G2
FWHM:
36°
FWTM:
84°
Peak intensity:
1.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
Required components:
FWHM:
45°
FWTM:
81°
Peak intensity:
1.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HI
FWHM:
35°
FWTM:
84°
Peak intensity:
1.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

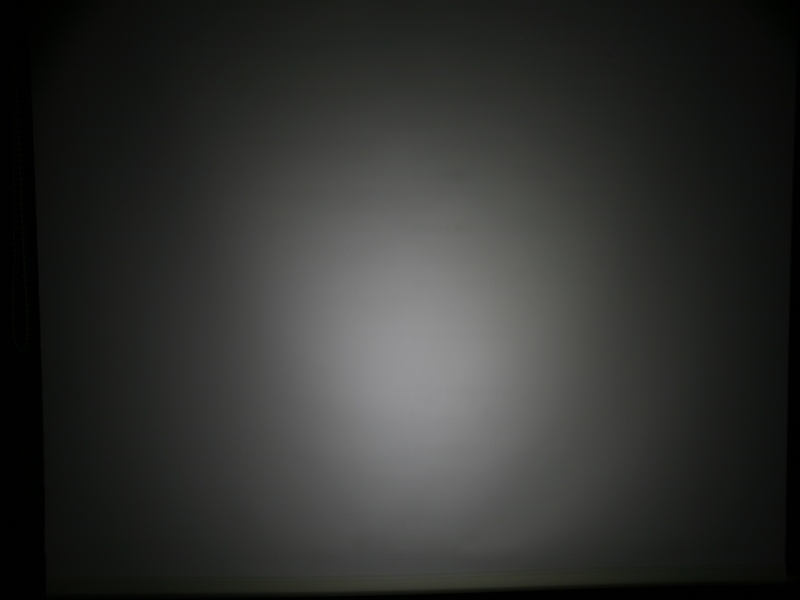

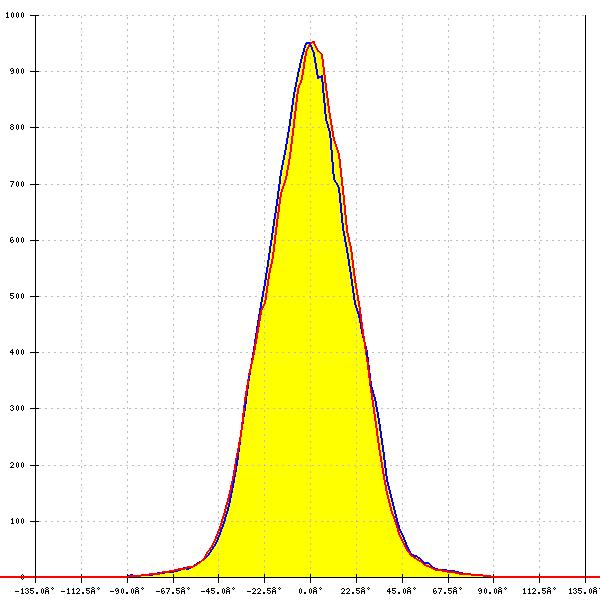

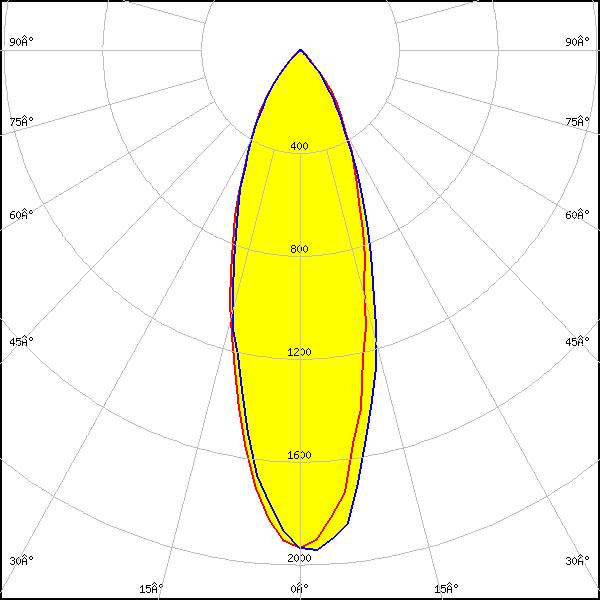

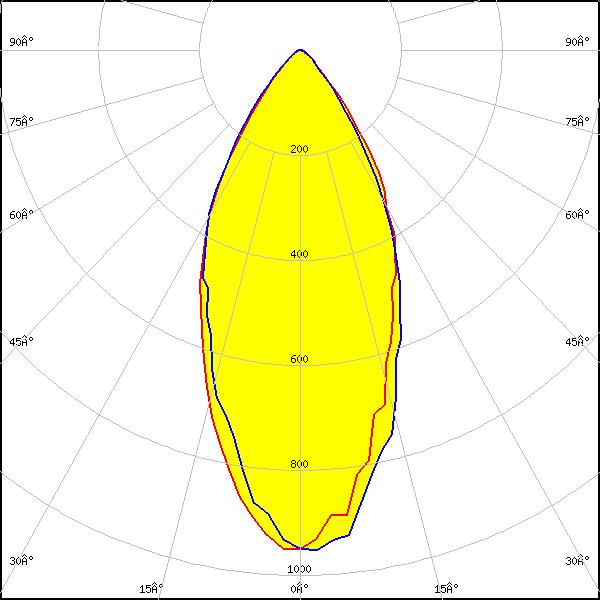

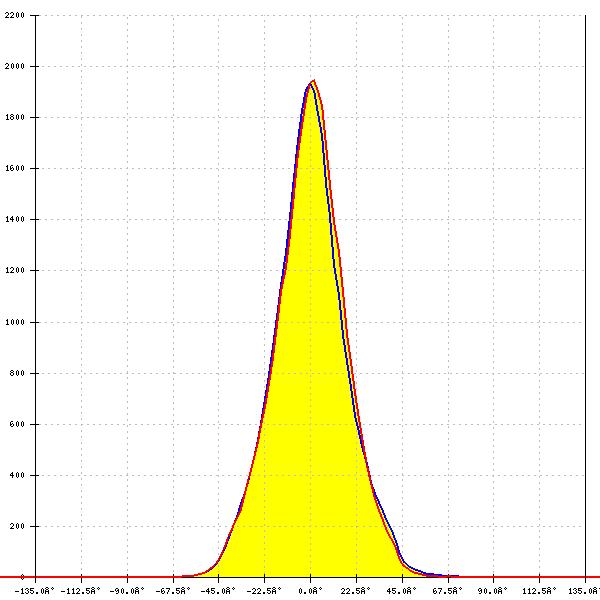

LED:

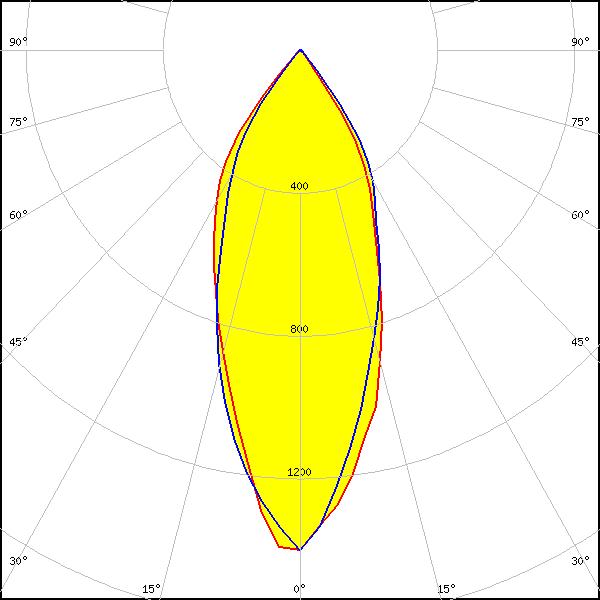

XT-E
FWHM:
31°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

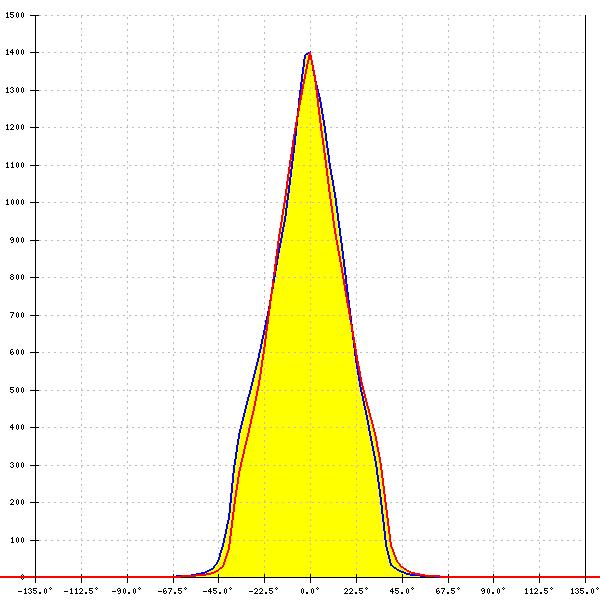

LED:
XT-E
Required components:
FWHM:
46°
FWTM:
86°
Peak intensity:
0.950 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
Required components:
FWHM:
41°
FWTM:
77°
Peak intensity:
1.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

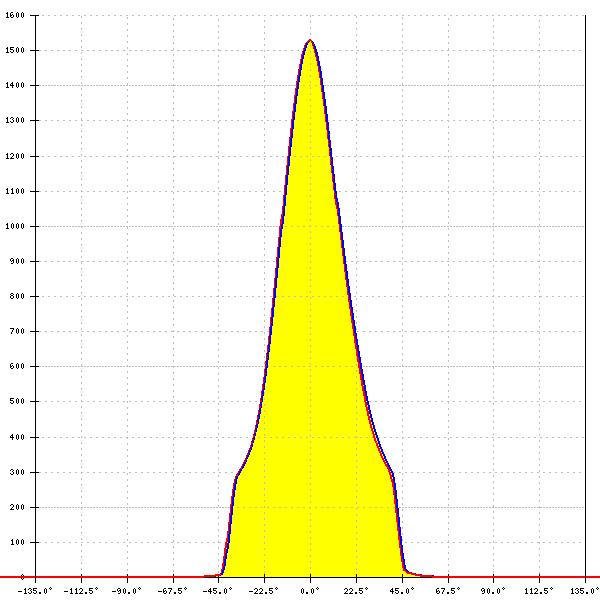

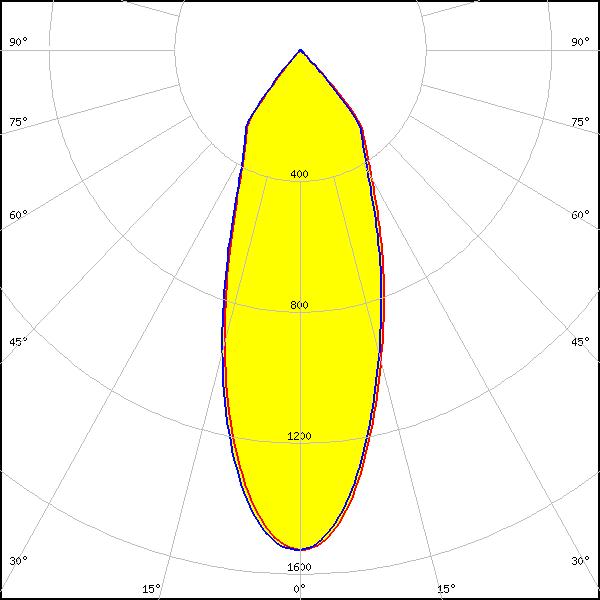

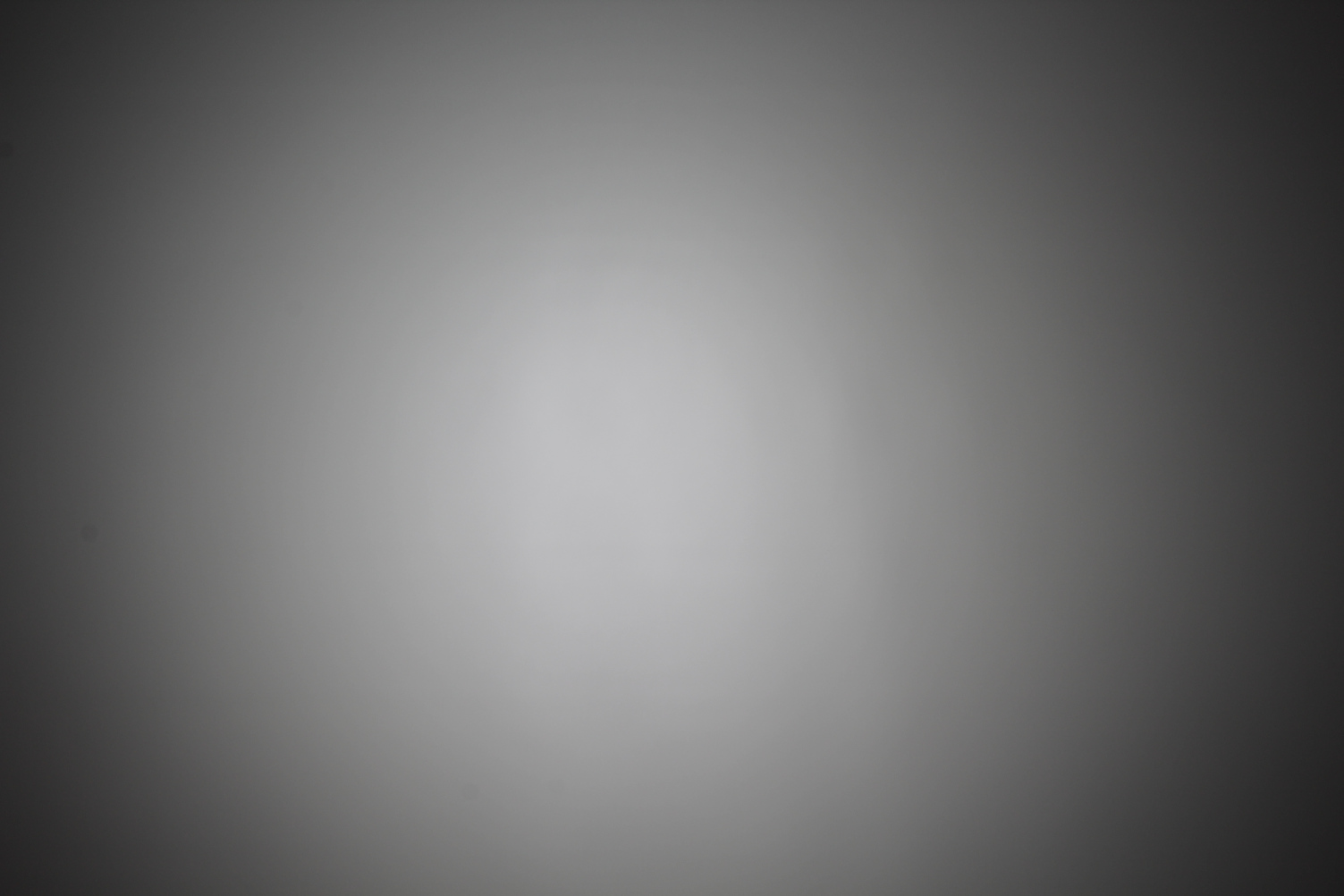

LED:
LUXEON 5050 Round LES
FWHM:
38°
FWTM:
83°
Peak intensity:
1.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

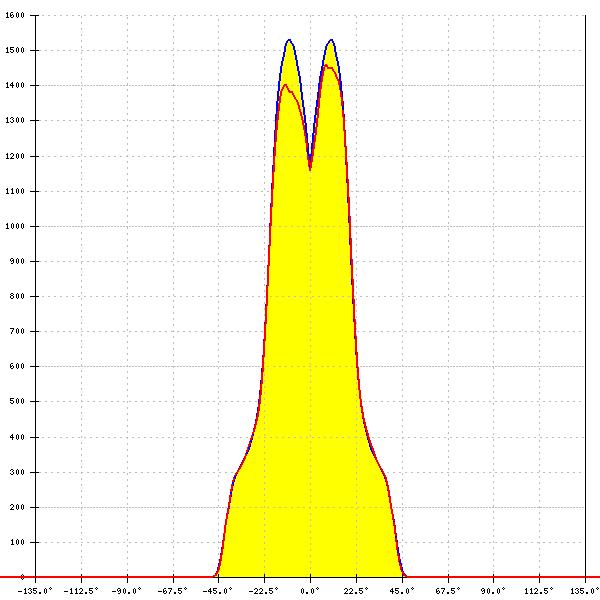

LED:

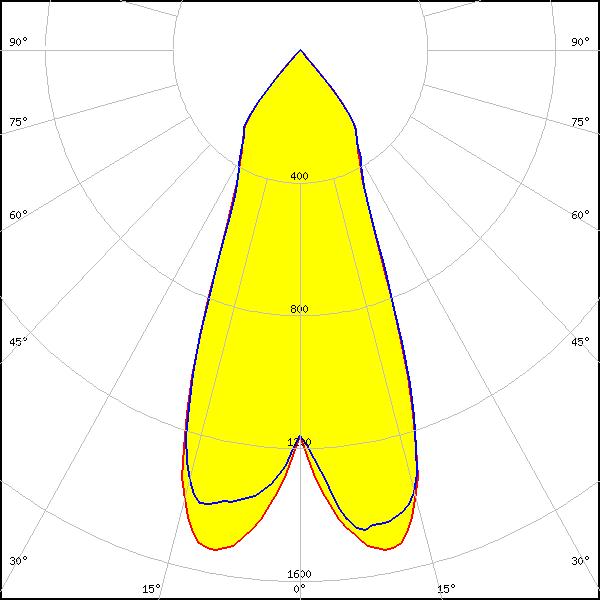

LUXEON 5258
FWHM:
41°
FWTM:
82°
Peak intensity:
1.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

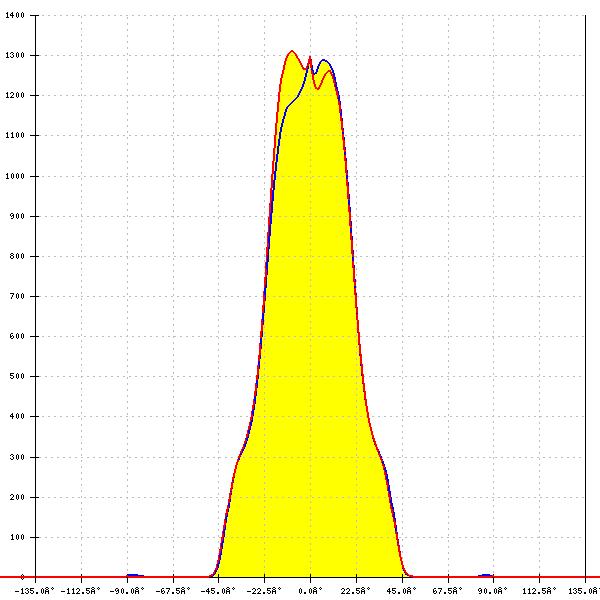

LED:

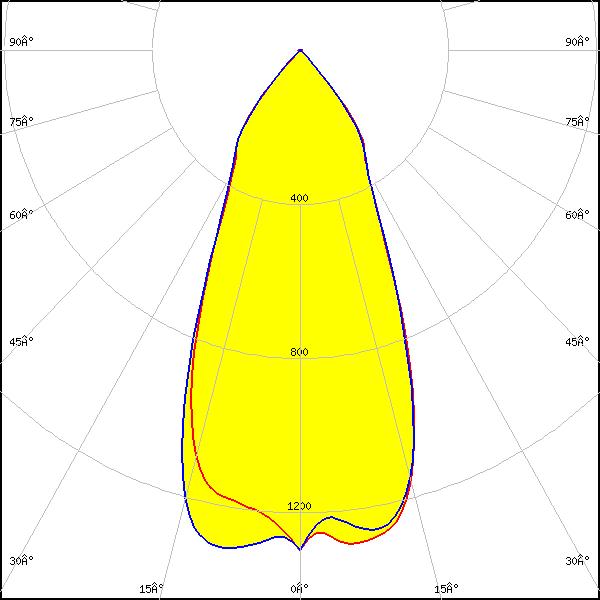

LUXEON 7070
FWHM:
46°
FWTM:
83°
Peak intensity:
1.328 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

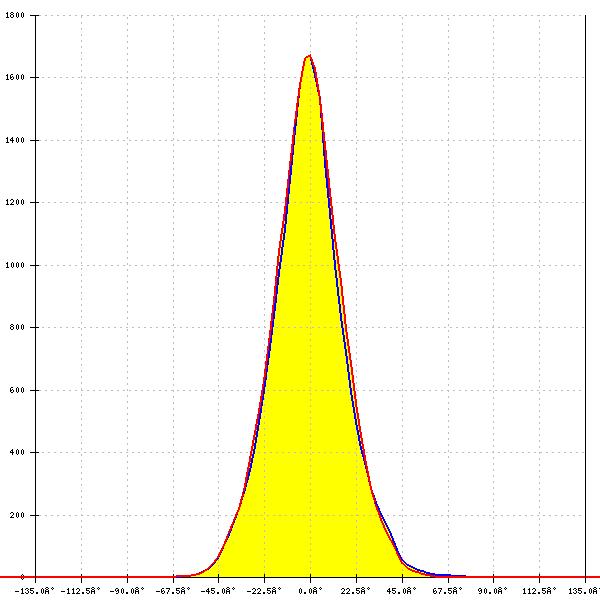

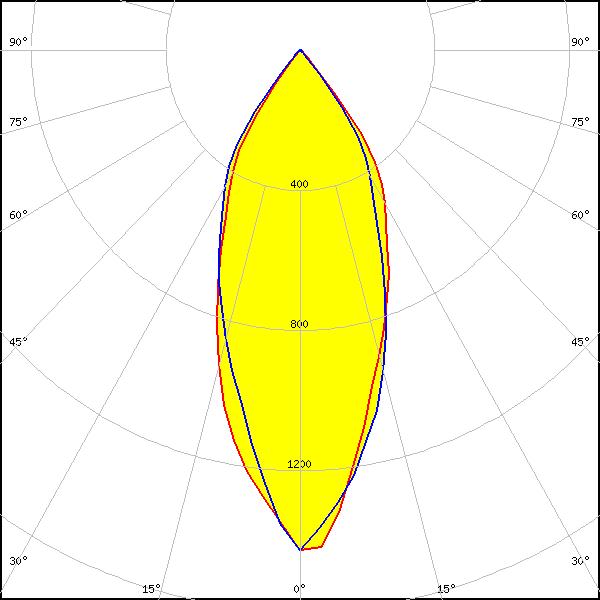

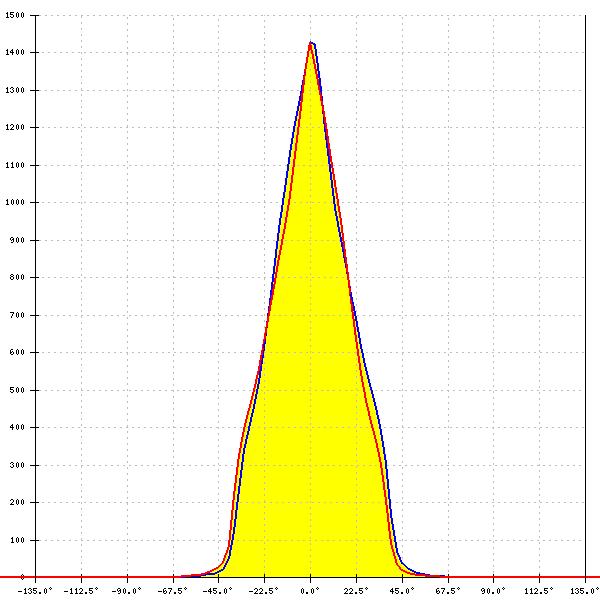

LED:

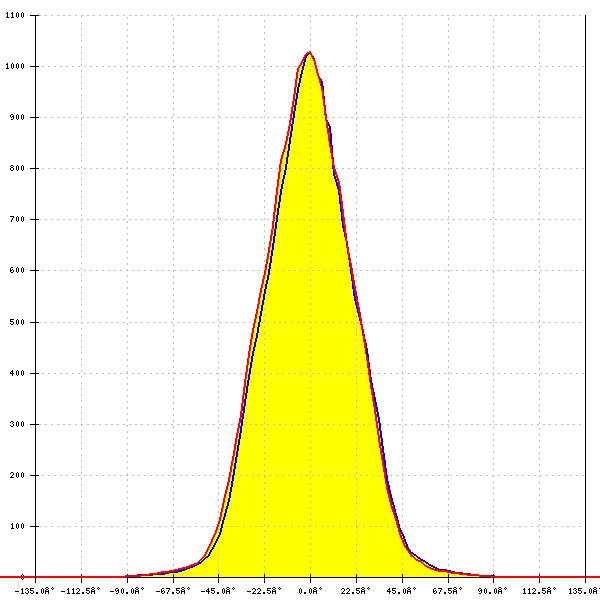

LUXEON A
FWHM:
30°
FWTM:
76°
Peak intensity:
1.670 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
Required components:
FWHM:
48°
FWTM:
86°
Peak intensity:
1.030 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

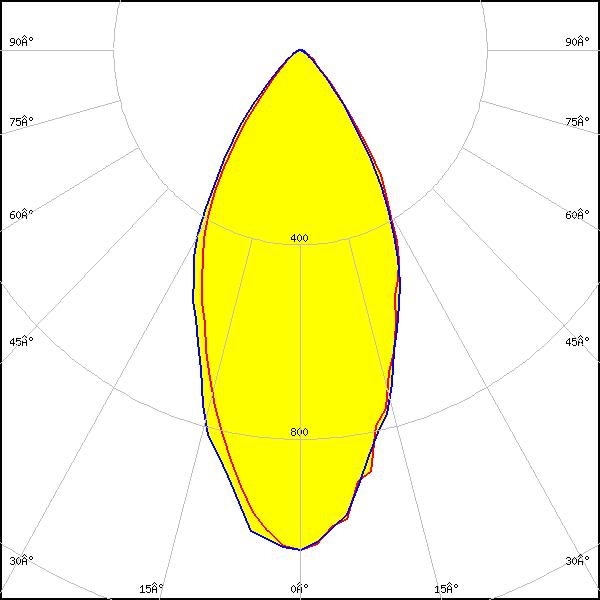

LED:
LUXEON A
Required components:
FWHM:
41°
FWTM:
78°
Peak intensity:
1.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

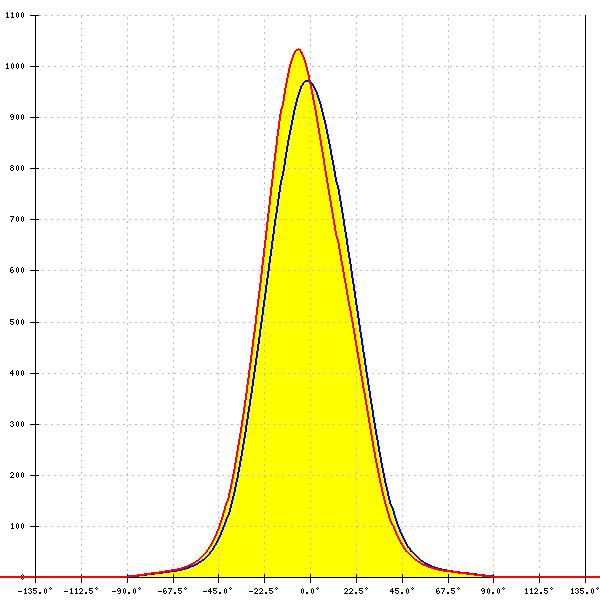

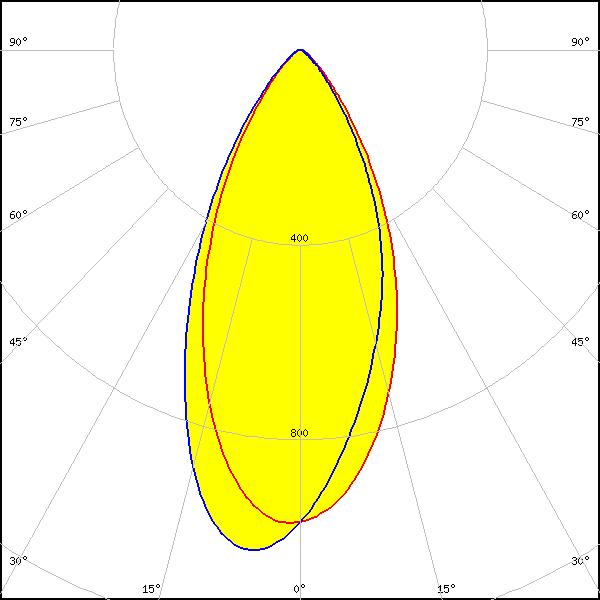

LED:

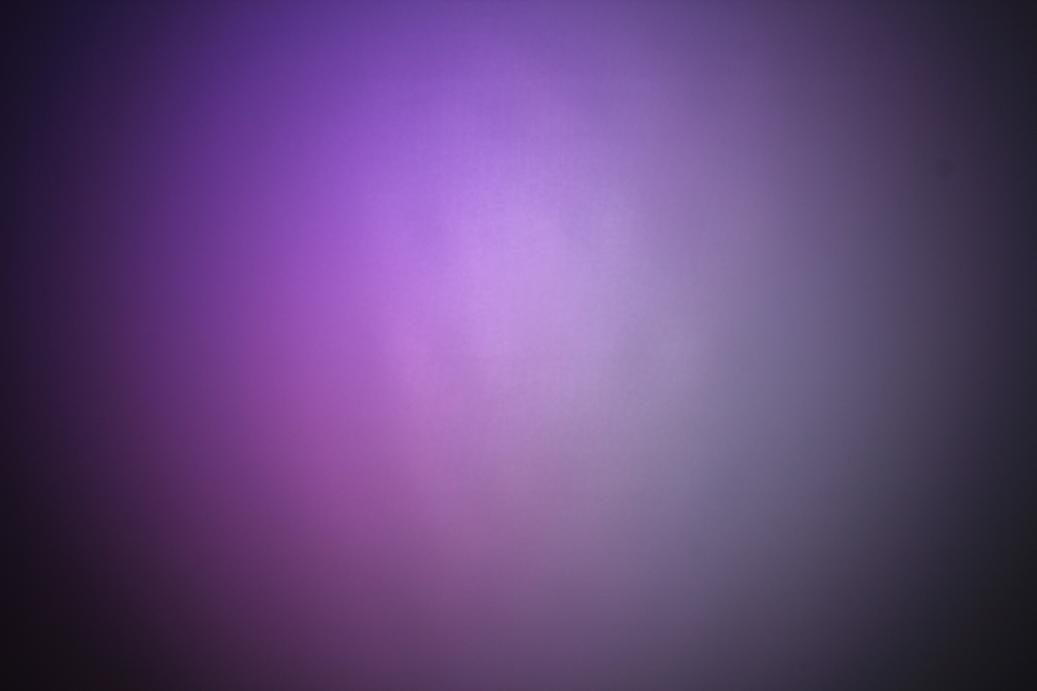

LUXEON C
Required components:
FWHM:
47°
FWTM:
85°
Peak intensity:
1.030 cd/lm
Efficiency:
77 %
LEDs/each optic:
4
Light colour/type:
RGBW

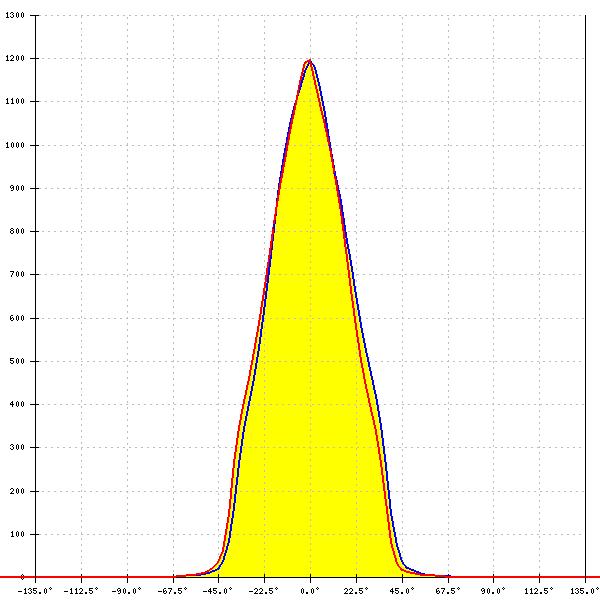

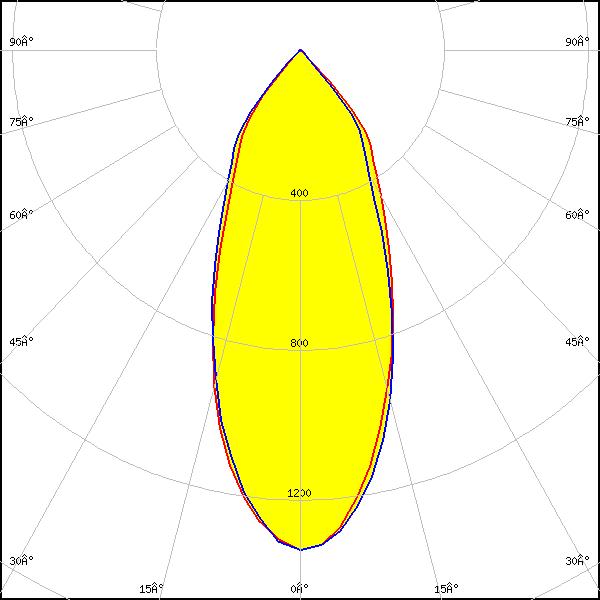

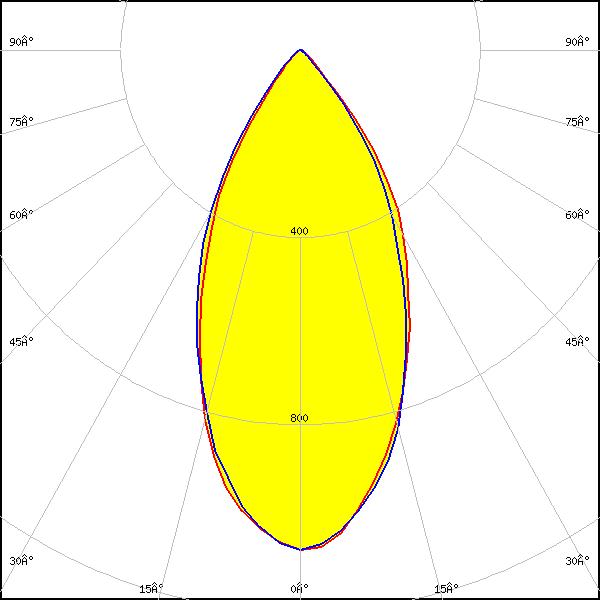

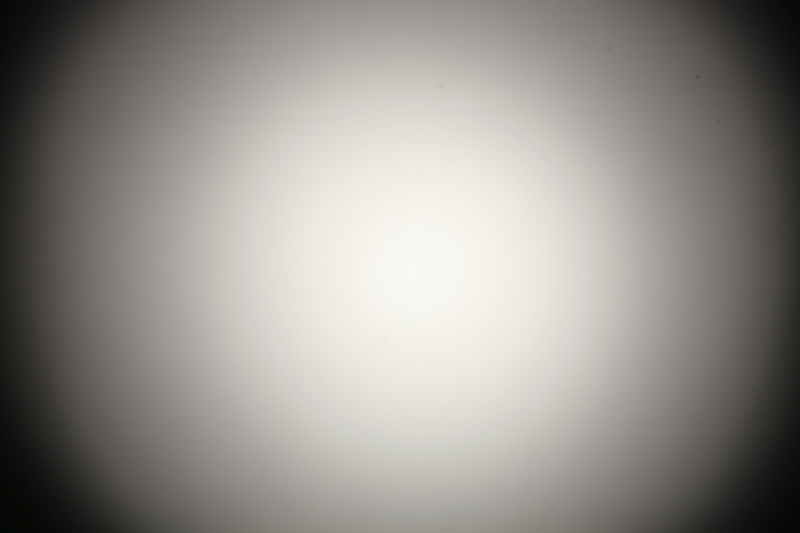

LED:

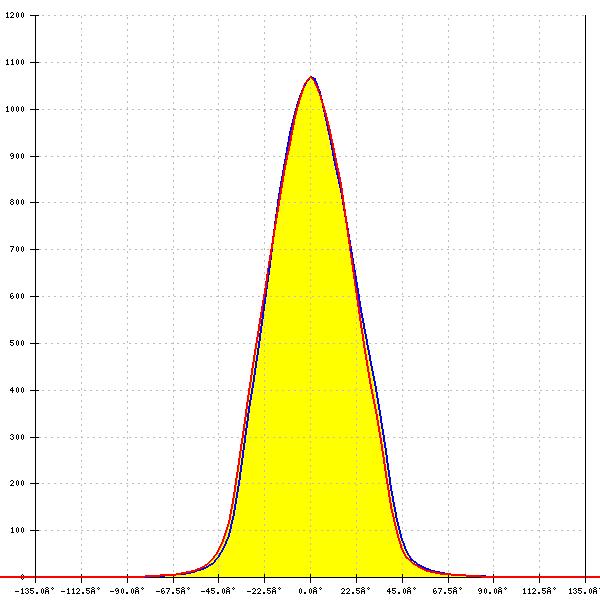

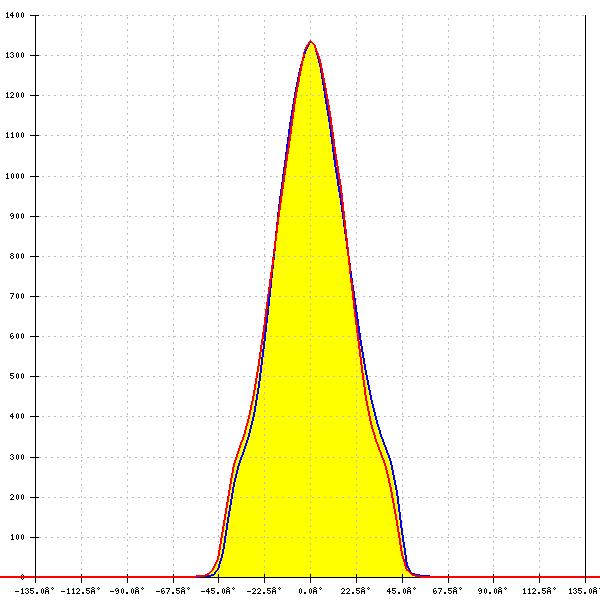

LUXEON M/MX
FWHM:
39°
FWTM:
84°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

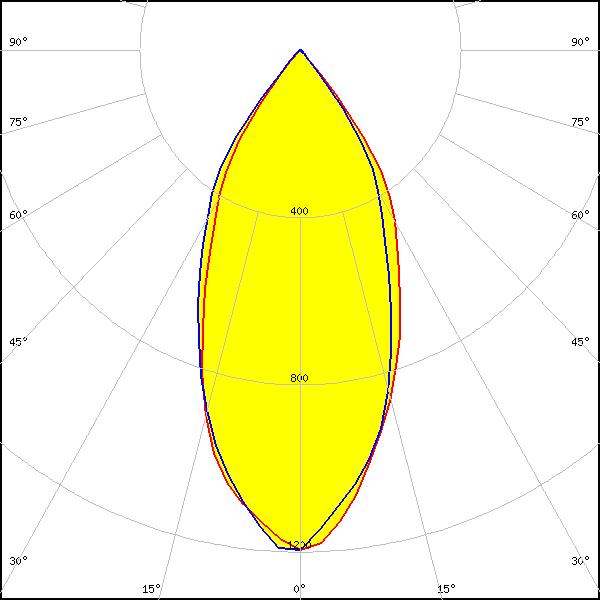

LED:
LUXEON M/MX
Required components:
FWHM:
54°
FWTM:
90°
Peak intensity:
0.980 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
Required components:
FWHM:
47°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

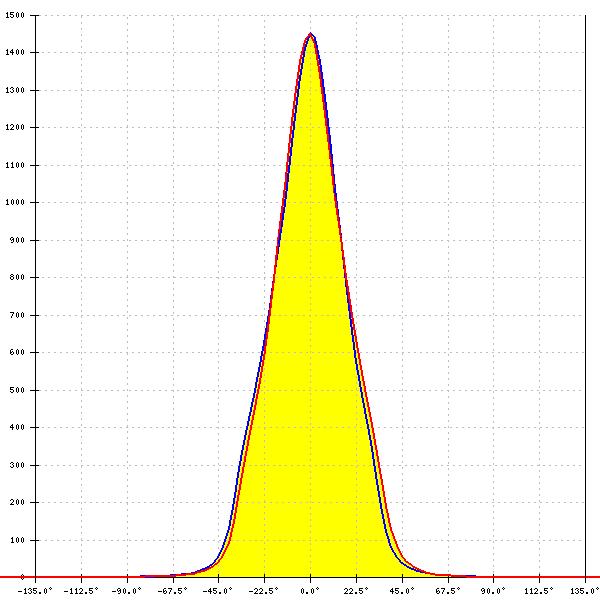

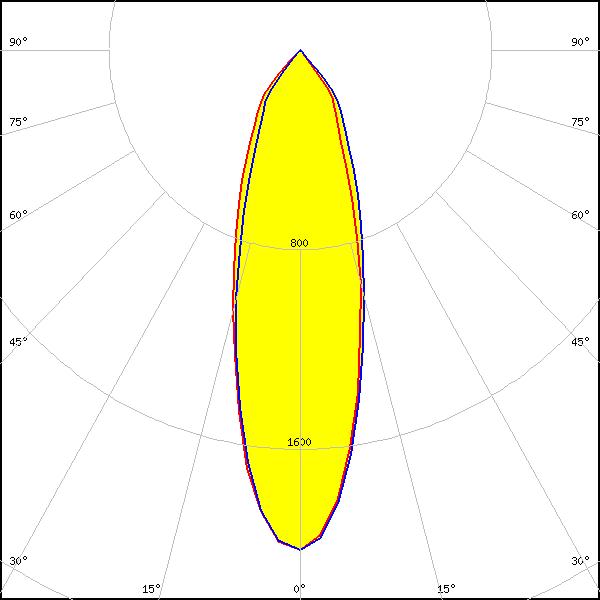

LED:

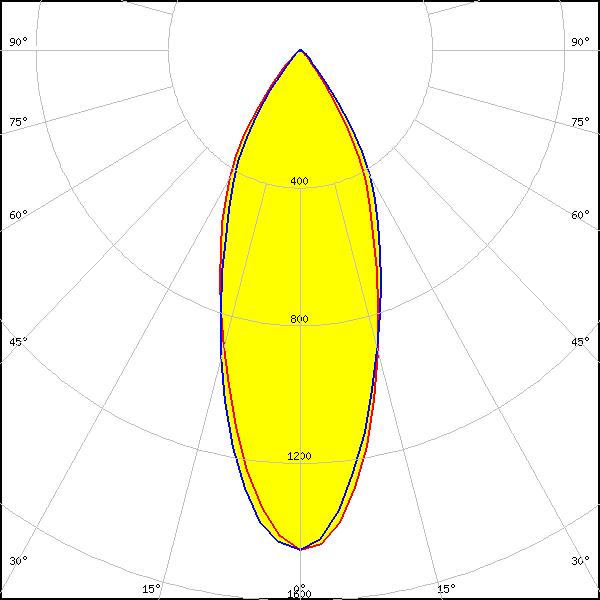

LUXEON MZ
Required components:
FWHM:
40°
FWTM:
77°
Peak intensity:
1.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

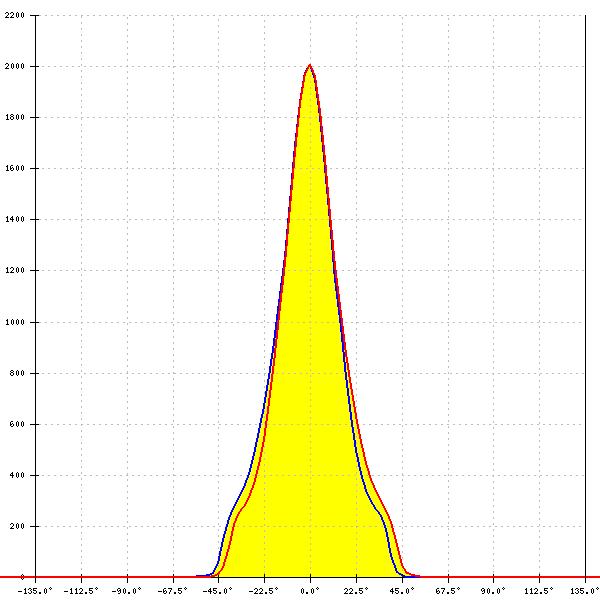

LED:
LUXEON MZ
FWHM:
32°
FWTM:
79°
Peak intensity:
2.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

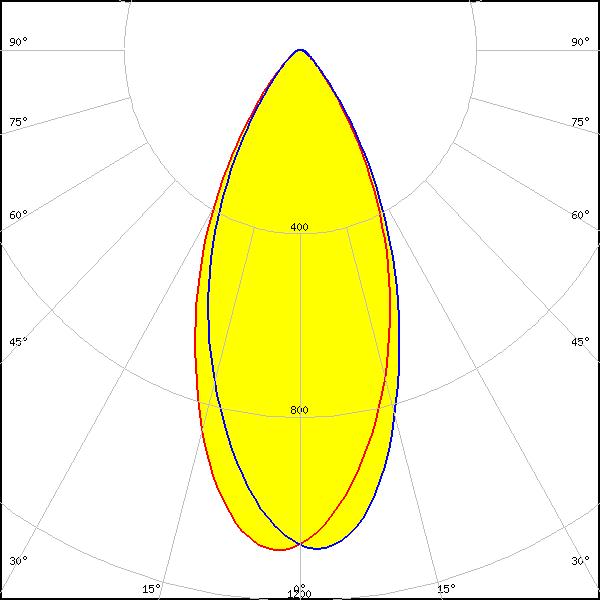

LED:

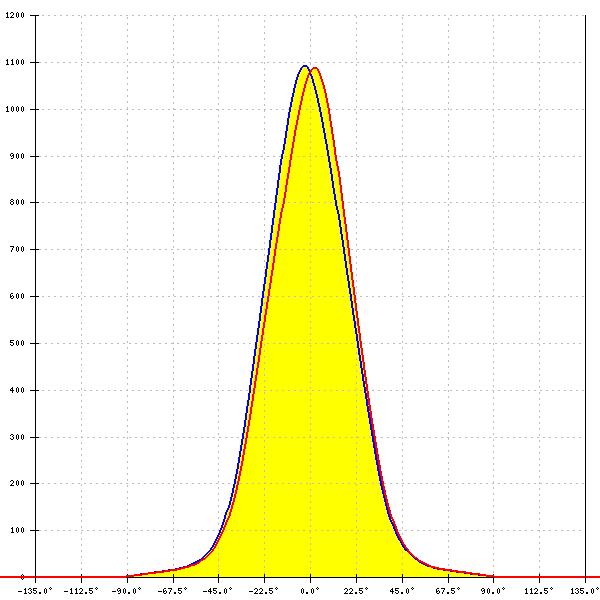

LUXEON Z
Required components:
FWHM:
46°
FWTM:
84°
Peak intensity:
1.100 cd/lm
Efficiency:
80 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
NS9x383
FWHM:
39°
FWTM:
84°
Peak intensity:
1.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NS9x383
Required components:
FWHM:
46°
FWTM:
81°
Peak intensity:
1.150 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

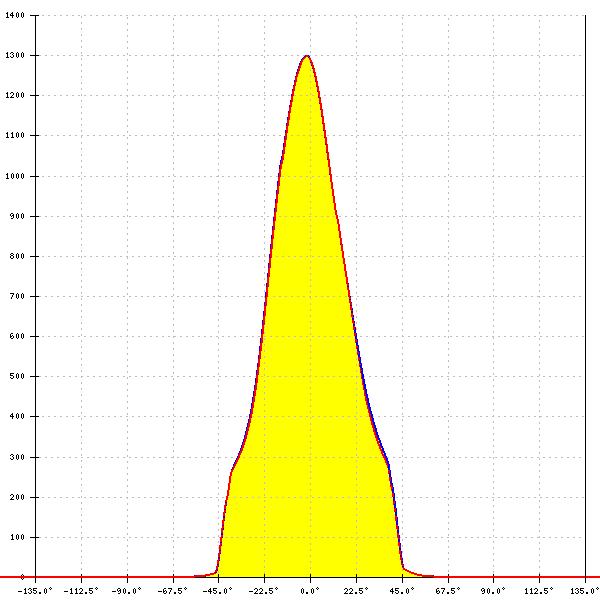

LED:

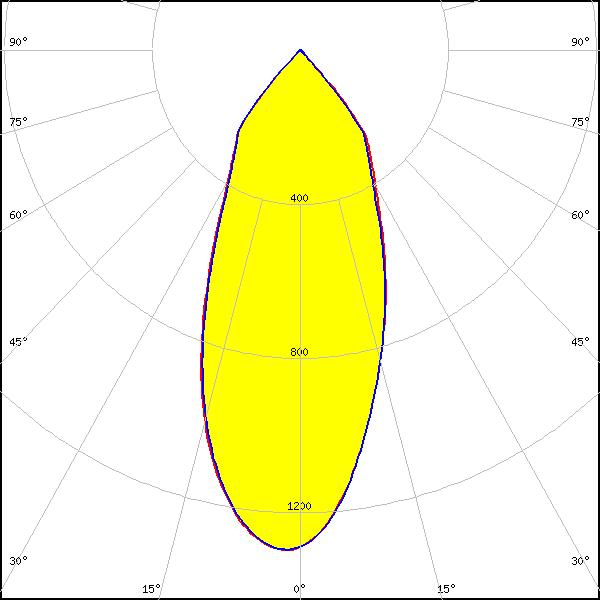

NV4x144A
FWHM:
43°
FWTM:
85°
Peak intensity:
1.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

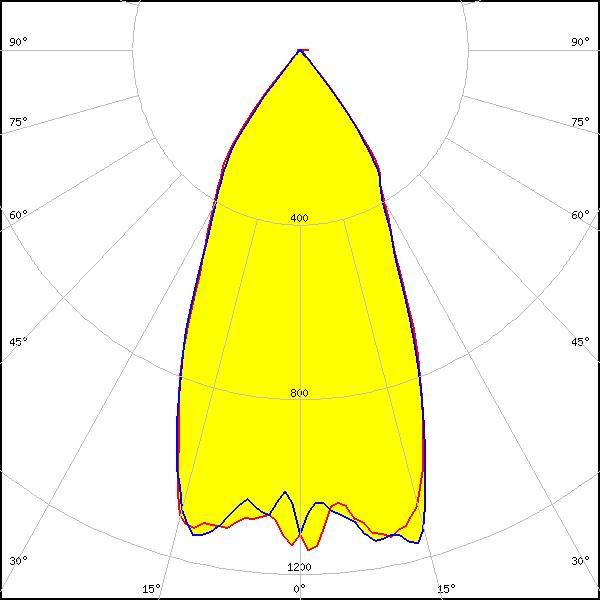

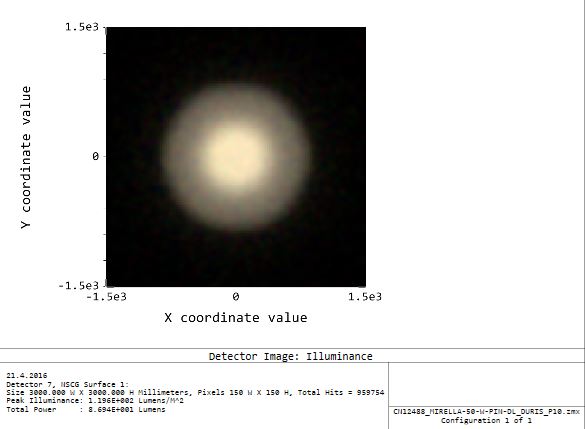

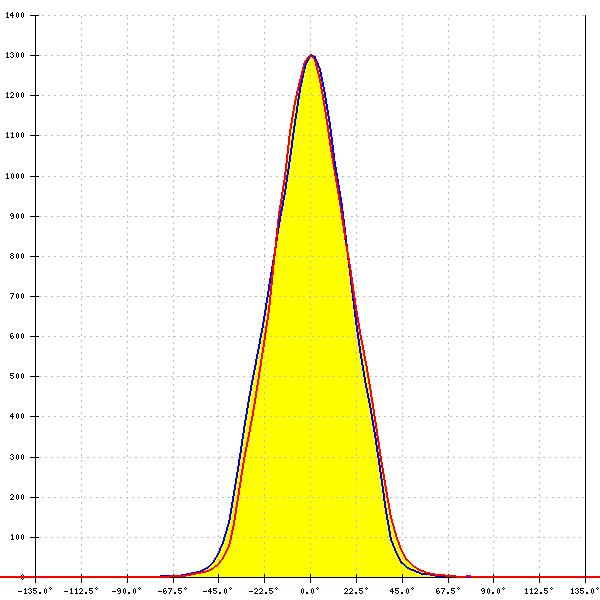

LED:

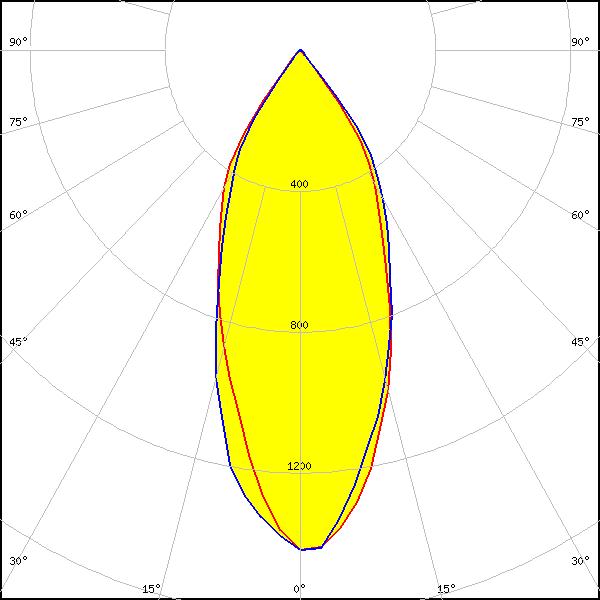

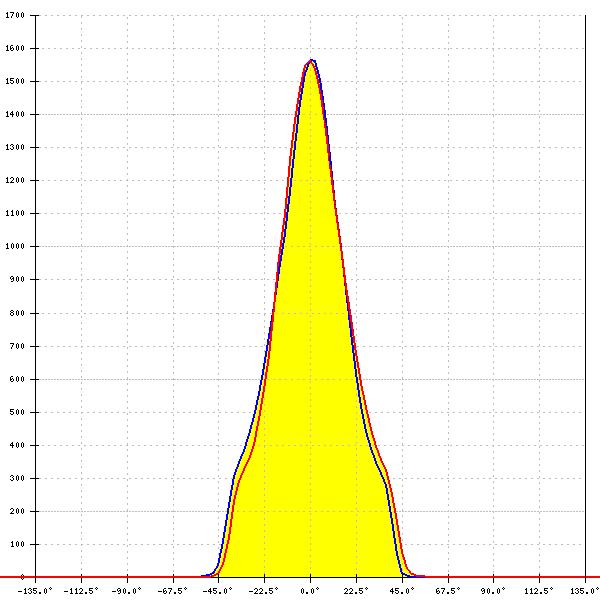

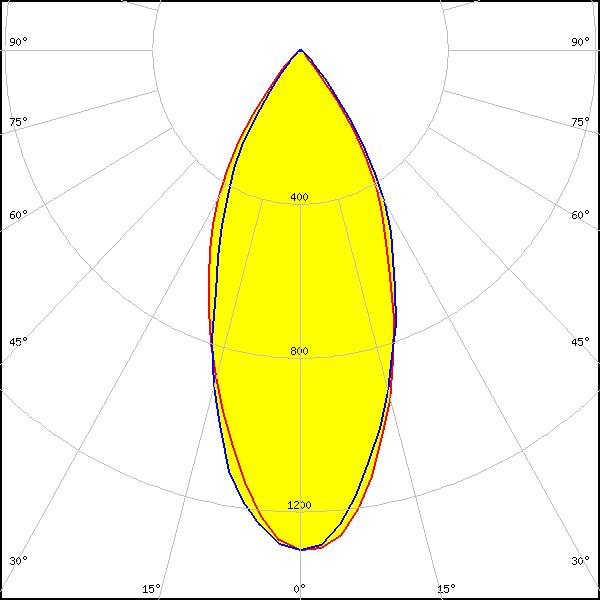

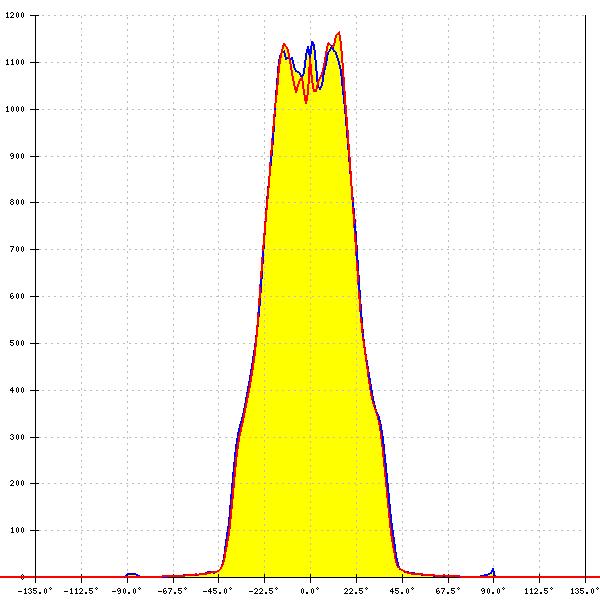

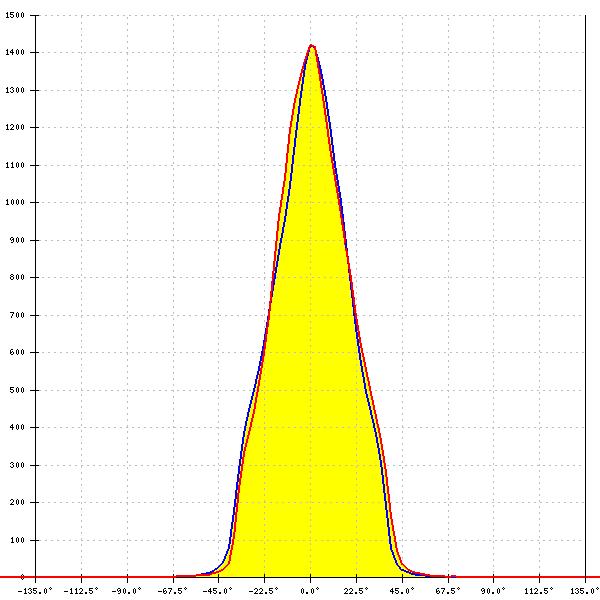

Duris S8
Required components:
FWHM:
44°
FWTM:
75°
Peak intensity:
1.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
Required components:
FWHM:
42°
FWTM:
78°
Peak intensity:
1.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

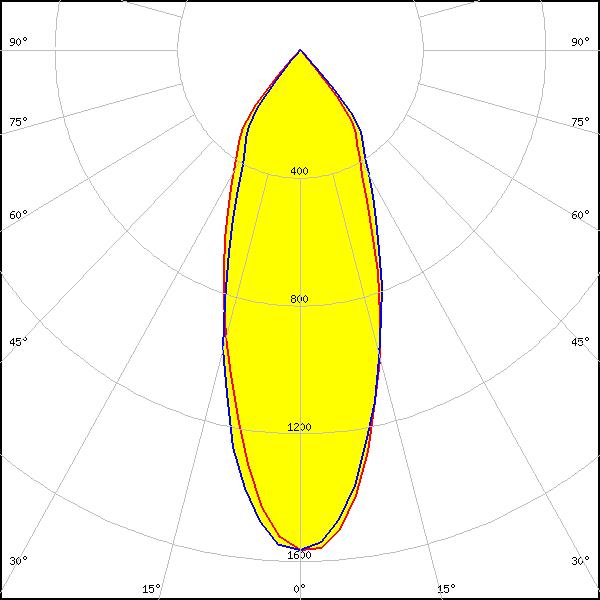

LED:
Duris S8
FWHM:
39°
FWTM:
82°
Peak intensity:
1.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
45°
FWTM:
84°
Peak intensity:
1.320 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
Required components:
FWHM:
50°
FWTM:
81°
Peak intensity:
1.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
Required components:
FWHM:
46°
FWTM:
79°
Peak intensity:
1.190 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

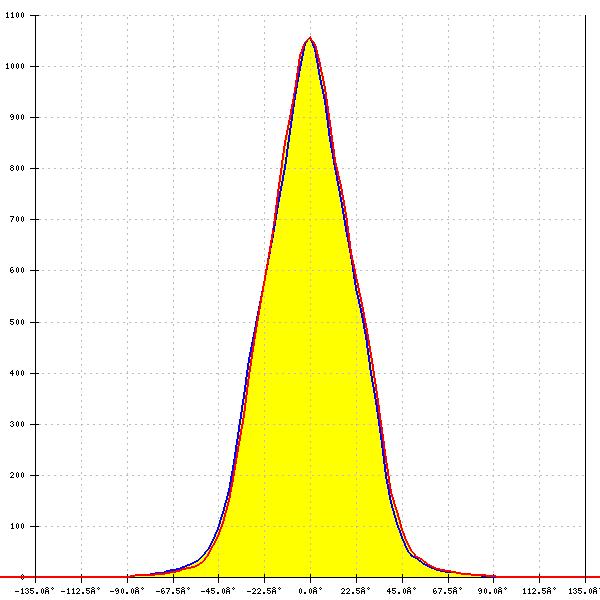

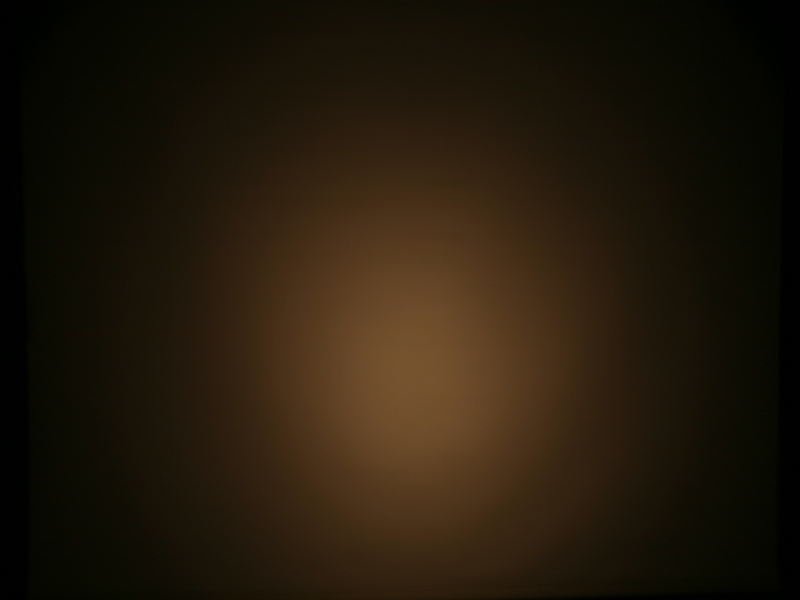

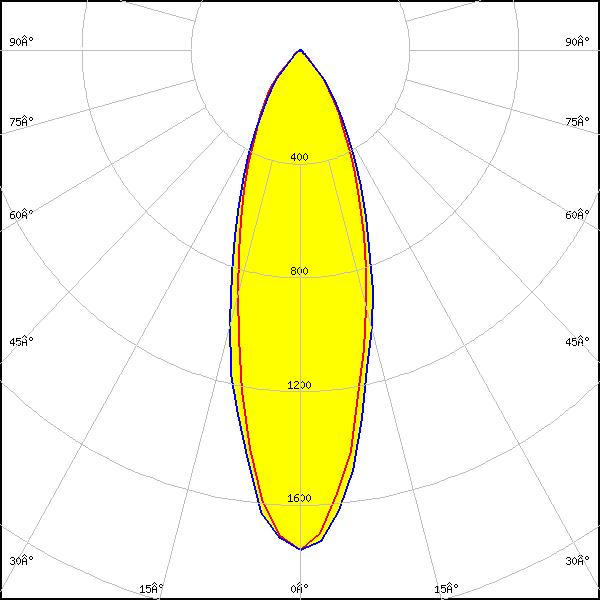

LED:

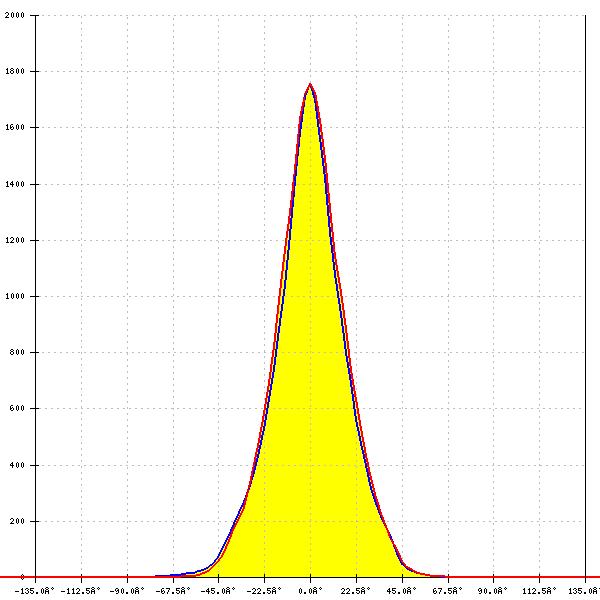

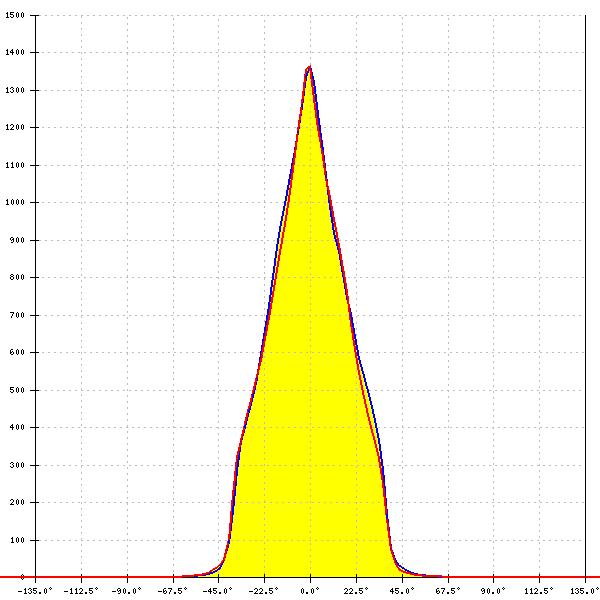

OSLON Square EC
FWHM:
32°
FWTM:
76°
Peak intensity:
1.760 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
Required components:
FWHM:
50°
FWTM:
85°
Peak intensity:
1.060 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

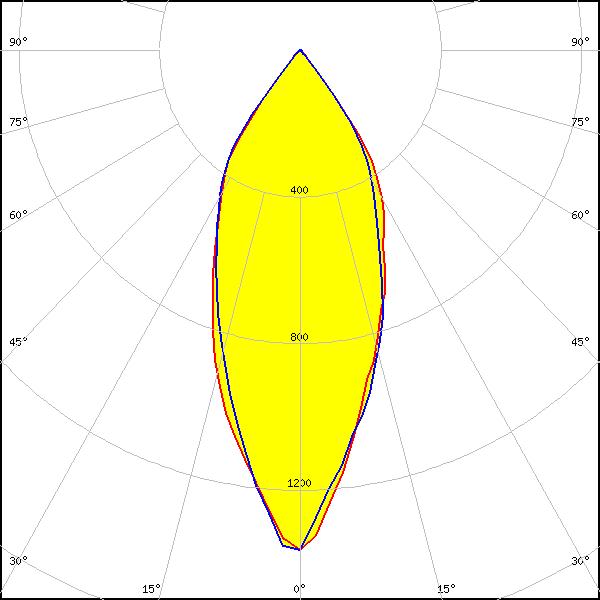

LED:
OSLON Square EC
Required components:
FWHM:
41°
FWTM:
78°
Peak intensity:
1.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

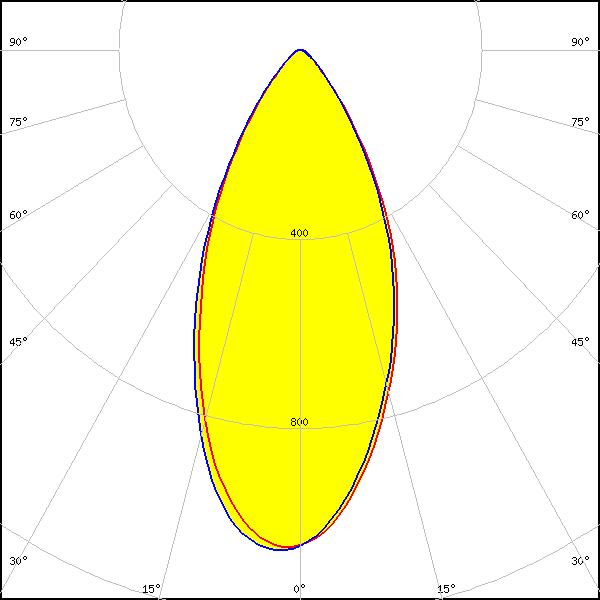

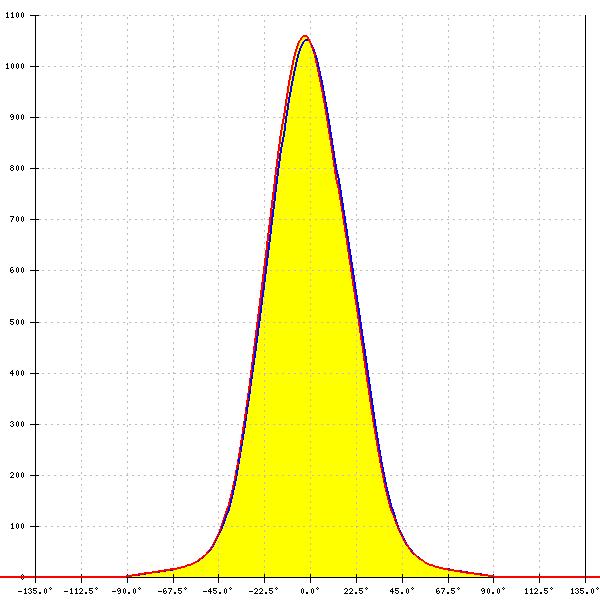

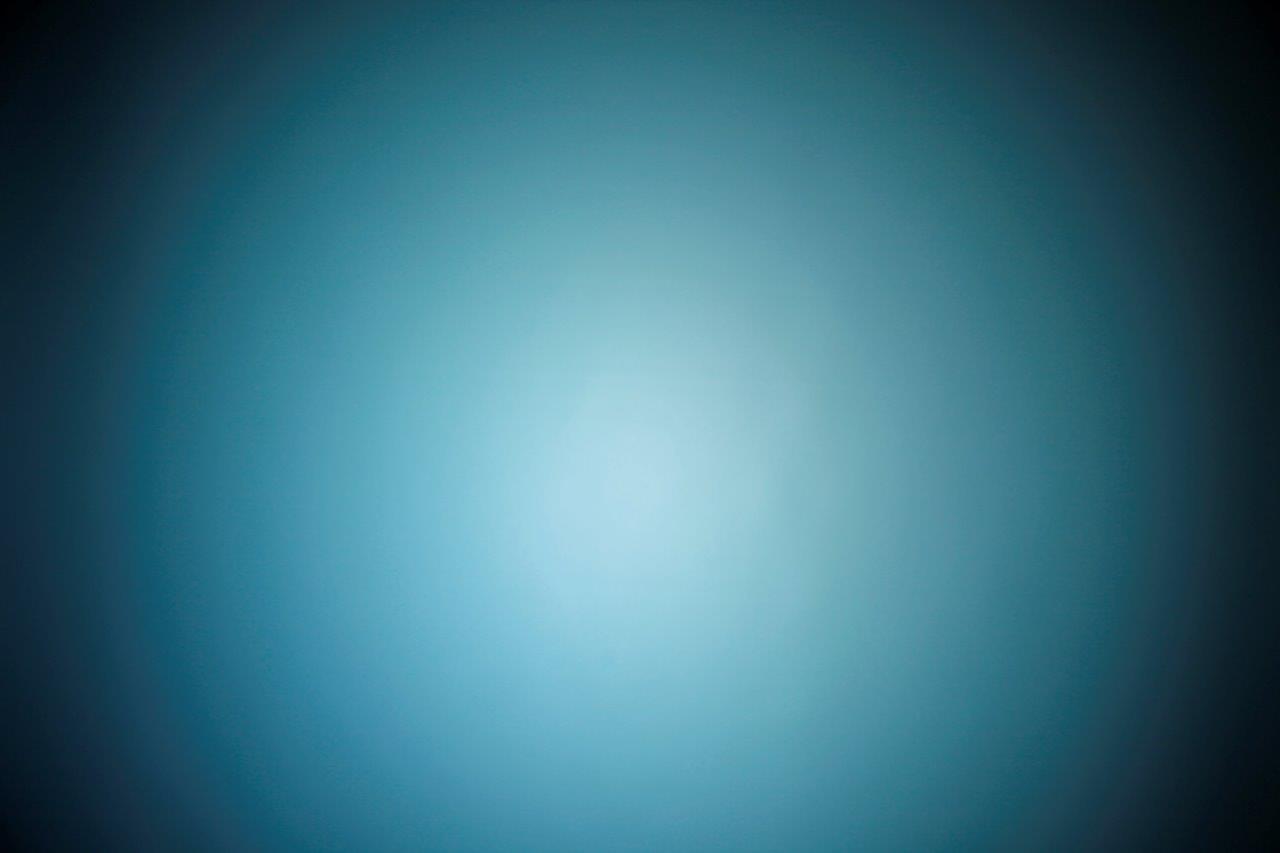

LED:
Ostar-SMT RGB
Required components:
FWHM:
48°
FWTM:
85°
Peak intensity:
1.100 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

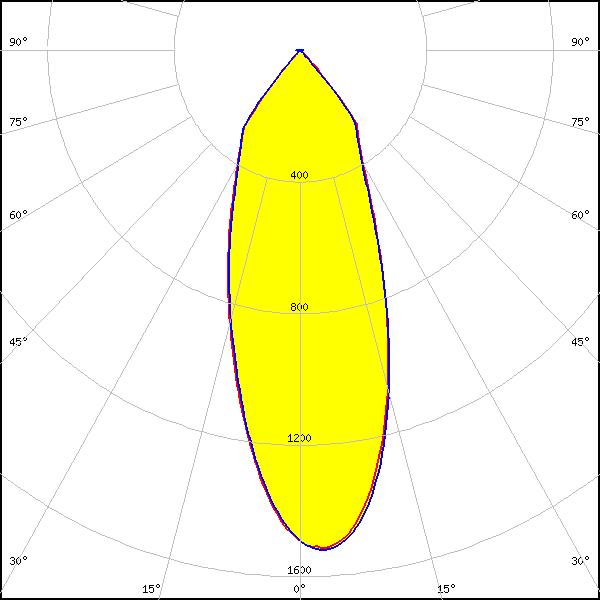

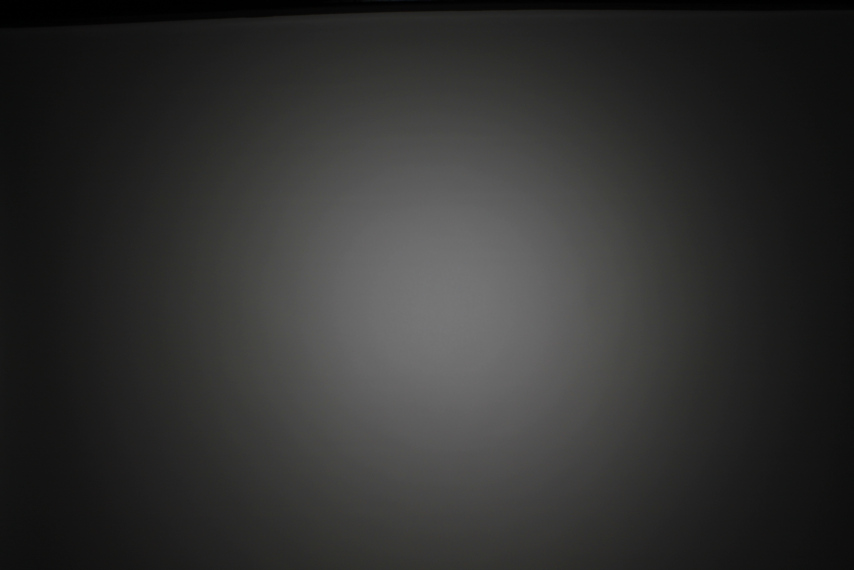

LED:

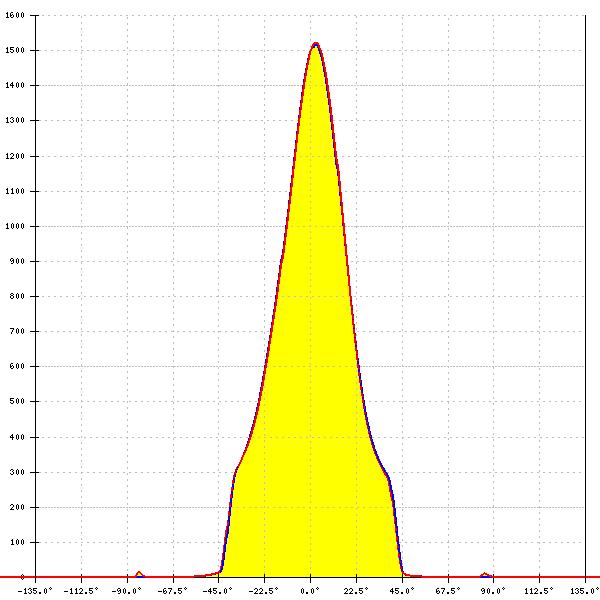

LH508A
FWHM:
38°
FWTM:
82°
Peak intensity:
1.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
F50360 (RGB)
Required components:
FWHM:
46°
FWTM:
86°
Peak intensity:
1.200 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

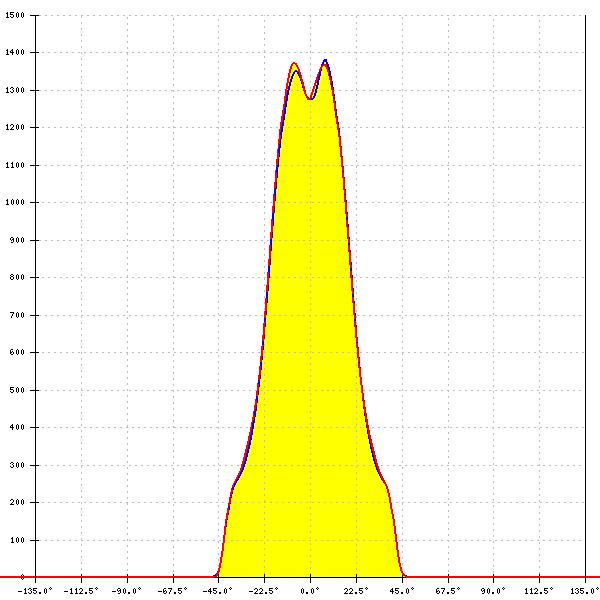

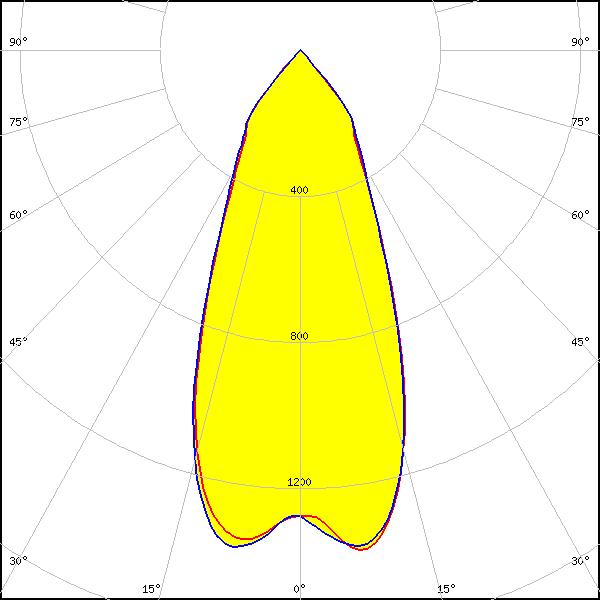

LED:
Z8Y22P
FWHM:
43°
FWTM:
82°
Peak intensity:
1.380 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
