C12868_FLARE-MAXI

Print

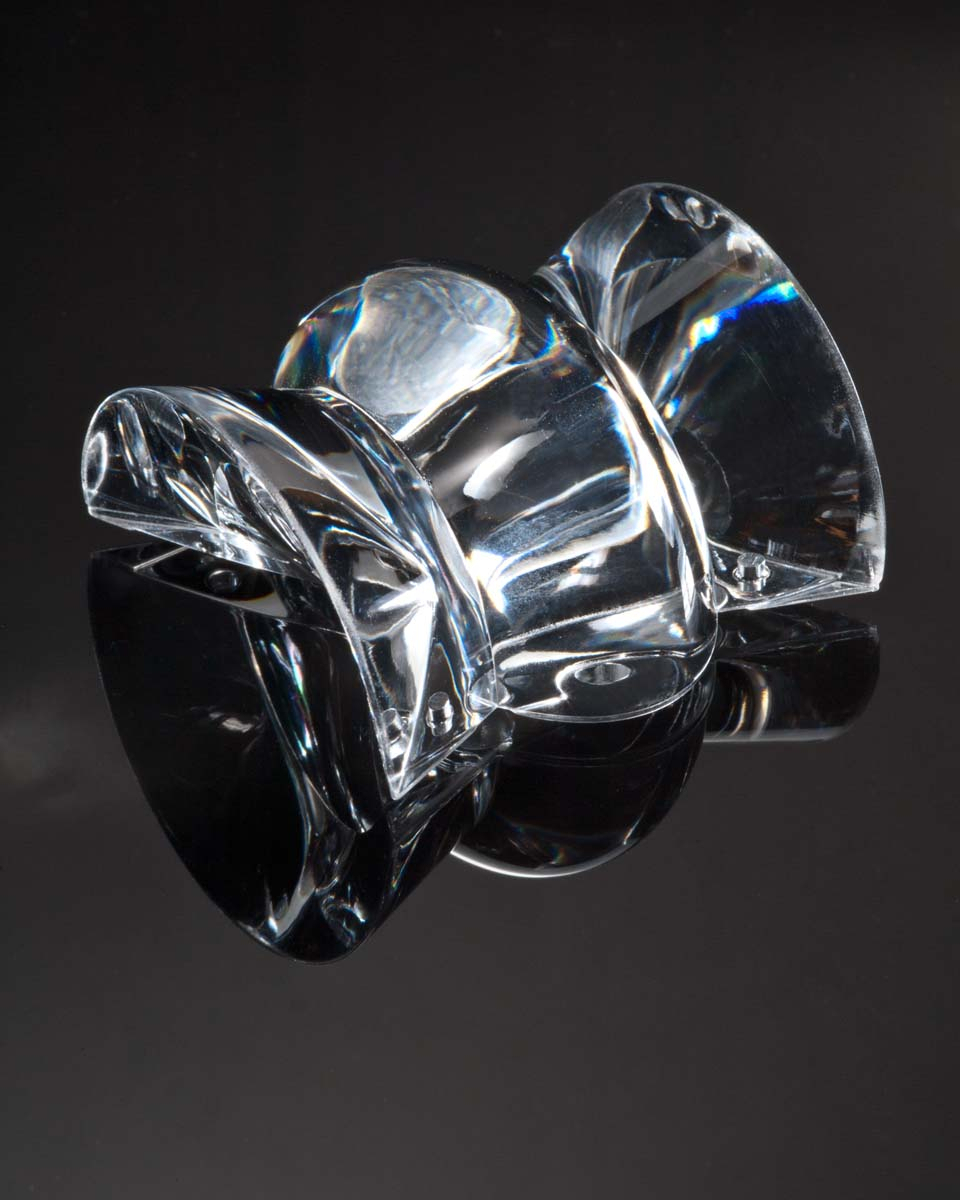

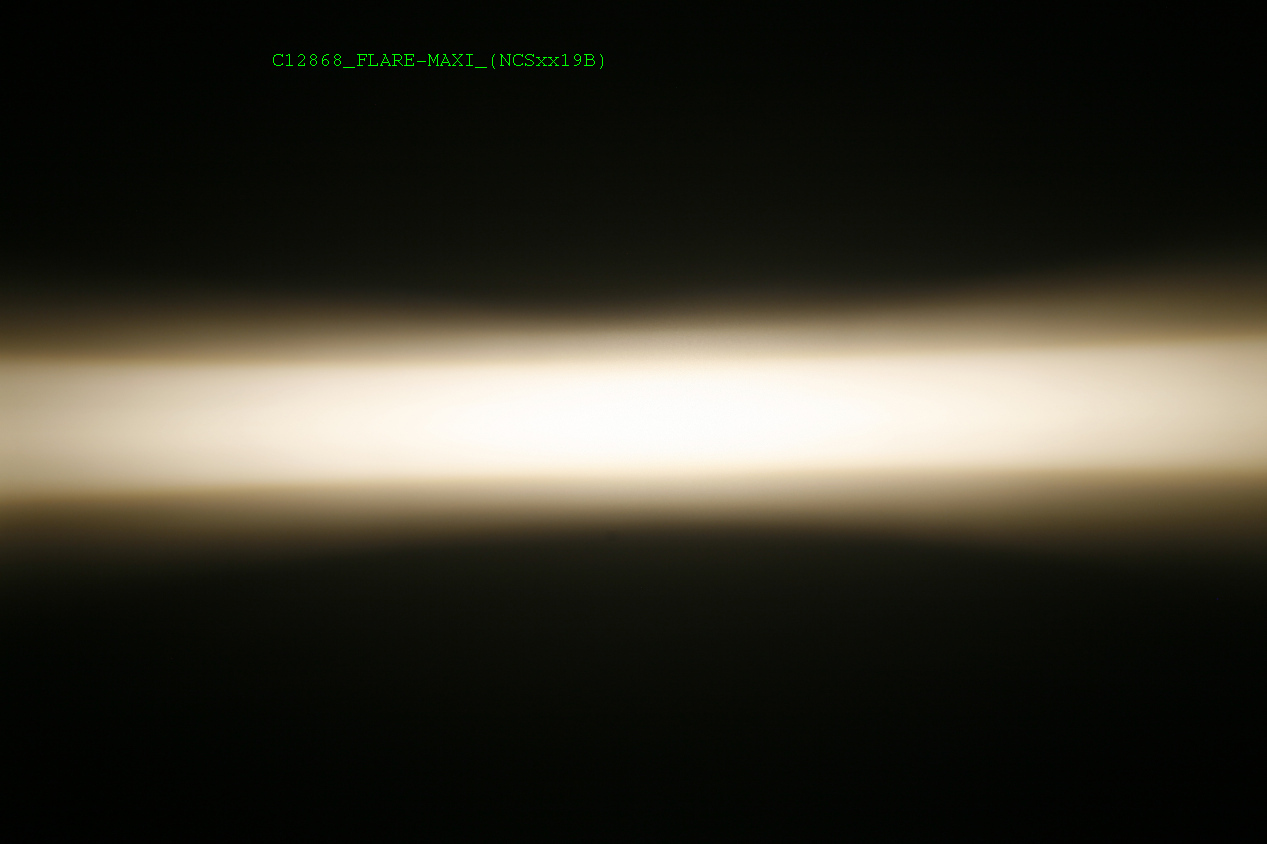

34 x 33 mm lens with ~100° x 15° oval beam

Specification
  • Dimensions:
    34 x  33 mm
  • Height:
    16.7 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PMMA
Packing information
  • Quantity in box:
    840 pcs
  • Box weight:
    9.5 kg
  • MPQ:
    168 pcs
  • MOQ:
    168 pcs
  • MOQ size:
    280 x 180 x 90 mm
  • MOQ weight:
    1.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

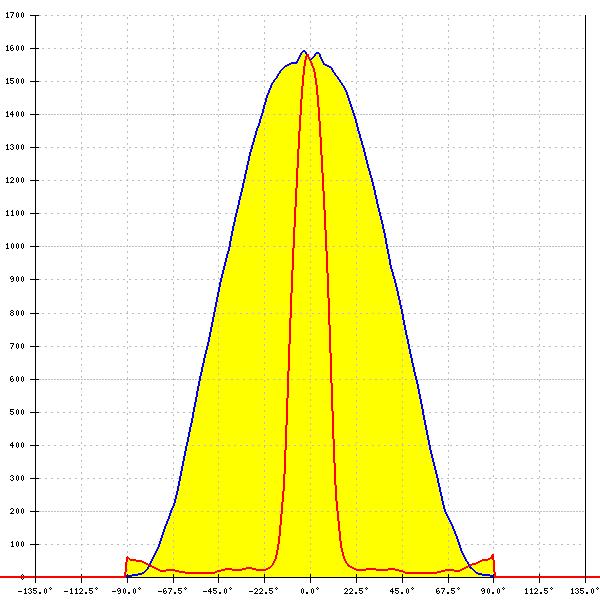

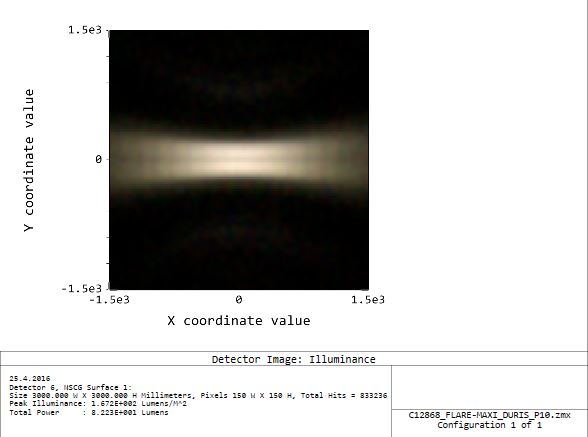

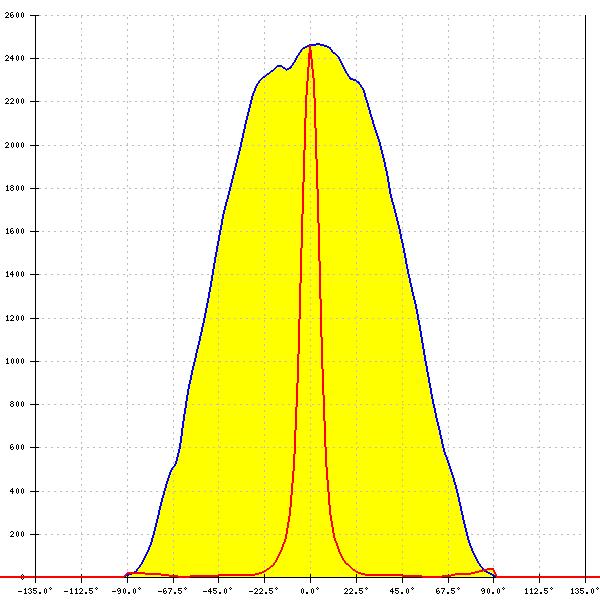

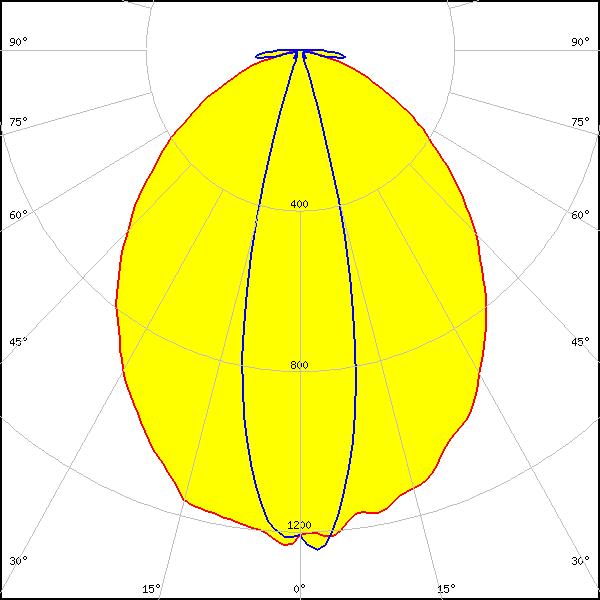

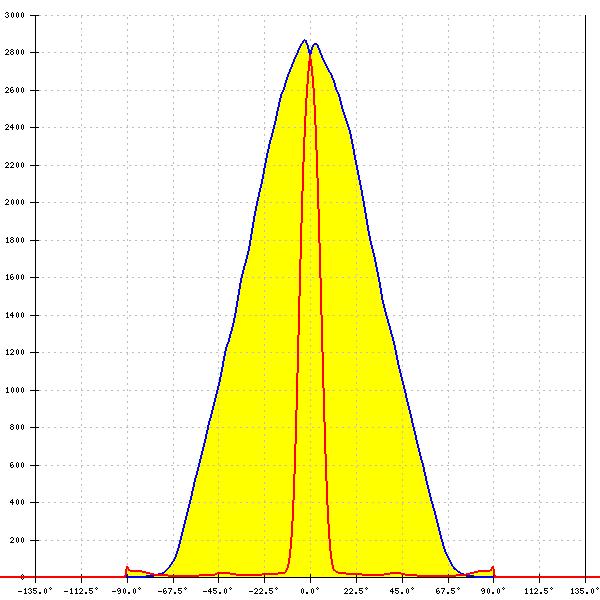

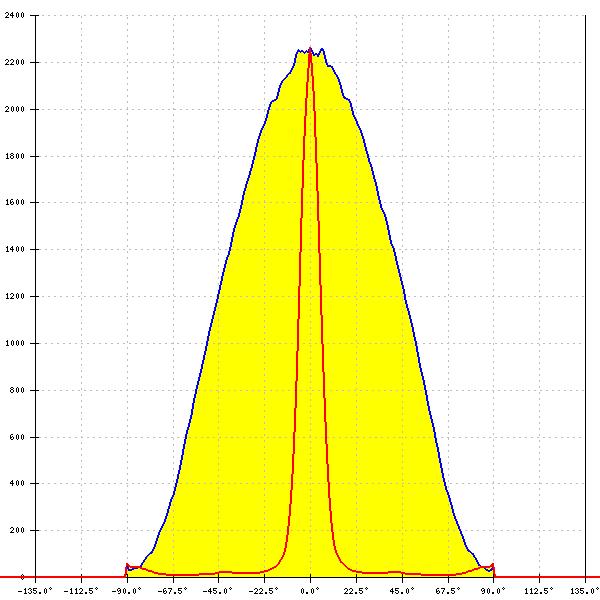

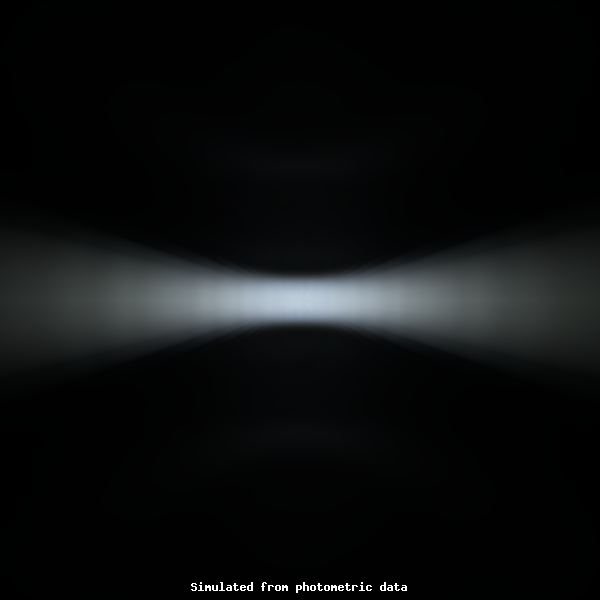

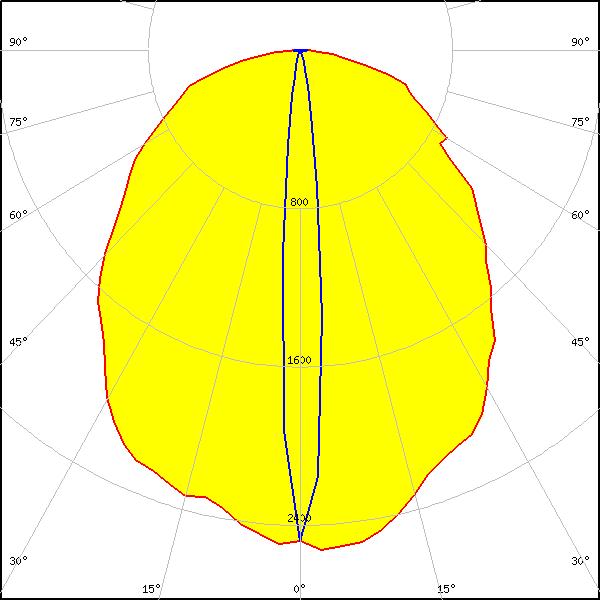

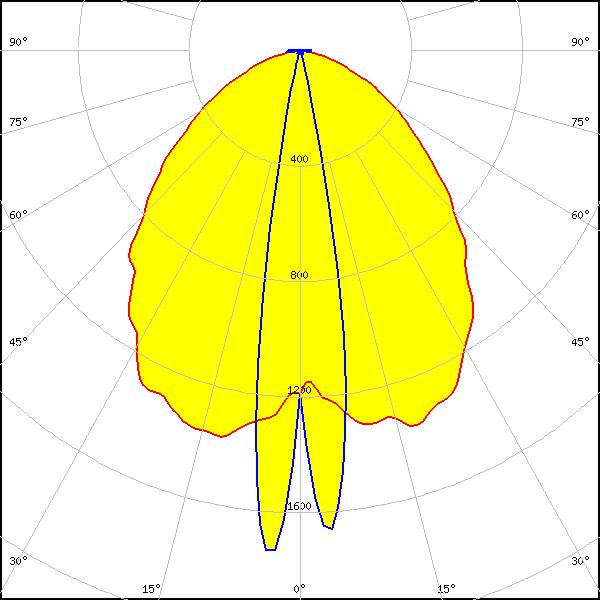

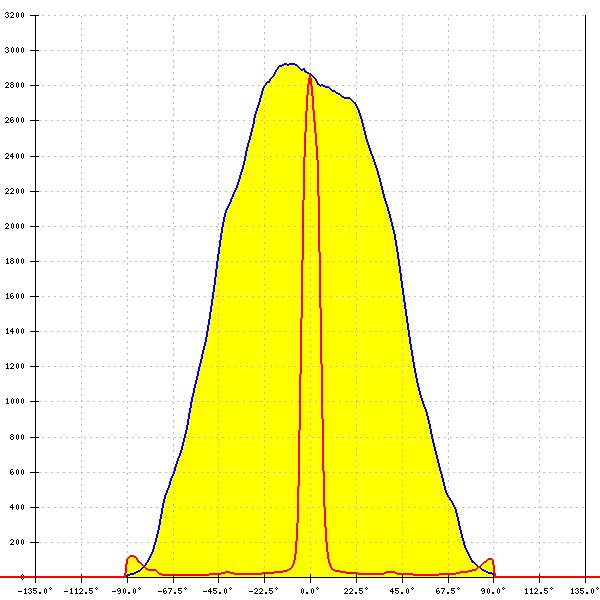

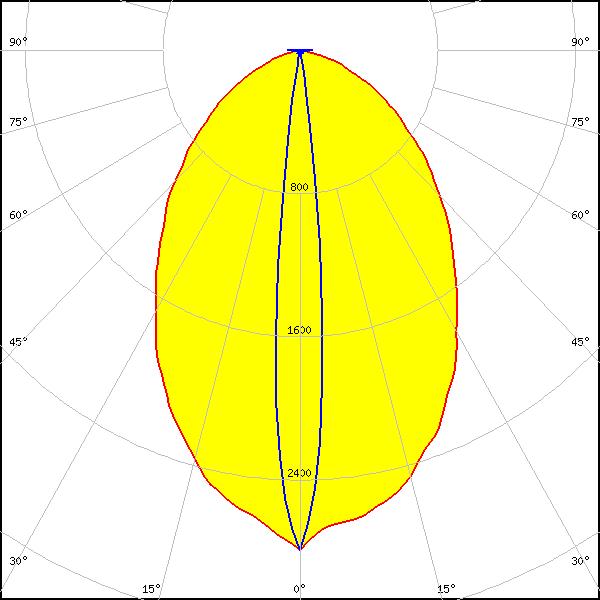

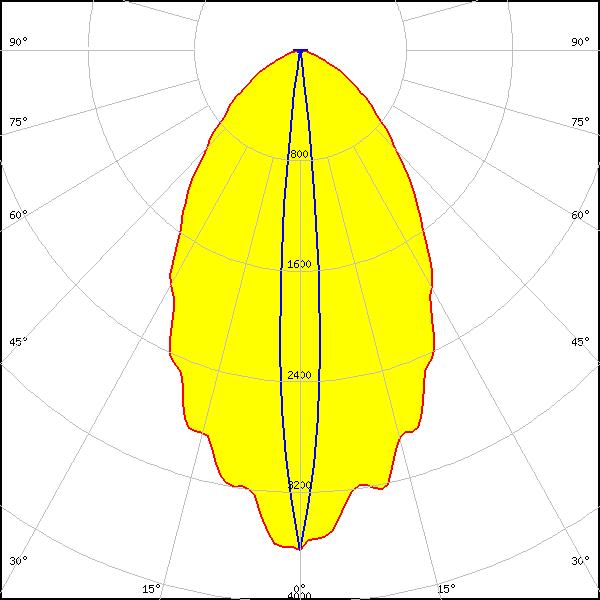

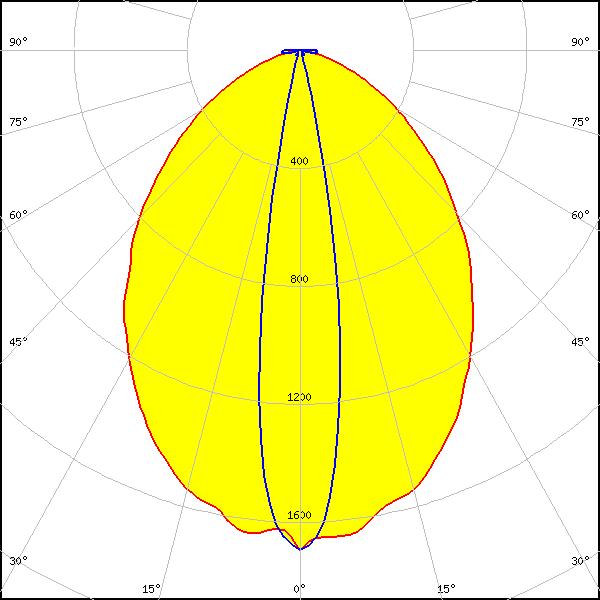

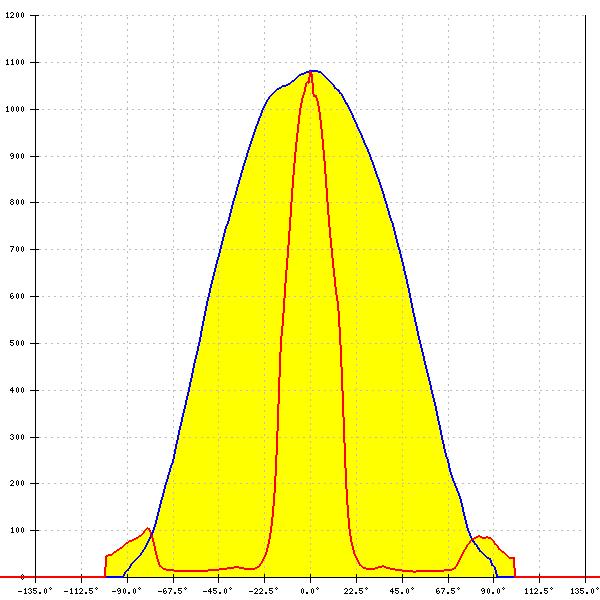

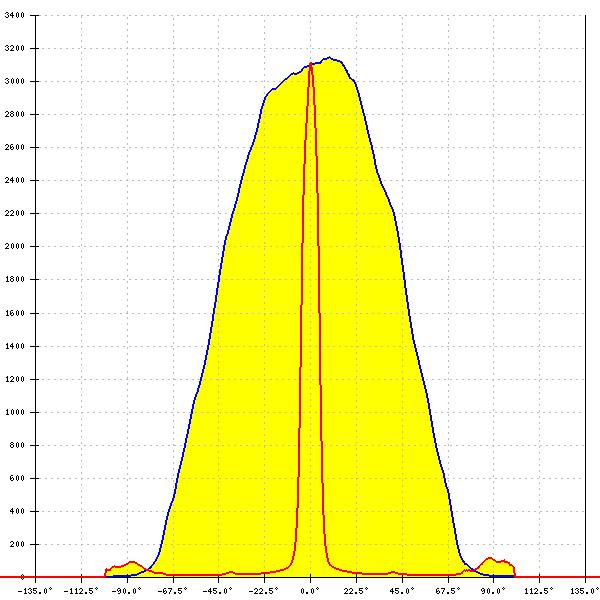

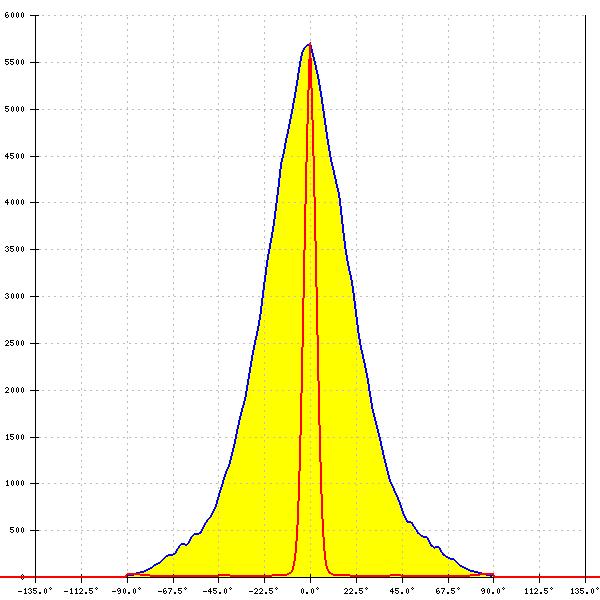

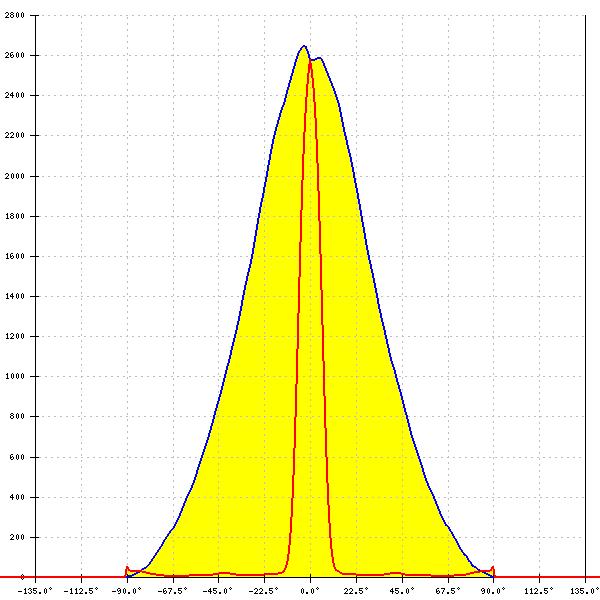

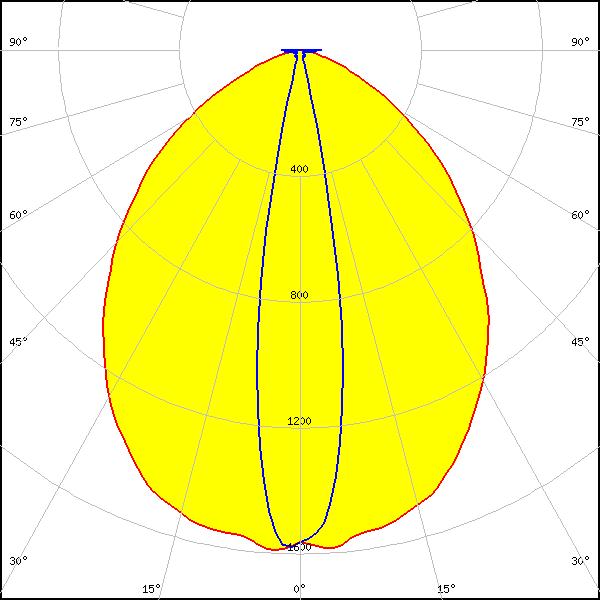

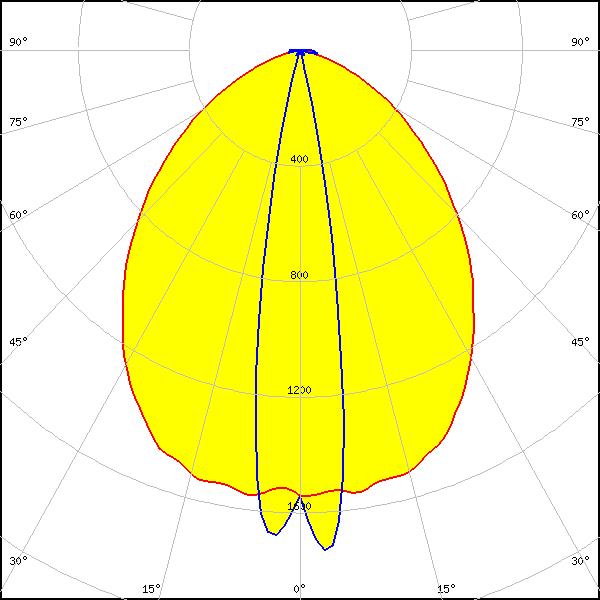

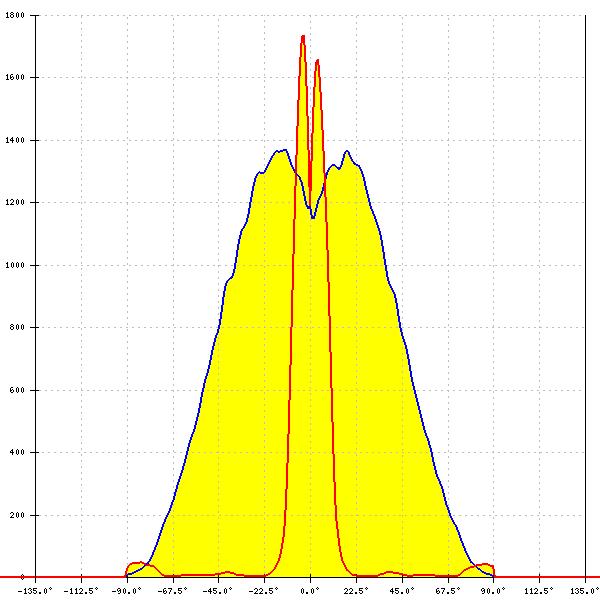

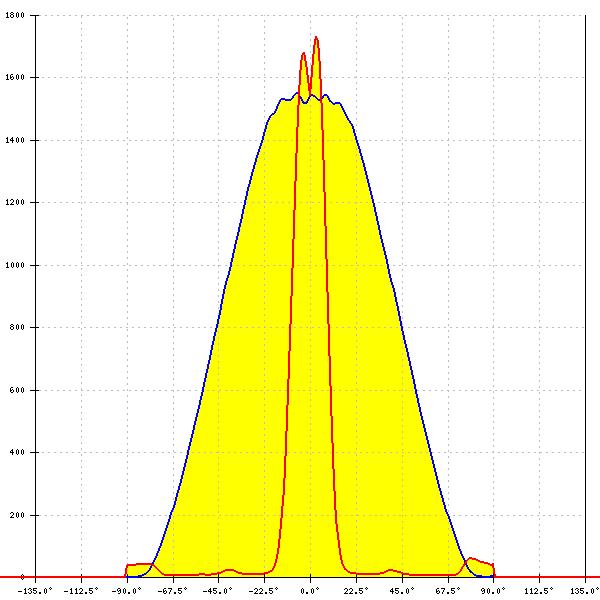

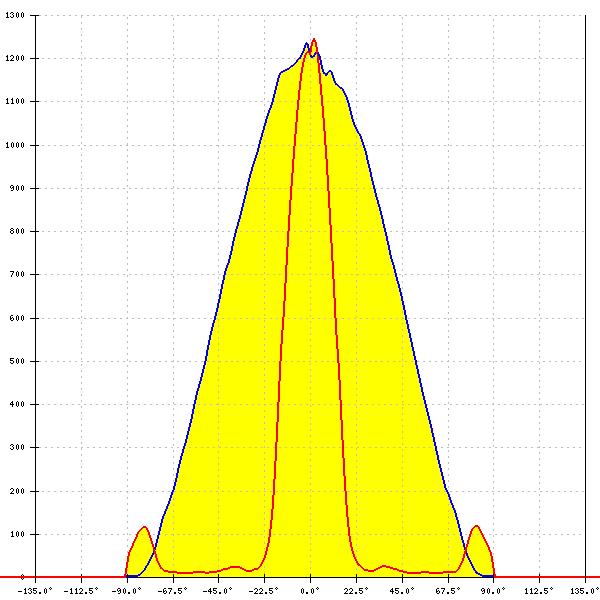

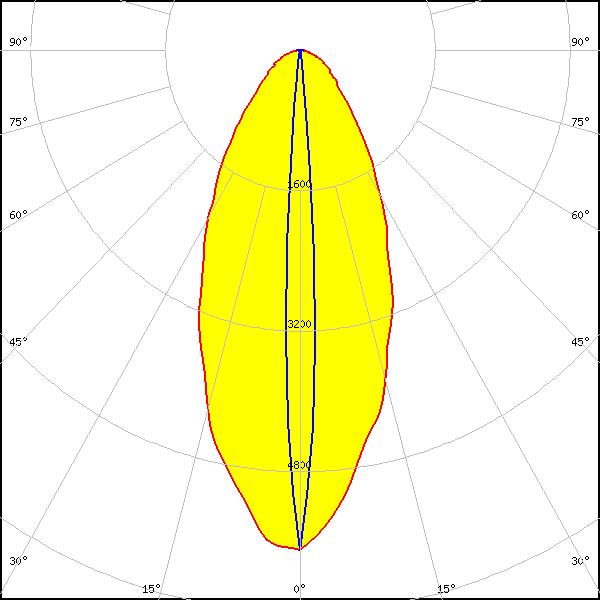

Optical results

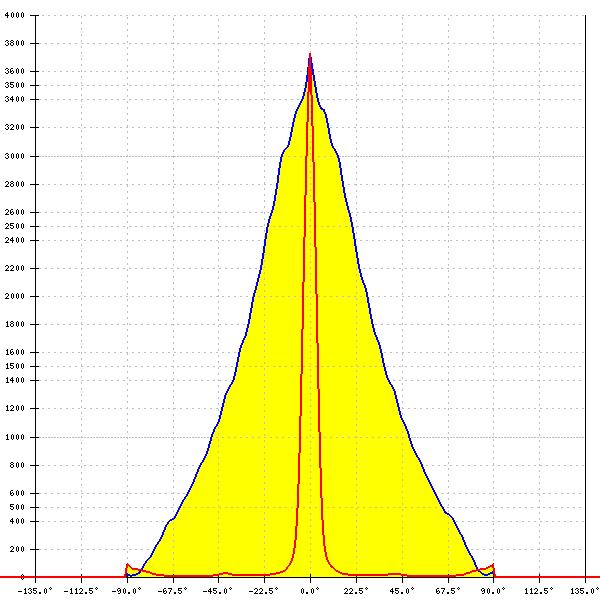

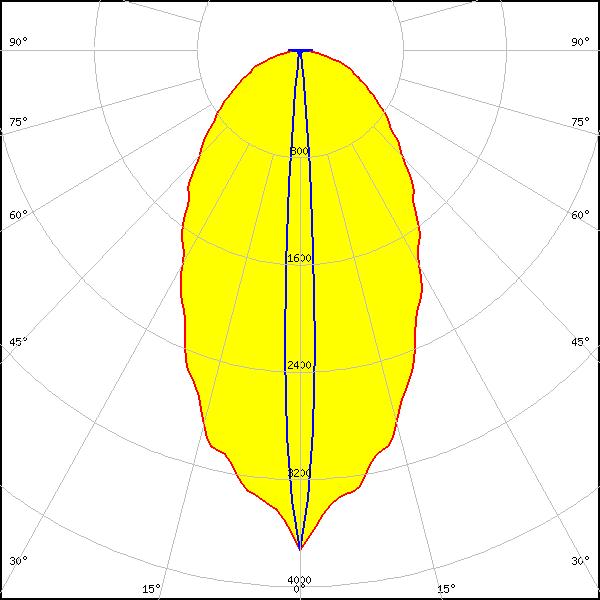

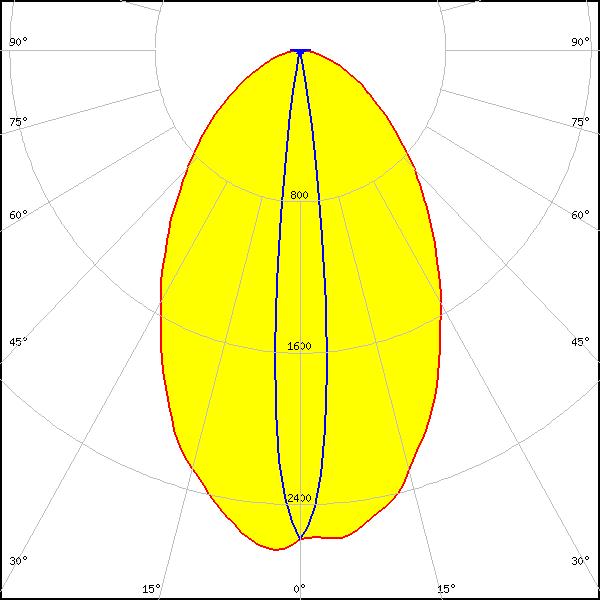

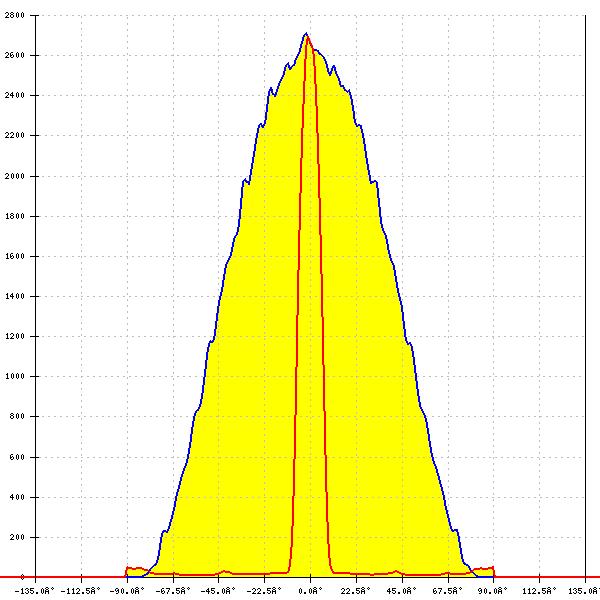

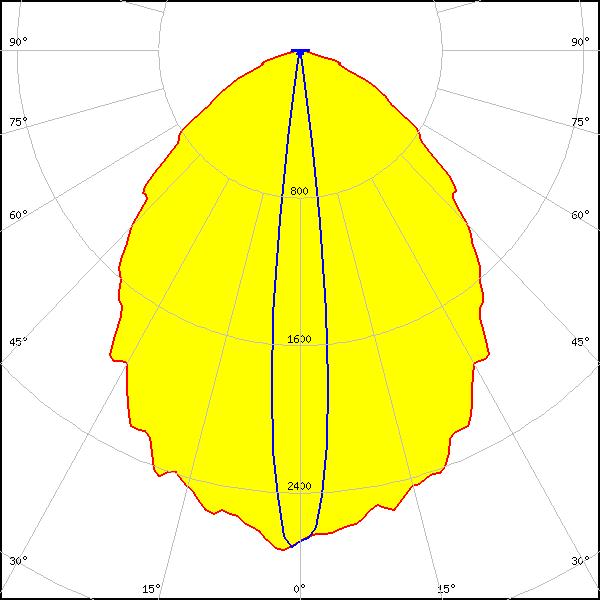

LED: XD16
FWHM: 60° + 7°
Peak intensity: 3.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

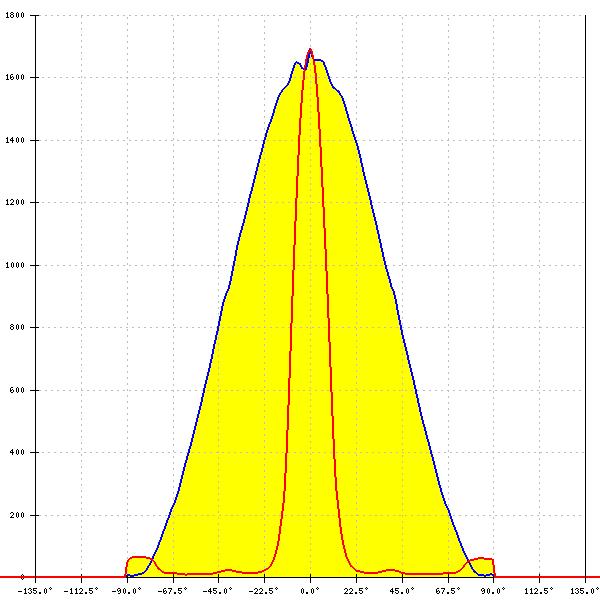

LED: XHP70.2
FWHM: 105° + 28°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

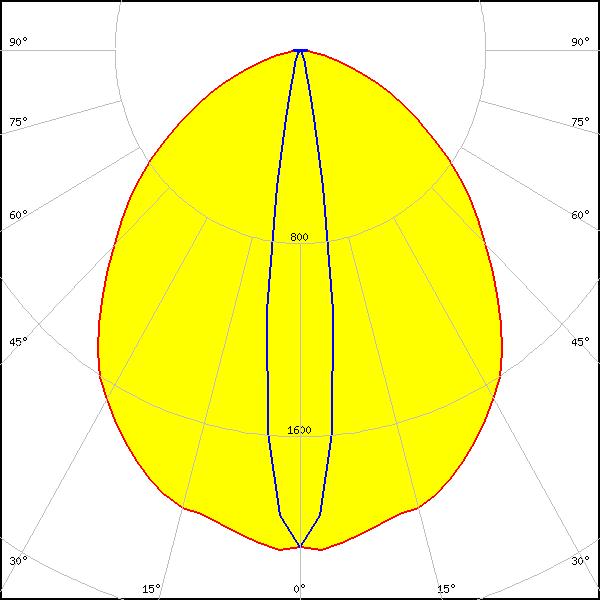

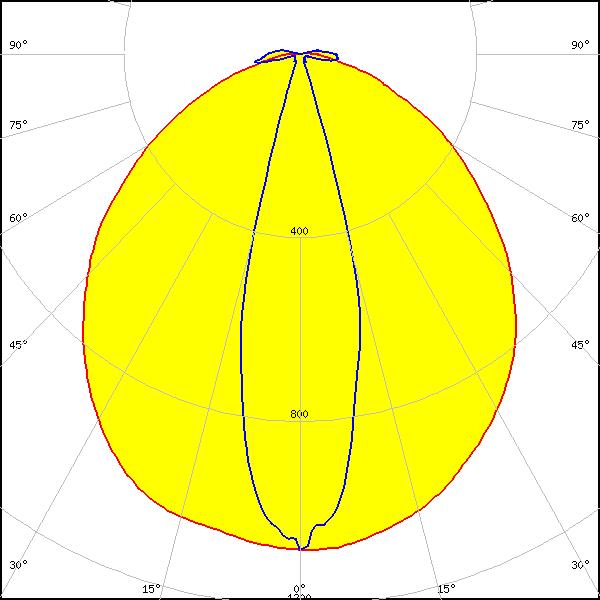

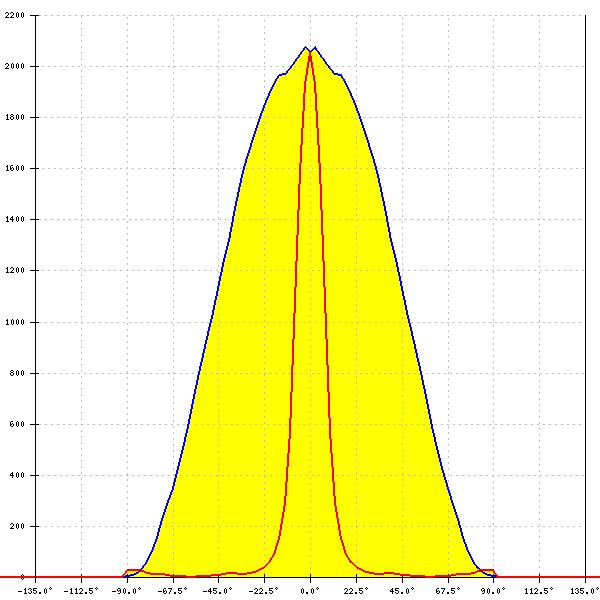

LED: XM-L
FWHM: 96° + 15°
Peak intensity: 2.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

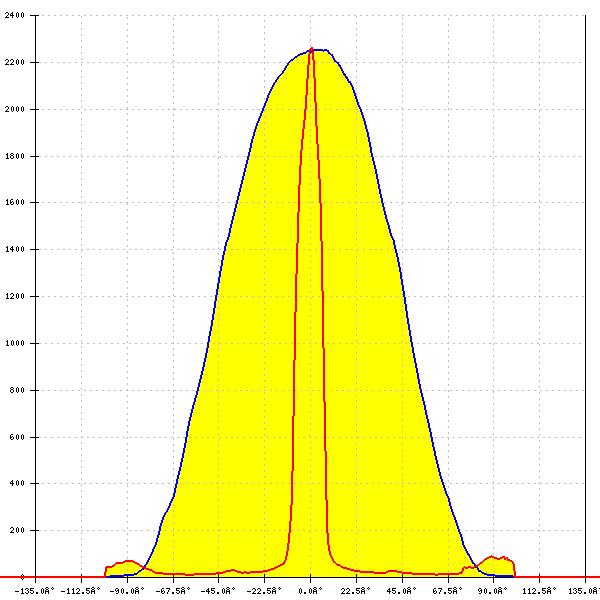

LED: XM-L2
FWHM: 95° + 14°
Peak intensity: 2.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

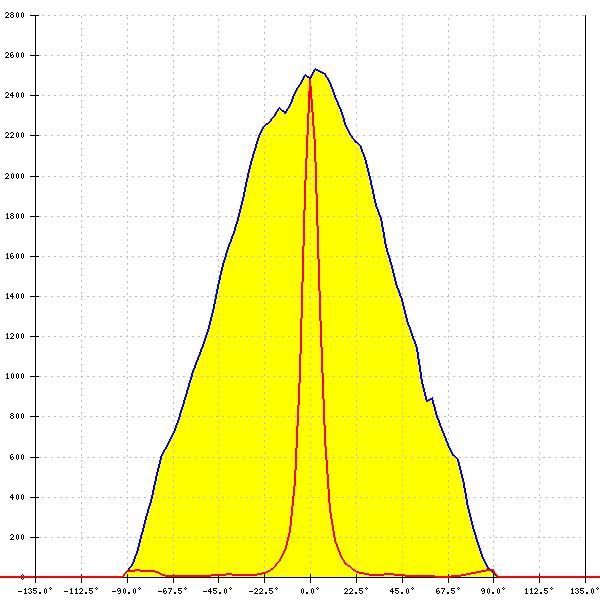

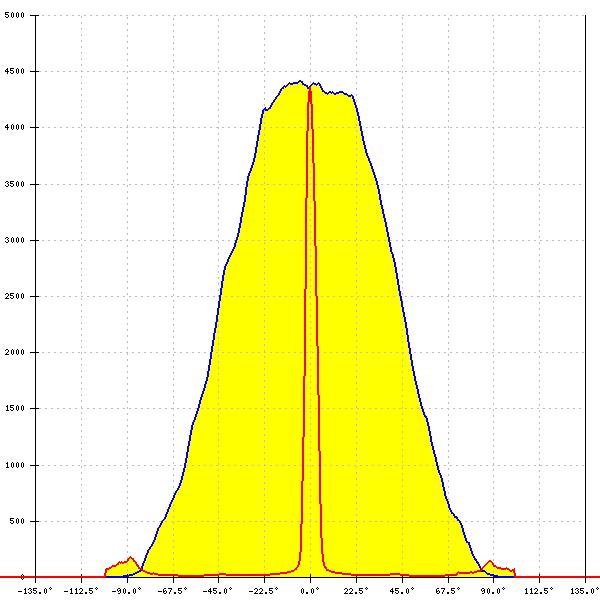

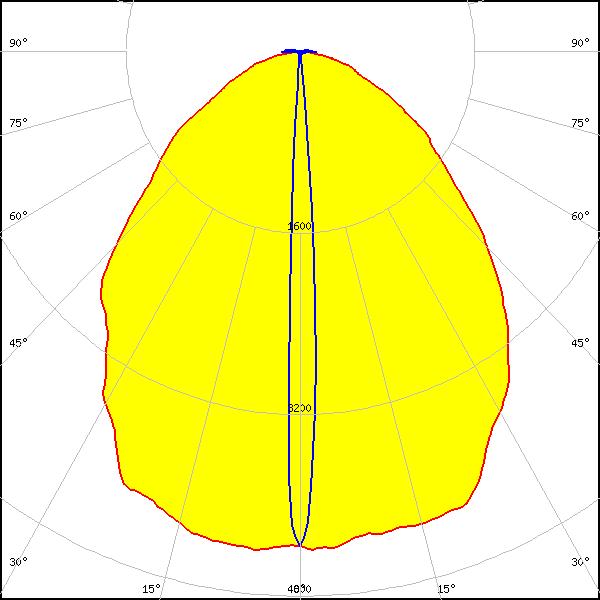

LED: XP-E
FWHM: 94° + 6°
Peak intensity: 4.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

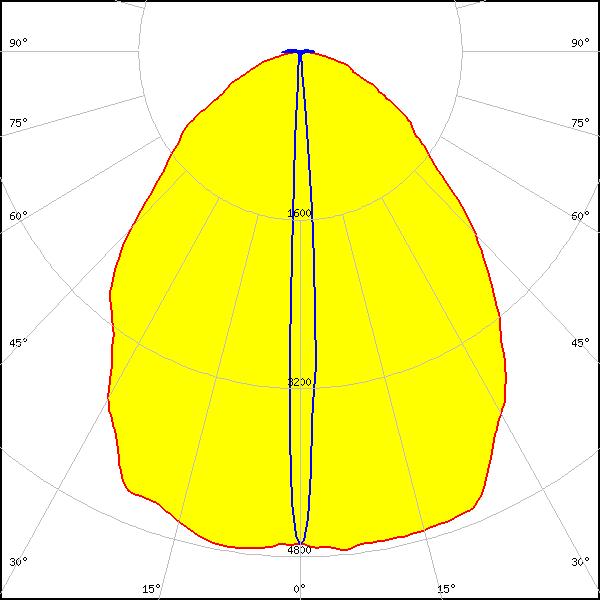

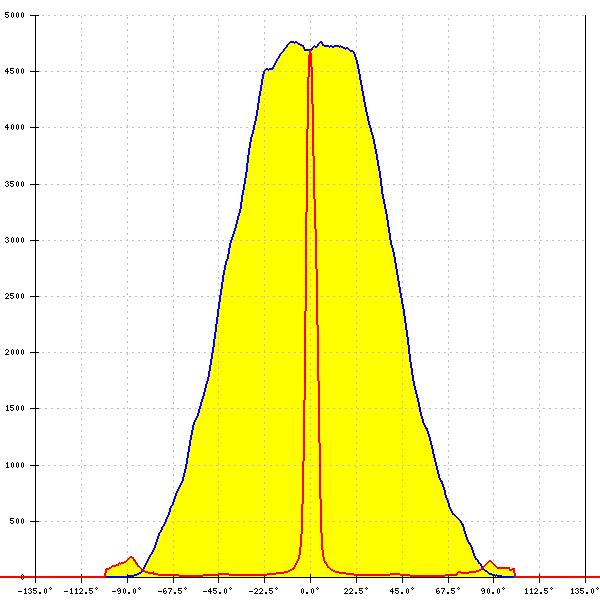

LED: XP-E2
FWHM: 91° + 6°
Peak intensity: 4.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

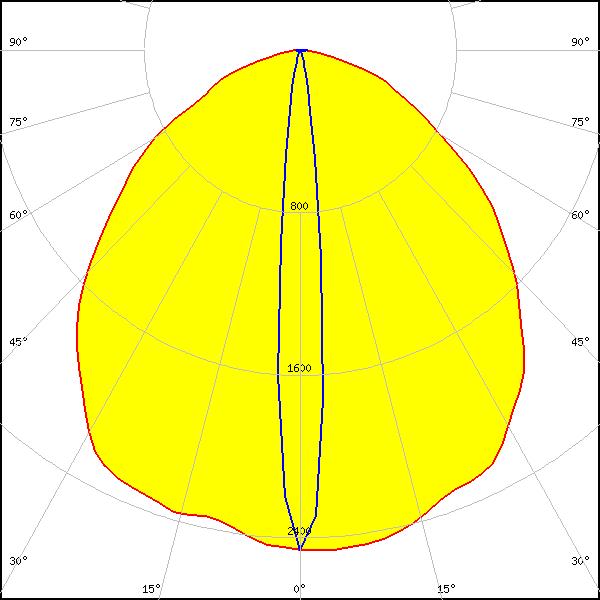

LED: XP-G
FWHM: 105° + 11°
Peak intensity: 2.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

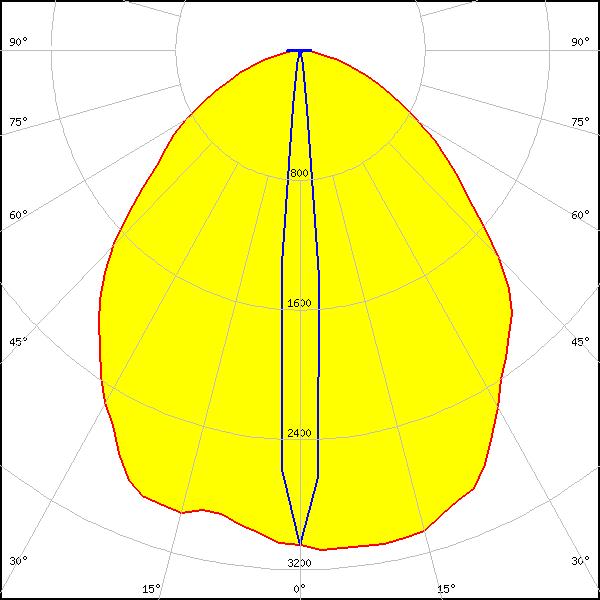

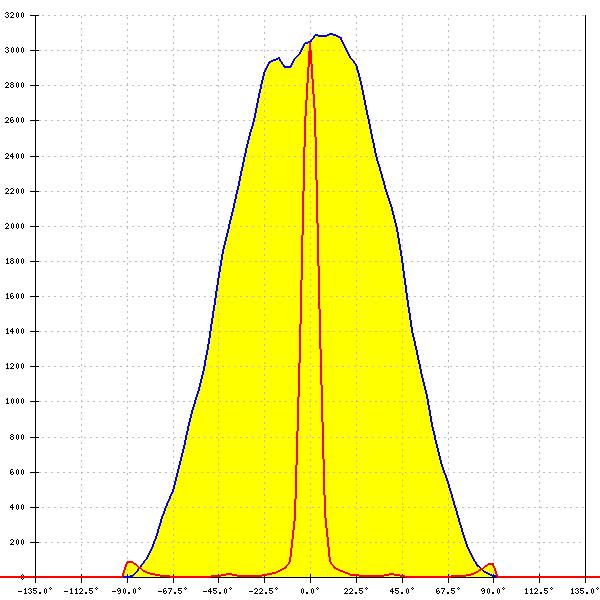

LED: XP-G2
FWHM: 96° + 10°
Peak intensity: 3.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

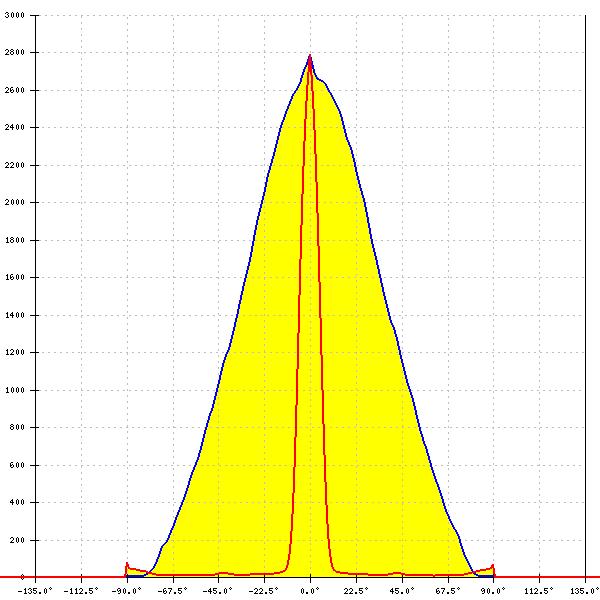

LED: XP-G2 HE
FWHM: 75° + 11°
Peak intensity: 2.8 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

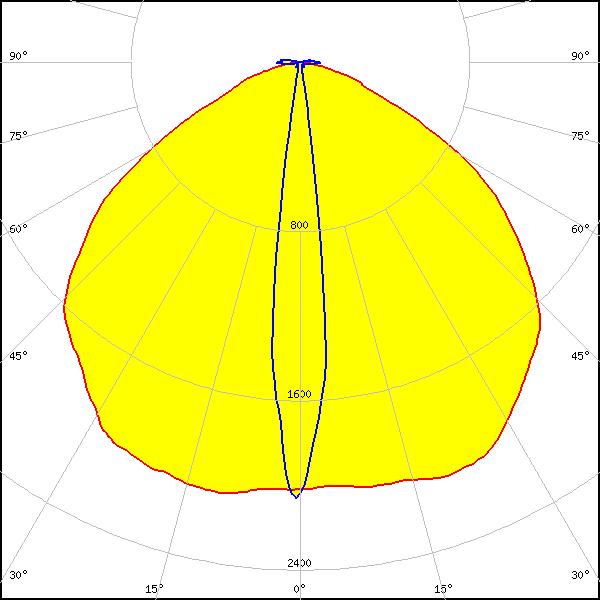

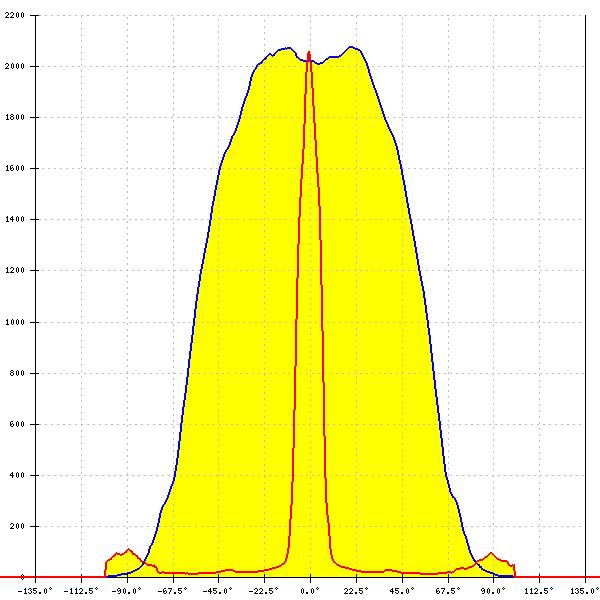

LED: XP-L HD
FWHM: 115° + 13°
Peak intensity: 2.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XT-E
FWHM: 96° + 10°
Peak intensity: 2.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: H35C1 (LEMWA33)
FWHM: 99° + 10°
Peak intensity: 3.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

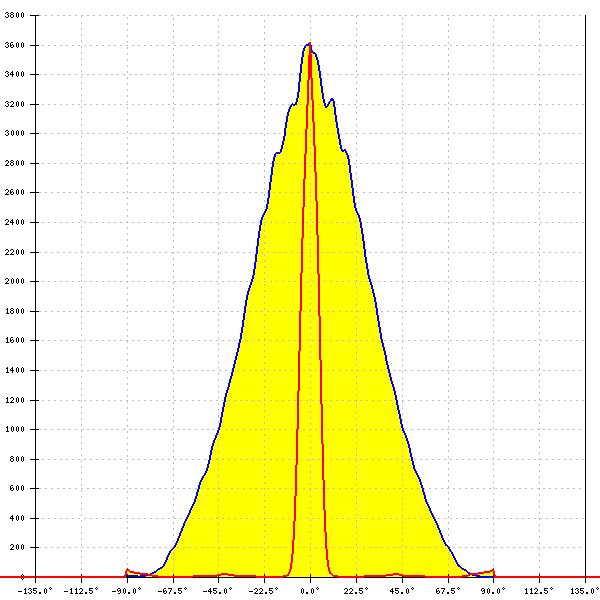

LED: LUXEON H50-2
FWHM: 10° + 64°
Peak intensity: 3.6 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

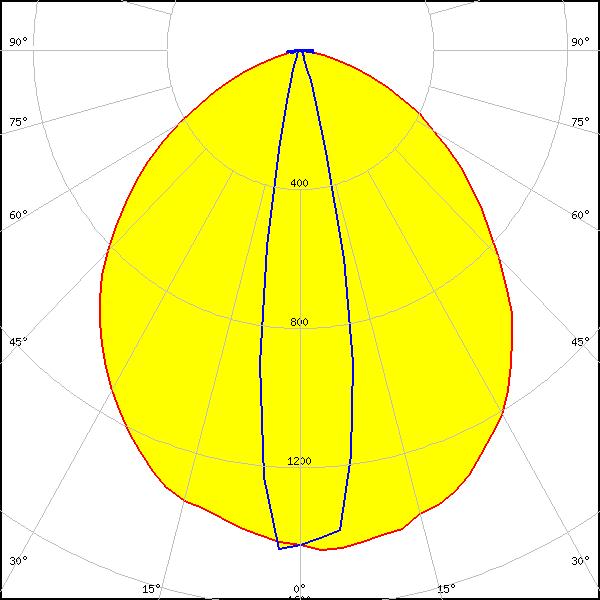

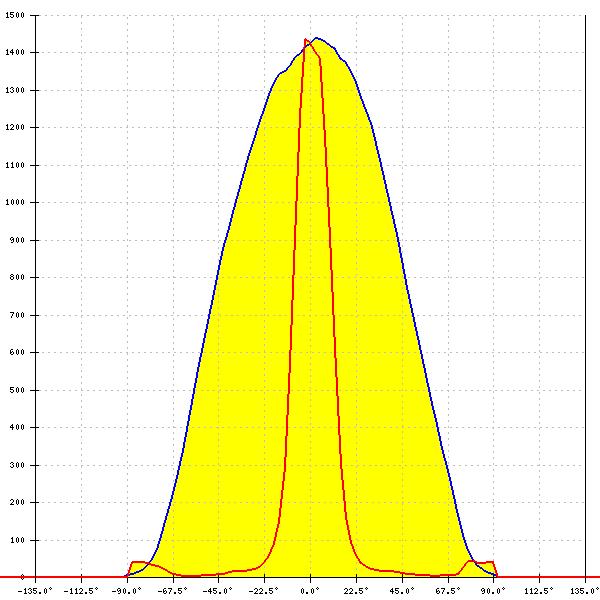

LED: LUXEON M/MX
FWHM: 100° + 23°
Peak intensity: 1.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

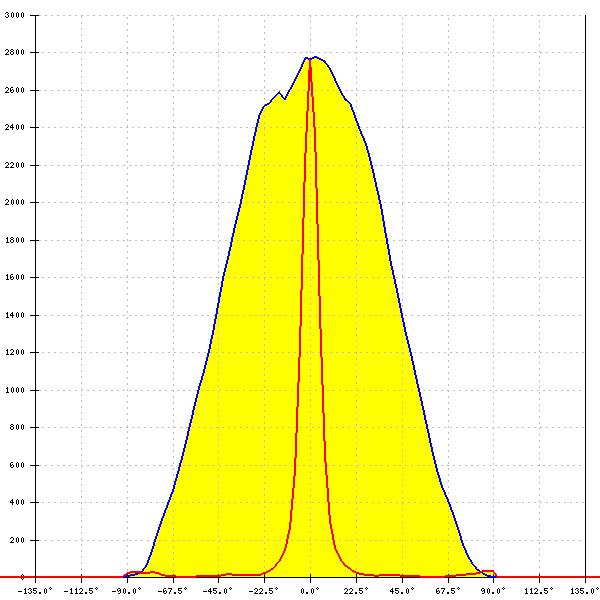

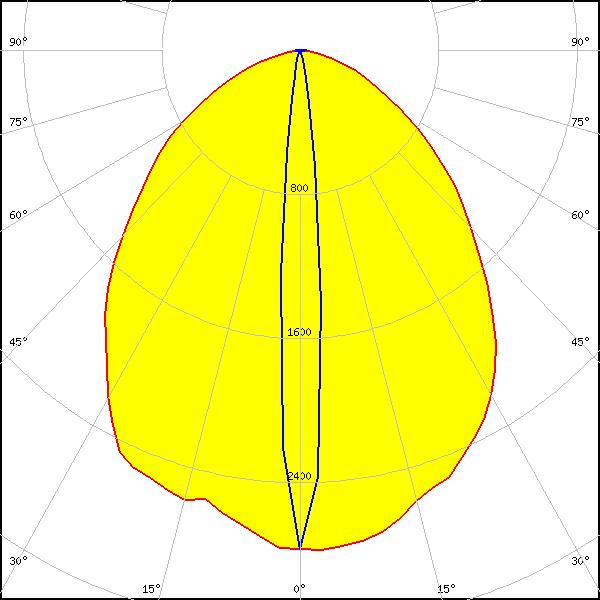

LED: LUXEON Rebel ES
FWHM: 91° + 10°
Peak intensity: 2.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

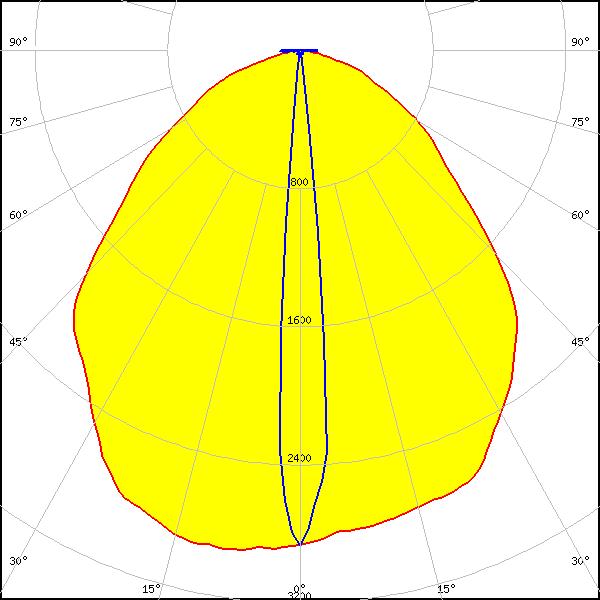

LED: LUXEON T
FWHM: 96° + 10°
Peak intensity: 2.9 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

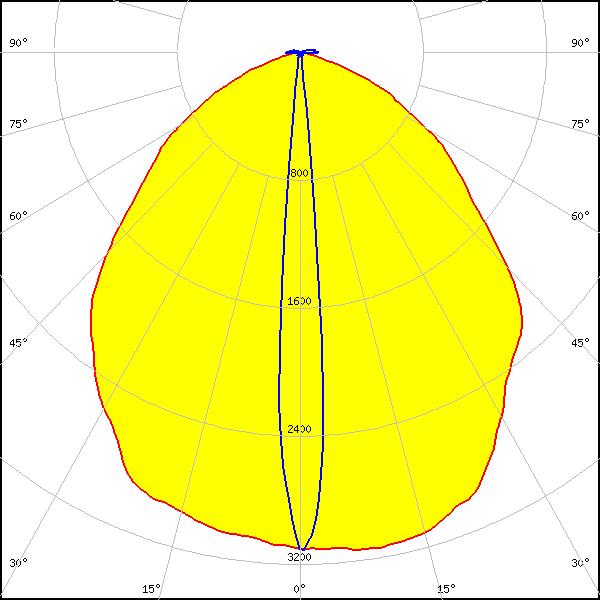

LED: LUXEON TX
FWHM: 96° + 9°
Peak intensity: 3.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

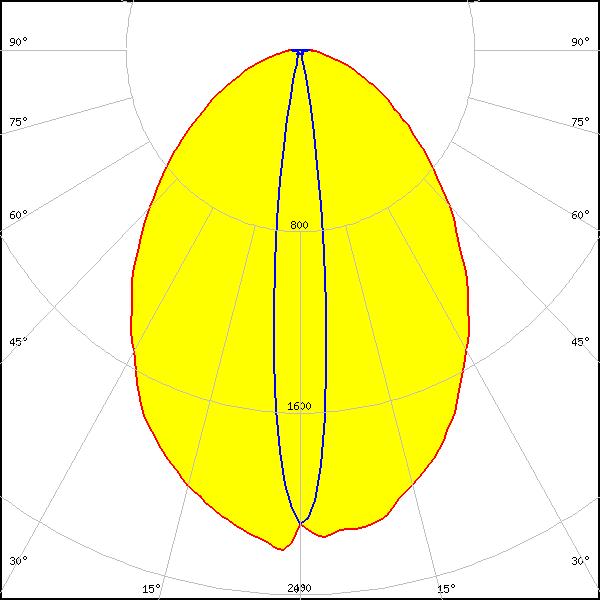

LED: LUXEON V
FWHM: 12° + 79°
Peak intensity: 2.2 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

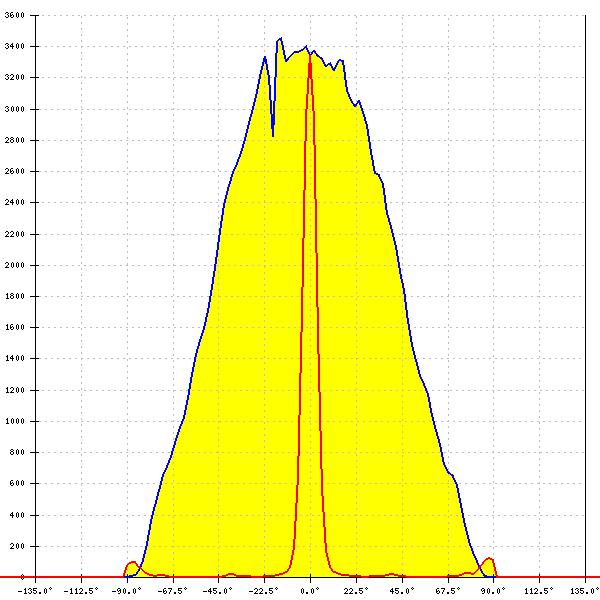

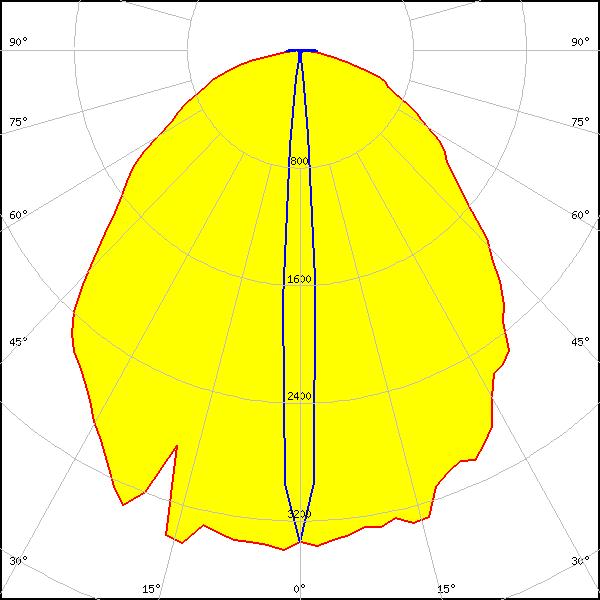

LED: NCSxx19B
FWHM: 98° + 9°
Peak intensity: 3.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

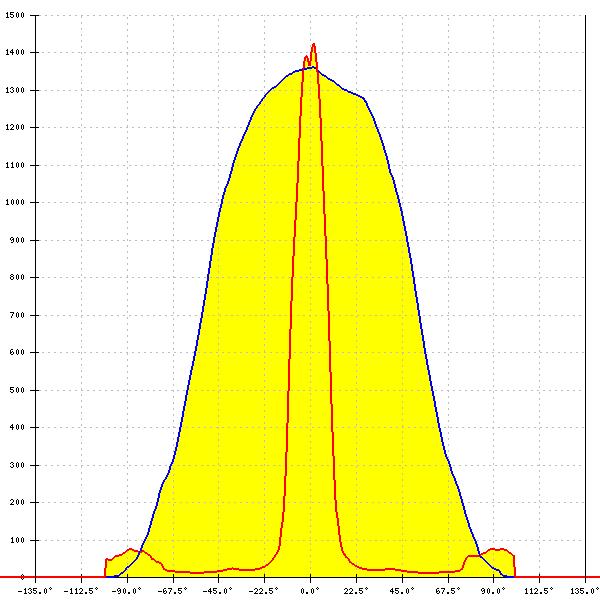

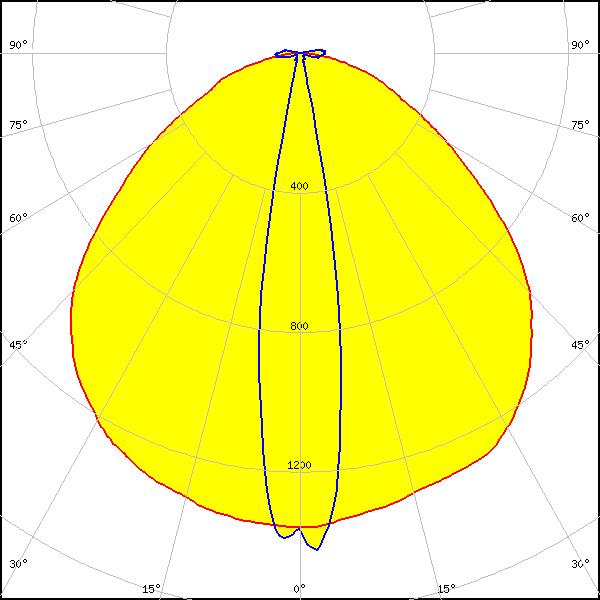

LED: NV4x144A
FWHM: 108° + 19°
Peak intensity: 1.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

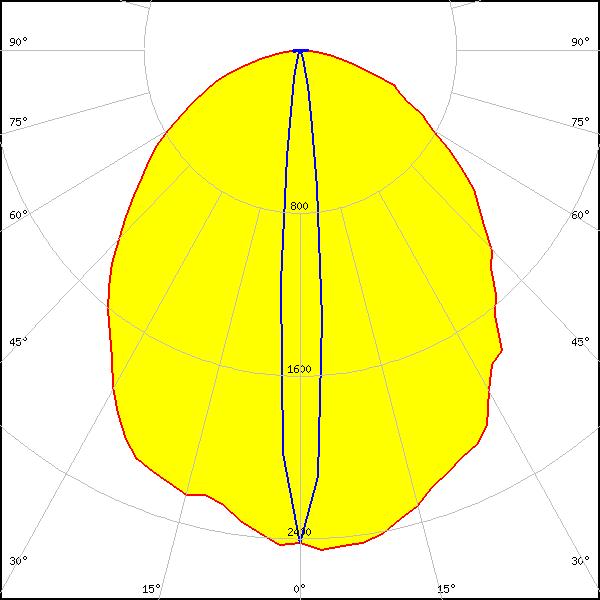

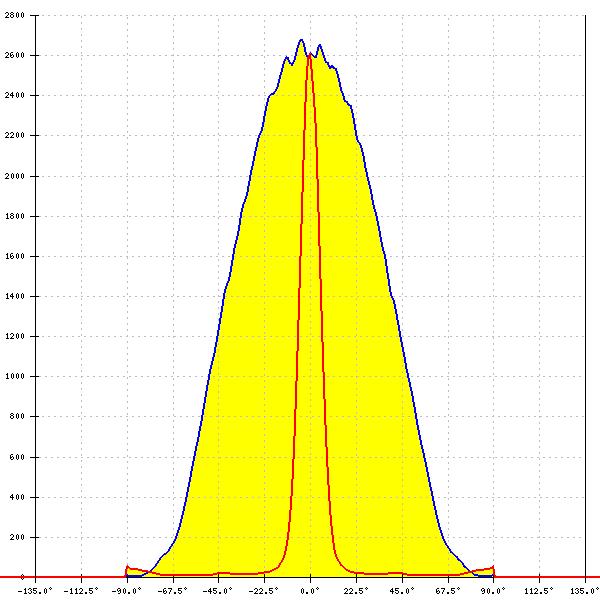

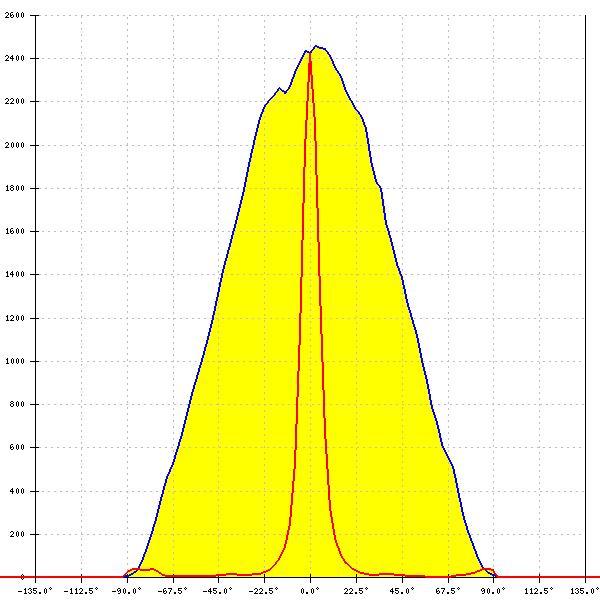

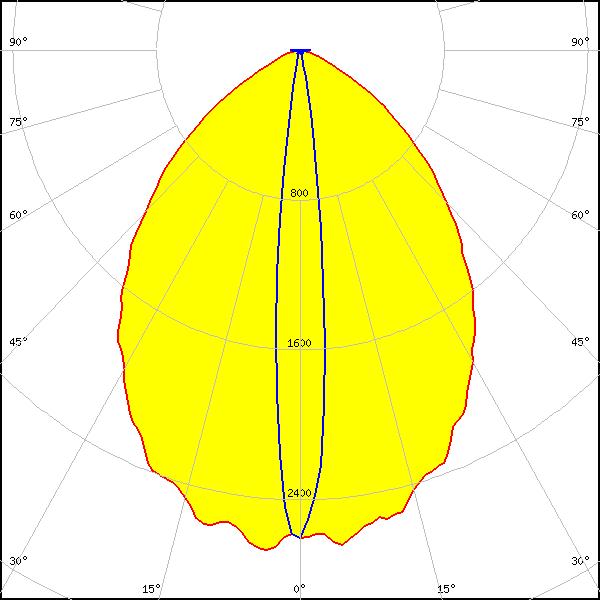

LED: NVSW219D
FWHM: 85° + 12°
Peak intensity: 2.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

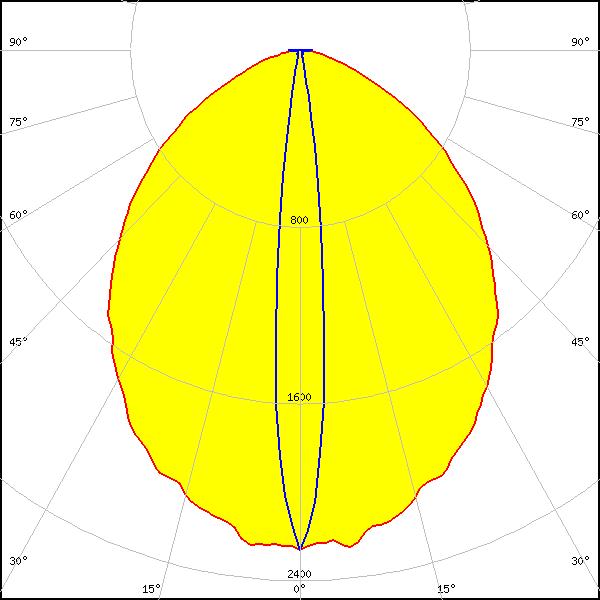

LED: NVSW3x9A
FWHM: 95° + 12°
Peak intensity: 2.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: 98° + 11°
Peak intensity: 2.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

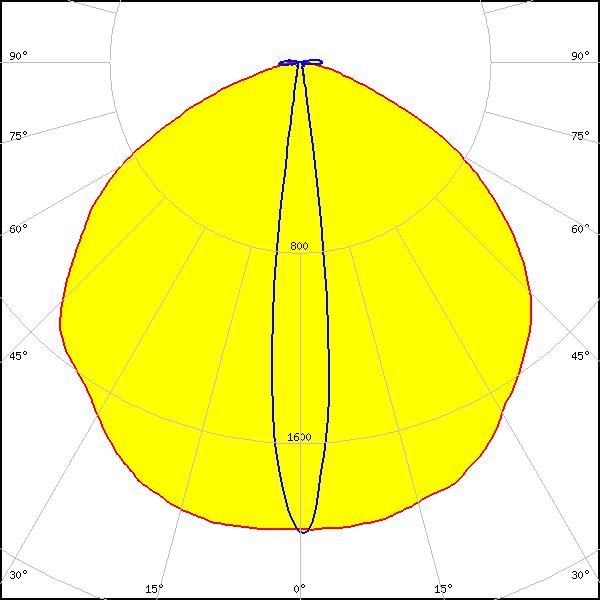

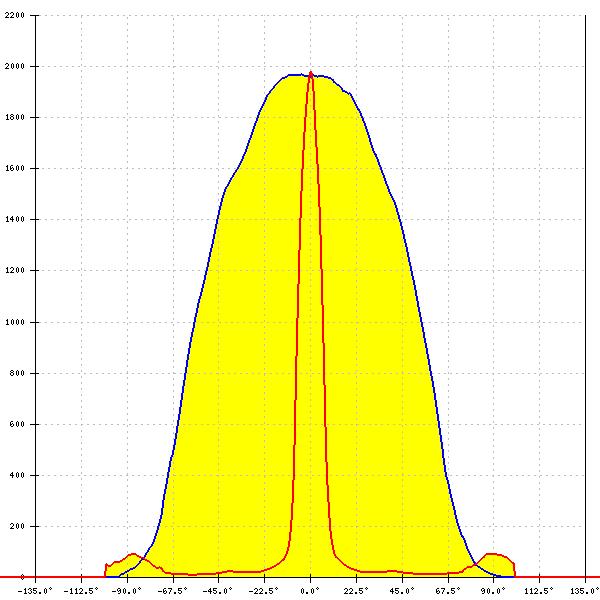

LED: NWSx229A
FWHM: 122° + 13°
Peak intensity: 2.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 7070
FWHM: 84° + 18°
Peak intensity: 1.8 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

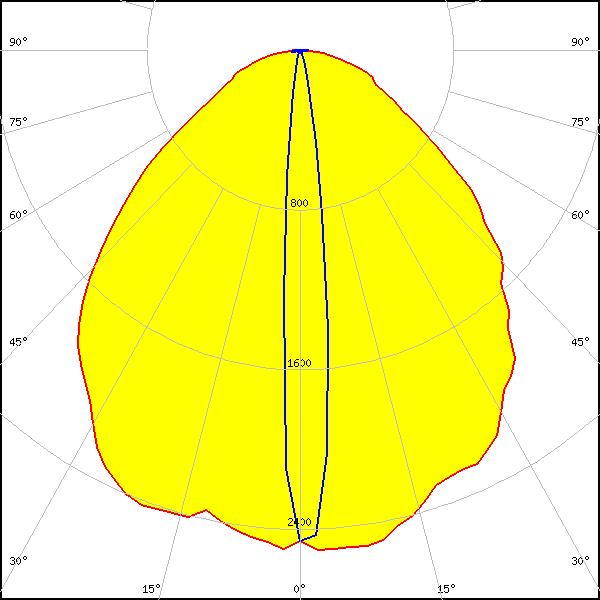

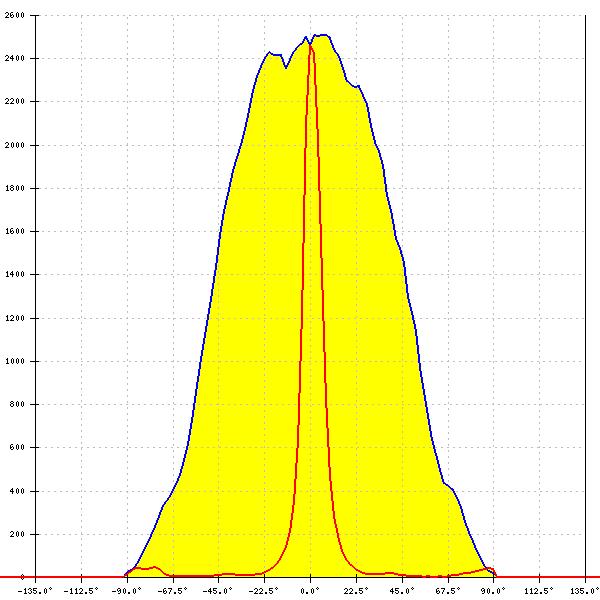

LED: OSLON Square PC
FWHM: 98° + 13°
Peak intensity: 2.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

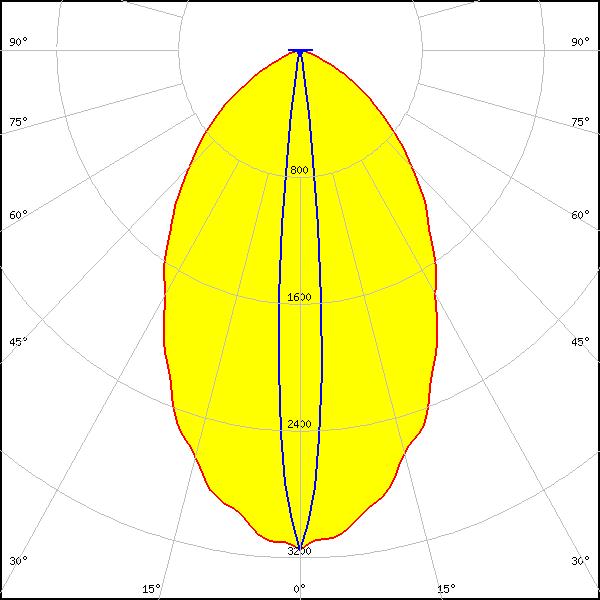

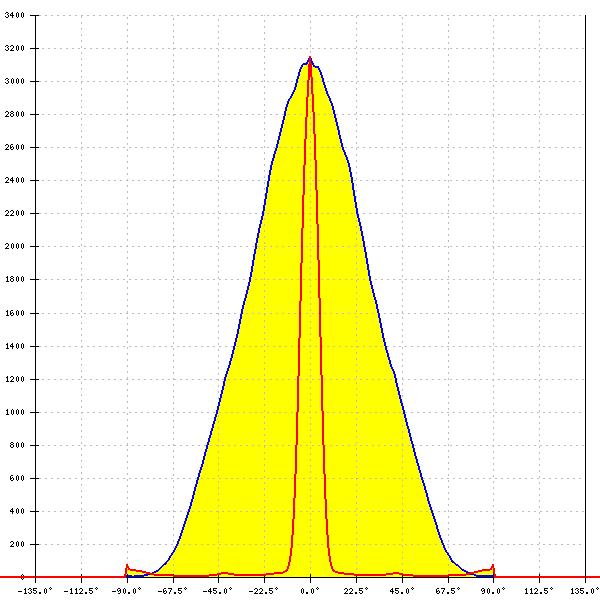

LED: LH351B
FWHM: 68° + 10°
Peak intensity: 3.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

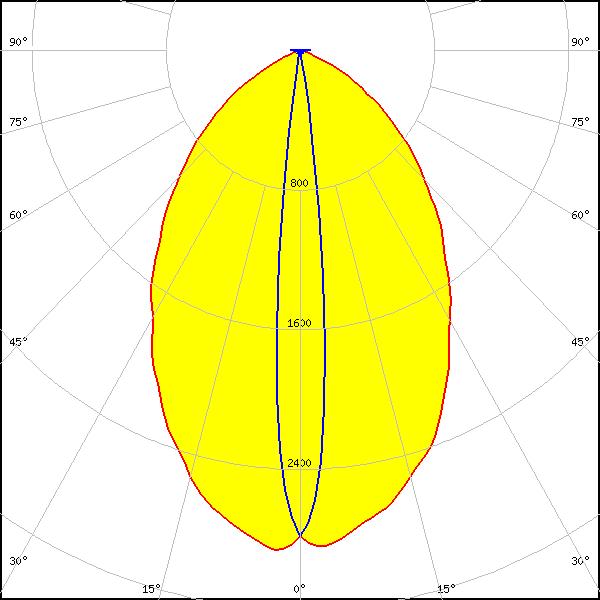

LED: LH351C
FWHM: 74° + 11°
Peak intensity: 2.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

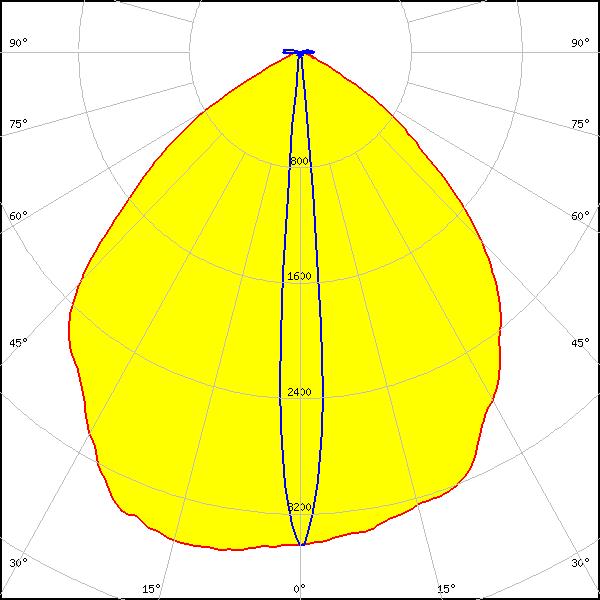

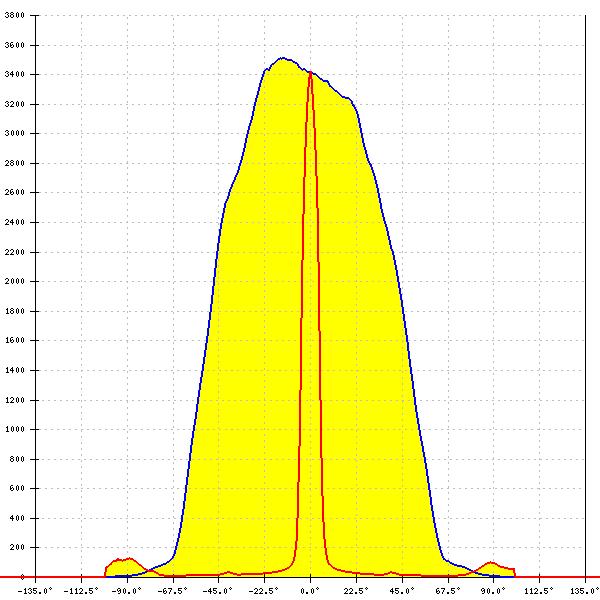

LED: LH351Z
FWHM: 95° + 9°
Peak intensity: 3.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
