    C13012_FLARE-MAXI-D

    Print

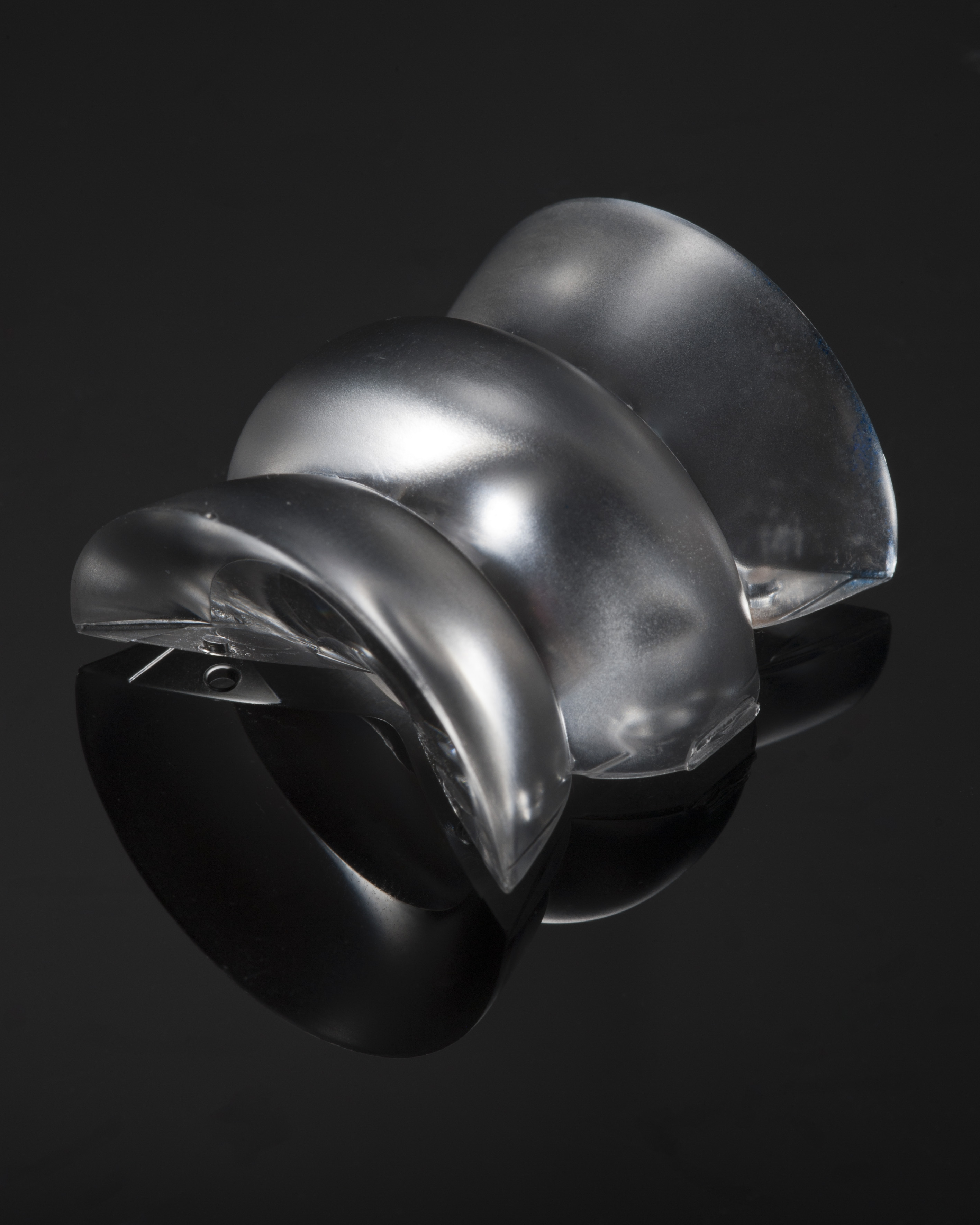

    34 x 33 mm lens with ~110° x 15° diffused oval beam

    Specification
    • Dimensions:
      34 x  33 mm
    • Height:
      16.45 mm
    • Fastening:
      glue, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      840 pcs
    • Box size:
      451 x 254 x 197 mm
    • Box weight:
      9.7 kg
    • MPQ:
      168 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13012_FLARE-MAXI-D

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - FLARE-MINI-AD AND -MAXI-D

    Case story

    Perth Council House

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Street Lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

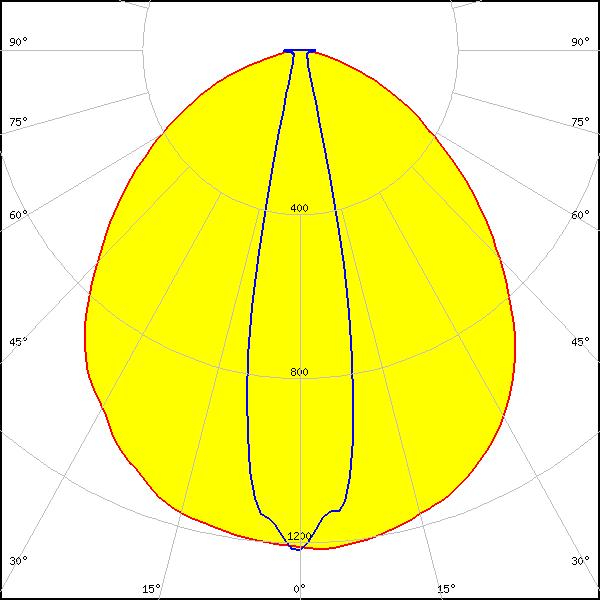

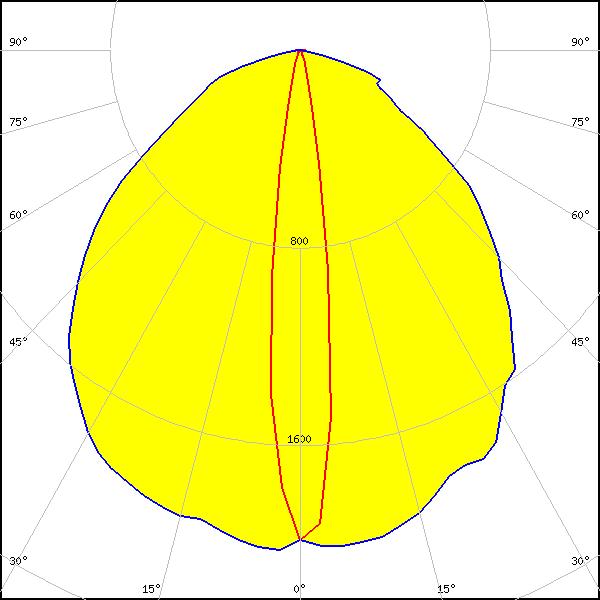

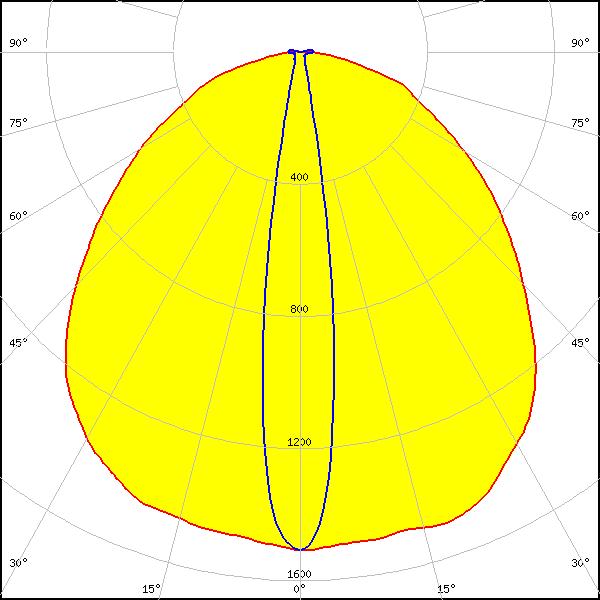

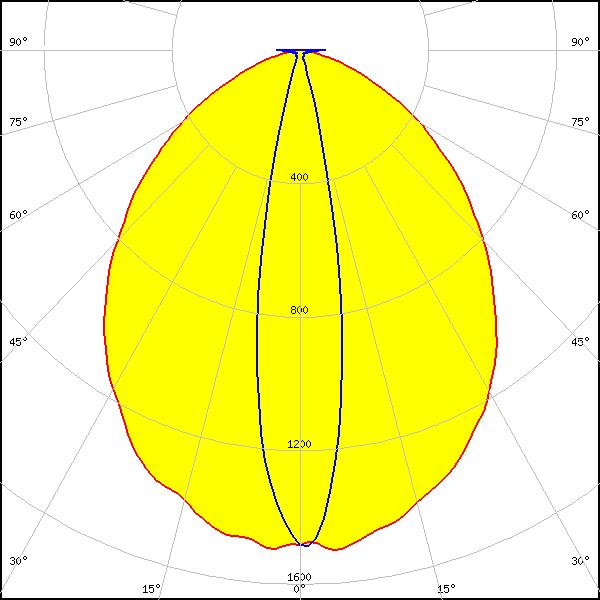

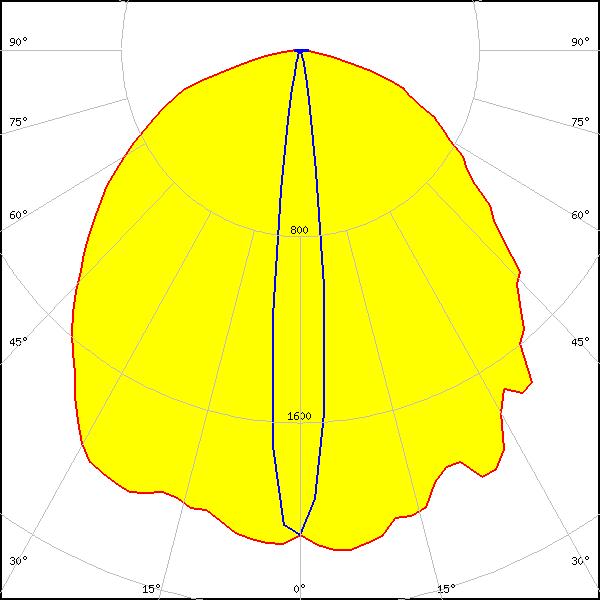

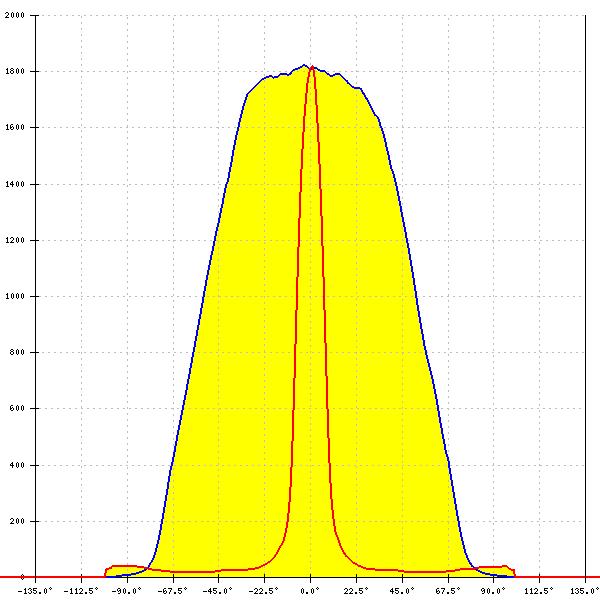

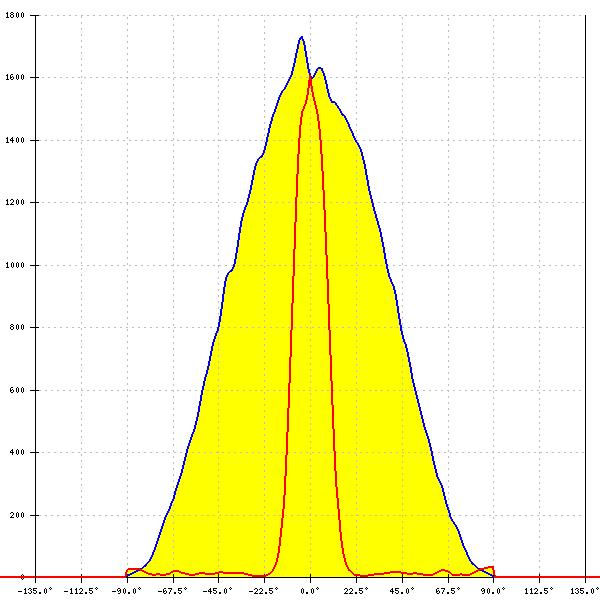

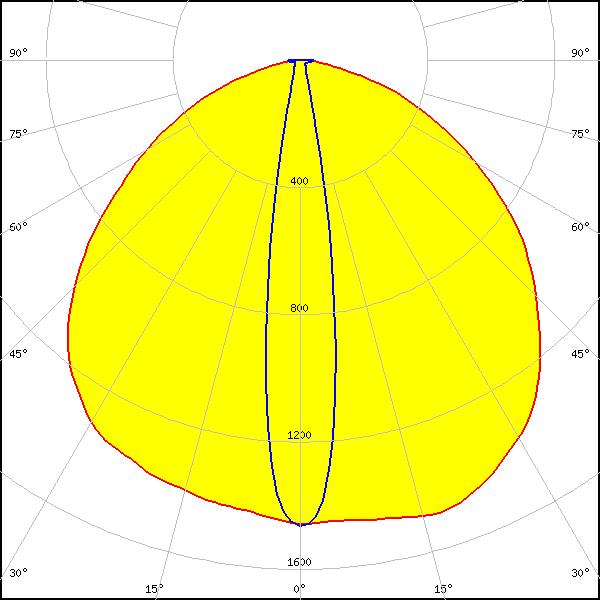

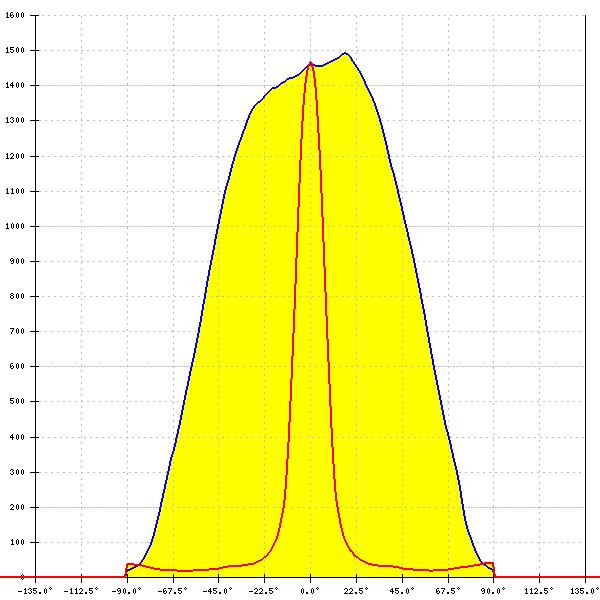

    Optical results

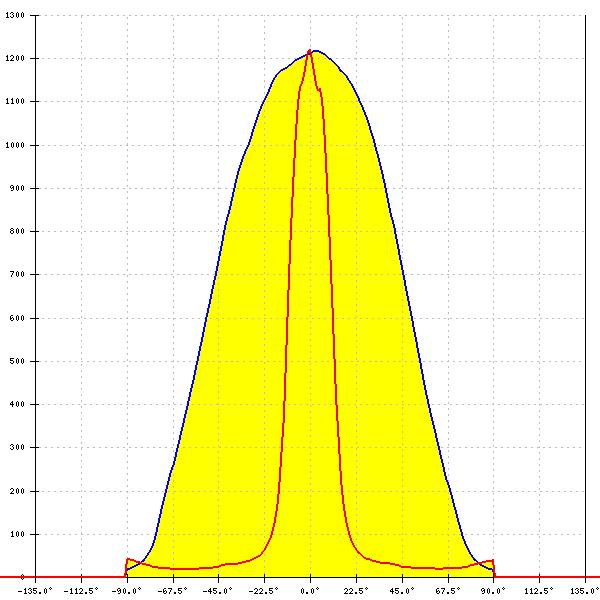

    LED: MK-R
    FWHM: 100° + 23°
    FWTM: 148° + 36°
    Peak intensity: 1.200 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XB-D
    LEDs/each optic: 1
    Light colour/type: White

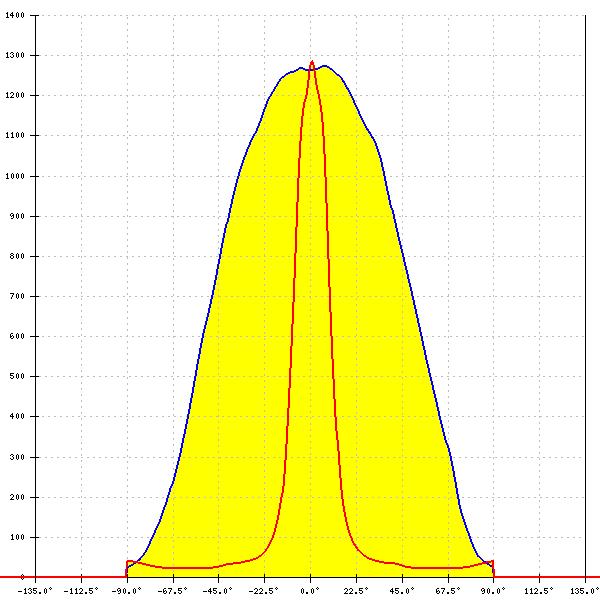

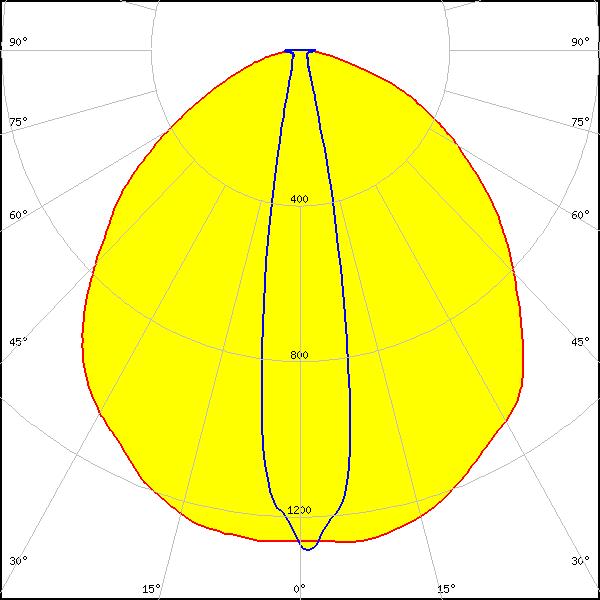

    LED: XHP50
    FWHM: 104° + 19°
    FWTM: 151° + 35°
    Peak intensity: 1.300 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

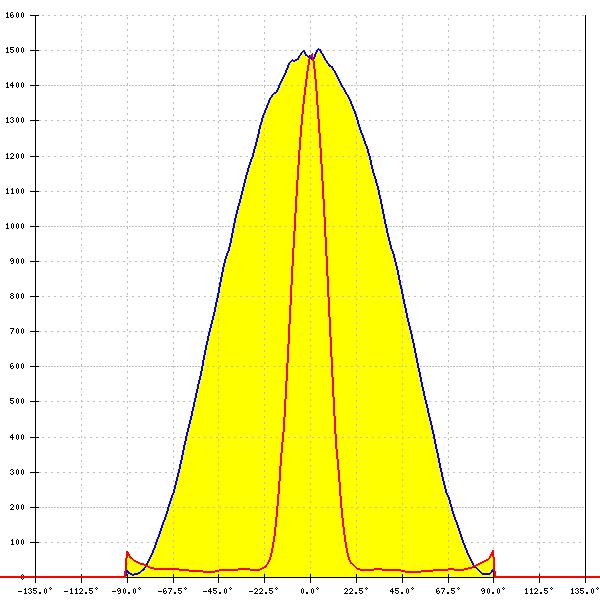

    LED: XHP50.2
    FWHM: 92° + 20°
    FWTM: 144° + 34°
    Peak intensity: 1.530 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

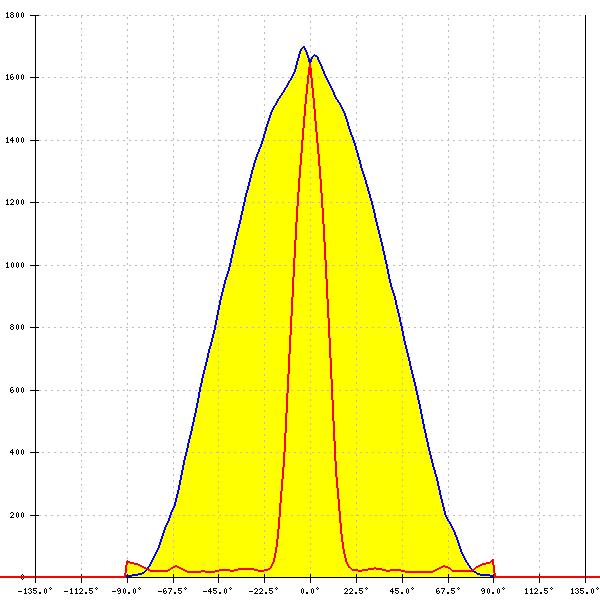

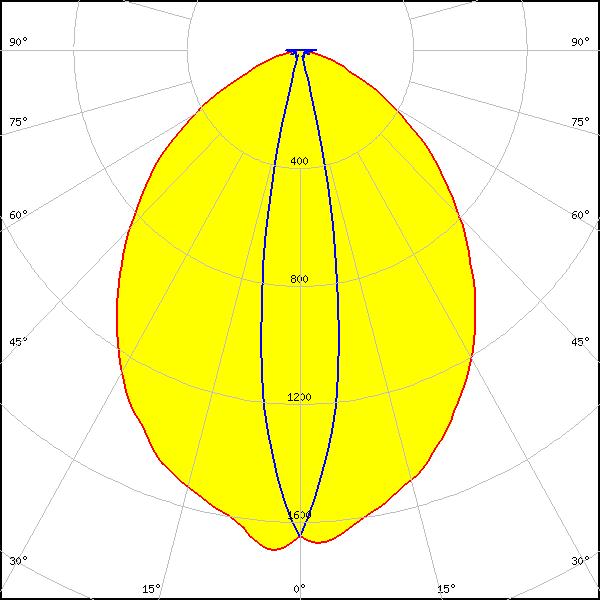

    LED: XHP50.3 HD
    FWHM: 88° + 18°
    FWTM: 139° + 30°
    Peak intensity: 1.700 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

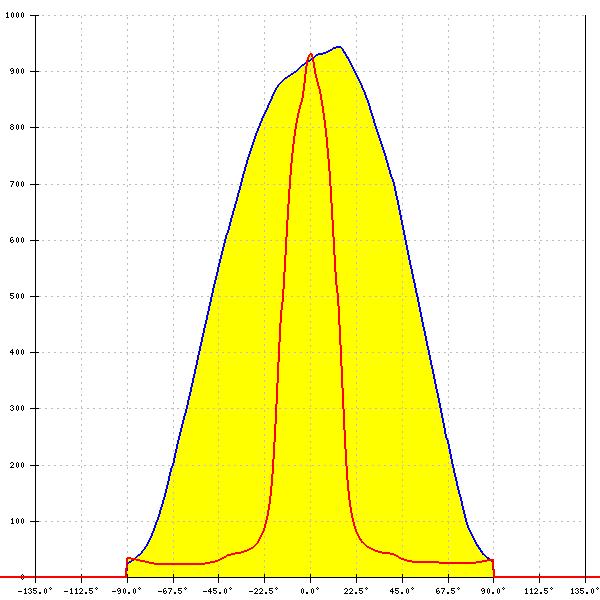

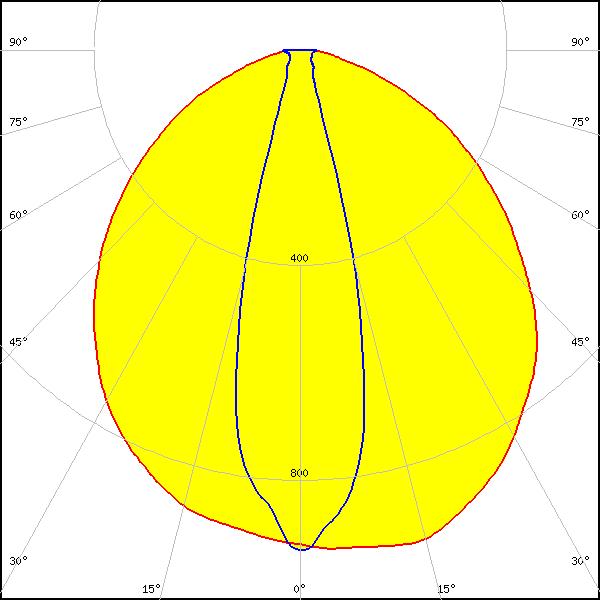

    LED: XHP70
    FWHM: 104° + 28°
    FWTM: 153° + 44°
    Peak intensity: 0.940 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

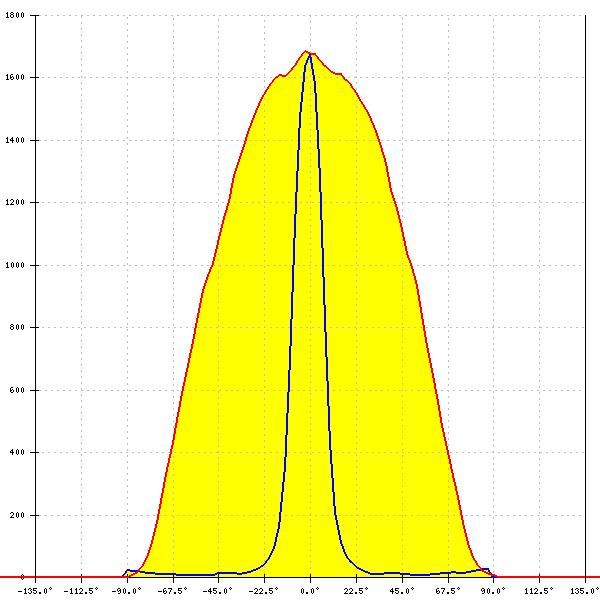

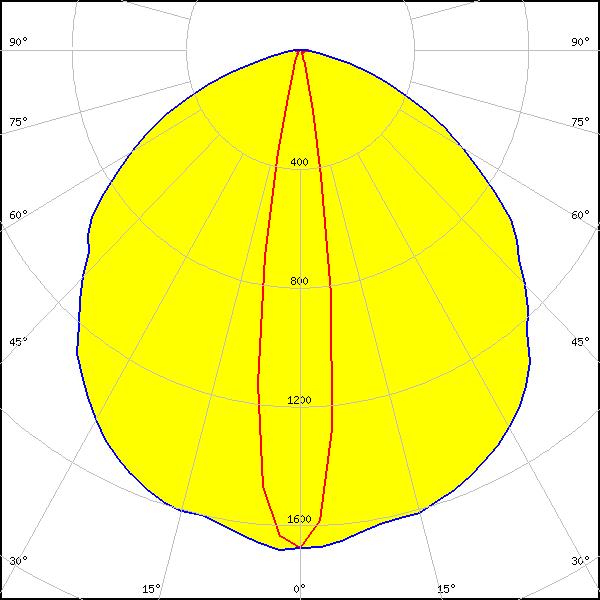

    LED: XM-L
    FWHM: 110° + 15°
    FWTM: 151° + 27°
    Peak intensity: 1.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

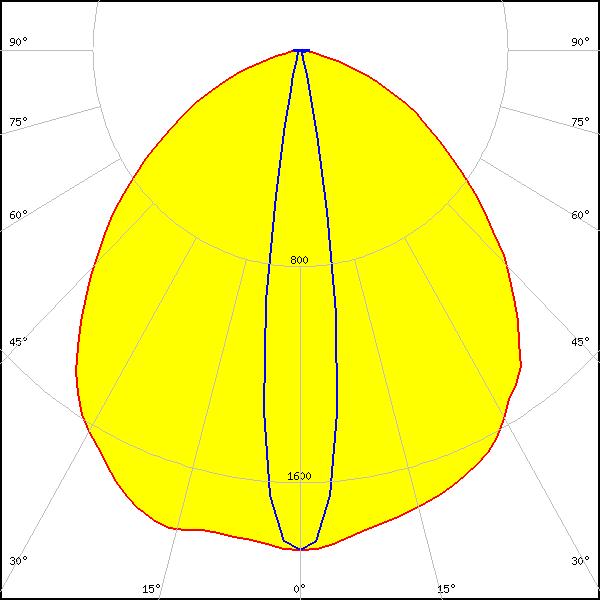

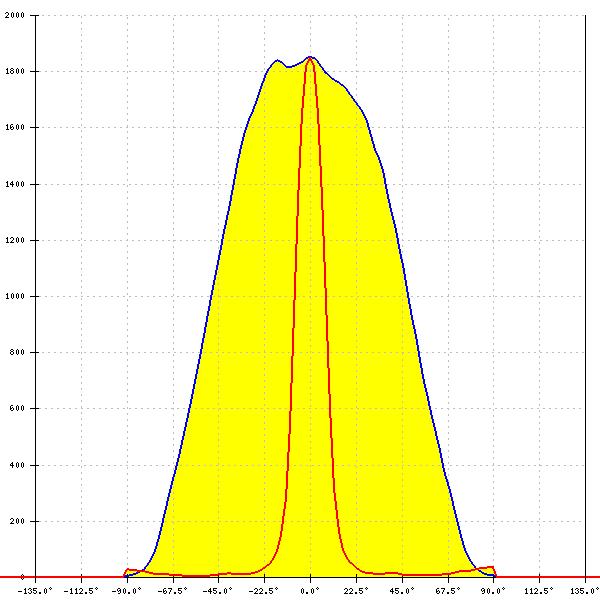

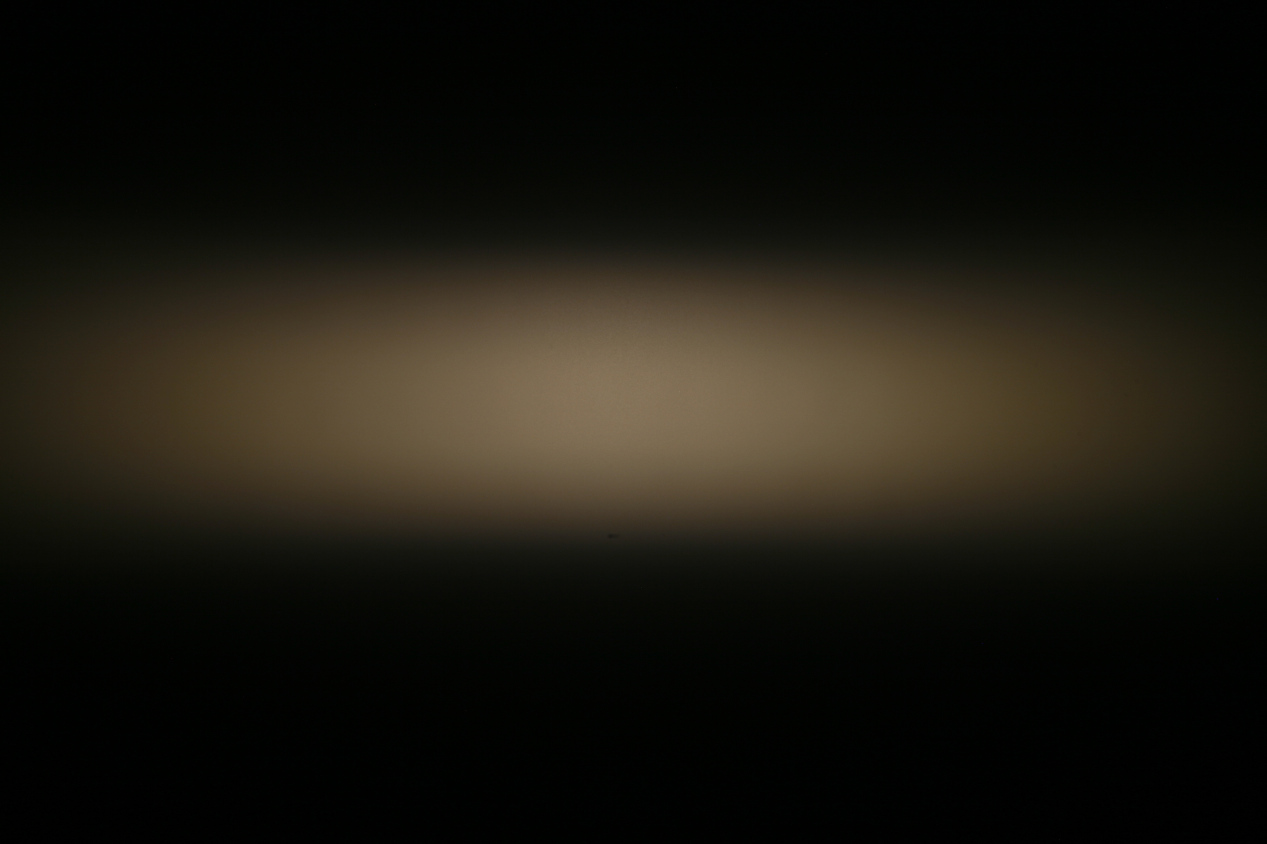

    LED: XM-L2
    FWHM: 101° + 17°
    FWTM: 146° + 28°
    Peak intensity: 1.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

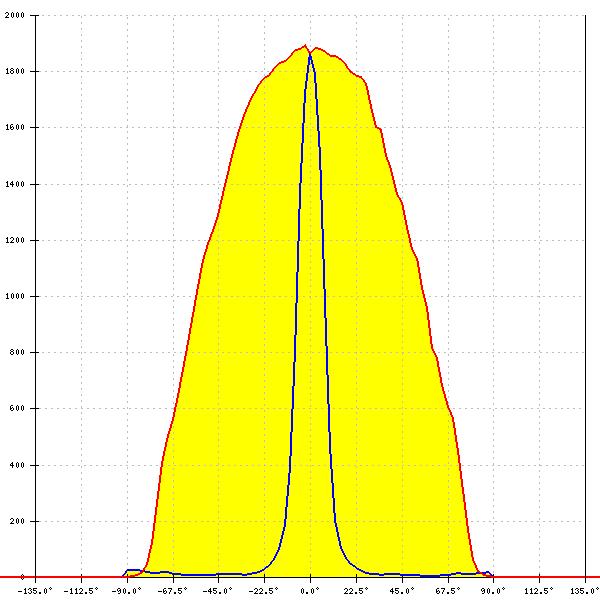

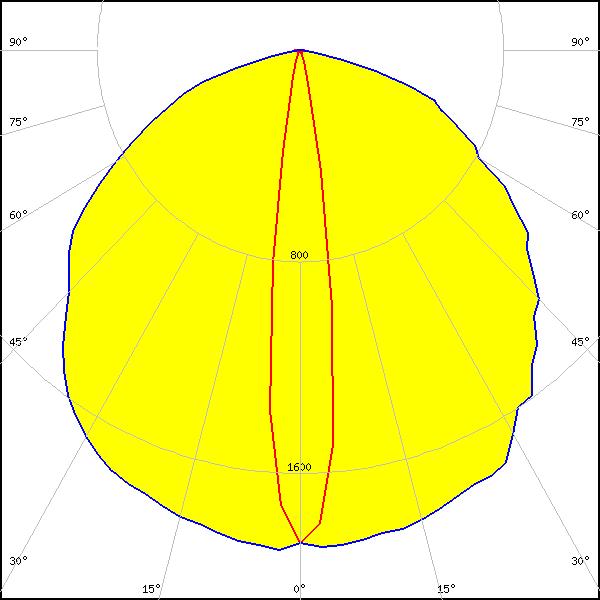

    LED: XP-G
    FWHM: 115° + 15°
    FWTM: 155° + 23°
    Peak intensity: 1.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

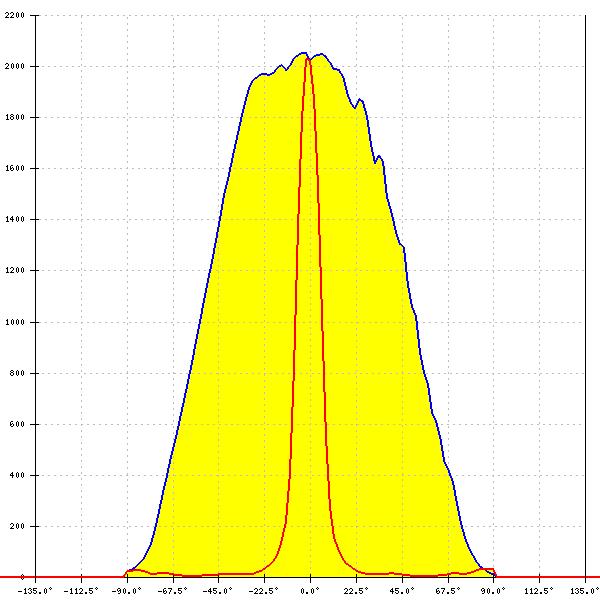

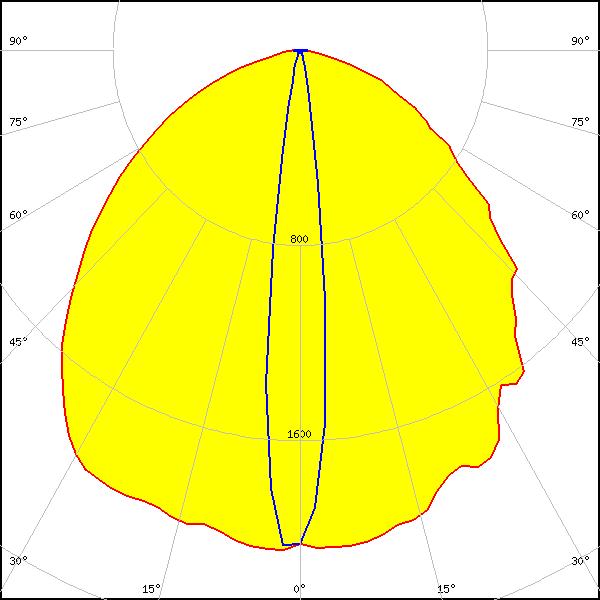

    LED: XP-G2
    FWHM: 106° + 14°
    FWTM: 150° + 24°
    Peak intensity: 2.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

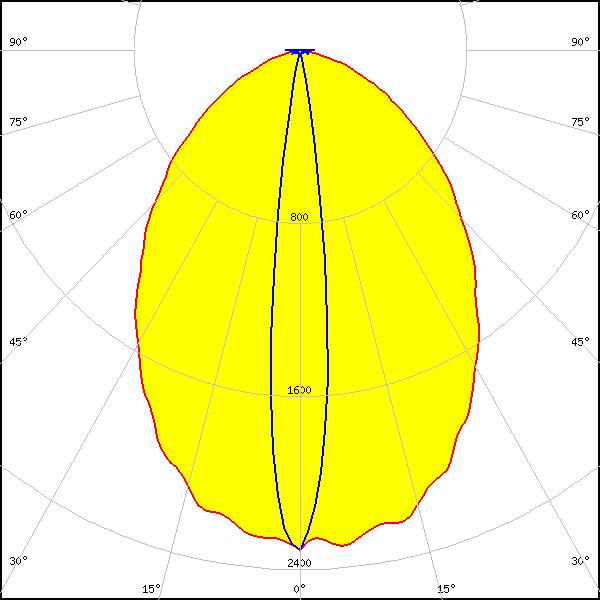

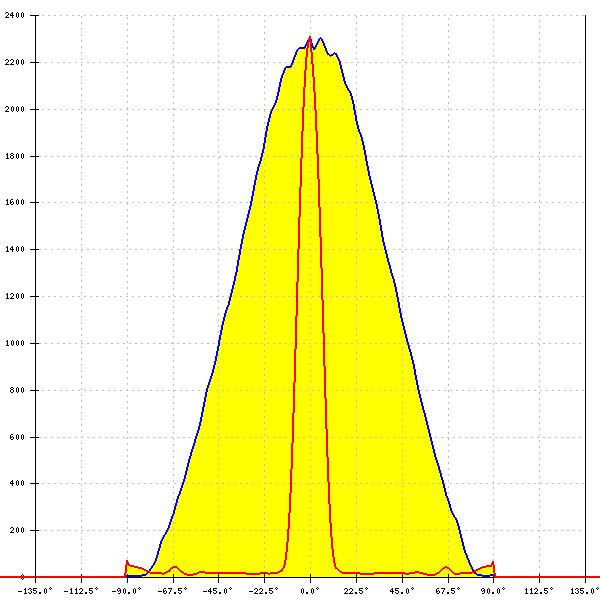

    LED: XP-G2 HE
    FWHM: 84° + 13°
    FWTM: 140° + 21°
    Peak intensity: 2.311 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

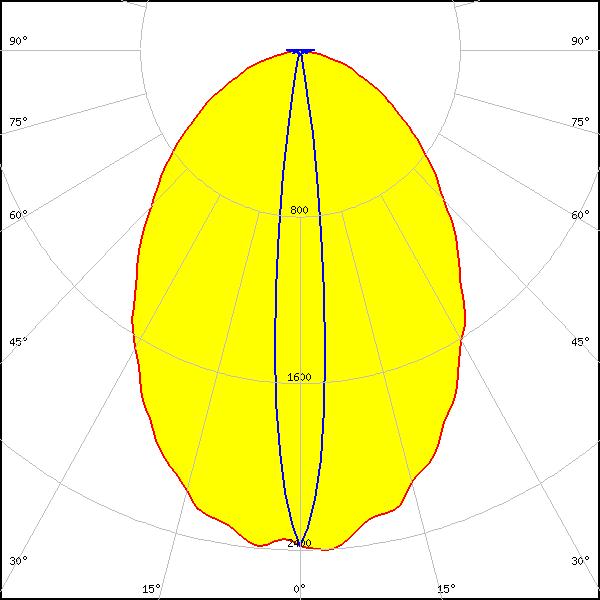

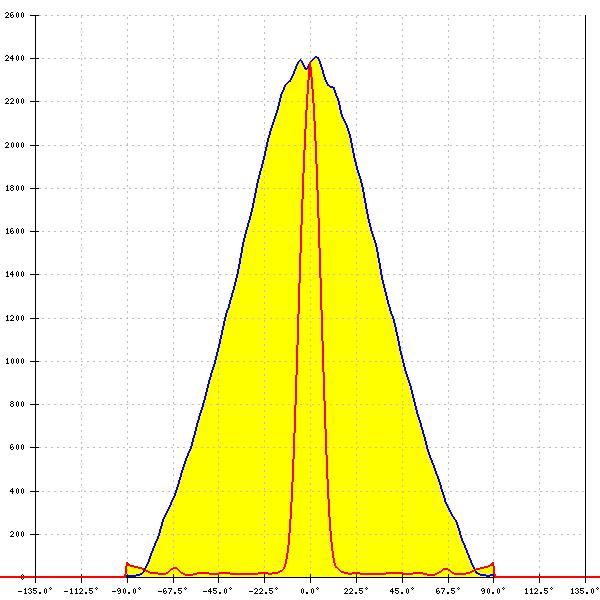

    LED: XP-G3
    FWHM: 82° + 12°
    FWTM: 145° + 20°
    Peak intensity: 2.405 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

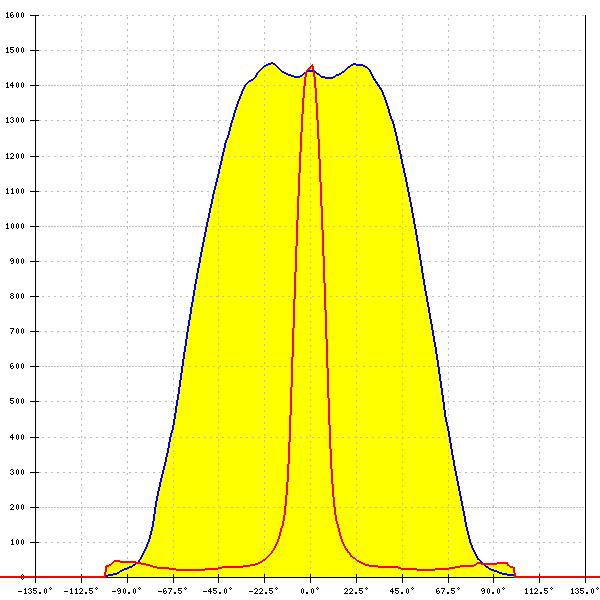

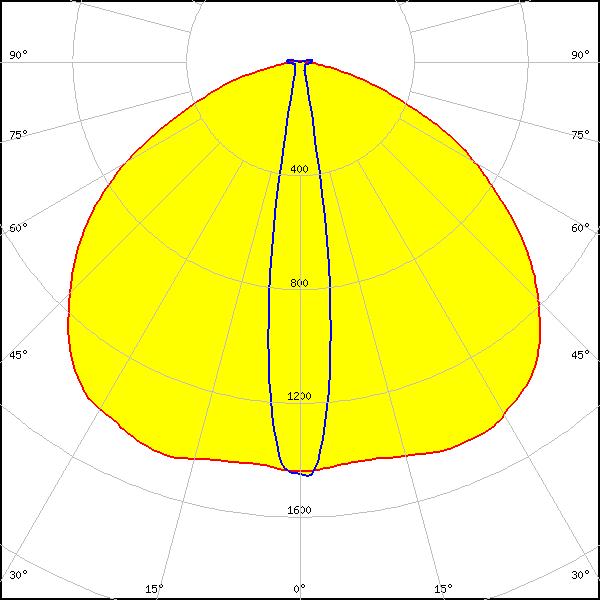

    LED: XP-L HD
    FWHM: 119° + 16°
    FWTM: 154° + 27°
    Peak intensity: 1.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

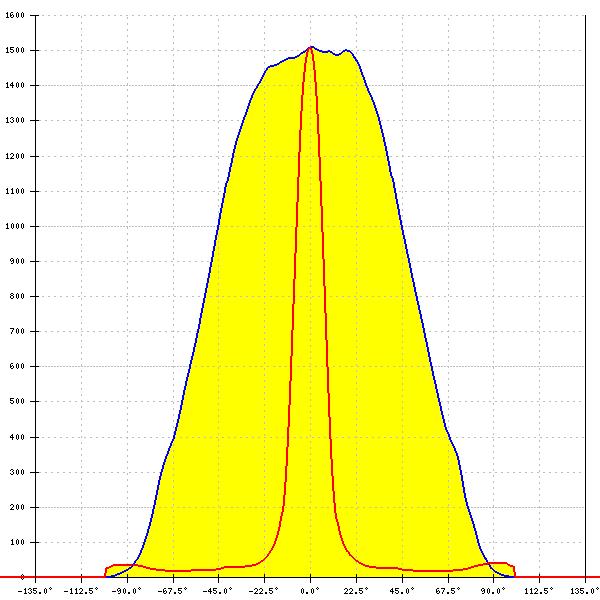

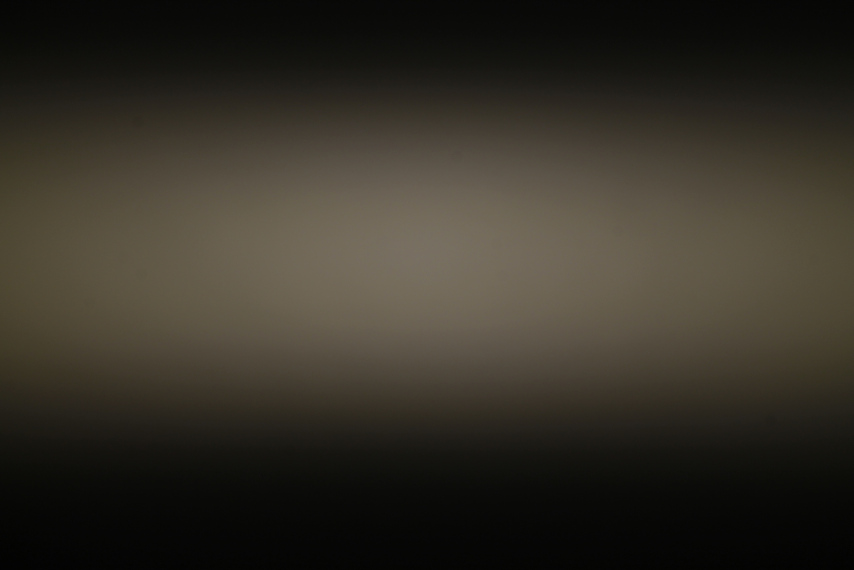

    LED: XP-L2
    FWHM: 107° + 16°
    FWTM: 159° + 28°
    Peak intensity: 1.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

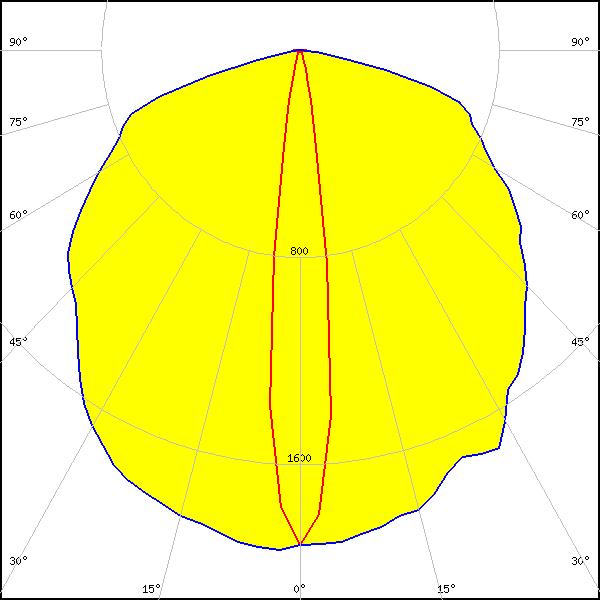

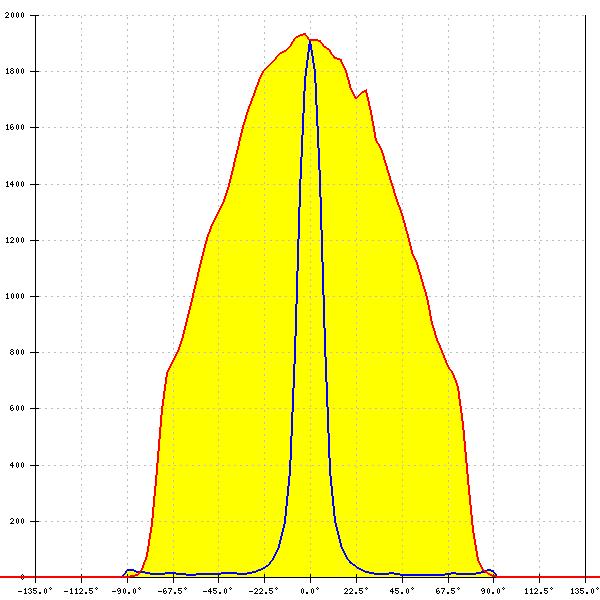

    LED: XT-E
    FWHM: 117° + 14°
    FWTM: 159° + 26°
    Peak intensity: 1.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

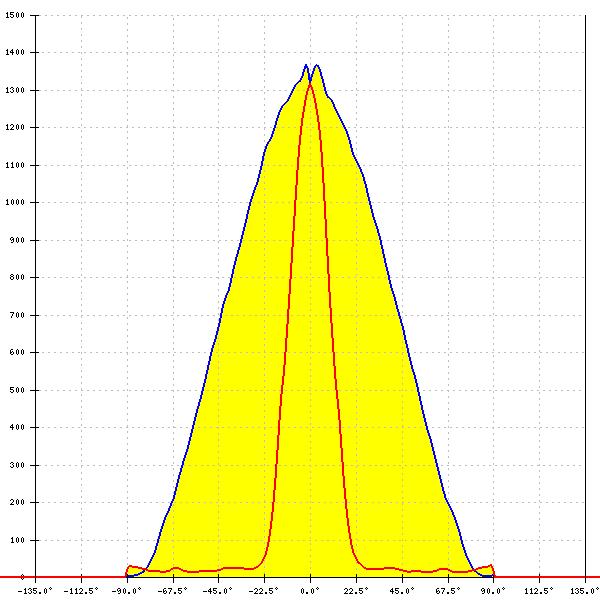

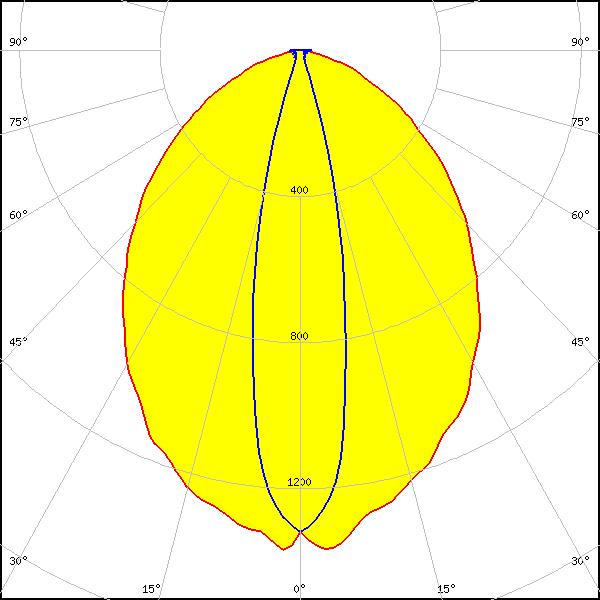

    LED: LUXEON 7070
    FWHM: 89° + 22°
    FWTM: 144° + 38°
    Peak intensity: 1.409 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

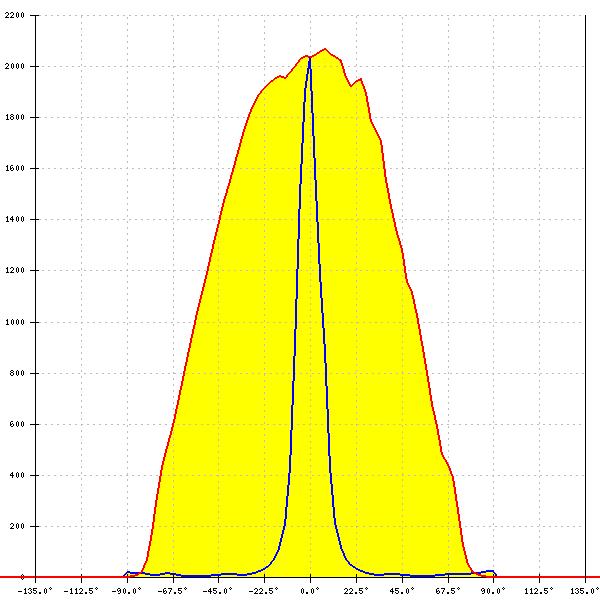

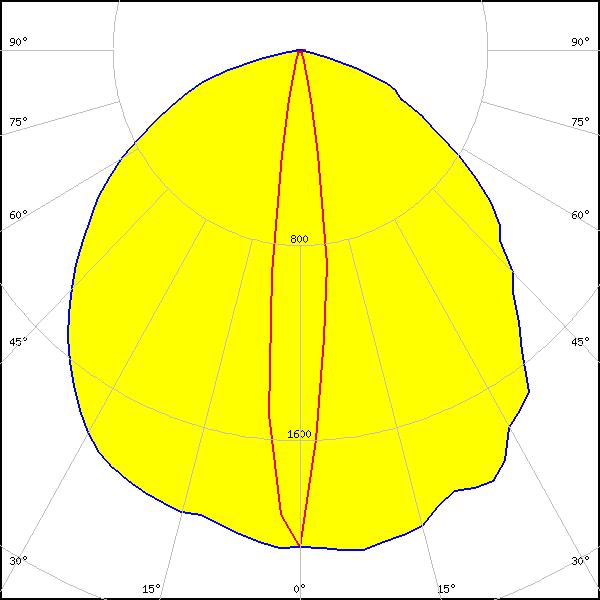

    LED: LUXEON A
    FWHM: 104° + 12°
    FWTM: 147° + 25°
    Peak intensity: 2.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

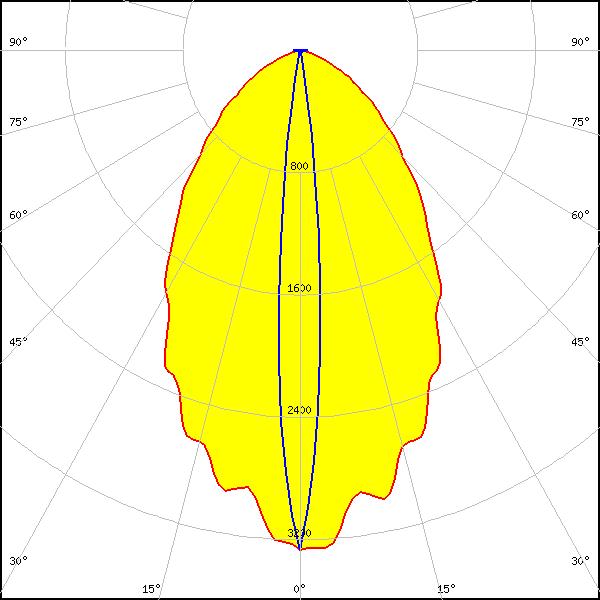

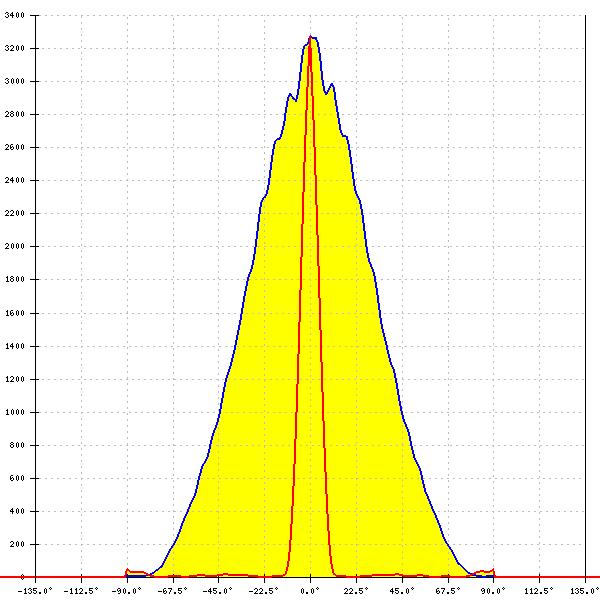

    LED: LUXEON H50-2
    FWHM: 10° + 65°
    FWTM: 18° + 126°
    Peak intensity: 3.300 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON M/MX
    FWHM: 102° + 25°
    FWTM: 146° + 39°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

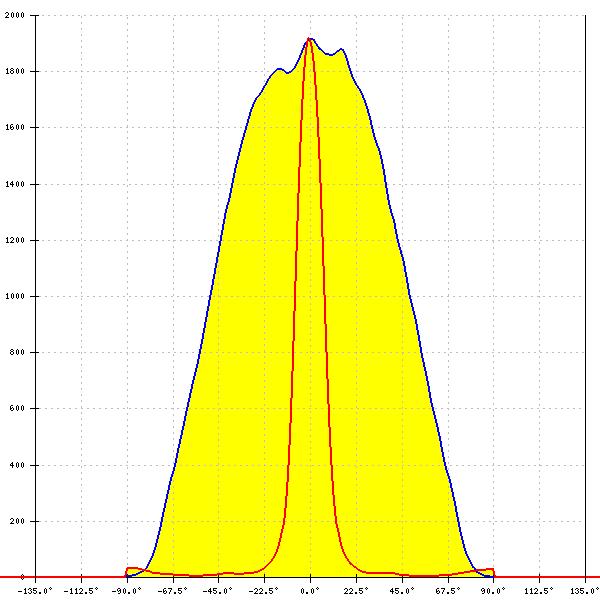

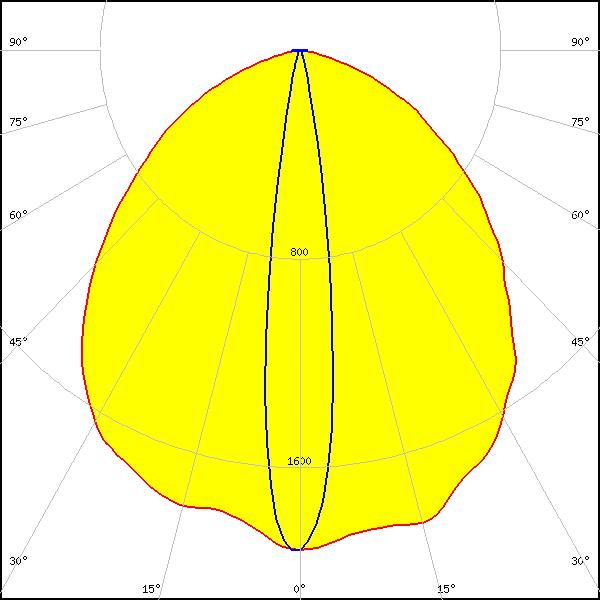

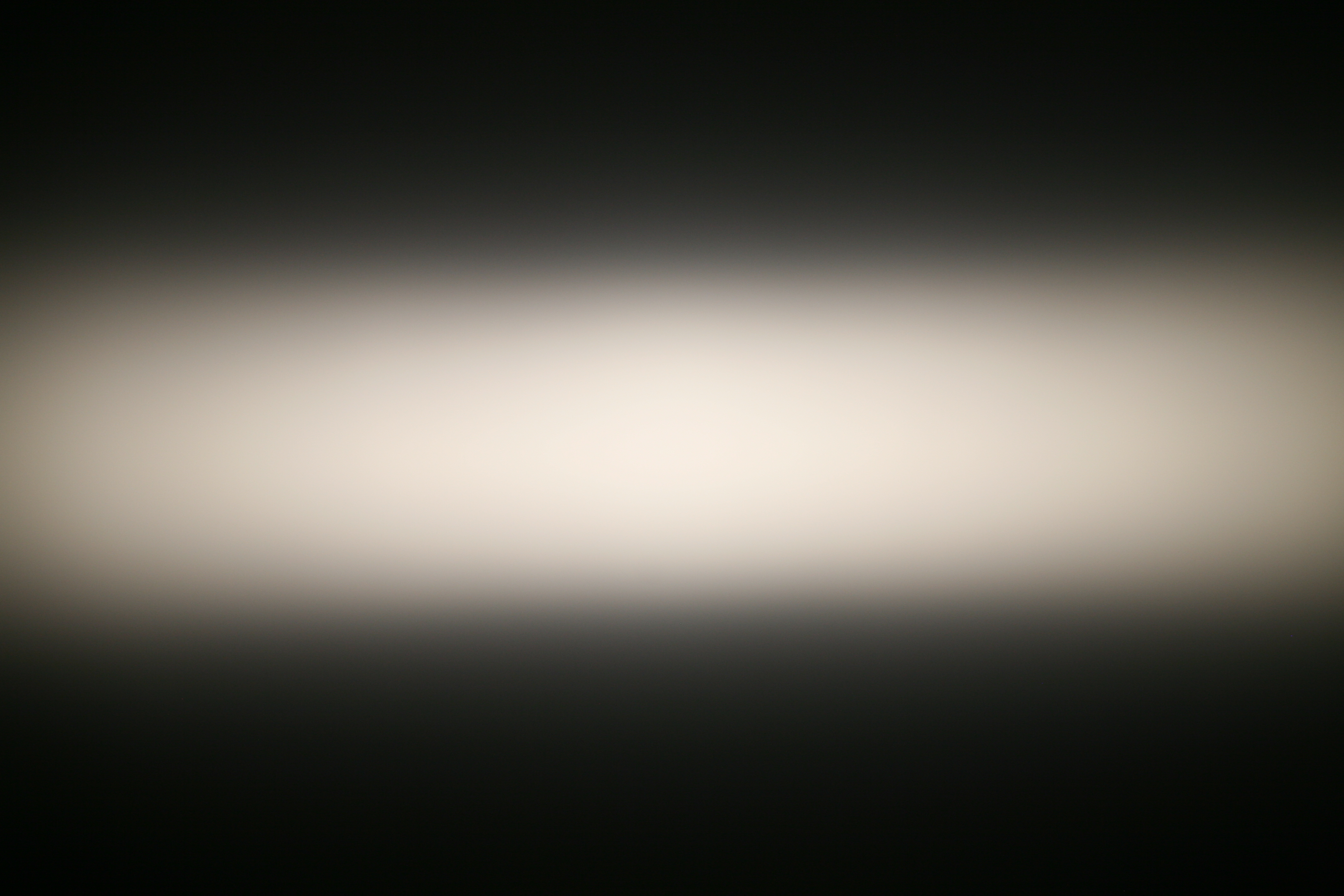

    LED: LUXEON MZ
    FWHM: 101° + 16°
    FWTM: 146° + 27°
    Peak intensity: 1.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

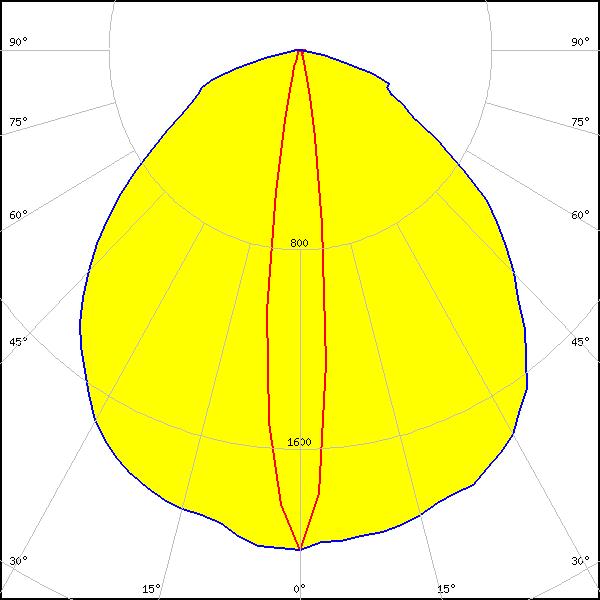

    LED: LUXEON Rebel ES
    FWHM: 104° + 13°
    FWTM: 150° + 25°
    Peak intensity: 2.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

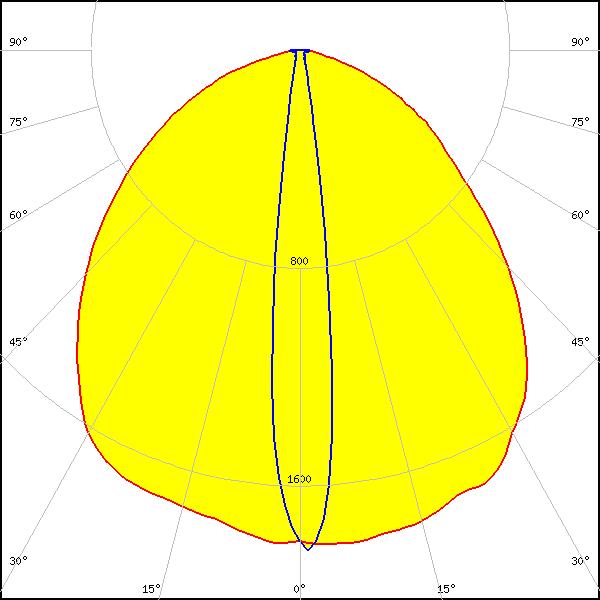

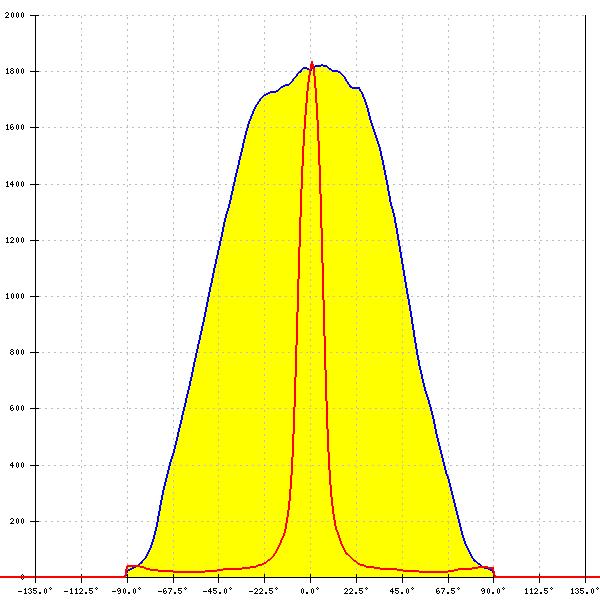

    LED: LUXEON T
    FWHM: 102° + 13°
    FWTM: 149° + 25°
    Peak intensity: 1.800 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

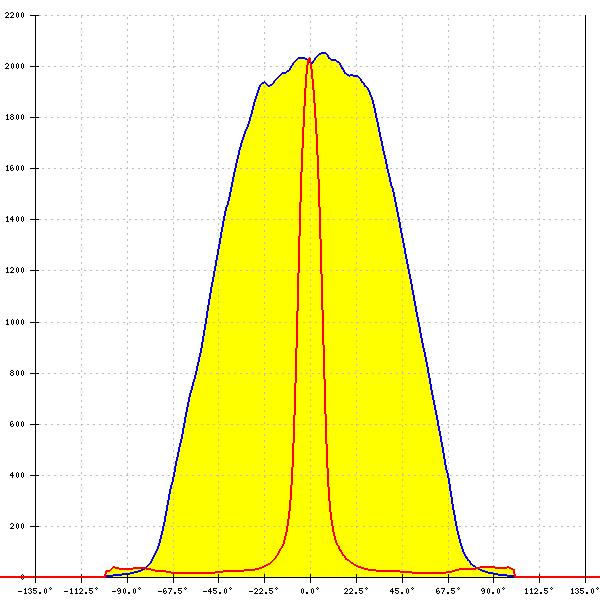

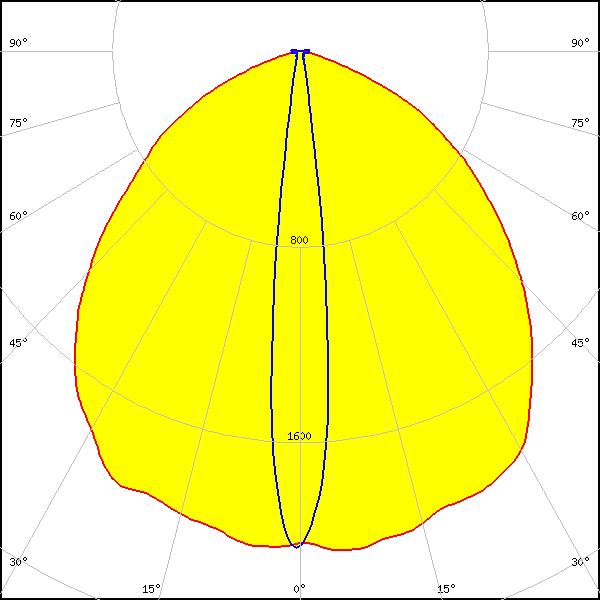

    LED: LUXEON TX
    FWHM: 103° + 13°
    FWTM: 143° + 22°
    Peak intensity: 2.060 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

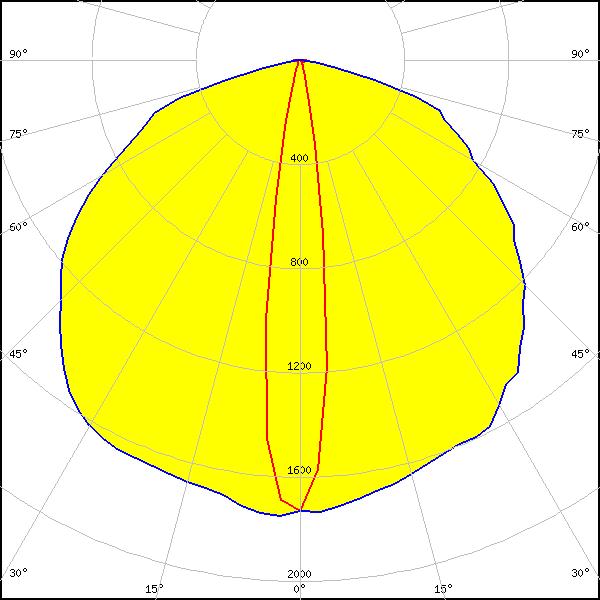

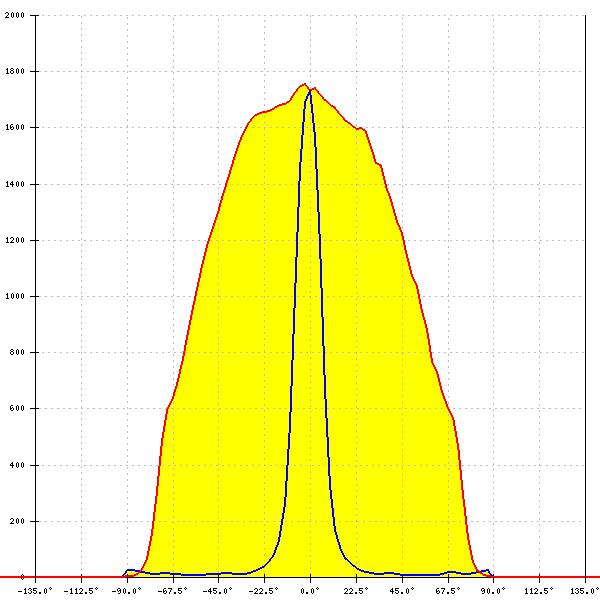

    LED: NCSxx19B
    FWHM: 107° + 13°
    FWTM: 156° + 23°
    Peak intensity: 2.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NS9x383
    FWHM: 110° + 16°
    FWTM: 152° + 30°
    Peak intensity: 1.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

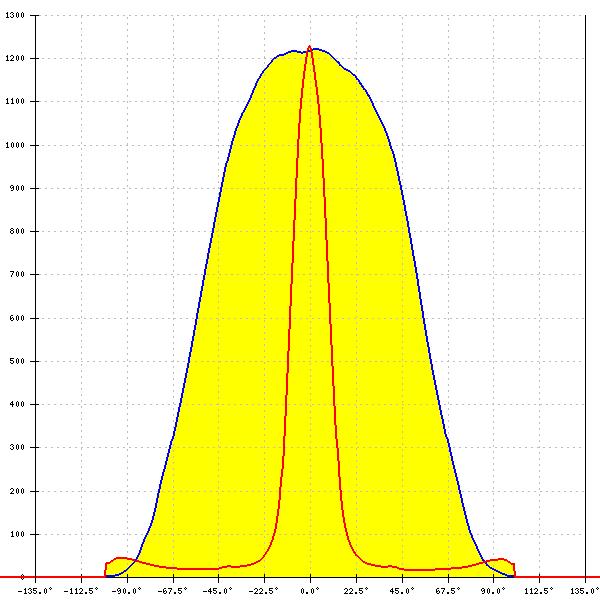

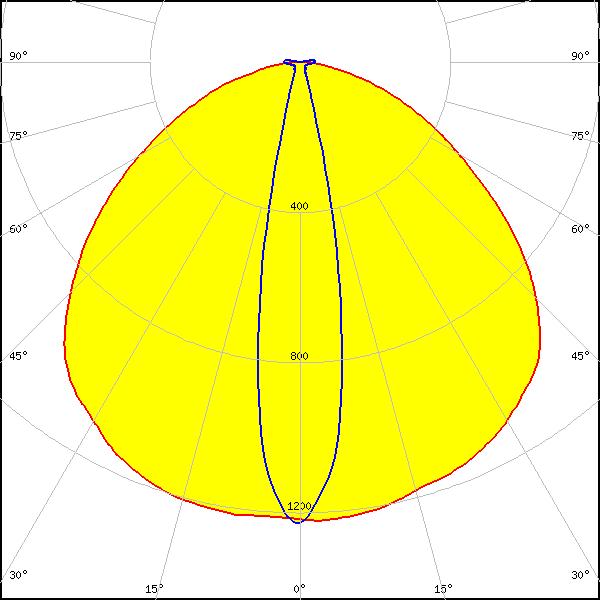

    LED: NV4x144A
    FWHM: 111° + 20°
    FWTM: 145° + 144°
    Peak intensity: 0.600 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

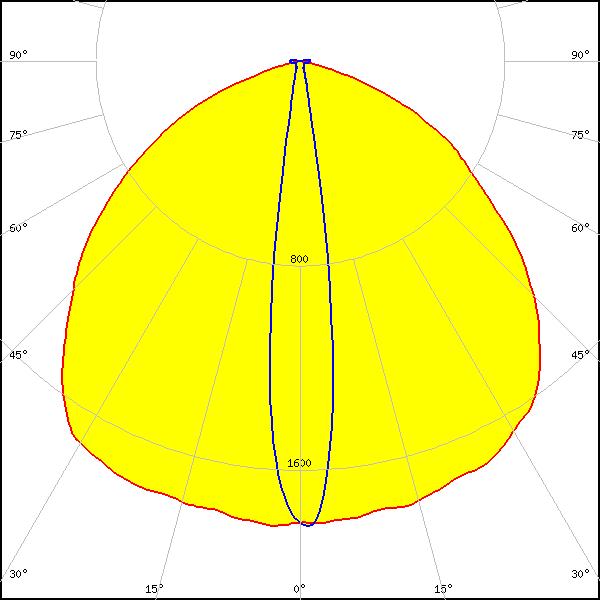

    LED: NVSW219F
    FWHM: 109° + 14°
    FWTM: 146° + 24°
    Peak intensity: 1.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 116° + 13°
    FWTM: 154° + 25°
    Peak intensity: 1.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

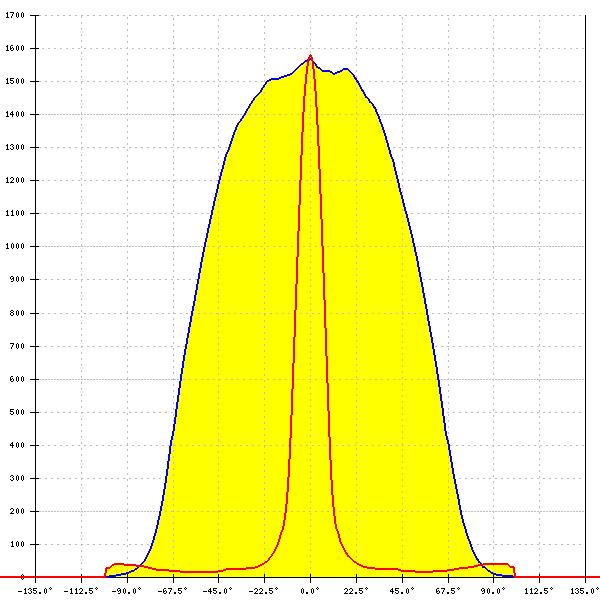

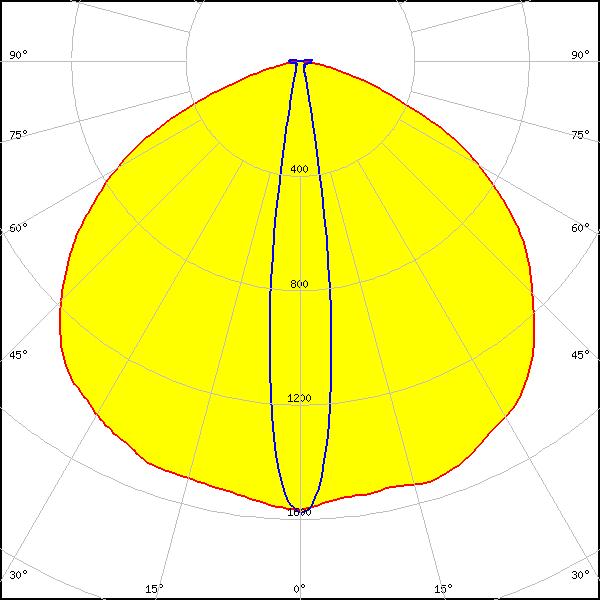

    LED: NWSx229A
    FWHM: 117° + 15°
    FWTM: 151° + 26°
    Peak intensity: 1.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

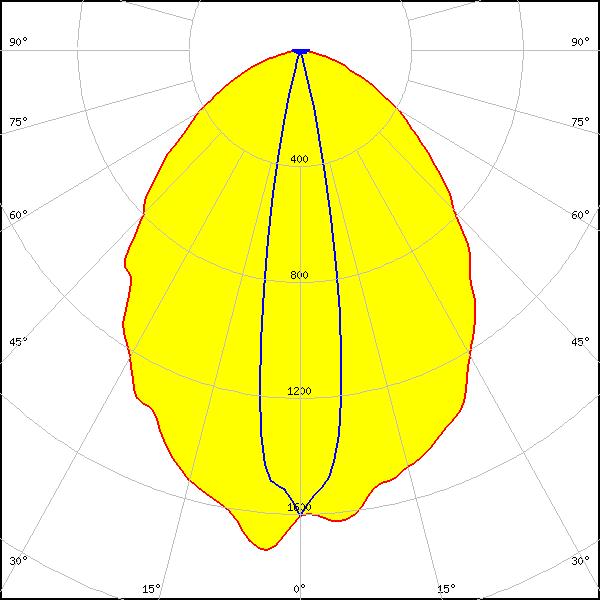

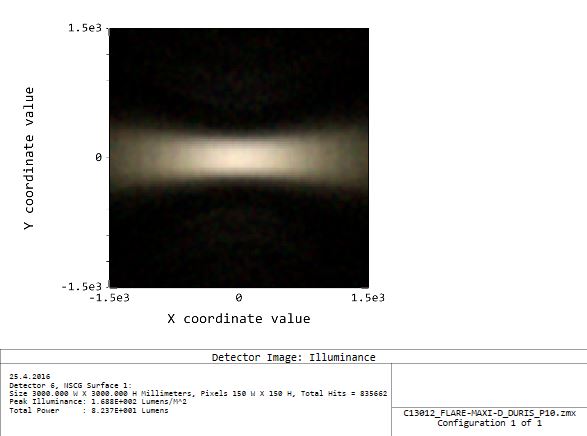

    LED: Duris S10
    FWHM: 92° + 20°
    FWTM: 144° + 36°
    Peak intensity: 1.600 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 7070
    FWHM: 86° + 18°
    FWTM: 142° + 28°
    Peak intensity: 1.740 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

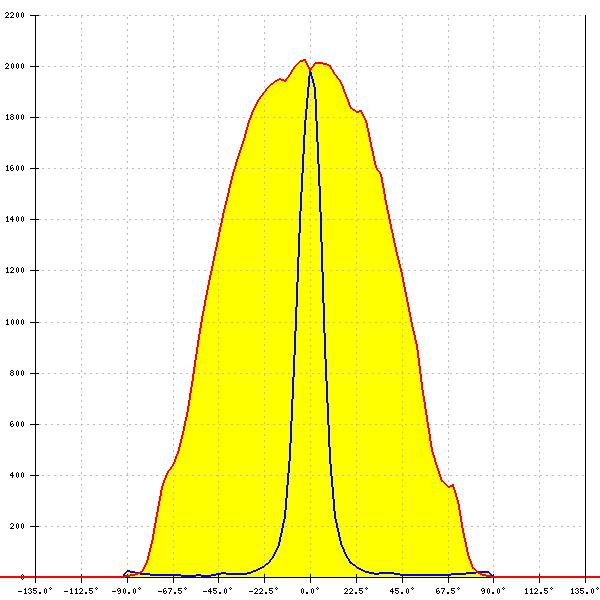

    LED: OSLON Square EC
    FWHM: 99° + 14°
    FWTM: 149° + 27°
    Peak intensity: 2.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

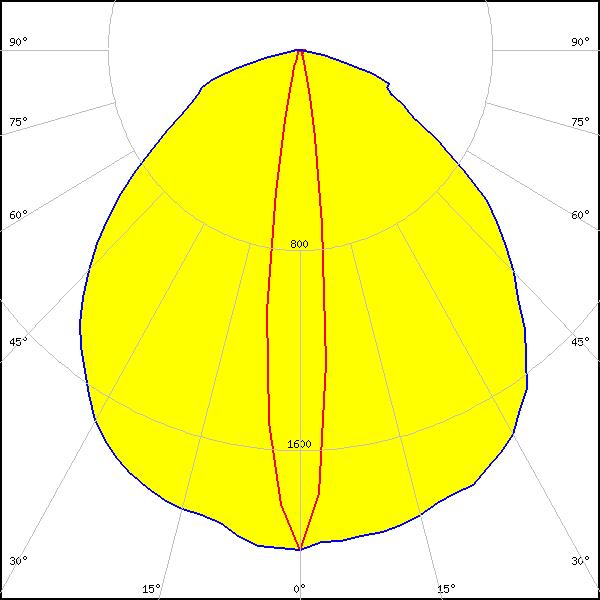

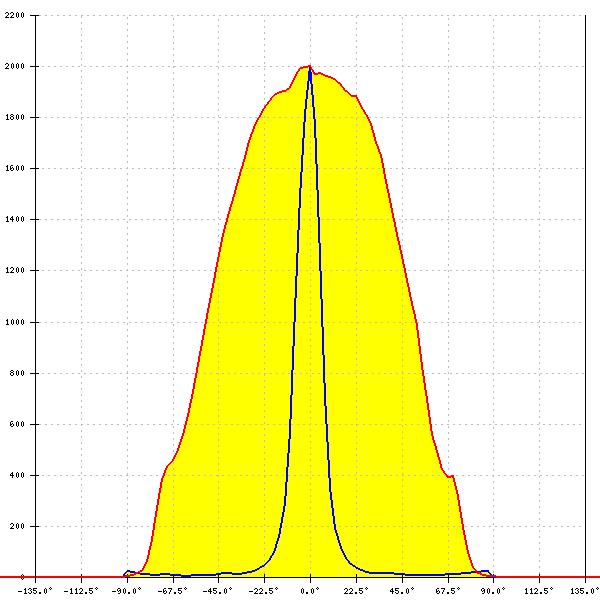

    LED: OSLON Square PC
    FWHM: 104° + 12°
    FWTM: 150° + 25°
    Peak intensity: 2.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

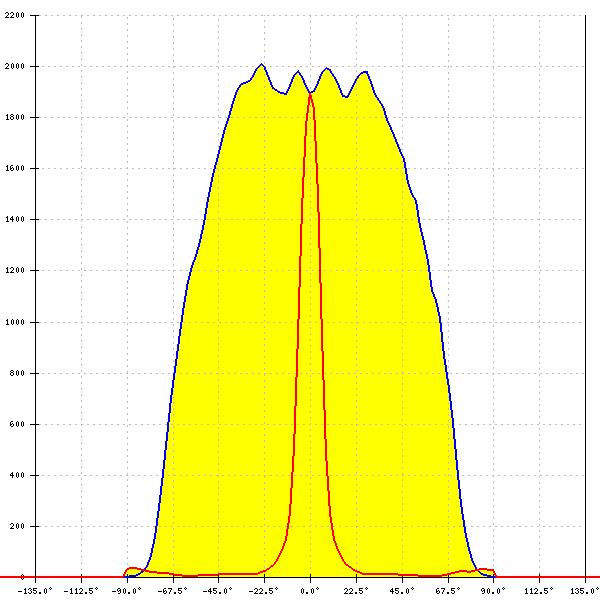

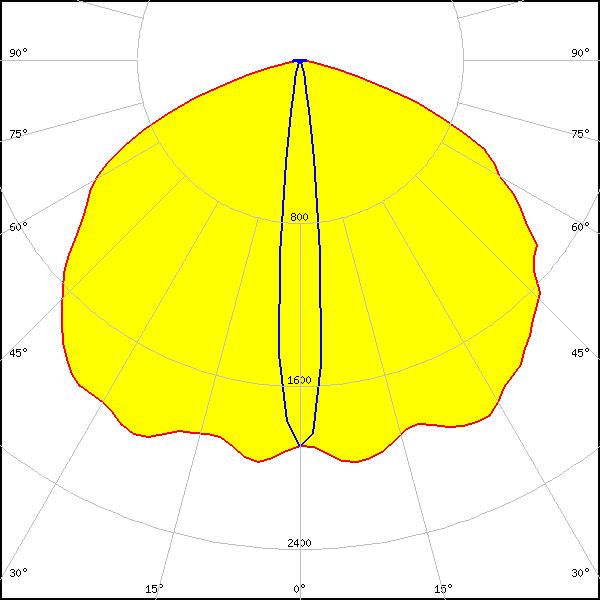

    LED: OSLON SSL 150
    FWHM: 128° + 13°
    FWTM: 152° + 23°
    Peak intensity: 2.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

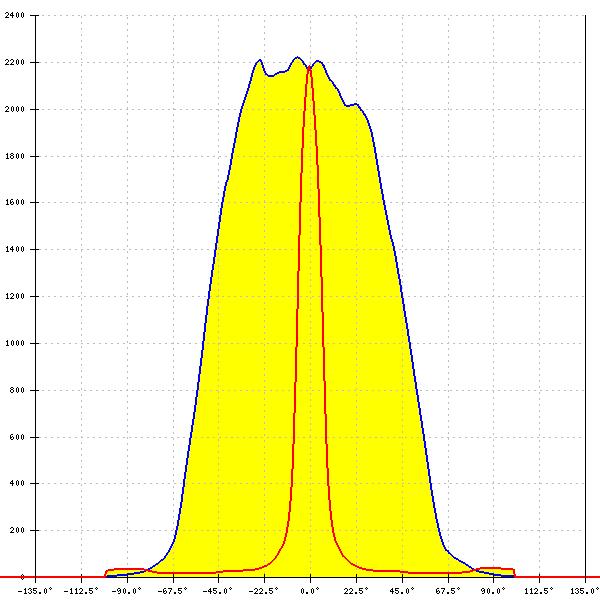

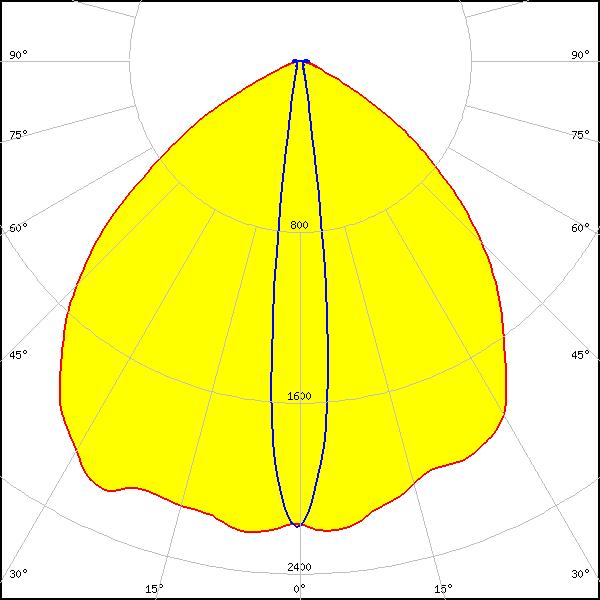

    LED: LH351Z
    FWHM: 98° + 13°
    FWTM: 128° + 22°
    Peak intensity: 2.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

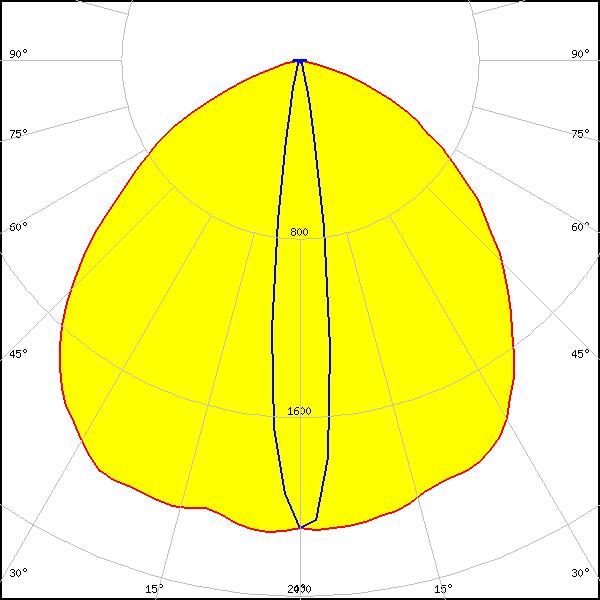

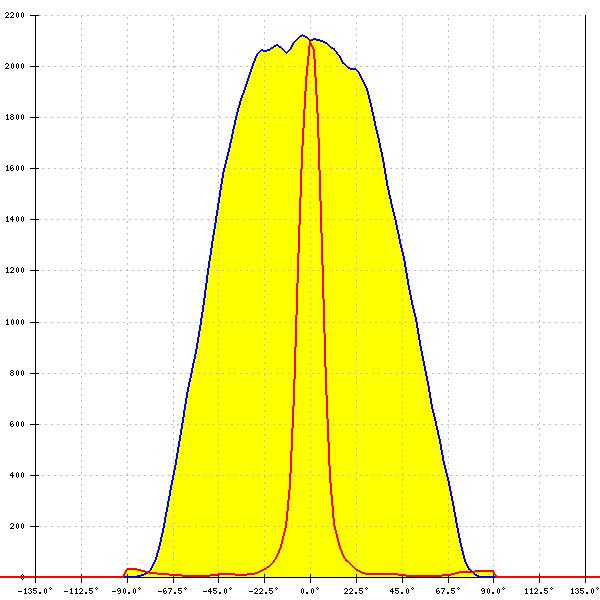

    LED: Z5M1/Z5M2
    FWHM: 104° + 14°
    FWTM: 144° + 25°
    Peak intensity: 2.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

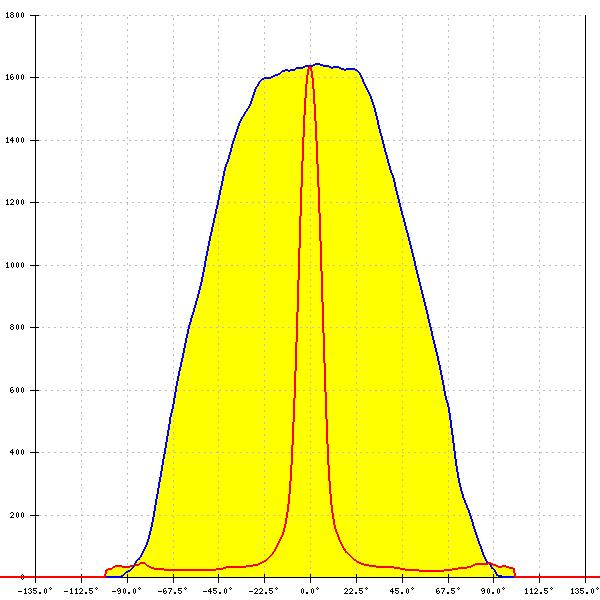

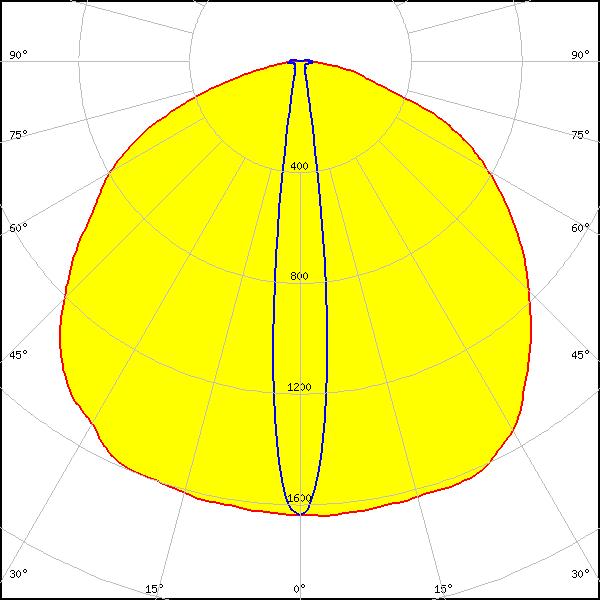

    LED: Z8Y22P
    FWHM: 117° + 13°
    FWTM: 158° + 25°
    Peak intensity: 1.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
