C13016_FLARE-MINI-AD-PIN
Print

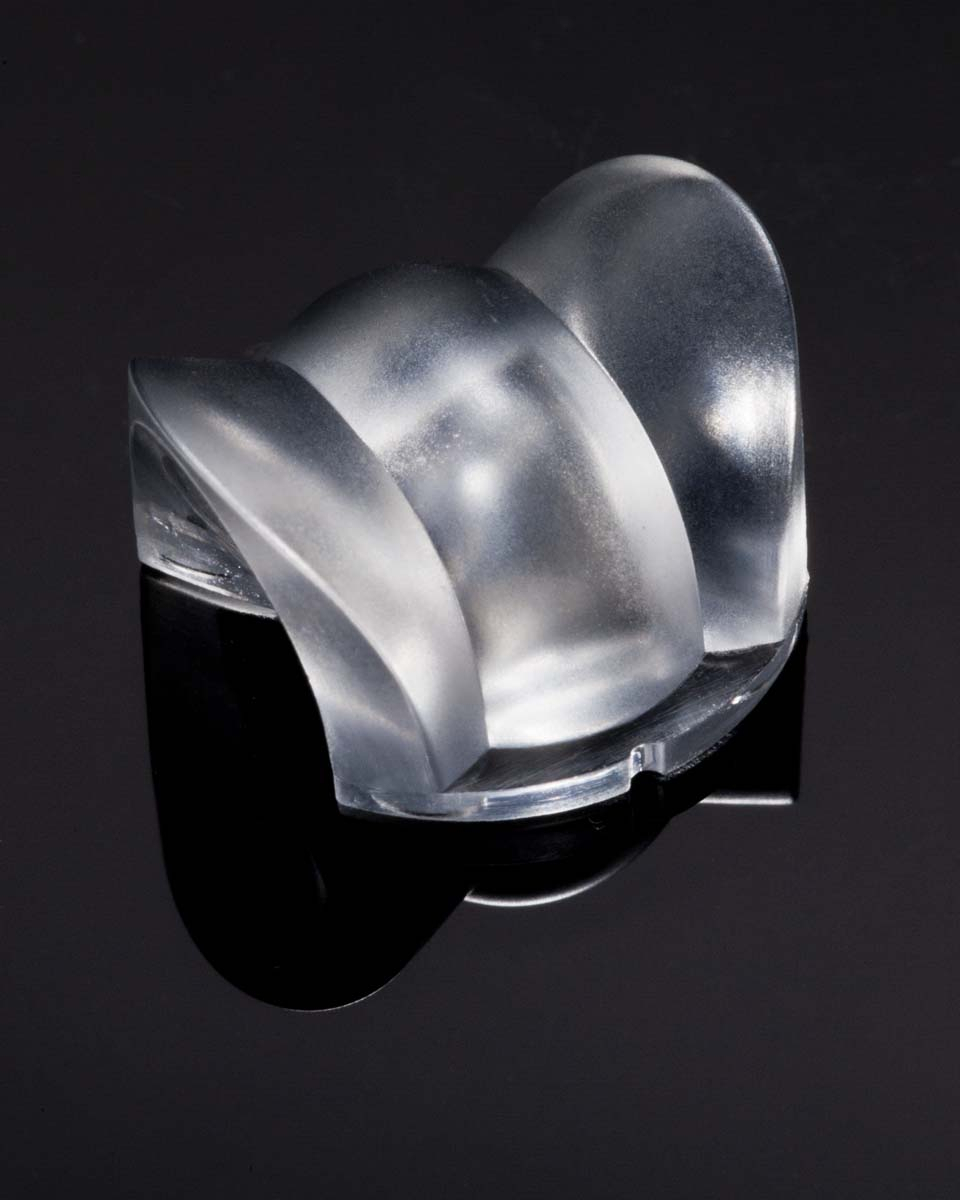

~100° x 20° oval beam. Assembly with location pins.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
XB-D
FWHM:
100° + 16°
FWTM:
160° + 31°
Peak intensity:
1.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

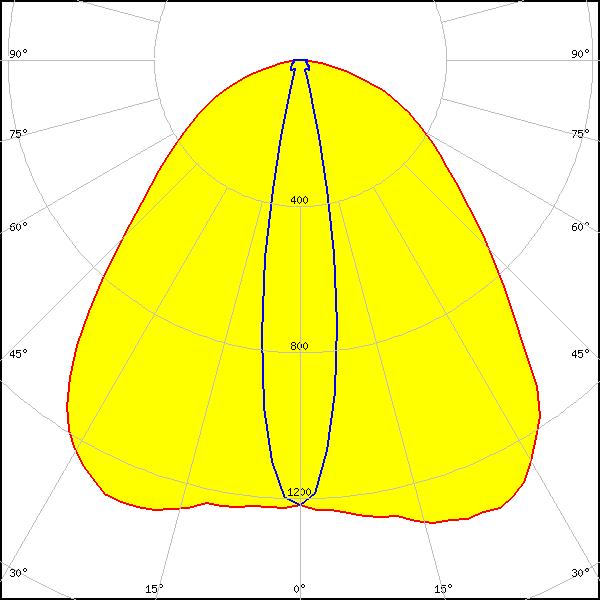

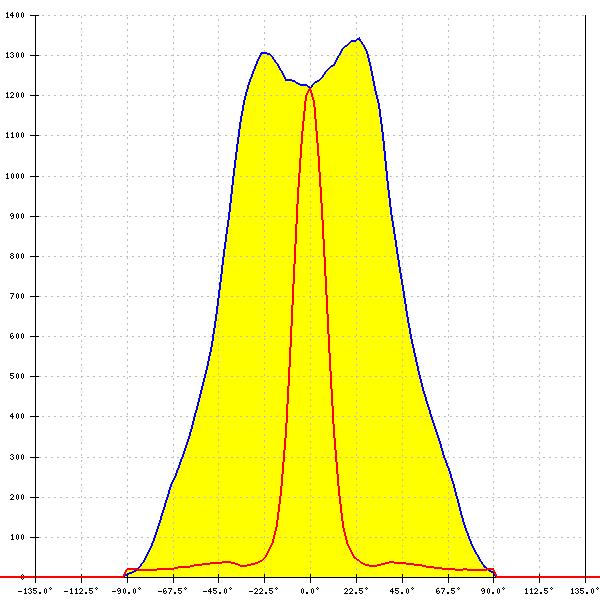

LED:
XP-E2
FWHM:
93° + 19°
FWTM:
150° + 33°
Peak intensity:
1.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

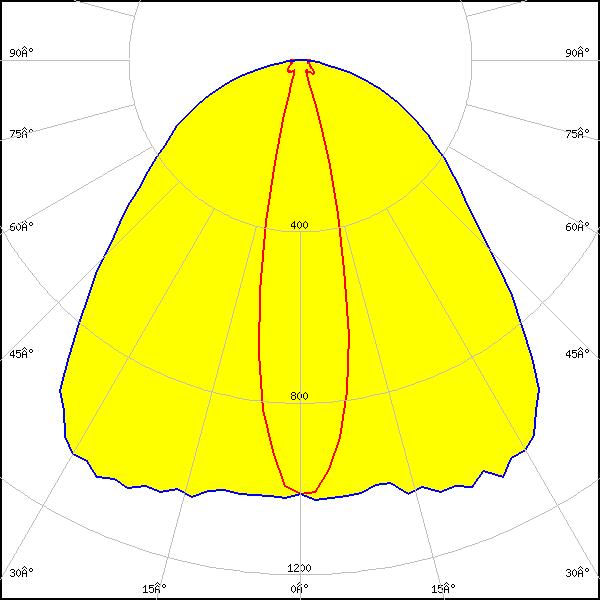

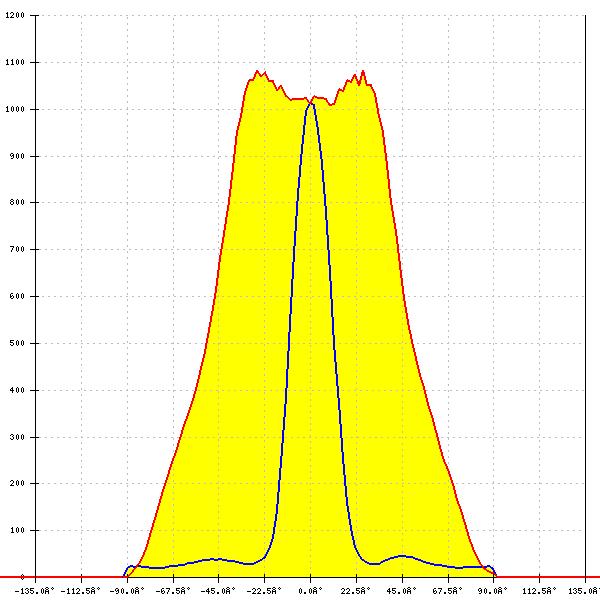

LED:
XP-G
FWHM:
100° + 20°
FWTM:
156° + 34°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

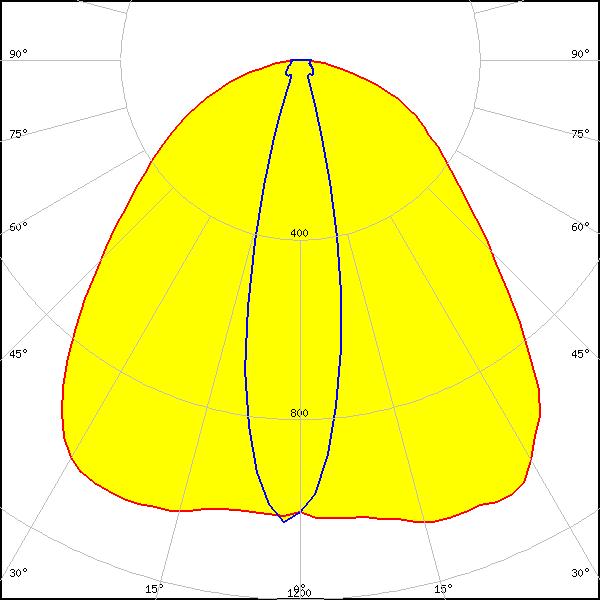

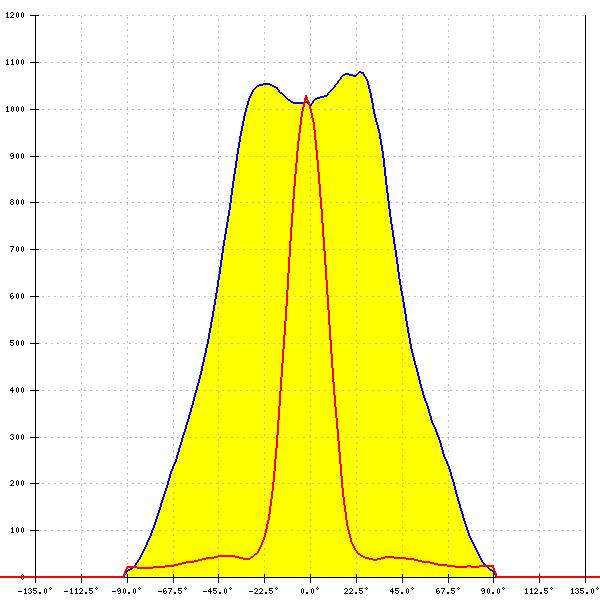

LED:
XP-G2
FWHM:
97° + 24°
FWTM:
154° + 41°
Peak intensity:
1.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

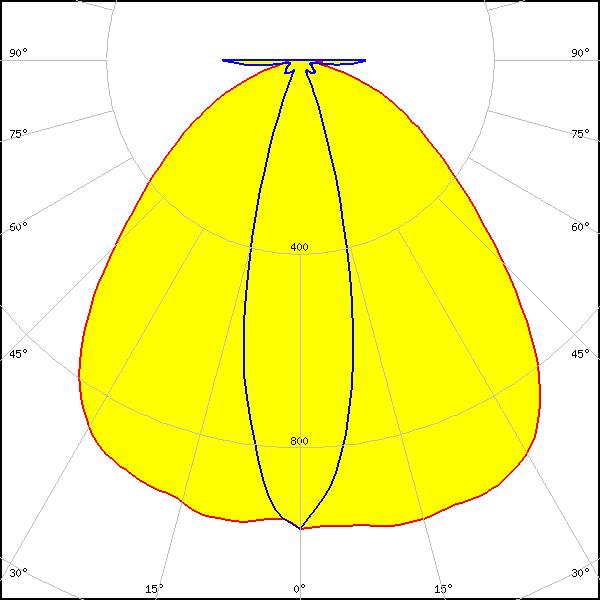

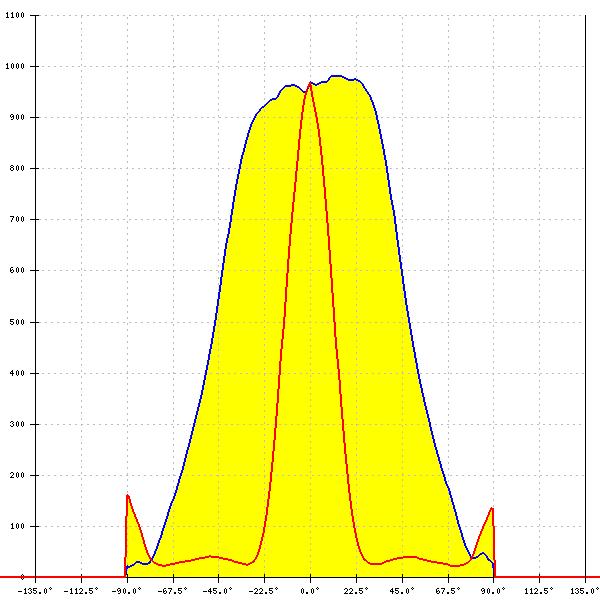

LED:
XP-G2 HE
FWHM:
96° + 26°
FWTM:
145° + 44°
Peak intensity:
0.982 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

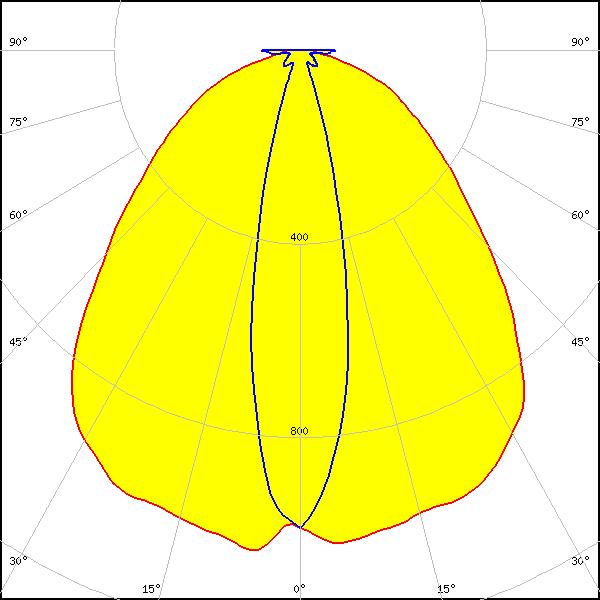

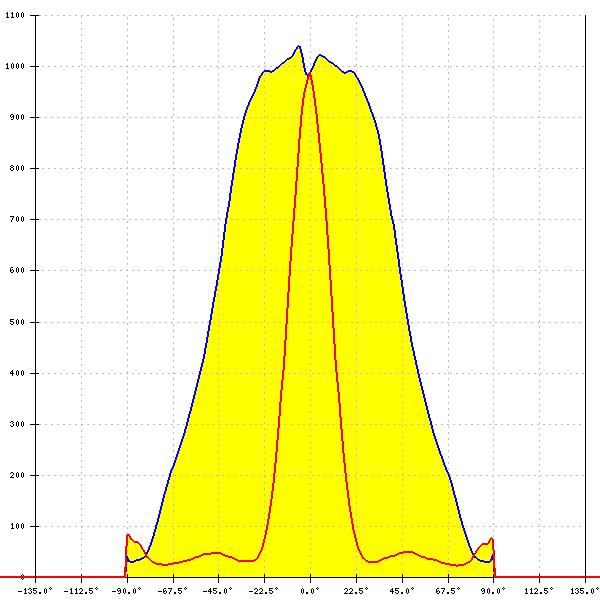

LED:
XP-G3
FWHM:
94° + 22°
FWTM:
149° + 41°
Peak intensity:
1.050 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

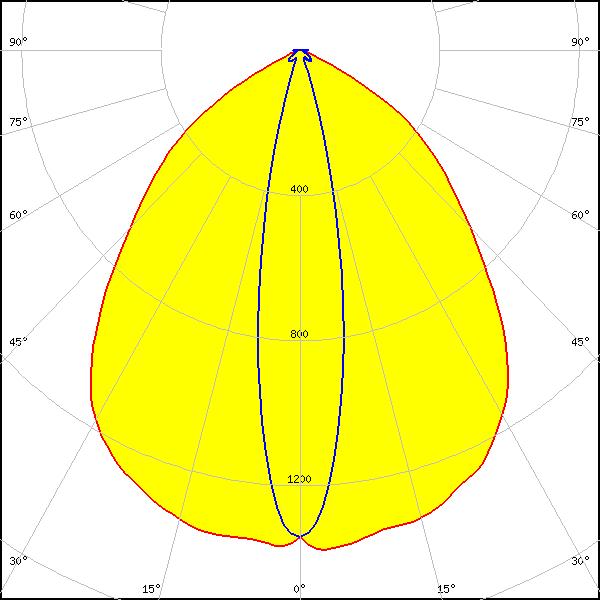

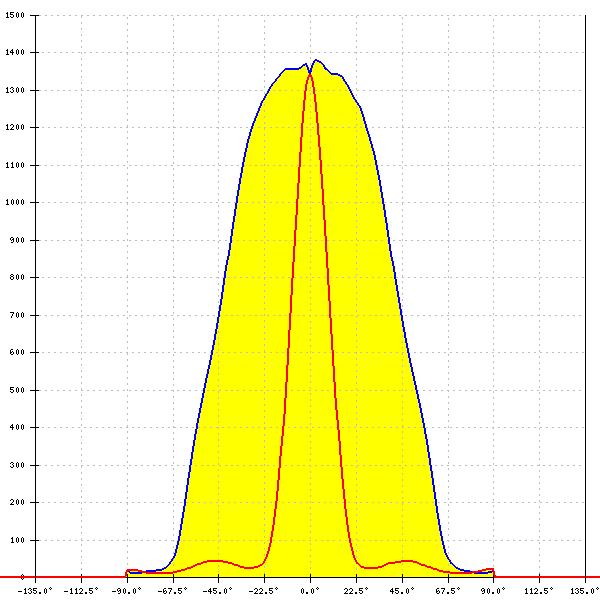

LED:
XP-G4
FWHM:
90° + 21°
FWTM:
127° + 36°
Peak intensity:
1.386 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

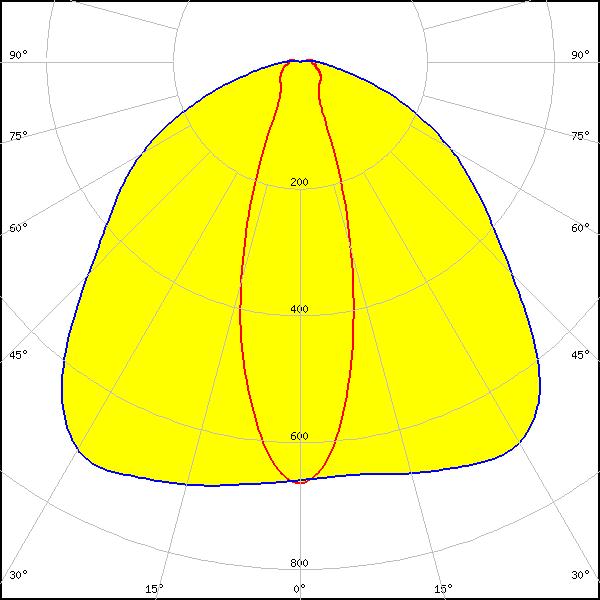

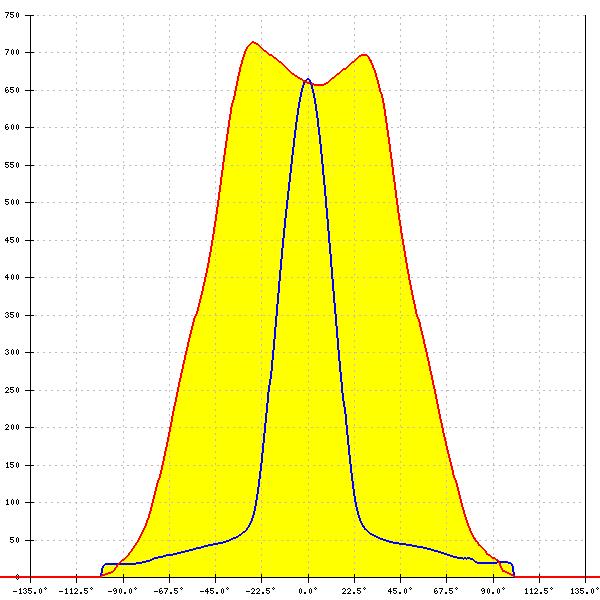

LED:
XP-L HD
FWHM:
111° + 30°
FWTM:
158° + 56°
Peak intensity:
0.710 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

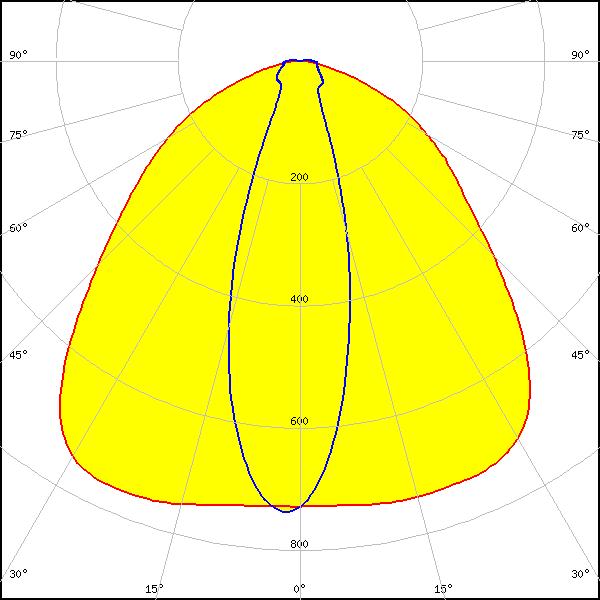

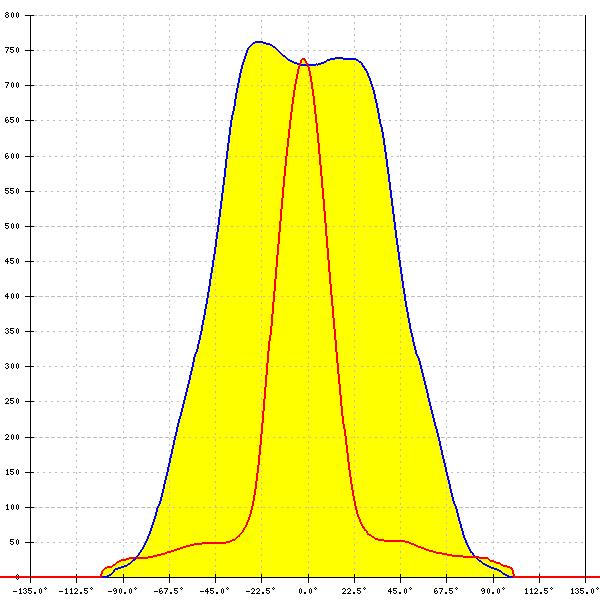

LED:
XP-L2
FWHM:
100° + 30°
FWTM:
150° + 57°
Peak intensity:
0.760 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
104° + 19°
FWTM:
164° + 36°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

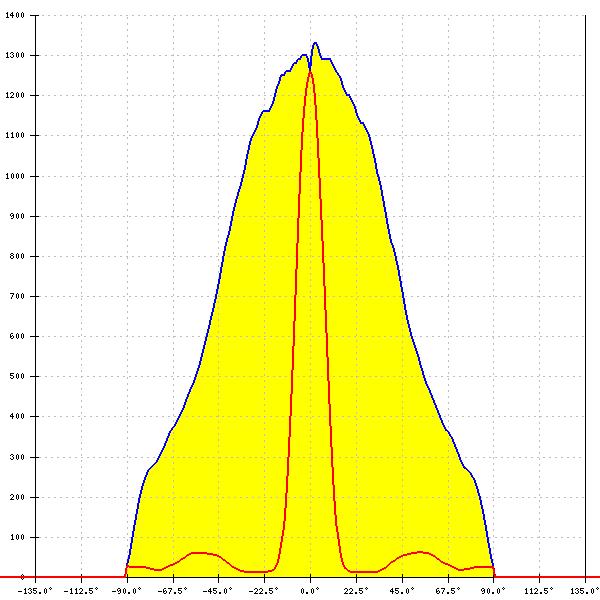

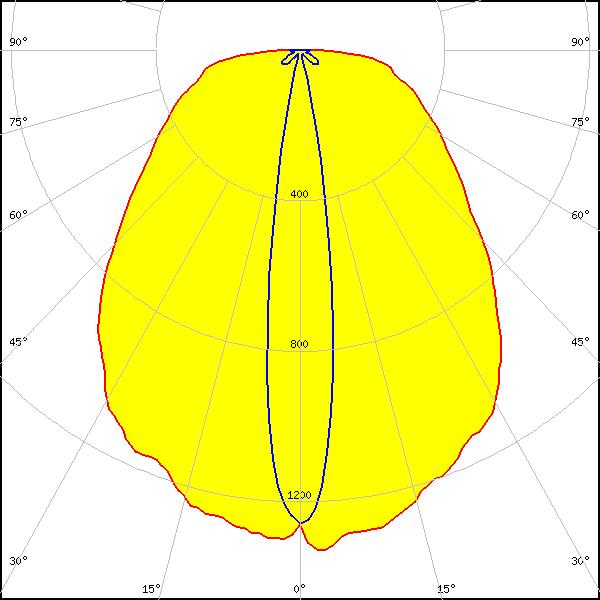

LED:
LUXEON C
FWHM:
15° + 94°
FWTM:
24° + 172°
Peak intensity:
1.350 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

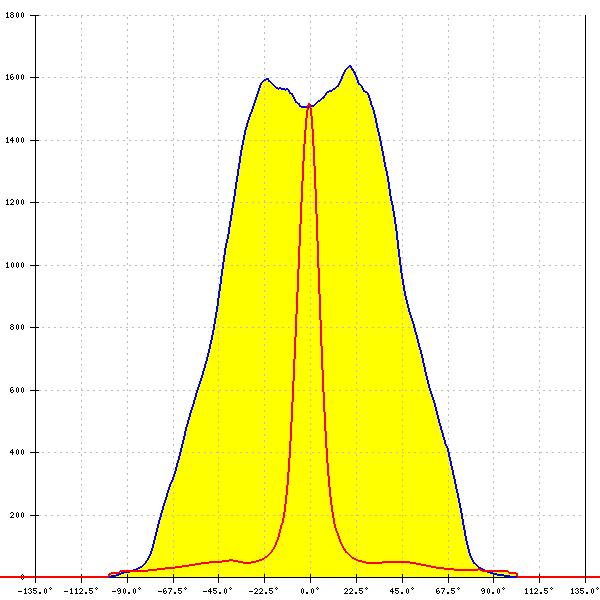

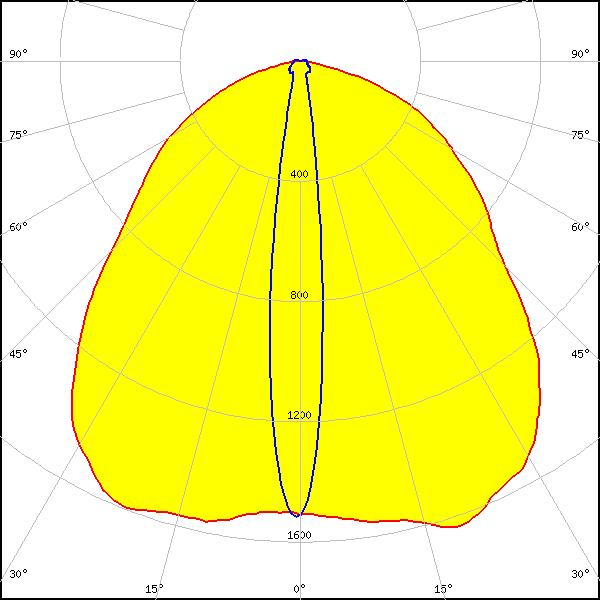

LED:
LUXEON CZ
FWHM:
101° + 13°
FWTM:
151° + 27°
Peak intensity:
1.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

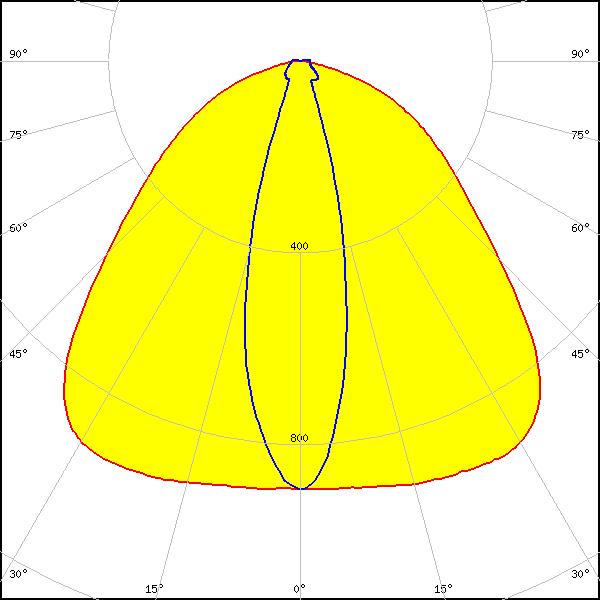

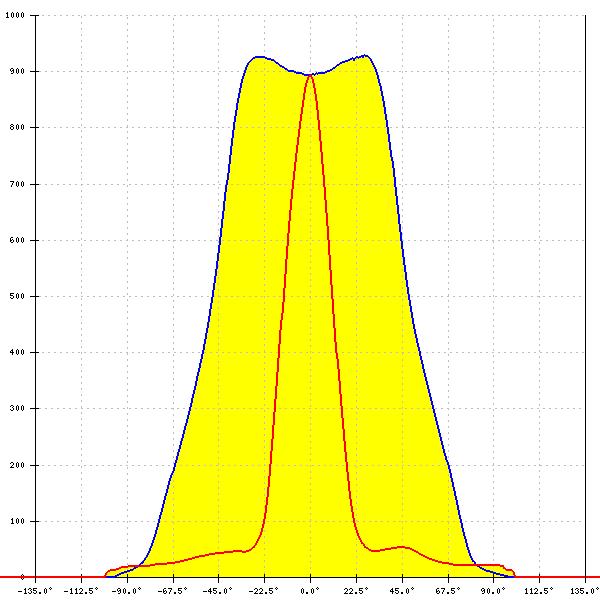

LED:
NVSW219F
FWHM:
101° + 26°
FWTM:
149° + 45°
Peak intensity:
0.930 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
100° + 20°
FWTM:
147° + 34°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

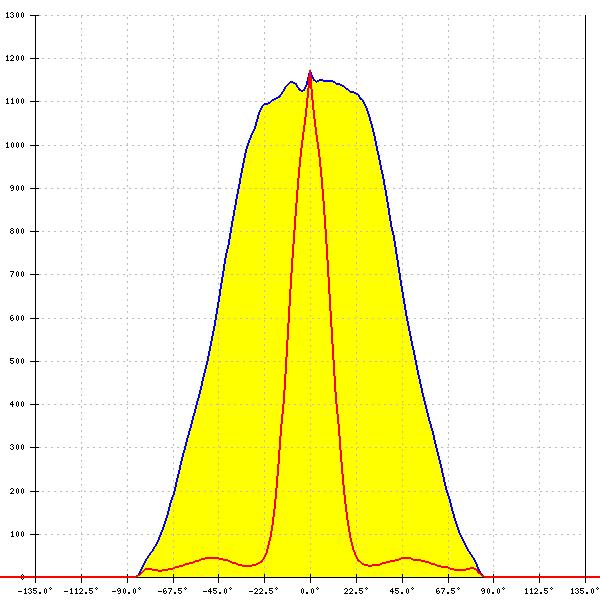

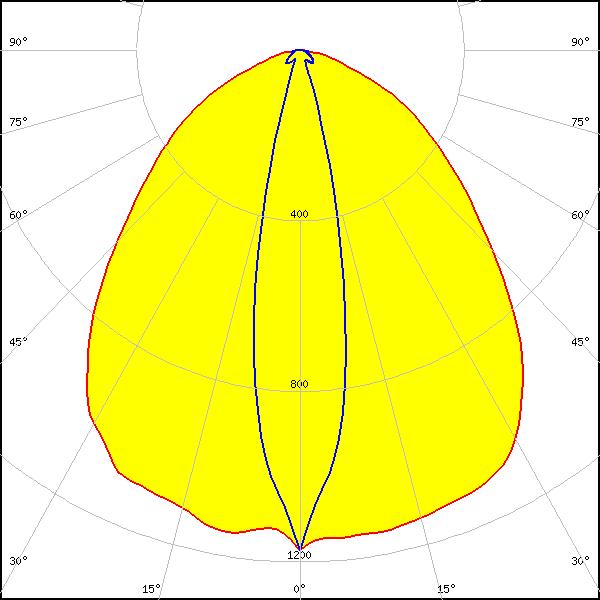

LED:
NVSxx19B/NVSxx19C
FWHM:
95° + 22°
FWTM:
144° + 37°
Peak intensity:
1.173 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

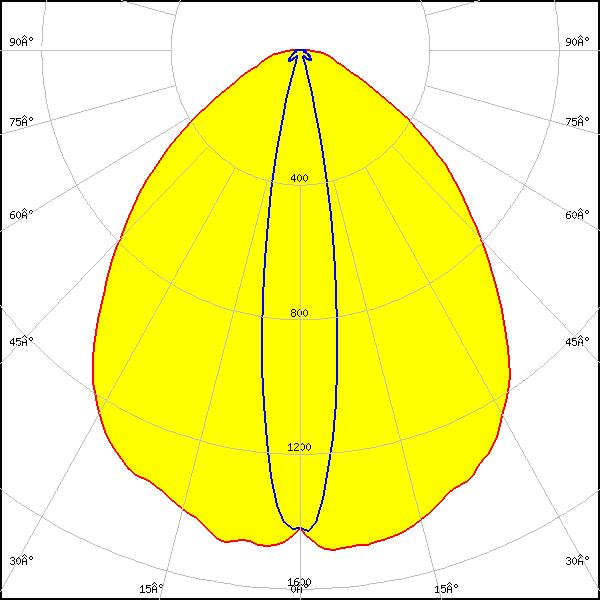

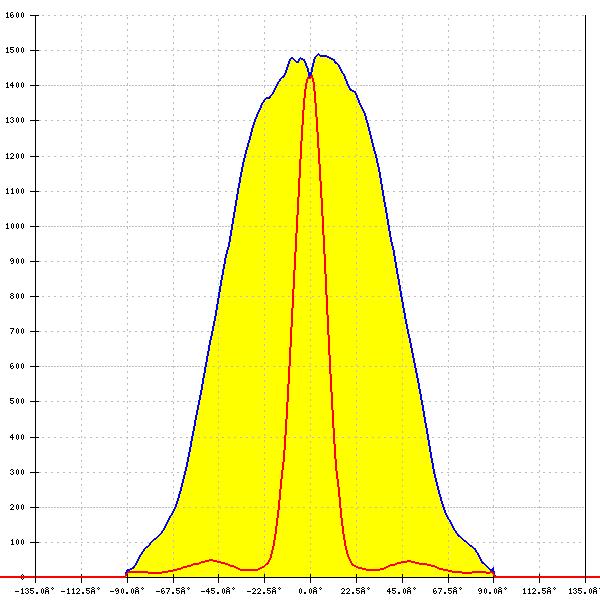

LED:
OSLON Square EC
FWHM:
92° + 21°
FWTM:
148° + 36°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

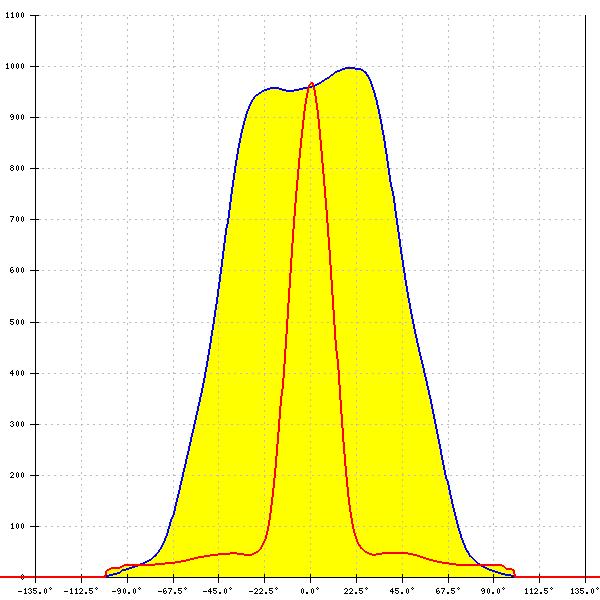

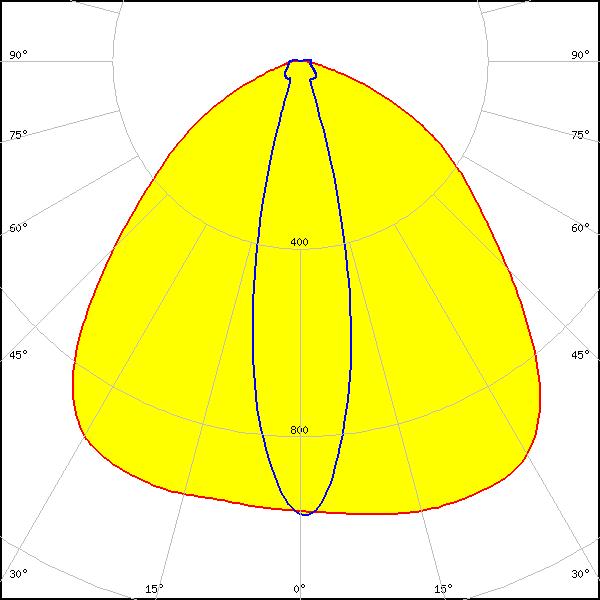

LED:
LH351B
FWHM:
98° + 24°
FWTM:
141° + 42°
Peak intensity:
1.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

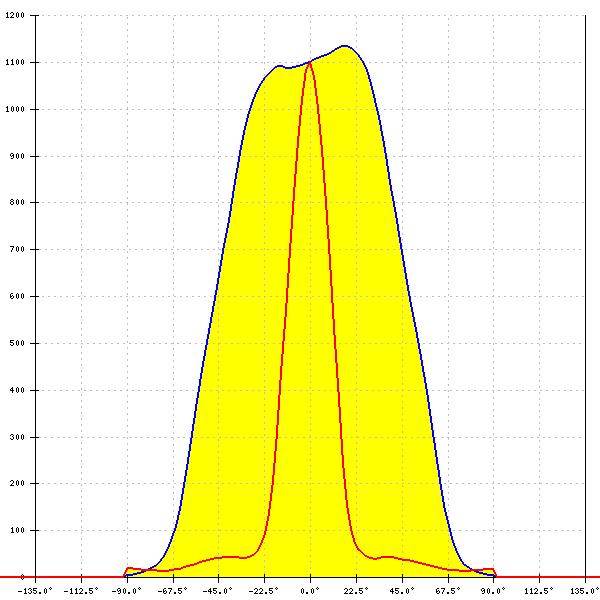

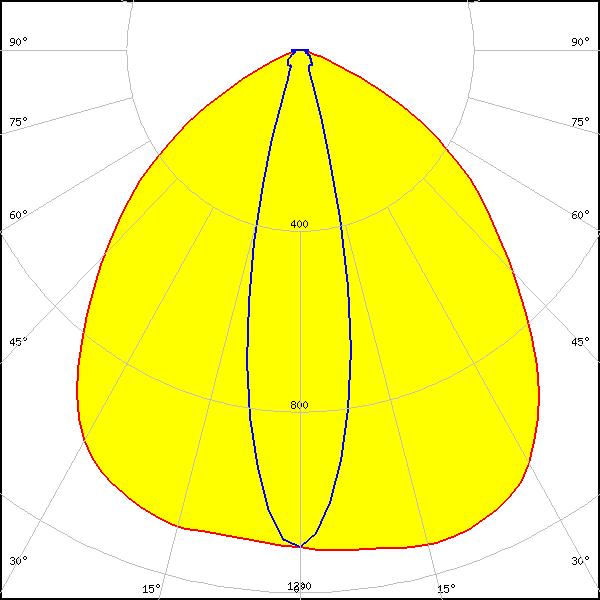

LED:
LH351Z
FWHM:
99° + 25°
FWTM:
134° + 42°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
