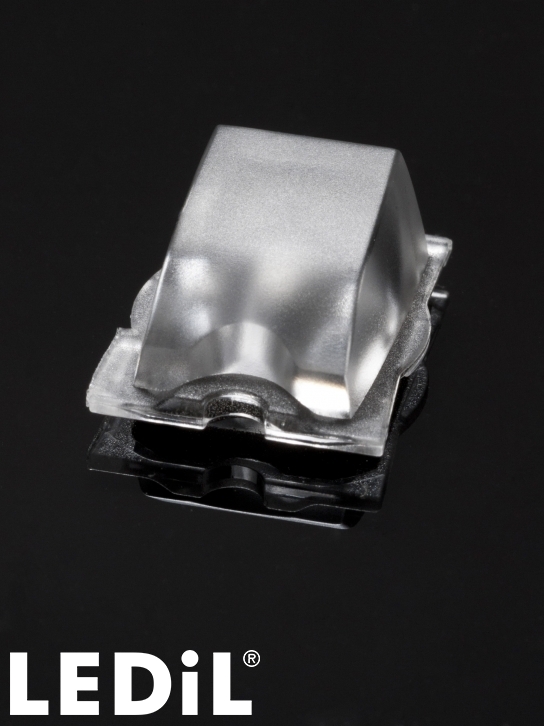

C13492_STRADA-T-DN

Print

Beam for area lighting with shorter illumination distances. Optimized for CREE XT-E and XP-G2.

Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

Specification
  • Dimensions:
    20 x  16 mm
  • Height:
    9.20 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    2880 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.7 kg
  • MPQ:
    2880 pcs
  • MOQ:
    17280 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    5.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C13492_STRADA-T-DN

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
WHERE TO BUY

Optical results

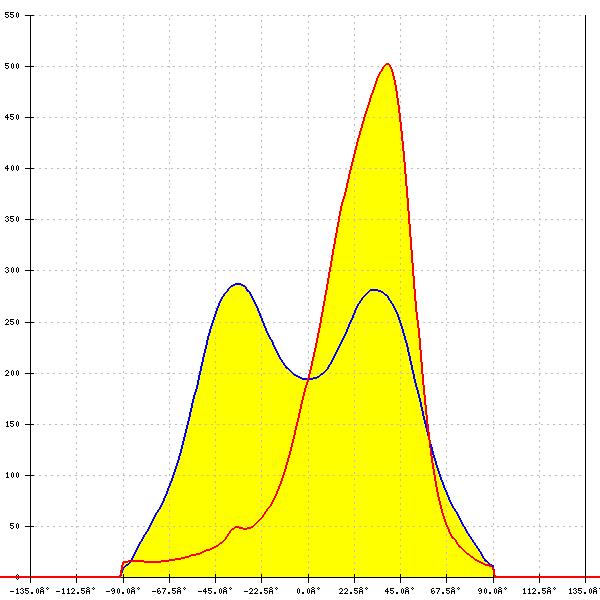

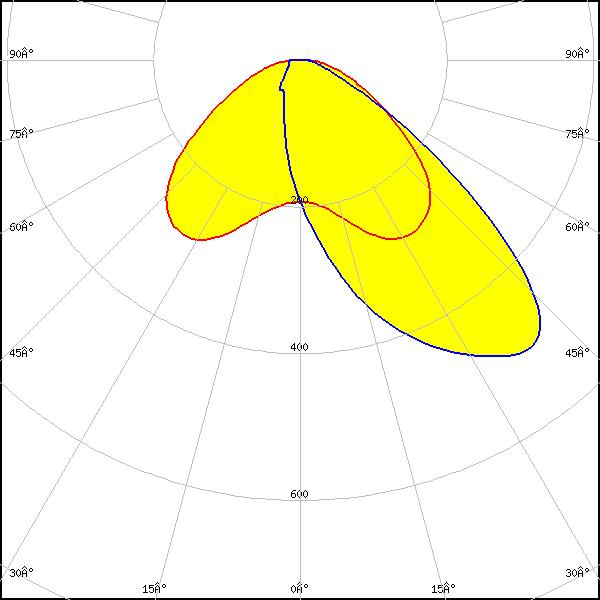

LED: XP-G2
FWHM: asymmetric
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

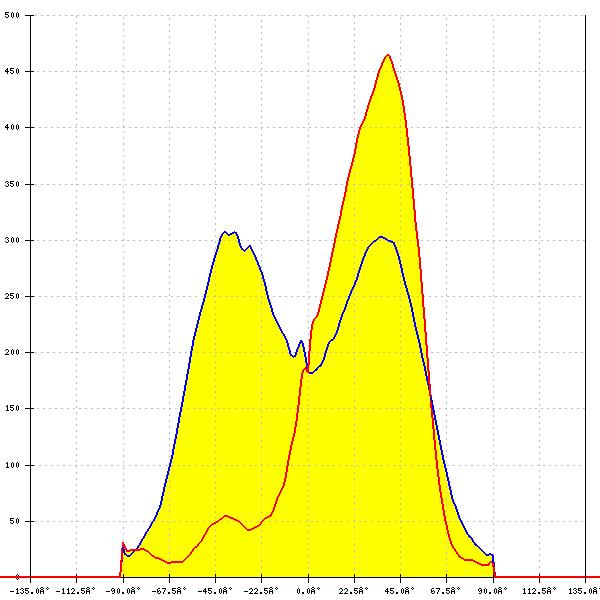

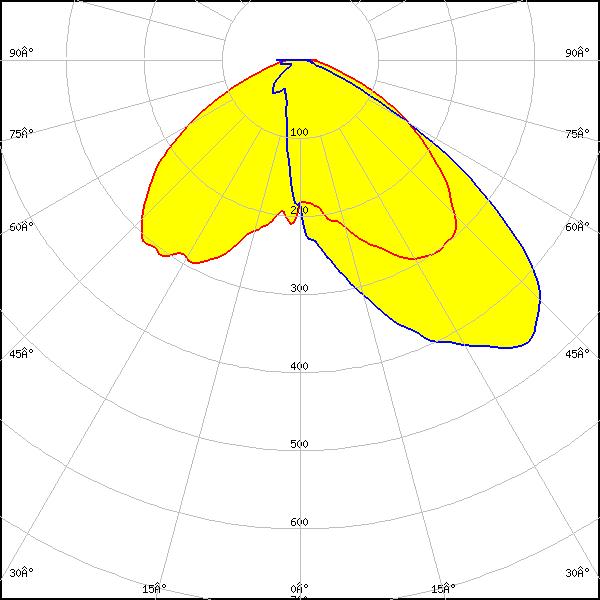

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.502 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

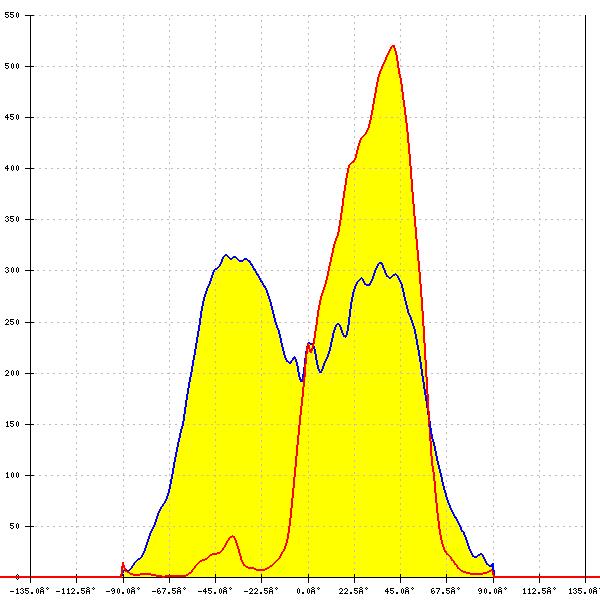

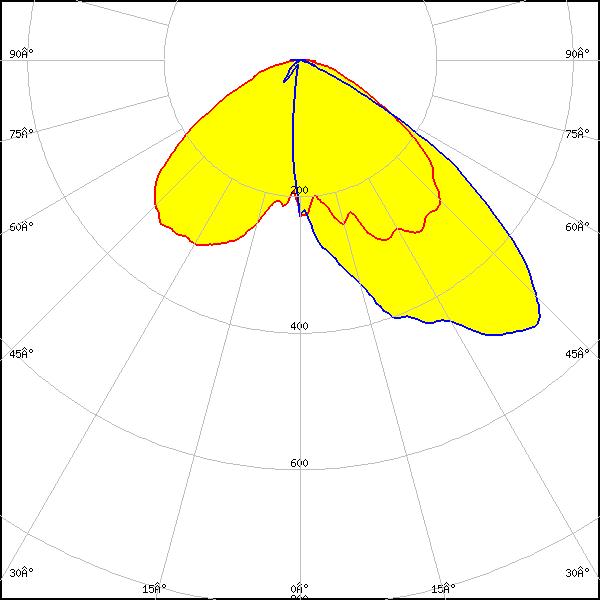

LED: XT-E
FWHM: asymmetric
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

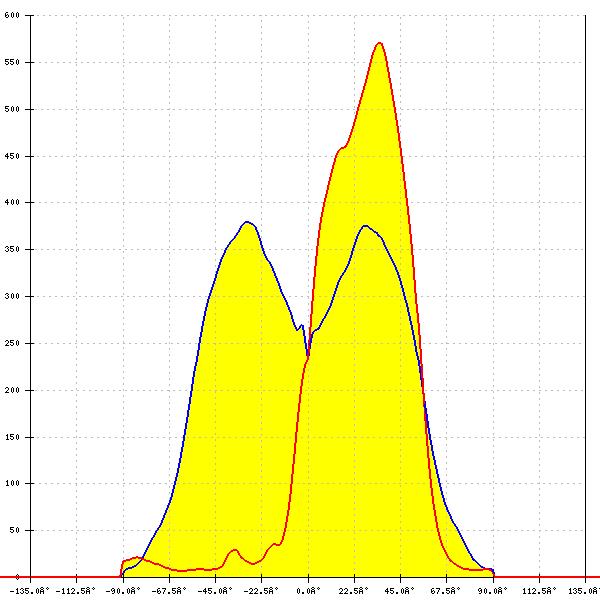

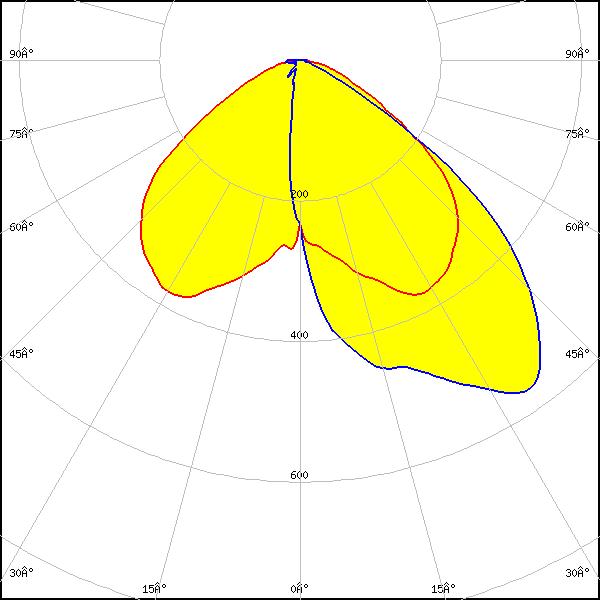

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

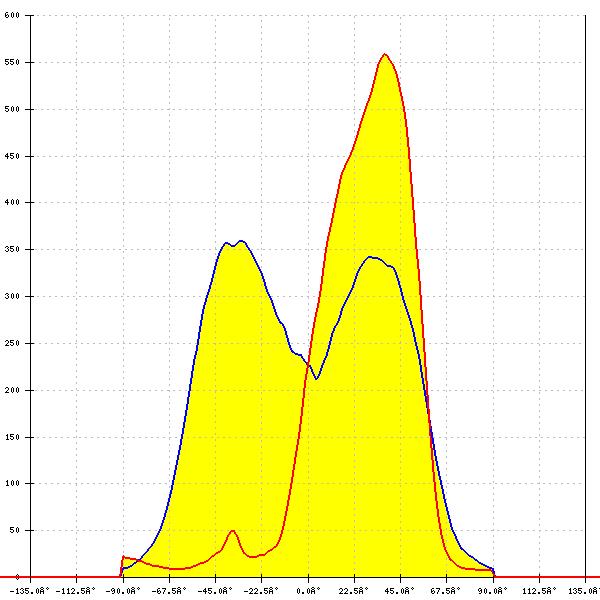

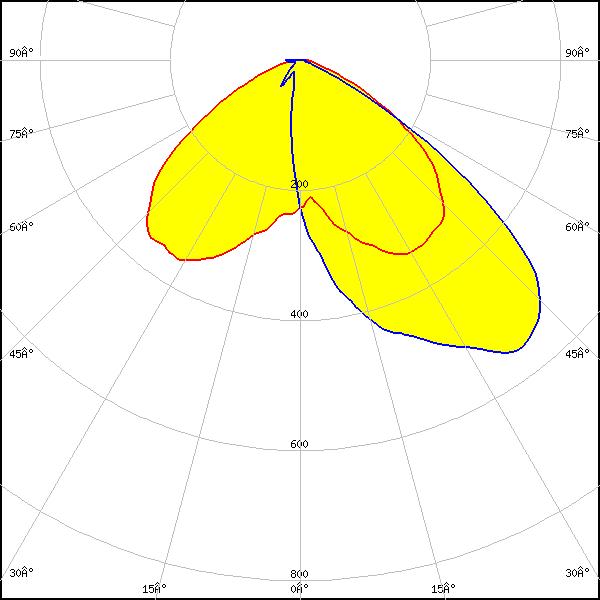

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.601 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
