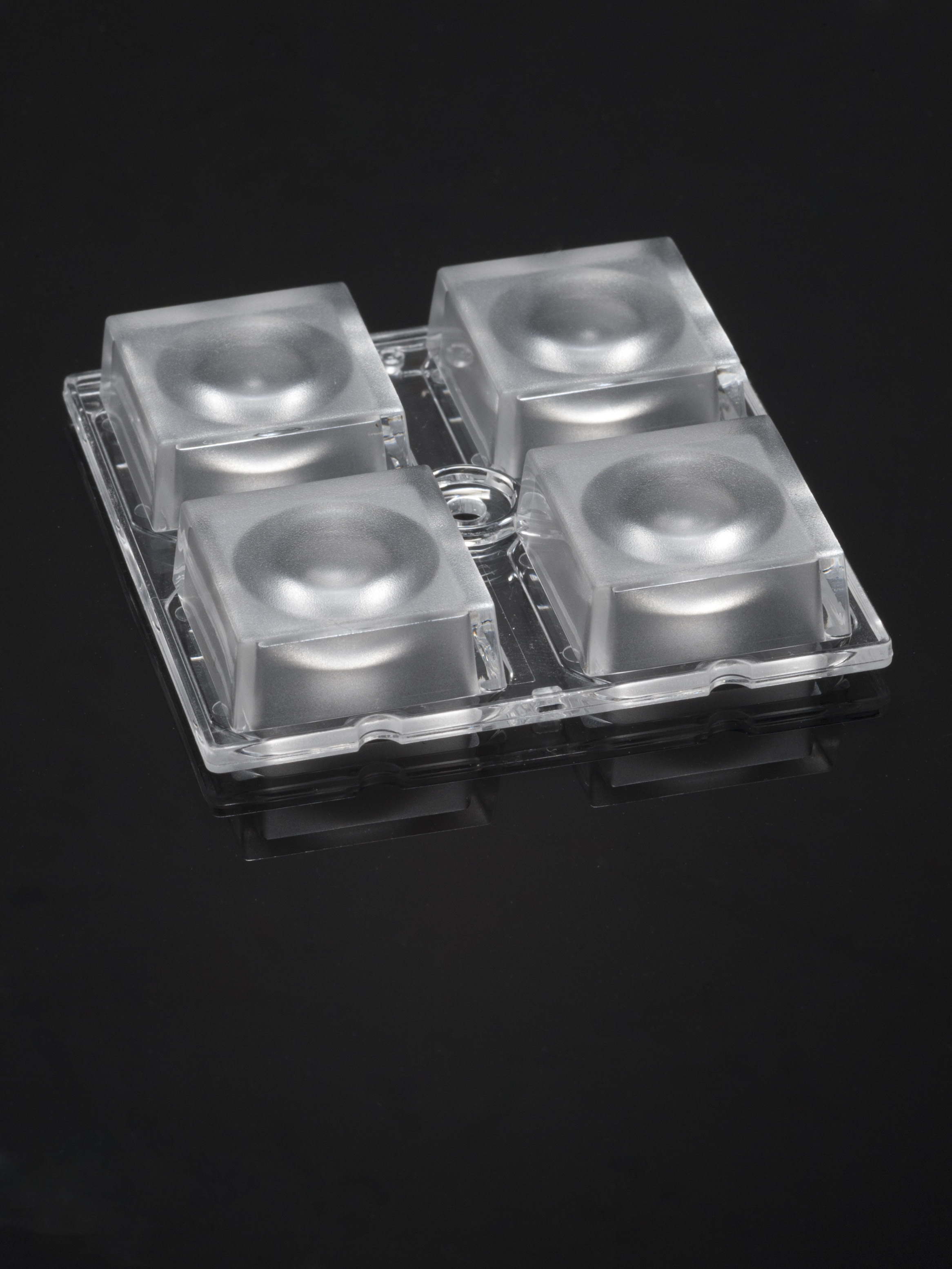

C13605_HB-2X2-RW
Print
~50° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

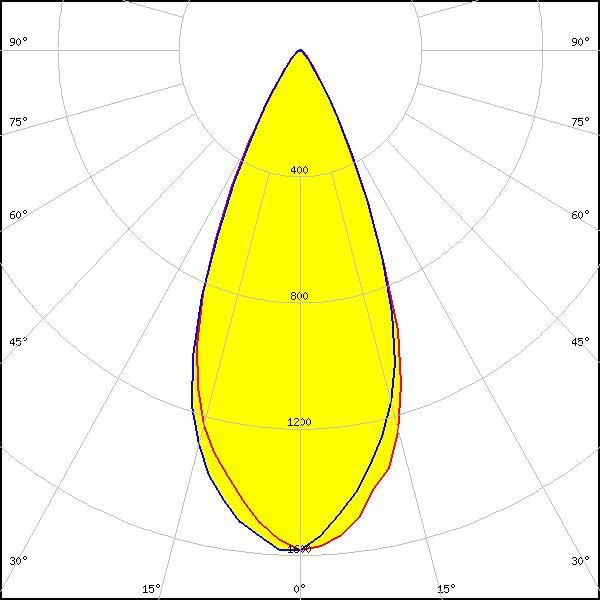

LED:

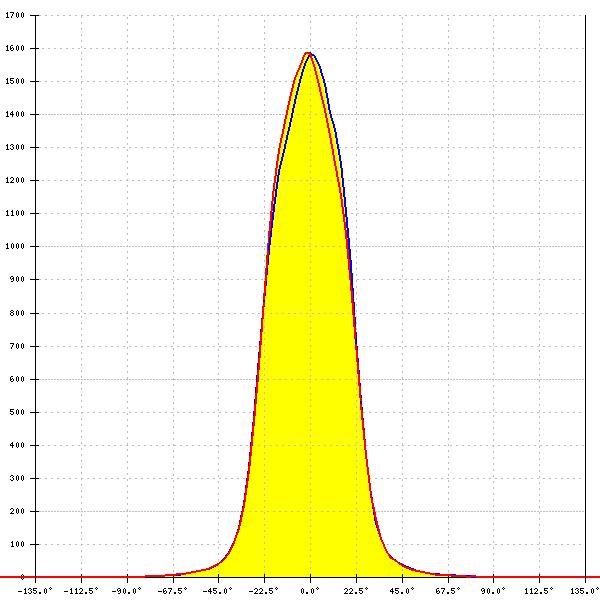

XB-D
FWHM:
46°
FWTM:
68°
Peak intensity:
1.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

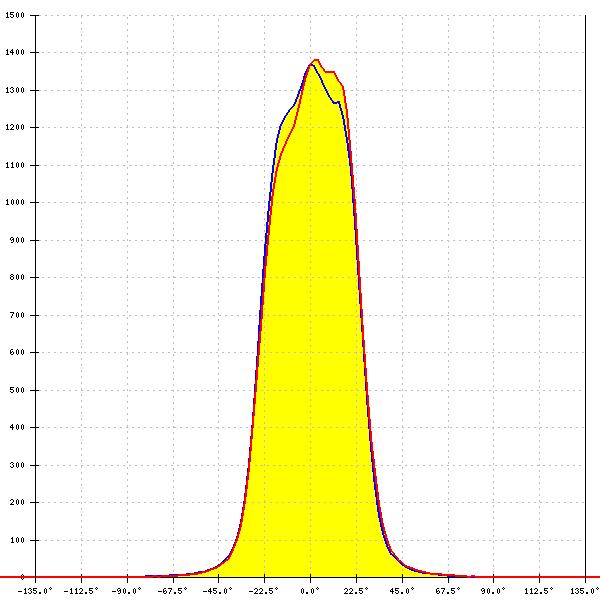

LED:

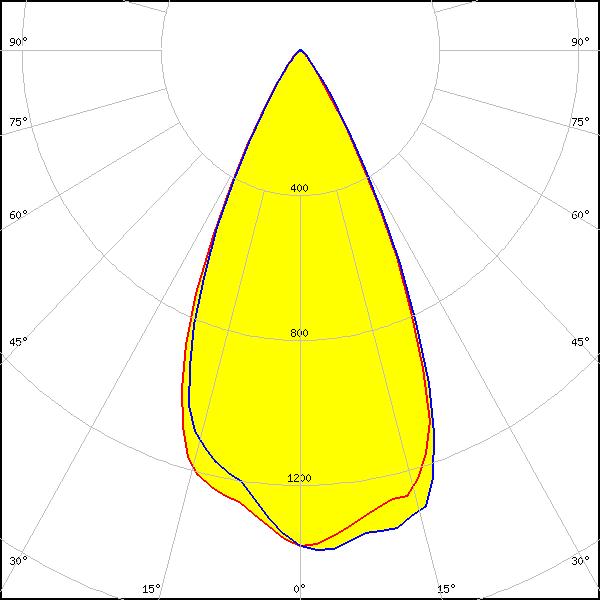

XP-E
FWHM:
51°
FWTM:
72°
Peak intensity:
1.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

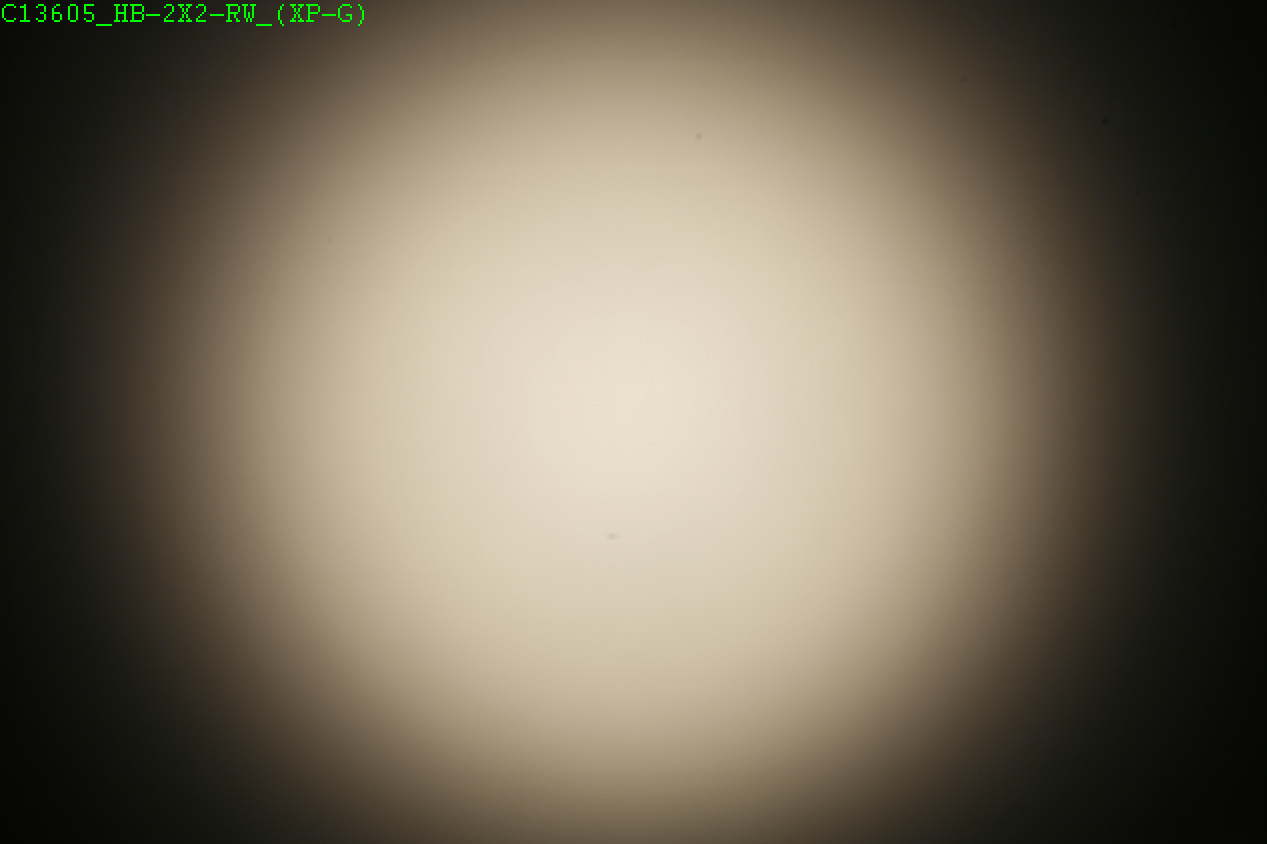

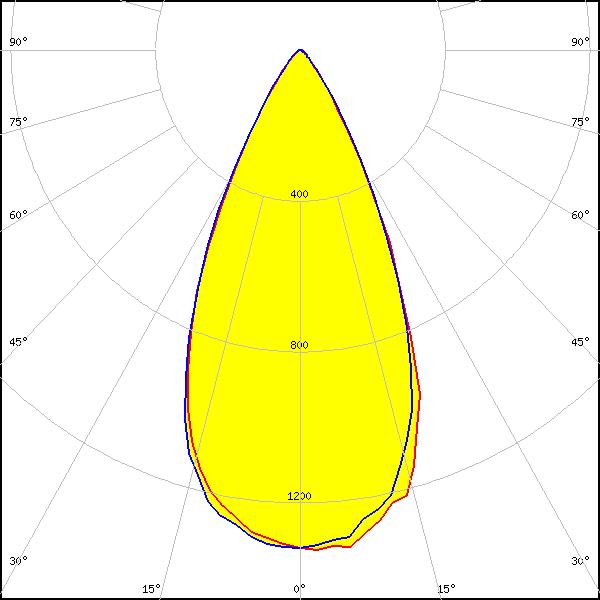

LED:

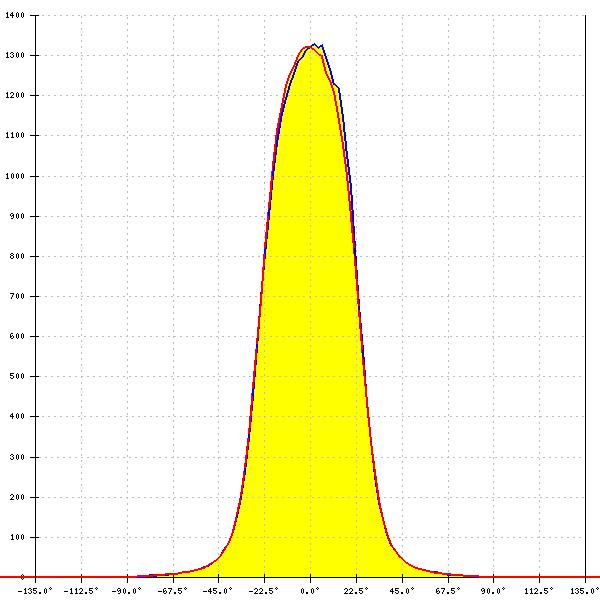

XP-G
FWHM:
50°
FWTM:
76°
Peak intensity:
1.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

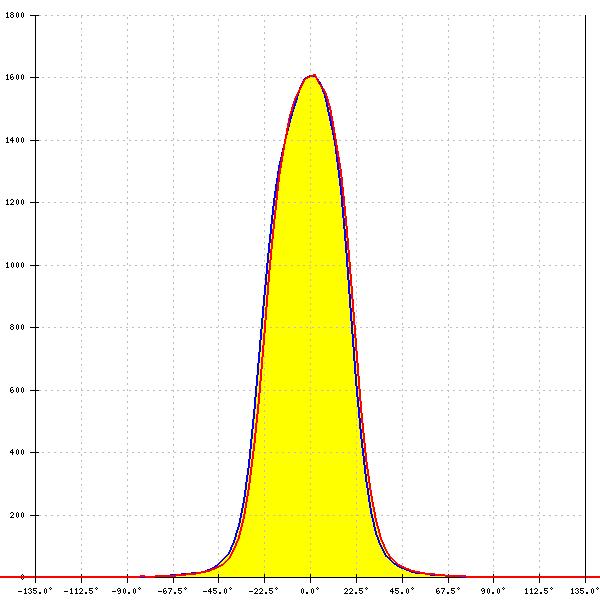

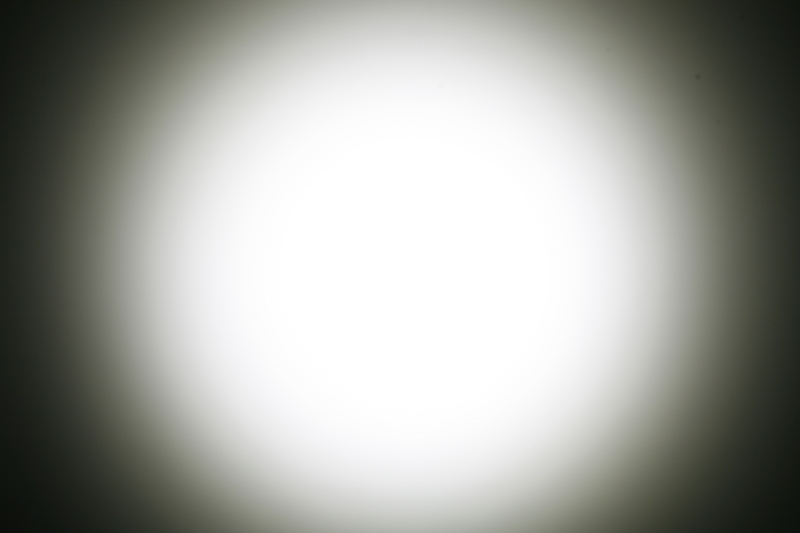

LED:

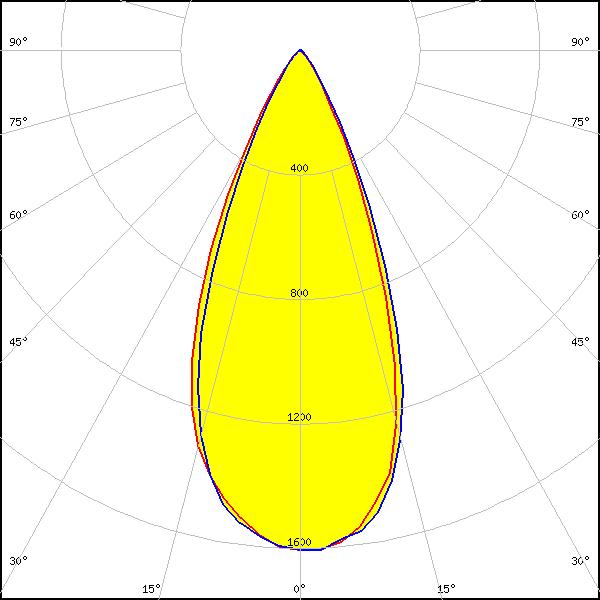

XT-E
FWHM:
44°
FWTM:
68°
Peak intensity:
1.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

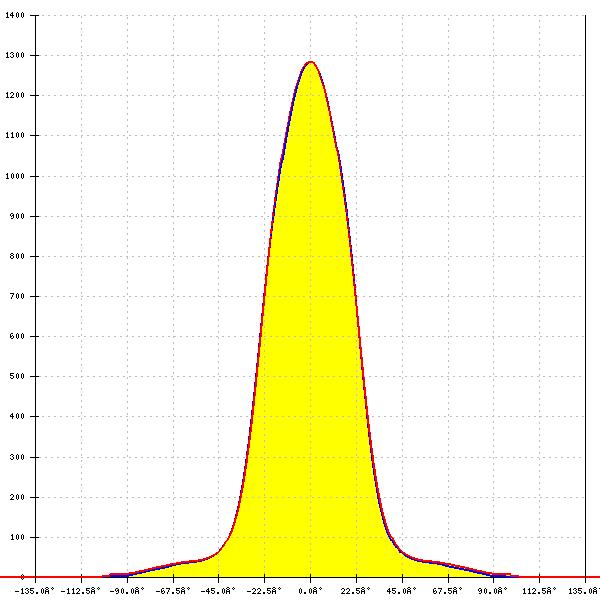

LED:

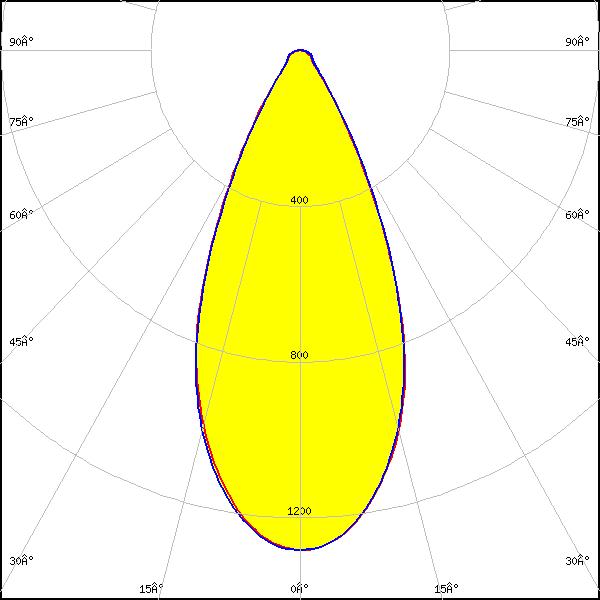

PL-BRICK HP 3800 2x8 SSG
FWHM:
47°
FWTM:
75°
Peak intensity:
1.284 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

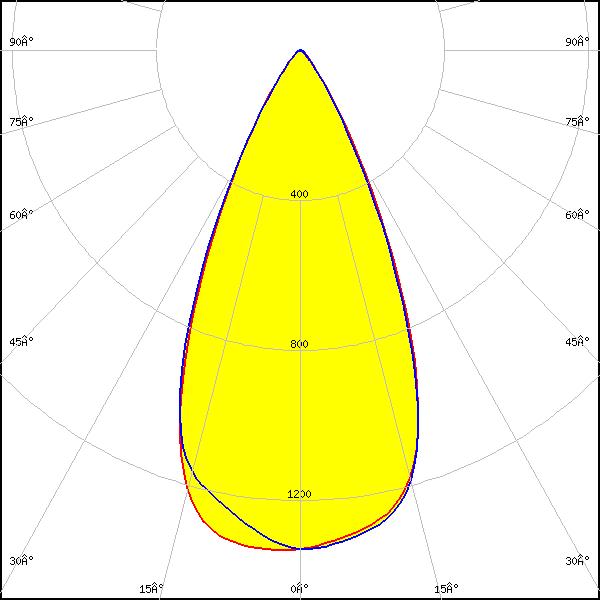

PrevaLED Brick HP 2x8
FWHM:
49°
FWTM:
73°
Peak intensity:
1.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

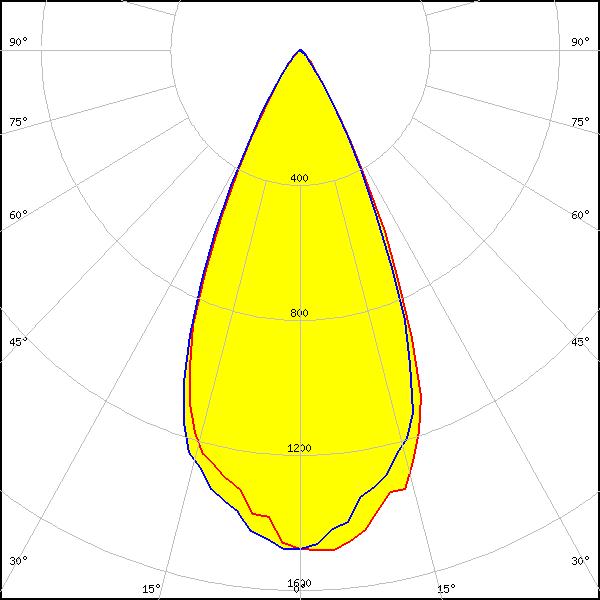

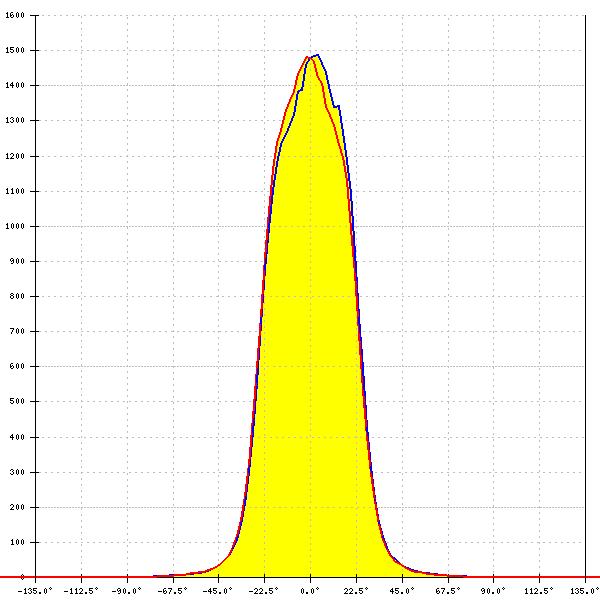

LED:

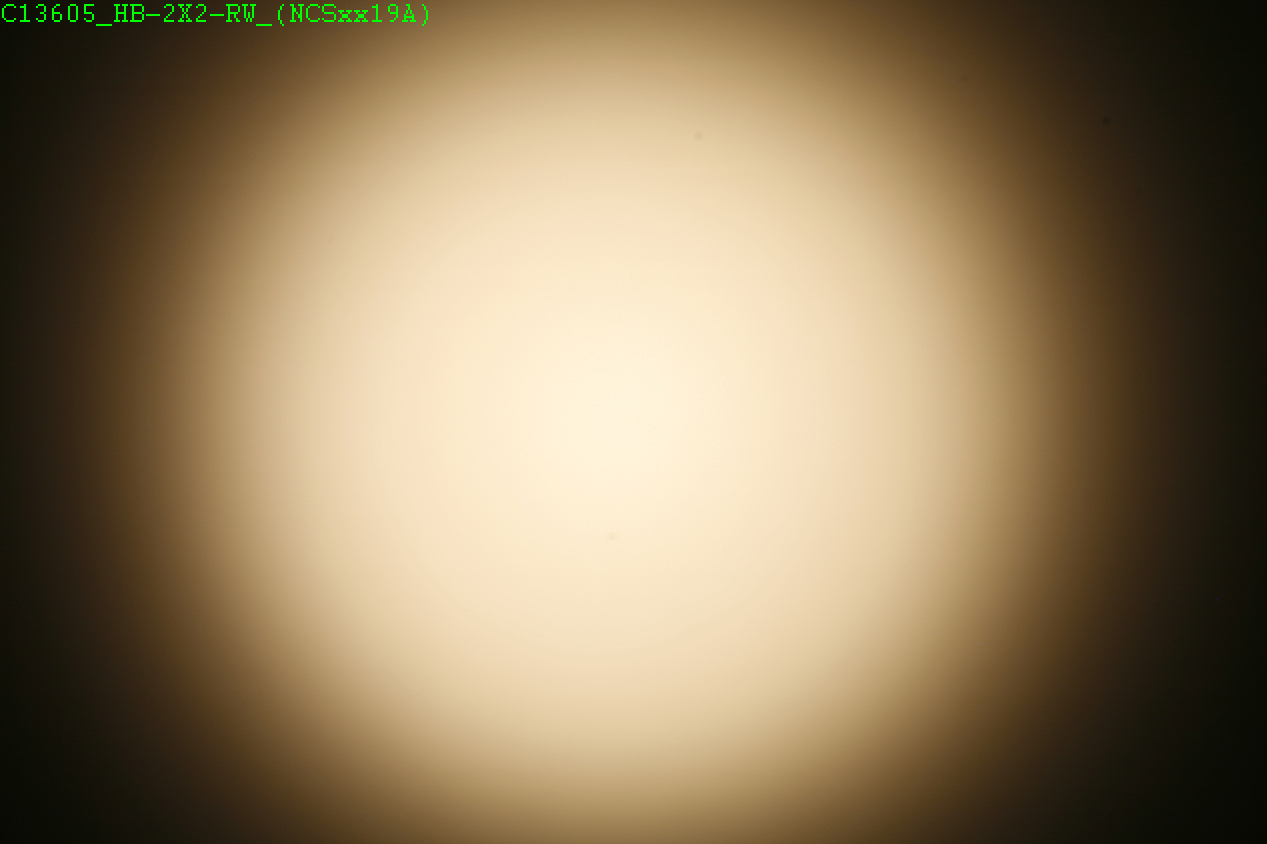

NCSxx19A
FWHM:
49°
FWTM:
71°
Peak intensity:
1.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

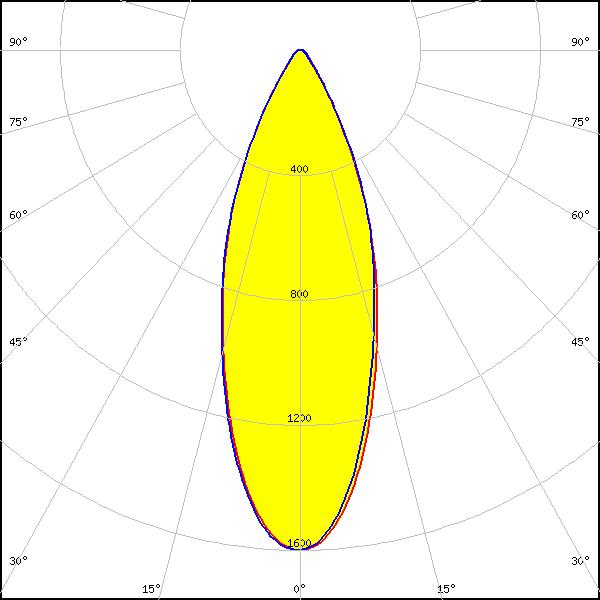

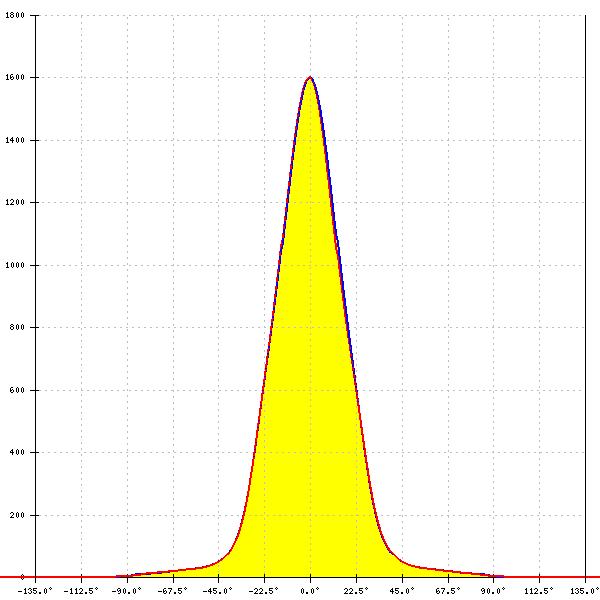

LED:
NVSxE21A
FWHM:
37°
FWTM:
68°
Peak intensity:
1.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

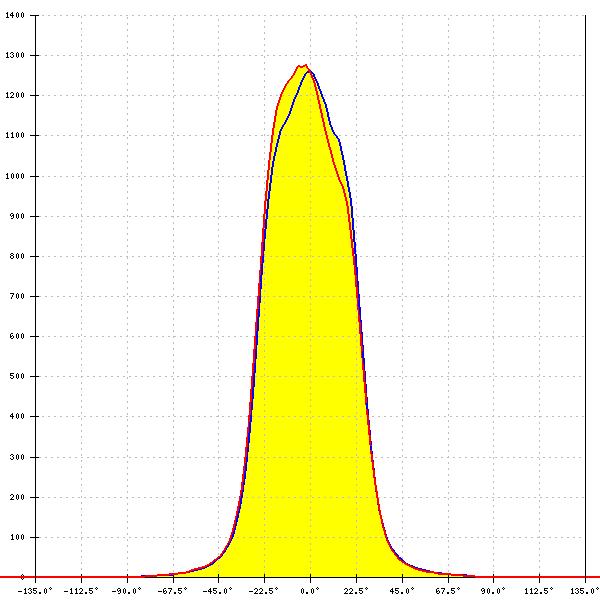

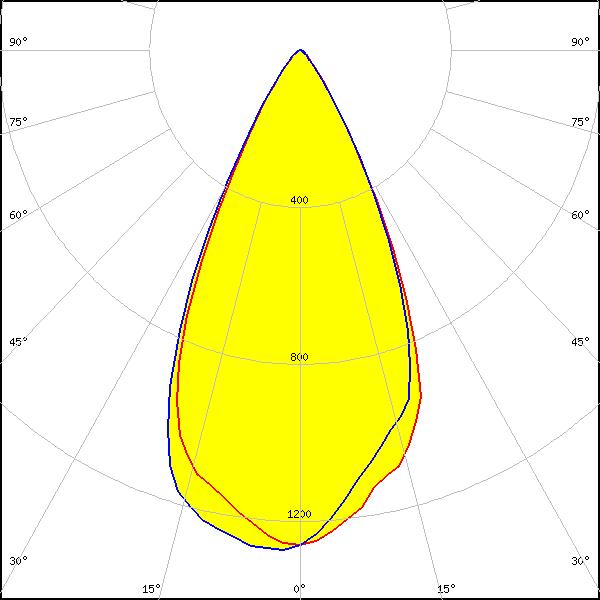

NVSxx19A
FWHM:
52°
FWTM:
76°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

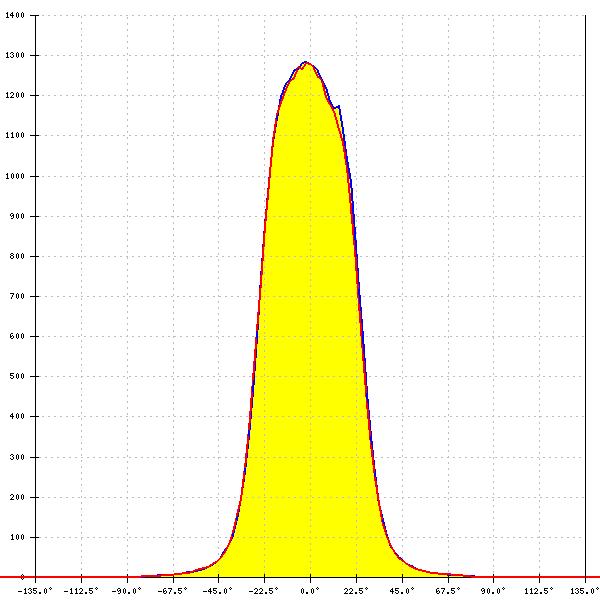

LED:

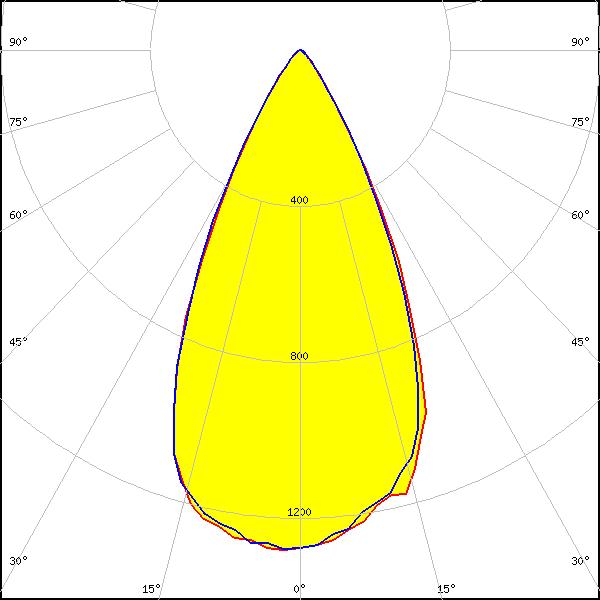

NVSxx19B/NVSxx19C
FWHM:
51°
FWTM:
76°
Peak intensity:
1.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

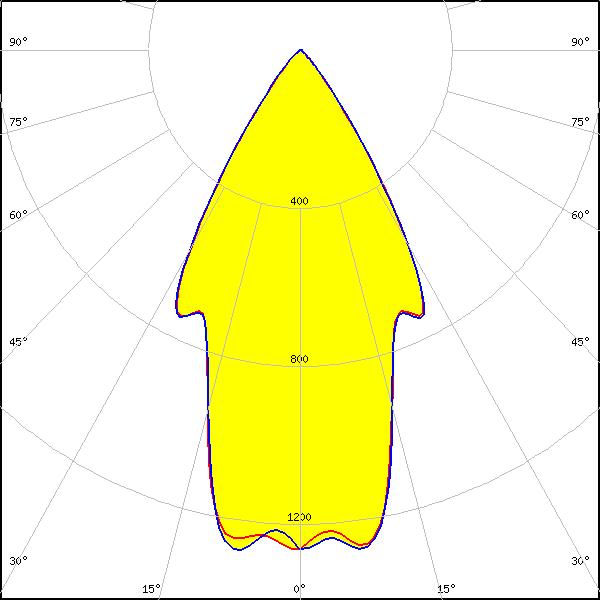

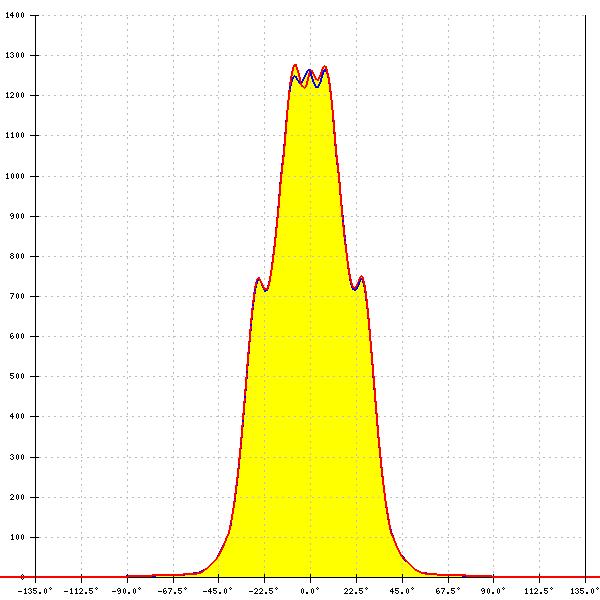

OSCONIQ C 3030
FWHM:
58°
FWTM:
78°
Peak intensity:
1.295 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
58°
FWTM:
80°
Peak intensity:
1.182 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

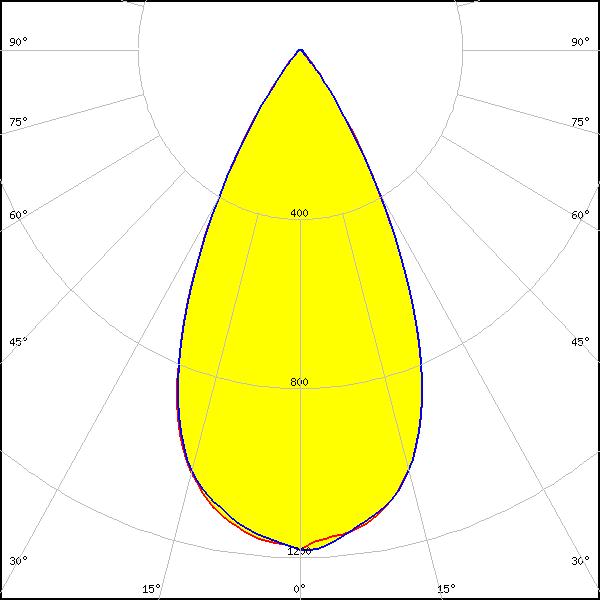

LED:

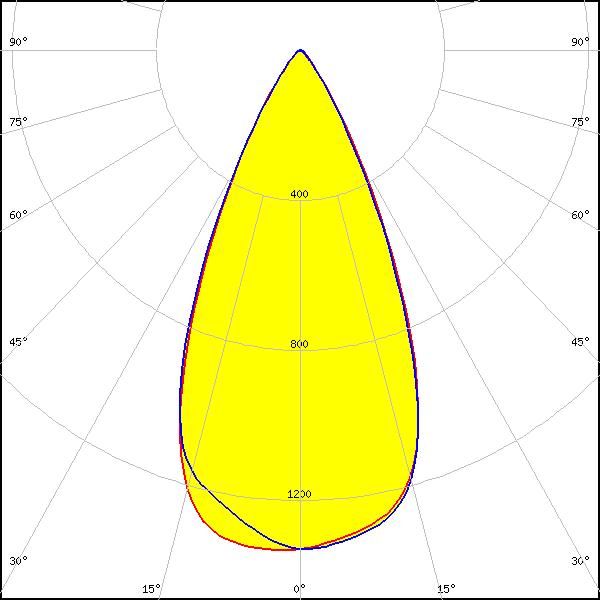

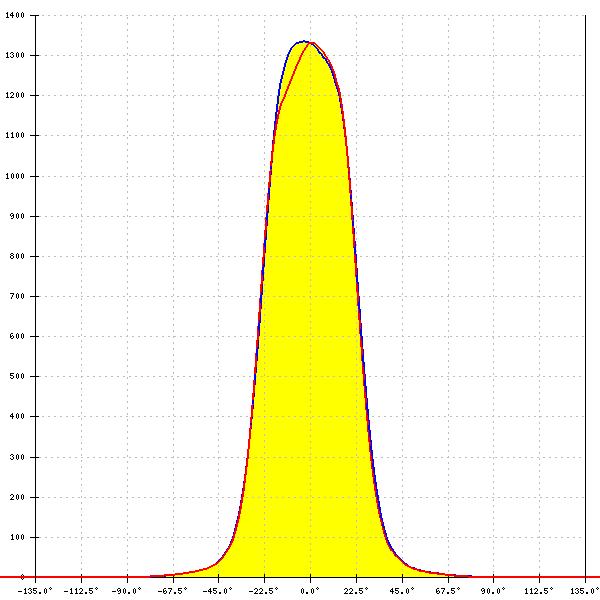

OSLON Square CSSRM2/CSSRM3
FWHM:
52°
FWTM:
76°
Peak intensity:
1.184 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
49°
FWTM:
73°
Peak intensity:
1.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

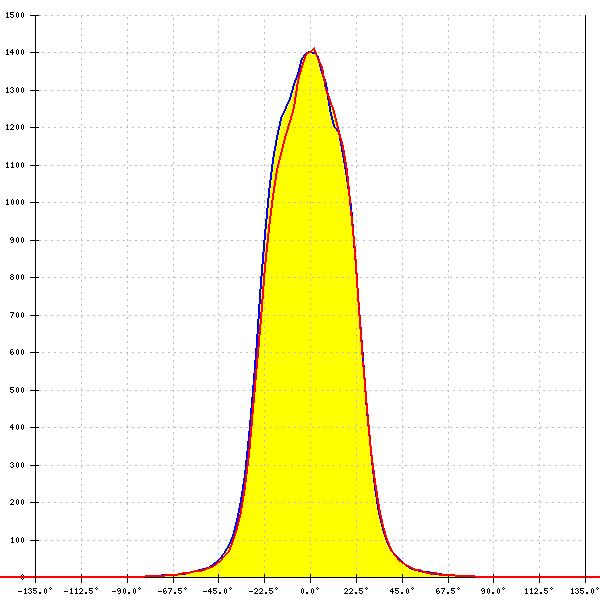

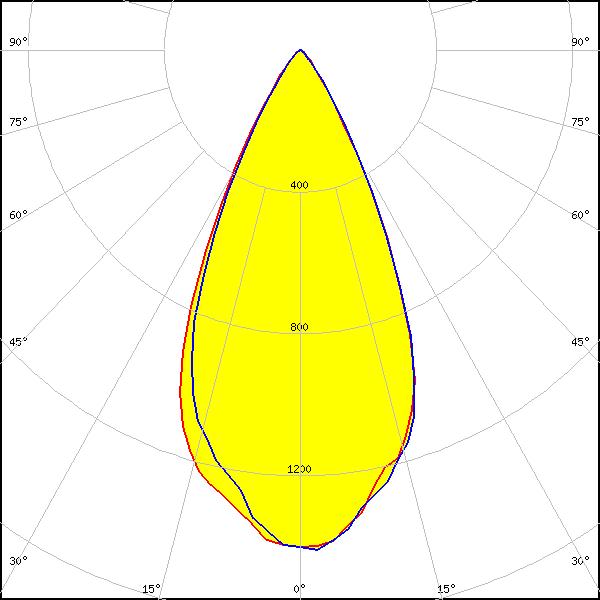

LED:

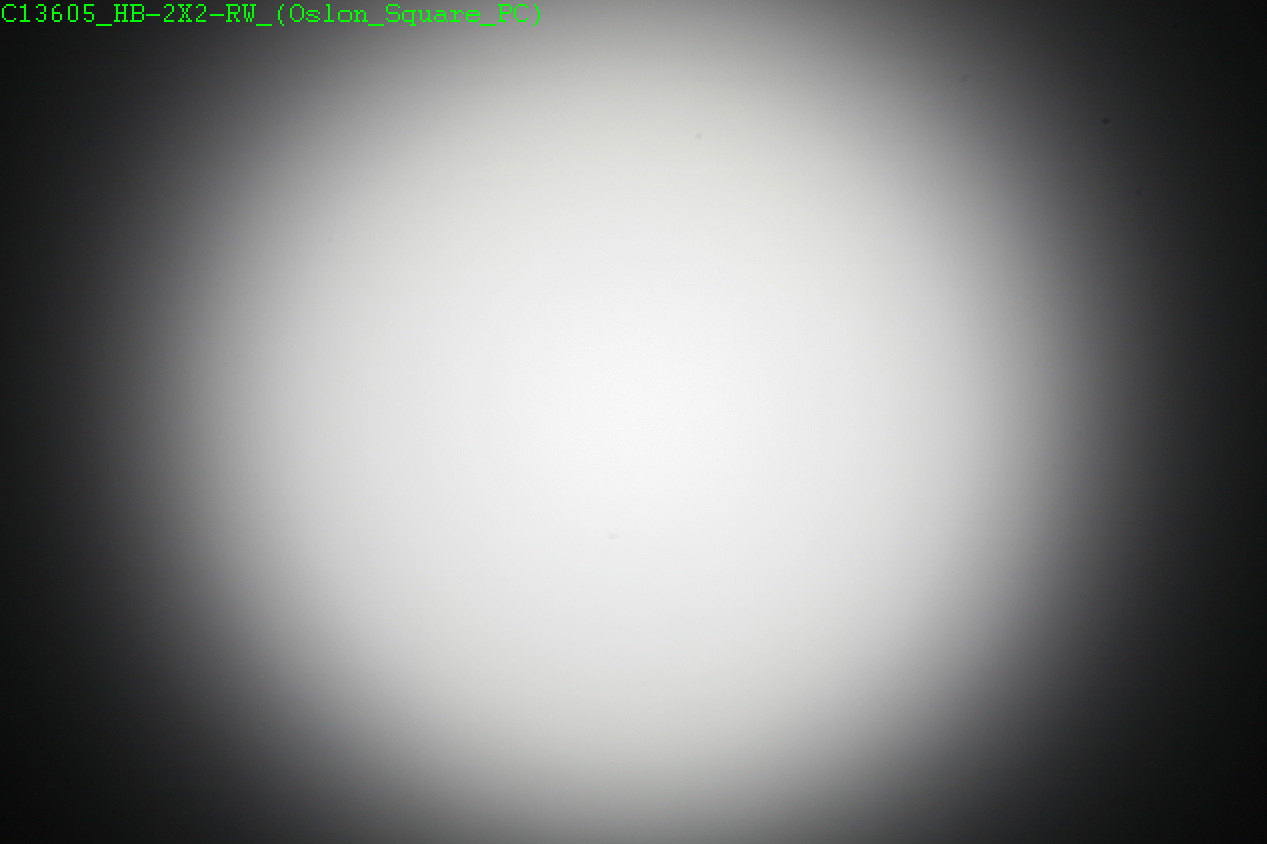

OSLON Square PC
FWHM:
50°
FWTM:
73°
Peak intensity:
1.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

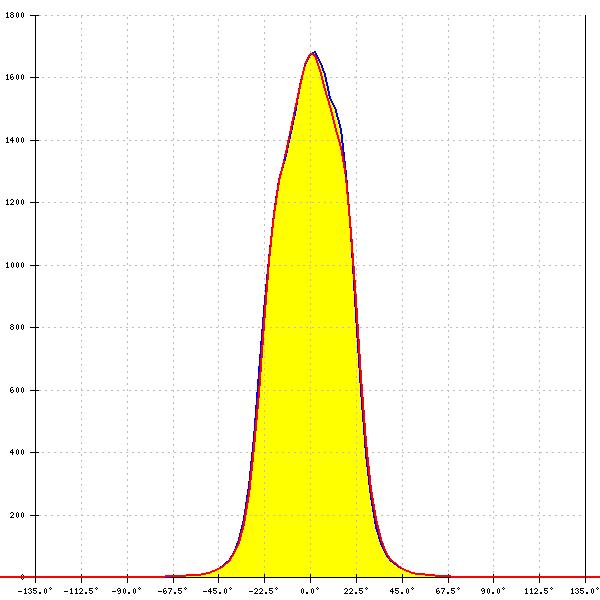

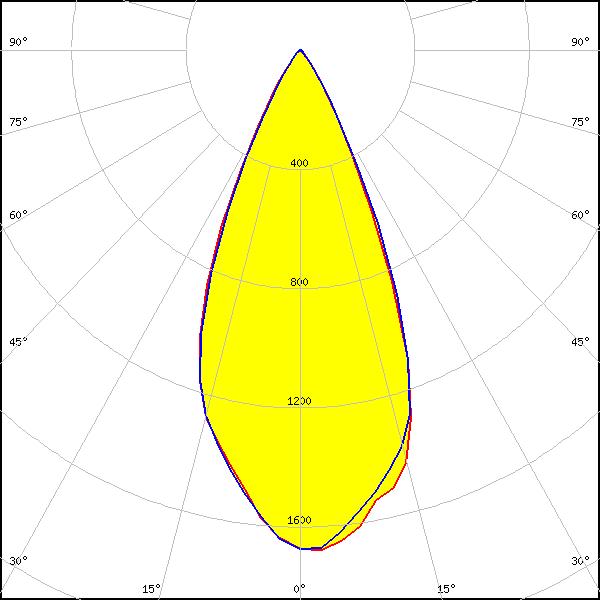

OSLON SSL 80
FWHM:
46°
FWTM:
68°
Peak intensity:
1.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

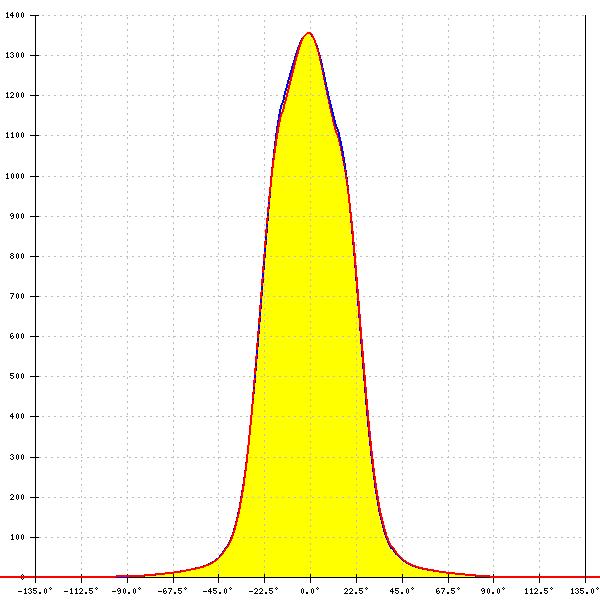

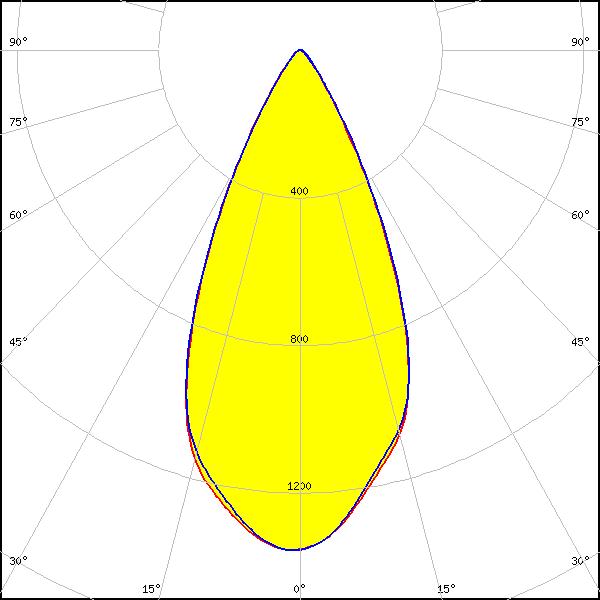

LED:
LH351Z
FWHM:
48°
FWTM:
72°
Peak intensity:
1.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

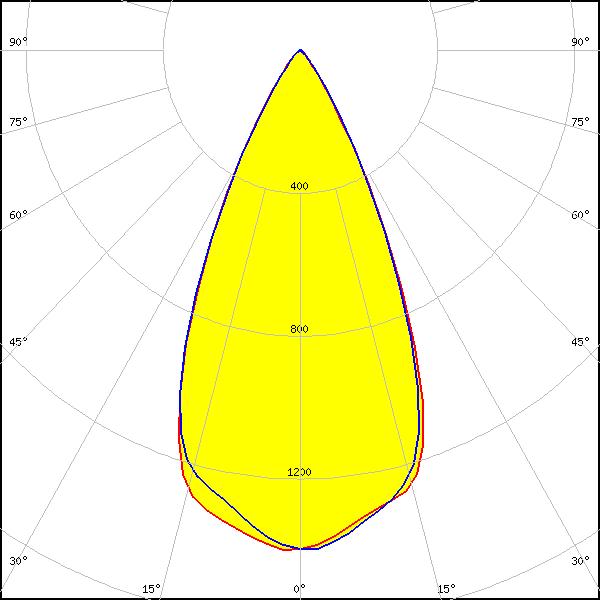

LED:

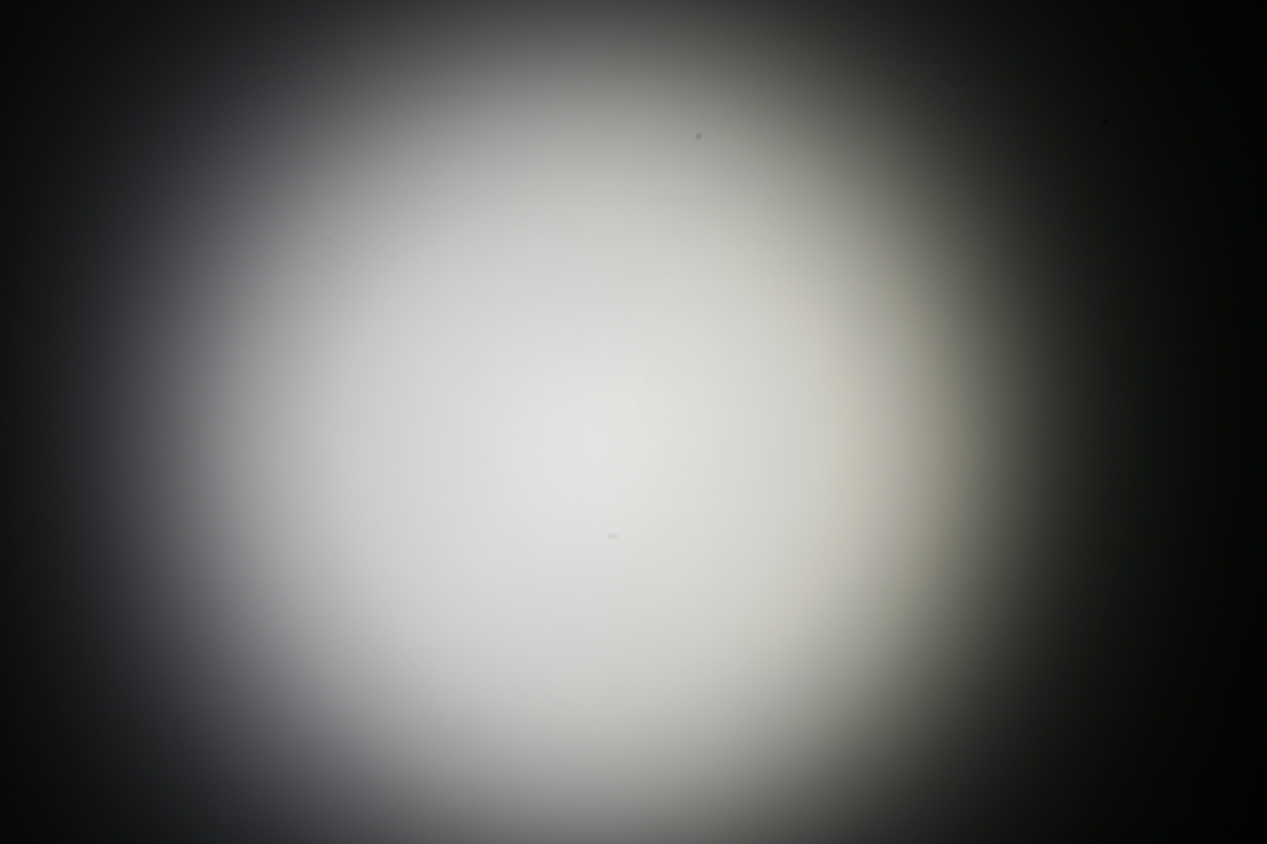

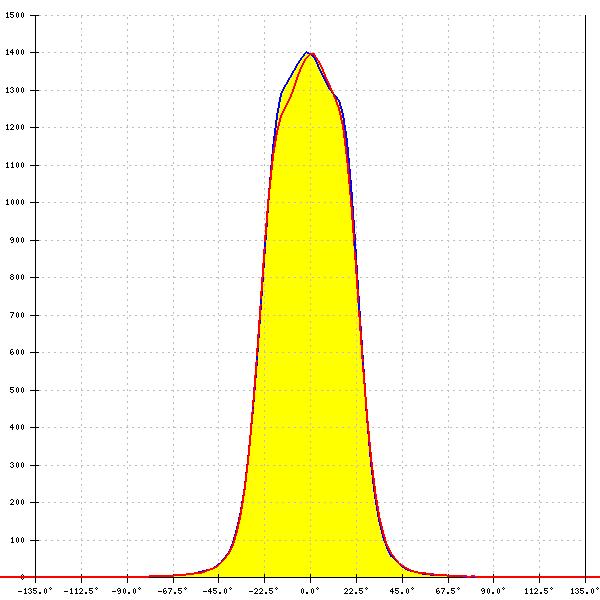

Z5M1/Z5M2
FWHM:
49°
FWTM:
73°
Peak intensity:
1.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

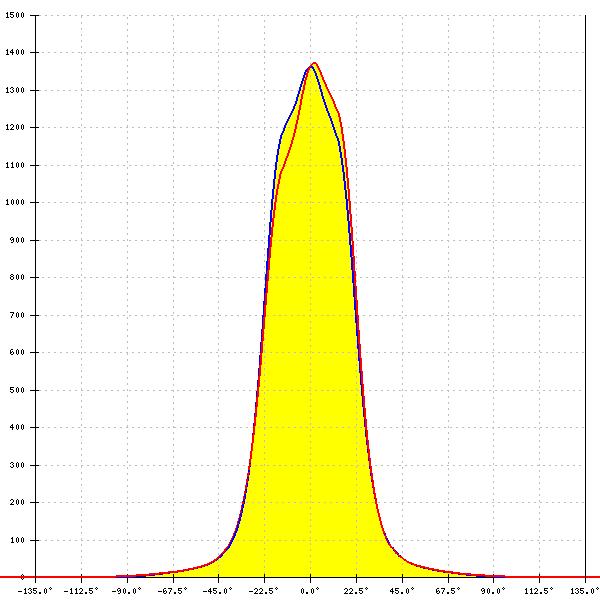

Z8Y15
FWHM:
46°
FWTM:
71°
Peak intensity:
1.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

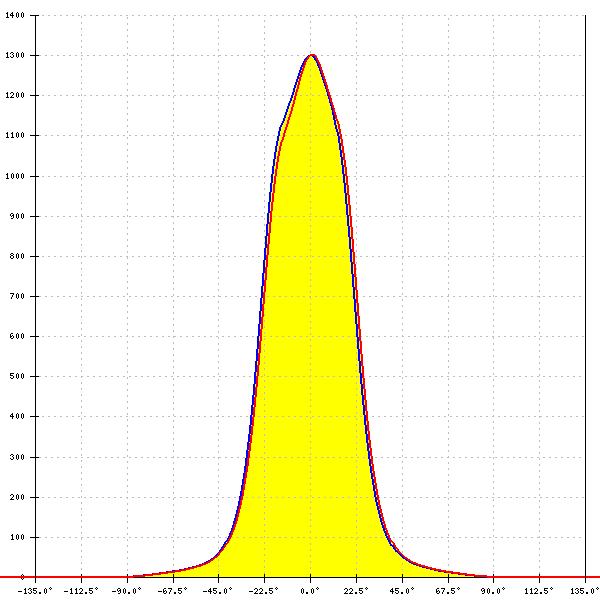

LED:

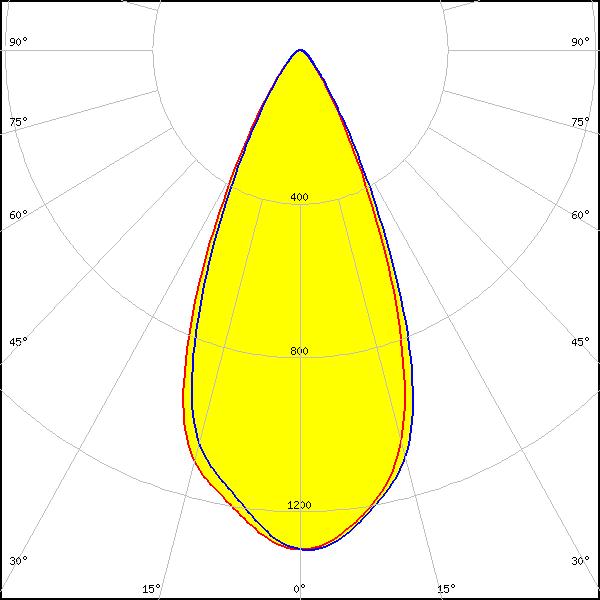

Z8Y19
FWHM:
47°
FWTM:
74°
Peak intensity:
1.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

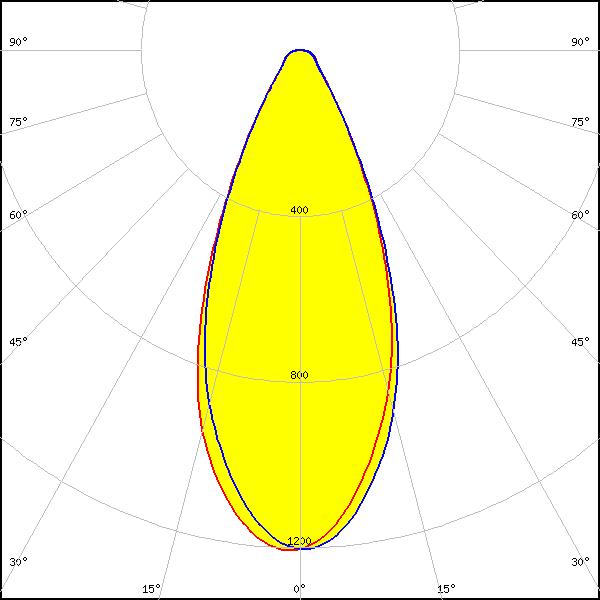

Z8Y22
FWHM:
45°
FWTM:
78°
Peak intensity:
1.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

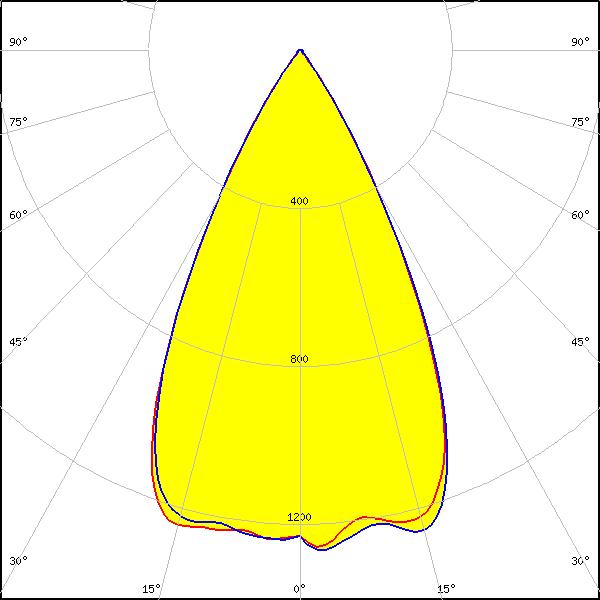

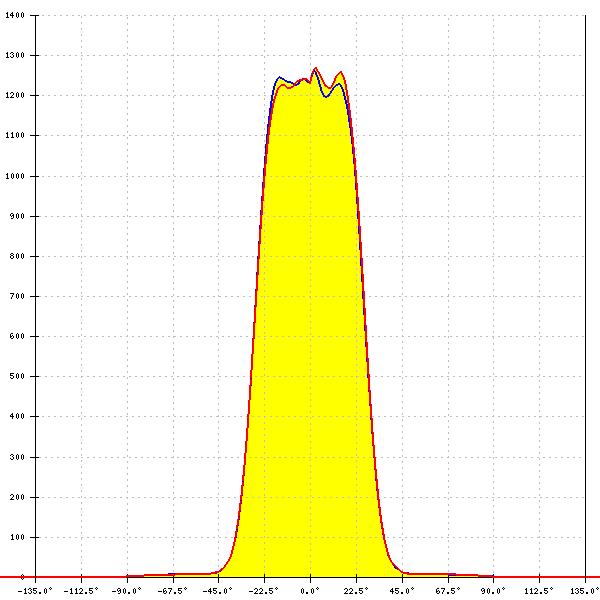

Z8Y22T
FWHM:
54°
FWTM:
71°
Peak intensity:
1.280 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
LEDs/each optic:
1
Light colour/type:
White

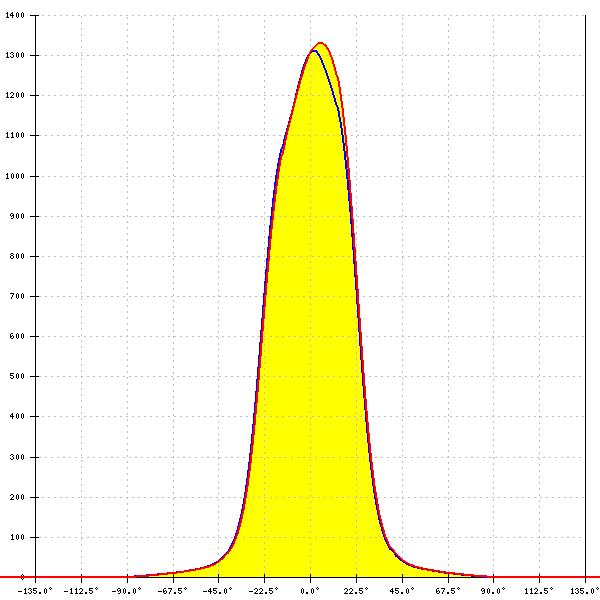

LED:

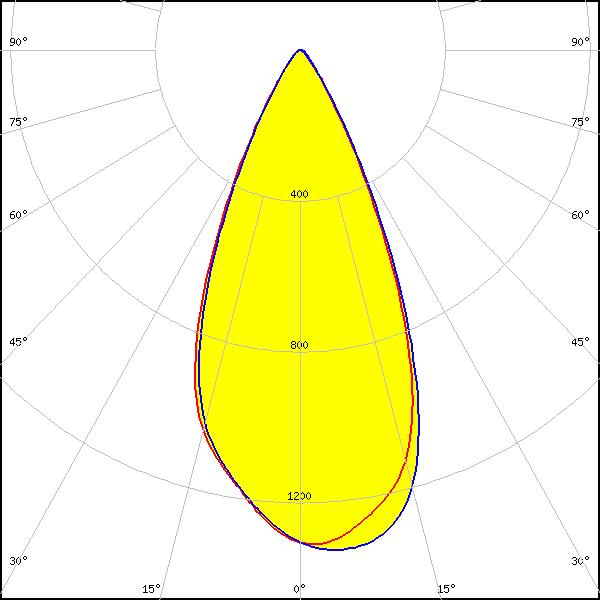

TL1L4
FWHM:
47°
FWTM:
70°
Peak intensity:
1.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

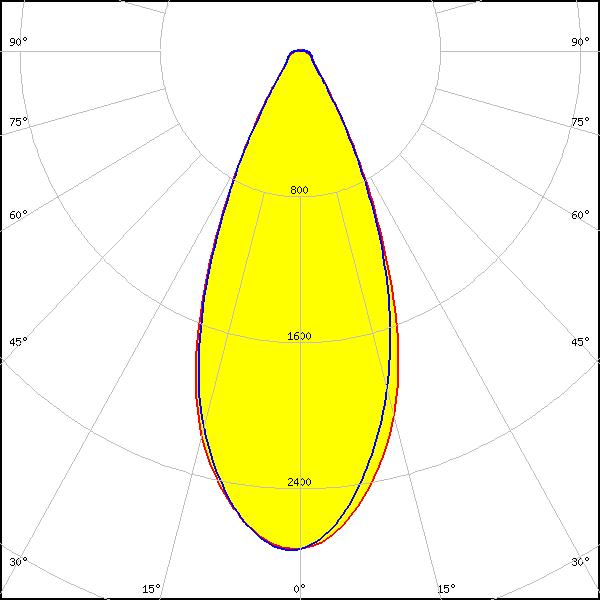

LED:

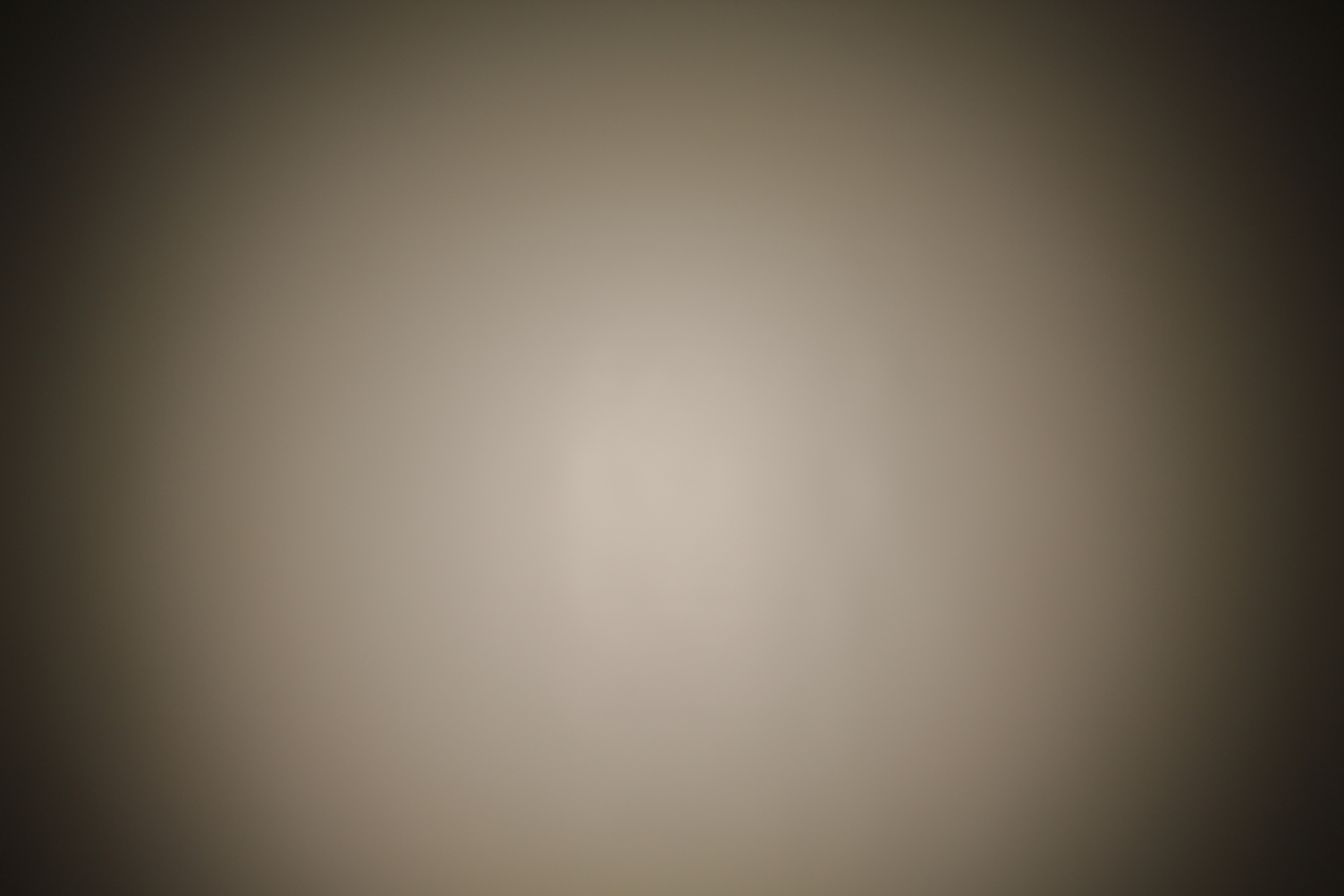

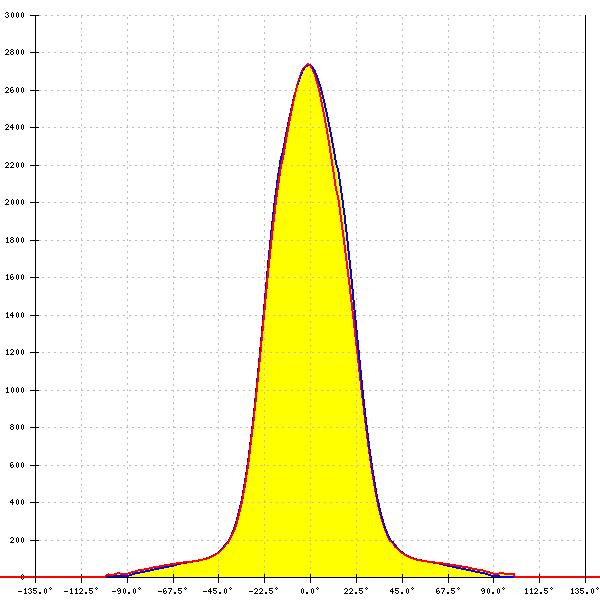

RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM:
45°
FWTM:
74°
Peak intensity:
1.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM:
45°
FWTM:
74°
Peak intensity:
1.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM:
45°
FWTM:
74°
Peak intensity:
1.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM:
45°
FWTM:
74°
Peak intensity:
1.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
