    C14541_HB-2X2-RS

    Print

    ~10° spot beam

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      10.00 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.2 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14541_HB-2X2-RS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL Guide for Sports lighting optics

    Application area

    Sports outdoor lighting

    Application area

    SPORTS INDOOR LIGHTING

    Case story

    The Belogorsky Monastery of St. Nicholas

    PCN

    Product change notification NR118a - Change of packaging quantities and packaging type 200416

    PCN

    Product change notification NR106.a - Change of packaging quantities 260815

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Stadium lighting

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

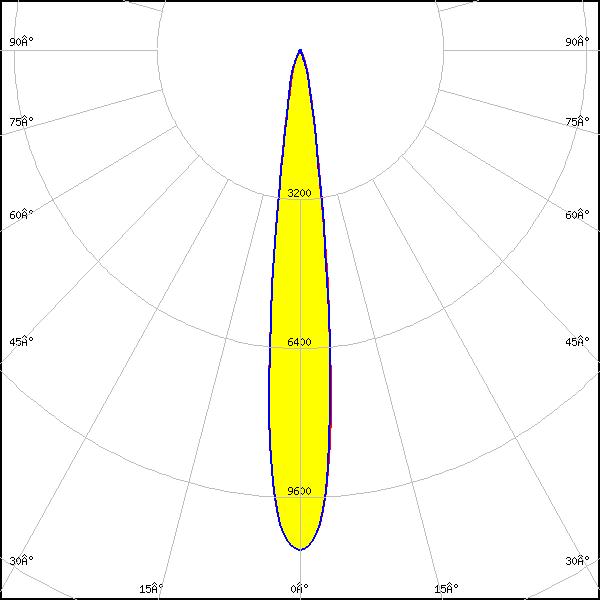

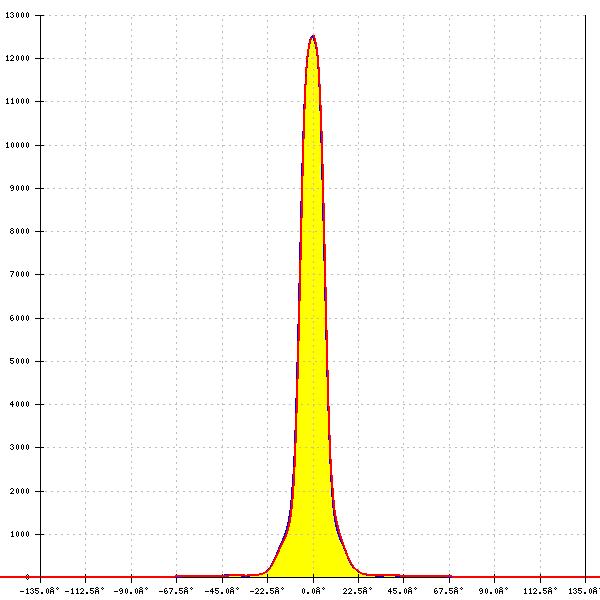

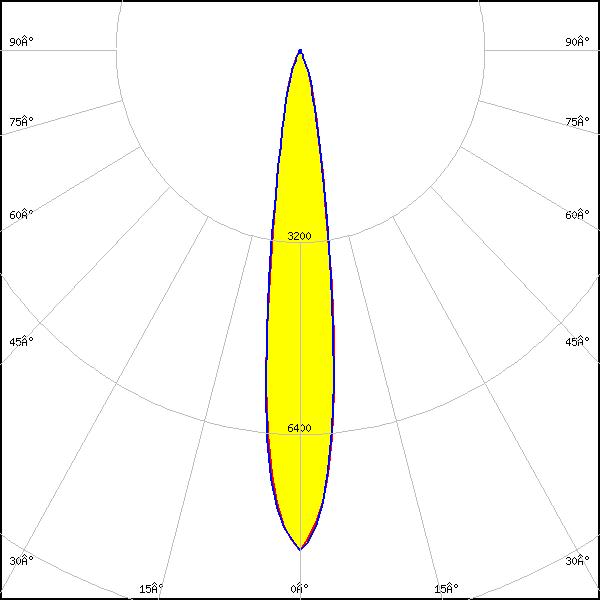

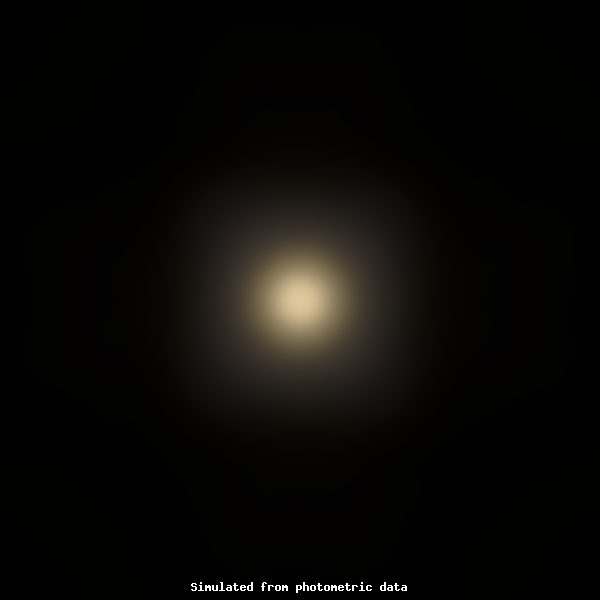

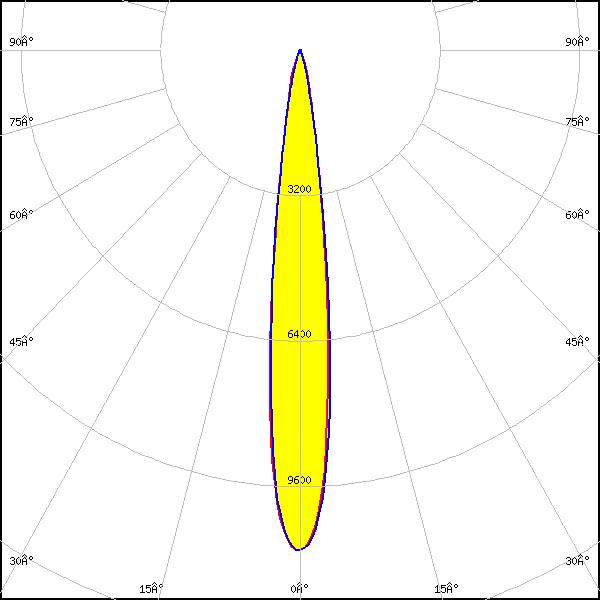

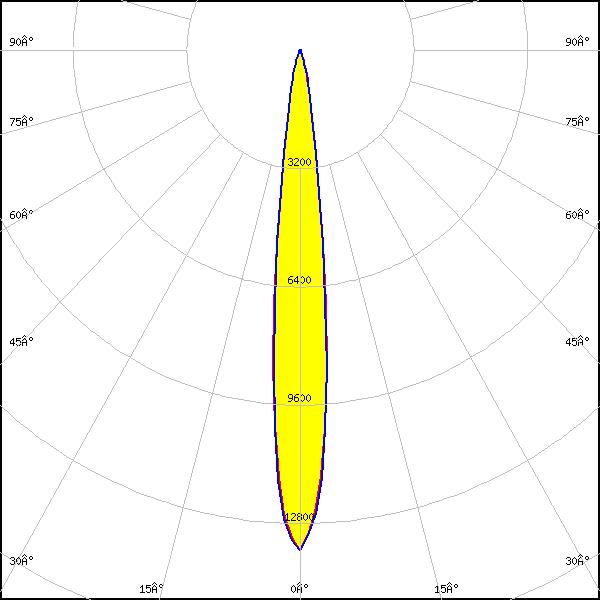

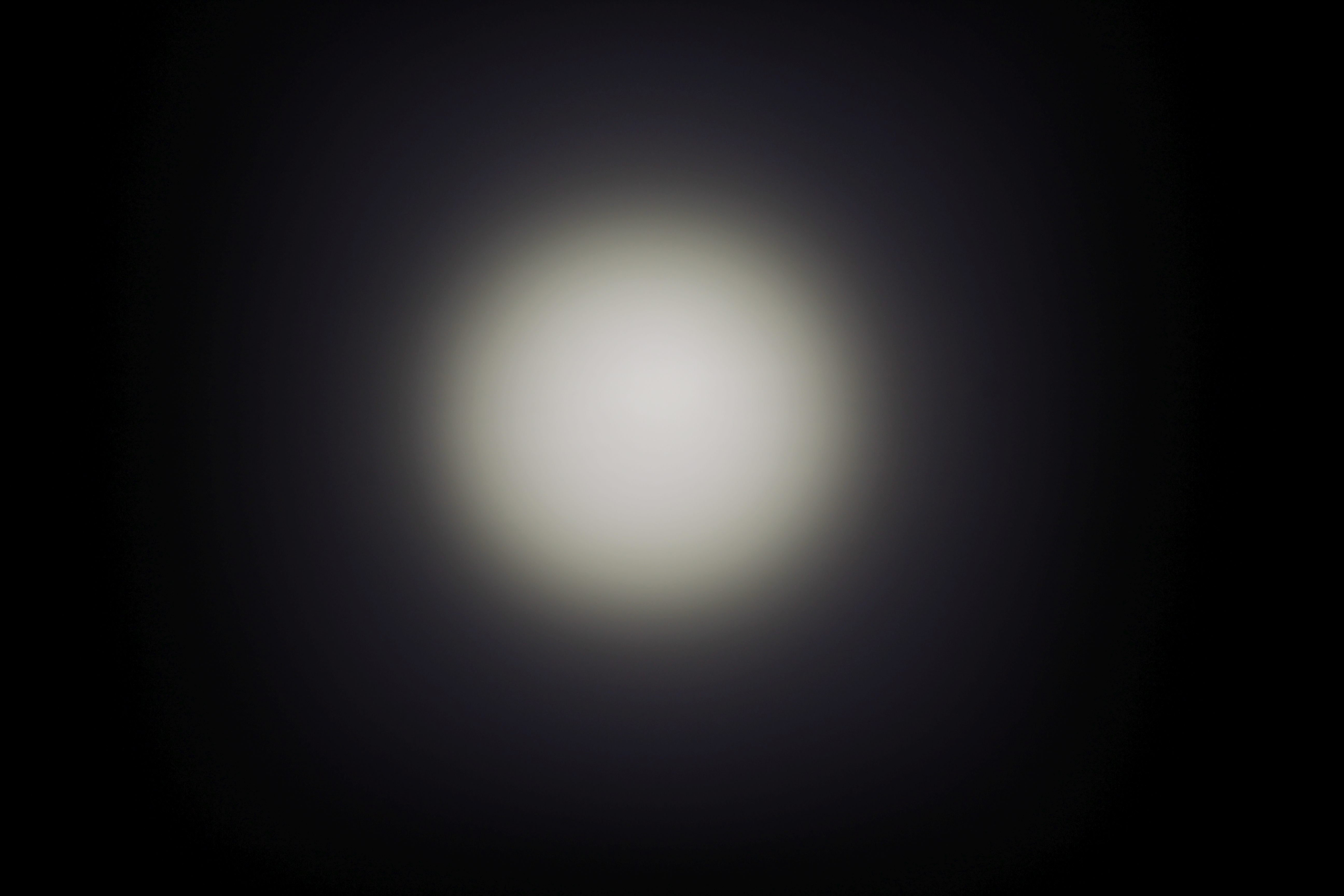

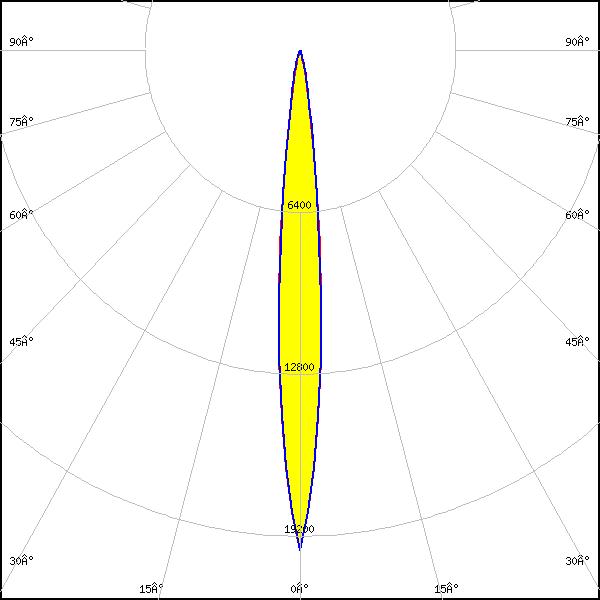

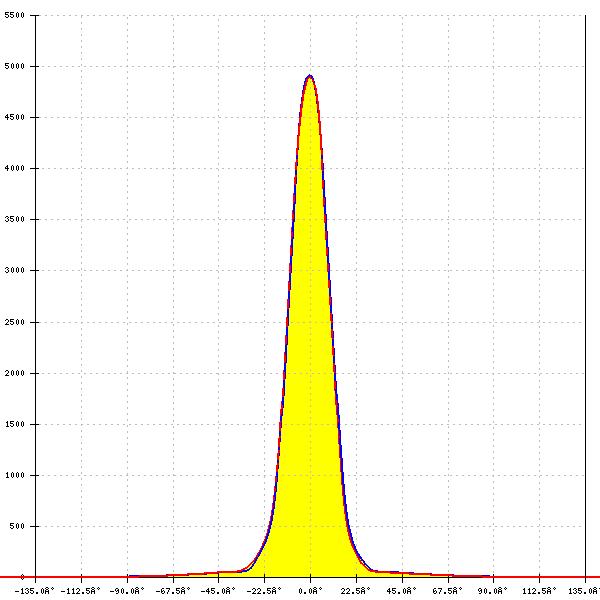

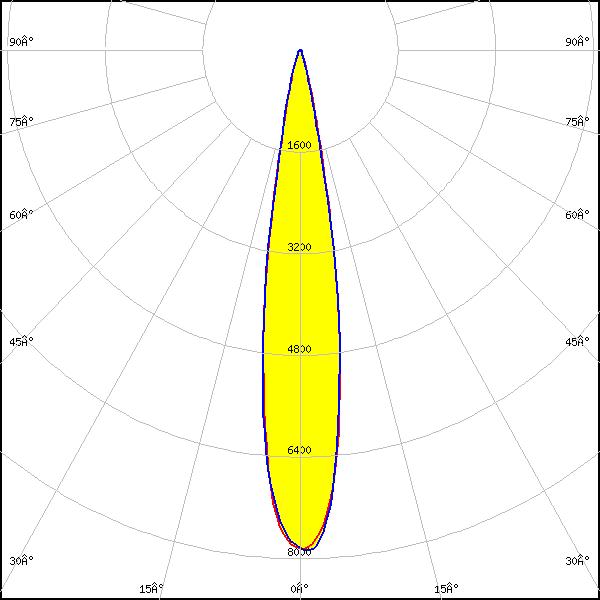

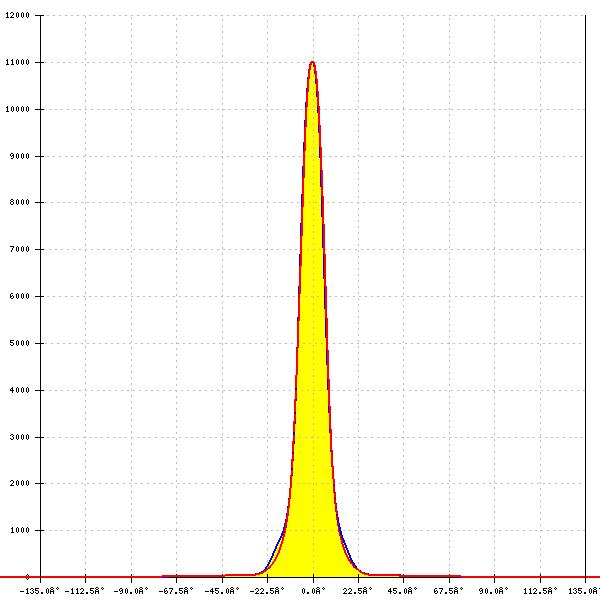

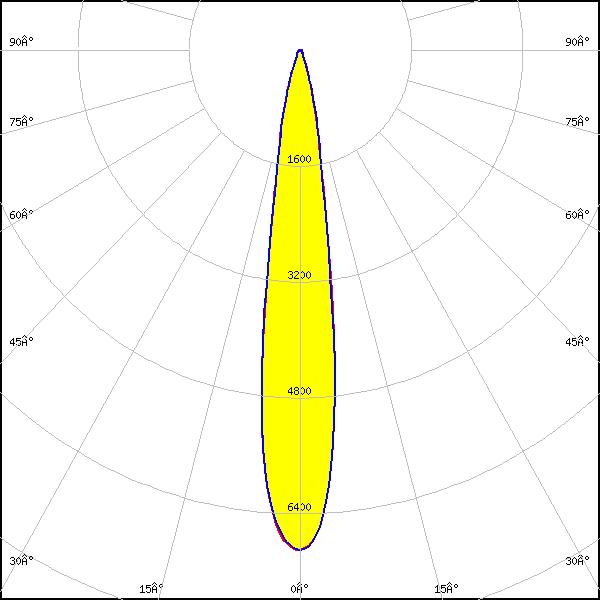

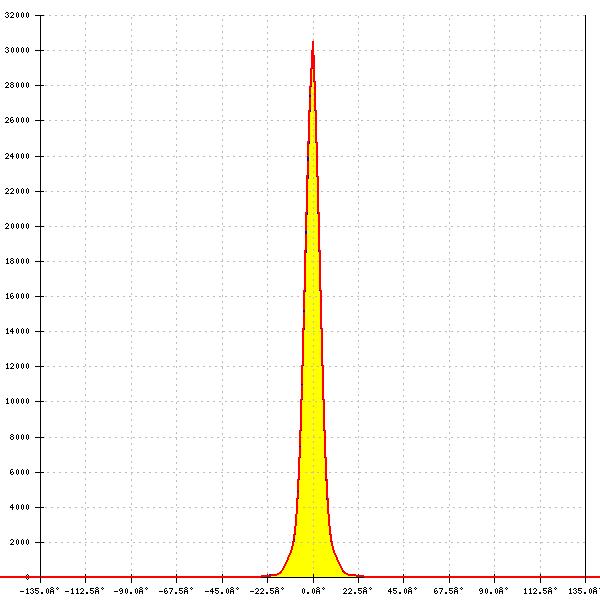

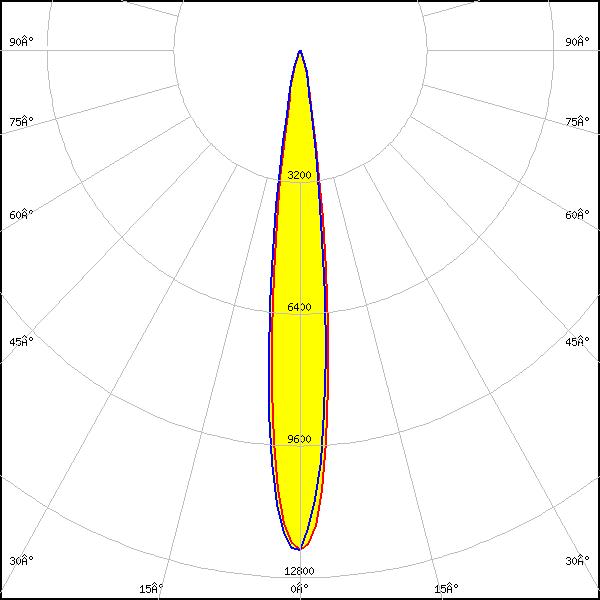

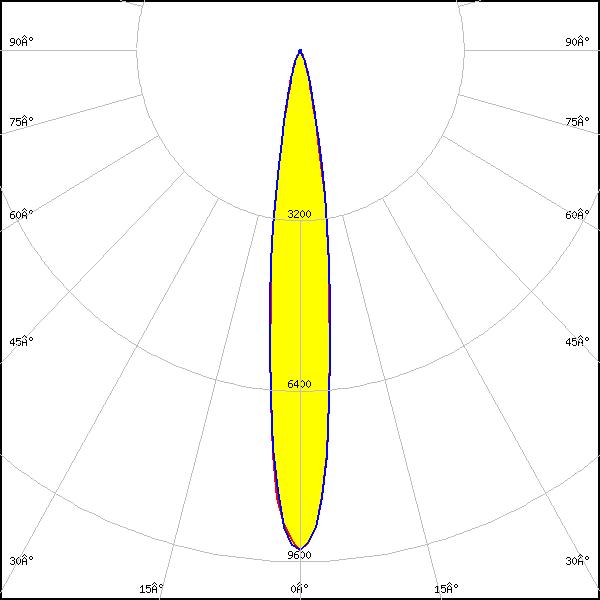

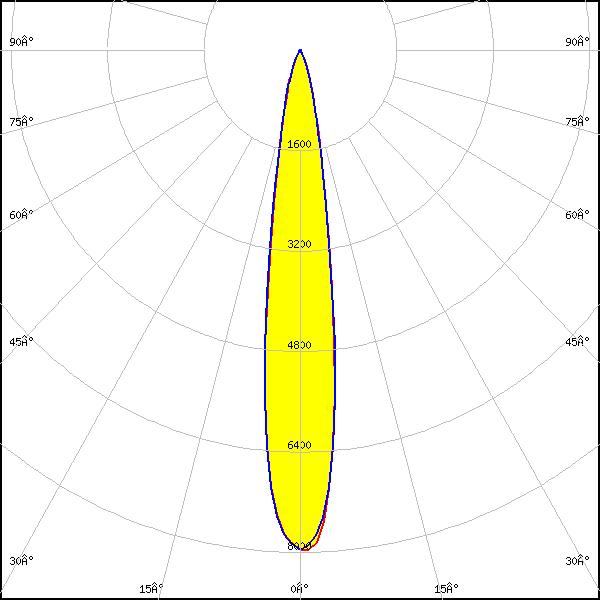

    Optical results

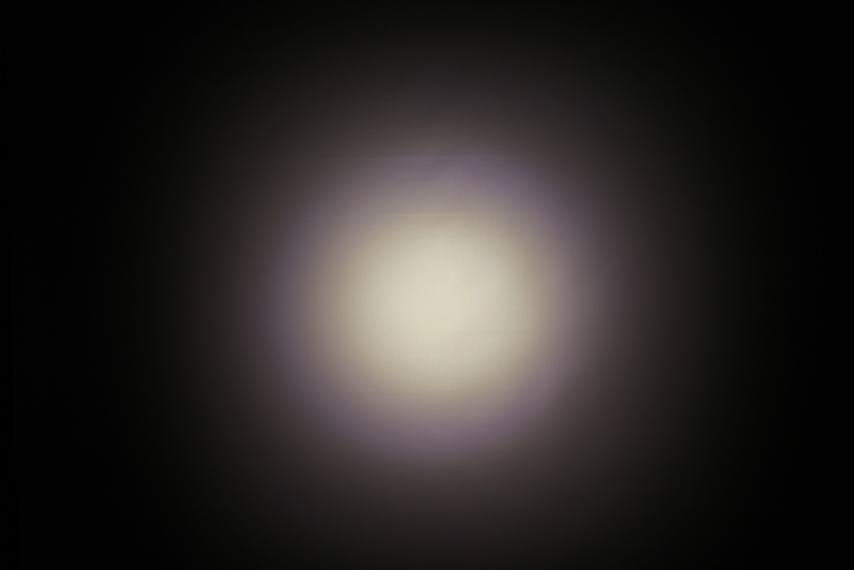

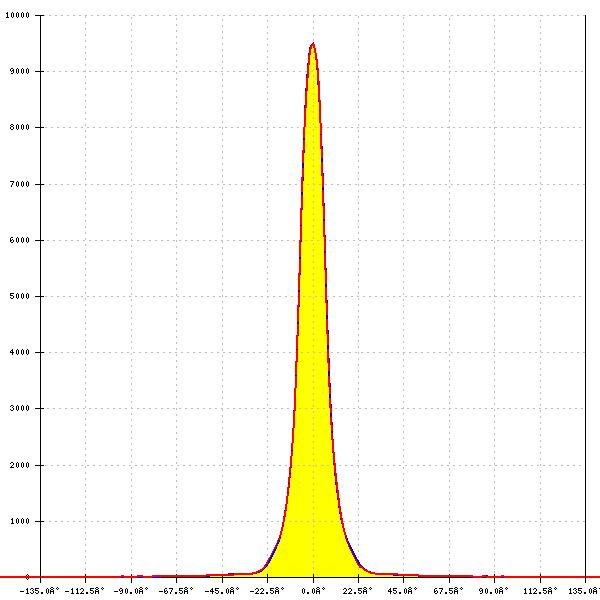

    LED: QUICK FLUX XTP 2x6 xxx LS G5
    FWHM: 14°
    FWTM: 29°
    Peak intensity: 9.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

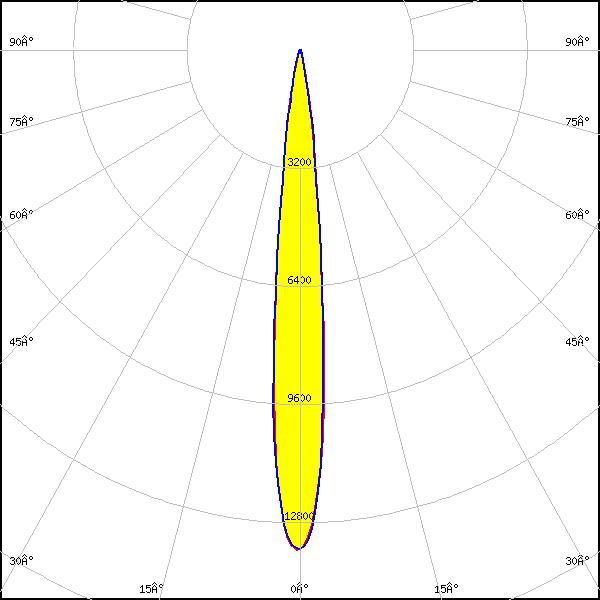

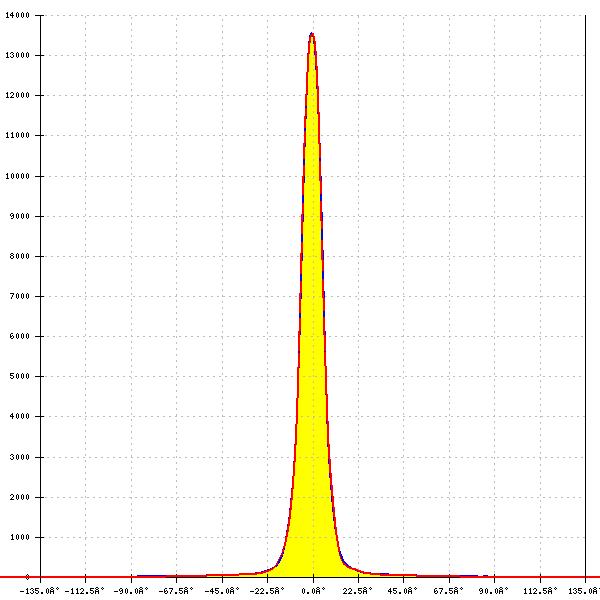

    LED: XD16
    FWHM: 11°
    FWTM: 23°
    Peak intensity: 13.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

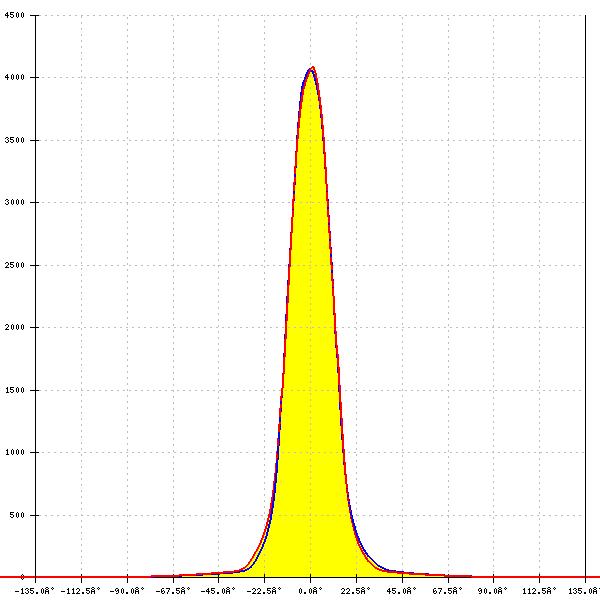

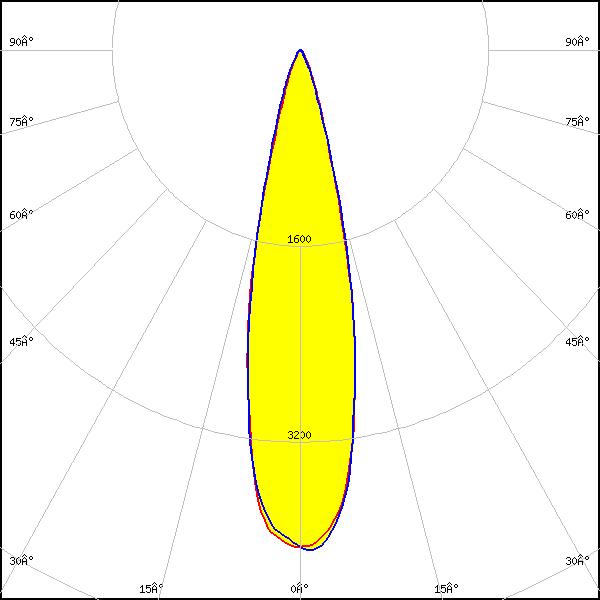

    LED: XHP35 HD
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.100 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

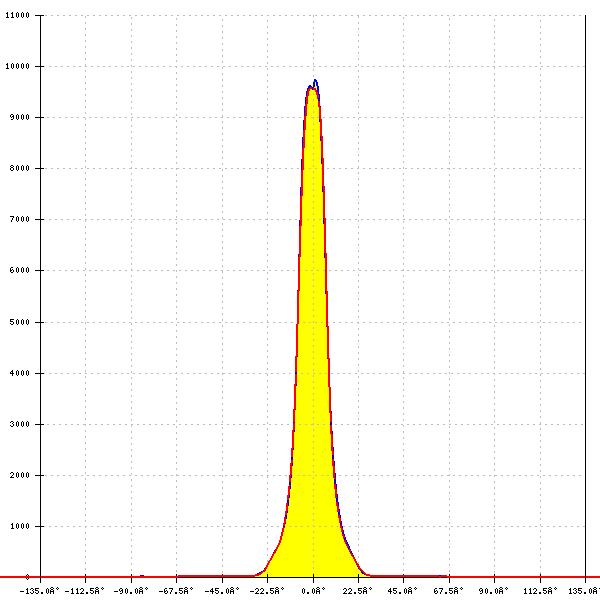

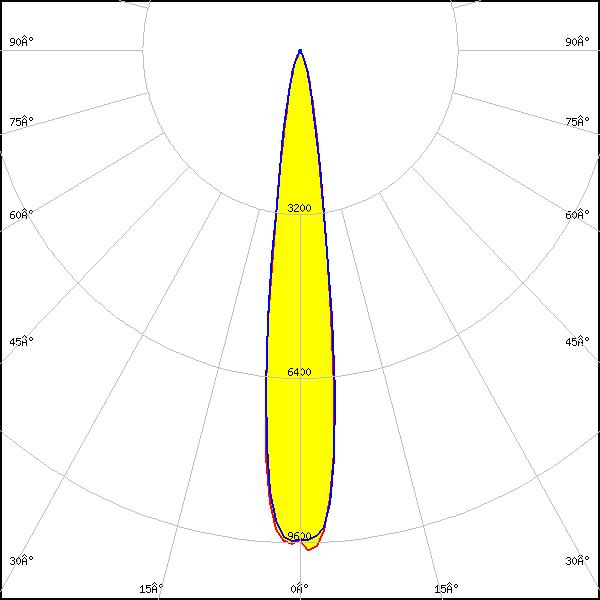

    LED: XHP35 HI
    FWHM: 14°
    FWTM: 29°
    Peak intensity: 9.900 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

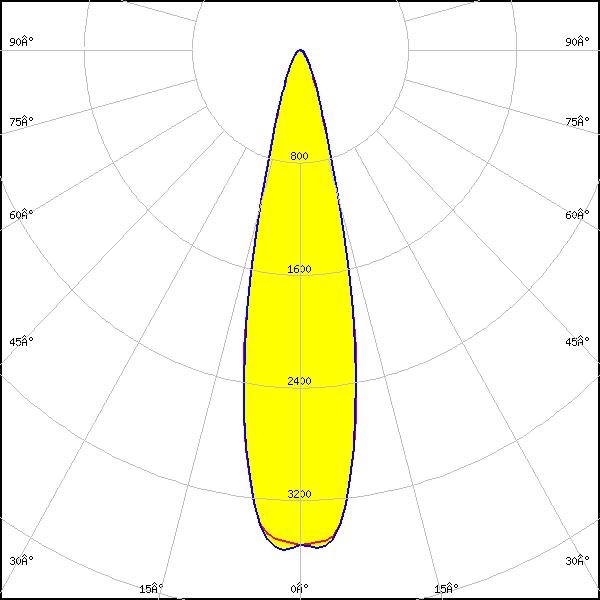

    LED: XHP35.2 HD
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.625 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L
    FWHM: 19°
    FWTM: 38°
    Peak intensity: 5.620 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

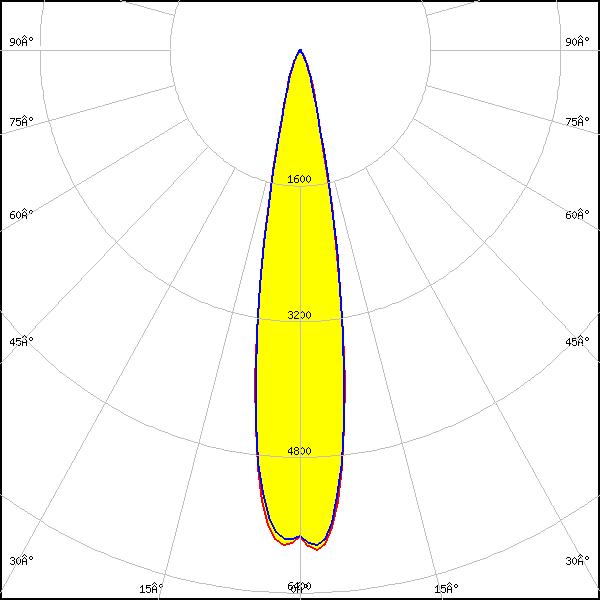

    LED: XM-L2
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

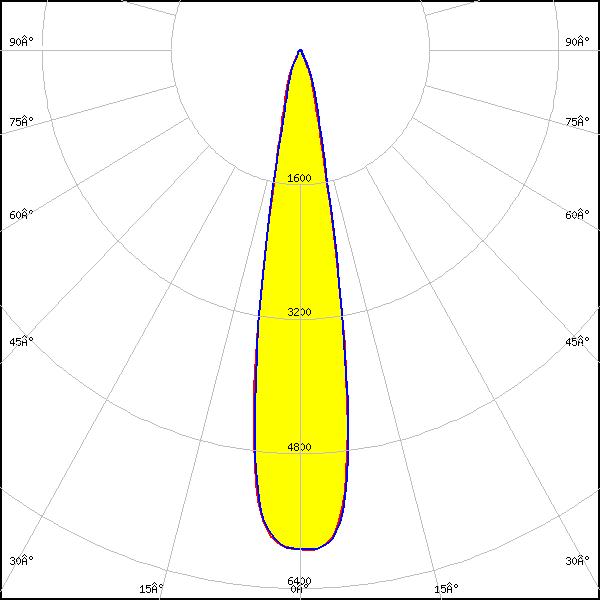

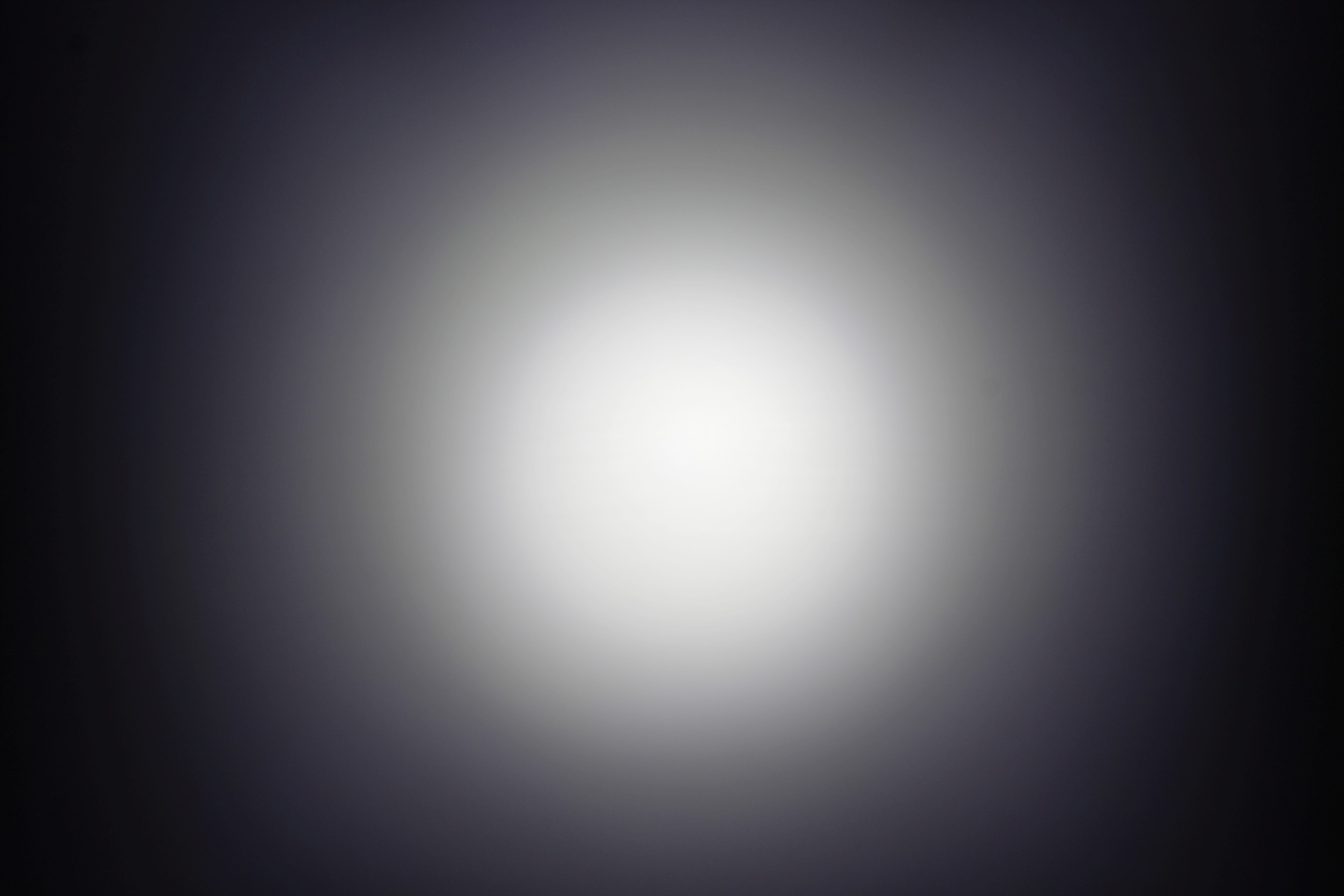

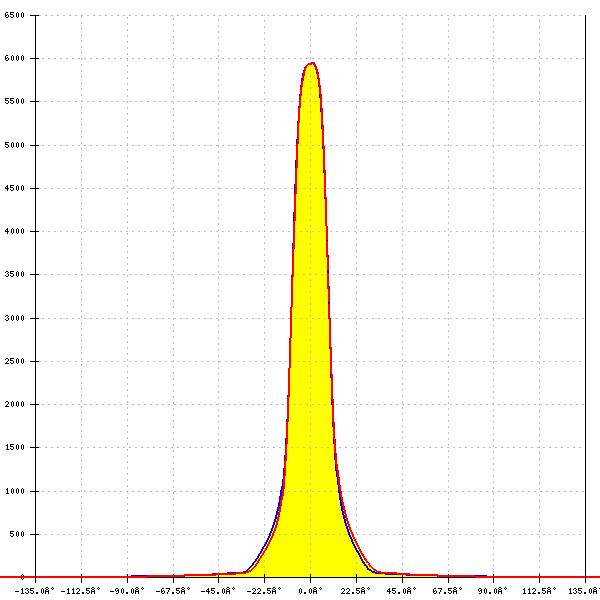

    LED: XM-L3
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 5.950 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

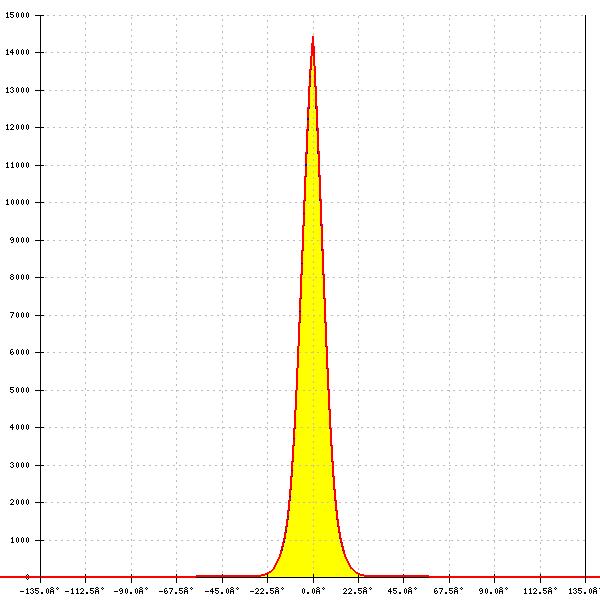

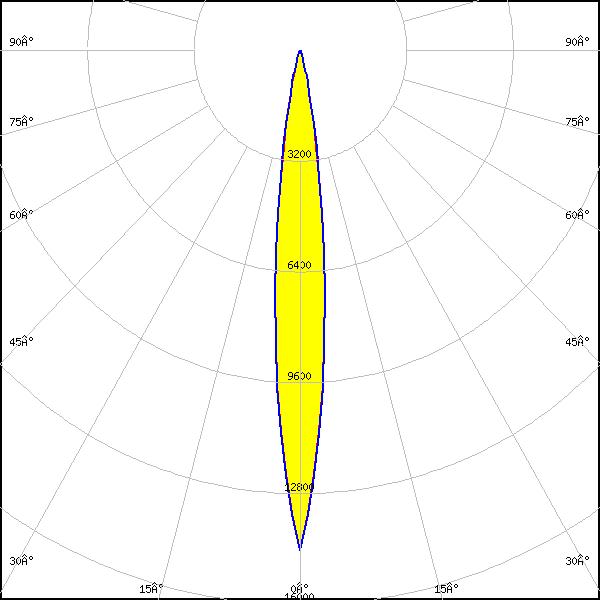

    LED: XP-E2
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 14.441 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Red

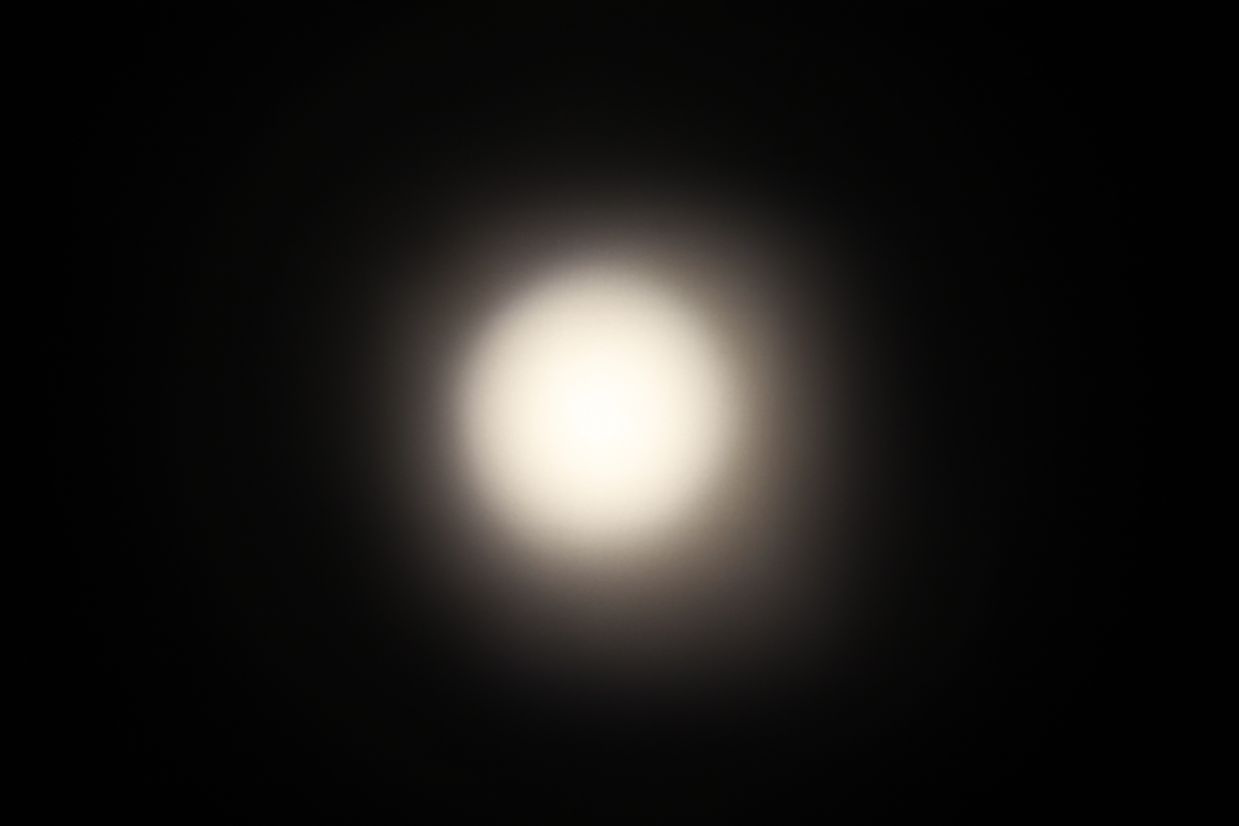

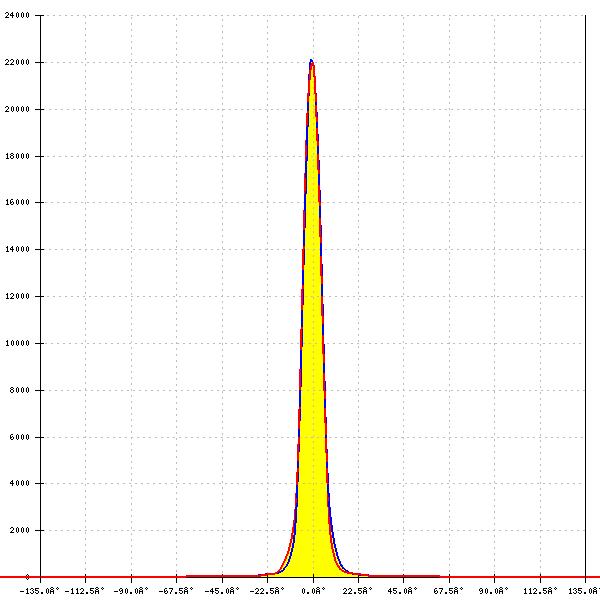

    LED: XP-E2
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 22.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

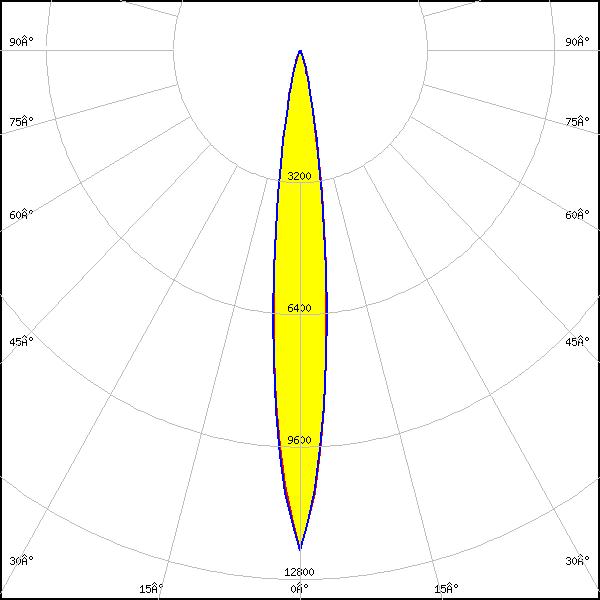

    LED: XP-G
    FWHM: 13°
    FWTM: 27°
    Peak intensity: 12.100 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

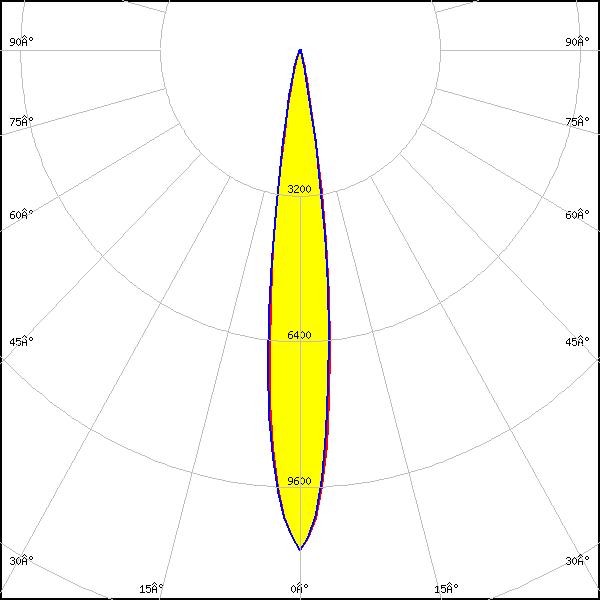

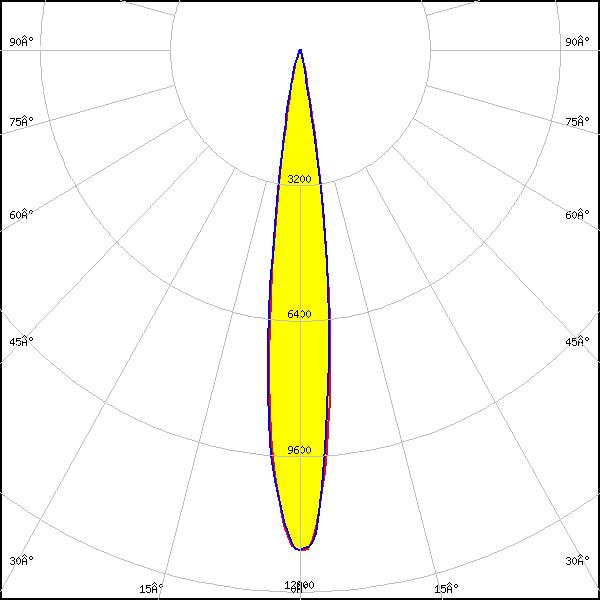

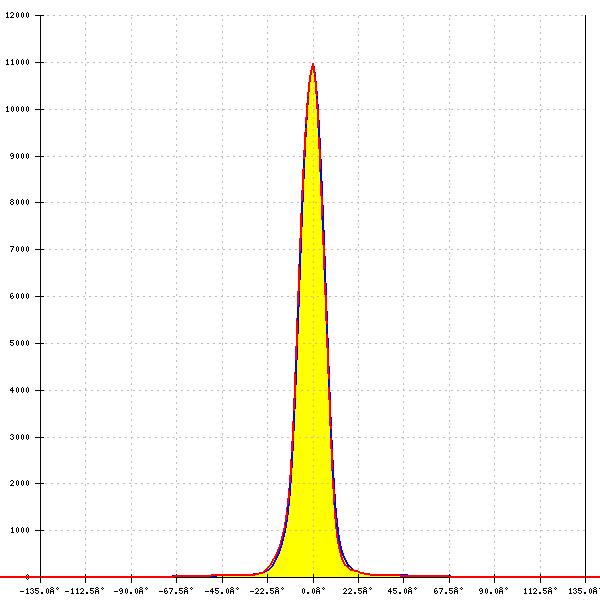

    LED: XP-G2
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 10.980 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 14°
    FWTM: 25°
    Peak intensity: 11.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

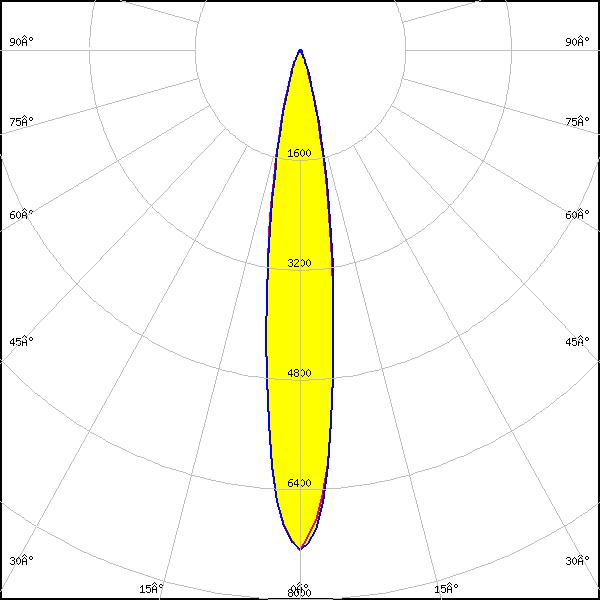

    LED: XP-G2 HE
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 7.281 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

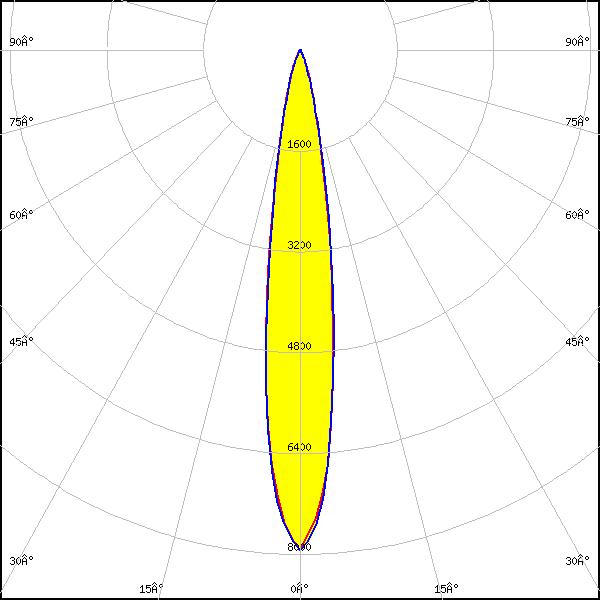

    LED: XP-G3
    FWHM: 16°
    FWTM: 33°
    Peak intensity: 7.940 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

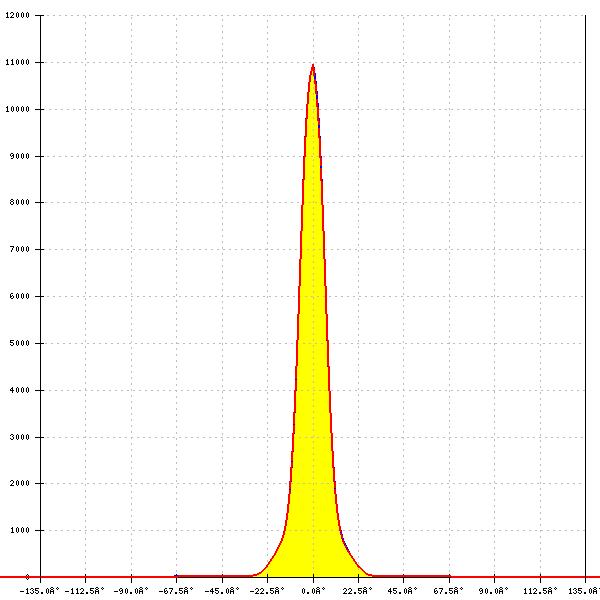

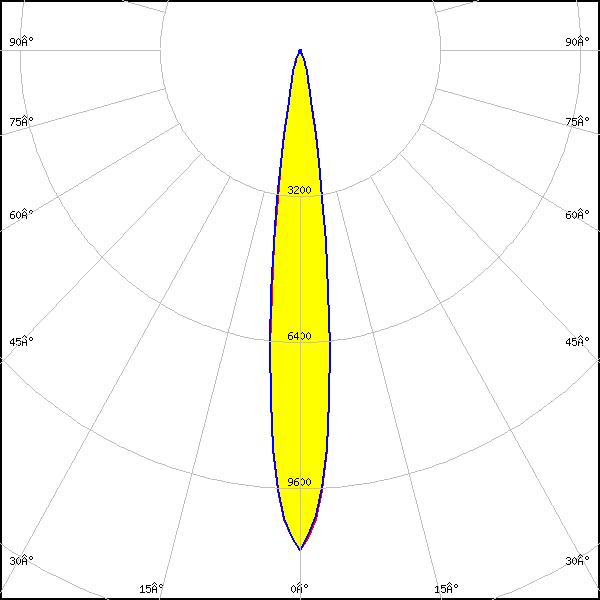

    LED: XP-G4
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 10.955 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 9.770 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

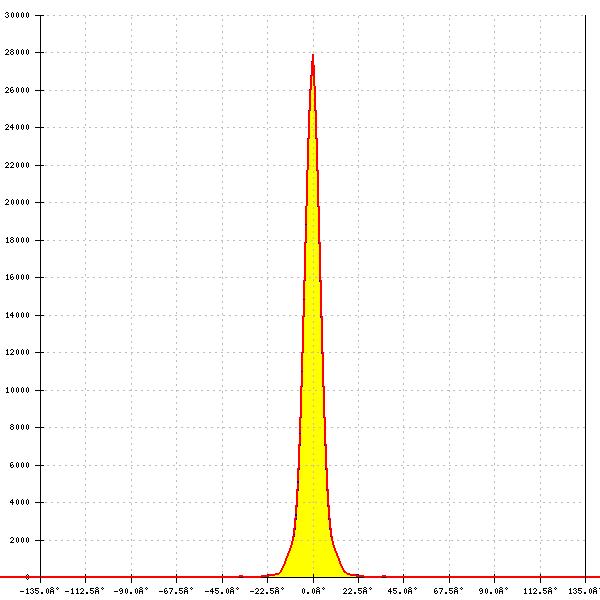

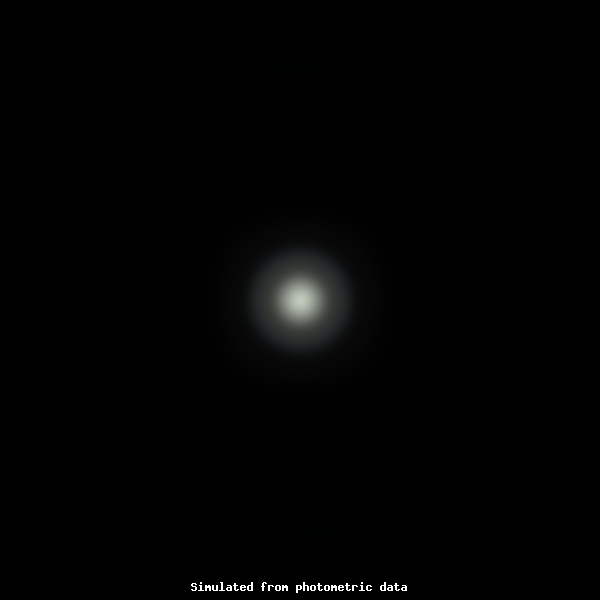

    LED: XP-GR
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 27.914 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

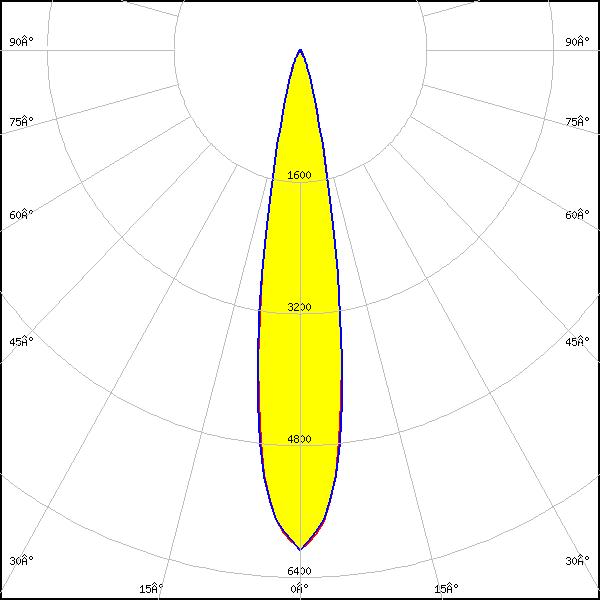

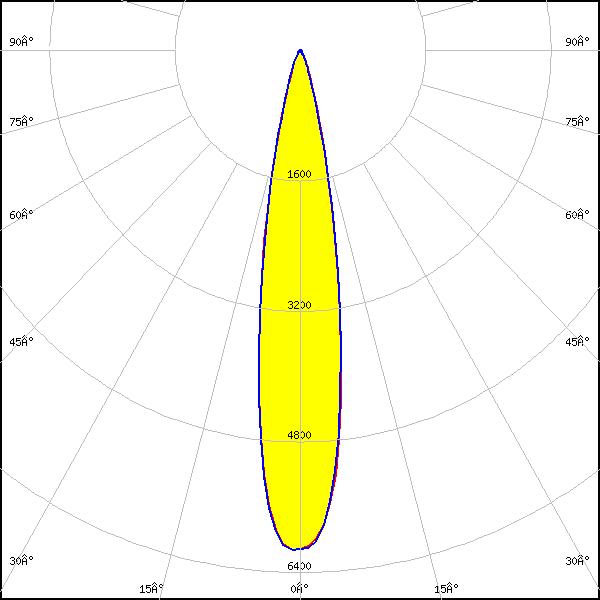

    LED: XP-L HD
    FWHM: 19°
    FWTM: 35°
    Peak intensity: 6.140 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.072 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

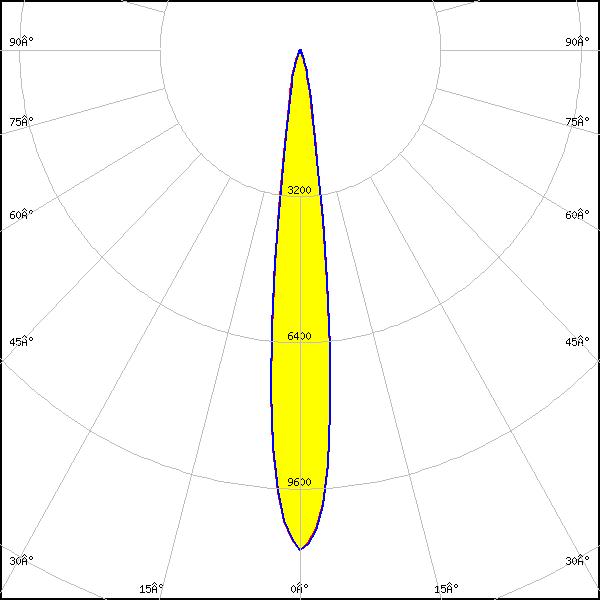

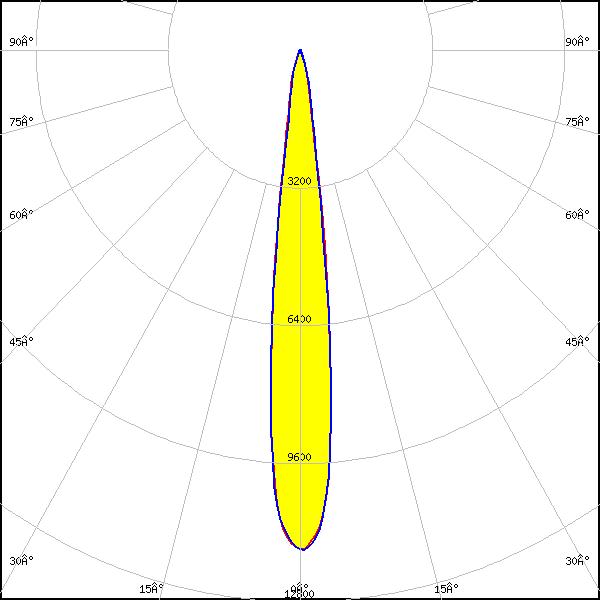

    LED: XP-L HI
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 10.943 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 11.621 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

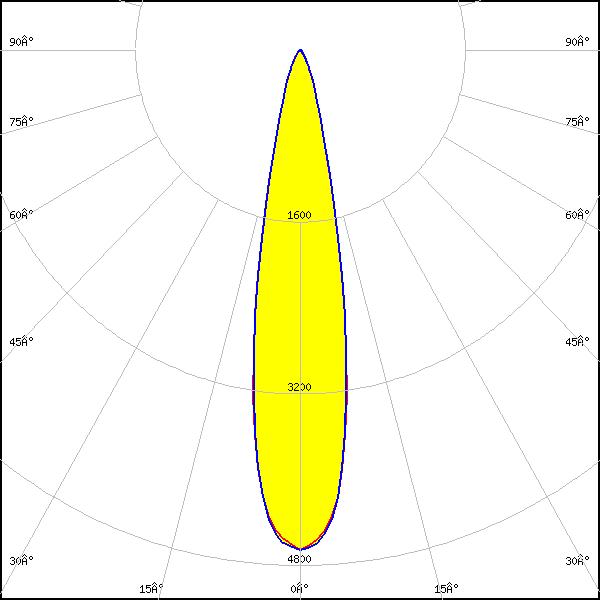

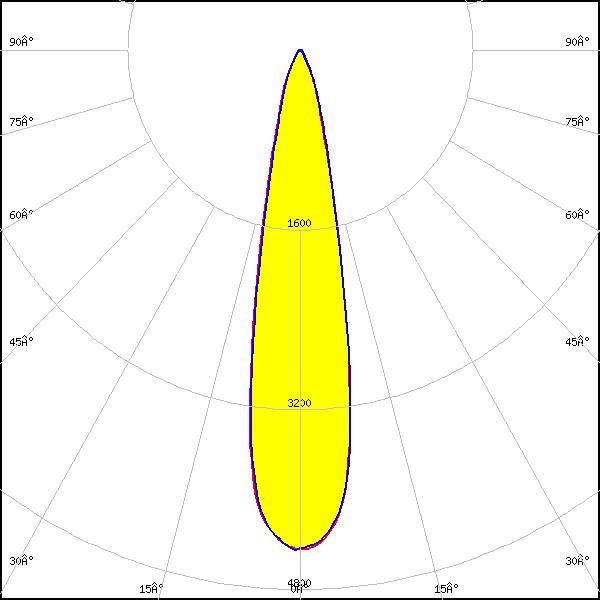

    LED: XP-L2
    FWHM: 20°
    FWTM: 40°
    Peak intensity: 4.660 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: 21°
    FWTM: 43°
    Peak intensity: 4.458 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

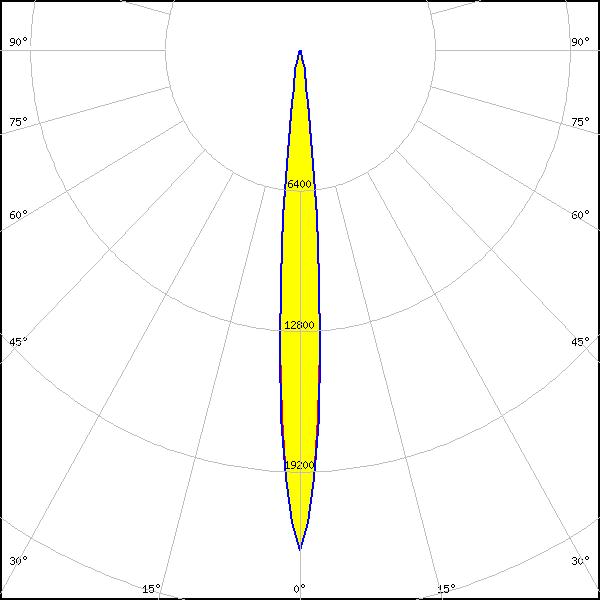

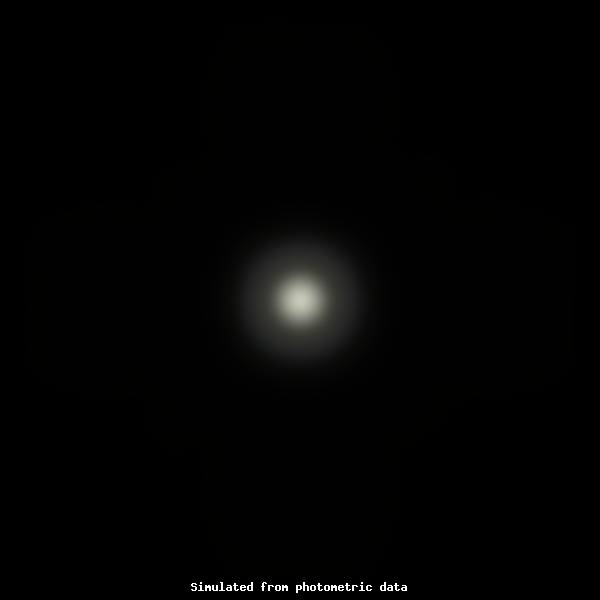

    LED: XP-LR
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 22.772 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-P
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 25.467 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

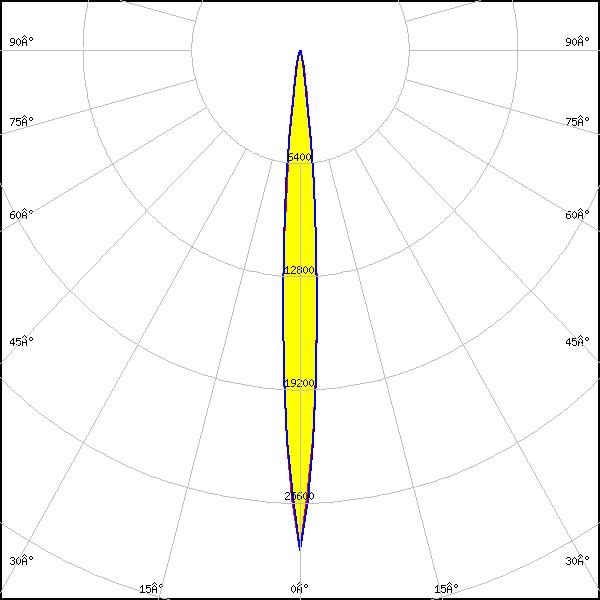

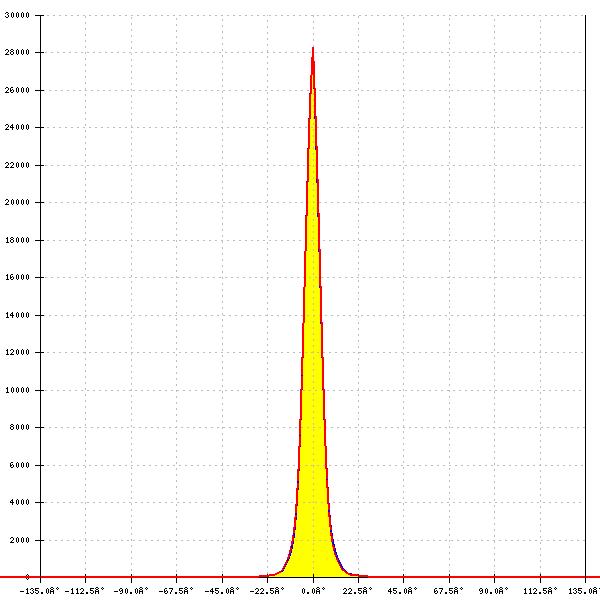

    LED: XQ-E HI
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 28.268 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

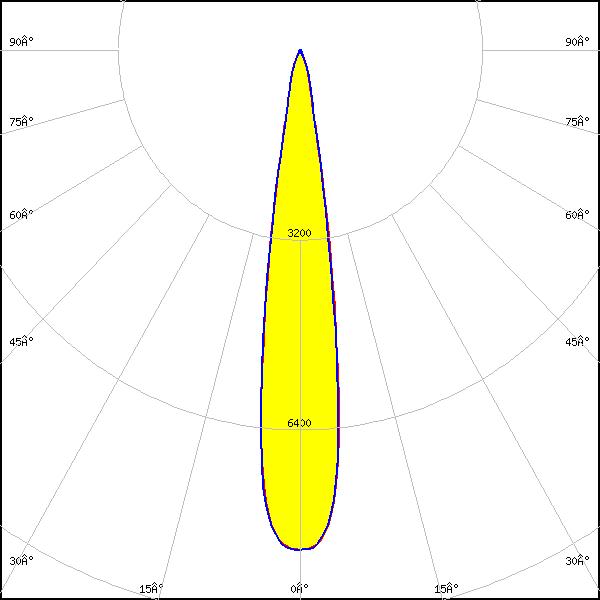

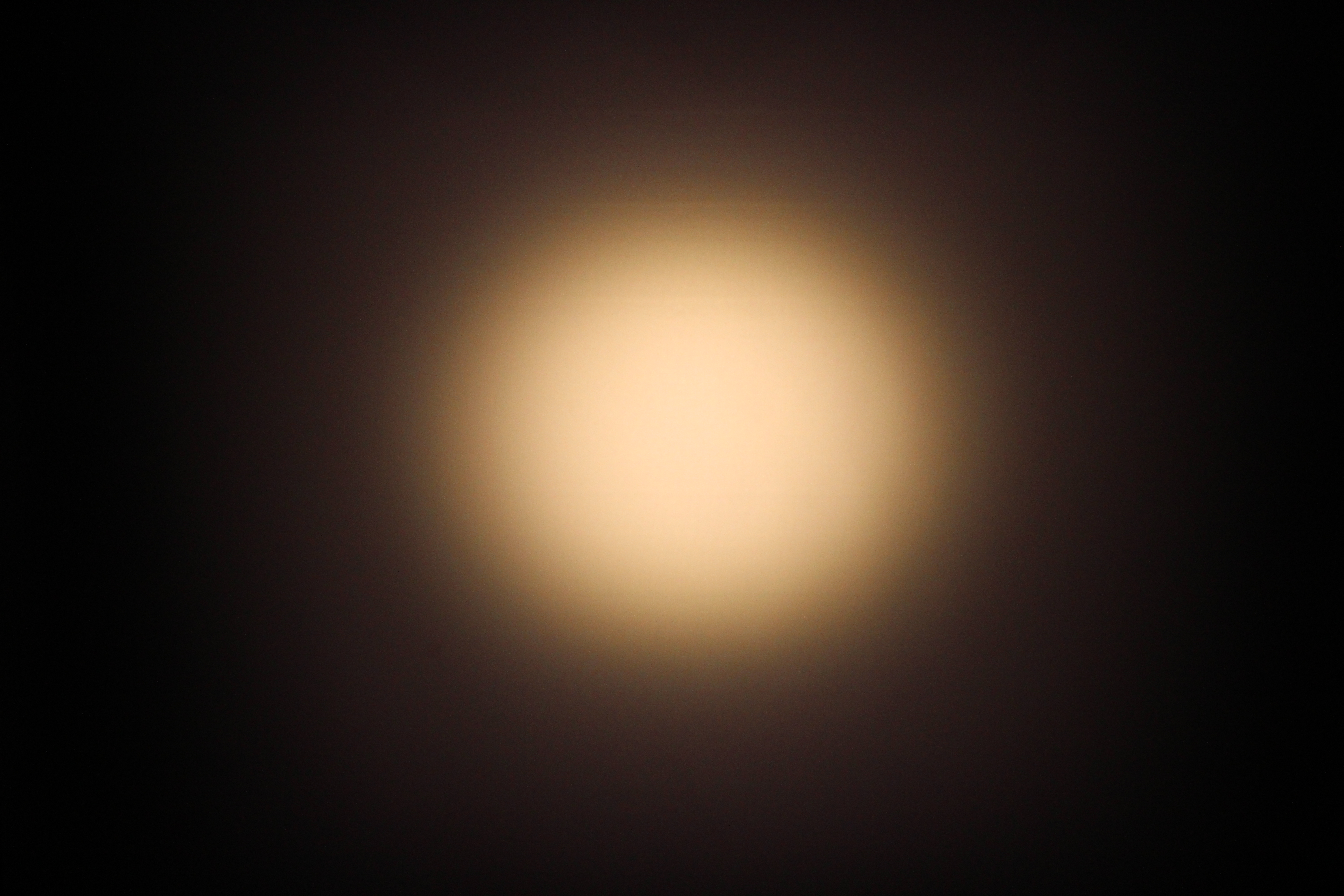

    LED: PL-BRICK HP 3800 2x8 SSG
    FWHM: 16°
    FWTM: 28°
    Peak intensity: 8.450 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Core Z3 LES9
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 11.005 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

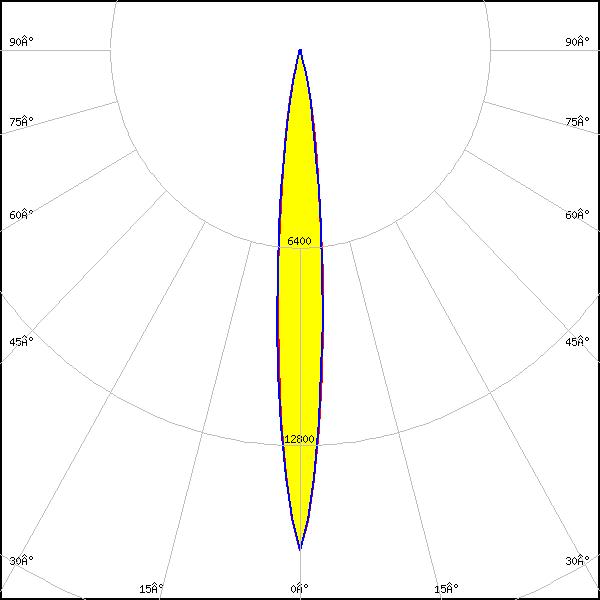

    LED: LUXEON C
    FWHM: 11°
    FWTM: 24°
    Peak intensity: 16.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

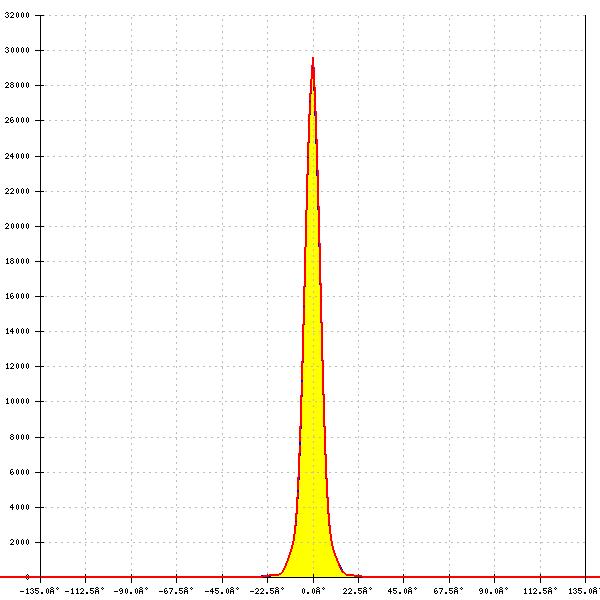

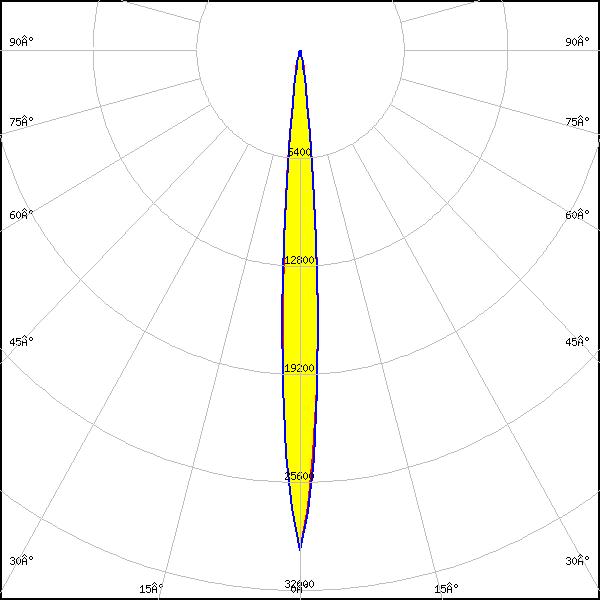

    LED: LUXEON CZ
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 29.624 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

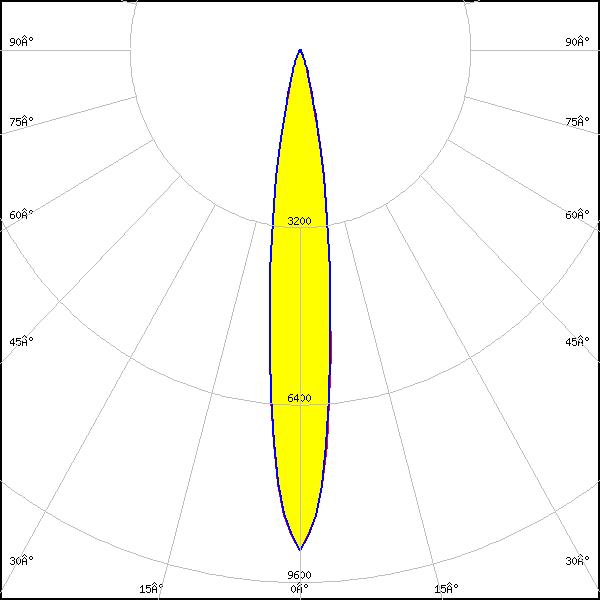

    LED: LUXEON HL2X
    FWHM: 14°
    FWTM: 30°
    Peak intensity: 9.024 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

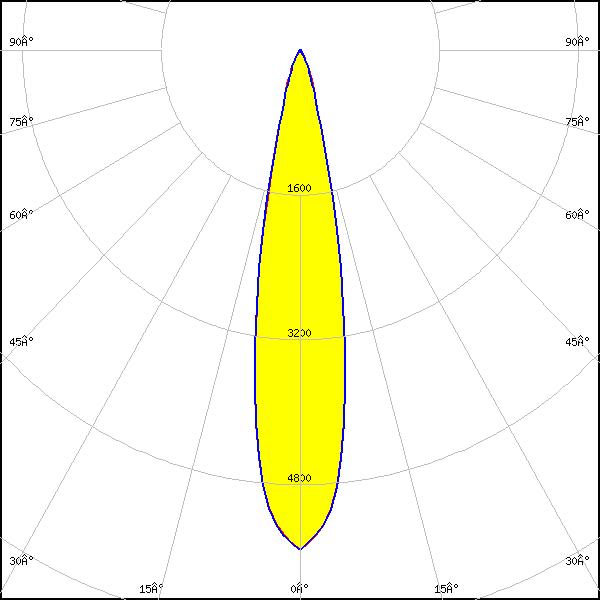

    LED: LUXEON HL4X
    FWHM: 20°
    FWTM: 38°
    Peak intensity: 5.529 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL4Z
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 10.406 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

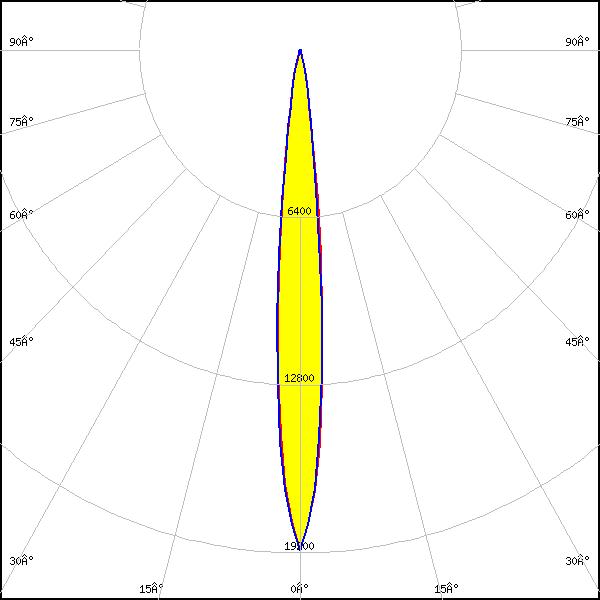

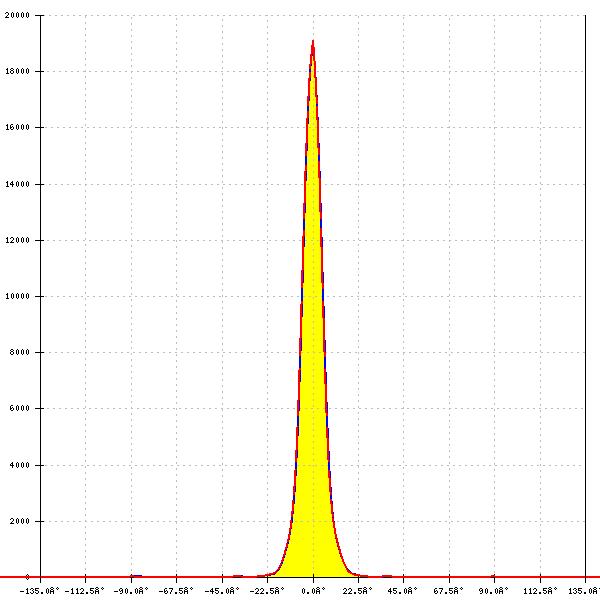

    LED: LUXEON IR Domed 150 (L1I0-0xxx150000000)
    FWHM: 11°
    FWTM: 21°
    Peak intensity: 19.110 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

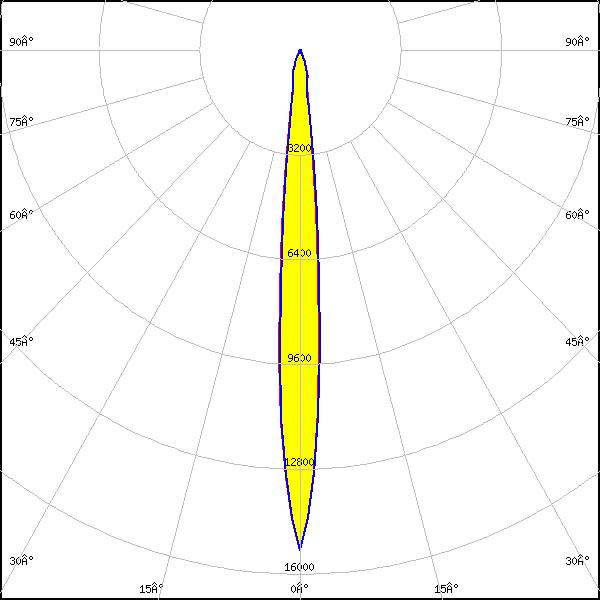

    LED: LUXEON IR Domed 60 (L1I0-0xxx060000000)
    FWHM: 10°
    FWTM: 20°
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

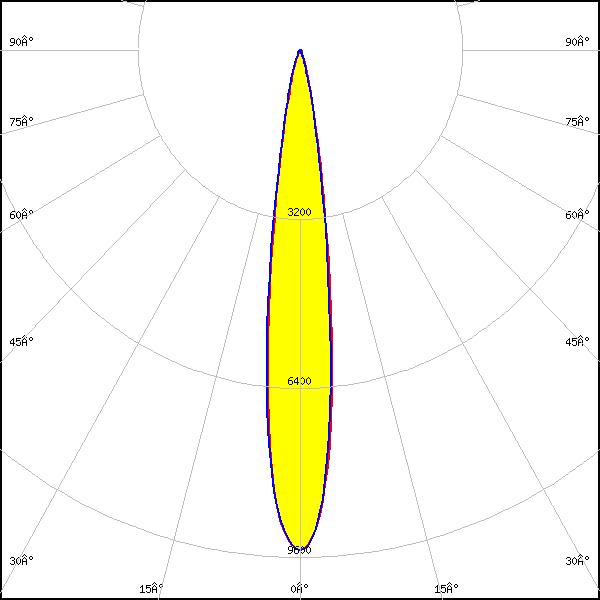

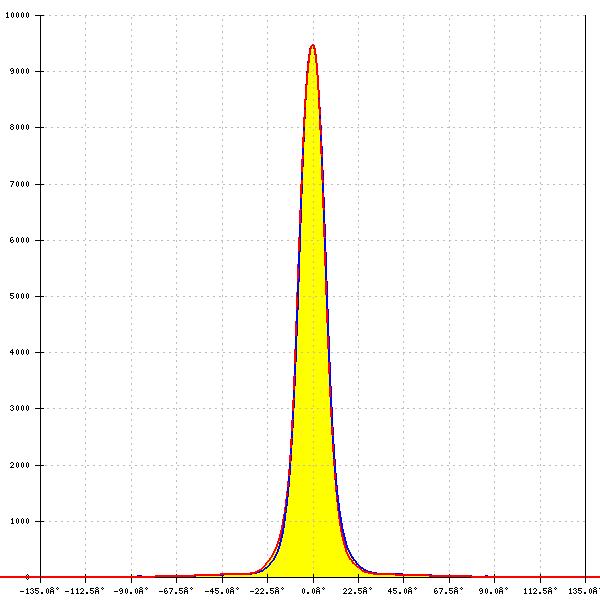

    LED: LUXEON V2
    FWHM: 15°
    FWTM: 28°
    Peak intensity: 9.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

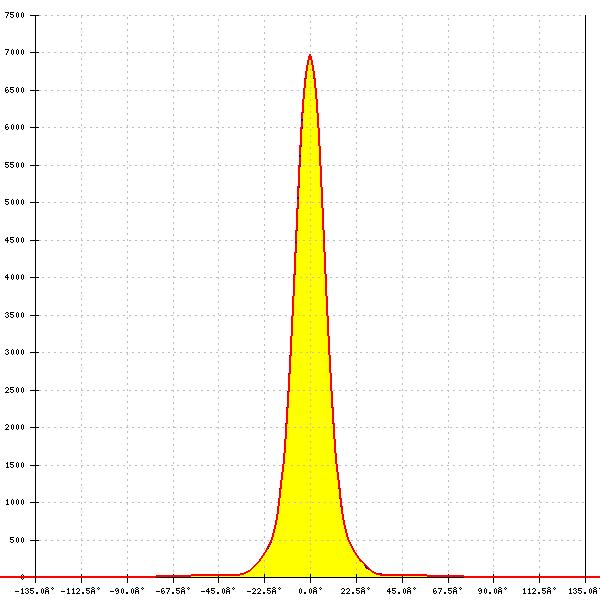

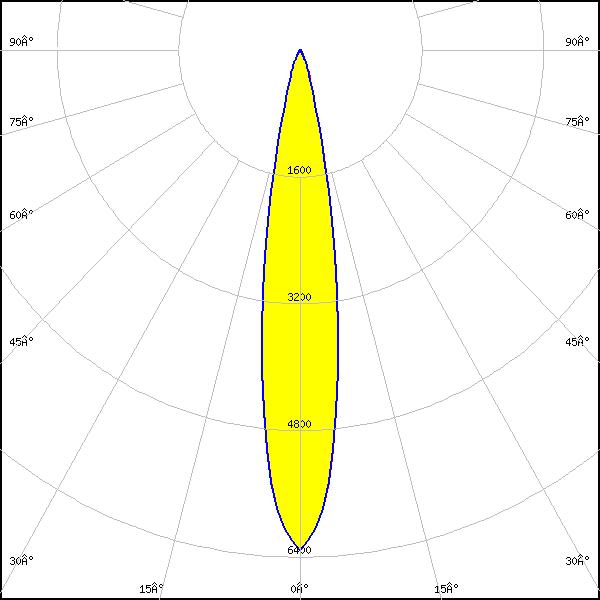

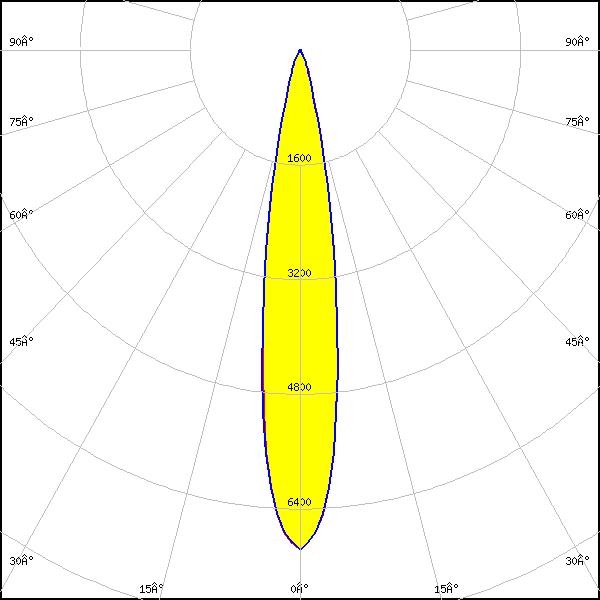

    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.978 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.314 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

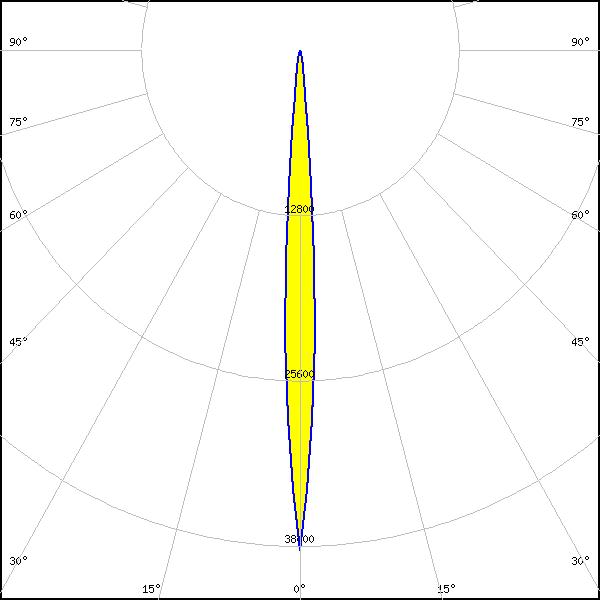

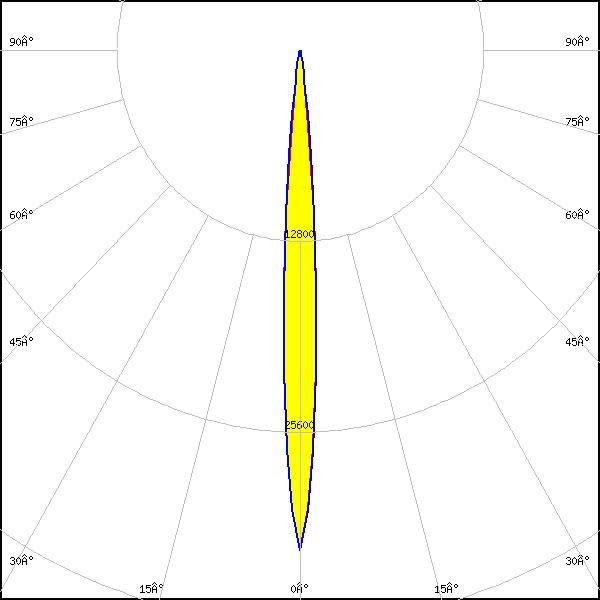

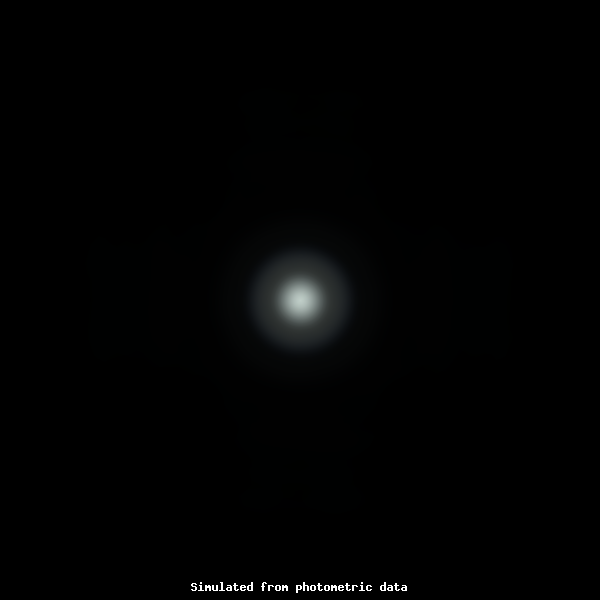

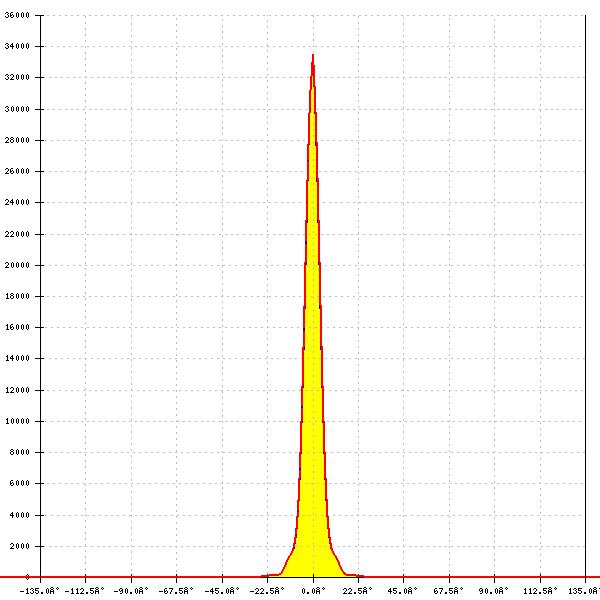

    LED: SFT-12R-W-A
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 33.526 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-12R-W-A
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 38.714 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

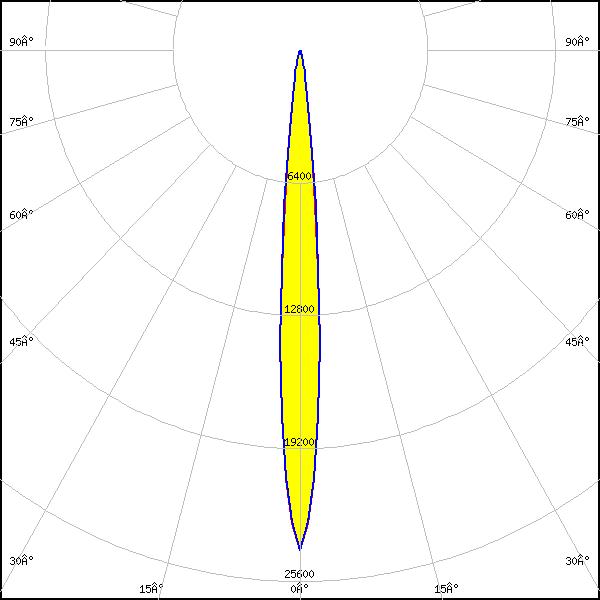

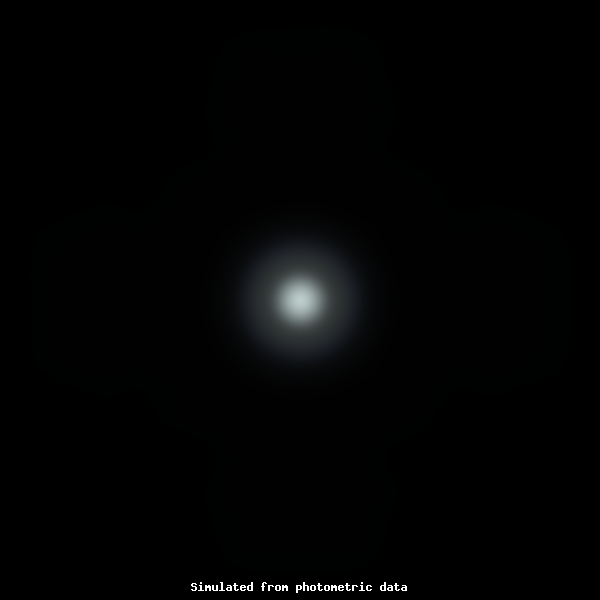

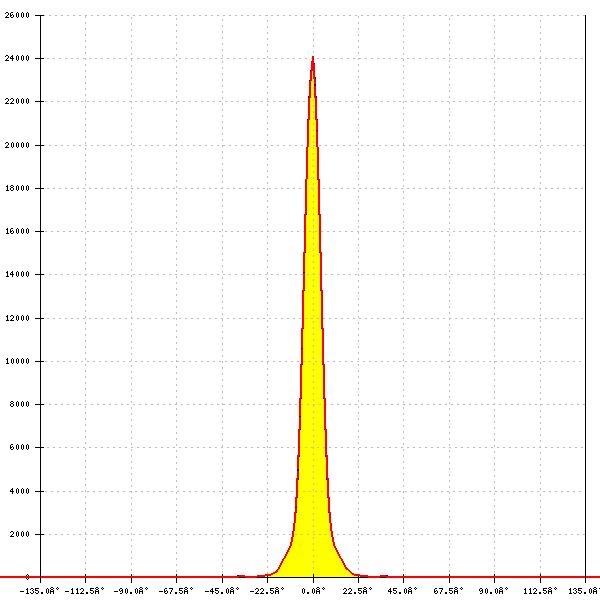

    LED: SFT-25R-W-A
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 24.113 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

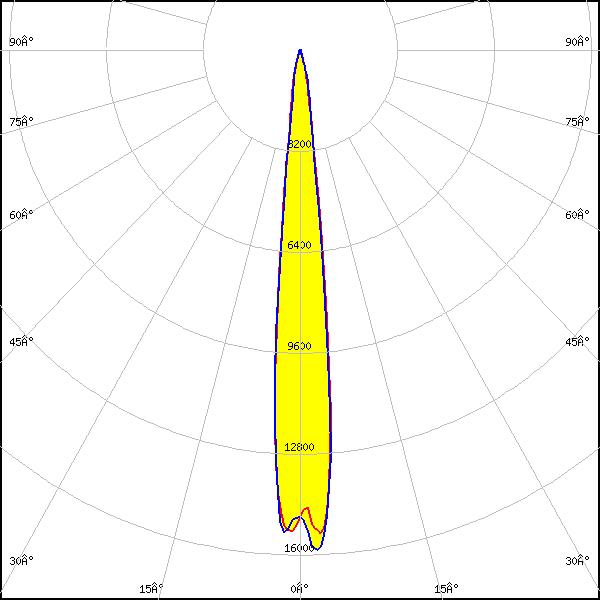

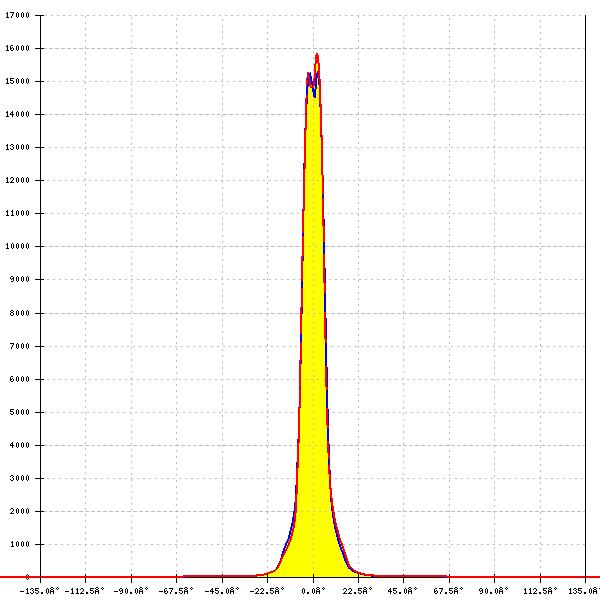

    LED: SST-10-B130
    FWHM: 12°
    FWTM: 21°
    Peak intensity: 15.943 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Deep Red

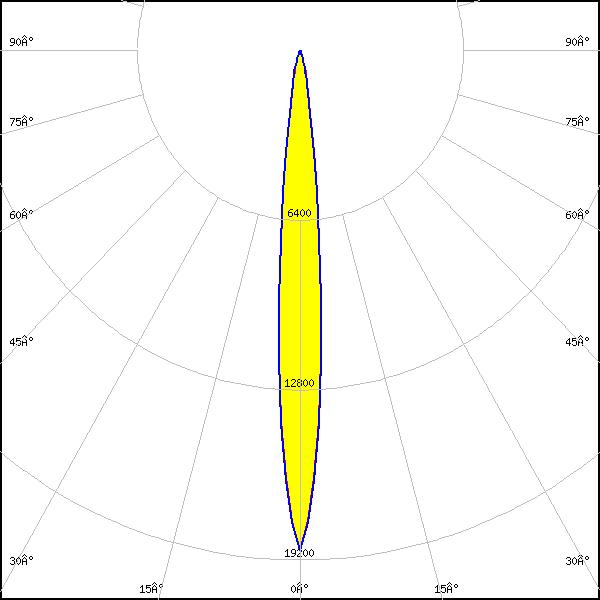

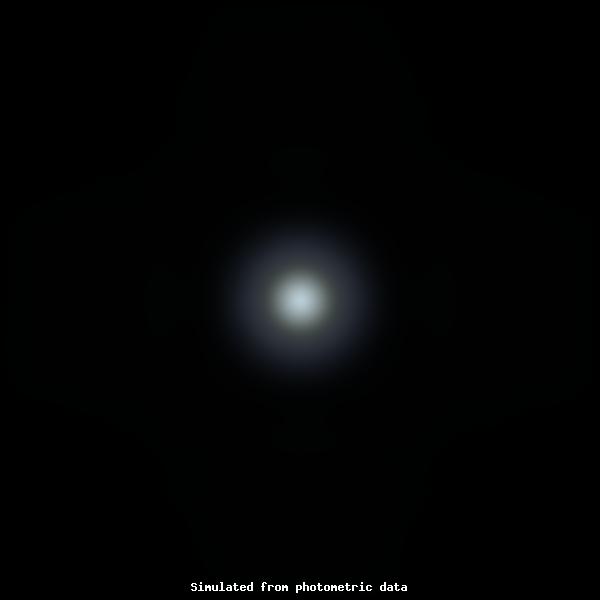

    LED: SST-12 Gen2
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 18.843 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

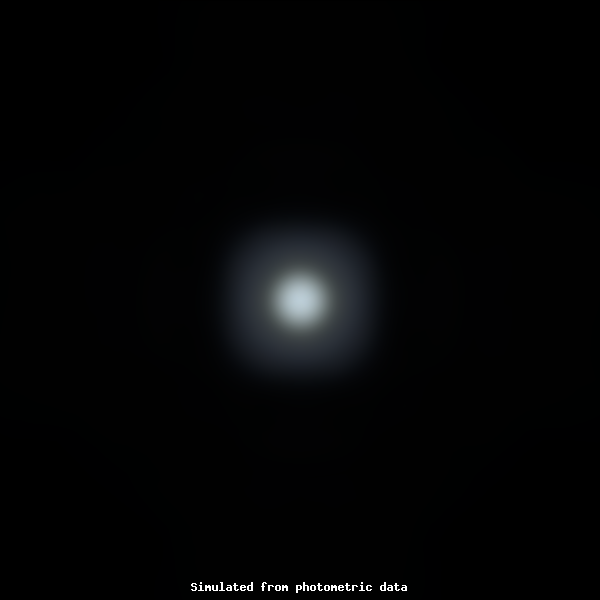

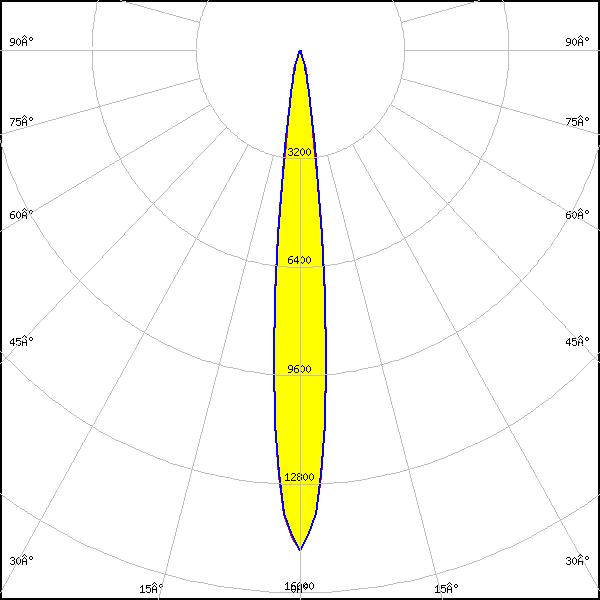

    LED: SST-20 Gen2
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 14.748 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

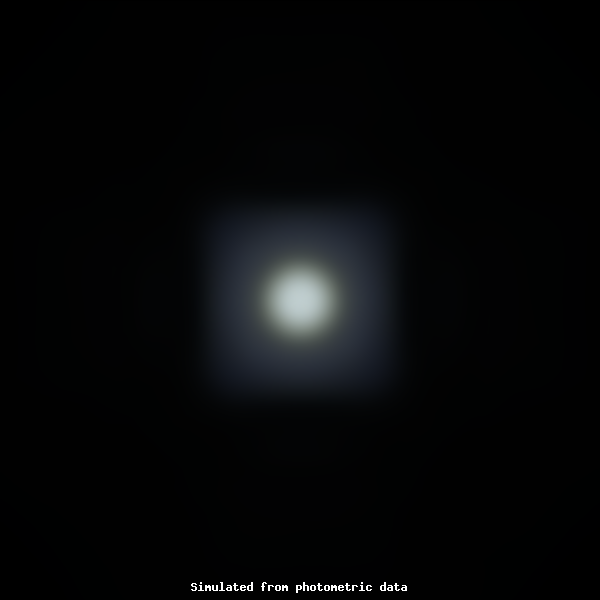

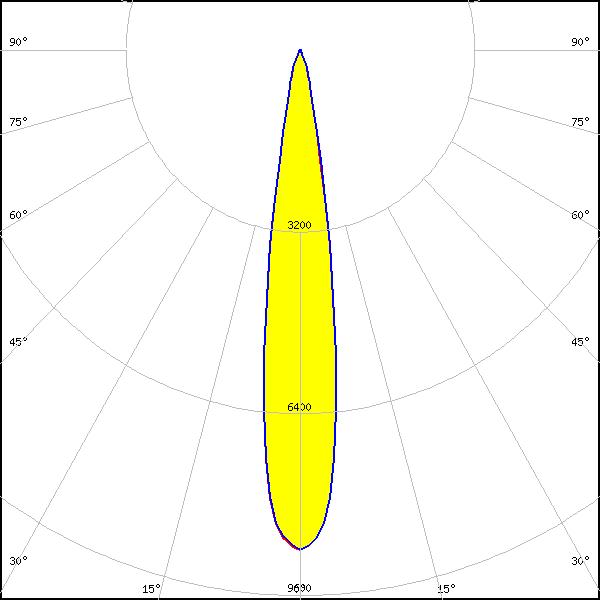

    LED: SST-20F-W
    FWHM: 16°
    FWTM: 28°
    Peak intensity: 8.809 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

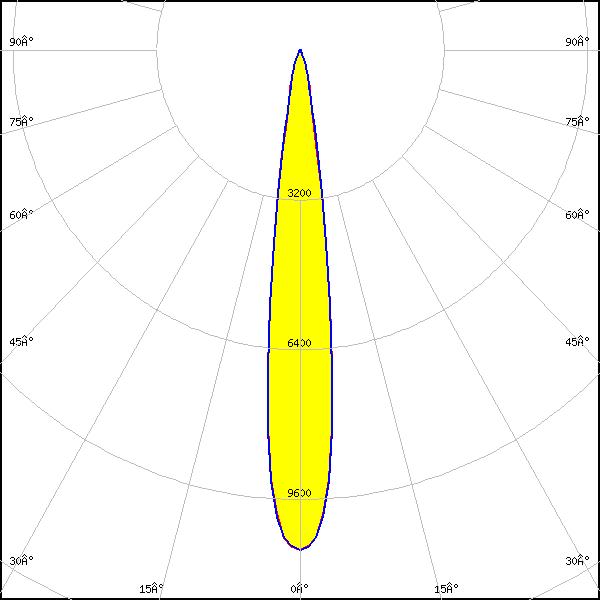

    LED: SST-25-W
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 10.689 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

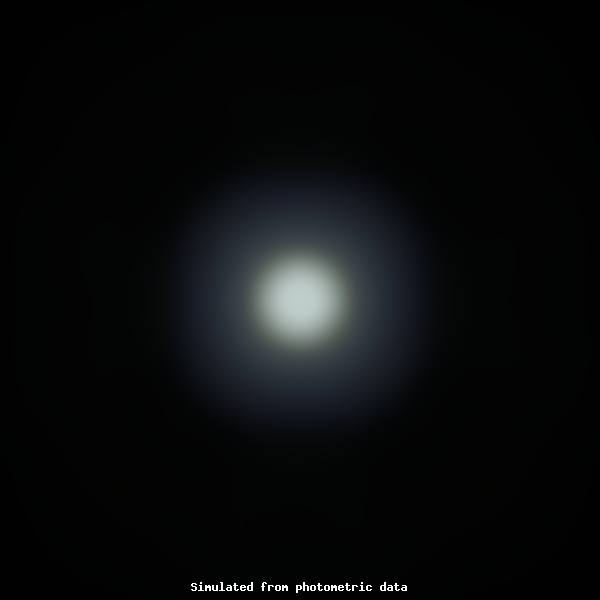

    LED: SST-36F-W
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 5.481 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219D
    FWHM: 17°
    FWTM: 29°
    Peak intensity: 8.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

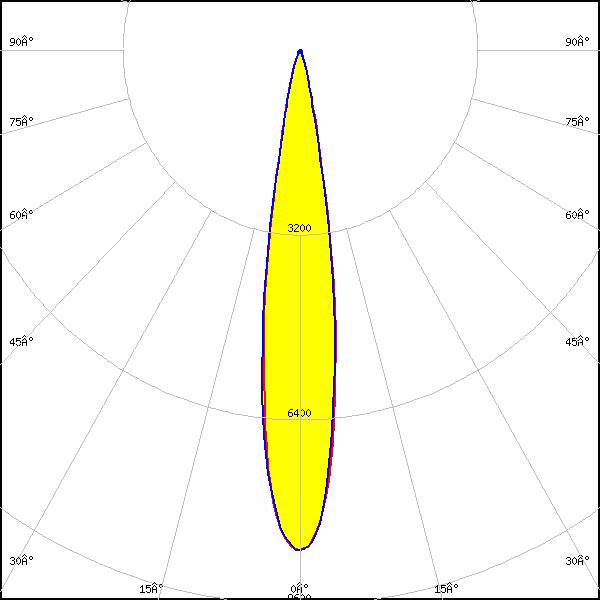

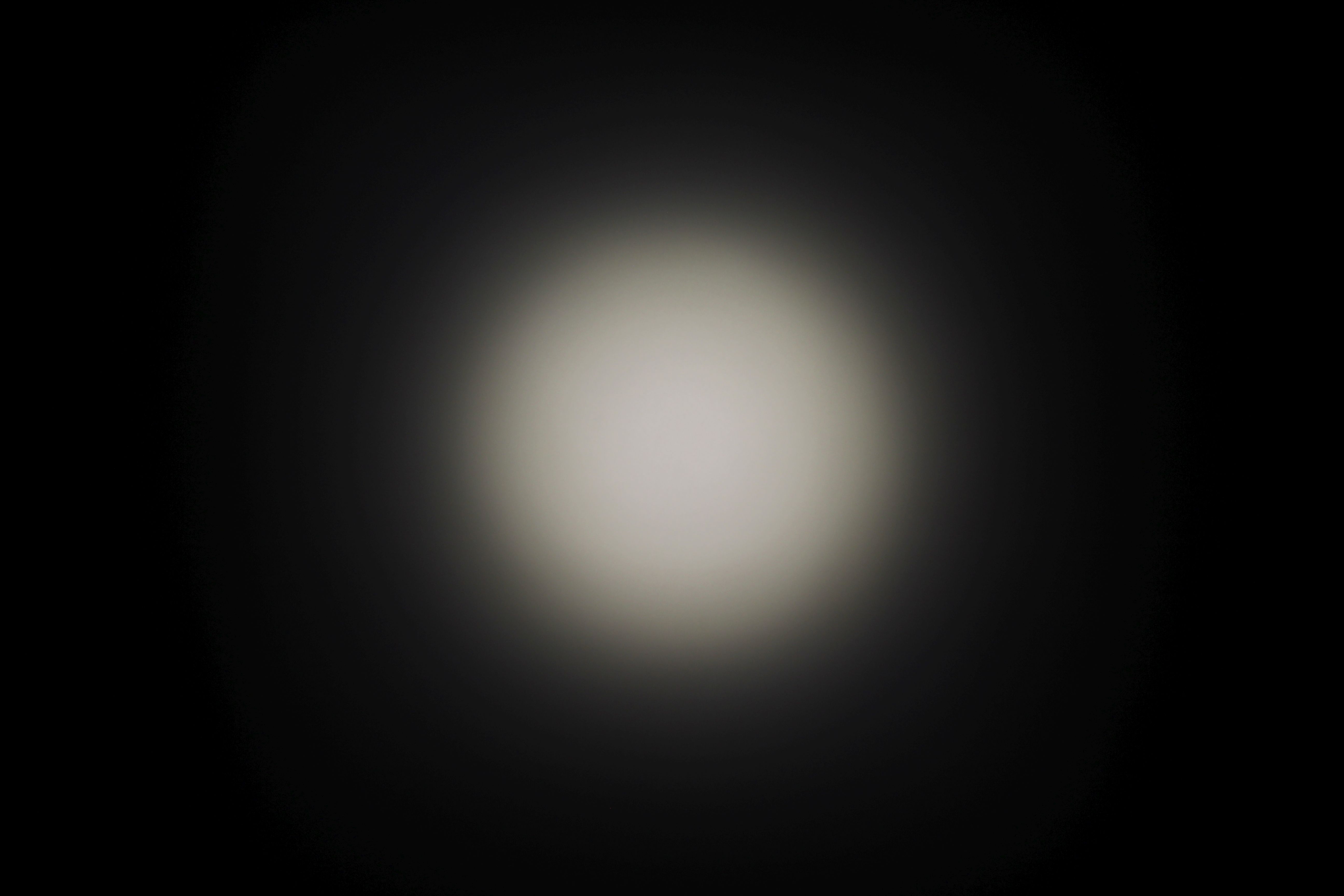

    LED: NVSW219F
    FWHM: 17°
    FWTM: 29°
    Peak intensity: 8.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

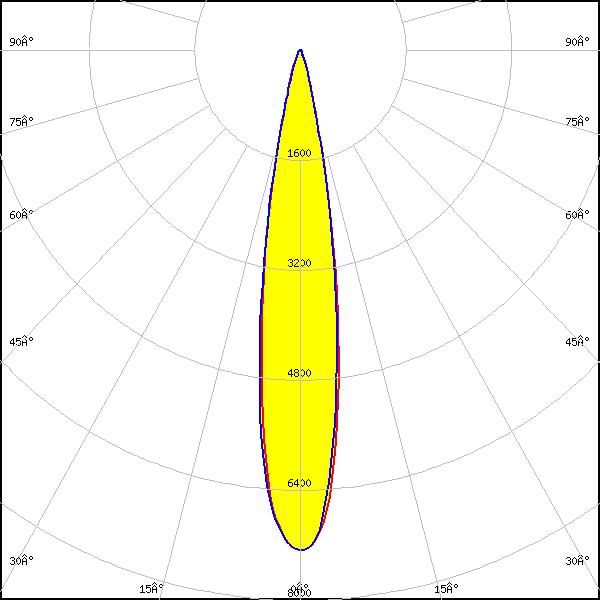

    LED: NVSW319B
    FWHM: 18°
    FWTM: 32°
    Peak intensity: 7.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

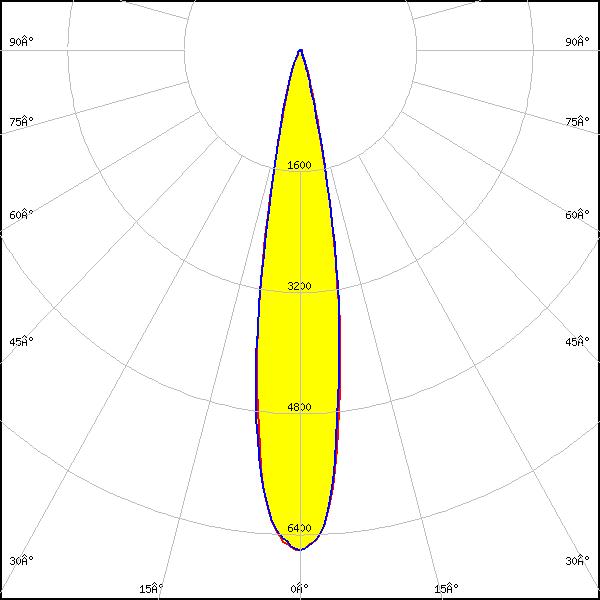

    LED: NVSW3x9A
    FWHM: 19°
    FWTM: 33°
    Peak intensity: 6.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

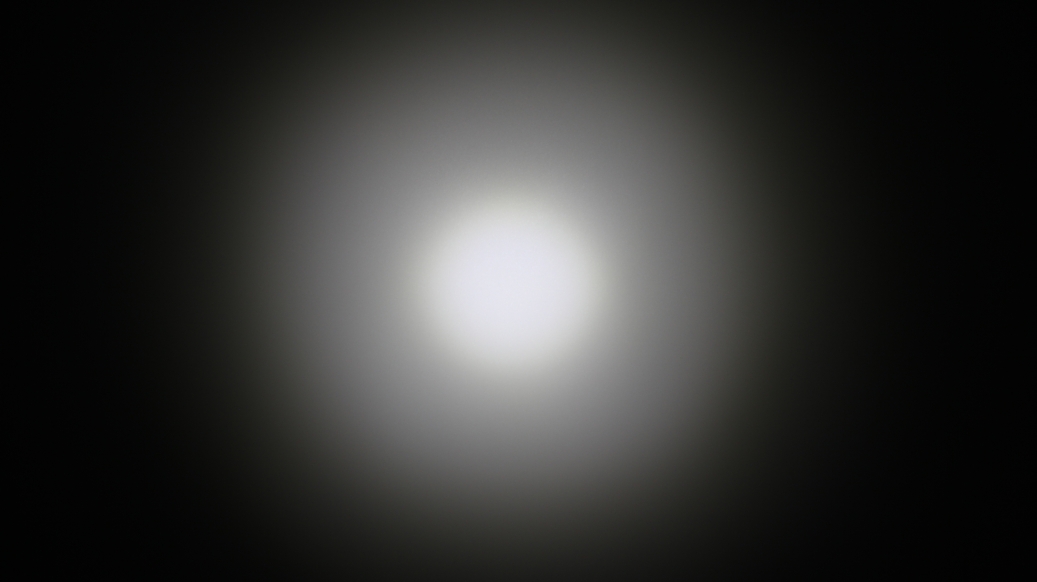

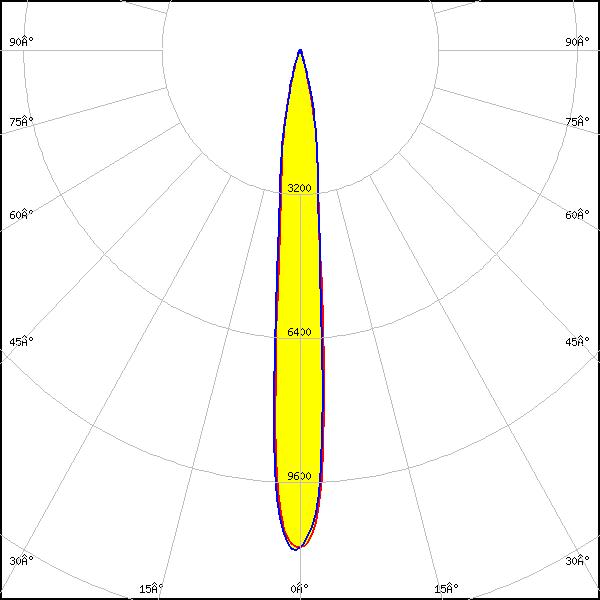

    LED: NVSxE21A
    FWHM: 11°
    FWTM: 28°
    Peak intensity: 11.100 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

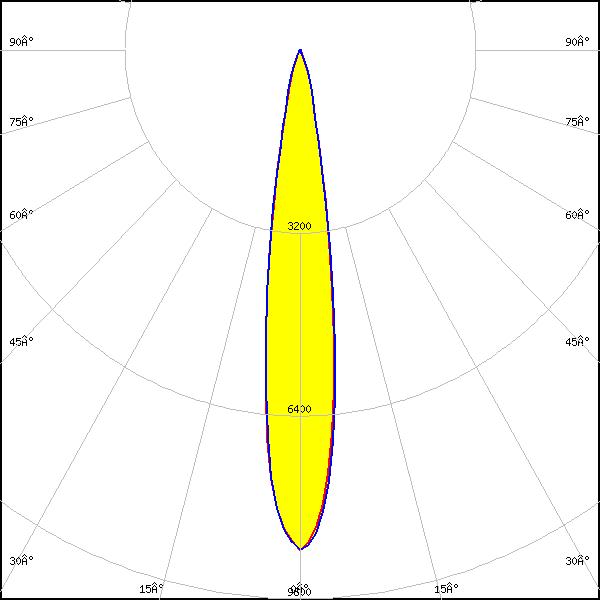

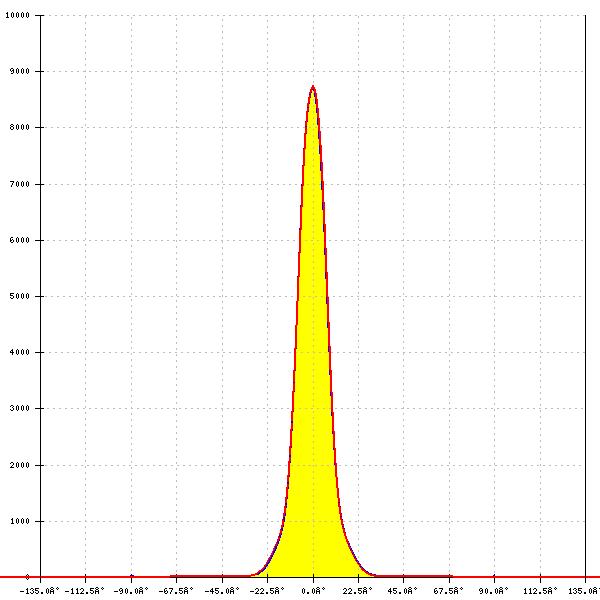

    LED: NVSxx19B/NVSxx19C
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 8.750 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 17°
    FWTM: 30°
    Peak intensity: 8.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

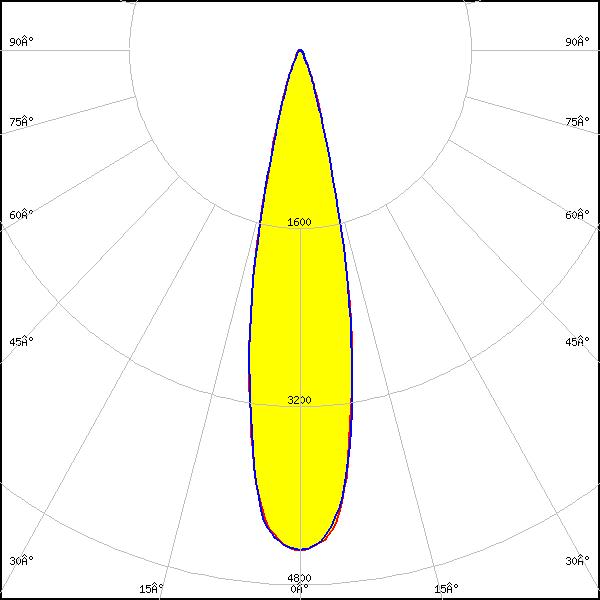

    LED: NWSx229A
    FWHM: 23°
    FWTM: 41°
    Peak intensity: 4.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

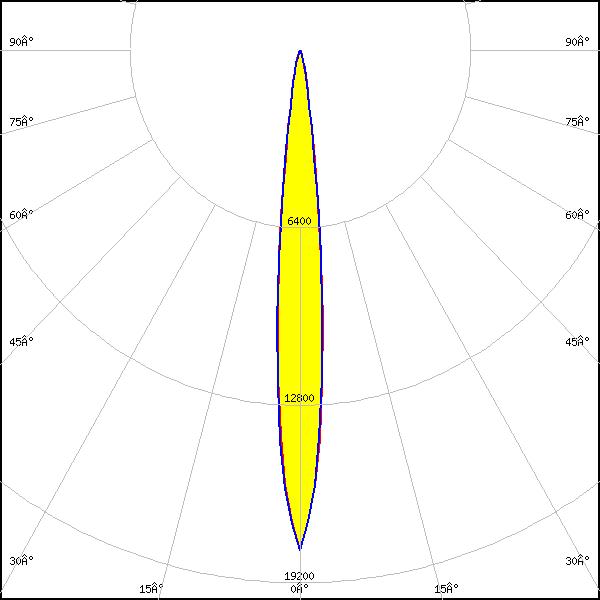

    LED: OSCONIQ C 2424 Gen1
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 18.030 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

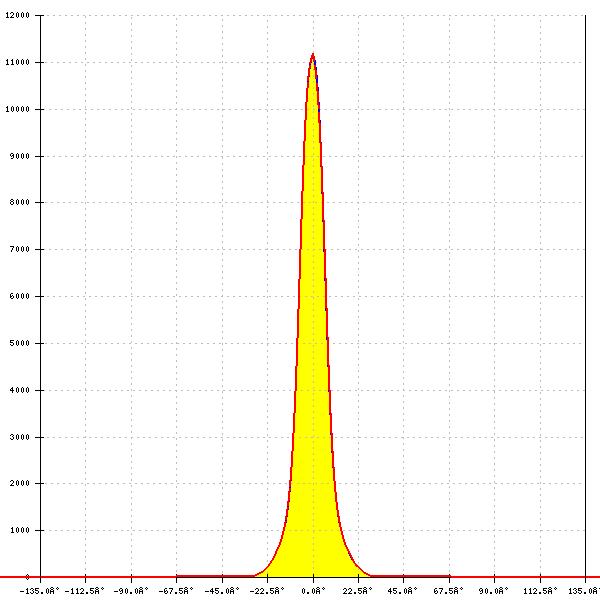

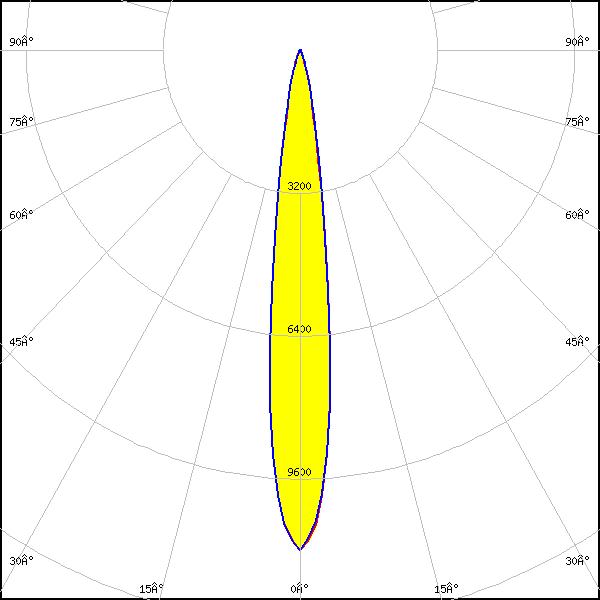

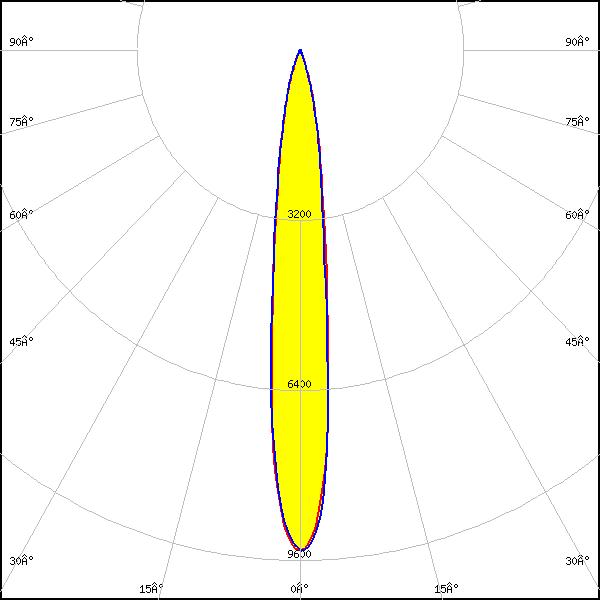

    LED: OSCONIQ C 3030
    FWHM: 14°
    FWTM: 27°
    Peak intensity: 11.199 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

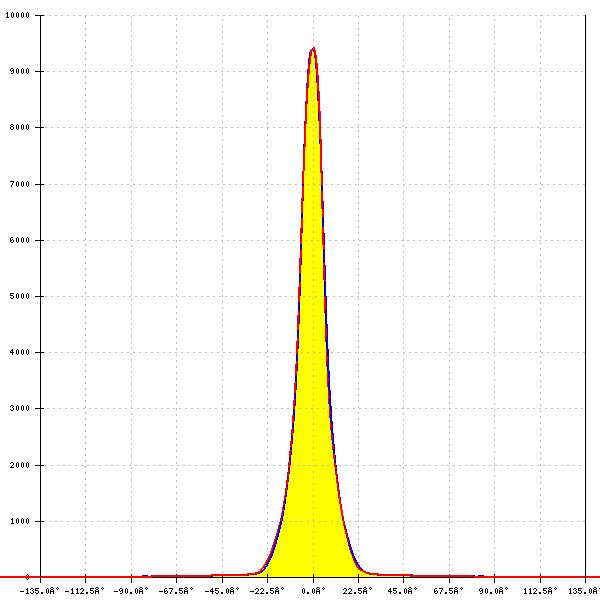

    LED: OSCONIQ C 3030
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 9.998 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: 13°
    FWTM: 31°
    Peak intensity: 9.426 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

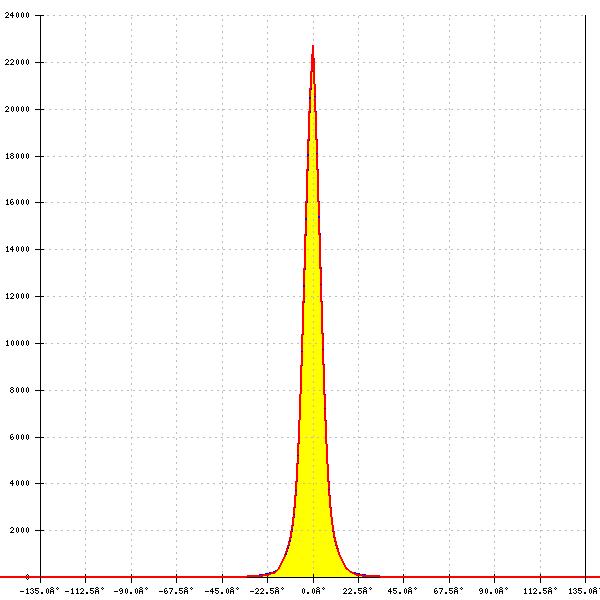

    LED: OSCONIQ P 3030
    FWHM: 8°
    FWTM: 20°
    Peak intensity: 22.736 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 13.528 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 12.477 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

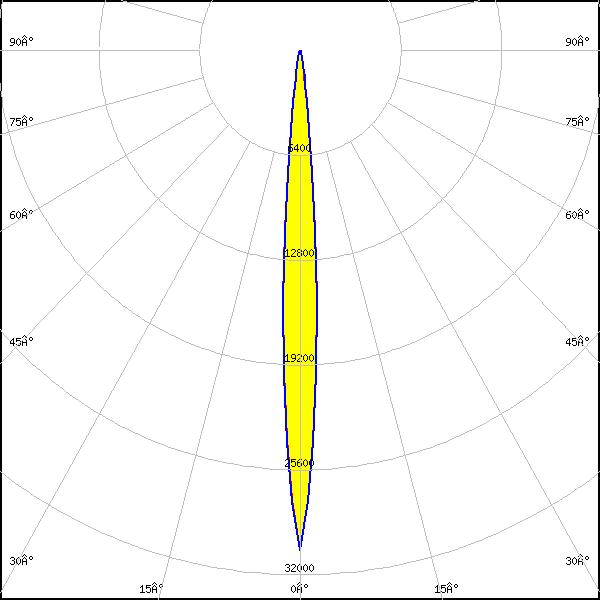

    LED: OSLON Pure 1414
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 30.506 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

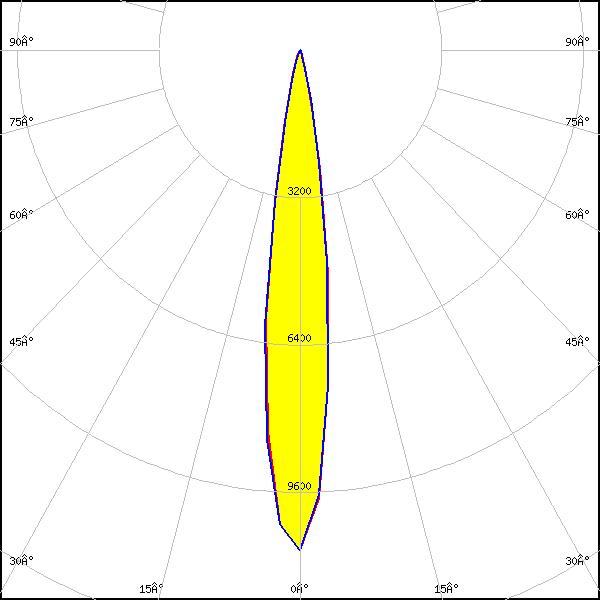

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 15°
    FWTM: 27°
    Peak intensity: 9.659 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

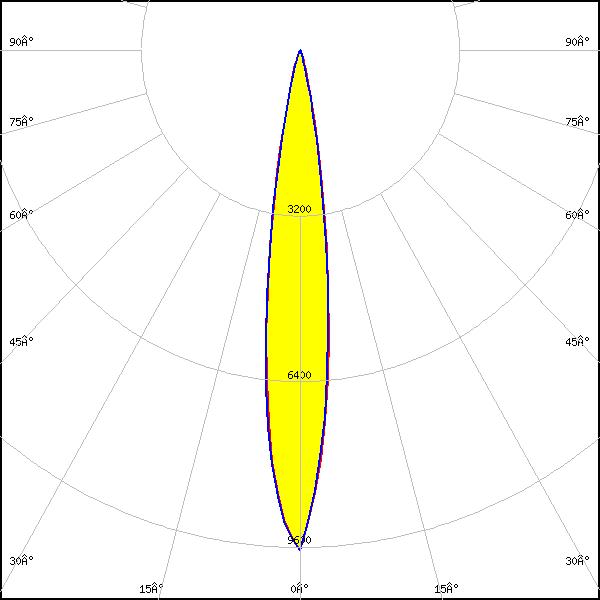

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 15°
    FWTM: 27°
    Peak intensity: 11.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

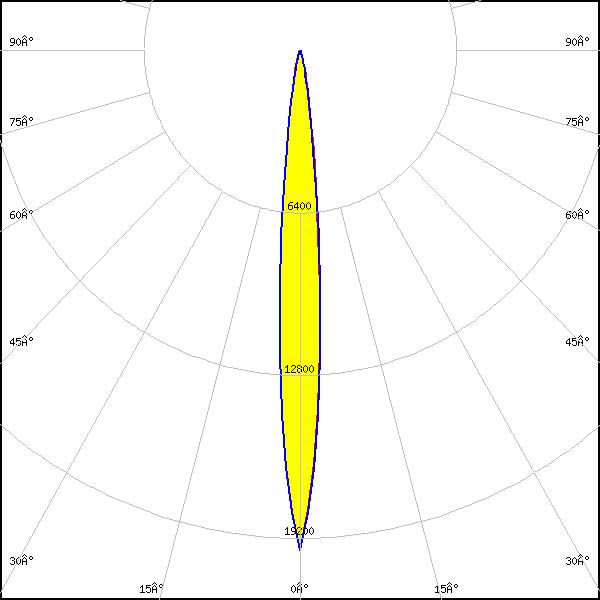

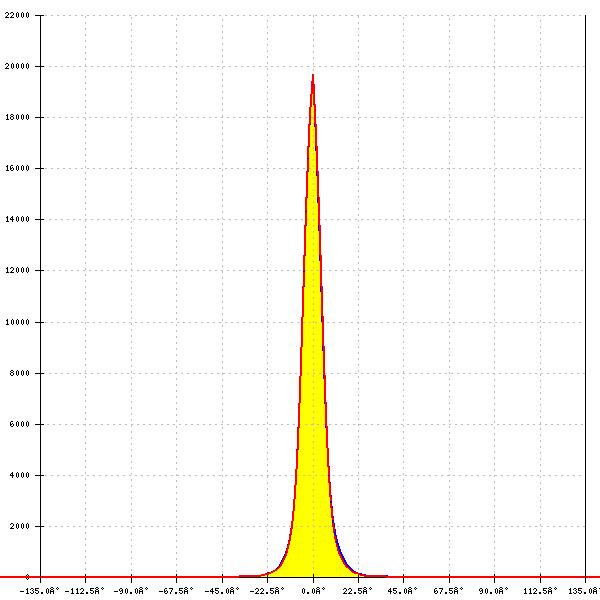

    LED: OSLON Square Flat
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 19.679 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

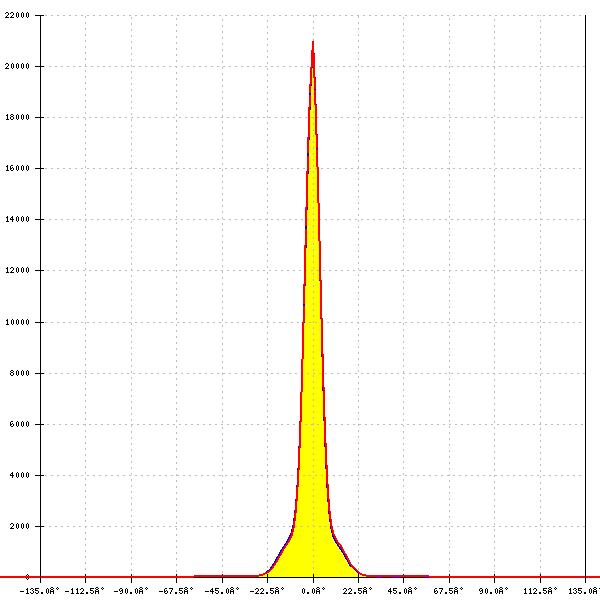

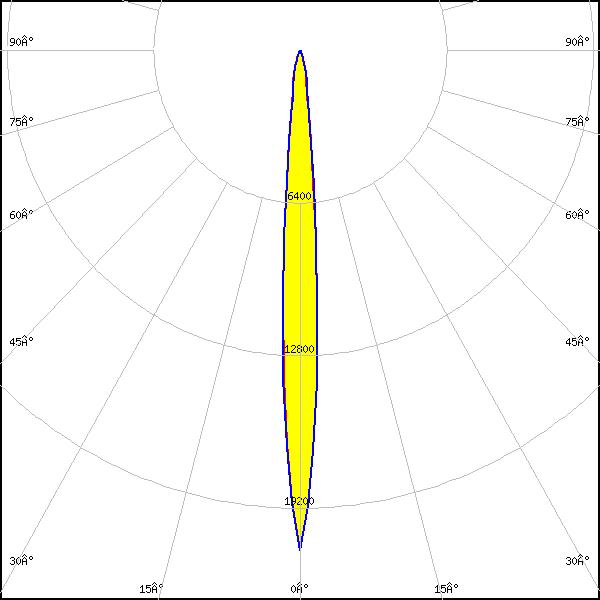

    LED: OSLON SSL 80
    FWHM: 8°
    FWTM: 19°
    Peak intensity: 21.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSTAR Projection Compact (KW.CSLNM1.TG)
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 19.765 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4715AS
    FWHM: 9°
    FWTM: 21°
    LEDs/each optic: 1
    Light colour/type: IR
    LED: Fortimo FastFlex LED 2x8 DA G4
    FWHM: 13°
    FWTM: 23°
    Peak intensity: 12.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4+
    FWHM: 17°
    FWTM: 32°
    Peak intensity: 7.841 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: 14°
    FWTM: 27°
    Peak intensity: 10.549 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

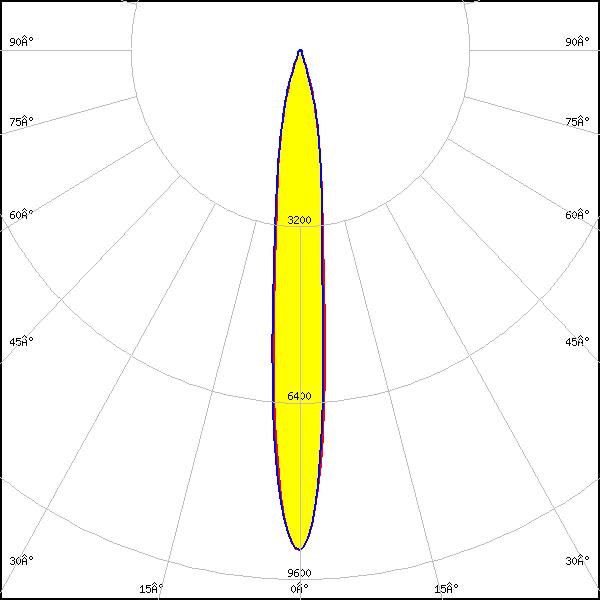

    LED: HiLOM RC12 Z (LH181B)
    FWHM: 12°
    FWTM: 33°
    Peak intensity: 9.072 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

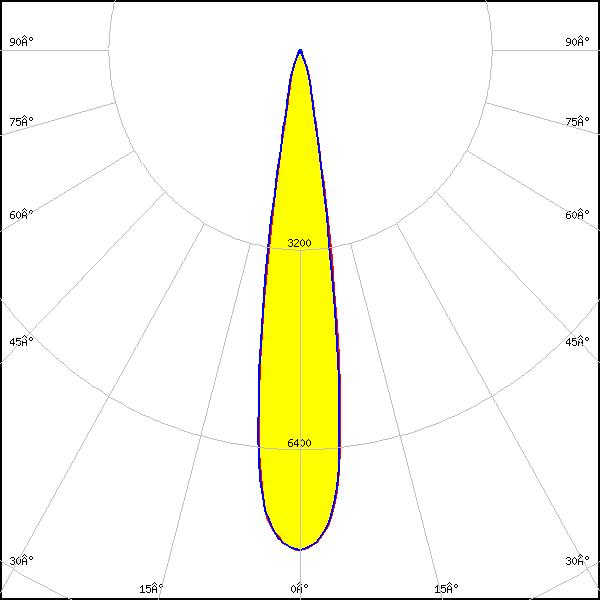

    LED: HiLOM RH12 Z (LH351C)
    FWHM: 17°
    FWTM: 29°
    Peak intensity: 8.020 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

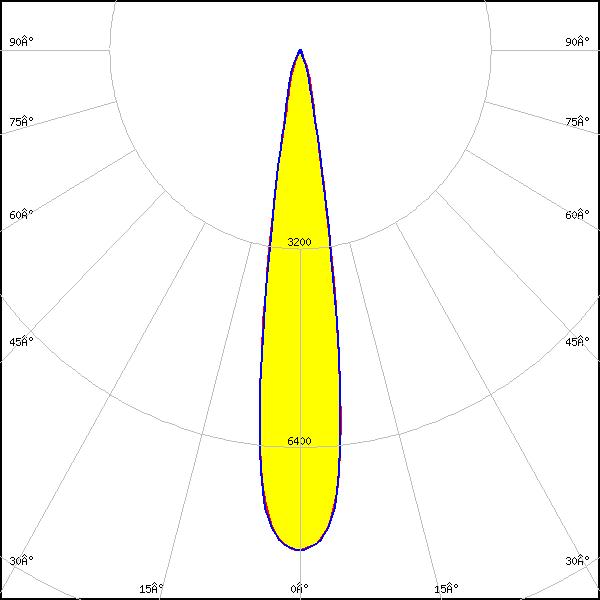

    LED: HiLOM RH16 (LH351C)
    FWHM: 17°
    FWTM: 30°
    Peak intensity: 8.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

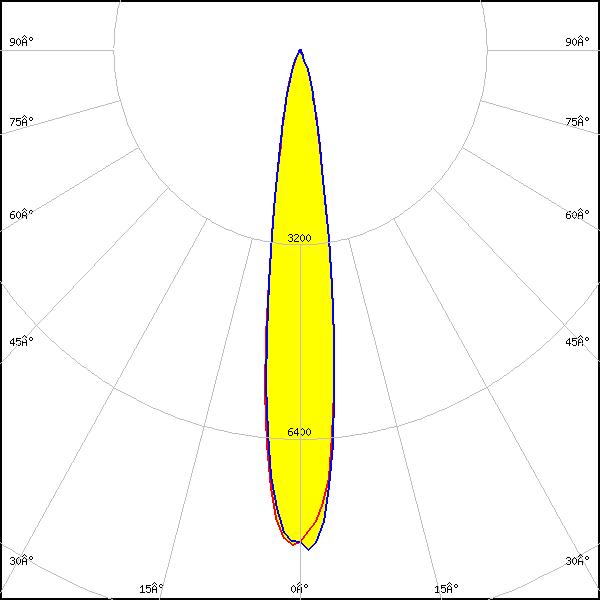

    LED: LH231B
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 8.389 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH231B
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 8.296 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH231B
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 8.023 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LH351B
    FWHM: 17°
    FWTM: 29°
    Peak intensity: 8.040 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: 18°
    FWTM: 30°
    Peak intensity: 7.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 4.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

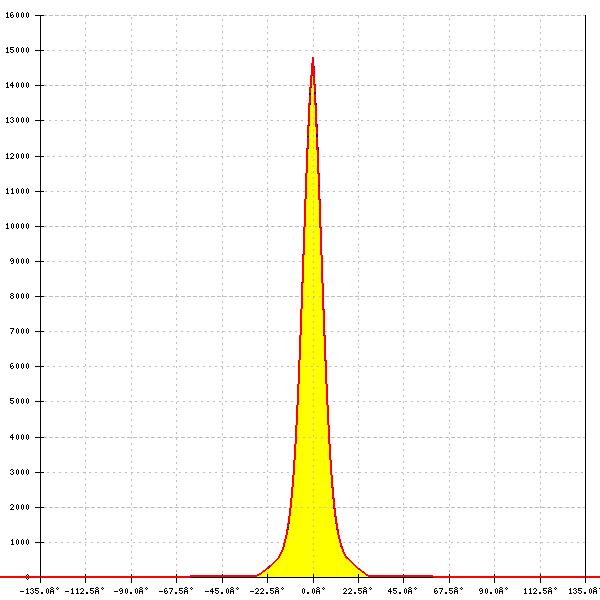

    LED: LM301B
    FWHM: 10°
    FWTM: 24°
    Peak intensity: 14.812 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-Pa-L15c2W11c2-xxx-C050-01
    FWHM: 14°
    FWTM: 27°
    Peak intensity: 10.739 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

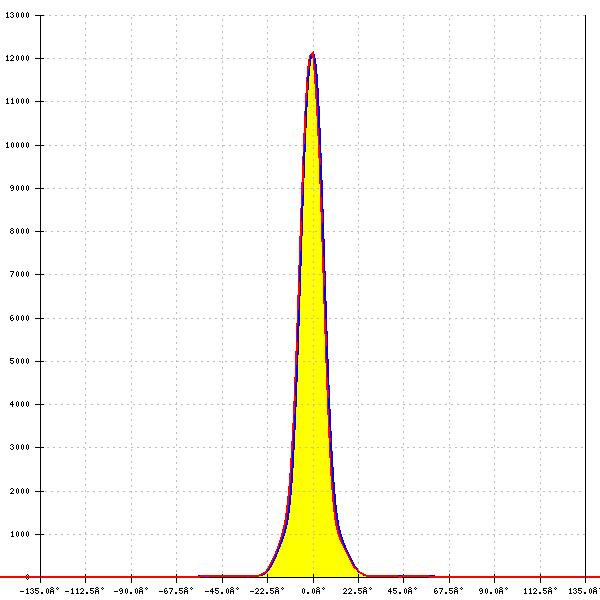

    LED: Z5M1/Z5M2
    FWHM: 13°
    FWTM: 26°
    Peak intensity: 12.100 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

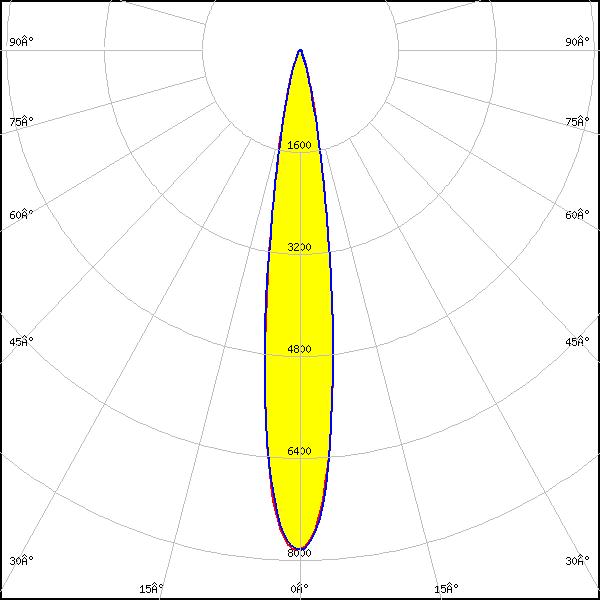

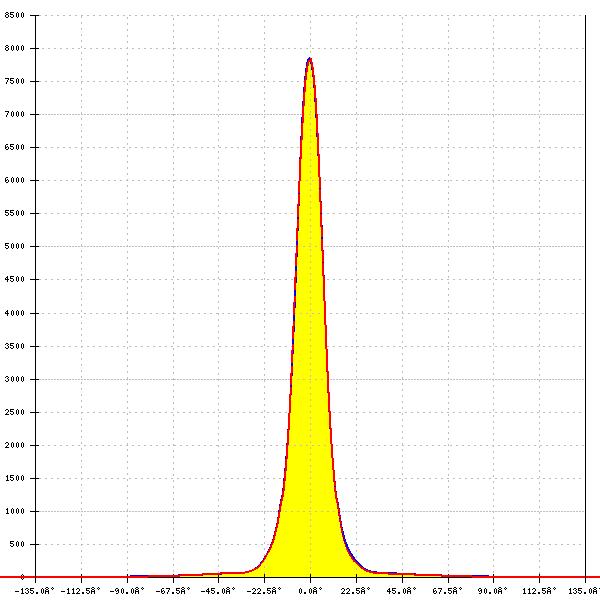

    LED: Z5M3
    FWHM: 16°
    FWTM: 31°
    Peak intensity: 7.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: 14°
    FWTM: 30°
    Peak intensity: 9.399 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

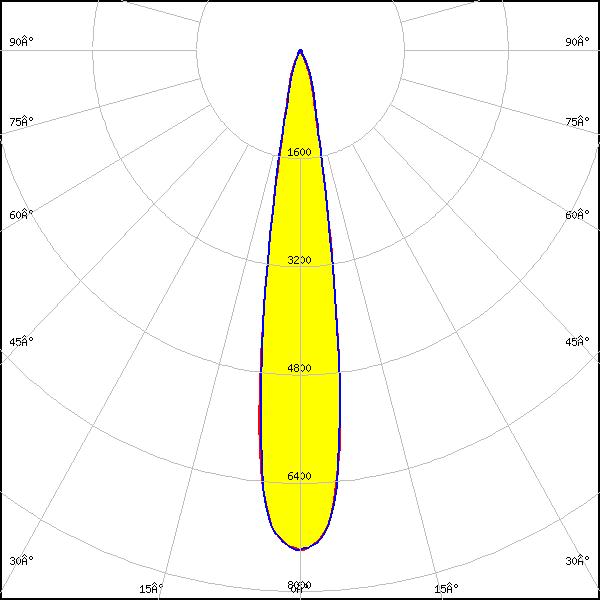

    LED: Z5M4
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 8.249 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: 17°
    FWTM: 32°
    Peak intensity: 7.409 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4-E1
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 8.062 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

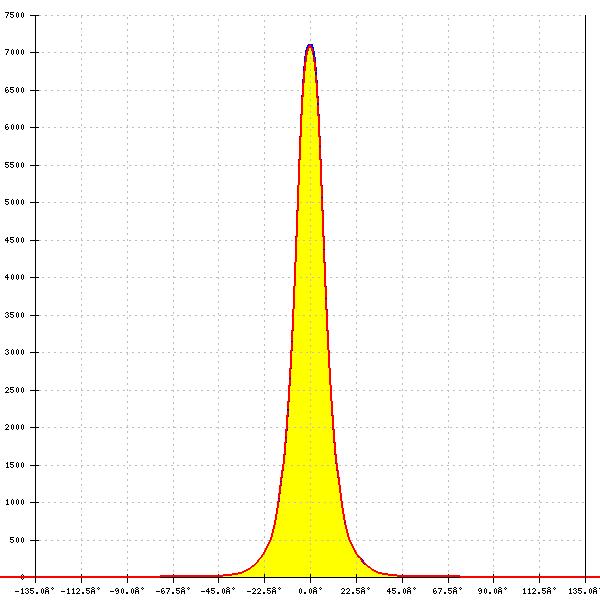

    LED: Z5M4-E2
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 7.106 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22
    FWHM: 14°
    FWTM: 35°
    Peak intensity: 6.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22P
    FWHM: 16°
    FWTM: 33°
    Peak intensity: 6.900 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

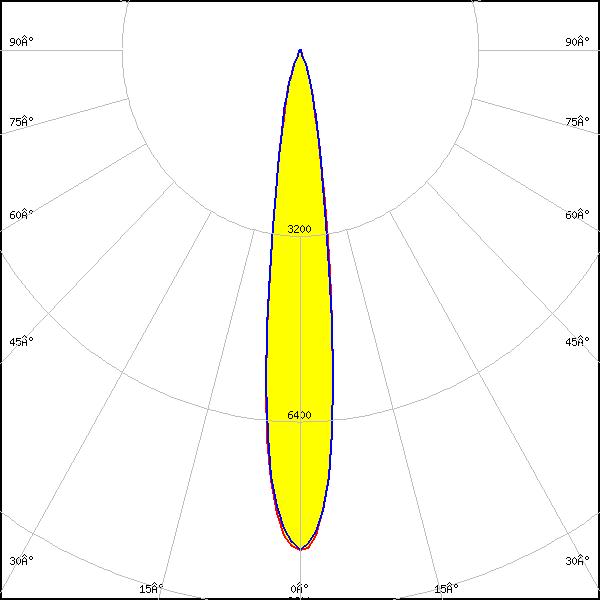

    LED: Z8Y22T
    FWHM: 15°
    FWTM: 32°
    Peak intensity: 8.630 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 12.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 12.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

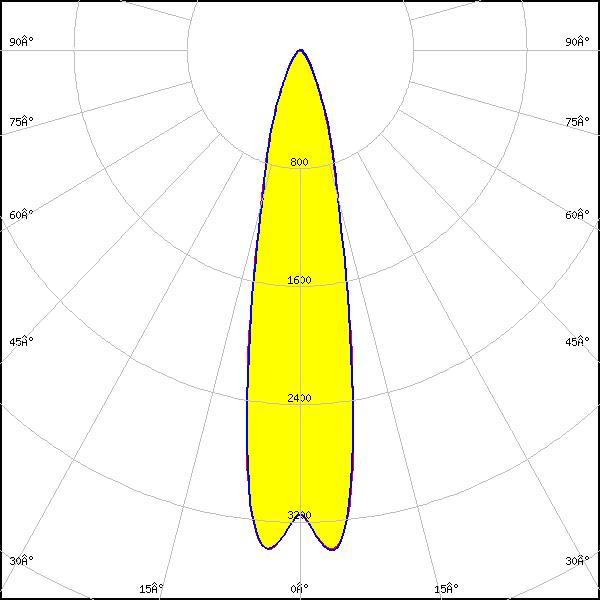

    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: 23°
    FWTM: 51°
    Peak intensity: 3.415 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

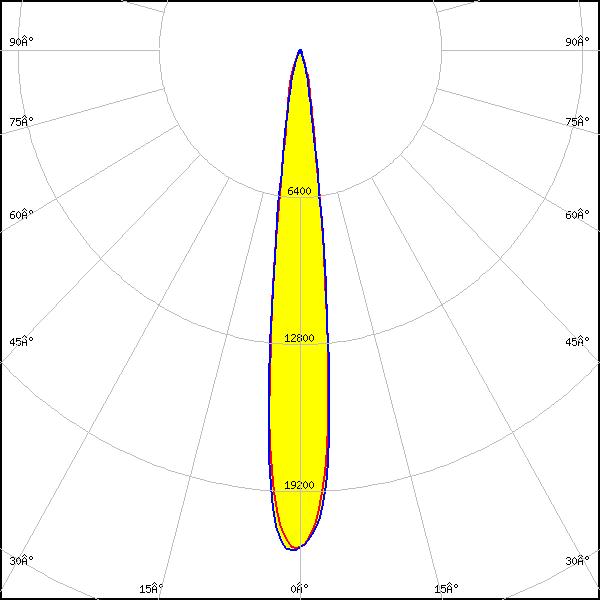

    LED: RLE G1 49x121mm 2000lm xxx EXC OTD
    FWHM: 13°
    FWTM: 27°
    Peak intensity: 10.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x133mm 2000lm xxx EXC OTD
    FWHM: 13°
    FWTM: 27°
    Peak intensity: 10.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x223mm 4000lm xxx EXC OTD
    FWHM: 13°
    FWTM: 27°
    Peak intensity: 10.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x245mm 4000lm xxx EXC OTD
    FWHM: 13°
    FWTM: 27°
    Peak intensity: 10.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
