    C14605_HB-2X2-RW

    Print

    ~50° wide beam optimized for CREE XP-L and XM-L

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      8.50 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      9.1 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14605_HB-2X2-RW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Case story

    The Belogorsky Monastery of St. Nicholas

    News

    PRODUCT NEWS - HB-2X2 FOR CREE XP-L AND XM-L LEDS

    PCN

    Product change notification NR118a - Change of packaging quantities and packaging type 200416

    PCN

    Product change notification NR110.a - Change of product mechanical dimensions 220915

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Stadium lighting

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

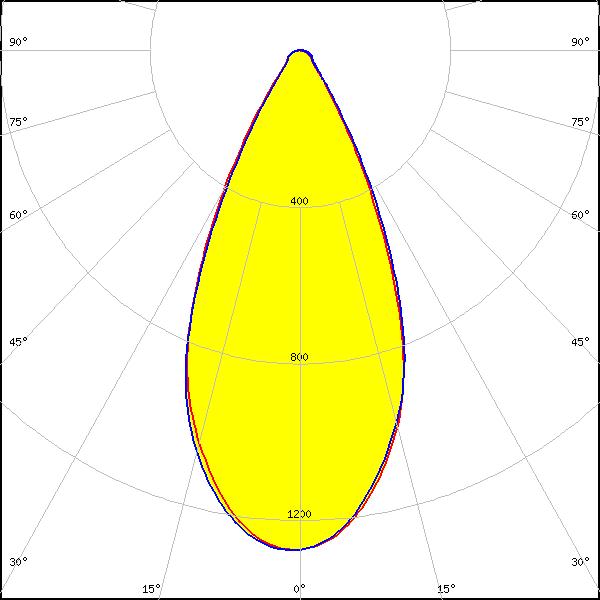

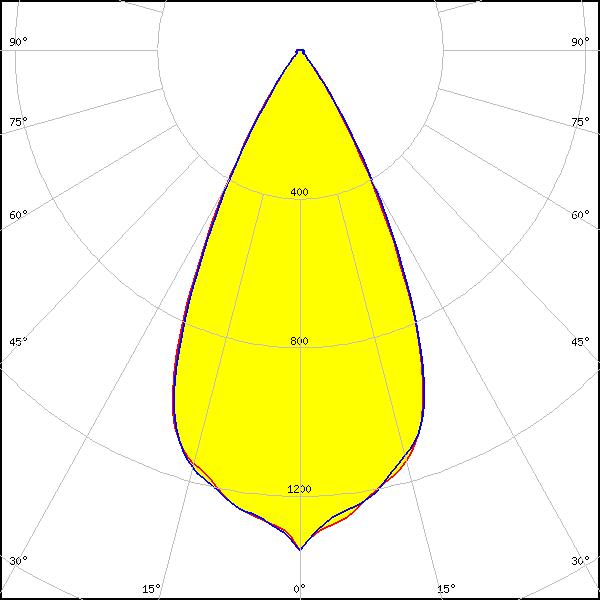

    Optical results

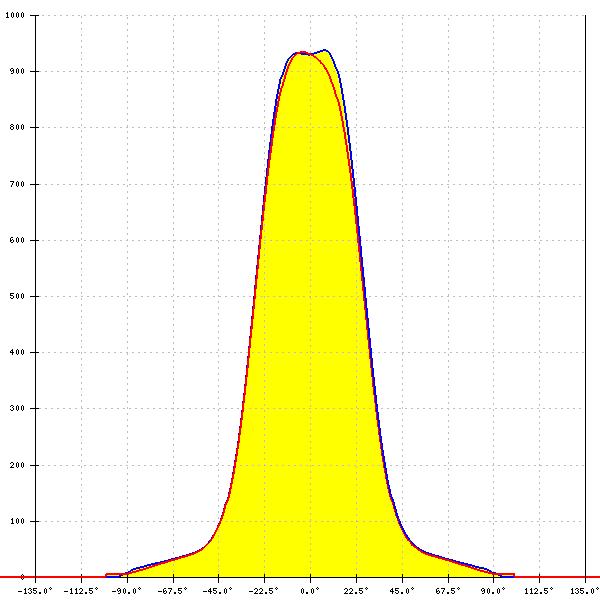

    LED: Bridgelux SMD 5050
    FWHM: 56°
    FWTM: 89°
    Peak intensity: 0.940 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

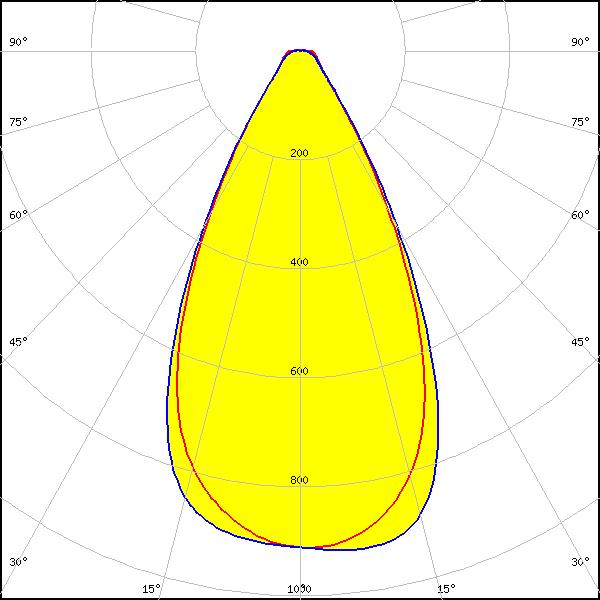

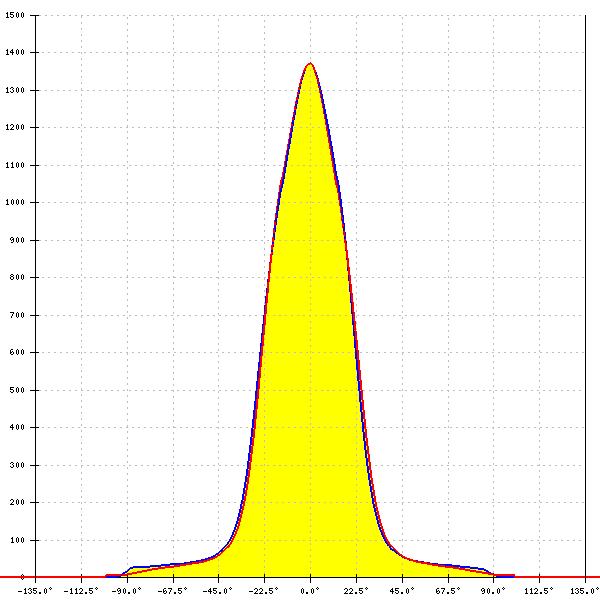

    LED: XD16
    FWHM: 44°
    FWTM: 71°
    Peak intensity: 1.400 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

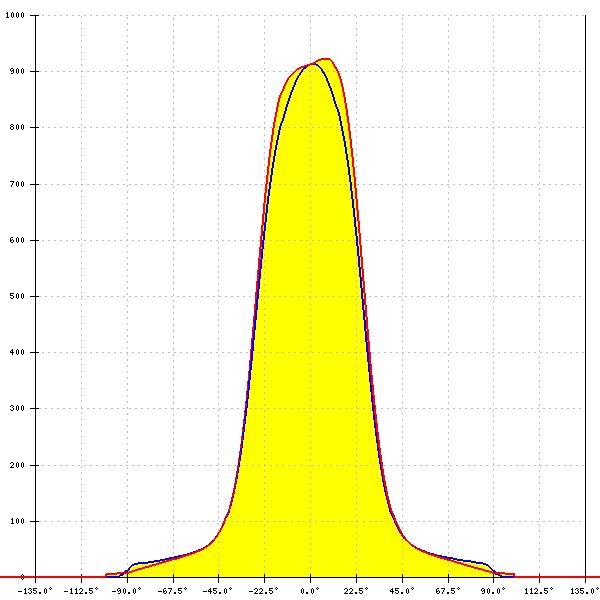

    LED: XD16
    FWHM: 54°
    FWTM: 85°
    Peak intensity: 0.920 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

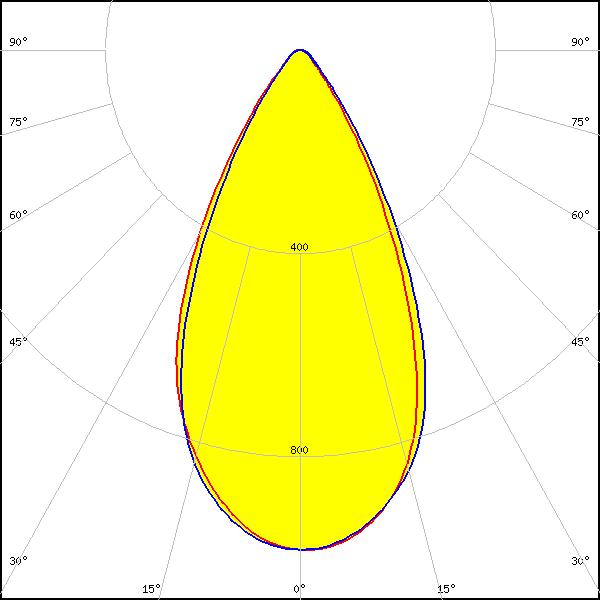

    LED: XHP35 HD
    FWHM: 53°
    FWTM: 82°
    Peak intensity: 0.990 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

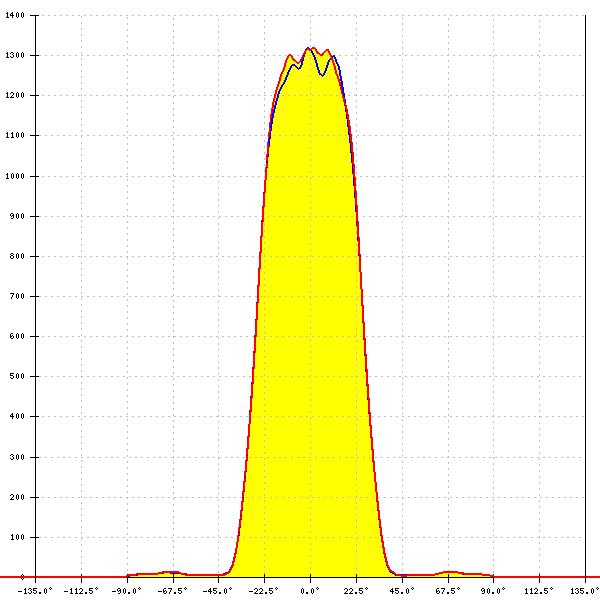

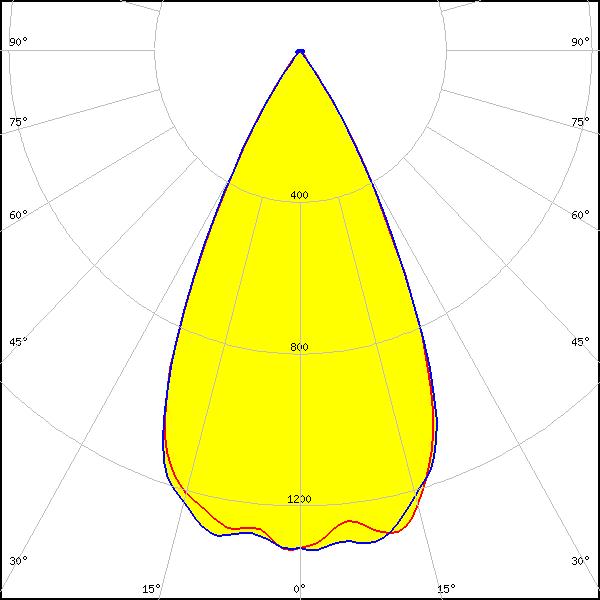

    LED: XHP35 HI
    FWHM: 52°
    FWTM: 68°
    Peak intensity: 1.400 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.180 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

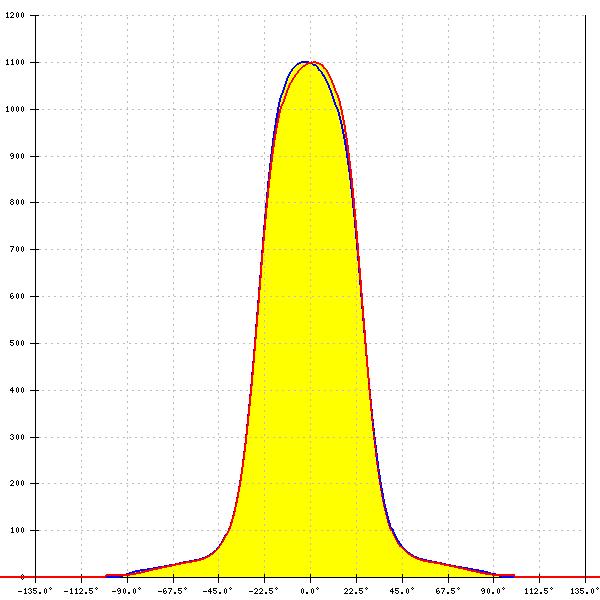

    LED: XM-L3
    FWHM: 52°
    FWTM: 79°
    Peak intensity: 1.102 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

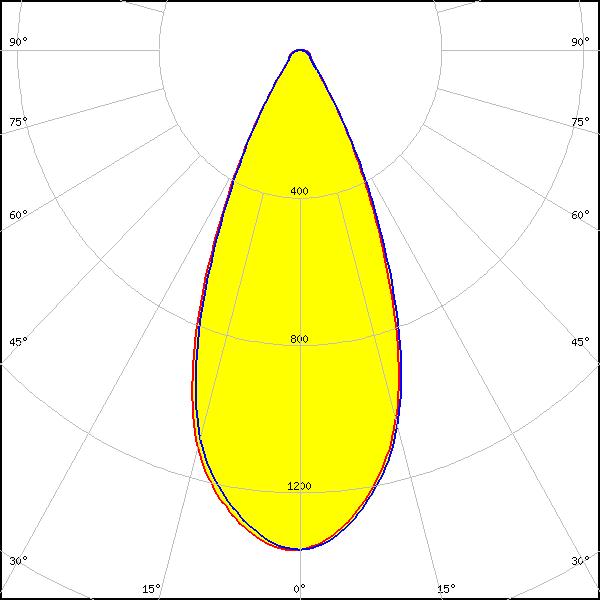

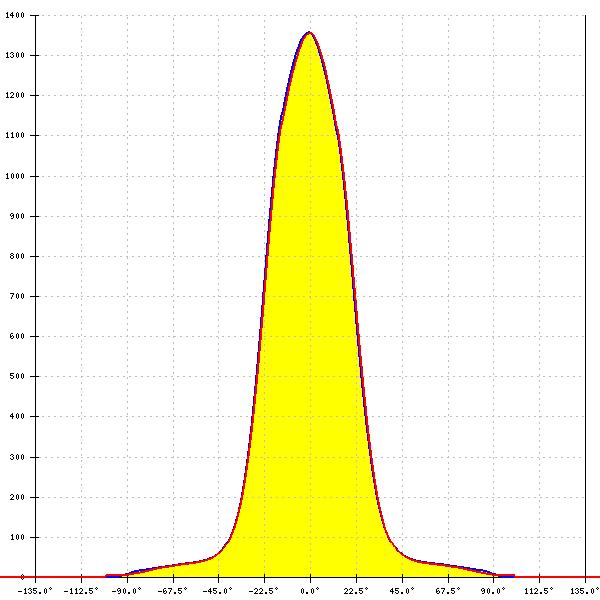

    LED: XP-G2
    FWHM: 45°
    FWTM: 73°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

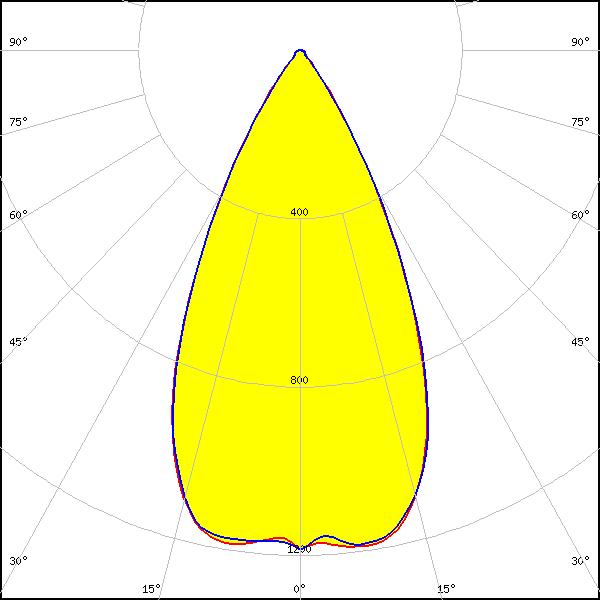

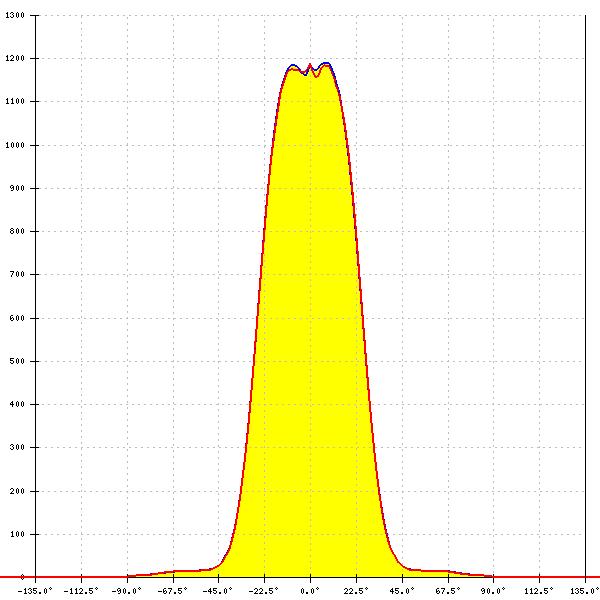

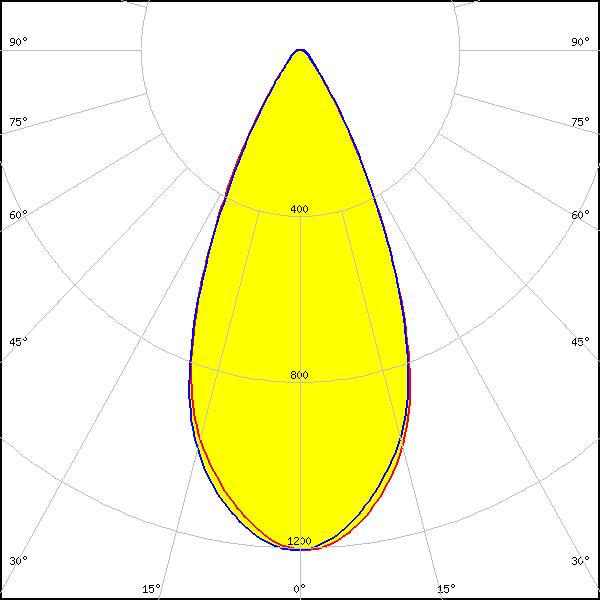

    LED: XP-G3
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.200 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 48°
    FWTM: 75°
    Peak intensity: 1.200 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

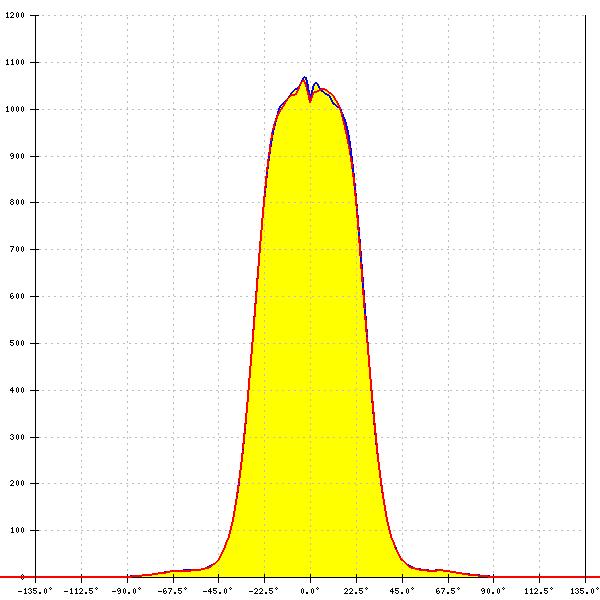

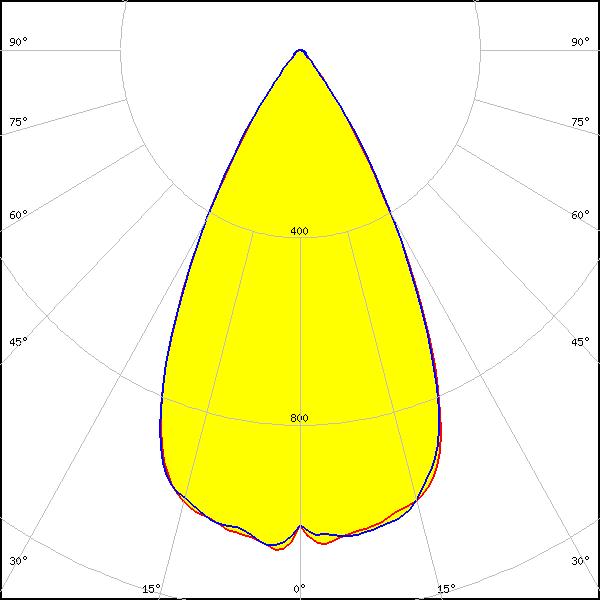

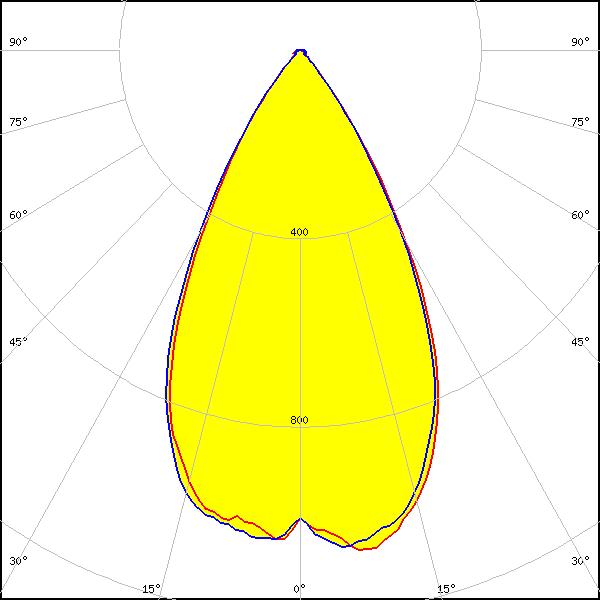

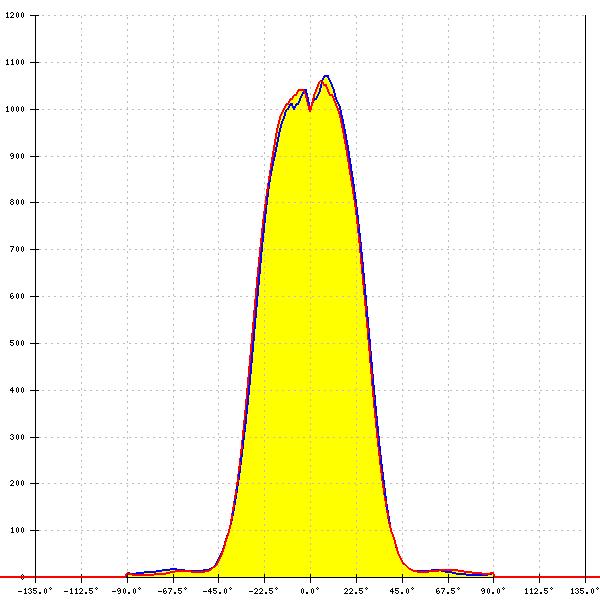

    LED: XP-L HD
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.078 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: 55°
    FWTM: 79°
    Peak intensity: 1.080 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

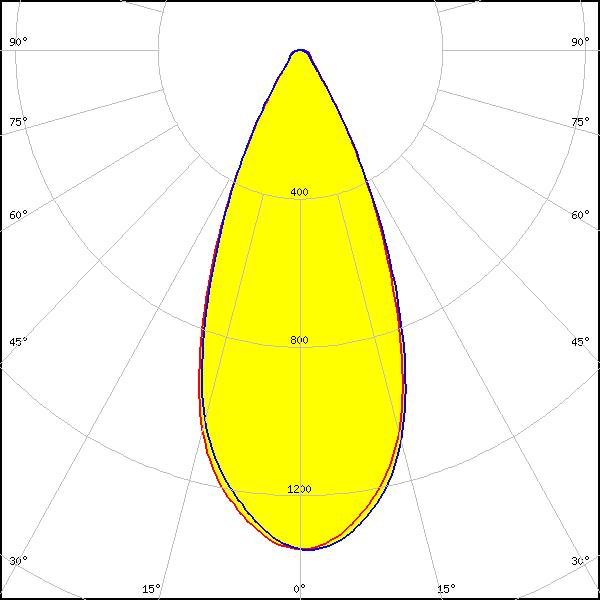

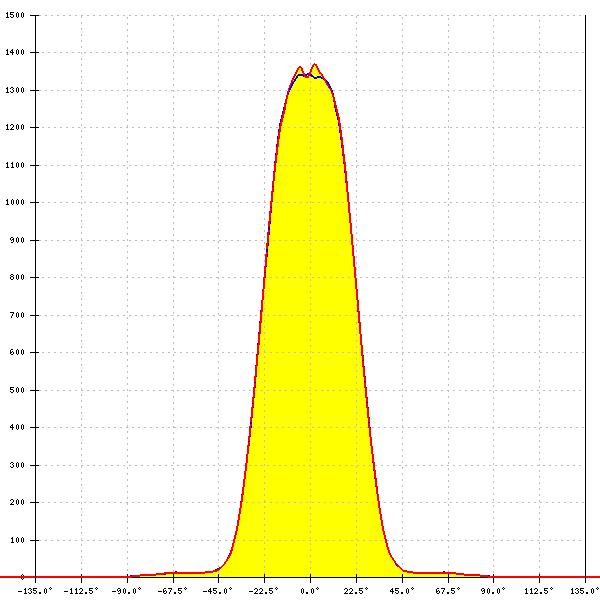

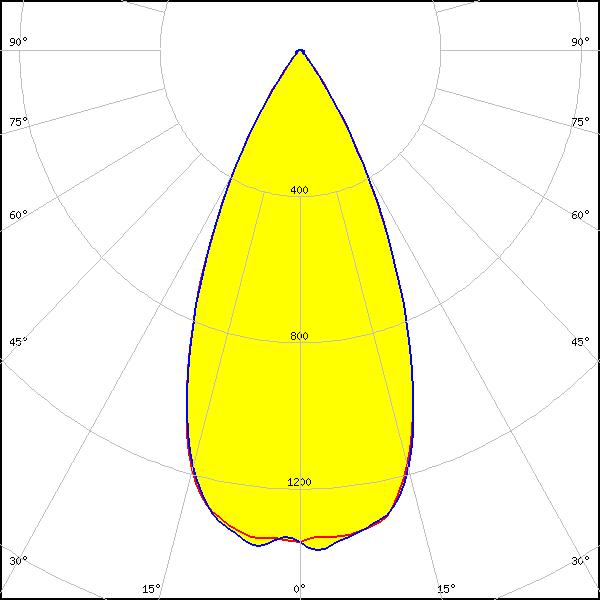

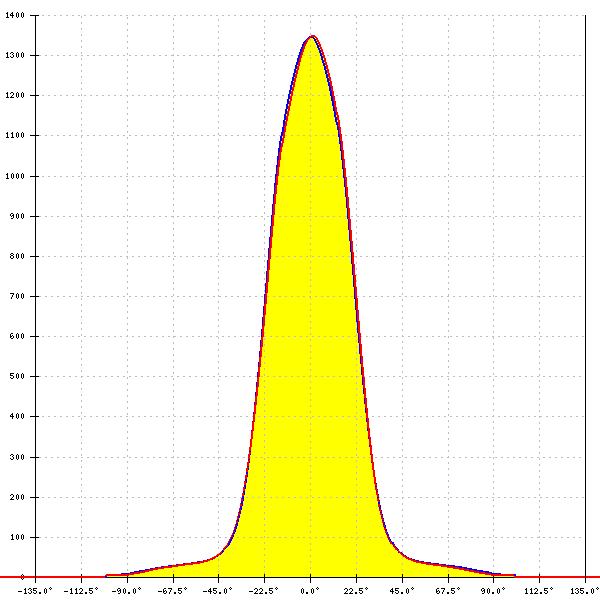

    LED: XP-L HI
    FWHM: 48°
    FWTM: 72°
    Peak intensity: 1.374 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: 45°
    FWTM: 72°
    Peak intensity: 1.300 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

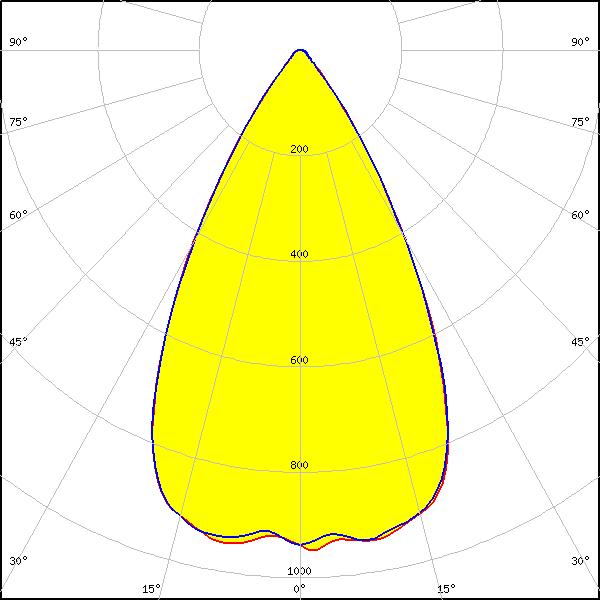

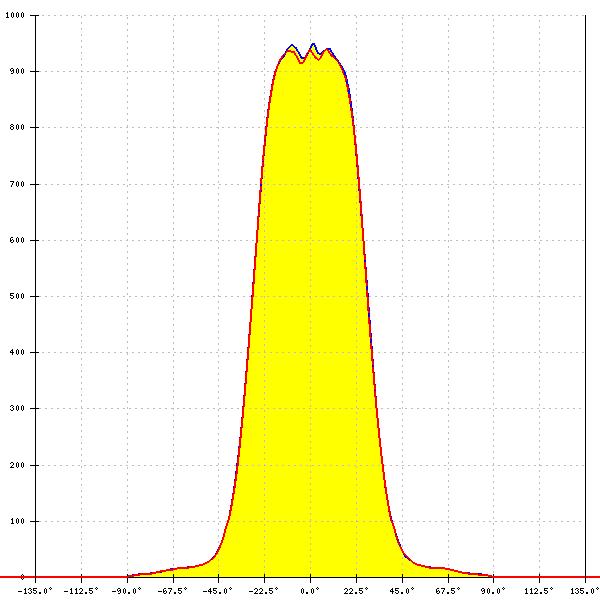

    LED: XP-L2
    FWHM: 58°
    FWTM: 82°
    Peak intensity: 0.958 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

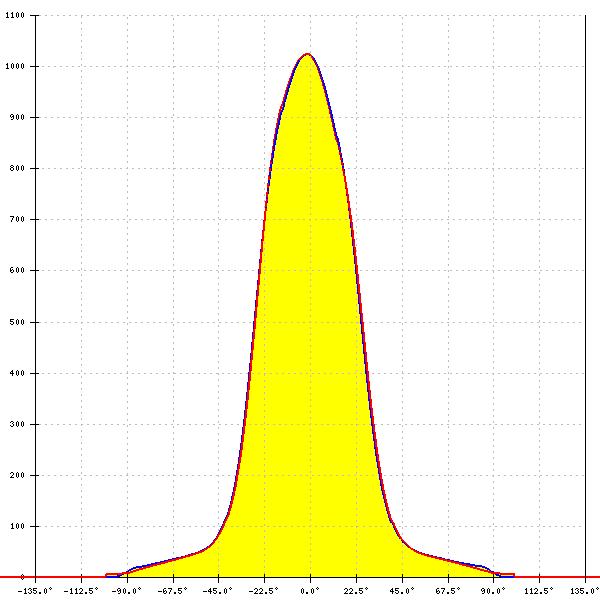

    LED: XP-L2
    FWHM: 52°
    FWTM: 83°
    Peak intensity: 1.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

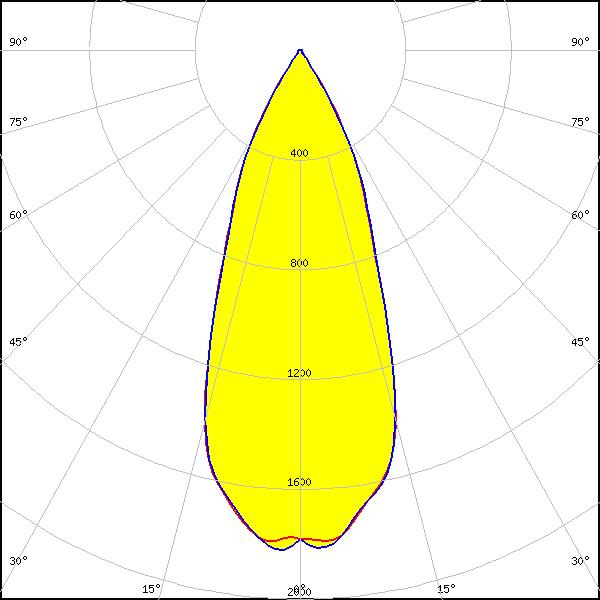

    LED: XP-P
    FWHM: 40°
    FWTM: 66°
    Peak intensity: 1.835 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

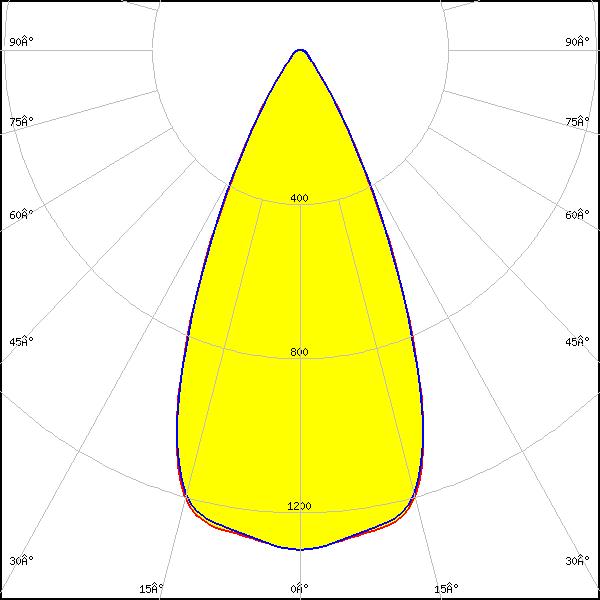

    LED: PrevaLED Brick HP 2x8
    FWHM: 49°
    FWTM: 72°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

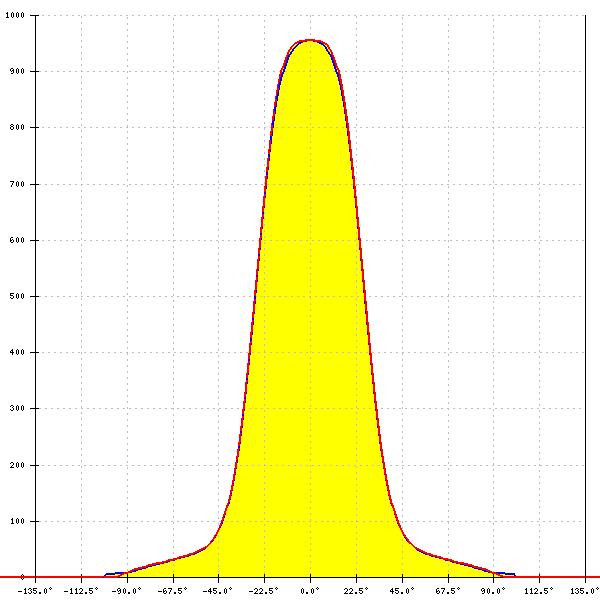

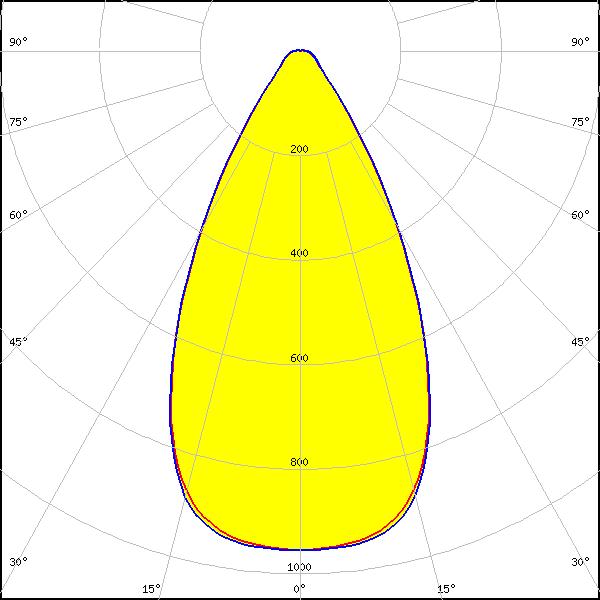

    LED: LUXEON 5050 Round LES
    FWHM: 55°
    FWTM: 87°
    Peak intensity: 0.990 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

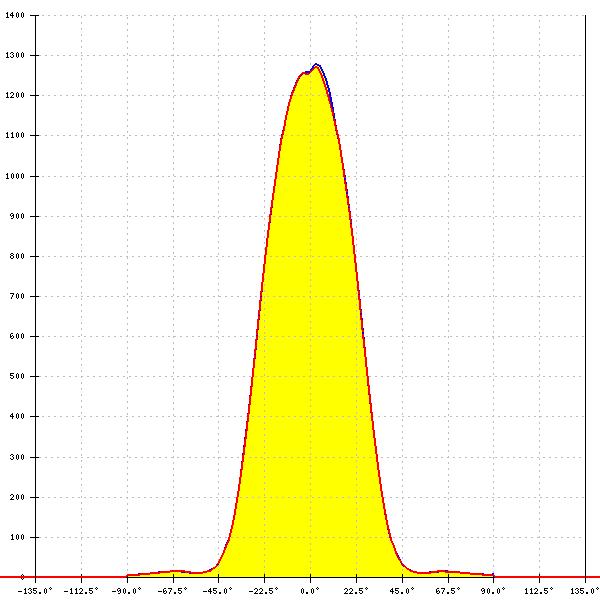

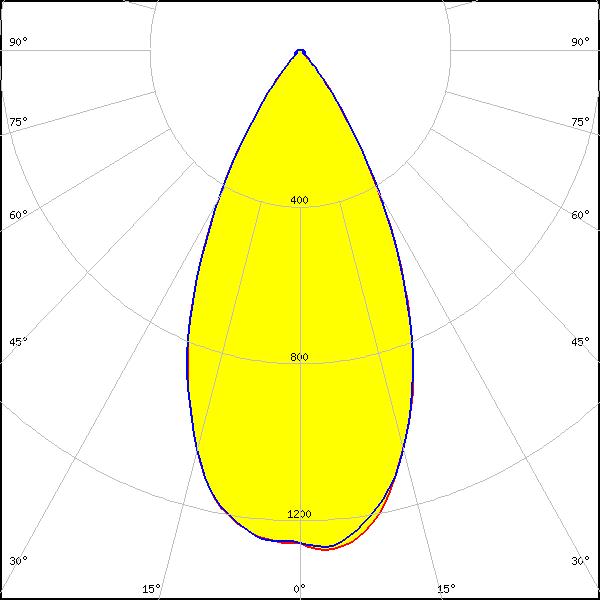

    LED: LUXEON HL2X
    FWHM: 50°
    FWTM: 76°
    Peak intensity: 1.286 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

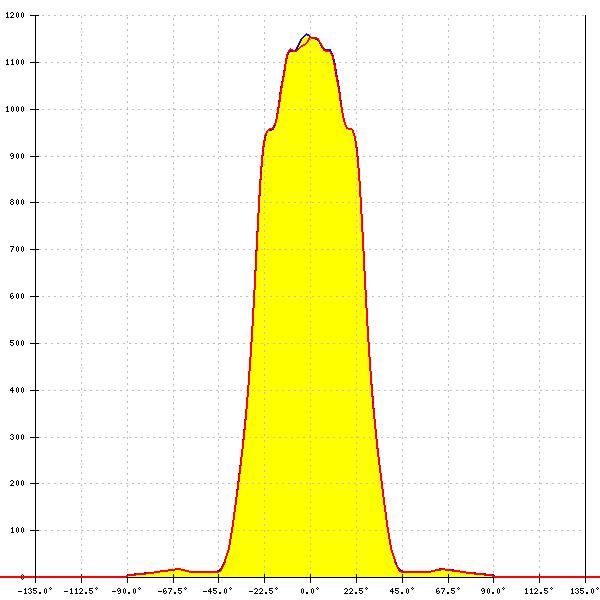

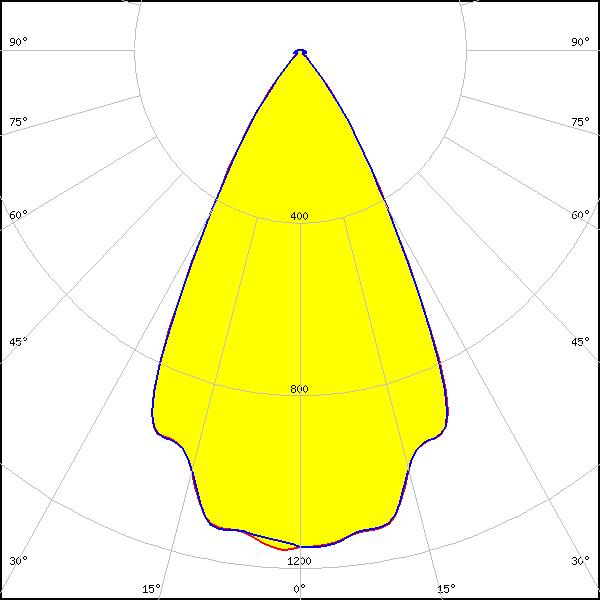

    LED: LUXEON HL2X-D
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.167 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

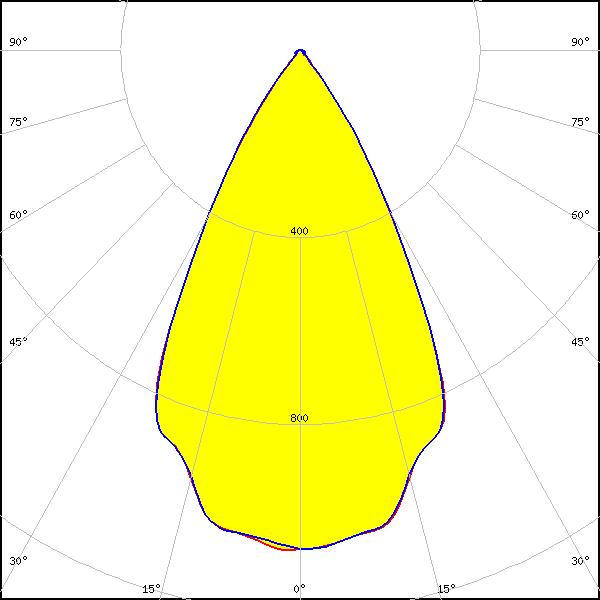

    LED: LUXEON HL2X-D
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.071 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

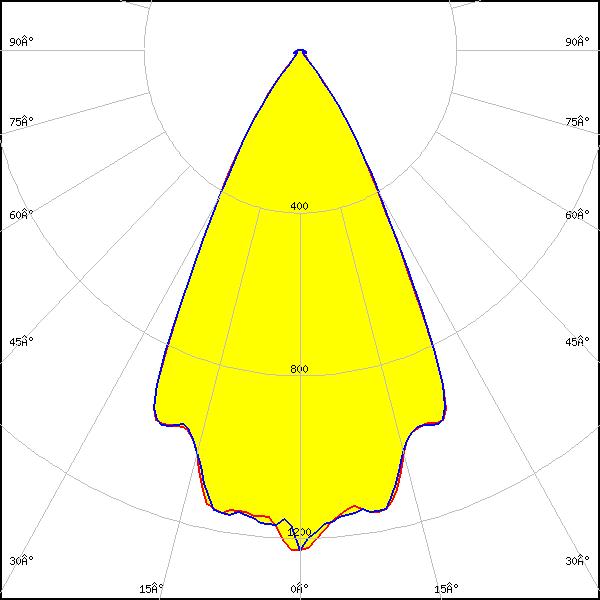

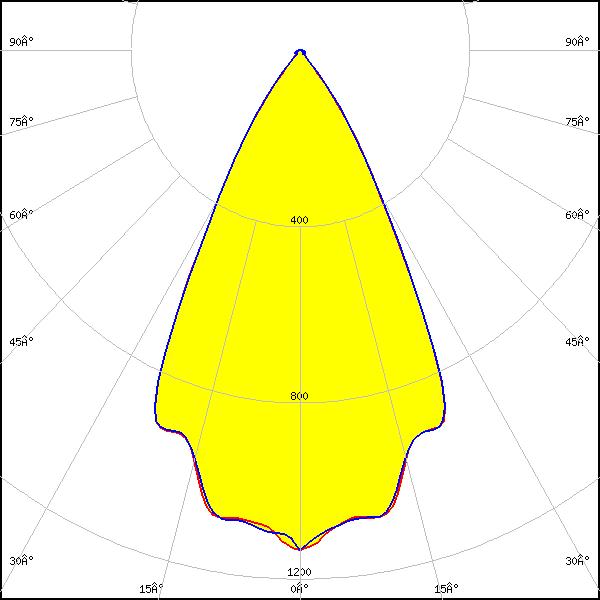

    LED: LUXEON HL2X-E
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.141 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-E
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.238 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

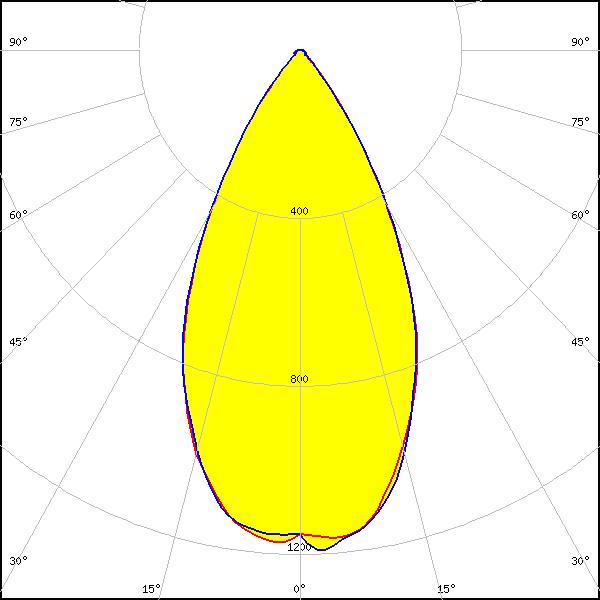

    LED: LUXEON HL2X-P
    FWHM: 54°
    FWTM: 80°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

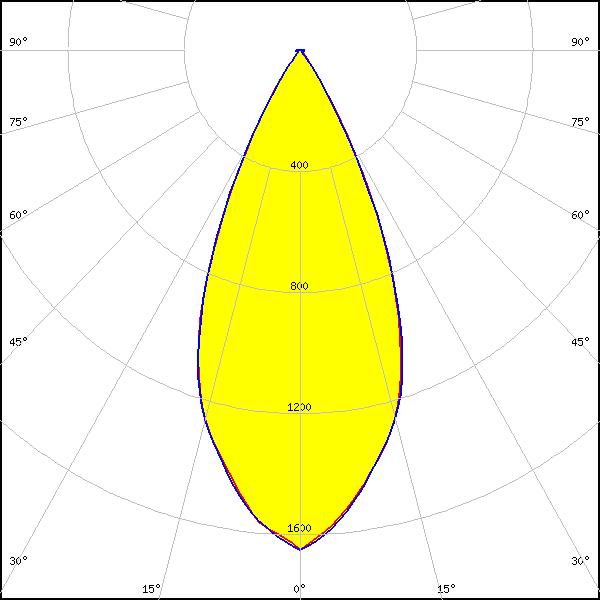

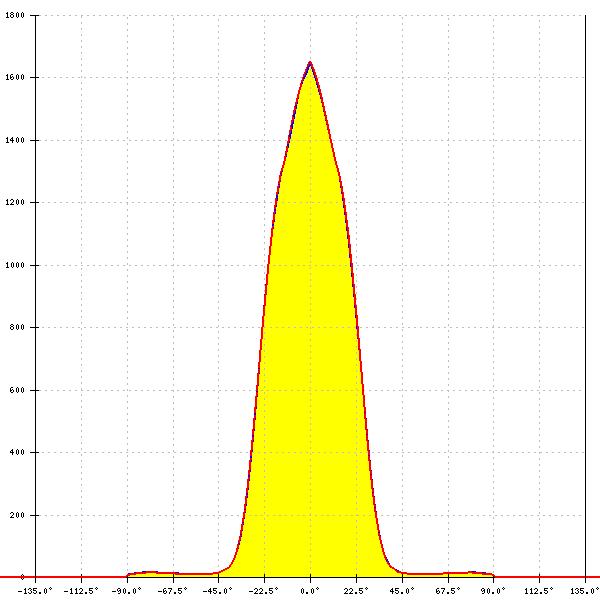

    LED: LUXEON HL2Z
    FWHM: 46°
    FWTM: 66°
    Peak intensity: 1.652 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

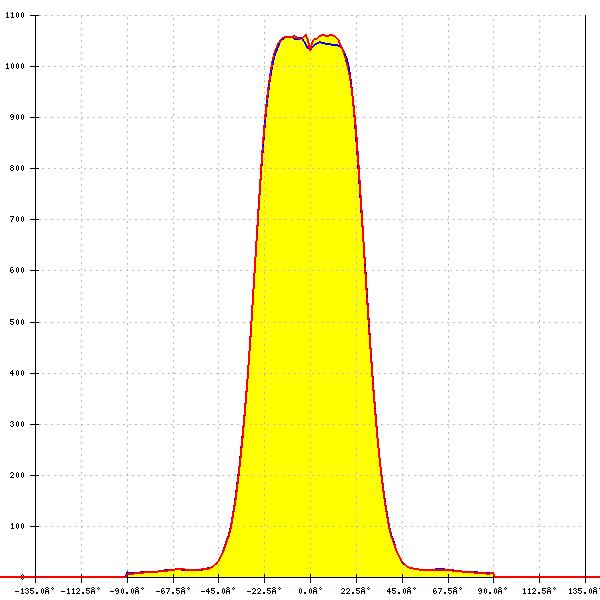

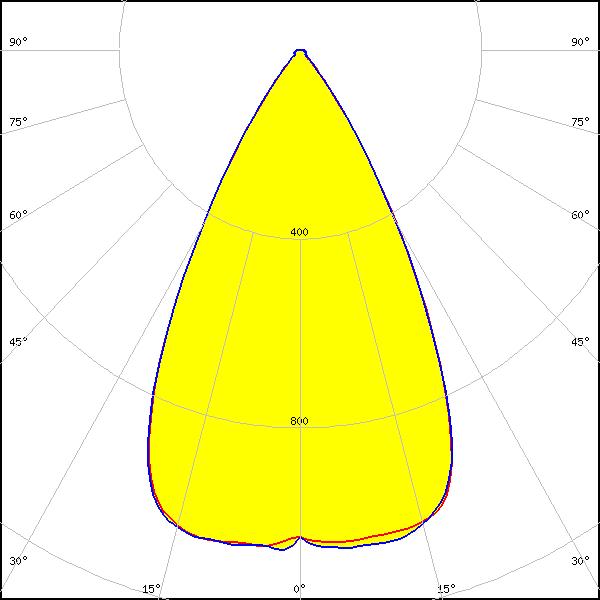

    LED: LUXEON HL4X
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.098 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

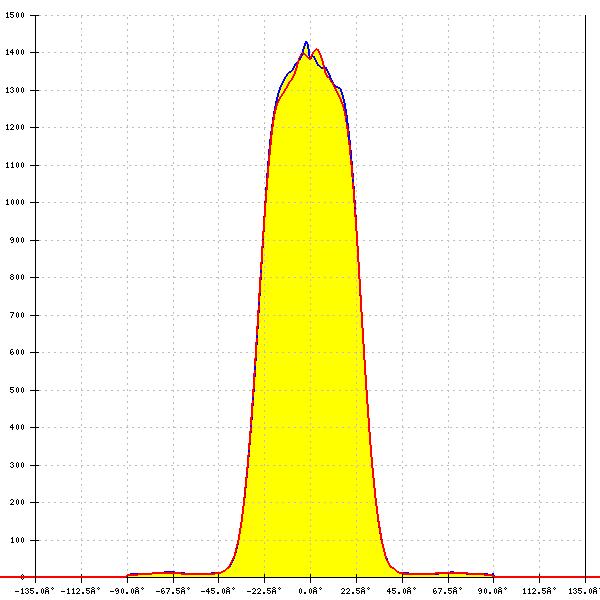

    LED: LUXEON HL4Z
    FWHM: 50°
    FWTM: 68°
    Peak intensity: 1.451 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON V
    FWHM: 52°
    FWTM: 81°
    Peak intensity: 1.100 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

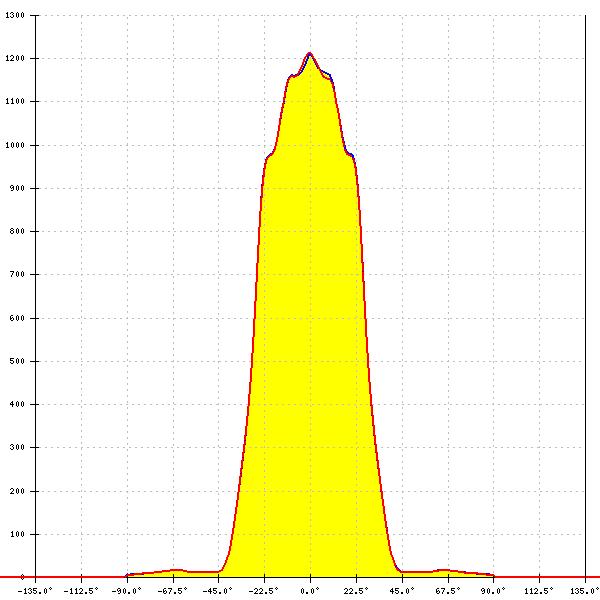

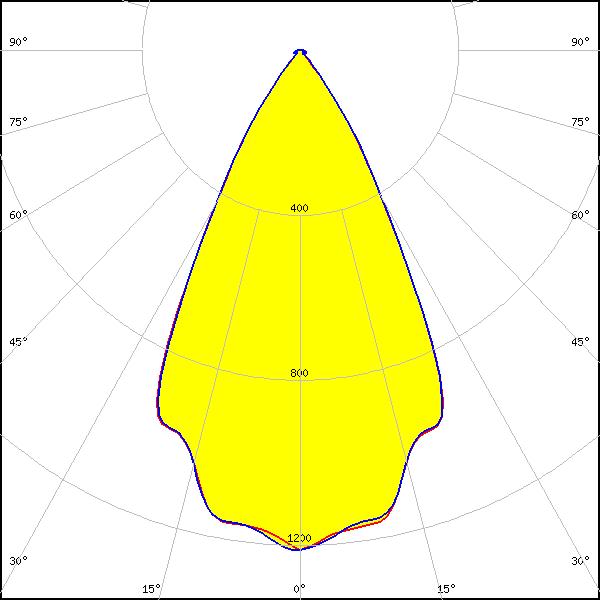

    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.215 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

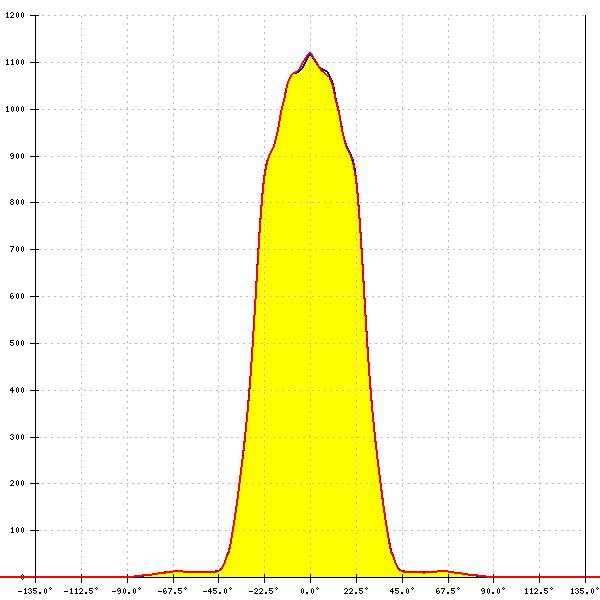

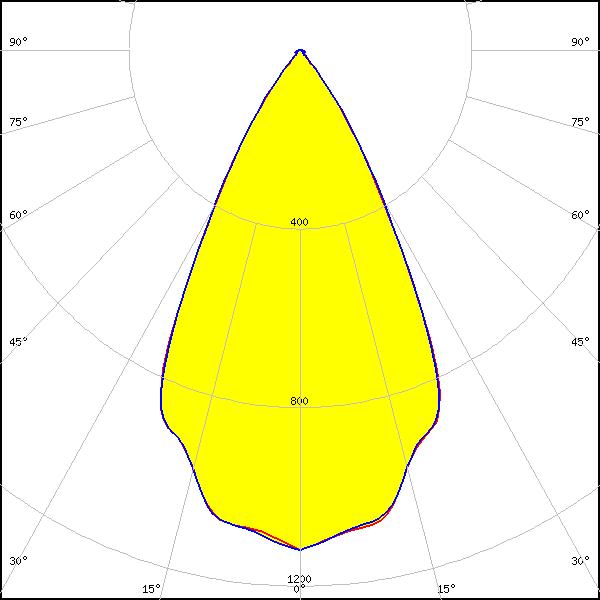

    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.120 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

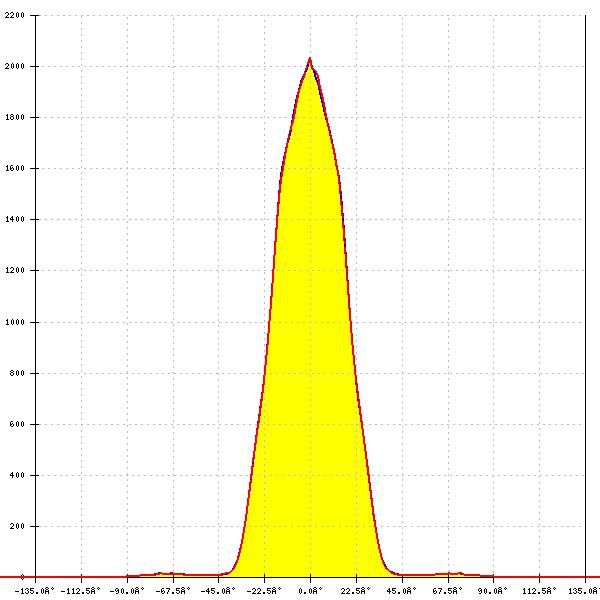

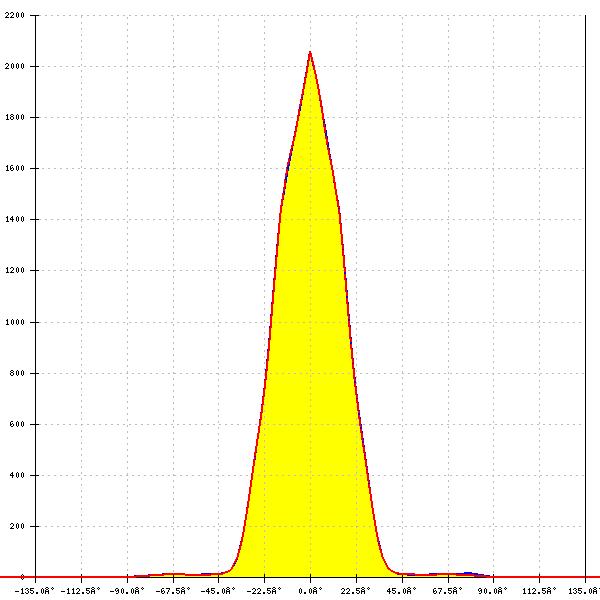

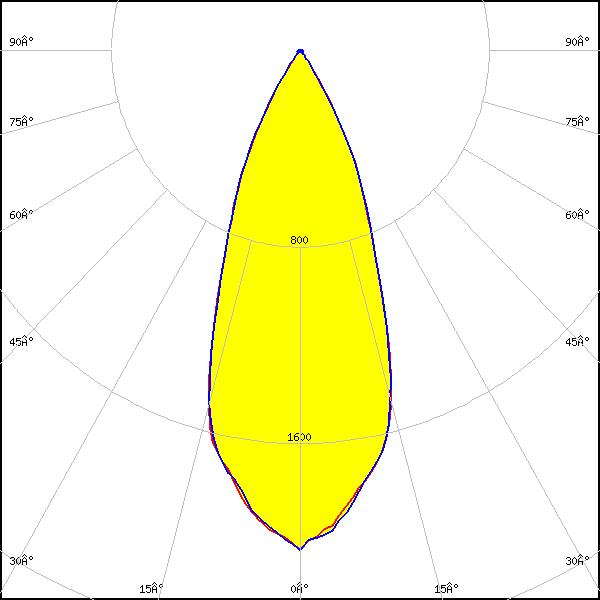

    LED: SFT-12R-W-A
    FWHM: 40°
    FWTM: 64°
    Peak intensity: 2.047 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-12R-W-A
    FWHM: 38°
    FWTM: 64°
    Peak intensity: 2.057 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

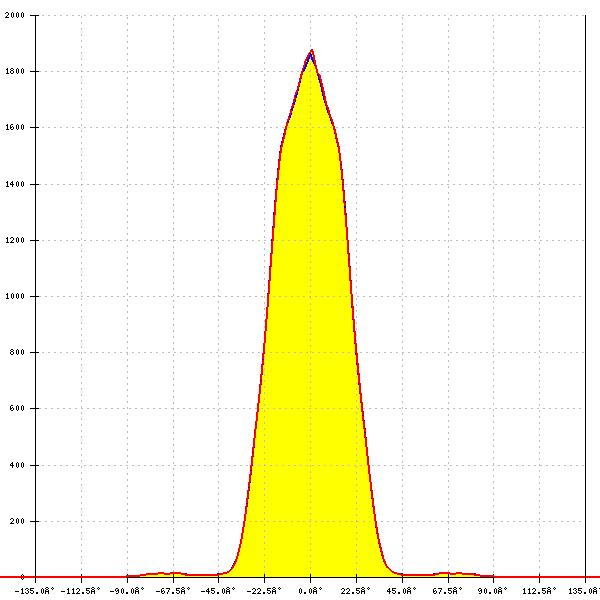

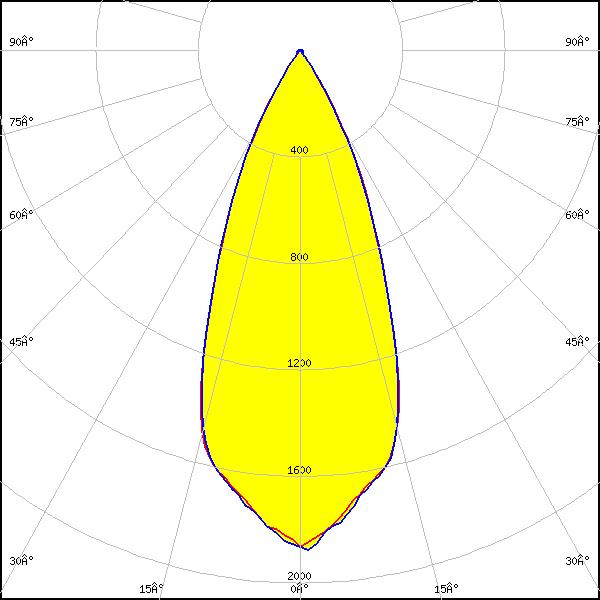

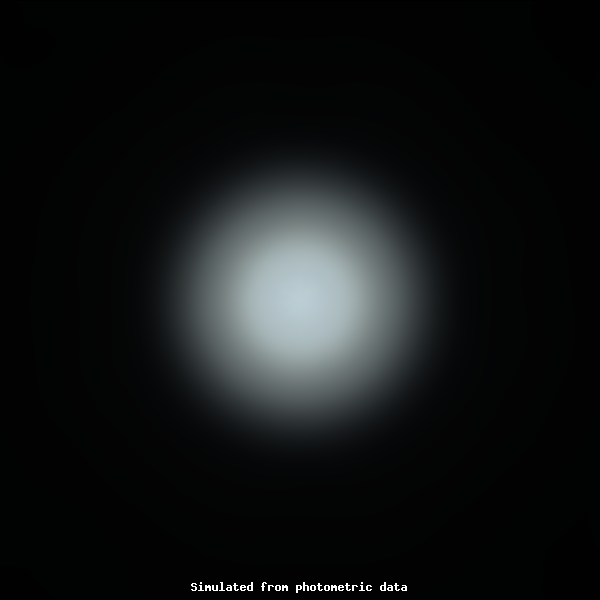

    LED: SFT-25R-W-A
    FWHM: 42°
    FWTM: 66°
    Peak intensity: 1.879 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-10-B130
    LEDs/each optic: 1
    Light colour/type: Blue

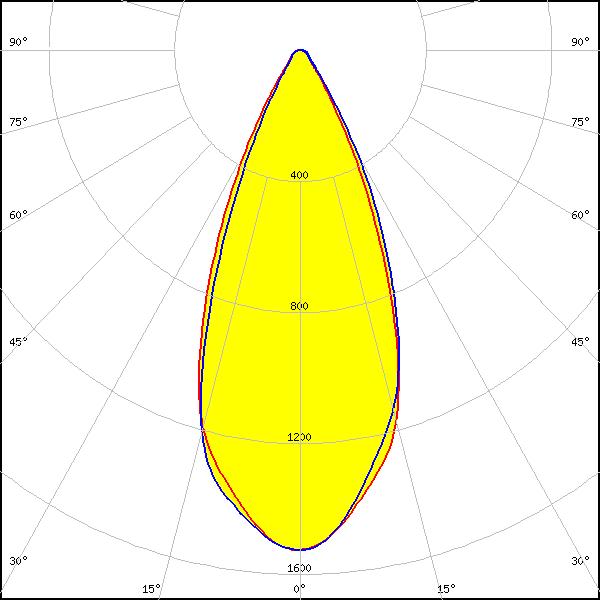

    LED: SST-10-B130
    FWHM: 44°
    FWTM: 70°
    Peak intensity: 1.526 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Deep Red

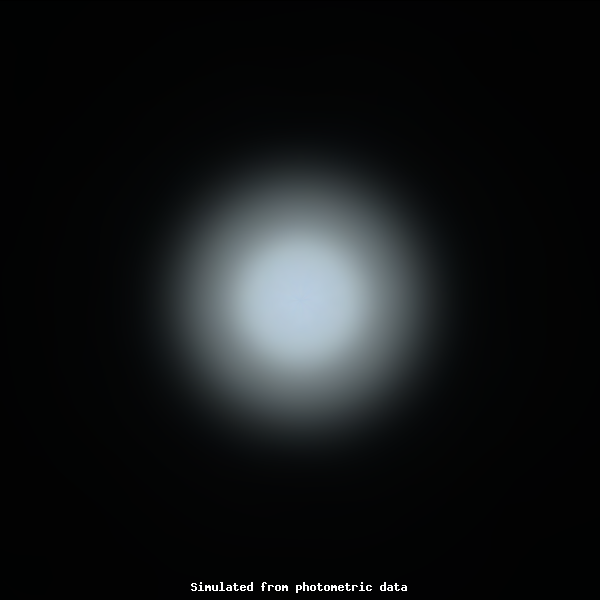

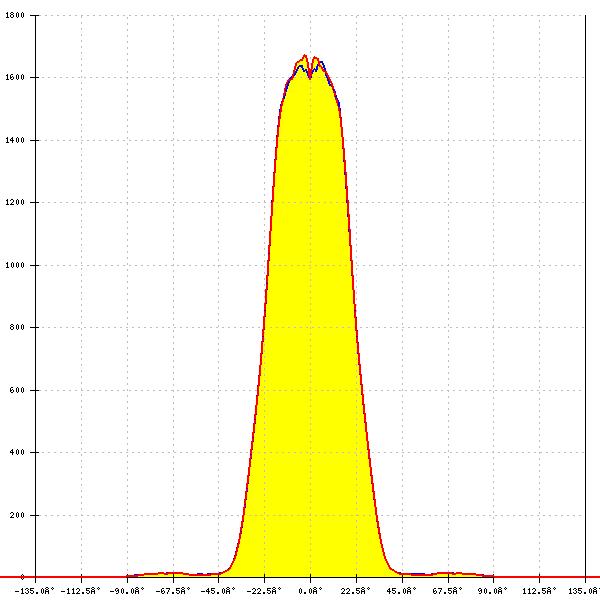

    LED: SST-12 Gen2
    FWHM: 44°
    FWTM: 68°
    Peak intensity: 1.687 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-20 Gen1
    LEDs/each optic: 1
    Light colour/type: White

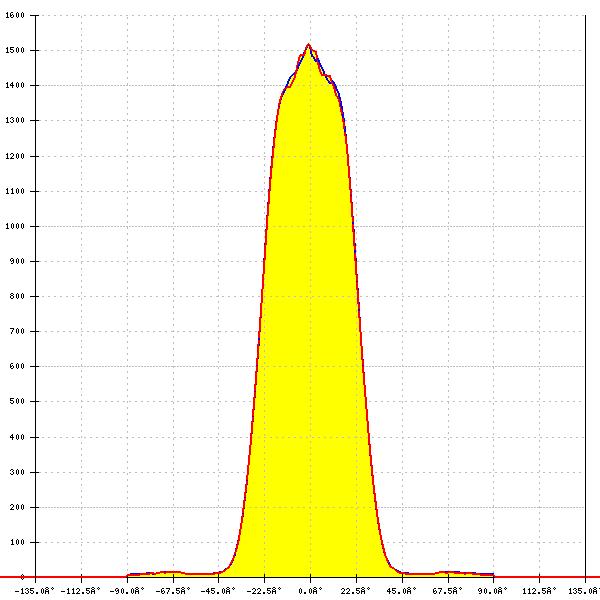

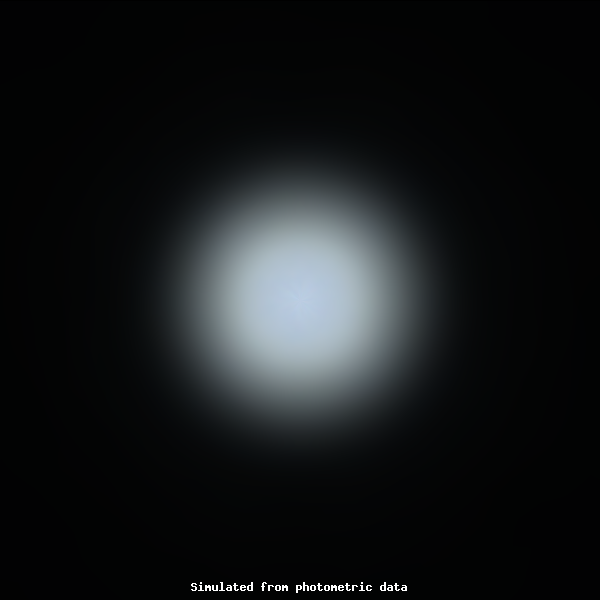

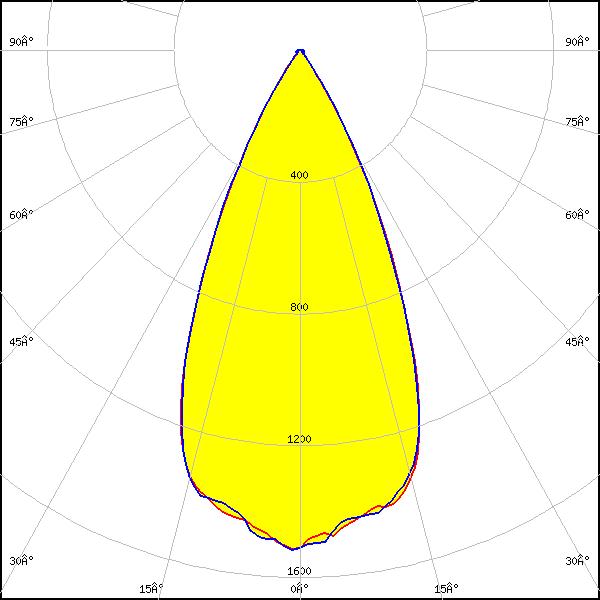

    LED: SST-20 Gen2
    FWHM: 48°
    FWTM: 68°
    Peak intensity: 1.546 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

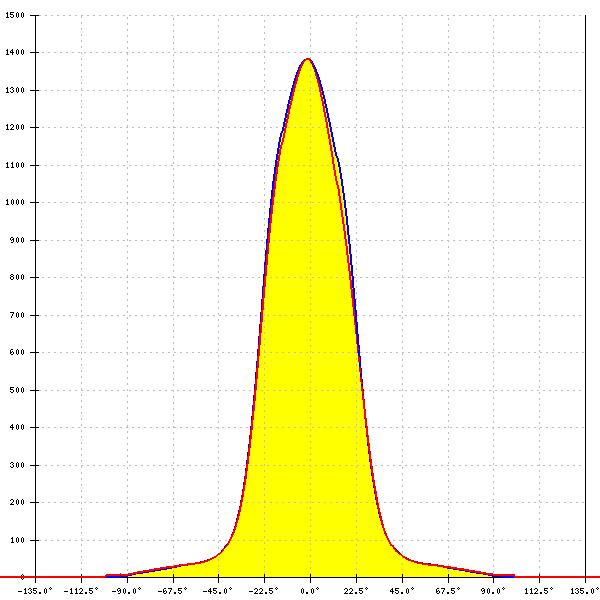

    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: 46°
    FWTM: 73°
    Peak intensity: 1.385 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

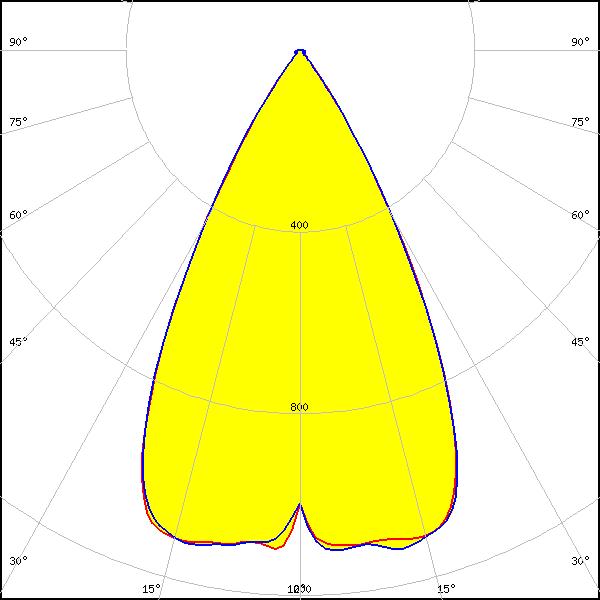

    LED: NV4WB35AM
    FWHM: 56°
    FWTM: 74°
    Peak intensity: 1.178 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219D
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.236 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

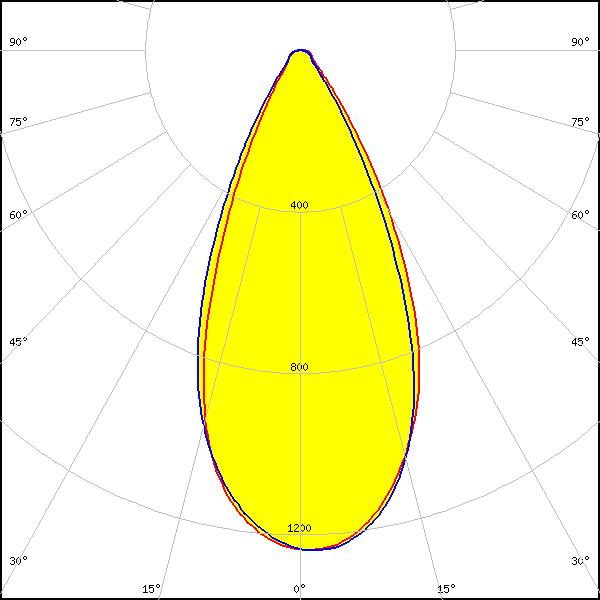

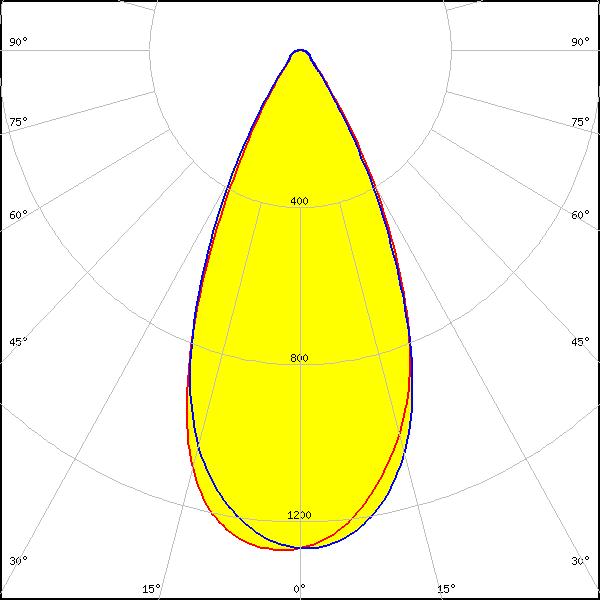

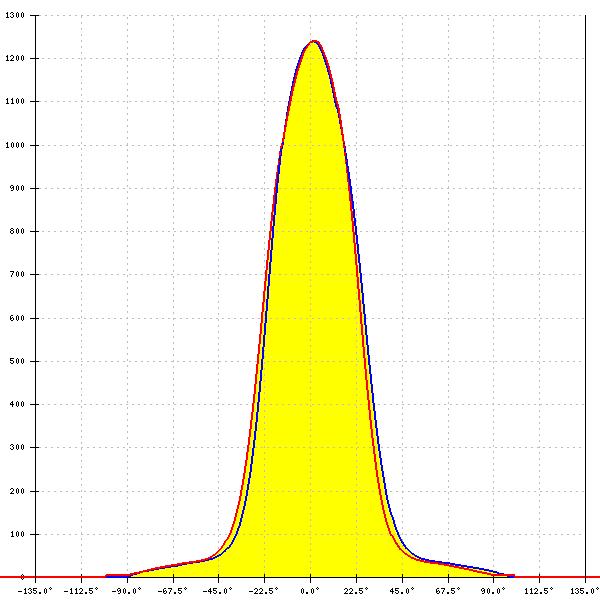

    LED: NVSW219F
    FWHM: 49°
    FWTM: 76°
    Peak intensity: 1.274 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: 48°
    FWTM: 76°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

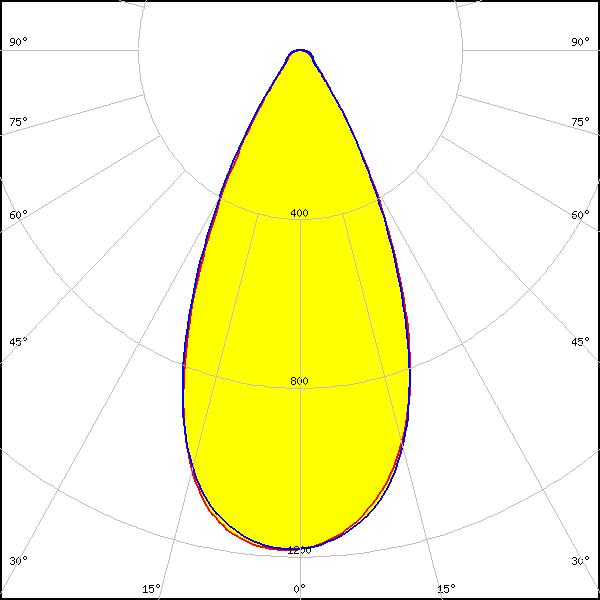

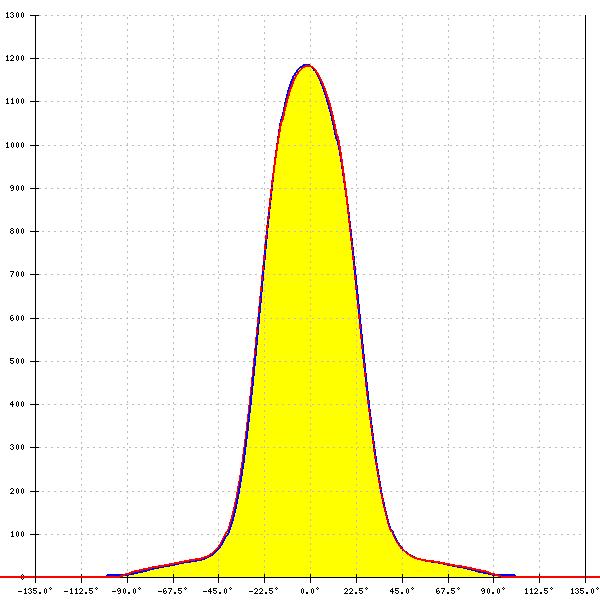

    LED: NVSW319B
    FWHM: 50°
    FWTM: 79°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

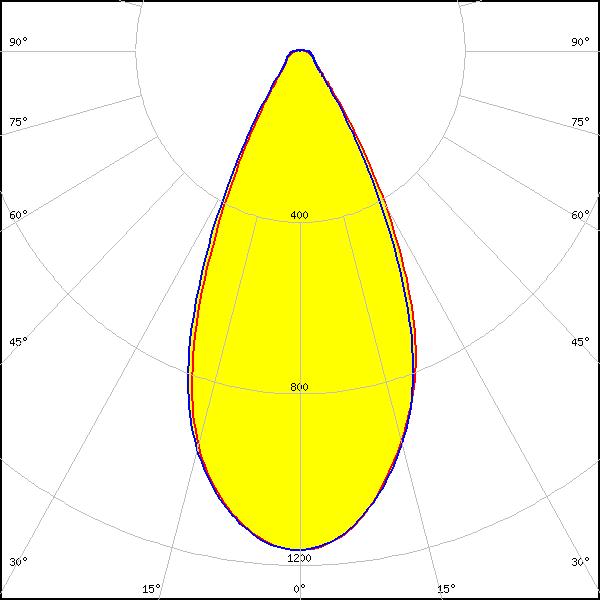

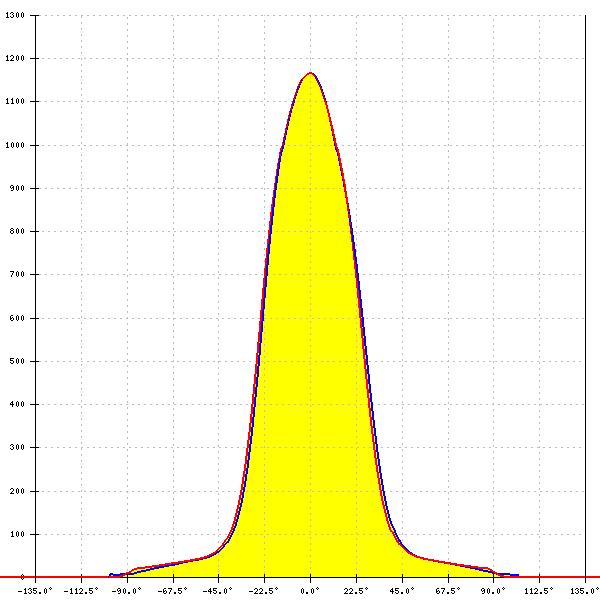

    LED: NVSW3x9A
    FWHM: 50°
    FWTM: 78°
    Peak intensity: 1.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

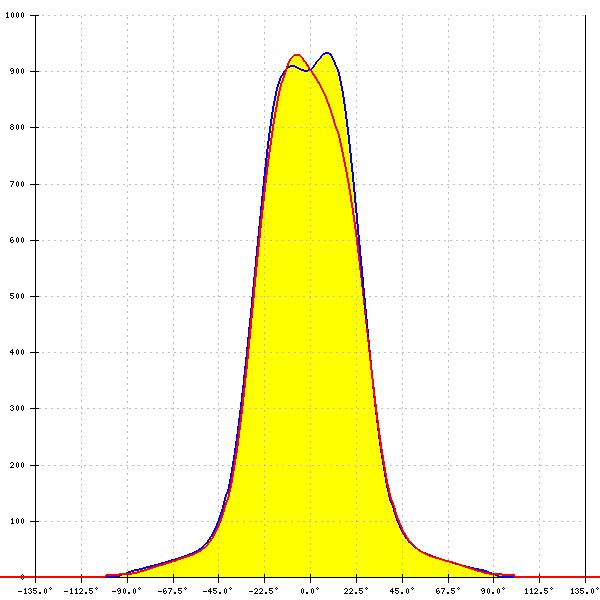

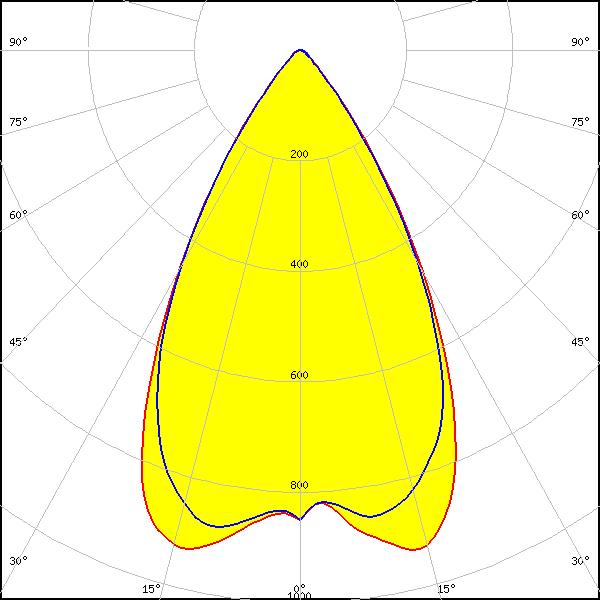

    LED: Duris S8
    FWHM: 57°
    FWTM: 83°
    Peak intensity: 0.960 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

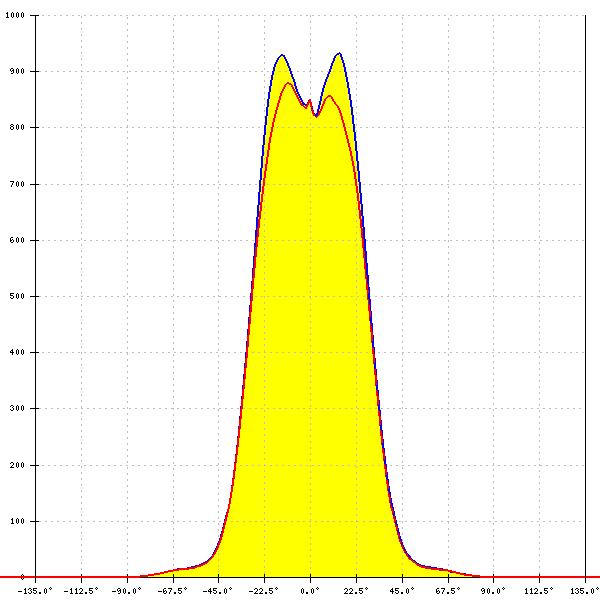

    LED: Duris S8
    FWHM: 56°
    FWTM: 89°
    Peak intensity: 0.947 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

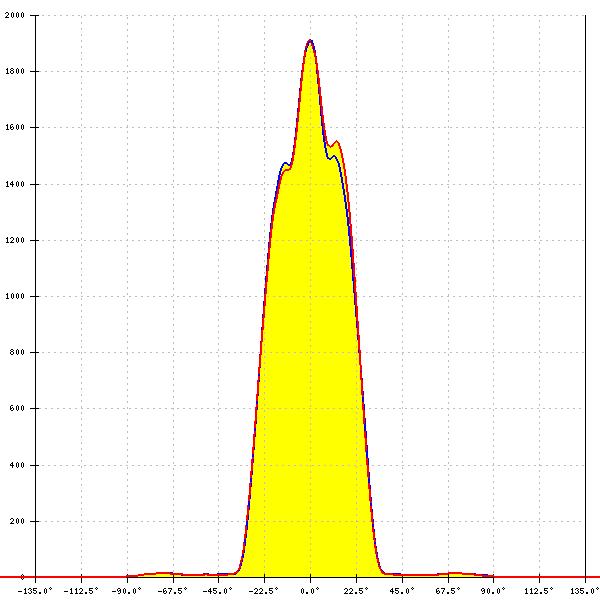

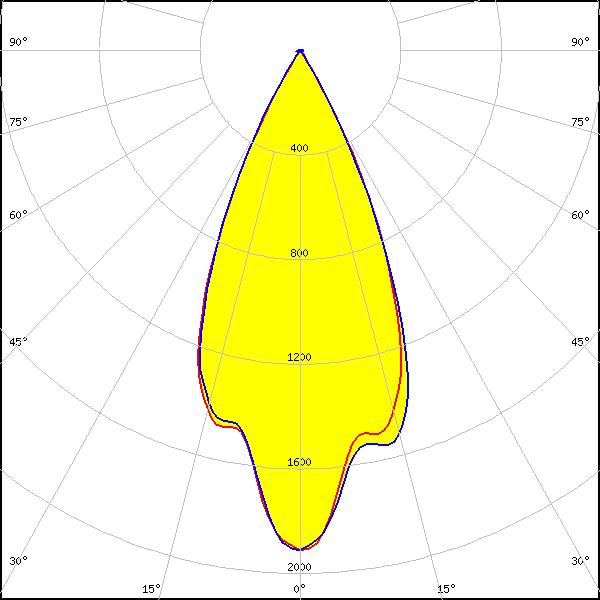

    LED: OSCONIQ C 2424 Gen1
    FWHM: 45°
    FWTM: 62°
    Peak intensity: 1.915 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

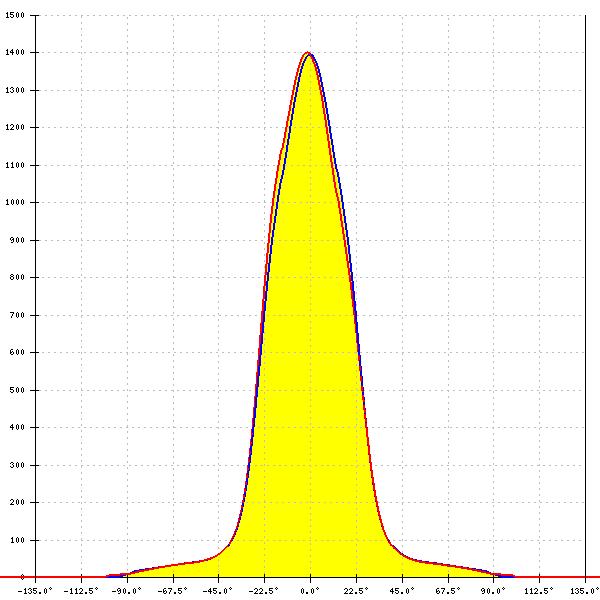

    LED: OSCONIQ C 3030
    FWHM: 45°
    FWTM: 71°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

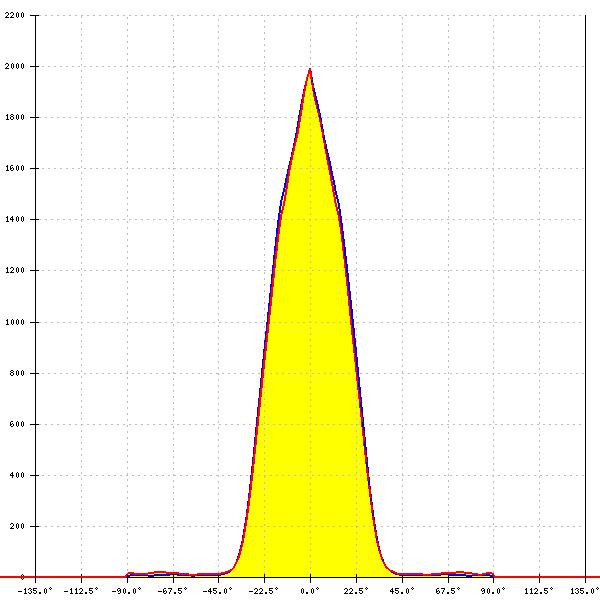

    LED: OSCONIQ P 3030
    FWHM: 42°
    FWTM: 64°
    Peak intensity: 1.994 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

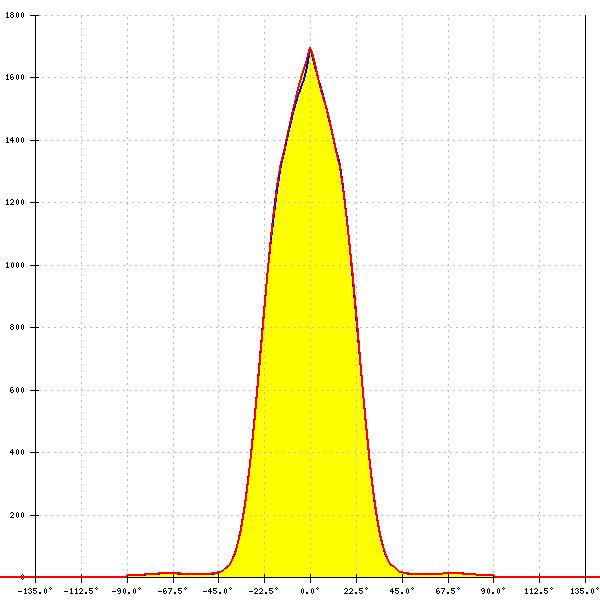

    LED: OSCONIQ P 3737 (2W version)
    FWHM: 45°
    FWTM: 68°
    Peak intensity: 1.697 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: 52°
    FWTM: 72°
    Peak intensity: 1.350 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

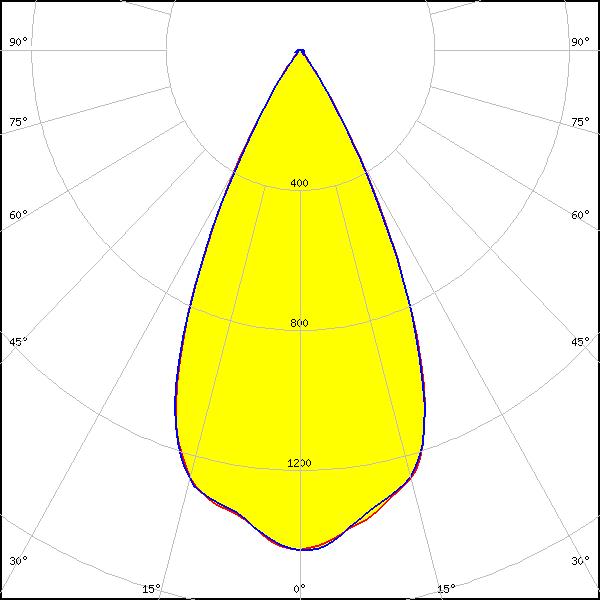

    LED: OSCONIQ P 3737 Flat
    FWHM: 50°
    FWTM: 68°
    Peak intensity: 1.445 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

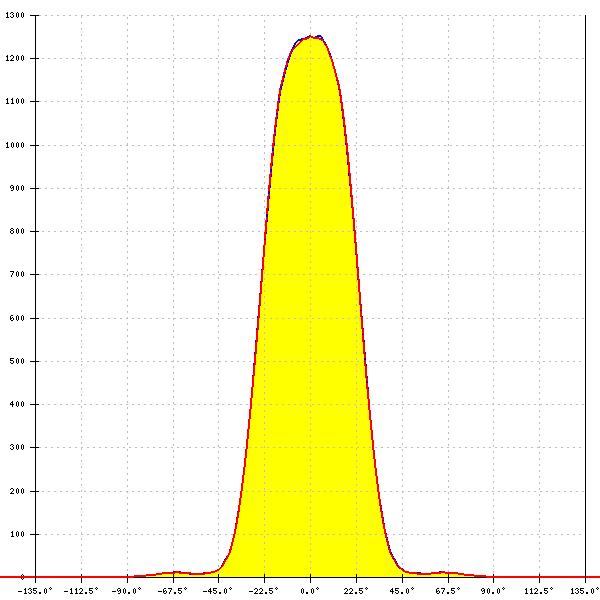

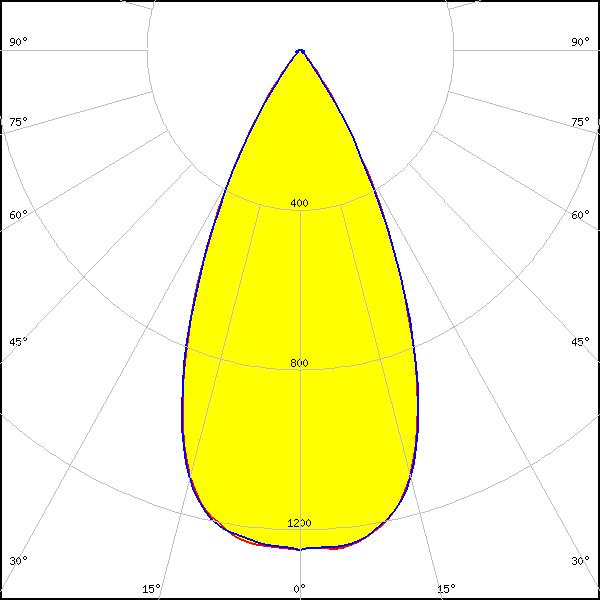

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 50°
    FWTM: 72°
    Peak intensity: 1.258 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

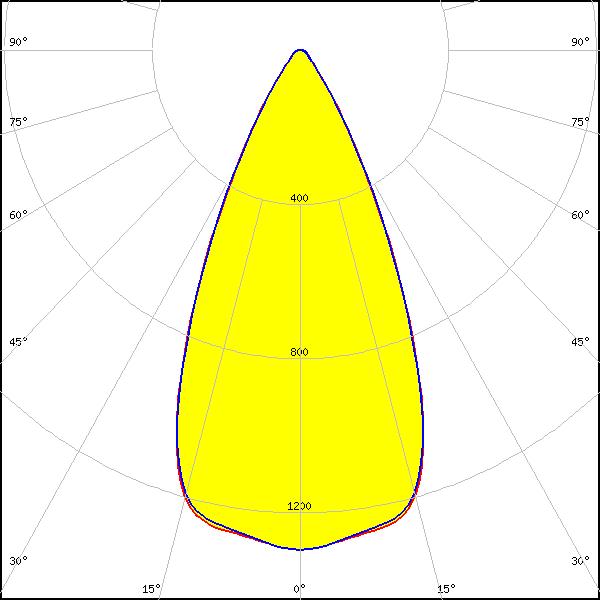

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 49°
    FWTM: 72°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

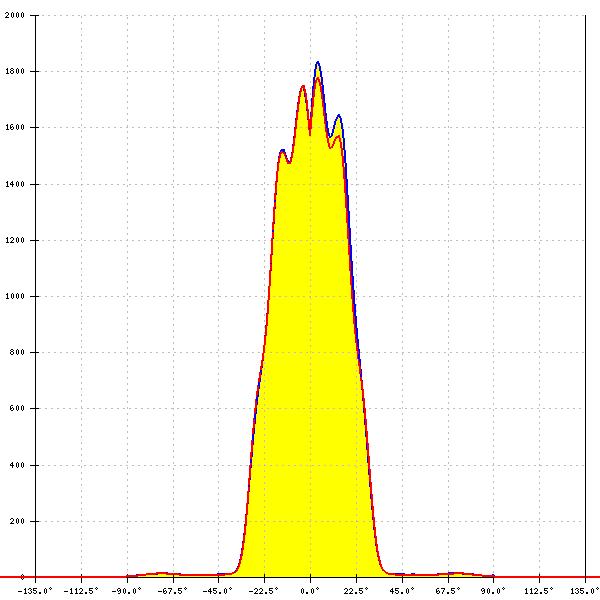

    LED: OSLON Square Flat
    FWHM: 43°
    FWTM: 64°
    Peak intensity: 1.837 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

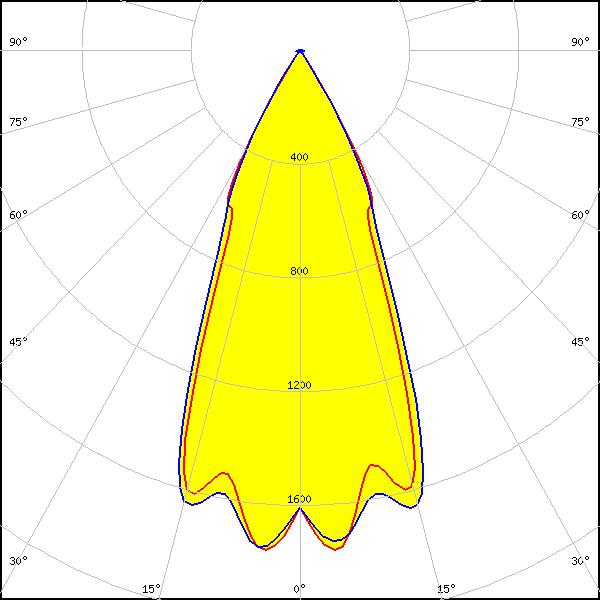

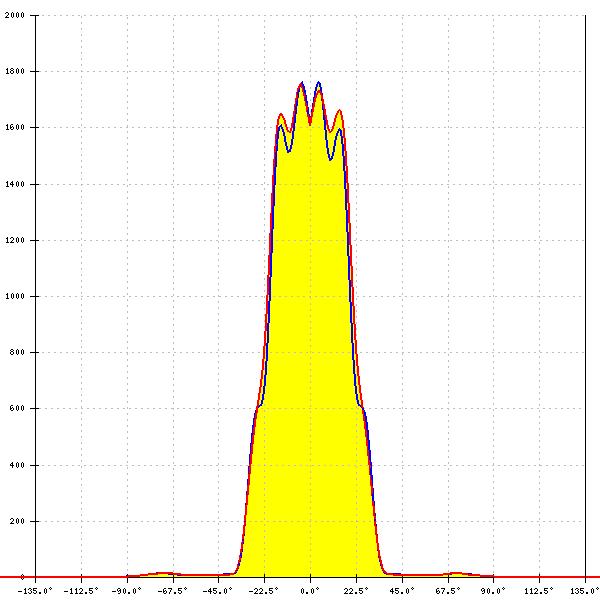

    LED: OSTAR Projection Compact (KW.CSLNM1.TG)
    FWHM: 42°
    FWTM: 64°
    Peak intensity: 1.767 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

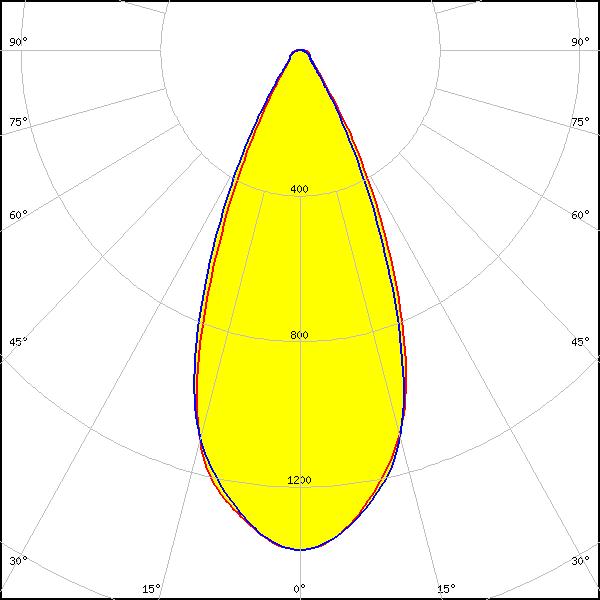

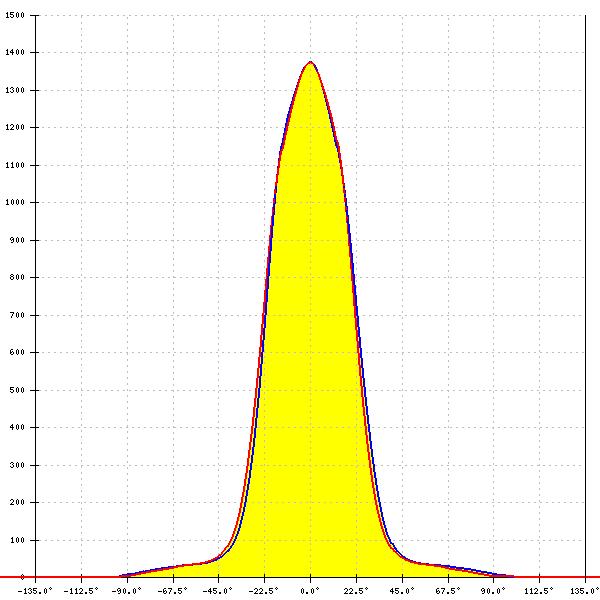

    LED: Fortimo FastFlex LED 2x8 DA G4
    FWHM: 45°
    FWTM: 71°
    Peak intensity: 1.400 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4+
    FWHM: 48°
    FWTM: 77°
    Peak intensity: 1.239 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

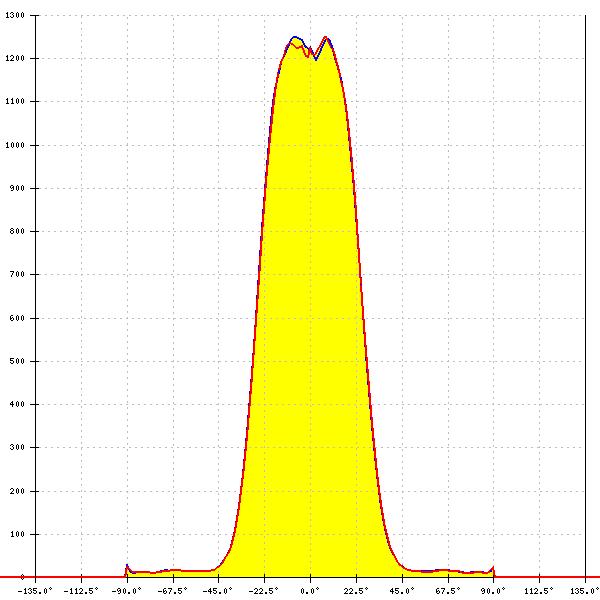

    LED: Fortimo FastFlex LED 2x8 DAX G4
    FWHM: 51°
    FWTM: 73°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

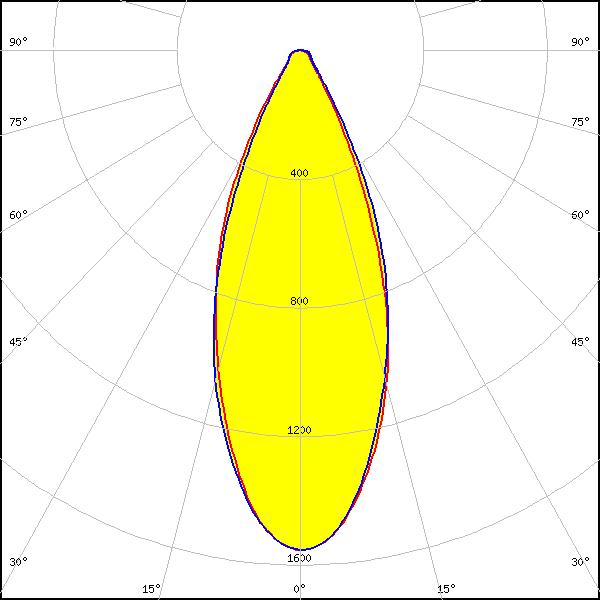

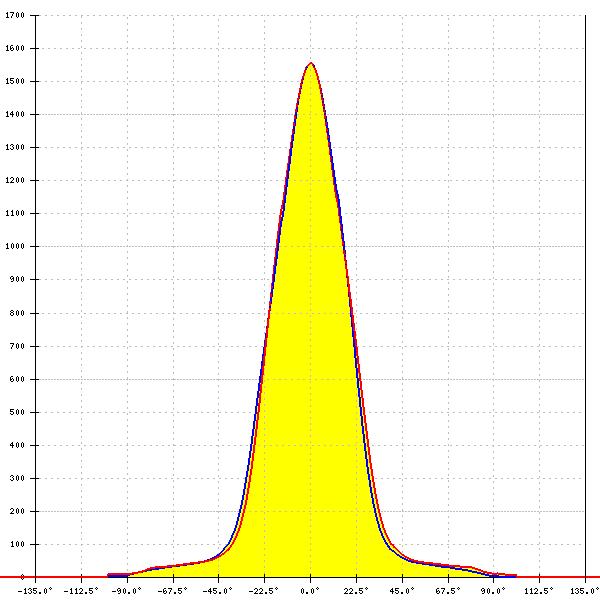

    LED: HiLOM RC12 Z (LH181B)
    FWHM: 41°
    FWTM: 71°
    Peak intensity: 1.554 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

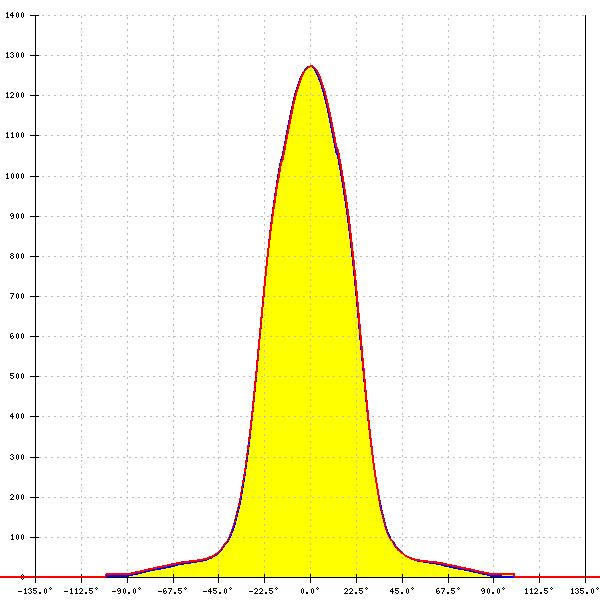

    LED: HiLOM RH12 Z (LH351C)
    FWHM: 48°
    FWTM: 75°
    Peak intensity: 1.273 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

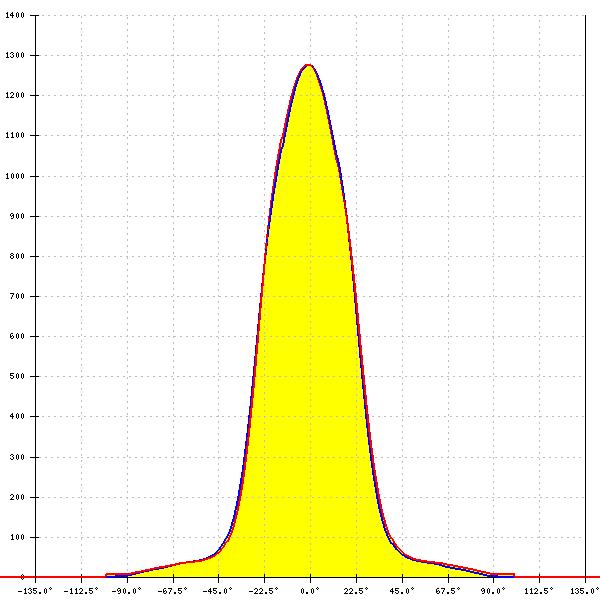

    LED: HiLOM RH16 (LH351C)
    FWHM: 48°
    FWTM: 75°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

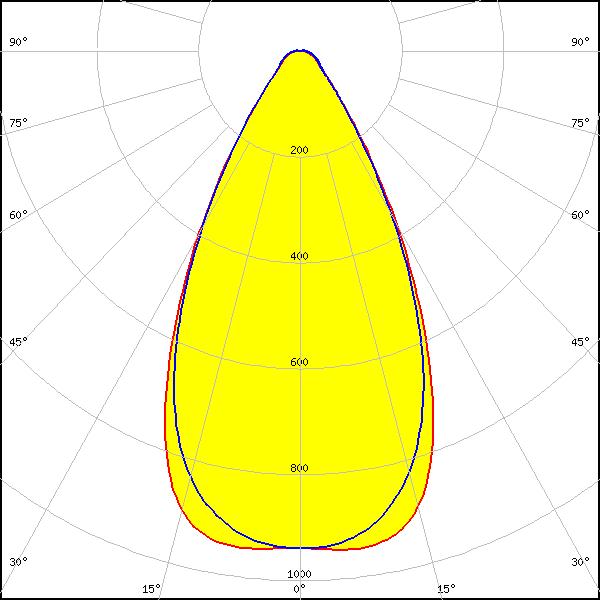

    LED: HiLOM RM12 Z (LH502C)
    FWHM: 55°
    FWTM: 88°
    Peak intensity: 0.958 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

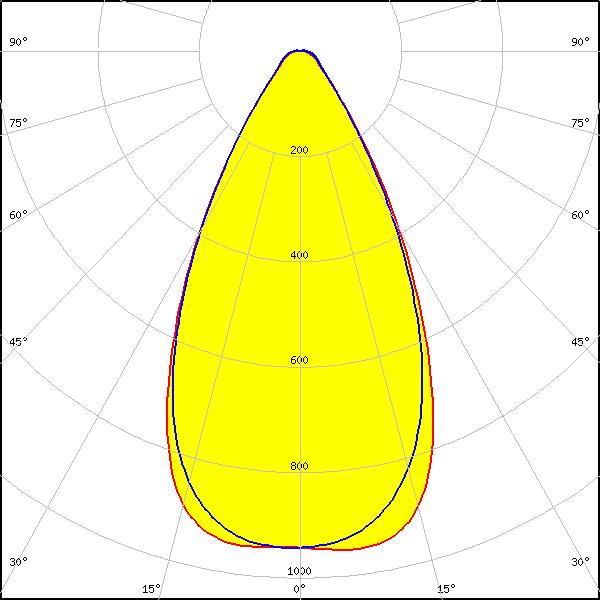

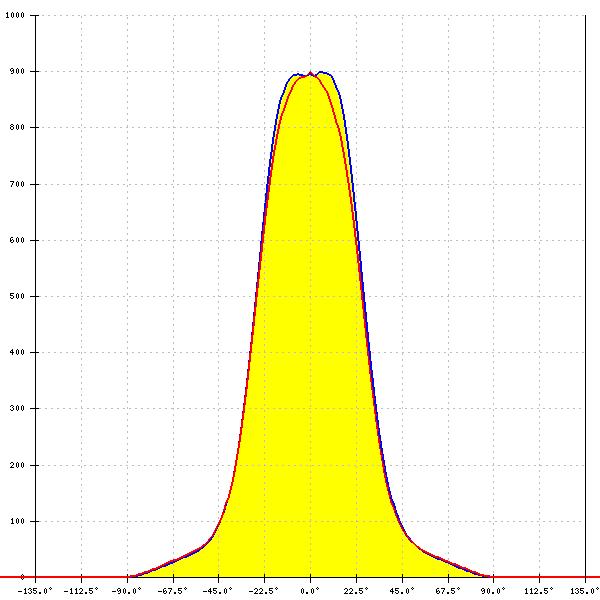

    LED: HiLOM RM16 Z (LH502C)
    FWHM: 56°
    FWTM: 90°
    Peak intensity: 0.904 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

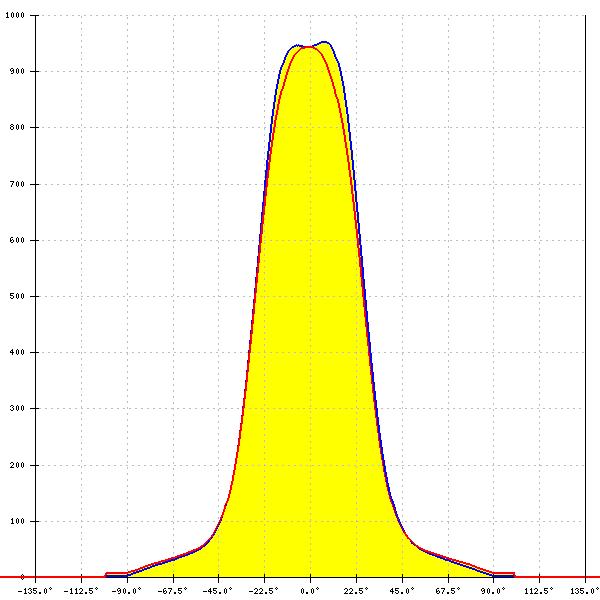

    LED: HiLOM RM16 Z (LH502C)
    FWHM: 55°
    FWTM: 89°
    Peak intensity: 0.958 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

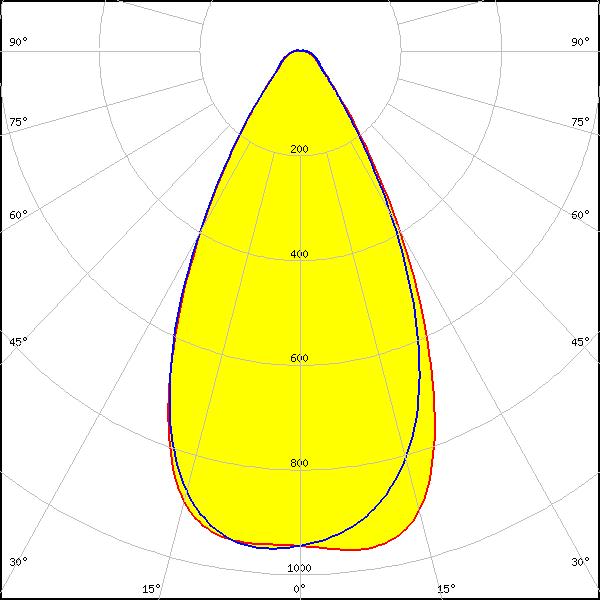

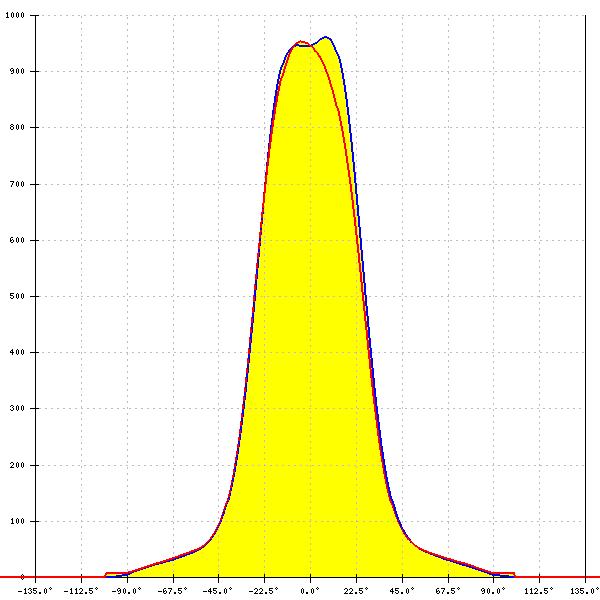

    LED: HiLOM RM8 Z (LH502C)
    FWHM: 56°
    FWTM: 88°
    Peak intensity: 0.968 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

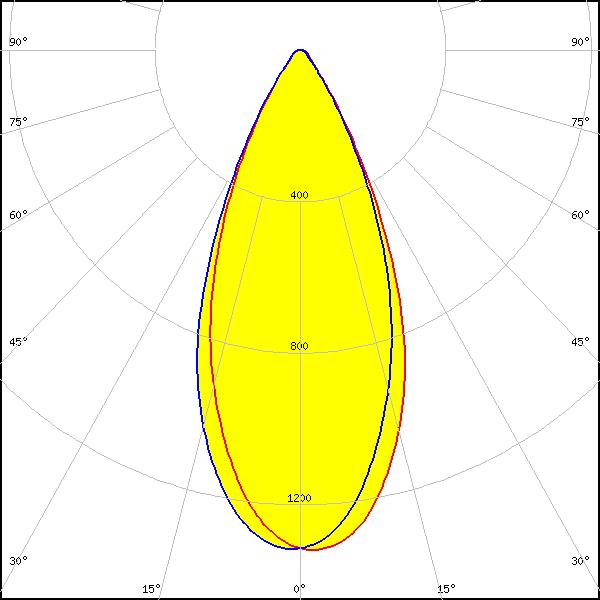

    LED: LH351B
    FWHM: 45°
    FWTM: 74°
    Peak intensity: 1.320 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

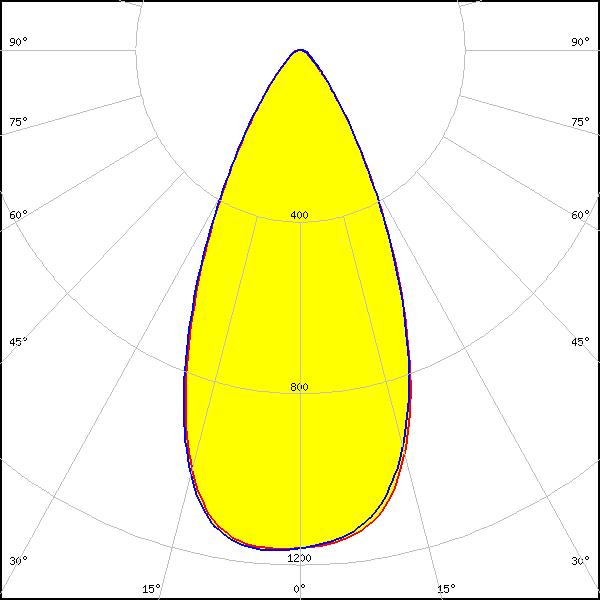

    LED: LH351D
    FWHM: 49°
    FWTM: 82°
    Peak intensity: 0.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

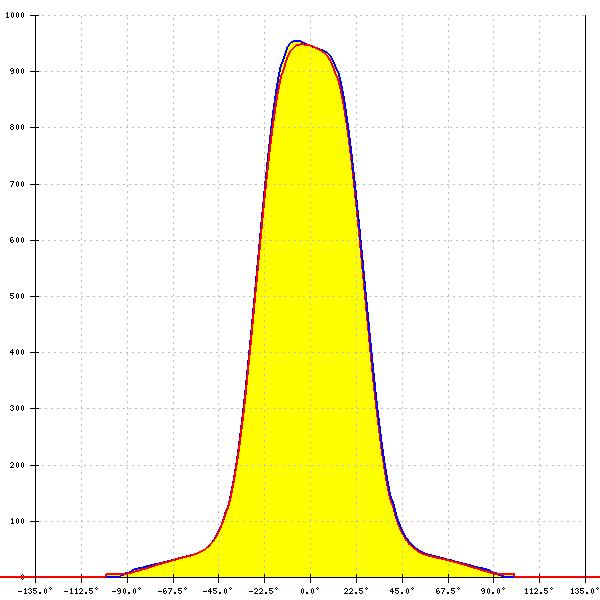

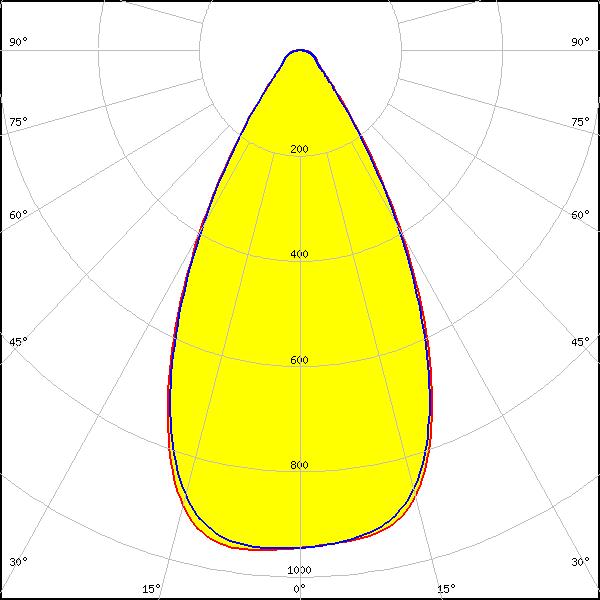

    LED: LH508A
    FWHM: 56°
    FWTM: 87°
    Peak intensity: 0.950 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

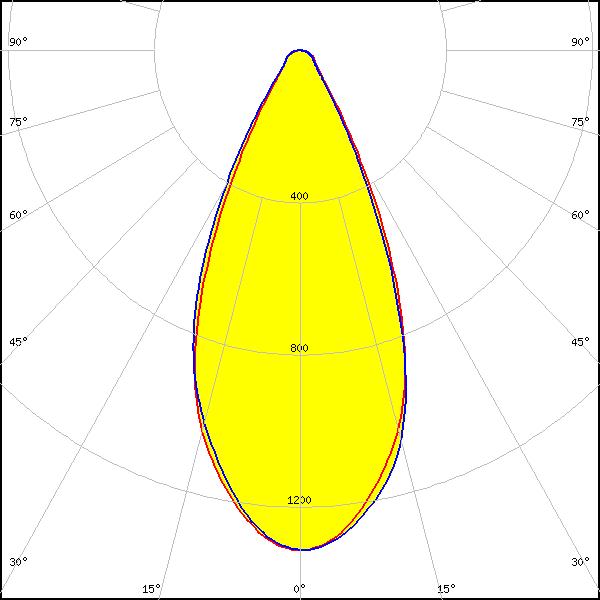

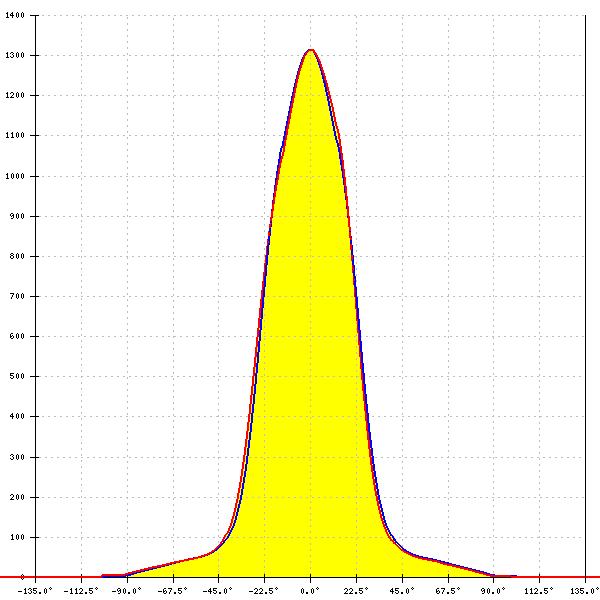

    LED: LED-Pa-L15c2W11c2-xxx-C050-01
    FWHM: 47°
    FWTM: 76°
    Peak intensity: 1.317 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: 2x2 Y22 module - SMJQ-D48W16AA-XX
    FWHM: 54°
    FWTM: 94°
    Peak intensity: 0.840 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

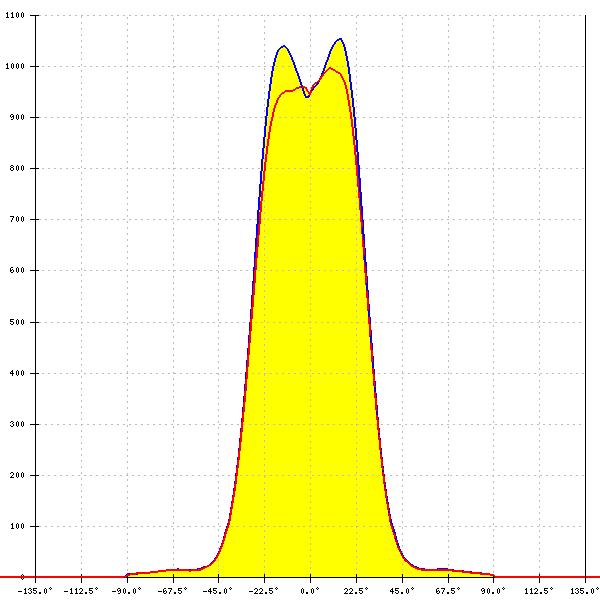

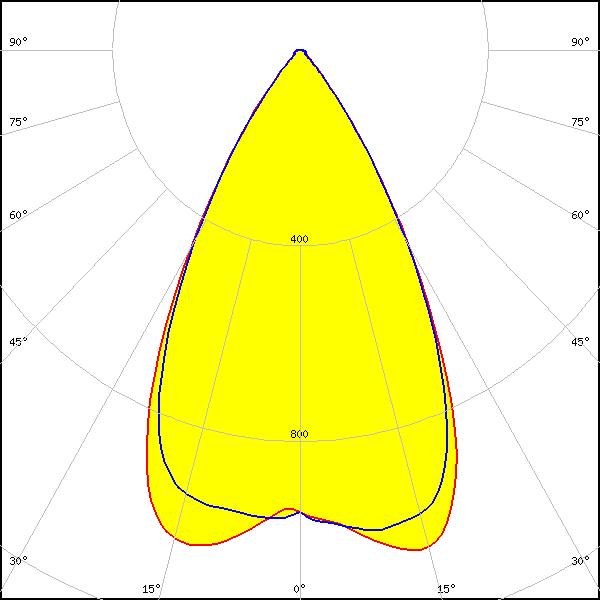

    LED: SEOUL DC 5050 6V
    FWHM: 54°
    FWTM: 79°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

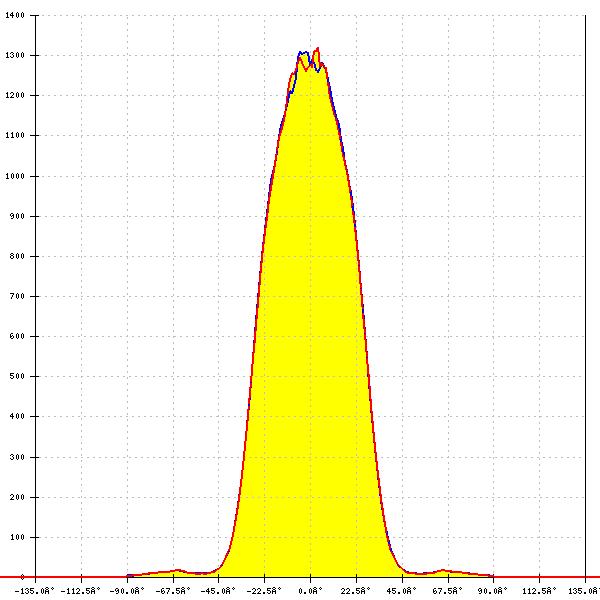

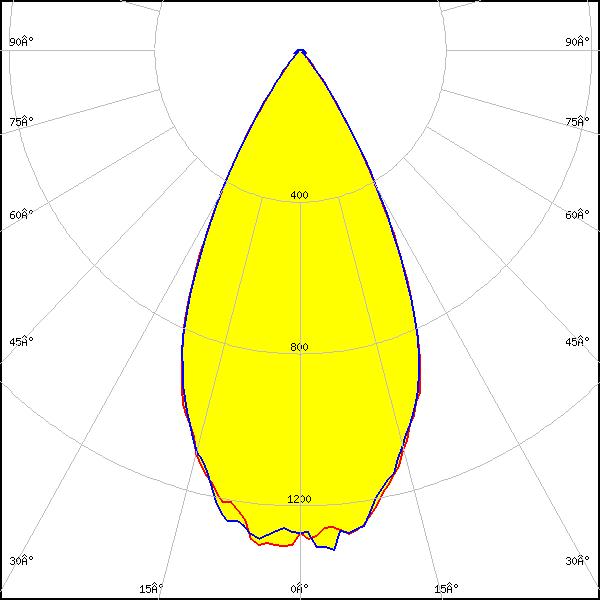

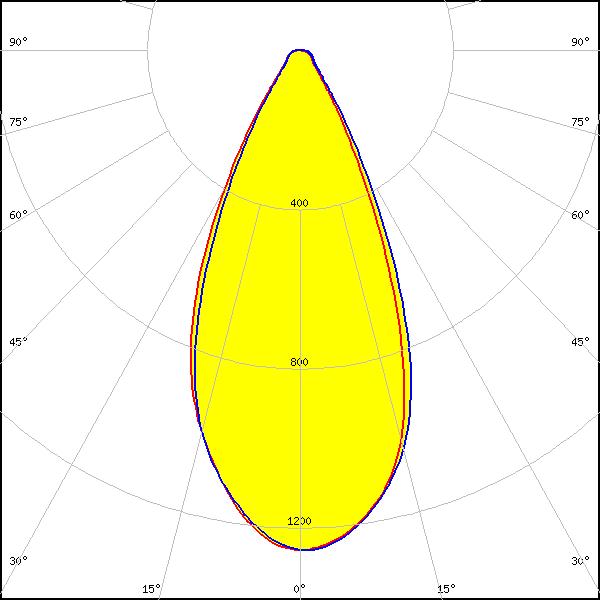

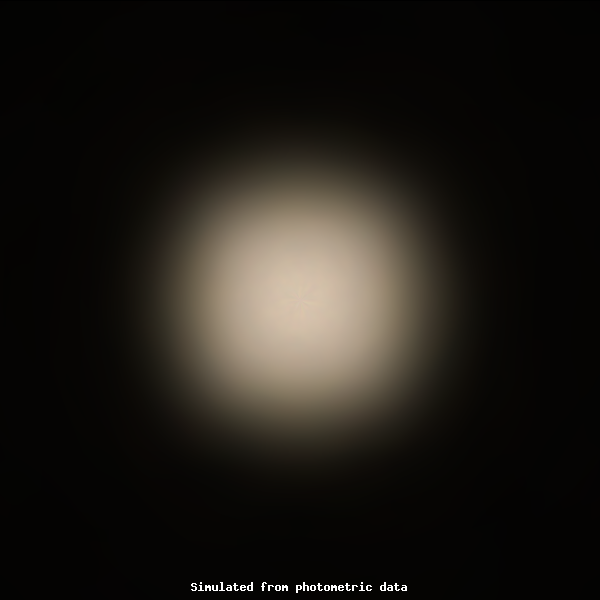

    LED: Z5M3
    FWHM: 47°
    FWTM: 75°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.371 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

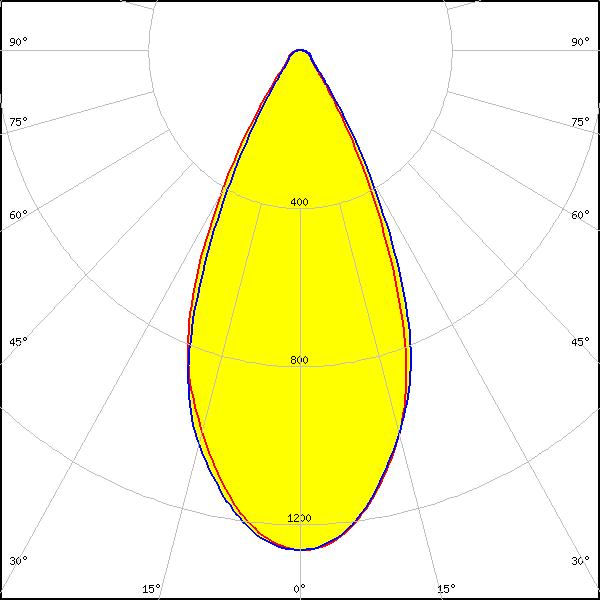

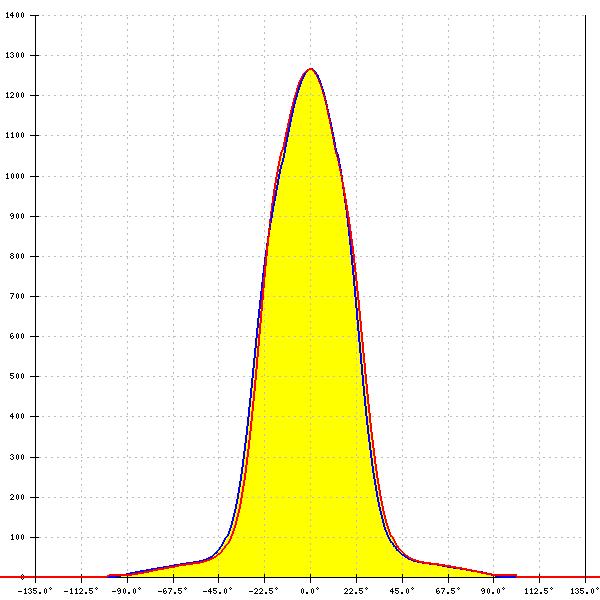

    LED: Z5M4
    FWHM: 49°
    FWTM: 76°
    Peak intensity: 1.265 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

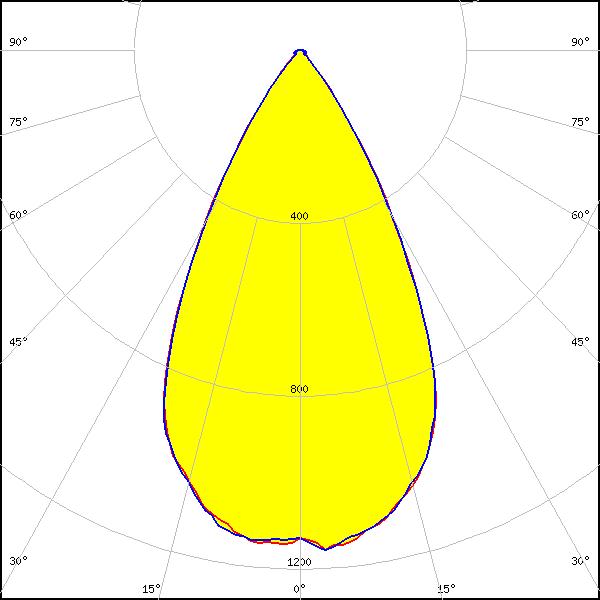

    LED: Z5M4-E2
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.180 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

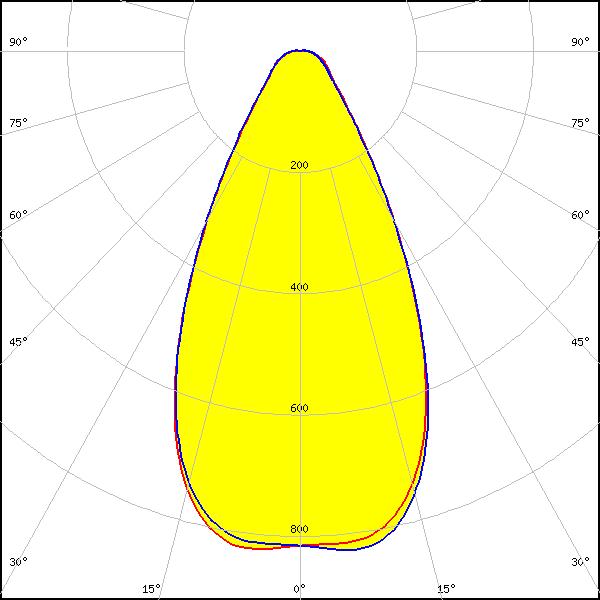

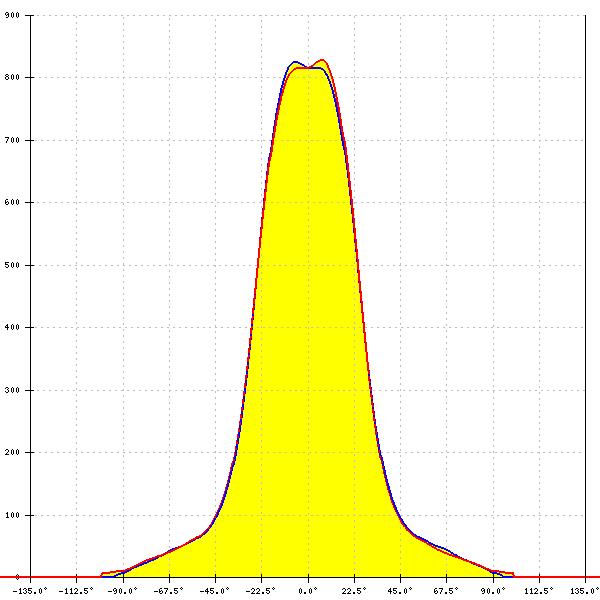

    LED: Z8Y19
    FWHM: 54°
    FWTM: 94°
    Peak intensity: 0.840 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: Z8Y19
    FWHM: 54°
    FWTM: 94°
    Peak intensity: 0.840 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

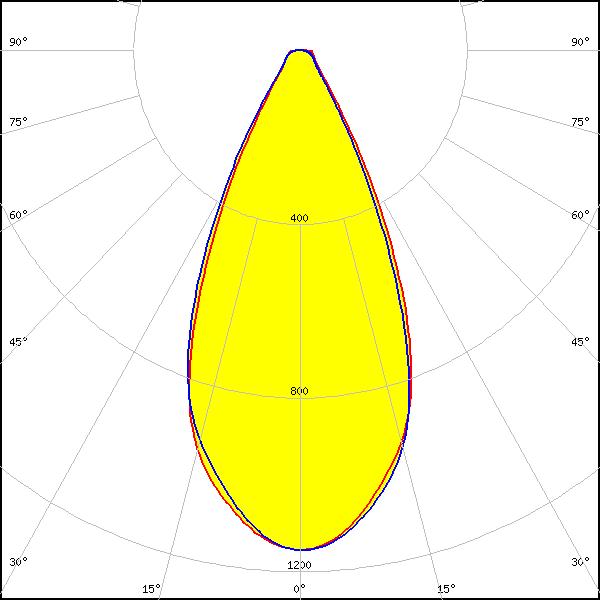

    LED: Z8Y22P
    FWHM: 48°
    FWTM: 77°
    Peak intensity: 1.200 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

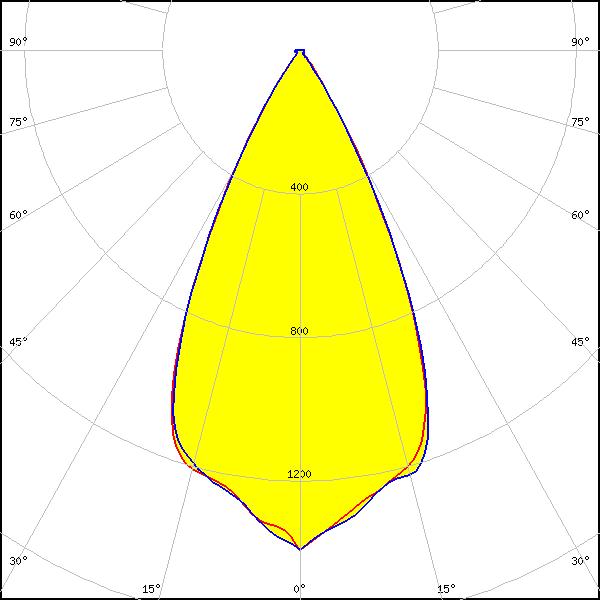

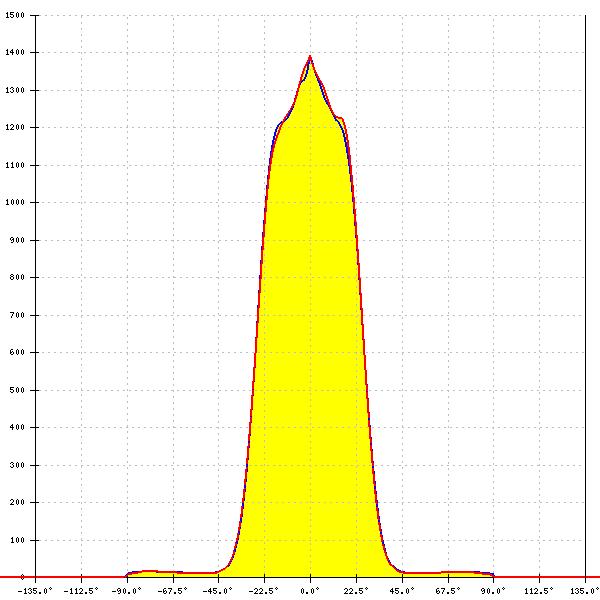

    LED: Z8Y22T
    FWHM: 51°
    FWTM: 69°
    Peak intensity: 1.390 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: 46°
    FWTM: 71°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

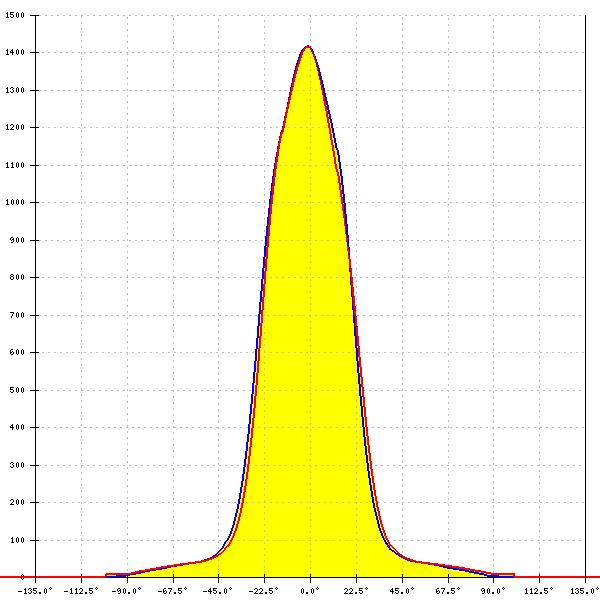

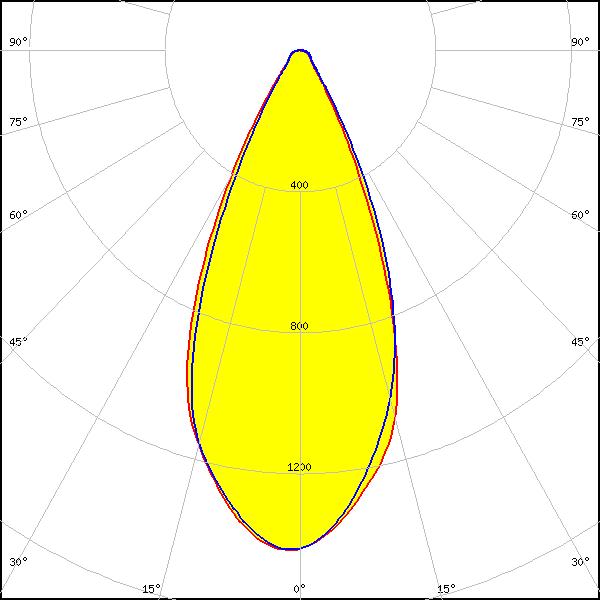

    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: 46°
    FWTM: 71°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

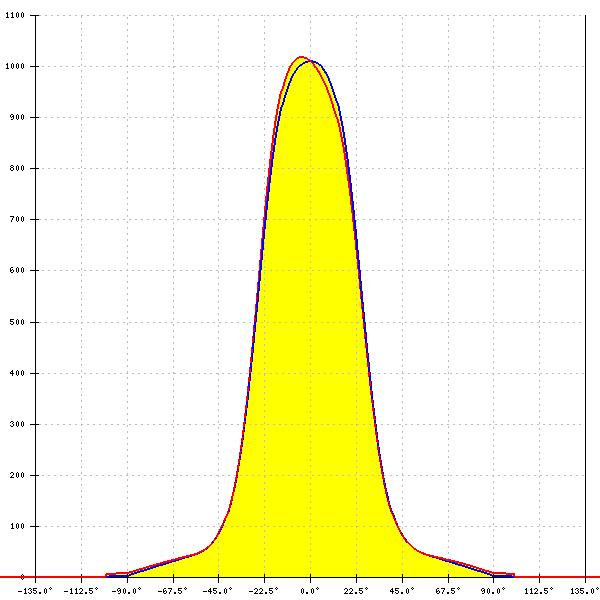

    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: 53°
    FWTM: 86°
    Peak intensity: 1.018 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x121mm 2000lm xxx EXC OTD
    FWHM: 46°
    FWTM: 73°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x133mm 2000lm xxx EXC OTD
    FWHM: 46°
    FWTM: 73°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x223mm 4000lm xxx EXC OTD
    FWHM: 46°
    FWTM: 73°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x245mm 4000lm xxx EXC OTD
    FWHM: 46°
    FWTM: 73°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
