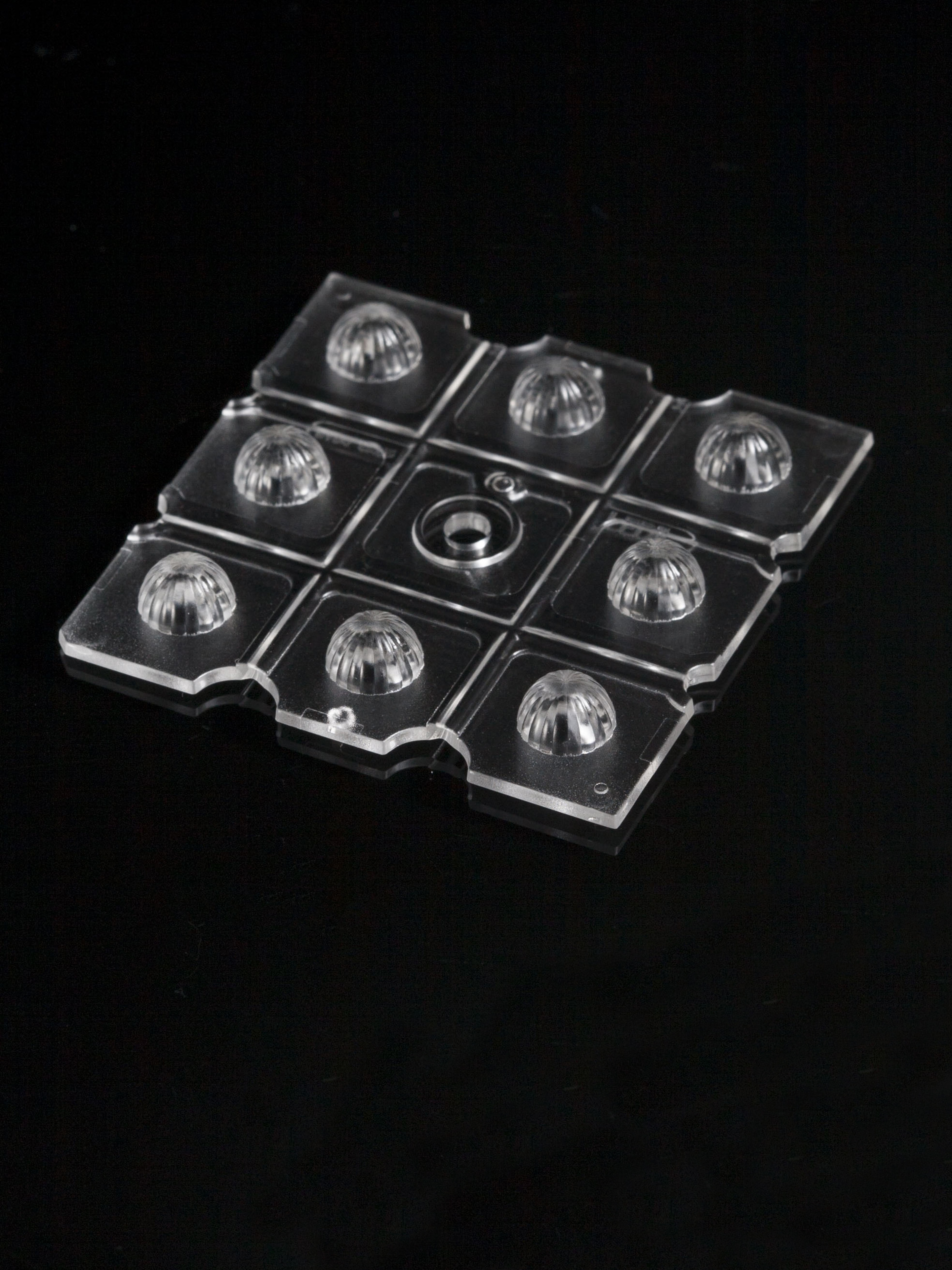

C15184_STRADELLA-8-HB-M

Print

~60° medium beam for industrial applications

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    5.70 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    450 x 250 x 300 mm
  • Box weight:
    4.3 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C15184_STRADELLA-8-HB-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

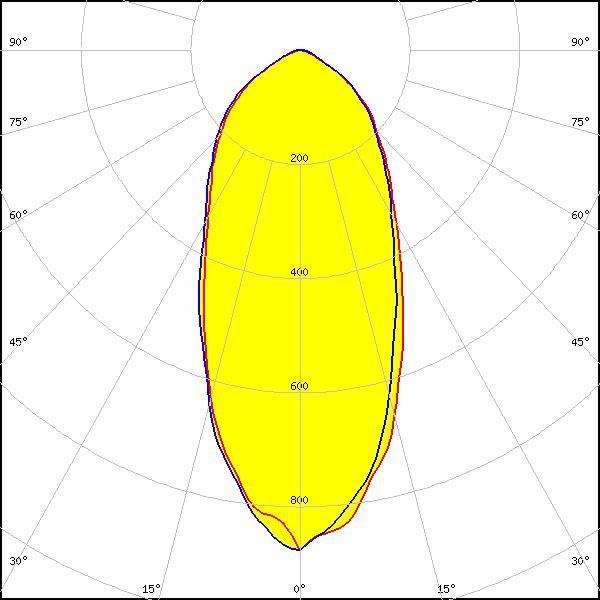

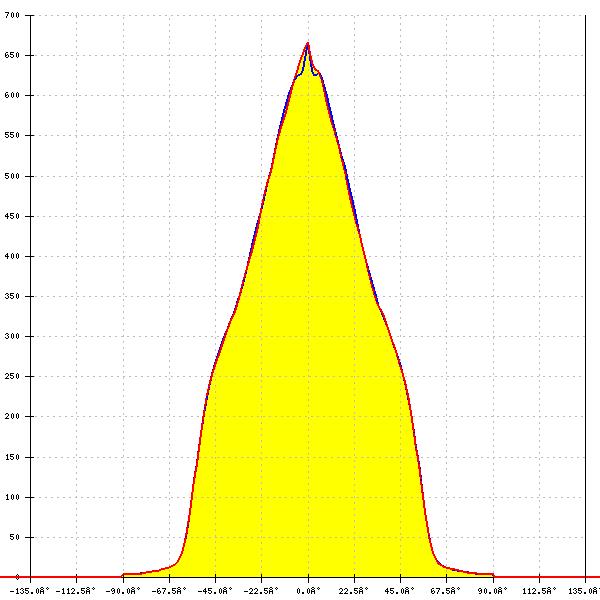

Optical results

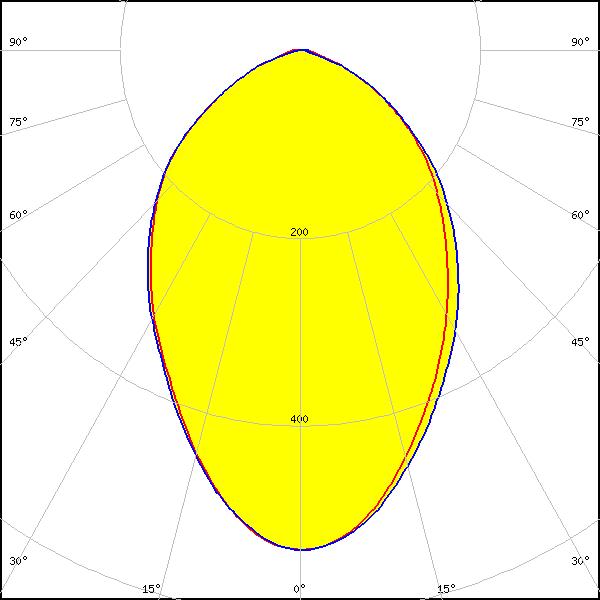

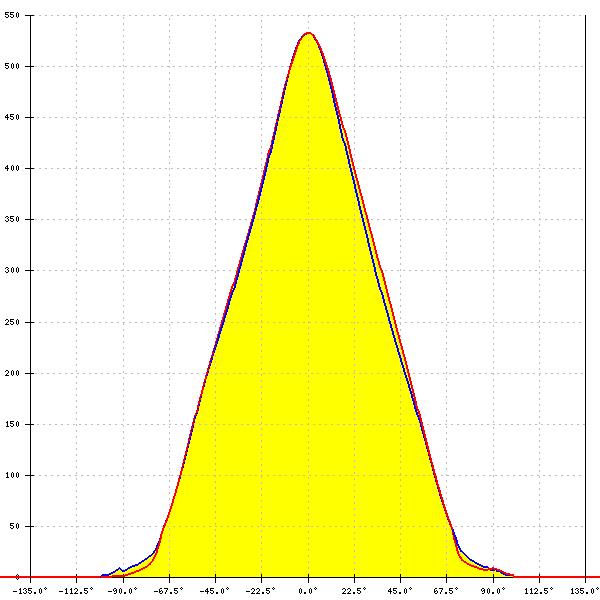

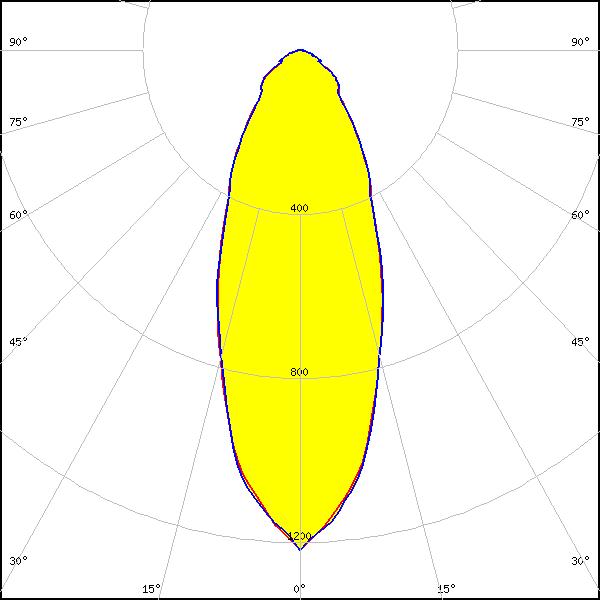

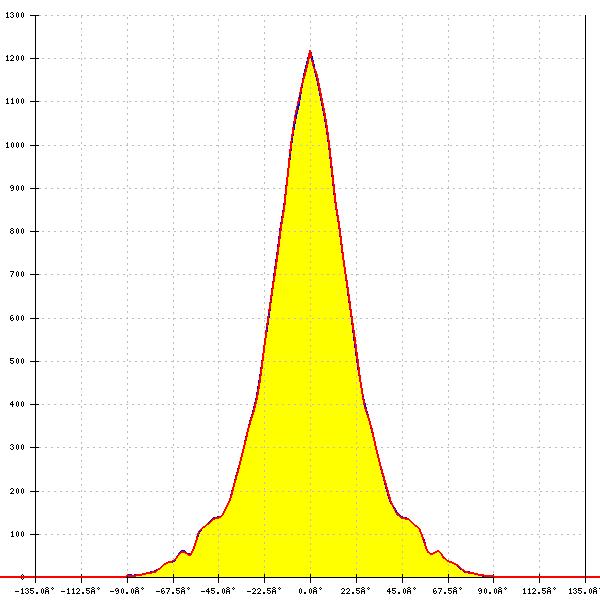

LED: QUICK FLUX XT 2x8 xxx STRDLL G5
FWHM: 78°
FWTM: 139°
Peak intensity: 0.960 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

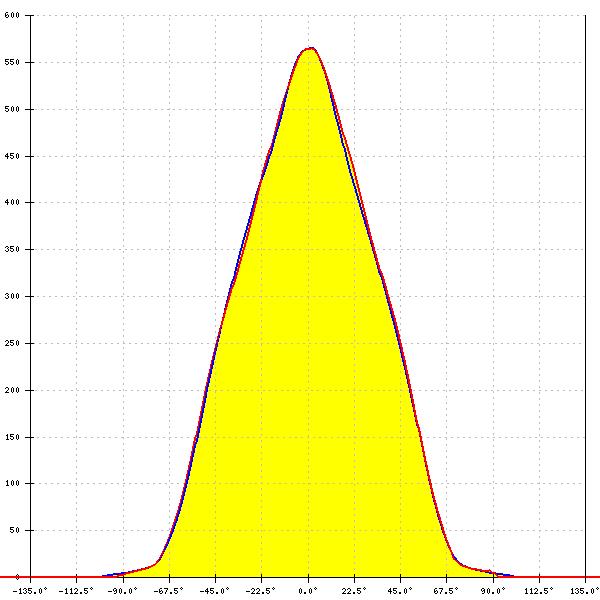

LED: J Series 3030
FWHM: 81°
FWTM: 130°
Peak intensity: 0.565 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

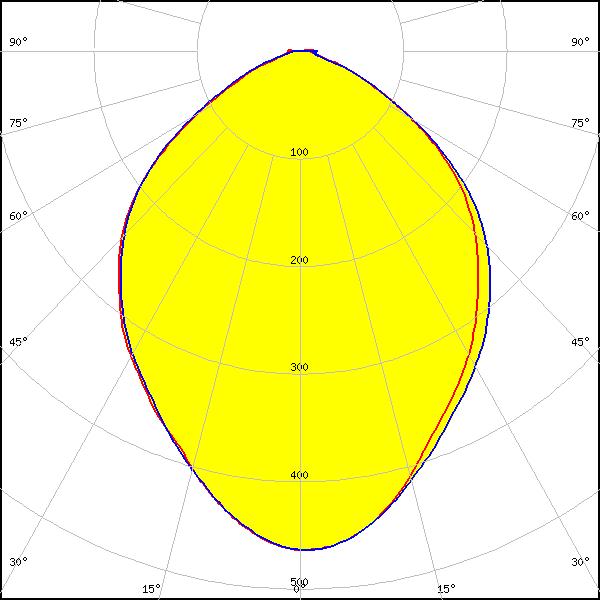

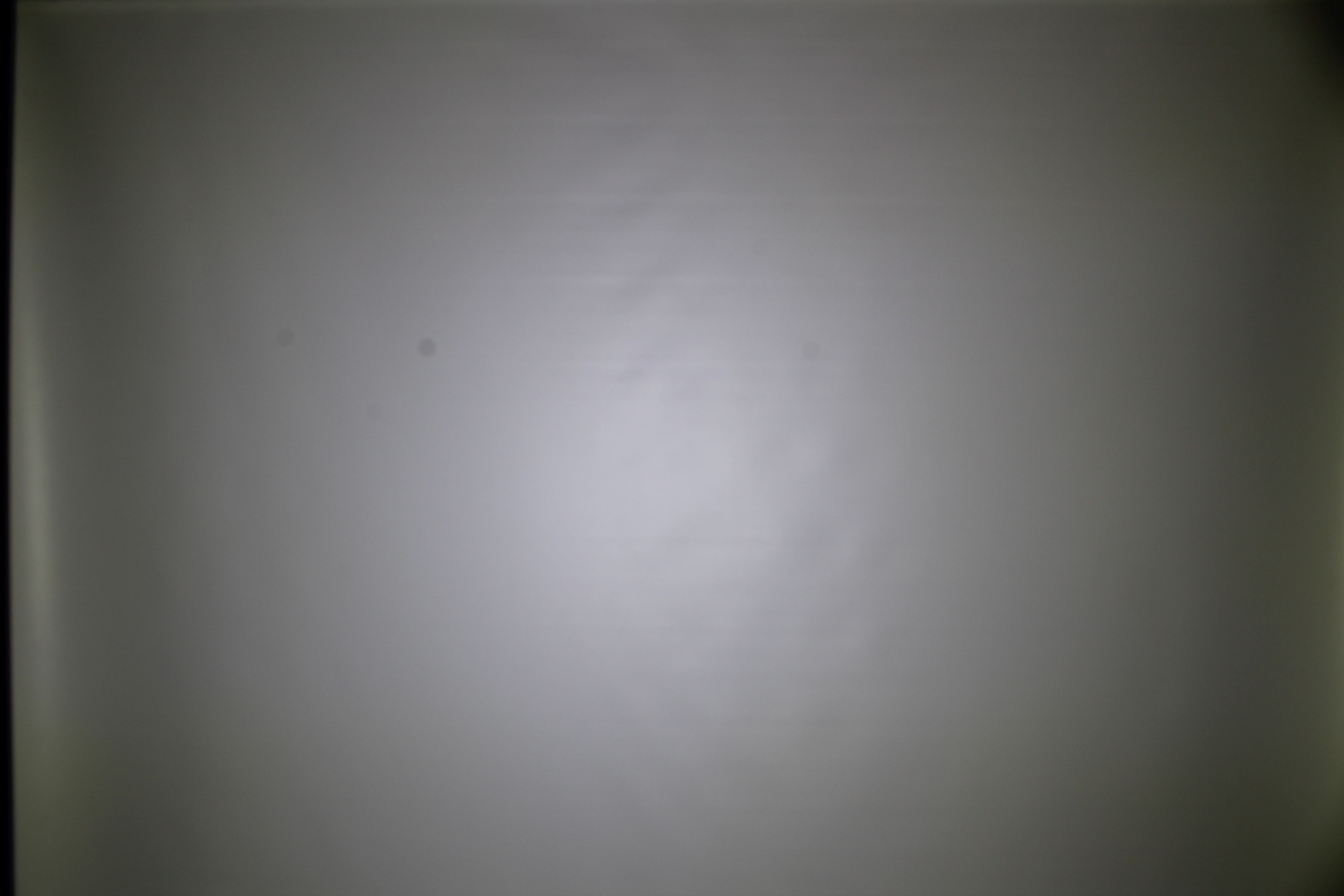

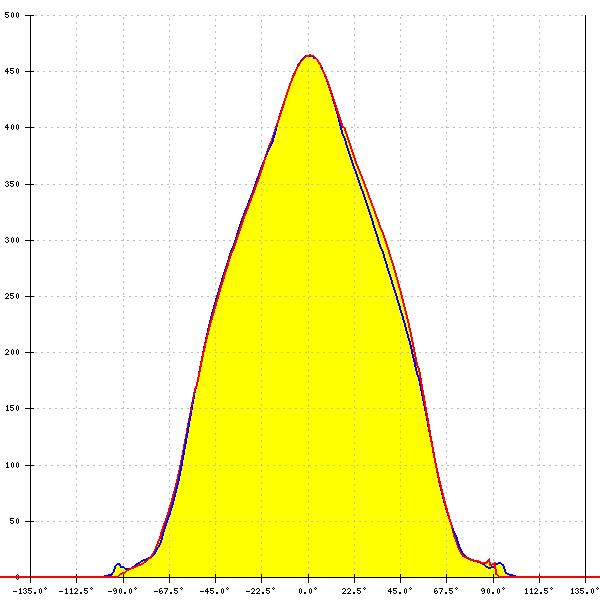

LED: XP-G3
FWHM: 94°
FWTM: 140°
Peak intensity: 0.460 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

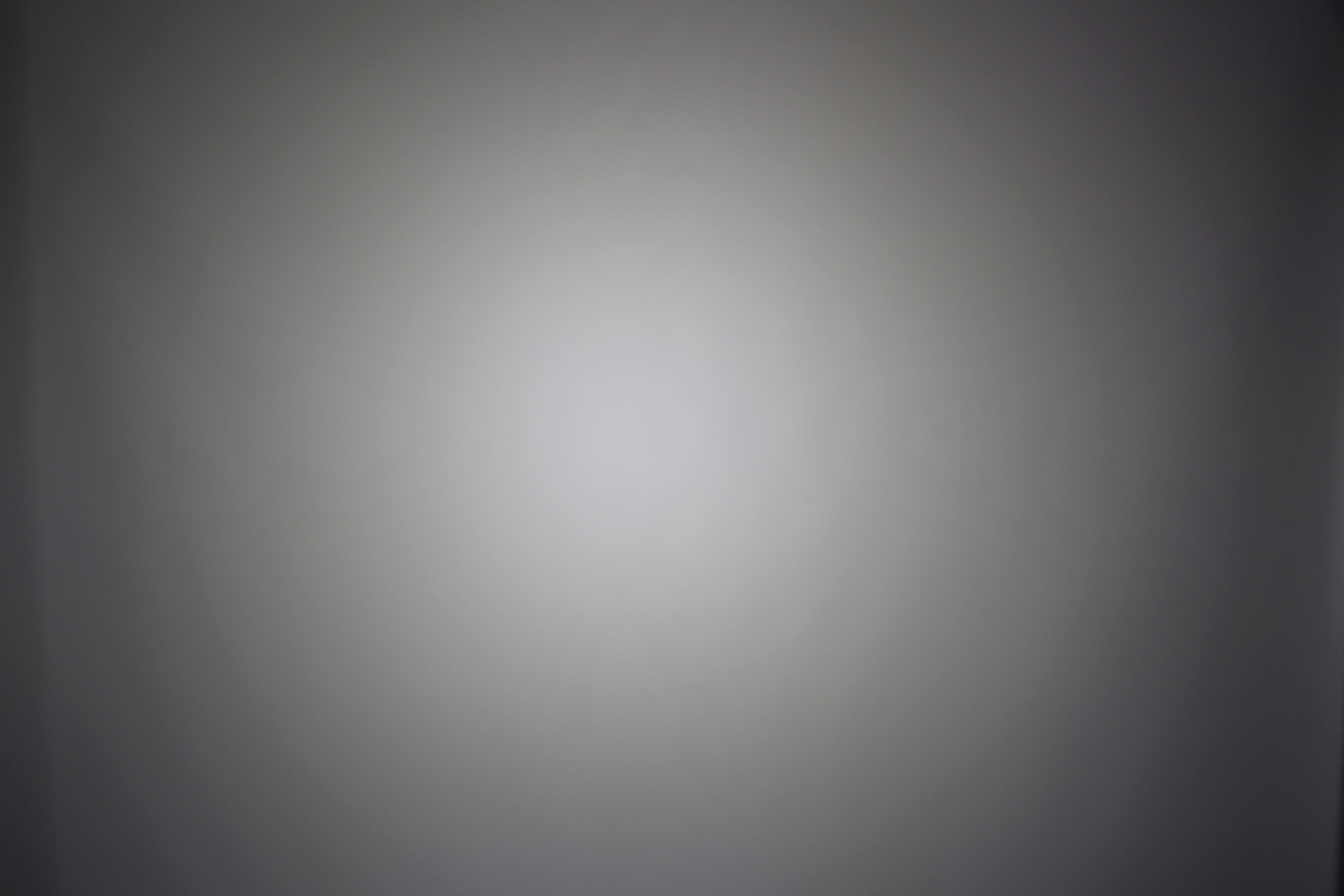

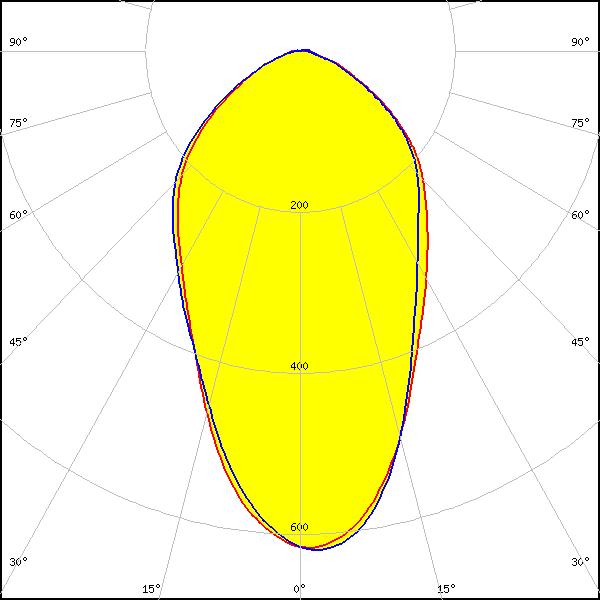

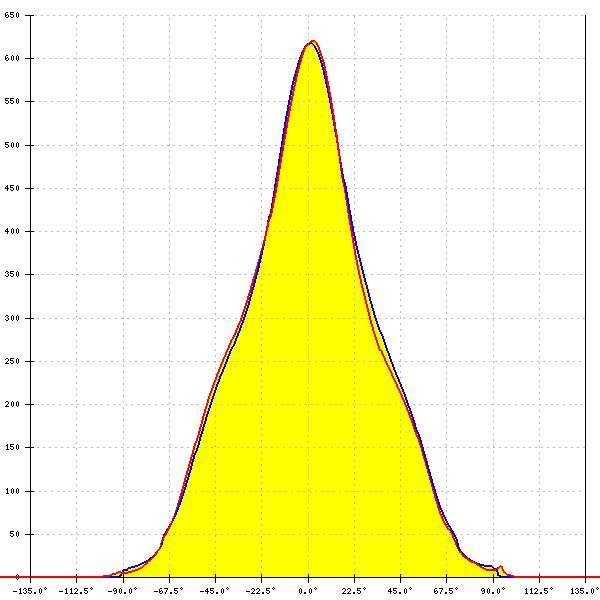

LED: XT-E
FWHM: 61°
FWTM: 134°
Peak intensity: 0.621 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XT-E
FWHM: 62°
FWTM: 136°
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

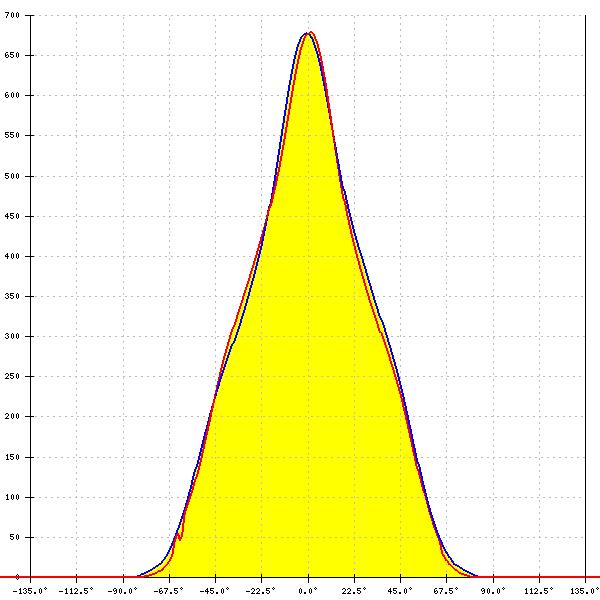

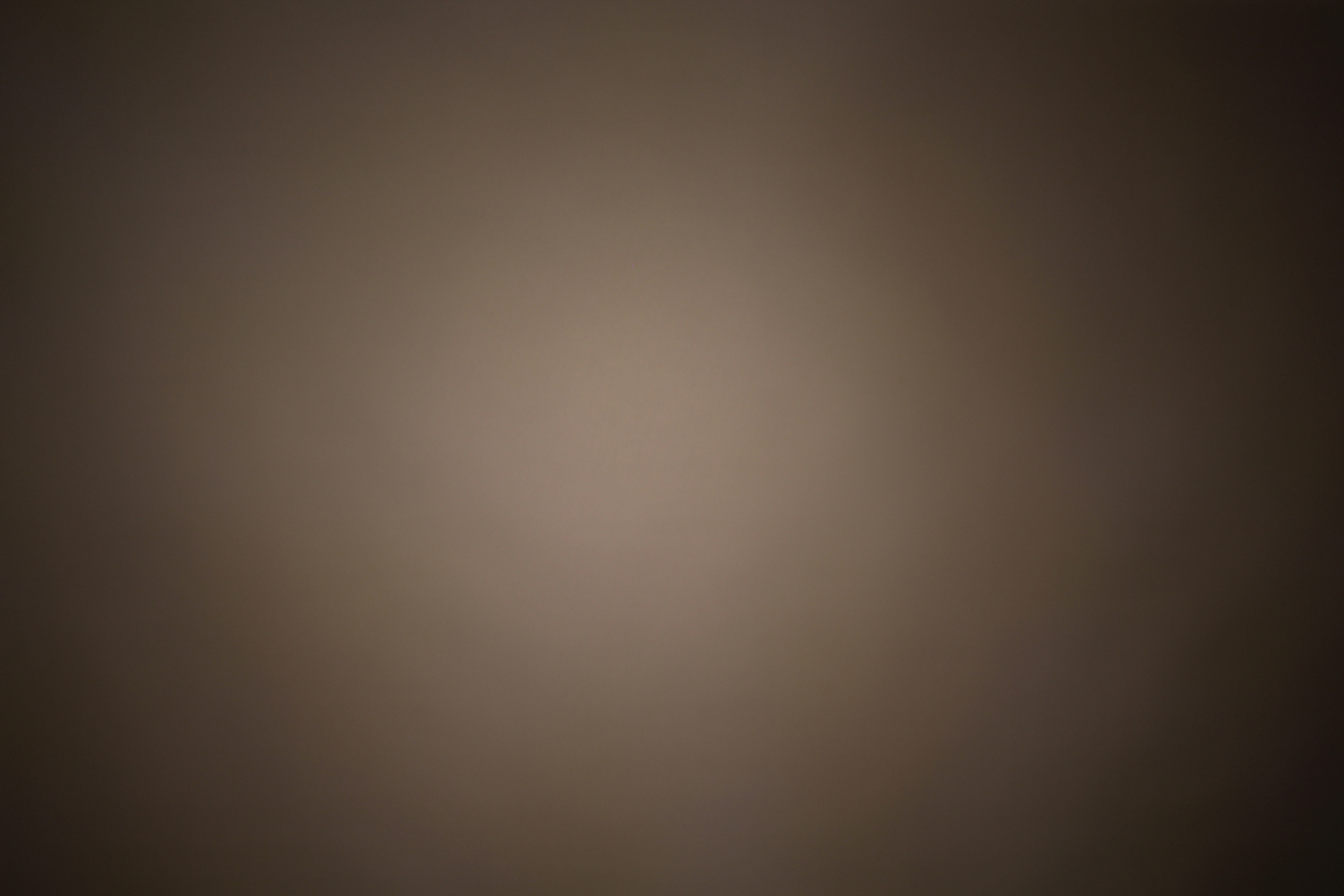

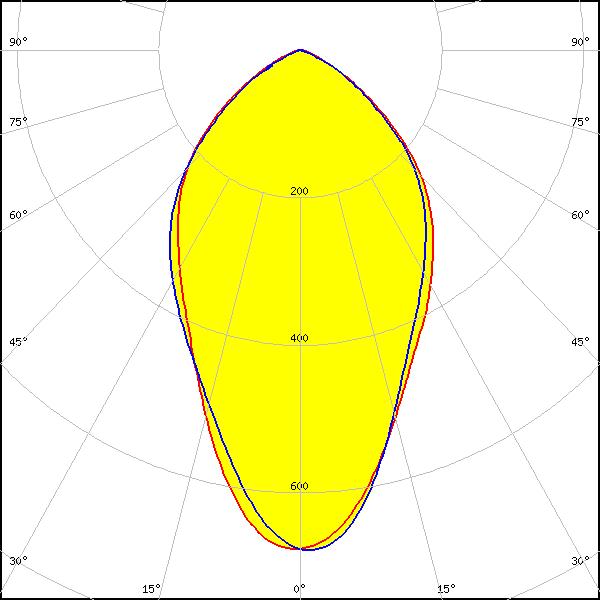

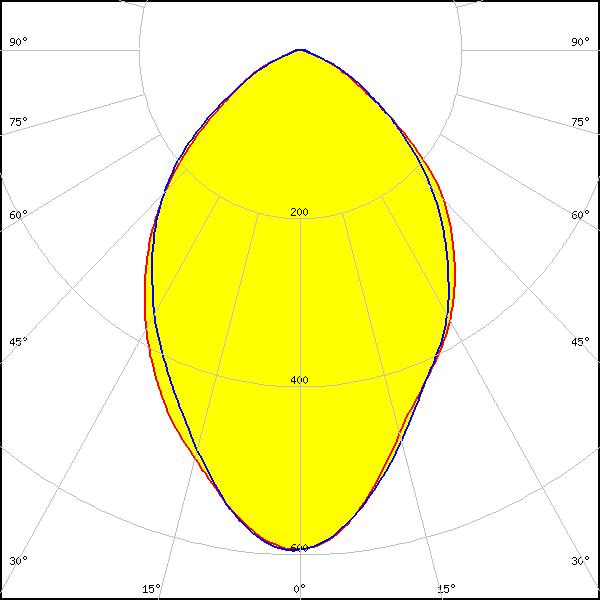

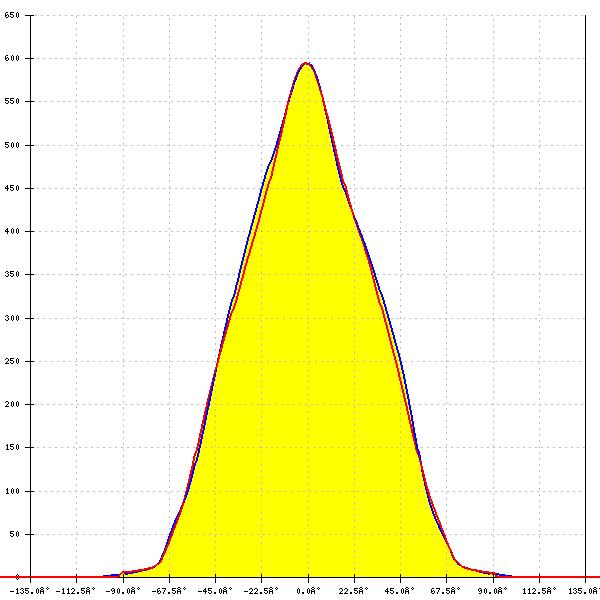

LED: LUXEON 3030 2D (Round LES)
FWHM: 79°
FWTM: 129°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3030 2D (Round LES)
FWHM: 64°
FWTM: 122°
Peak intensity: 0.680 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3535L HE
FWHM: 52°
FWTM: 122°
Peak intensity: 0.730 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HR30
FWHM: 54°
FWTM: 121°
Peak intensity: 0.750 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

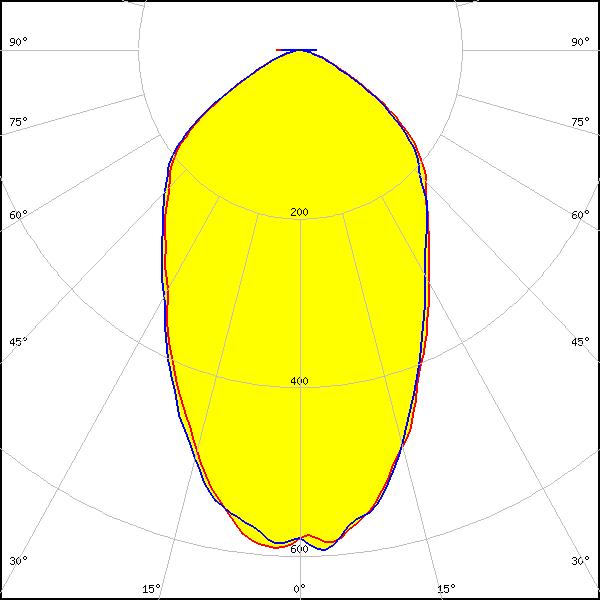

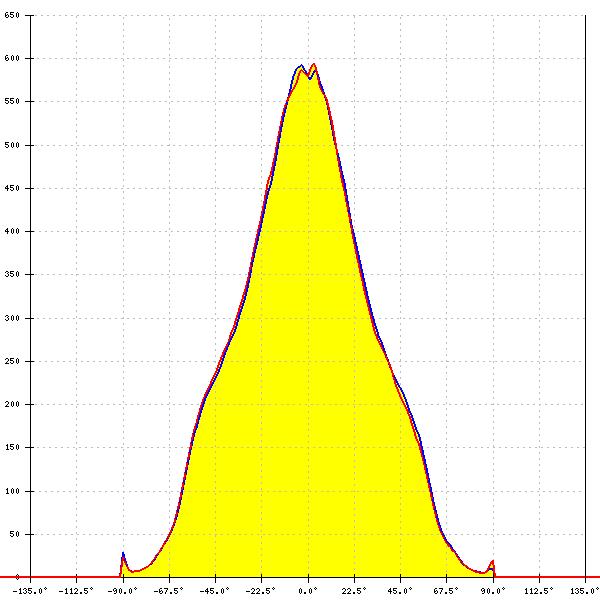

LED: LUXEON TX
FWHM: 61°
FWTM: 128°
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

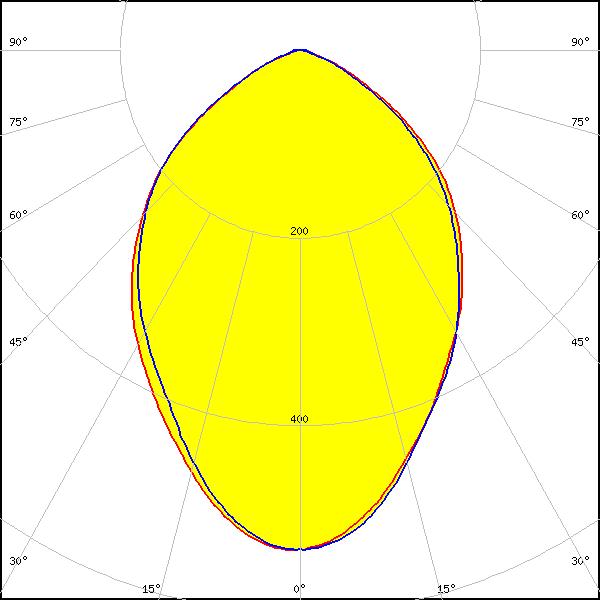

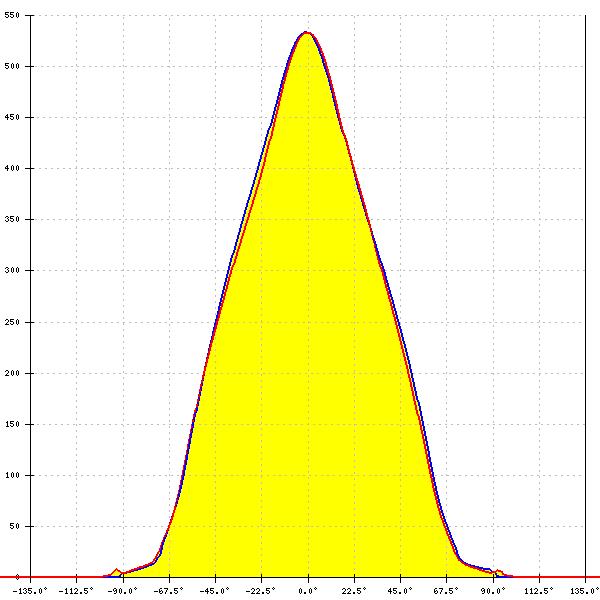

LED: LUXEON V2
FWHM: 83°
FWTM: 134°
Peak intensity: 0.530 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

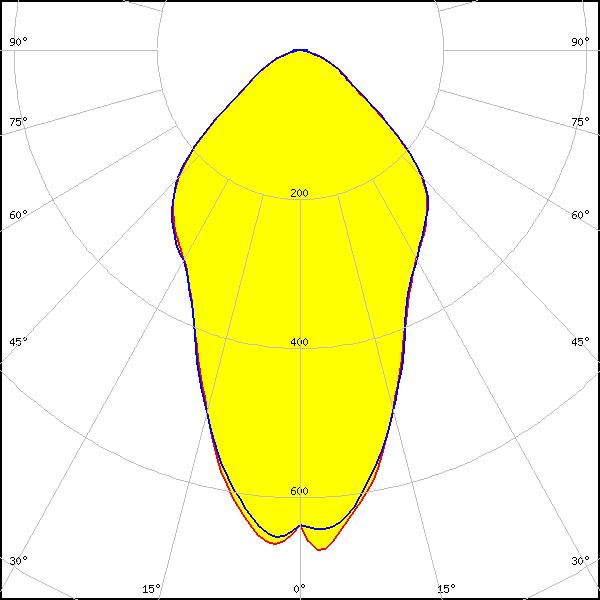

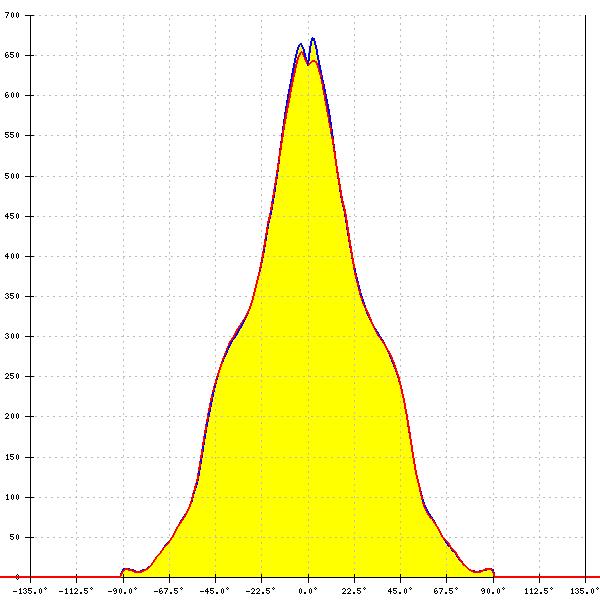

LED: NCSxE17A
FWHM: 57°
FWTM: 124°
Peak intensity: 0.670 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

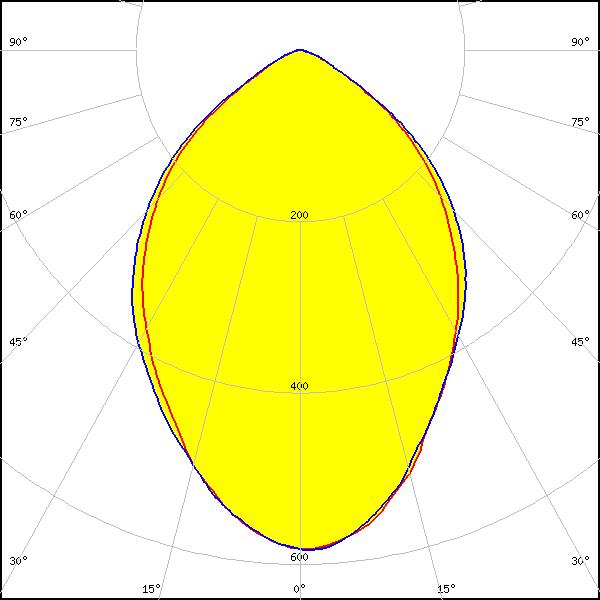

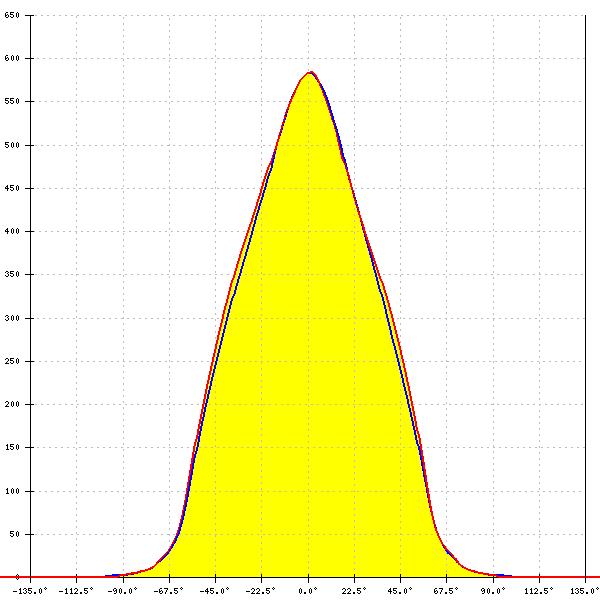

LED: NVSW219D
FWHM: 82°
FWTM: 124°
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

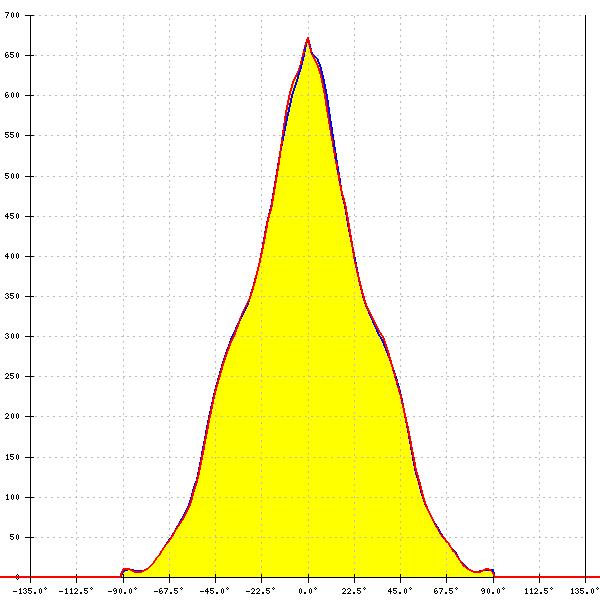

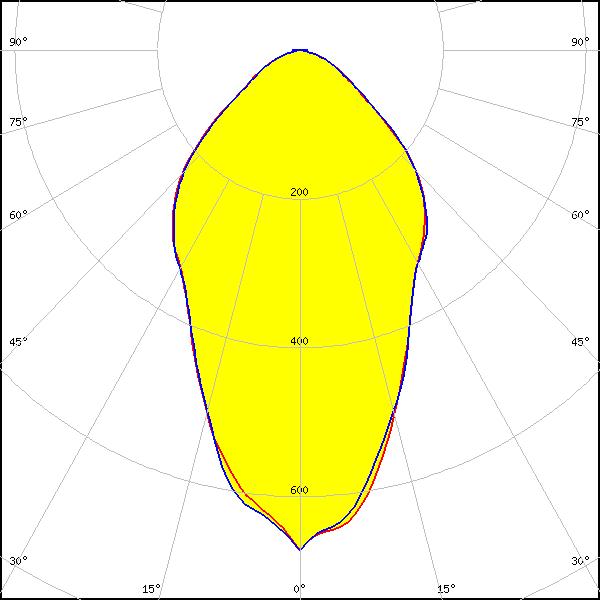

LED: NVSxE21A
FWHM: 59°
FWTM: 124°
Peak intensity: 0.670 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
FWHM: 65°
FWTM: 124°
Peak intensity: 0.630 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

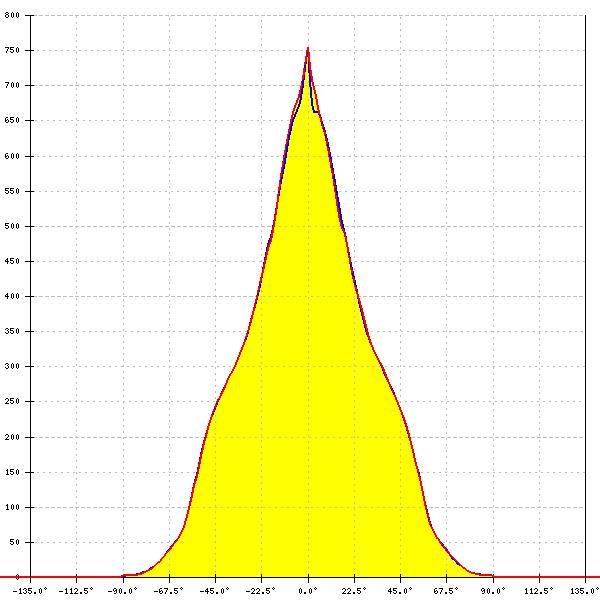

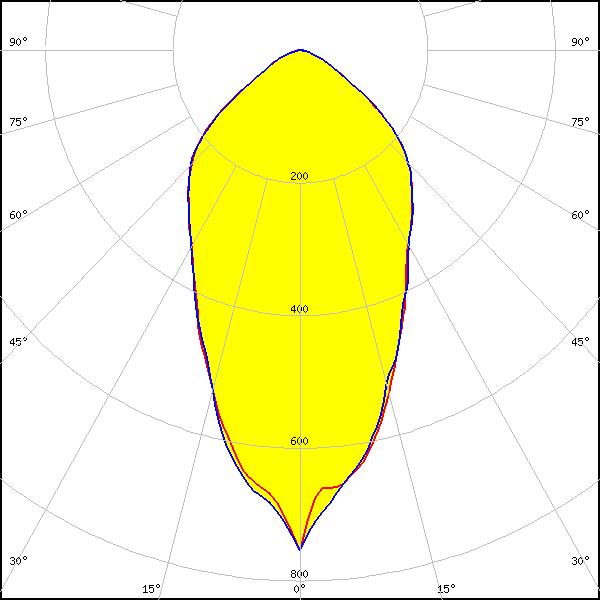

LED: OSCONIQ C 2424
FWHM: 52° + 53°
FWTM: 120° + 120°
Peak intensity: 0.754 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

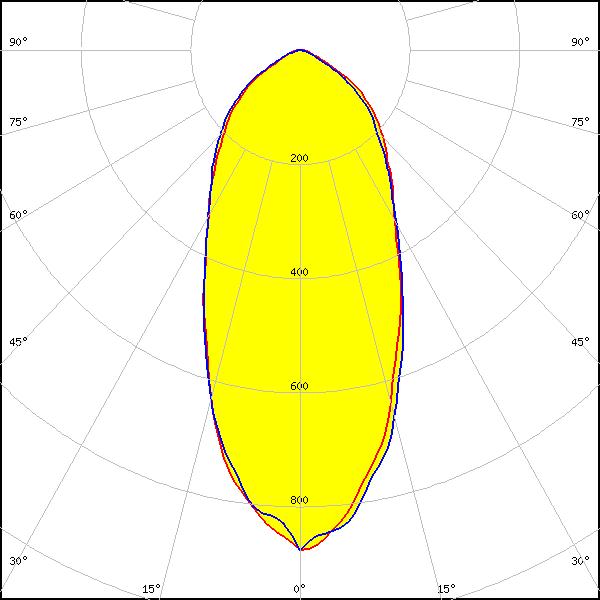

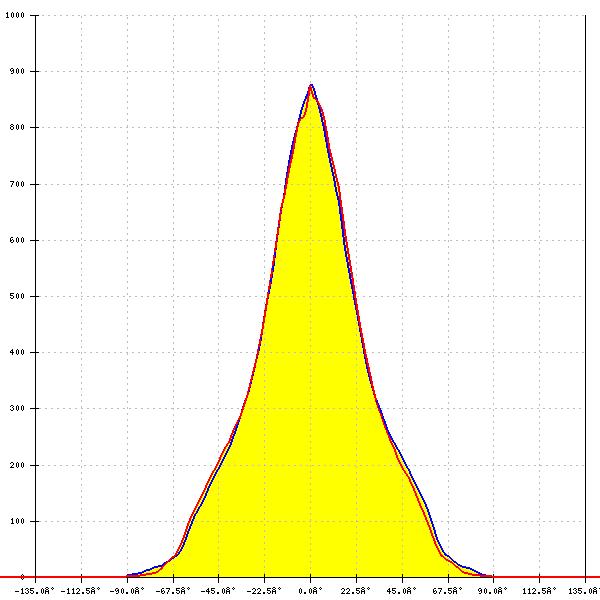

LED: OSCONIQ P 3030
FWHM: 48°
FWTM: 120°
Peak intensity: 0.878 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (2W version)
FWHM: 61°
FWTM: 124°
Peak intensity: 0.680 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

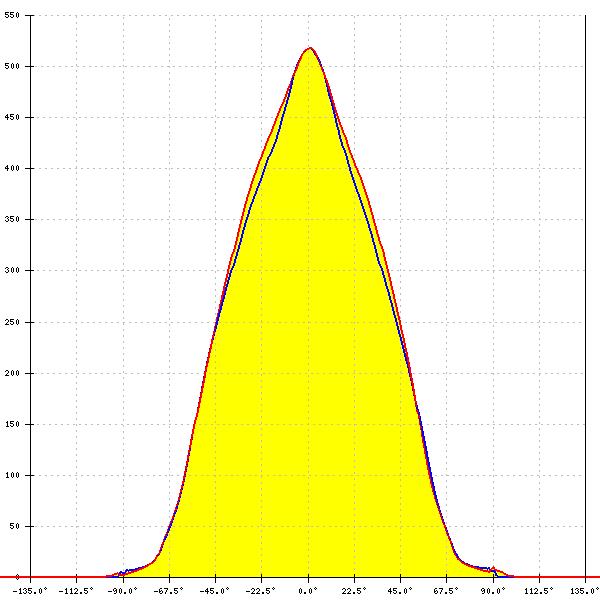

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 86°
FWTM: 133°
Peak intensity: 0.520 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

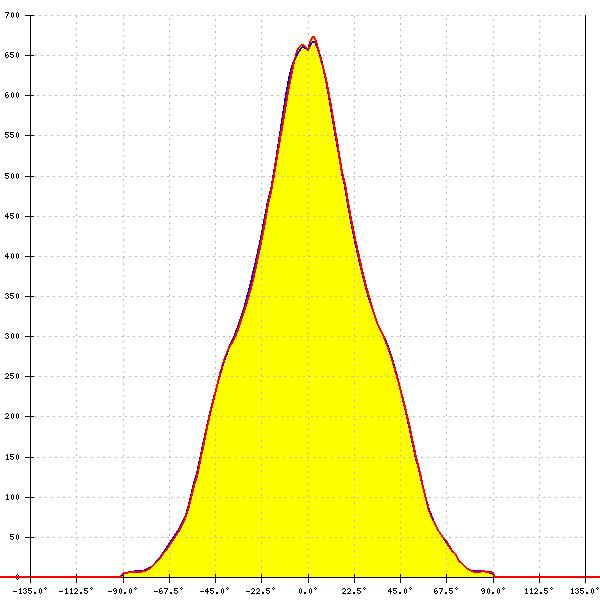

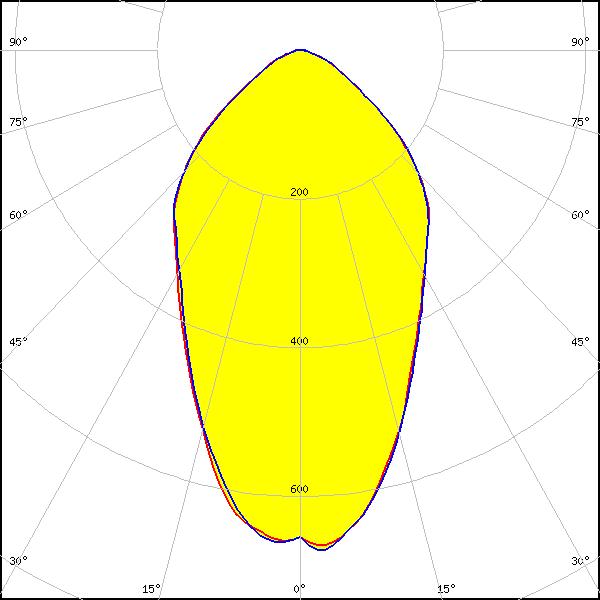

LED: LH181B
FWHM: 62°
FWTM: 123°
Peak intensity: 0.680 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

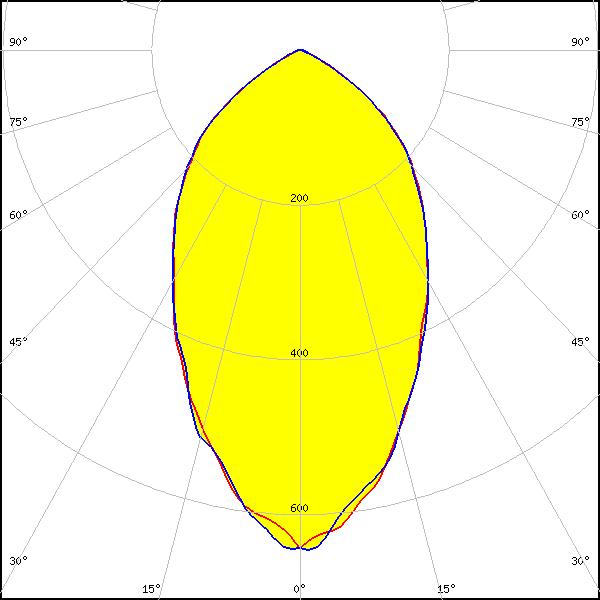

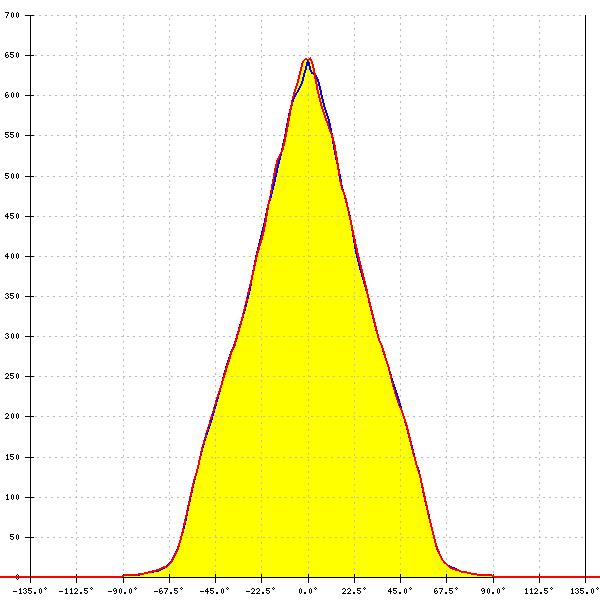

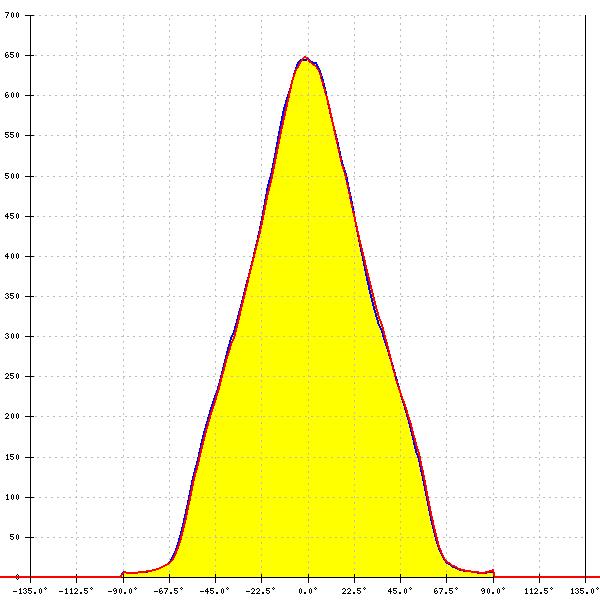

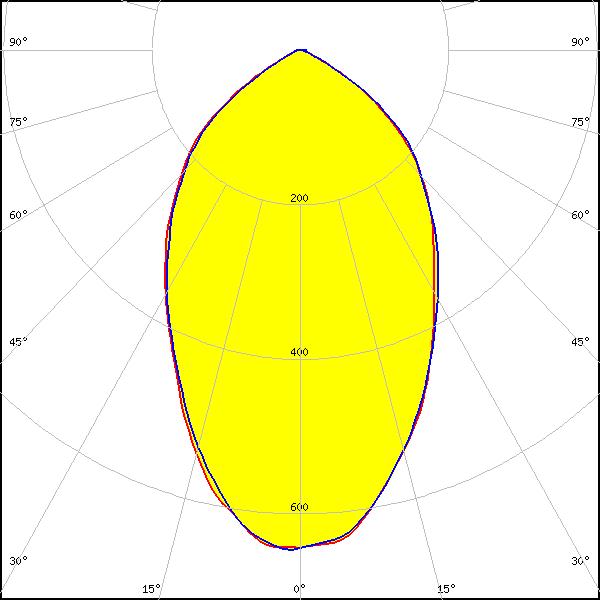

LED: LH351B
FWHM: 64°
FWTM: 120°
Peak intensity: 0.649 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
FWHM: 68°
FWTM: 121°
Peak intensity: 0.650 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

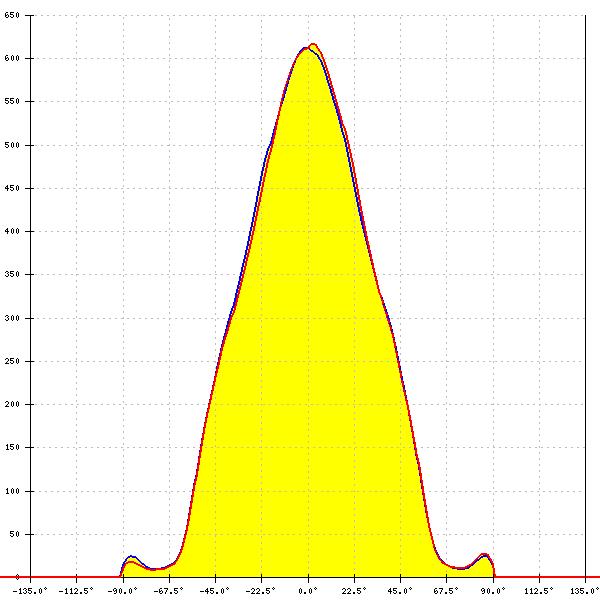

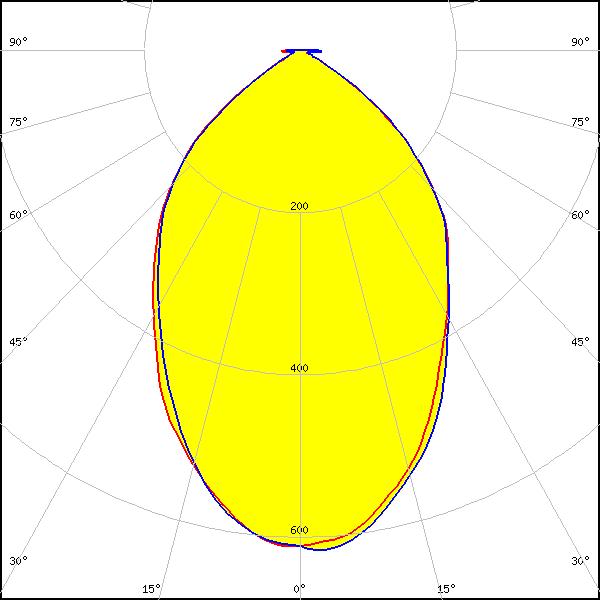

LED: LH351C
FWHM: 74°
FWTM: 117°
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

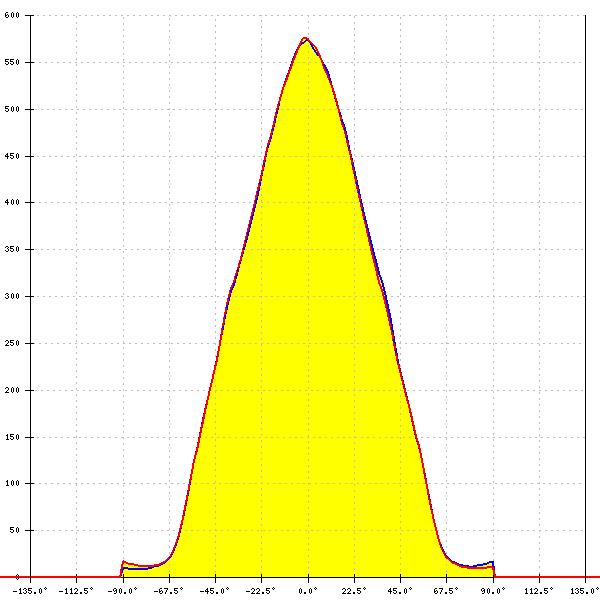

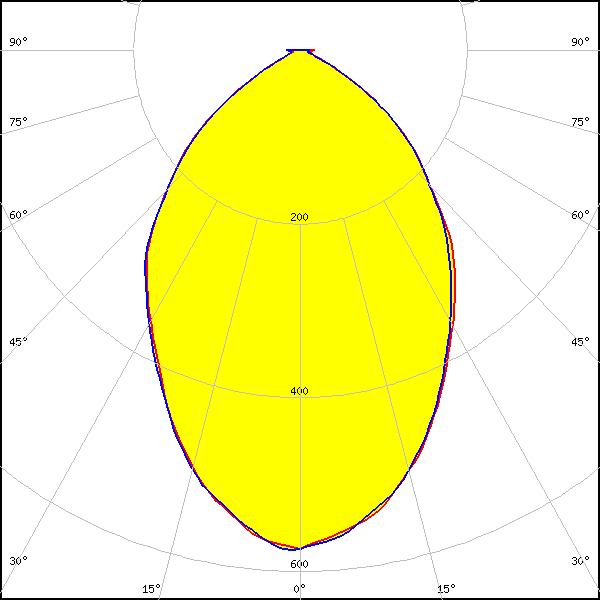

LED: LH351D
FWHM: 79°
FWTM: 124°
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M5
FWHM: 66°
FWTM: 127°
Peak intensity: 0.624 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M5
FWHM: 68°
FWTM: 126°
Peak intensity: 0.562 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

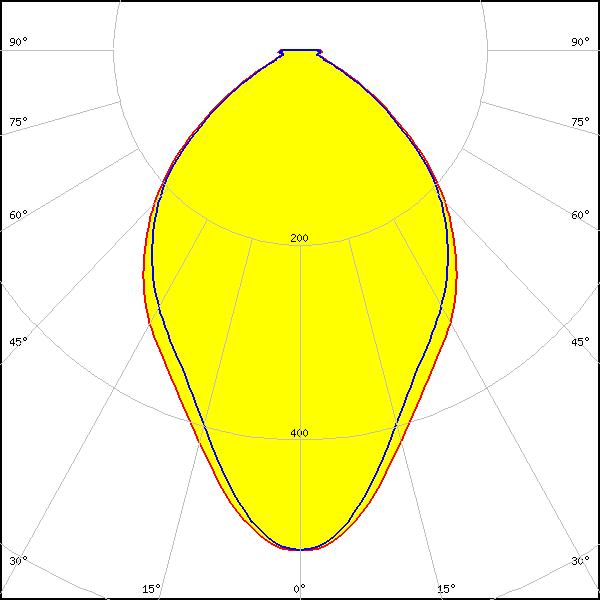

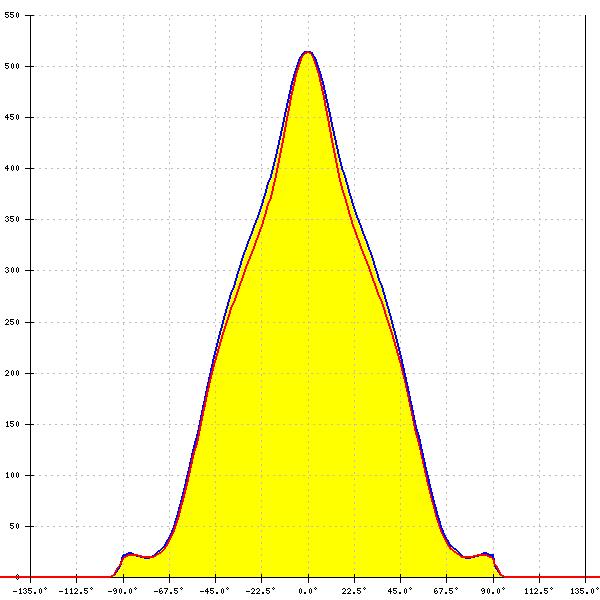

LED: Z8Y19
FWHM: 80°
FWTM: 130°
Peak intensity: 0.510 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

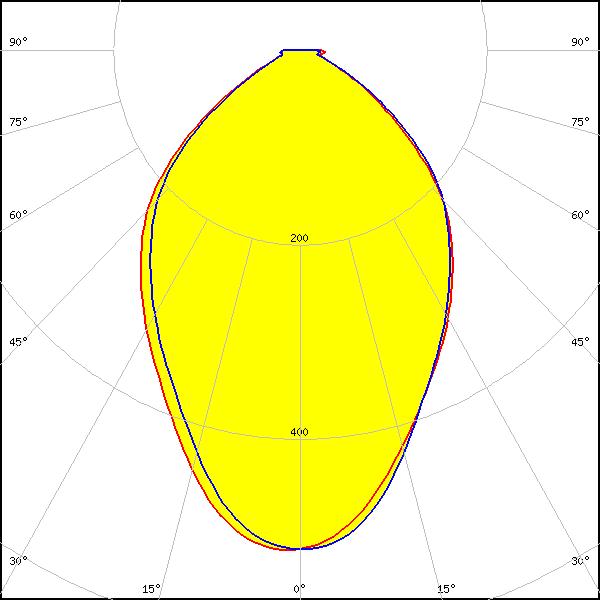

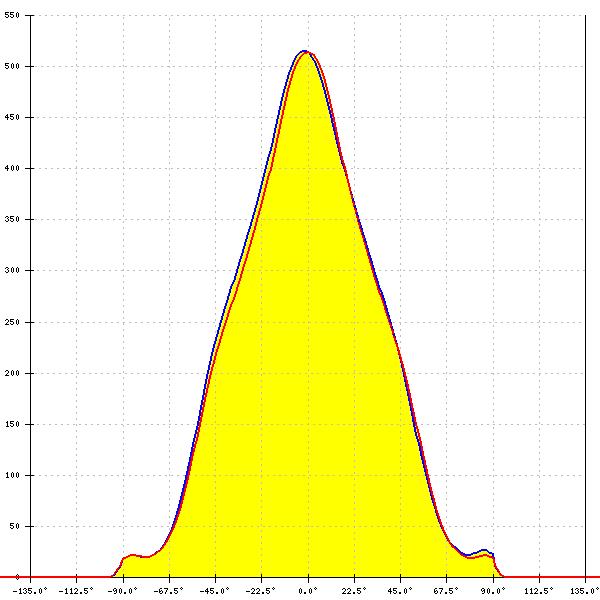

LED: Z8Y22
FWHM: 81°
FWTM: 131°
Peak intensity: 0.510 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

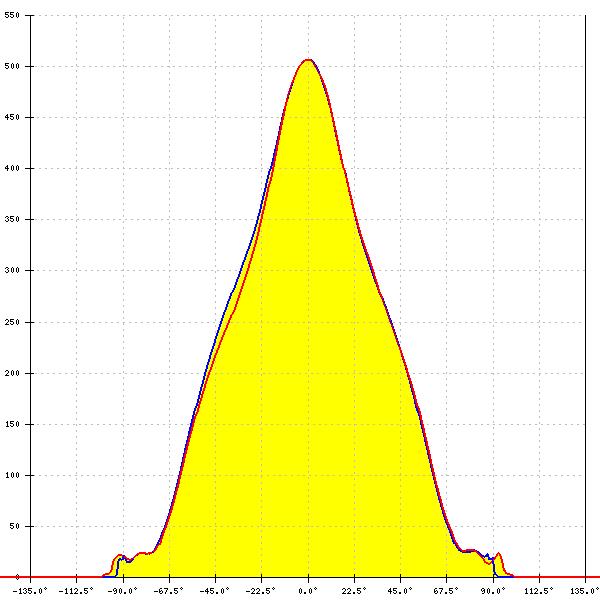

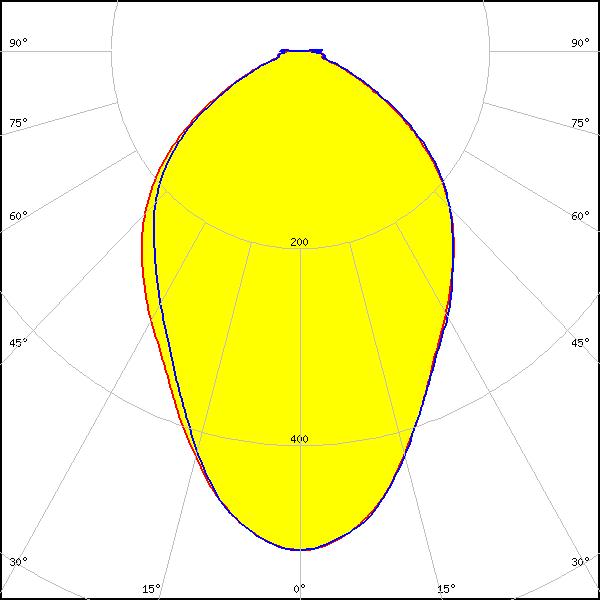

LED: Z8Y22P
FWHM: 79°
FWTM: 138°
Peak intensity: 0.510 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
