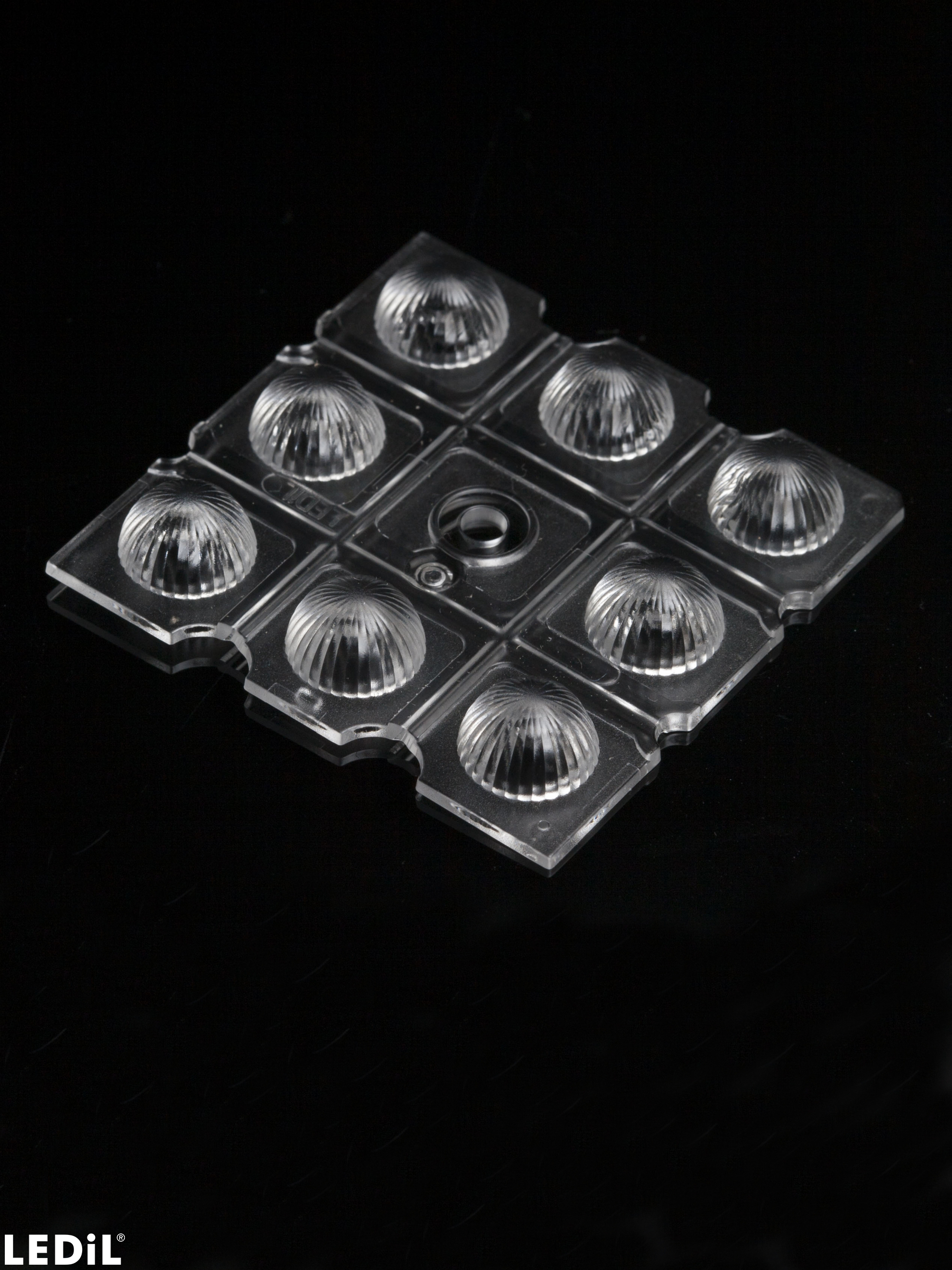

C15185_STRADELLA-8-HB-W
Print
~90° wide beam for industrial applications
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

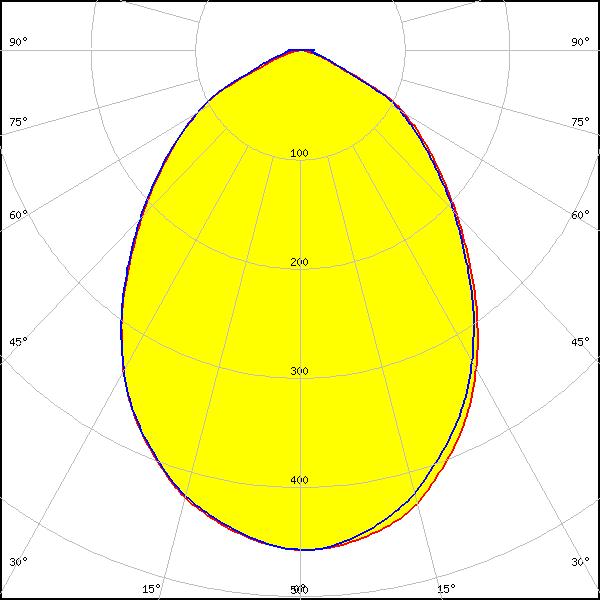

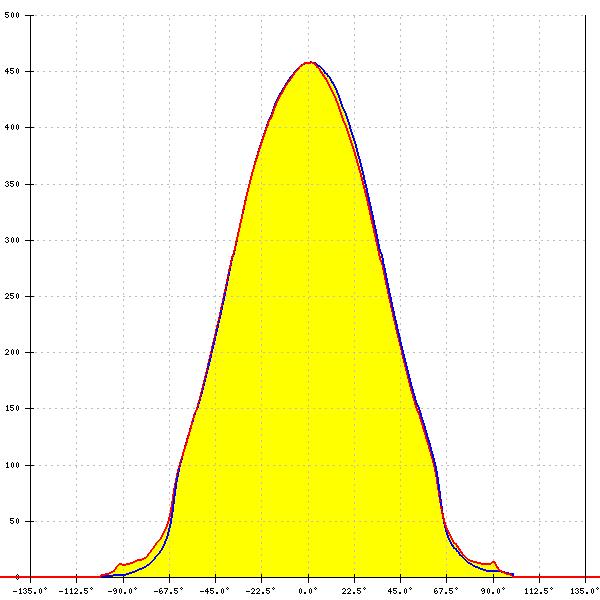

QUICK FLUX XT 2x8 xxx STRDLL G5
FWHM:
85°
FWTM:
135°
Peak intensity:
0.460 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

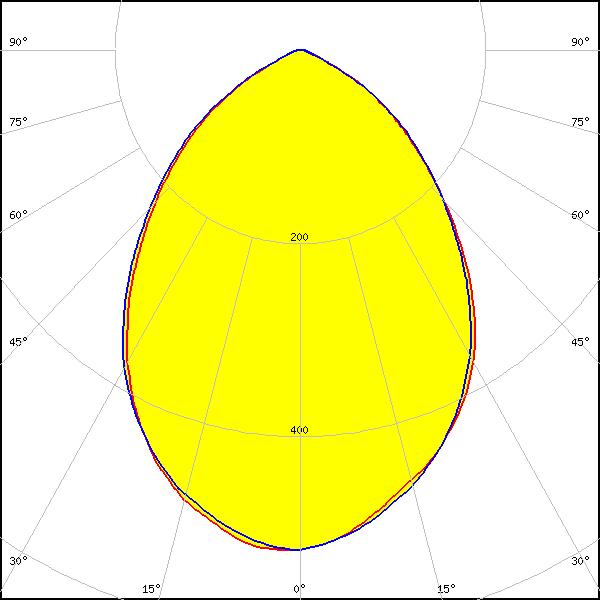

JB3030 HE B Class
FWHM:
83°
FWTM:
128°
Peak intensity:
0.518 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

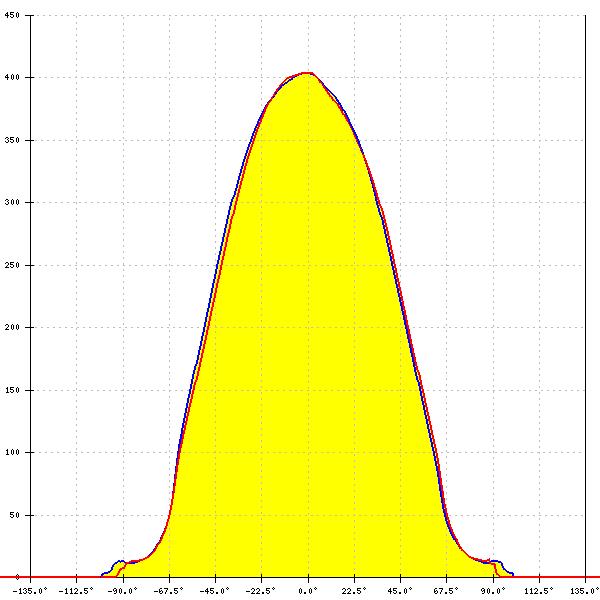

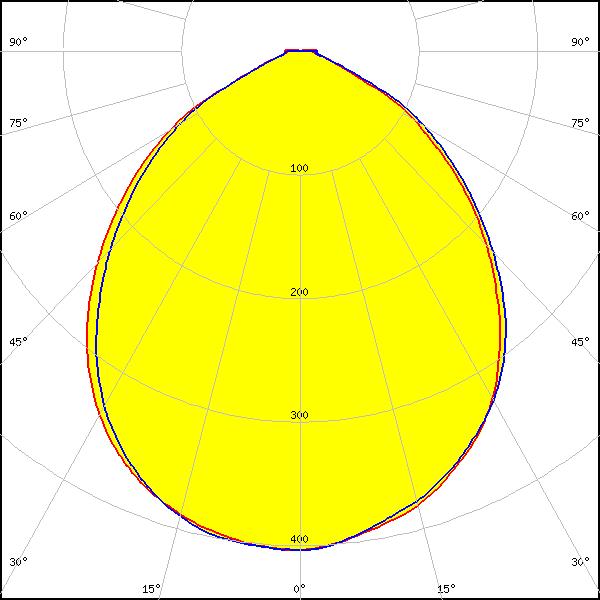

XP-G3
FWHM:
97°
FWTM:
138°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

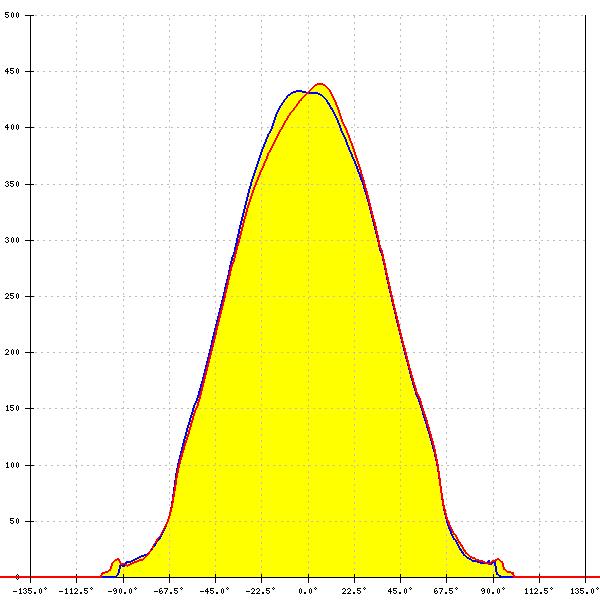

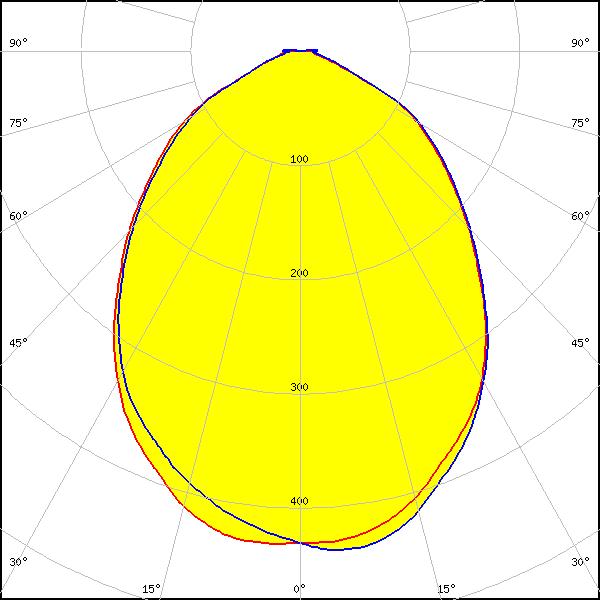

XT-E
FWHM:
91°
FWTM:
-
Peak intensity:
0.000 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:

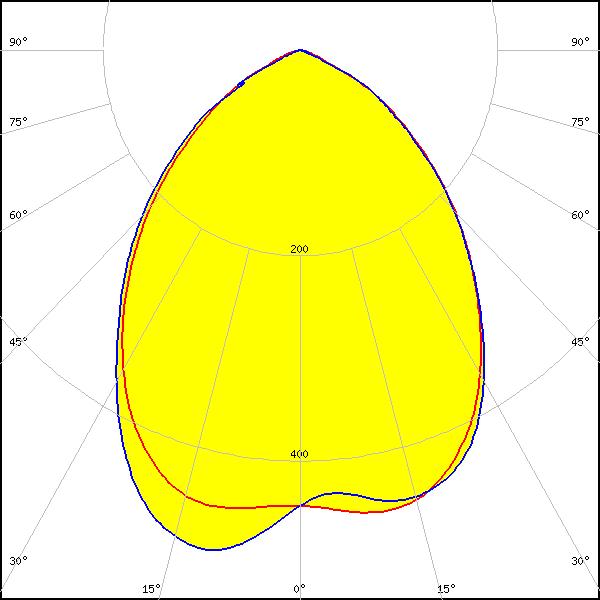

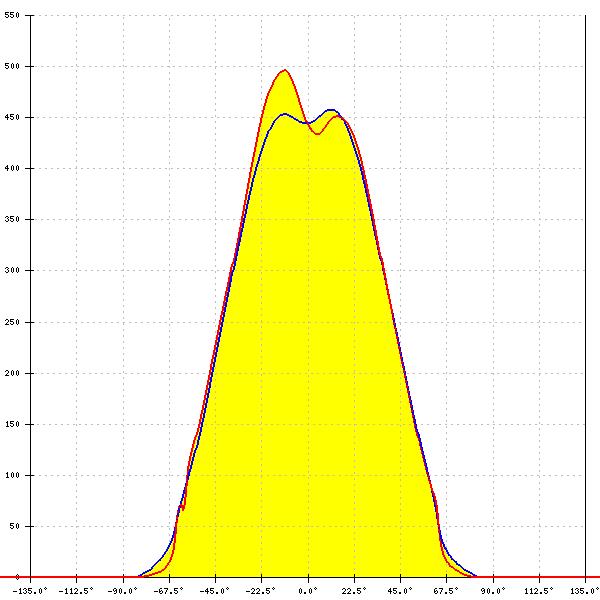

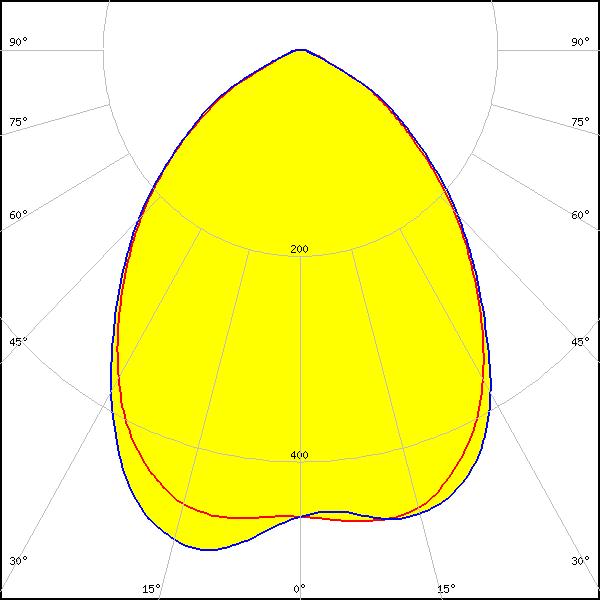

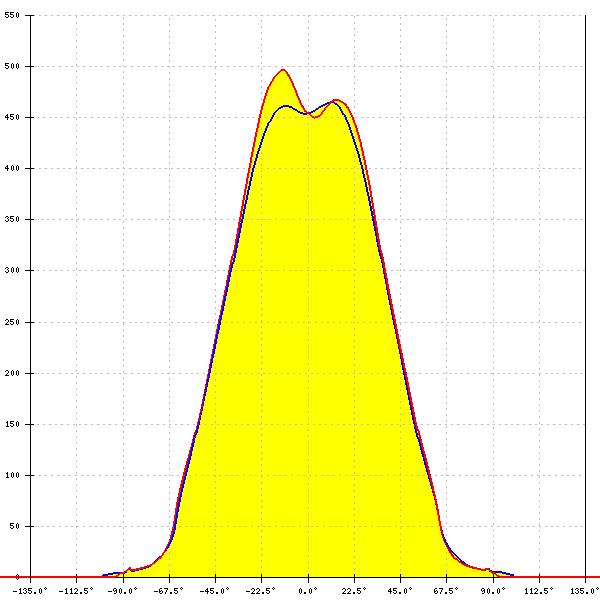

LUXEON 3030 2D (Round LES)
FWHM:
87°
FWTM:
130°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 2D (Round LES)
FWHM:
87°
FWTM:
129°
Peak intensity:
0.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3535L HE
FWHM:
80°
FWTM:
131°
Peak intensity:
0.540 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

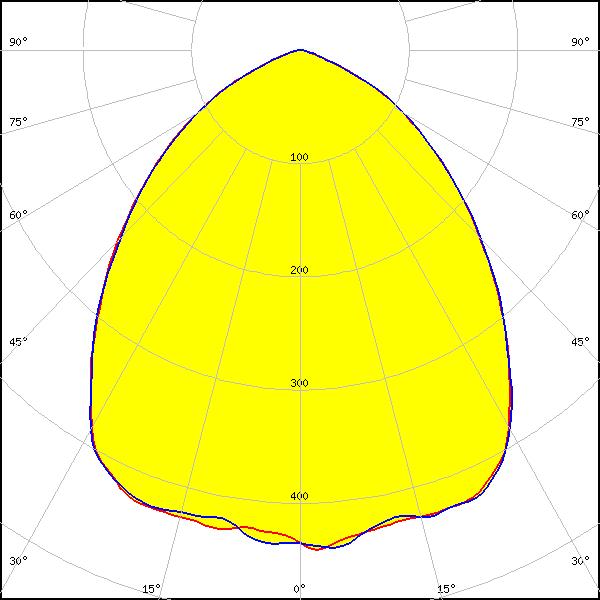

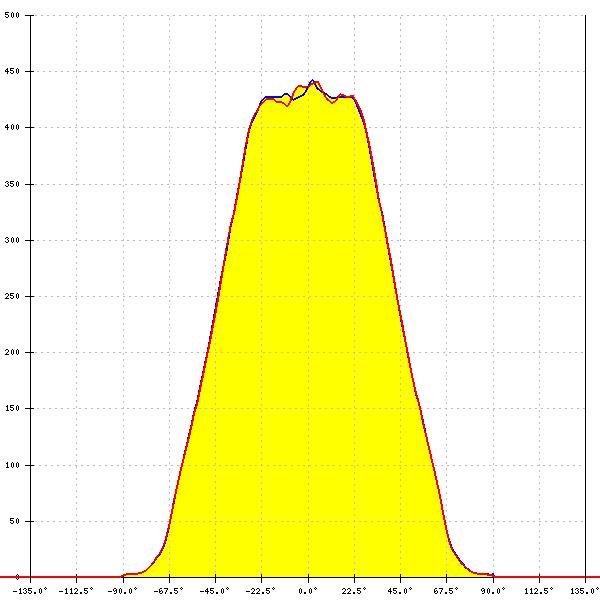

LUXEON CZ
FWHM:
93°
FWTM:
136°
Peak intensity:
0.456 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
Blue
LED:
LUXEON HR30
FWHM:
82°
FWTM:
130°
Peak intensity:
0.530 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

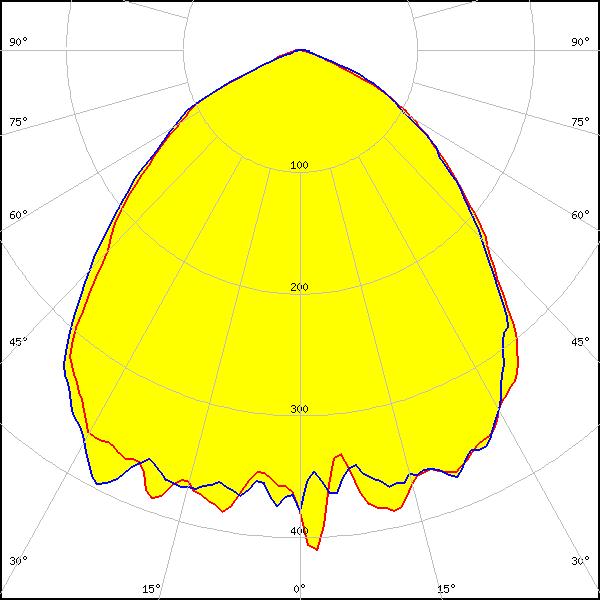

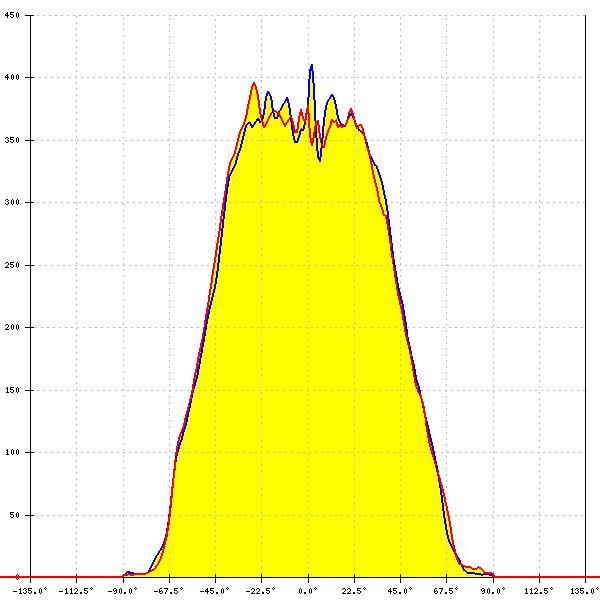

LUXEON TX
FWHM:
84°
FWTM:
139°
Peak intensity:
0.460 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

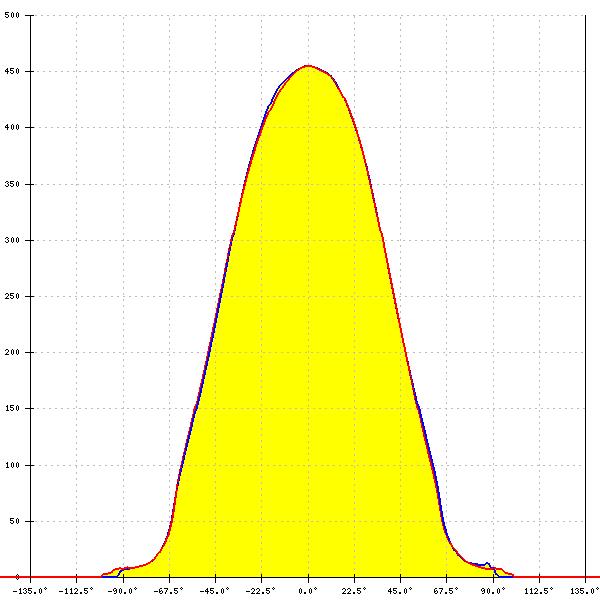

LED:

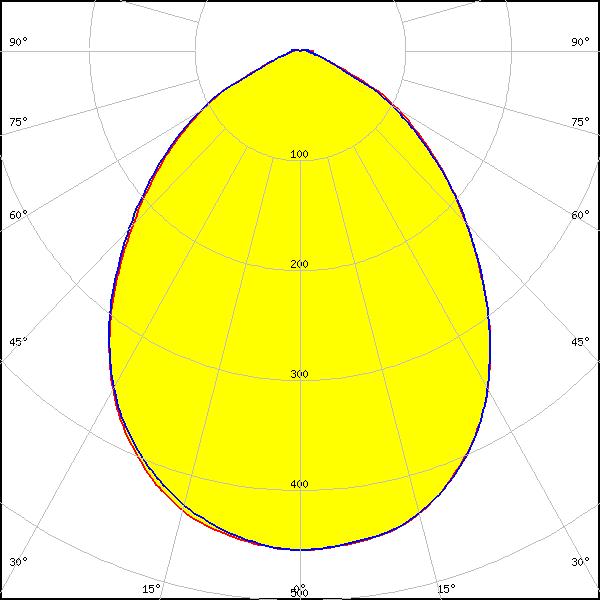

LUXEON V2
FWHM:
90°
FWTM:
133°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

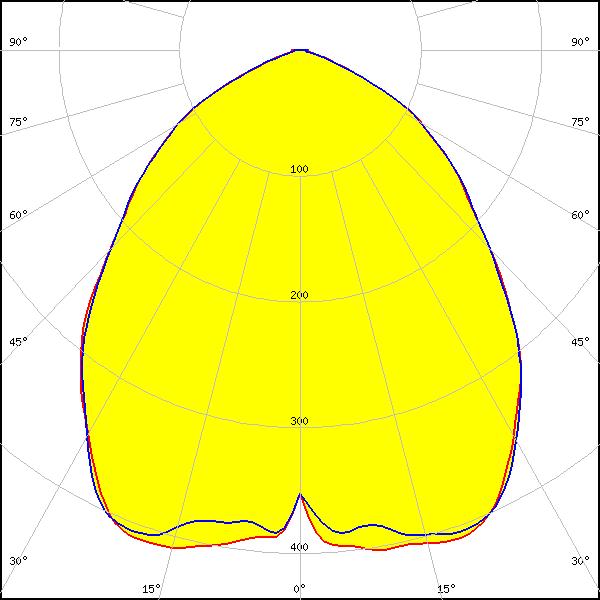

LED:

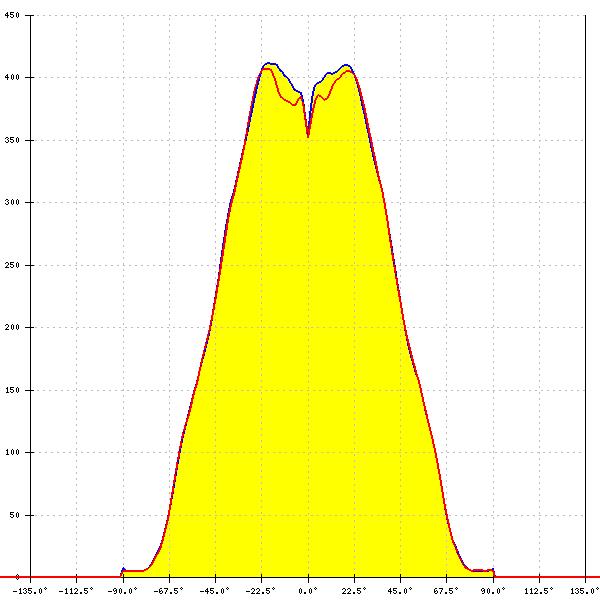

NCSxE17A
FWHM:
90°
FWTM:
138°
Peak intensity:
0.420 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

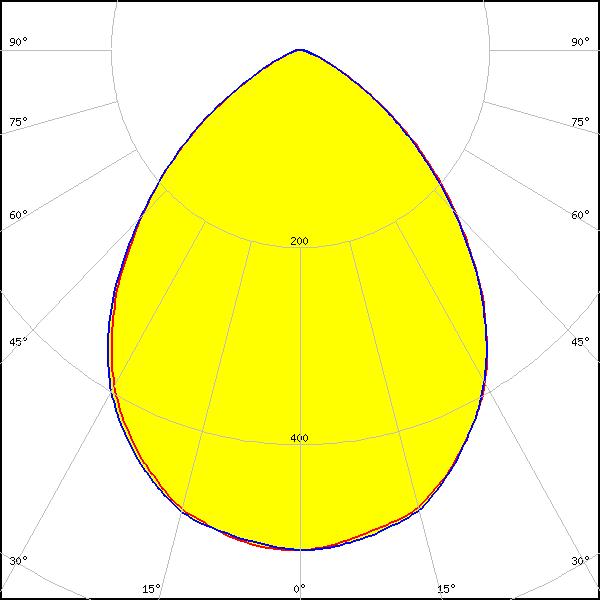

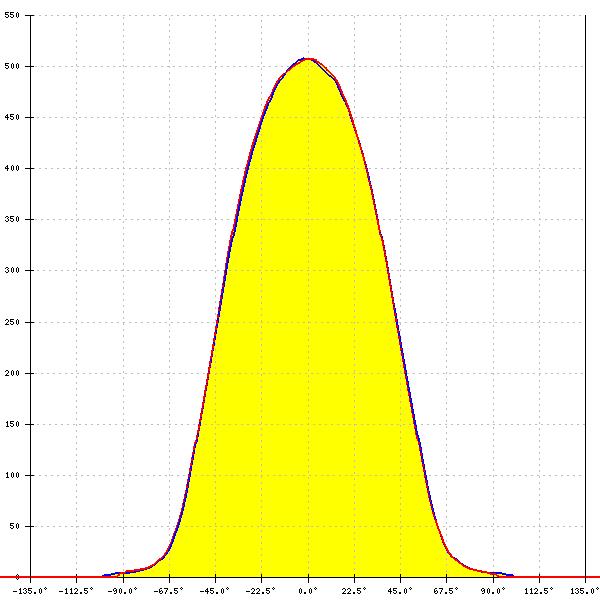

NVSW219D
FWHM:
87°
FWTM:
126°
Peak intensity:
0.510 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

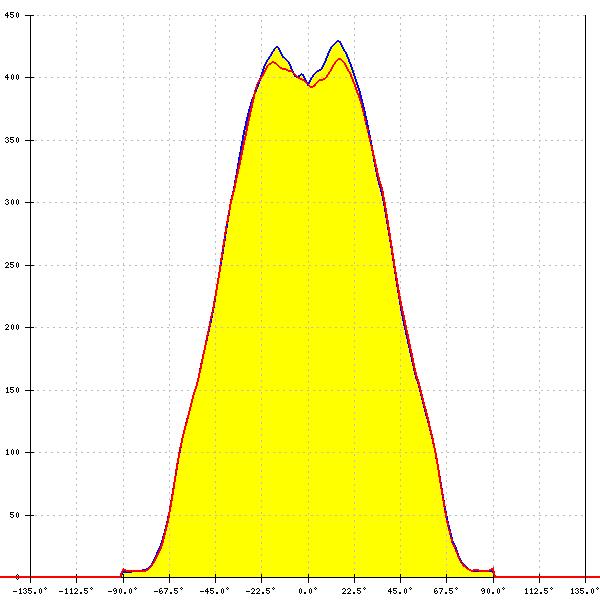

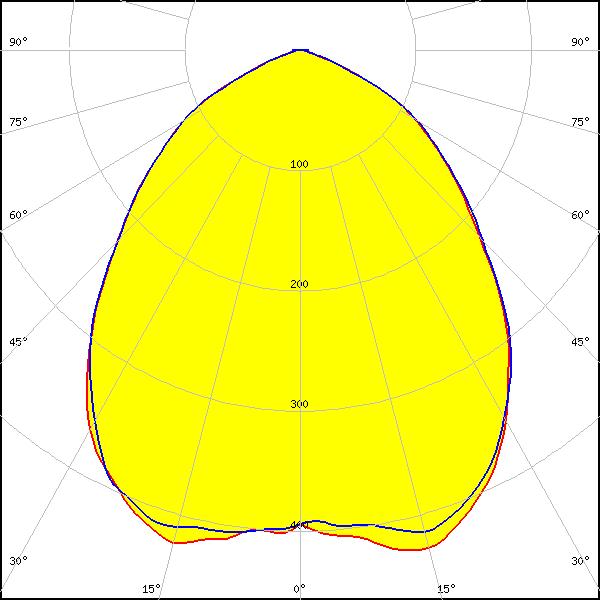

NVSxE21A
FWHM:
90°
FWTM:
138°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
95°
FWTM:
134°
Peak intensity:
0.440 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

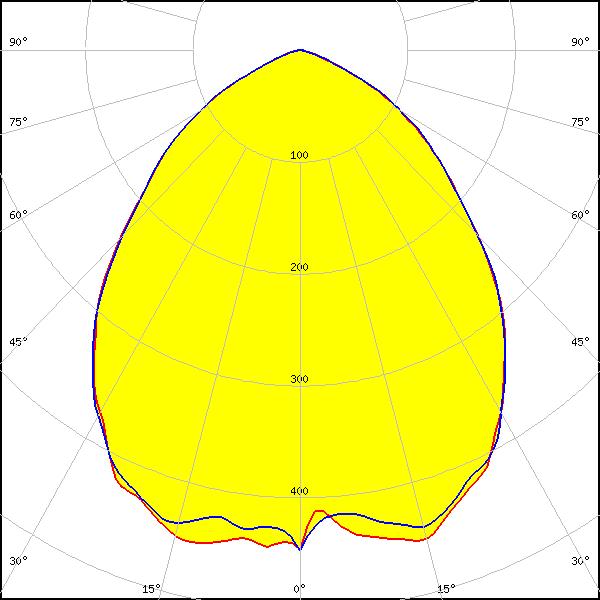

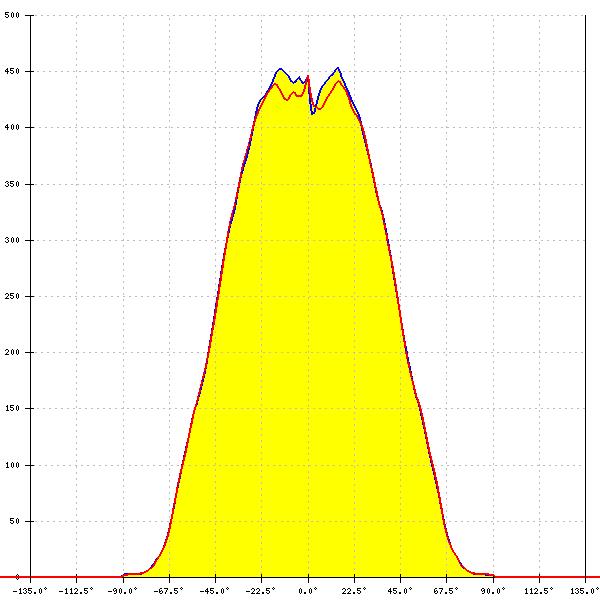

OSCONIQ C 2424 Gen1
FWHM:
92°
FWTM:
134°
Peak intensity:
0.453 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
80°
FWTM:
130°
Peak intensity:
0.571 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (2W version)
FWHM:
90°
FWTM:
133°
Peak intensity:
0.470 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
93°
FWTM:
134°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

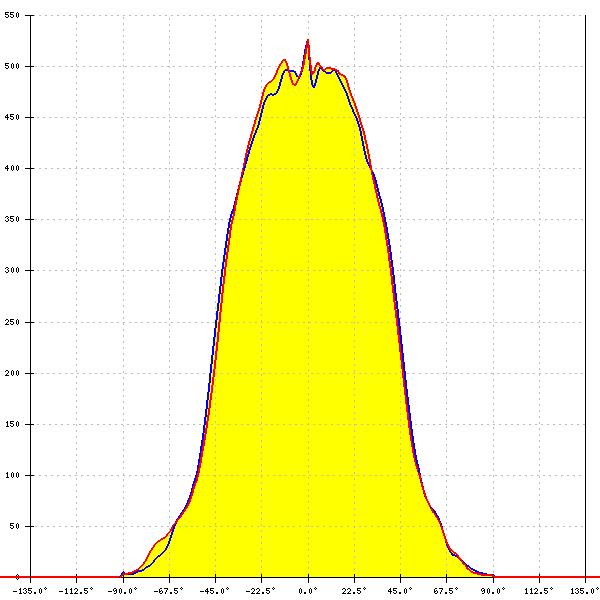

OSLON Square PC
FWHM:
86°
FWTM:
129°
Peak intensity:
0.530 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

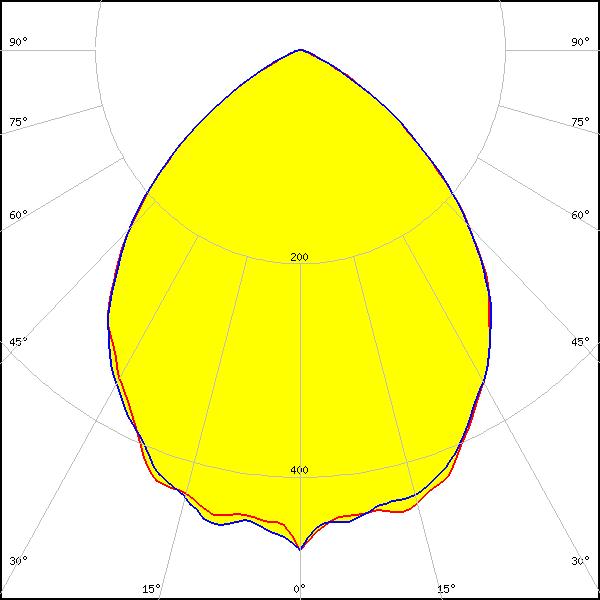

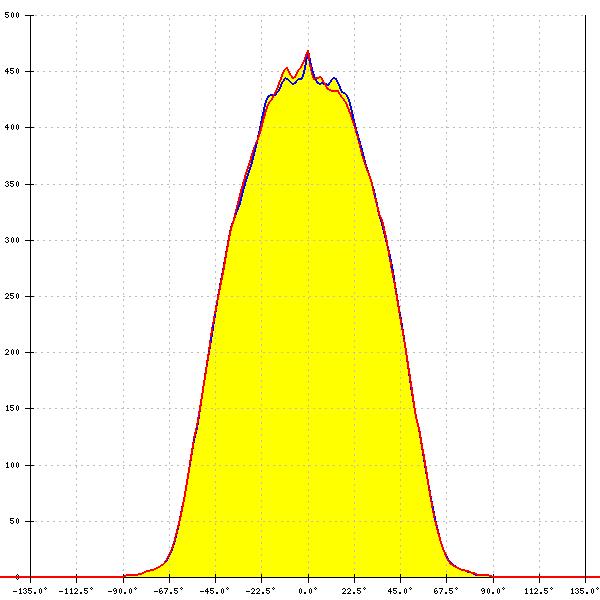

LH351B
FWHM:
90°
FWTM:
126°
Peak intensity:
0.472 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

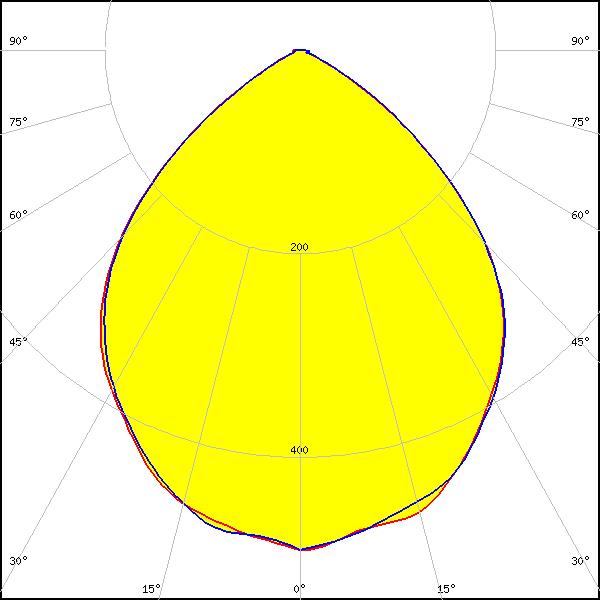

LED:

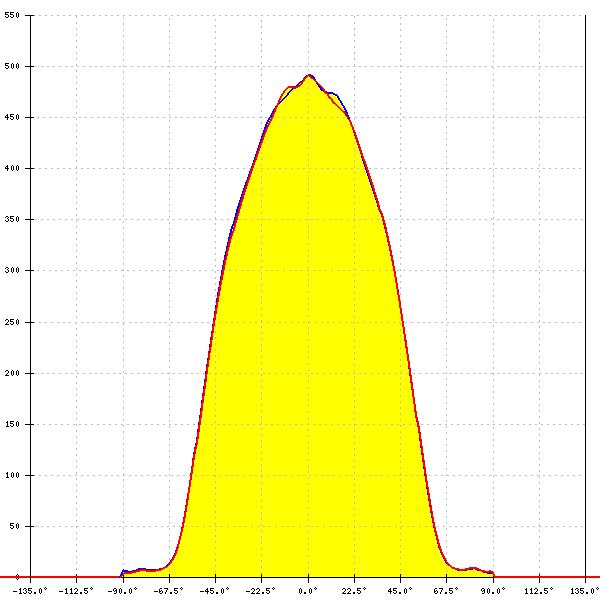

LH351C
FWHM:
93°
FWTM:
123°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

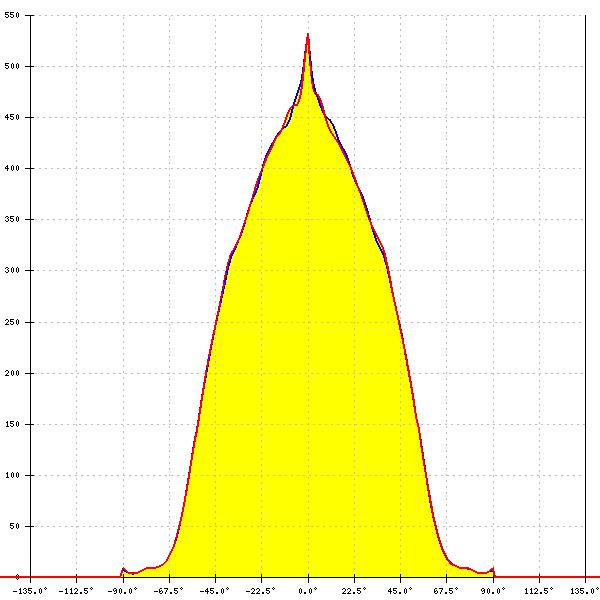

LED:

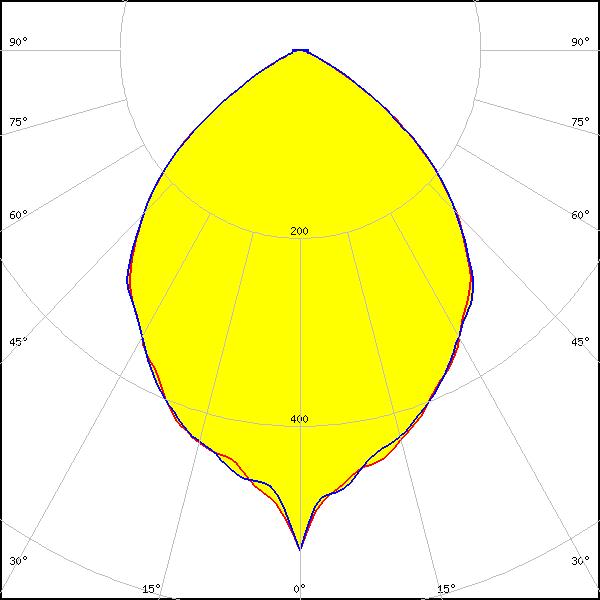

LH351D
FWHM:
86°
FWTM:
124°
Peak intensity:
0.532 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
94°
FWTM:
130°
Peak intensity:
0.478 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
94°
FWTM:
130°
Peak intensity:
0.430 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

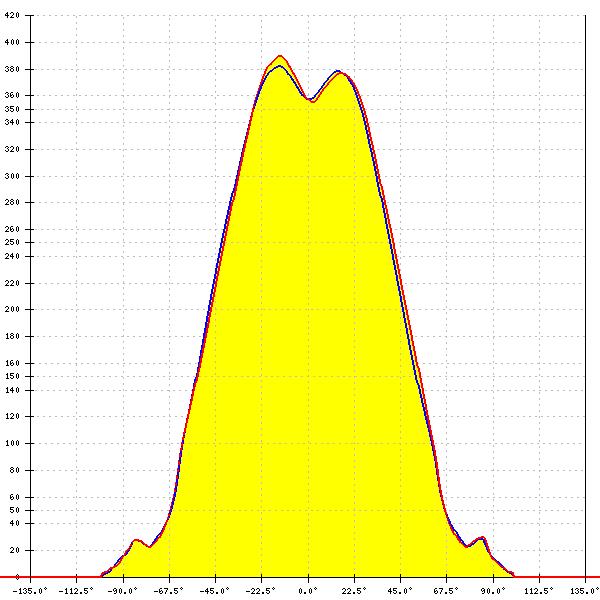

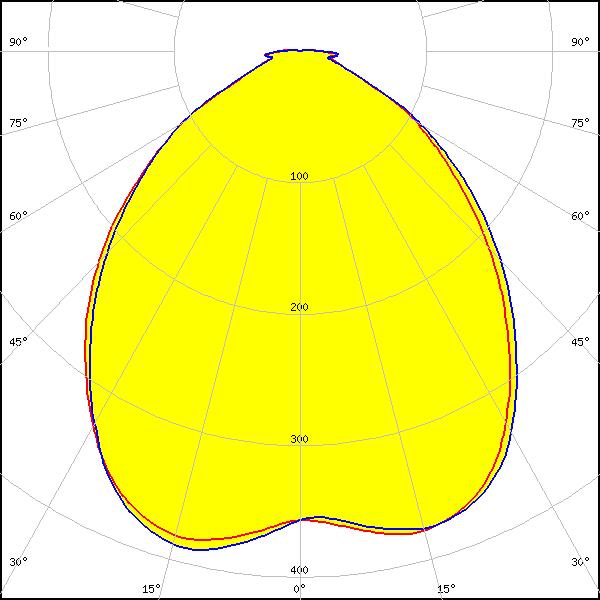

Z8Y19
FWHM:
100°
FWTM:
142°
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

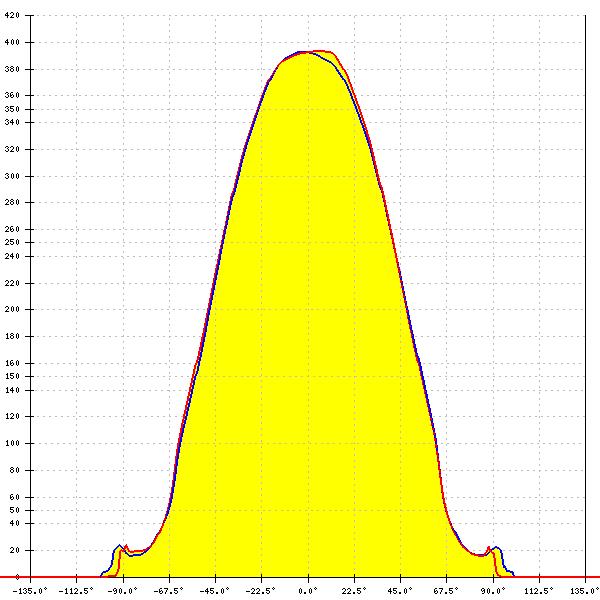

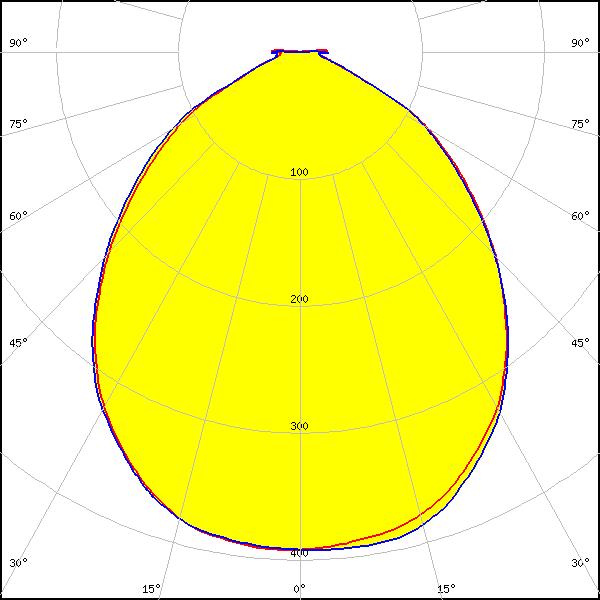

Z8Y22P
FWHM:
98°
FWTM:
141°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
