C15245_STRADELLA-HB-S
Print
~25° spot beam for industrial applications
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

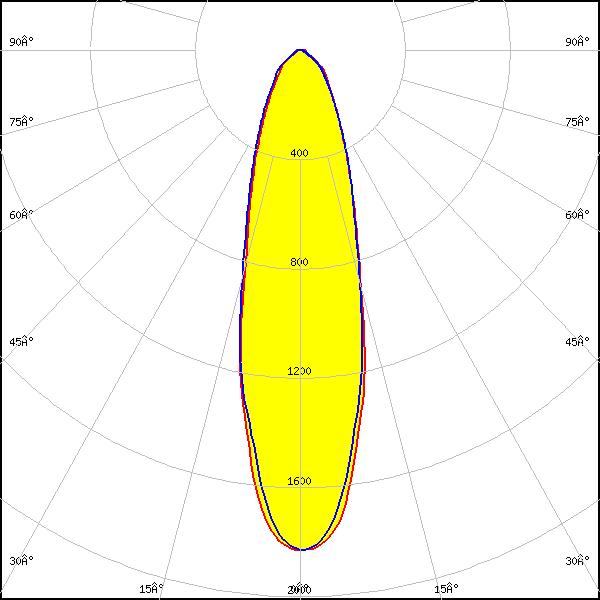

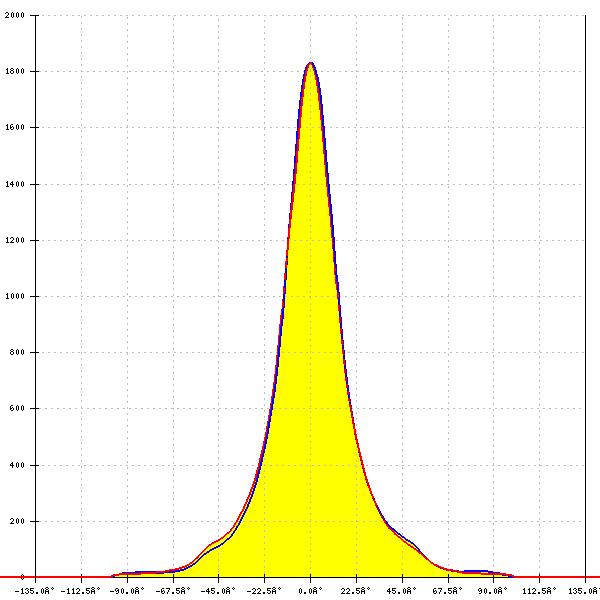

JB3030 HE B Class
FWHM:
29°
FWTM:
75°
Peak intensity:
1.830 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

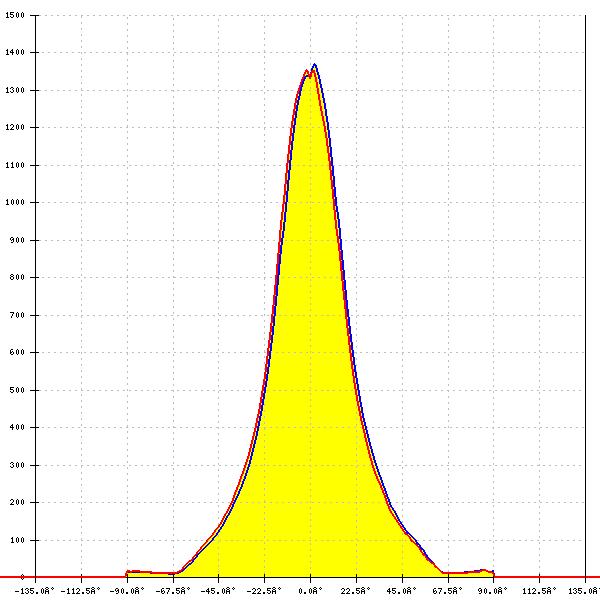

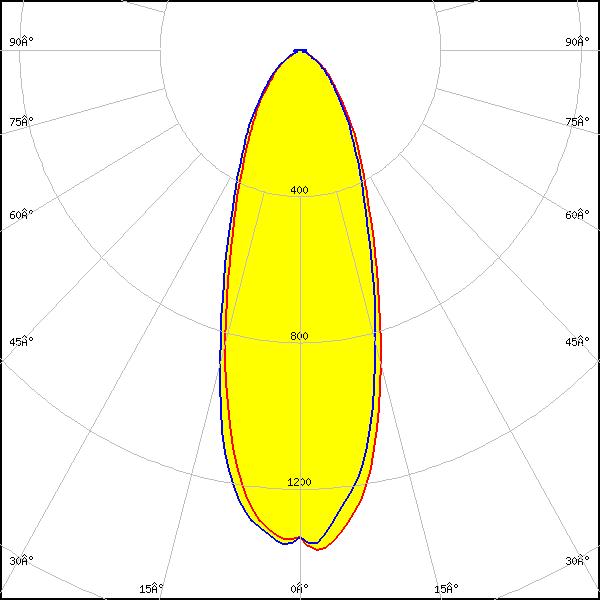

LED:
XP-G2 HE
FWHM:
37°
FWTM:
88°
Peak intensity:
1.397 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

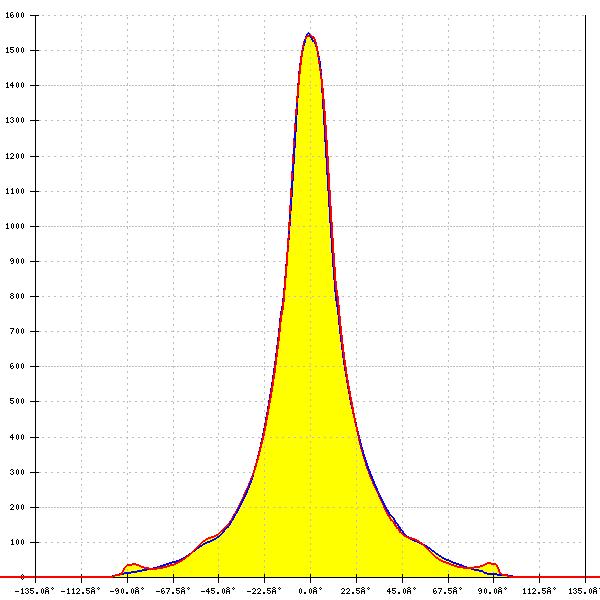

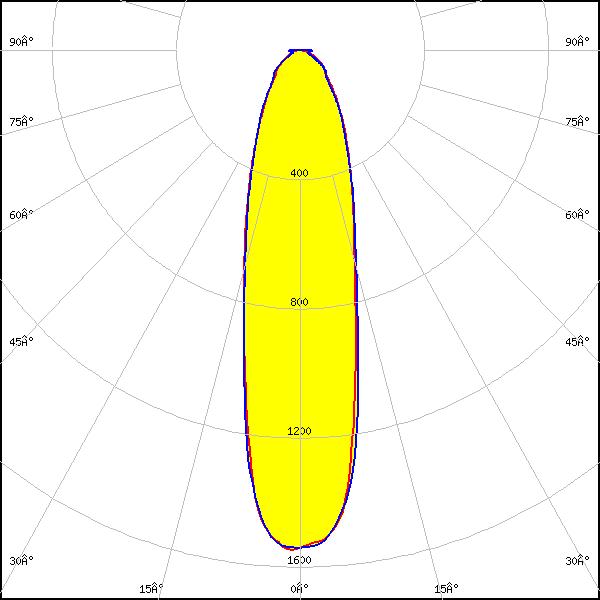

LED:
XT-E
FWHM:
27°
FWTM:
81°
Peak intensity:
1.550 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

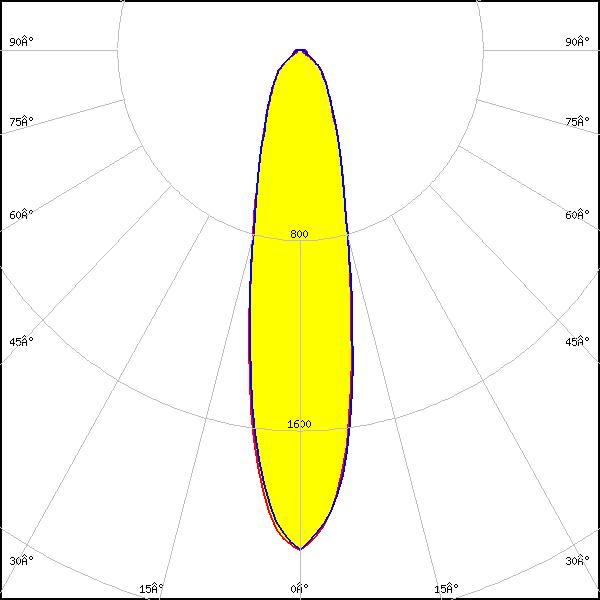

LED:
LUXEON HL2Z
FWHM:
24°
FWTM:
72°
Peak intensity:
2.102 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

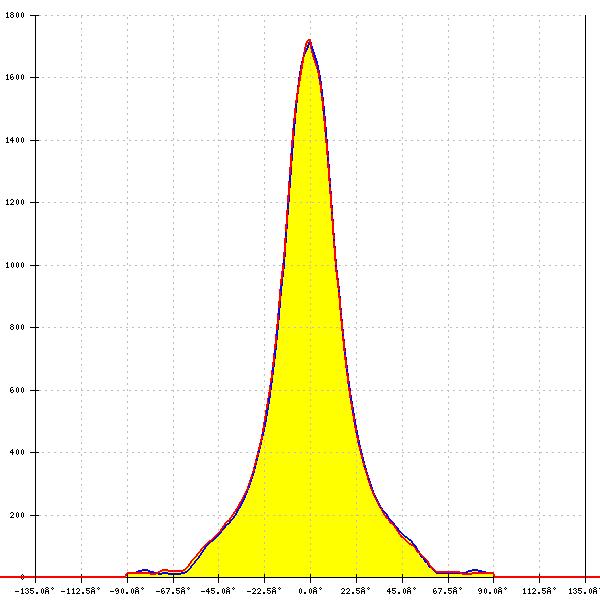

LED:

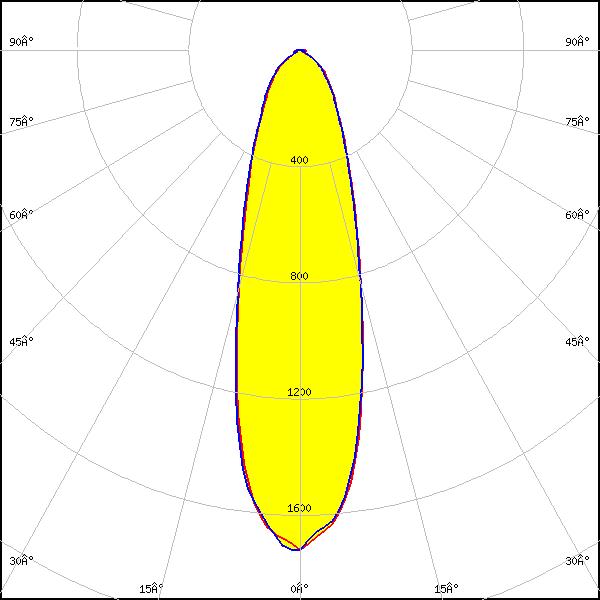

LUXEON HL4Z
FWHM:
30°
FWTM:
81°
Peak intensity:
1.721 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR Domed 150 (L1I0-0xxx150000000)
FWHM:
23°
FWTM:
83°
Peak intensity:
0.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

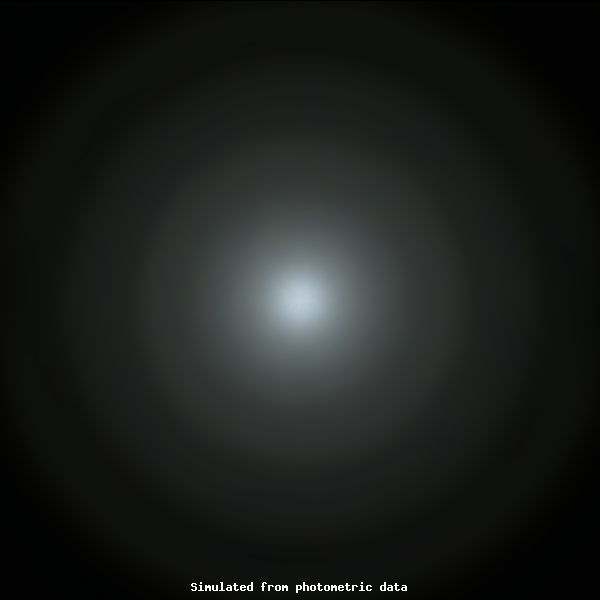

SFT-12R-W-A
FWHM:
18°
FWTM:
60°
Peak intensity:
2.943 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

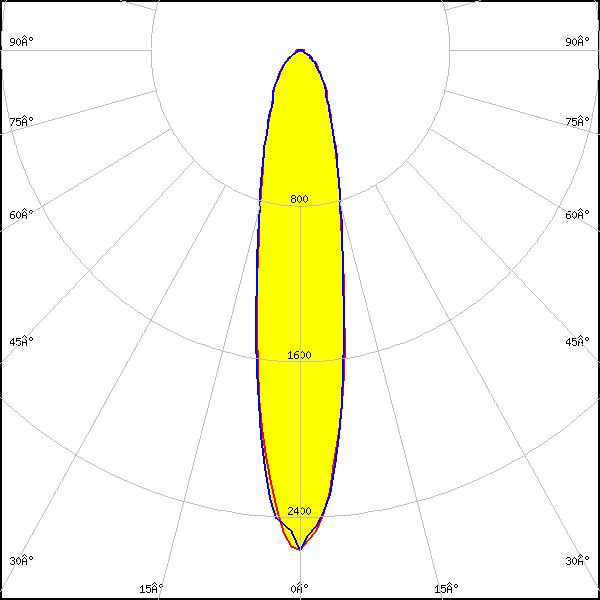

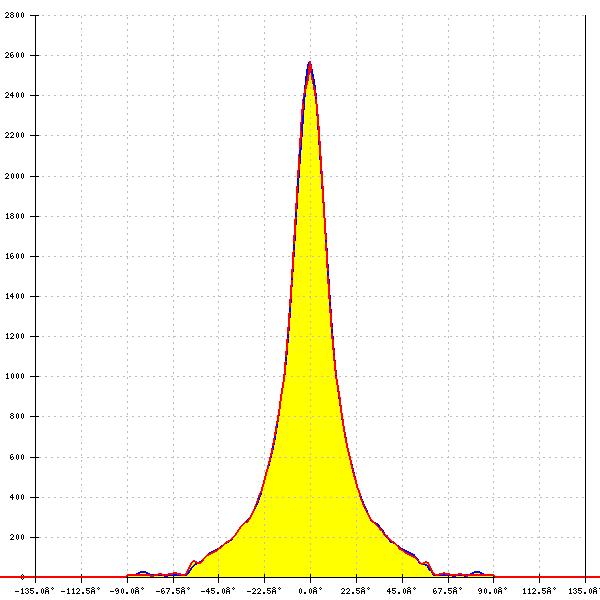

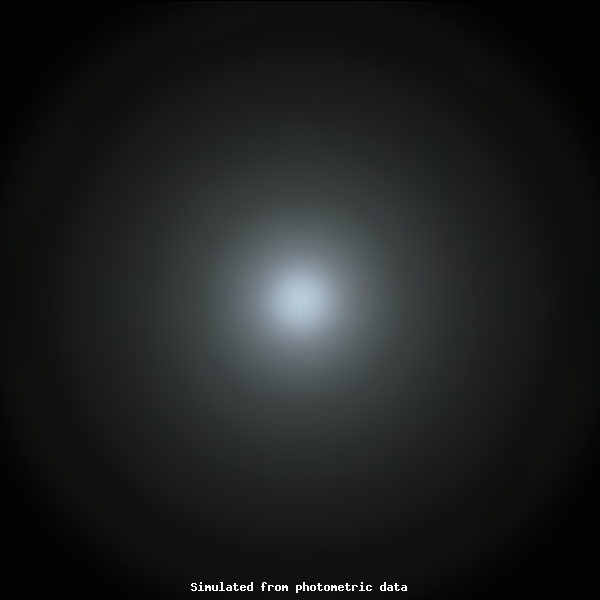

LED:
SFT-25R-W-A
FWHM:
21° + 20°
FWTM:
68° + 67°
Peak intensity:
2.606 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

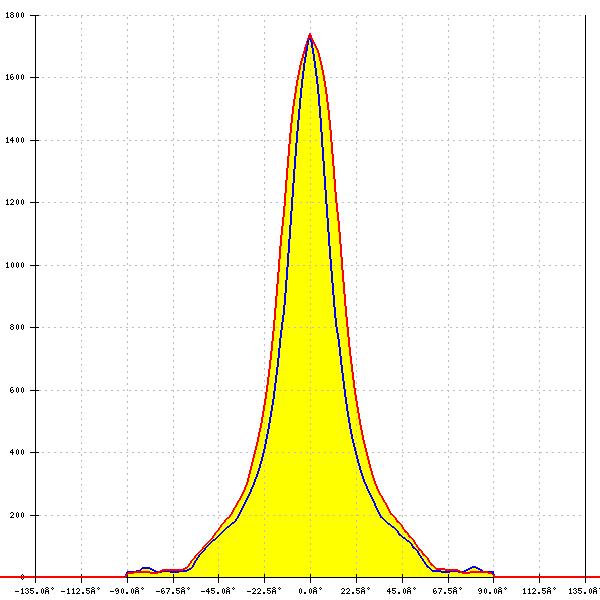

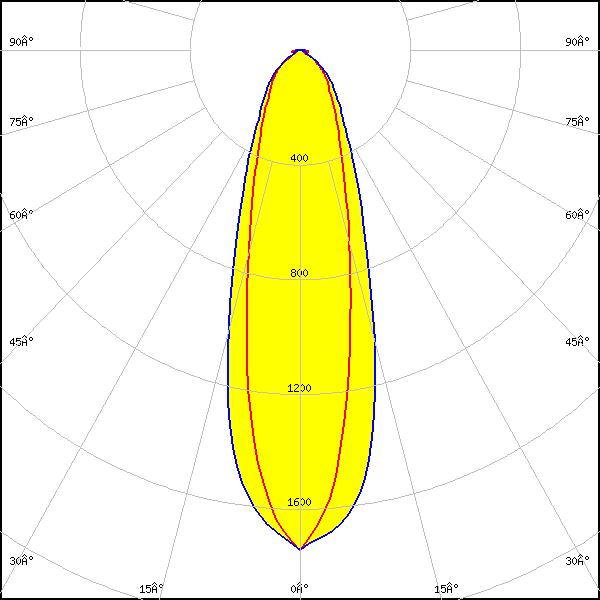

LED:
NF2W585AR-P8
FWHM:
25° + 34°
FWTM:
76° + 86°
Peak intensity:
1.744 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

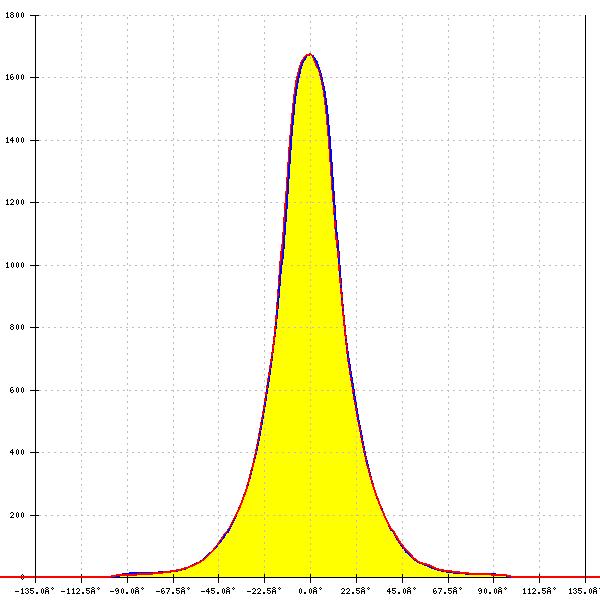

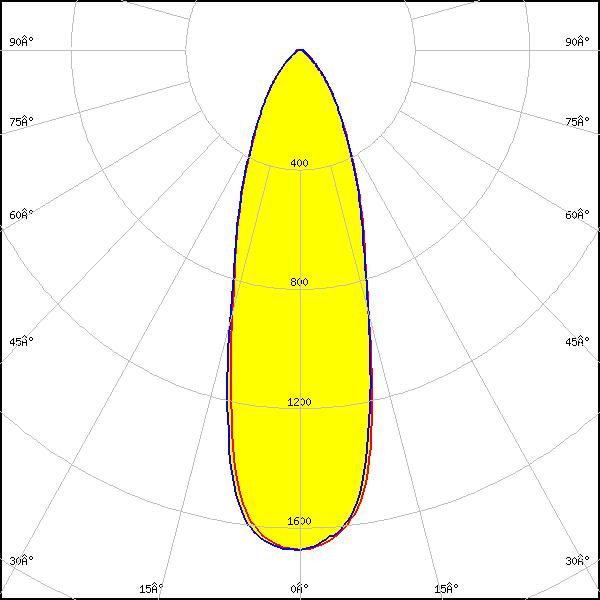

LED:
NVSW219D
FWHM:
32°
FWTM:
78°
Peak intensity:
1.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

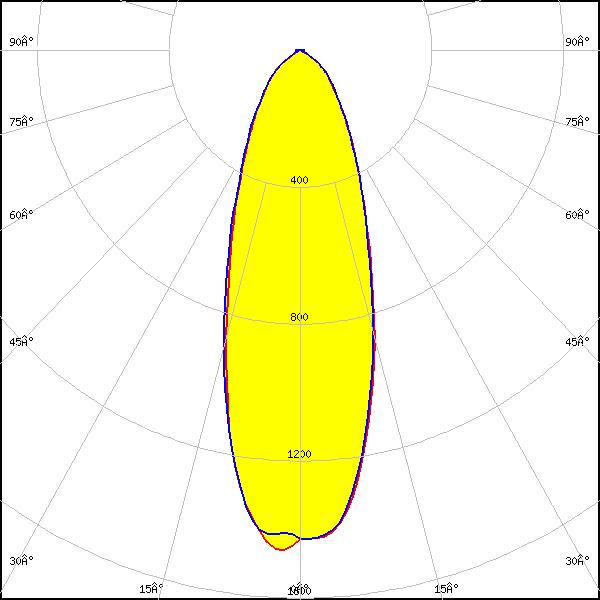

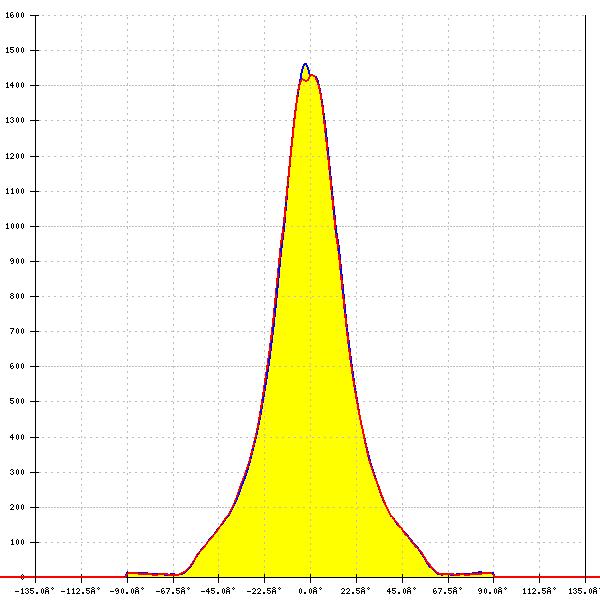

LED:
NVSW219F
FWHM:
36°
FWTM:
88°
Peak intensity:
1.485 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

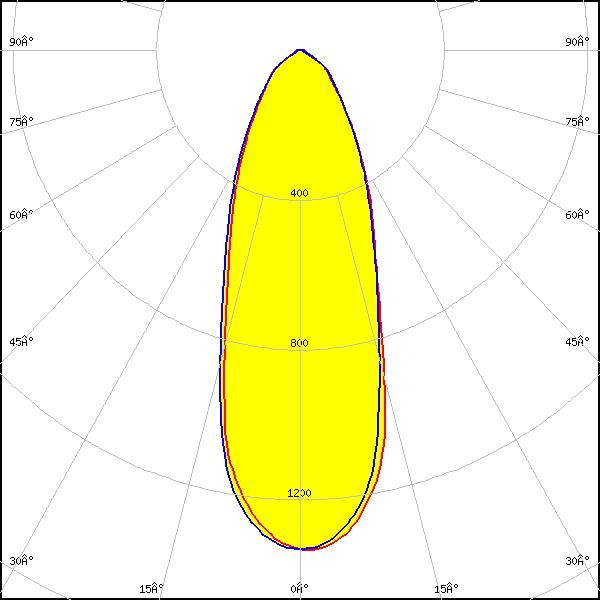

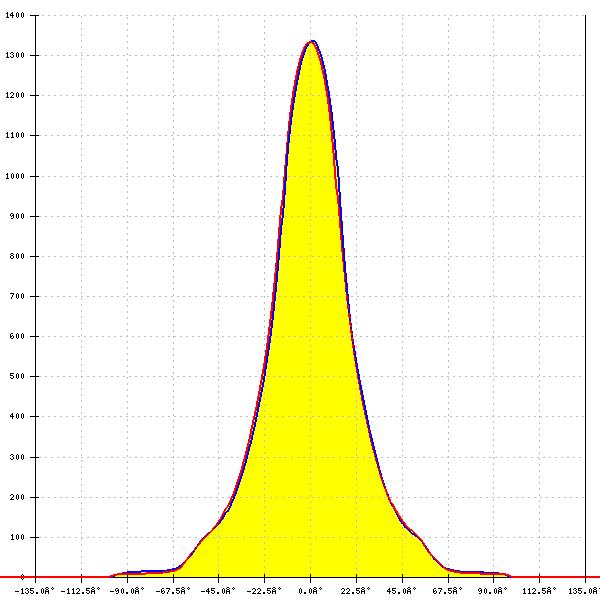

LED:
NVSW319B
FWHM:
37°
FWTM:
91°
Peak intensity:
1.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM:
43°
FWTM:
94°
Peak intensity:
1.157 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
31°
FWTM:
86°
Peak intensity:
1.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

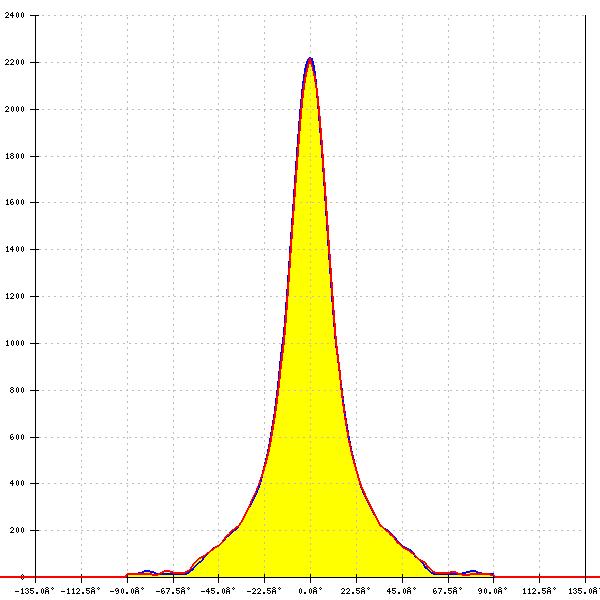

LED:

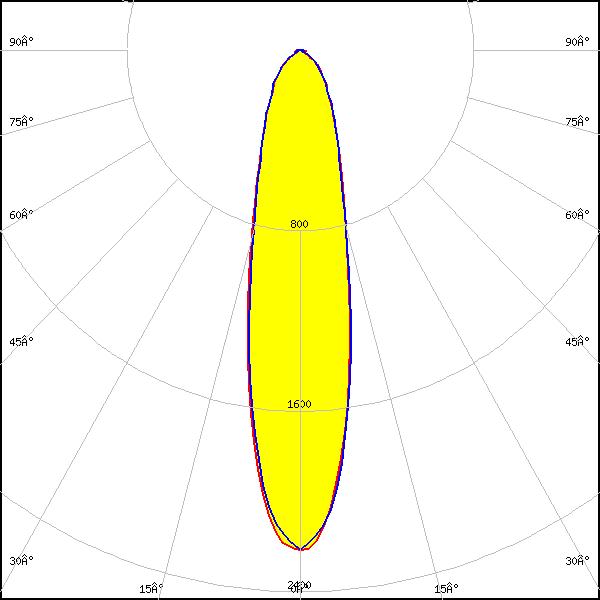

OSCONIQ C 2424 Gen1
FWHM:
24°
FWTM:
70°
Peak intensity:
2.225 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

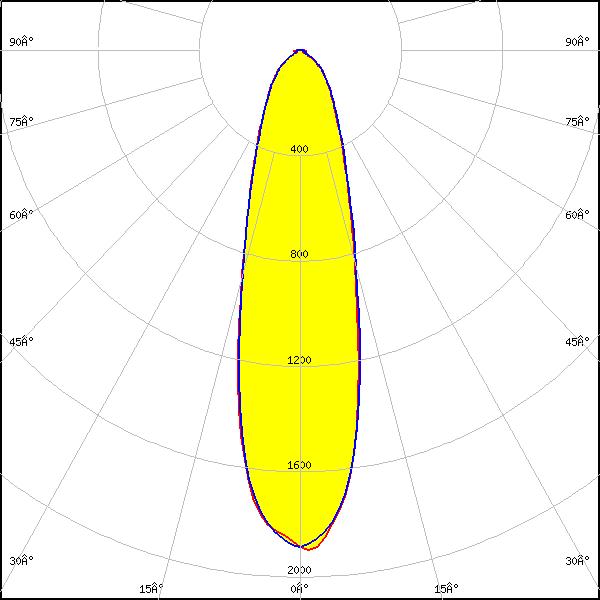

OSCONIQ C 3030
FWHM:
28°
FWTM:
77°
Peak intensity:
1.913 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
28°
FWTM:
77°
Peak intensity:
1.751 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

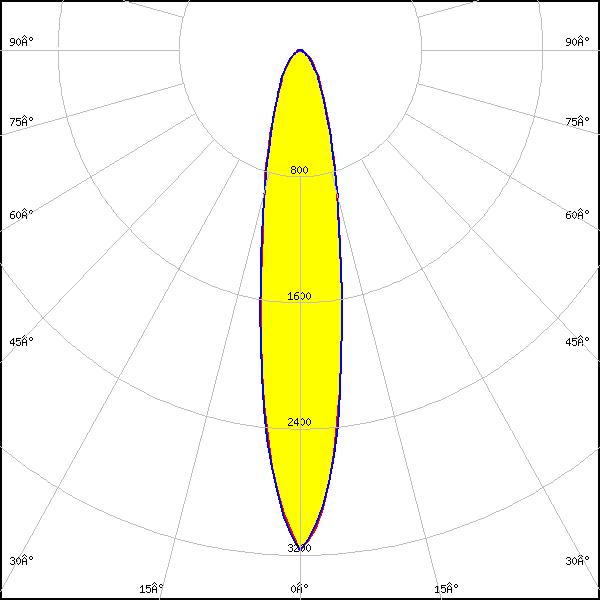

LED:

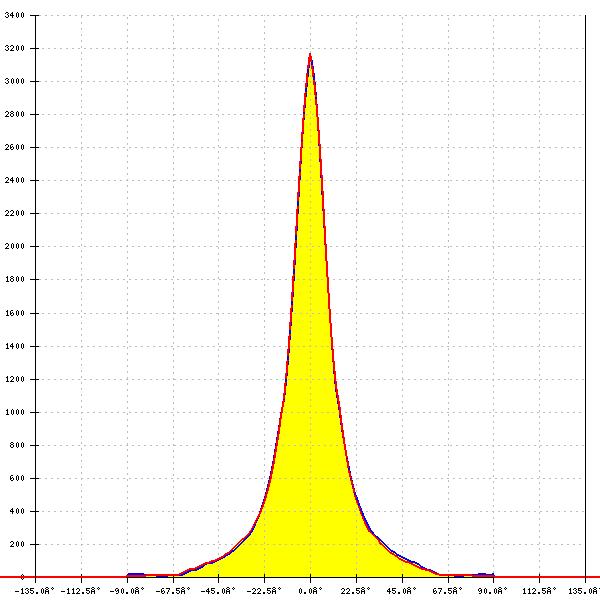

OSCONIQ P 3030
FWHM:
20°
FWTM:
55°
Peak intensity:
3.169 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

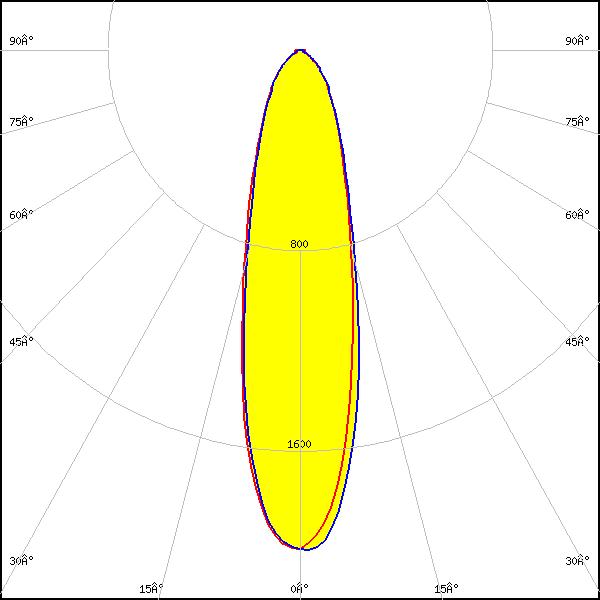

LED:
OSCONIQ P 3737 (2W version)
FWHM:
27°
FWTM:
74°
Peak intensity:
2.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Pure 1414
FWHM:
18°
FWTM:
58°
Peak intensity:
2.984 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

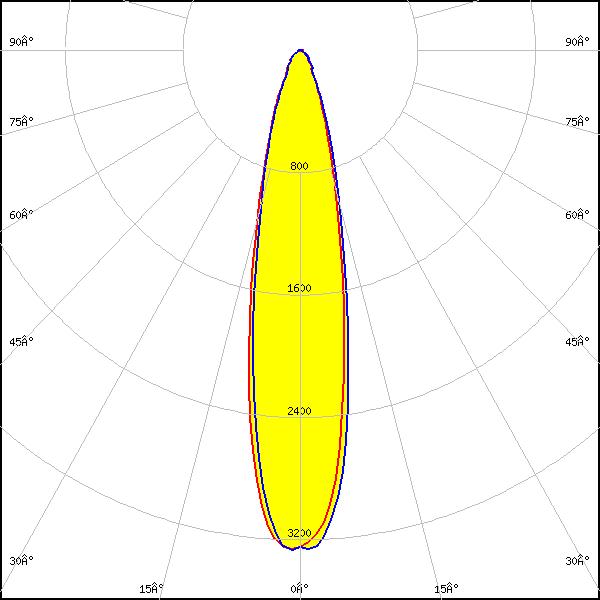

LED:

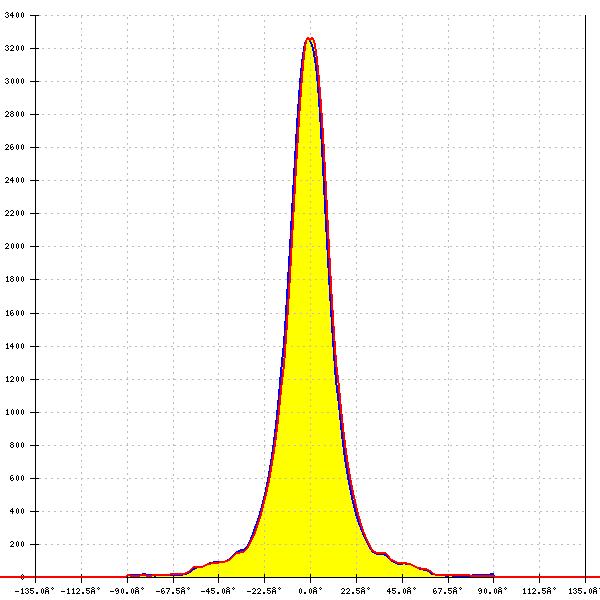

OSLON SSL 80
FWHM:
22°
FWTM:
50°
Peak intensity:
3.311 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

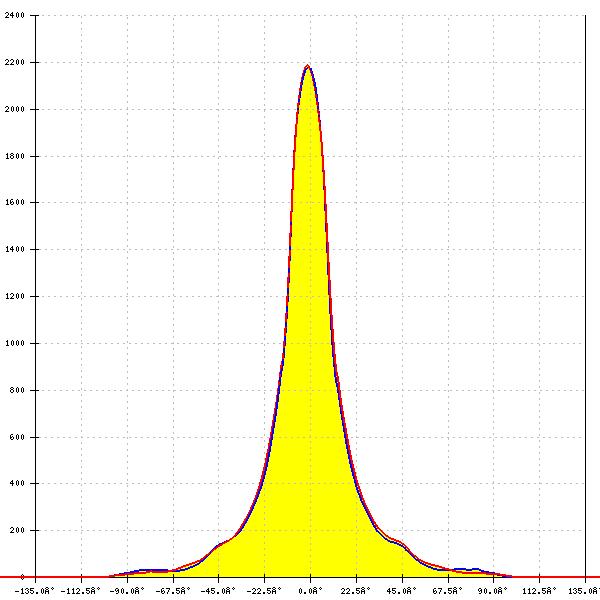

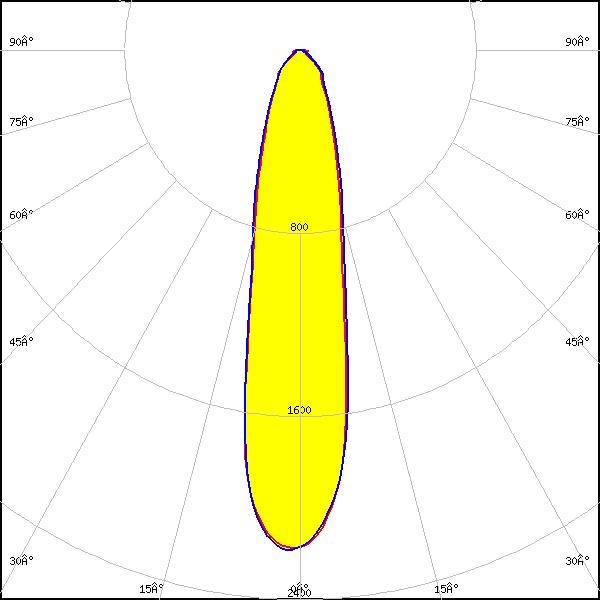

LH181B
FWHM:
23°
FWTM:
65°
Peak intensity:
2.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

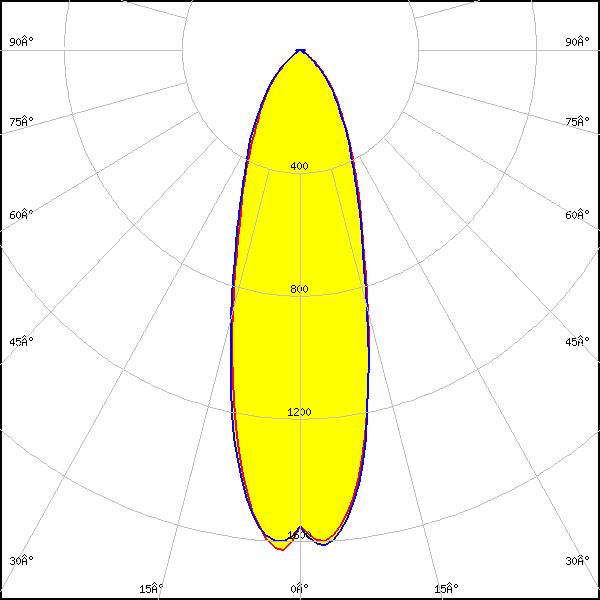

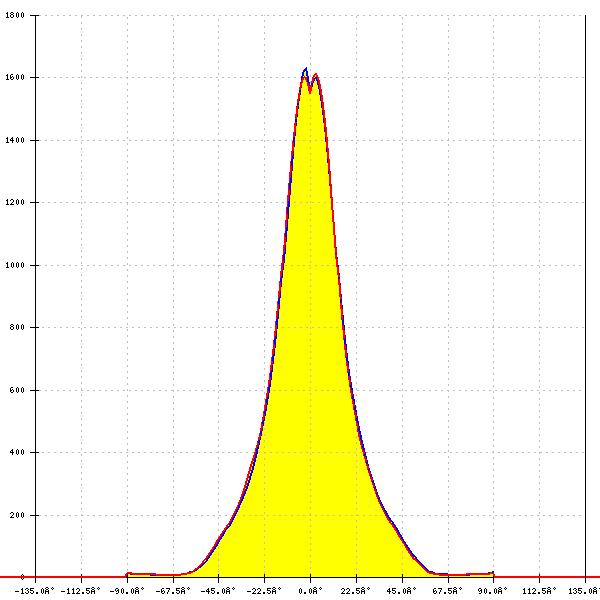

LED:
LH351B
FWHM:
32°
FWTM:
81°
Peak intensity:
1.650 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

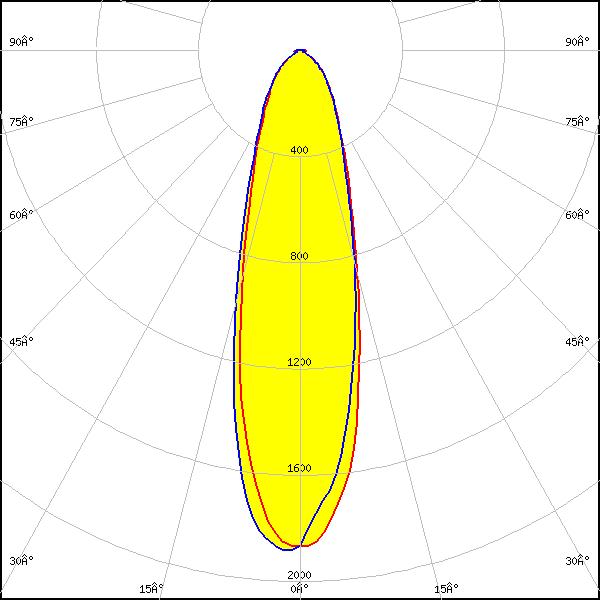

LED:

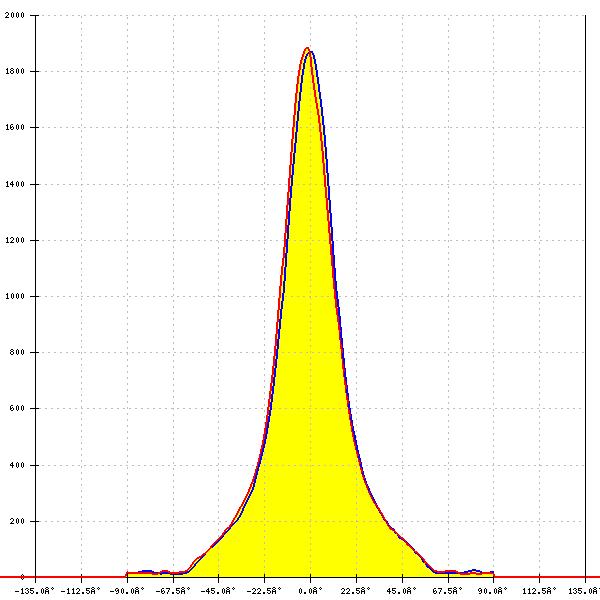

LM28xB Series
FWHM:
28°
FWTM:
77°
Peak intensity:
1.920 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

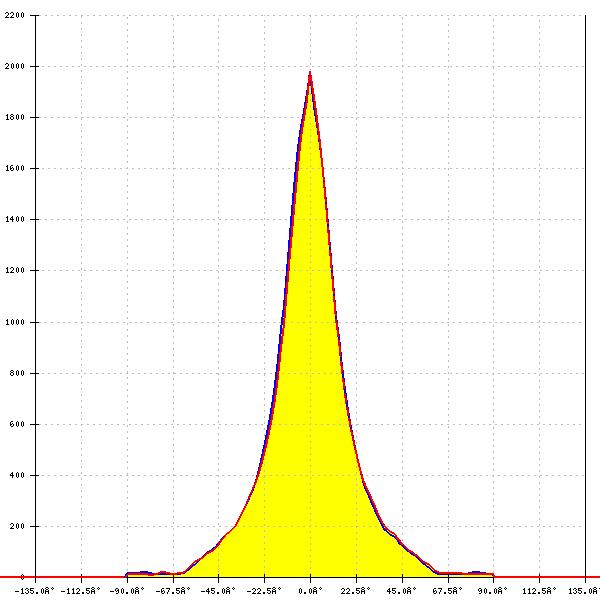

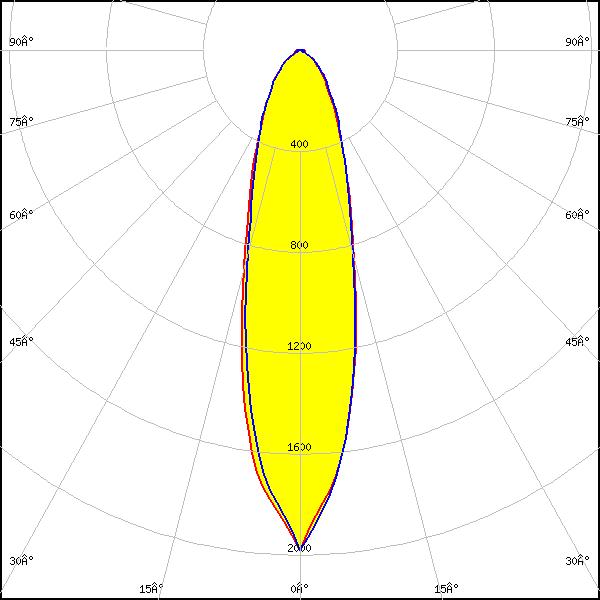

LED:
Z5M1/Z5M2
FWHM:
27°
FWTM:
73°
Peak intensity:
2.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

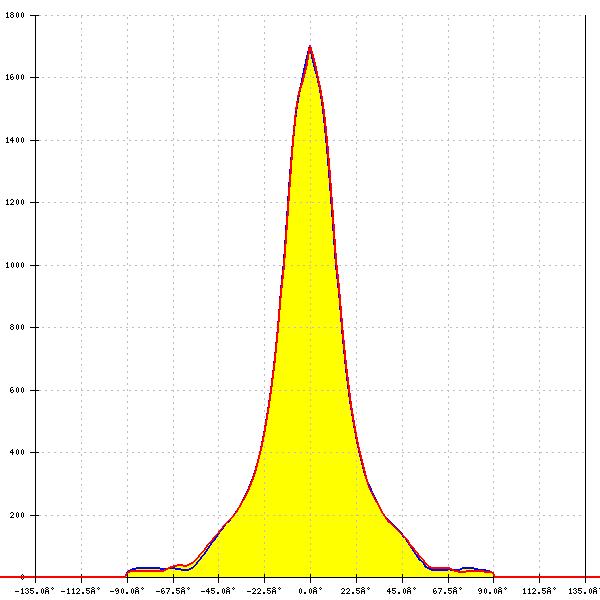

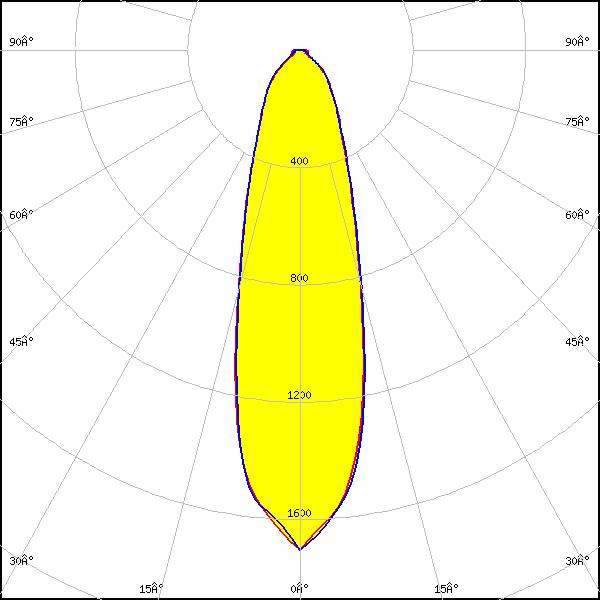

LED:
Z8Y22T
FWHM:
30°
FWTM:
80°
Peak intensity:
1.710 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
