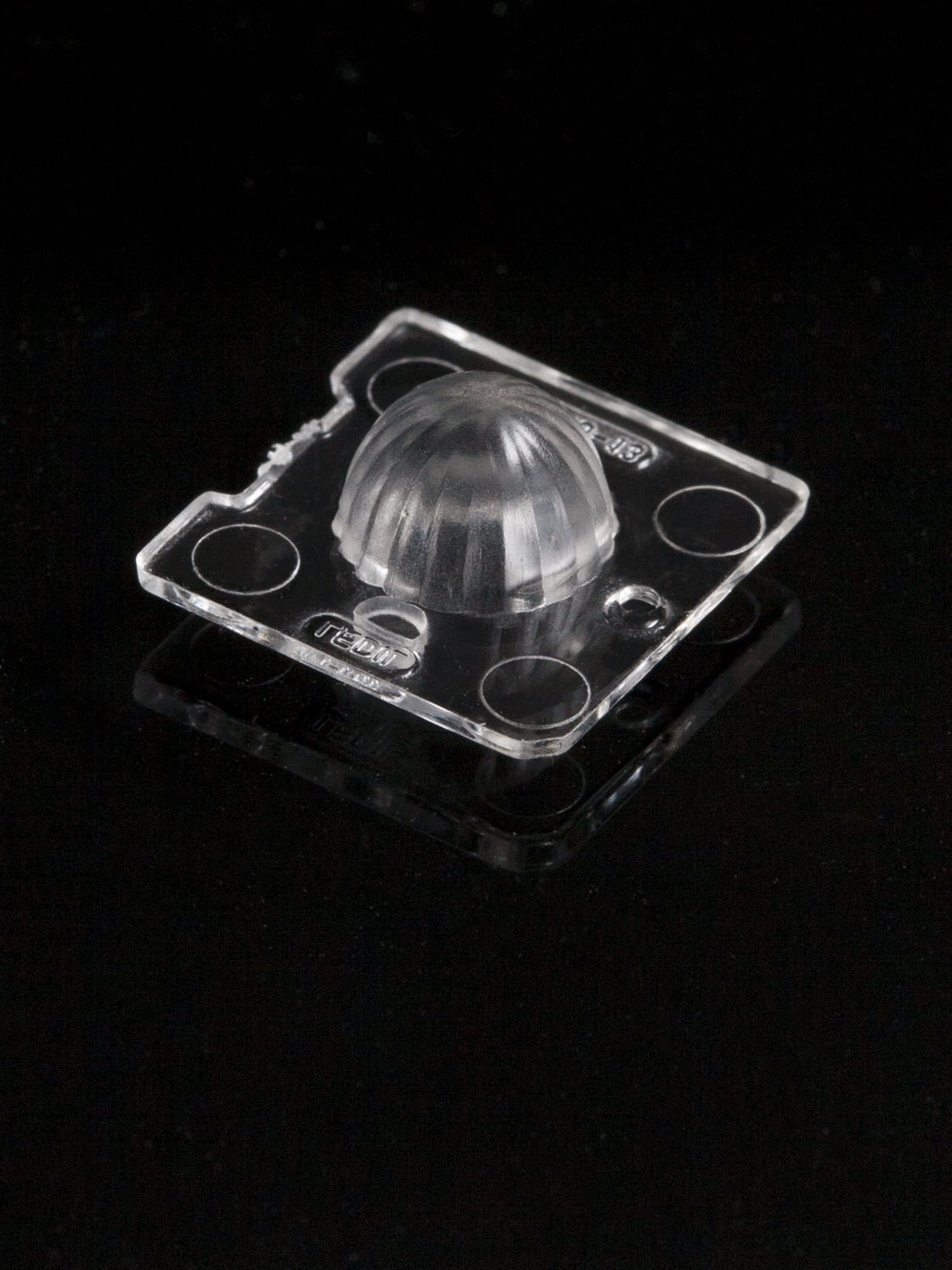

C15246_STRADELLA-HB-M
Print
~60° medium beam for industrial applications
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

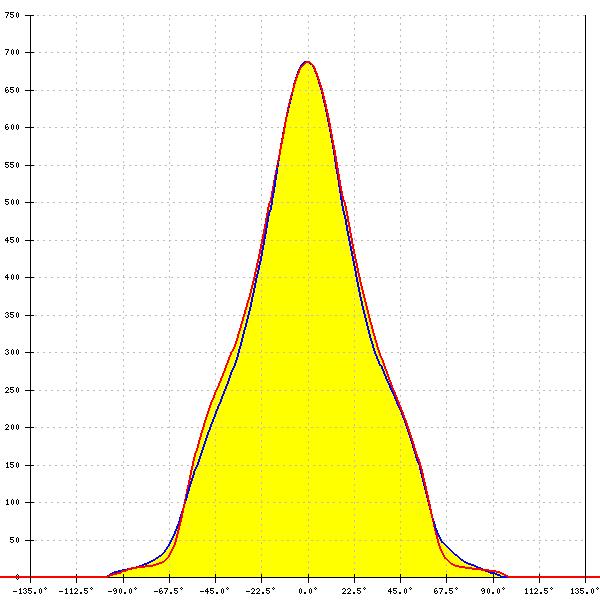

LED:

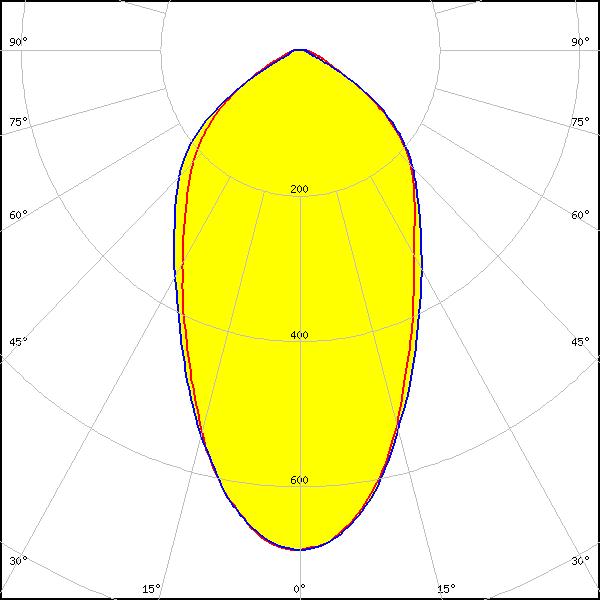

JB3030 HE B Class
FWHM:
60°
FWTM:
124°
Peak intensity:
0.687 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

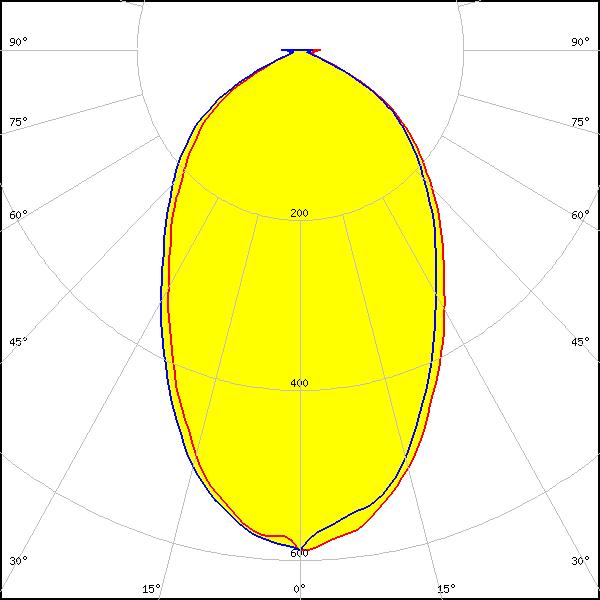

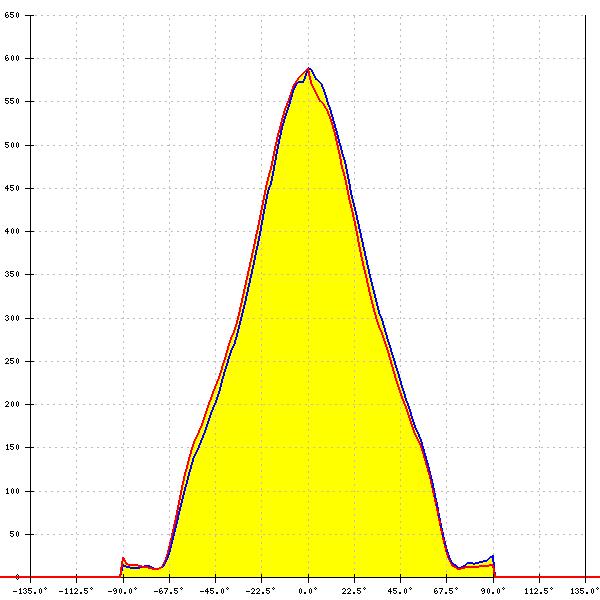

XP-G2 HE
FWHM:
70°
FWTM:
130°
Peak intensity:
0.601 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

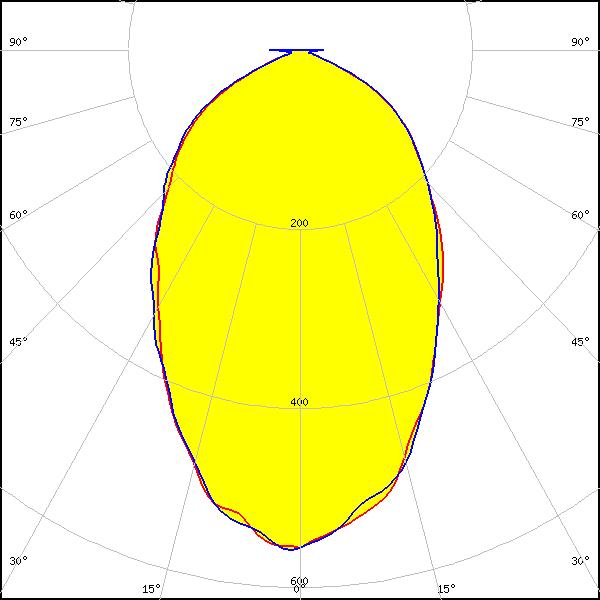

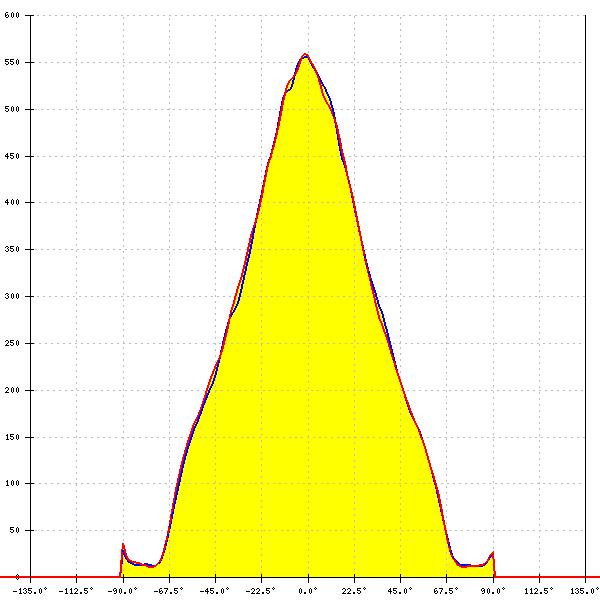

LED:
XP-G3
FWHM:
73°
FWTM:
134°
Peak intensity:
0.565 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

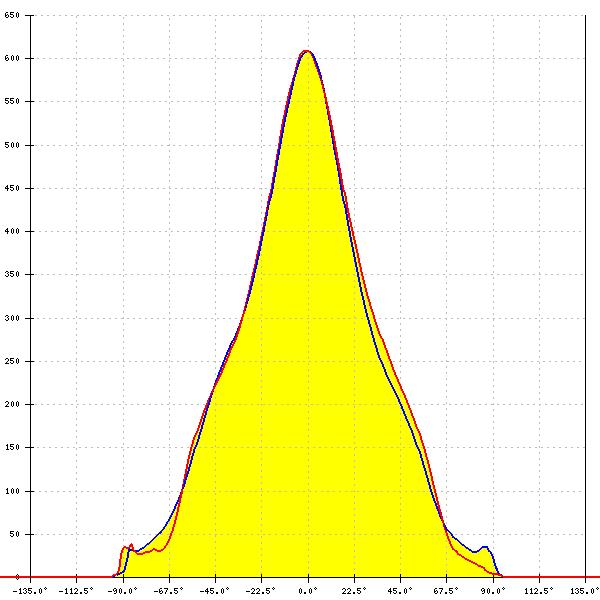

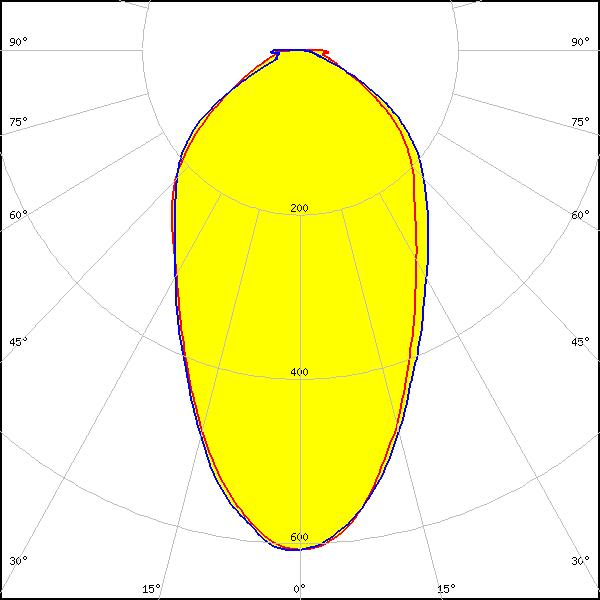

LED:
XT-E
FWHM:
62°
FWTM:
133°
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR Domed 150 (L1I0-0xxx150000000)
FWHM:
73°
FWTM:
180°
Peak intensity:
0.533 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
LUXEON IR Domed 90 (L1I0-0xxx090000000)
FWHM:
47°
FWTM:
102°
Peak intensity:
0.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

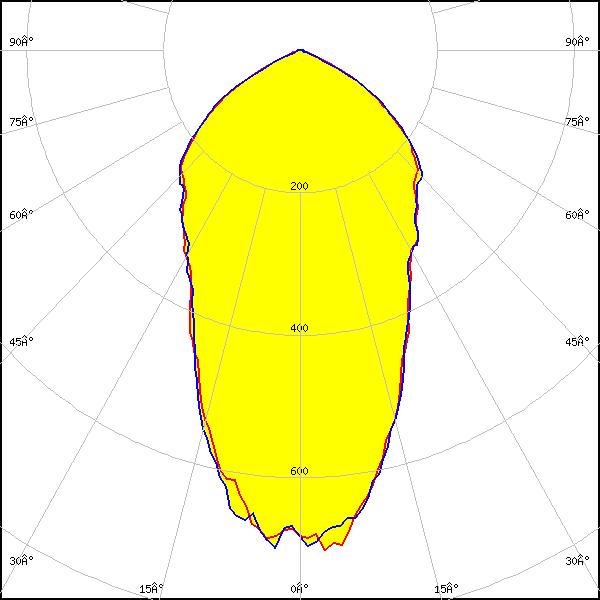

LED:

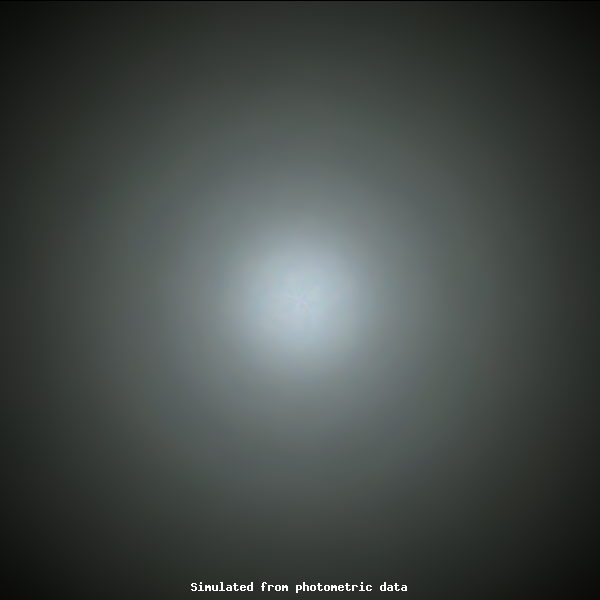

SFT-12R-W-A
FWHM:
54° + 55°
FWTM:
128° + 126°
Peak intensity:
0.734 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

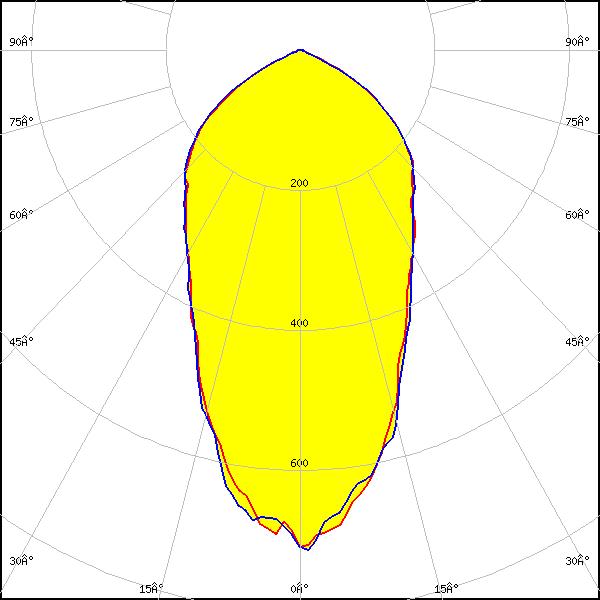

LED:

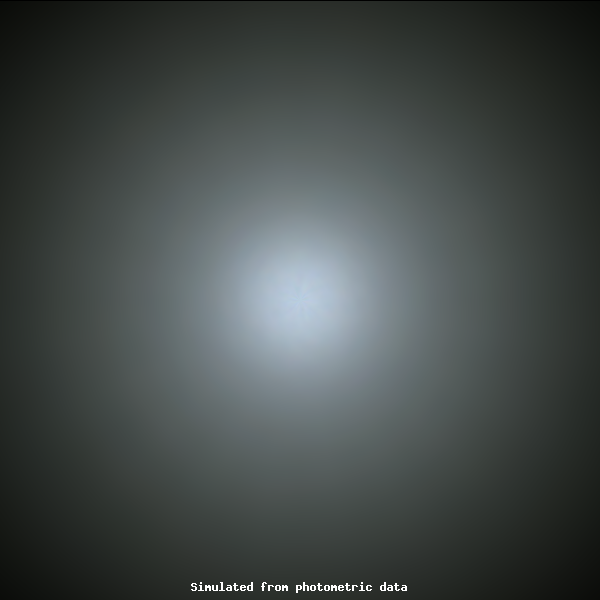

SFT-25R-W-A
FWHM:
56°
FWTM:
127°
Peak intensity:
0.718 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

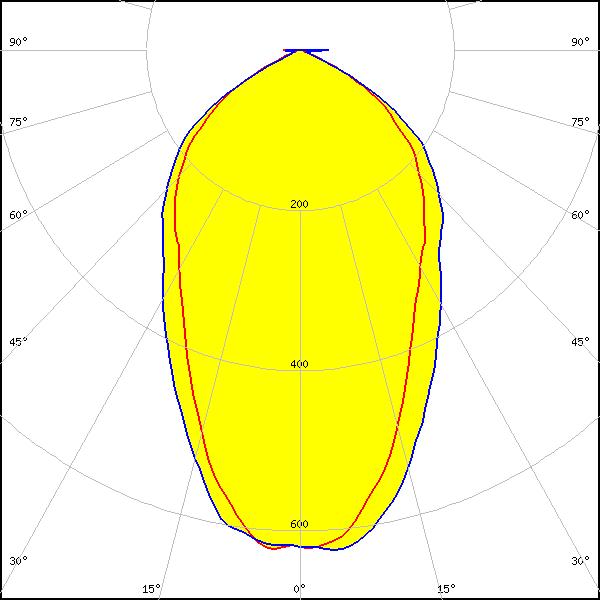

LED:

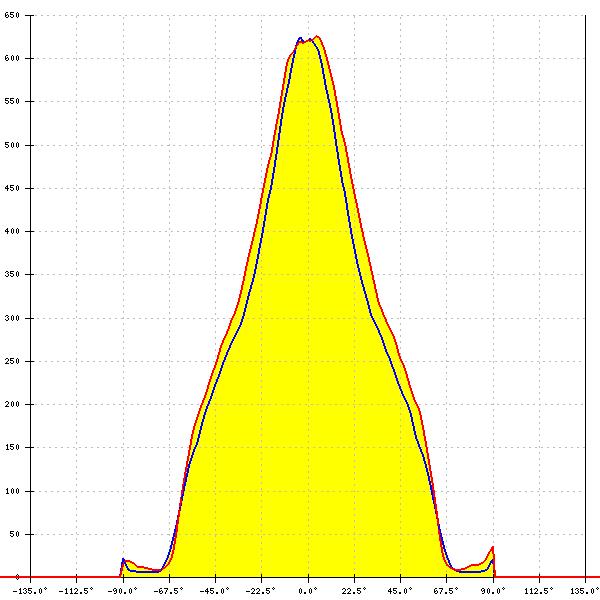

NF2W585AR-P8
FWHM:
60° + 70°
FWTM:
128° + 127°
Peak intensity:
0.643 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

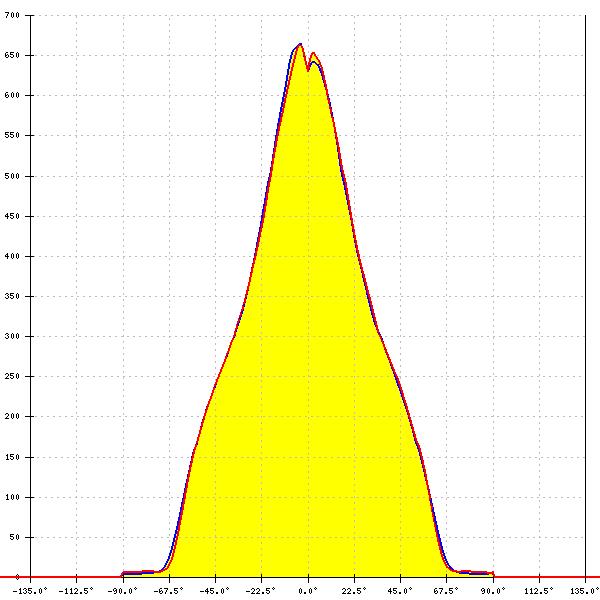

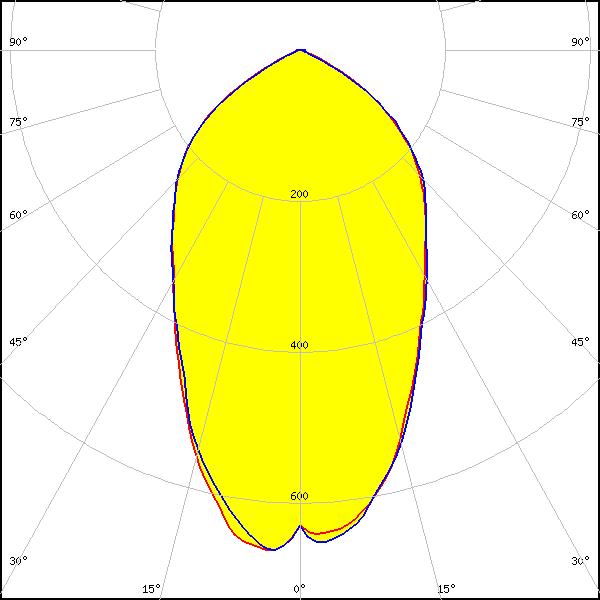

LED:
NFSx757G
FWHM:
64°
FWTM:
125°
Peak intensity:
0.672 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

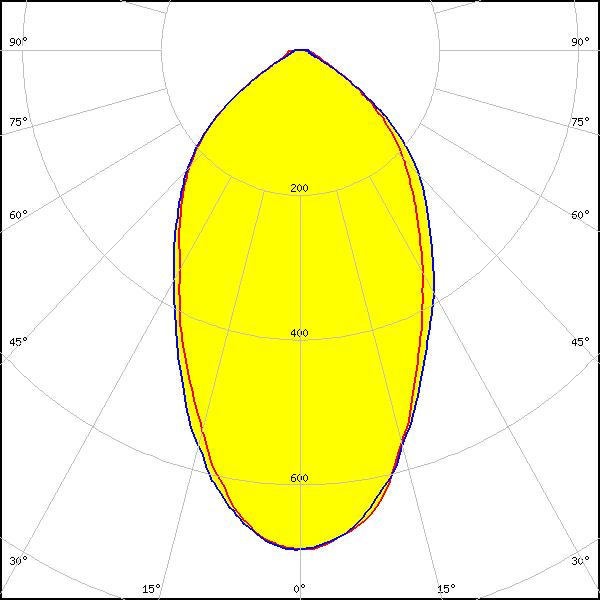

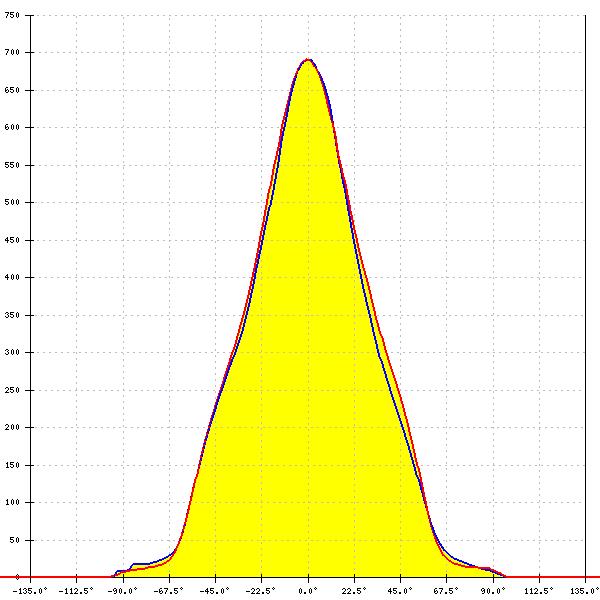

NVSW219D
FWHM:
61°
FWTM:
120°
Peak intensity:
0.690 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

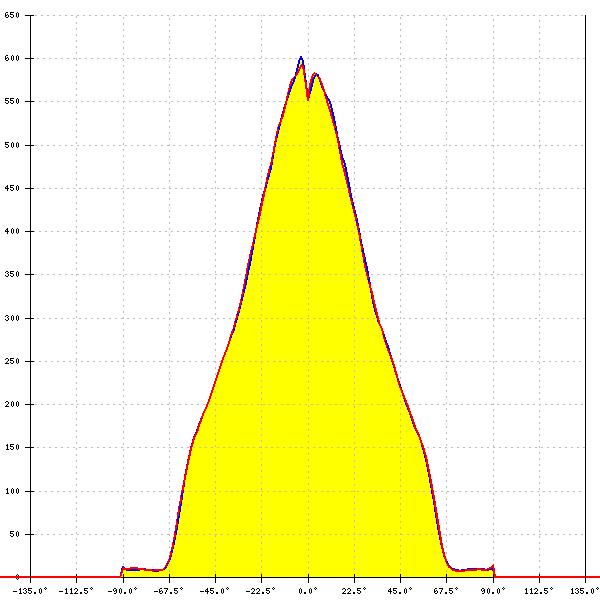

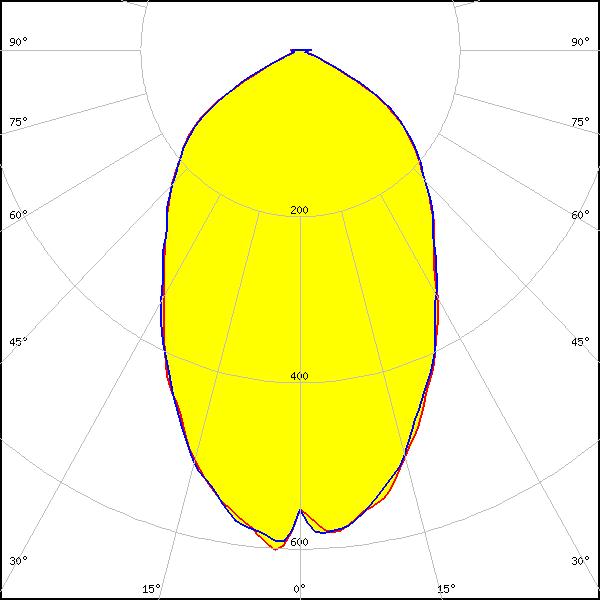

NVSW219F
FWHM:
70°
FWTM:
128°
Peak intensity:
0.609 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

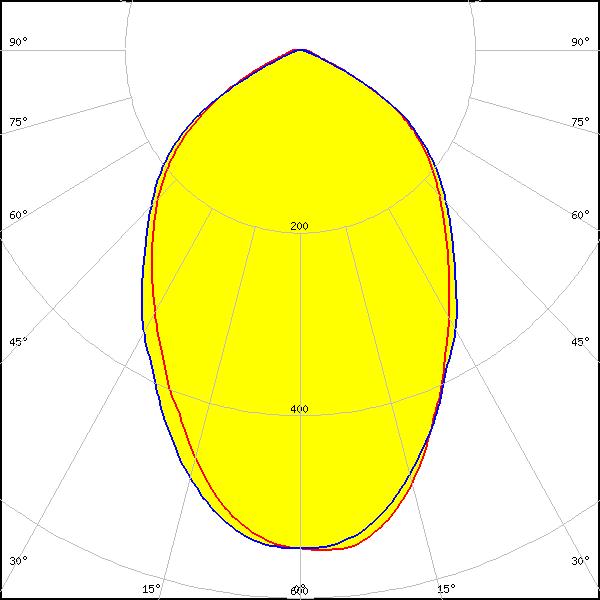

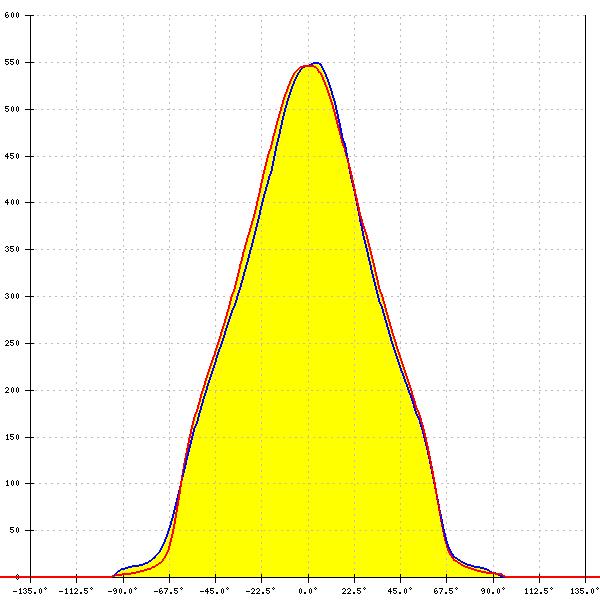

NVSW319B
FWHM:
78°
FWTM:
132°
Peak intensity:
0.550 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

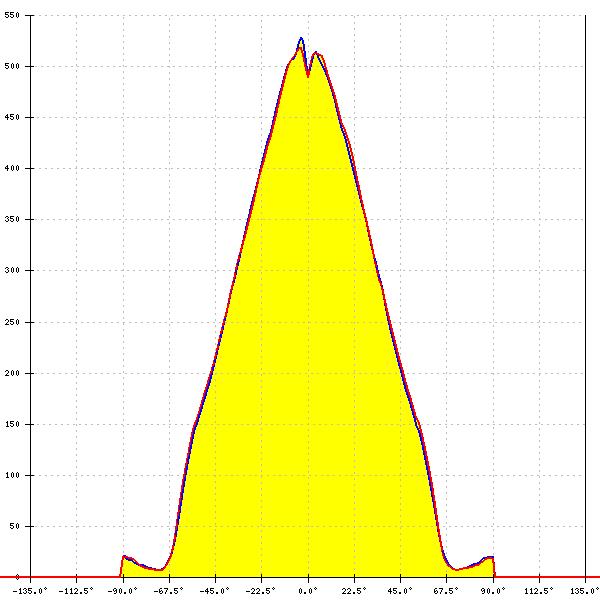

LED:

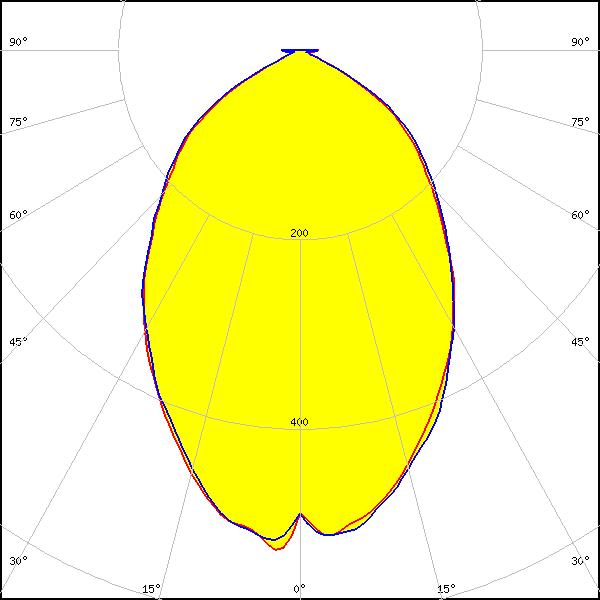

NVSW519A
FWHM:
78°
FWTM:
127°
Peak intensity:
0.529 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
68°
FWTM:
126°
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

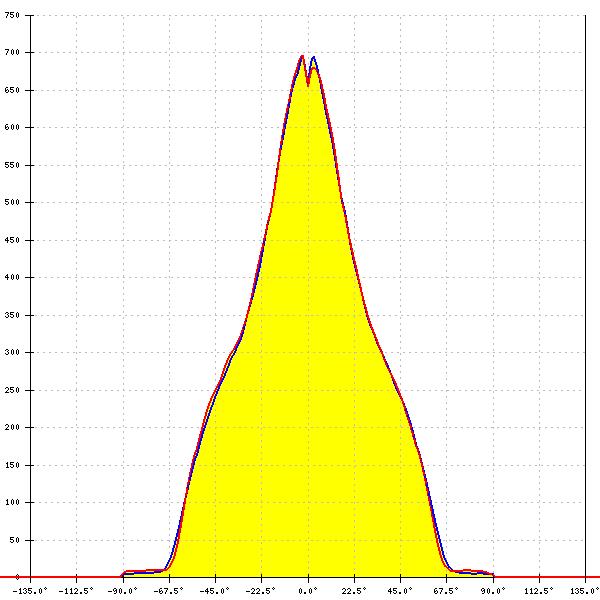

LED:

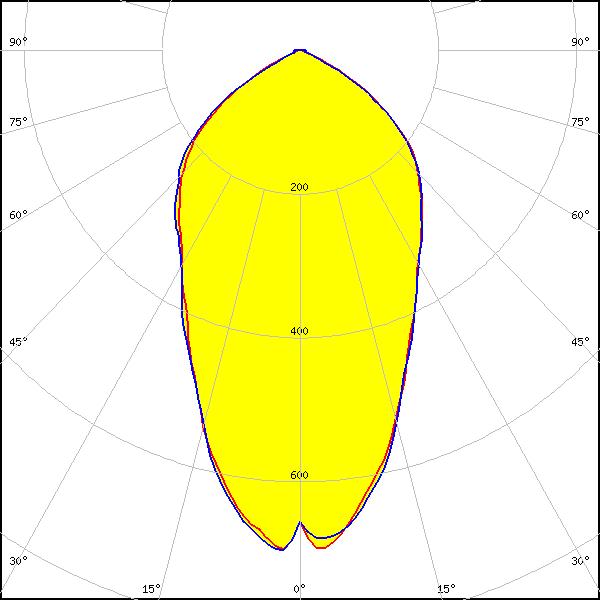

OSCONIQ C 2424 Gen1
FWHM:
60°
FWTM:
125°
Peak intensity:
0.703 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

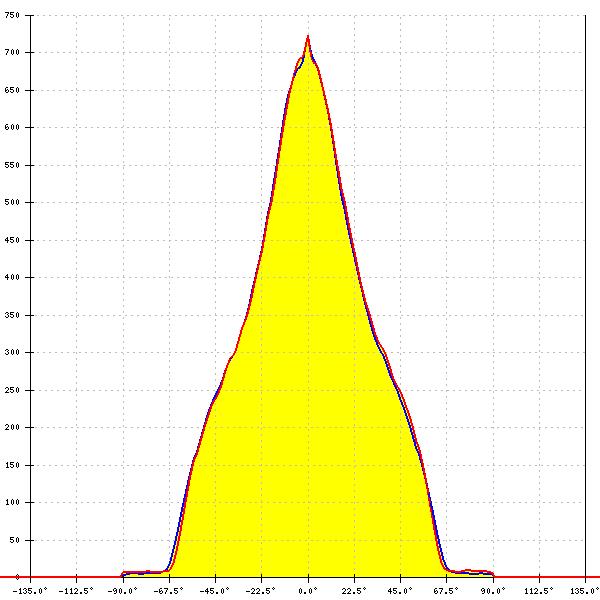

LED:

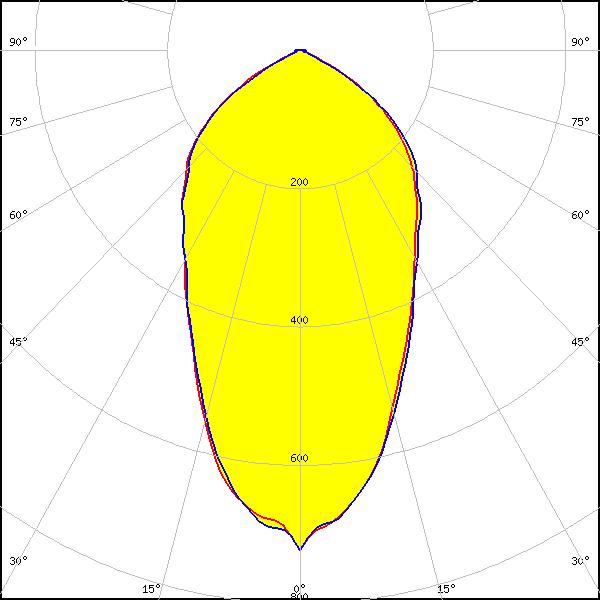

OSCONIQ C 3030
FWHM:
57°
FWTM:
124°
Peak intensity:
0.723 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
58° + 59°
FWTM:
124° + 122°
Peak intensity:
0.657 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
50°
FWTM:
121°
Peak intensity:
0.874 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

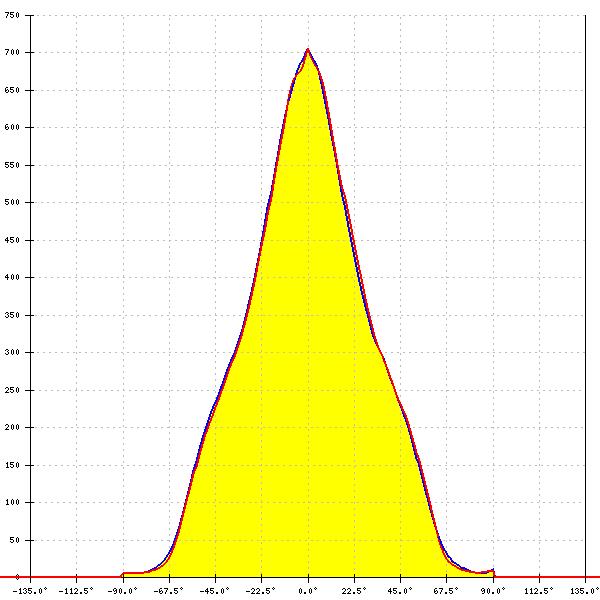

OSCONIQ P 3737 (2W version)
FWHM:
59°
FWTM:
124°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

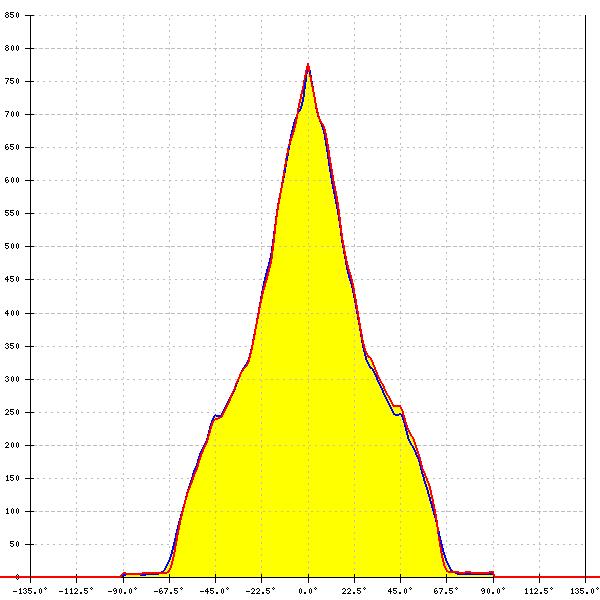

LED:

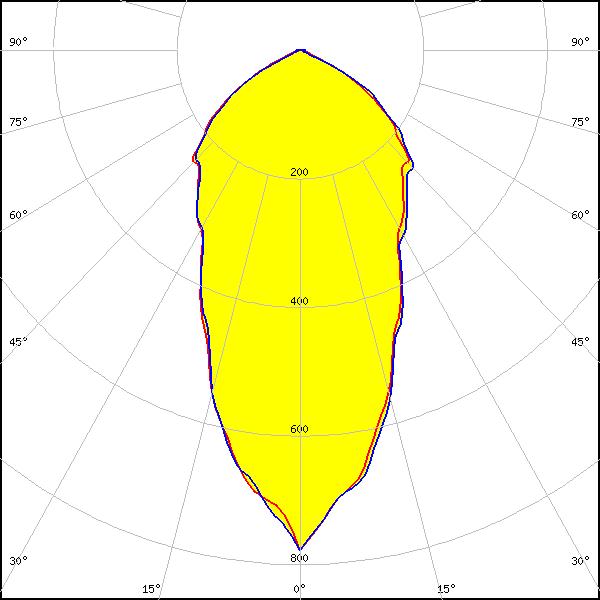

OSLON Pure 1414
FWHM:
49°
FWTM:
126°
Peak intensity:
0.781 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

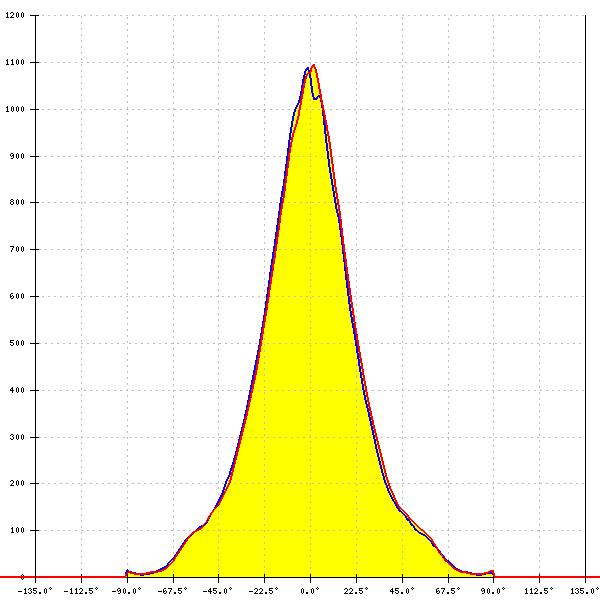

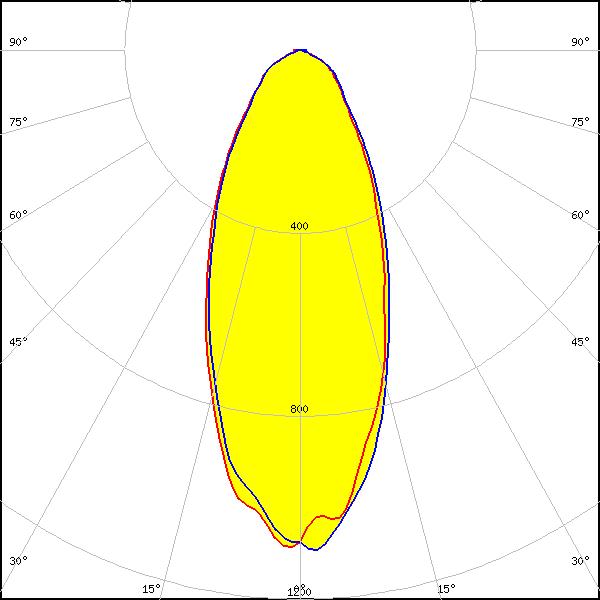

LED:
OSLON SSL 80
FWHM:
44°
FWTM:
104°
Peak intensity:
1.095 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

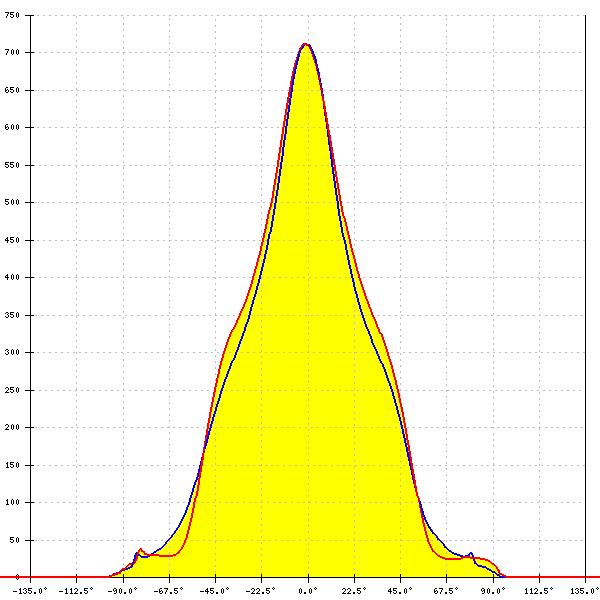

LED:

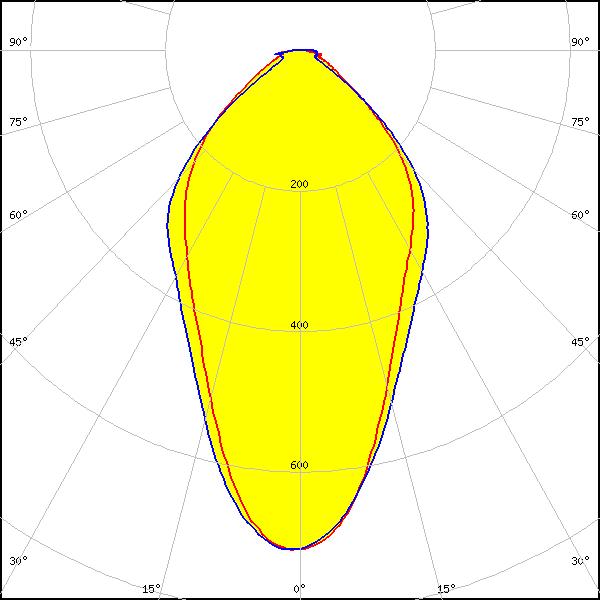

LH181B
FWHM:
58°
FWTM:
117°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

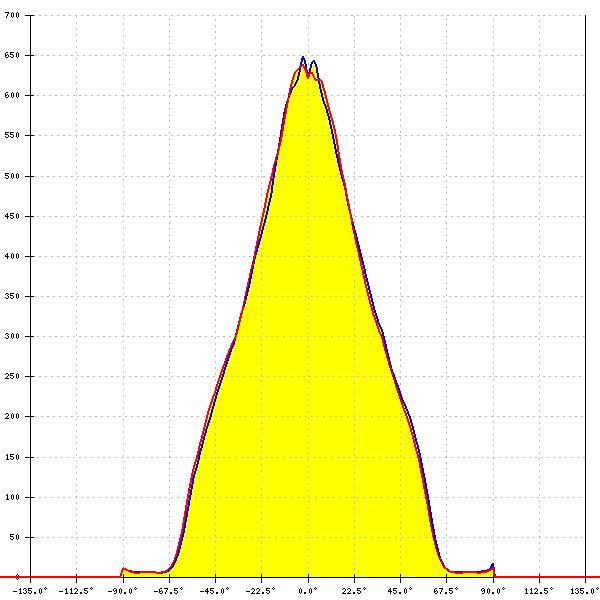

LED:

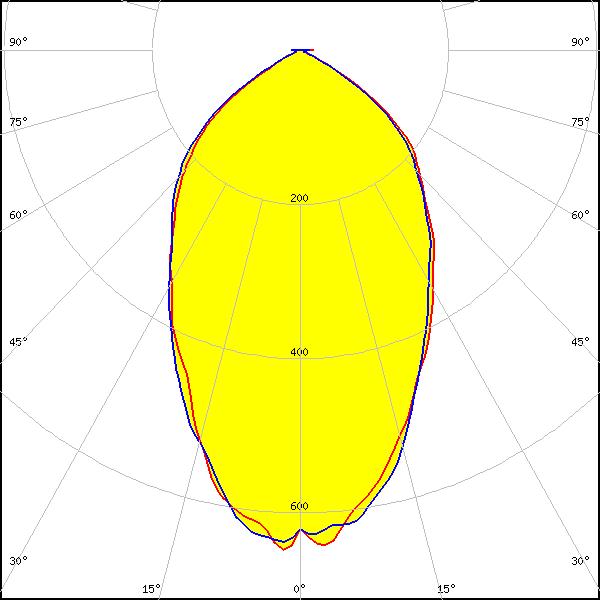

LH351B
FWHM:
63°
FWTM:
120°
Peak intensity:
0.670 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
64°
FWTM:
126°
Peak intensity:
0.679 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

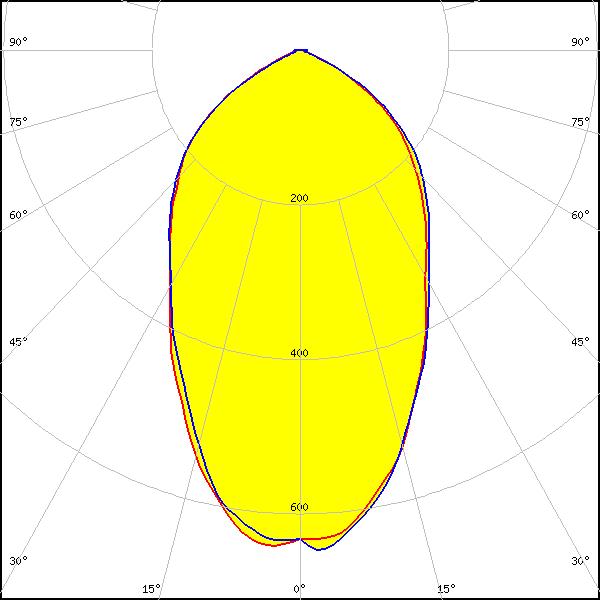

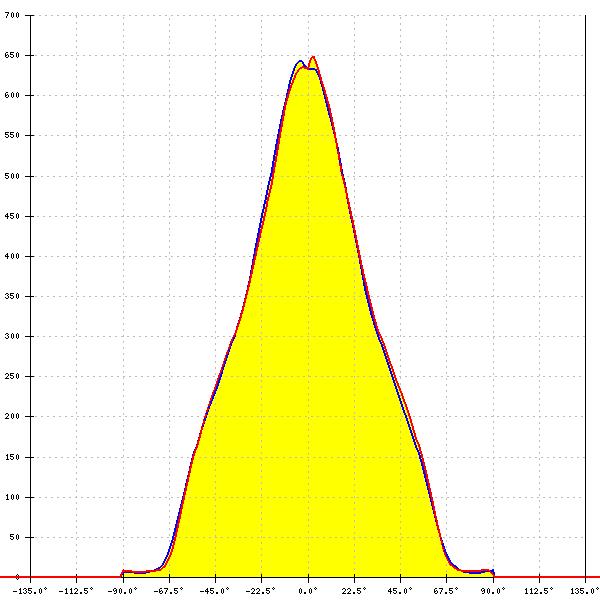

LED:
Z5M1/Z5M2
FWHM:
64°
FWTM:
127°
Peak intensity:
0.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

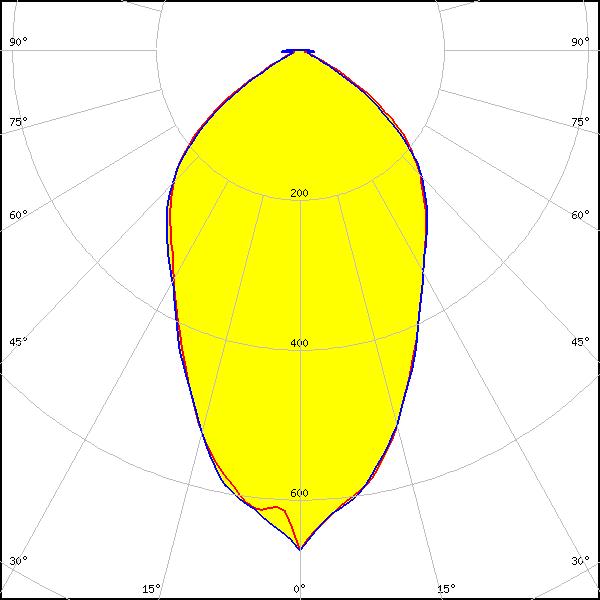

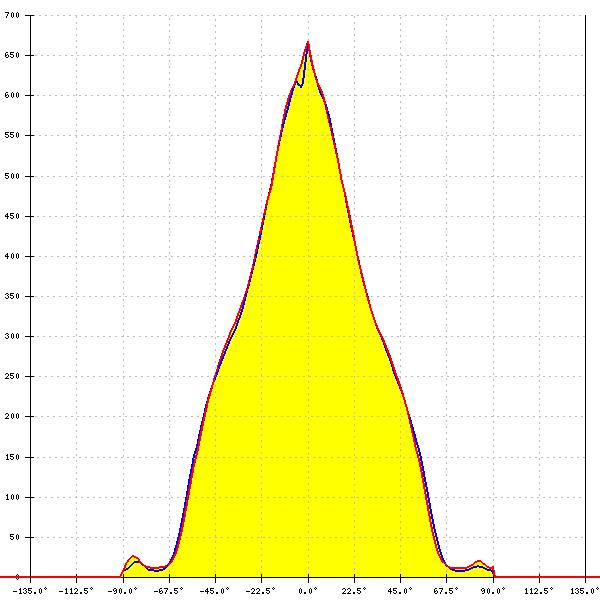

LED:
Z8Y22T
FWHM:
62°
FWTM:
121°
Peak intensity:
0.670 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
