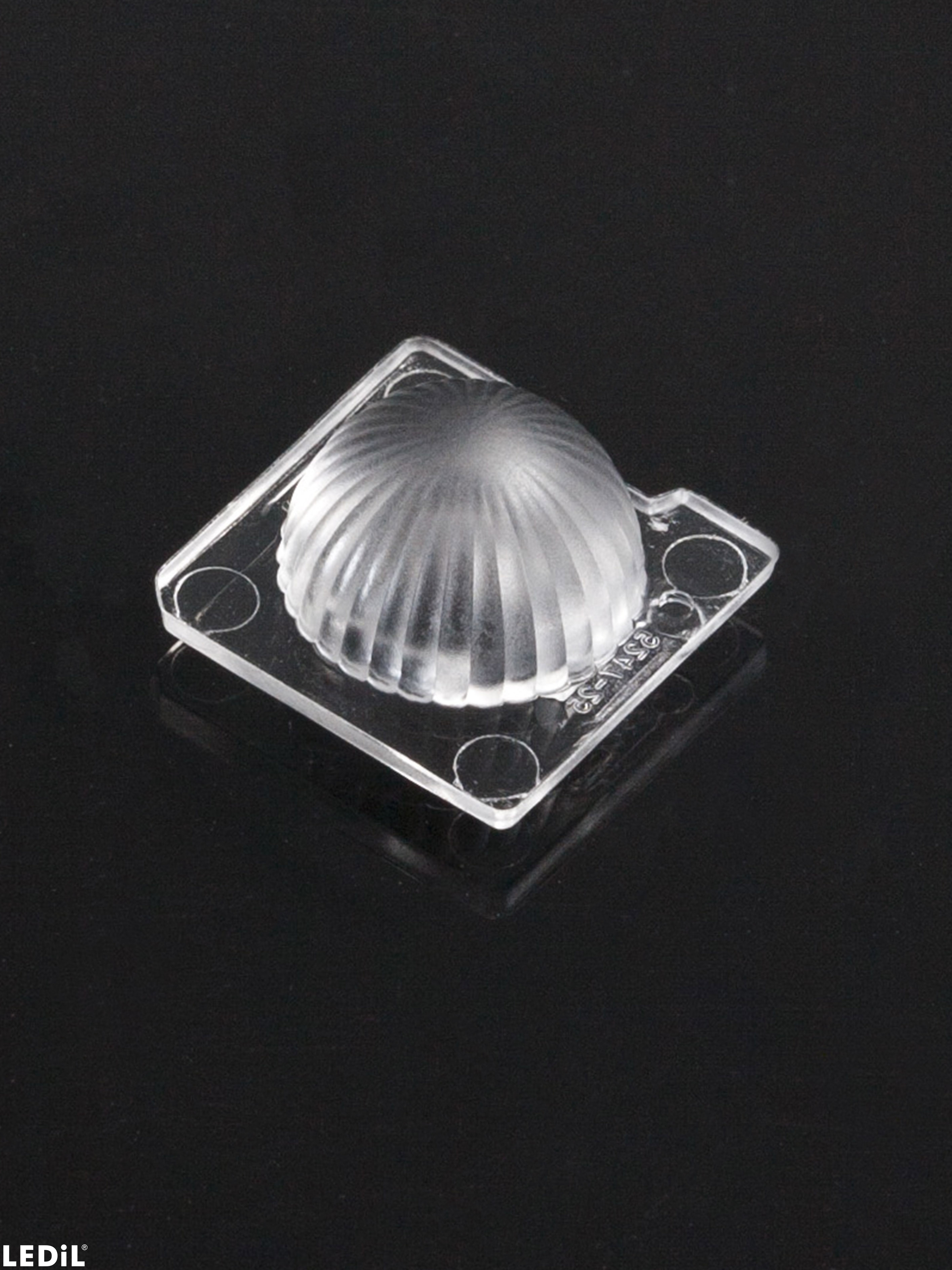

C15247_STRADELLA-HB-W
Print
~90° wide beam for industrial applications
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

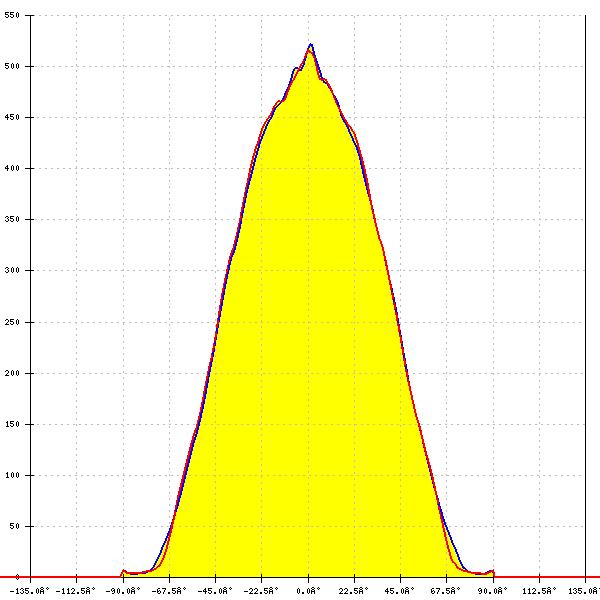

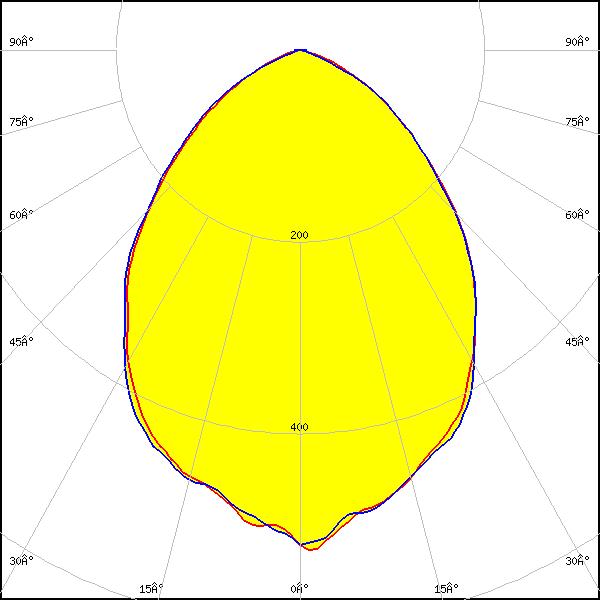

LED:
J Series 2835
FWHM:
86°
FWTM:
133°
Peak intensity:
0.528 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

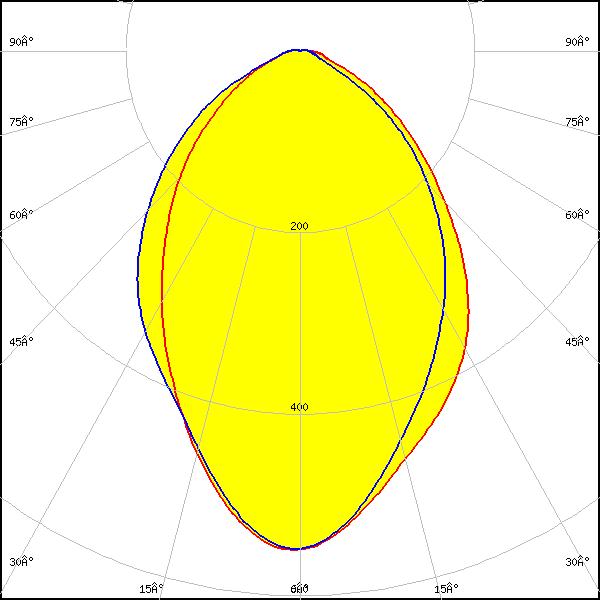

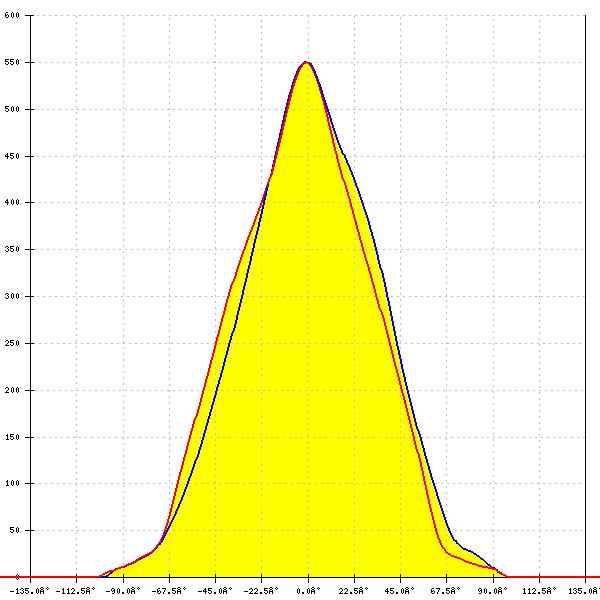

LED:
JB3030 HE B Class
FWHM:
77°
FWTM:
133°
Peak intensity:
0.550 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

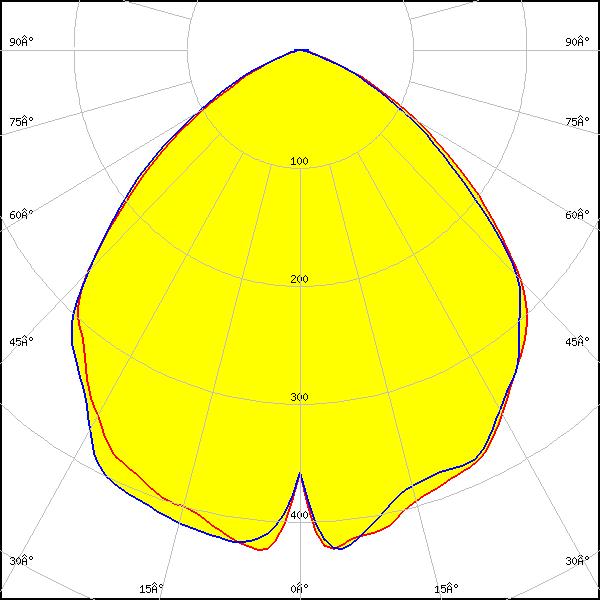

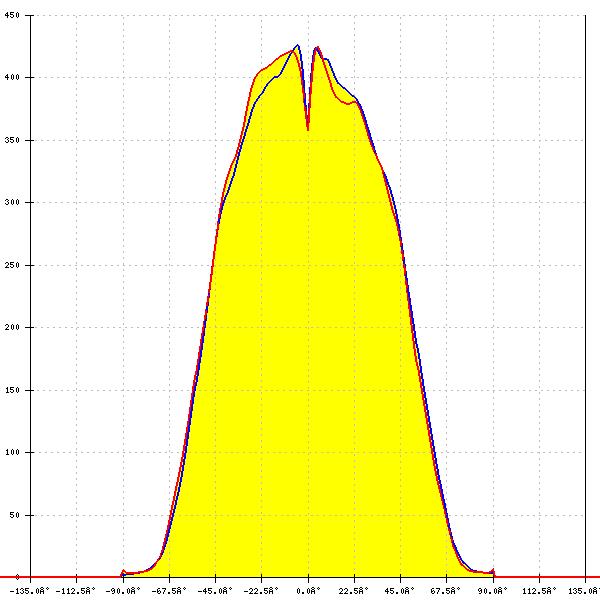

LED:
XP-E2
FWHM:
100°
FWTM:
136°
Peak intensity:
0.436 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Green

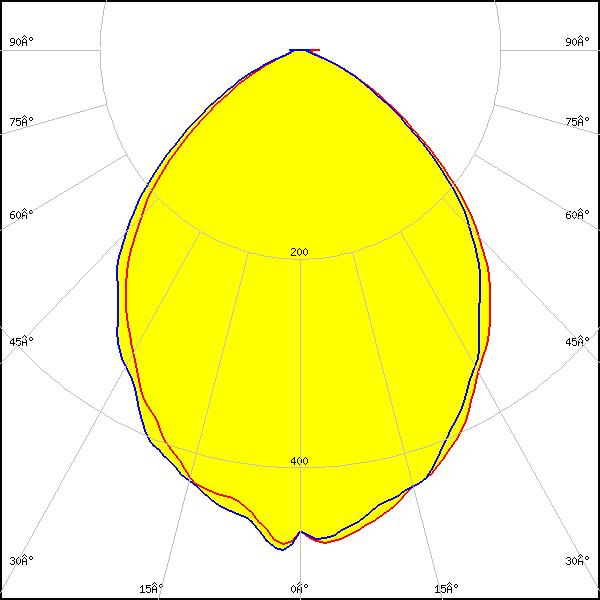

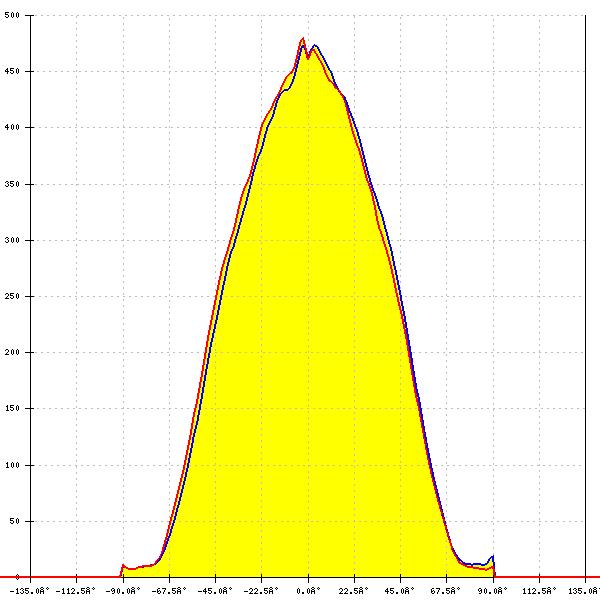

LED:
XP-G2 HE
FWHM:
91°
FWTM:
133°
Peak intensity:
0.487 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

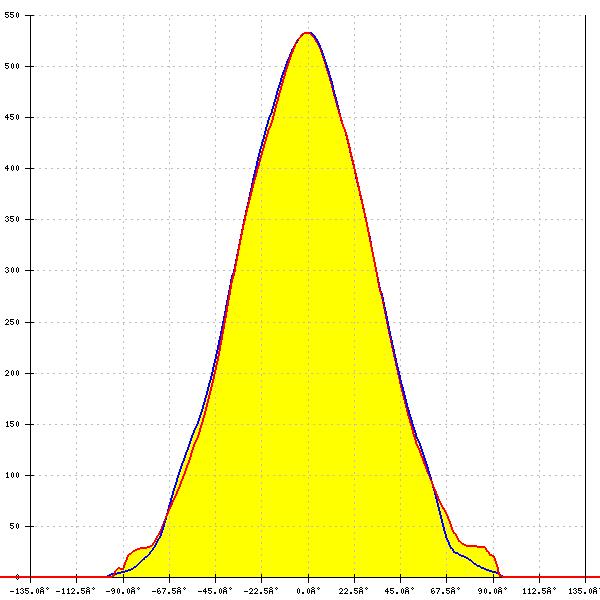

LED:

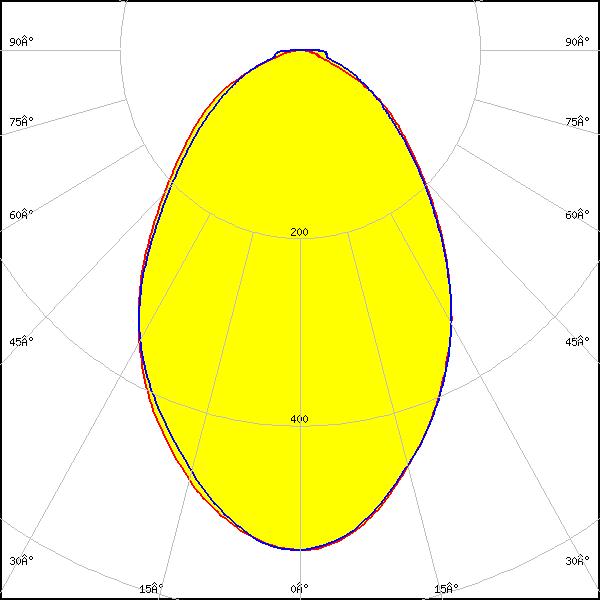

XT-E
FWHM:
76°
FWTM:
138°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR Domed 150 (L1I0-0xxx150000000)
FWHM:
115°
FWTM:
150°
Peak intensity:
0.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

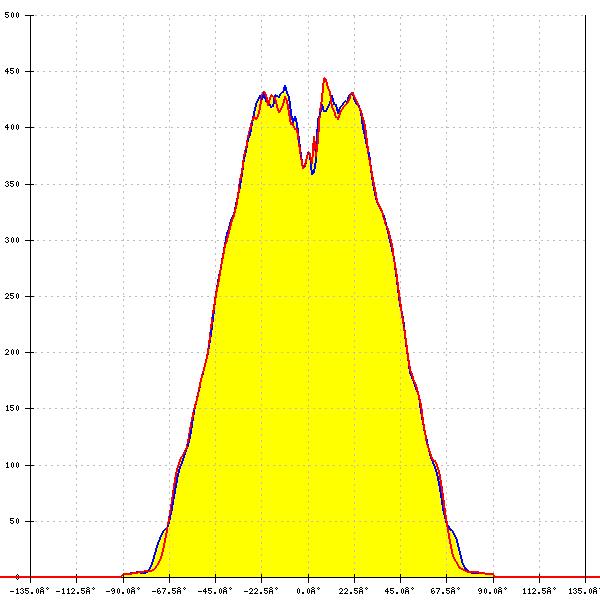

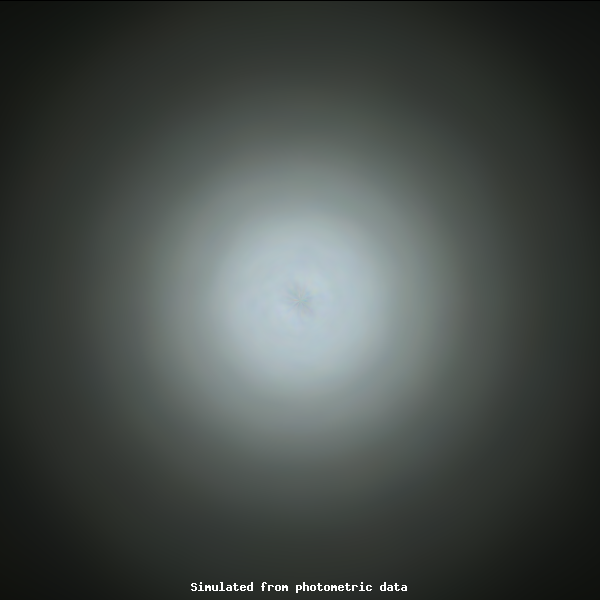

LED:

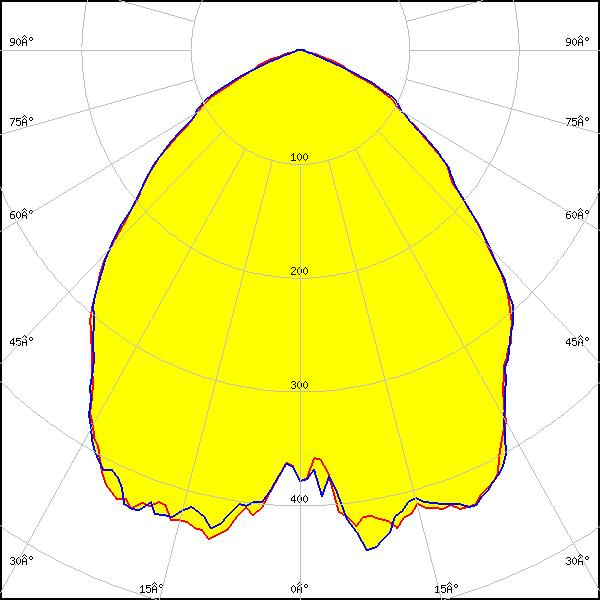

SFT-12R-W-A
FWHM:
94°
FWTM:
138°
Peak intensity:
0.454 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

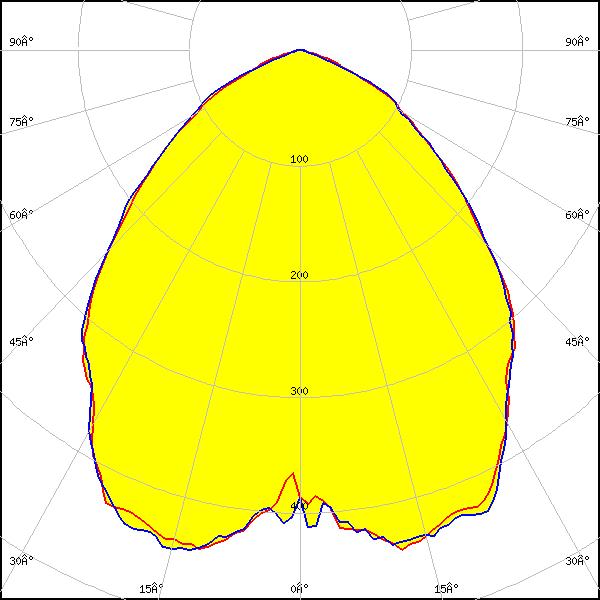

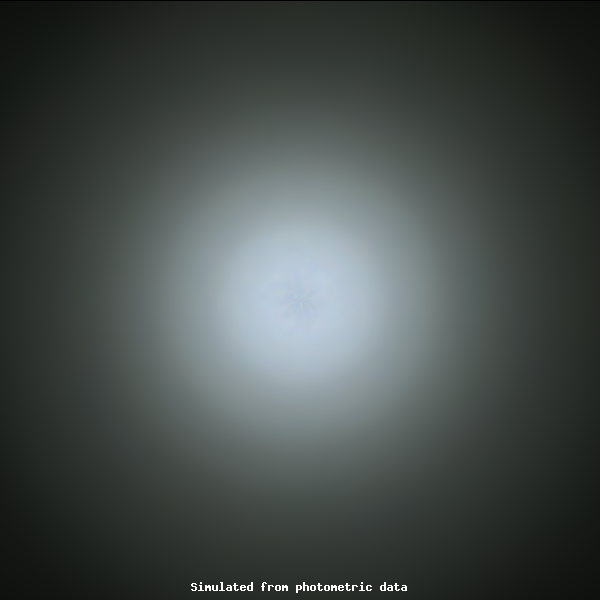

LED:

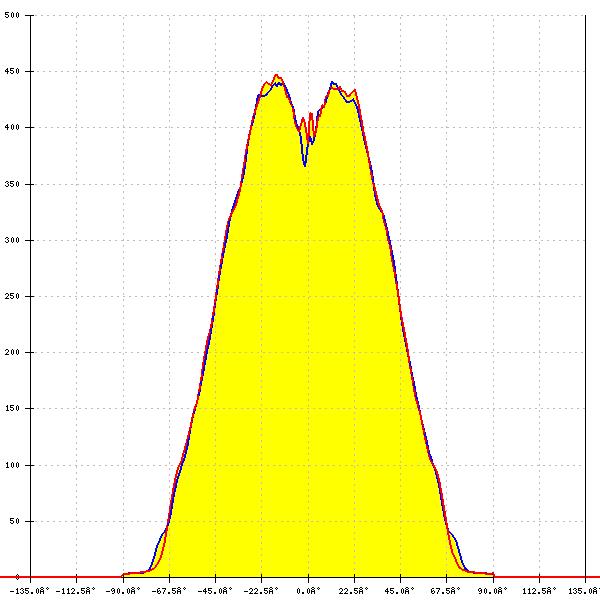

SFT-25R-W-A
FWHM:
93° + 94°
FWTM:
137° + 136°
Peak intensity:
0.454 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

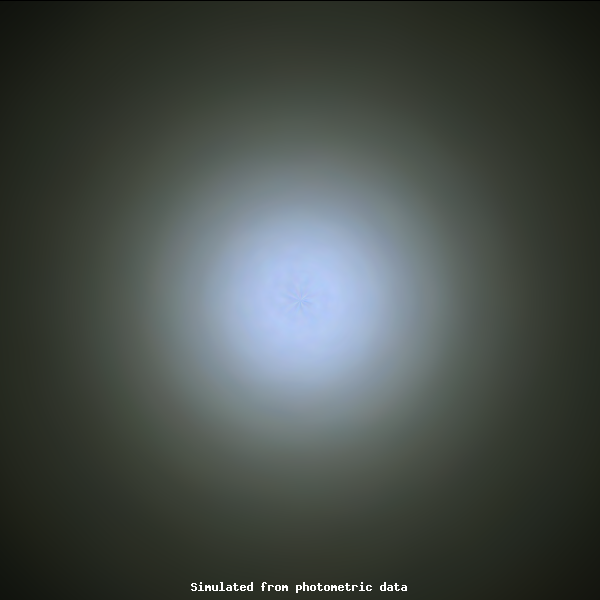

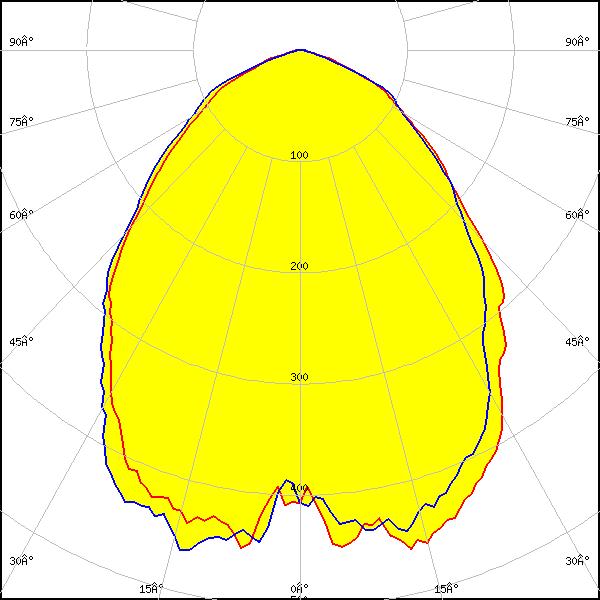

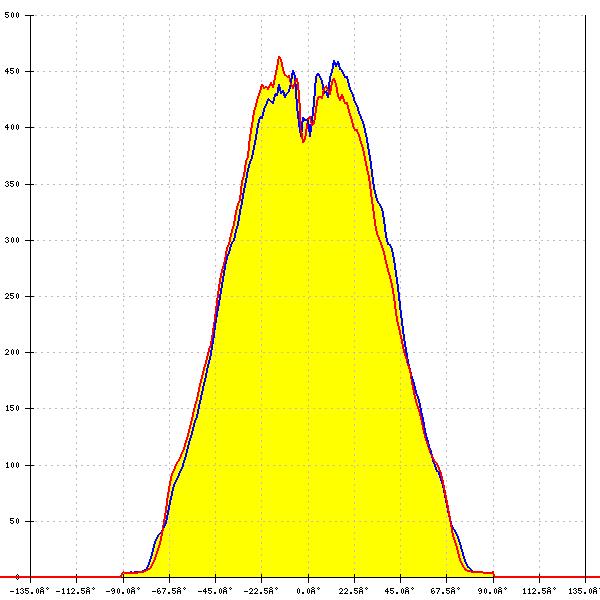

LED:
SST-12 Gen2
FWHM:
90° + 88°
FWTM:
140° + 140°
Peak intensity:
0.473 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

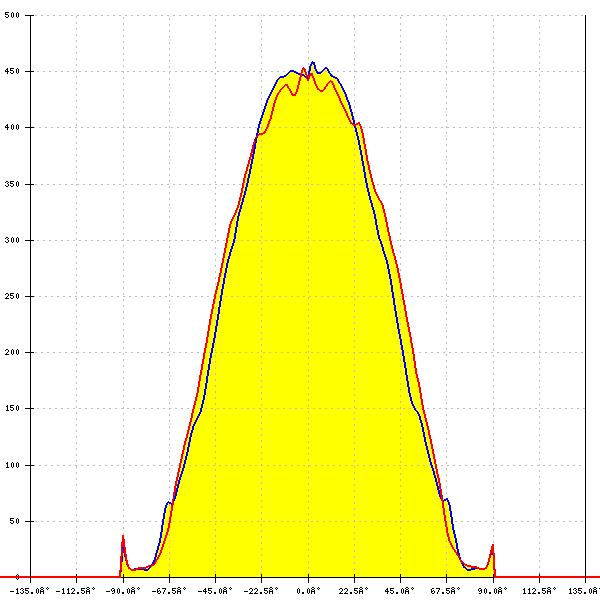

LED:

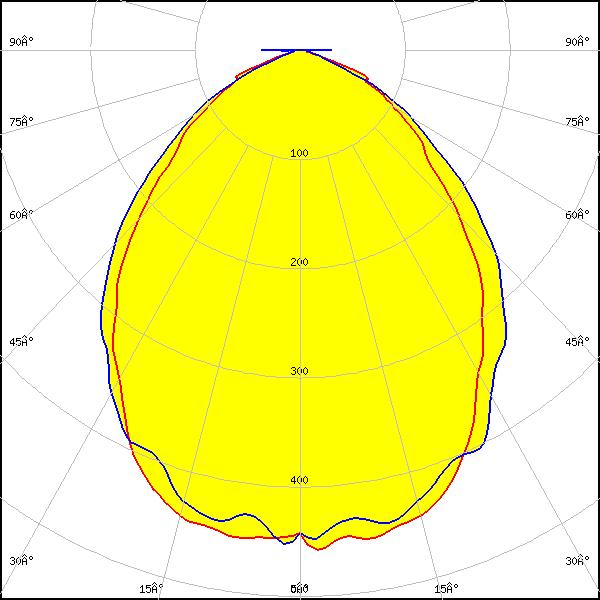

NF2W585AR-P8
FWHM:
87° + 97°
FWTM:
142° + 136°
Peak intensity:
0.460 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

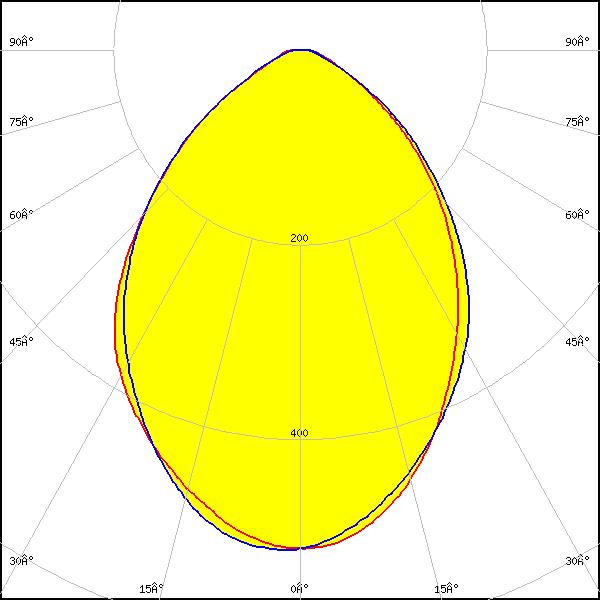

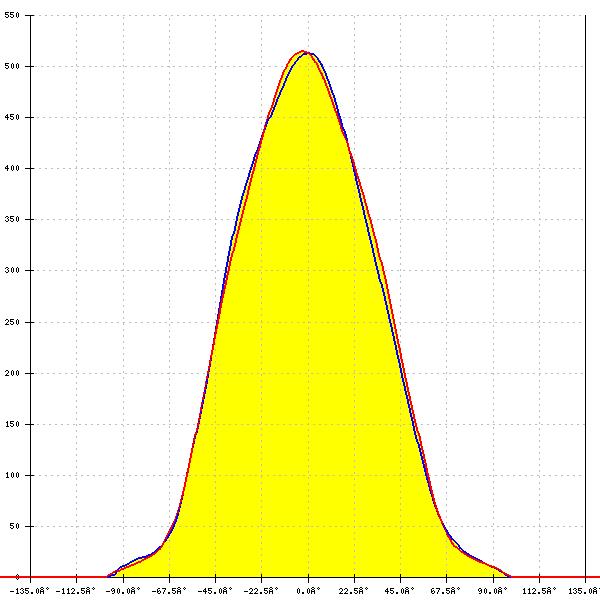

LED:
NVSW219D
FWHM:
83°
FWTM:
131°
Peak intensity:
0.510 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

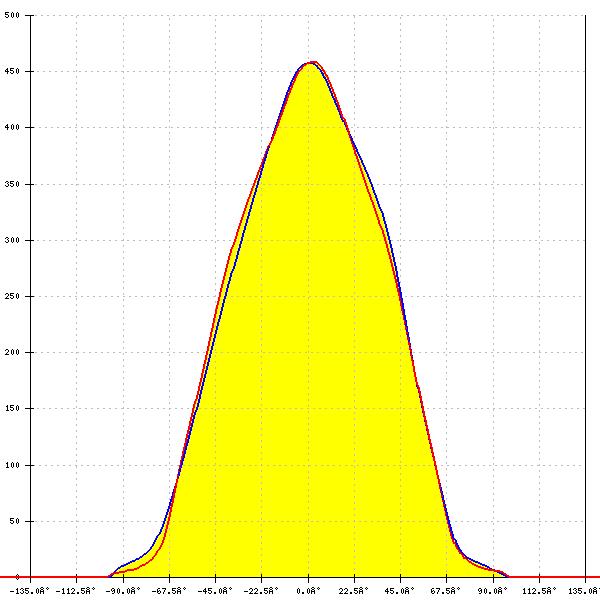

LED:
NVSW319B
FWHM:
92°
FWTM:
139°
Peak intensity:
0.460 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

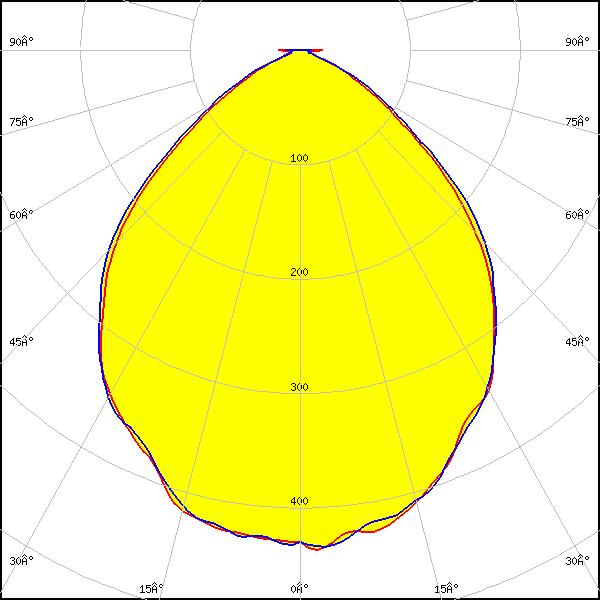

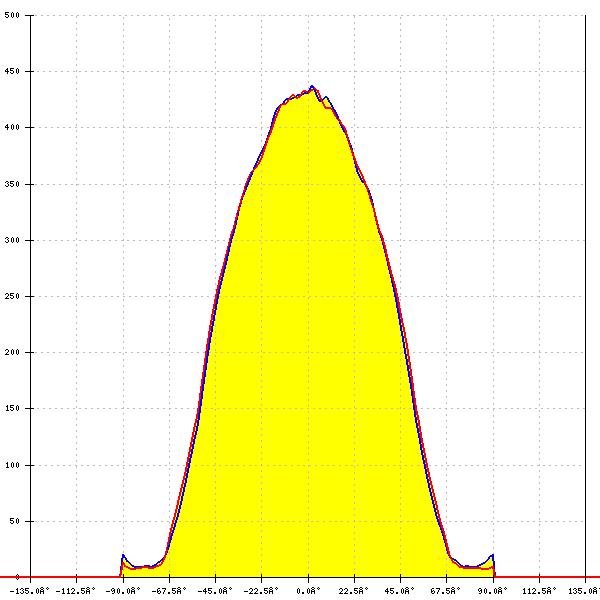

LED:
NVSW519A
FWHM:
93°
FWTM:
130°
Peak intensity:
0.449 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

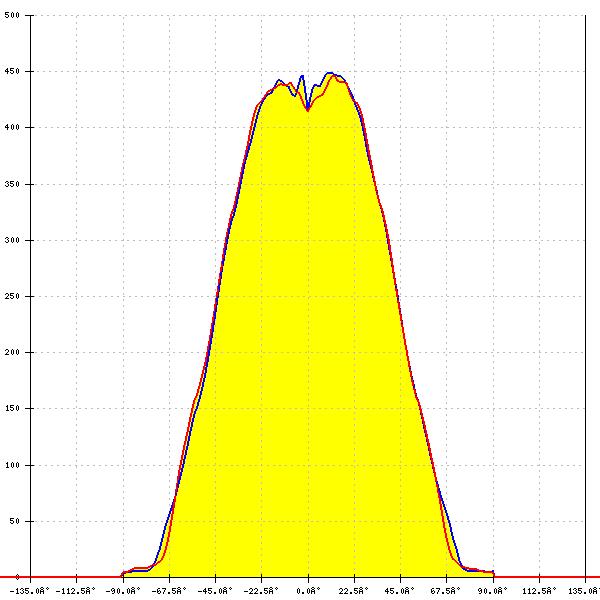

LED:

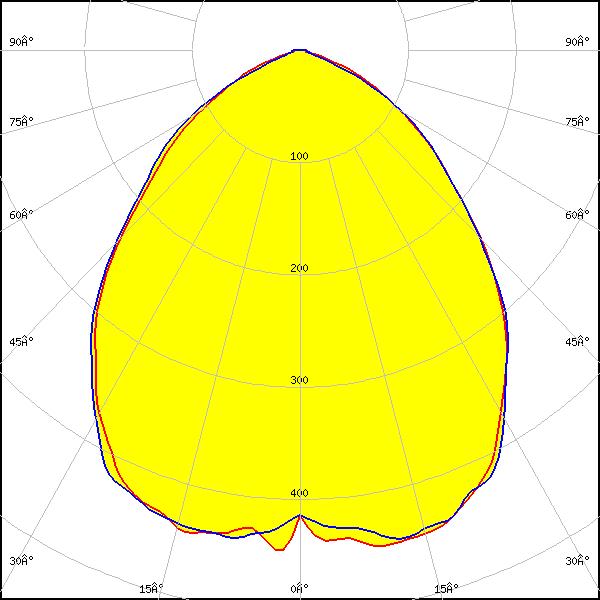

OSCONIQ C 2424 Gen1
FWHM:
93°
FWTM:
136°
Peak intensity:
0.452 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

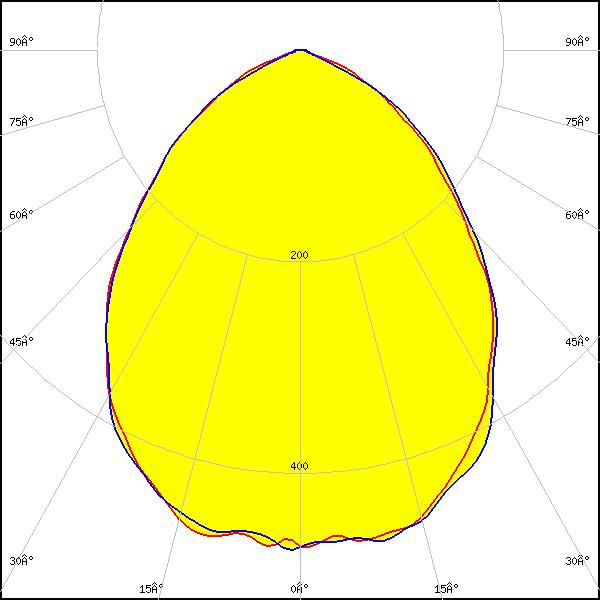

OSCONIQ C 3030
FWHM:
90°
FWTM:
139°
Peak intensity:
0.480 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

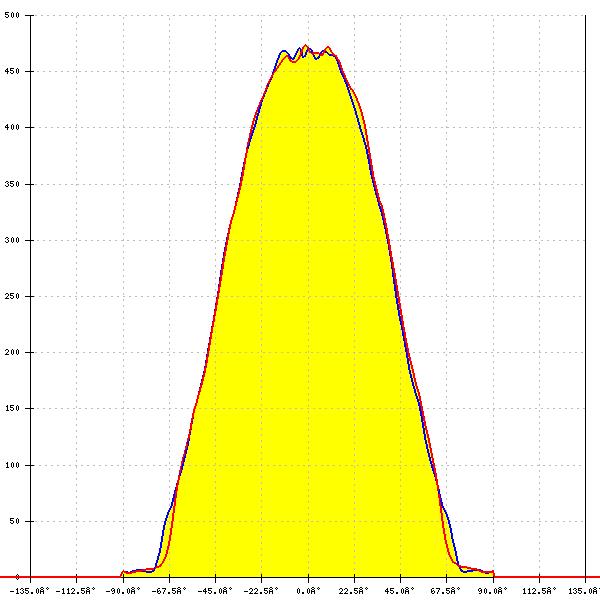

LED:
OSCONIQ C 3030
FWHM:
89° + 90°
FWTM:
136° + 132°
Peak intensity:
0.438 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

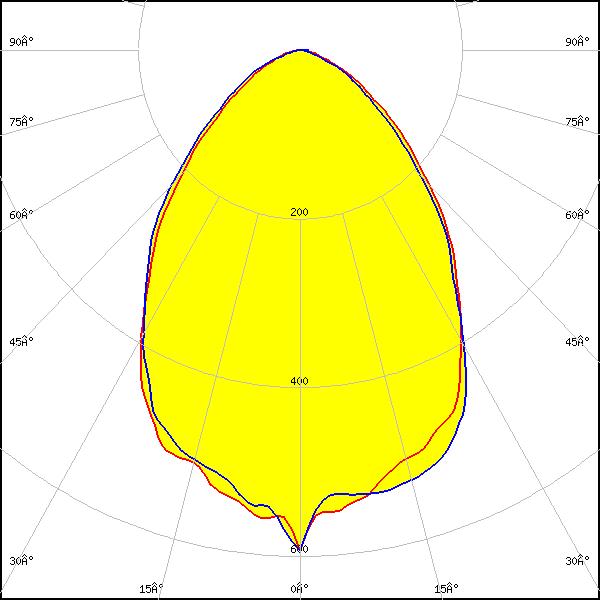

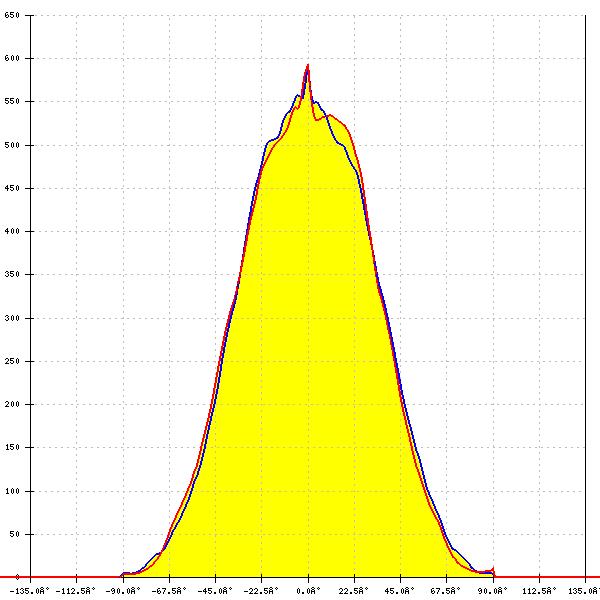

LED:
OSCONIQ P 3030
FWHM:
77°
FWTM:
130°
Peak intensity:
0.593 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

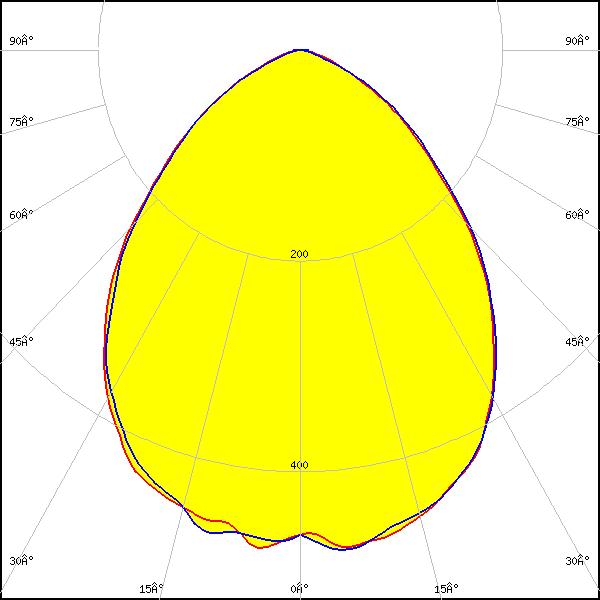

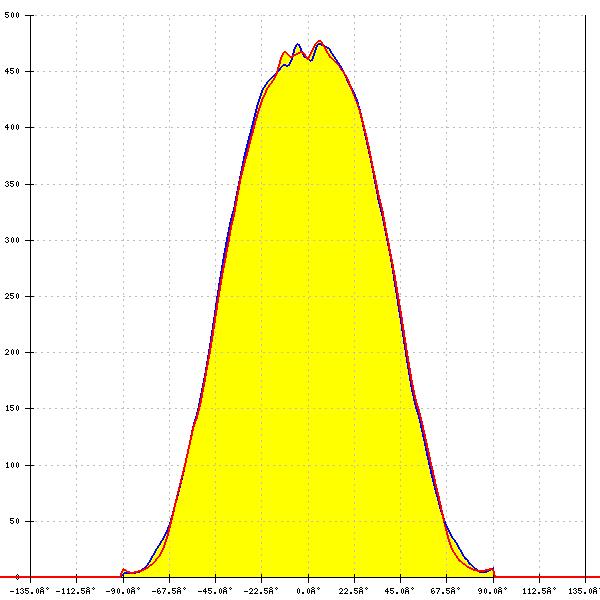

LED:
OSCONIQ P 3737 (2W version)
FWHM:
89°
FWTM:
134°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

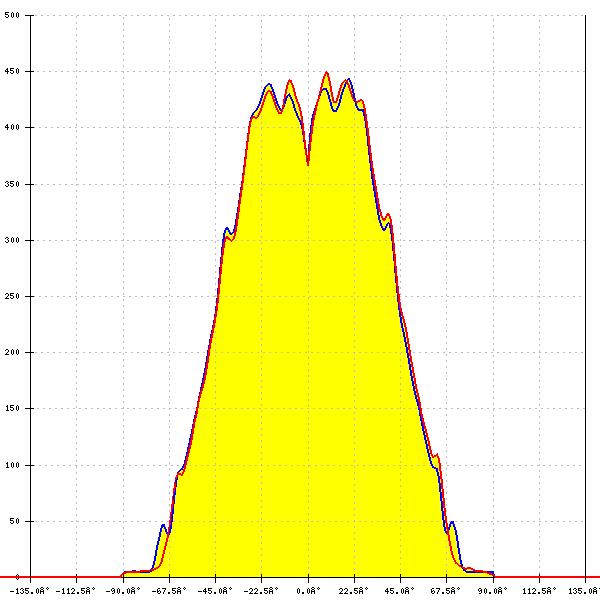

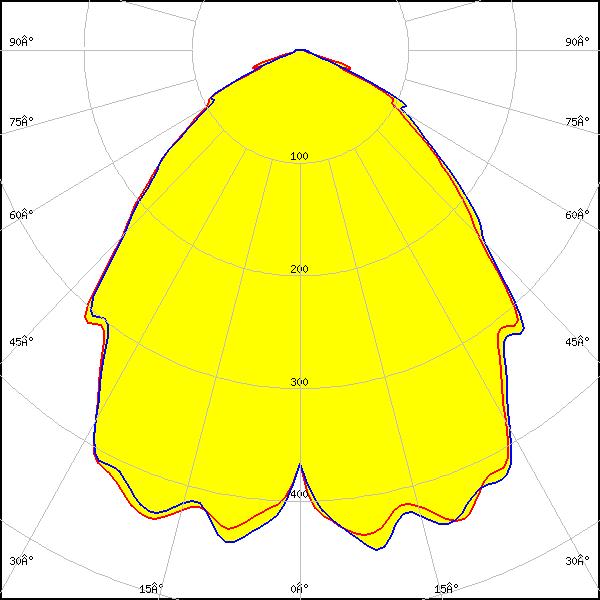

LED:
OSLON Pure 1414
FWHM:
92°
FWTM:
143°
Peak intensity:
0.453 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

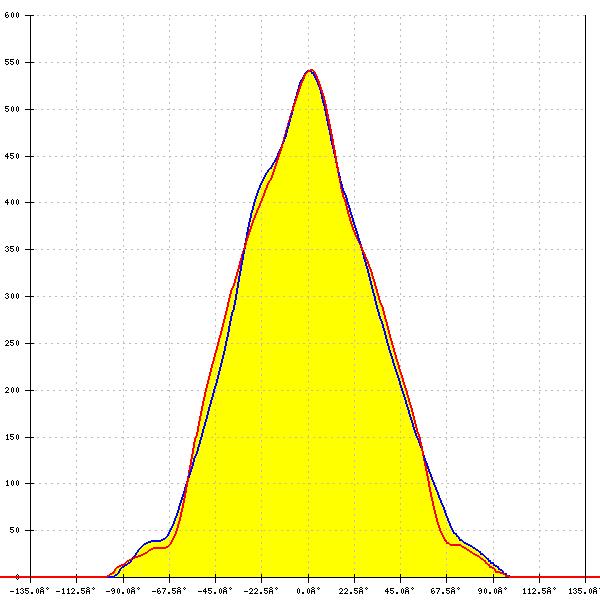

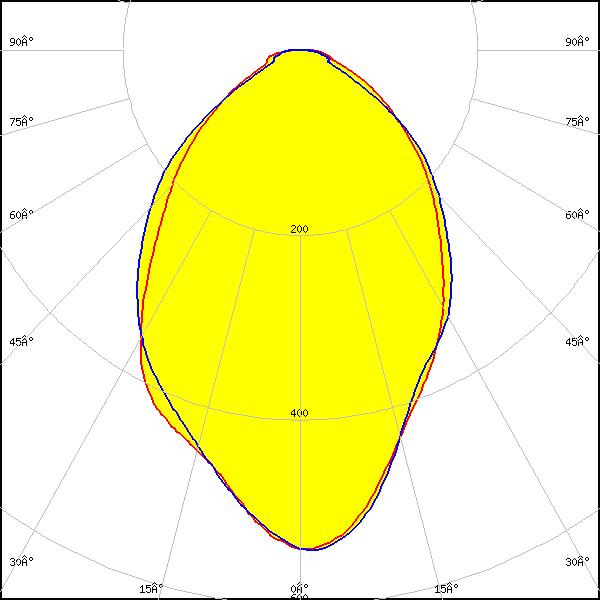

LED:
LH181B
FWHM:
77°
FWTM:
131°
Peak intensity:
0.540 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

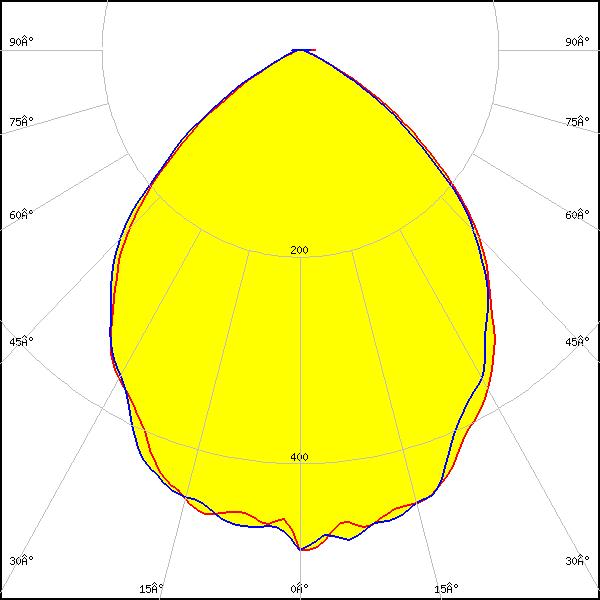

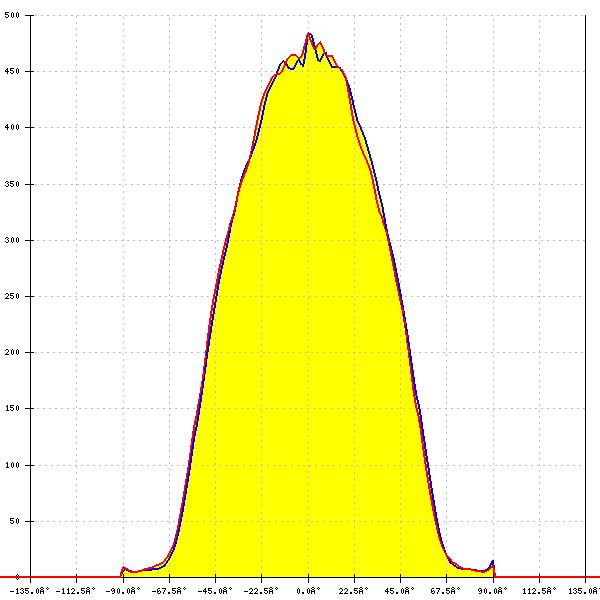

LED:
LH351B
FWHM:
90°
FWTM:
125°
Peak intensity:
0.490 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
88°
FWTM:
134°
Peak intensity:
0.505 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

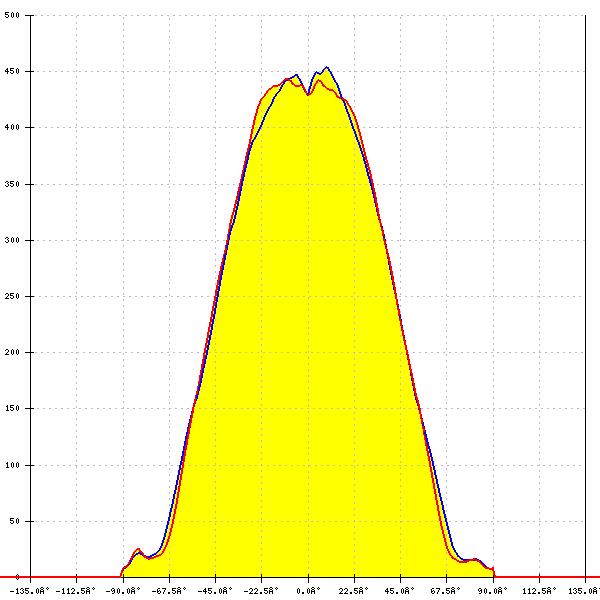

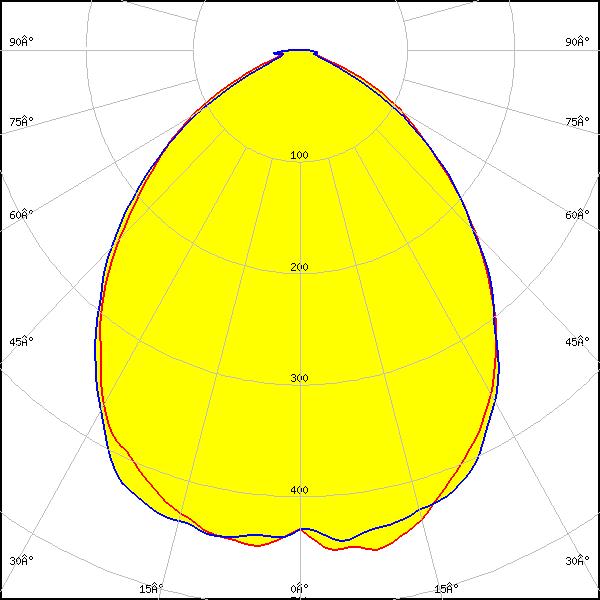

LED:
Z8Y22T
FWHM:
90°
FWTM:
134°
Peak intensity:
0.460 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
