C15437_STRADELLA-CY

Print

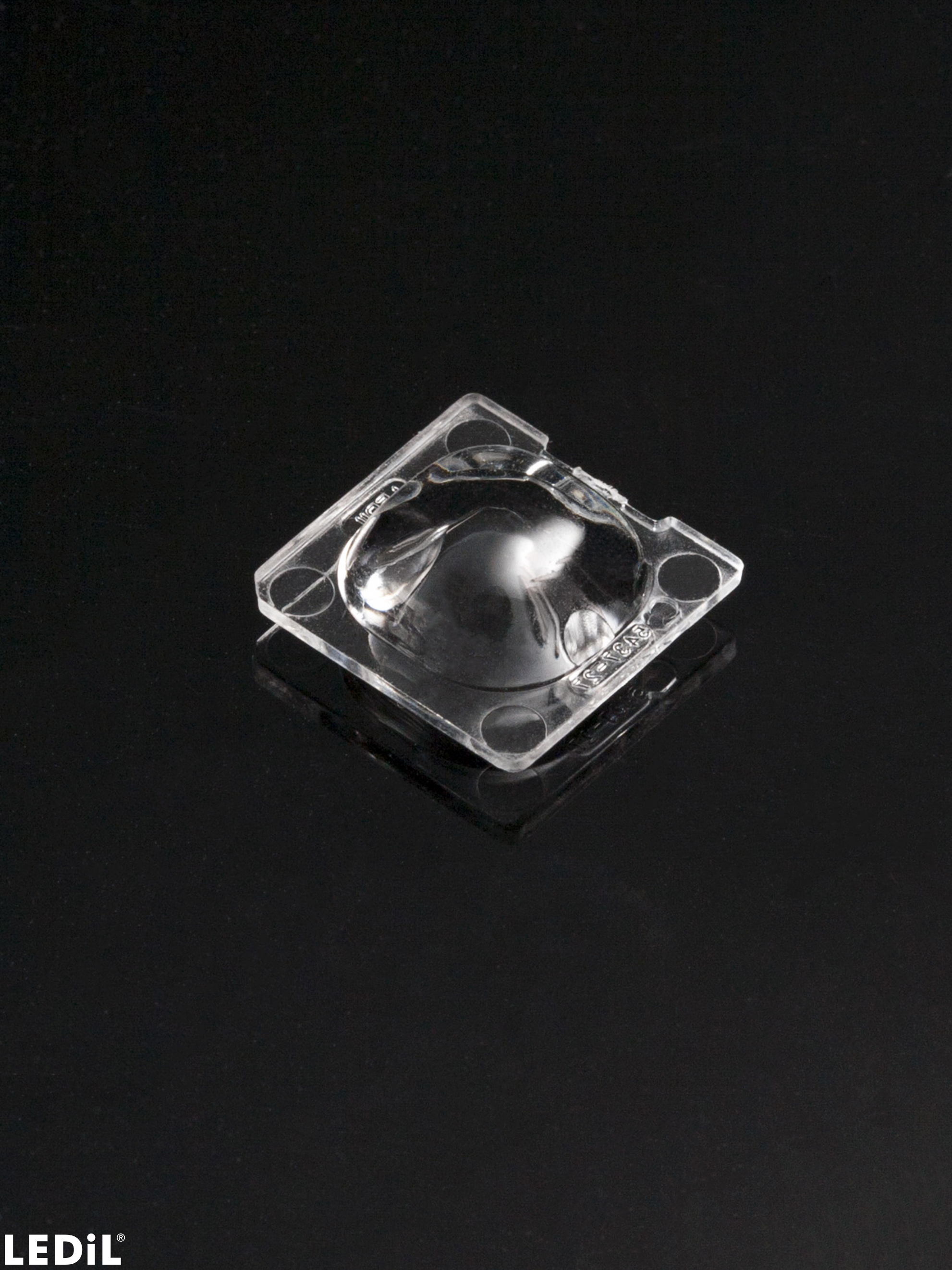

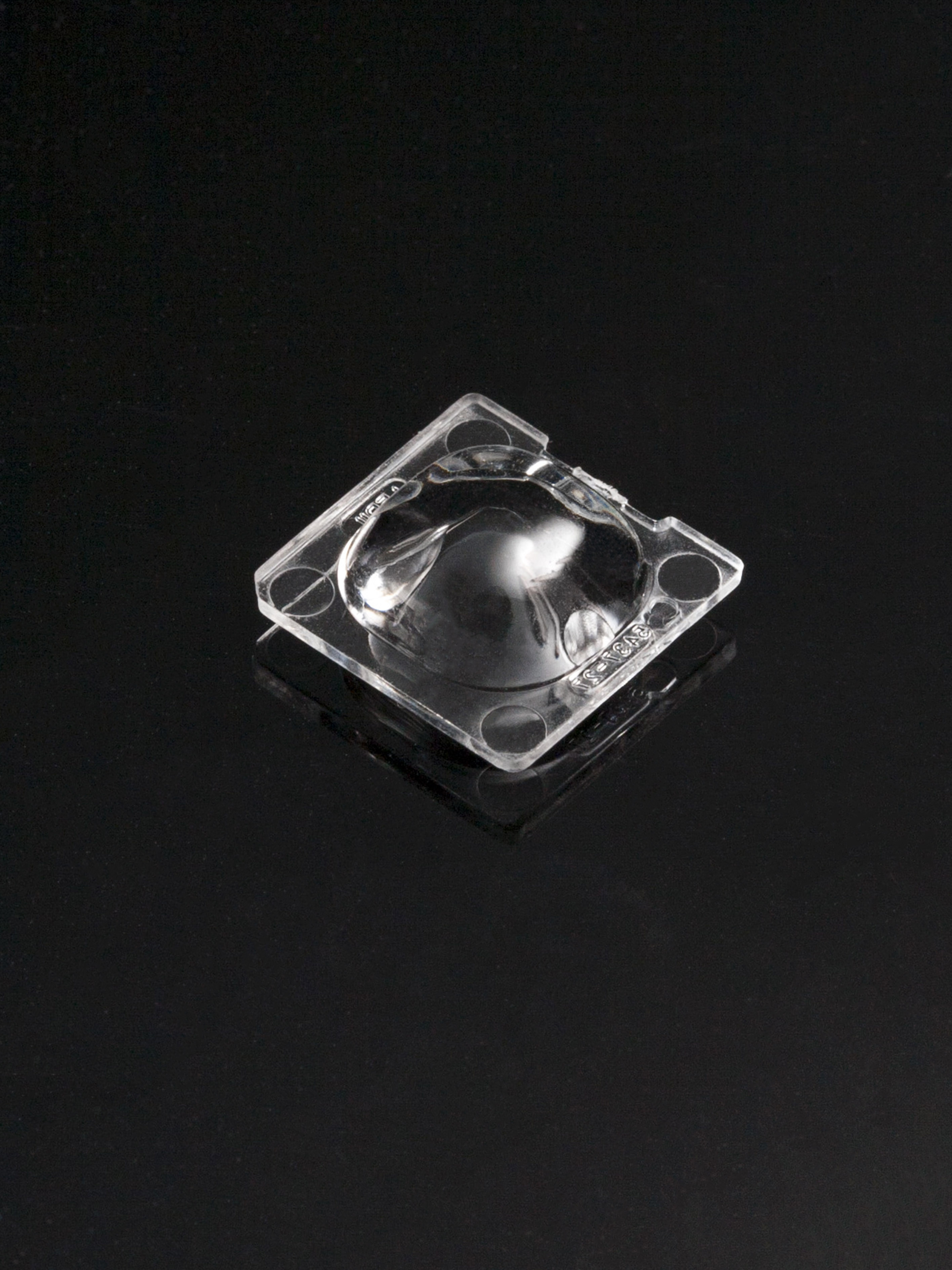

Beam for canopy lighting with batwing light distribution. Suitable for symmetrical tunnel lighting.

Specification
  • Dimensions:
    14 x  14 mm
  • Height:
    4.73 mm
  • Fastening:
    pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    16000 pcs
  • Box size:
    480 x 250 x 390 mm
  • Box weight:
    7.3 kg
  • MPQ:
    1000 pcs
  • MOQ:
    1000 pcs
  • MOQ size:
    320 x 230 x 70 mm
  • MOQ weight:
    0.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C15437_STRADELLA-CY

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

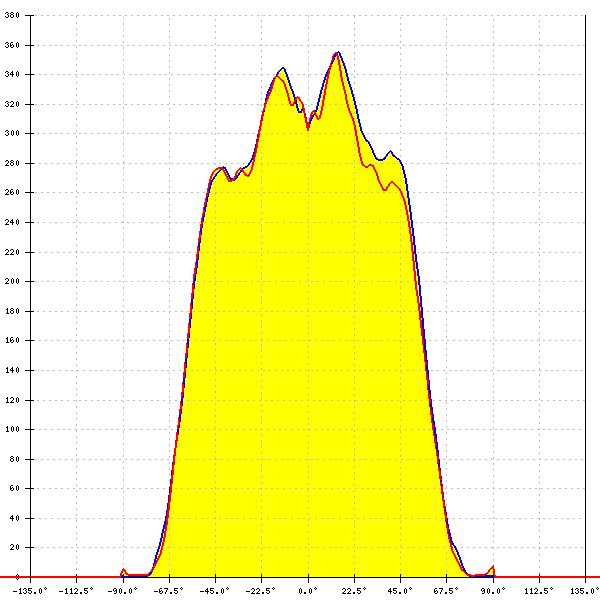

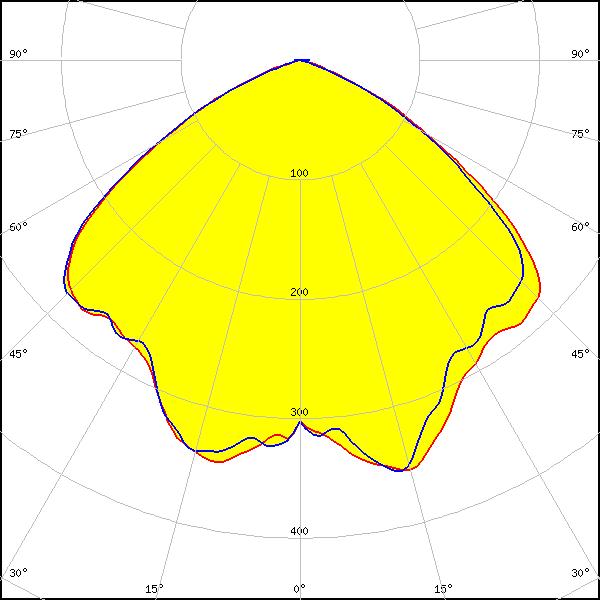

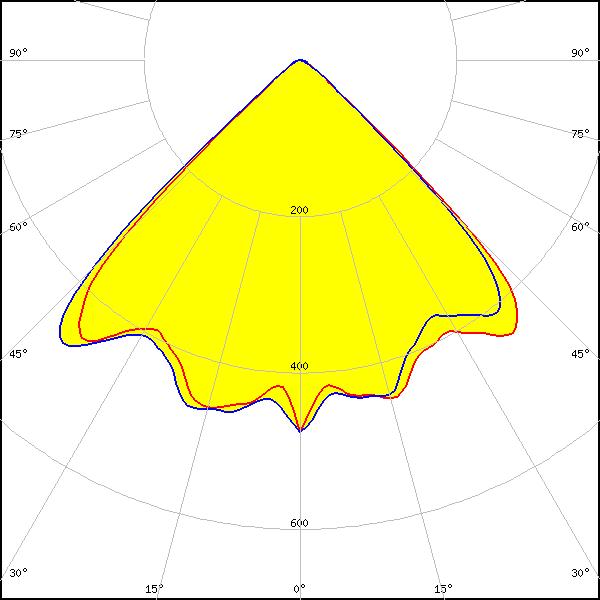

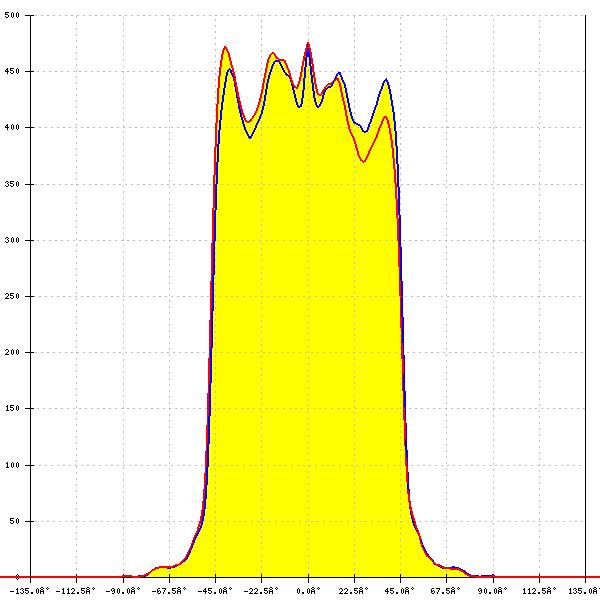

Optical results

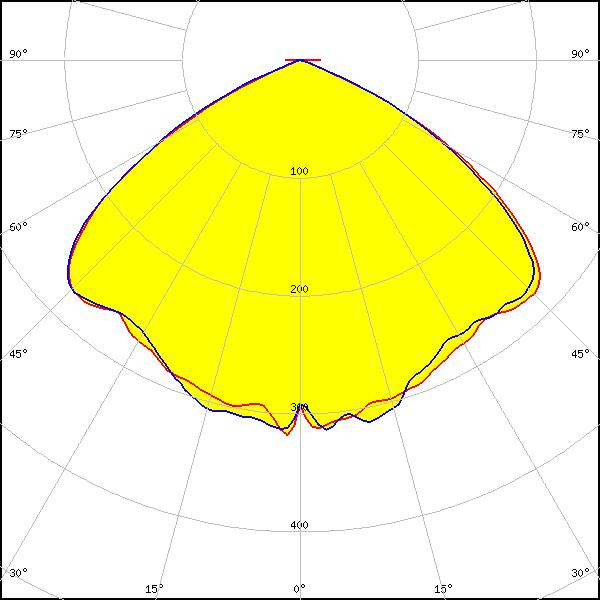

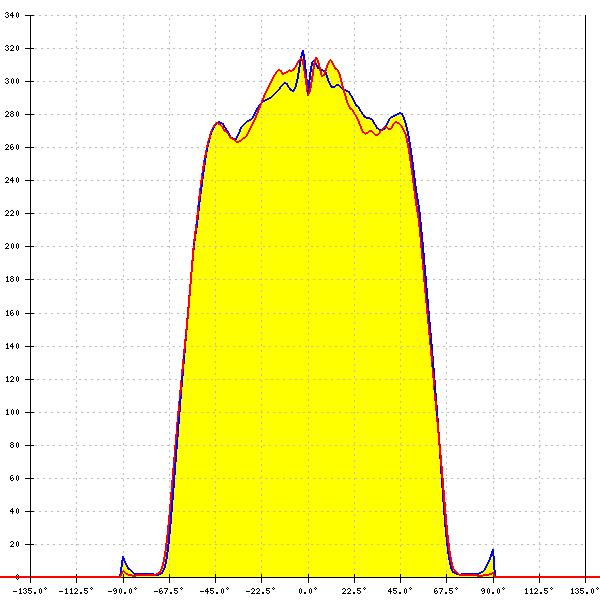

LED: J Series 2835
FWHM: 117°
FWTM: 135°
Peak intensity: 0.379 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

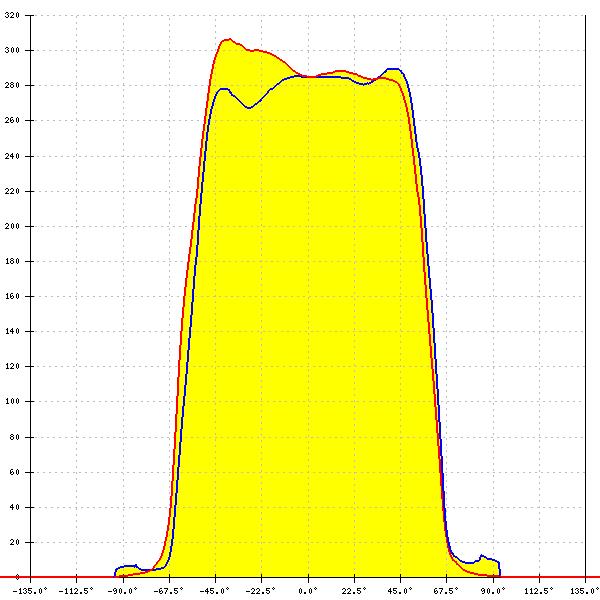

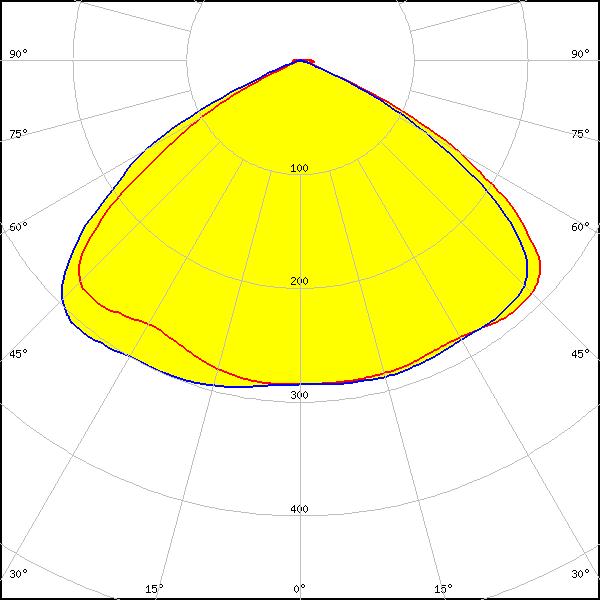

LED: J Series 3030
FWHM: 118°
FWTM: 133°
Peak intensity: 0.395 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White

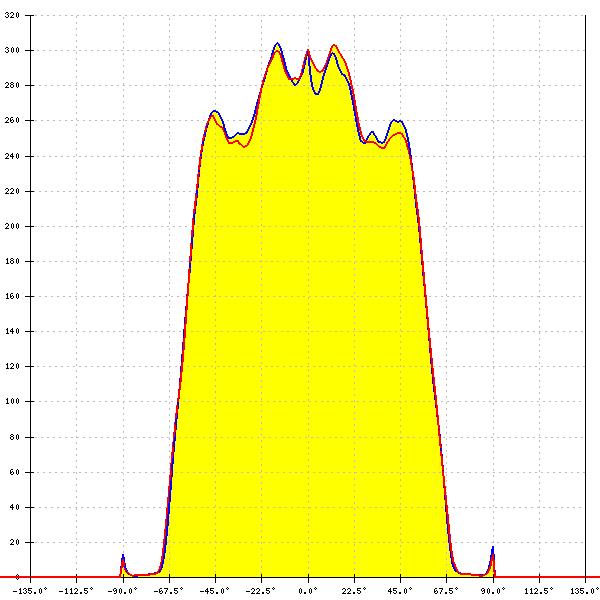

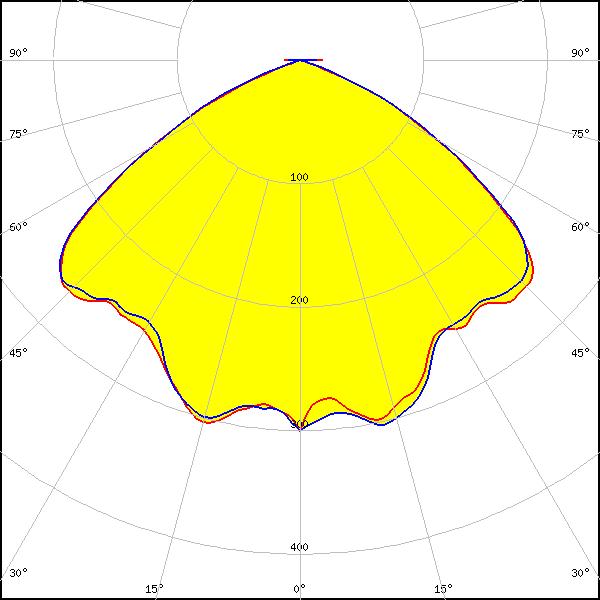

LED: XP-E2
FWHM: 117°
FWTM: 137°
Peak intensity: 0.363 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

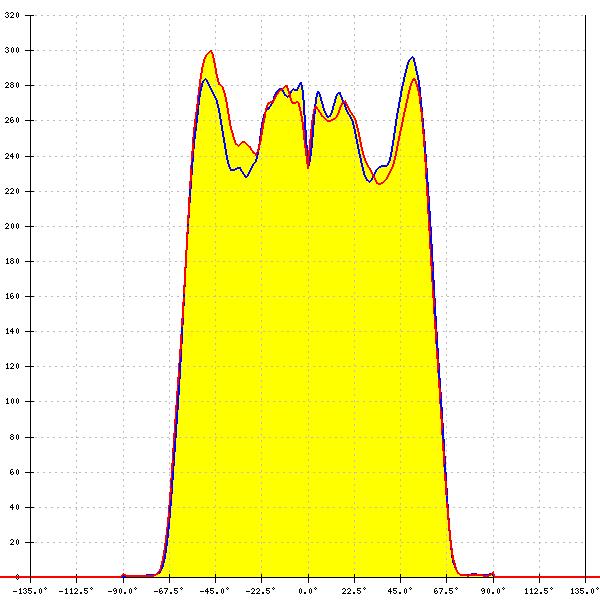

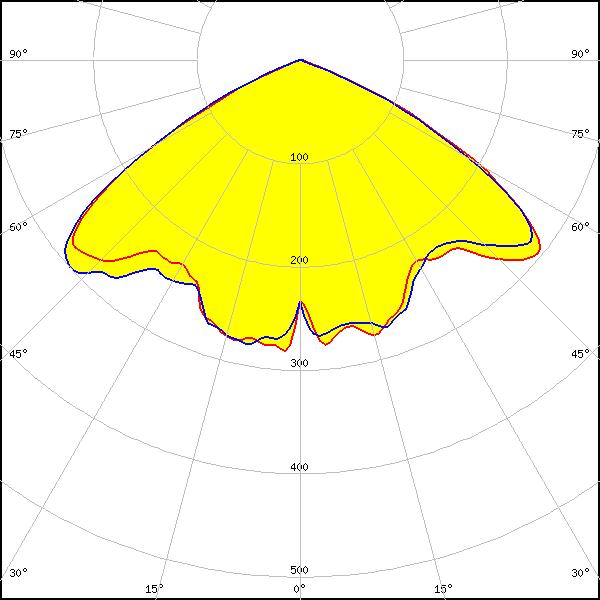

LED: XP-E2
FWHM: 123°
FWTM: 137°
Peak intensity: 0.422 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: Green

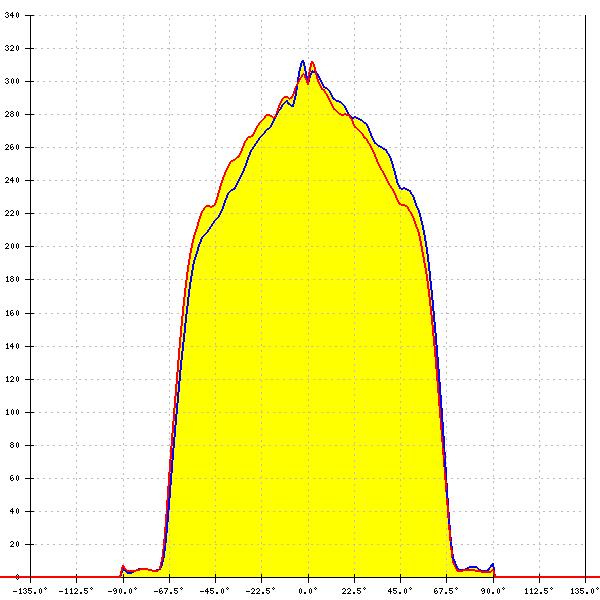

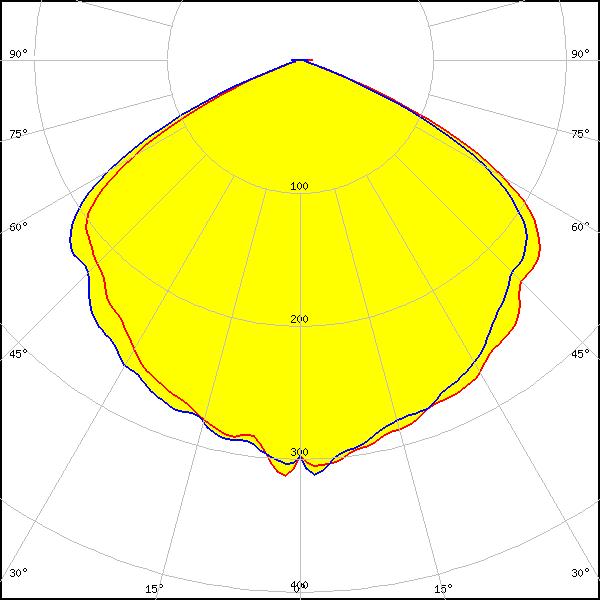

LED: XP-G2 HE
FWHM: 121°
FWTM: 138°
Peak intensity: 0.322 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

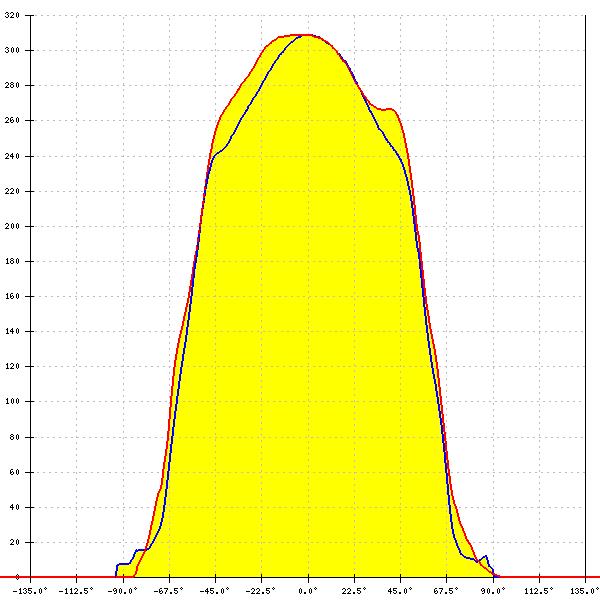

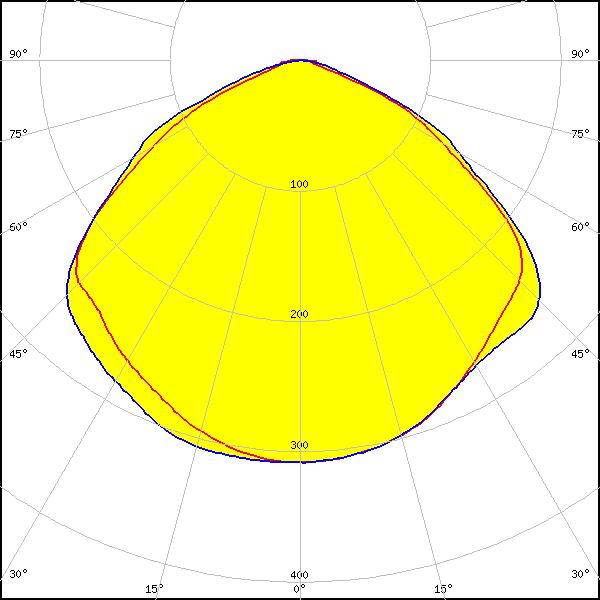

LED: XT-E
FWHM: 115°
FWTM: 146°
Peak intensity: 0.320 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

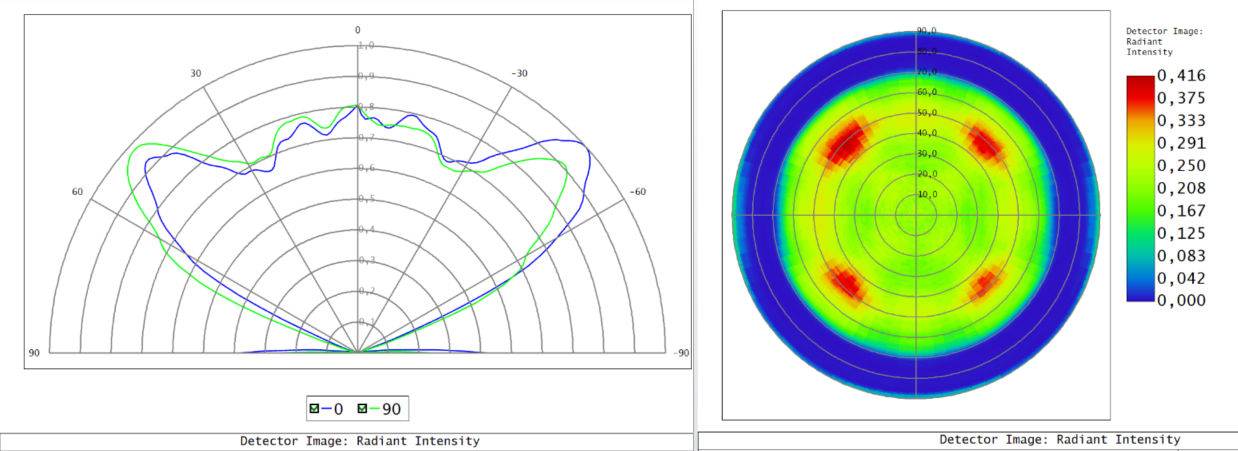

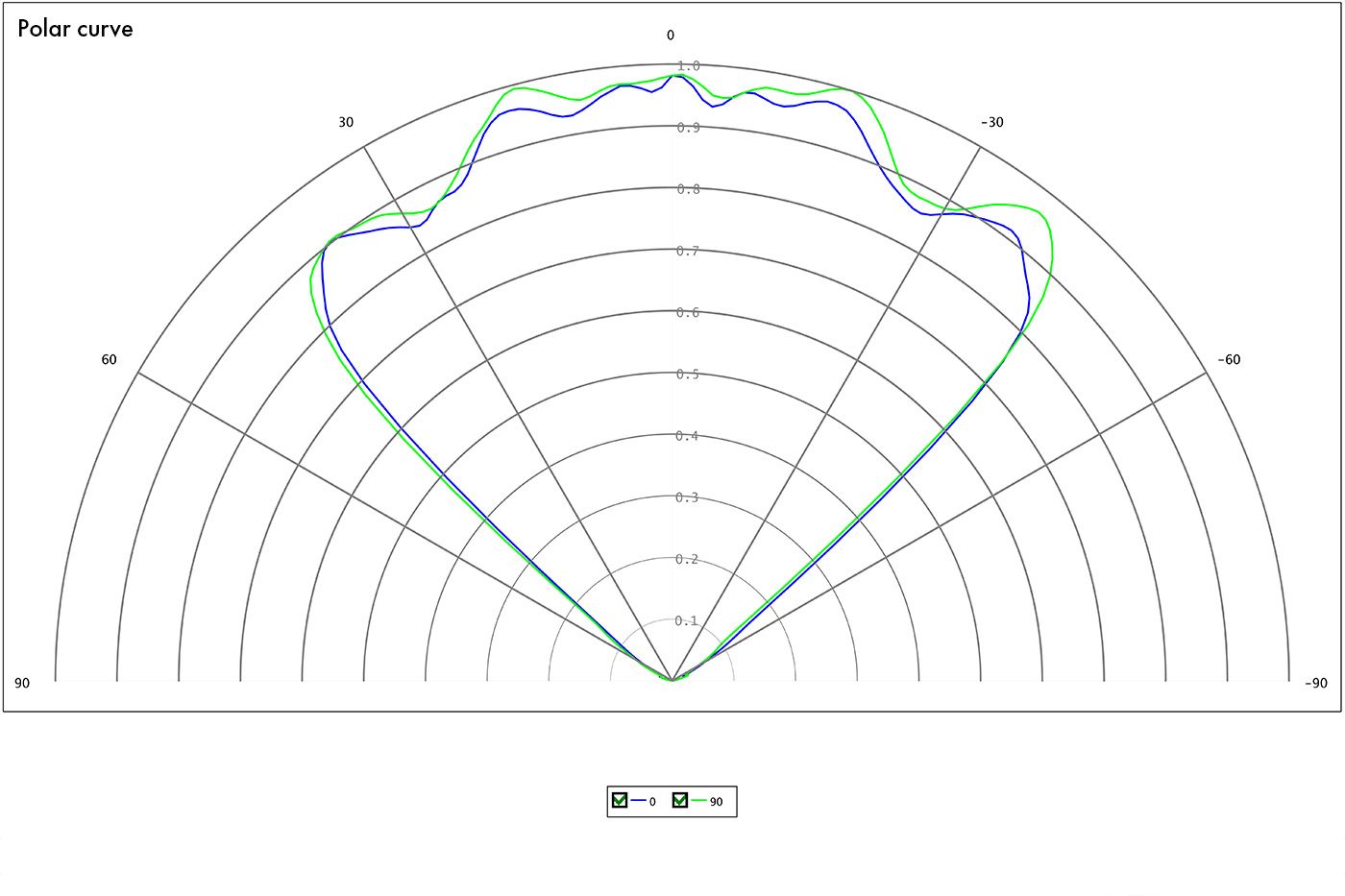

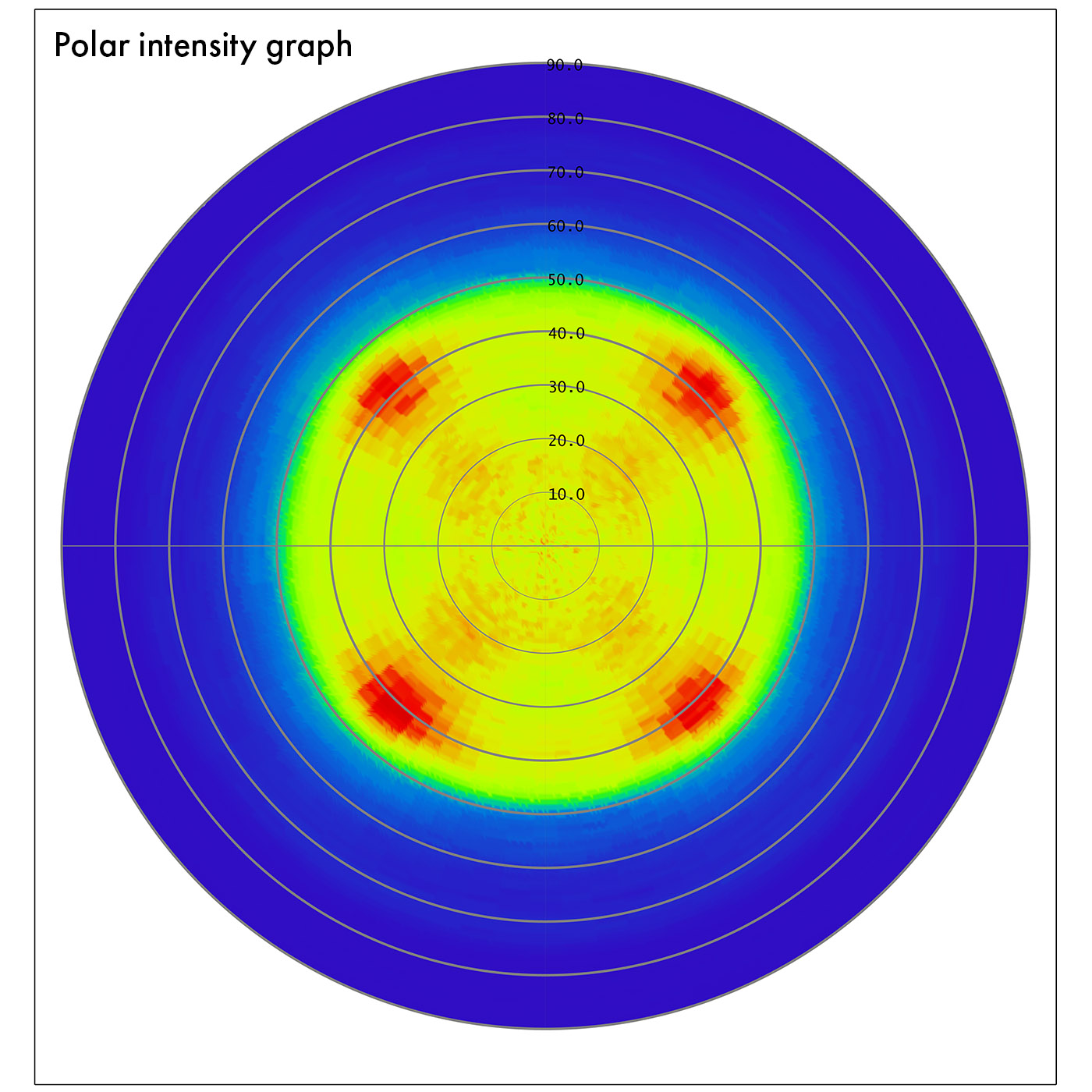

LED: LUXEON IR Domed 150
FWHM: 131°
FWTM: 142°
Efficiency: 96 %
LEDs/each optic: 1
Light colour: IR

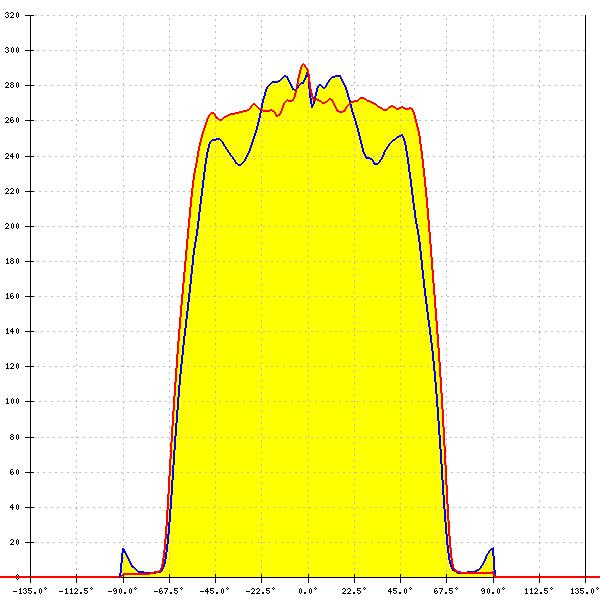

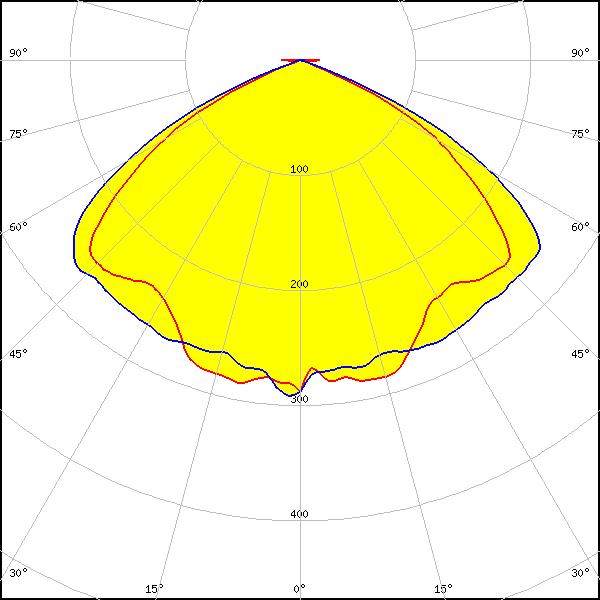

LED: NF2W585AR-P8
FWHM: 118° + 125°
FWTM: 134° + 138°
Peak intensity: 0.351 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

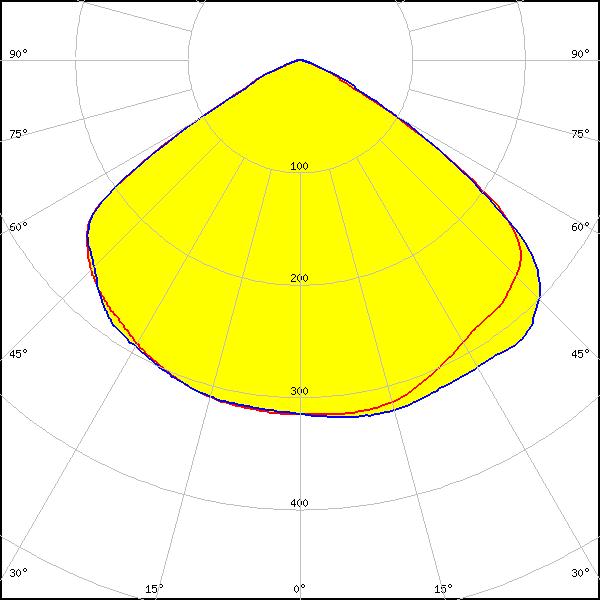

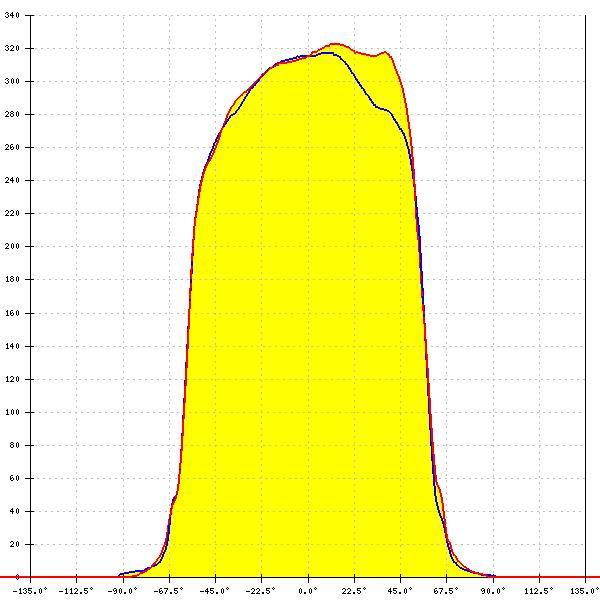

LED: NVSW219D
FWHM: 114°
FWTM: 134°
Peak intensity: 0.370 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

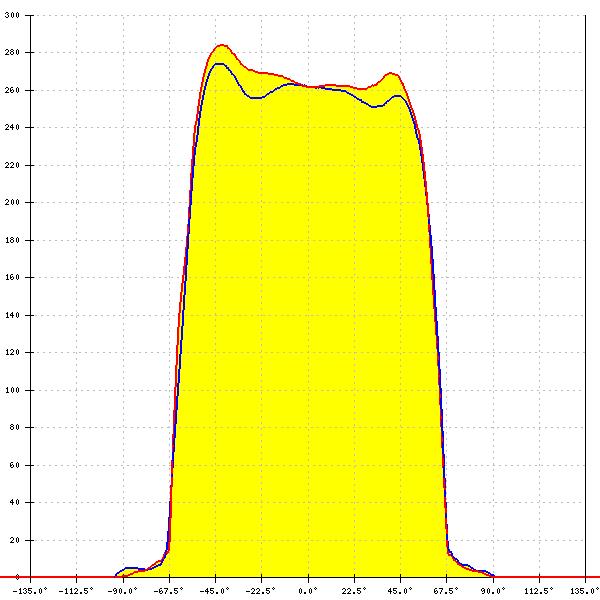

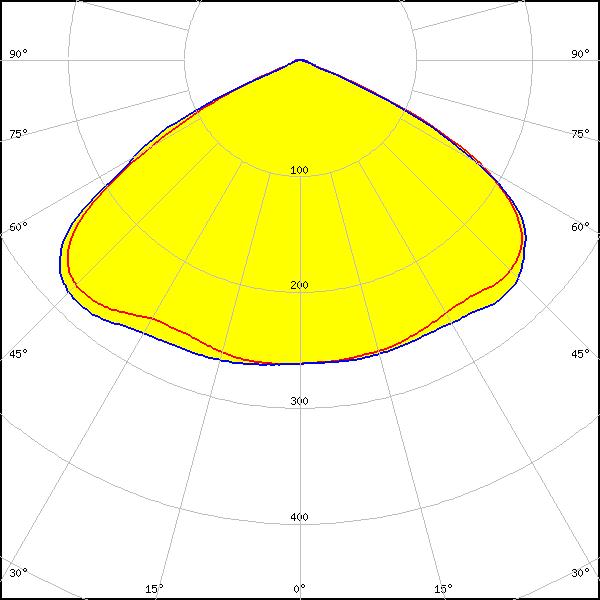

LED: NVSW319B
FWHM: asymmetric
Peak intensity: 0.350 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

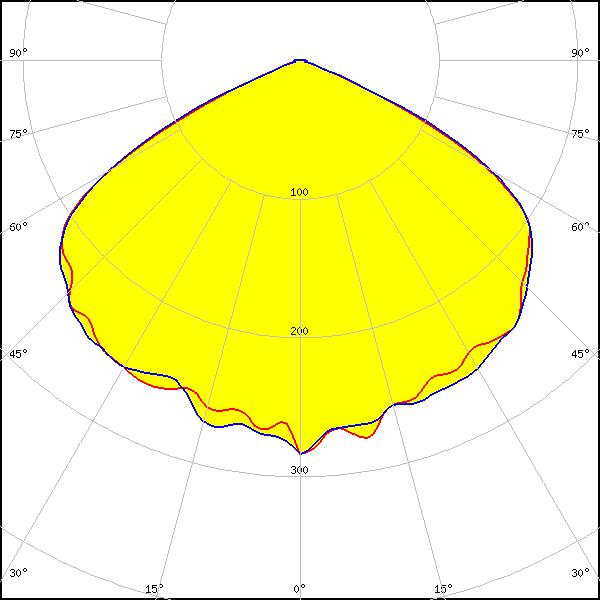

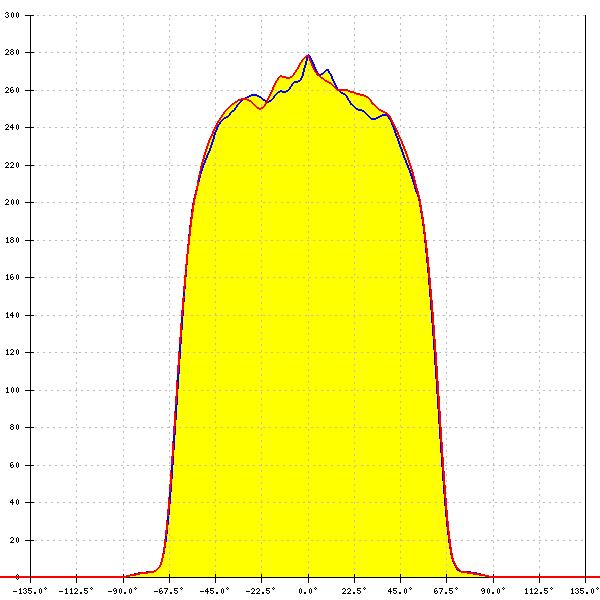

LED: NVSW519A
FWHM: 122°
FWTM: 136°
Peak intensity: 0.315 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

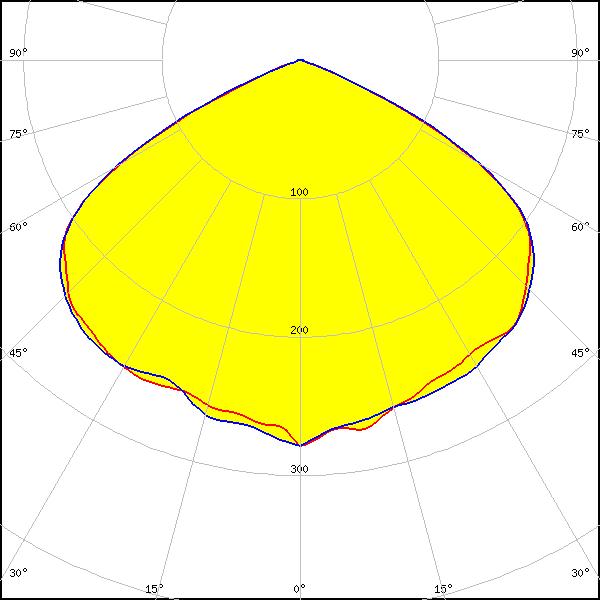

LED: NVSW519A
FWHM: 122°
FWTM: 136°
Peak intensity: 0.293 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

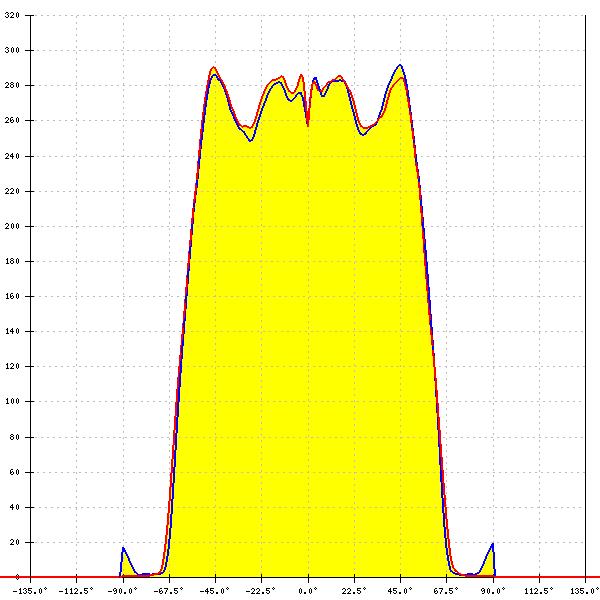

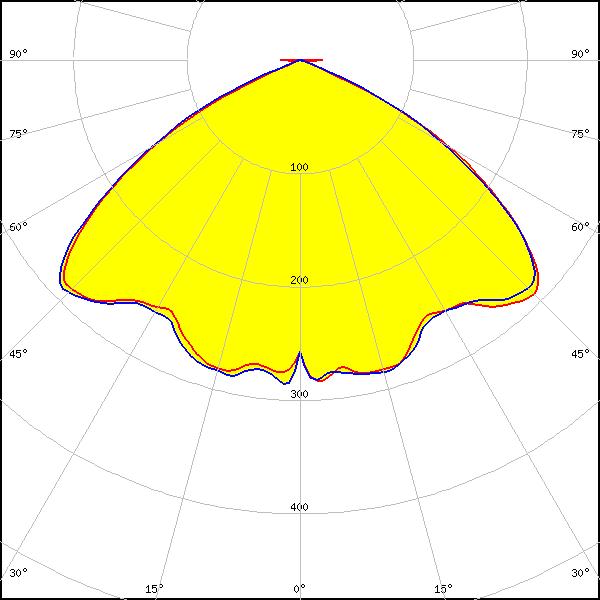

LED: OSCONIQ C 2424
FWHM: 120°
FWTM: 135°
Peak intensity: 0.397 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3030
FWHM: 112°
FWTM: 137°
Peak intensity: 0.394 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

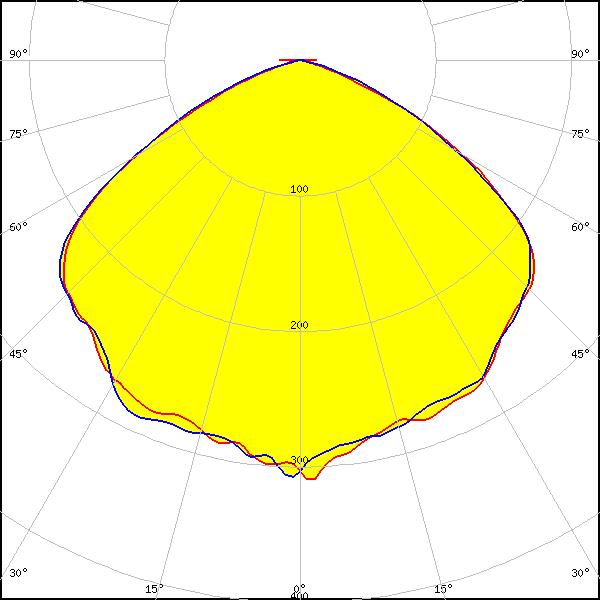

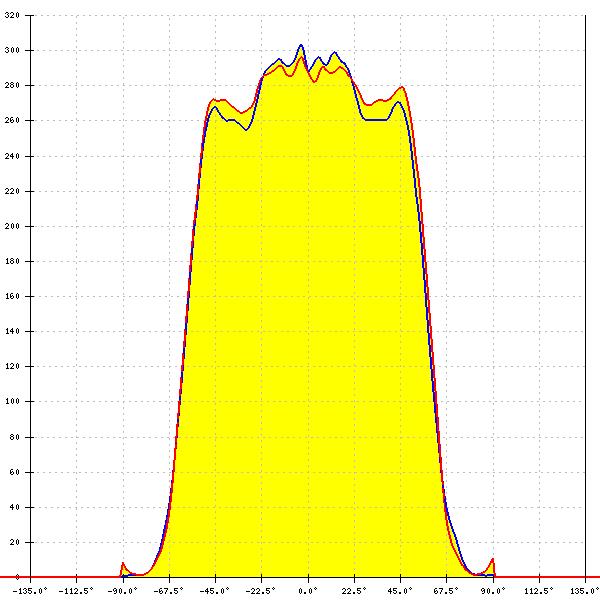

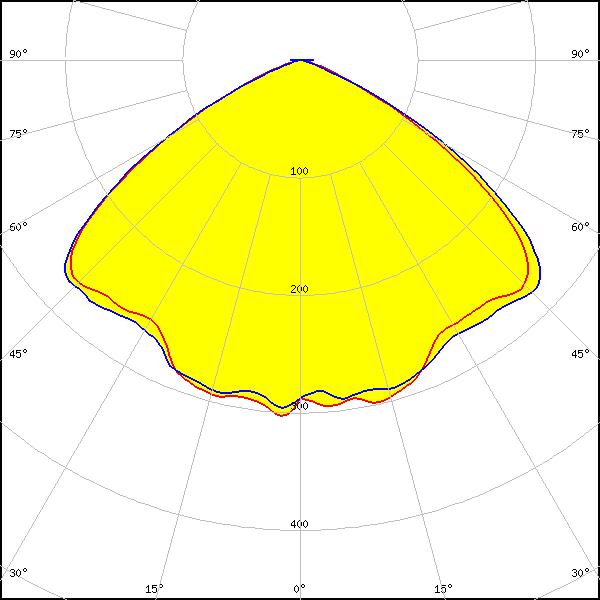

LED: OSCONIQ P 3737 (2W version)
FWHM: 115°
FWTM: 137°
Peak intensity: 0.370 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

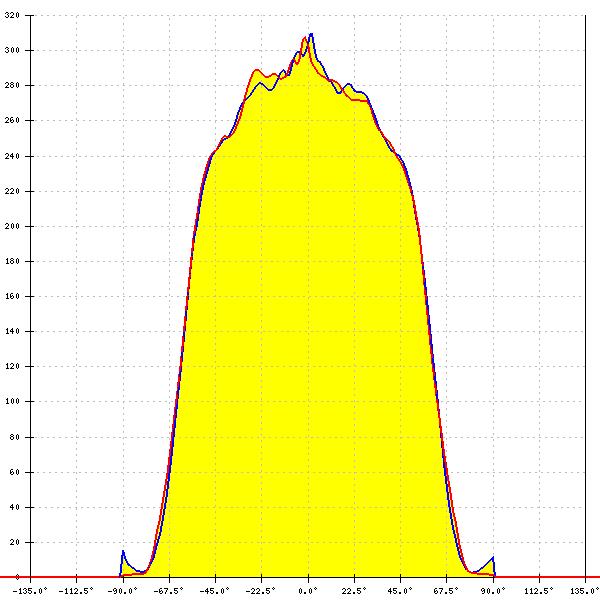

LED: OSCONIQ P 3737 (3W version)
FWHM: 117°
FWTM: 143°
Peak intensity: 0.329 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

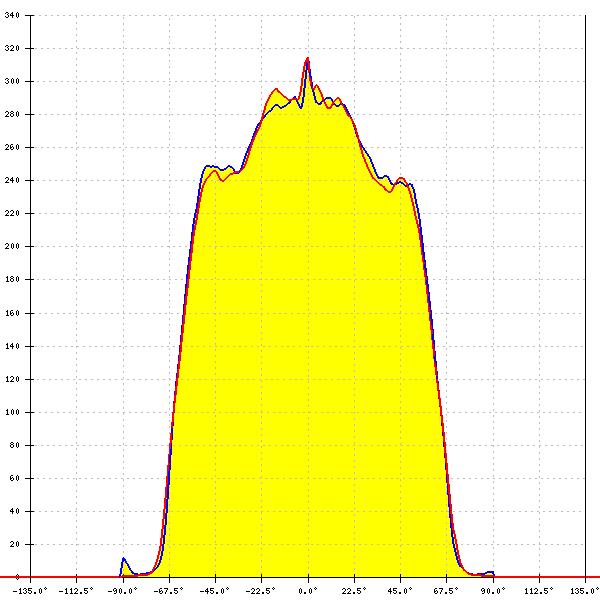

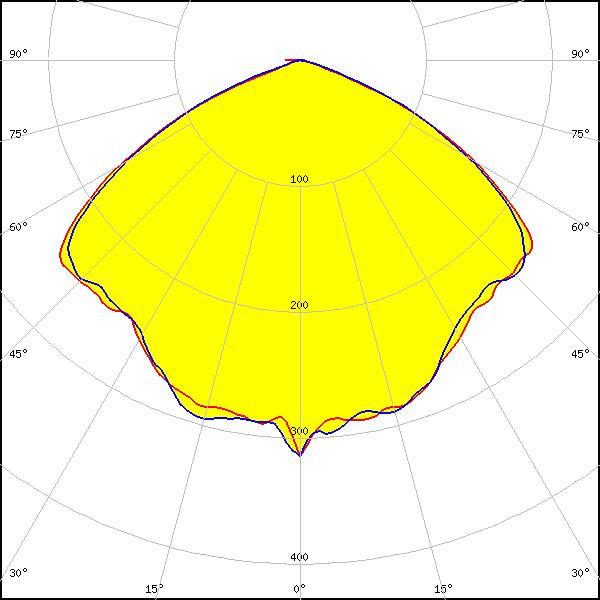

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 120°
FWTM: 140°
Peak intensity: 0.349 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

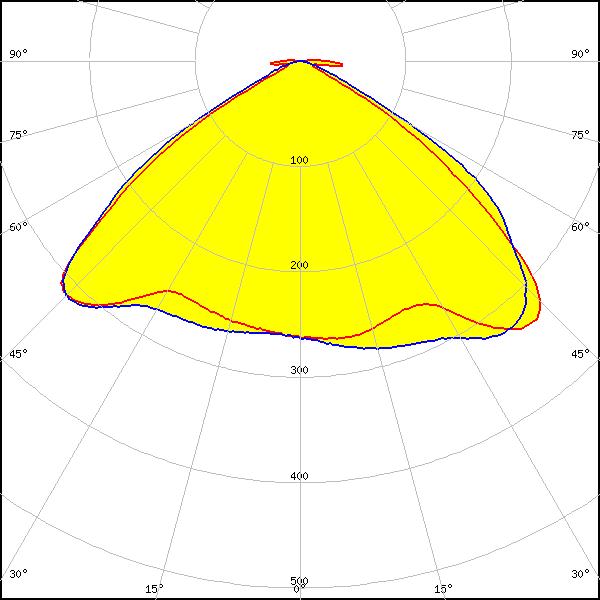

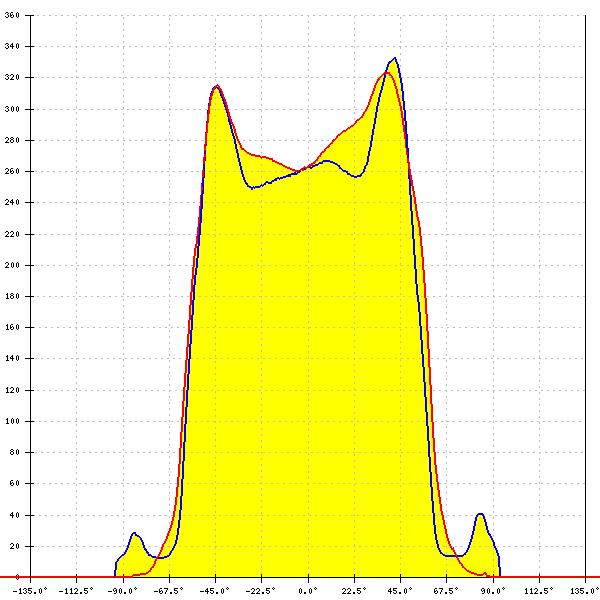

LED: LH181B
FWHM: 116°
FWTM: 145°
Peak intensity: 0.430 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

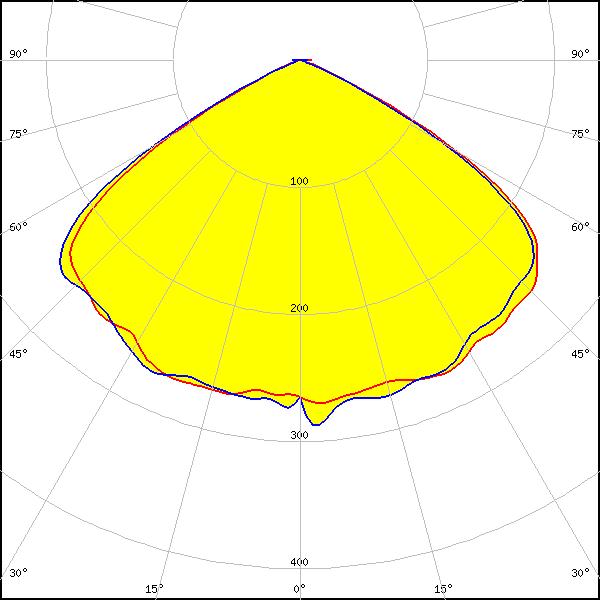

LED: LH351B
FWHM: 110°
FWTM: 118°
Peak intensity: 0.340 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

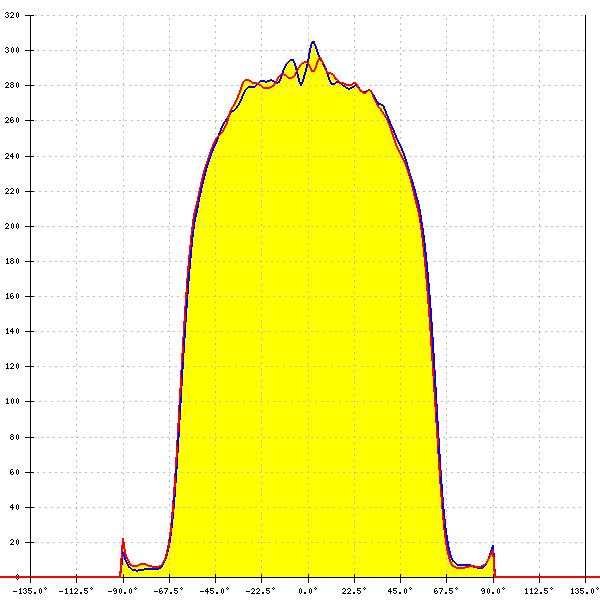

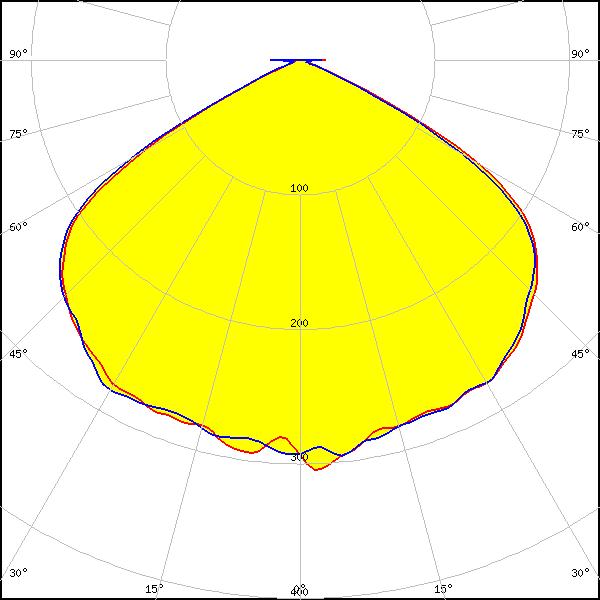

LED: LH351D
FWHM: 123°
FWTM: 135°
Peak intensity: 0.310 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

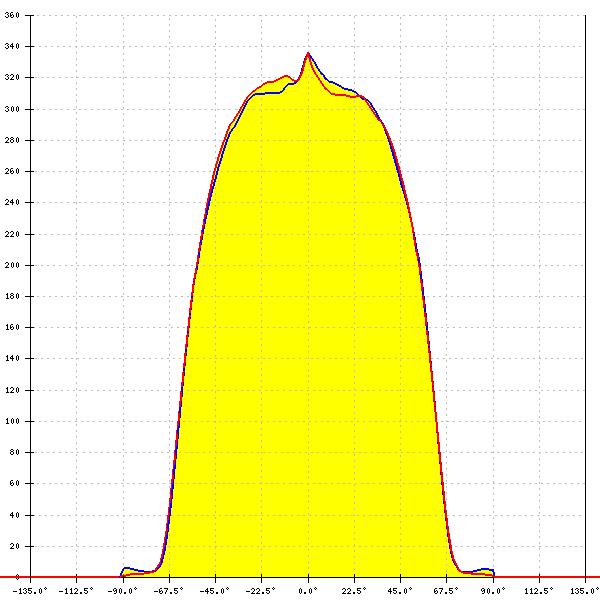

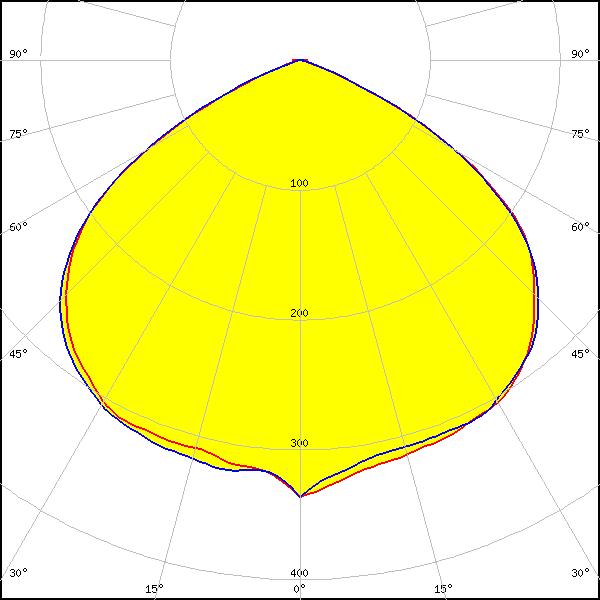

LED: SEOUL DC 5050 6V
FWHM: 114°
FWTM: 136°
Peak intensity: 0.340 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

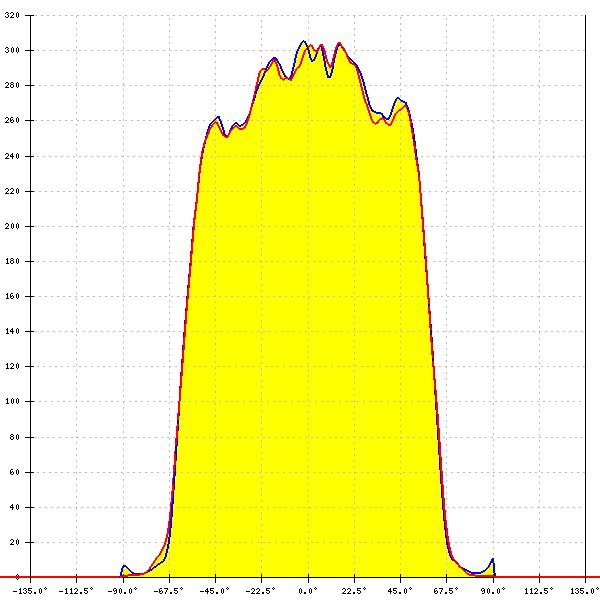

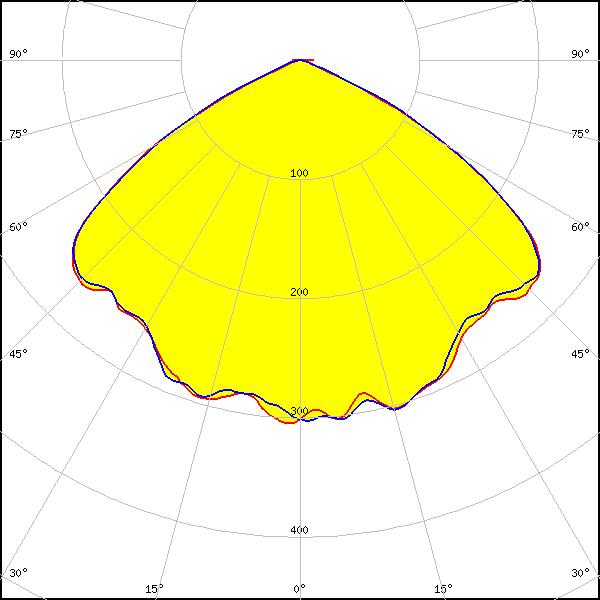

LED: Z5M1/Z5M2
FWHM: 118°
FWTM: 134°
Peak intensity: 0.369 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
