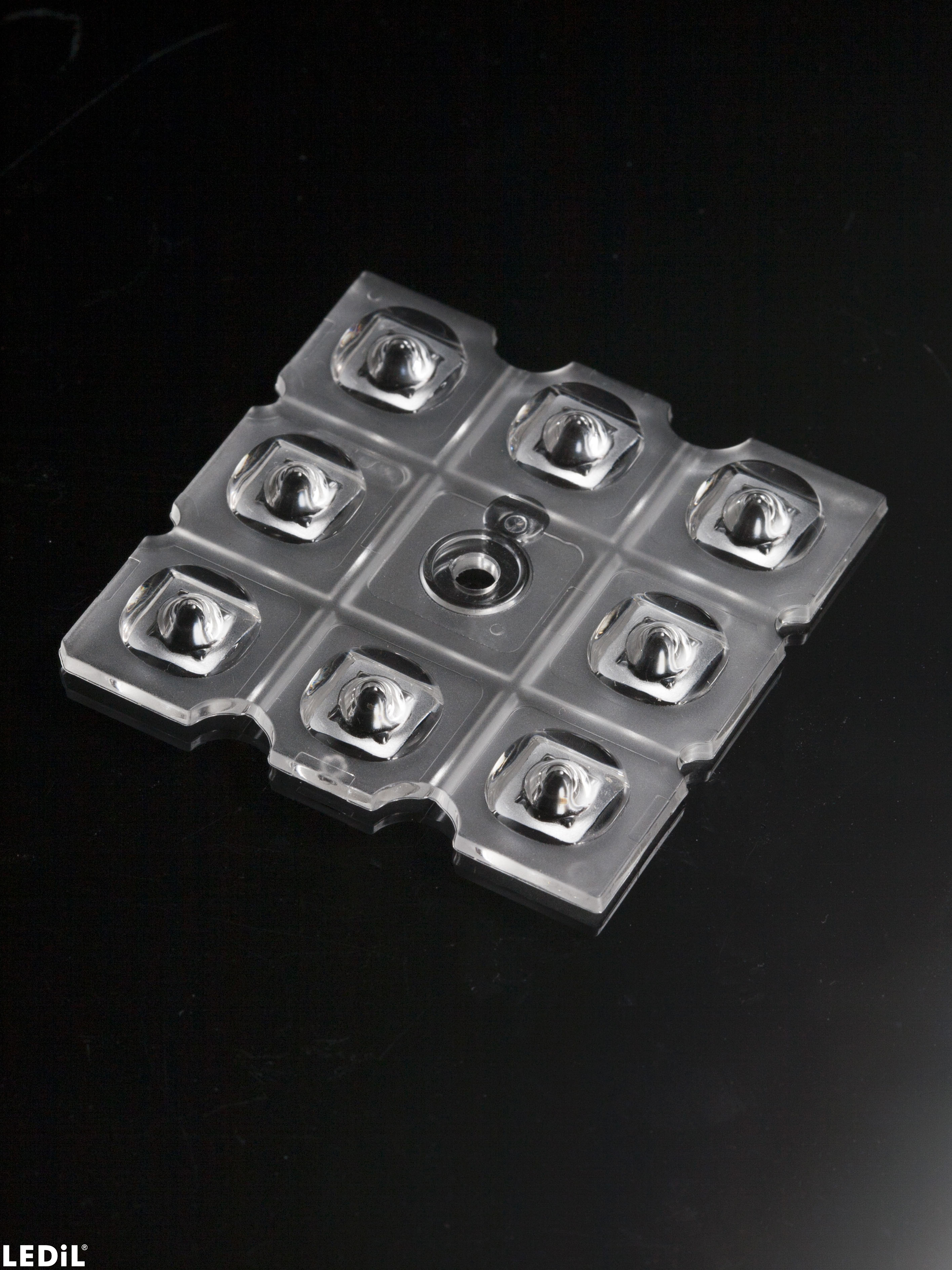

    C15481_STRADELLA-8-VSM

    Print

    IESNA Type V (square) beam for wide areas lighting such as car parks

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      4.7 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • PMMA
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.3 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
       Subscribe to LEDiL Newsletters
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C15481_STRADELLA-8-VSM

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    Installation Guide

    General Installation Guide

    Application guide

    Guide_for_Horticultural_lighting_optics_WEB_2020_v.1.2

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA-8-VSM AND –SCL

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Architectural Outdoor Lighting

    Application area

    Tunnel and Transportation Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Horticultural Lighting

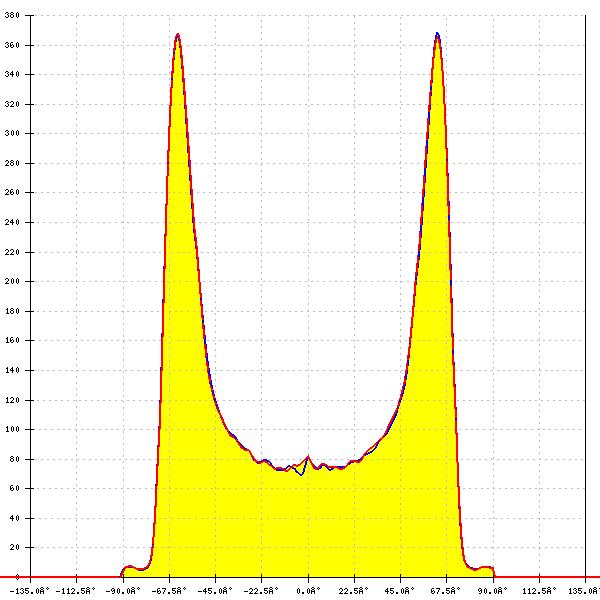

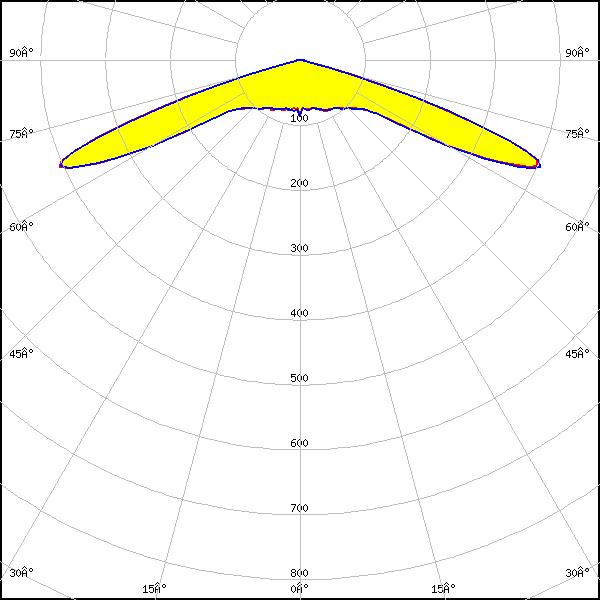

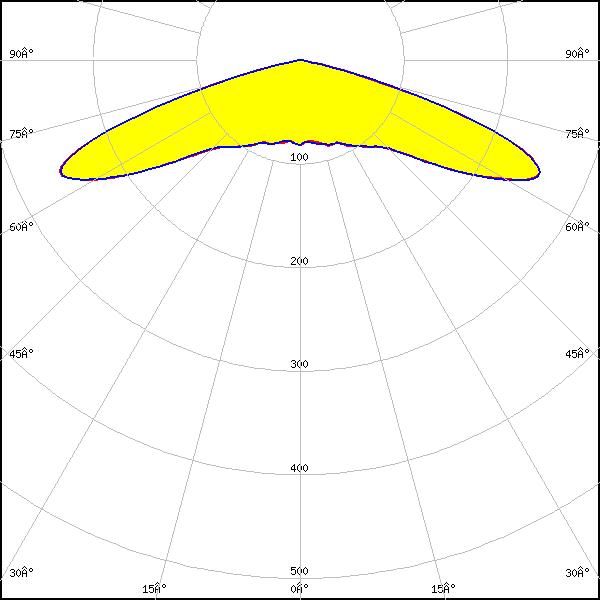

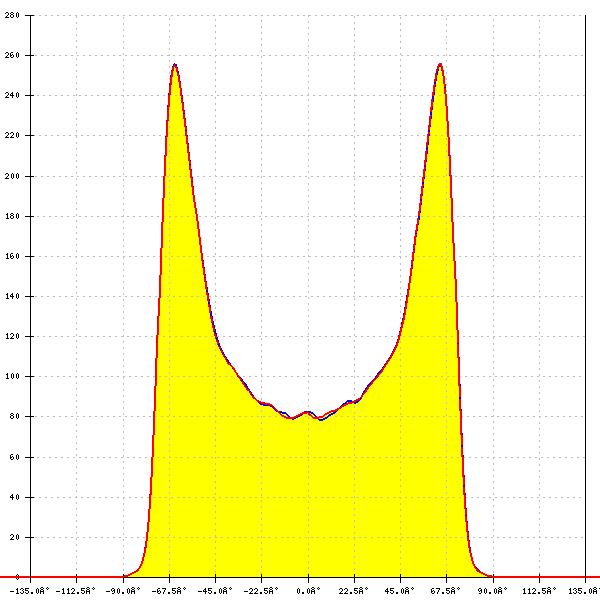

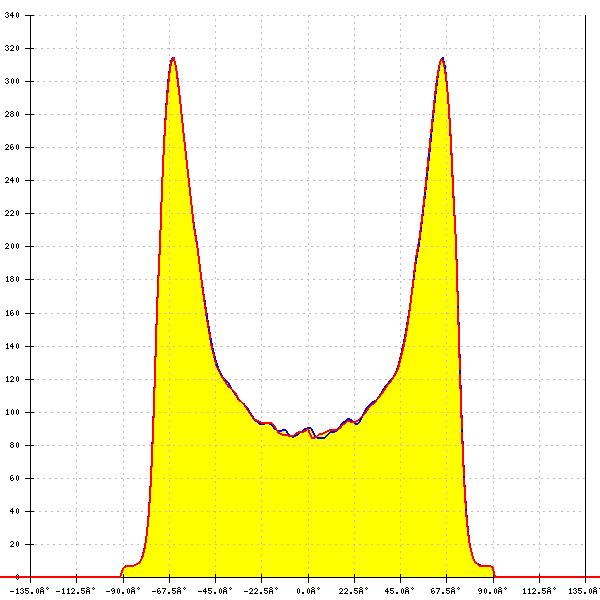

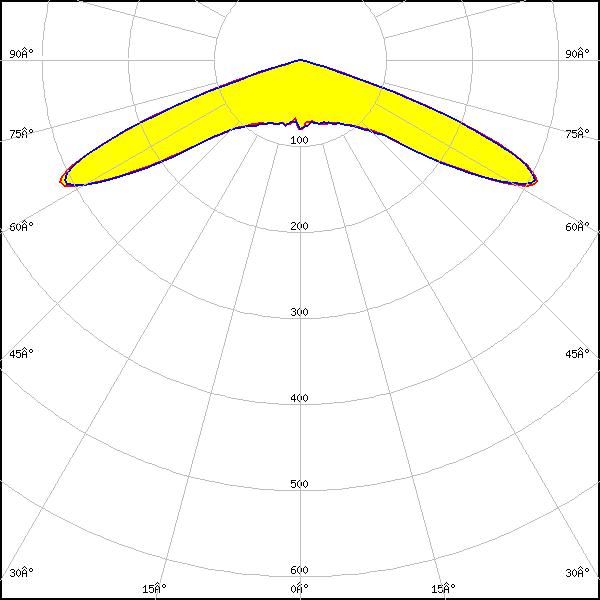

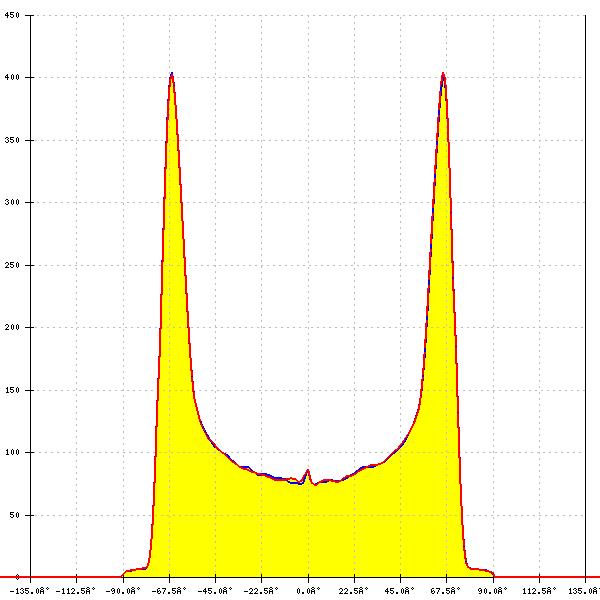

    Optical results

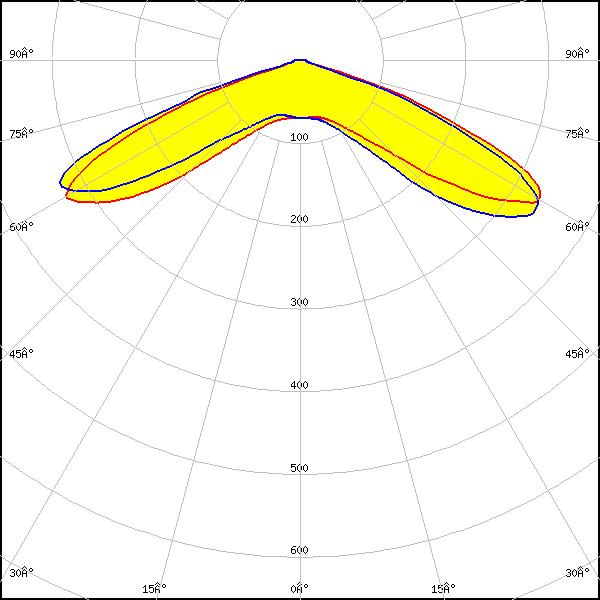

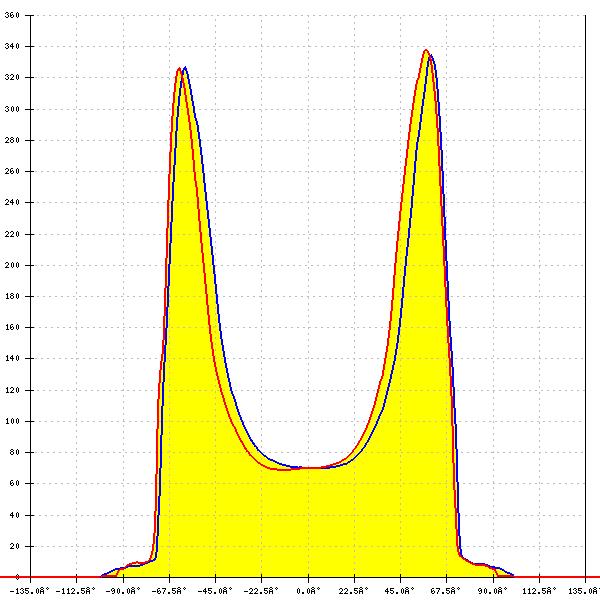

    LED: J Series 3030
    FWHM: 138°
    Peak intensity: 0.5 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour: White

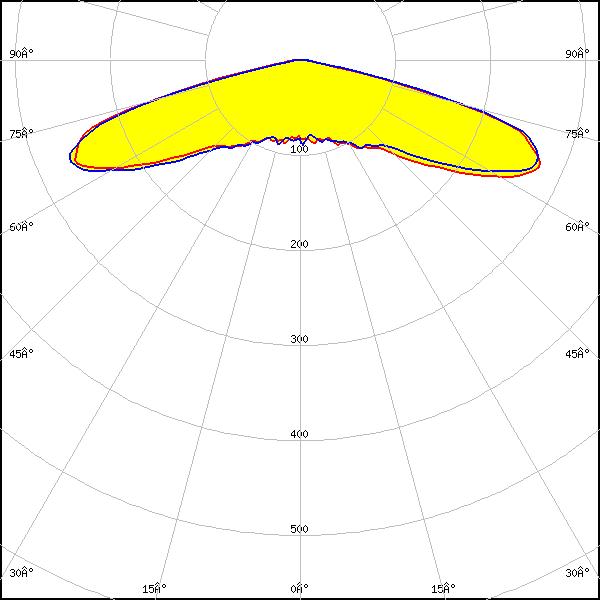

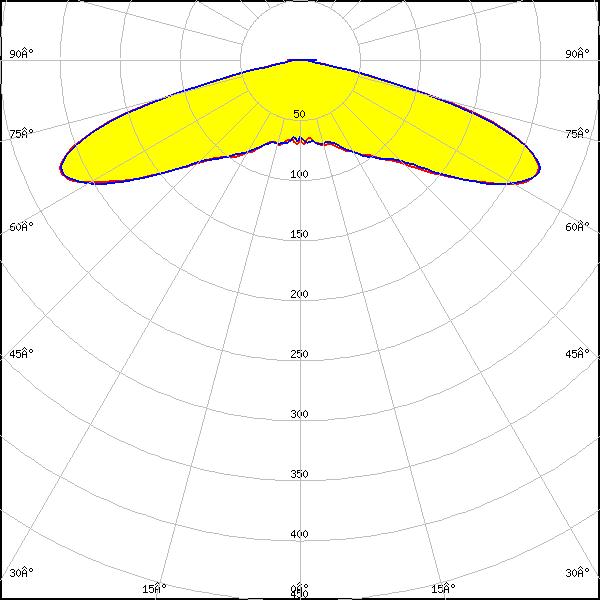

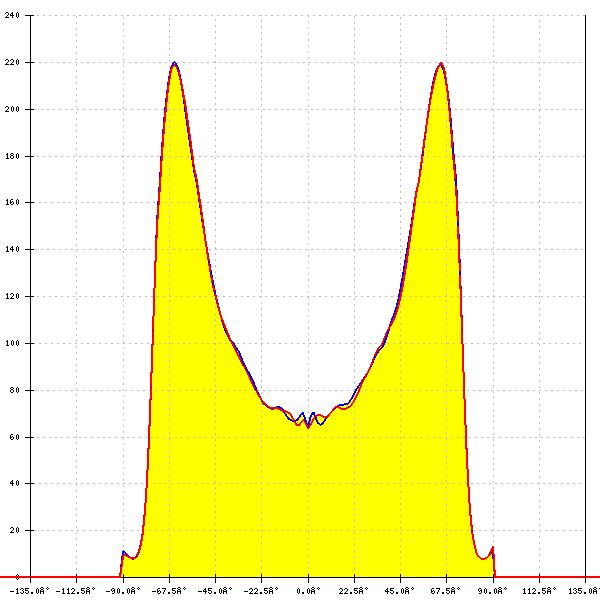

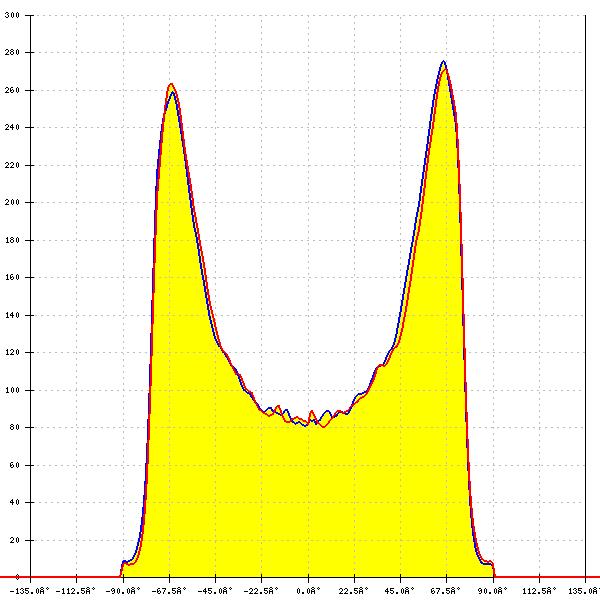

    LED: LH351C
    FWHM: 150°
    Peak intensity: 0.5 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

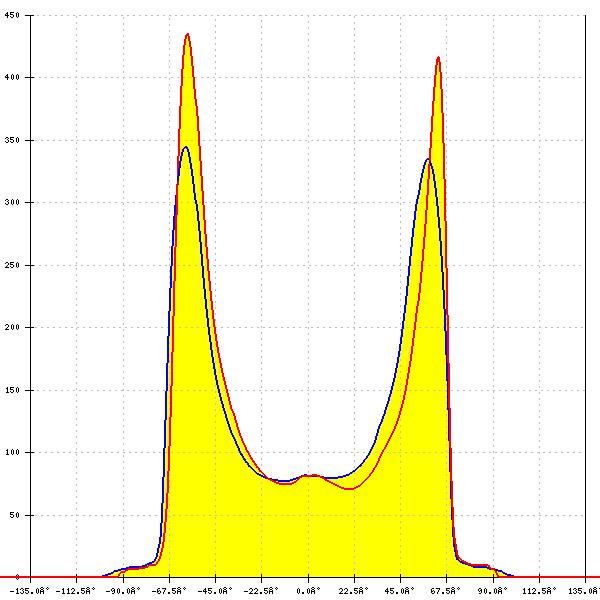

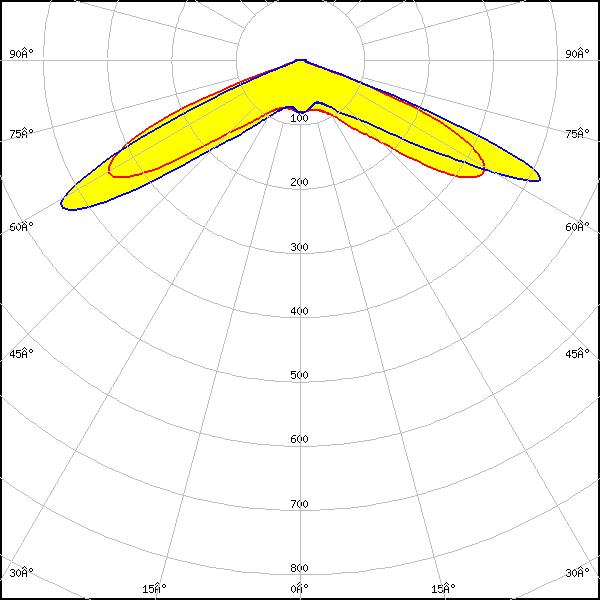

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 137°
    Peak intensity: 0.5 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

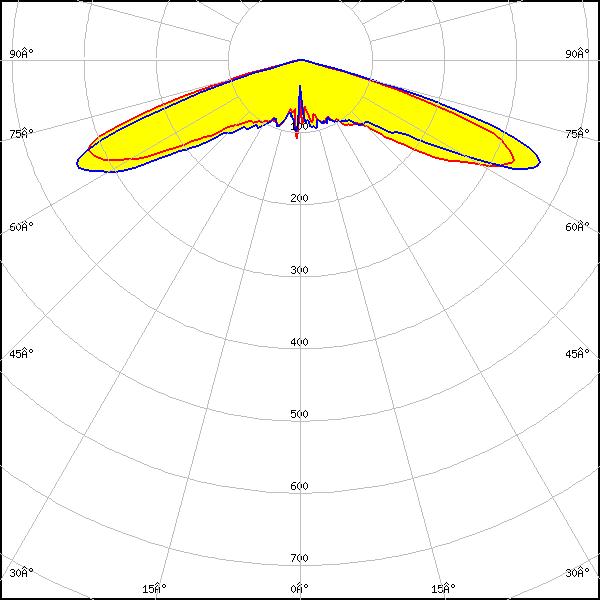

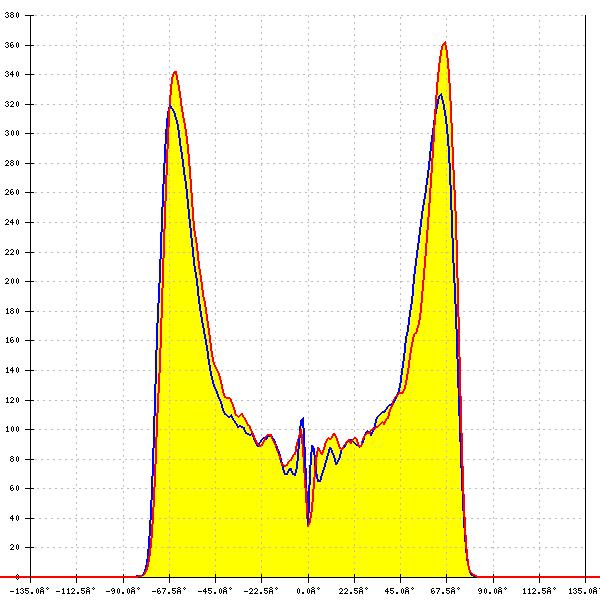

    LED: LUXEON 3535 2D
    FWHM: 143°
    Peak intensity: 0.5 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

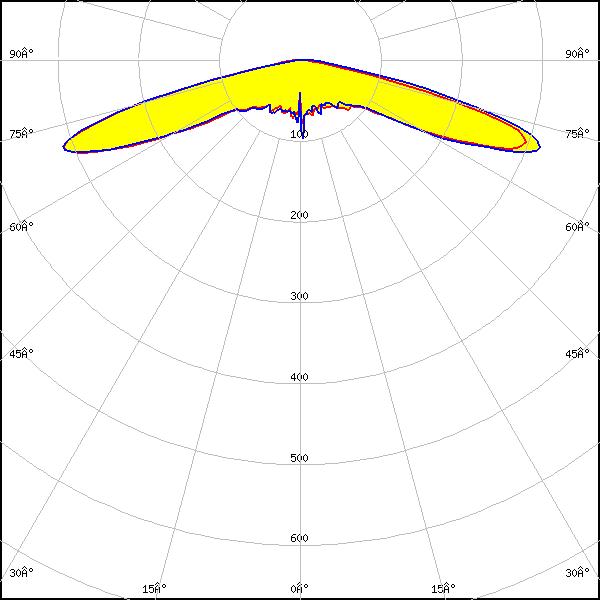

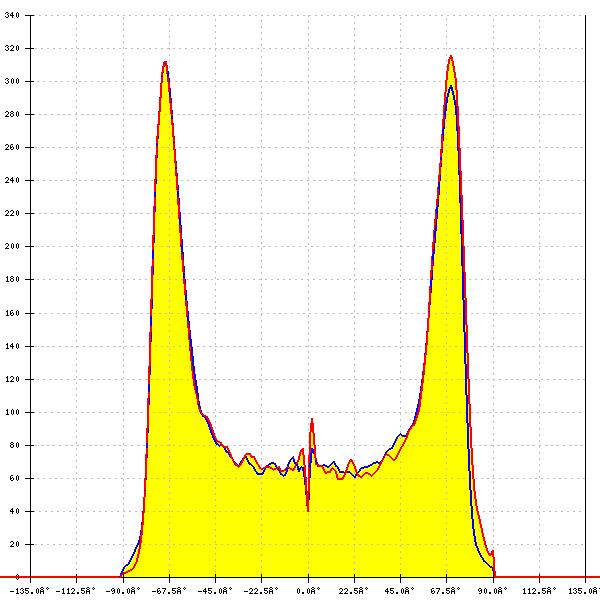

    LED: LUXEON C
    FWHM: 152°
    Peak intensity: 0.5 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

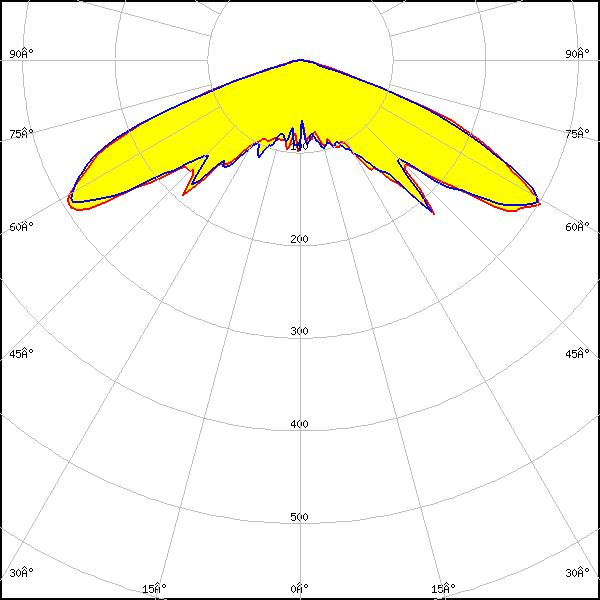

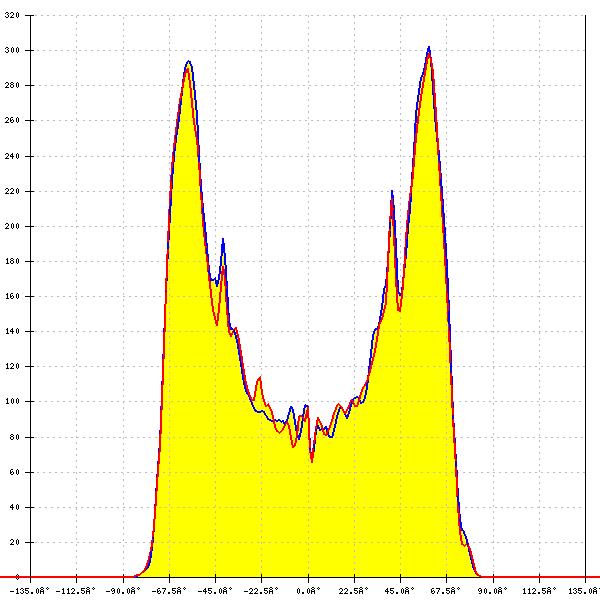

    LED: LUXEON FlipChip White 10
    FWHM: 136°
    Peak intensity: 0.4 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

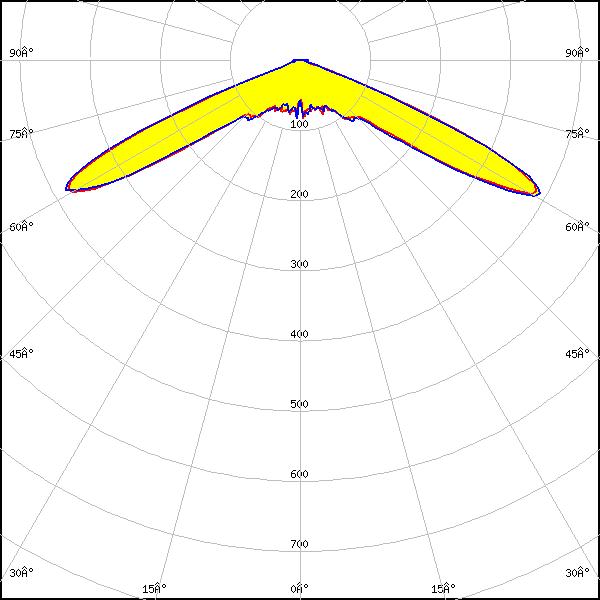

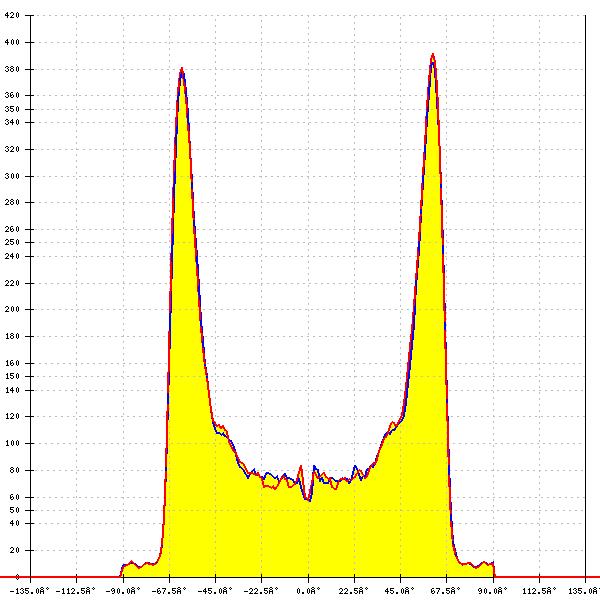

    LED: NCSxE17A
    FWHM: 134°
    Peak intensity: 0.6 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

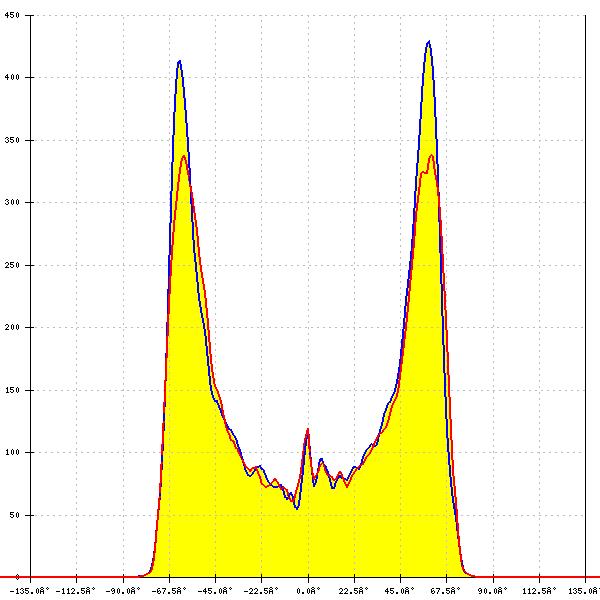

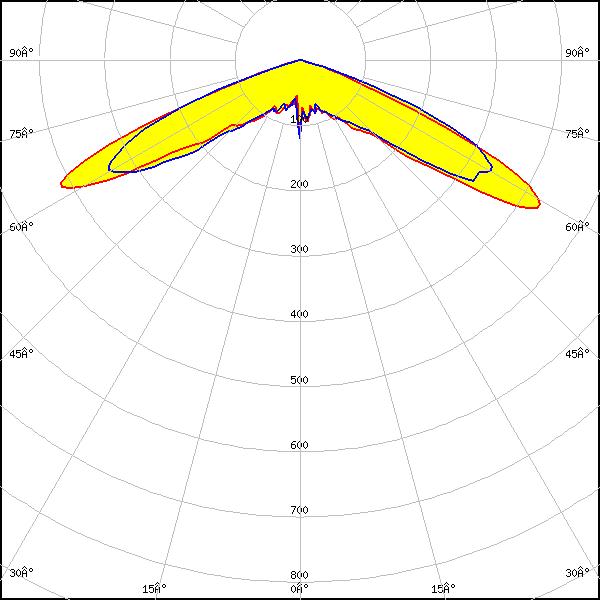

    LED: NF2x757D
    FWHM: 140°
    Peak intensity: 0.6 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

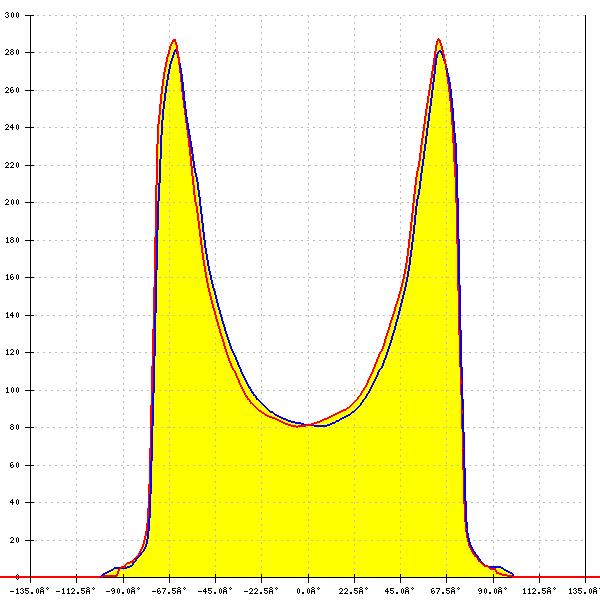

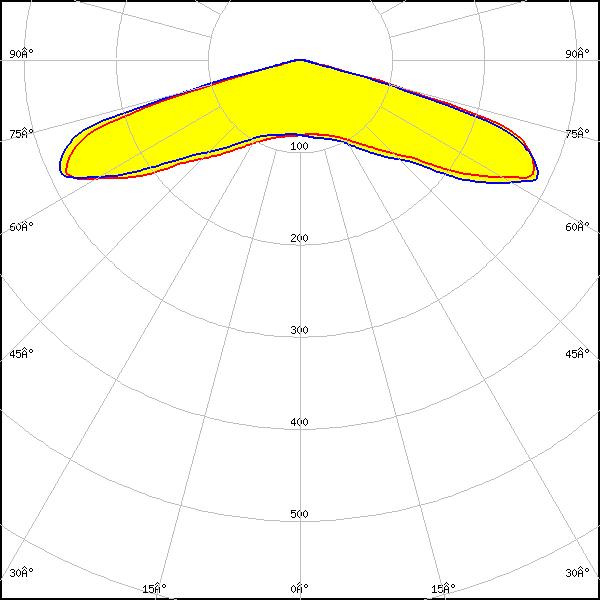

    LED: NVSW219D
    FWHM: 149°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

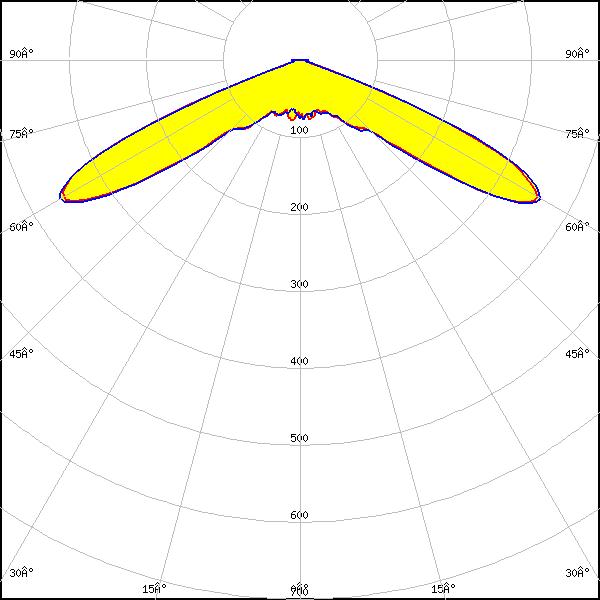

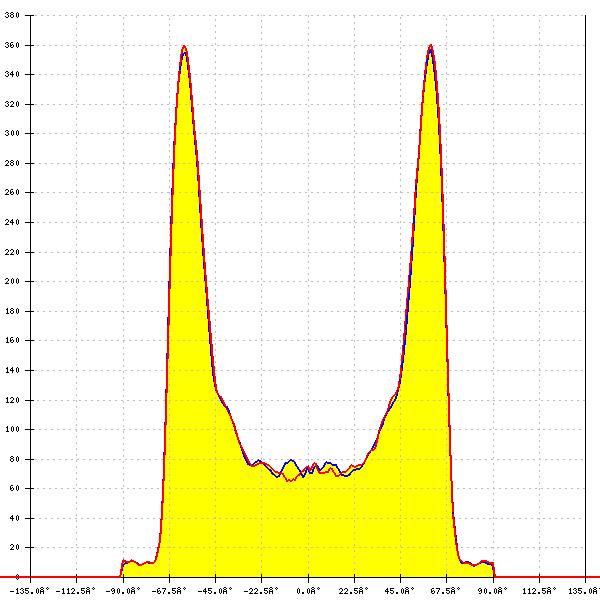

    LED: NVSxE21A
    FWHM: 135°
    Peak intensity: 0.5 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

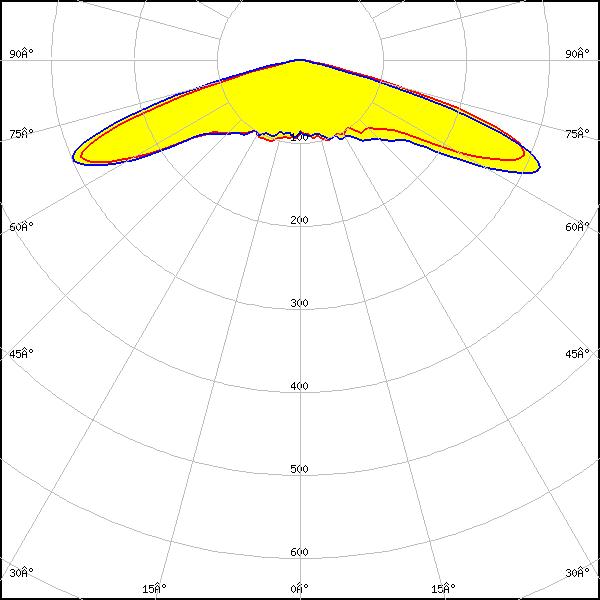

    LED: OSCONIQ P 3030
    FWHM: 147°
    Peak intensity: 0.5 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour: White

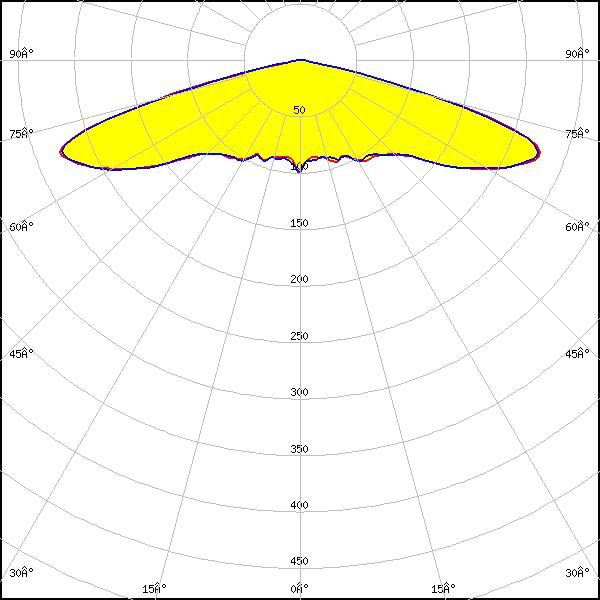

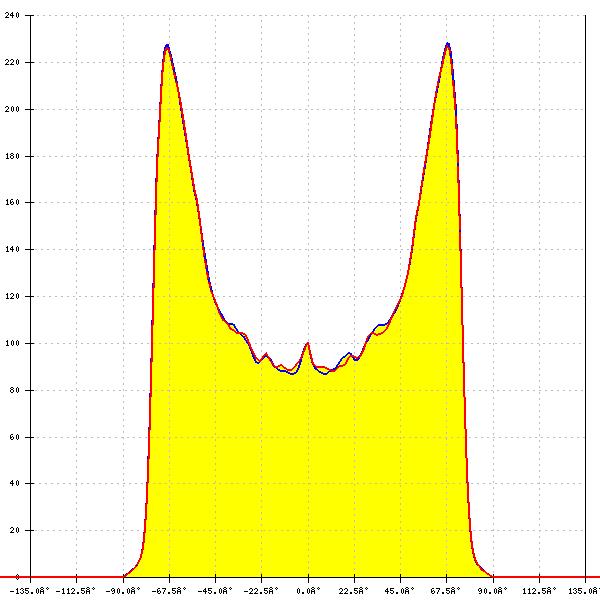

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 142°
    Peak intensity: 0.5 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

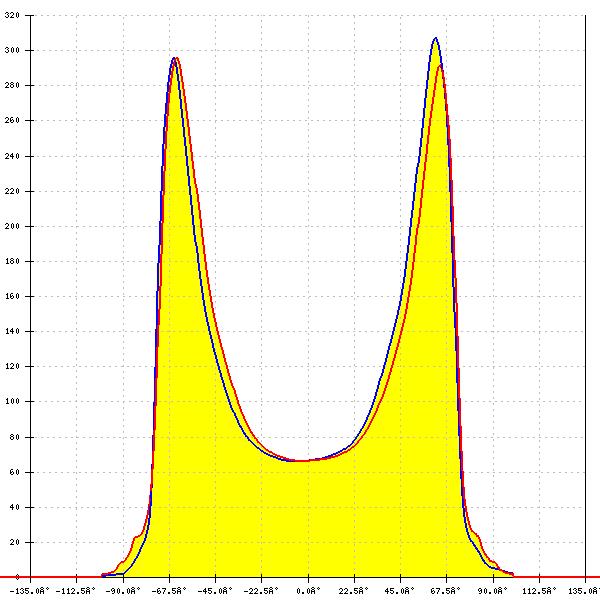

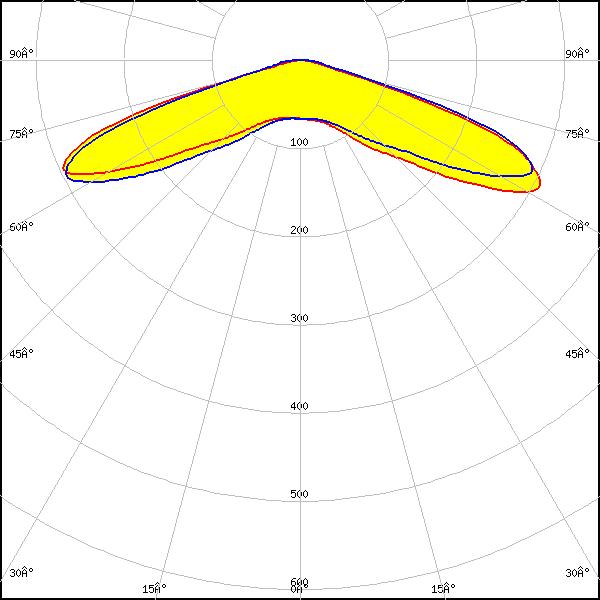

    LED: QUICK FLUX XT 2x8 xxx STRDLL G5
    FWHM: 146°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

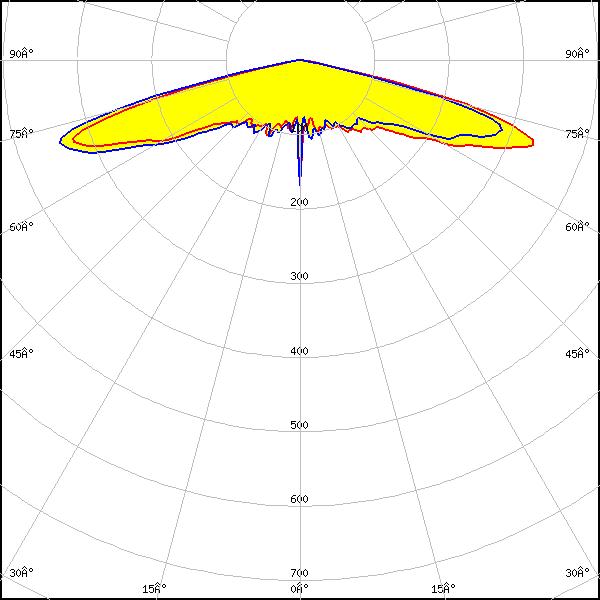

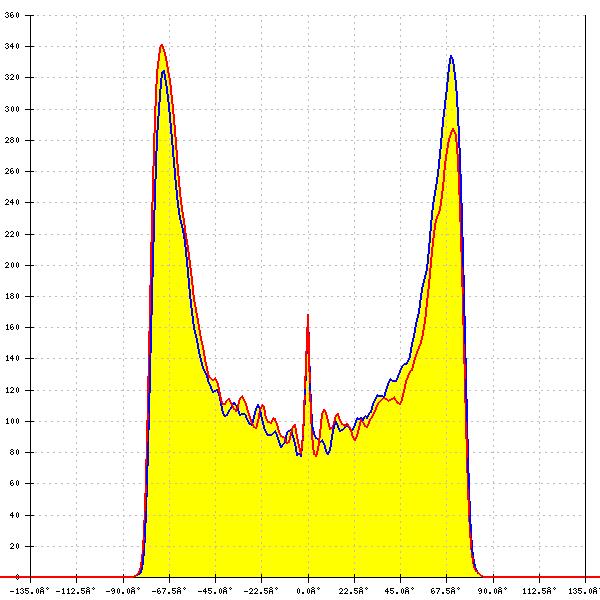

    LED: XP-G2
    FWHM: 152°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

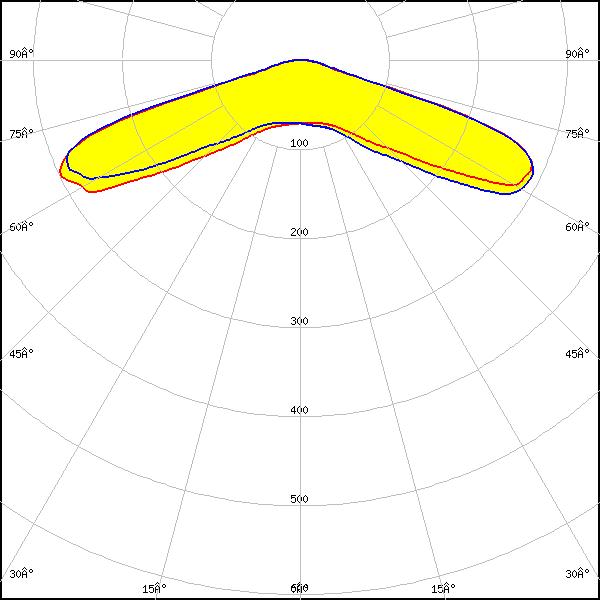

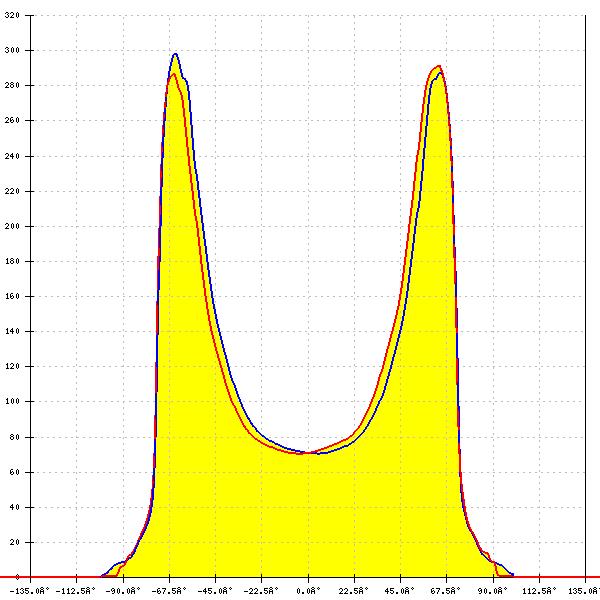

    LED: XP-G3
    FWHM: 145°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

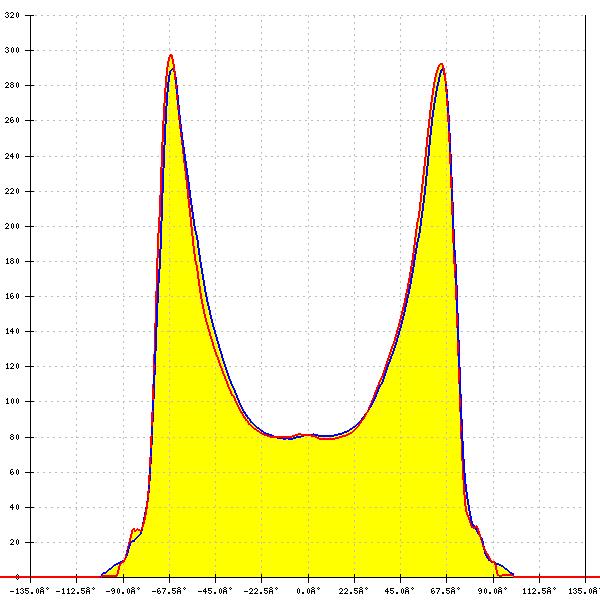

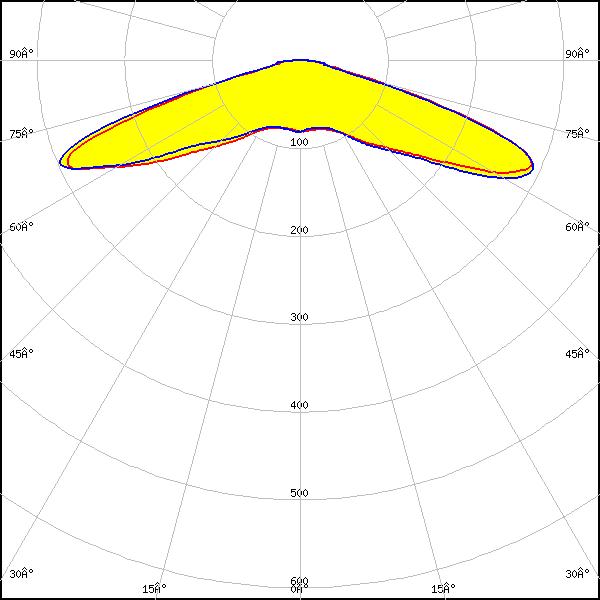

    LED: XT-E
    FWHM: 147°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

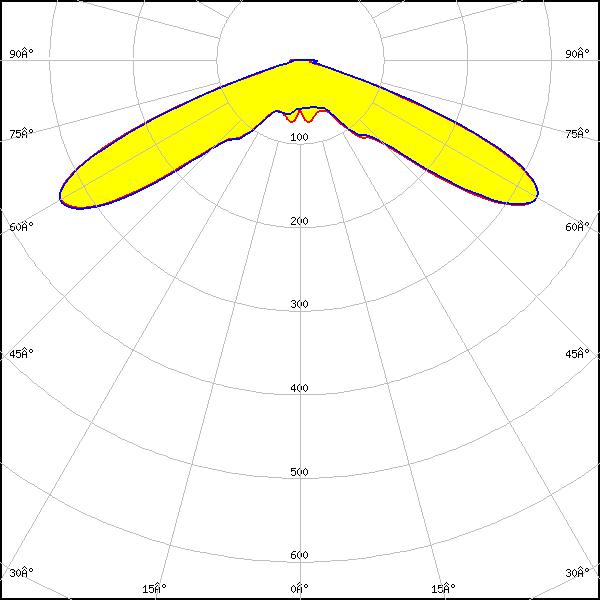

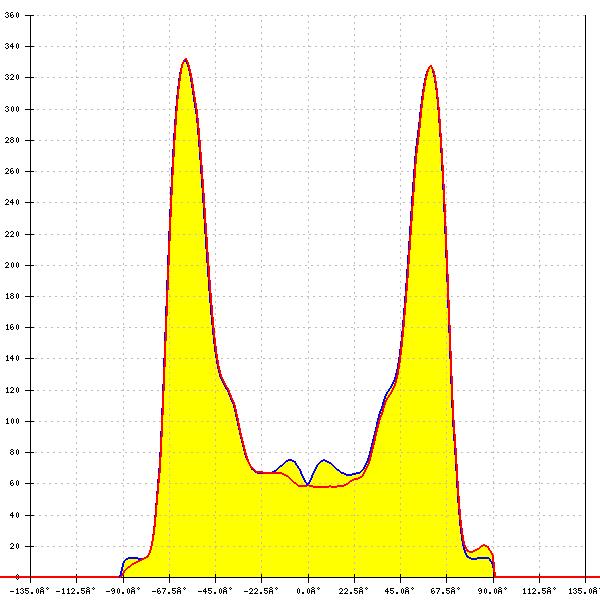

    LED: Z8Y19
    FWHM: 139°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

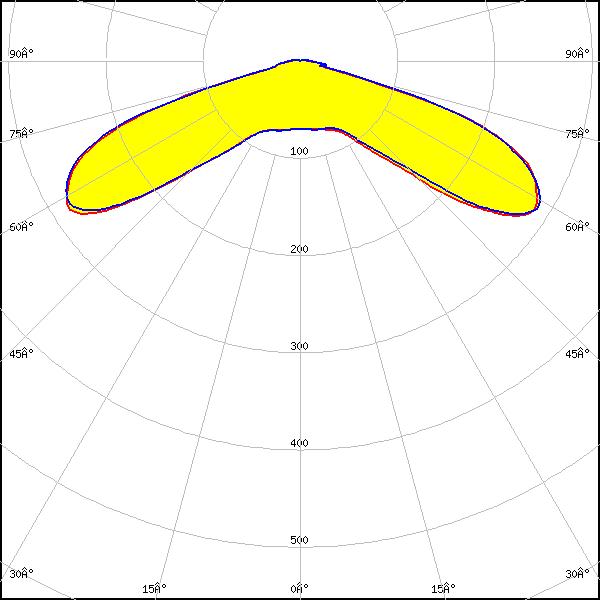

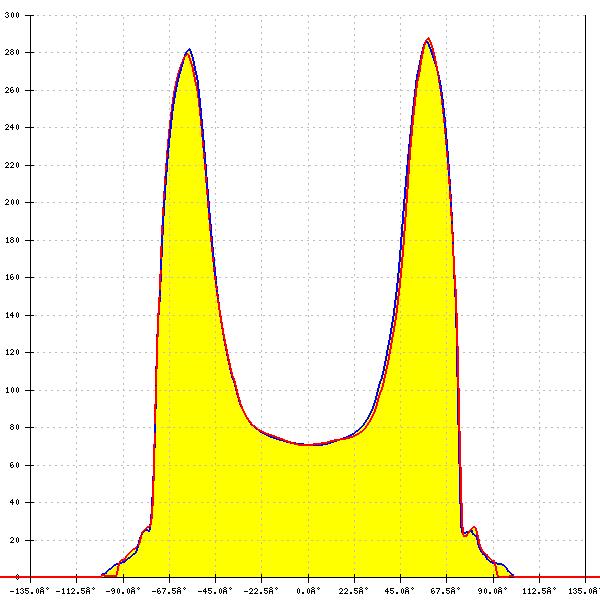

    LED: Z8Y22P
    FWHM: 146°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White
