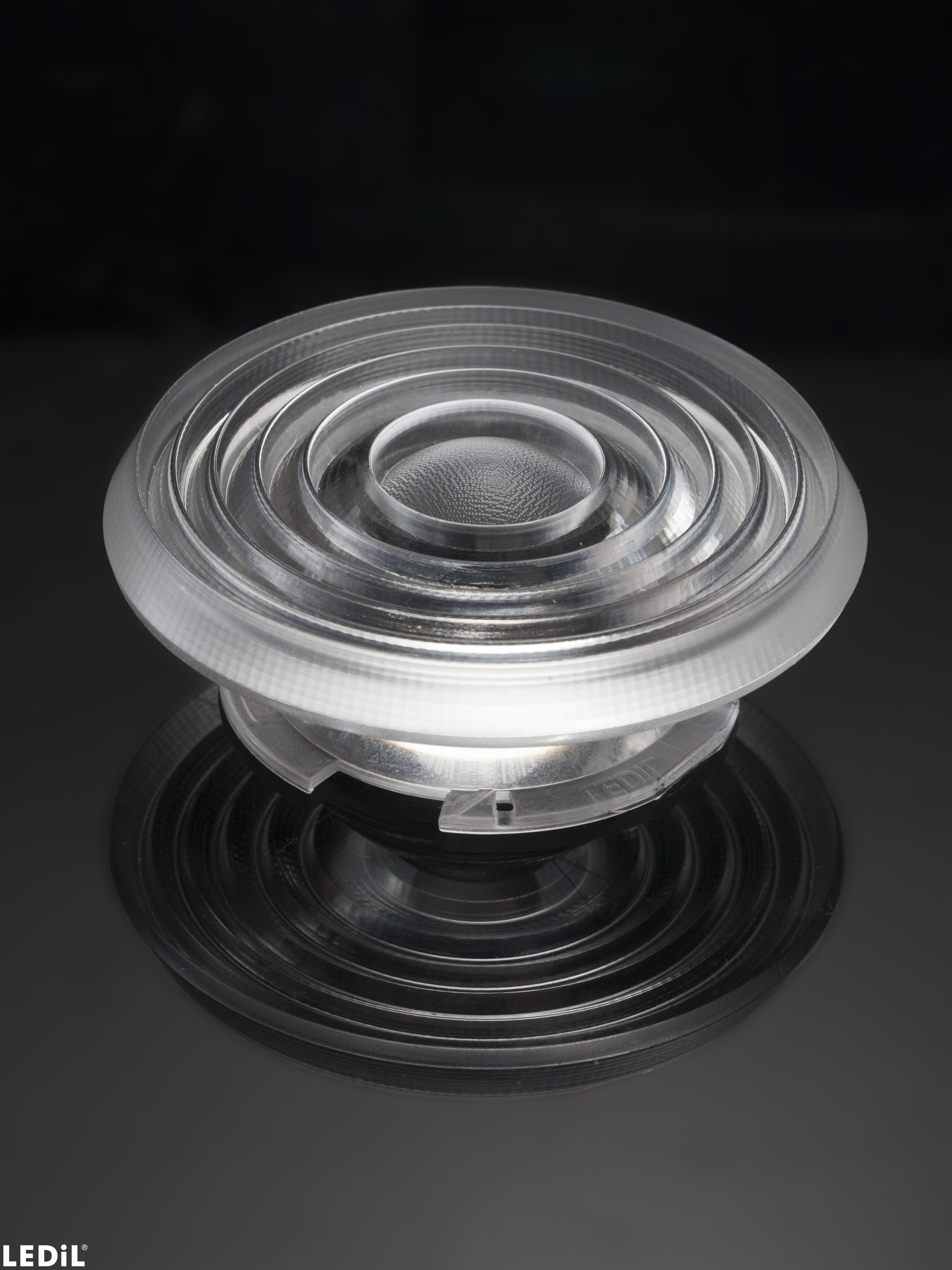

C15800_MOLLY-S

Print

~25° spot beam

Specification
  • Dimensions:
    70 mm
  • Height:
    24.80 mm
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    198 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.7 kg
  • MPQ:
    18 pcs
  • MOQ:
    36 pcs
  • MOQ size:
    480 x 280 x 70 mm
  • MOQ weight:
    1.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C15800_MOLLY-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

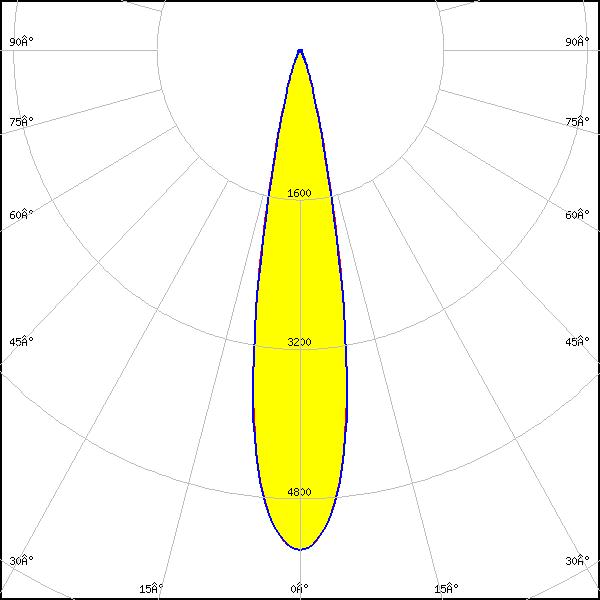

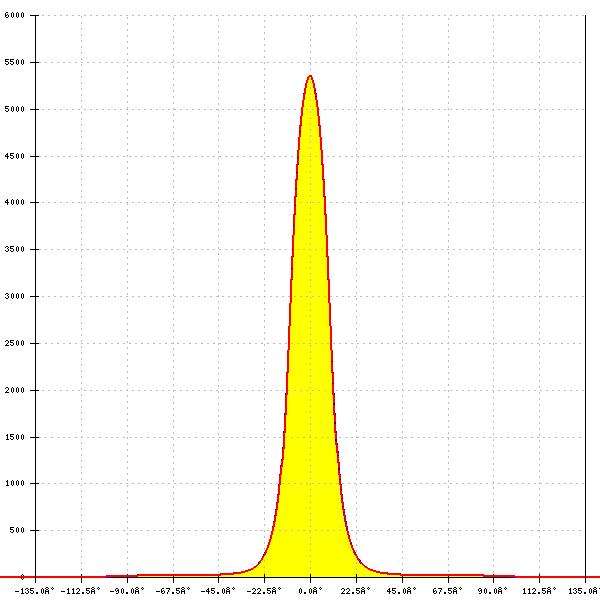

LED: V11 HD Gen 8
LES size: 11.3 mm
Required components:
Bender Wirth: 633d 3Hook
FWHM: 21°
FWTM: 36°
Peak intensity: 5.353 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: V9 HD Gen7
LES size: 9.2 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 496 Typ L1
FWHM: 16°
FWTM: 26°
Peak intensity: 10.814 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

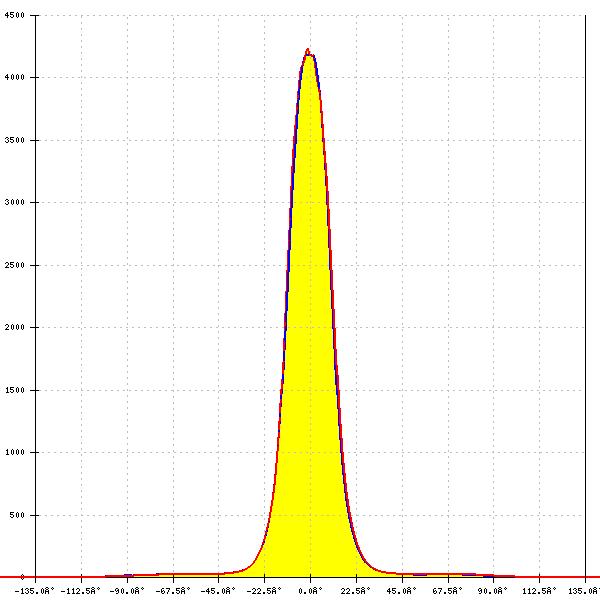

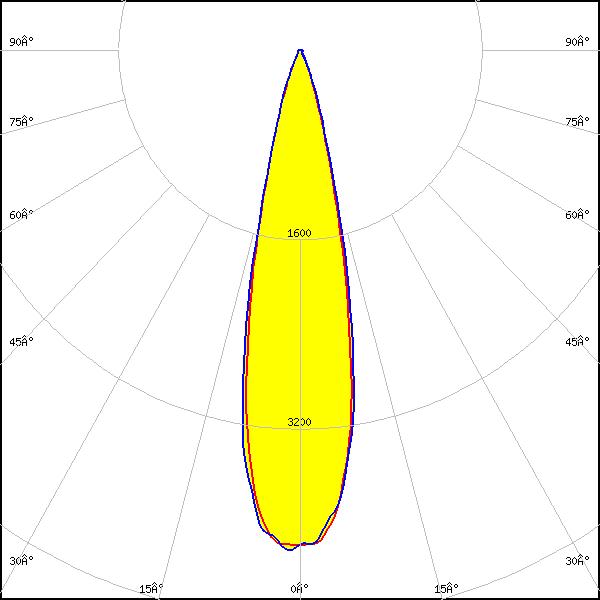

LED: Vero SE 13
LES size: 13.4 mm
Required components:
FWHM: 23°
FWTM: 40°
Peak intensity: 4.200 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

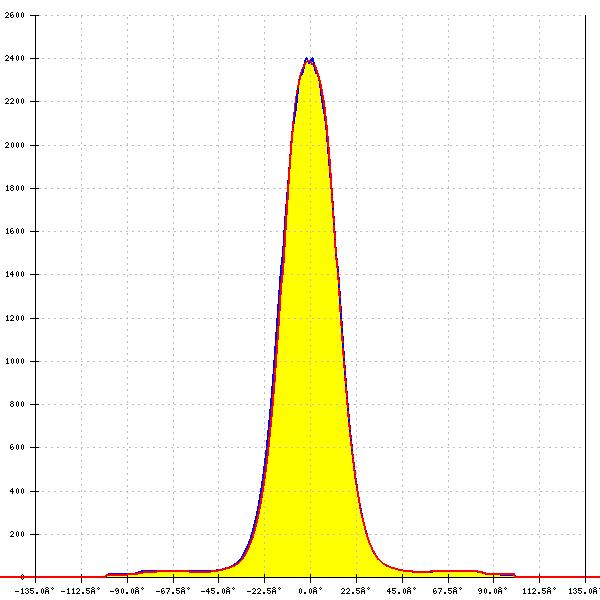

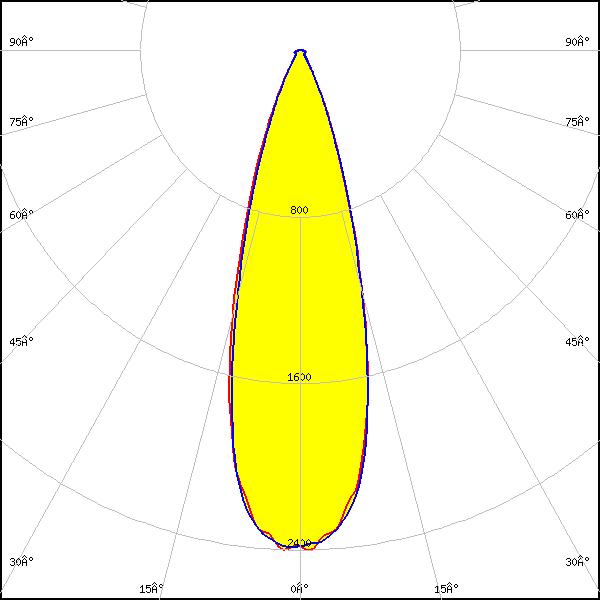

LED: Vero SE 18
LES size: 18.6 mm
Required components:
FWHM: 31°
FWTM: 54°
Peak intensity: 2.400 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

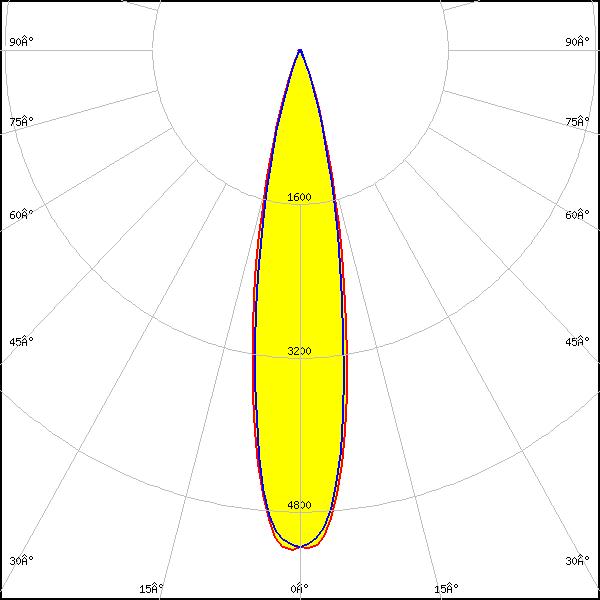

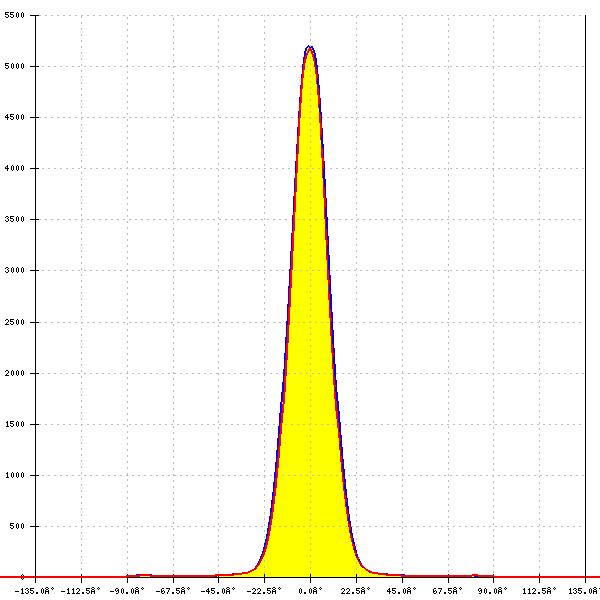

LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 21°
FWTM: 39°
Peak intensity: 5.200 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

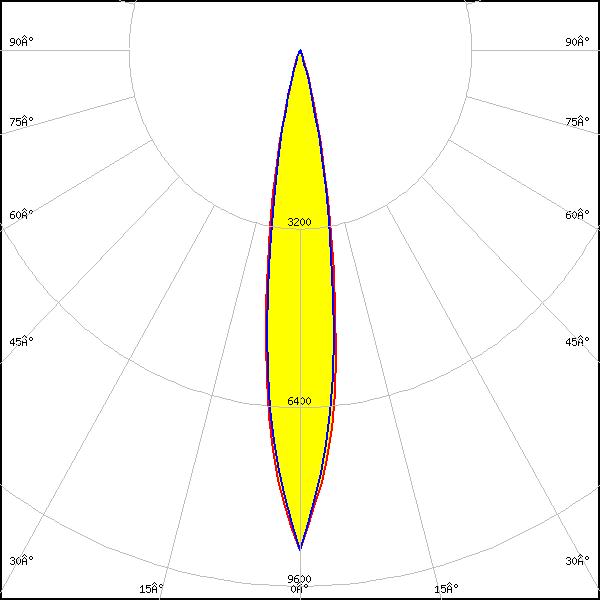

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 16°
FWTM: 30°
Peak intensity: 8.780 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

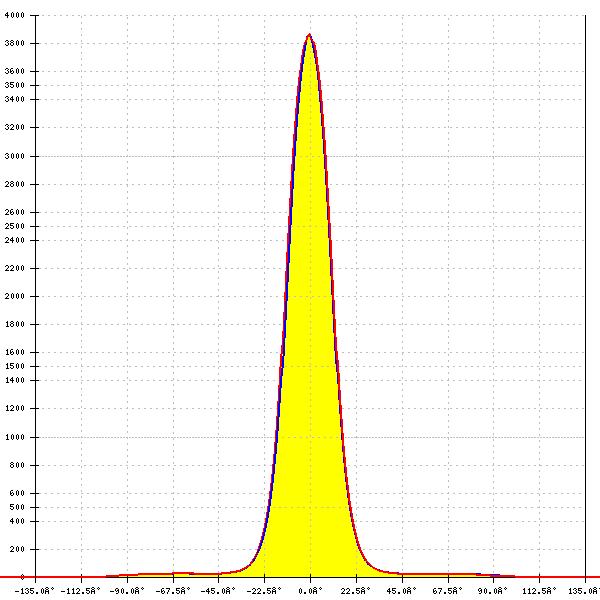

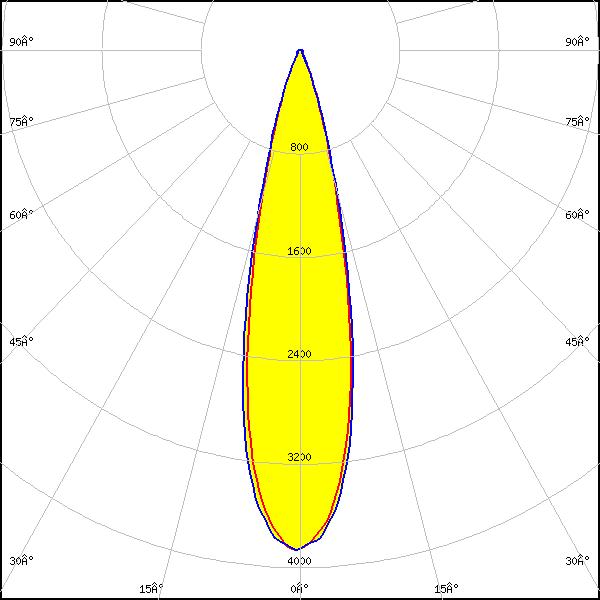

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 23°
FWTM: 42°
Peak intensity: 3.870 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

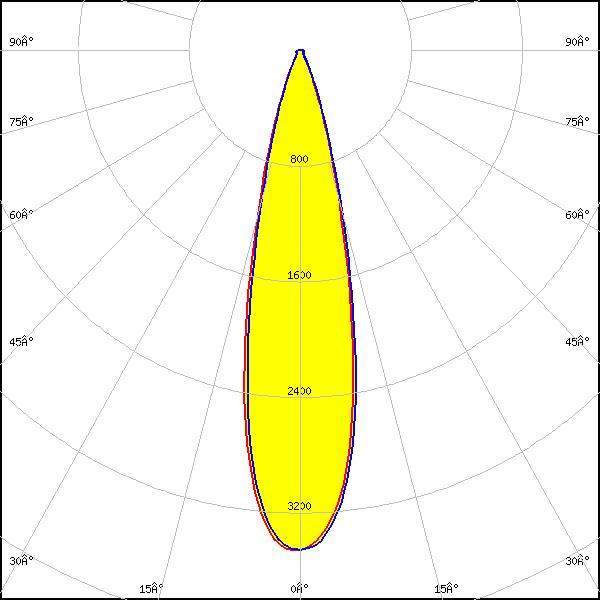

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
FWHM: 24°
FWTM: 45°
Peak intensity: 3.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

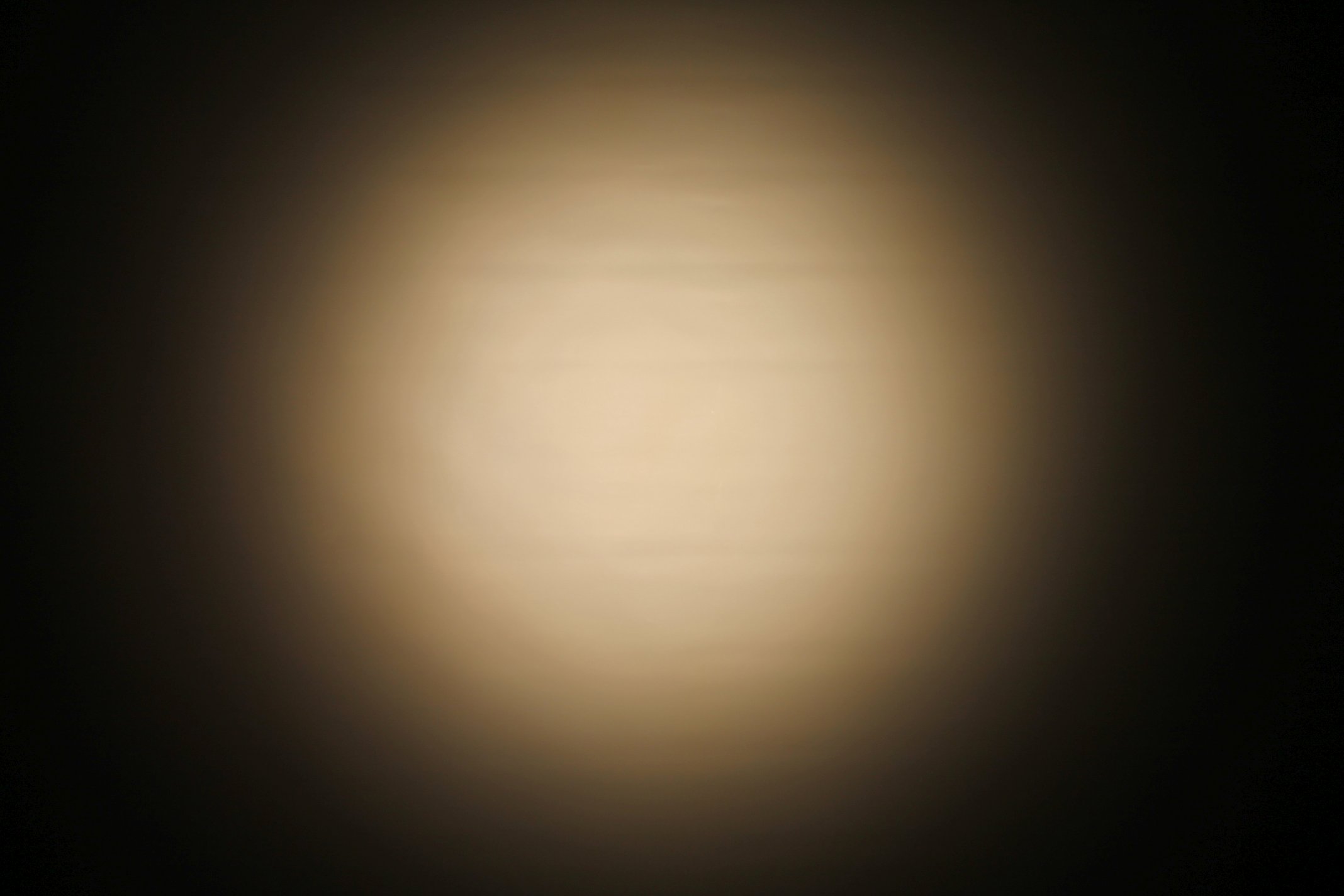

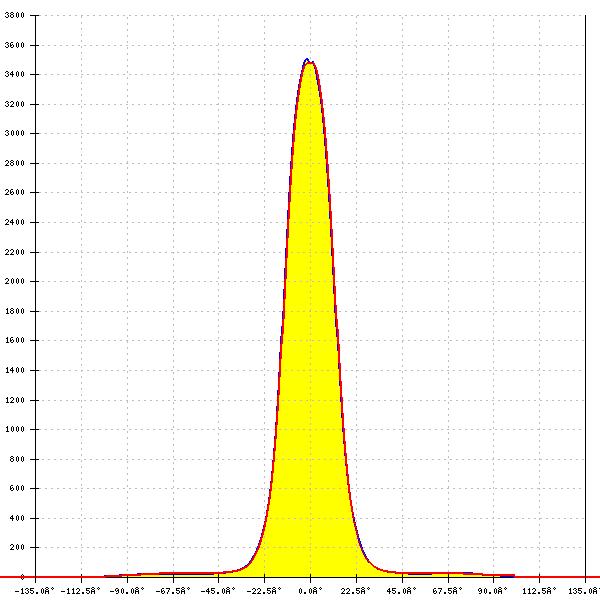

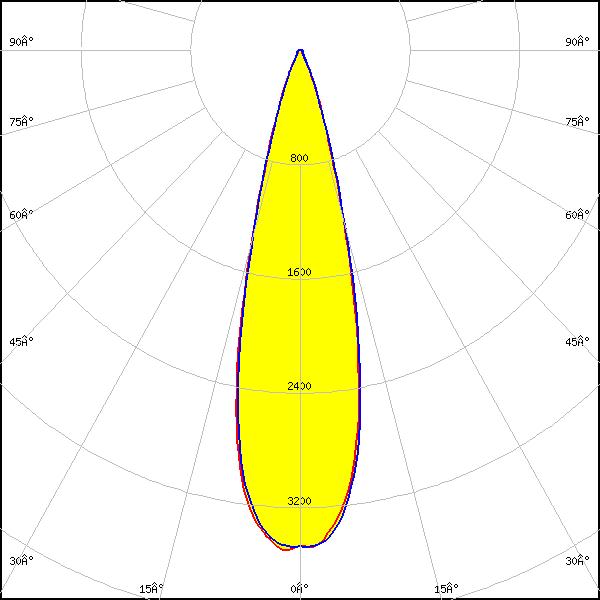

LED: CMA1840
LES size: 14.0 mm
Required components:
FWHM: 26°
FWTM: 44°
Peak intensity: 3.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

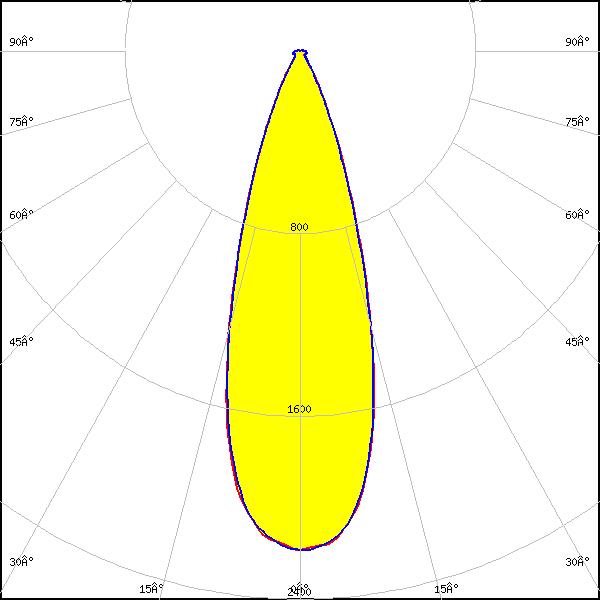

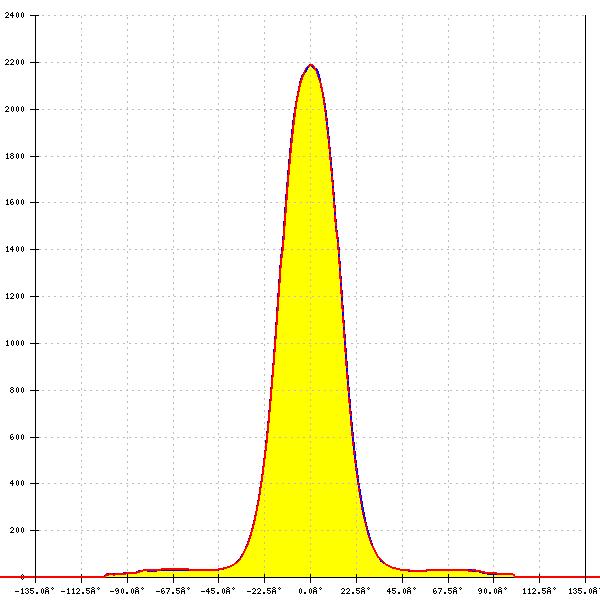

LED: CMA2550
LES size: 19.0 mm
Required components:
FWHM: 32°
FWTM: 56°
Peak intensity: 2.200 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

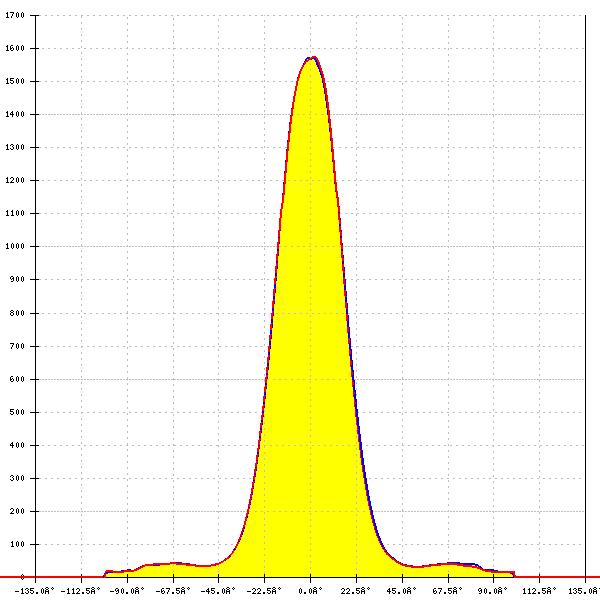

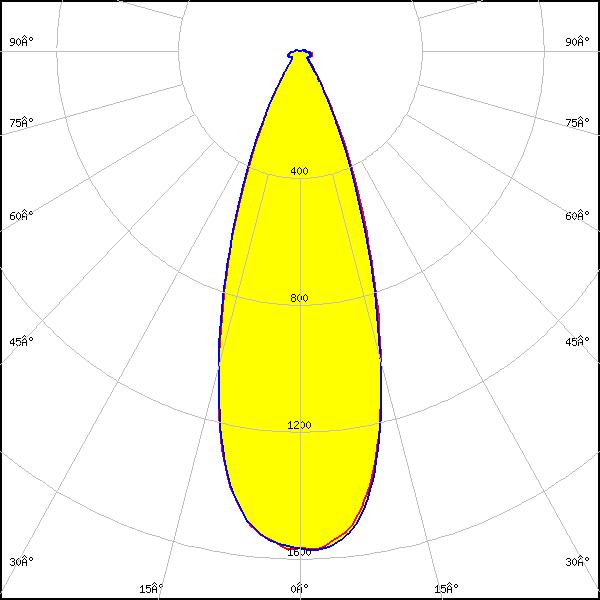

LED: CMA3090
LES size: 23.0 mm
Required components:
FWHM: 37°
FWTM: 64°
Peak intensity: 1.600 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

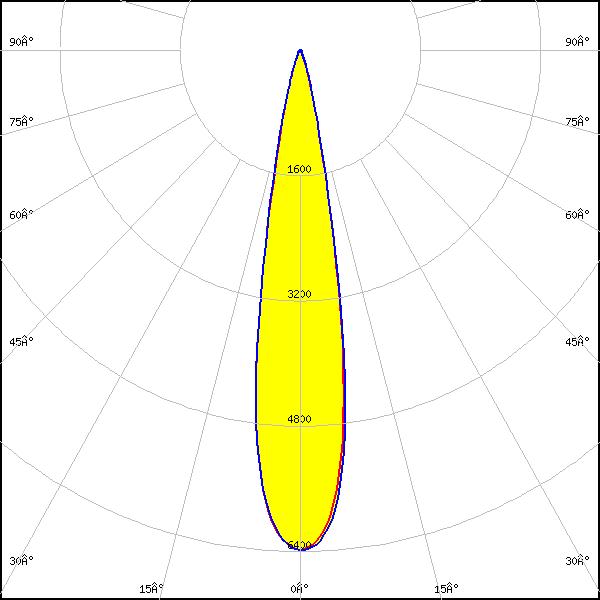

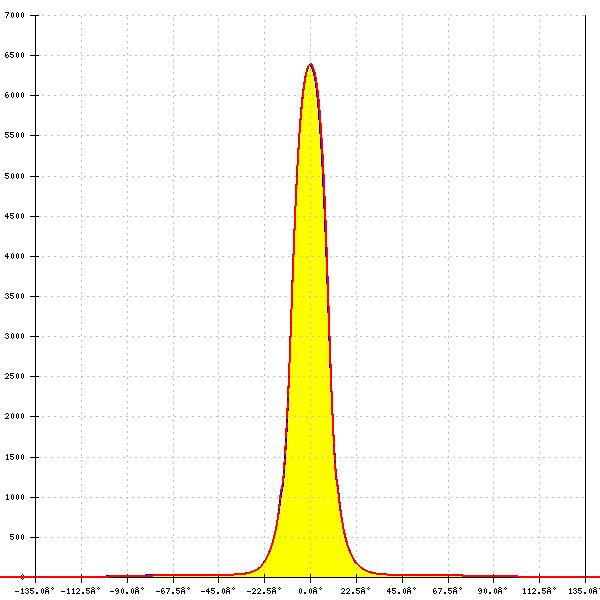

LED: CMT14xx
LES size: 9.8 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 19°
FWTM: 32°
Peak intensity: 6.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

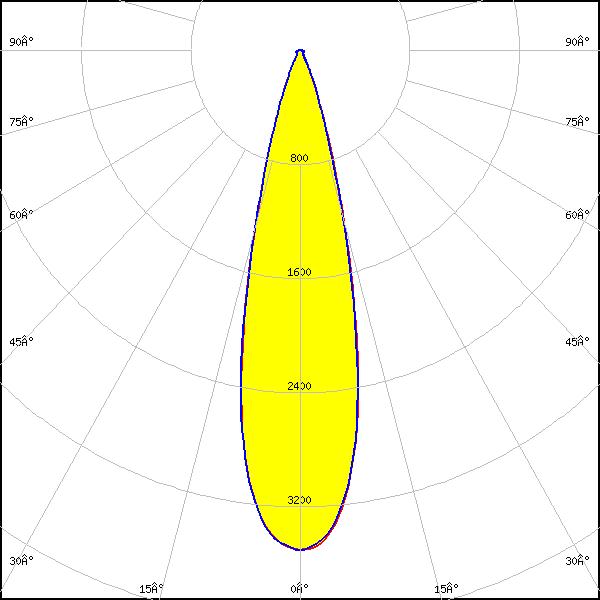

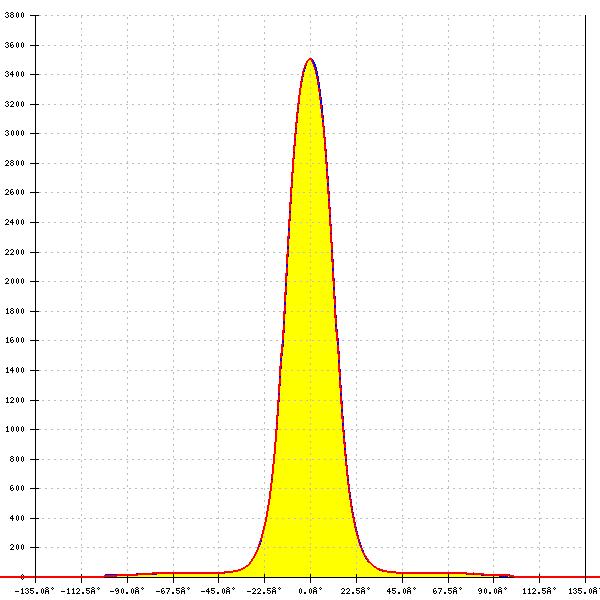

LED: CMT19xx
LES size: 14.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: 26°
FWTM: 44°
Peak intensity: 3.506 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

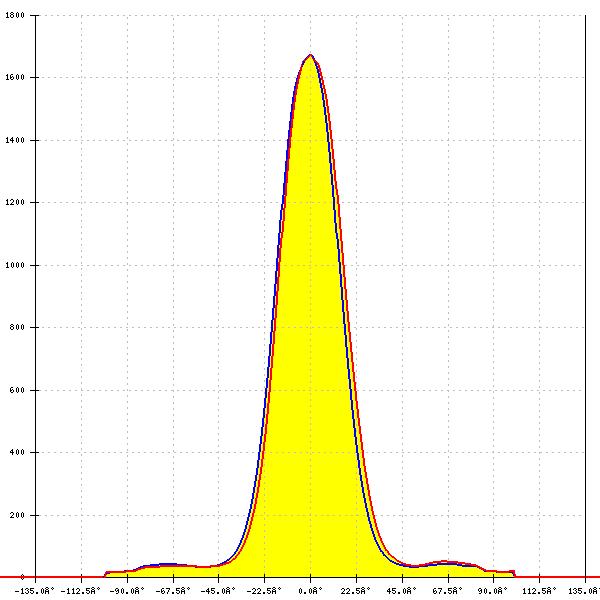

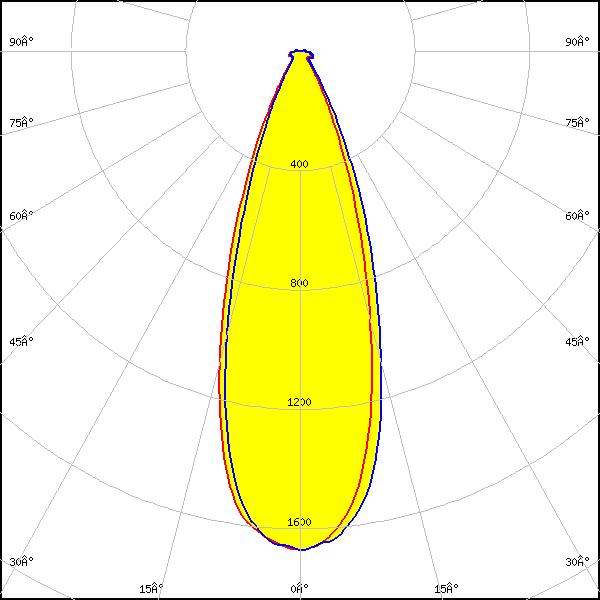

LED: CMT28xx
LES size: 22.0 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 471 Typ L3
FWHM: 35°
FWTM: 61°
Peak intensity: 1.700 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

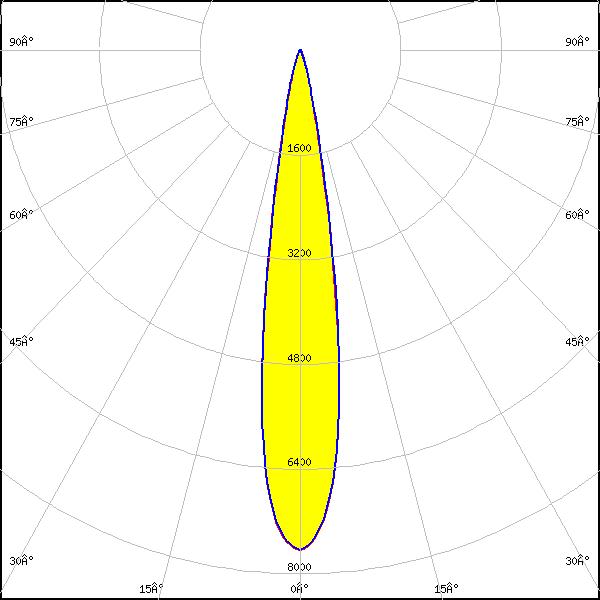

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 17°
FWTM: 30°
Peak intensity: 7.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

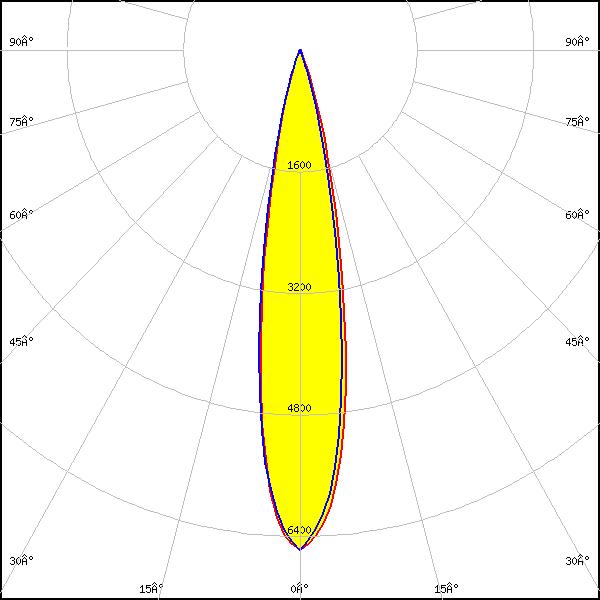

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: 19°
FWTM: 34°
Peak intensity: 6.450 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

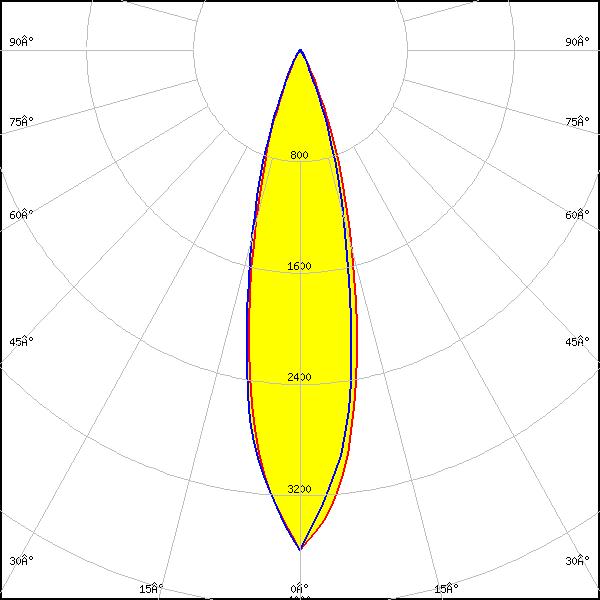

LED: CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM: 25°
FWTM: 47°
Peak intensity: 3.500 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

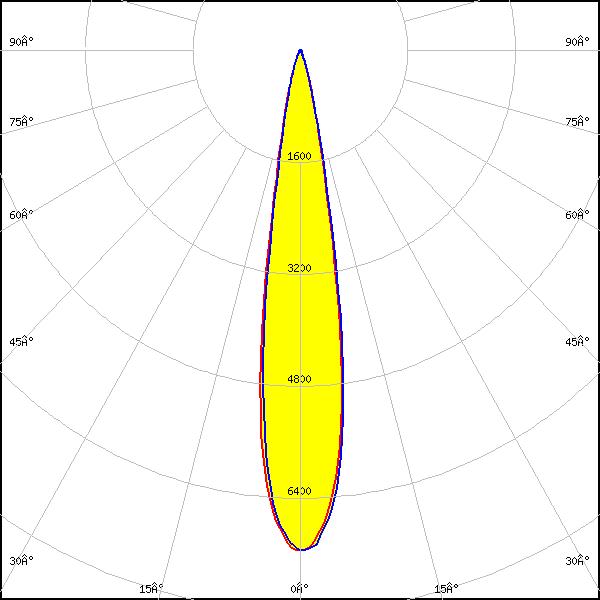

LED: LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 18°
FWTM: 31°
Peak intensity: 7.140 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

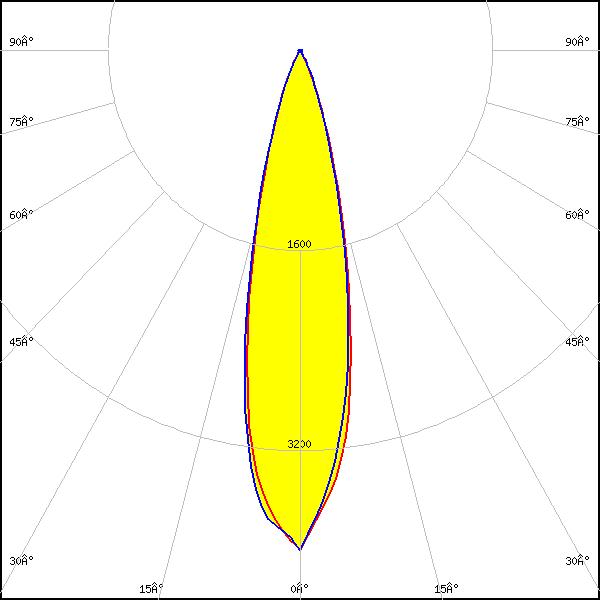

LED: LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 480 Typ L1
FWHM: 19°
FWTM: 33°
Peak intensity: 6.836 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

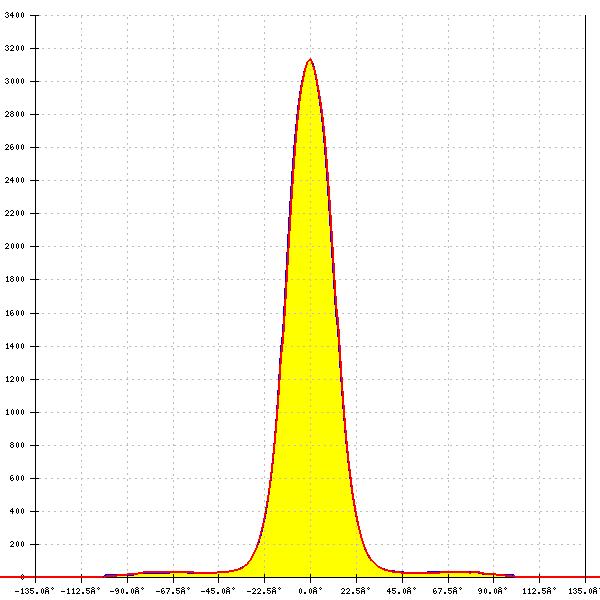

LED: LUXEON CoB 1208
LES size: 15.0 mm
Required components:
Bender Wirth: 632a 3Hook
FWHM: 24°
FWTM: 44°
Peak intensity: 3.998 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

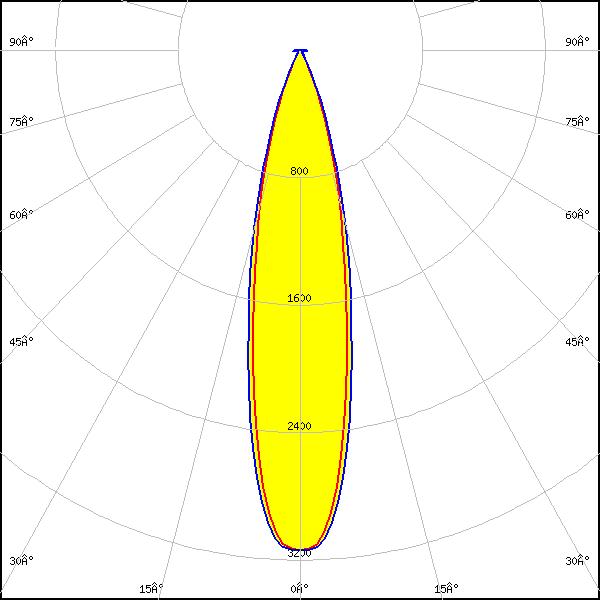

LED: CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
FWHM: 23°
FWTM: 47°
Peak intensity: 3.145 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM: 26°
FWTM: 48°
Peak intensity: 3.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

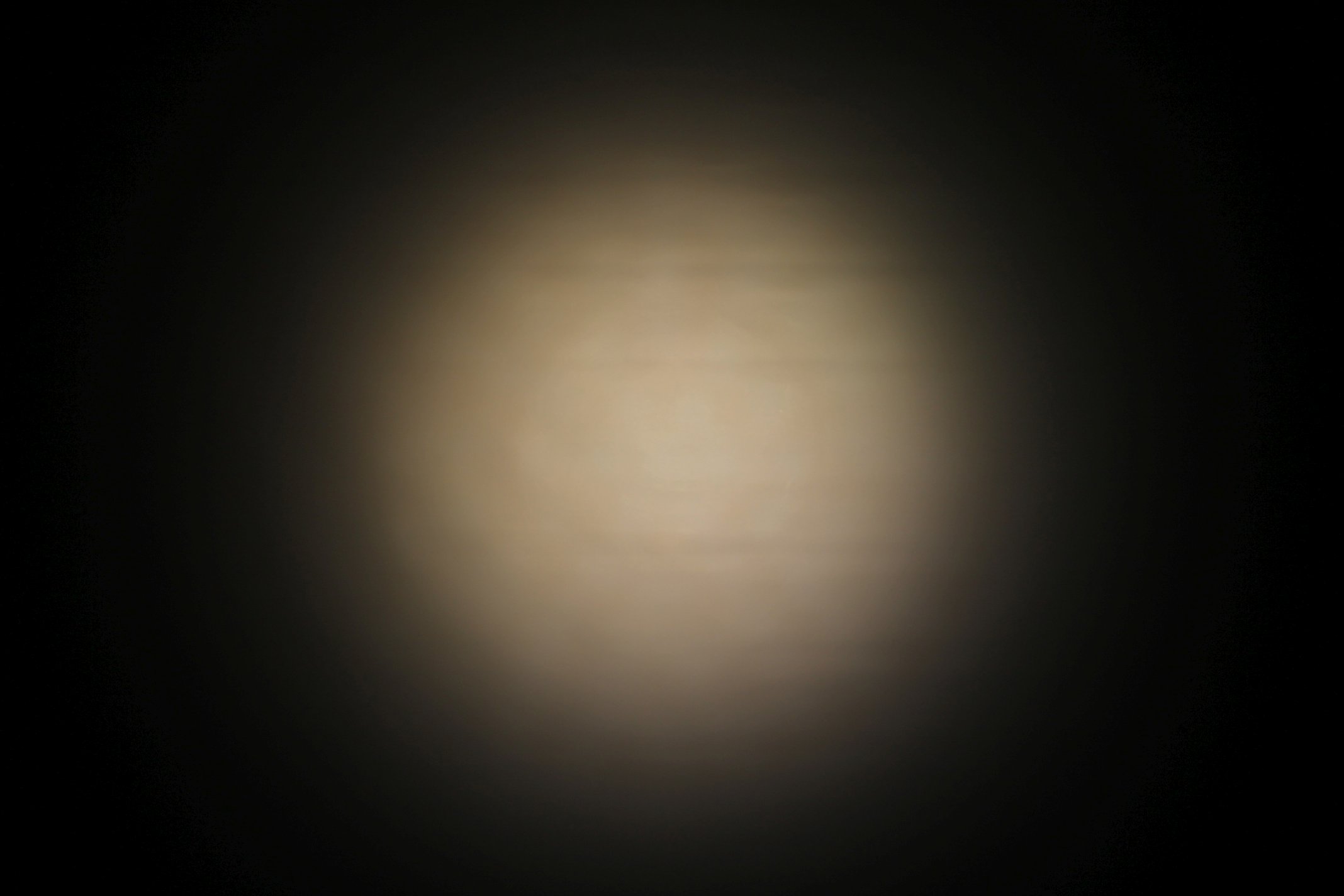

LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 24°
FWTM: 42°
Peak intensity: 3.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

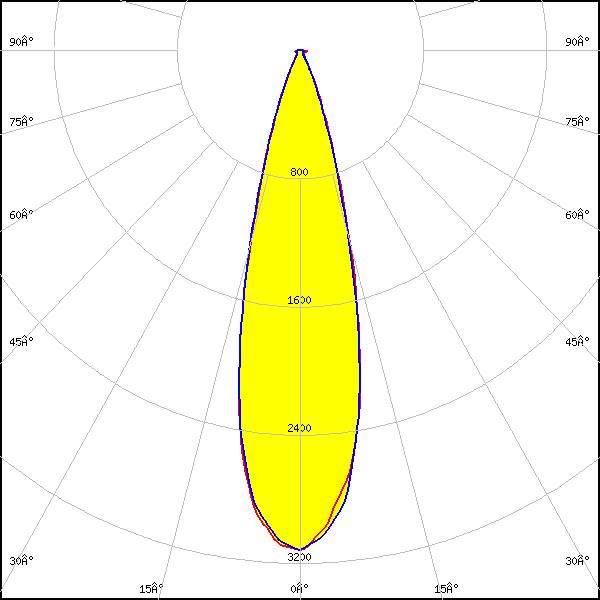

LED: Fortimo SLM L15 + SLM holder
LES size: 15.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 26°
FWTM: 47°
Peak intensity: 3.100 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

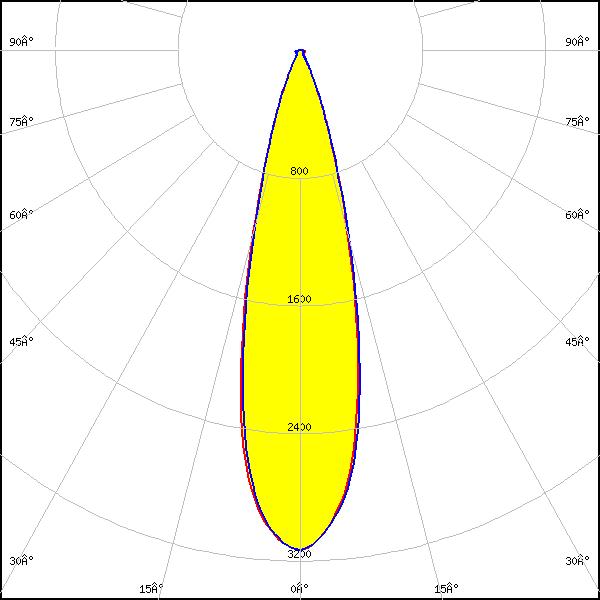

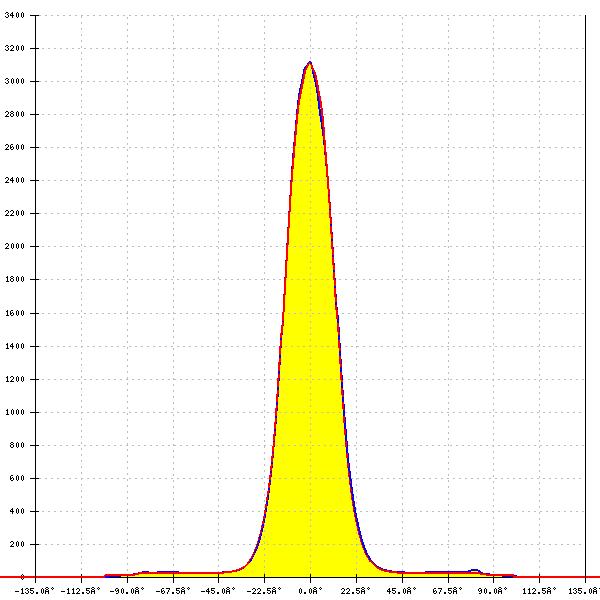

LED: Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 27°
FWTM: 47°
Peak intensity: 3.100 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

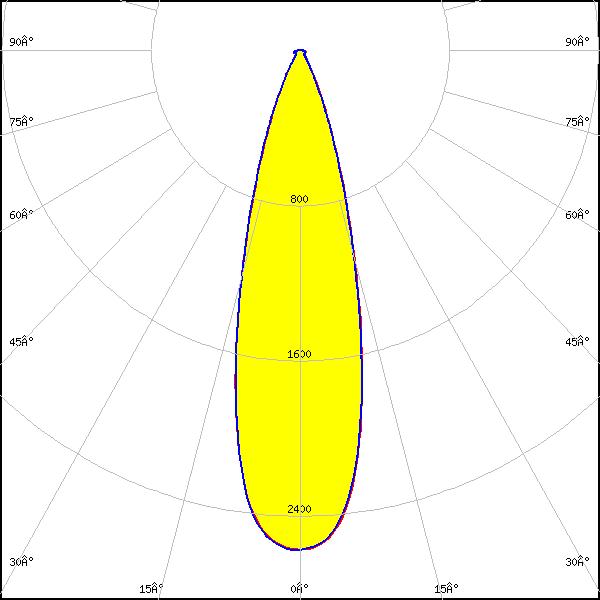

LED: XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM: 28°
FWTM: 52°
Peak intensity: 2.600 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
