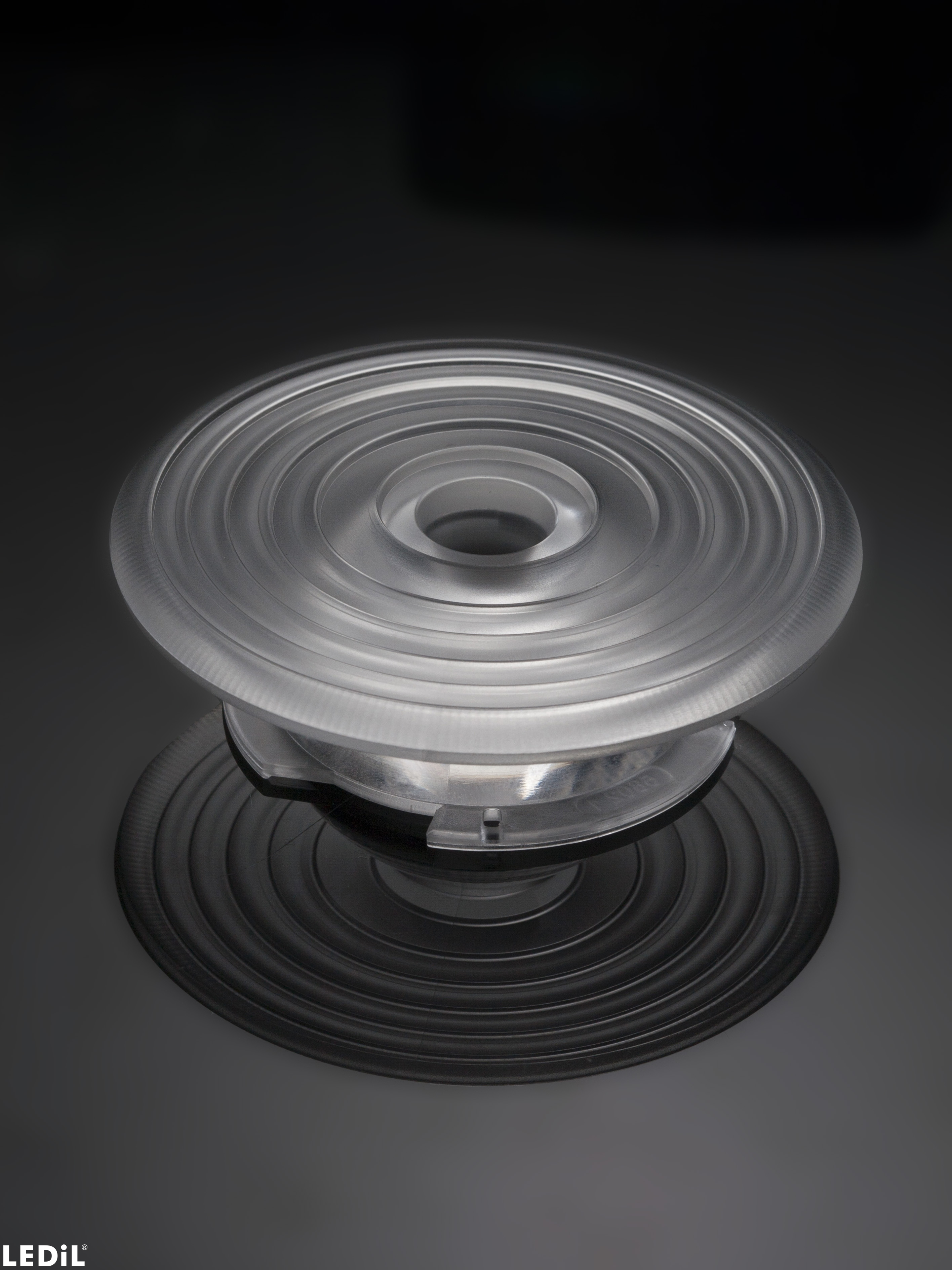

C15802_MOLLY-W

Print

~60° wide beam

Specification
  • Dimensions:
    70 mm
  • Height:
    22.1 mm
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PMMA
Ordering information
  • Quantity in box:
    198 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    8.1 kg
  • MPQ:
    18 pcs
  • MOQ:
    36 pcs
  • MOQ size:
    480 x 280 x 70 mm
  • MOQ weight:
    1.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C15802_MOLLY-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

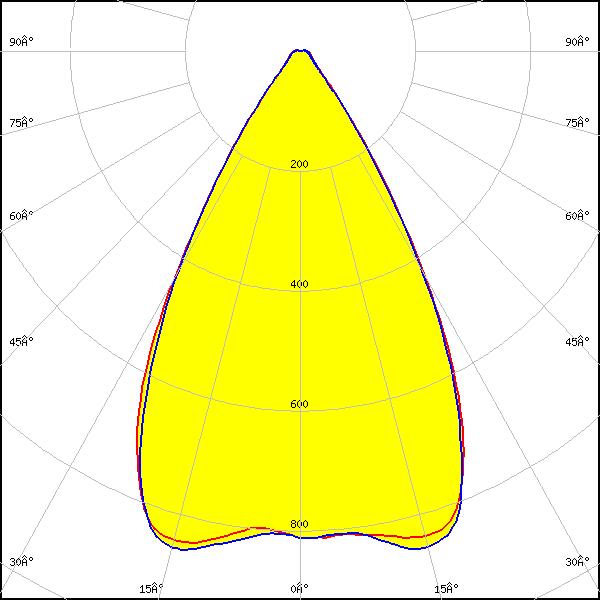

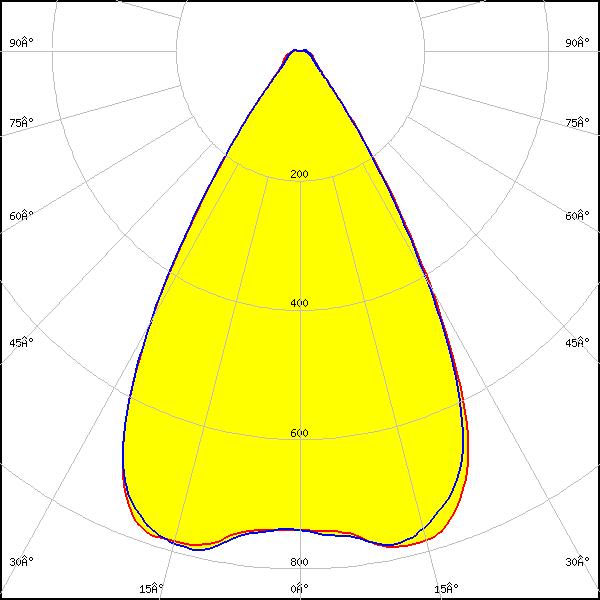

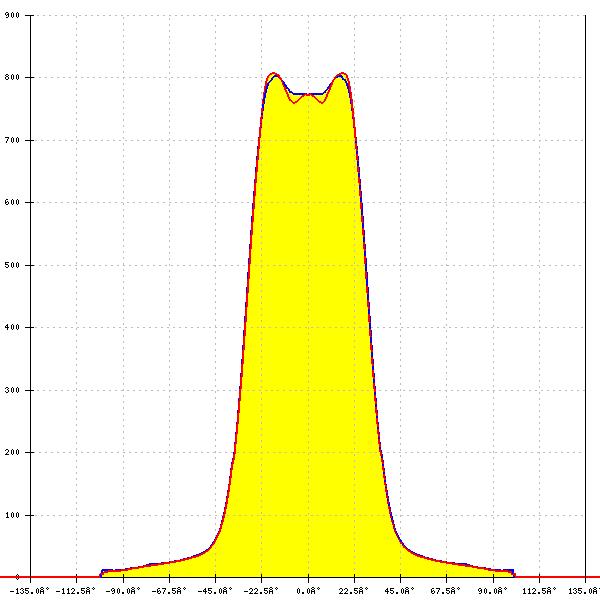

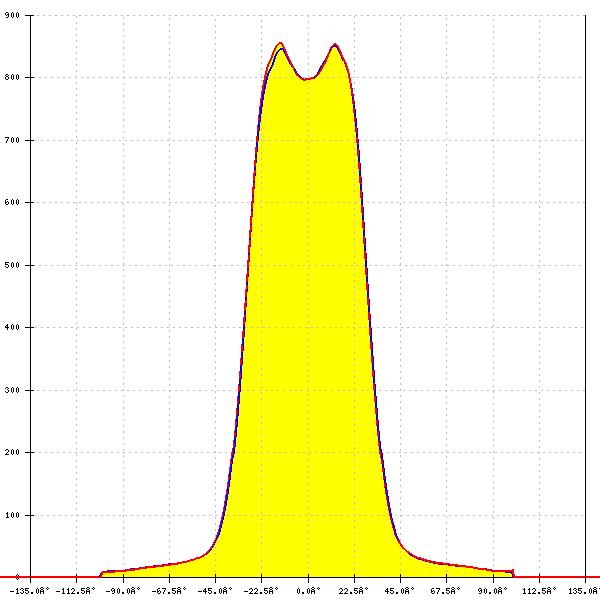

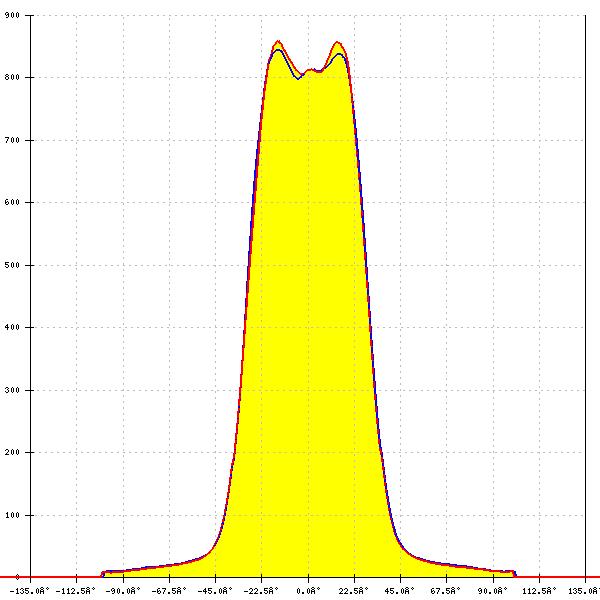

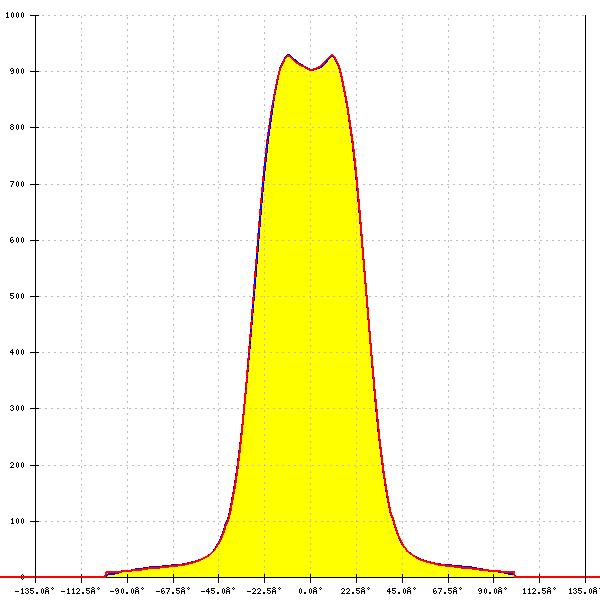

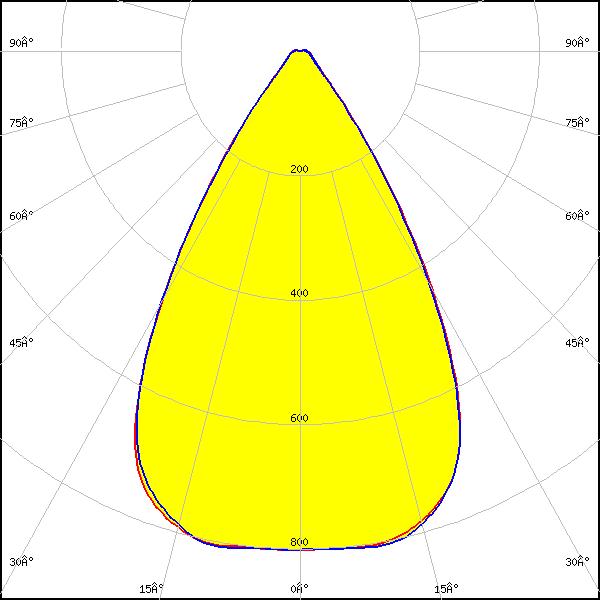

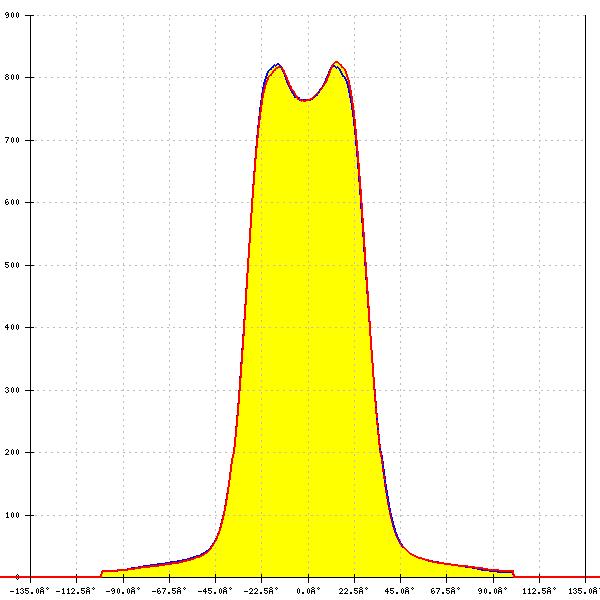

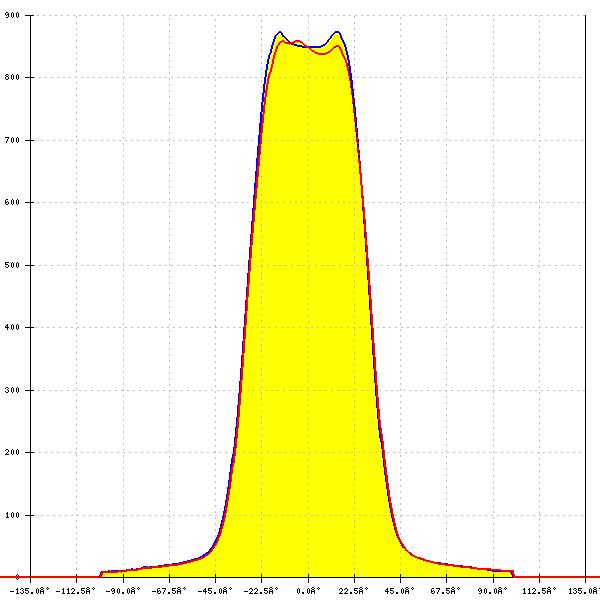

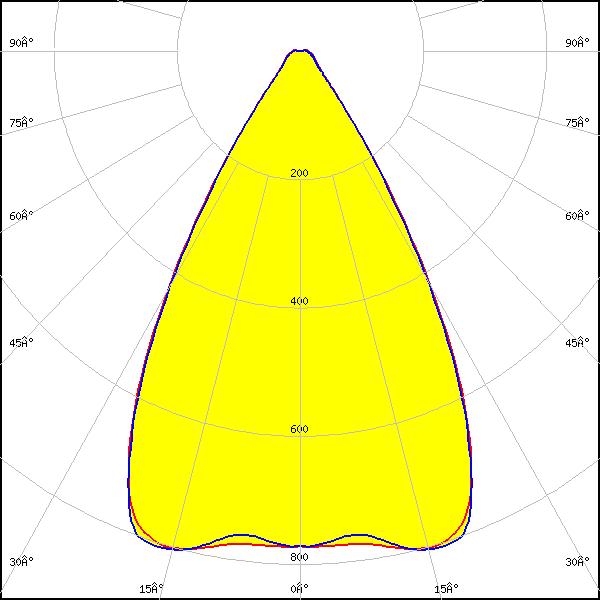

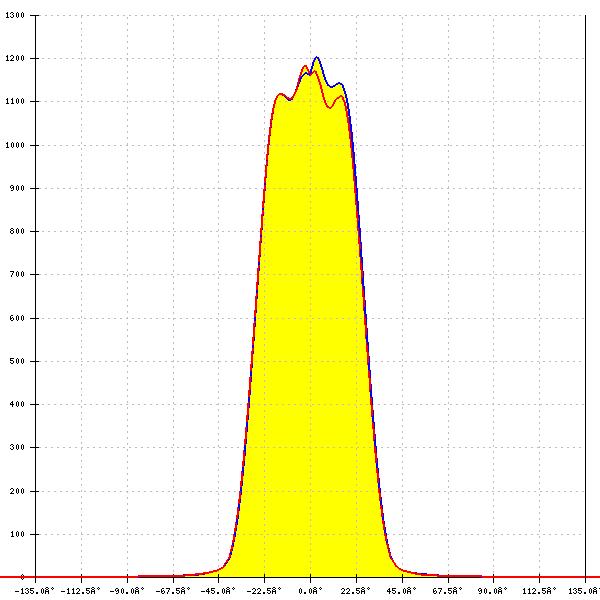

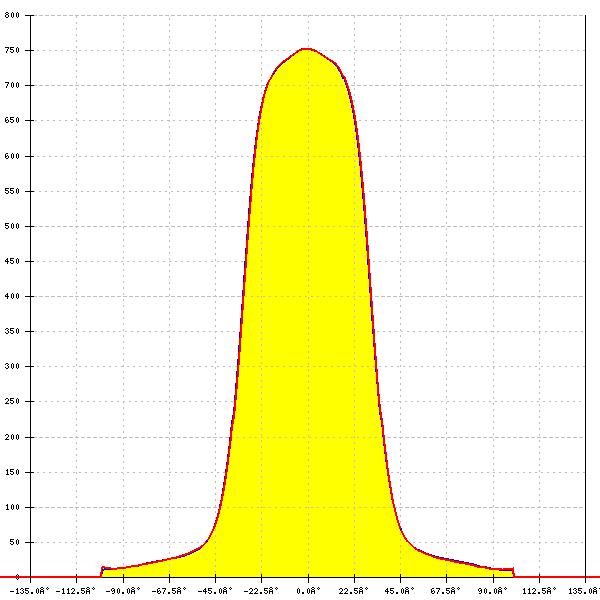

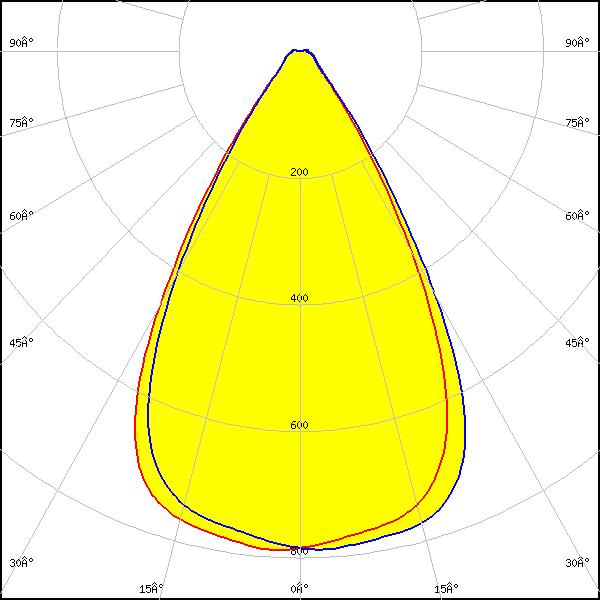

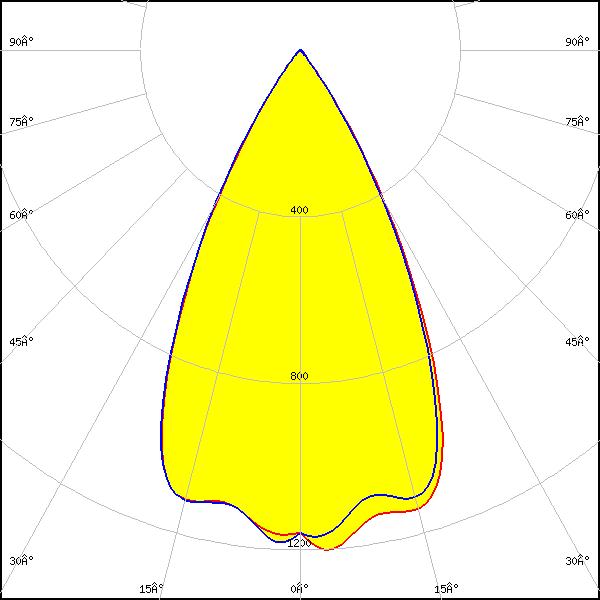

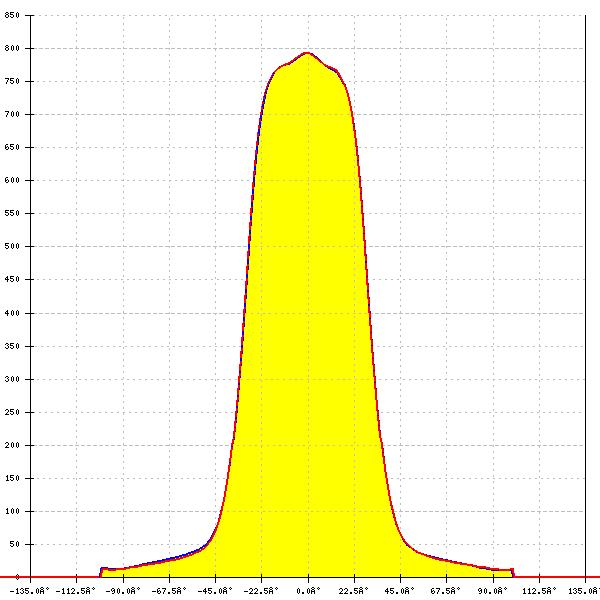

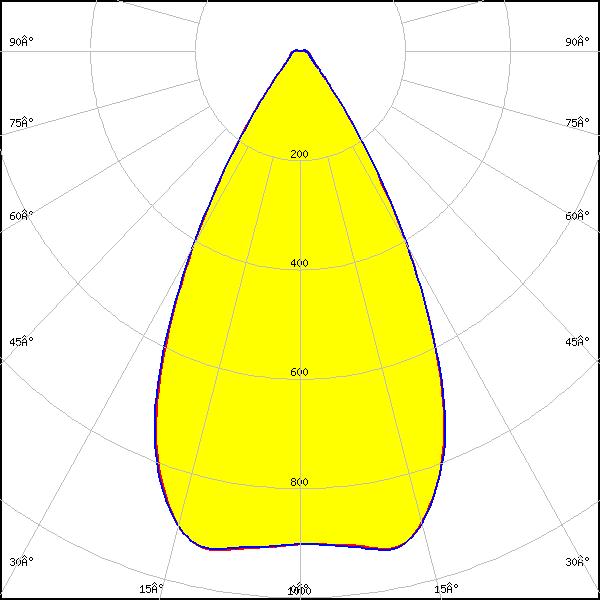

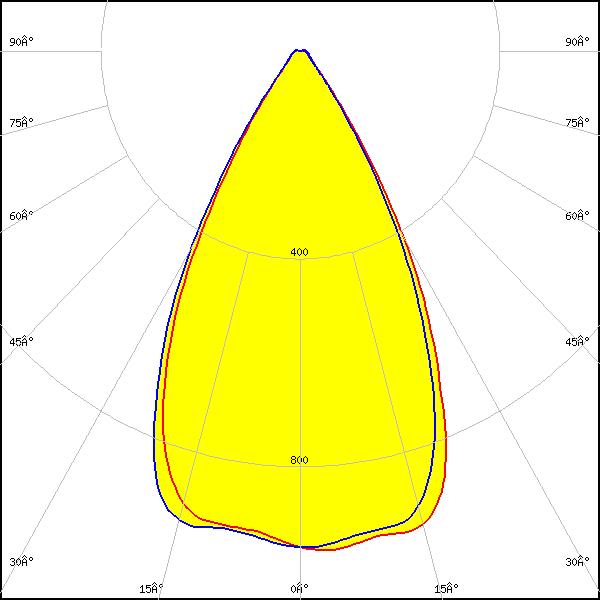

Optical results

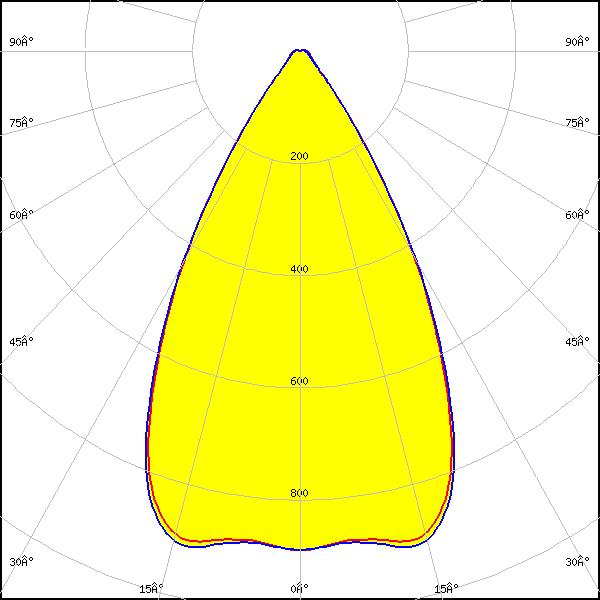

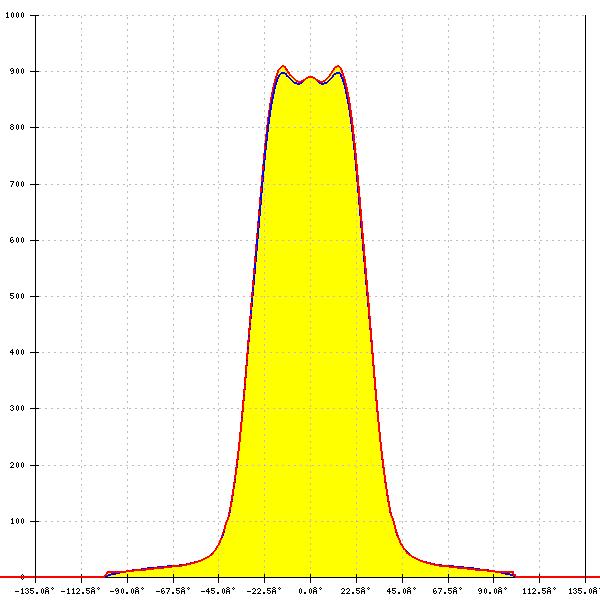

LED: V9 HD
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 496 Typ L1
FWHM: 58°
FWTM: 77°
Peak intensity: 1.0 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

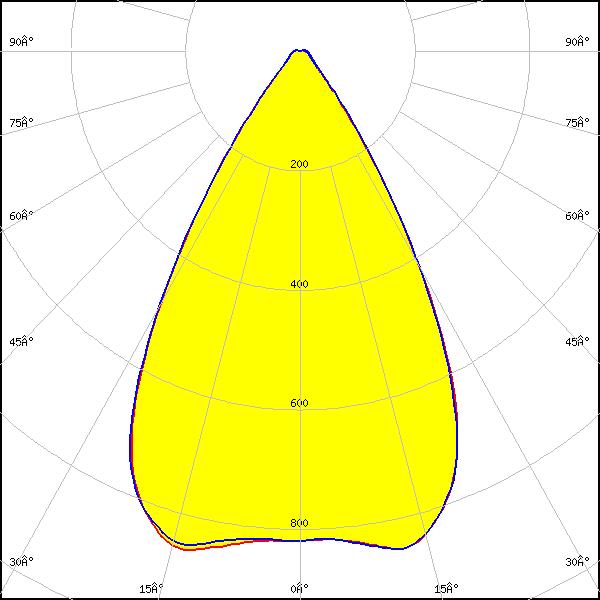

LED: Vero SE 13
Required components:
FWHM: 62°
FWTM: 85°
Peak intensity: 0.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

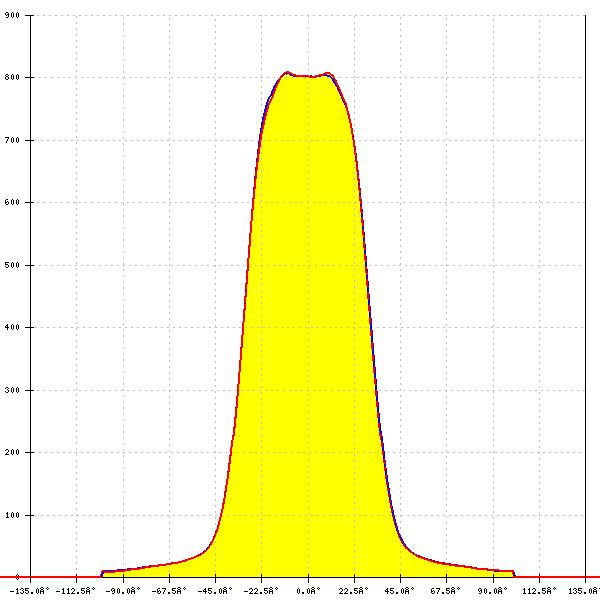

LED: Vero SE 18
Required components:
FWHM: 62°
FWTM: 87°
Peak intensity: 0.8 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

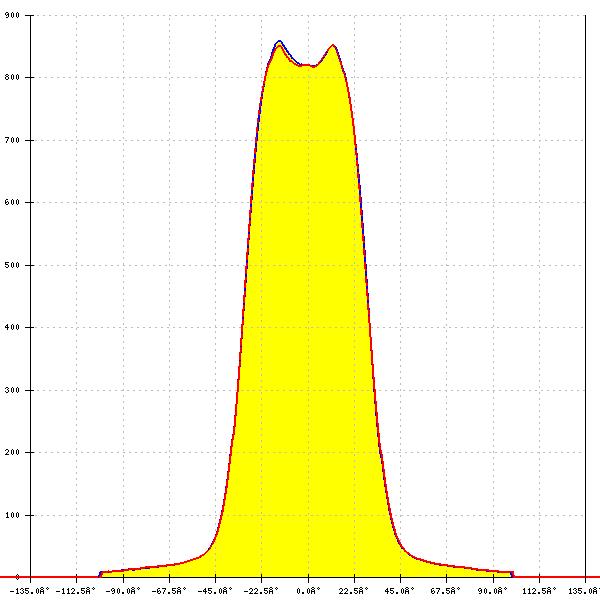

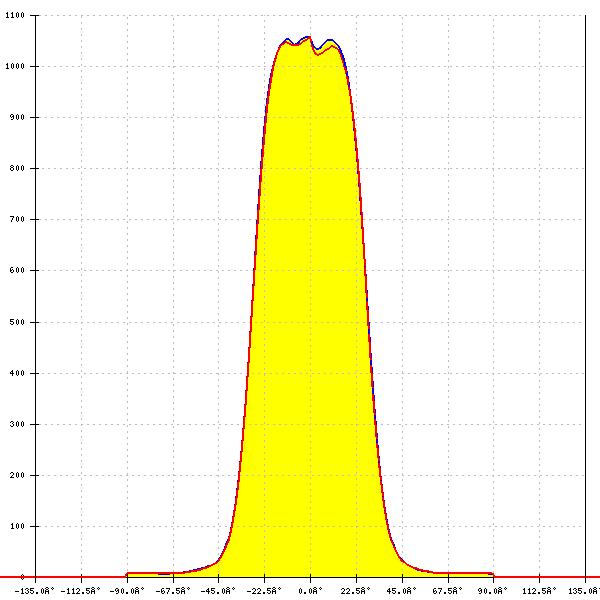

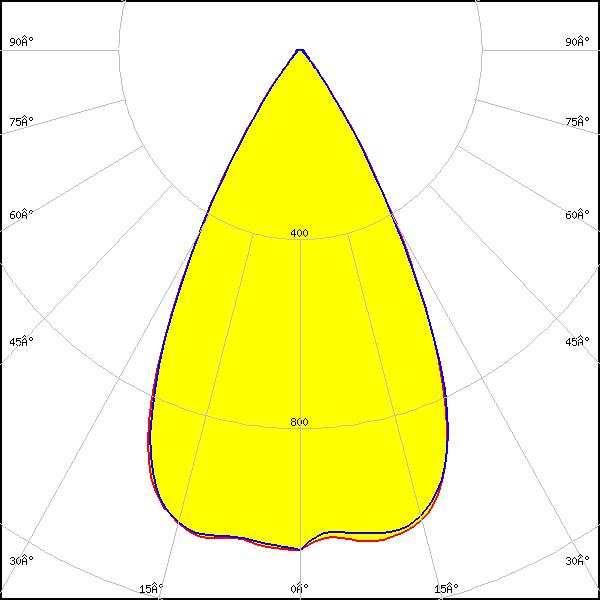

LED: VERO13
Required components:
FWHM: 55°
FWTM: 75°
Peak intensity: 1.1 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 15mm DP
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 482 Typ L2
FWHM: 61°
FWTM: 85°
Peak intensity: 0.8 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: Tunable White
LED: Vesta TW 18mm (31W) DP
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 483 Typ L3
FWHM: 60°
FWTM: 86°
Peak intensity: 0.8 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: Tunable White

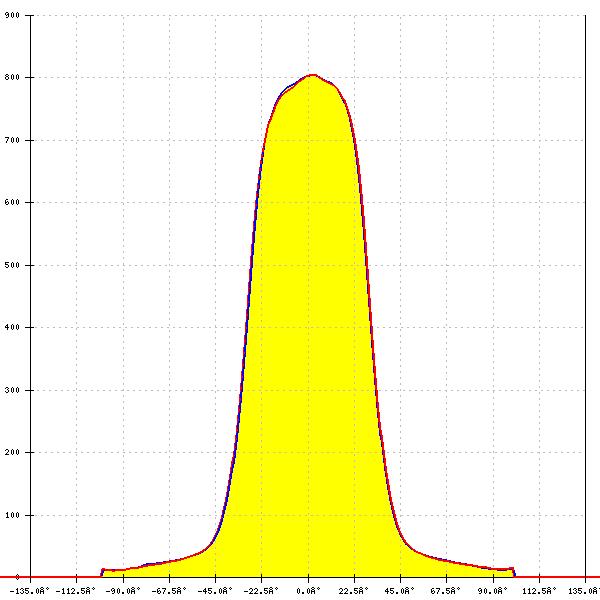

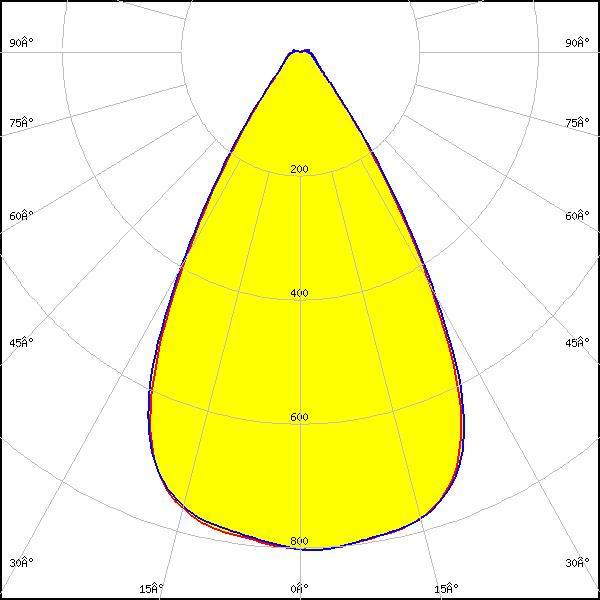

LED: Vesta TW 22mm DP
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
FWHM: 61°
FWTM: 87°
Peak intensity: 0.8 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: Tunable White
LED: CLL02x/CLU02x (LES10)
Required components:
Bender Wirth: 434 Typ L1
FWHM: 54°
FWTM: 73°
Peak intensity: 1.2 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: CLL03x/CLU03x
Required components:
Bender Wirth: 433 Typ L1
FWHM: 61°
FWTM: 86°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: CLL03x/CLU03x
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
FWHM: 58°
FWTM: 83°
Peak intensity: 0.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

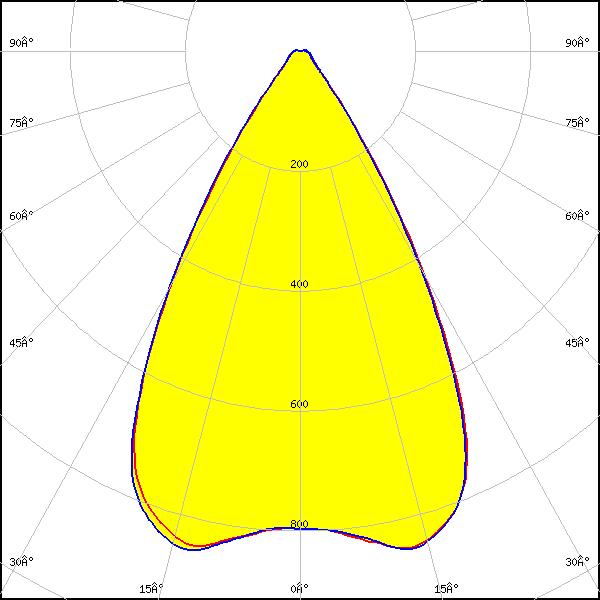

LED: LCN-C02B (Tunable White)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 481 Typ L2
FWHM: 62°
FWTM: 84°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

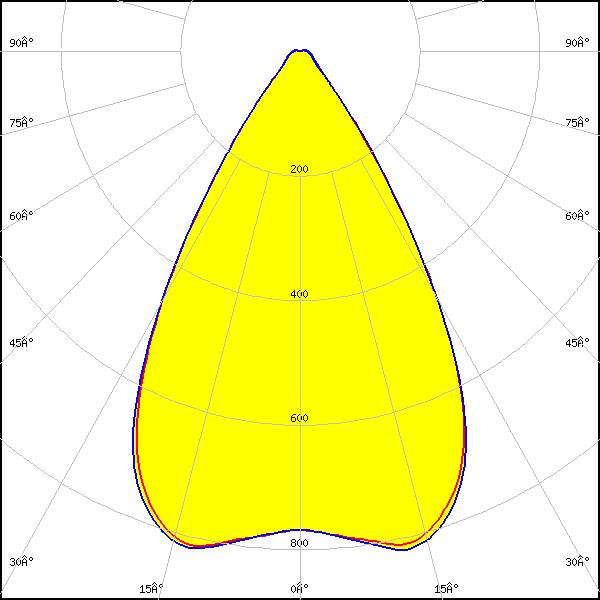

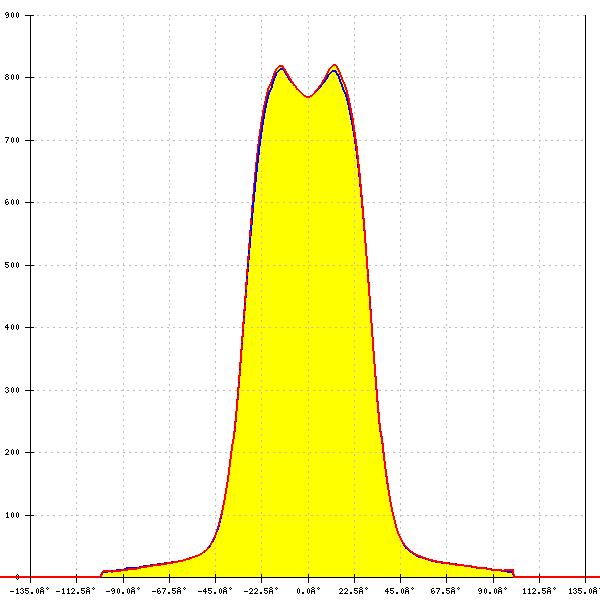

LED: CMA1840
Required components:
FWHM: 64°
FWTM: 87°
Peak intensity: 0.8 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

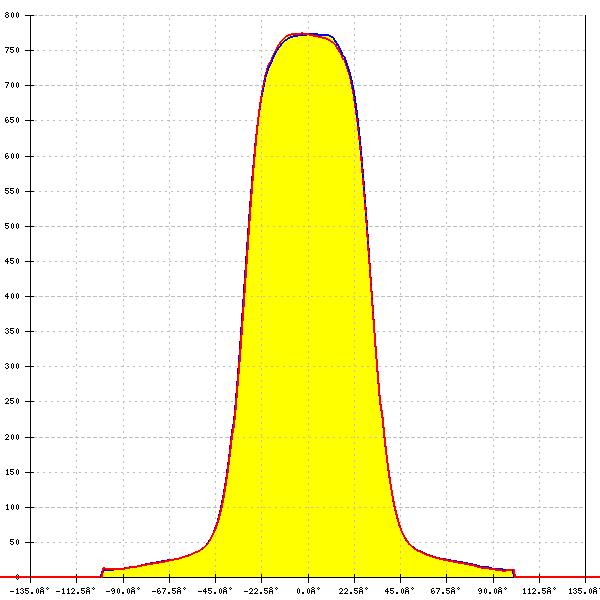

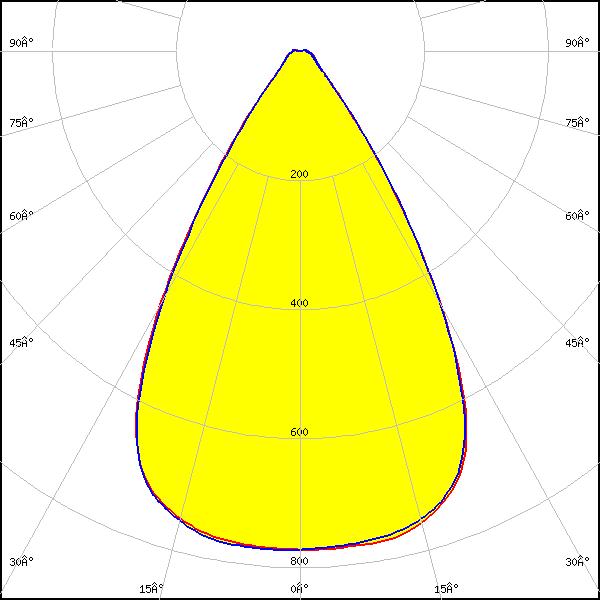

LED: CMA2550
Required components:
FWHM: 63°
FWTM: 88°
Peak intensity: 0.8 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

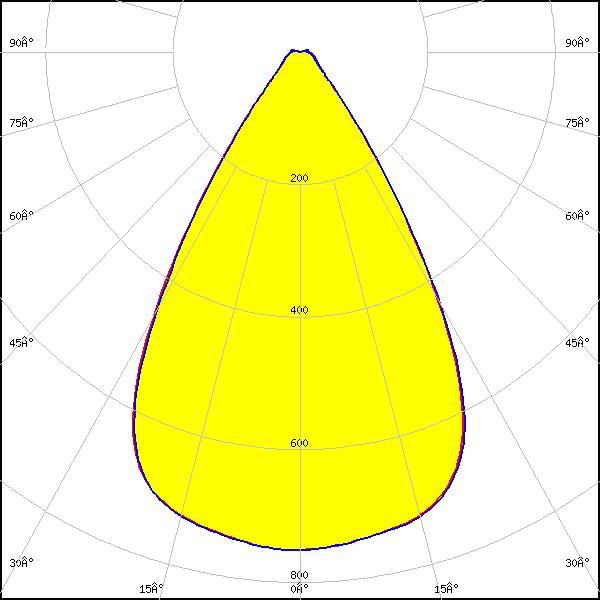

LED: CMA3090
Required components:
FWHM: 64°
FWTM: 89°
Peak intensity: 0.8 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

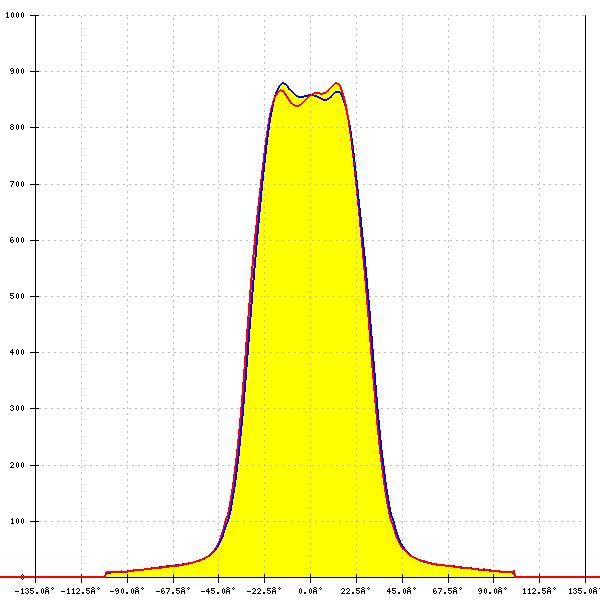

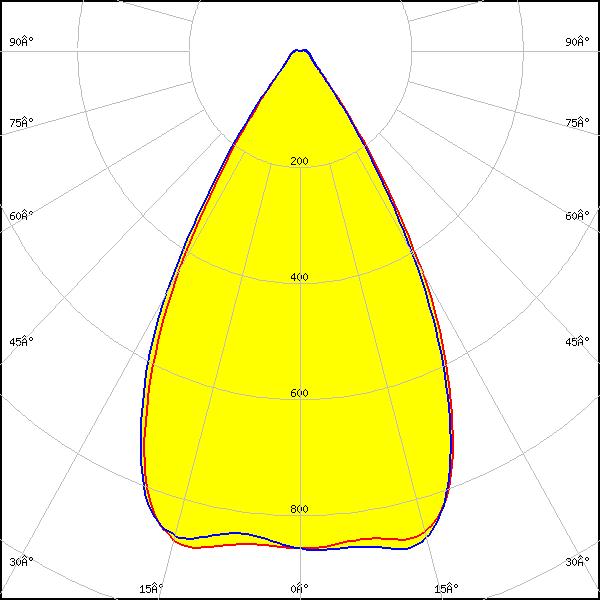

LED: CMT14xx
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 60°
FWTM: 83°
Peak intensity: 0.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

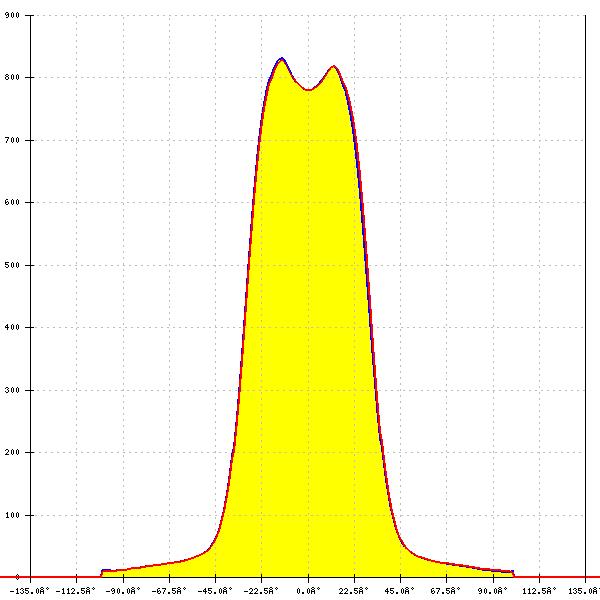

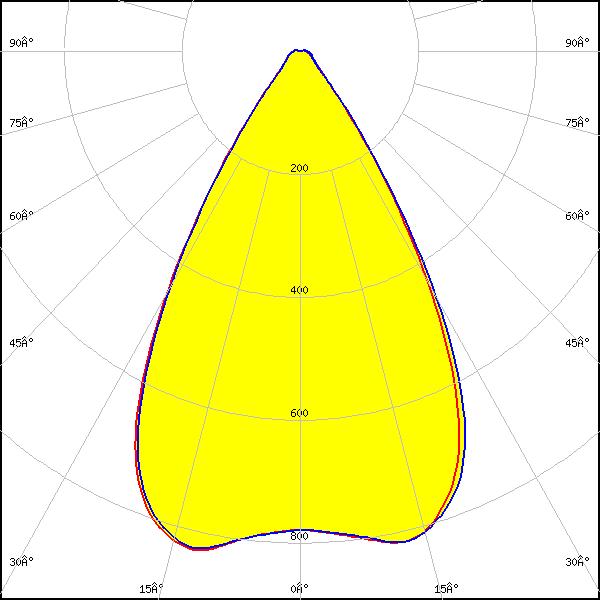

LED: CMT19xx
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: 61°
FWTM: 85°
Peak intensity: 0.8 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

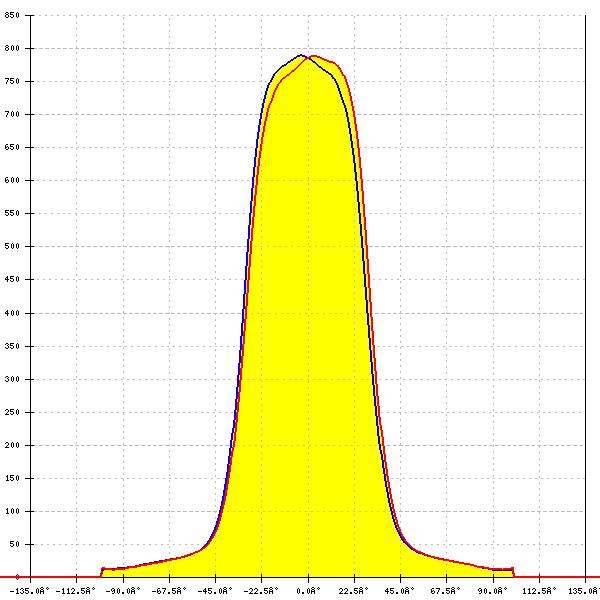

LED: CMT28xx
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 471 Typ L3
FWHM: 61°
FWTM: 87°
Peak intensity: 0.8 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

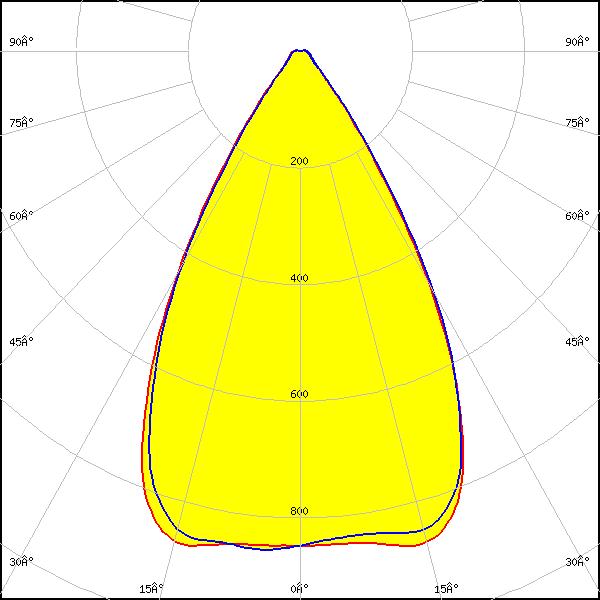

LED: CXA/B 15xx
Required components:
FWHM: 61°
FWTM: 84°
Peak intensity: 0.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

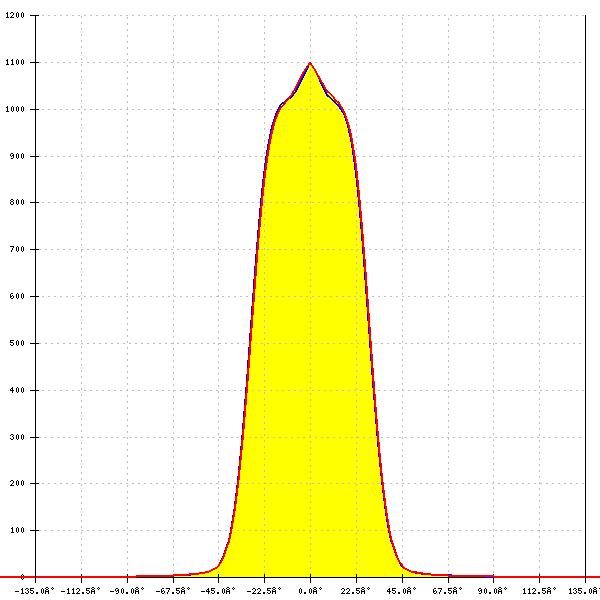

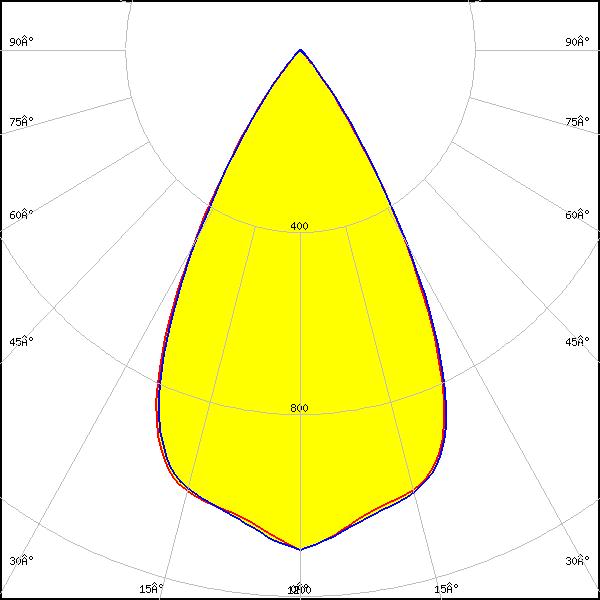

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 58°
FWTM: 78°
Peak intensity: 1.1 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

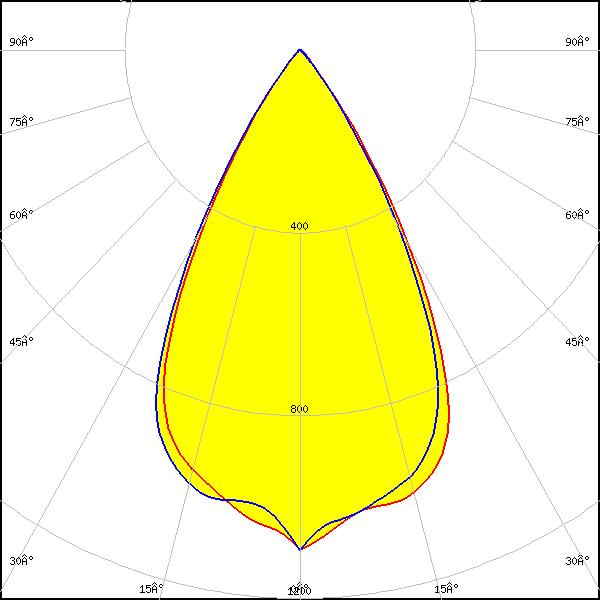

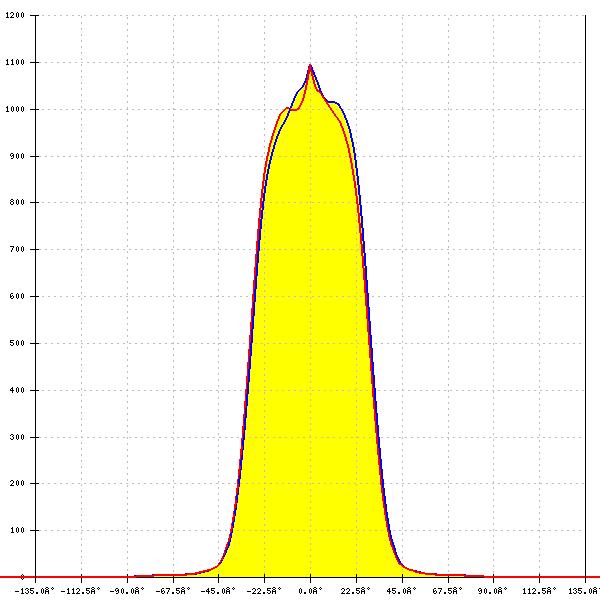

LED: CXA/B 25xx
Required components:
FWHM: 57°
FWTM: 77°
Peak intensity: 1.1 cd/lm
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1204HD
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 57°
FWTM: 80°
Peak intensity: 1.0 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

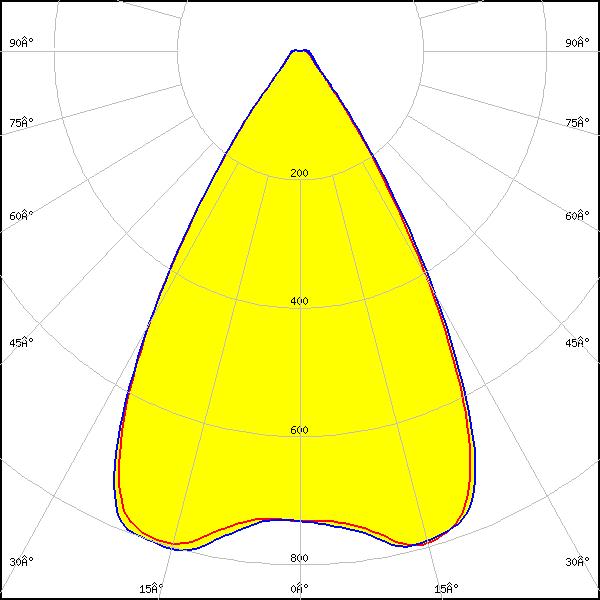

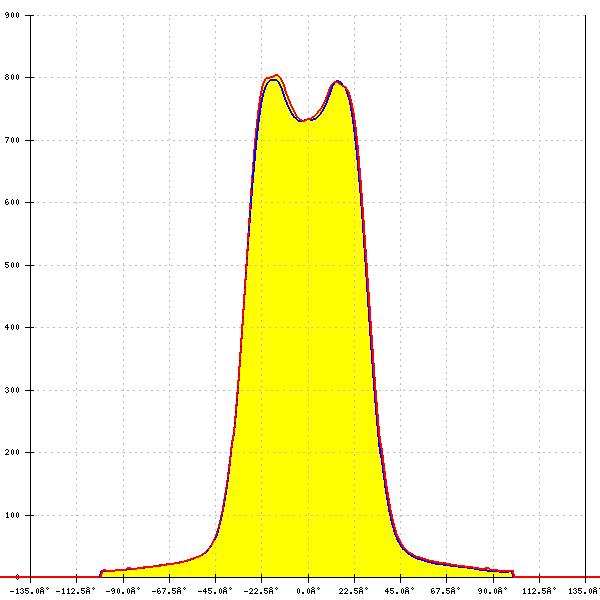

LED: CDM-14 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
FWHM: 64°
FWTM: 86°
Peak intensity: 0.8 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

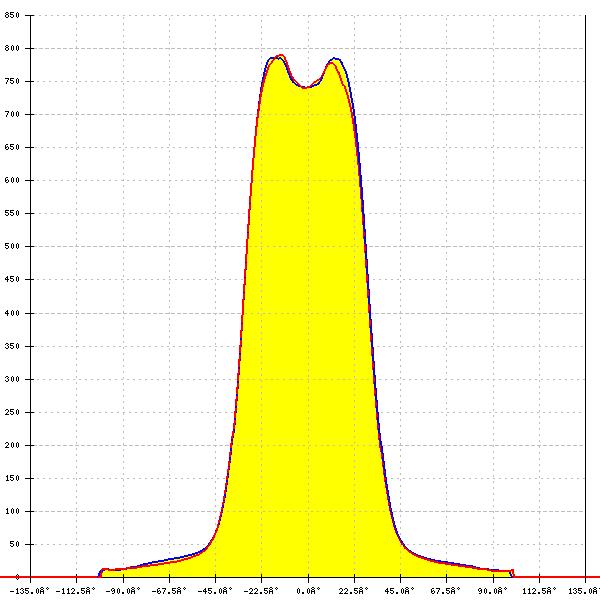

LED: CDM-18 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
FWHM: 63°
FWTM: 87°
Peak intensity: 0.8 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: CDM-9 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 490 Typ L1
FWHM: 61°
FWTM: 83°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

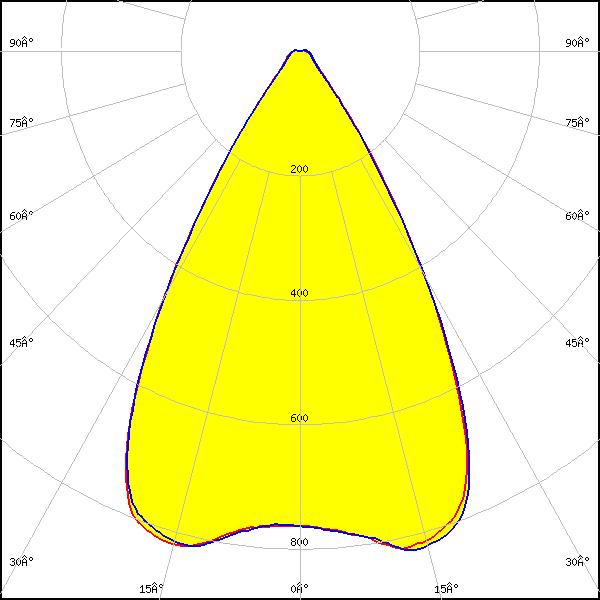

LED: CTM-14 (Tunable White)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 442 Typ L3
FWHM: 62°
FWTM: 85°
Peak intensity: 0.8 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: CTM-14 RGBW
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 500 Typ L3-1
FWHM: 61°
FWTM: 84°
Peak intensity: 0.8 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: RGBW

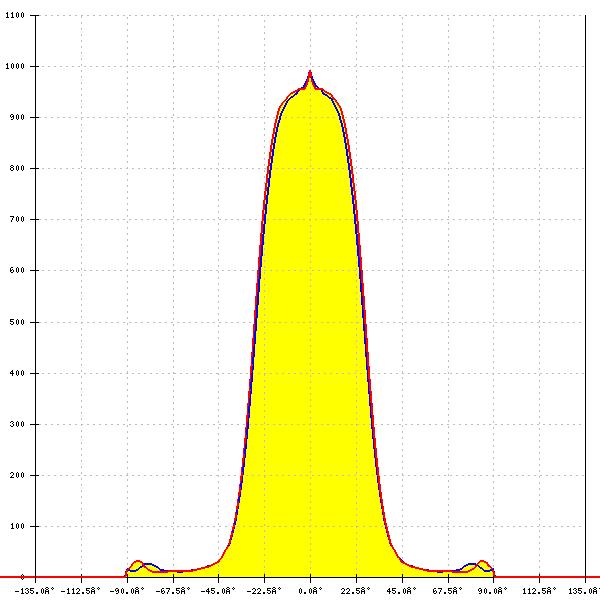

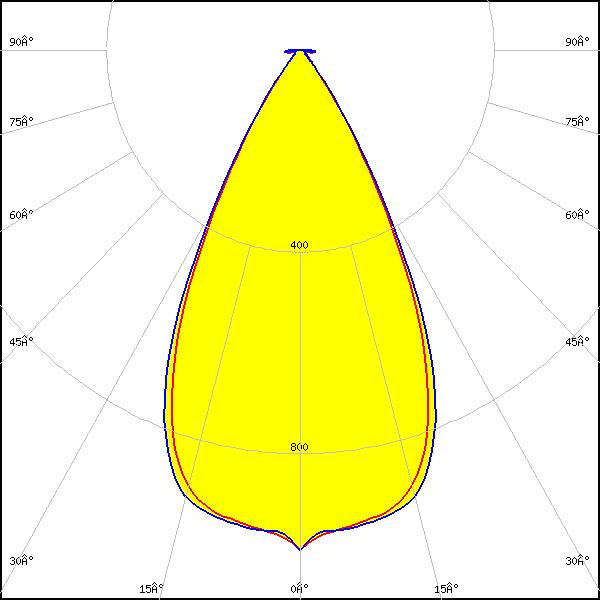

LED: CTM-18 (Tunable White)
Required components:
FWHM: 54°
FWTM: 75°
Peak intensity: 1.0 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

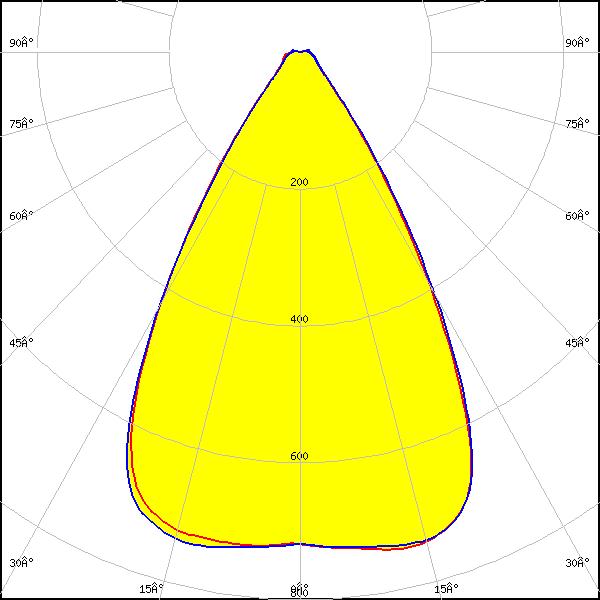

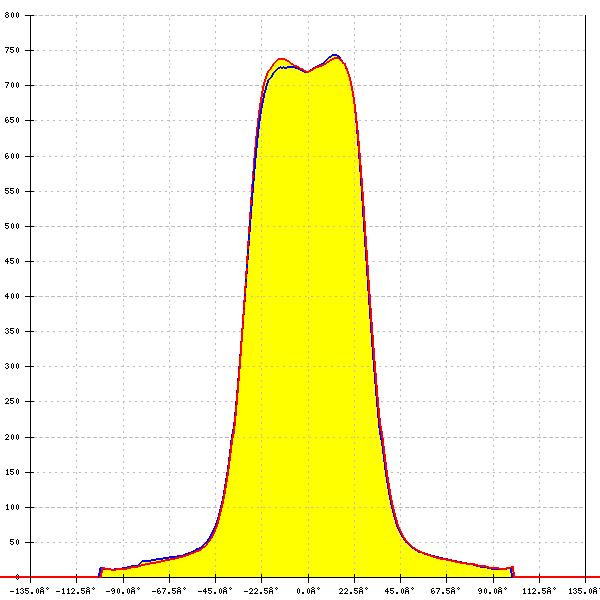

LED: CTM-22 (Tunable White)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
FWHM: 62°
FWTM: 88°
Peak intensity: 0.7 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 498 Typ L2
FWHM: 60°
FWTM: 82°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: PrevaLED Core G7 L15 H1
Required components:
FWHM: 57°
FWTM: 82°
Peak intensity: 1.0 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

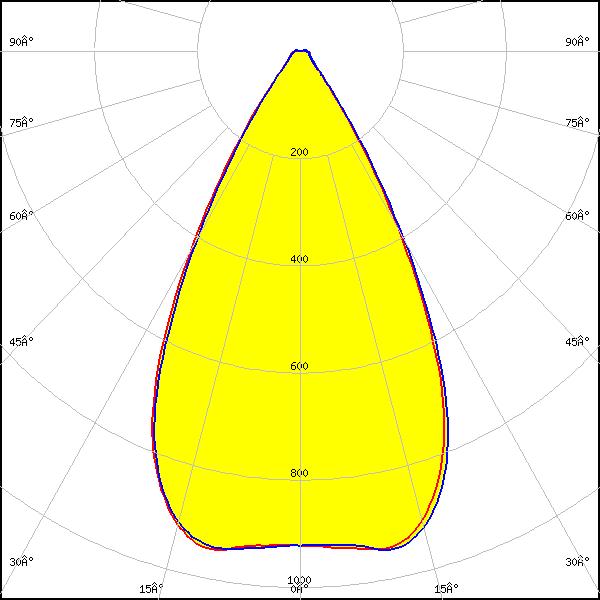

LED: Fortimo SLM L13 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 60°
FWTM: 83°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L15 + SLM holder
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 57°
FWTM: 81°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

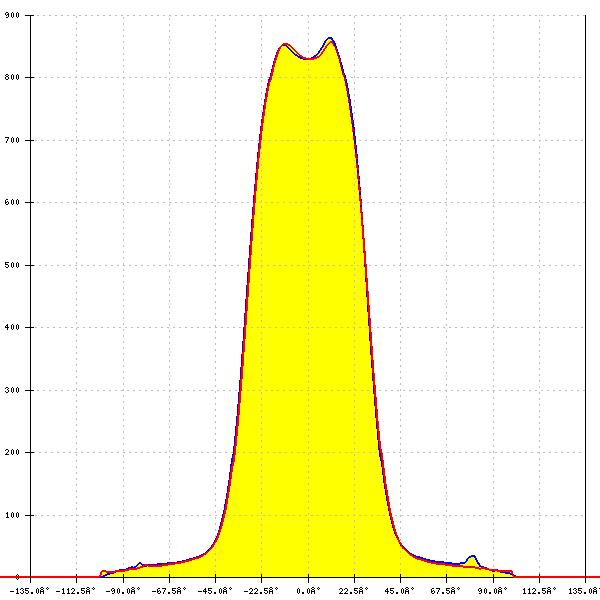

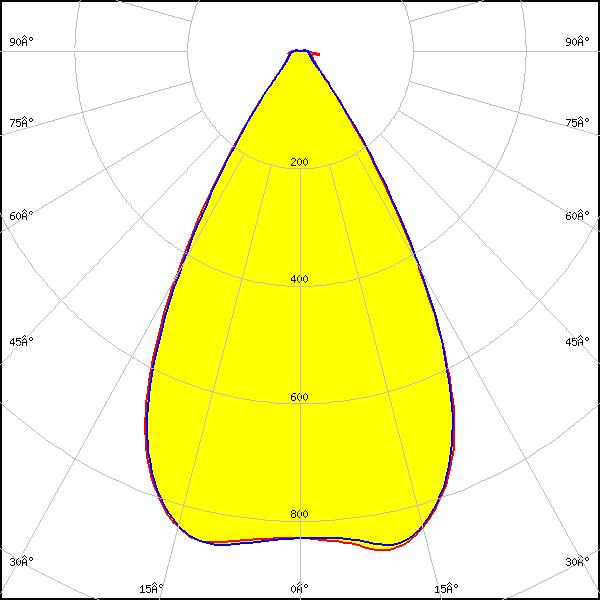

LED: Fortimo SLM L15 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 60°
FWTM: 83°
Peak intensity: 0.9 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

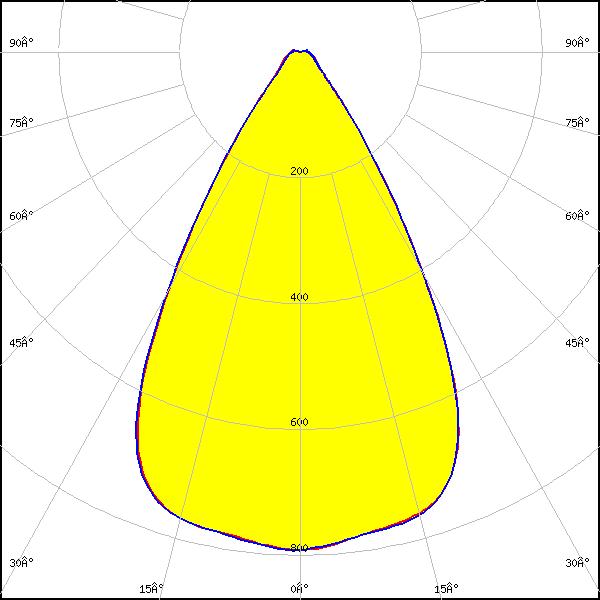

LED: LC035T (Tunable white)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 502 Typ L3
FWHM: 62°
FWTM: 88°
Peak intensity: 0.8 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: Tunable White

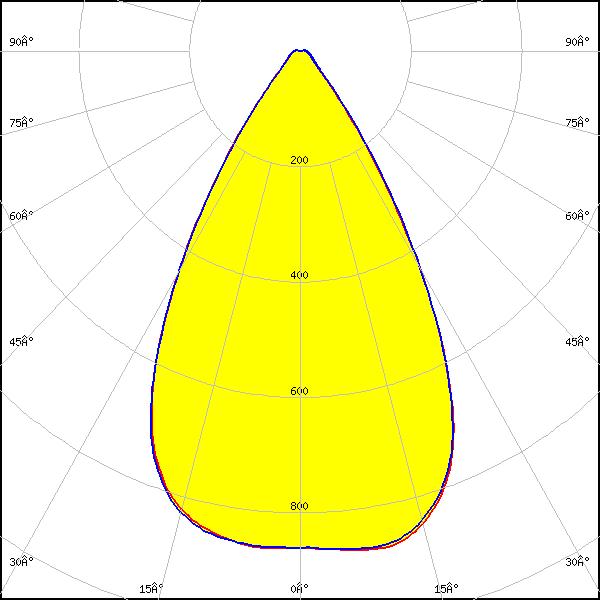

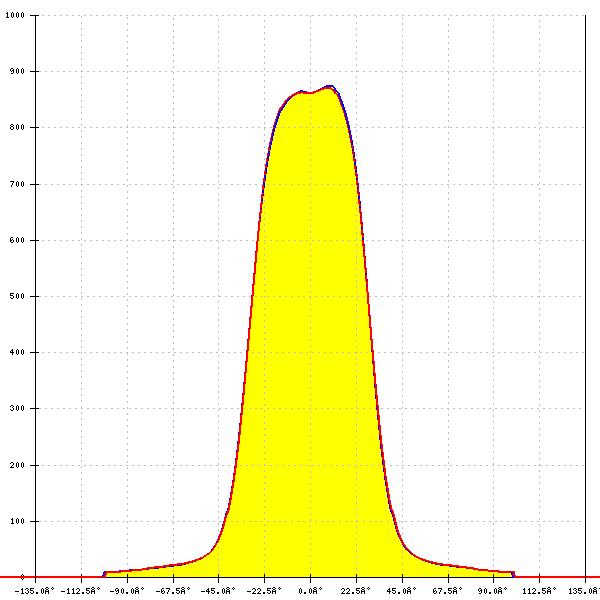

LED: XTM - 19mm LES
Required components:
FWHM: 60°
FWTM: 85°
Peak intensity: 0.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
